Recent Work Review A Graph-Based Tag Assignment Approach for Github Repository Cai Xuyang 2015.10.08

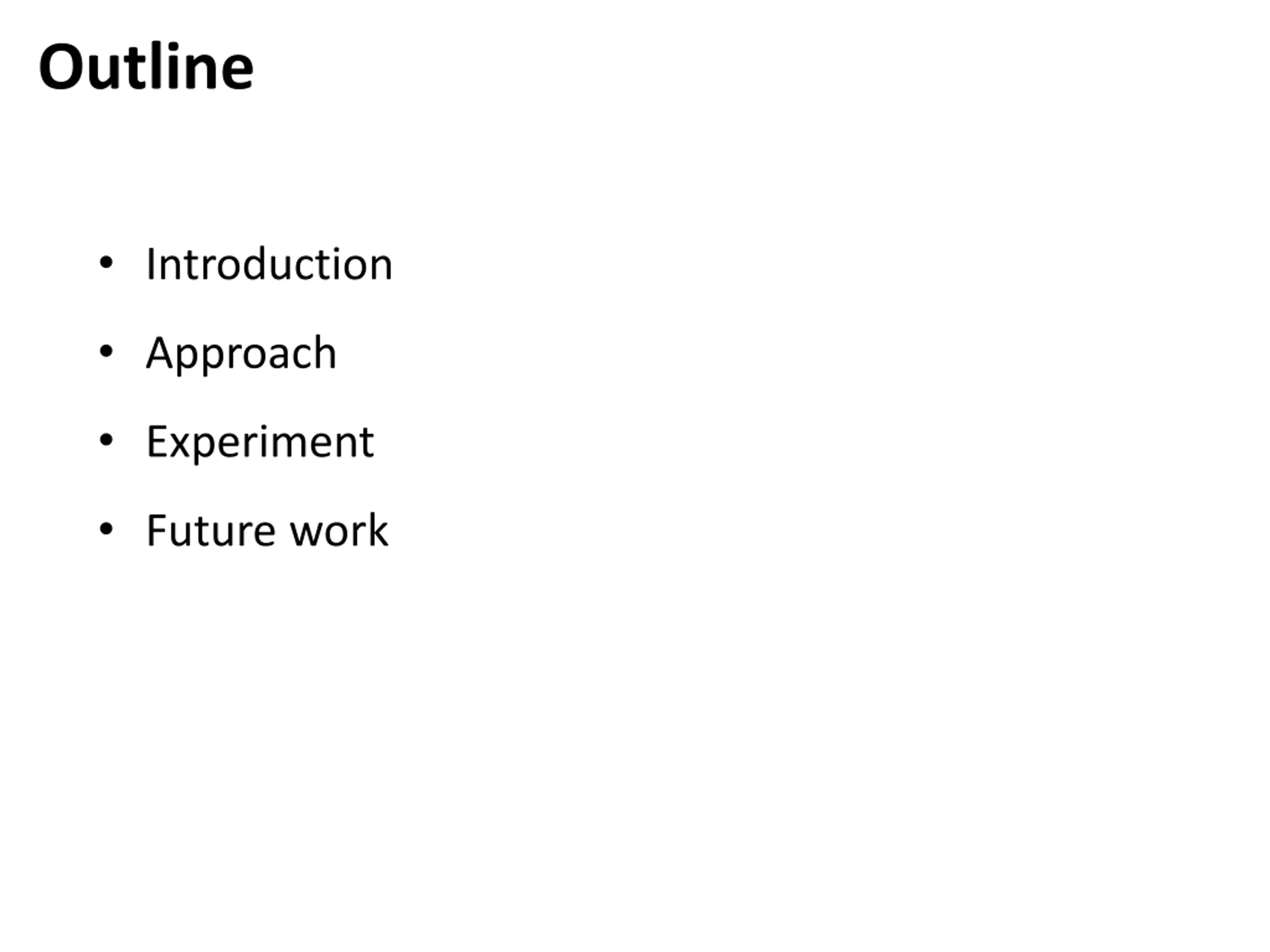

Outline Introduction Approach Experiment Future work

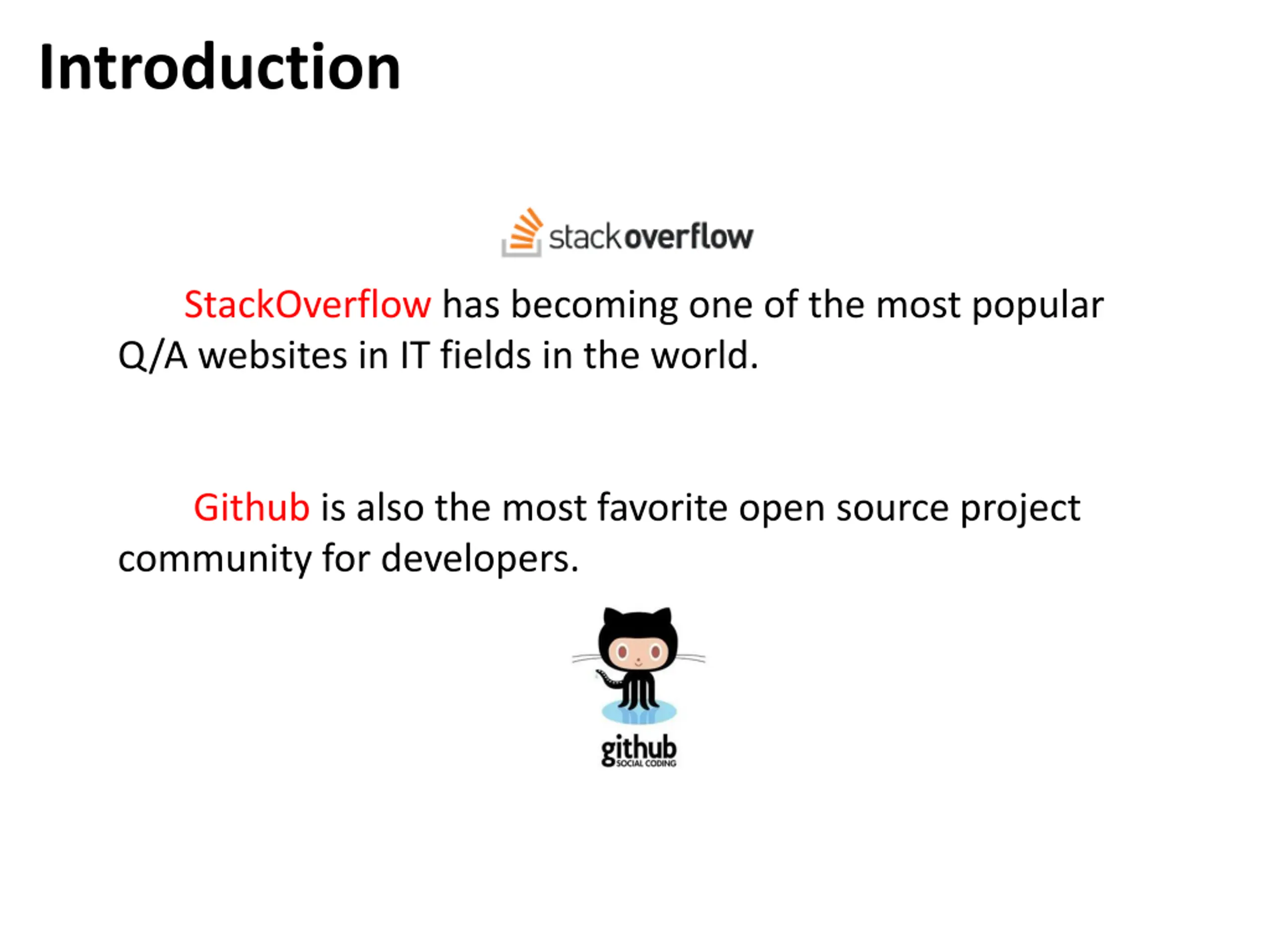

Introduction StackOverflow has becoming one of the most popular Q/A websites in IT fields in the world. Github is also the most favorite open source project community for developers.

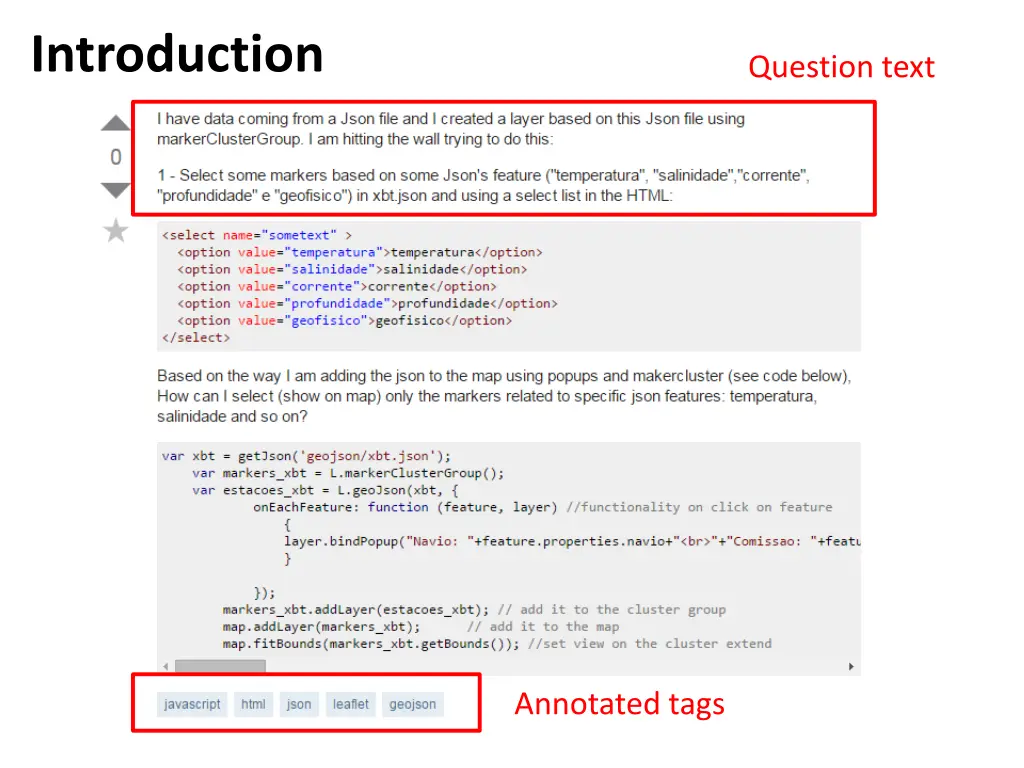

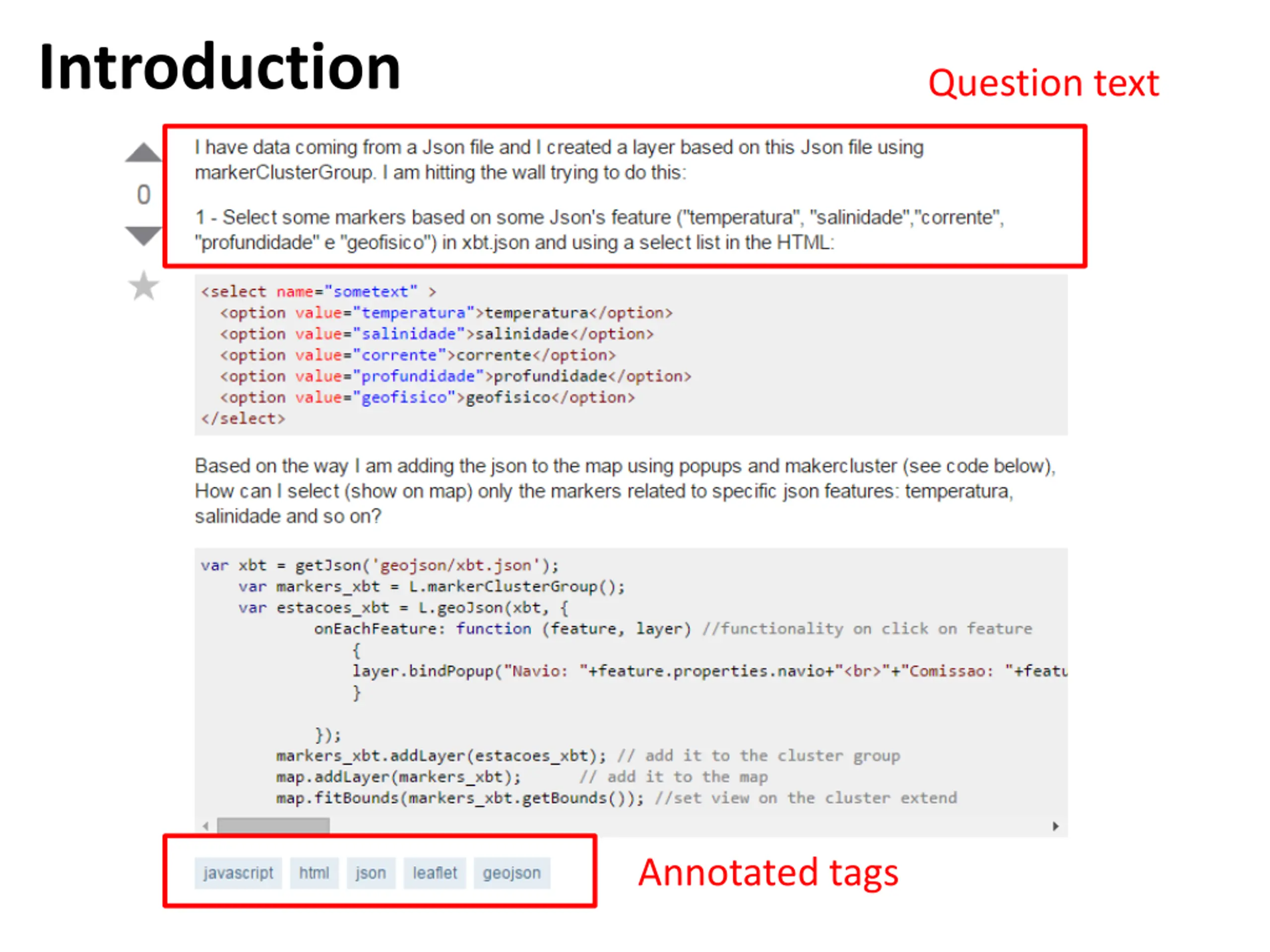

Introduction Question text Annotated tags

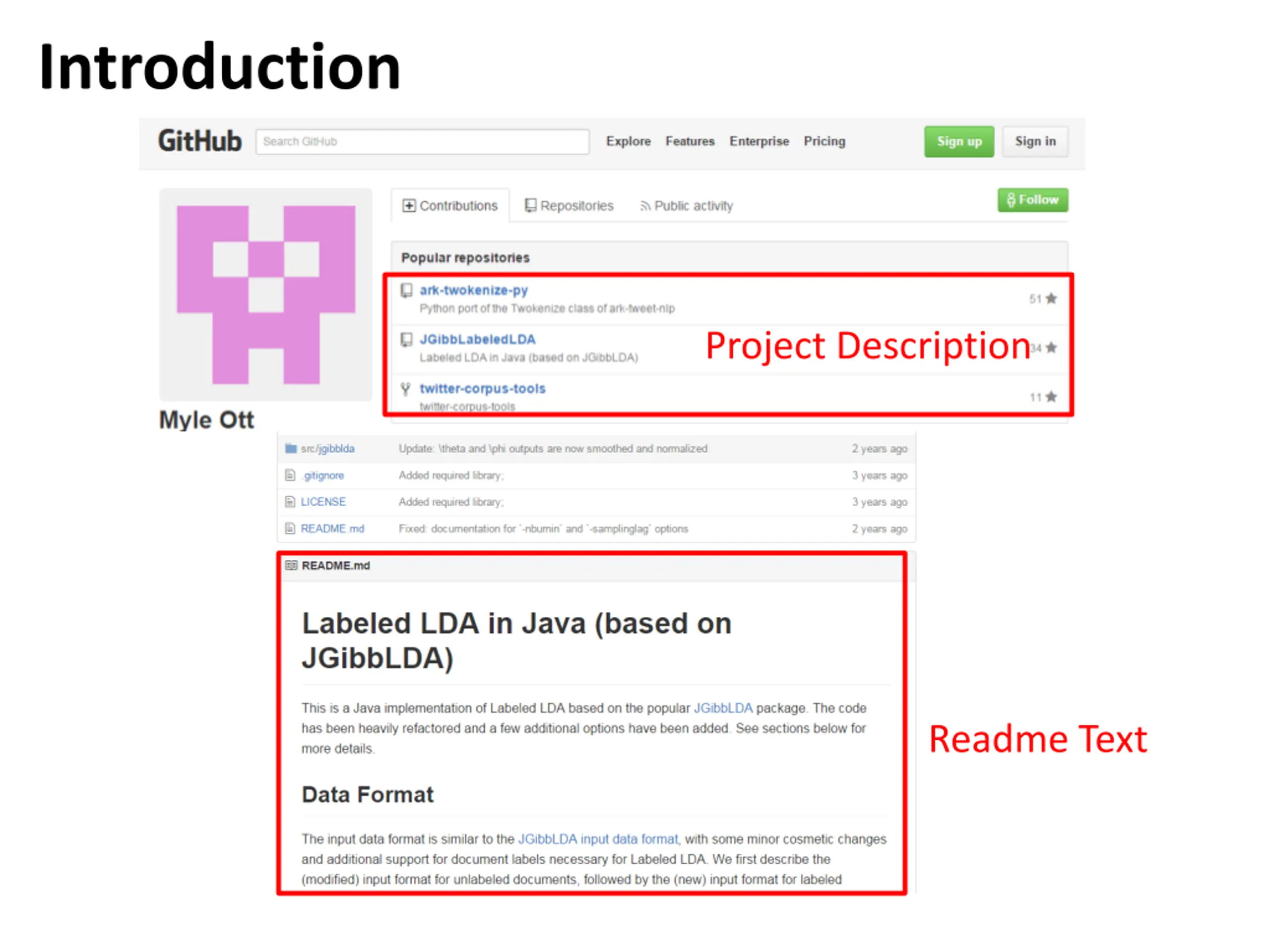

Introduction Project Description Readme Text

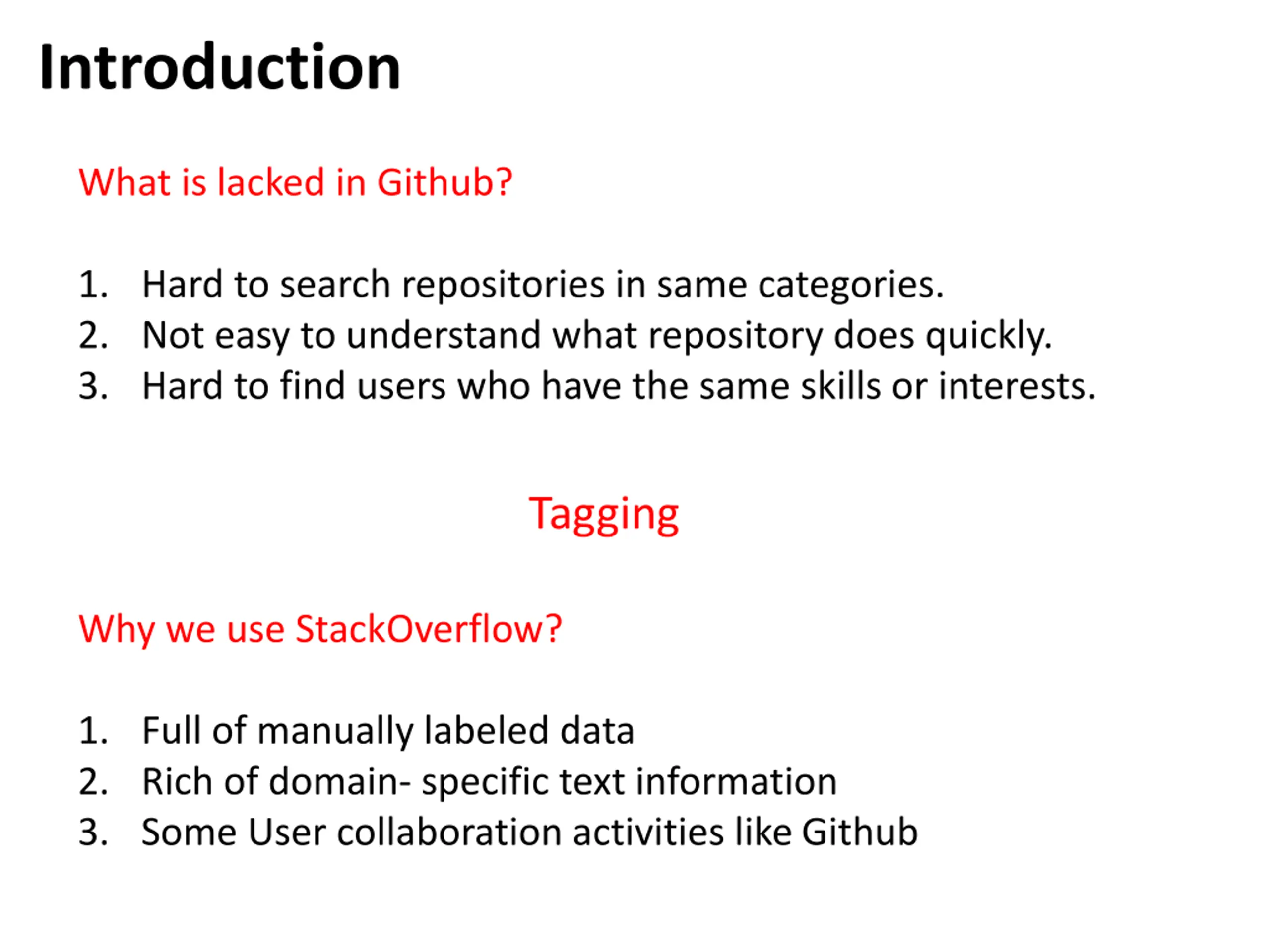

Introduction What is lacked in Github? 1. Hard to search repositories in same categories. 2. Not easy to understand what repository does quickly. 3. Hard to find users who have the same skills or interests. Tagging Why we use StackOverflow? 1. Full of manually labeled data 2. Rich of domain- specific text information 3. Some User collaboration activities like Github

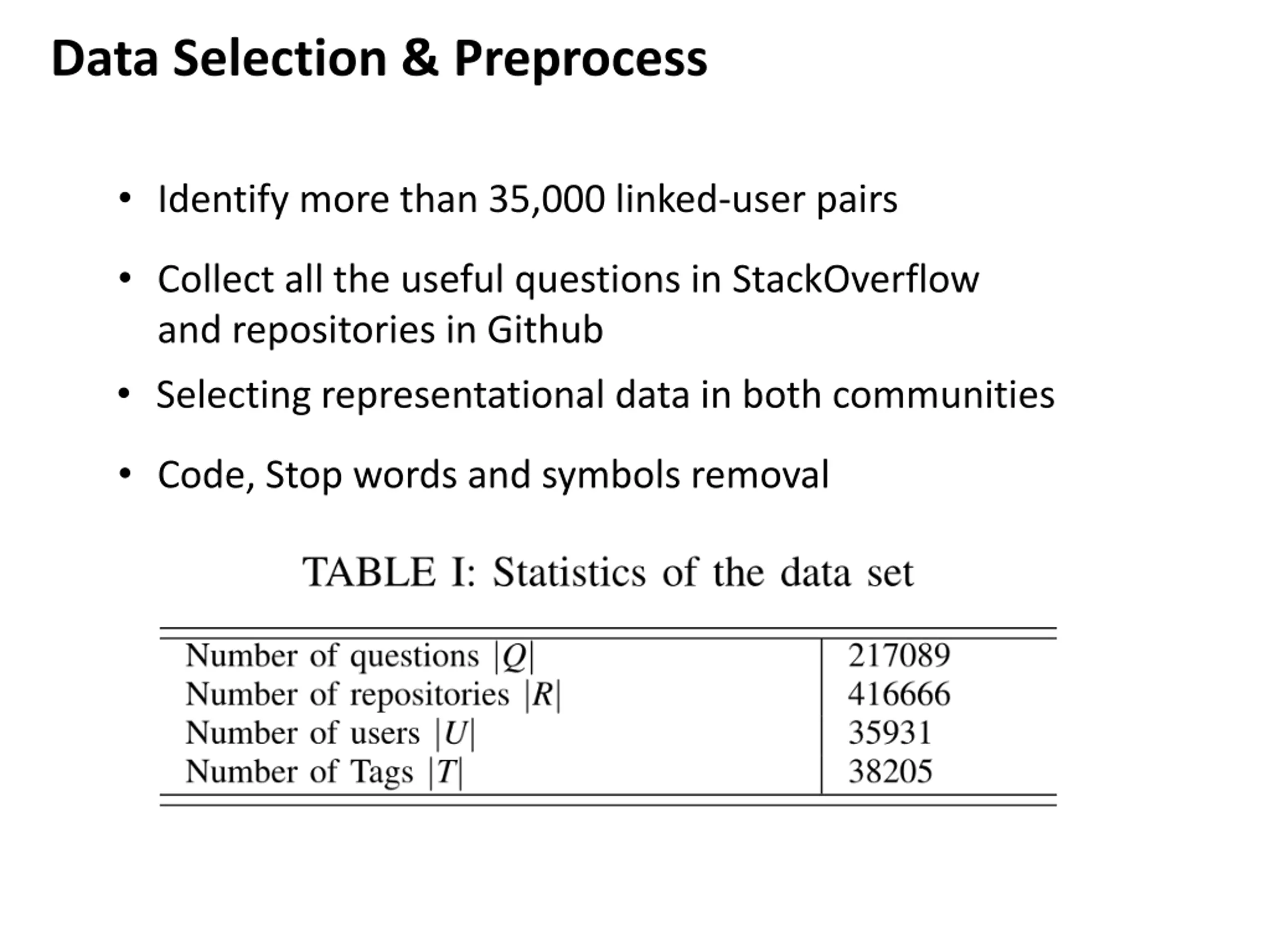

Data Selection & Preprocess Identify more than 35,000 linked-user pairs Collect all the useful questions in StackOverflow and repositories in Github Selecting representational data in both communities Code, Stop words and symbols removal

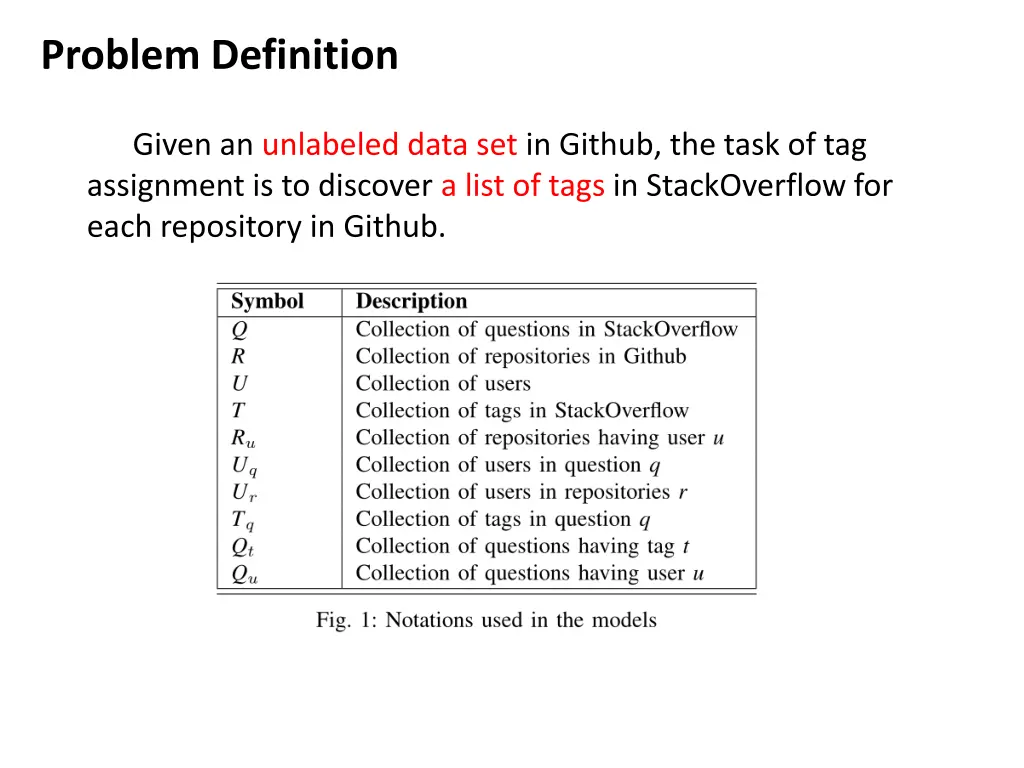

Problem Definition Given an unlabeled data set in Github, the task of tag assignment is to discover a list of tags in StackOverflow for each repository in Github.

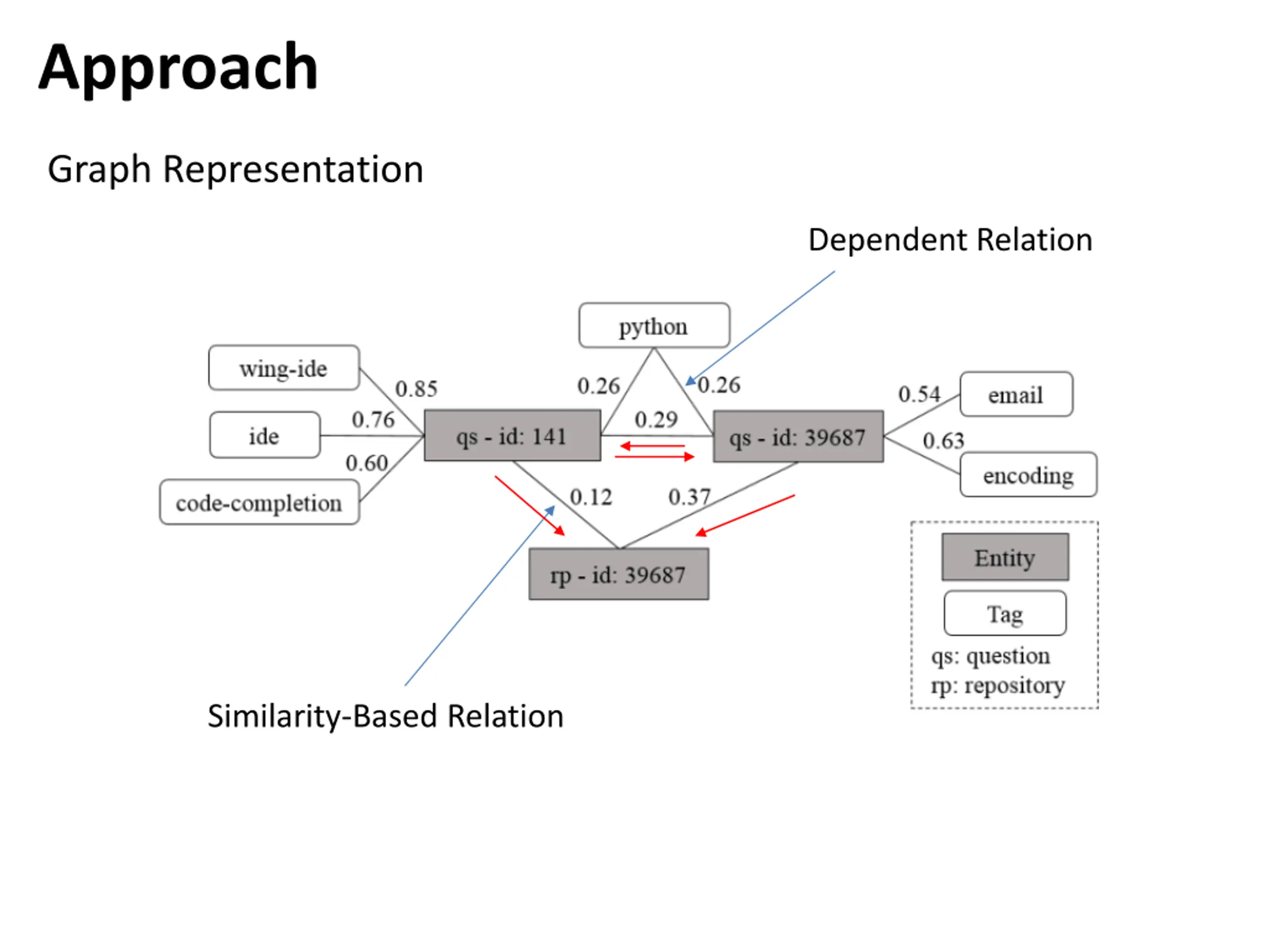

Approach Graph Representation Dependent Relation Similarity-Based Relation

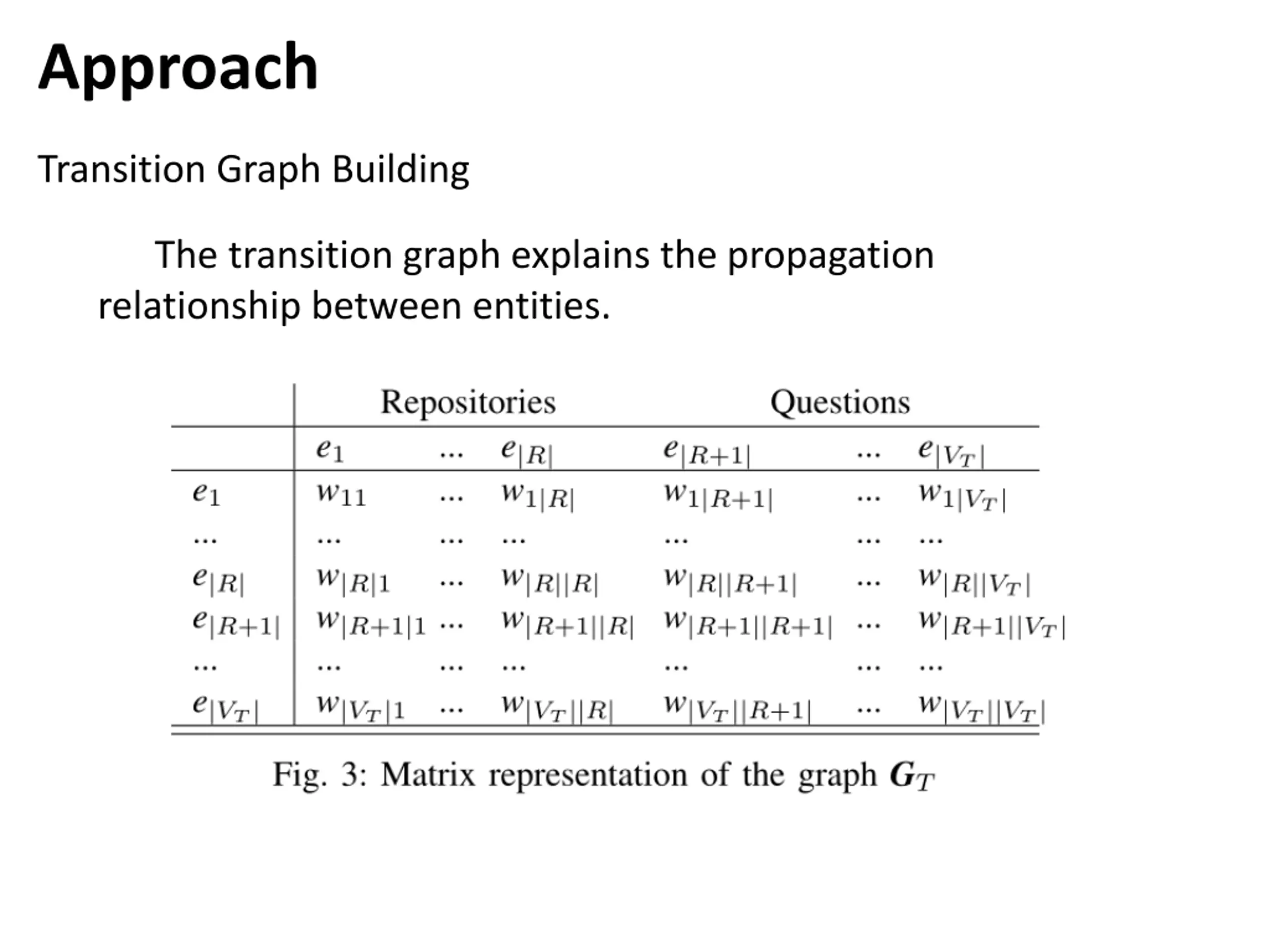

Approach Transition Graph Building The transition graph explains the propagation relationship between entities.

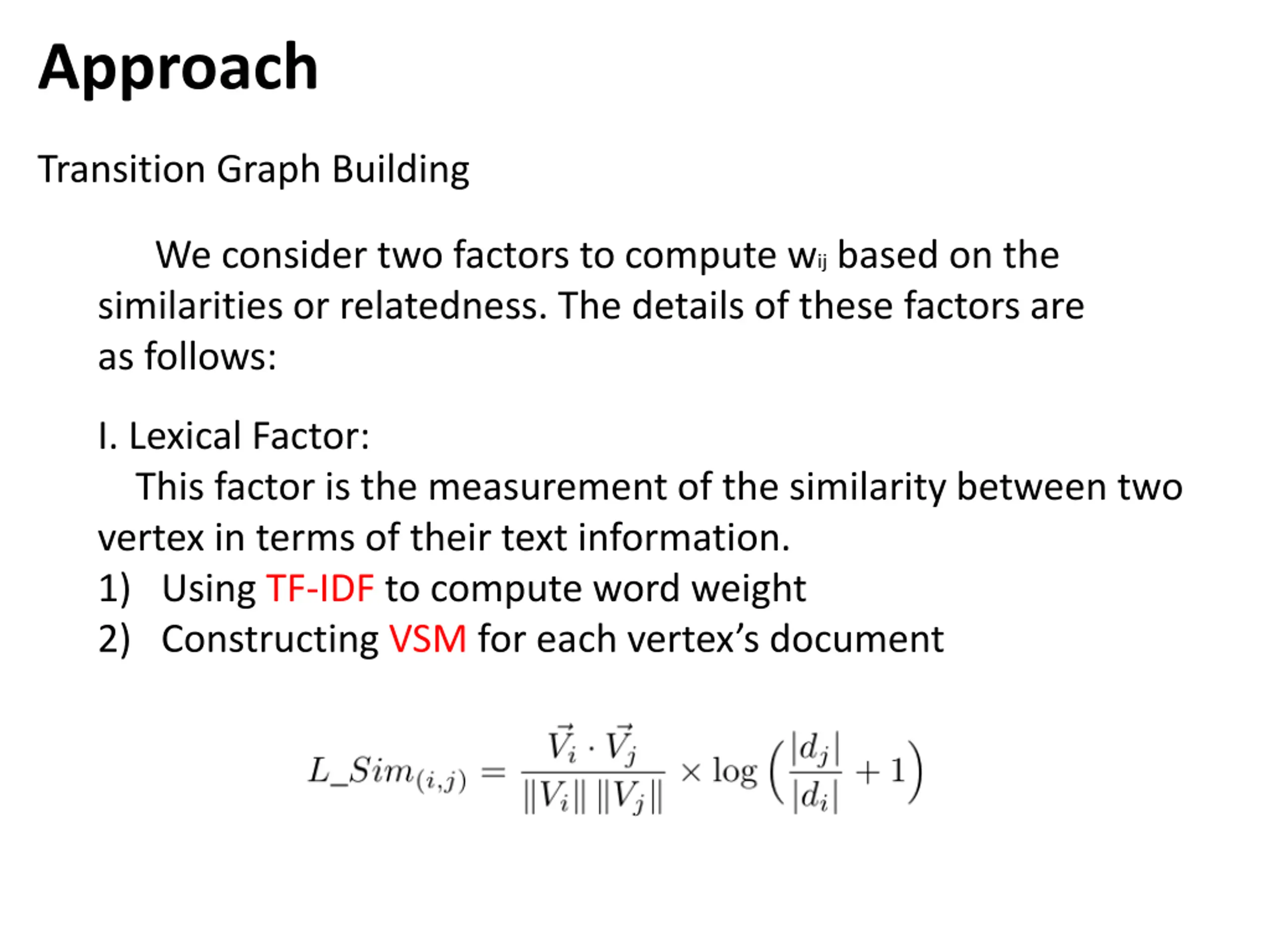

Approach Transition Graph Building We consider two factors to compute wij based on the similarities or relatedness. The details of these factors are as follows: I. Lexical Factor: This factor is the measurement of the similarity between two vertex in terms of their text information. 1) Using TF-IDF to compute word weight 2) Constructing VSM for each vertex s document

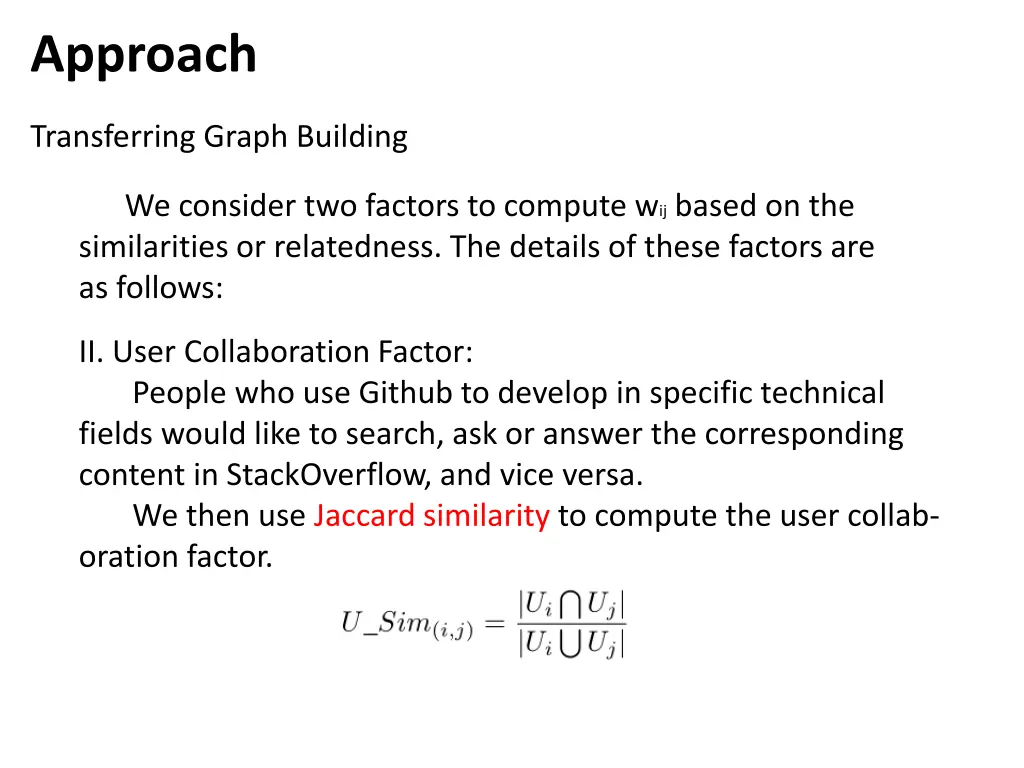

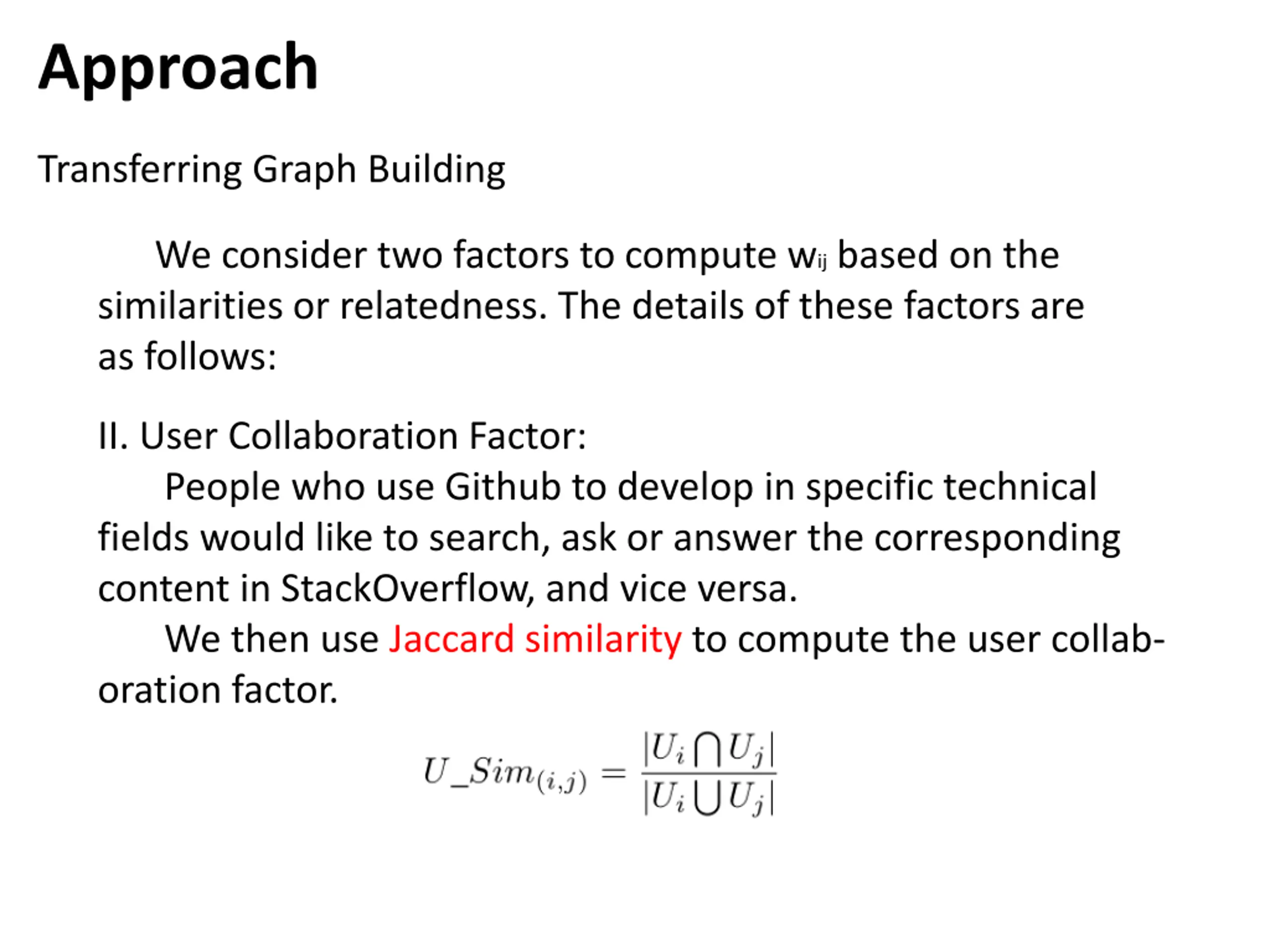

Approach Transferring Graph Building We consider two factors to compute wij based on the similarities or relatedness. The details of these factors are as follows: II. User Collaboration Factor: People who use Github to develop in specific technical fields would like to search, ask or answer the corresponding content in StackOverflow, and vice versa. We then use Jaccard similarity to compute the user collab- oration factor.

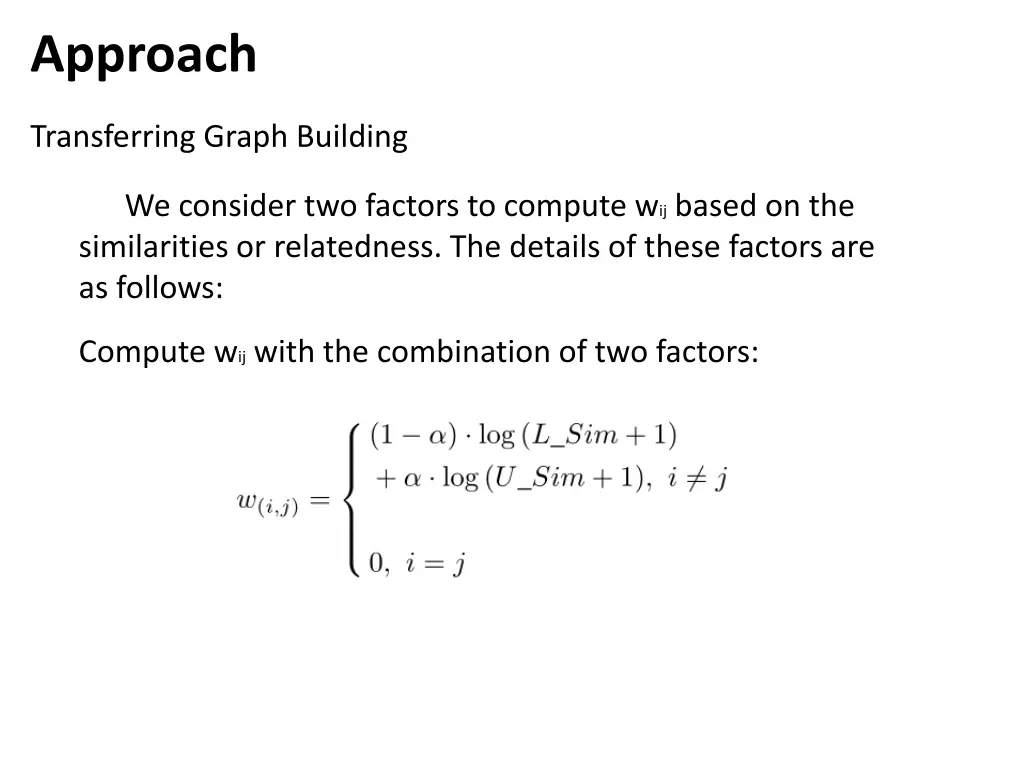

Approach Transferring Graph Building We consider two factors to compute wij based on the similarities or relatedness. The details of these factors are as follows: Compute wij with the combination of two factors:

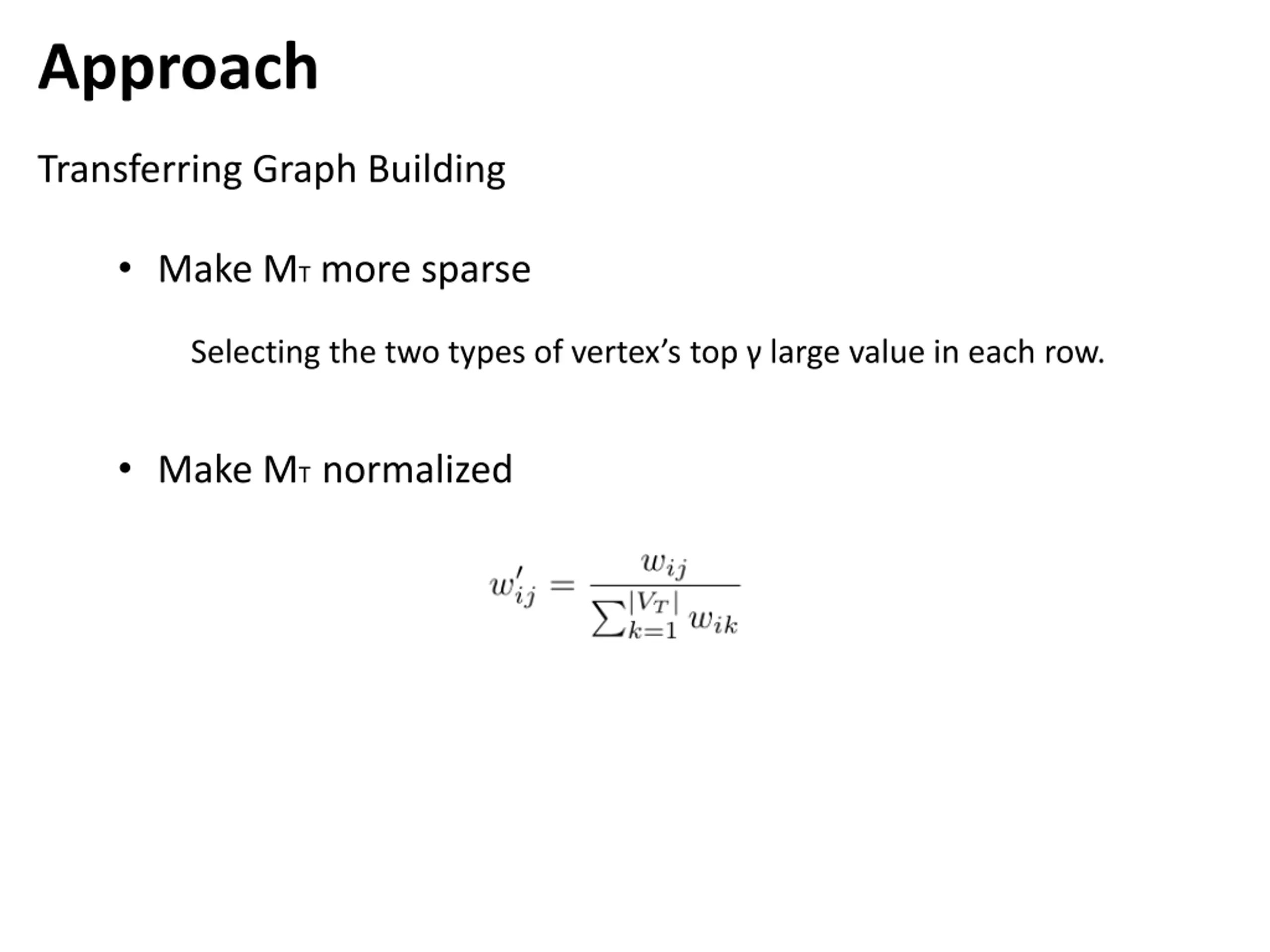

Approach Transferring Graph Building Make MT more sparse Selecting the two types of vertex s top large value in each row. Make MT normalized

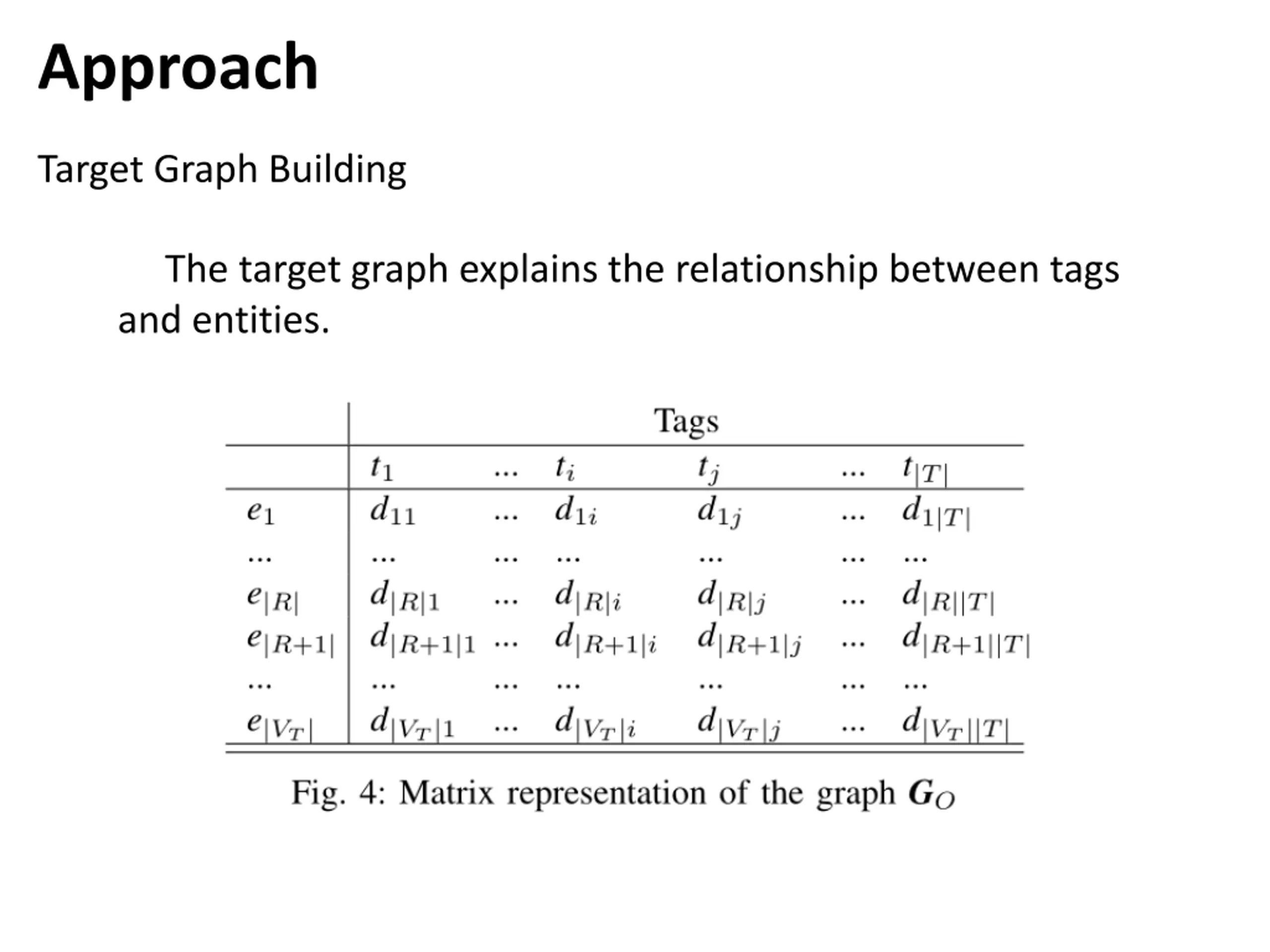

Approach Target Graph Building The target graph explains the relationship between tags and entities.

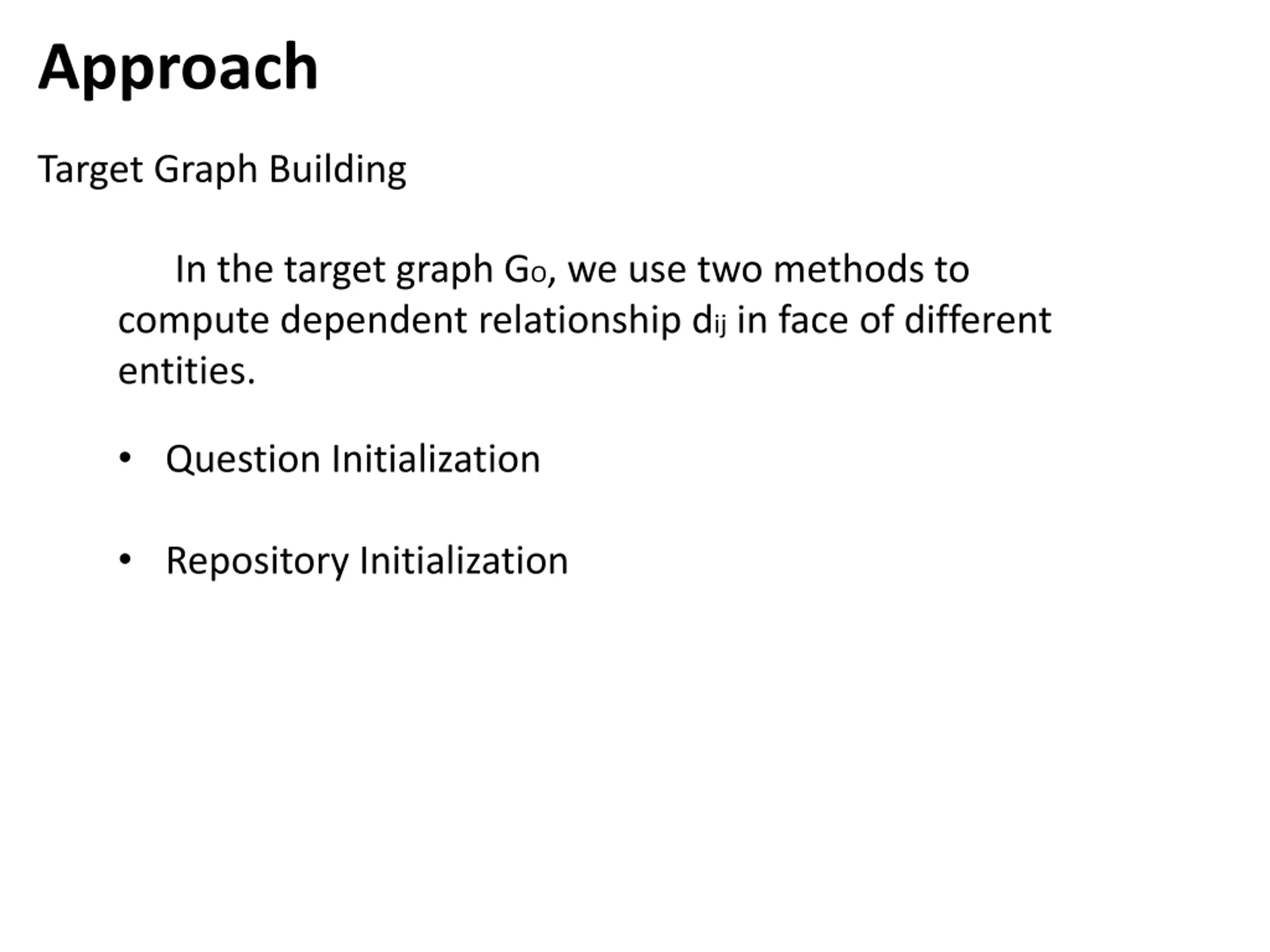

Approach Target Graph Building In the target graph GO, we use two methods to compute dependent relationship dij in face of different entities. Question Initialization Repository Initialization

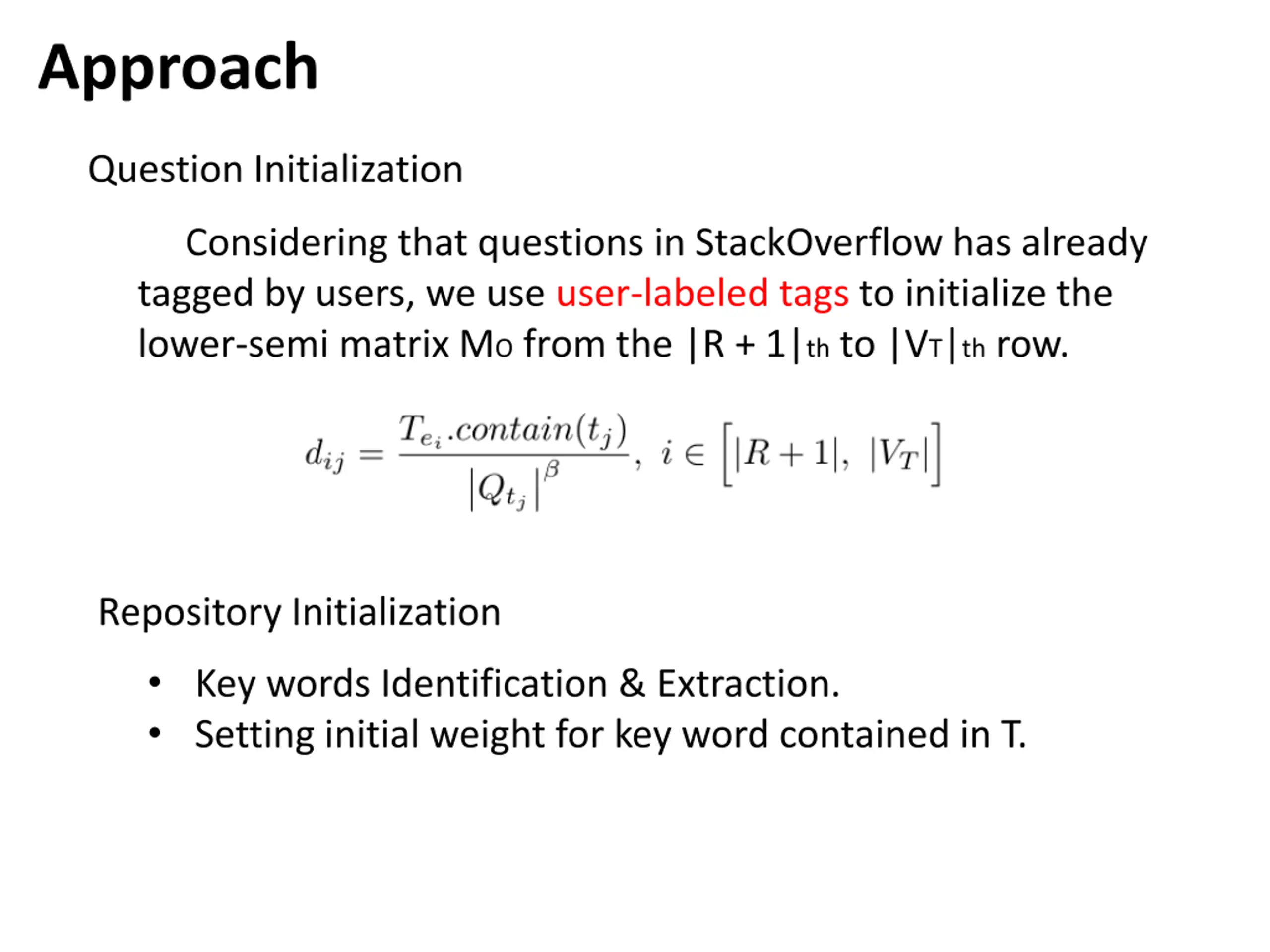

Approach Question Initialization Considering that questions in StackOverflow has already tagged by users, we use user-labeled tags to initialize the lower-semi matrix MO from the |R + 1|th to |VT|th row. Repository Initialization Key words Identification & Extraction. Setting initial weight for key word contained in T.

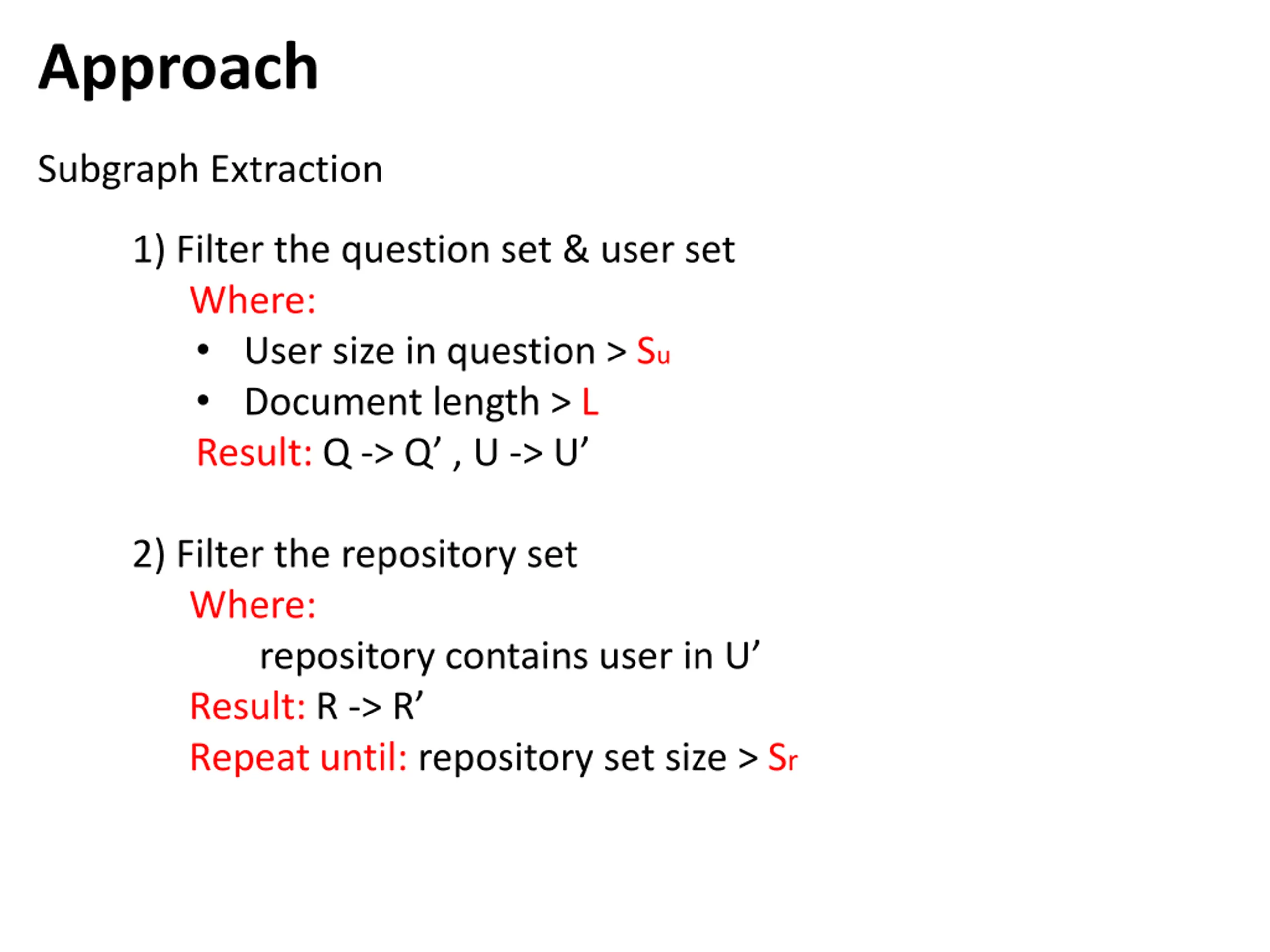

Approach Subgraph Extraction 1) Filter the question set & user set Where: User size in question > Su Document length > L Result: Q -> Q , U -> U 2) Filter the repository set Where: repository contains user in U Result: R -> R Repeat until: repository set size > Sr

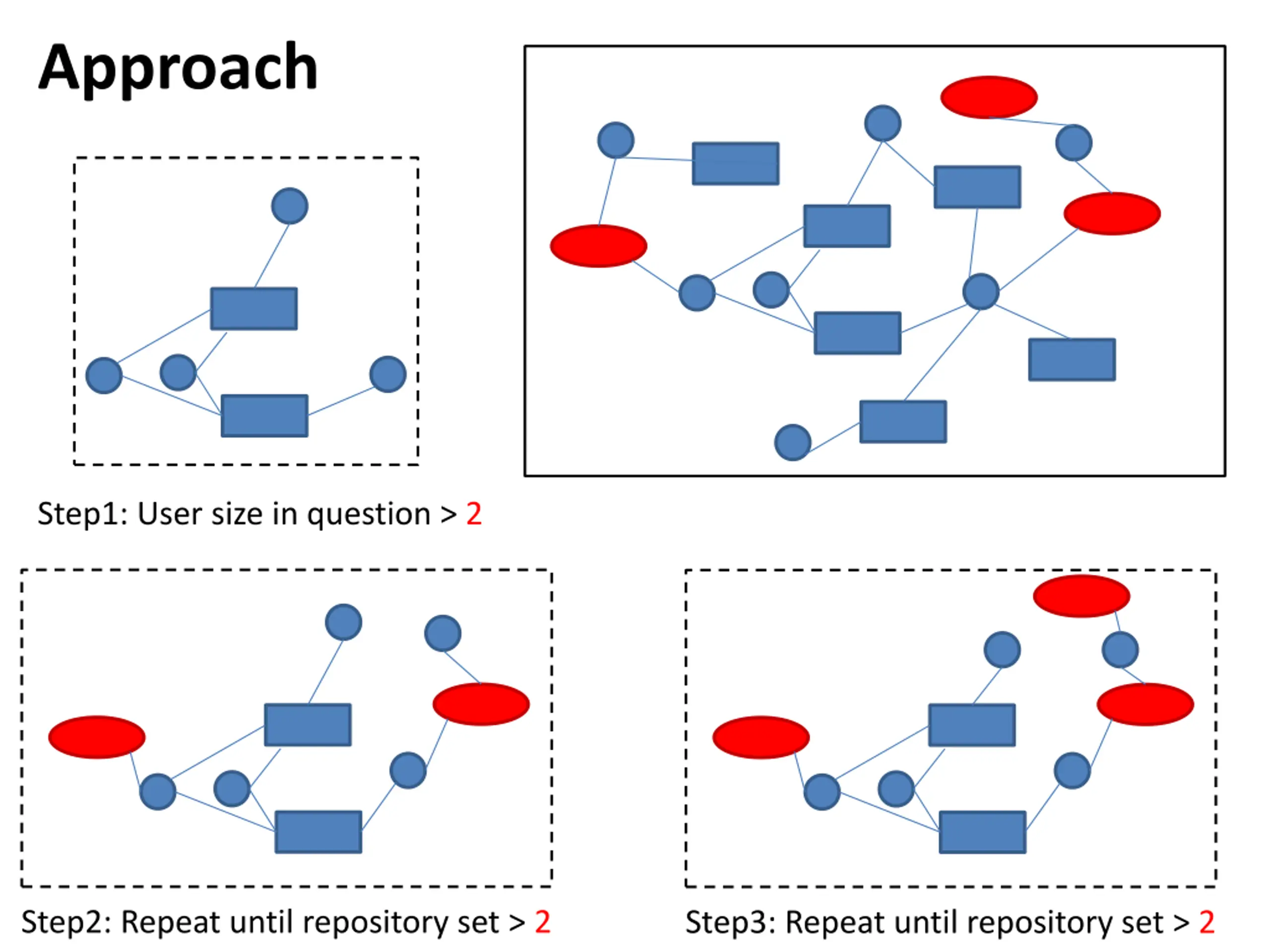

Approach Step1: User size in question > 2 Step2: Repeat until repository set > 2 Step3: Repeat until repository set > 2

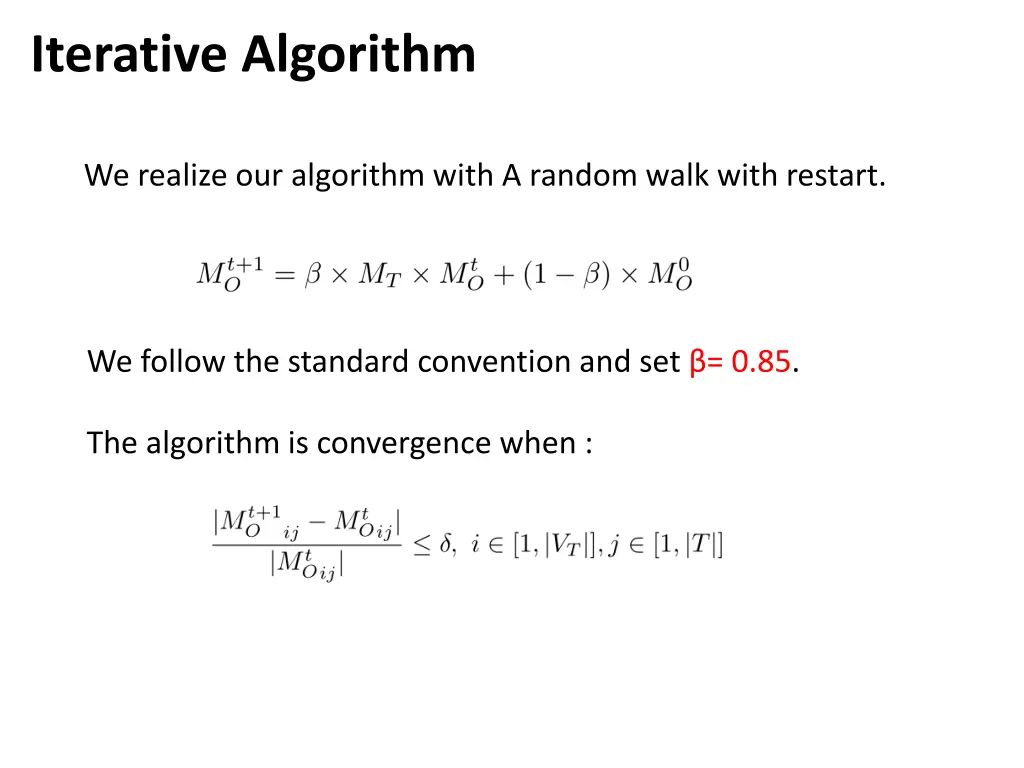

Iterative Algorithm We realize our algorithm with A random walk with restart. We follow the standard convention and set = 0.85. The algorithm is convergence when :

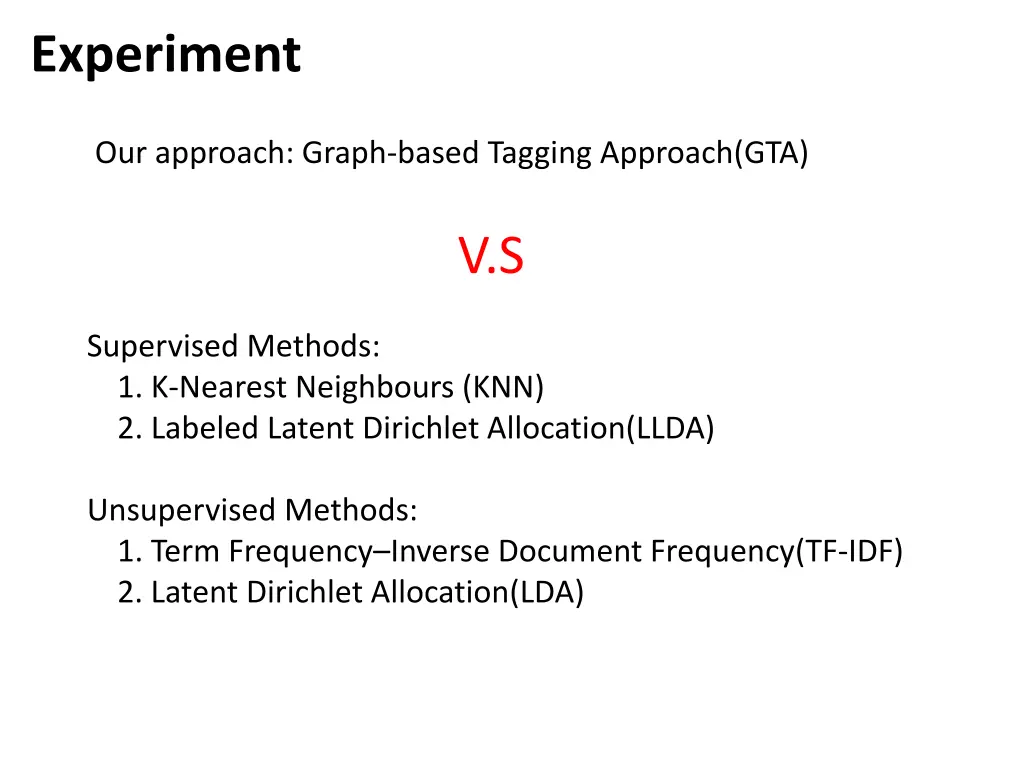

Experiment Our approach: Graph-based Tagging Approach(GTA) V.S Supervised Methods: 1. K-Nearest Neighbours (KNN) 2. Labeled Latent Dirichlet Allocation(LLDA) Unsupervised Methods: 1. Term Frequency Inverse Document Frequency(TF-IDF) 2. Latent Dirichlet Allocation(LDA)

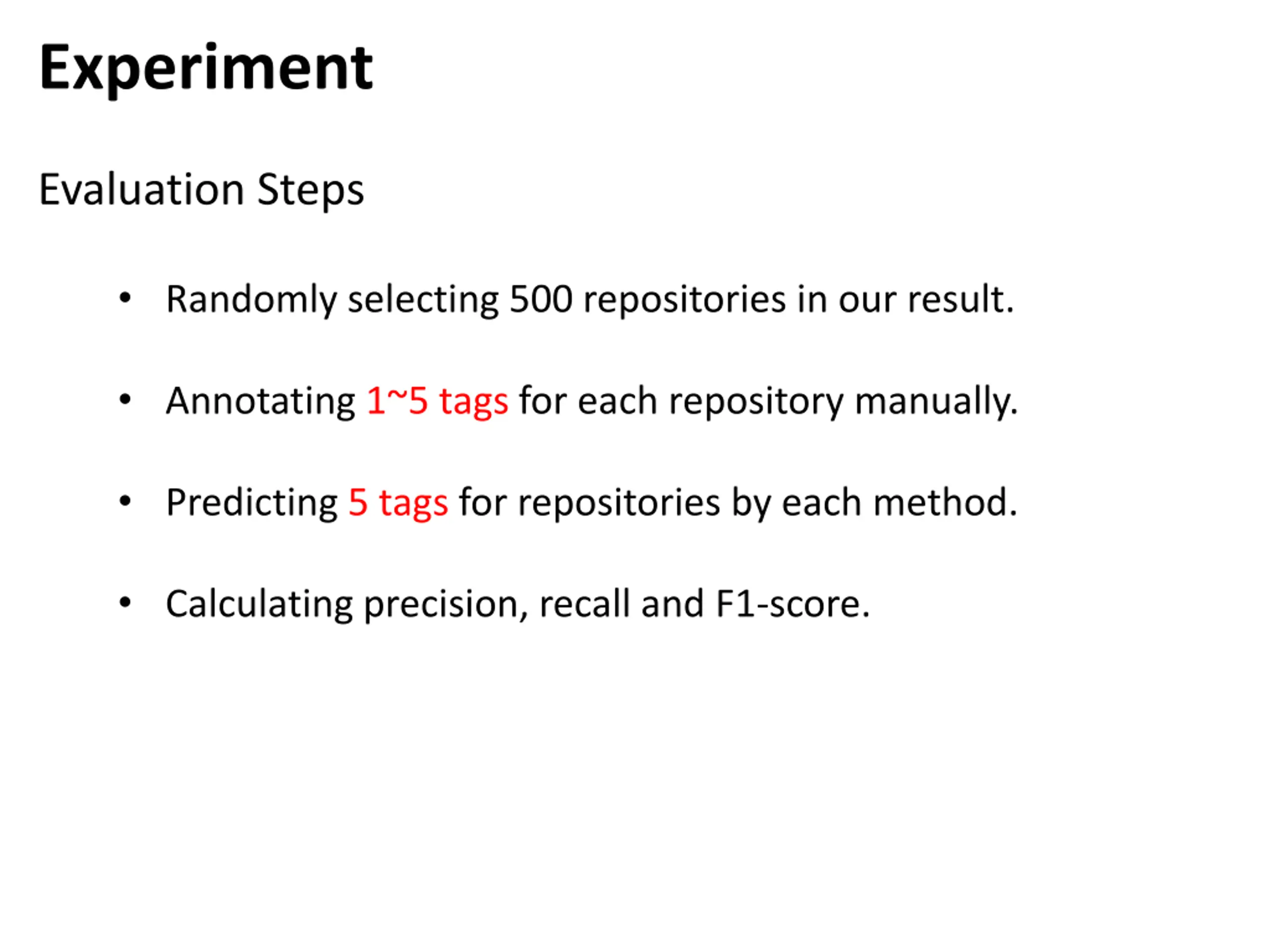

Experiment Evaluation Steps Randomly selecting 500 repositories in our result. Annotating 1~5 tags for each repository manually. Predicting 5 tags for repositories by each method. Calculating precision, recall and F1-score.

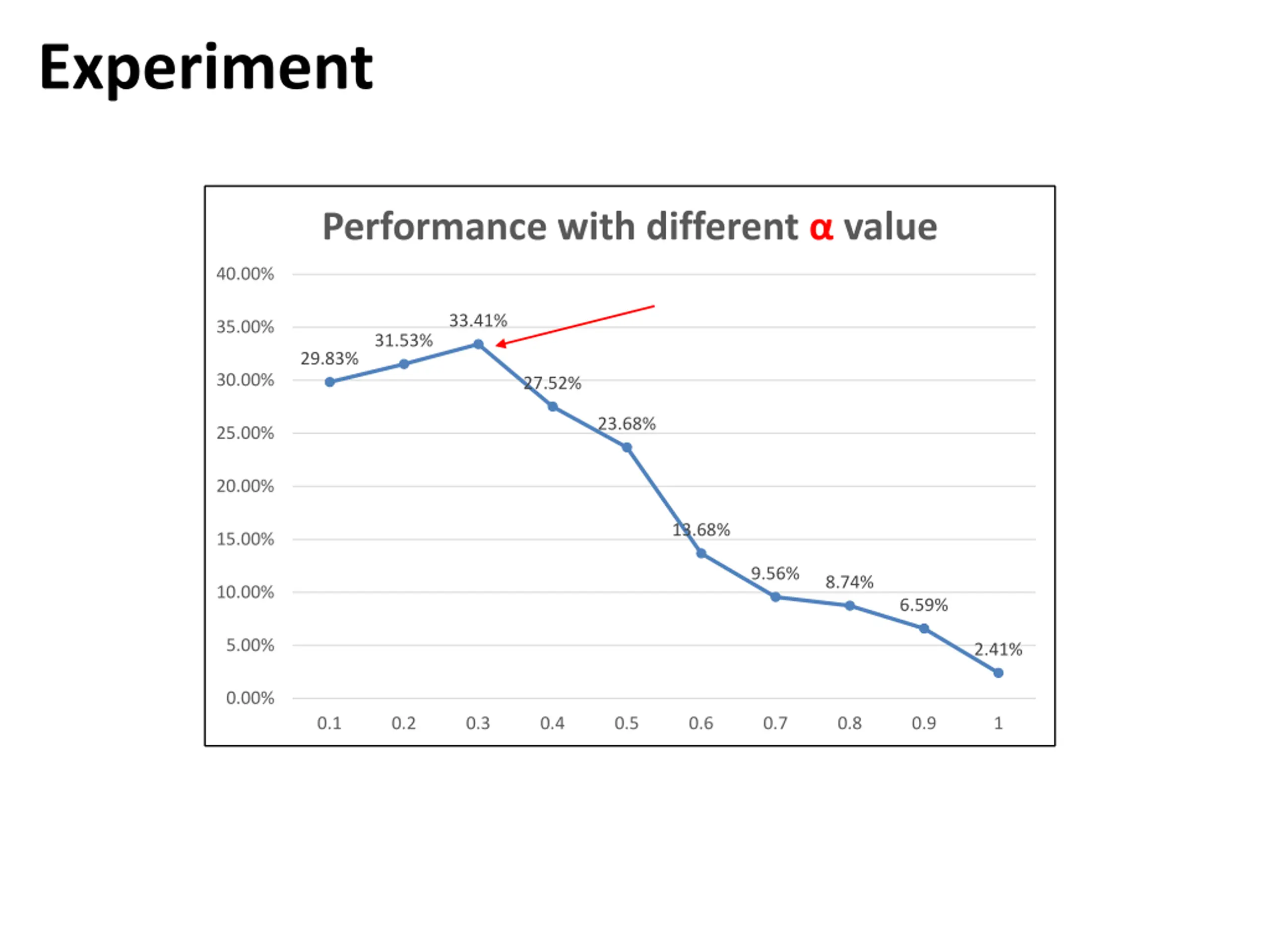

Experiment Performance with different value 40.00% 33.41% 35.00% 31.53% 29.83% 30.00% 27.52% 23.68% 25.00% 20.00% 13.68% 15.00% 9.56% 8.74% 10.00% 6.59% 5.00% 2.41% 0.00% 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Experiment Precision 60.00% 50.00% 48.89% 40.00% 35.78% 35.11% 35.56% 28.89% 28.52% 27.78% 30.00% 26.11% 29.63% 28.33% 20.00% 18.89% 17.33% 24.00% 20.00% 17.04% 17.78% 15.56% 14.81% 14.22% 5.78% 13.33% 10.00% 6.11% 4.44% 2.22% 4.44% 0.00% 1 2 3 4 5 TF-IDF KNN LDA LLDA GTA

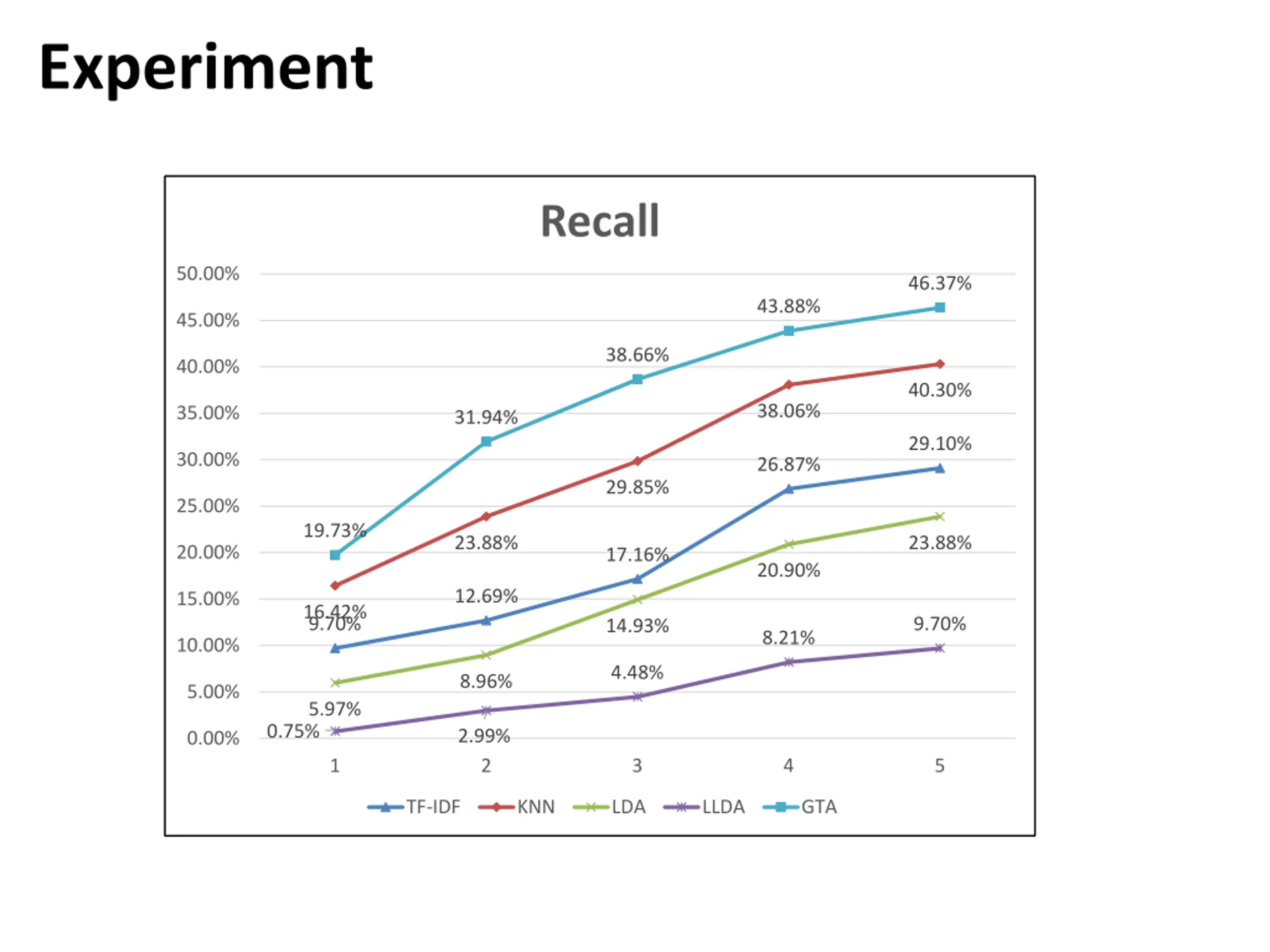

Experiment Recall 50.00% 46.37% 43.88% 45.00% 38.66% 40.00% 40.30% 38.06% 35.00% 31.94% 29.10% 30.00% 26.87% 29.85% 25.00% 19.73% 23.88% 23.88% 20.00% 17.16% 20.90% 12.69% 15.00% 16.42% 9.70% 9.70% 14.93% 8.21% 10.00% 4.48% 8.96% 5.00% 5.97% 0.75% 2.99% 2 0.00% 1 3 4 5 TF-IDF KNN LDA LLDA GTA

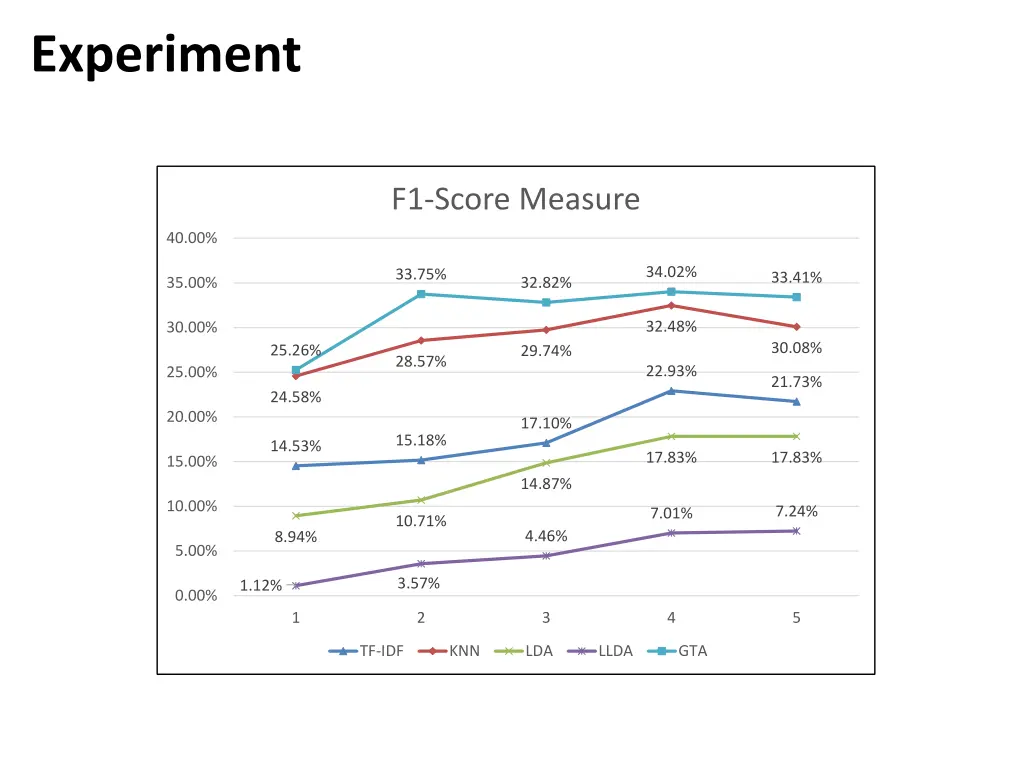

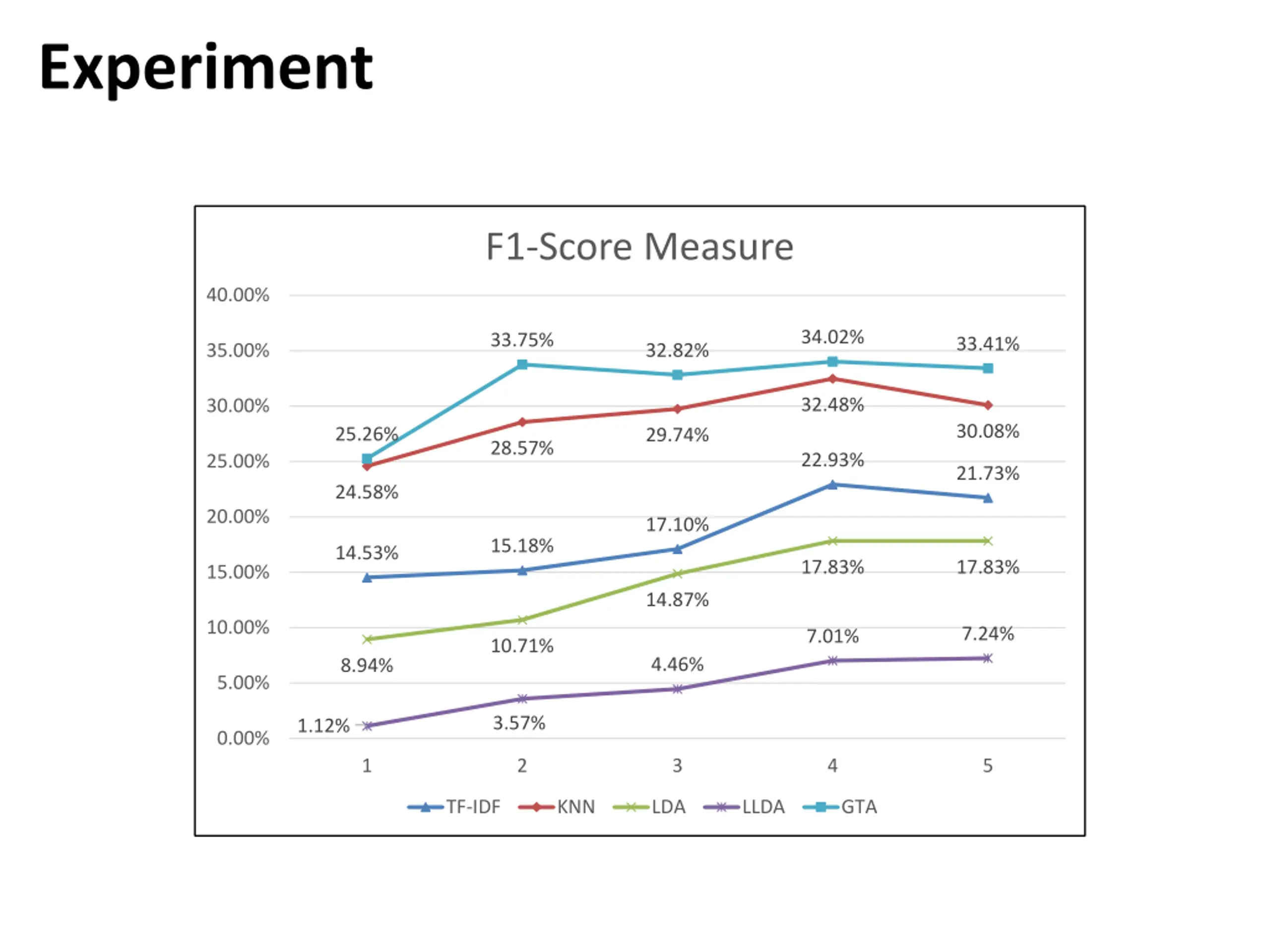

Experiment F1-Score Measure 40.00% 34.02% 33.75% 33.41% 32.82% 35.00% 32.48% 30.00% 30.08% 25.26% 29.74% 28.57% 22.93% 25.00% 21.73% 24.58% 20.00% 17.10% 15.18% 14.53% 17.83% 17.83% 15.00% 14.87% 10.00% 7.24% 7.01% 10.71% 4.46% 8.94% 5.00% 3.57% 1.12% 0.00% 1 2 3 4 5 TF-IDF KNN LDA LLDA GTA

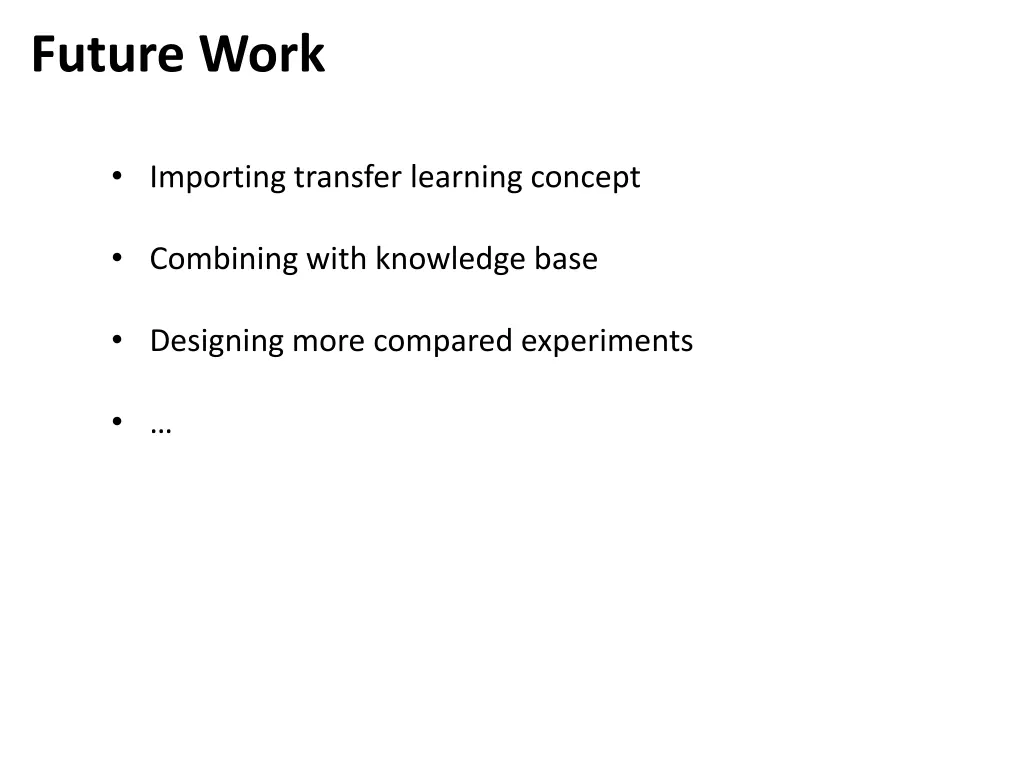

Future Work Importing transfer learning concept Combining with knowledge base Designing more compared experiments
Some Advices for You Never Be Afraid of Failure! Try One More! Succeed in 191sttrial
Thanks Thanks Q&A Q&A
