Recording & Control Webinar - Batch Recording & Paperless Recorders
This webinar discusses the importance of batch recording and paperless recorders in product recalls, typical applications, benefits, and how to specify and operate batch functionality. Learn how these tools provide key information for product identification, fault detection, and batch recall. Explore applications in food production, heat treatment, and pharmaceuticals.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
RECORDING & CONTROL WEBINAR, JUNE 2022 Recording & Control Webinar Where to sell R&C: Batch recording & Paperless recorders Niki Smith, Technical Product Manager R&C

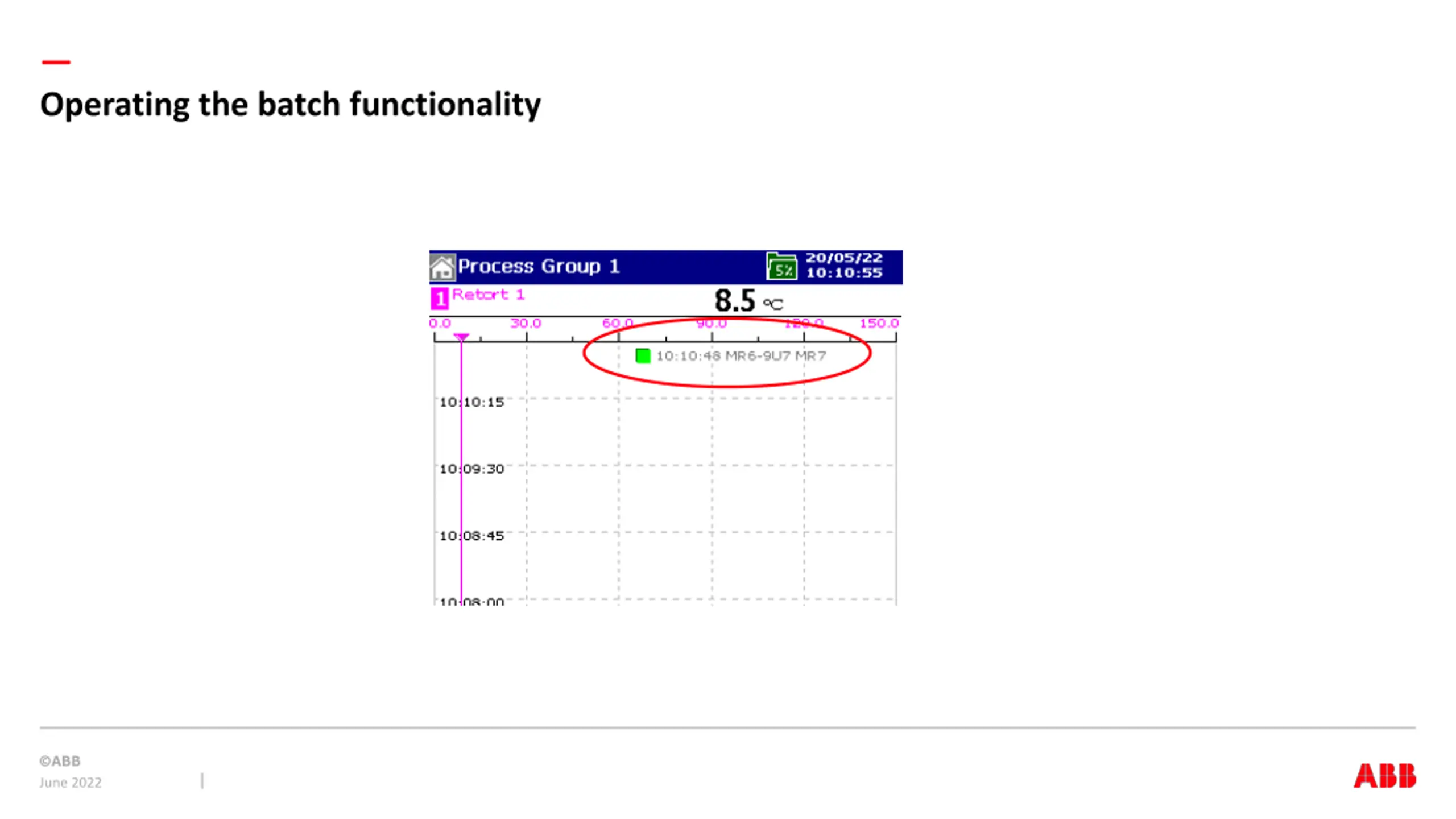

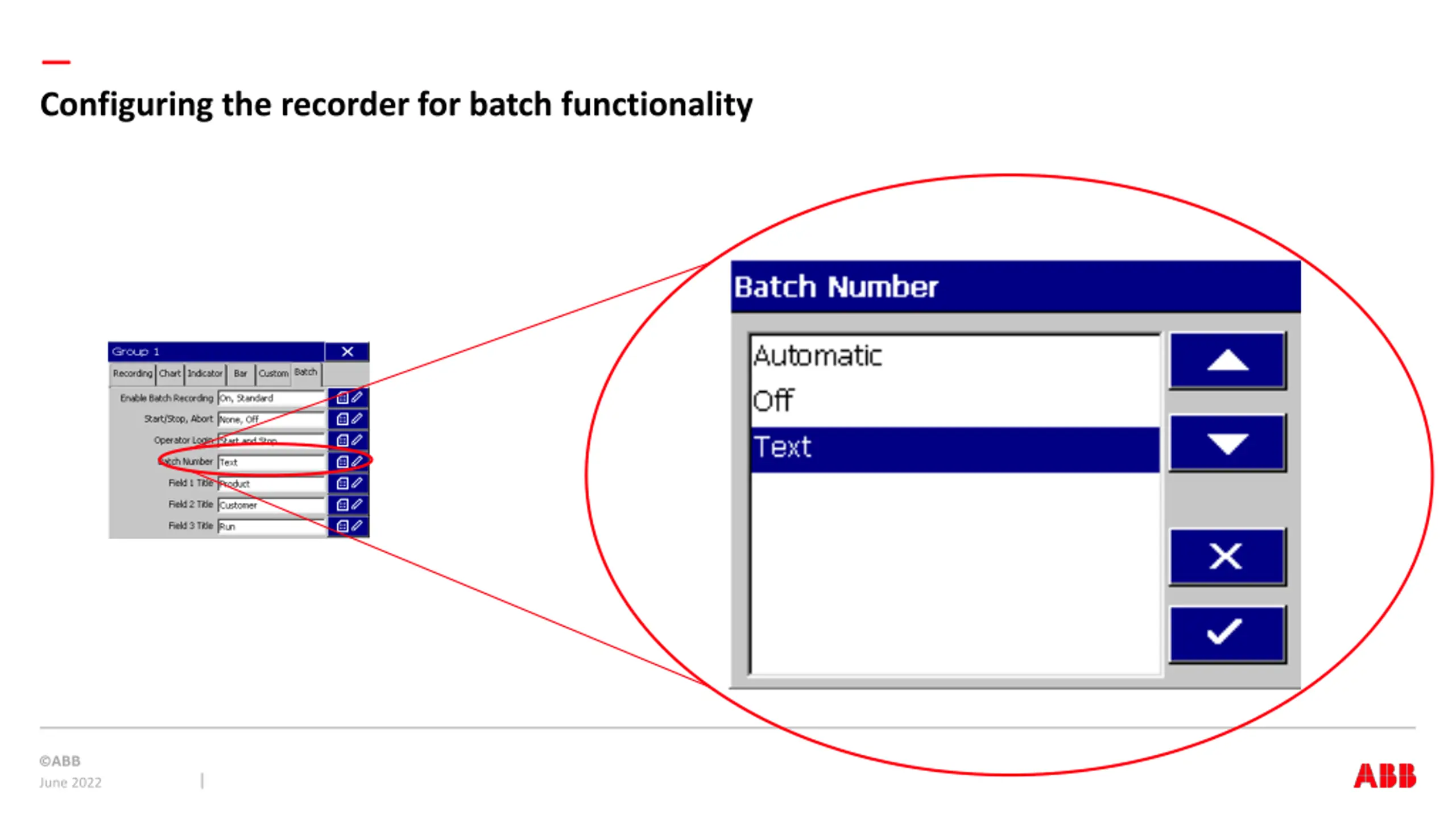

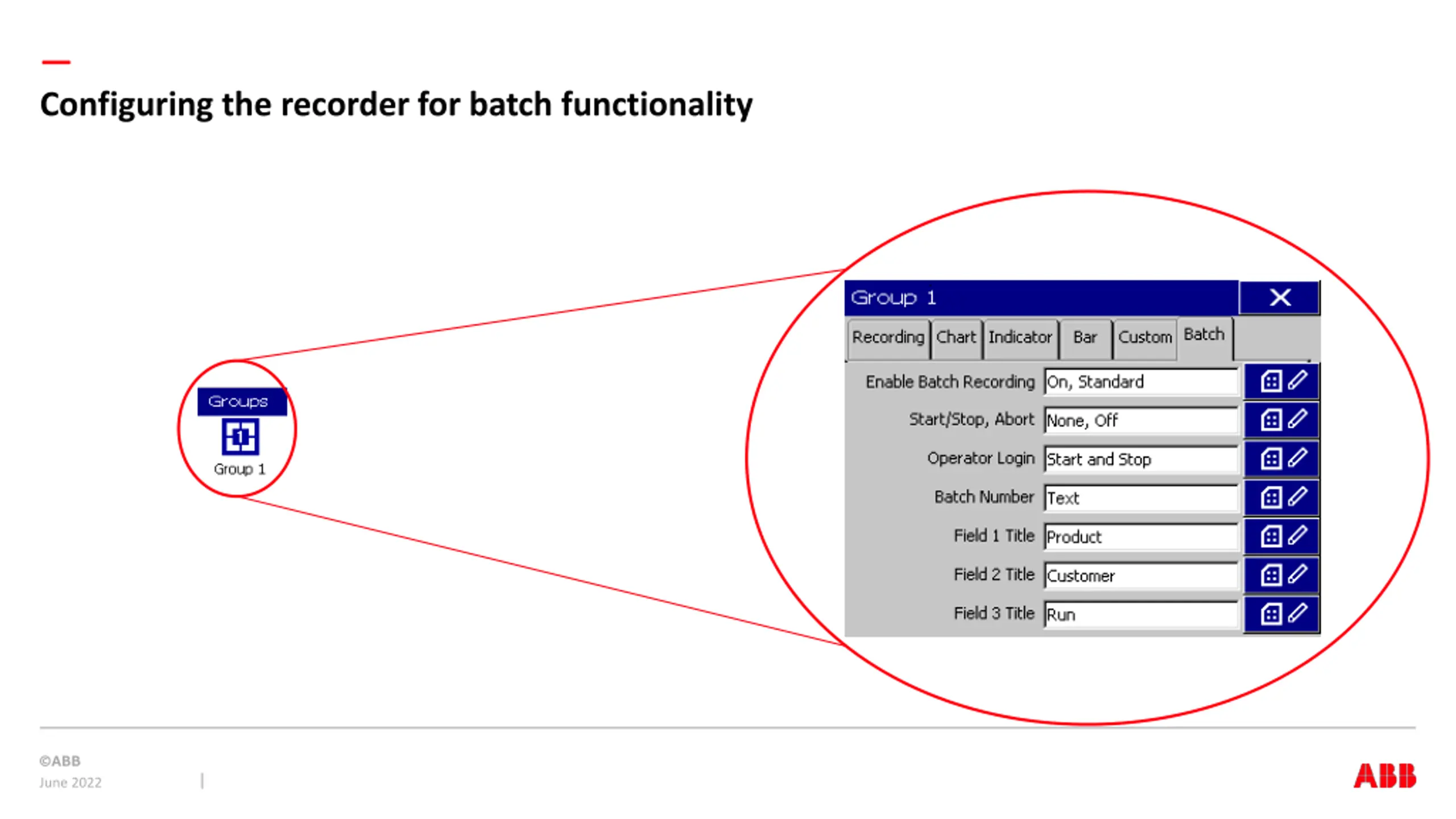

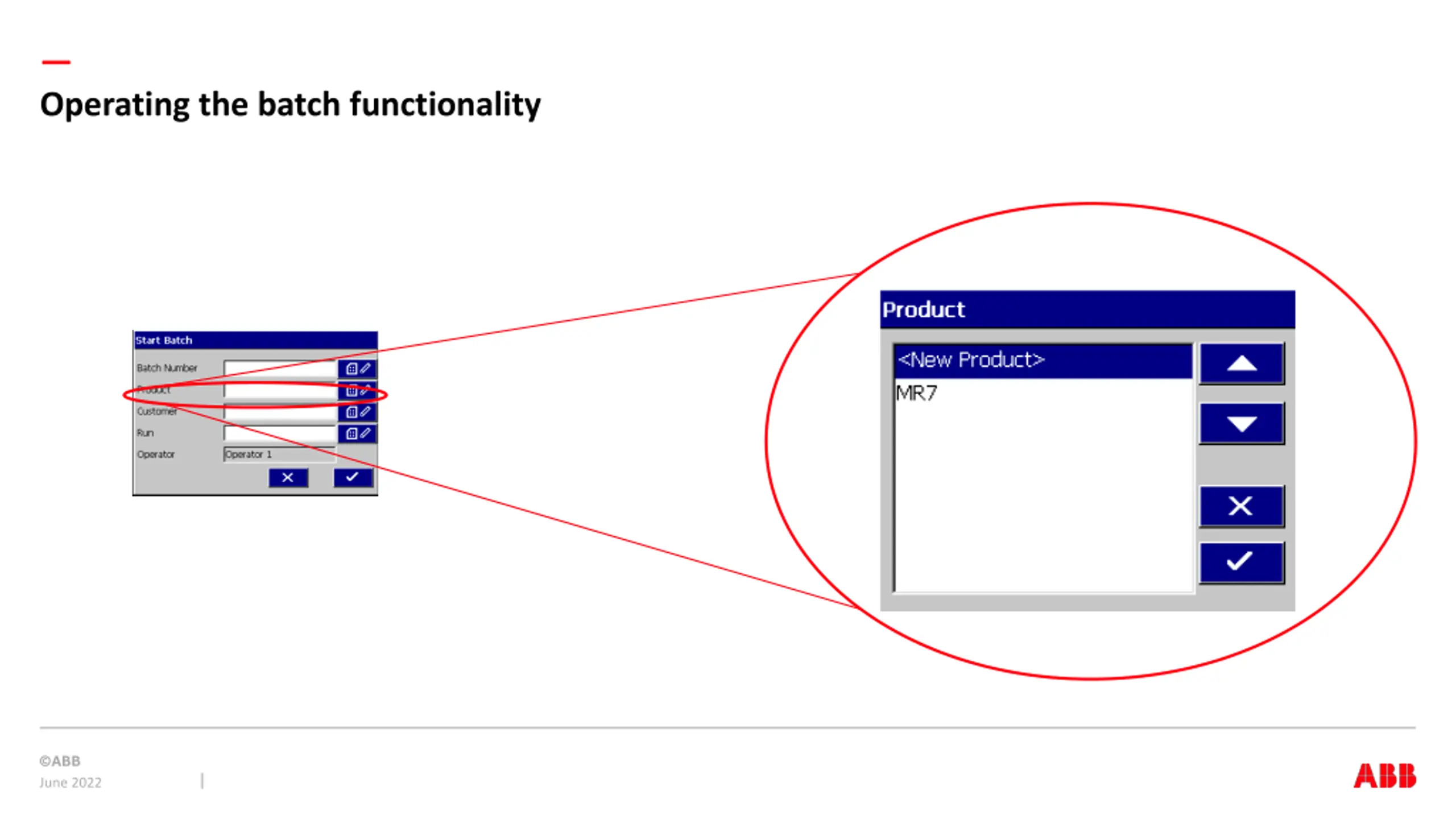

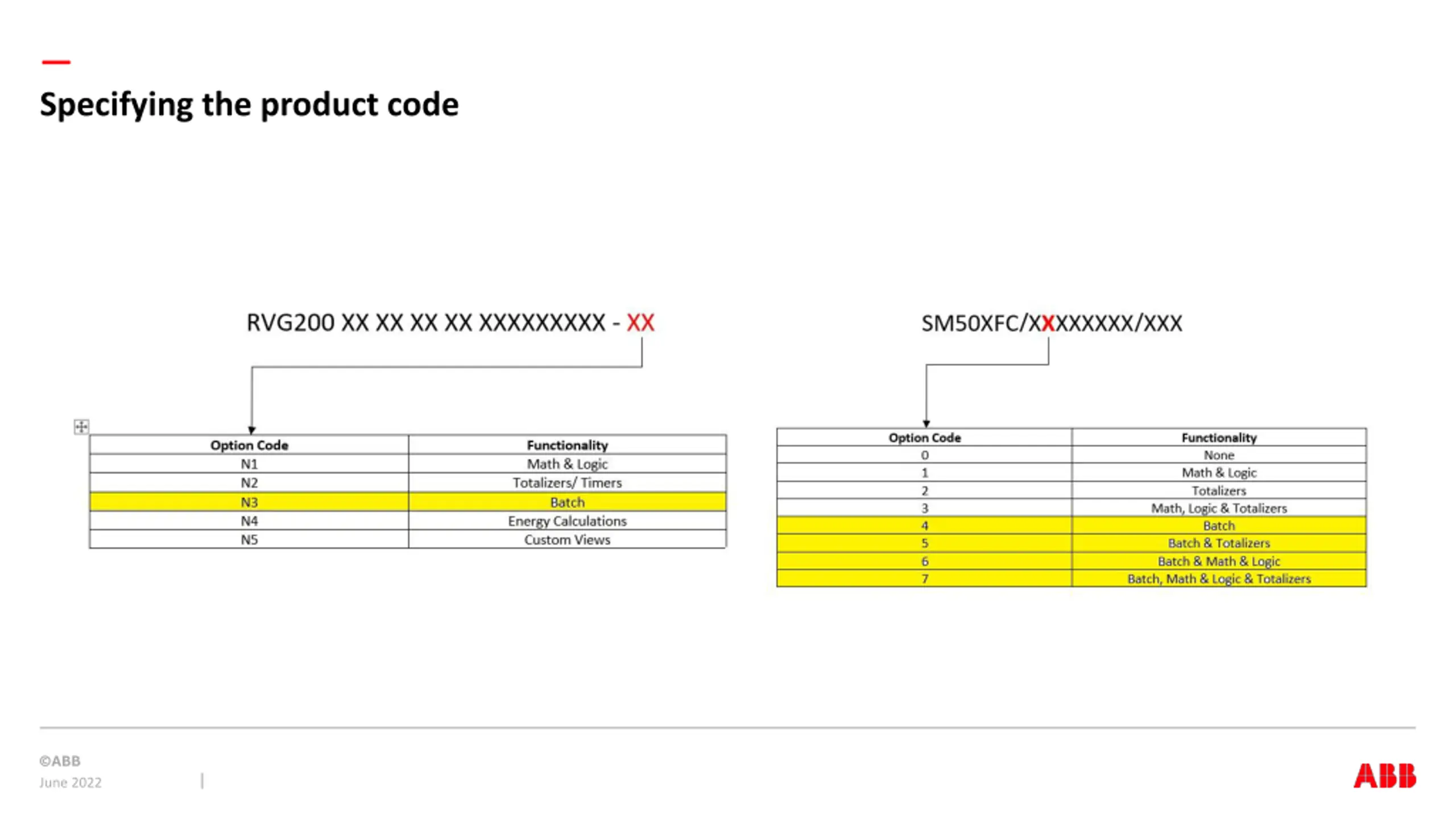

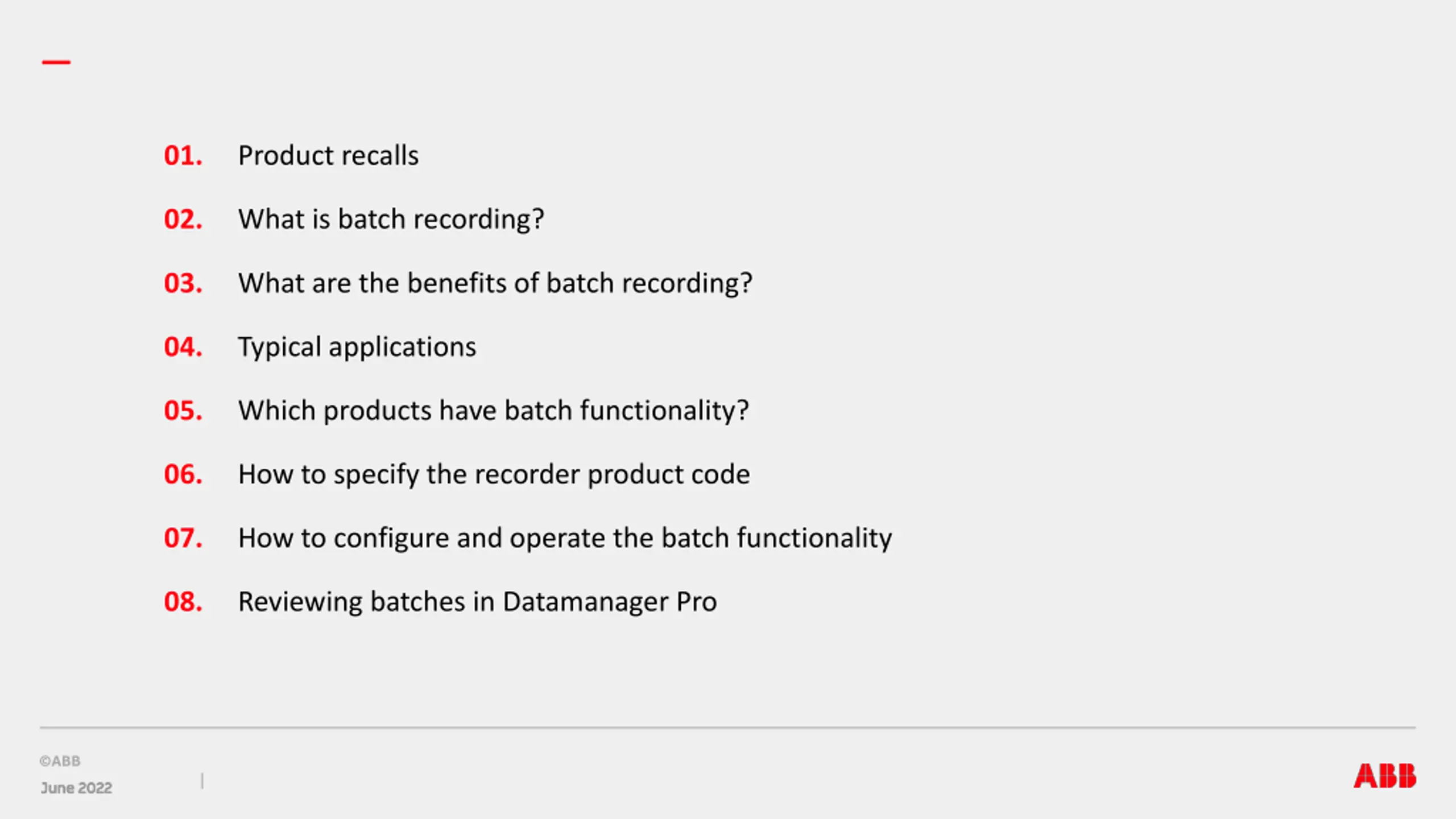

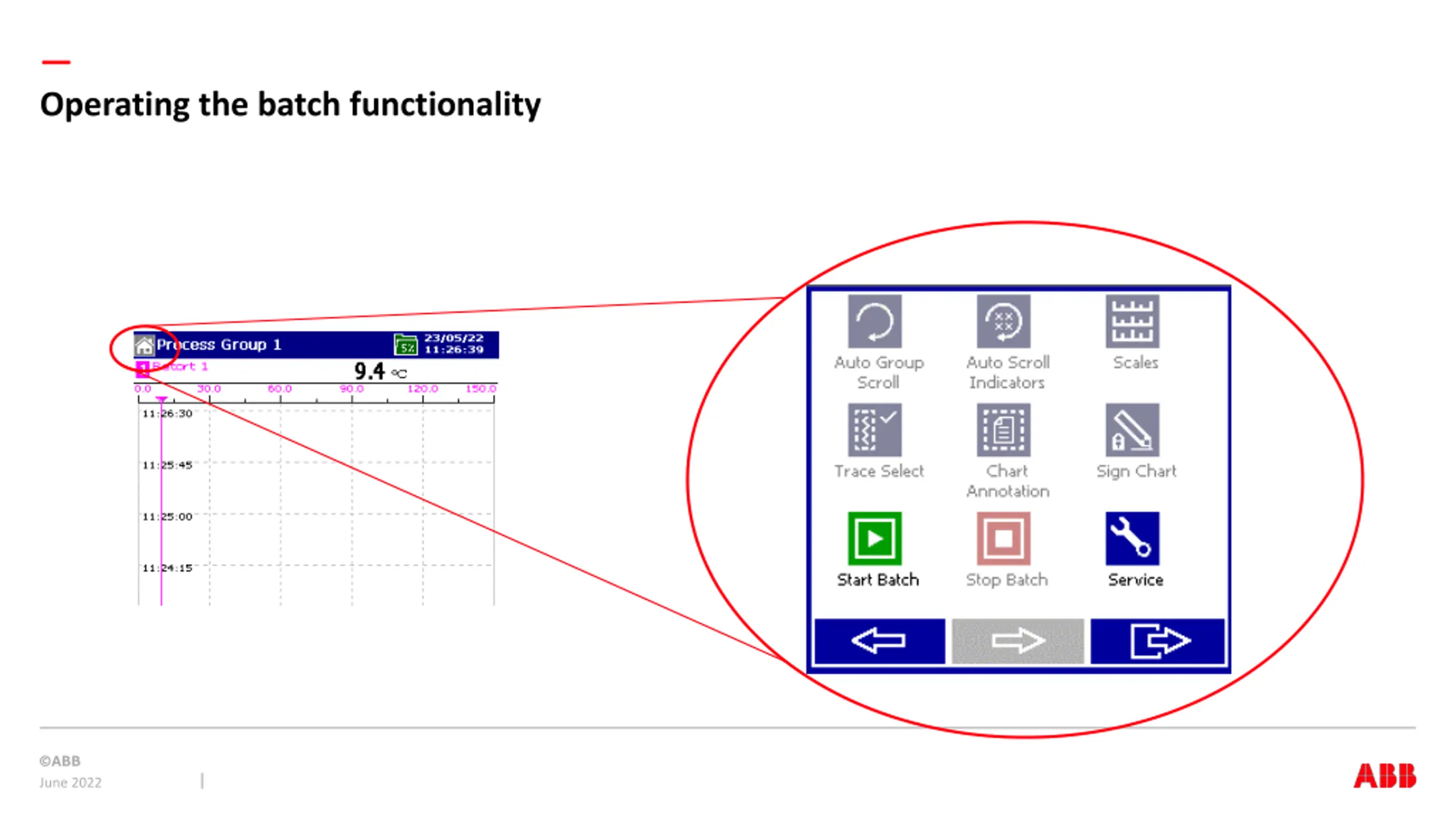

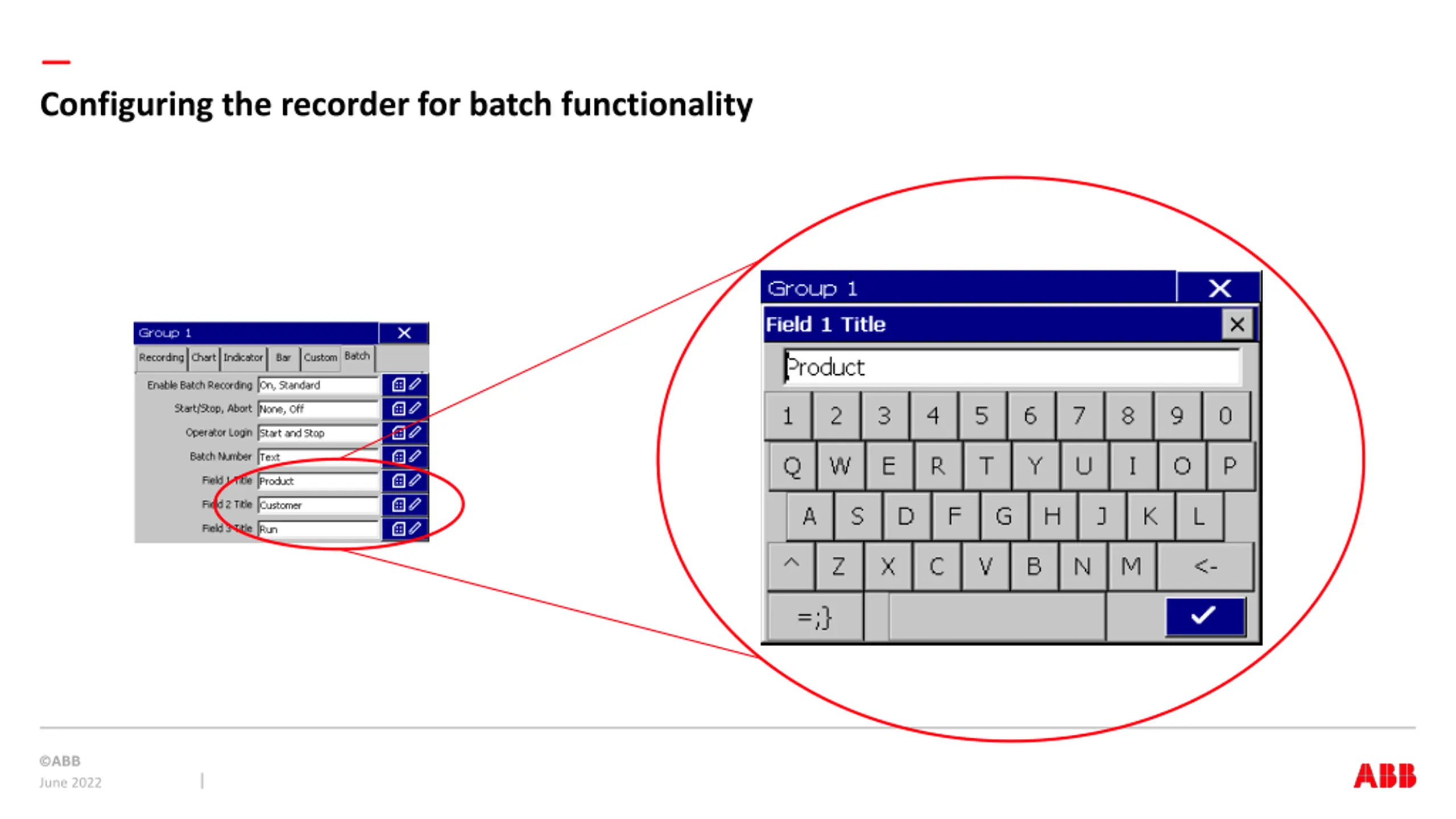

01. Product recalls 02. What is batch recording? 03. What are the benefits of batch recording? 04. Typical applications 05. Which products have batch functionality? 06. How to specify the recorder product code 07. How to configure and operate the batch functionality 08. Reviewing batches in Datamanager Pro

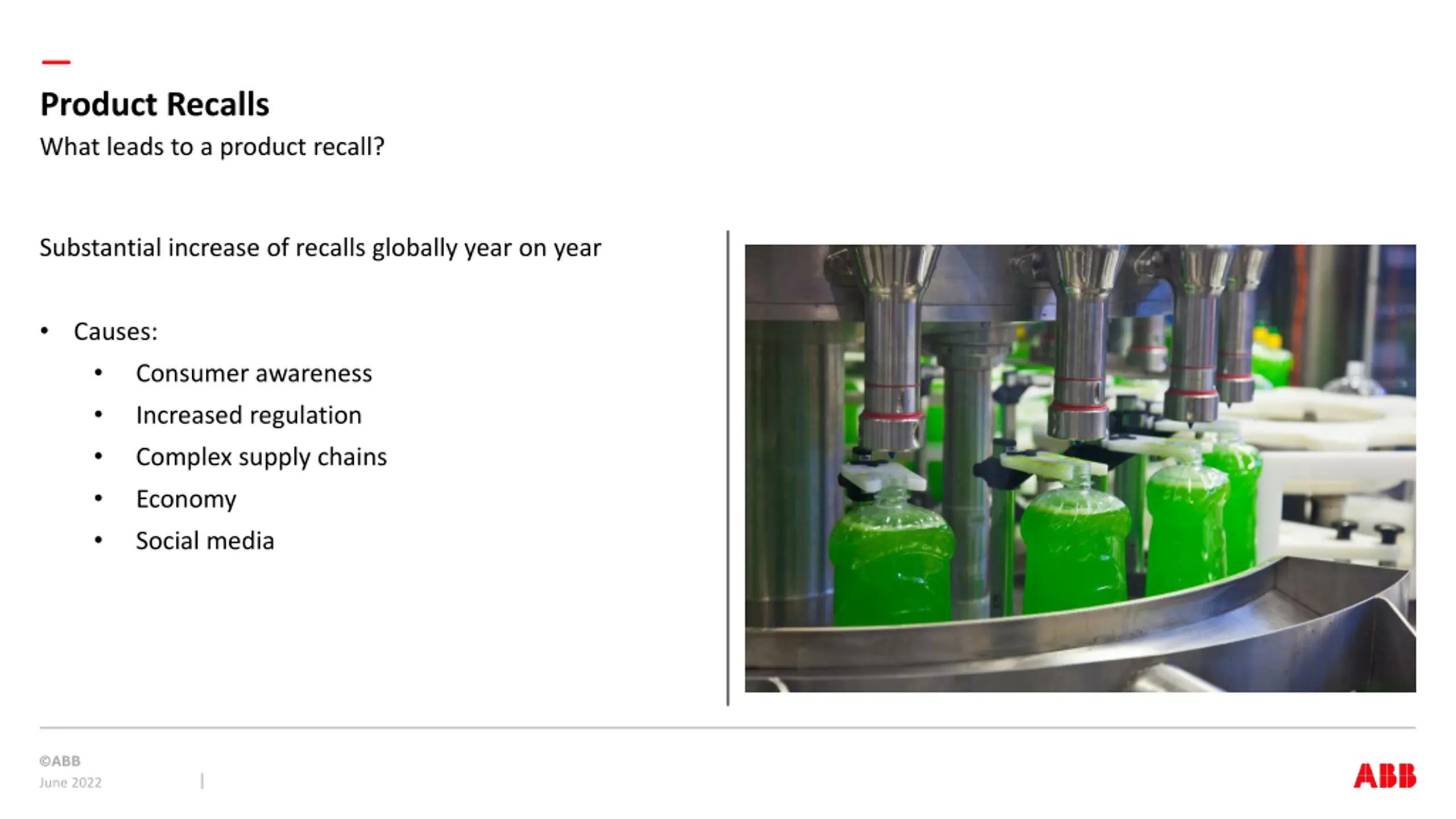

Product Recalls What leads to a product recall? Substantial increase of recalls globally year on year Causes: Consumer awareness Increased regulation Complex supply chains Economy Social media June 2022

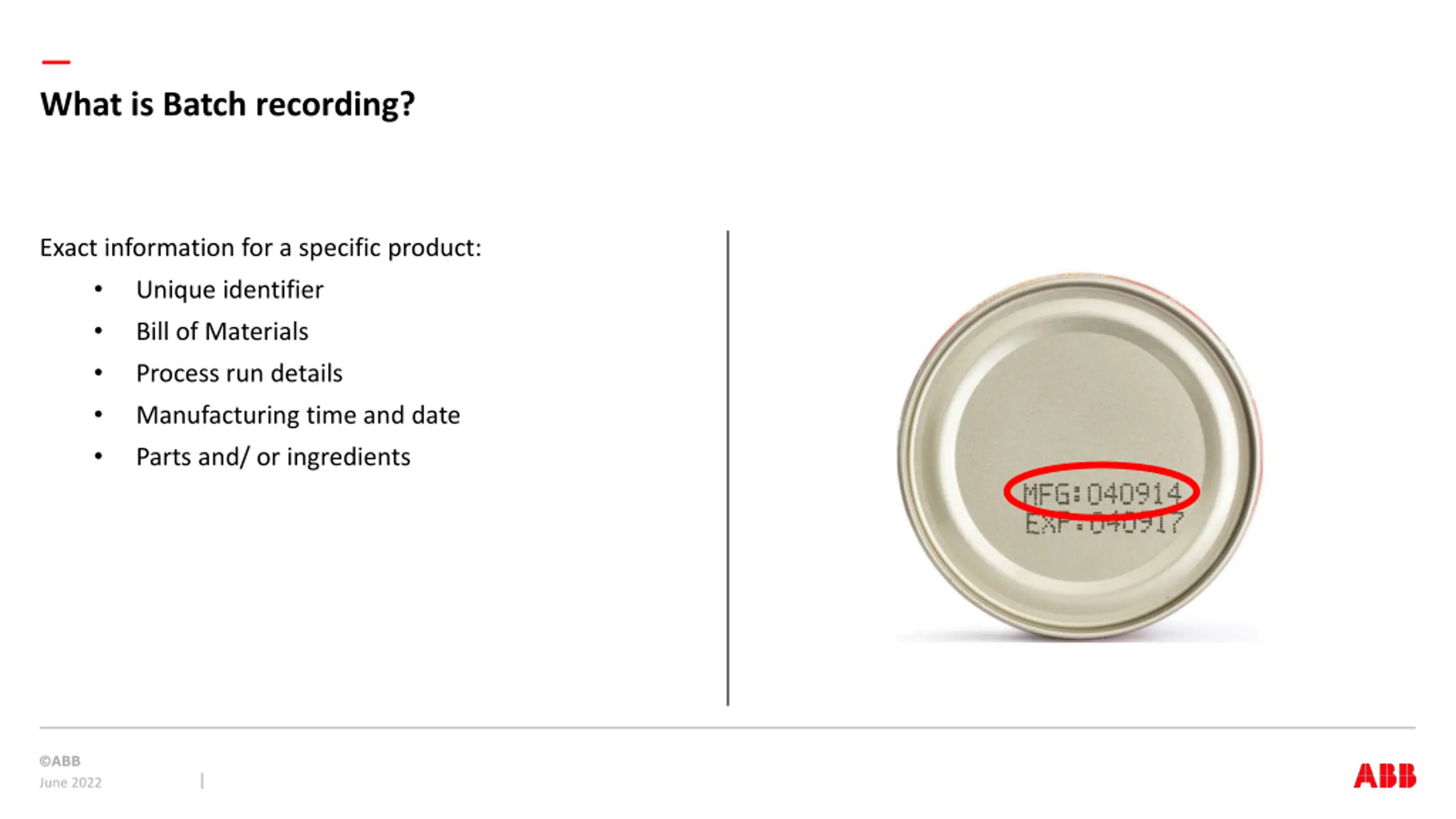

What is Batch recording? Exact information for a specific product: Unique identifier Bill of Materials Process run details Manufacturing time and date Parts and/ or ingredients June 2022

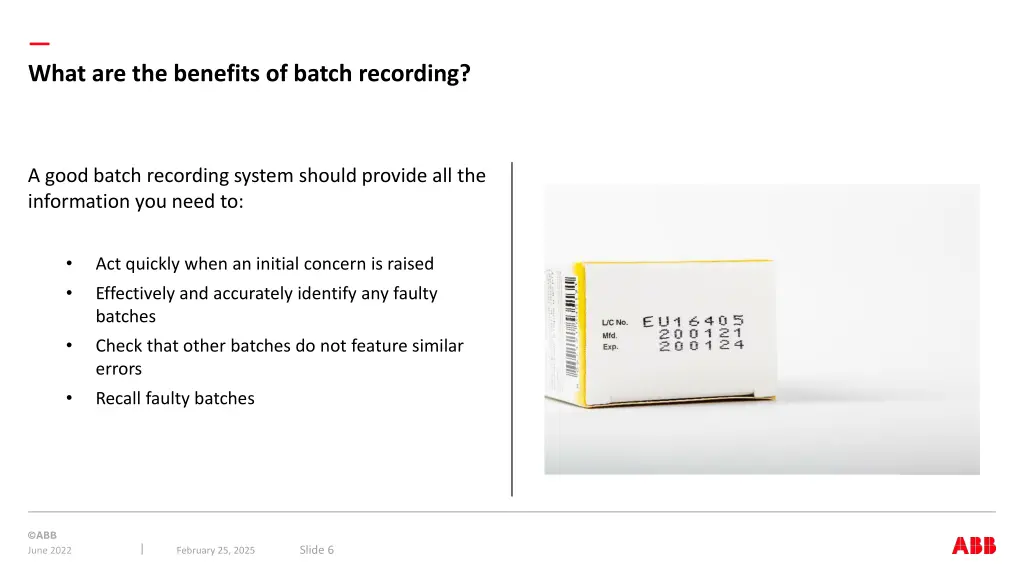

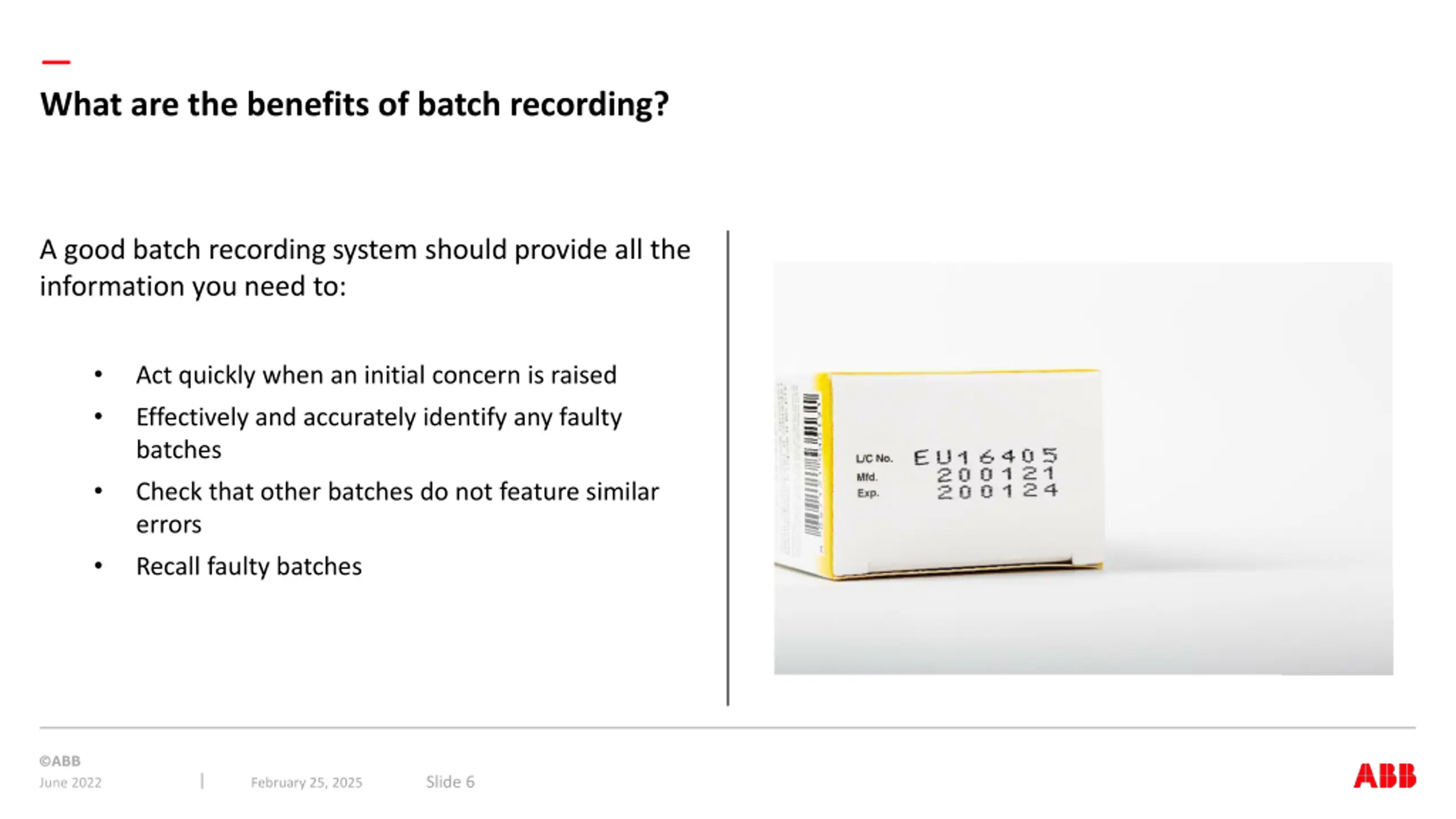

What are the benefits of batch recording? A good batch recording system should provide all the information you need to: Act quickly when an initial concern is raised Effectively and accurately identify any faulty batches Check that other batches do not feature similar errors Recall faulty batches Slide 6 June 2022 February 25, 2025

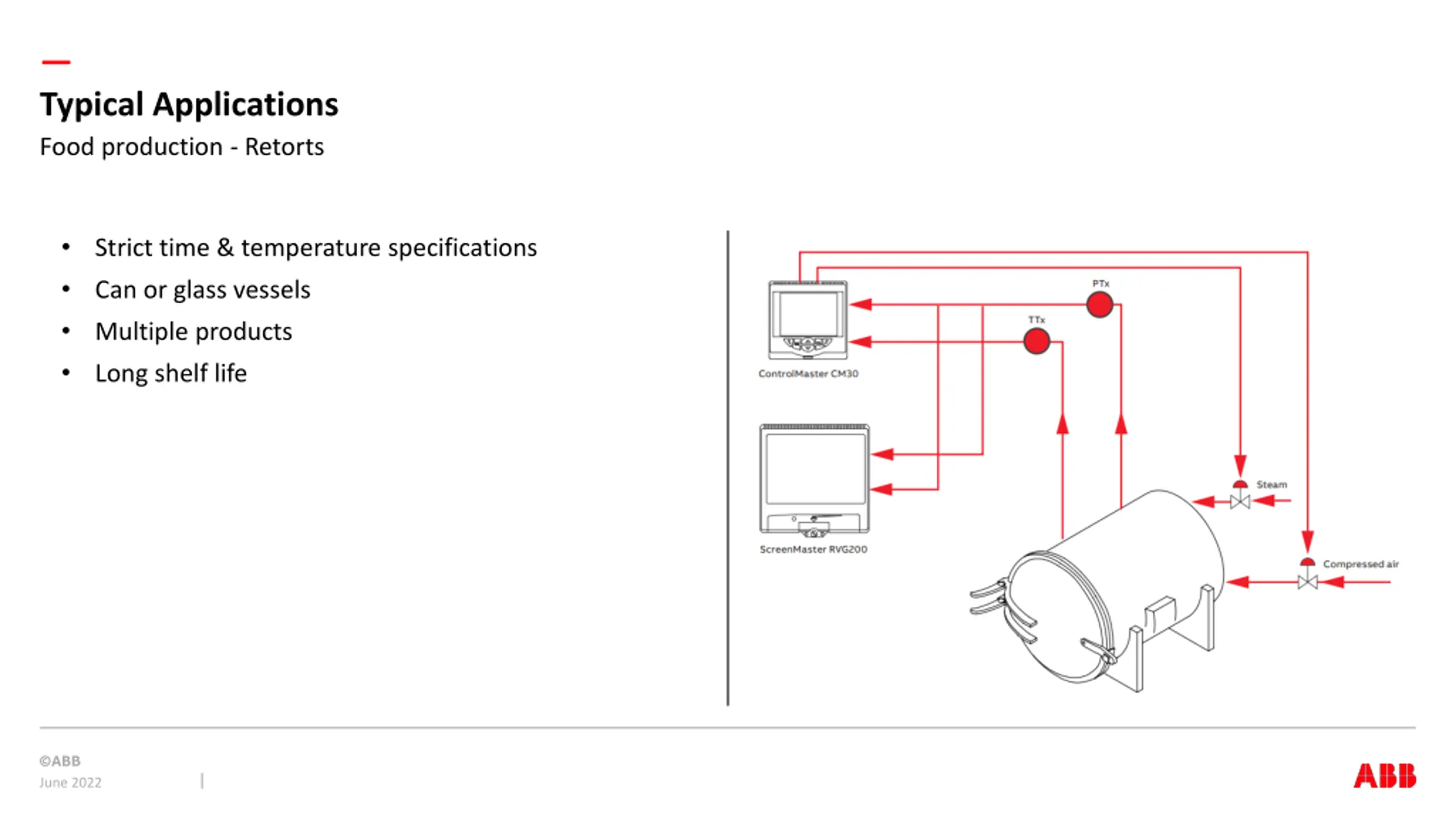

Typical Applications Food production - Retorts Strict time & temperature specifications Can or glass vessels Multiple products Long shelf life June 2022

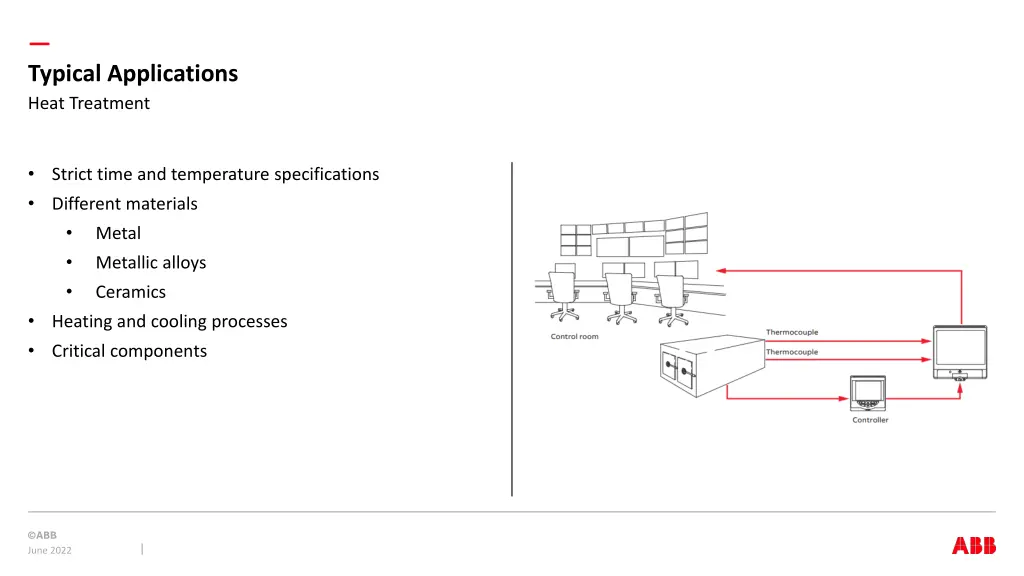

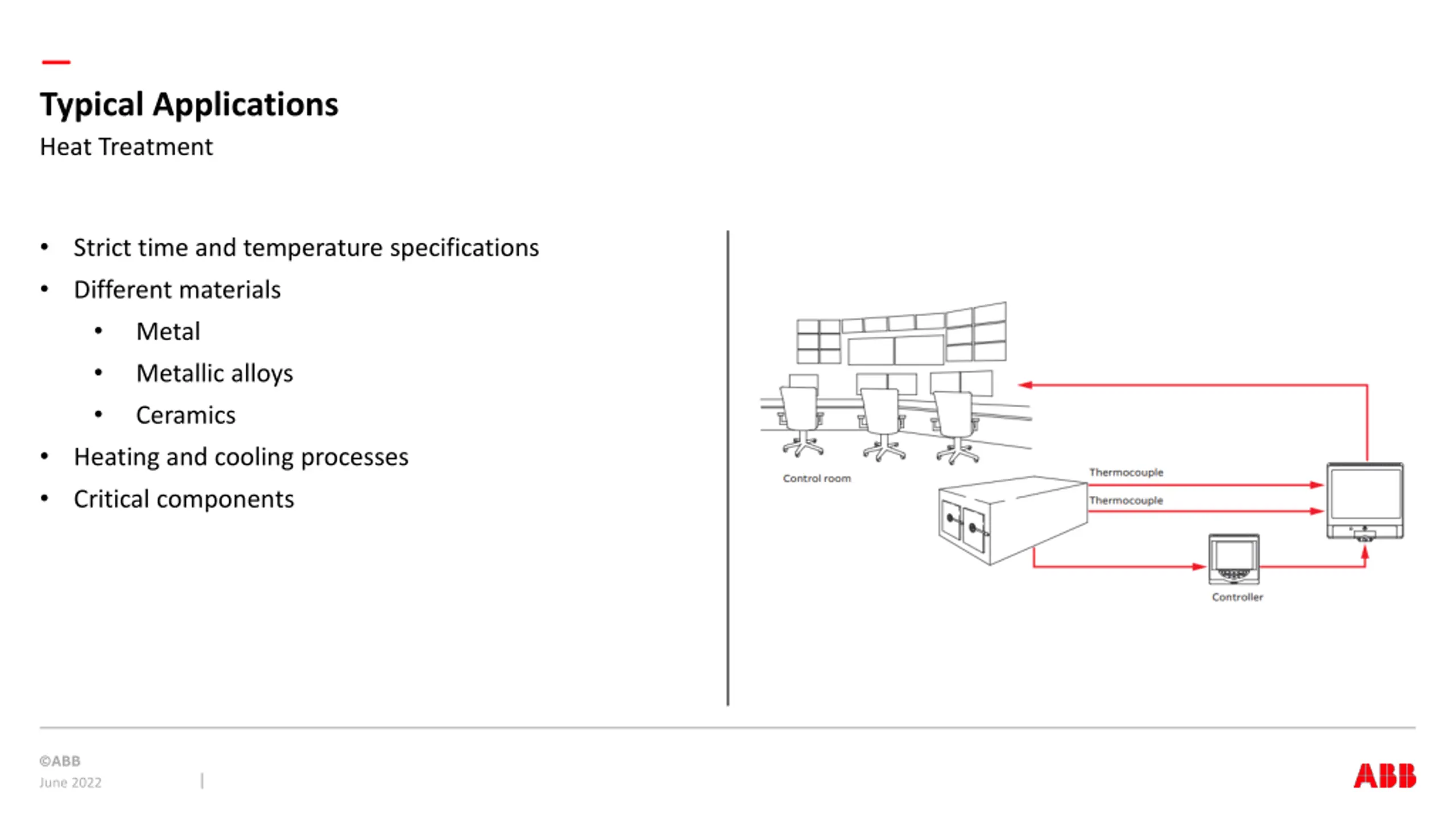

Typical Applications Heat Treatment Strict time and temperature specifications Different materials Metal Metallic alloys Ceramics Heating and cooling processes Critical components June 2022

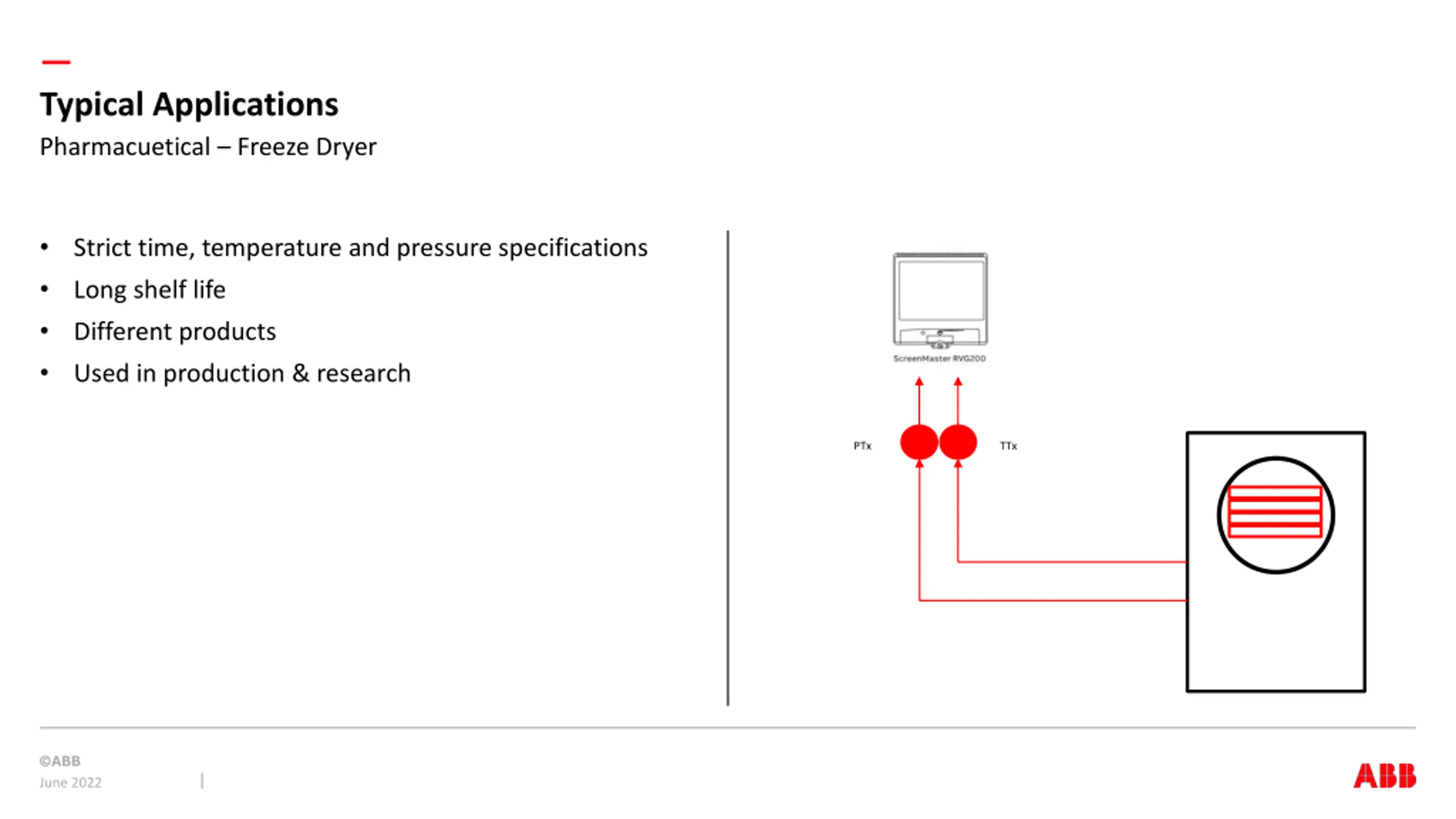

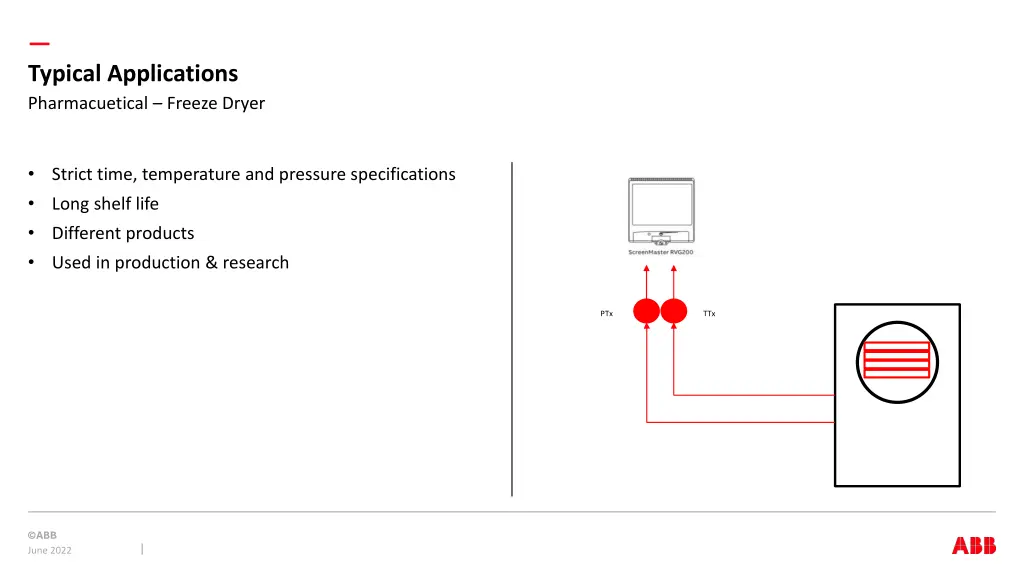

Typical Applications Pharmacuetical Freeze Dryer Strict time, temperature and pressure specifications Long shelf life Different products Used in production & research TTx PTx June 2022

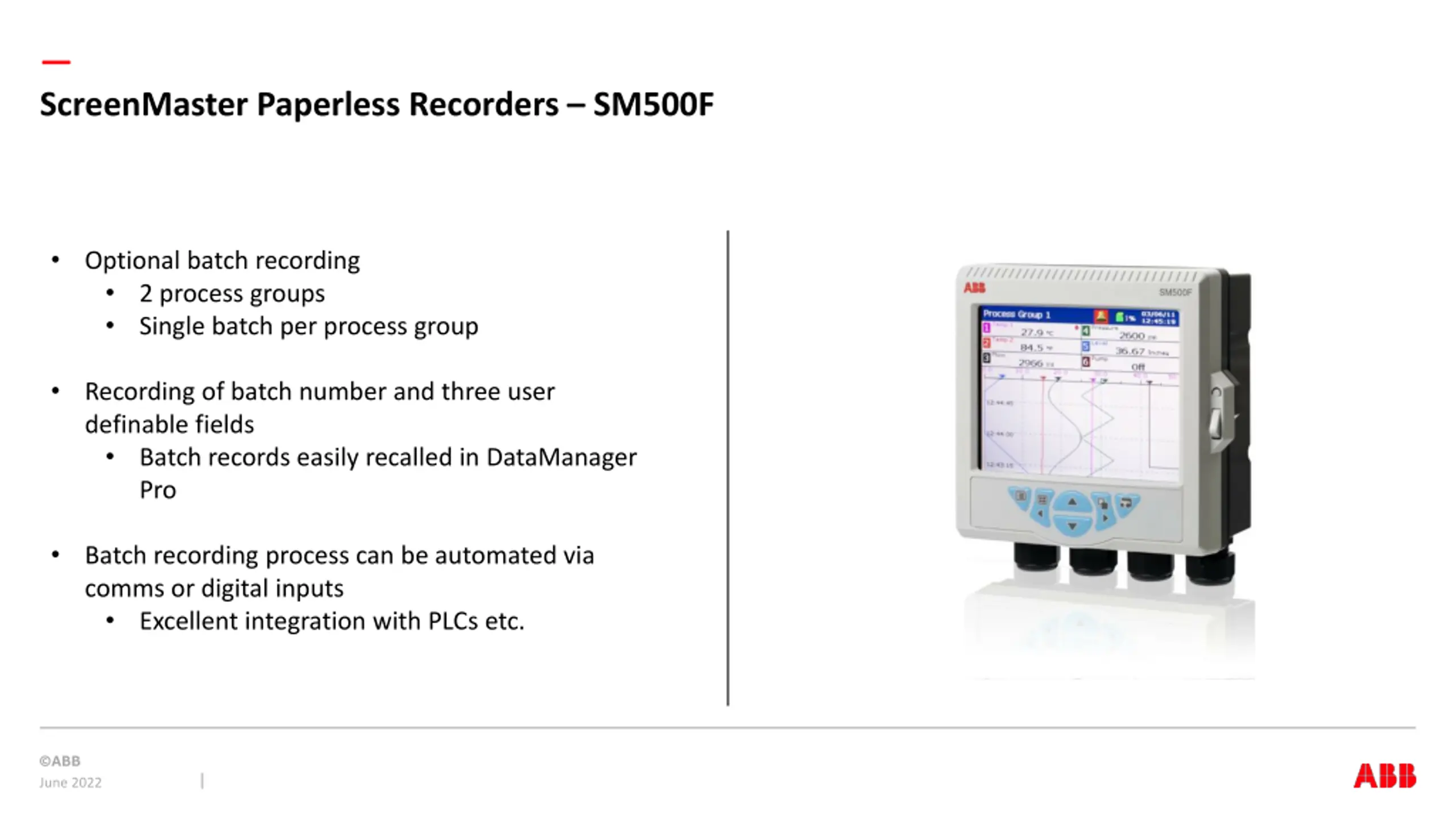

ScreenMaster Paperless Recorders SM500F Optional batch recording 2 process groups Single batch per process group Recording of batch number and three user definable fields Batch records easily recalled in DataManager Pro Batch recording process can be automated via comms or digital inputs Excellent integration with PLCs etc. June 2022

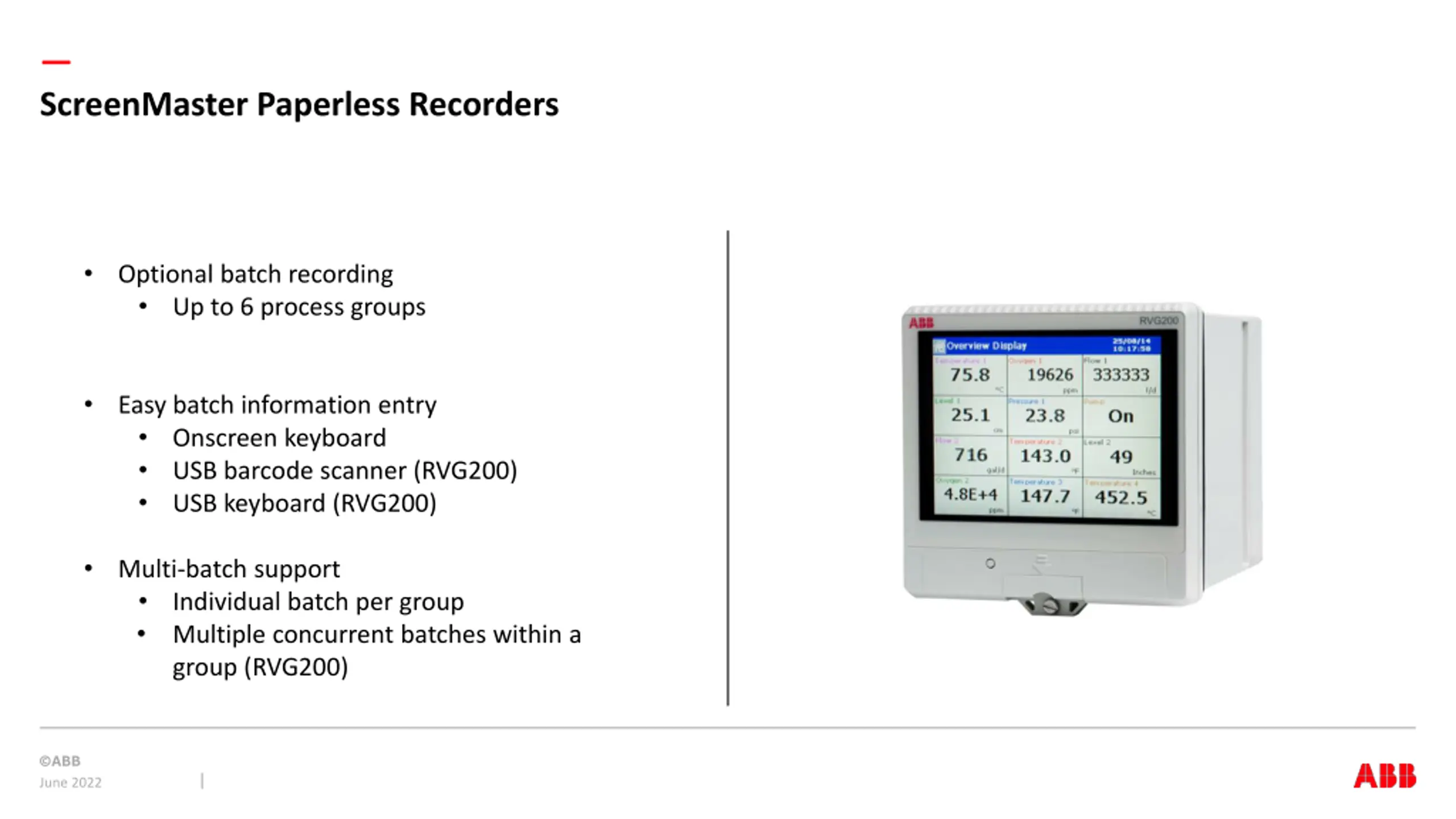

ScreenMaster Paperless Recorders Optional batch recording Up to 6 process groups Easy batch information entry Onscreen keyboard USB barcode scanner (RVG200) USB keyboard (RVG200) Multi-batch support Individual batch per group Multiple concurrent batches within a group (RVG200) June 2022

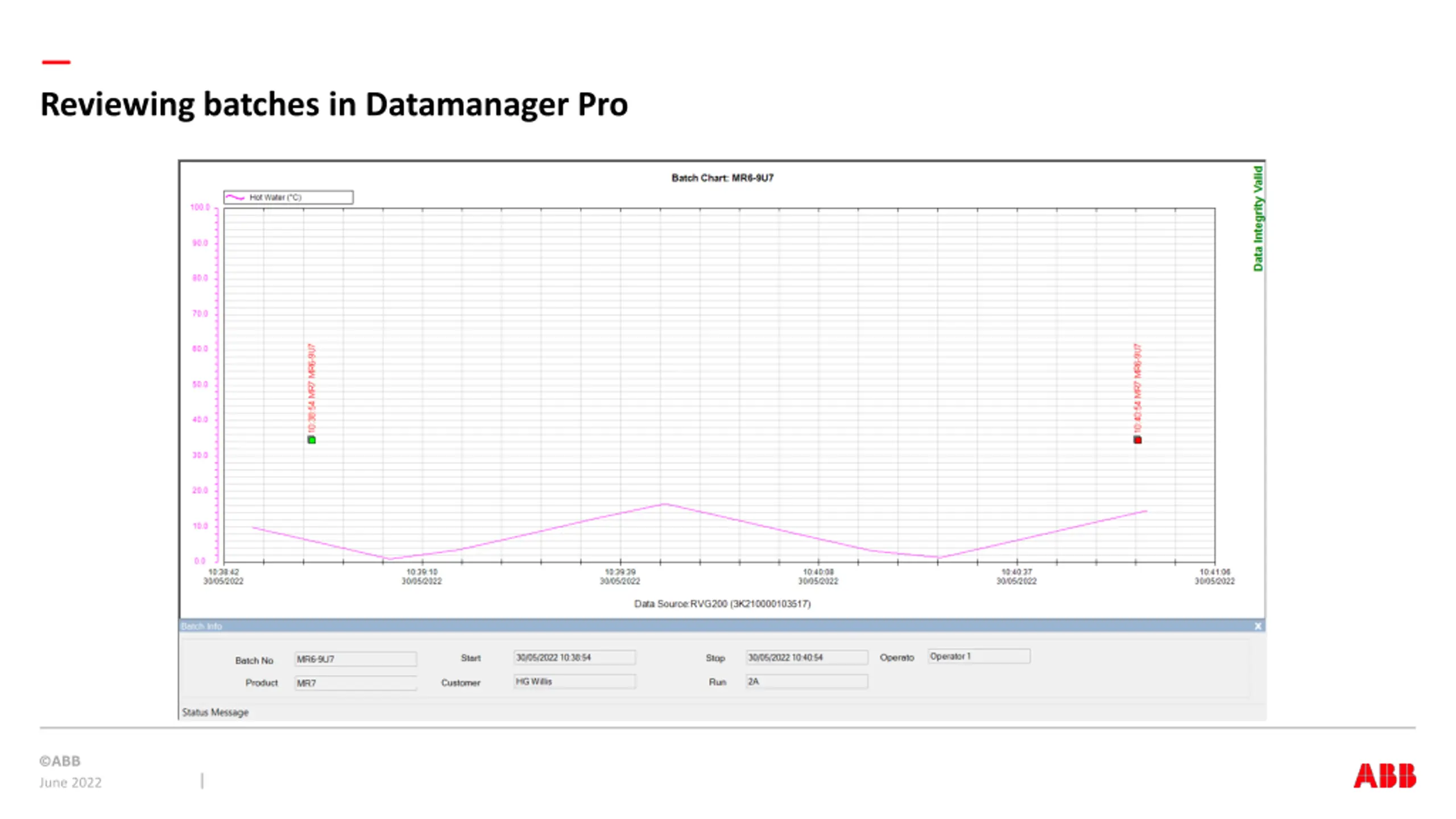

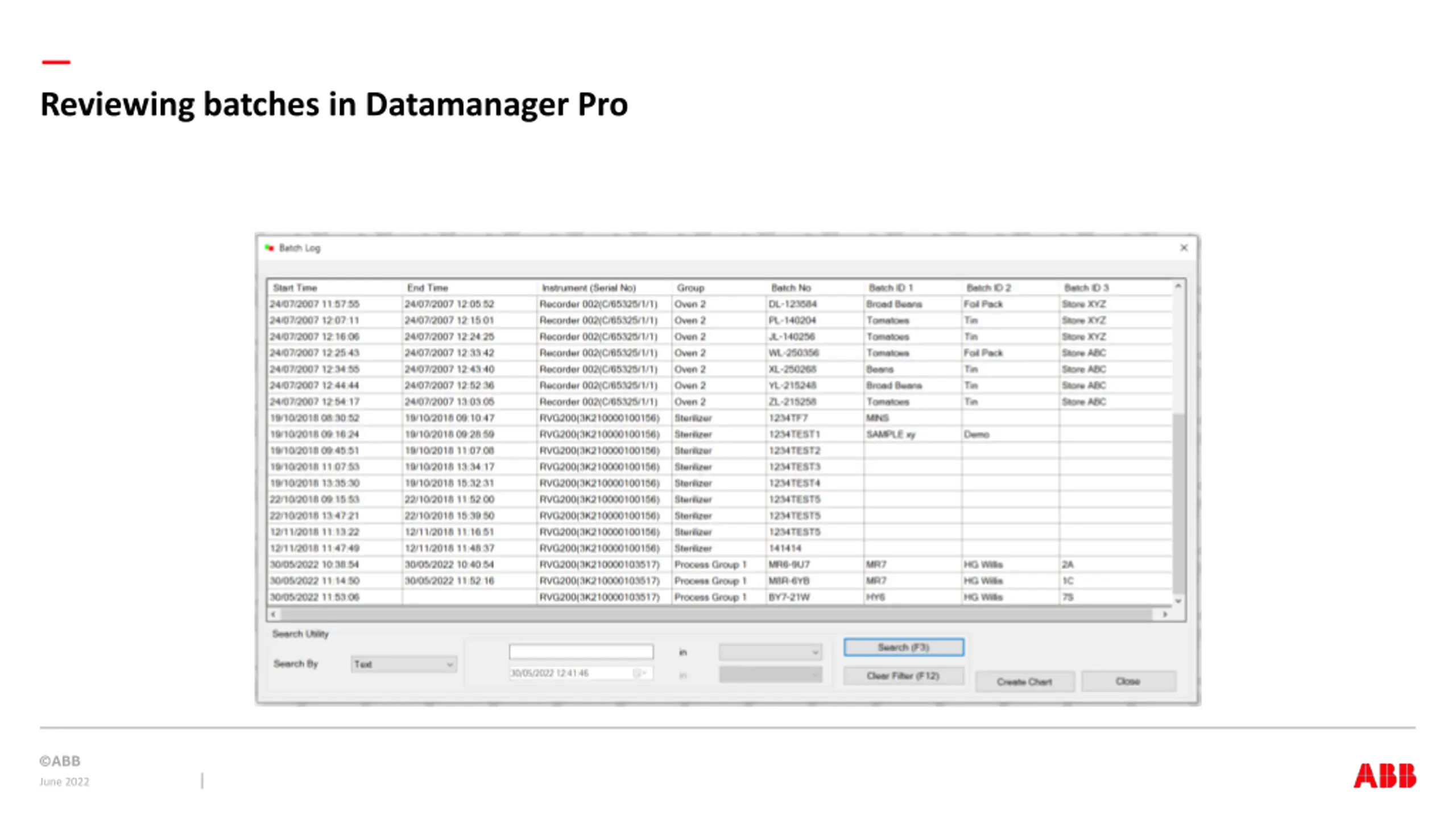

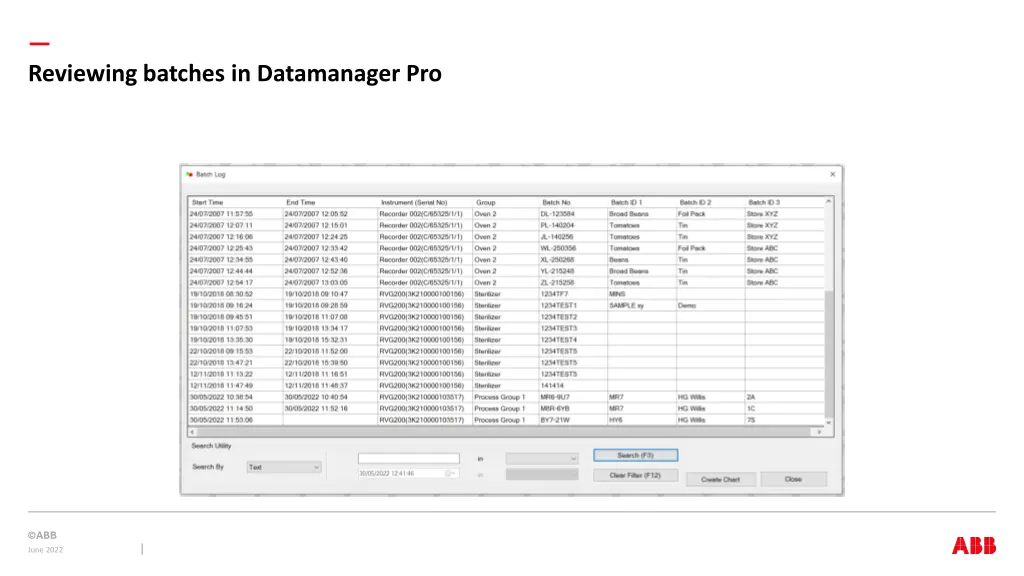

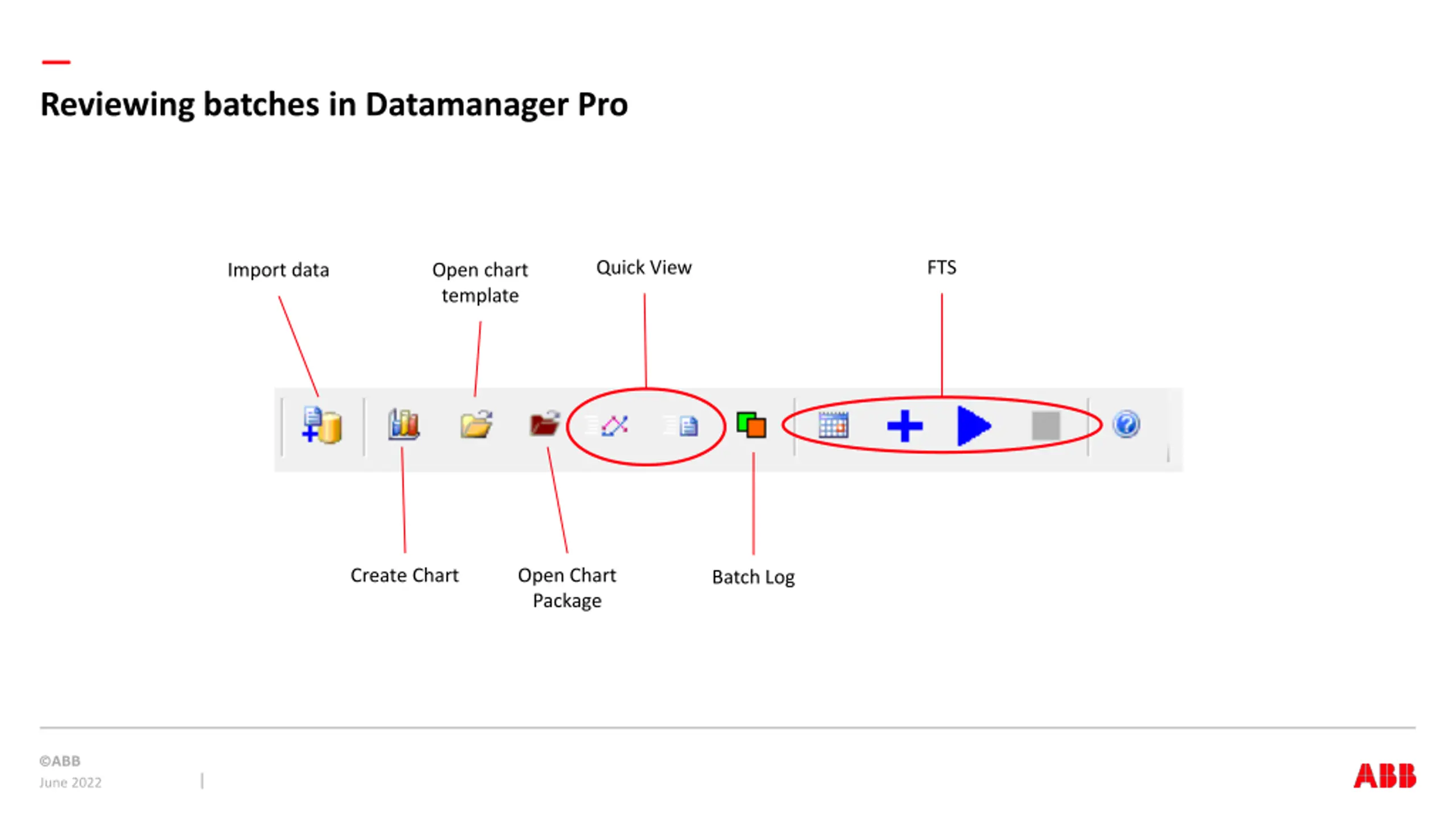

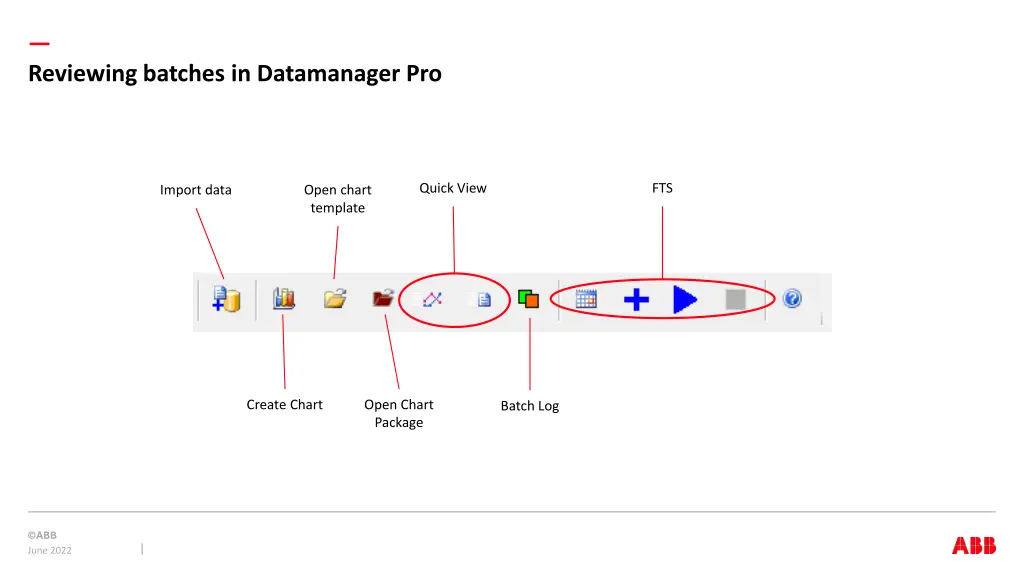

Reviewing batches in Datamanager Pro Quick View FTS Import data Open chart template Create Chart Open Chart Package Batch Log June 2022

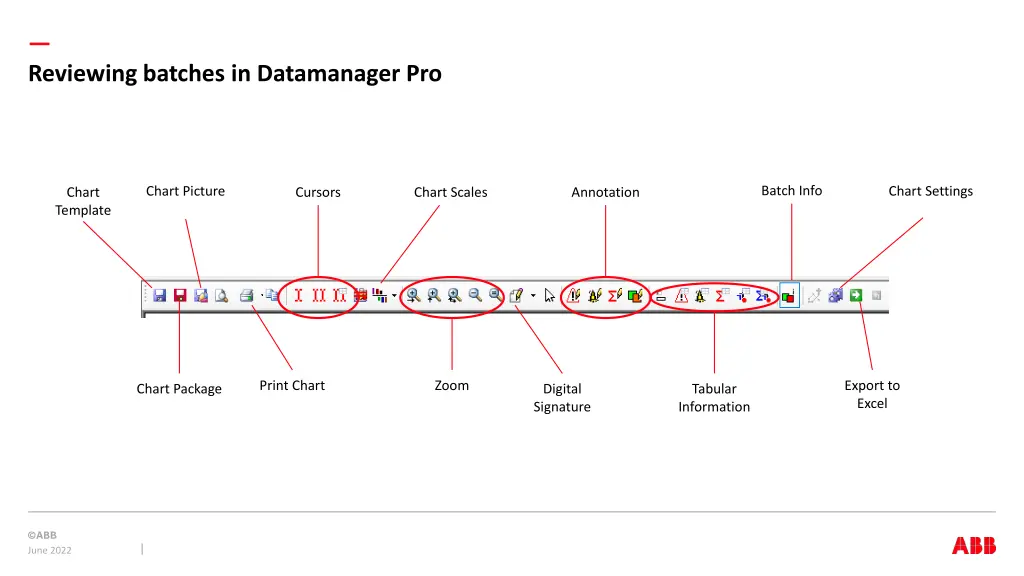

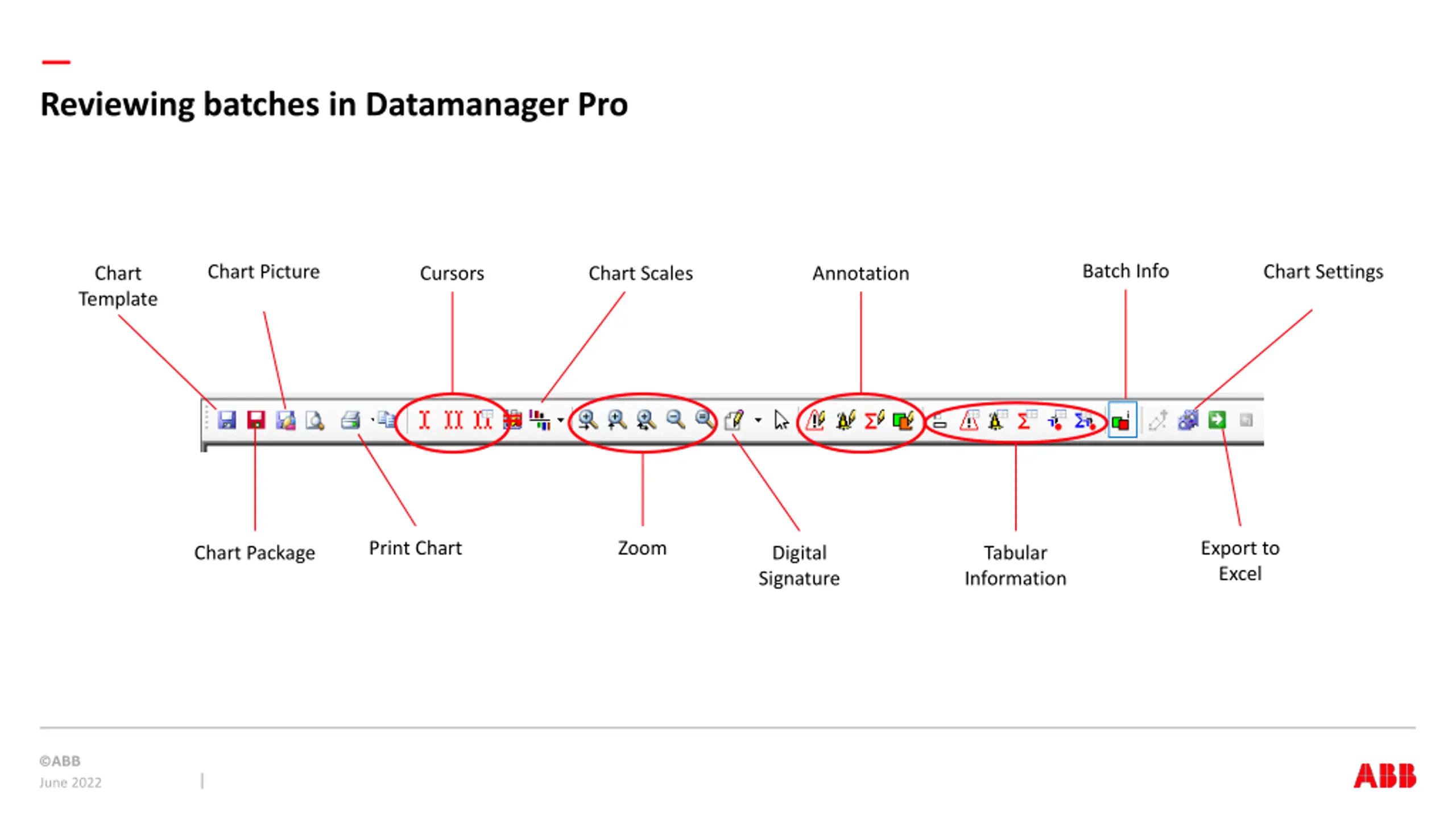

Reviewing batches in Datamanager Pro Batch Info Chart Picture Chart Settings Chart Template Cursors Chart Scales Annotation Print Chart Zoom Export to Excel Chart Package Digital Signature Tabular Information June 2022
For further information 01 abb.com/Recorders 02 Recording & Control Playlist on the ABB Measurement Expert channel 03 Just ask! June 2022
