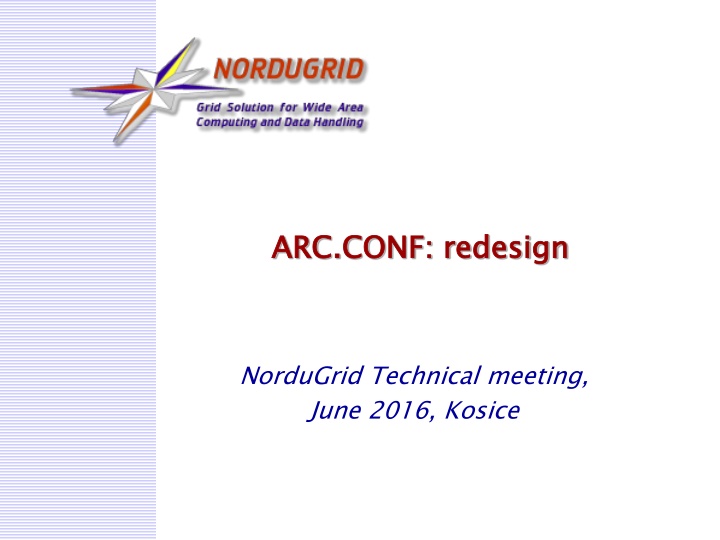

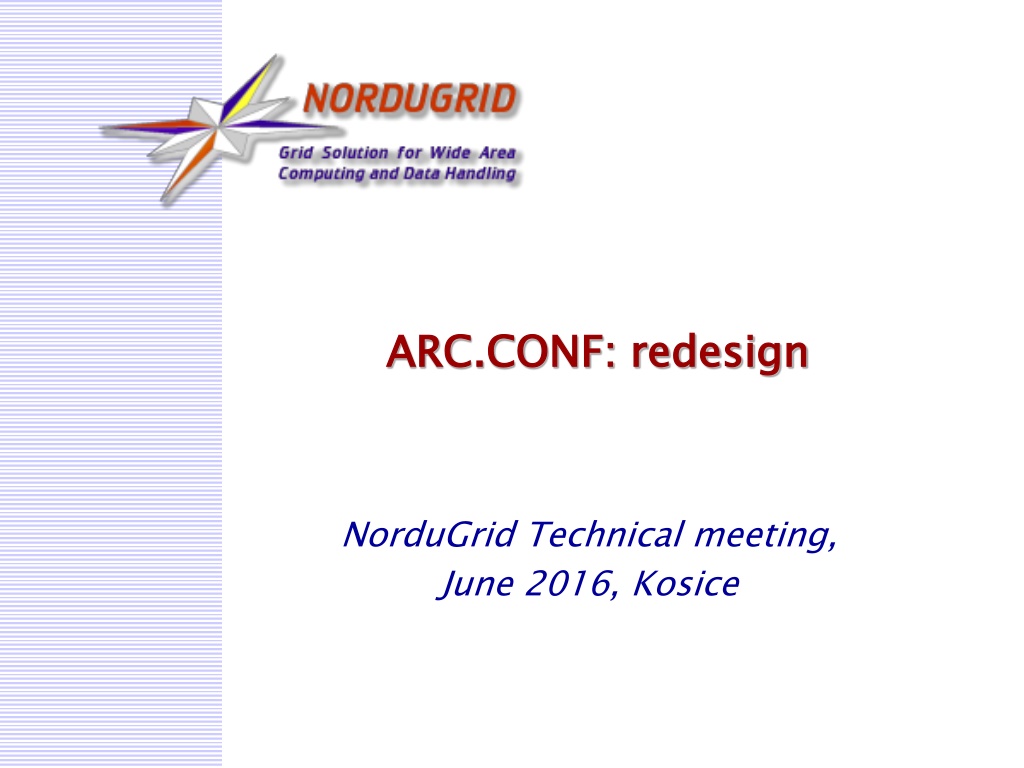

ARC.CONF: redesign ARC.CONF: redesign NorduGrid Technical meeting, June 2016, Kosice

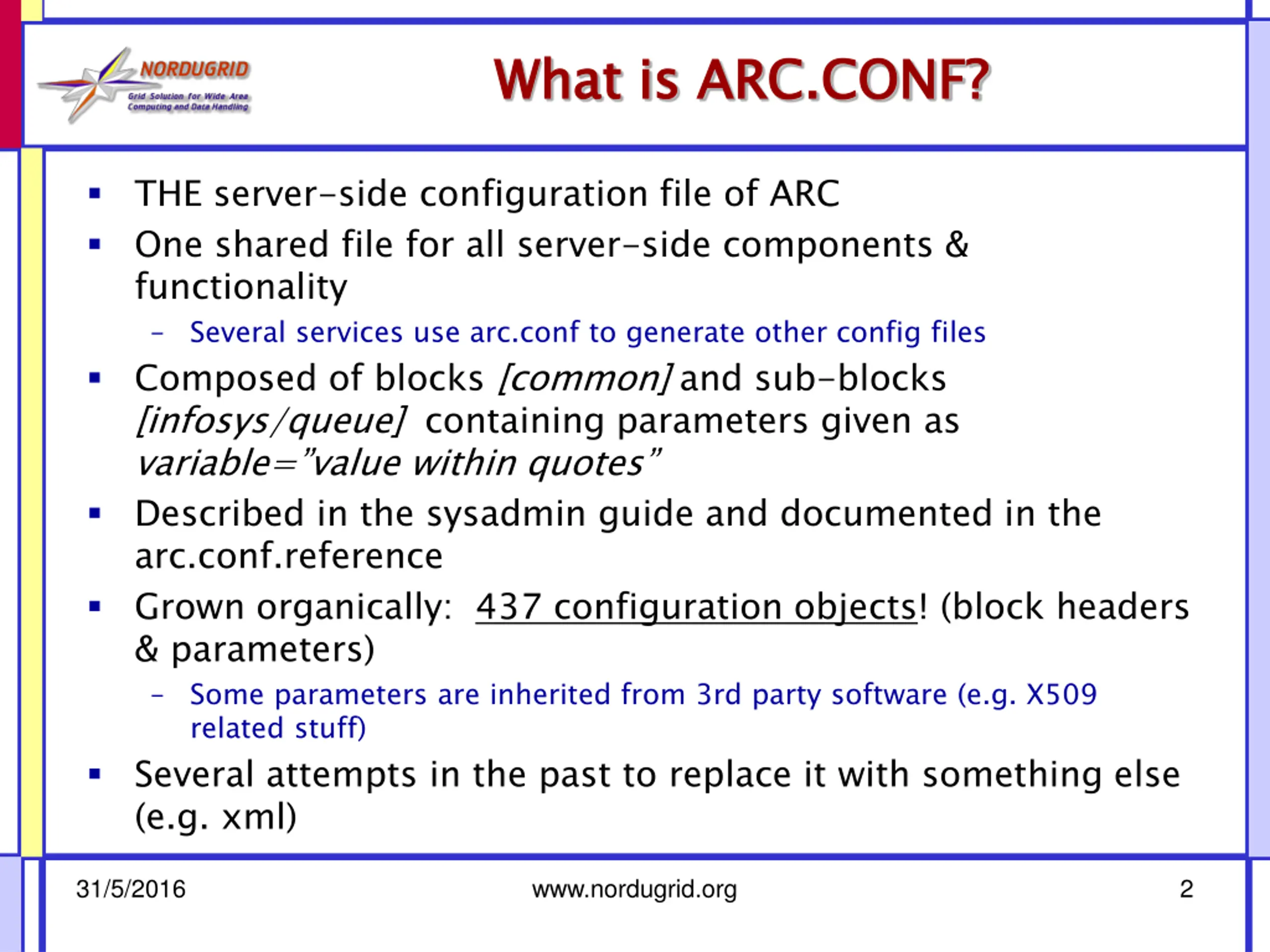

What is ARC.CONF? What is ARC.CONF? THE server-side configuration file of ARC One shared file for all server-side components & functionality Composed of blocks [common] and sub-blocks [infosys/queue] containing parameters given as variable= value within quotes Described in the sysadmin guide and documented in the arc.conf.reference Grown organically: 437 configuration objects! (block headers & parameters) related stuff) Several attempts in the past to replace it with something else (e.g. xml) Several services use arc.conf to generate other config files Some parameters are inherited from 3rd party software (e.g. X509 31/5/2016 www.nordugrid.org 2

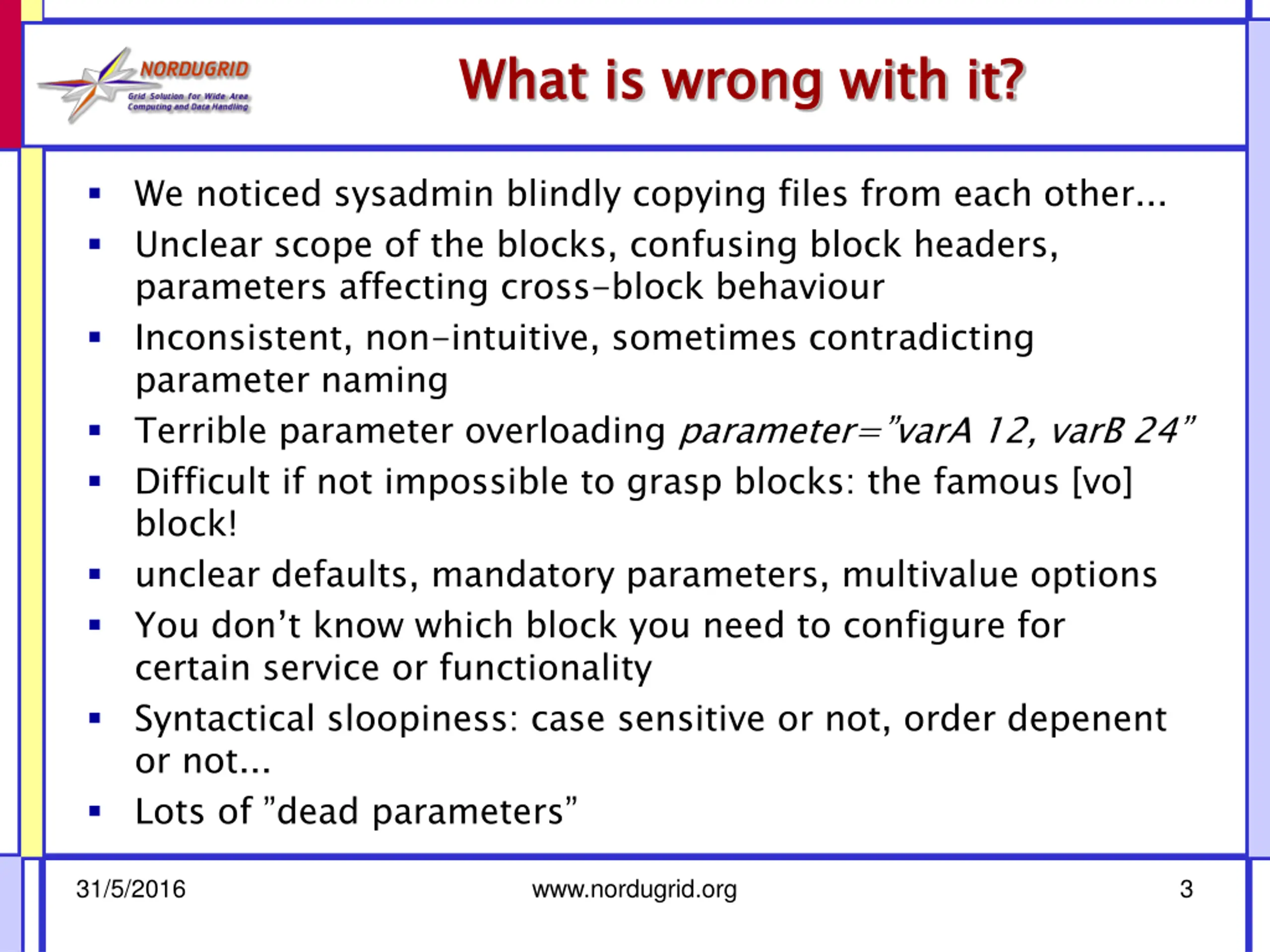

What is wrong with it? What is wrong with it? We noticed sysadmin blindly copying files from each other... Unclear scope of the blocks, confusing block headers, parameters affecting cross-block behaviour Inconsistent, non-intuitive, sometimes contradicting parameter naming Terrible parameter overloading parameter= varA 12, varB 24 Difficult if not impossible to grasp blocks: the famous [vo] block! unclear defaults, mandatory parameters, multivalue options You don t know which block you need to configure for certain service or functionality Syntactical sloopiness: case sensitive or not, order depenent or not... Lots of dead parameters 31/5/2016 www.nordugrid.org 3

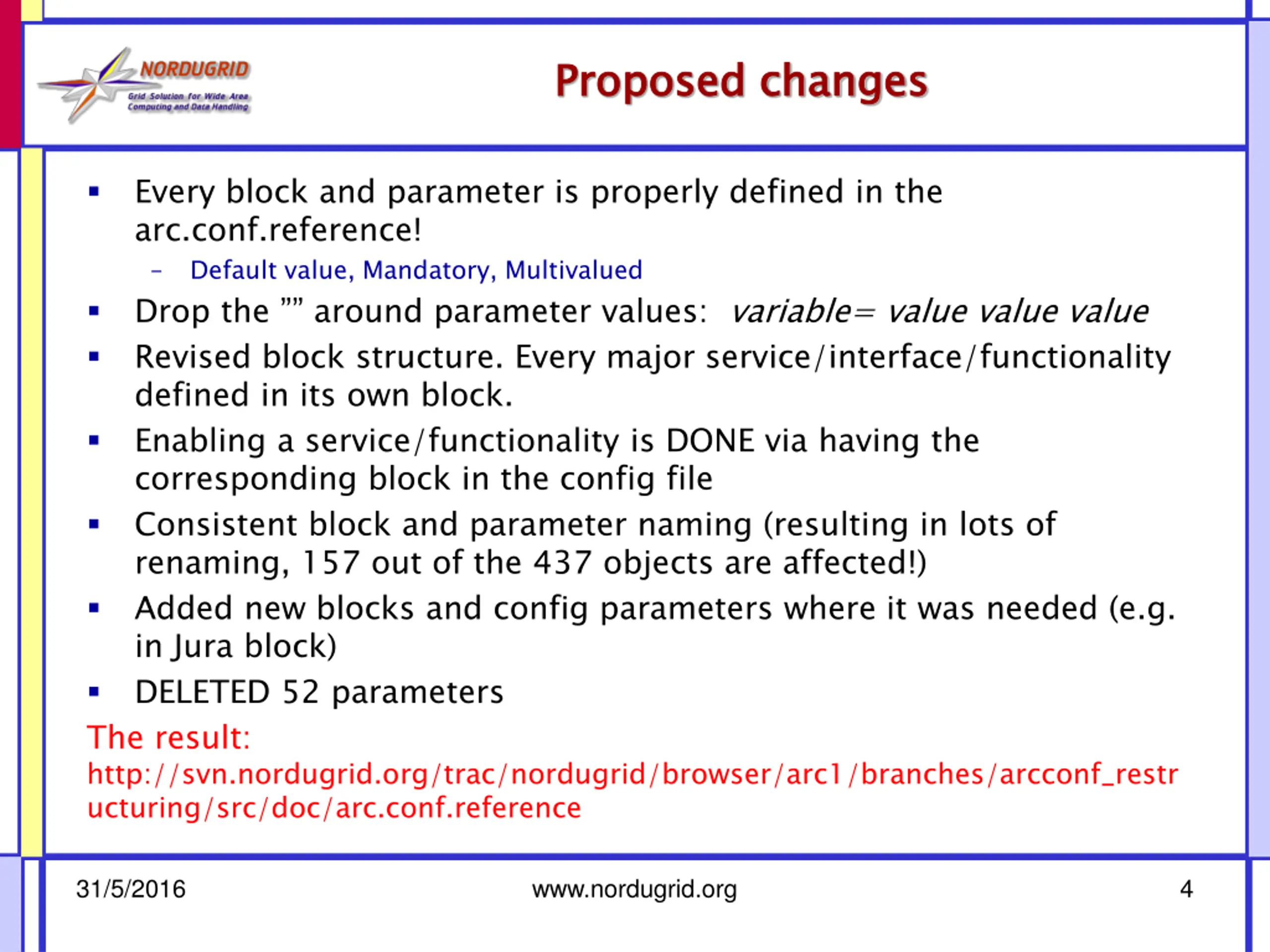

Proposed changes Proposed changes Every block and parameter is properly defined in the arc.conf.reference! Drop the around parameter values: variable= value value value Revised block structure. Every major service/interface/functionality defined in its own block. Enabling a service/functionality is DONE via having the corresponding block in the config file Consistent block and parameter naming (resulting in lots of renaming, 157 out of the 437 objects are affected!) Added new blocks and config parameters where it was needed (e.g. in Jura block) DELETED 52 parameters The result: http://svn.nordugrid.org/trac/nordugrid/browser/arc1/branches/arcconf_restr ucturing/src/doc/arc.conf.reference Default value, Mandatory, Multivalued 31/5/2016 www.nordugrid.org 4

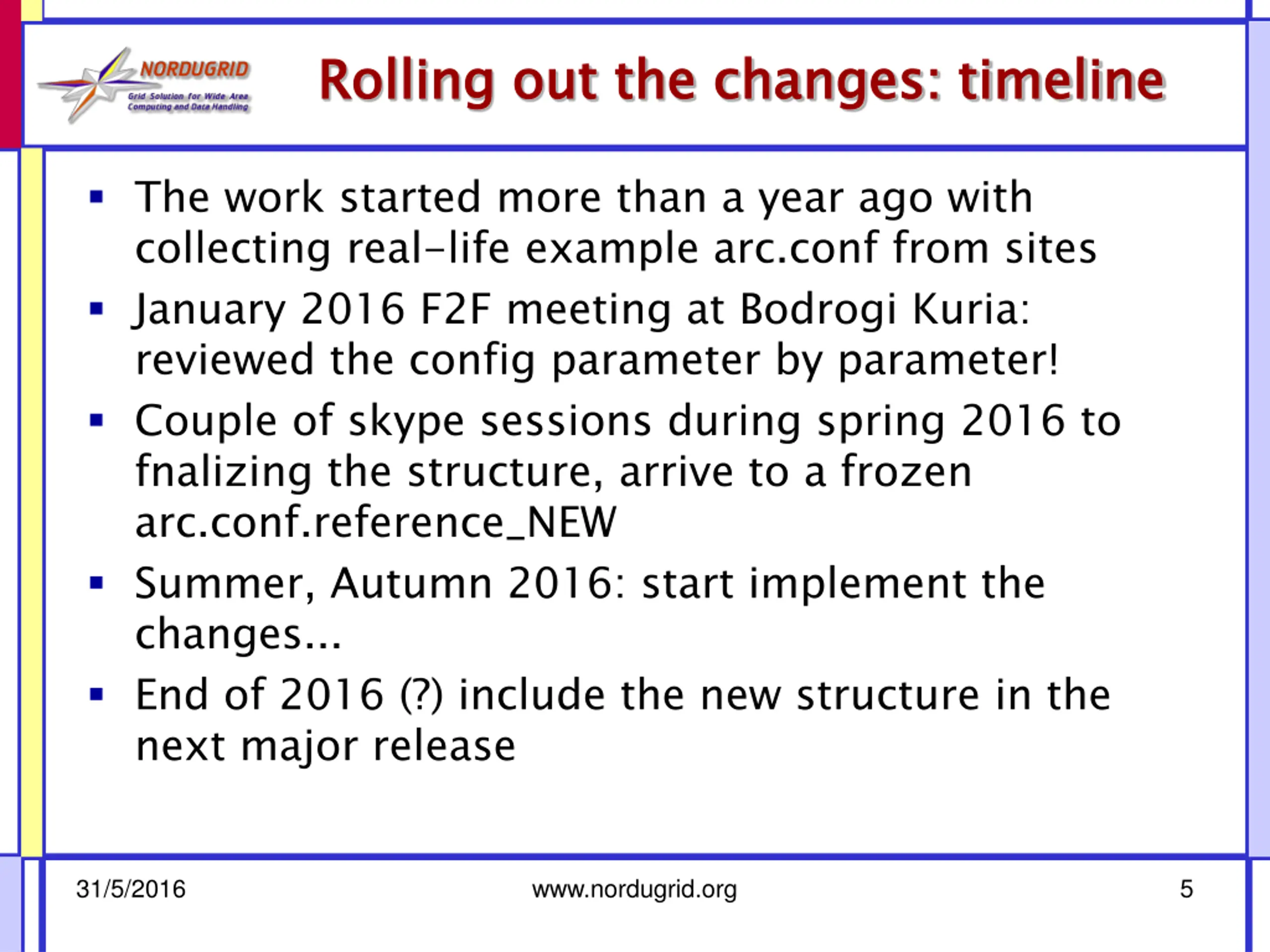

Rolling out the changes: timeline Rolling out the changes: timeline The work started more than a year ago with collecting real-life example arc.conf from sites January 2016 F2F meeting at Bodrogi Kuria: reviewed the config parameter by parameter! Couple of skype sessions during spring 2016 to fnalizing the structure, arrive to a frozen arc.conf.reference_NEW Summer, Autumn 2016: start implement the changes... End of 2016 (?) include the new structure in the next major release 31/5/2016 www.nordugrid.org 5
