Regent and Pygion Elliott Slaughter Legion Retreat, 2021-06-14

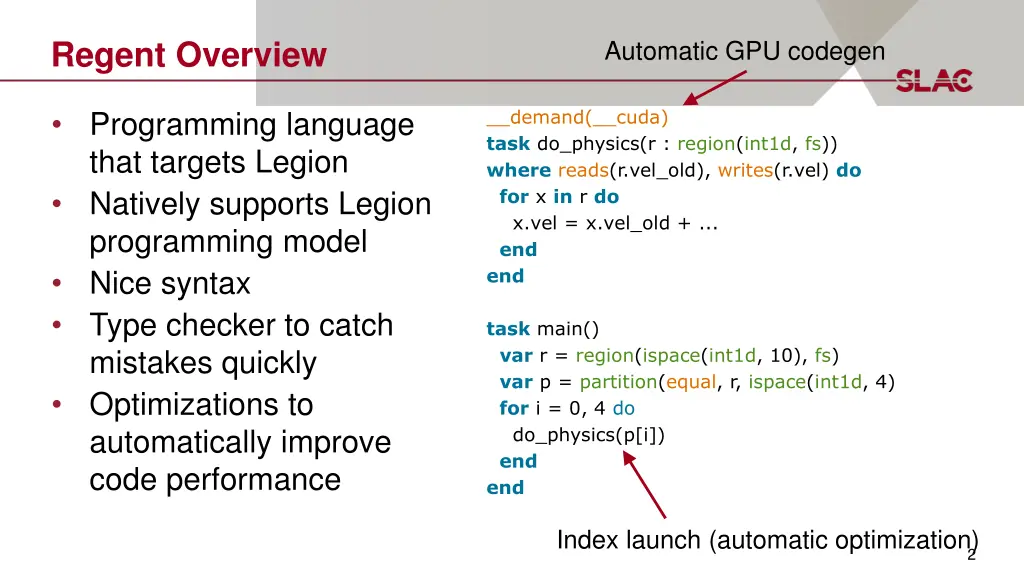

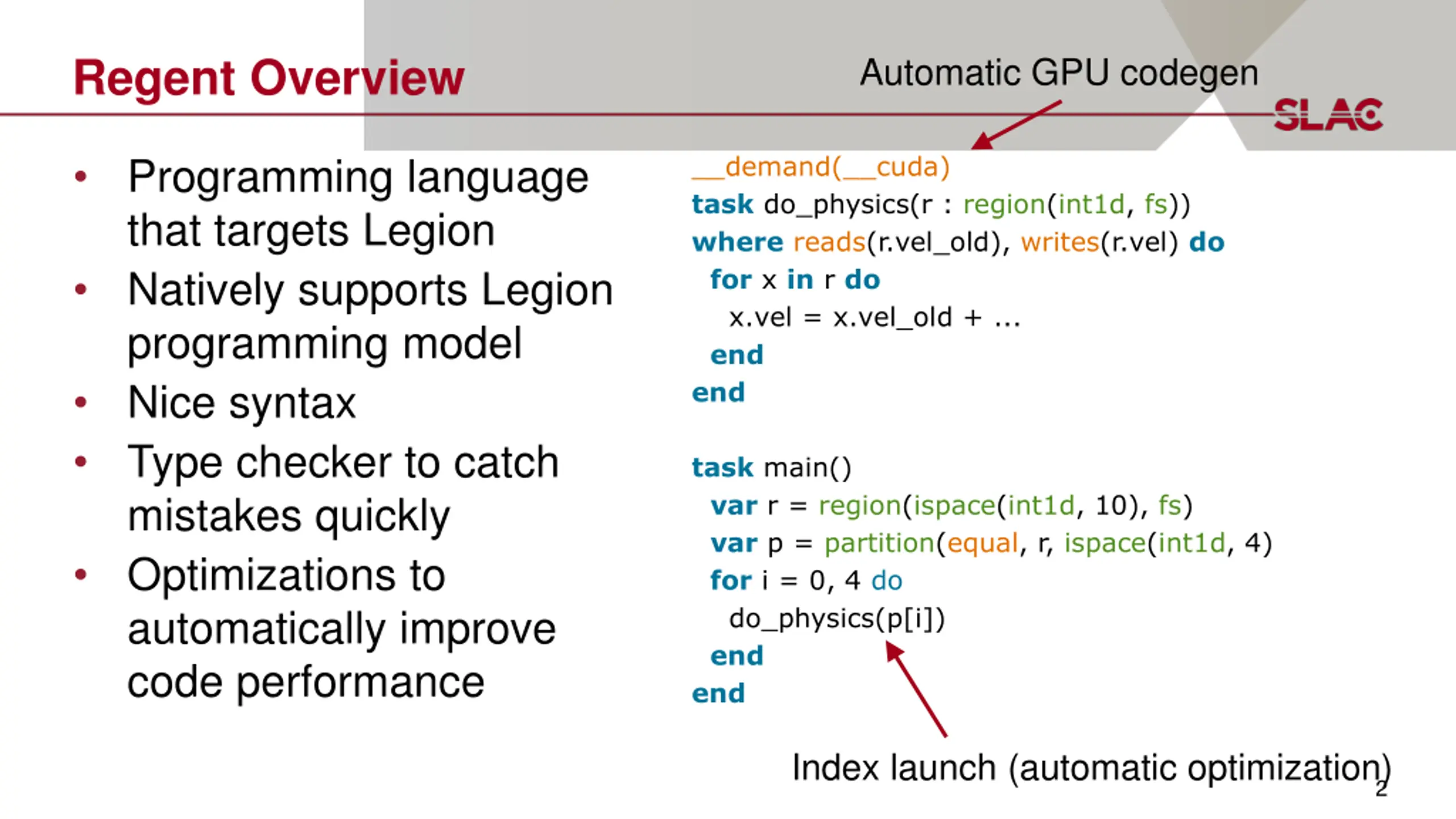

Regent Overview Automatic GPU codegen Programming language that targets Legion Natively supports Legion programming model Nice syntax Type checker to catch mistakes quickly Optimizations to automatically improve code performance __demand(__cuda) task do_physics(r : region(int1d, fs)) where reads(r.vel_old), writes(r.vel) do for x in r do x.vel = x.vel_old + ... end end task main() var r = region(ispace(int1d, 10), fs) var p = partition(equal, r, ispace(int1d, 4) for i = 0, 4 do do_physics(p[i]) end end Index launch (automatic optimization) 2

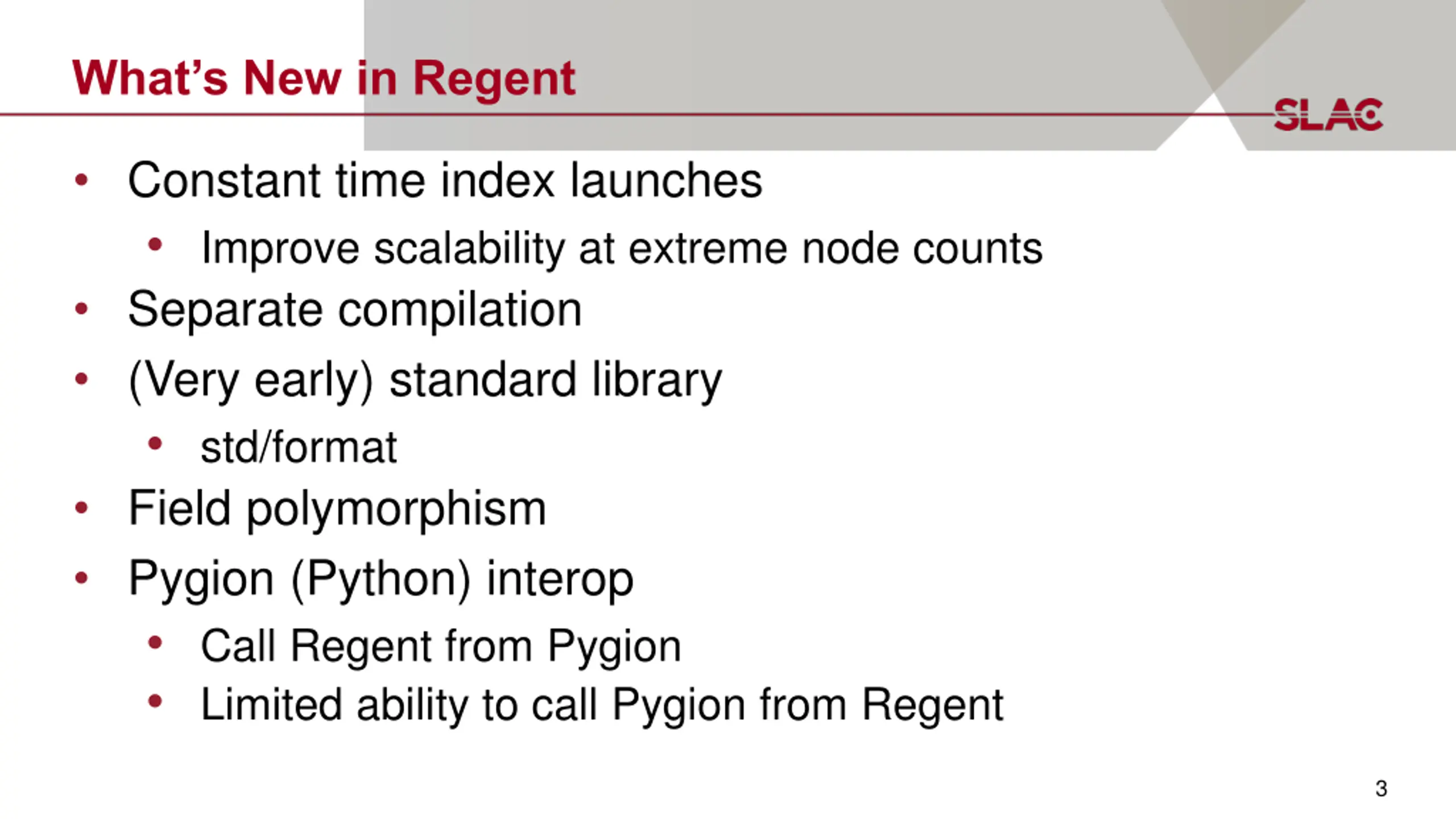

Whats New in Regent Constant time index launches Improve scalability at extreme node counts Separate compilation (Very early) standard library std/format Field polymorphism Pygion (Python) interop Call Regent from Pygion Limited ability to call Pygion from Regent 3

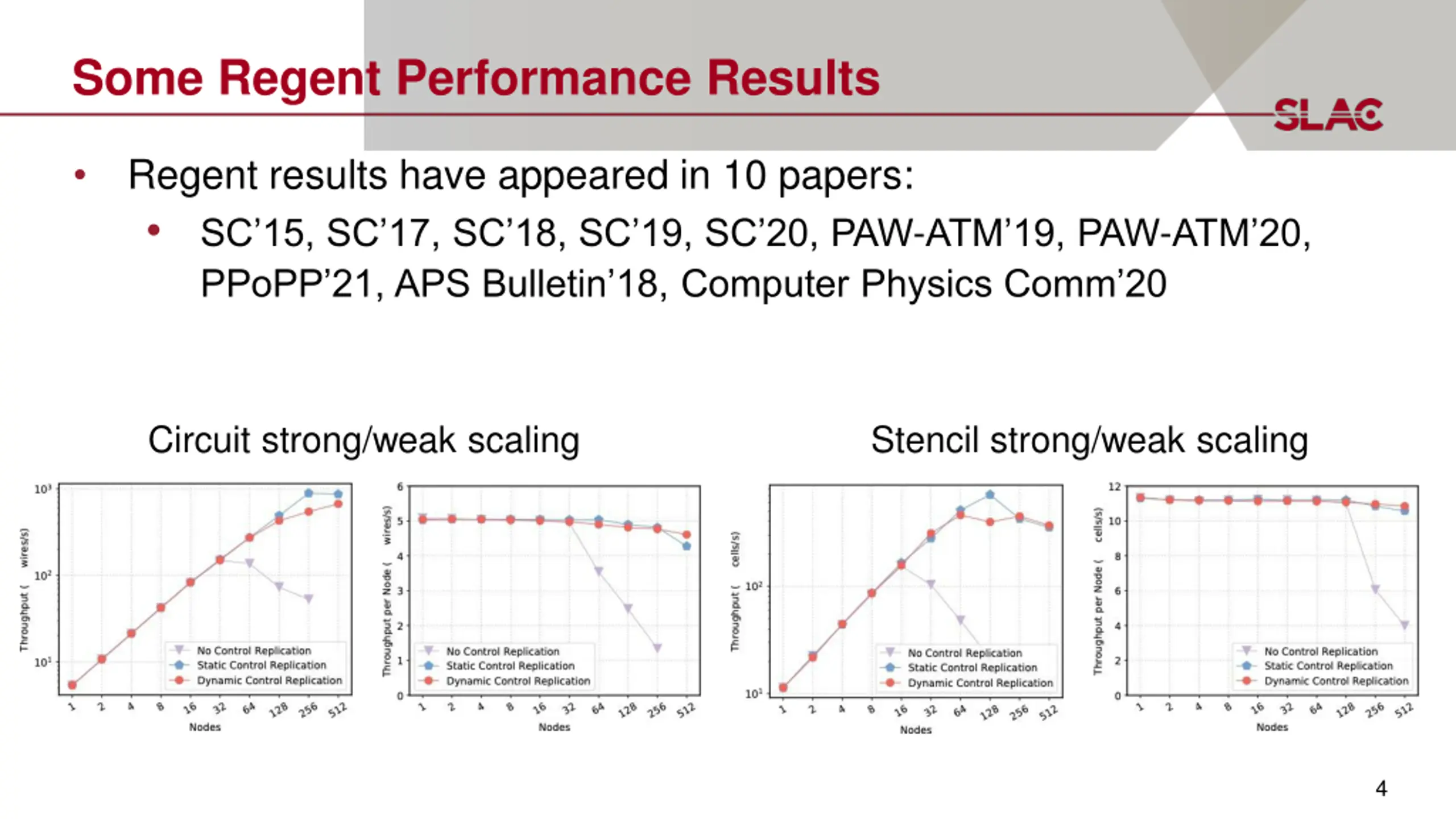

Some Regent Performance Results Regent results have appeared in 10 papers: SC 15, SC 17, SC 18, SC 19, SC 20, PAW-ATM 19, PAW-ATM 20, PPoPP 21, APS Bulletin 18, Computer Physics Comm 20 Circuit strong/weak scaling Stencil strong/weak scaling 4

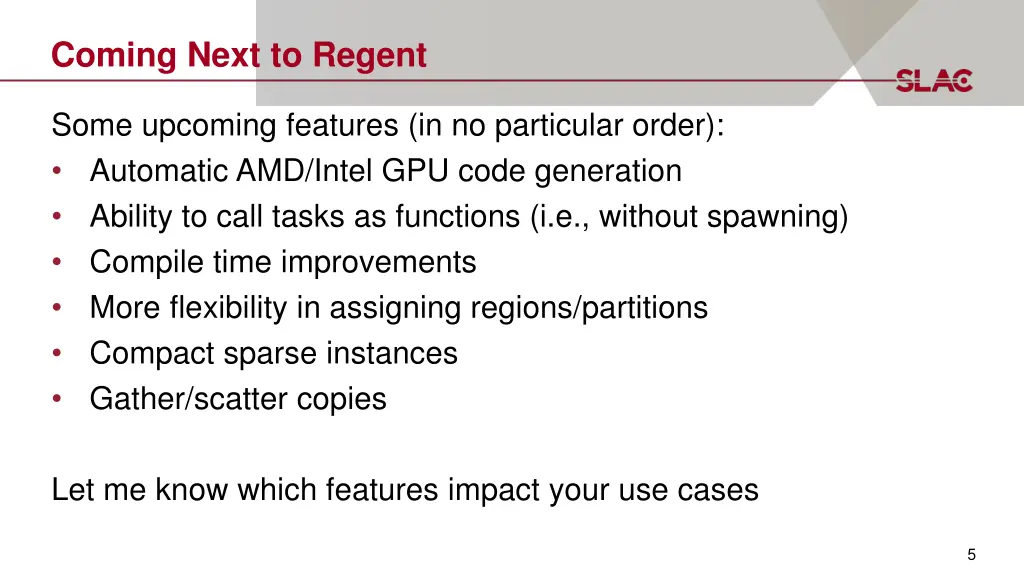

Coming Next to Regent Some upcoming features (in no particular order): Automatic AMD/Intel GPU code generation Ability to call tasks as functions (i.e., without spawning) Compile time improvements More flexibility in assigning regions/partitions Compact sparse instances Gather/scatter copies Let me know which features impact your use cases 5

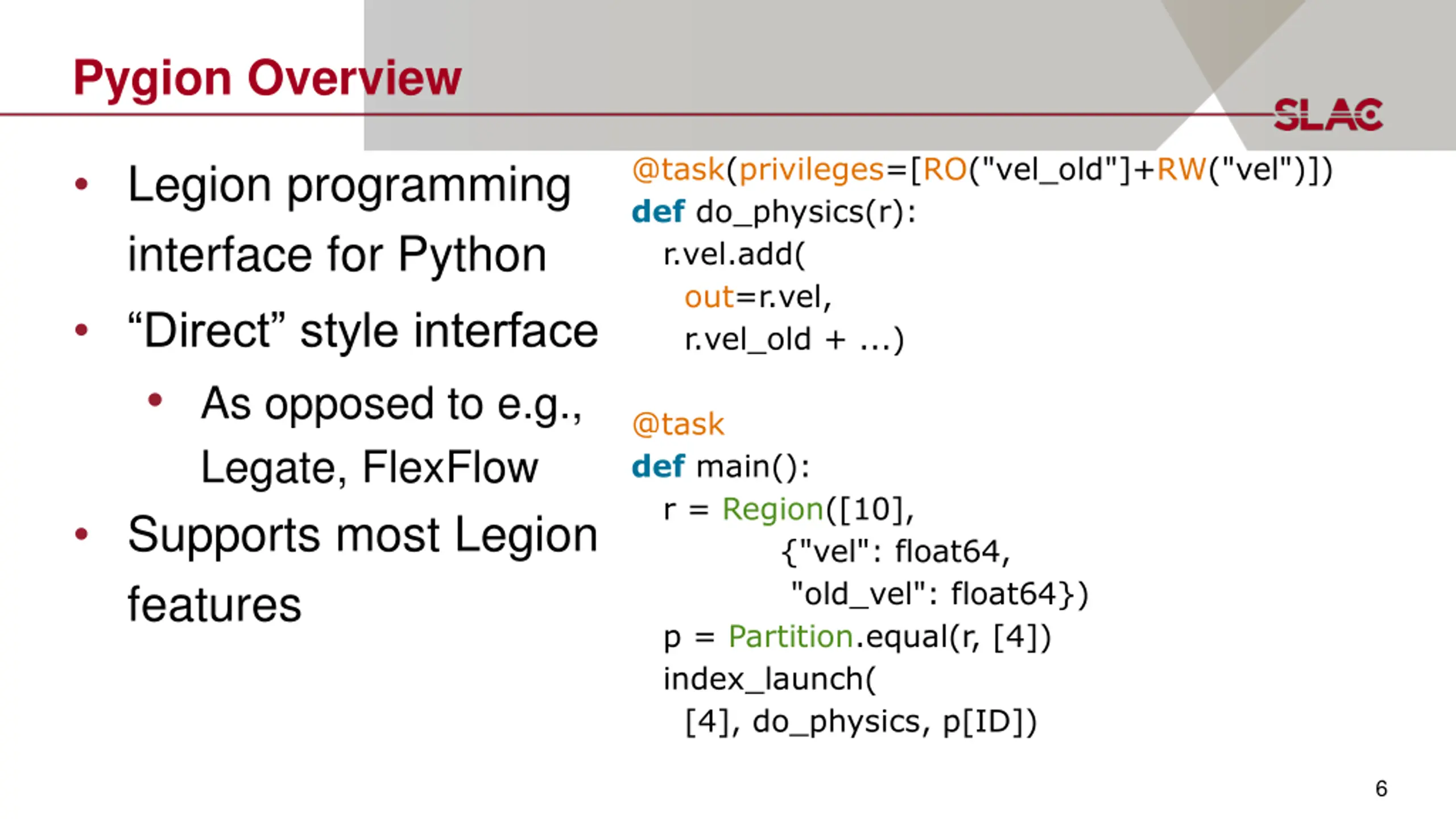

Pygion Overview @task(privileges=[RO("vel_old"]+RW("vel")]) def do_physics(r): r.vel.add( out=r.vel, r.vel_old + ...) Legion programming interface for Python Direct style interface As opposed to e.g., Legate, FlexFlow Supports most Legion features @task def main(): r = Region([10], {"vel": float64, "old_vel": float64}) p = Partition.equal(r, [4]) index_launch( [4], do_physics, p[ID]) 6

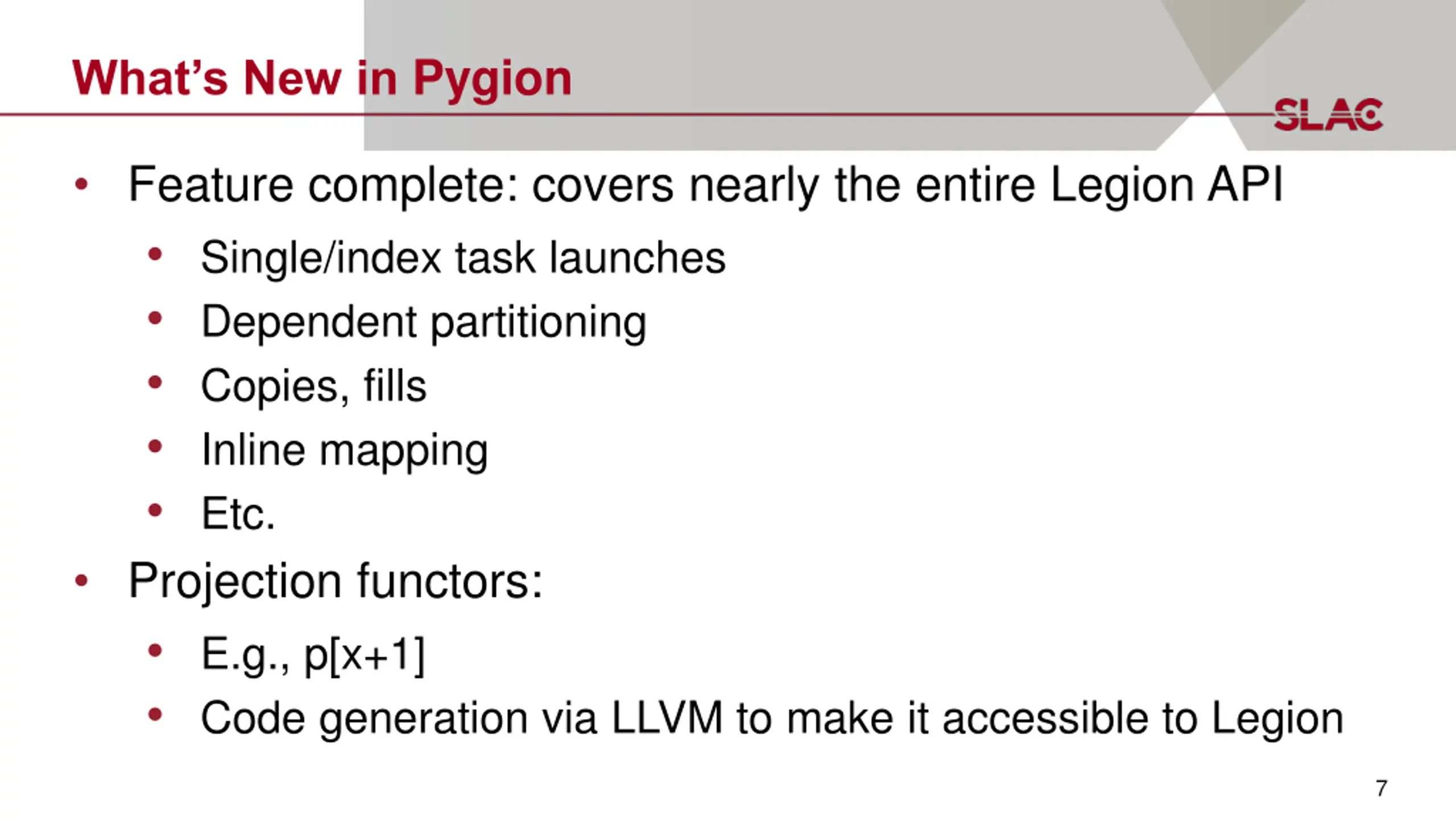

Whats New in Pygion Feature complete: covers nearly the entire Legion API Single/index task launches Dependent partitioning Copies, fills Inline mapping Etc. Projection functors: E.g., p[x+1] Code generation via LLVM to make it accessible to Legion 7

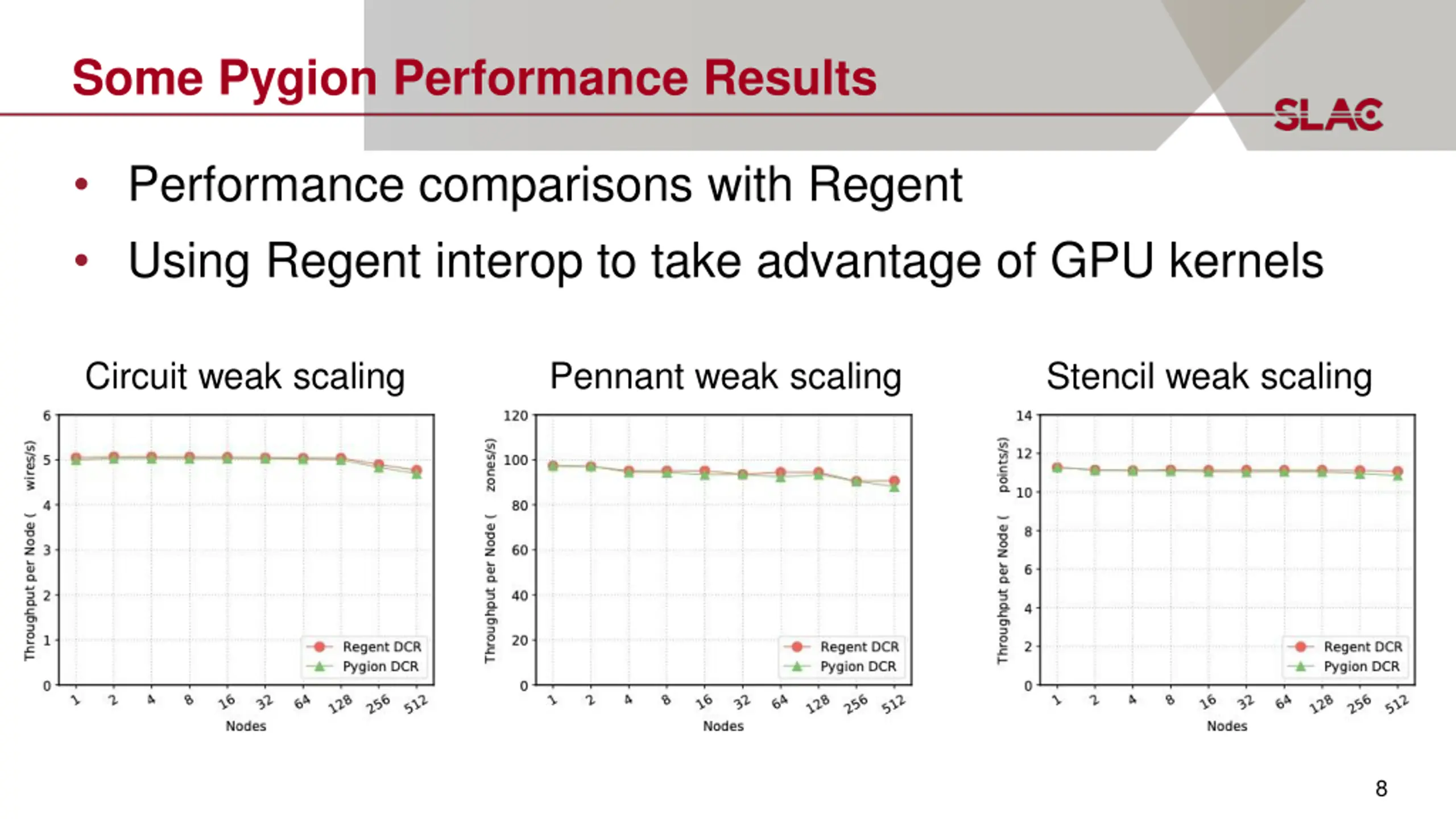

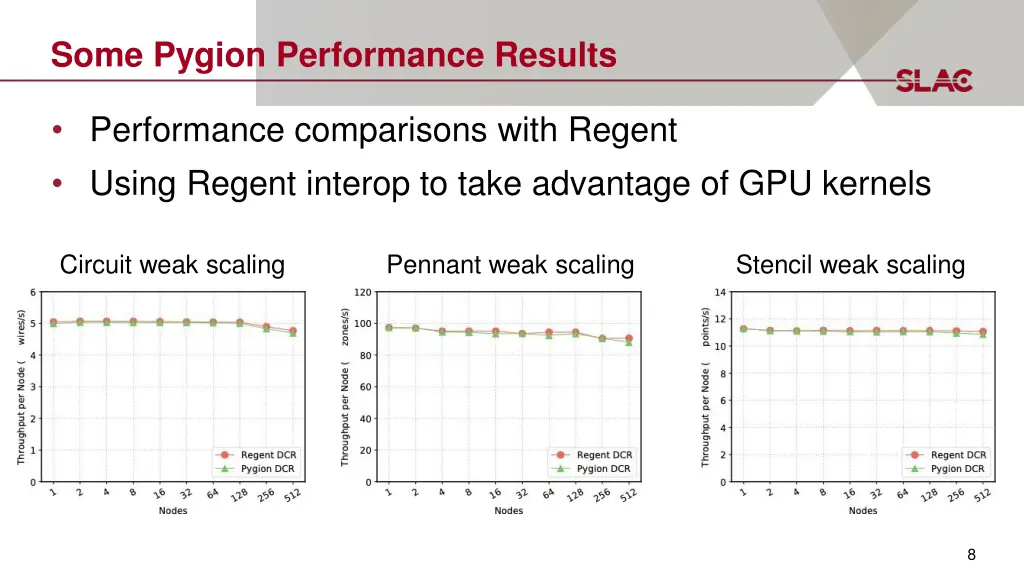

Some Pygion Performance Results Performance comparisons with Regent Using Regent interop to take advantage of GPU kernels Circuit weak scaling Pennant weak scaling Stencil weak scaling 8

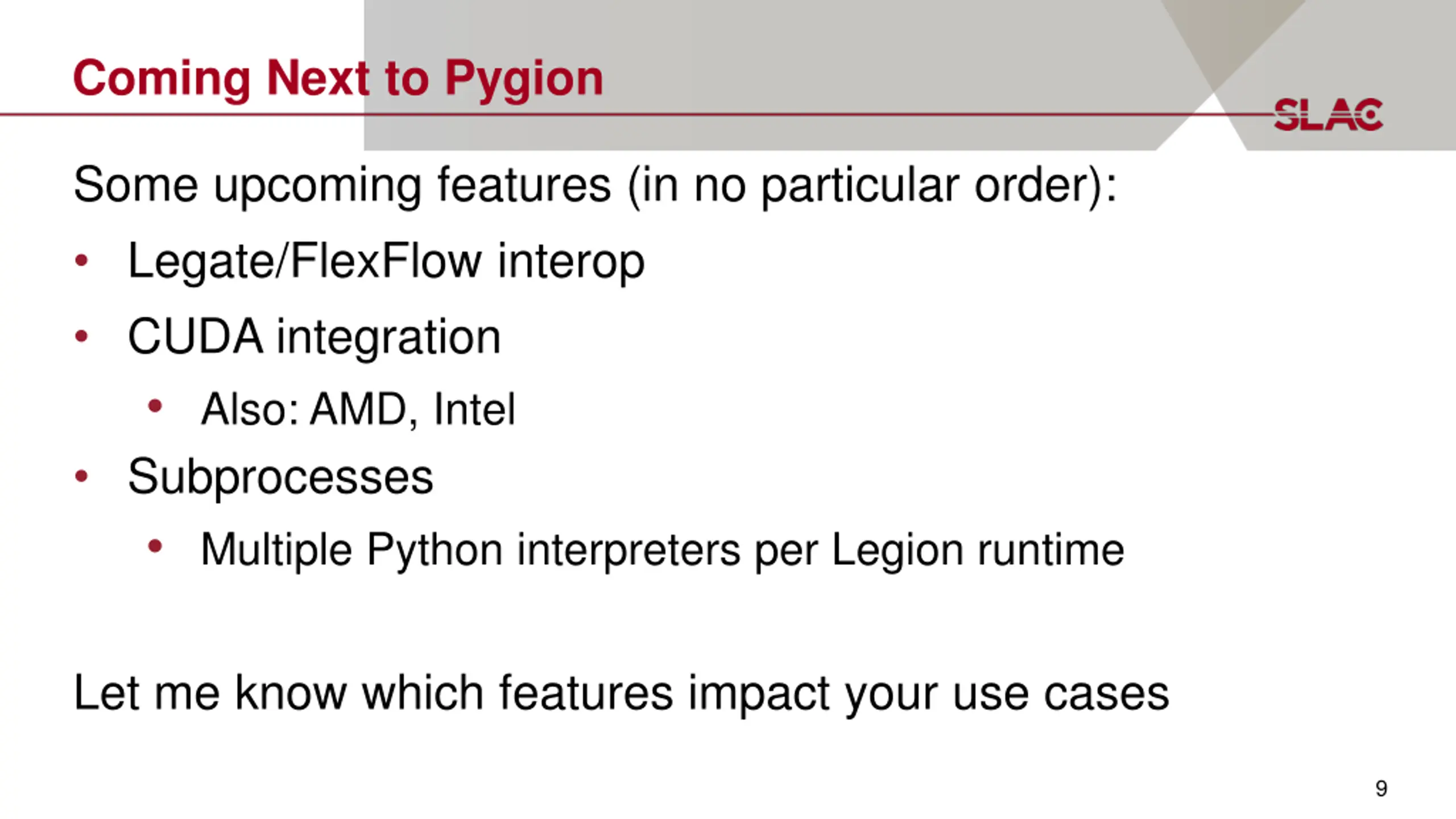

Coming Next to Pygion Some upcoming features (in no particular order): Legate/FlexFlow interop CUDA integration Also: AMD, Intel Subprocesses Multiple Python interpreters per Legion runtime Let me know which features impact your use cases 9
Questions? 10
