Outcomes from HSSC16 and Outcomes from HSSC16 and IRCC16 IRCC16 By Christopher Janus Chari, WWNWS Valparaiso, Chile 2 - 6 September 2024

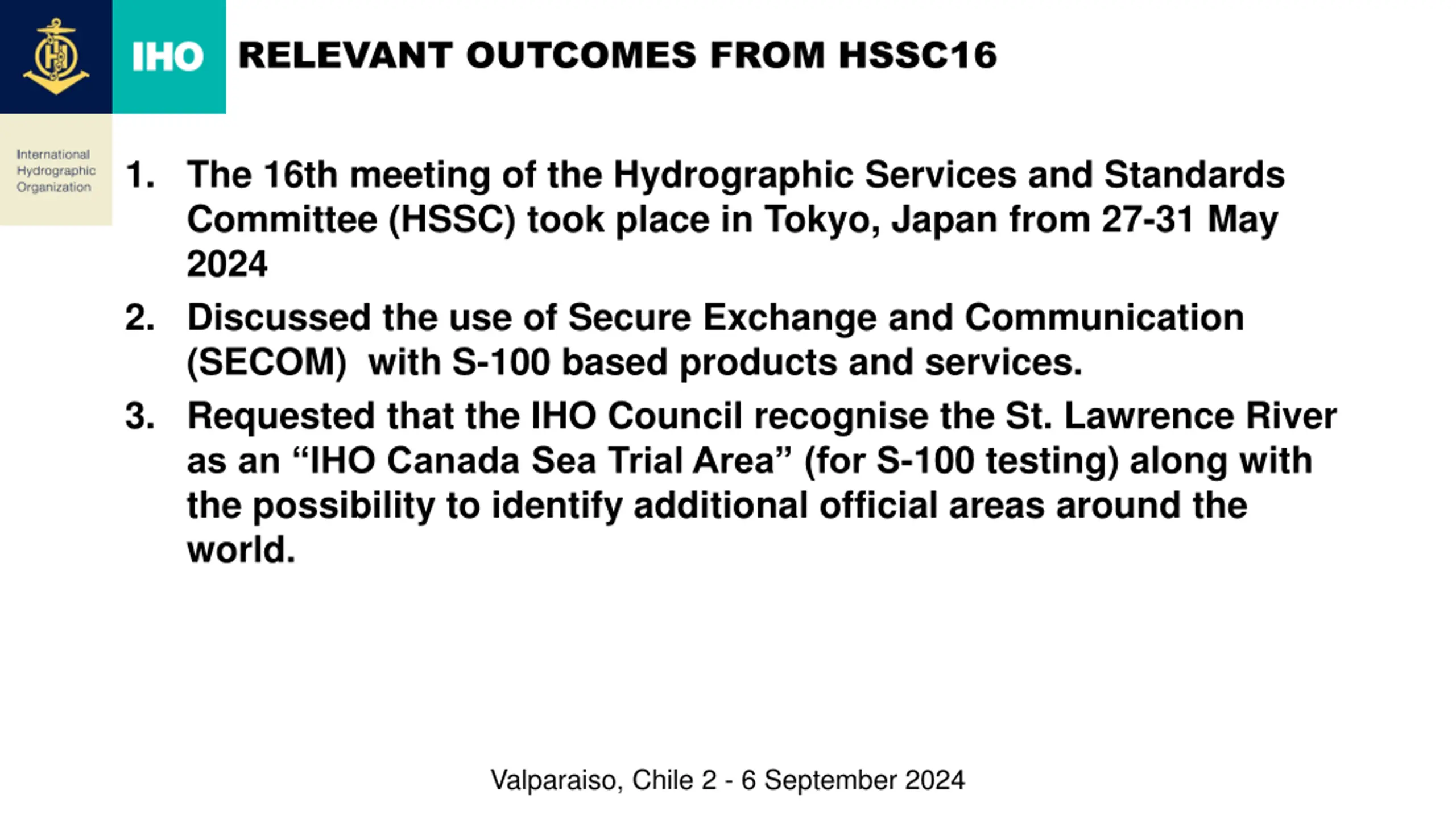

RELEVANT OUTCOMES FROM HSSC16 1. The 16th meeting of the Hydrographic Services and Standards Committee (HSSC) took place in Tokyo, Japan from 27-31 May 2024 2. Discussed the use of Secure Exchange and Communication (SECOM) with S-100 based products and services. 3. Requested that the IHO Council recognise the St. Lawrence River as an IHO Canada Sea Trial Area (for S-100 testing) along with the possibility to identify additional official areas around the world. Valparaiso, Chile 2 - 6 September 2024

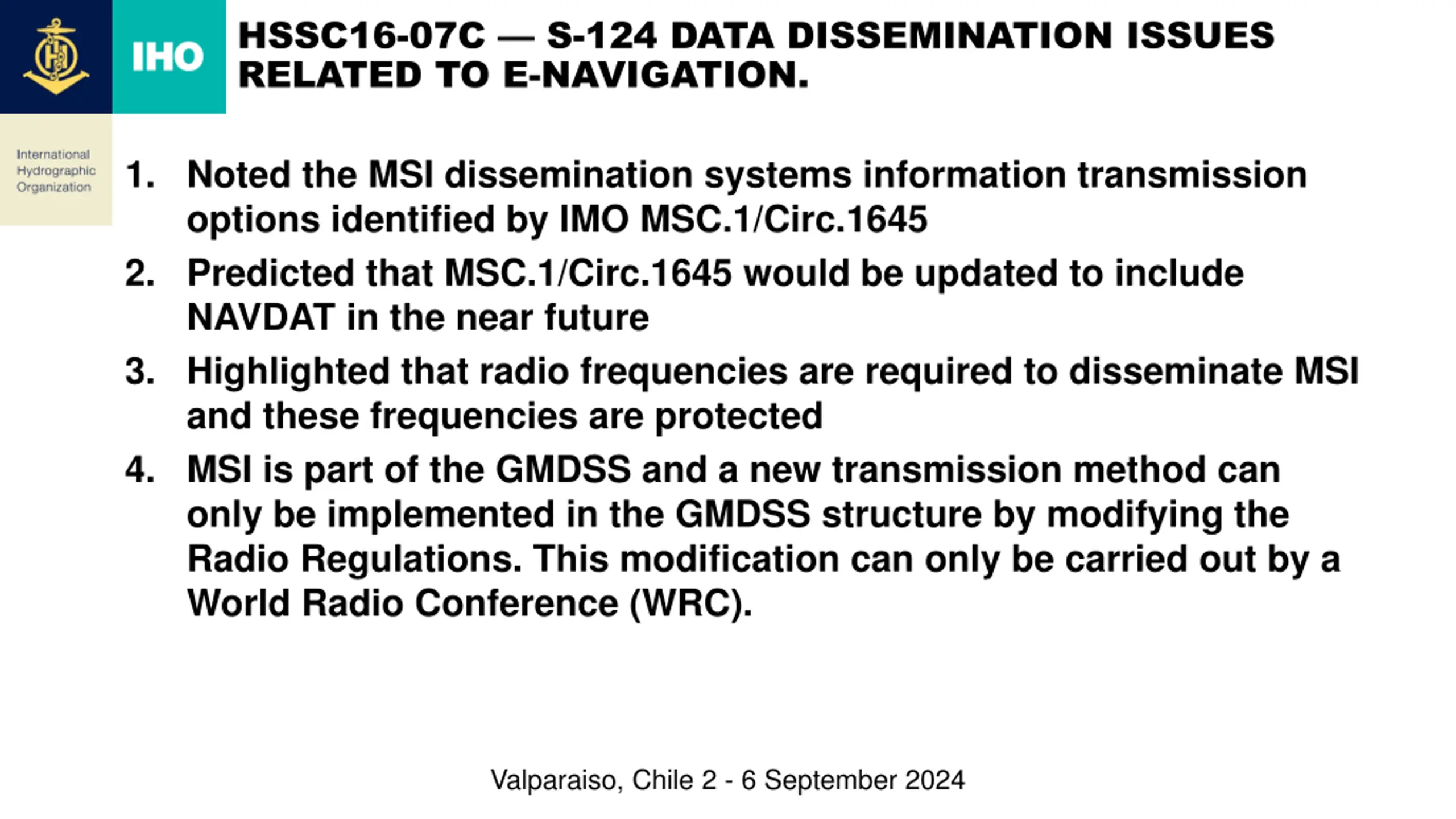

HSSC16-07C S-124 DATA DISSEMINATION ISSUES RELATED TO E-NAVIGATION. 1. Noted the MSI dissemination systems information transmission options identified by IMO MSC.1/Circ.1645 2. Predicted that MSC.1/Circ.1645 would be updated to include NAVDAT in the near future 3. Highlighted that radio frequencies are required to disseminate MSI and these frequencies are protected 4. MSI is part of the GMDSS and a new transmission method can only be implemented in the GMDSS structure by modifying the Radio Regulations. This modification can only be carried out by a World Radio Conference (WRC). Valparaiso, Chile 2 - 6 September 2024
DOCUMENT HSSC16-07F COMMENT ON S-124 DATA DISSEMINATION ISSUES RELATED TO E-NAVIGATION BY THE CHAIR OF THE IHO WWNWS 1. Addressed NAVDAT and VDES as potential new dissemination methods and the challenges that remain for each Noted that MSC 108 was expected to adopt the draft resolution MSC.530(106)/Rev.1 on ECDIS performance standards Noted that IEC Publication 63173-2, Maritime Navigation and Radiocommunication Equipment and Systems Data Interface Part 2: Secure Communication Between Ship and Shore is referenced in MSC.530 Communication between SECOM information services for data exchange relies on IP-based web services The result of the adoption of the draft resolution MSC.530(106)/Rev.1 at MSC 108 is that Member States acknowledged the requirement for the use of a broadband and IP-based connection to the S-100 ECDIS when it approved route exchange via SECOM 2. 3. 4. 5. Valparaiso, Chile 2 - 6 September 2024

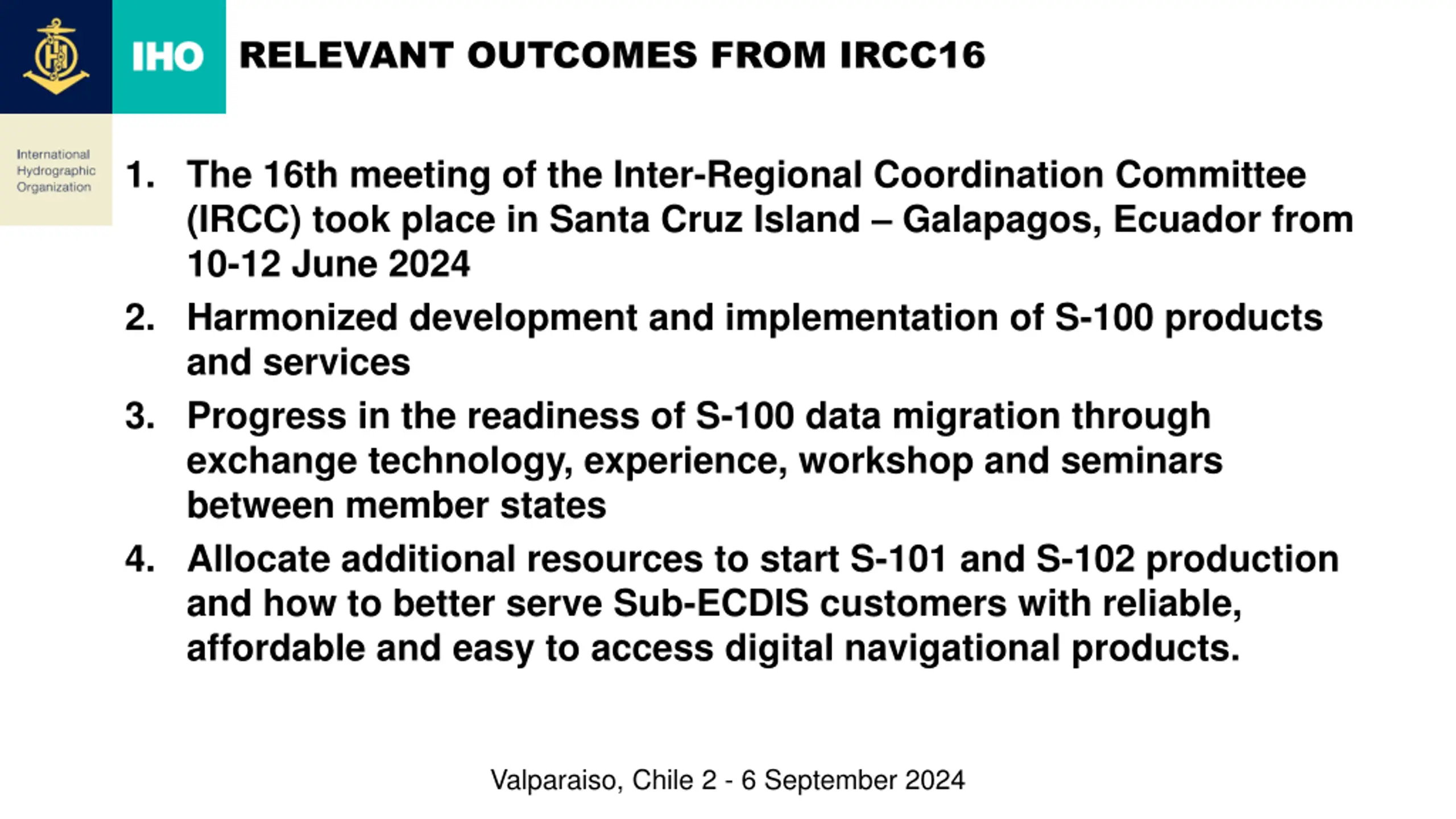

RELEVANT OUTCOMES FROM IRCC16 1. The 16th meeting of the Inter-Regional Coordination Committee (IRCC) took place in Santa Cruz Island Galapagos, Ecuador from 10-12 June 2024 2. Harmonized development and implementation of S-100 products and services 3. Progress in the readiness of S-100 data migration through exchange technology, experience, workshop and seminars between member states 4. Allocate additional resources to start S-101 and S-102 production and how to better serve Sub-ECDIS customers with reliable, affordable and easy to access digital navigational products. Valparaiso, Chile 2 - 6 September 2024

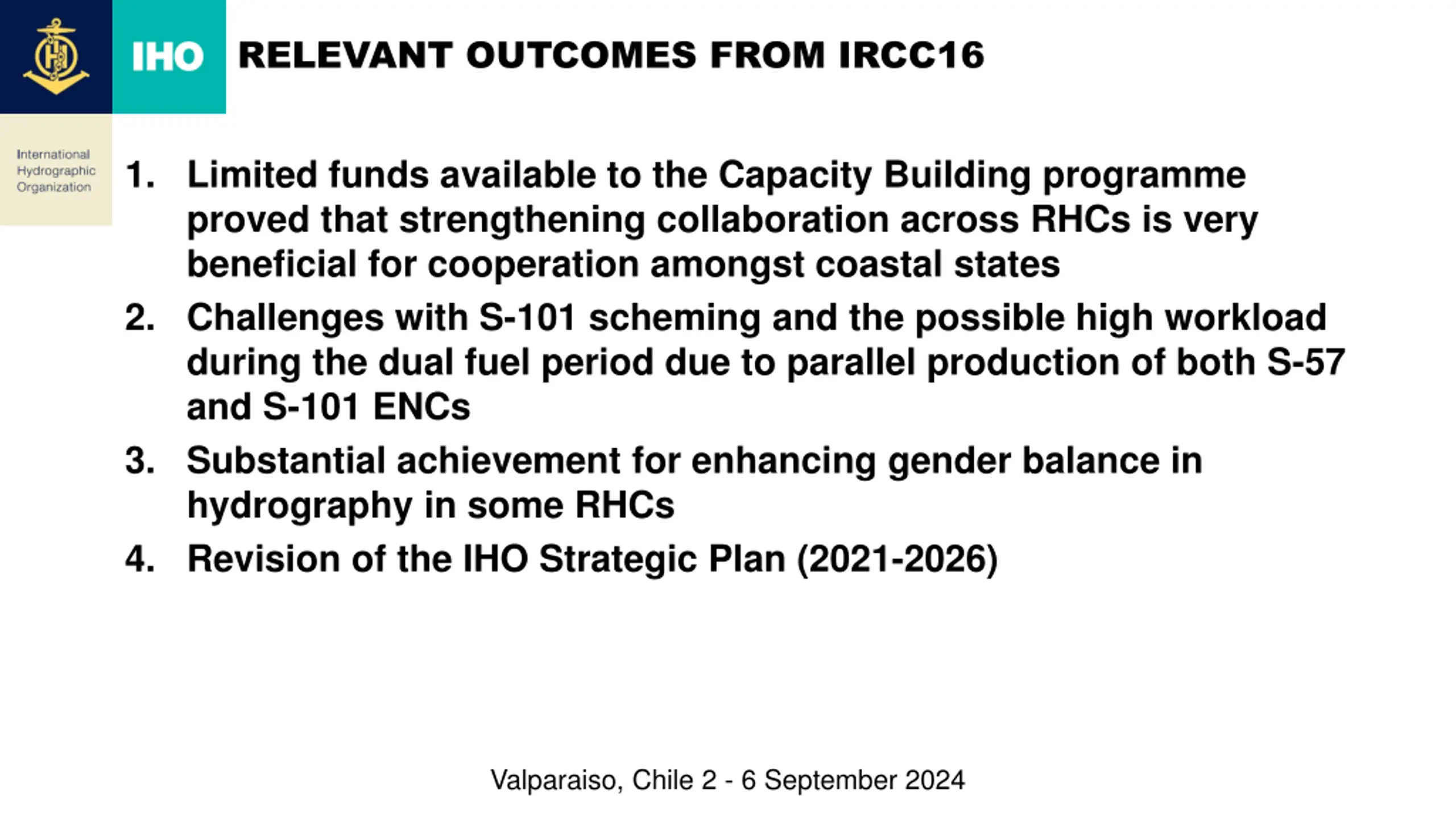

RELEVANT OUTCOMES FROM IRCC16 1. Limited funds available to the Capacity Building programme proved that strengthening collaboration across RHCs is very beneficial for cooperation amongst coastal states 2. Challenges with S-101 scheming and the possible high workload during the dual fuel period due to parallel production of both S-57 and S-101 ENCs 3. Substantial achievement for enhancing gender balance in hydrography in some RHCs 4. Revision of the IHO Strategic Plan (2021-2026) Valparaiso, Chile 2 - 6 September 2024

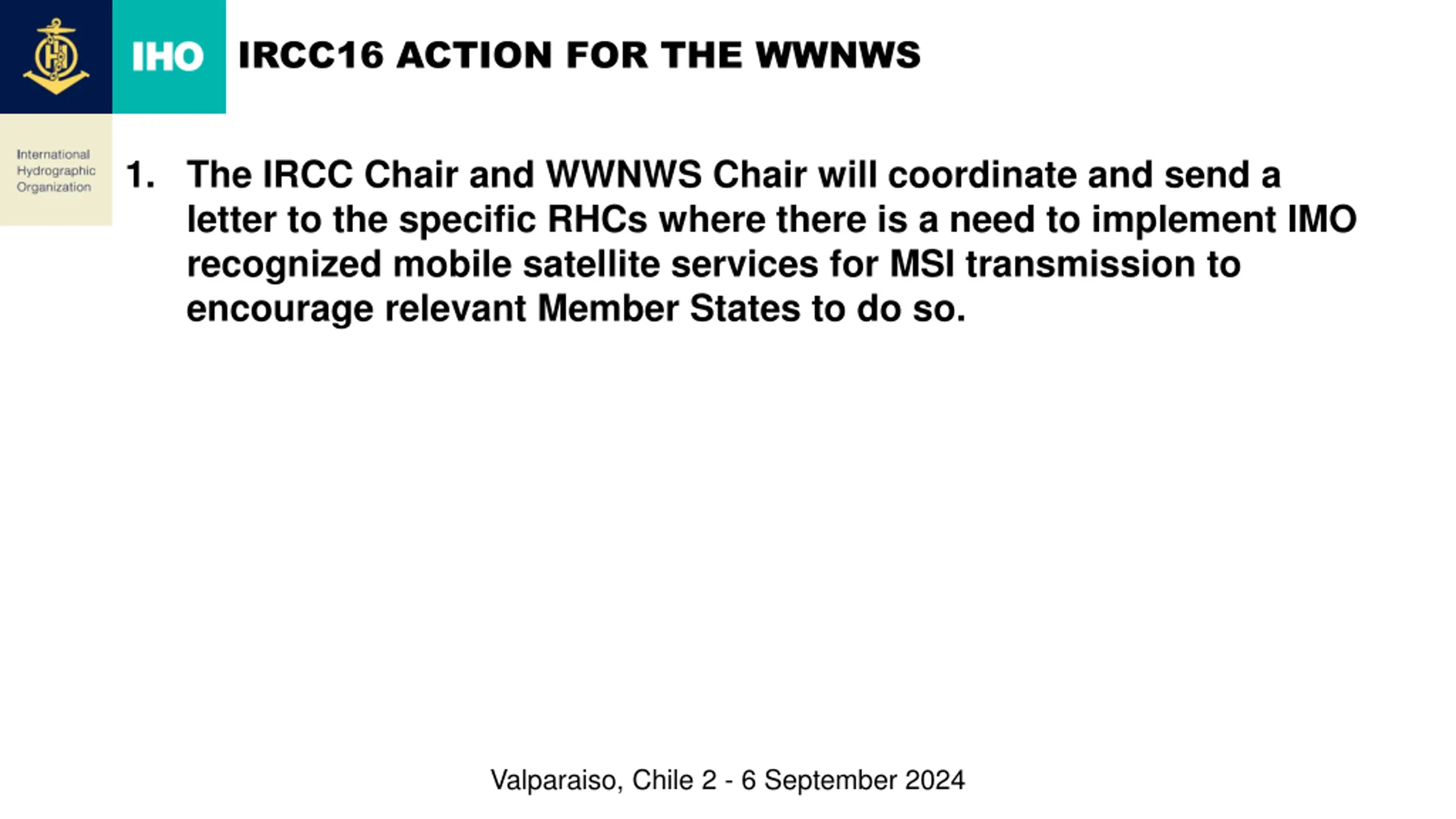

IRCC16 ACTION FOR THE WWNWS 1. The IRCC Chair and WWNWS Chair will coordinate and send a letter to the specific RHCs where there is a need to implement IMO recognized mobile satellite services for MSI transmission to encourage relevant Member States to do so. Valparaiso, Chile 2 - 6 September 2024
World-Wide Navigational Warning Service Sub-Committee Report to IRCC16 Report to IRCC16 Santa Cruz Island Santa Cruz Island - - Galapagos, Ecuador Galapagos, Ecuador 10 10 12 June 2024 12 June 2024 By Christopher Janus WWNWS Chair IRCC16 IRCC16-07.XX Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

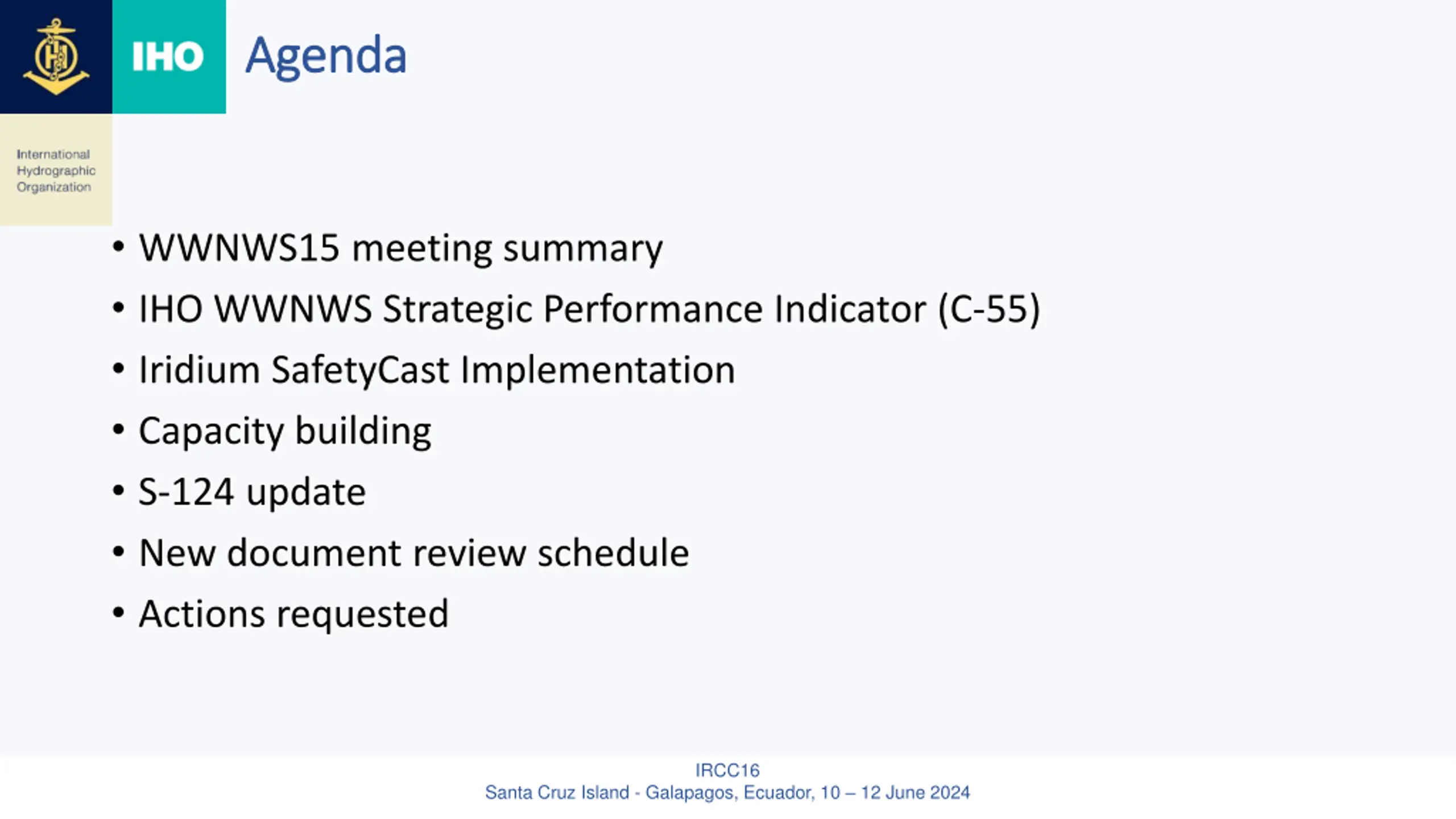

Agenda Agenda WWNWS15 meeting summary IHO WWNWS Strategic Performance Indicator (C-55) Iridium SafetyCast Implementation Capacity building S-124 update New document review schedule Actions requested IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

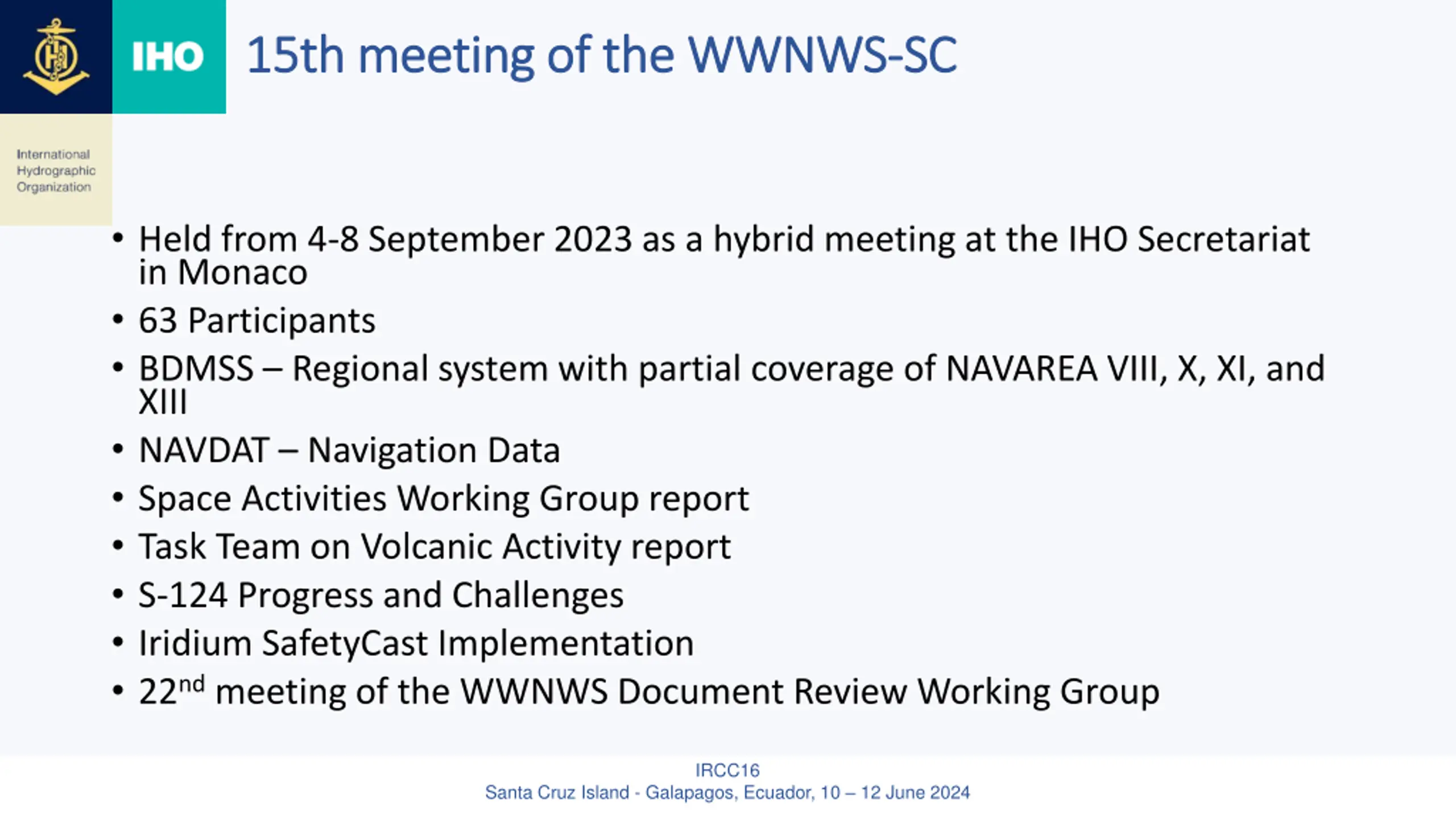

15th meeting of the WWNWS 15th meeting of the WWNWS- -SC SC Held from 4-8 September 2023 as a hybrid meeting at the IHO Secretariat in Monaco 63 Participants BDMSS Regional system with partial coverage of NAVAREA VIII, X, XI, and XIII NAVDAT Navigation Data Space Activities Working Group report Task Team on Volcanic Activity report S-124 Progress and Challenges Iridium SafetyCast Implementation 22ndmeeting of the WWNWS Document Review Working Group IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

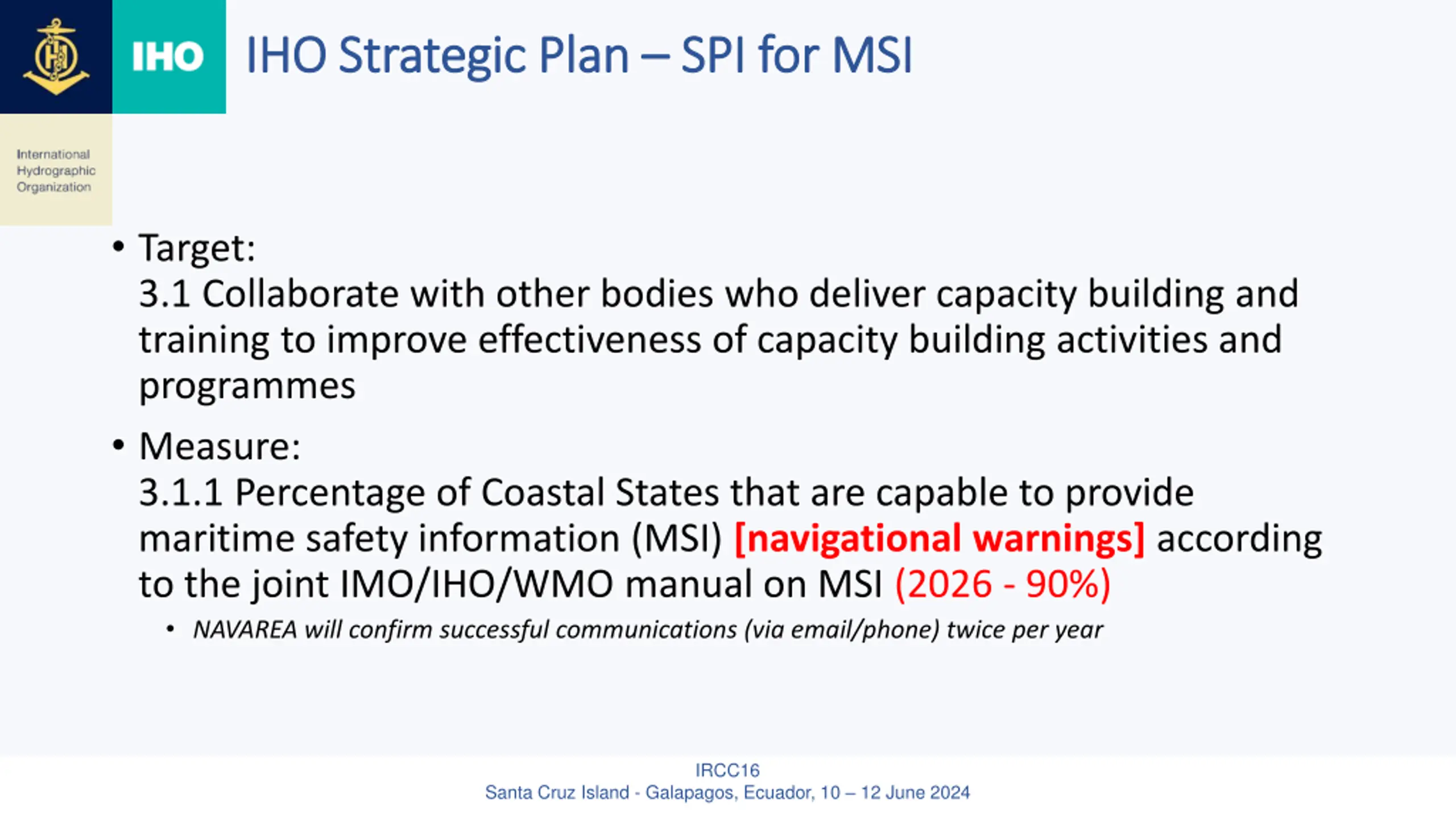

IHO Strategic Plan IHO Strategic Plan SPI for MSI SPI for MSI Target: 3.1 Collaborate with other bodies who deliver capacity building and training to improve effectiveness of capacity building activities and programmes Measure: 3.1.1 Percentage of Coastal States that are capable to provide maritime safety information (MSI) [navigational warnings] according to the joint IMO/IHO/WMO manual on MSI (2026 - 90%) NAVAREA will confirm successful communications (via email/phone) twice per year IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

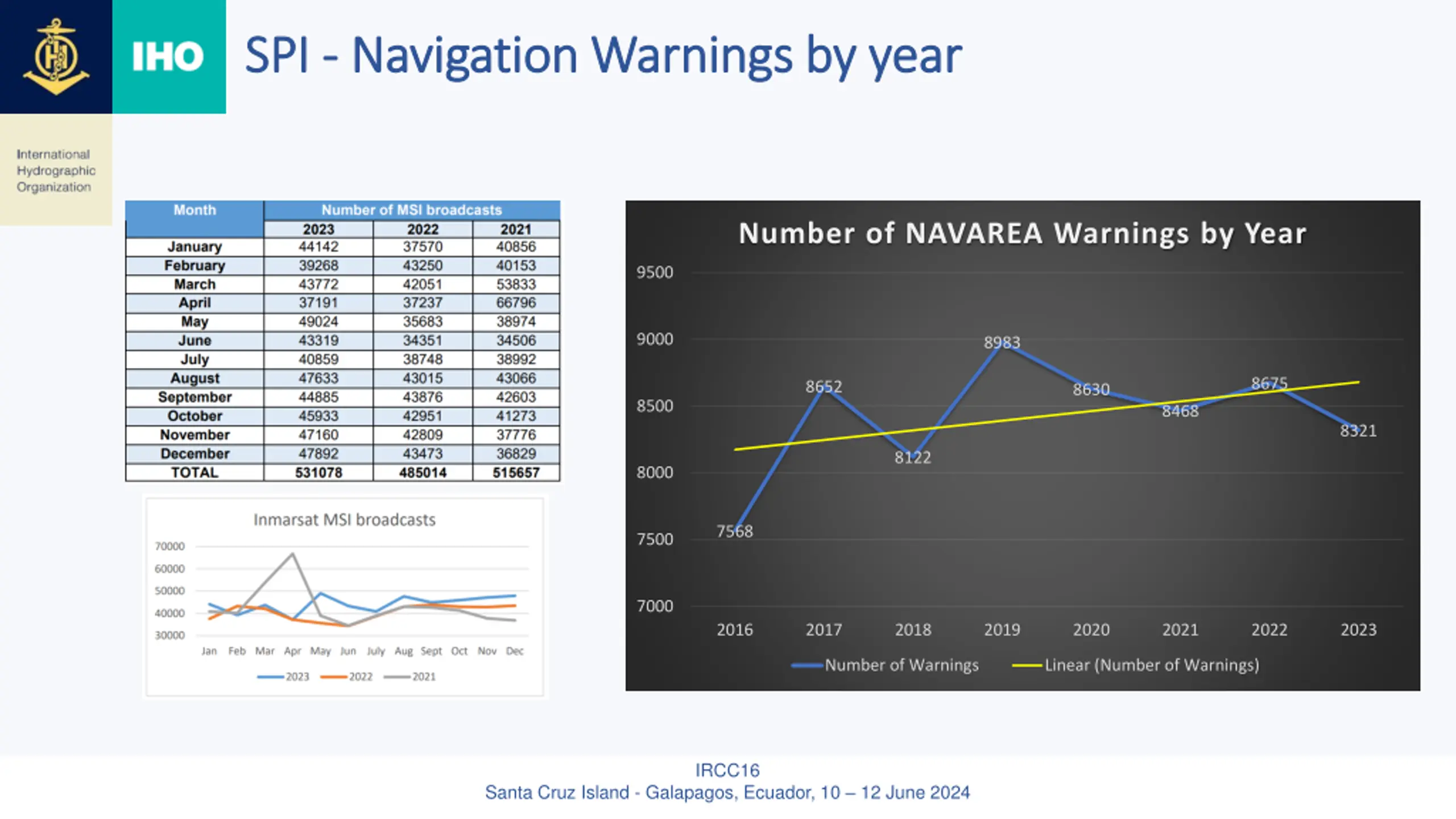

SPI SPI - - Navigation Warnings by year Navigation Warnings by year Number of NAVAREA Warnings by Year 9500 9000 8983 8675 8652 8630 8500 8468 8321 8122 8000 7568 7500 7000 2016 2017 2018 2019 2020 2021 2022 2023 Number of Warnings Linear (Number of Warnings) IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

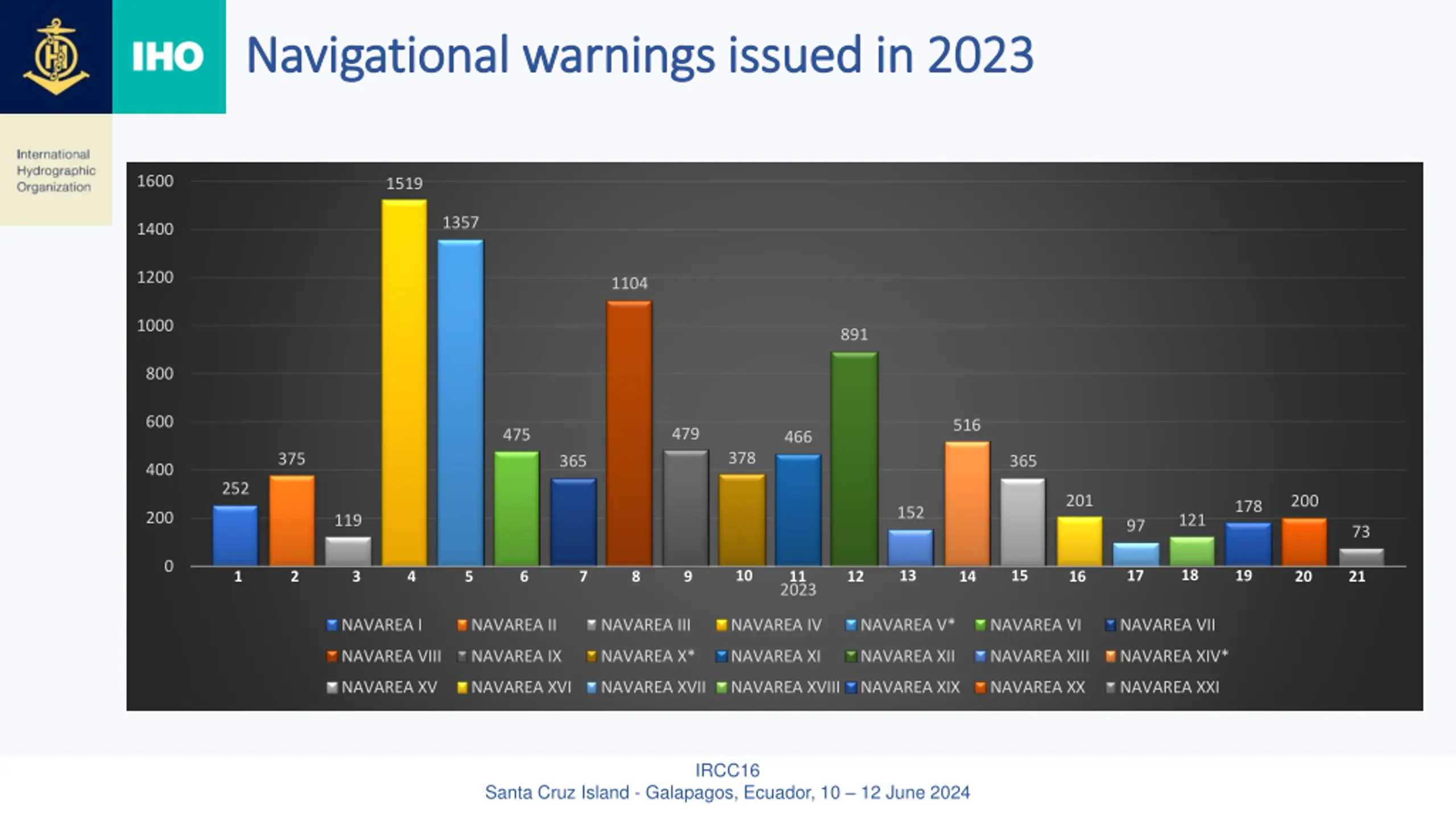

Navigational warnings issued in 2023 Navigational warnings issued in 2023 1600 1519 1357 1400 1200 1104 1000 891 800 600 516 479 475 466 378 375 365 365 400 252 201 200 178 152 200 121 119 97 73 0 18 10 13 15 17 19 1 2 3 4 5 6 7 8 9 11 12 14 16 20 21 2023 NAVAREA I NAVAREA II NAVAREA III NAVAREA IV NAVAREA V* NAVAREA VI NAVAREA VII NAVAREA VIII NAVAREA IX NAVAREA X* NAVAREA XI NAVAREA XII NAVAREA XIII NAVAREA XIV* NAVAREA XV NAVAREA XVI NAVAREA XVII NAVAREA XVIII NAVAREA XIX NAVAREA XX NAVAREA XXI IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024
Navigational warnings issued in 2022 Navigational warnings issued in 2022 1800 1618 1600 1414 1400 1200 1062 987 1000 800 525 524 600 481 467 458 454 371 400 281 255 244 231 221 172 155 122 200 119 65 0 2022 NAVAREA I NAVAREA II NAVAREA III NAVAREA IV NAVAREA V* NAVAREA VI NAVAREA VII NAVAREA VIII NAVAREA IX NAVAREA X* NAVAREA XI NAVAREA XII NAVAREA XIII NAVAREA XIV* NAVAREA XV NAVAREA XVI NAVAREA XVII NAVAREA XVIII NAVAREA XIX NAVAREA XX NAVAREA XXI IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024
SPI SPI - - MSI Support for 2023 MSI Support for 2023 (Derived from WWNWS15 NAVAREA Self Assessments) (Derived from WWNWS15 NAVAREA Self Assessments) Coastal States capacity to provide MSI 120% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 92.3% 90.9% 90% 89.6% 89.1% 76.9% 76.9% 80% 61.5% 60% 40% 20% 0% IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

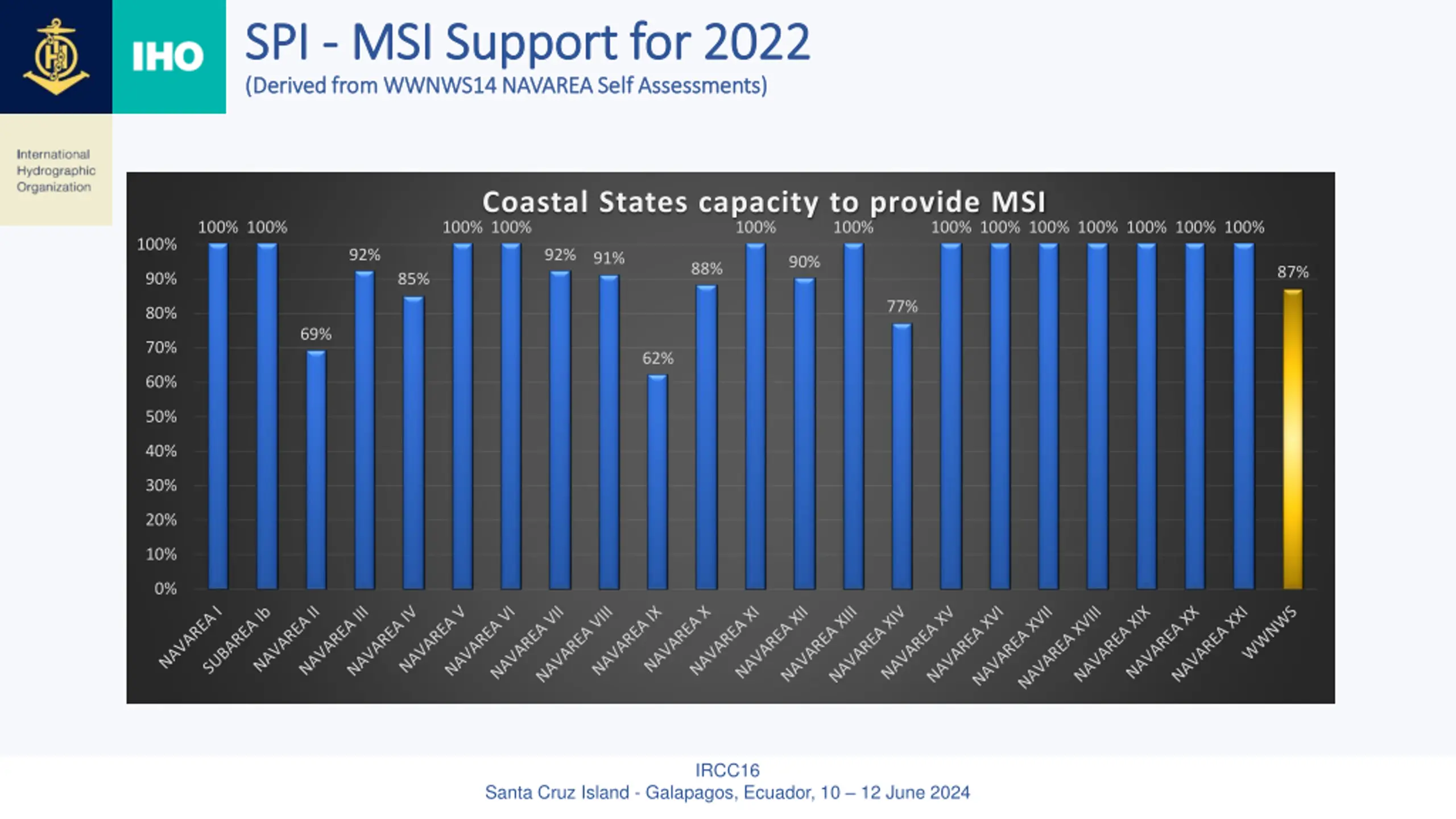

SPI SPI - - MSI Support for 2022 MSI Support for 2022 (Derived from WWNWS14 NAVAREA Self Assessments) (Derived from WWNWS14 NAVAREA Self Assessments) Coastal States capacity to provide MSI 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 92% 92% 91% 90% 88% 87% 90% 85% 77% 80% 69% 70% 62% 60% 50% 40% 30% 20% 10% 0% IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024
SPI SPI - - Coastal States by NAVAREA Coastal States by NAVAREA NAVAREA Coastal States with MSI Capacity Total Coastal States NAVAREA I (United Kingdom) 11 11 SUBAREA Ib (Sweden) 9 9 NAVAREA II (France) 20 26 NAVAREA III (Spain) 24 24 NAVAREA IV (United States) 41 46 NAVAREA V (Brazil) 1 1 NAVAREA VI (Argentina) 4 4 NAVAREA VII (South Africa) 10 13 NAVAREA VIII (India) 10 11 NAVAREA IX (Pakistan) 8 13 NAVAREA X (Australia) 4 4 IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

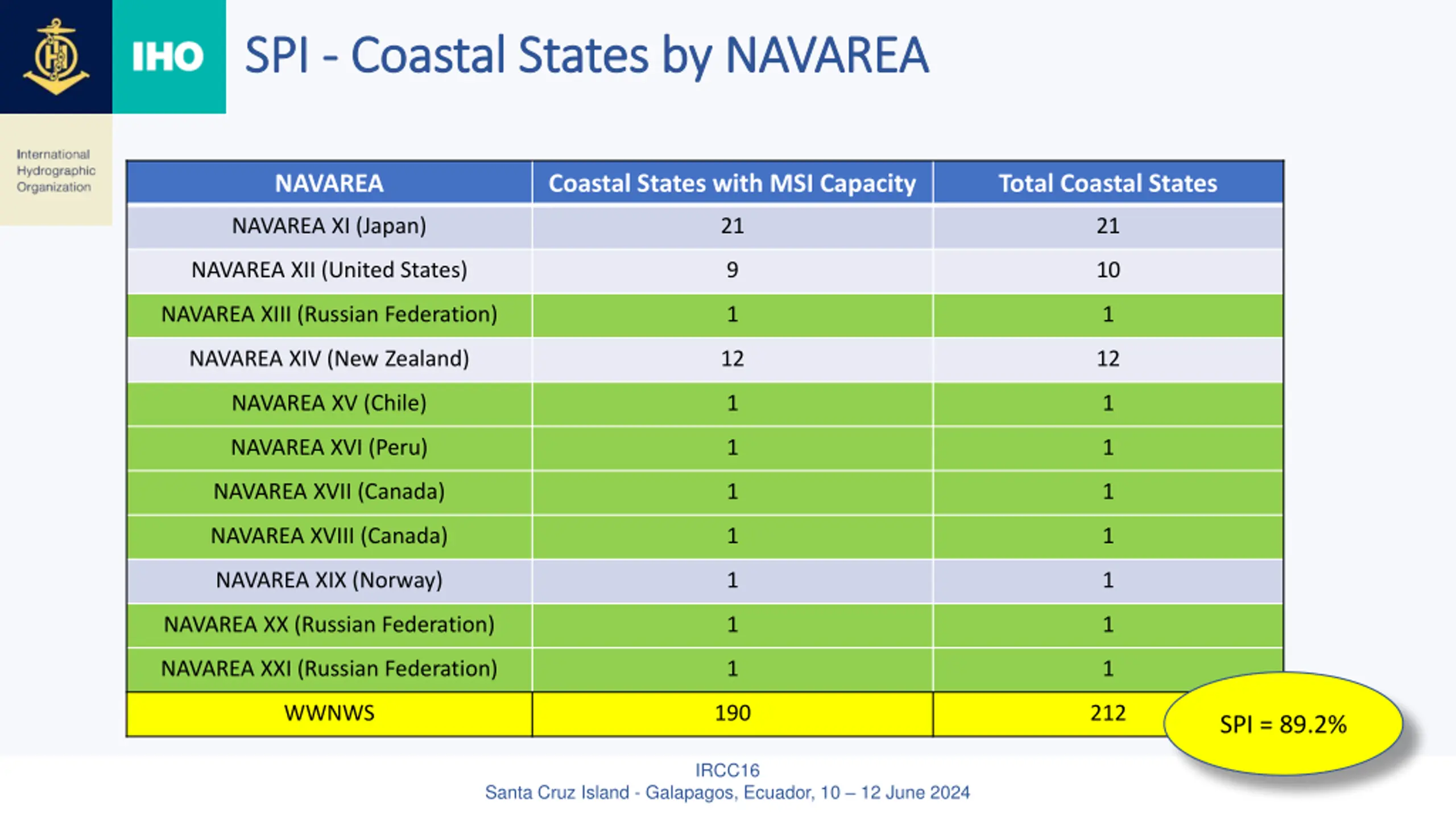

SPI SPI - - Coastal States by NAVAREA Coastal States by NAVAREA NAVAREA Coastal States with MSI Capacity Total Coastal States NAVAREA XI (Japan) 21 21 NAVAREA XII (United States) 9 10 NAVAREA XIII (Russian Federation) 1 1 NAVAREA XIV (New Zealand) 12 12 NAVAREA XV (Chile) 1 1 NAVAREA XVI (Peru) 1 1 NAVAREA XVII (Canada) 1 1 NAVAREA XVIII (Canada) 1 1 NAVAREA XIX (Norway) 1 1 NAVAREA XX (Russian Federation) 1 1 NAVAREA XXI (Russian Federation) 1 1 WWNWS 190 212 SPI = 89.2% IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024
2024 Inmarsat 2024 Inmarsat Data (Estimated) (Estimated) Data Usage Usage Most to Least Most to Least 2024 SafetyNET II Data Usage (Most to least) 2000 20000 Data (Kb/Yr & Broadcasts/yr) Number of Nav Warnings/yr 1500 15000 1000 10000 500 5000 0 0 4 12 1 3 5(Total) 7 14(Total) 2 19 14 18 17 5 5N 14Z 5E 5S NAVAREA Nav Warn/yr Broadcasts/year Data/yr (KB) IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

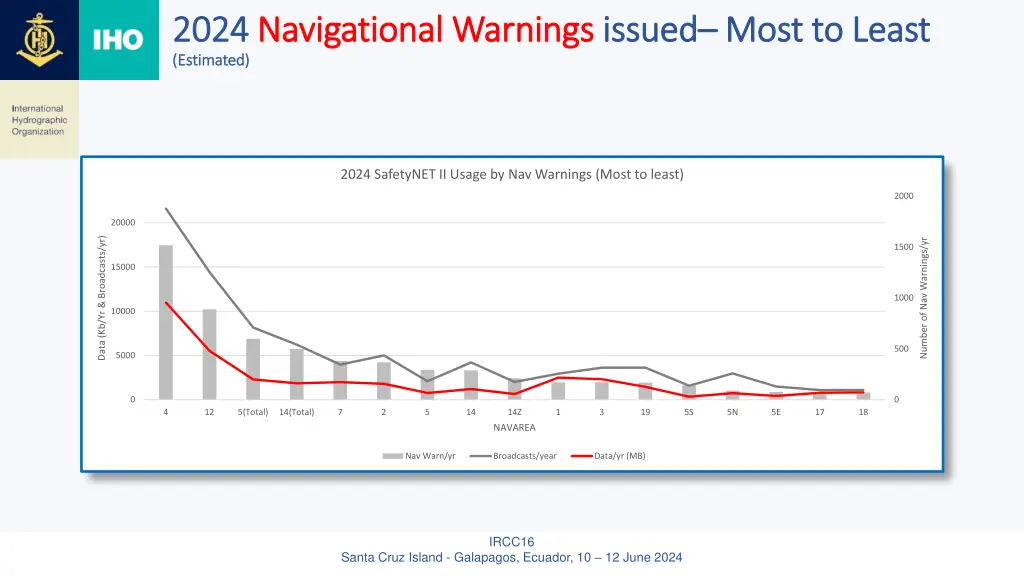

2024 2024 Navigational Warnings Navigational Warnings issued (Estimated) (Estimated) issued Most to Least Most to Least 2024 SafetyNET II Usage by Nav Warnings (Most to least) 2000 20000 Data (Kb/Yr & Broadcasts/yr) Number of Nav Warnings/yr 1500 15000 1000 10000 500 5000 0 0 4 12 5(Total) 14(Total) 7 2 5 14 14Z 1 3 19 5S 5N 5E 17 18 NAVAREA Nav Warn/yr Broadcasts/year Data/yr (MB) IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

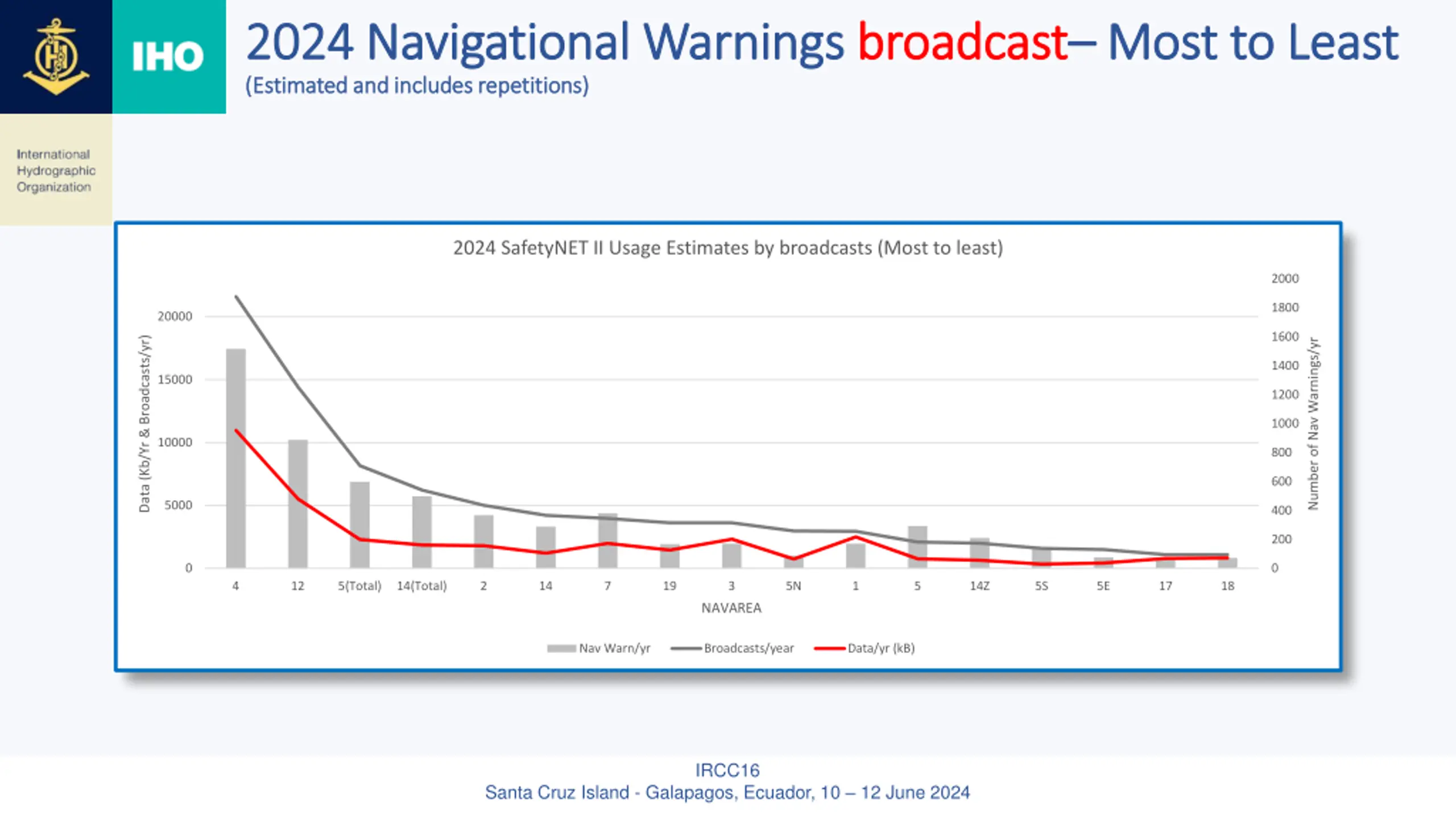

2024 Navigational Warnings 2024 Navigational Warnings broadcast (Estimated and includes repetitions) (Estimated and includes repetitions) broadcast Most to Least Most to Least 2024 SafetyNET II Usage Estimates by broadcasts (Most to least) 2000 1800 20000 1600 Data (Kb/Yr & Broadcasts/yr) Number of Nav Warnings/yr 1400 15000 1200 1000 10000 800 600 5000 400 200 0 0 4 12 5(Total) 14(Total) 2 14 7 19 3 5N 1 5 14Z 5S 5E 17 18 NAVAREA Nav Warn/yr Broadcasts/year Data/yr (kB) IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

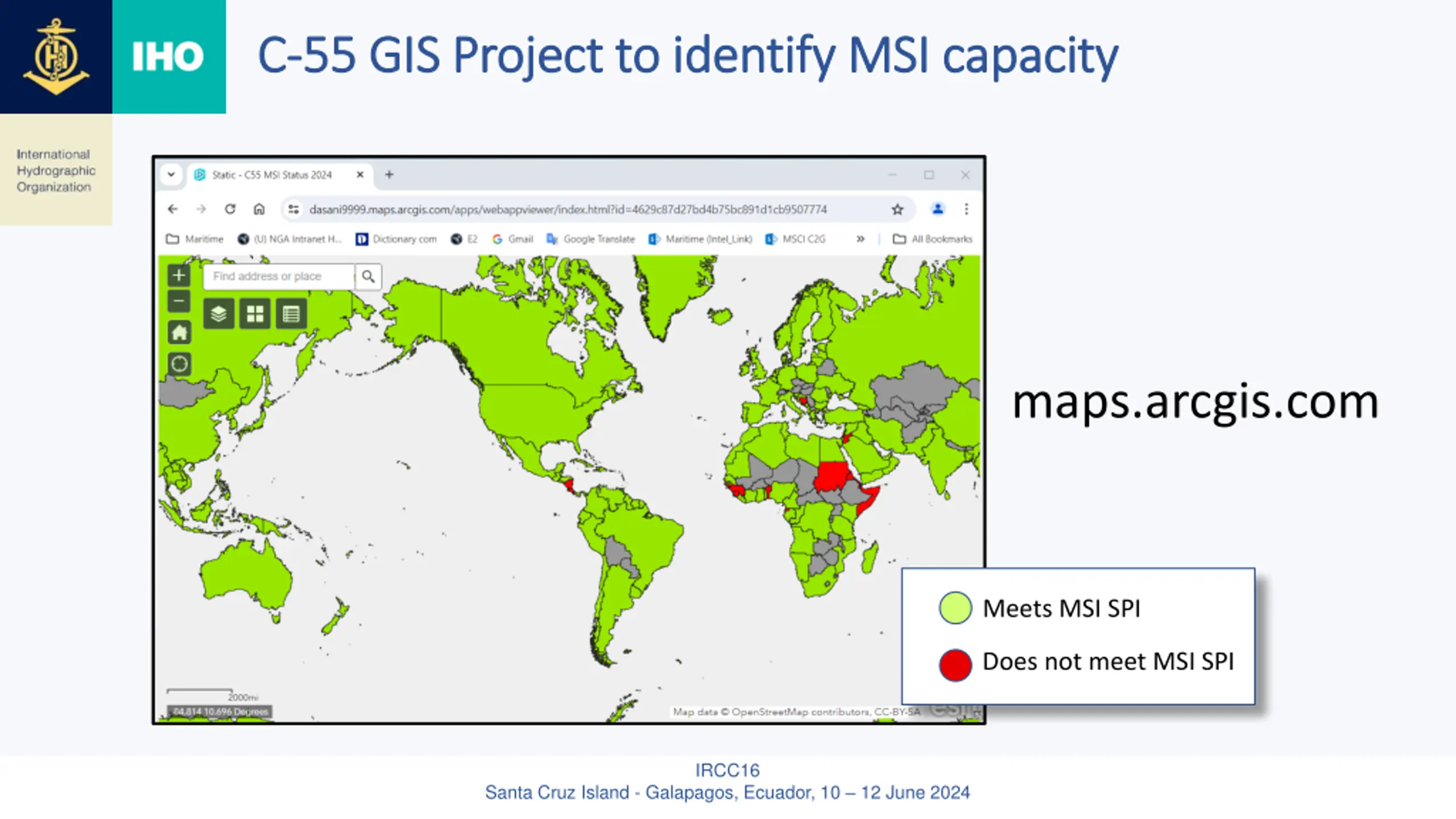

C C- -55 GIS Project to identify MSI capacity 55 GIS Project to identify MSI capacity Meets MSI SPI Does not meet MSI SPI IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

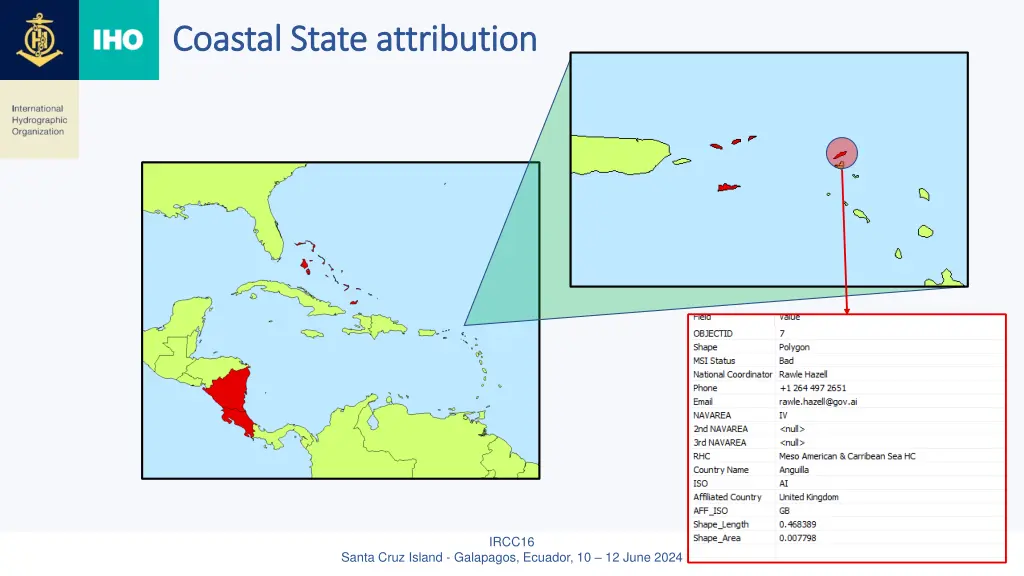

Coastal State attribution Coastal State attribution IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024
C C- -55 GIS Project to identify MSI capacity 55 GIS Project to identify MSI capacity maps.arcgis.com Meets MSI SPI Does not meet MSI SPI IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

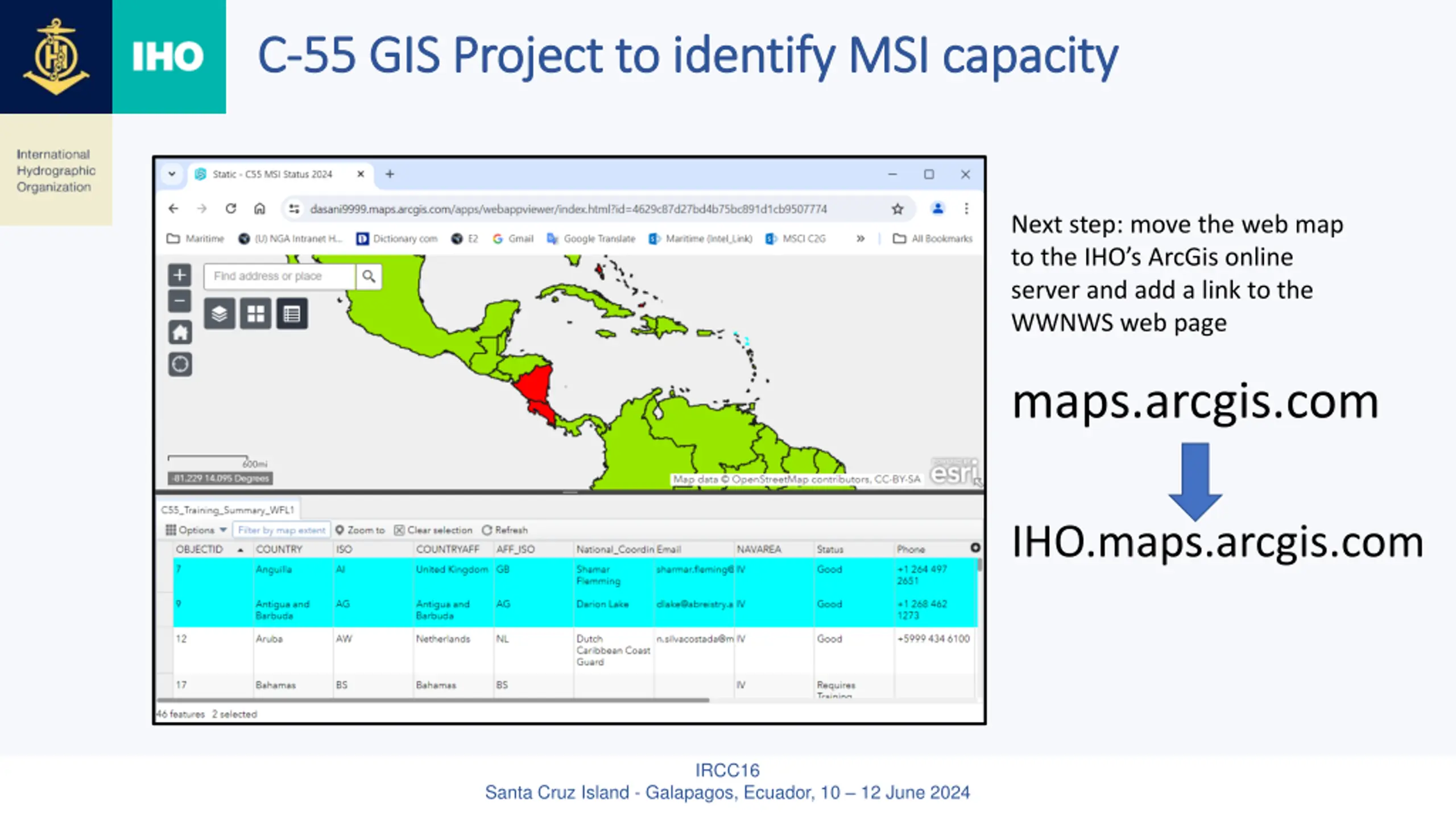

C C- -55 GIS Project to identify MSI capacity 55 GIS Project to identify MSI capacity Next step: move the web map to the IHO s ArcGis online server and add a link to the WWNWS web page maps.arcgis.com IHO.maps.arcgis.com IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

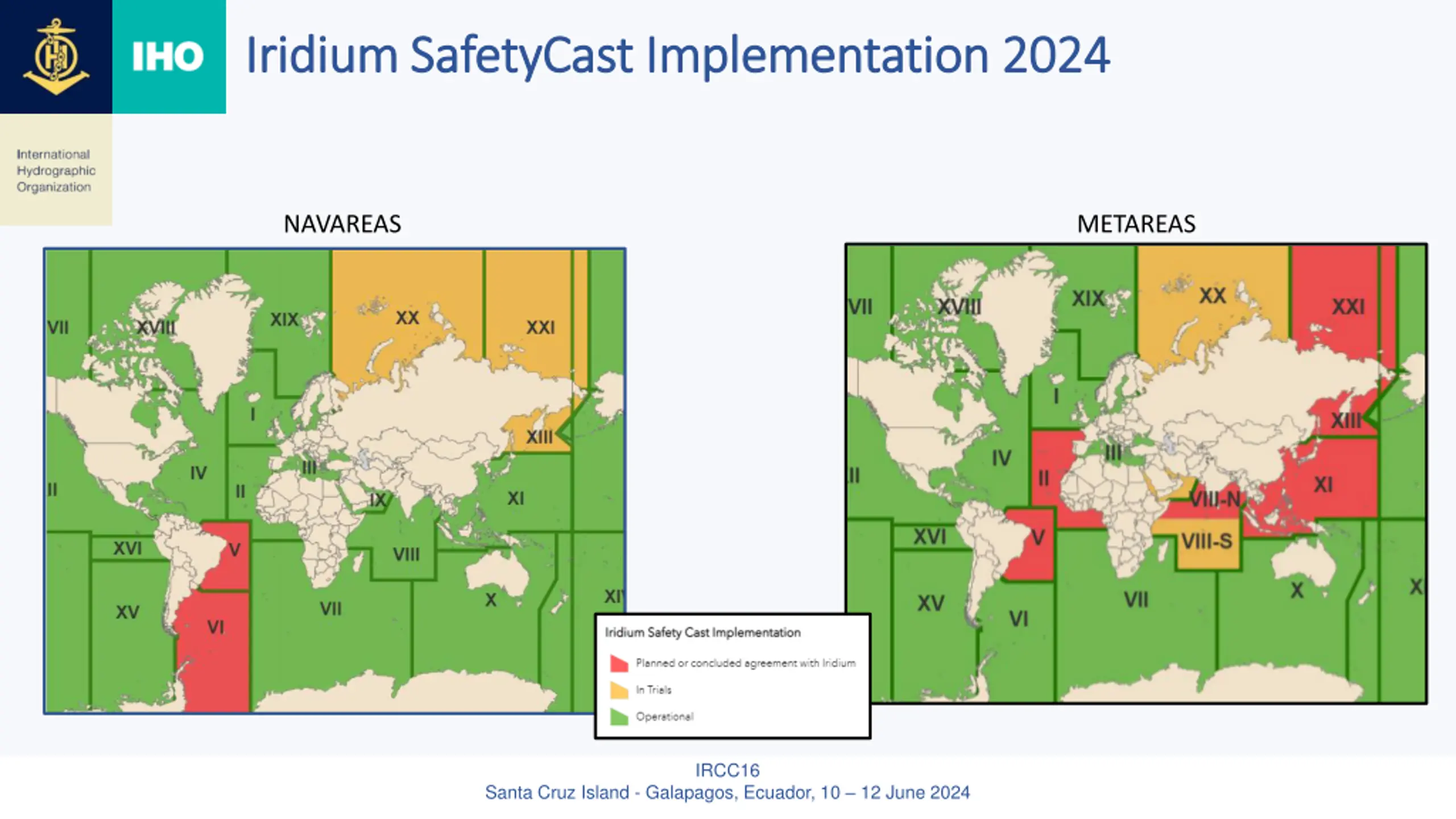

Iridium SafetyCast Implementation 2024 Iridium SafetyCast Implementation 2024 NAVAREAS METAREAS IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

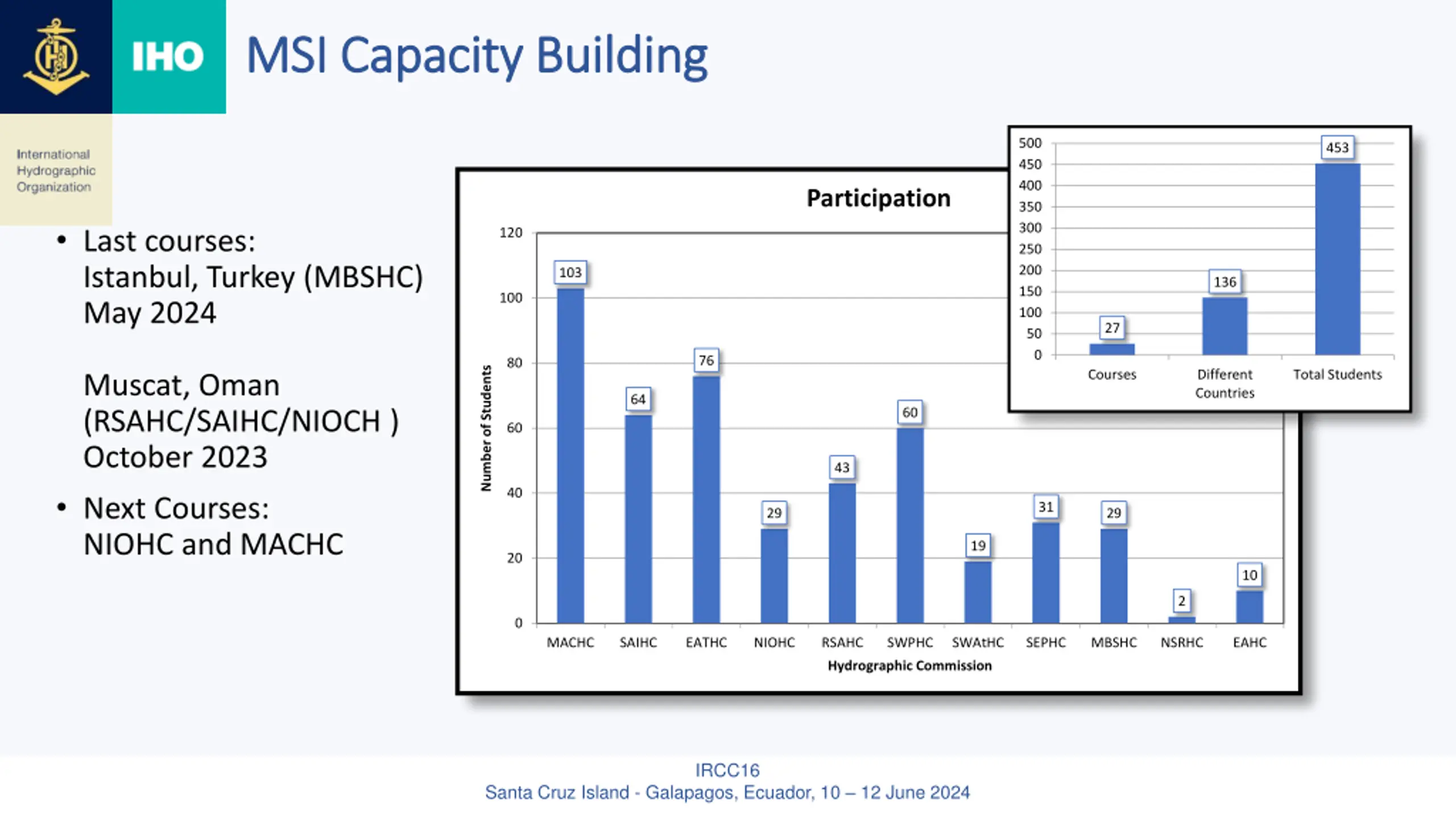

MSI Capacity Building MSI Capacity Building 500 453 450 400 Participation 350 Last courses: Istanbul, Turkey (MBSHC) May 2024 300 120 250 200 103 136 150 100 100 27 50 0 76 80 Number of Students Courses Different Countries Total Students Muscat, Oman (RSAHC/SAIHC/NIOCH ) October 2023 Next Courses: NIOHC and MACHC 64 60 60 43 40 31 29 29 19 20 10 2 0 MACHC SAIHC EATHC NIOHC RSAHC SWPHC SWAtHC SEPHC MBSHC NSRHC EAHC Hydrographic Commission IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

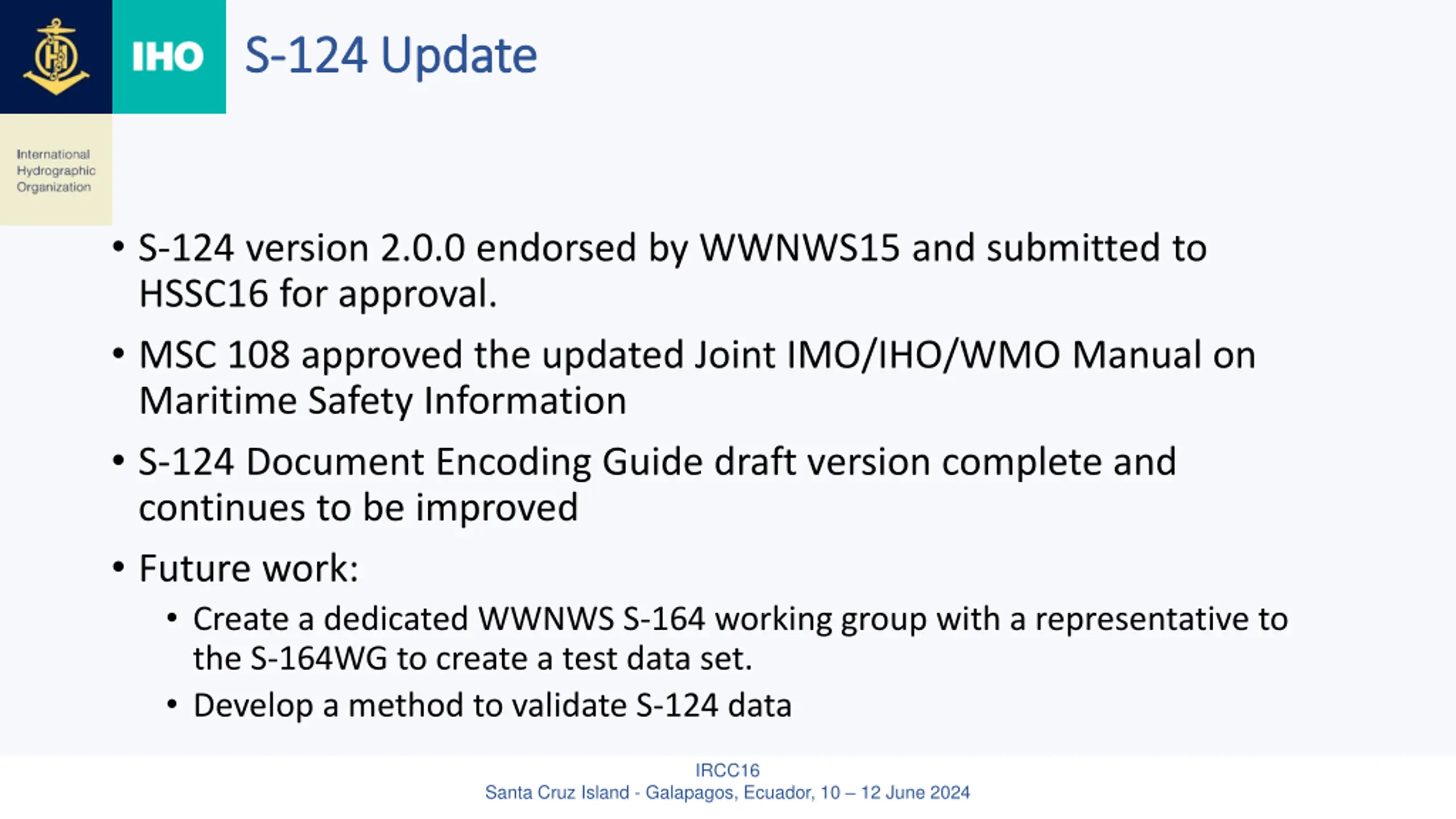

S S- -124 Update 124 Update S-124 version 2.0.0 endorsed by WWNWS15 and submitted to HSSC16 for approval. MSC 108 approved the updated Joint IMO/IHO/WMO Manual on Maritime Safety Information S-124 Document Encoding Guide draft version complete and continues to be improved Future work: Create a dedicated WWNWS S-164 working group with a representative to the S-164WG to create a test data set. Develop a method to validate S-124 data IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

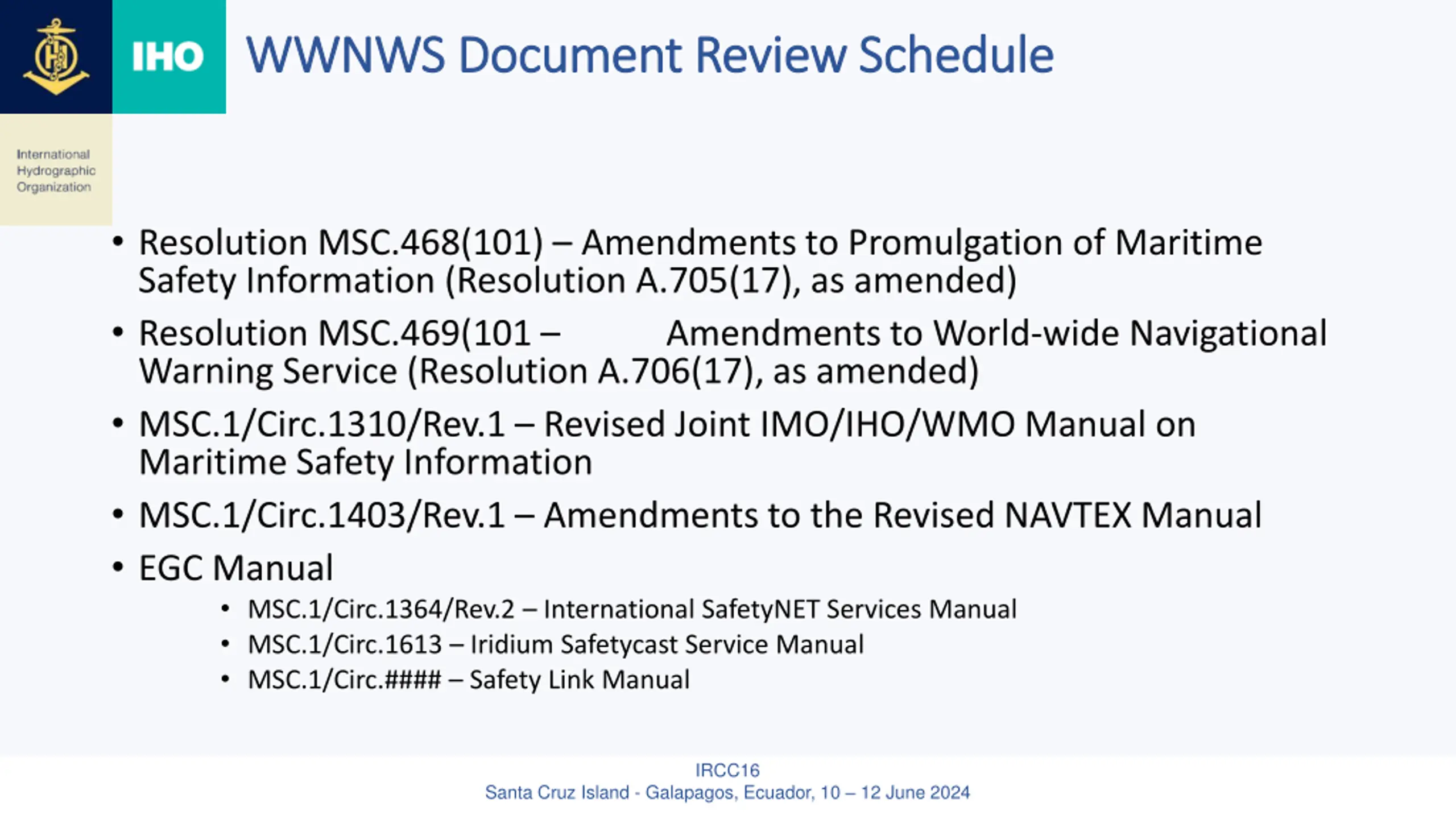

WWNWS Document Review Schedule WWNWS Document Review Schedule Resolution MSC.468(101) Amendments to Promulgation of Maritime Safety Information (Resolution A.705(17), as amended) Resolution MSC.469(101 Amendments to World-wide Navigational Warning Service (Resolution A.706(17), as amended) MSC.1/Circ.1310/Rev.1 Revised Joint IMO/IHO/WMO Manual on Maritime Safety Information MSC.1/Circ.1403/Rev.1 Amendments to the Revised NAVTEX Manual EGC Manual MSC.1/Circ.1364/Rev.2 International SafetyNET Services Manual MSC.1/Circ.1613 Iridium Safetycast Service Manual MSC.1/Circ.#### Safety Link Manual IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

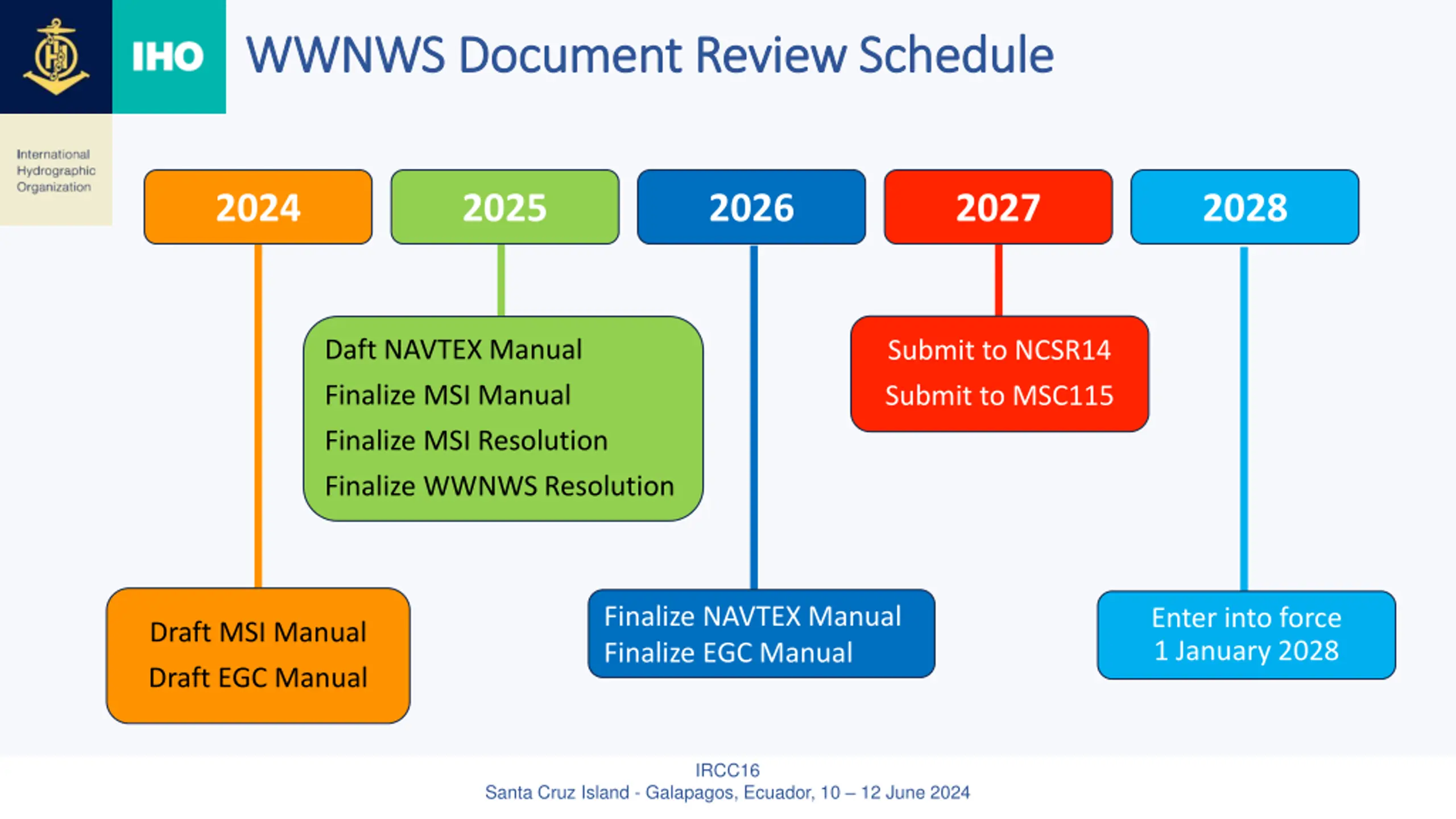

WWNWS Document Review Schedule WWNWS Document Review Schedule 2024 2025 2026 2027 2028 Daft NAVTEX Manual Finalize MSI Manual Finalize MSI Resolution Finalize WWNWS Resolution Submit to NCSR14 Submit to MSC115 Finalize NAVTEX Manual Finalize EGC Manual Enter into force 1 January 2028 Draft MSI Manual Draft EGC Manual IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024

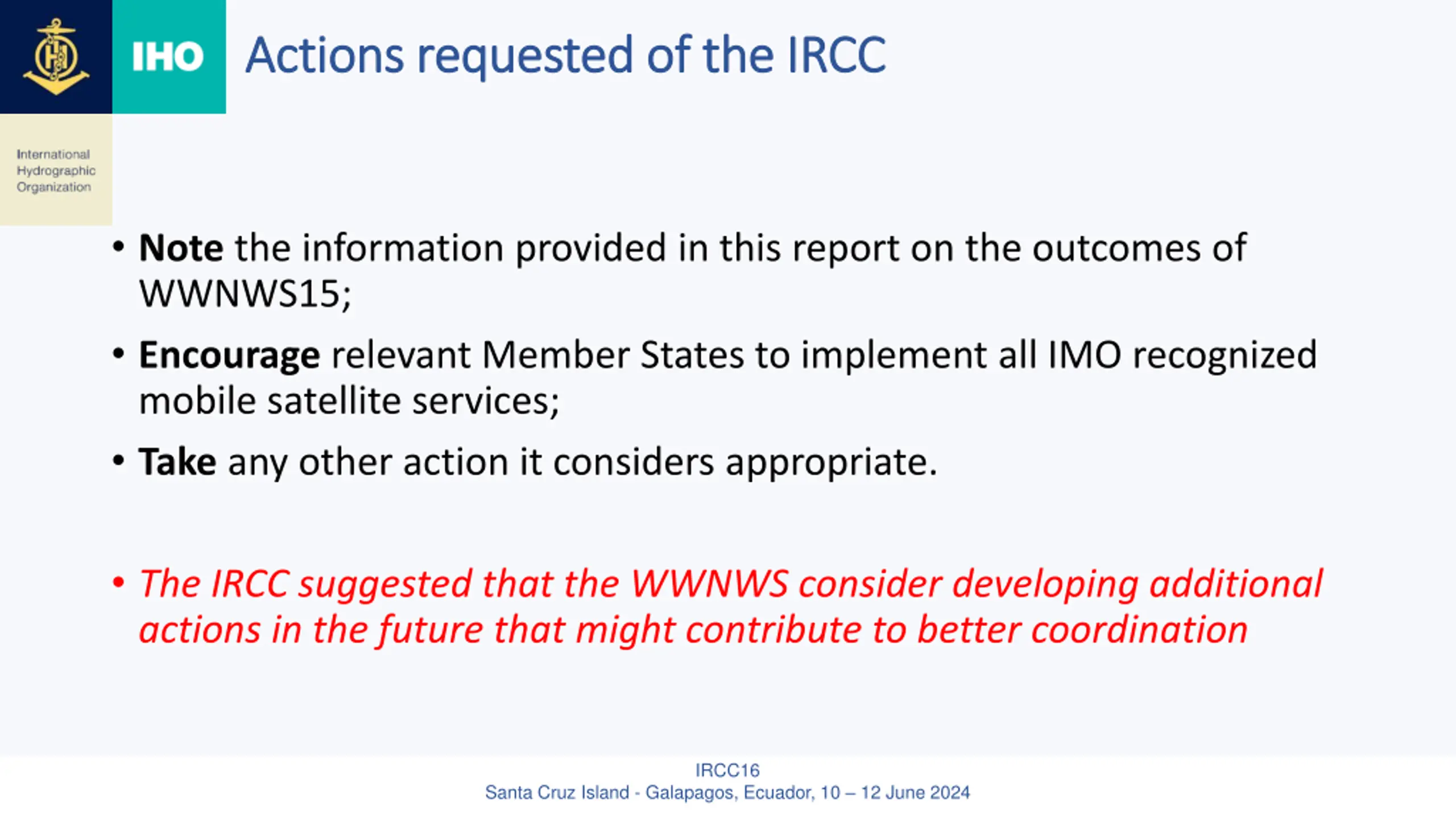

Actions requested of the IRCC Actions requested of the IRCC Note the information provided in this report on the outcomes of WWNWS15; Encourage relevant Member States to implement all IMO recognized mobile satellite services; Take any other action it considers appropriate. The IRCC suggested that the WWNWS consider developing additional actions in the future that might contribute to better coordination IRCC16 Santa Cruz Island - Galapagos, Ecuador, 10 12 June 2024
