Reliability Price Adder NPRR883 Details
Explore the adjustments made in NPRR883 for settlement equations in ancillary services assignment, avoiding double payments by adding the Reliability Price Adder. Understand the implications of the Reliability Price Adder being paid twice and the payment differences post-NPRR883, including partial deployment details and total payment breakdown.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

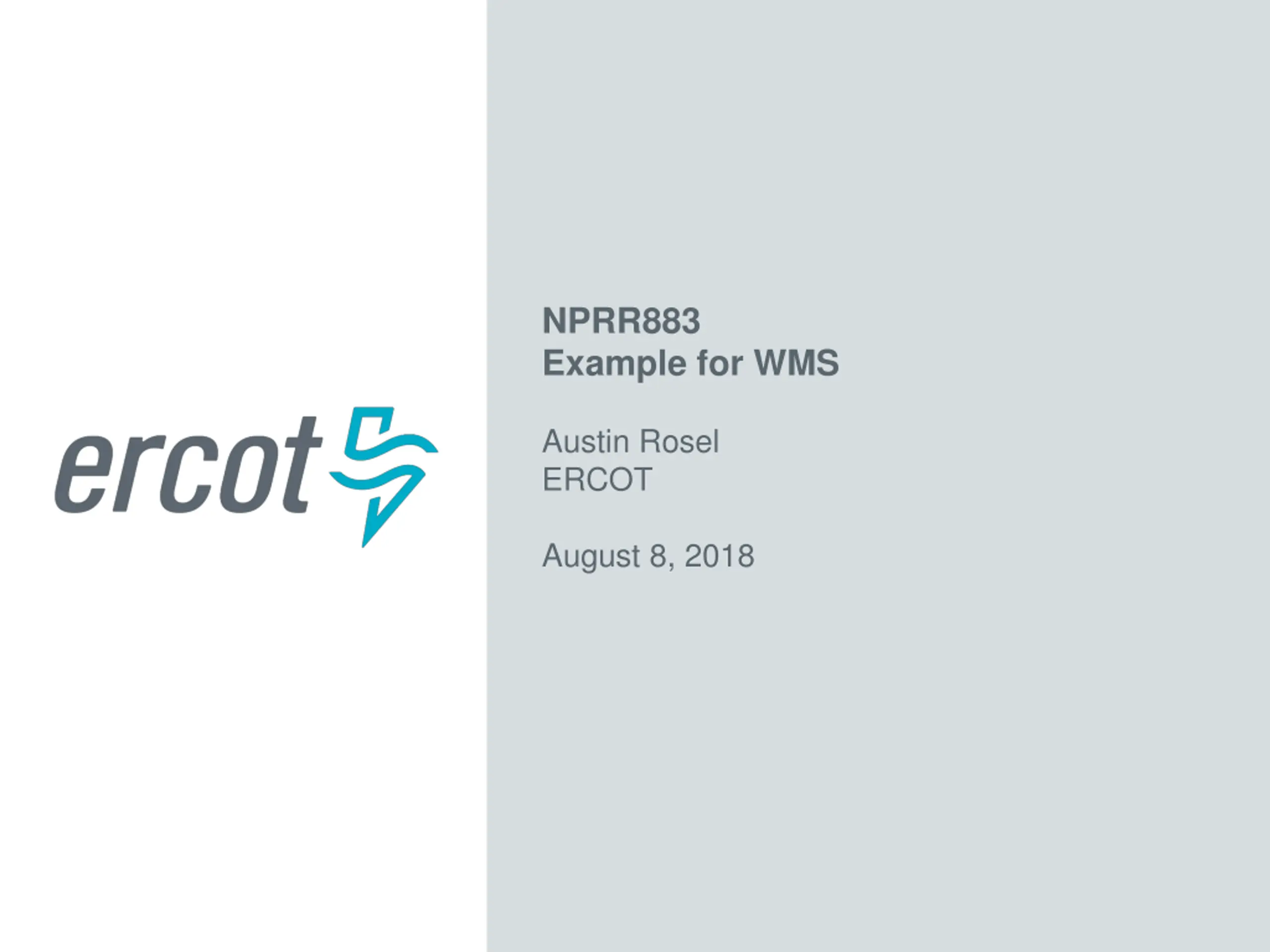

NPRR883 Example for WMS Austin Rosel ERCOT August 8, 2018

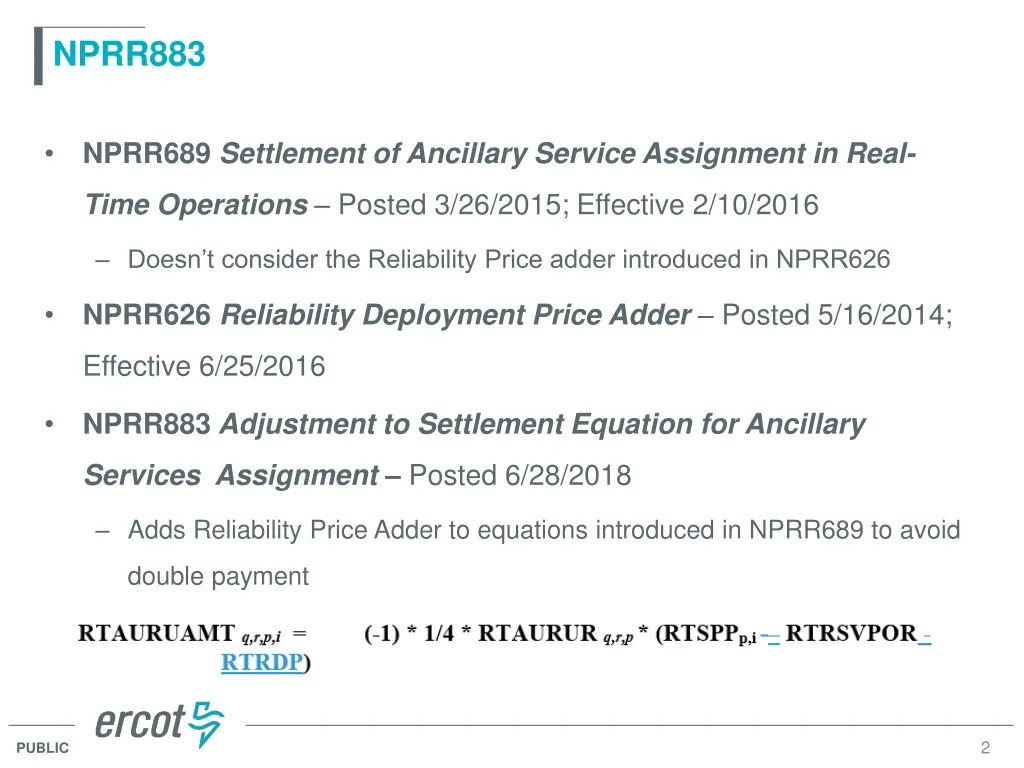

NPRR883 NPRR689 Settlement of Ancillary Service Assignment in Real- Time Operations Posted 3/26/2015; Effective 2/10/2016 Doesn t consider the Reliability Price adder introduced in NPRR626 NPRR626 Reliability Deployment Price Adder Posted 5/16/2014; Effective 6/25/2016 NPRR883 Adjustment to Settlement Equation for Ancillary Services Assignment Posted 6/28/2018 Adds Reliability Price Adder to equations introduced in NPRR689 to avoid double payment 2 PUBLIC

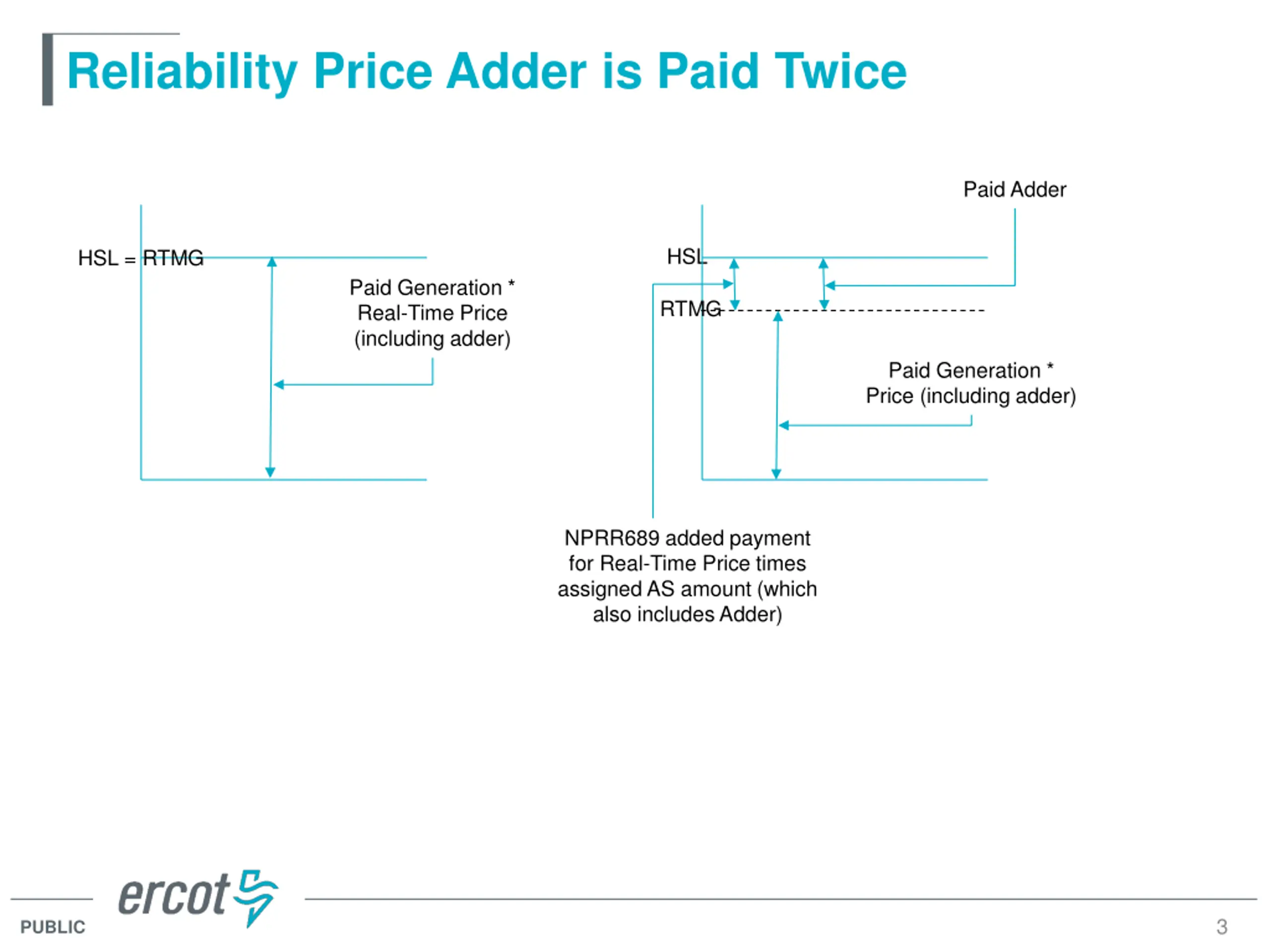

Reliability Price Adder is Paid Twice Paid Adder HSL HSL = RTMG Paid Generation * Real-Time Price (including adder) RTMG Paid Generation * Price (including adder) NPRR689 added payment for Real-Time Price times assigned AS amount (which also includes Adder) 3 PUBLIC

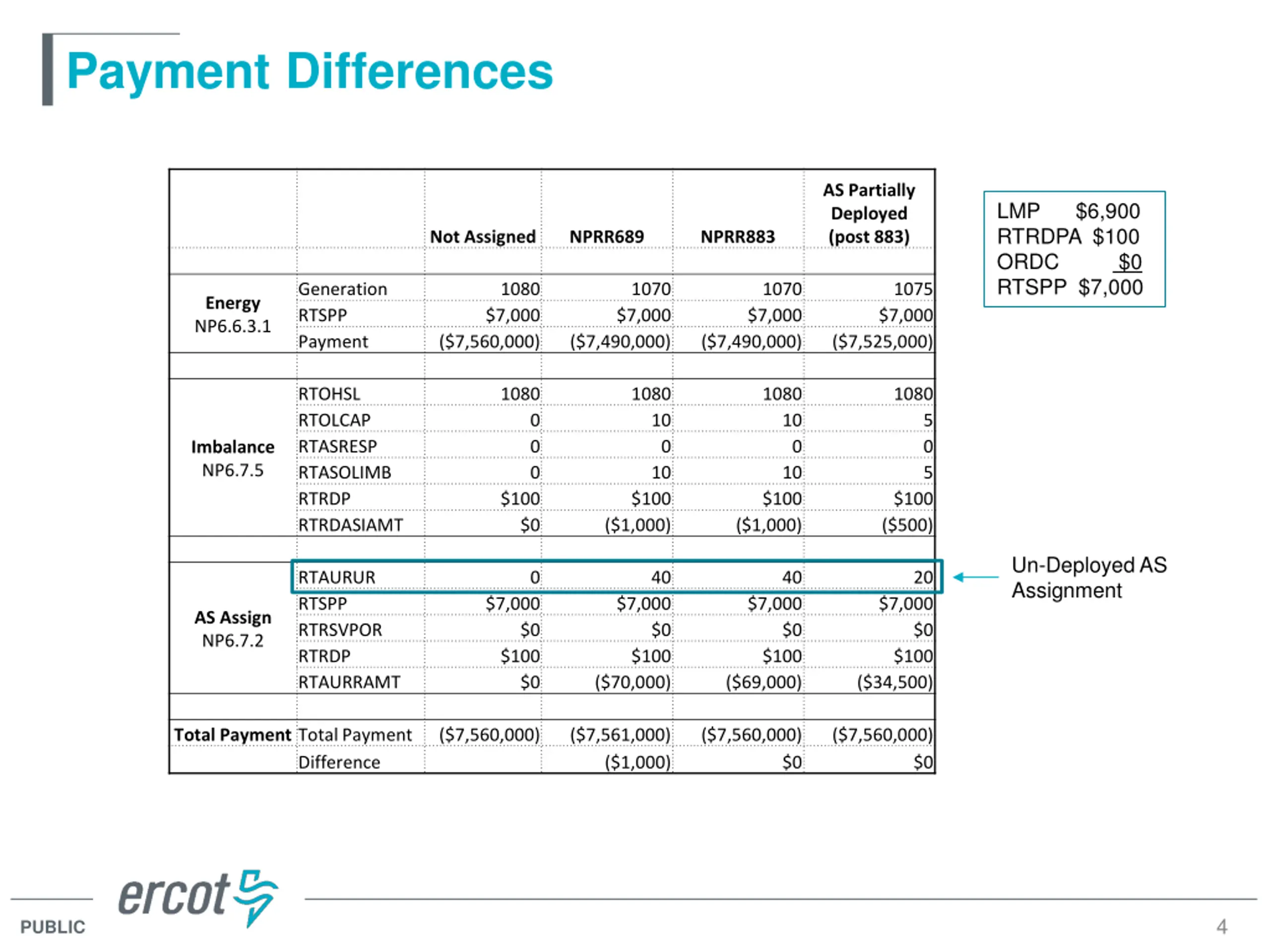

Payment Differences AS Partially Deployed (post 883) LMP $6,900 RTRDPA $100 ORDC $0 RTSPP $7,000 Not Assigned NPRR689 NPRR883 Generation RTSPP Payment 1080 $7,000 1070 $7,000 1070 $7,000 1075 $7,000 Energy NP6.6.3.1 ($7,560,000) ($7,490,000) ($7,490,000) ($7,525,000) RTOHSL RTOLCAP RTASRESP RTASOLIMB RTRDP RTRDASIAMT 1080 1080 1080 1080 0 0 0 10 10 5 0 5 0 0 Imbalance NP6.7.5 10 10 $100 $0 $100 $100 $100 ($500) ($1,000) ($1,000) Un-Deployed AS Assignment RTAURUR RTSPP RTRSVPOR RTRDP RTAURRAMT 0 40 40 20 $7,000 $7,000 $7,000 $7,000 AS Assign NP6.7.2 $0 $0 $0 $0 $100 $0 $100 $100 $100 ($70,000) ($69,000) ($34,500) Total Payment Total Payment ($7,560,000) ($7,561,000) ($1,000) ($7,560,000) ($7,560,000) Difference $0 $0 4 PUBLIC
