Rethinking the Multicore Memory Hierarchy for Disciplined Parallelism

DeNovo: Rethinking the Multicore Memory Hierarchy for Disciplined Parallelism Byn Choi, Rakesh Komuravelli, Hyojin Sung, Robert Smolinski, Nima Honarmand, Sarita V. Adve, Vikram S. Adve, Nicholas P. Carter, Ching-Tsun Chou University of Illinois at Urbana-Champaign and Intel denovo@cs.illinois.edu

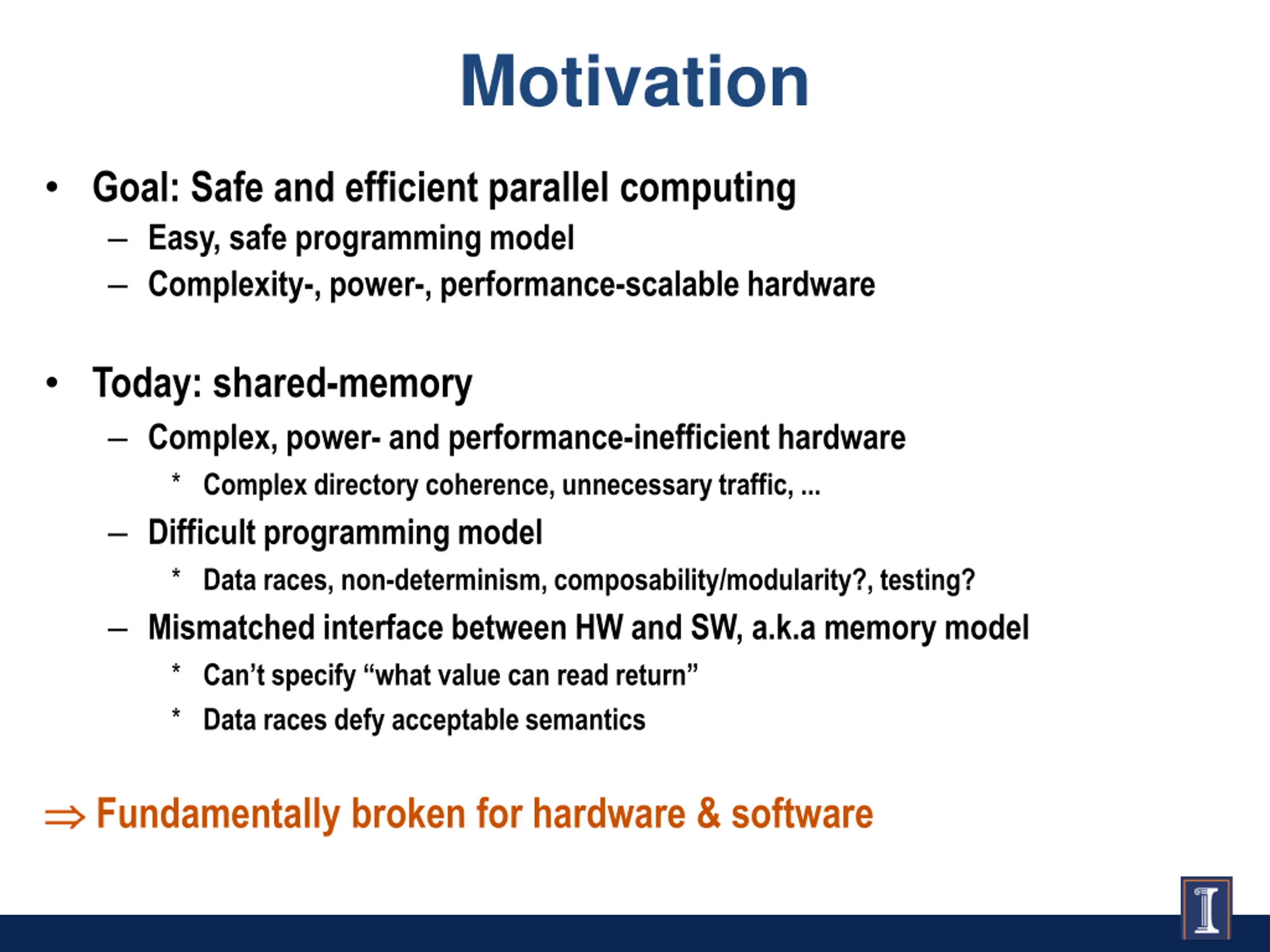

Motivation Goal: Safe and efficient parallel computing Easy, safe programming model Complexity-, power-, performance-scalable hardware Today: shared-memory Complex, power- and performance-inefficient hardware * Complex directory coherence, unnecessary traffic, ... Difficult programming model * Data races, non-determinism, composability/modularity?, testing? Mismatched interface between HW and SW, a.k.a memory model * Can t specify what value can read return * Data races defy acceptable semantics Fundamentally broken for hardware & software

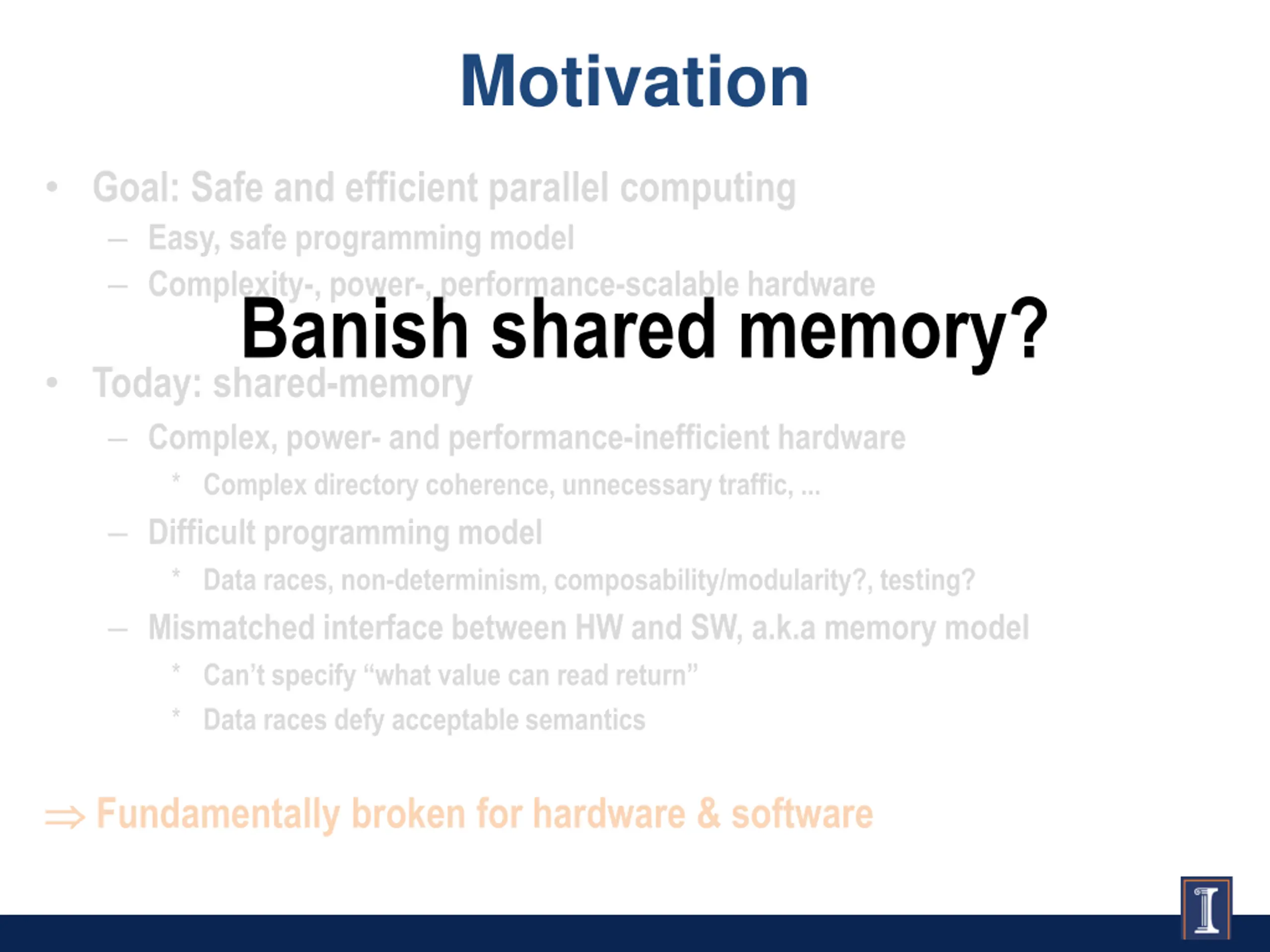

Motivation Goal: Safe and efficient parallel computing Easy, safe programming model Complexity-, power-, performance-scalable hardware Banish shared memory? Today: shared-memory Complex, power- and performance-inefficient hardware * Complex directory coherence, unnecessary traffic, ... Difficult programming model * Data races, non-determinism, composability/modularity?, testing? Mismatched interface between HW and SW, a.k.a memory model * Can t specify what value can read return * Data races defy acceptable semantics Fundamentally broken for hardware & software

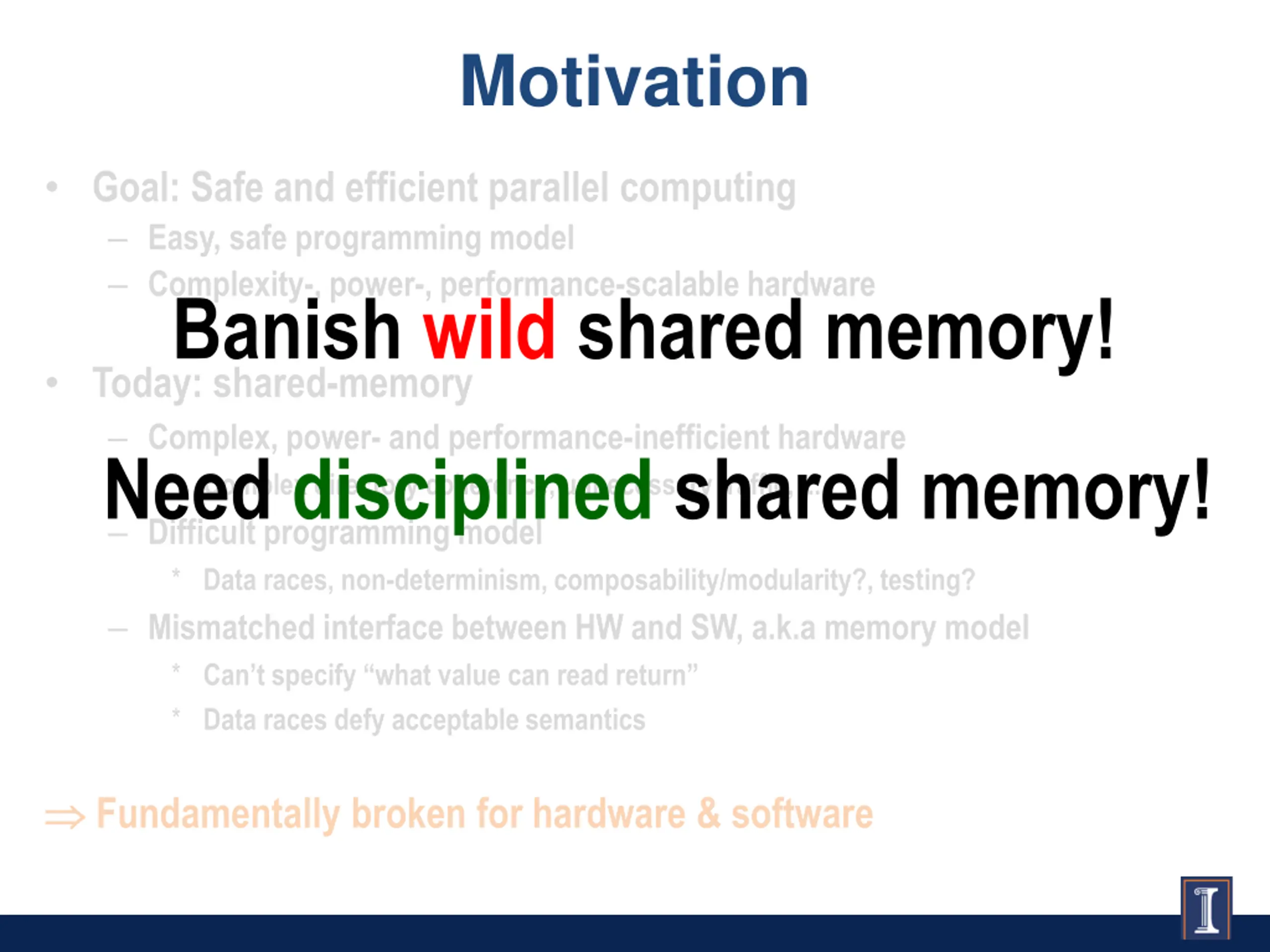

Motivation Goal: Safe and efficient parallel computing Easy, safe programming model Complexity-, power-, performance-scalable hardware Banish wild shared memory! Today: shared-memory Complex, power- and performance-inefficient hardware * Complex directory coherence, unnecessary traffic, ... Difficult programming model * Data races, non-determinism, composability/modularity?, testing? Mismatched interface between HW and SW, a.k.a memory model * Can t specify what value can read return * Data races defy acceptable semantics Need disciplined shared memory! Fundamentally broken for hardware & software

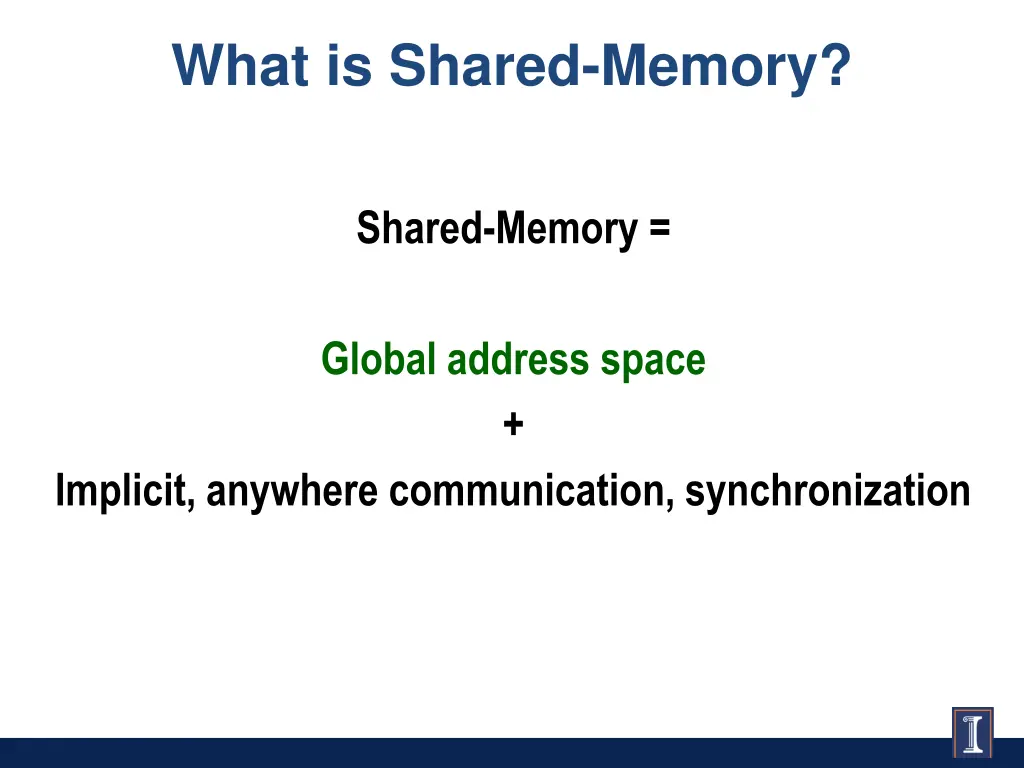

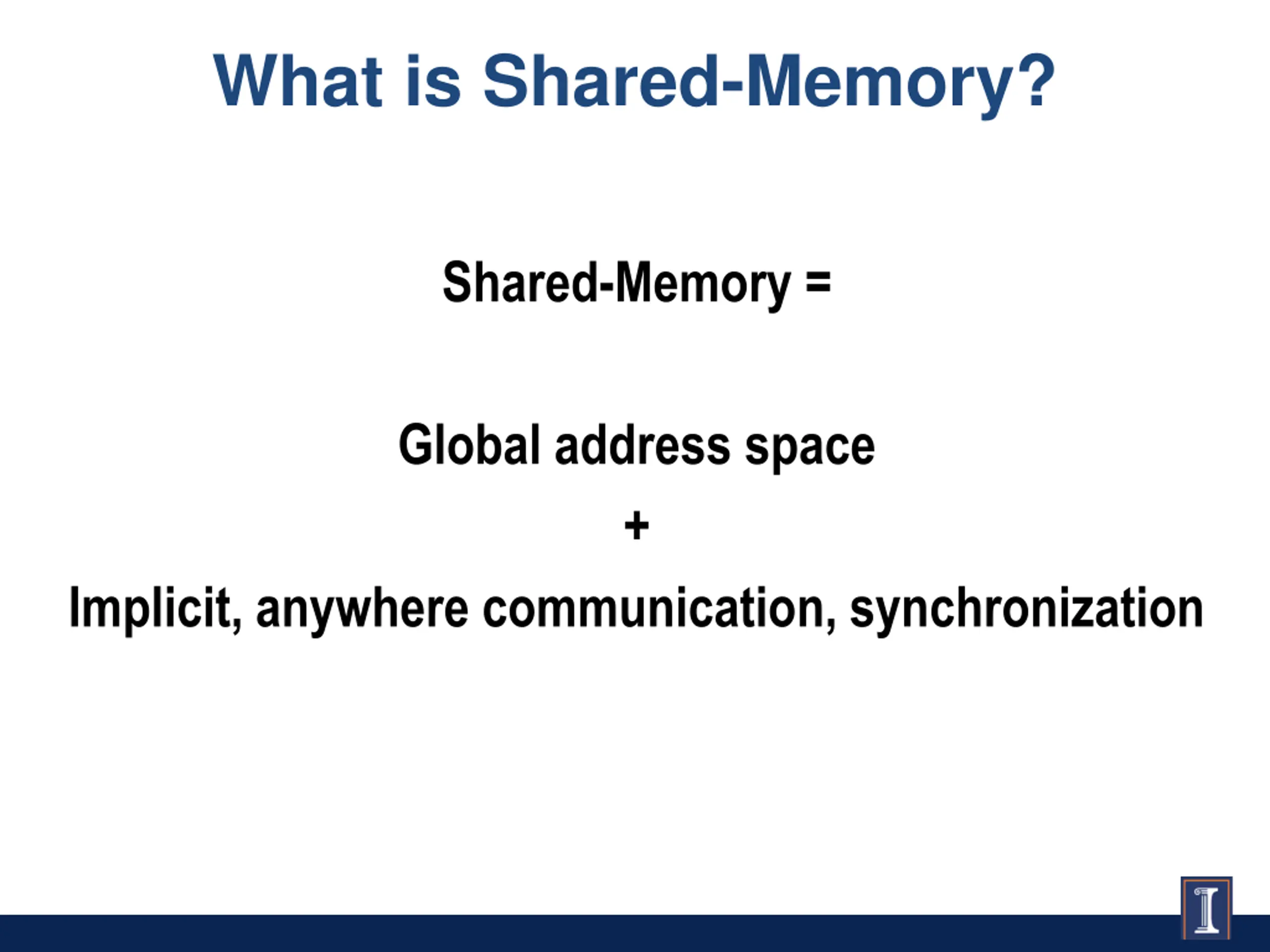

What is Shared-Memory? Shared-Memory = Global address space + Implicit, anywhere communication, synchronization

What is Shared-Memory? Shared-Memory = Global address space + Implicit, anywhere communication, synchronization

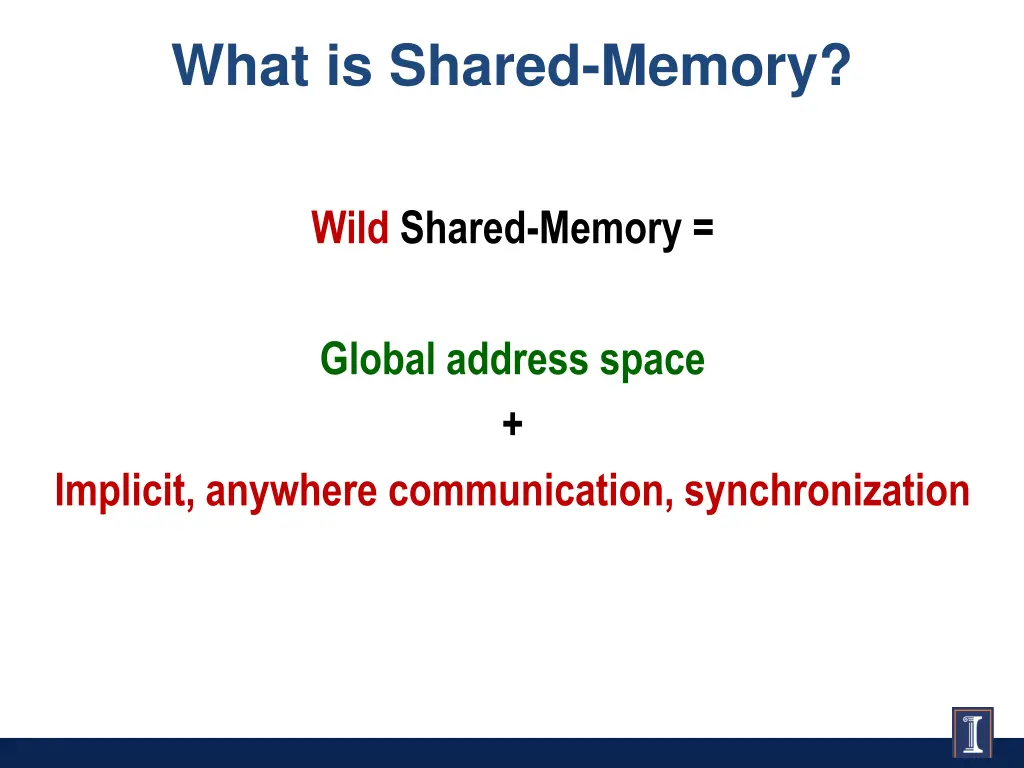

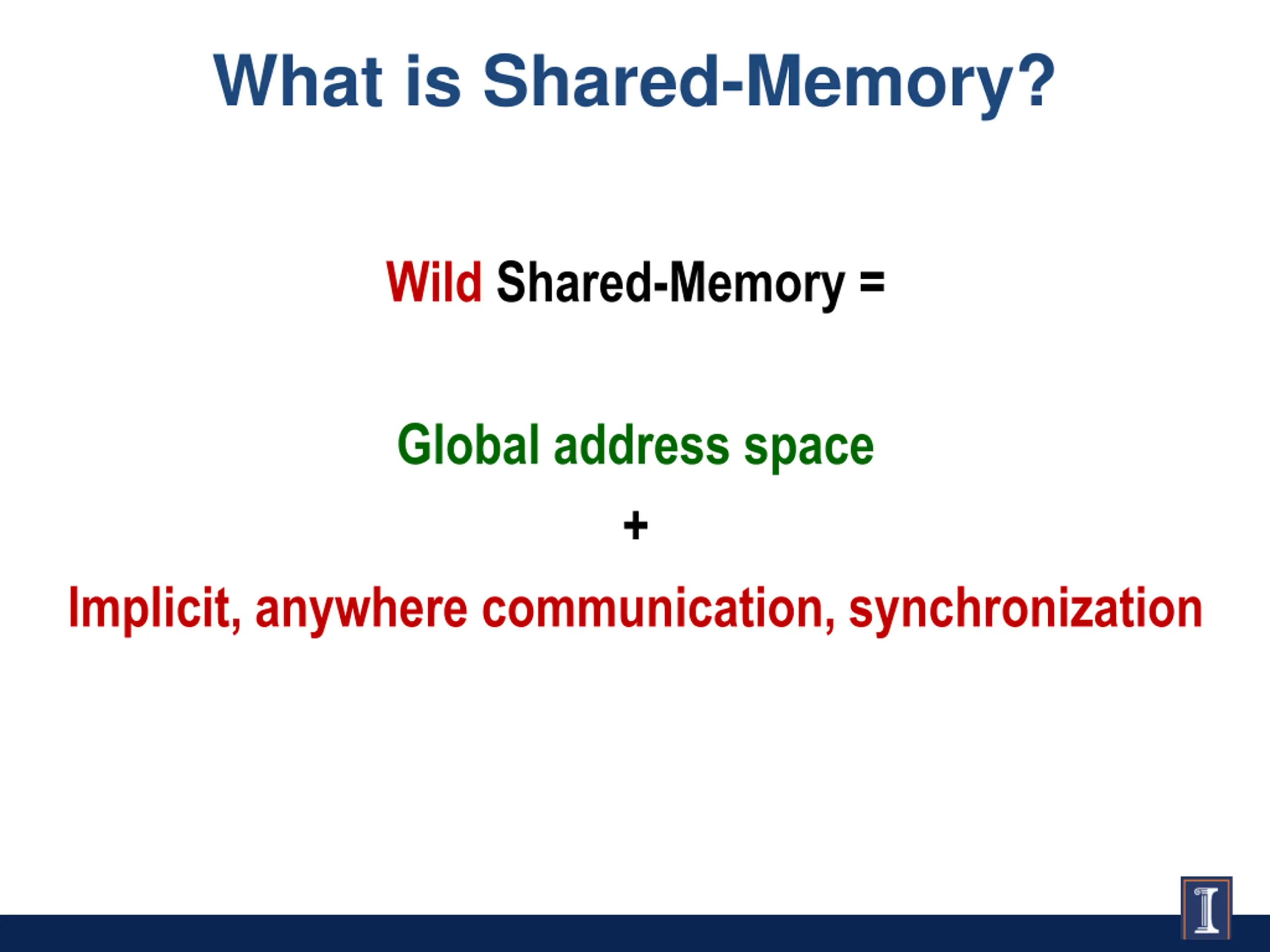

What is Shared-Memory? Wild Shared-Memory = Global address space + Implicit, anywhere communication, synchronization

What is Shared-Memory? Wild Shared-Memory = Global address space + Implicit, anywhere communication, synchronization

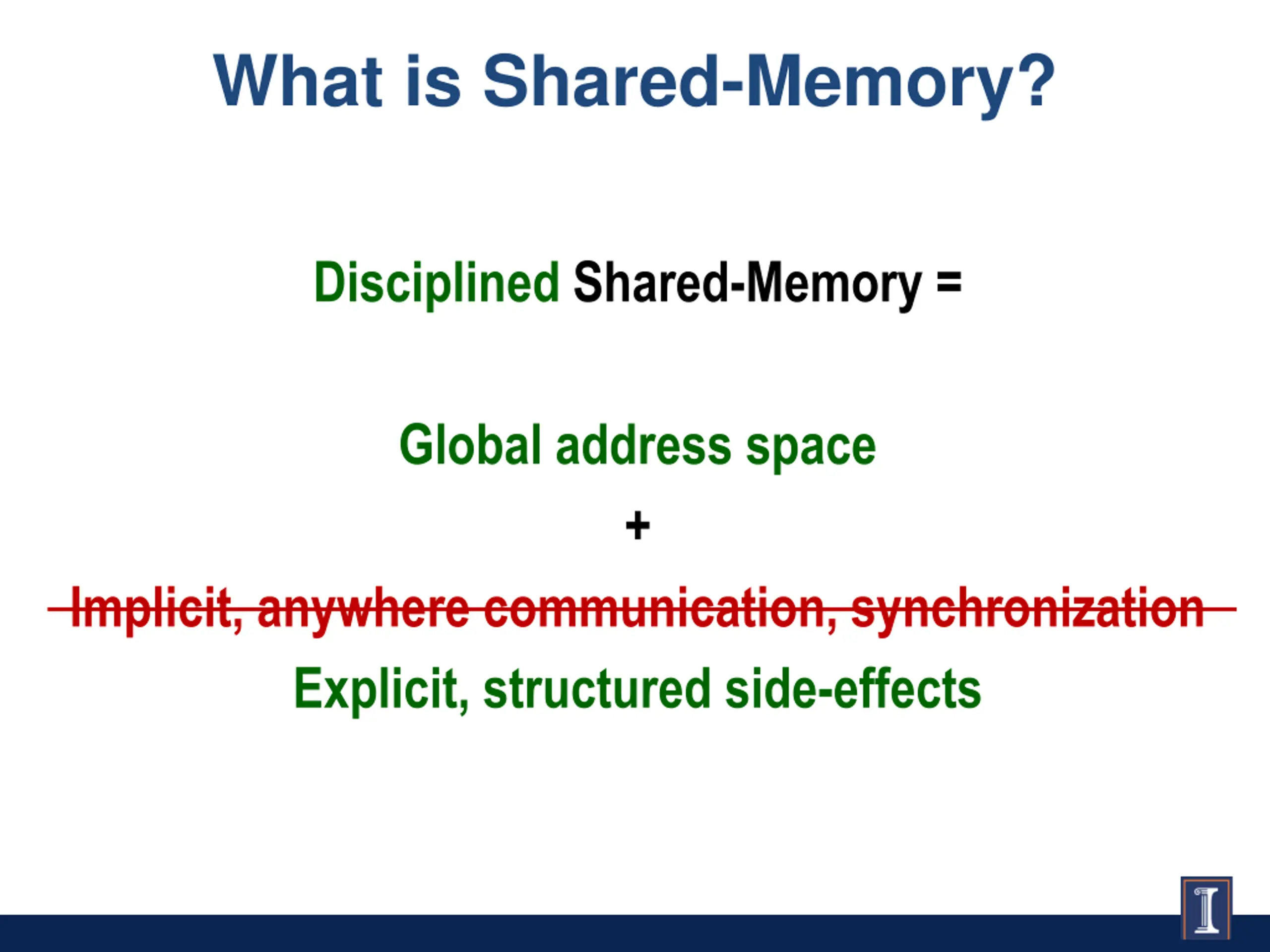

What is Shared-Memory? Disciplined Shared-Memory = Global address space + Implicit, anywhere communication, synchronization Explicit, structured side-effects

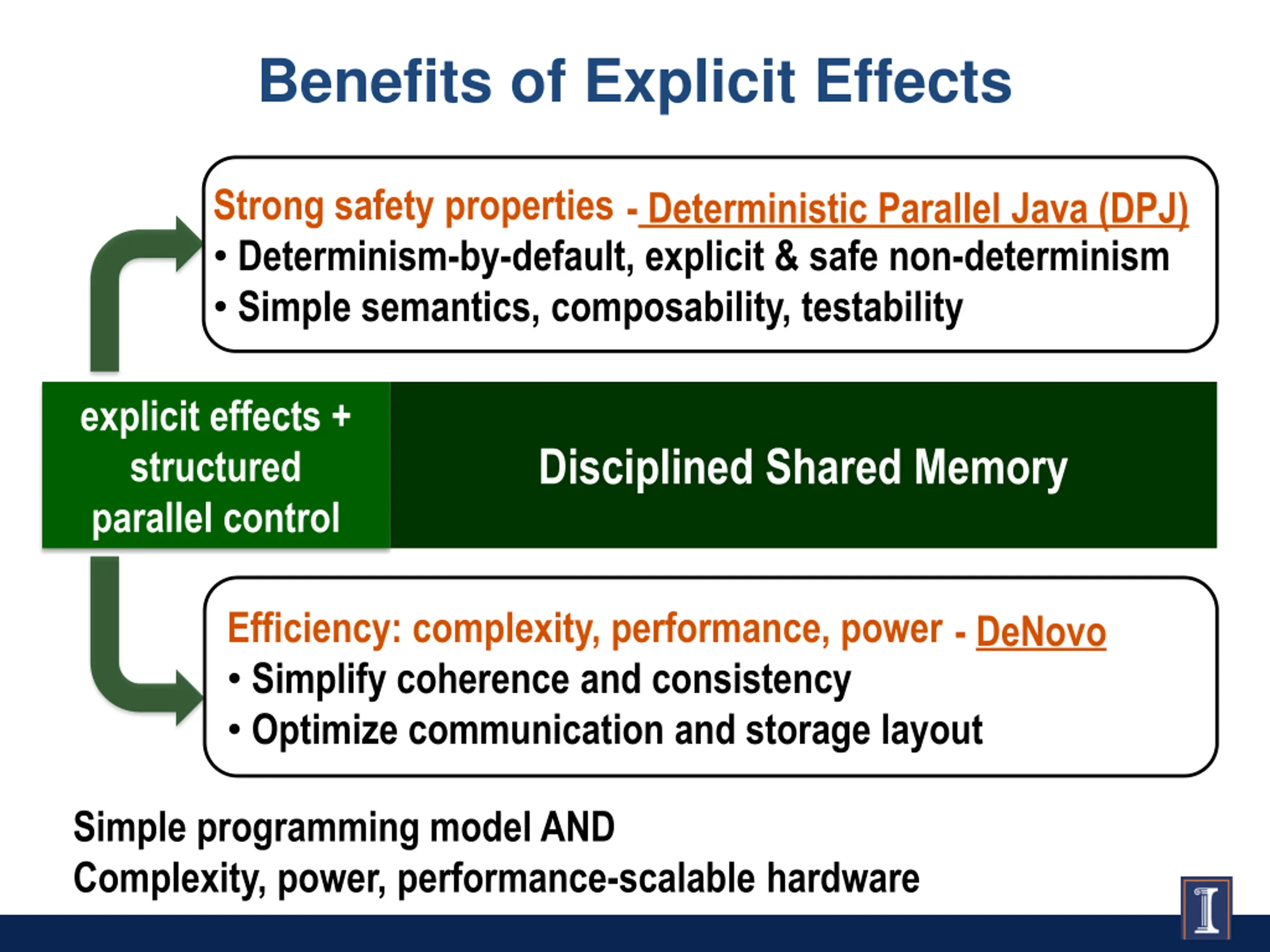

Benefits of Explicit Effects Strong safety properties Determinism-by-default, explicit & safe non-determinism Simple semantics, composability, testability - Deterministic Parallel Java (DPJ) explicit effects + structured parallel control Disciplined Shared Memory Efficiency: complexity, performance, power Simplify coherence and consistency Optimize communication and storage layout - DeNovo Simple programming model AND Complexity, power, performance-scalable hardware

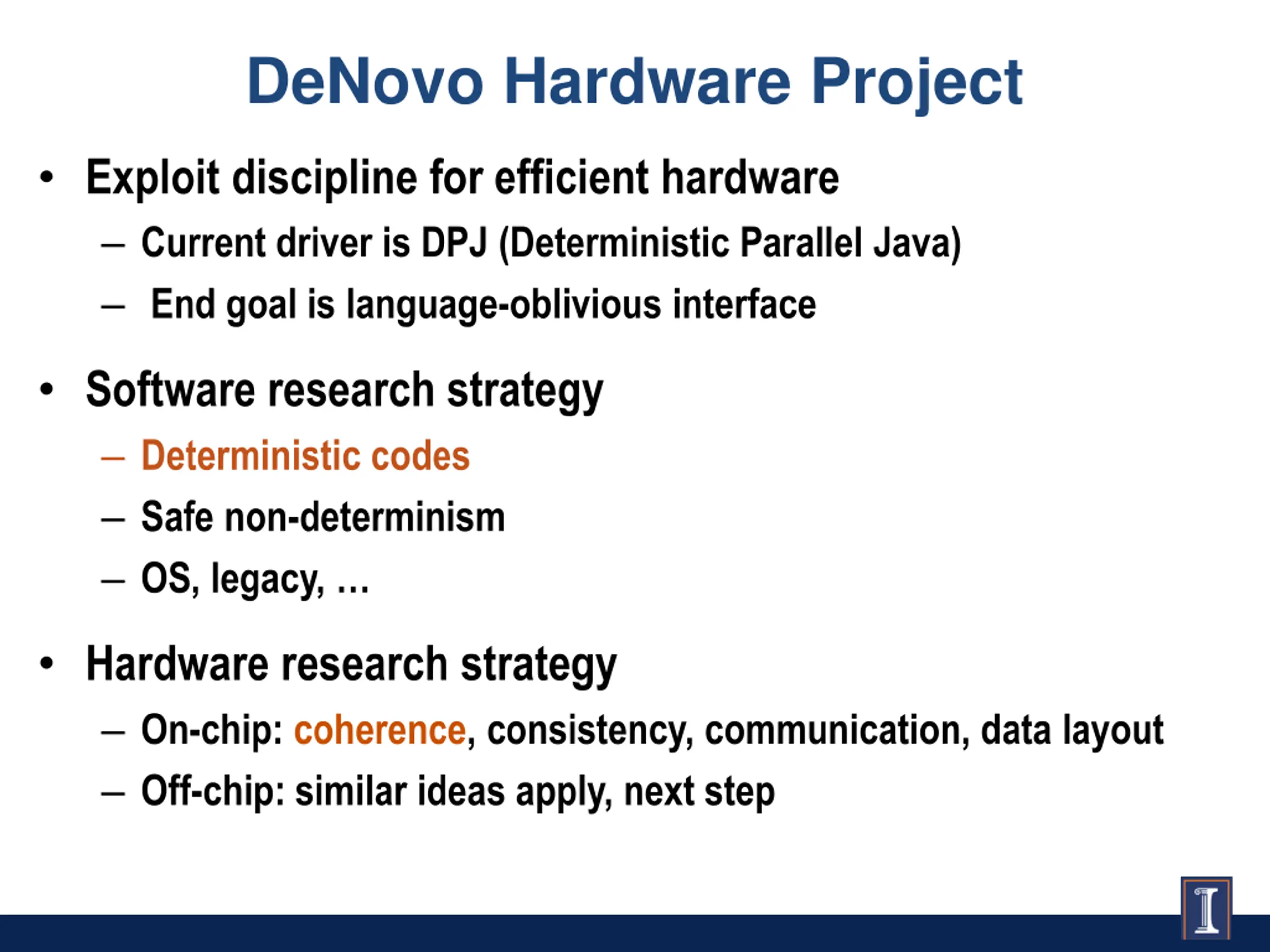

DeNovo Hardware Project Exploit discipline for efficient hardware Current driver is DPJ (Deterministic Parallel Java) End goal is language-oblivious interface Software research strategy Deterministic codes Safe non-determinism OS, legacy, Hardware research strategy On-chip: coherence, consistency, communication, data layout Off-chip: similar ideas apply, next step

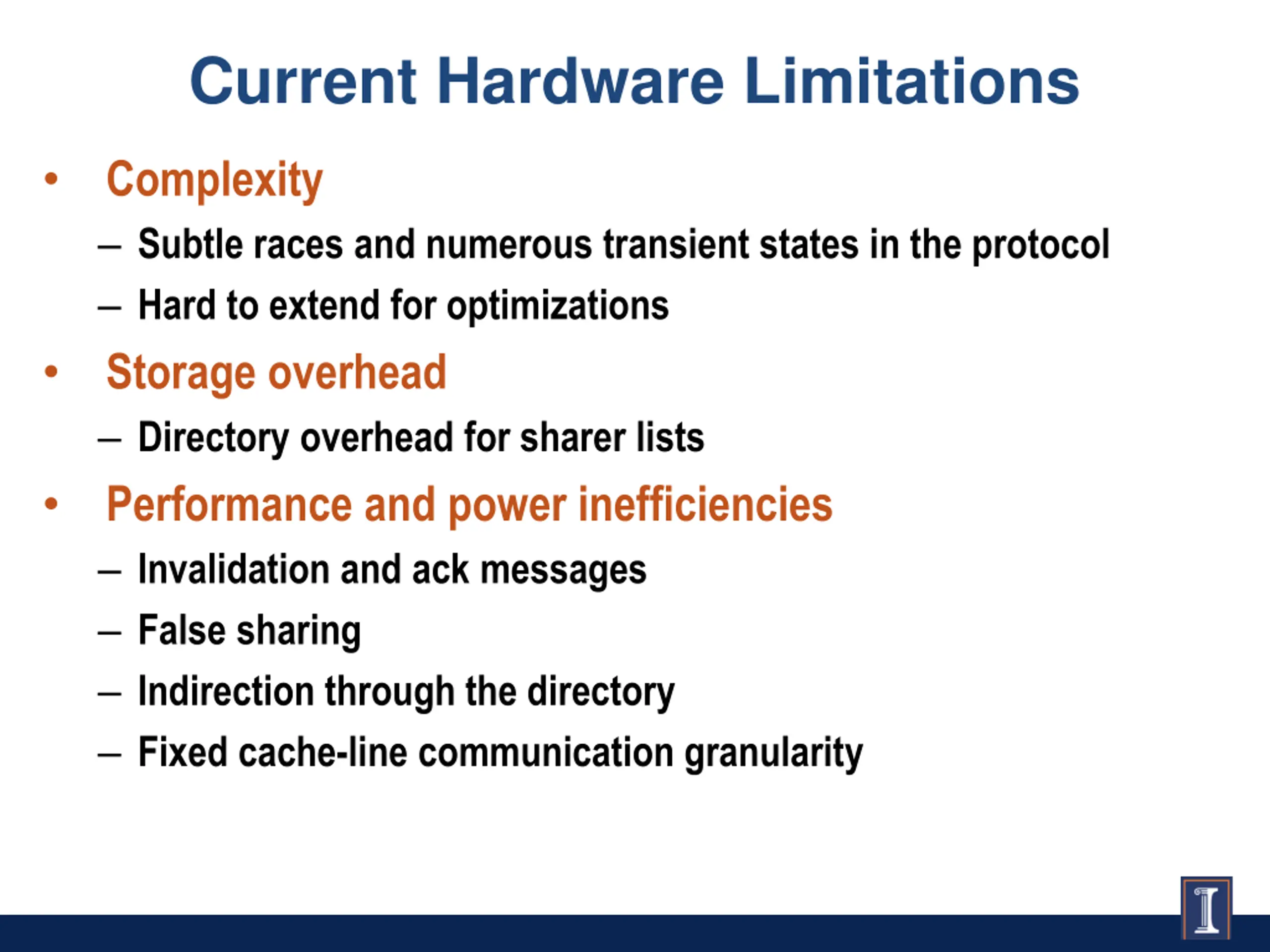

Current Hardware Limitations Complexity Subtle races and numerous transient states in the protocol Hard to extend for optimizations Storage overhead Directory overhead for sharer lists Performance and power inefficiencies Invalidation and ack messages False sharing Indirection through the directory Fixed cache-line communication granularity

Contributions Current Hardware Limitations Complexity Subtle races and numerous transient sates in the protocol Hard to extend for optimizations Storage overhead Directory overhead for sharer lists Performance and power inefficiencies Invalidation and ack messages False sharing Indirection through the directory Traffic (fixed cache-line communication) No transient states Simple to extend for optimizations No storage overhead for directory information No invalidation and ack messages No false sharing No indirection through the directory Flexible, not cache-line, communication Up to 81% reduction in memory stall time

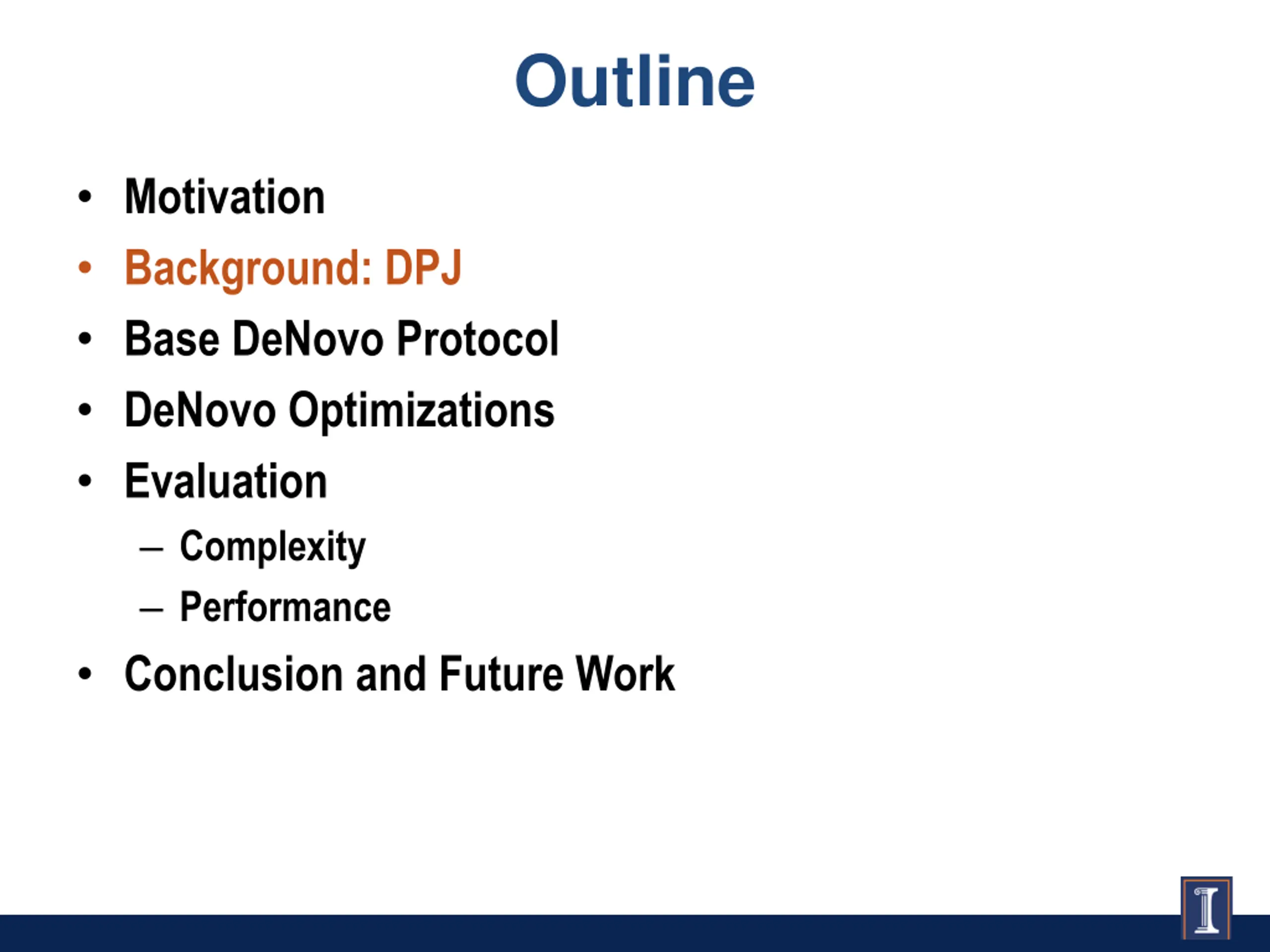

Outline Motivation Background: DPJ Base DeNovo Protocol DeNovo Optimizations Evaluation Complexity Performance Conclusion and Future Work

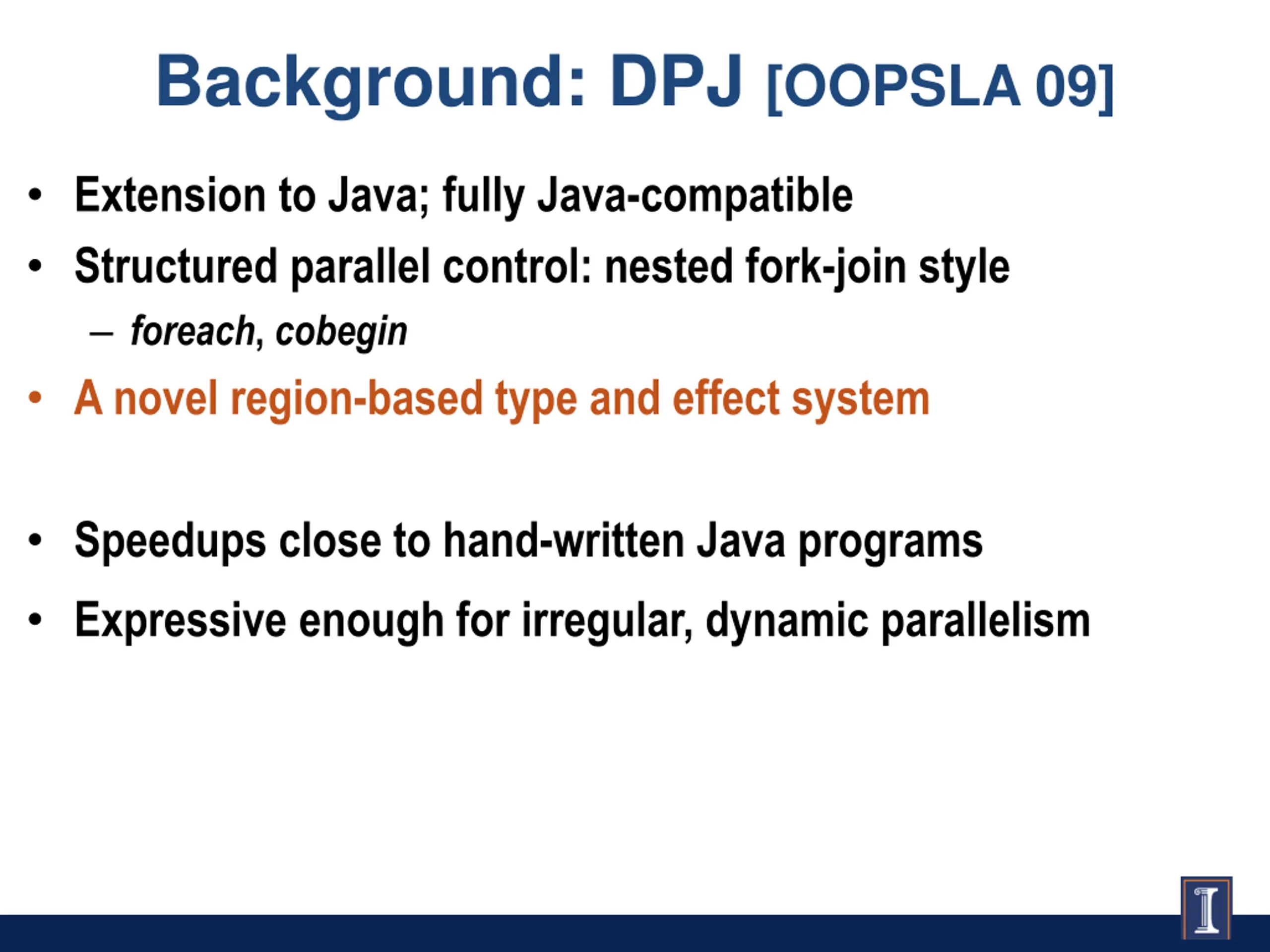

Background: DPJ [OOPSLA 09] Extension to Java; fully Java-compatible Structured parallel control: nested fork-join style foreach, cobegin A novel region-based type and effect system Speedups close to hand-written Java programs Expressive enough for irregular, dynamic parallelism

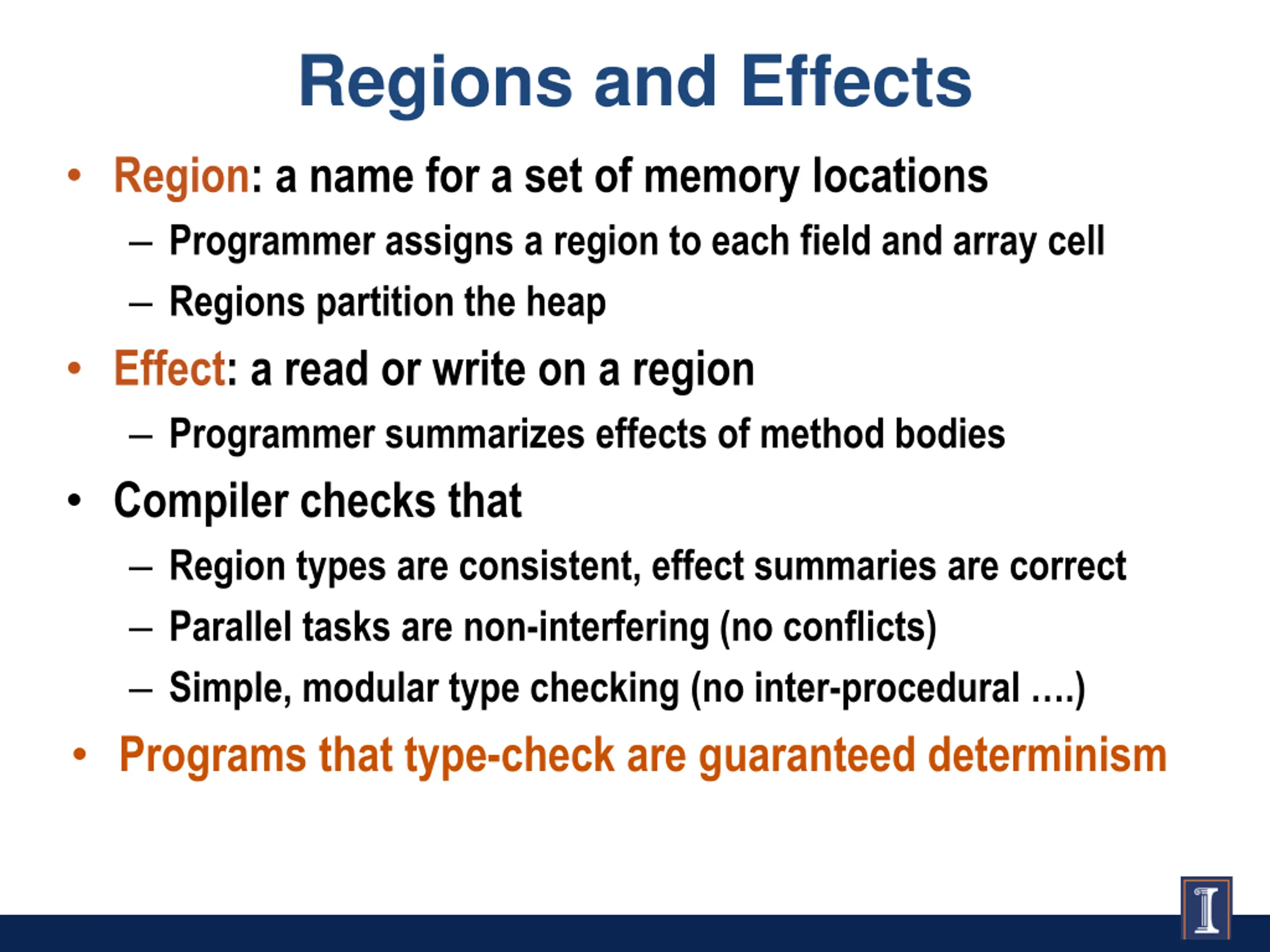

Regions and Effects Region: a name for a set of memory locations Programmer assigns a region to each field and array cell Regions partition the heap Effect: a read or write on a region Programmer summarizes effects of method bodies Compiler checks that Region types are consistent, effect summaries are correct Parallel tasks are non-interfering (no conflicts) Simple, modular type checking (no inter-procedural .) Programs that type-check are guaranteed determinism

Example: A Pair Class class Pair { regionBlue, Red; int X in Blue; int Y in Red; void setX(int x) writes Blue { this.X = x; } void setY(int y) writes Red { this.Y = y; } void setXY(int x, int y) writes Blue; writes Red { cobegin { setX(x); // writes Blue setY(y); // writes Red } } } Declaring and using region names Region names have static scope (one per class) Pair Pair.Blue X 3 Pair.Red Y 42

Example: A Pair Class class Pair { regionBlue, Red; int X in Blue; int Y in Red; void setX(int x) writes Blue { this.X = x; } void setY(int y) writes Red { this.Y = y; } void setXY(int x, int y) writes Blue; writes Red { cobegin { setX(x); // writes Blue setY(y); // writes Red } } } Pair Pair.Blue X 3 Pair.Red Y 42 Writing method effect summaries

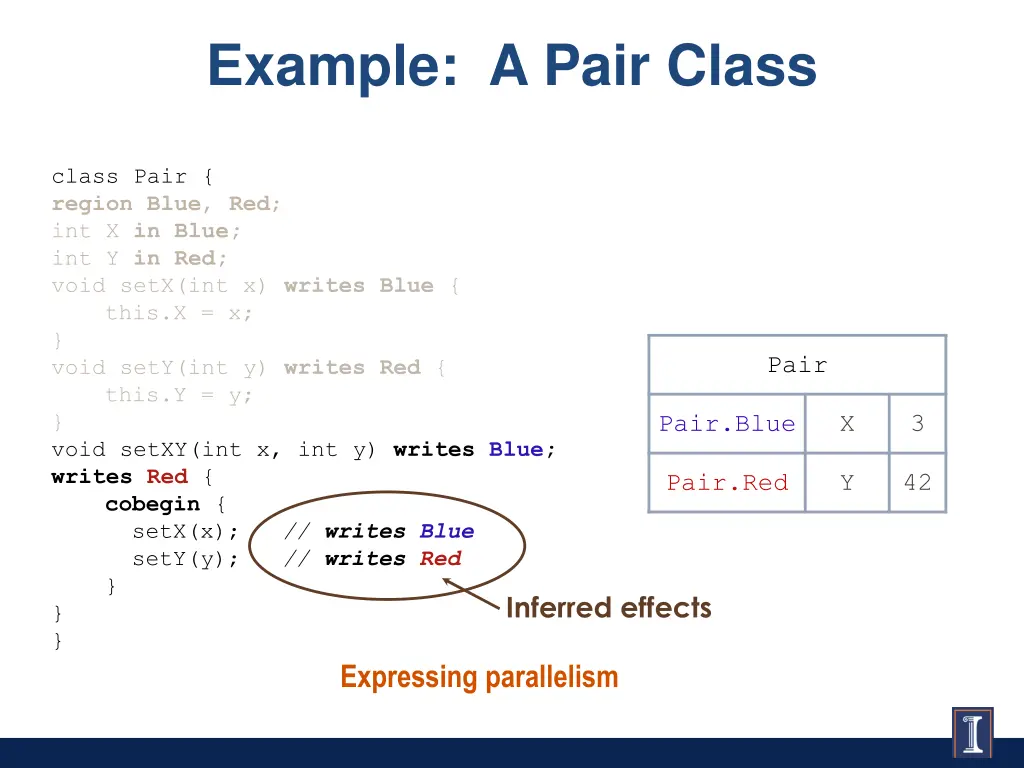

Example: A Pair Class class Pair { regionBlue, Red; int X in Blue; int Y in Red; void setX(int x) writes Blue { this.X = x; } void setY(int y) writes Red { this.Y = y; } void setXY(int x, int y) writes Blue; writes Red { cobegin { setX(x); // writes Blue setY(y); // writes Red } } } Pair Pair.Blue X 3 Pair.Red Y 42 Inferred effects Expressing parallelism

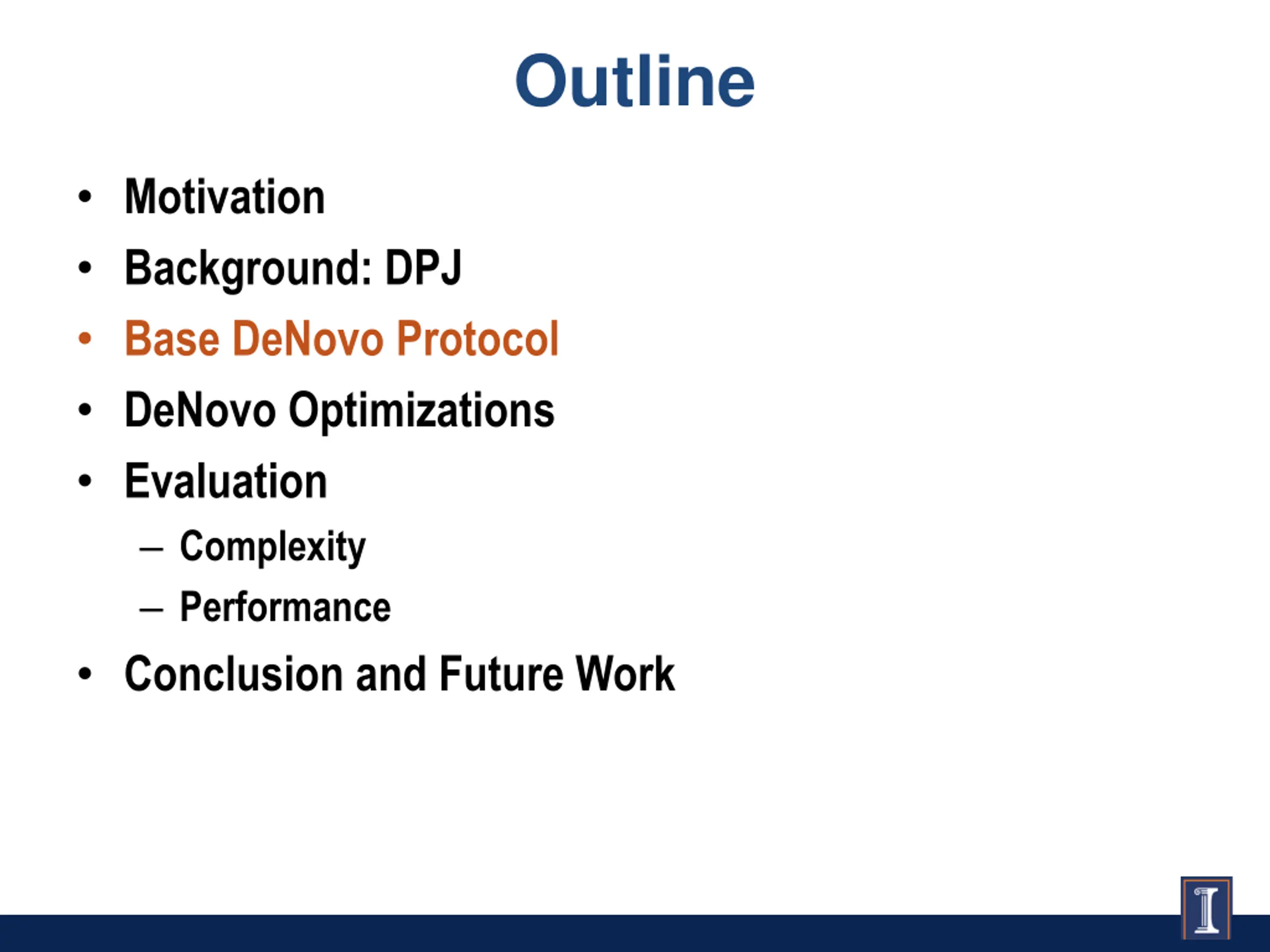

Outline Motivation Background: DPJ Base DeNovo Protocol DeNovo Optimizations Evaluation Complexity Performance Conclusion and Future Work

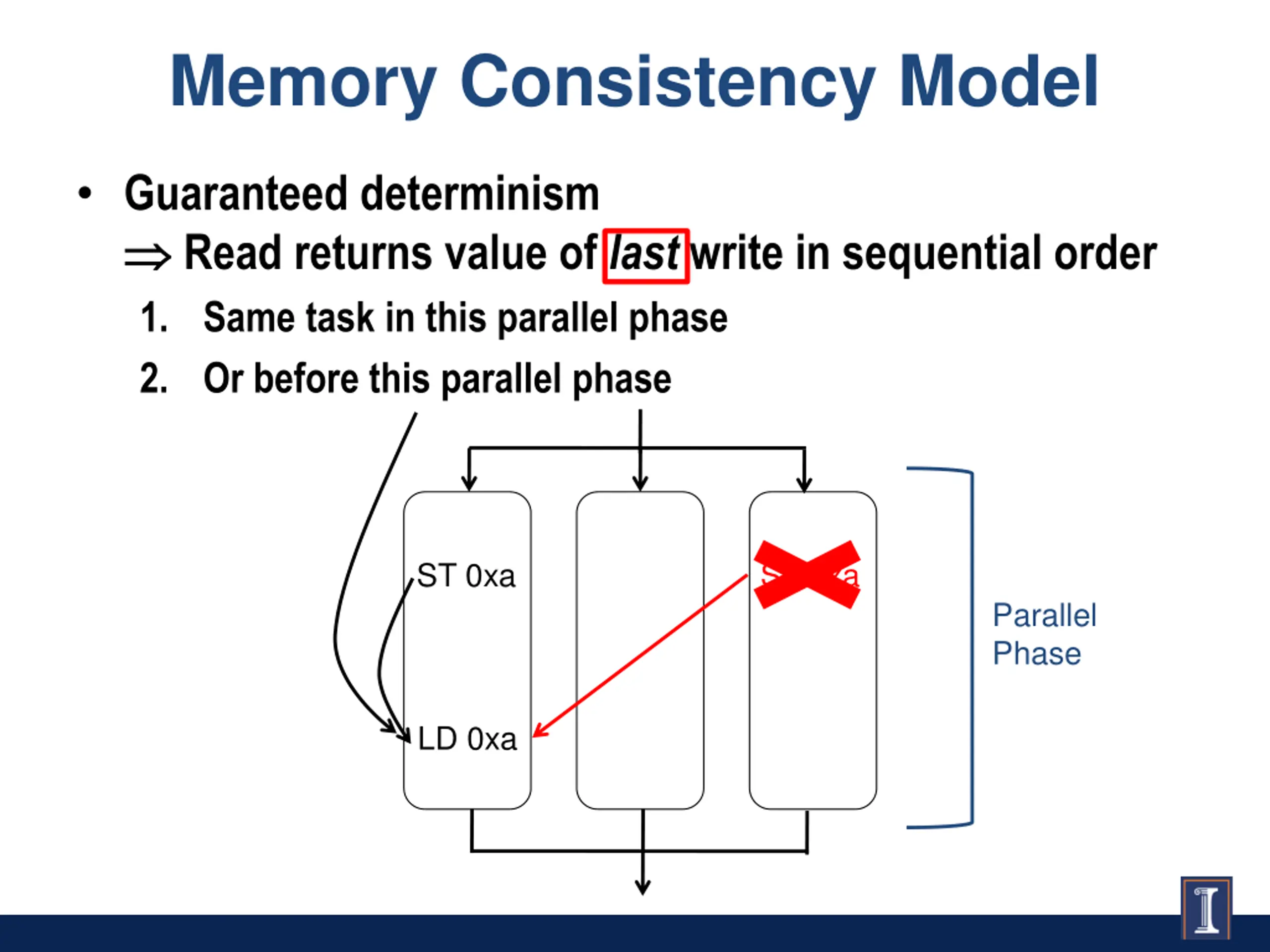

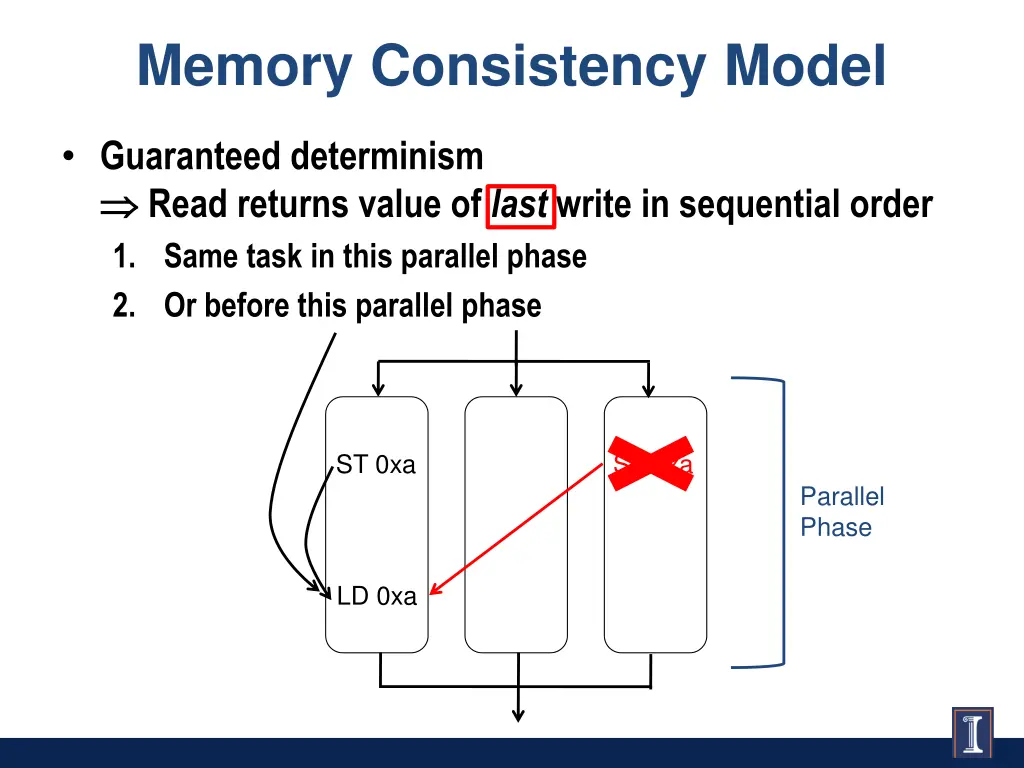

Memory Consistency Model Guaranteed determinism Read returns value of last write in sequential order 1. Same task in this parallel phase 2. Or before this parallel phase ST 0xa ST 0xa Parallel Phase LD 0xa

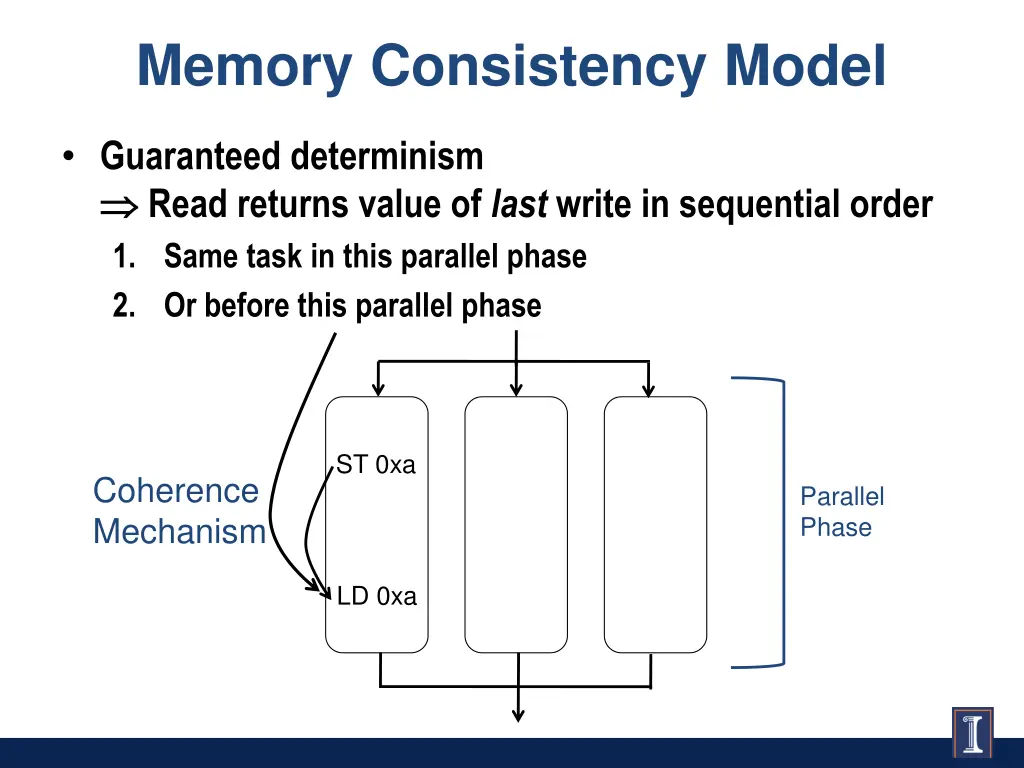

Memory Consistency Model Guaranteed determinism Read returns value of last write in sequential order 1. Same task in this parallel phase 2. Or before this parallel phase ST 0xa Coherence Mechanism Parallel Phase LD 0xa

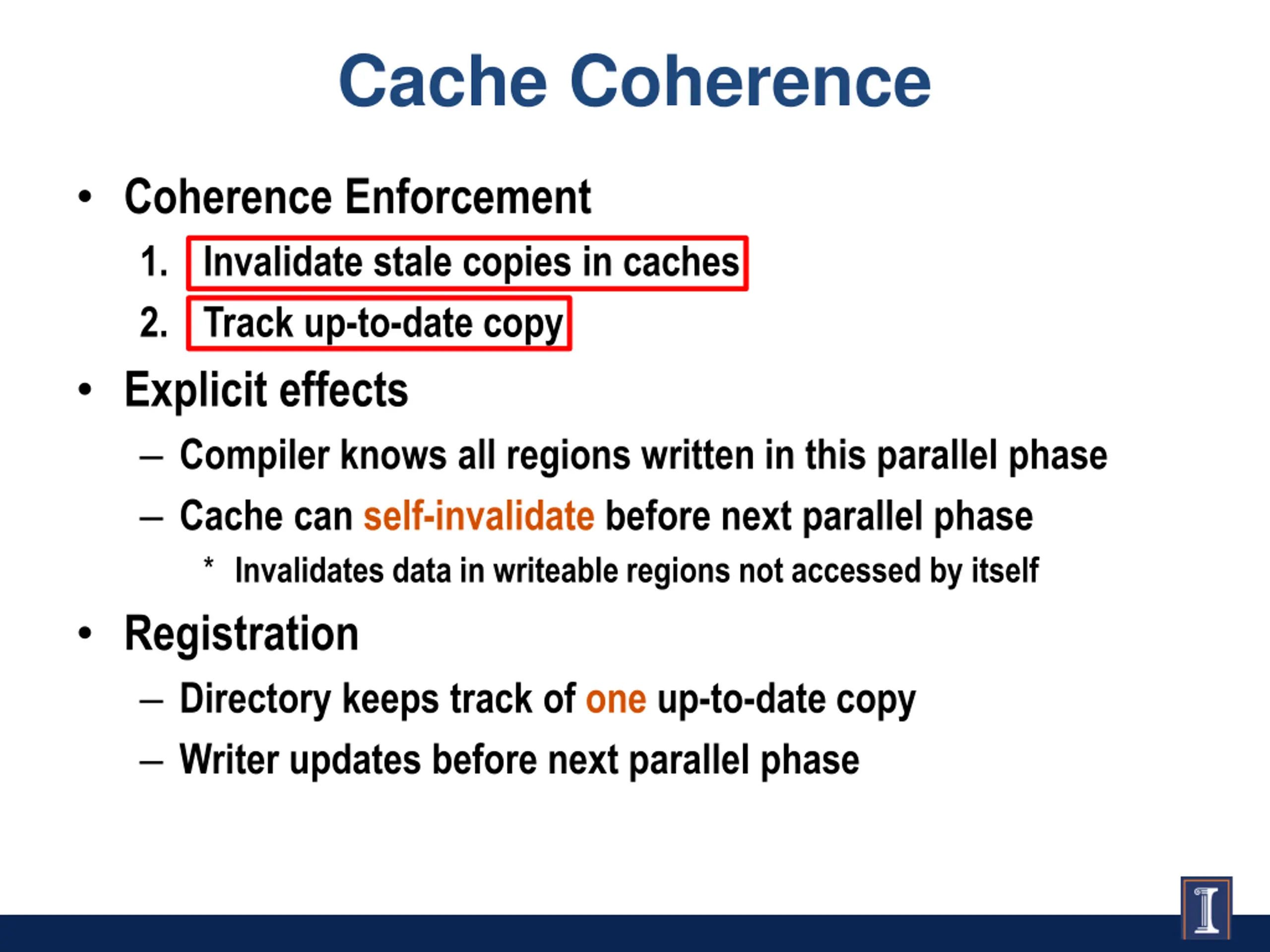

Cache Coherence Coherence Enforcement 1. Invalidate stale copies in caches 2. Track up-to-date copy Explicit effects Compiler knows all regions written in this parallel phase Cache can self-invalidate before next parallel phase * Invalidates data in writeable regions not accessed by itself Registration Directory keeps track of one up-to-date copy Writer updates before next parallel phase

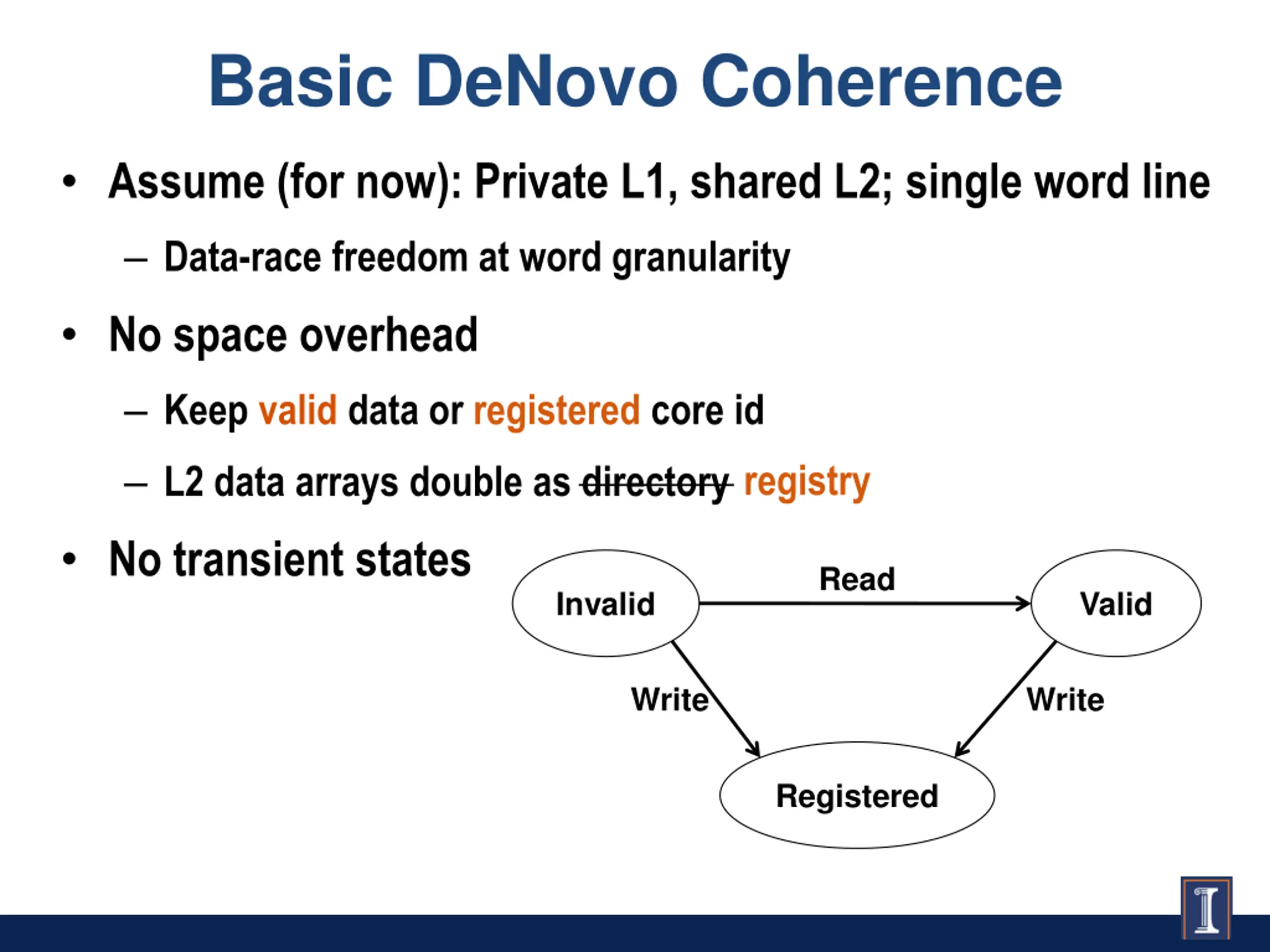

Basic DeNovo Coherence Assume (for now): Private L1, shared L2; single word line Data-race freedom at word granularity No space overhead Keep valid data or registered core id registry L2 data arrays double as directory No transient states Read Invalid Valid Write Write Registered

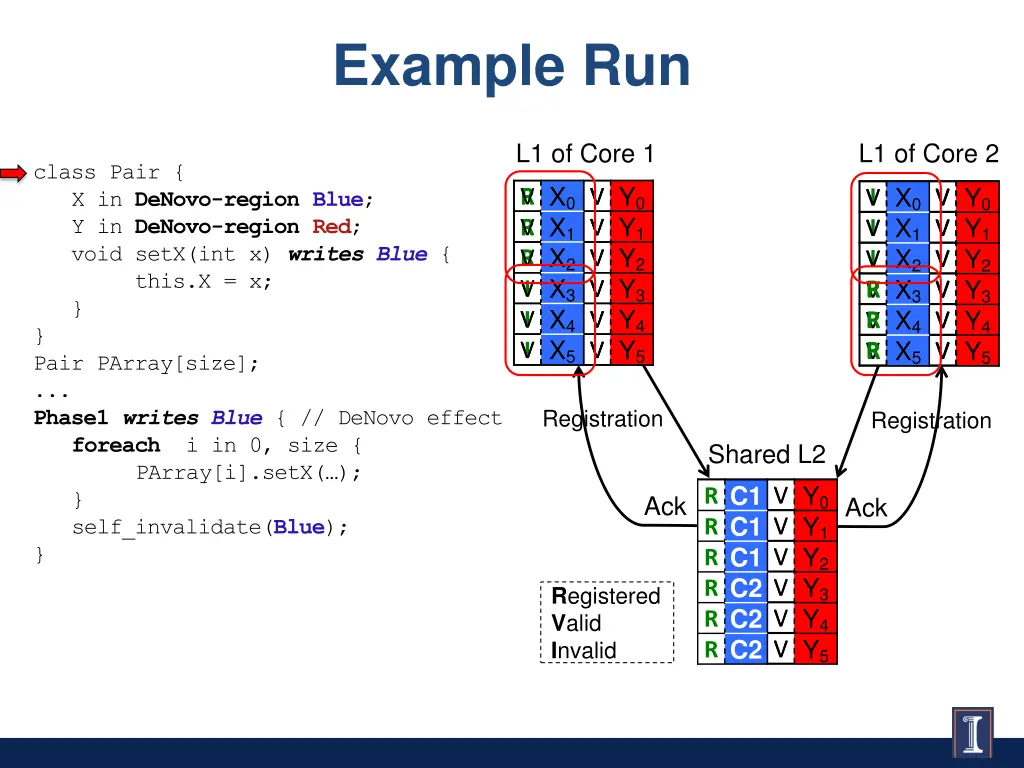

Example Run L1 of Core 1 L1 of Core 2 class Pair { X in DeNovo-region Blue; Y in DeNovo-region Red; void setX(int x) writes Blue { this.X = x; } } Pair PArray[size]; ... Phase1writes Blue {// DeNovo effect foreach i in 0, size { PArray[i].setX( ); } self_invalidate(Blue); } IX0 V Y0 I X1 V Y1 I X2 V Y2 R X3 V Y3 R X4 V Y4 R X5 V Y5 V X5 V Y5 R X5 V Y5 R X0 V Y0 R X1 V Y1 R X2 V Y2 VX3 V Y3 VX4 V Y4 VX5 V Y5 I X5 V Y5 VX5 V Y5 R X0 V Y0 R X1 V Y1 R X2 V Y2 I X3 V Y3 I X4 V Y4 VX4 V Y4 VX0 V Y0 VX1 V Y1 VX2 V Y2 VX3 V Y3 VX0 V Y0 VX1 V Y1 VX2 V Y2 VX3 V Y3 V X4 V Y4 R X4 V Y4 VX0 V Y0 VX1 V Y1 VX2 V Y2 R X3 V Y3 Registration Registration Shared L2 VX0 V Y0 VX1 V Y1 VX2 V Y2 VX3 V Y3 V X4 V Y4 V X5 V Y5 R C2 V Y5 R C1 V Y0 R C1 V Y1 R C1 V Y2 R C2 V Y3 R C2 V Y4 Ack Ack Registered Valid Invalid

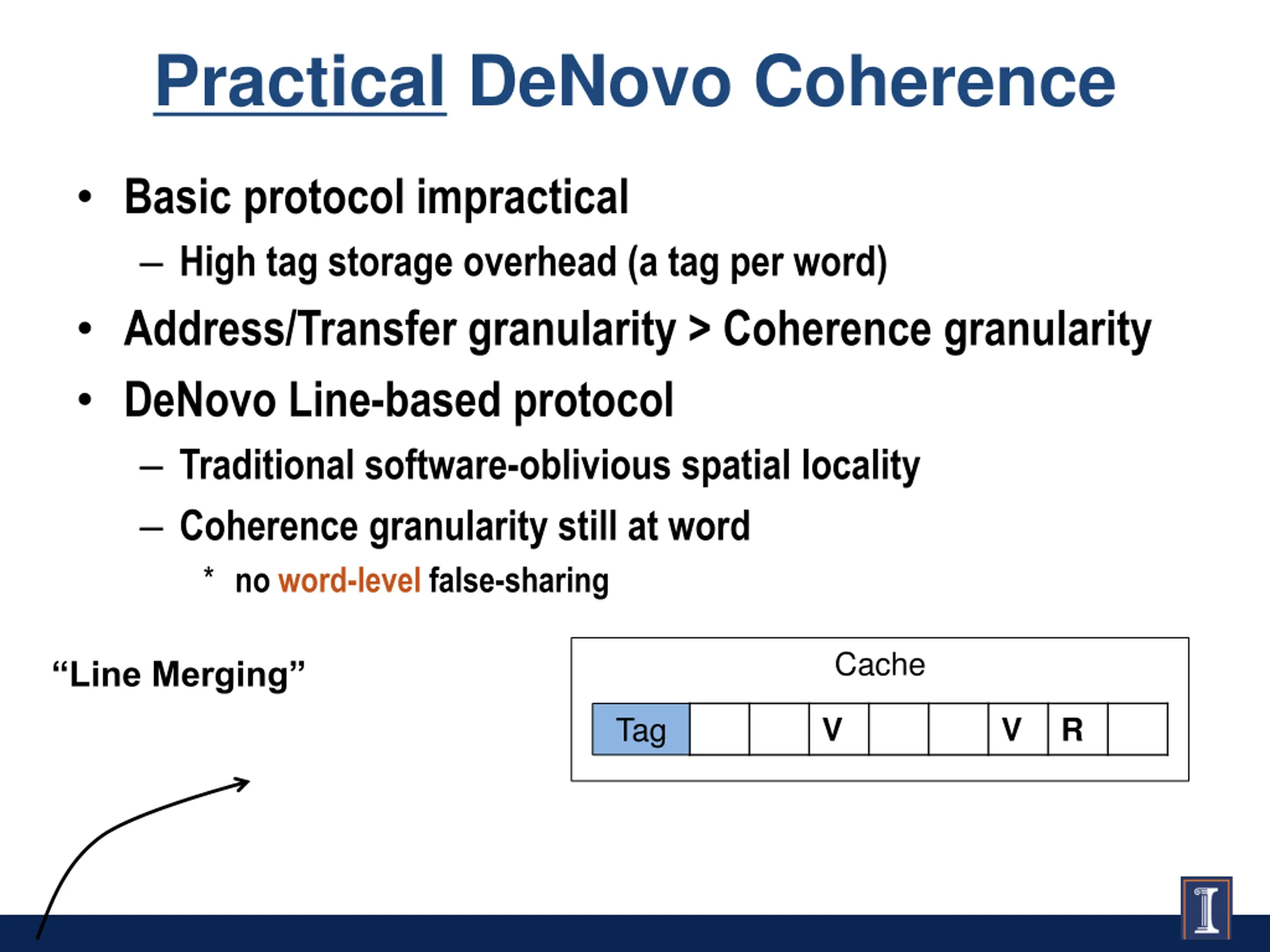

Practical DeNovo Coherence Basic protocol impractical High tag storage overhead (a tag per word) Address/Transfer granularity > Coherence granularity DeNovo Line-based protocol Traditional software-oblivious spatial locality Coherence granularity still at word * no word-level false-sharing Cache Line Merging V V R Tag

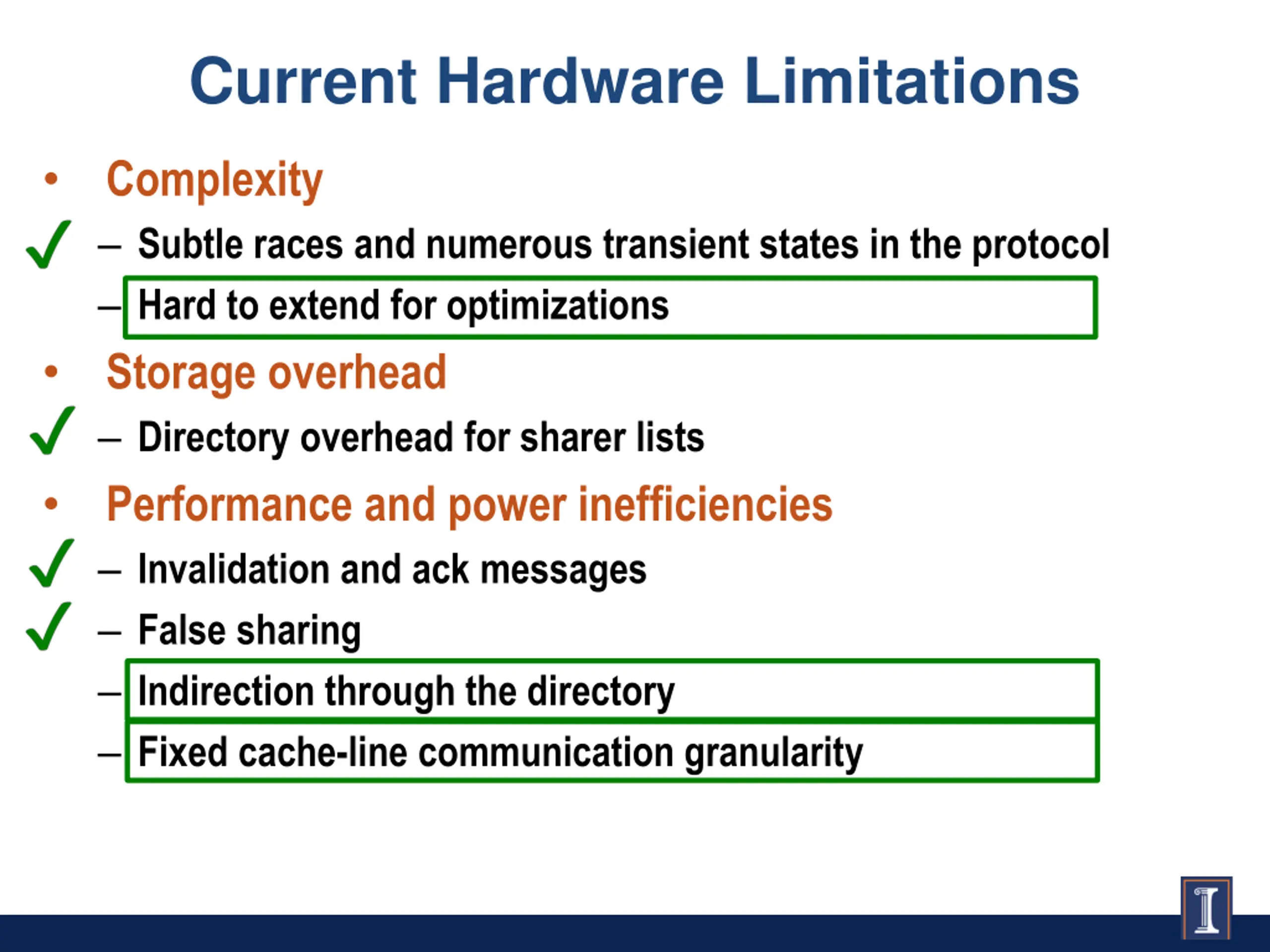

Current Hardware Limitations Complexity Subtle races and numerous transient states in the protocol Hard to extend for optimizations Storage overhead Directory overhead for sharer lists Performance and power inefficiencies Invalidation and ack messages False sharing Indirection through the directory Fixed cache-line communication granularity

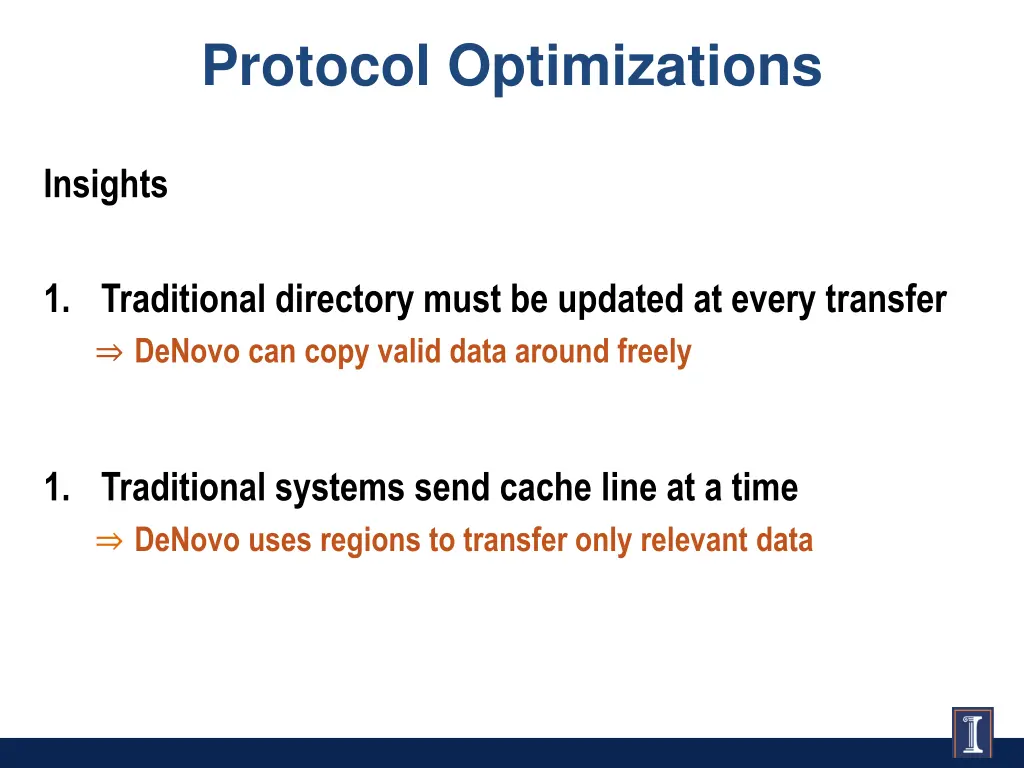

Protocol Optimizations Insights 1. Traditional directory must be updated at every transfer DeNovo can copy valid data around freely 1. Traditional systems send cache line at a time DeNovo uses regions to transfer only relevant data

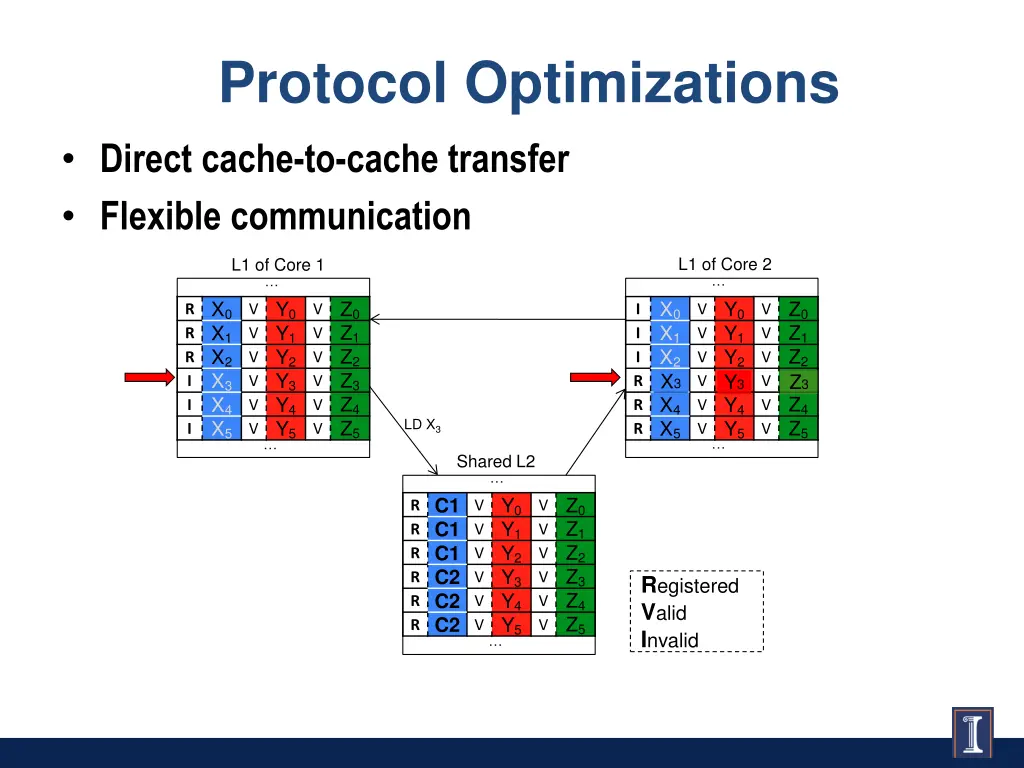

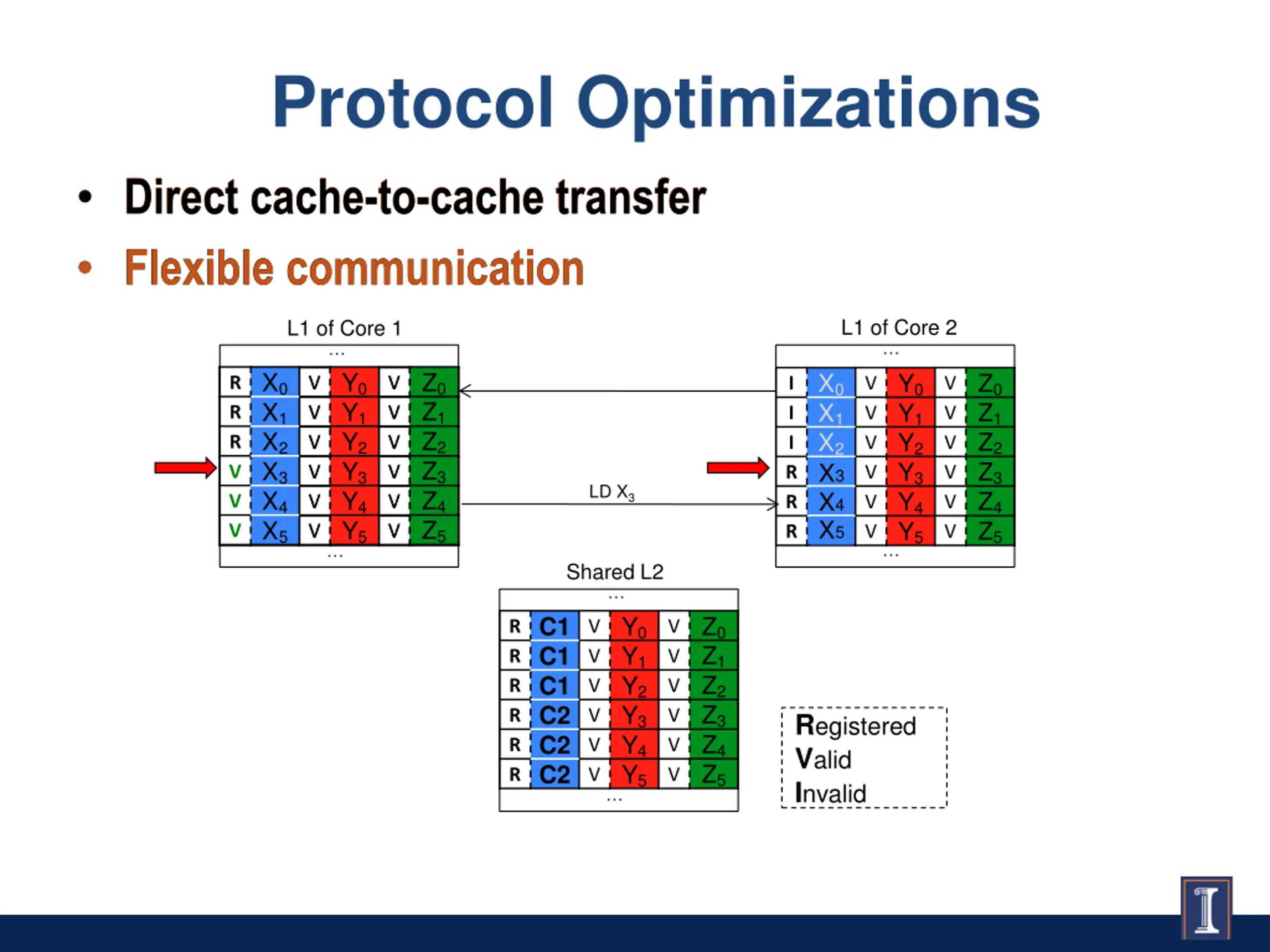

Protocol Optimizations Direct cache-to-cache transfer Flexible communication L1 of Core 2 L1 of Core 1 R X0 V Y0 R X1 V Y1 R X2 V Y2 I X3 V Y3 I X4 V Y4 I X5 V Y5 V Z0 V Z1 V Z2 V Z3 V Z4 V Z5 IX0 I X1 I X2 R X3 R X4 R X5 V Y0 V Y1 V Y2 V Y3 V Y4 V Y5 V Z0 V Z1 V Z2 V Z3 V Z4 V Z5 X3 Y3 Z3 LD X3 Shared L2 R C1 V Y0 R C1 V Y1 R C1 V Y2 R C2 V Y3 R C2 V Y4 R C2 V Y5 V Z0 V Z1 V Z2 V Z3 V Z4 V Z5 Registered Valid Invalid

Protocol Optimizations Direct cache-to-cache transfer Flexible communication Flexible communication Direct cache-to-cache transfer L1 of Core 2 L1 of Core 1 R X0 V Y0 R X1 V Y1 R X2 V Y2 I X3 V Y3 I X4 V Y4 I X5 V Y5 V X5 V Y5 R X0 R X1 R X2 V X3 V X4 V Y0 V Y1 V Y2 V Y3 V Y4 V Z0 V Z1 V Z2 V Z3 V Z4 V Z0 V Z1 V Z2 V Z3 V Z4 V Z5 V Z5 IX0 I X1 I X2 R X3 R X4 R X5 V Y0 V Y1 V Y2 V Y3 V Y4 V Y5 V Z0 V Z1 V Z2 V Z3 V Z4 V Z5 X3 X4 X5 LD X3 Shared L2 R C1 V Y0 R C1 V Y1 R C1 V Y2 R C2 V Y3 R C2 V Y4 R C2 V Y5 V Z0 V Z1 V Z2 V Z3 V Z4 V Z5 Registered Valid Invalid

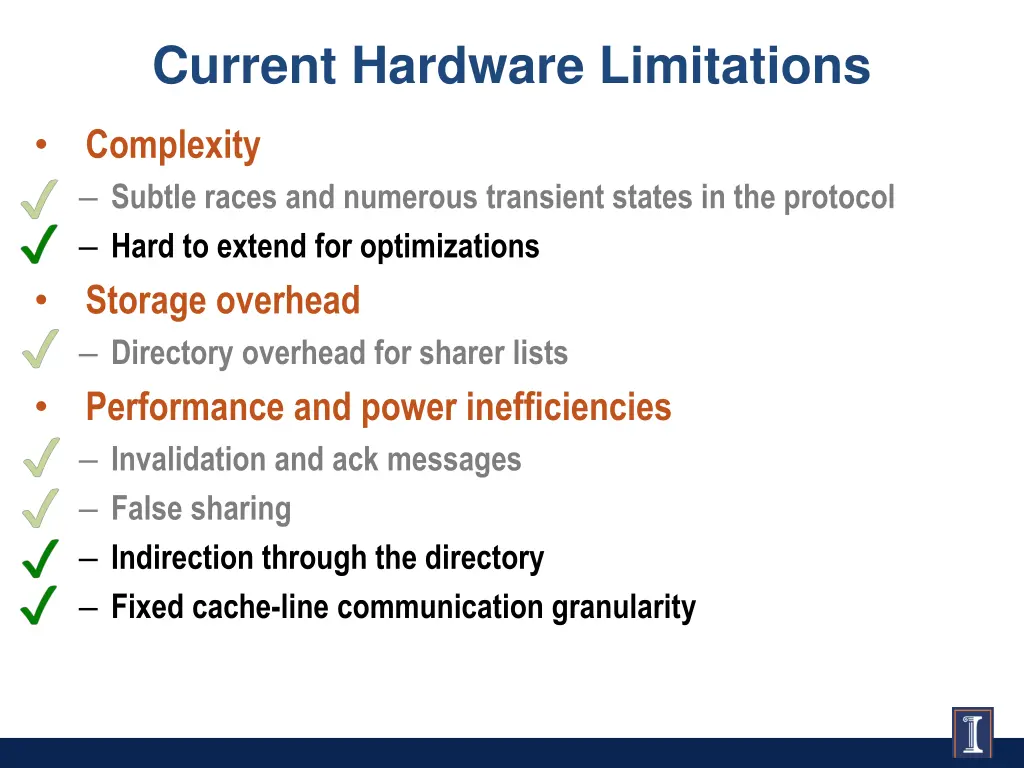

Current Hardware Limitations Complexity Subtle races and numerous transient states in the protocol Hard to extend for optimizations Storage overhead Directory overhead for sharer lists Performance and power inefficiencies Invalidation and ack messages False sharing Indirection through the directory Fixed cache-line communication granularity

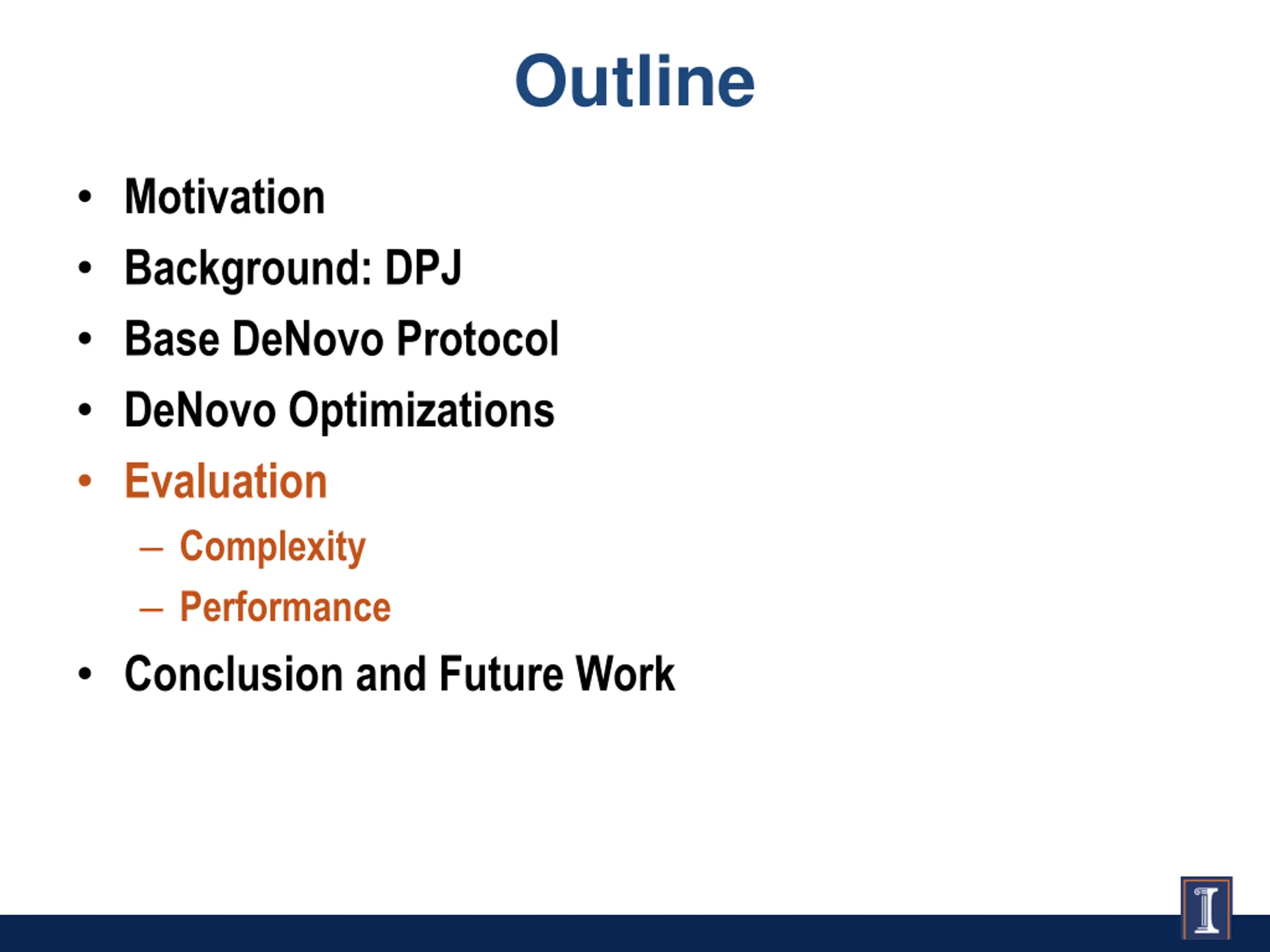

Outline Motivation Background: DPJ Base DeNovo Protocol DeNovo Optimizations Evaluation Complexity Performance Conclusion and Future Work

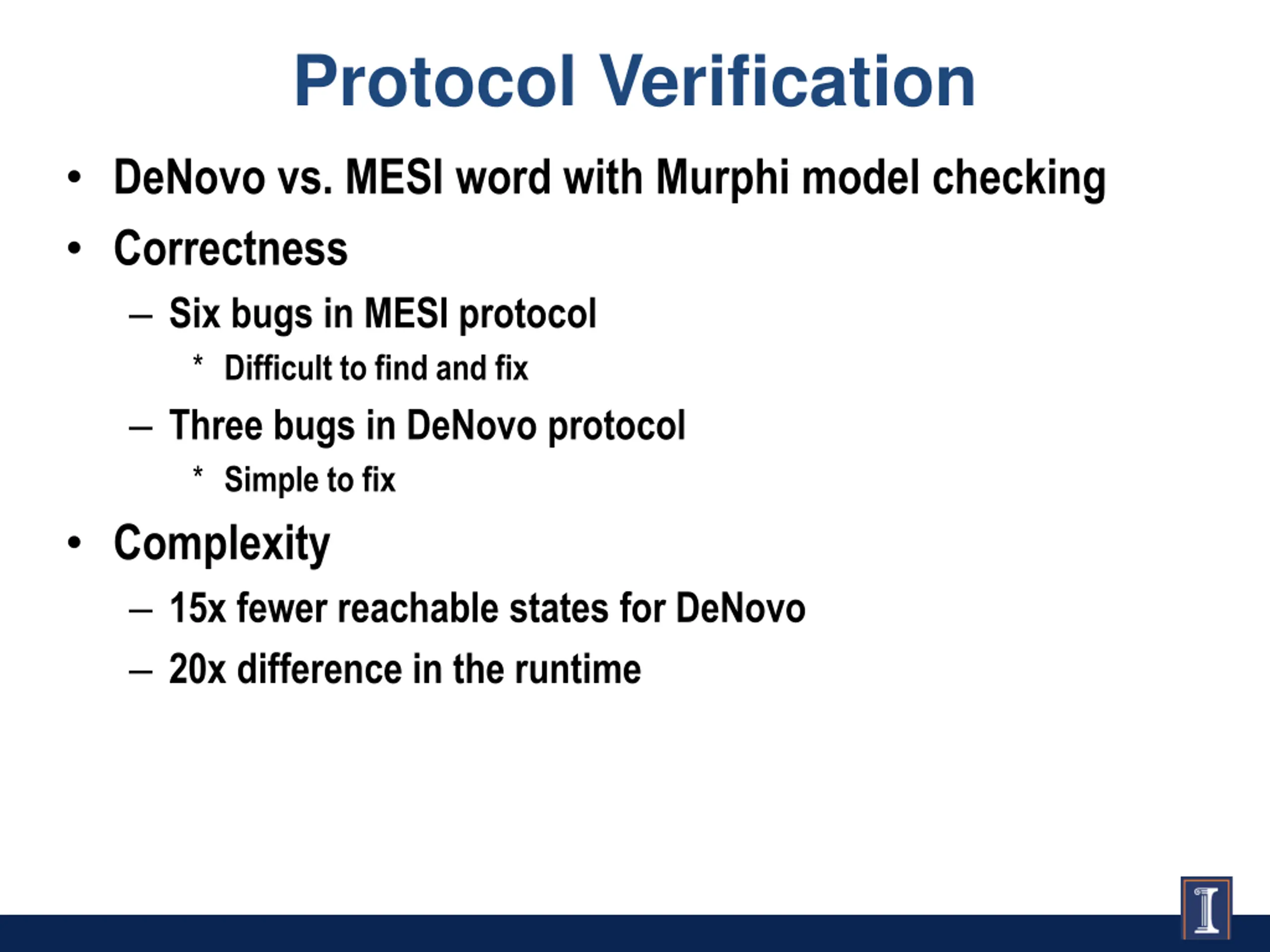

Protocol Verification DeNovo vs. MESI word with Murphi model checking Correctness Six bugs in MESI protocol * Difficult to find and fix Three bugs in DeNovo protocol * Simple to fix Complexity 15x fewer reachable states for DeNovo 20x difference in the runtime

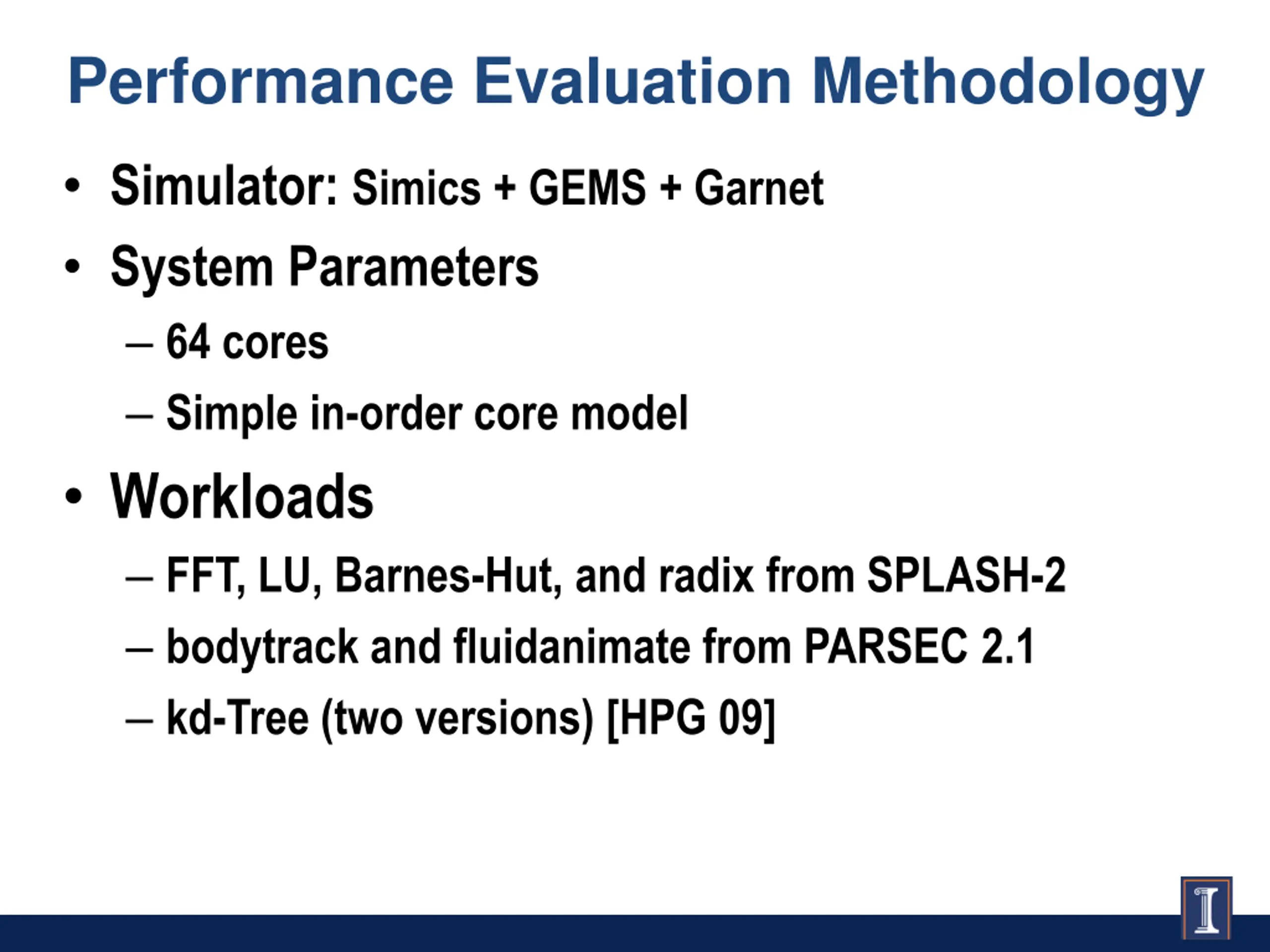

Performance Evaluation Methodology Simulator: Simics + GEMS + Garnet System Parameters 64 cores Simple in-order core model Workloads FFT, LU, Barnes-Hut, and radix from SPLASH-2 bodytrack and fluidanimate from PARSEC 2.1 kd-Tree (two versions) [HPG 09]

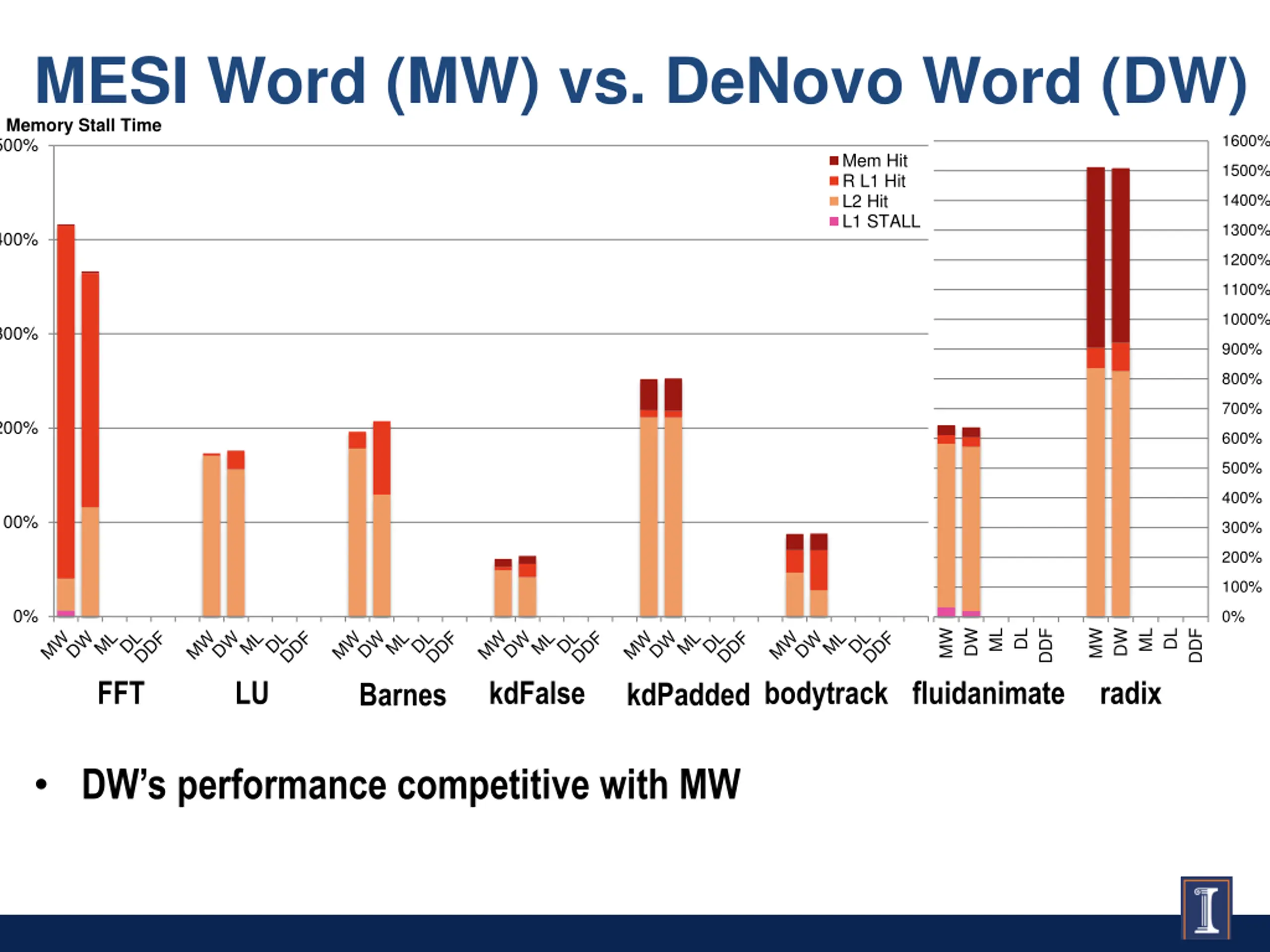

MESI Word (MW) vs. DeNovo Word (DW) Memory Stall Time 1600% 500% Mem Hit R L1 Hit L2 Hit L1 STALL 1500% 1400% 1300% 400% 1200% 1100% 1000% 300% 900% 800% 700% 200% 600% 500% 400% 100% 300% 200% 100% 0% 0% DL DL DW DDF DW DDF MW ML MW ML FFT LU kdFalse bodytrack fluidanimate radix kdPadded Barnes DW s performance competitive with MW

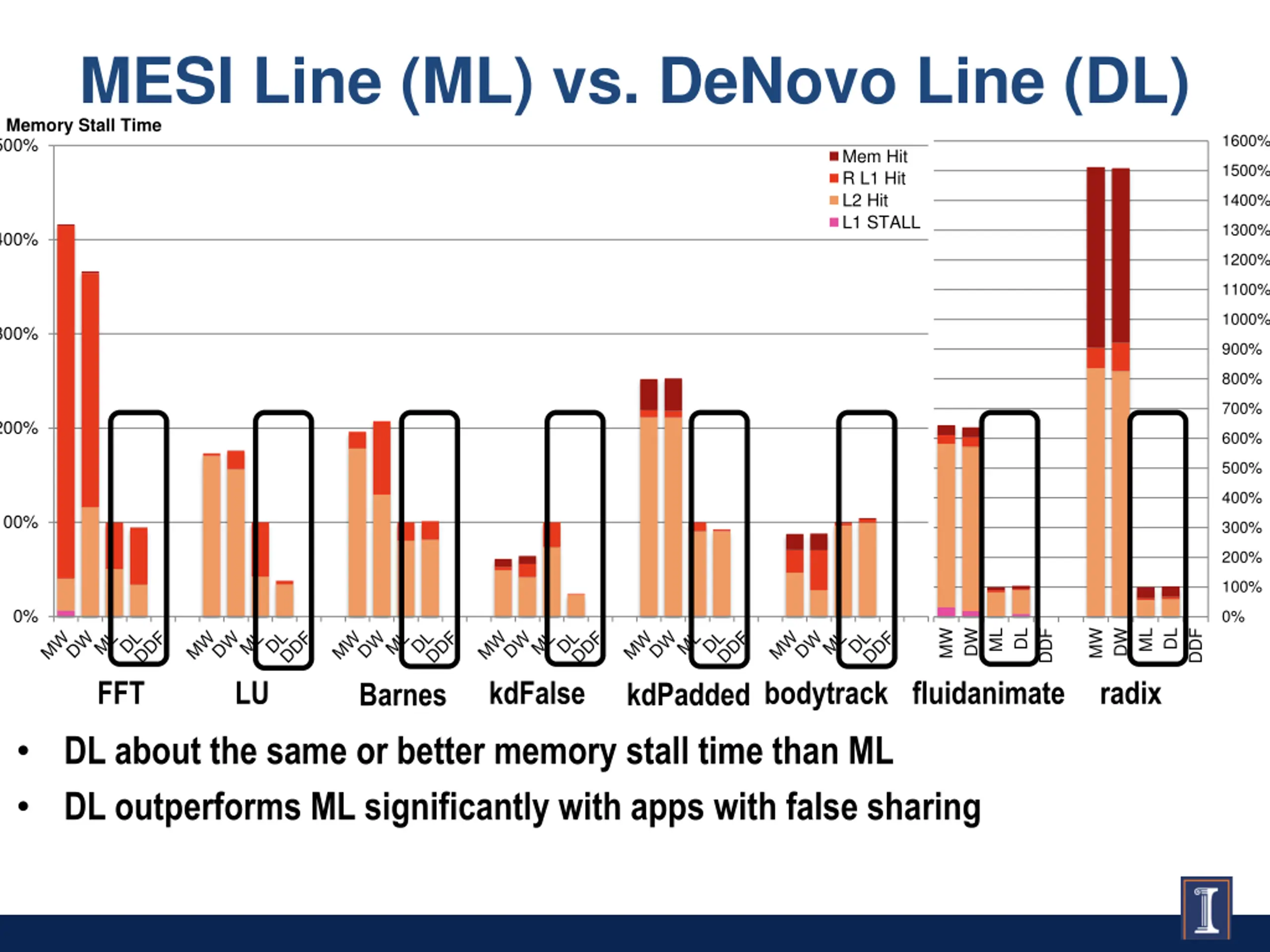

MESI Line (ML) vs. DeNovo Line (DL) Memory Stall Time 1600% 500% Mem Hit R L1 Hit L2 Hit L1 STALL 1500% 1400% 1300% 400% 1200% 1100% 1000% 300% 900% 800% 700% 200% 600% 500% 400% 100% 300% 200% 100% 0% 0% DL DL DW DDF DW DDF MW ML MW ML FFT LU kdFalse bodytrack fluidanimate radix kdPadded Barnes DL about the same or better memory stall time than ML DL outperforms ML significantly with apps with false sharing

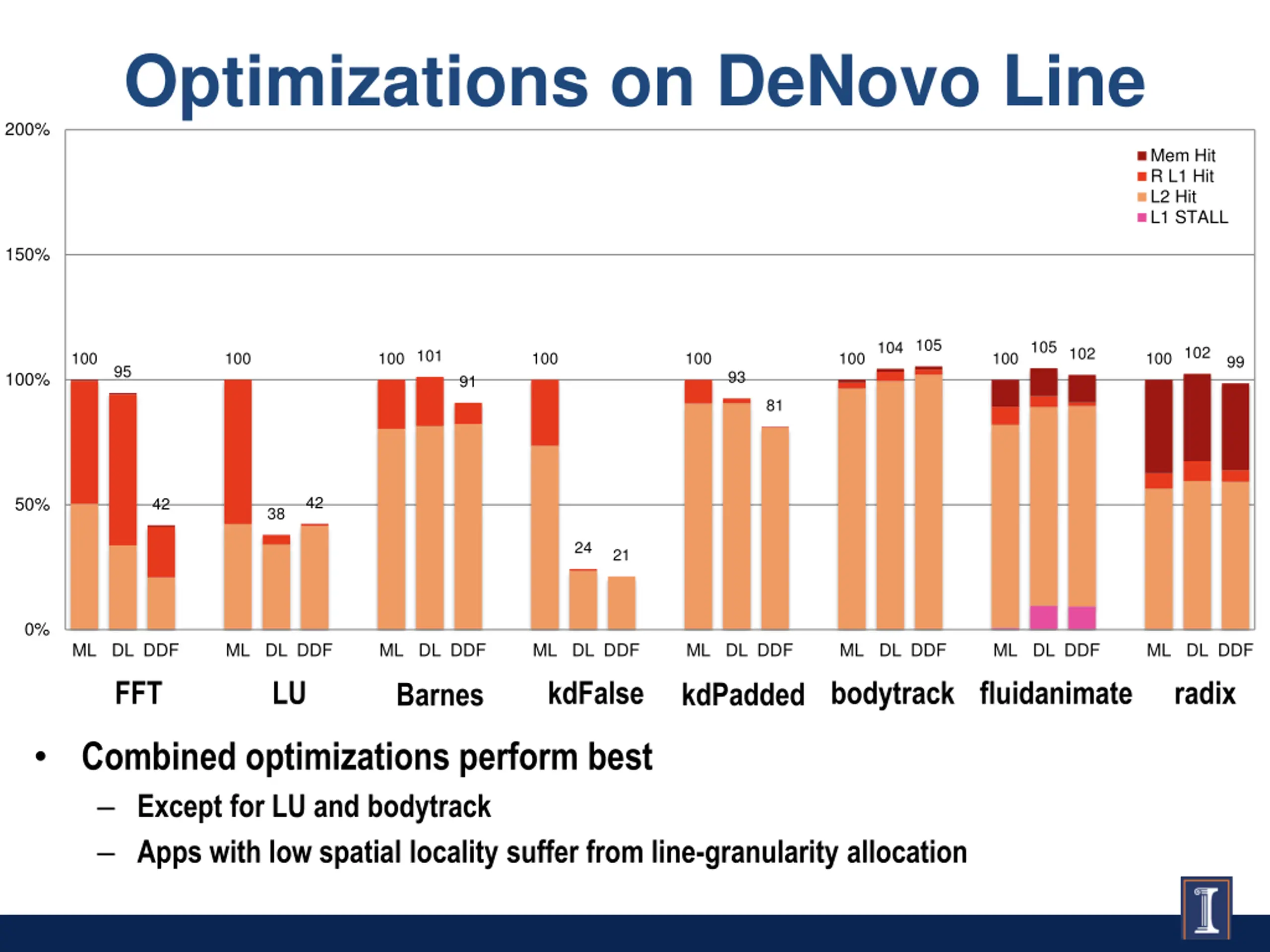

Optimizations on DeNovo Line 200% Mem Hit R L1 Hit L2 Hit L1 STALL 150% 104 105 105102 100102 100 101 100 100 100 100 100 100 99 95 93 100% 91 81 42 50% 42 38 24 21 0% ML DL DDF ML DL DDF ML DL DDF ML DL DDF ML DL DDF ML DL DDF ML DL DDF ML DL DDF FFT LU kdFalse bodytrack fluidanimate radix kdPadded Barnes Combined optimizations perform best Except for LU and bodytrack Apps with low spatial locality suffer from line-granularity allocation

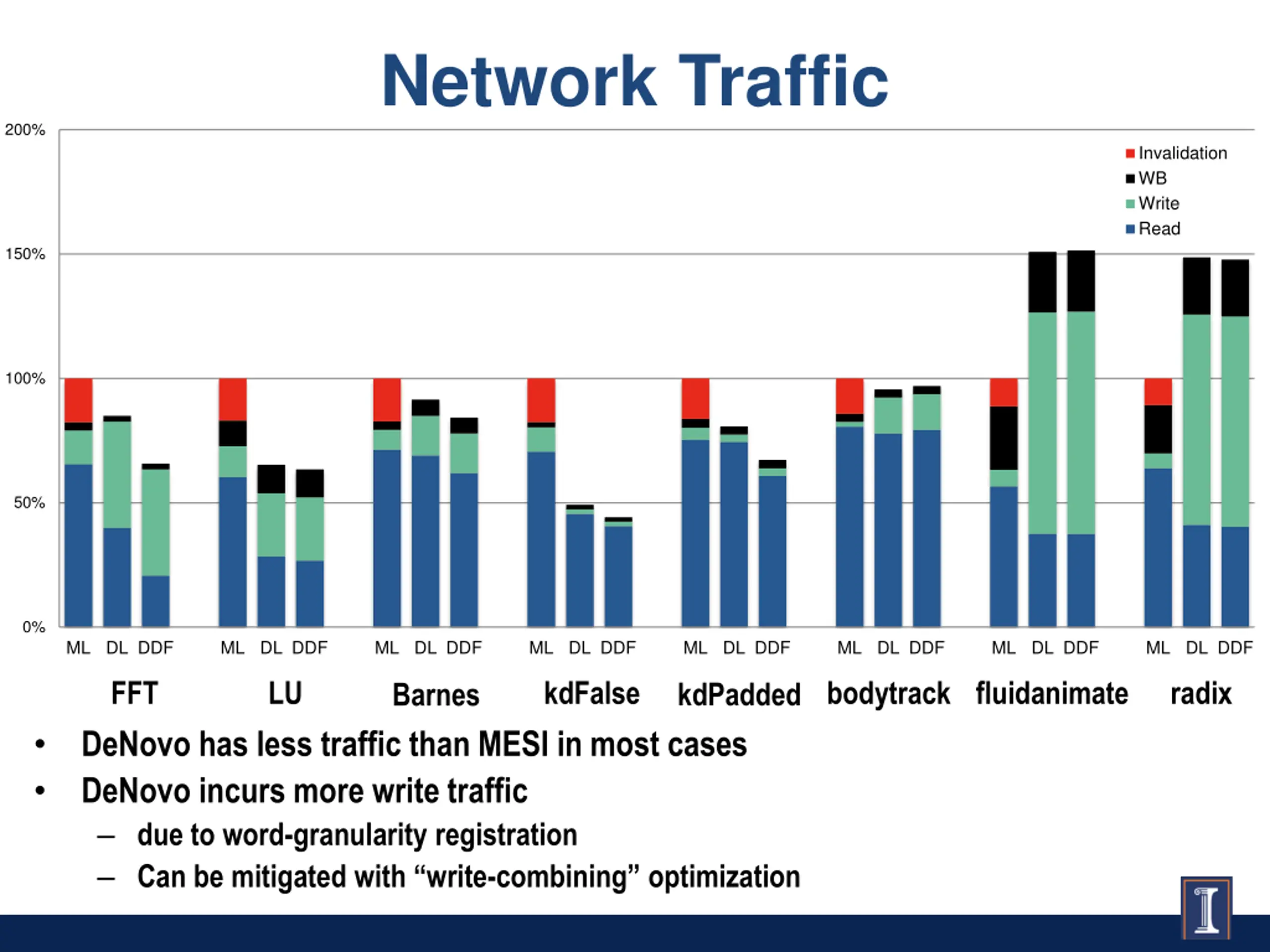

Network Traffic 200% Invalidation WB Write Read 150% 100% 50% 0% ML DL DDF ML DL DDF ML DL DDF ML DL DDF ML DL DDF ML DL DDF ML DL DDF ML DL DDF FFT LU kdFalse bodytrack fluidanimate radix kdPadded Barnes DeNovo has less traffic than MESI in most cases DeNovo incurs more write traffic due to word-granularity registration Can be mitigated with write-combining optimization

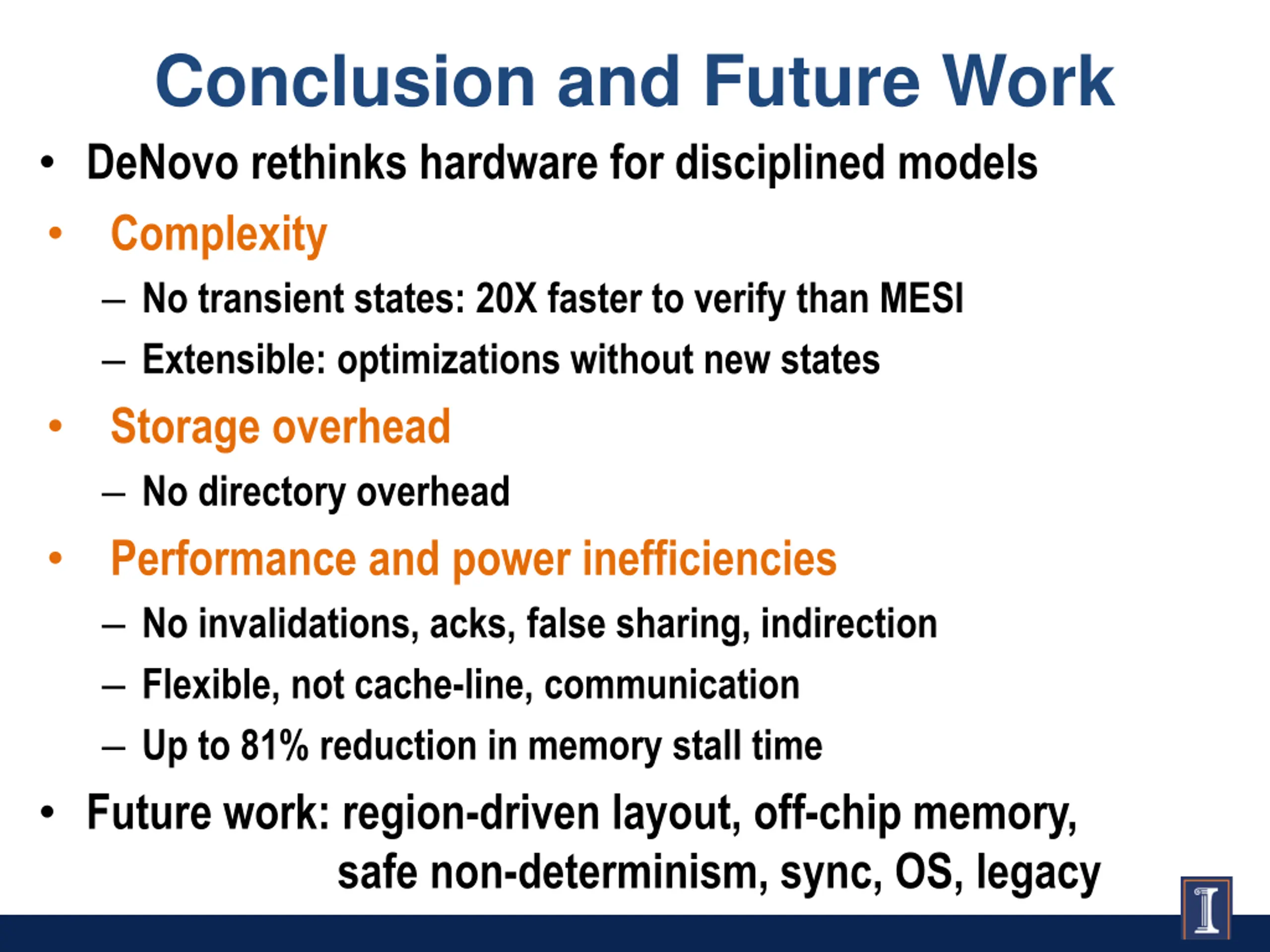

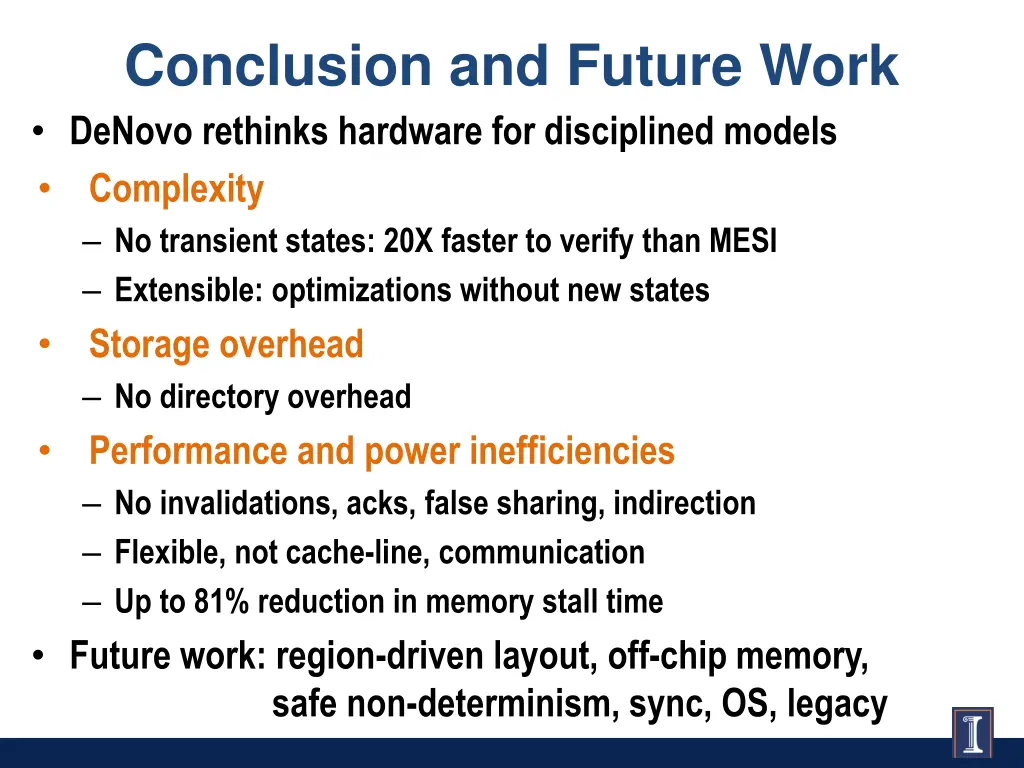

Conclusion and Future Work DeNovo rethinks hardware for disciplined models Complexity No transient states: 20X faster to verify than MESI Extensible: optimizations without new states Storage overhead No directory overhead Performance and power inefficiencies No invalidations, acks, false sharing, indirection Flexible, not cache-line, communication Up to 81% reduction in memory stall time Future work: region-driven layout, off-chip memory, safe non-determinism, sync, OS, legacy
