1. Reverse k Nearest Neighbors Query Processing: Experiments and Analysis , Muhammad Aamir Cheema , Xuemin Lin , Wei Wang Shiyu Yang The University of New South Wales, Australia Monash University, Australia

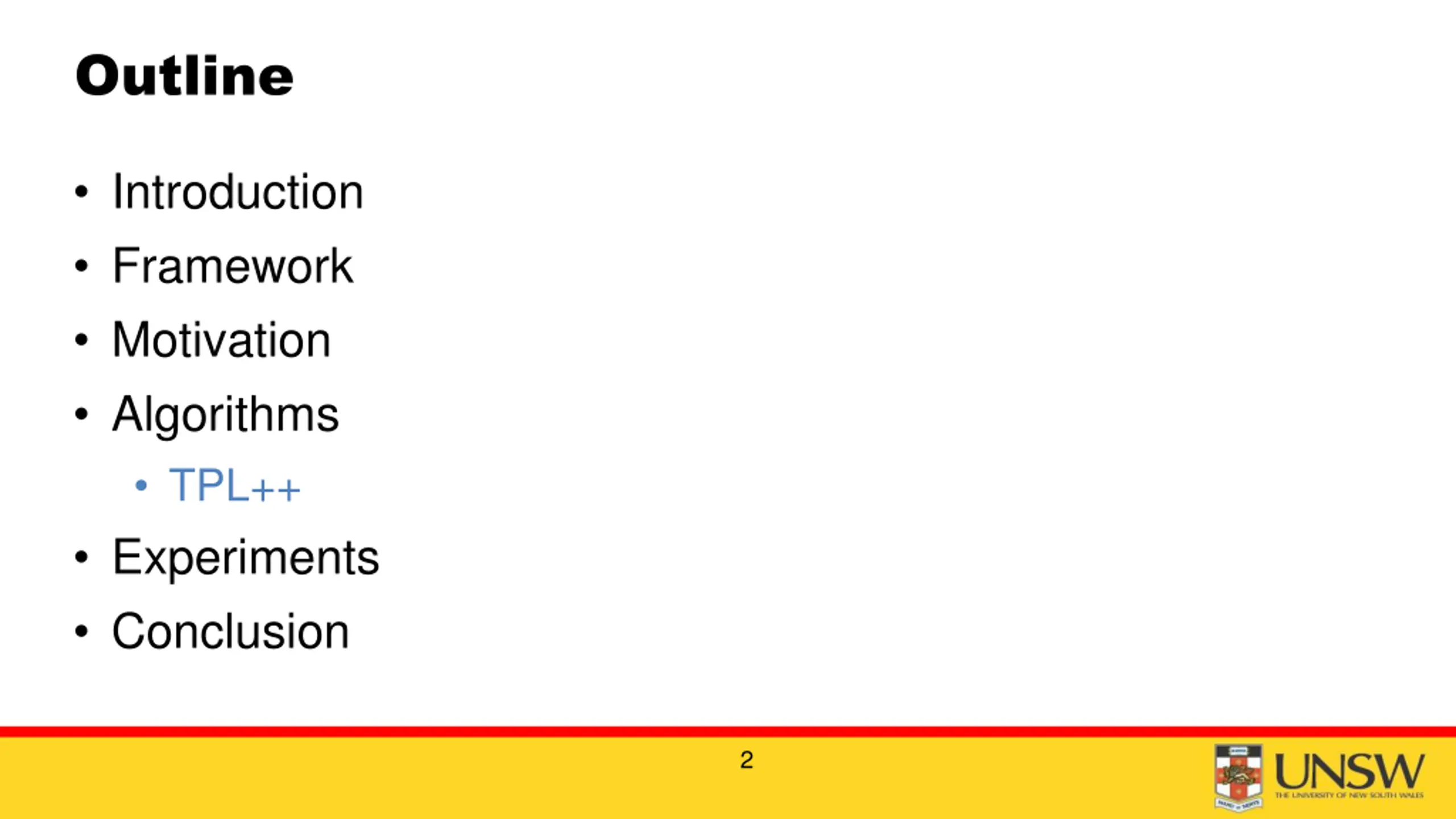

2. Outline Introduction Framework Motivation Algorithms TPL++ Experiments Conclusion 2

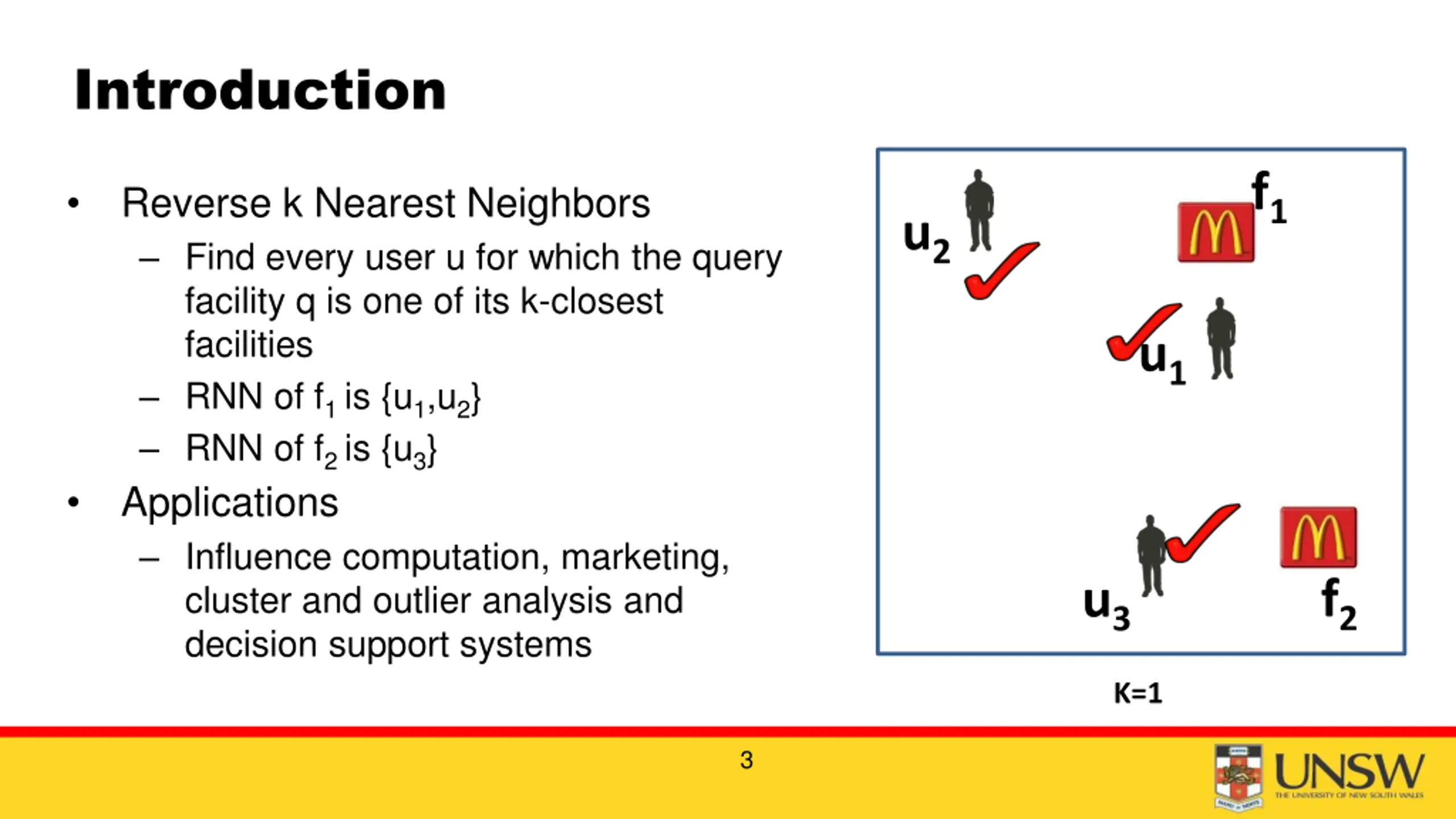

3. Introduction f1 Reverse k Nearest Neighbors Find every user u for which the query facility q is one of its k-closest facilities RNN of f1 is {u1,u2} RNN of f2 is {u3} Applications Influence computation, marketing, cluster and outlier analysis and decision support systems u2 u1 f2 u3 K=1 3

4. Framework Pruning Verification Six-regions (SIGMOD 2000) SLICE (ICDE 2014) Six-regions (Stanoi et al., UCSB, SIGMOD 2000) Region-based TPL (Tao et al., CUHK, VLDB 2004) FINCH (Wu et al., NUS, VLDB 2008) InfZone (Cheema et al., UNSW, ICDE2011) SLICE (Yang et al.,UNSW, ICDE 2014) Half-space TPL (VLDB 2004), TPL++ (VLDB2015) FINCH (VLDB 2008), InfZone (ICDE 2011) 4

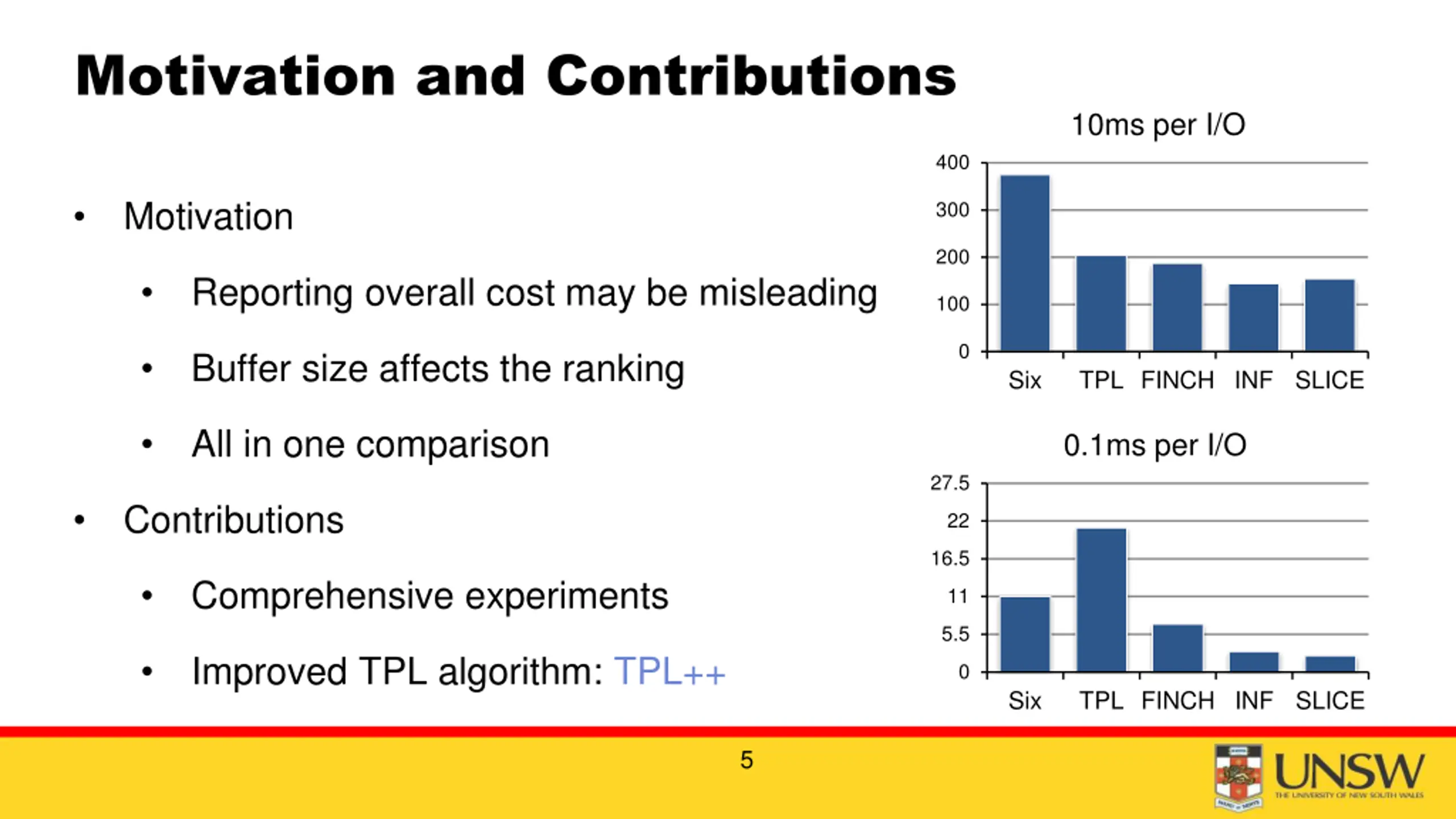

5. Motivation and Contributions 10ms per I/O 400 Motivation 300 200 Reporting overall cost may be misleading 100 0 Buffer size affects the ranking Six TPL FINCH INF SLICE All in one comparison 0.1ms per I/O 27.5 Contributions 22 16.5 Comprehensive experiments 11 5.5 Improved TPL algorithm: TPL++ 0 Six TPL FINCH INF SLICE 5

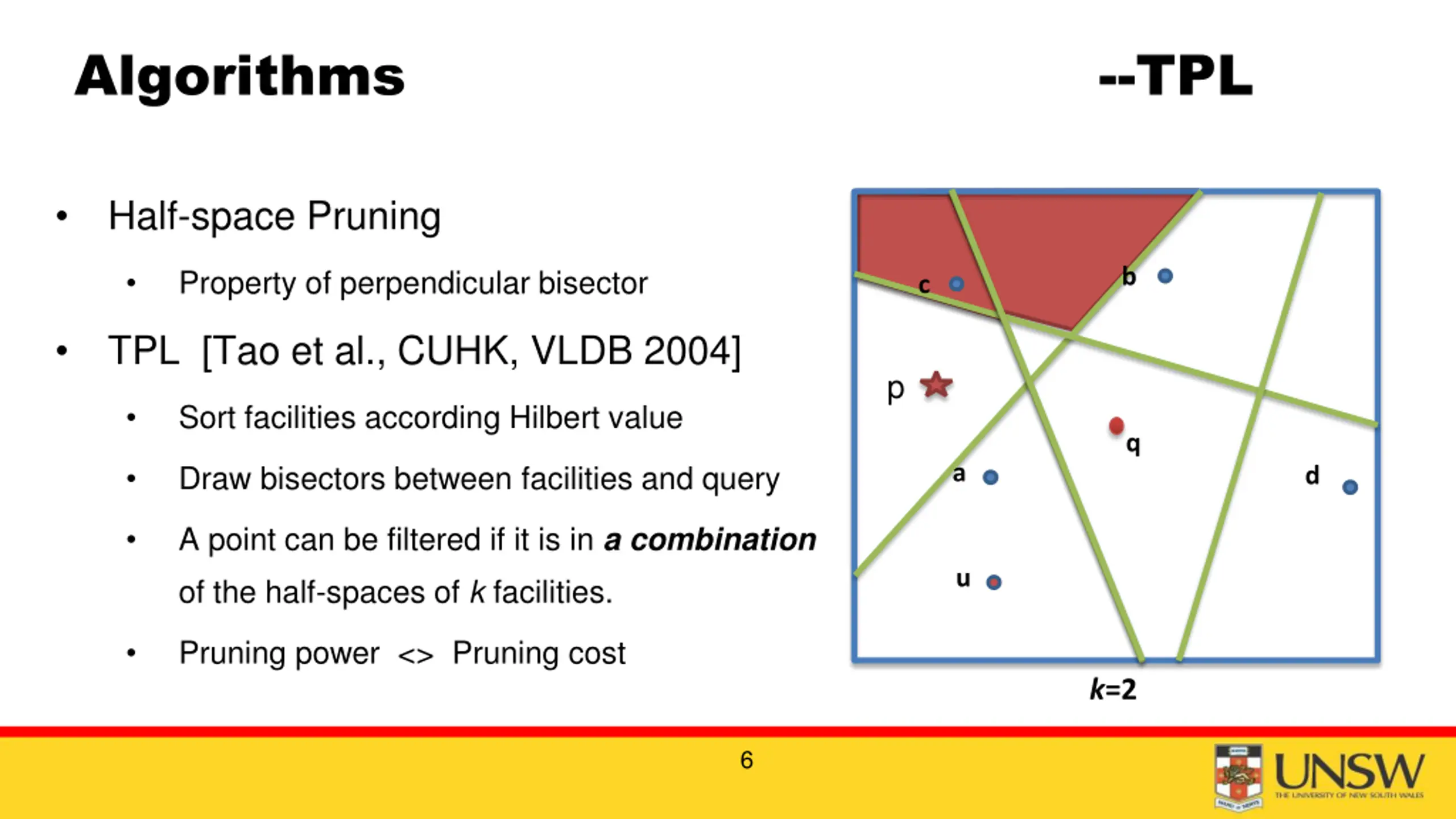

6. Algorithms --TPL Half-space Pruning Property of perpendicular bisector b c TPL [Tao et al., CUHK, VLDB 2004] p Sort facilities according Hilbert value q Draw bisectors between facilities and query a d A point can be filtered if it is in a combination of the half-spaces of k facilities. u Pruning power <> Pruning cost k=2 6

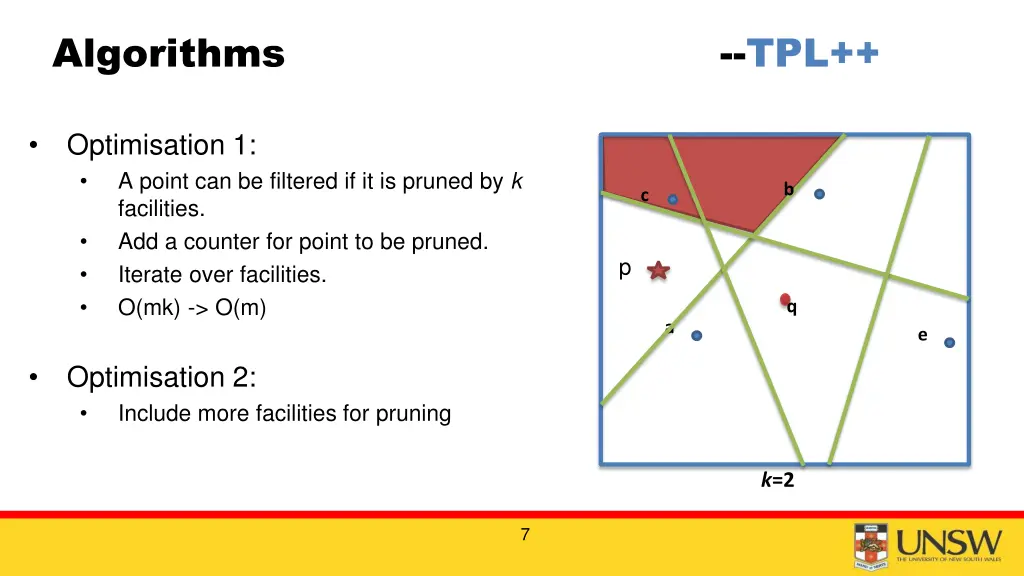

7. Algorithms --TPL++ Optimisation 1: A point can be filtered if it is pruned by k facilities. Add a counter for point to be pruned. Iterate over facilities. O(mk) -> O(m) b c p q a e Optimisation 2: Include more facilities for pruning k=2 7

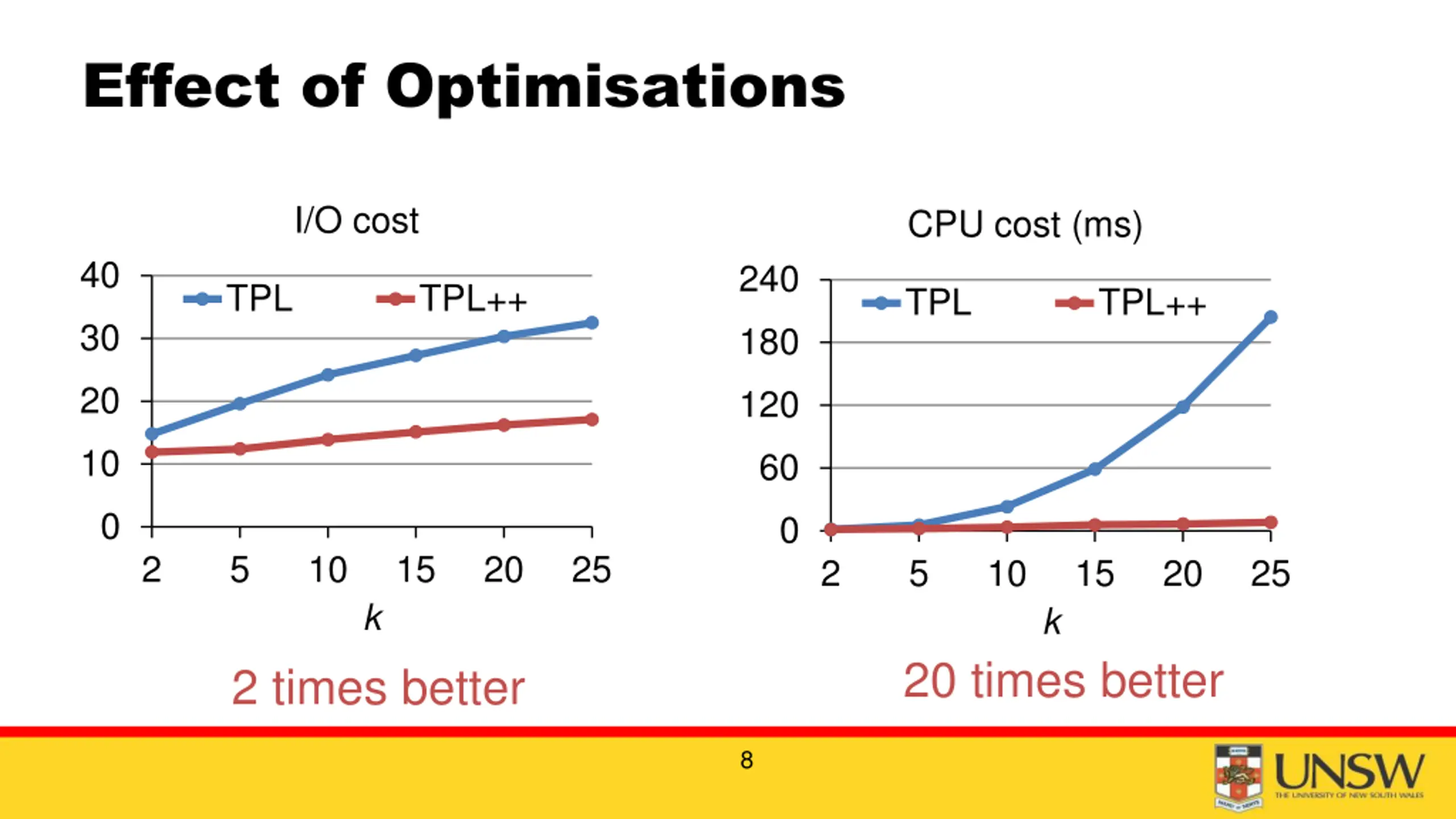

8. Effect of Optimisations I/O cost CPU cost (ms) 40 240 TPL TPL++ TPL TPL++ 30 180 20 120 10 60 0 0 2 5 10 15 20 25 2 5 10 15 20 25 k k 20 times better 2 times better 8

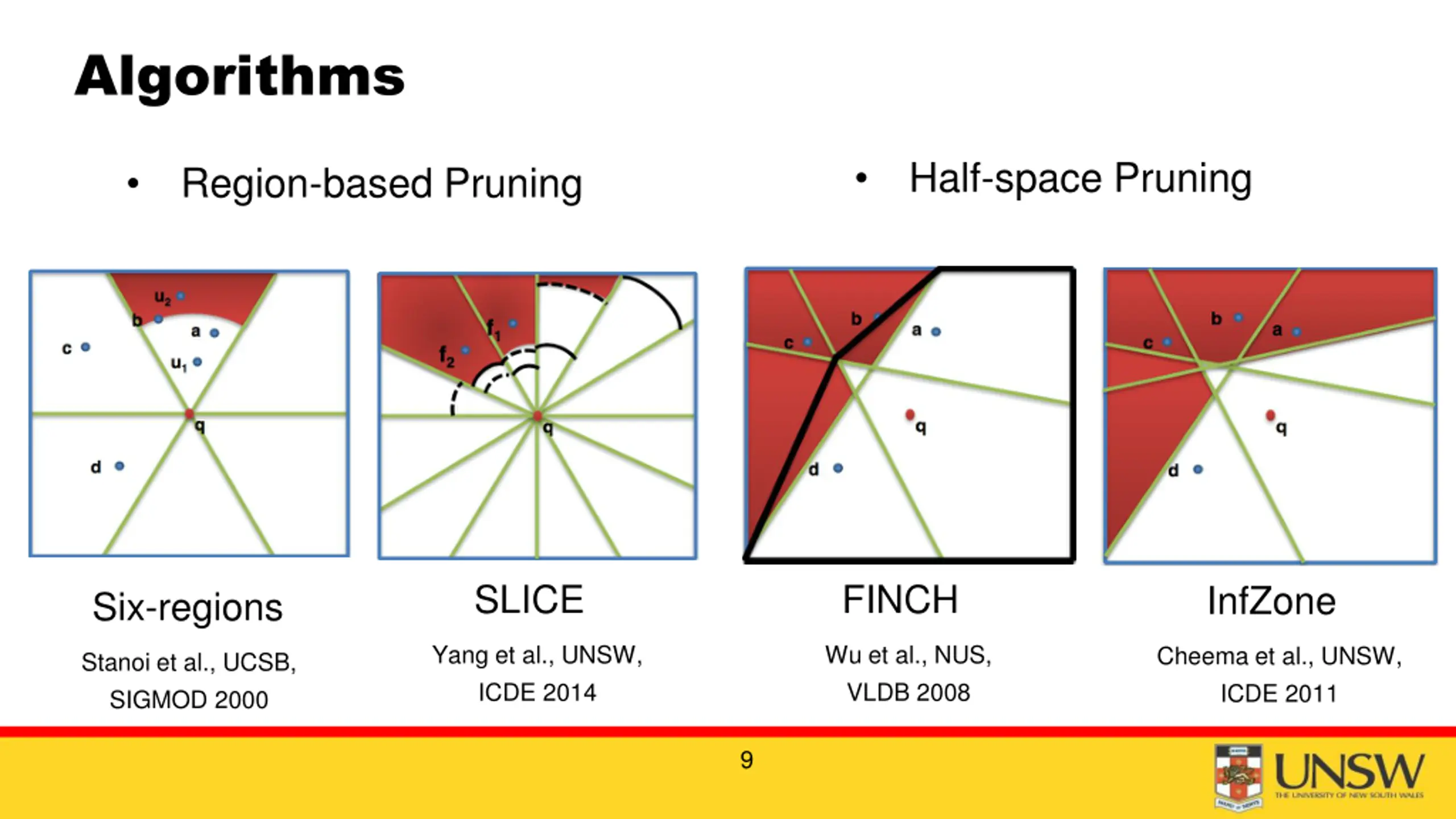

9. Algorithms Half-space Pruning Region-based Pruning SLICE FINCH InfZone Six-regions Yang et al., UNSW, ICDE 2014 Wu et al., NUS, VLDB 2008 Cheema et al., UNSW, ICDE 2011 Stanoi et al., UCSB, SIGMOD 2000 9

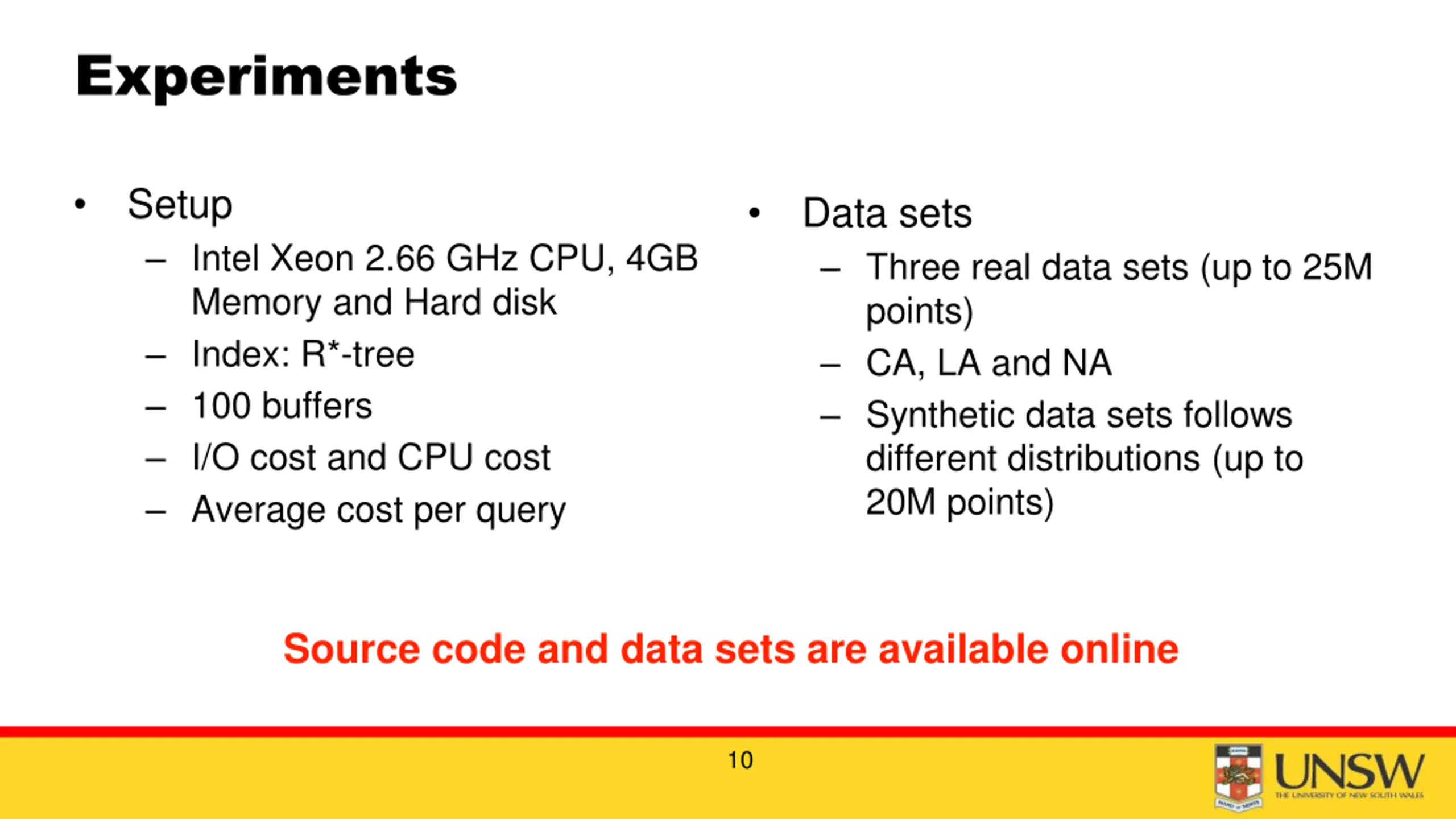

10. Experiments Setup Intel Xeon 2.66 GHz CPU, 4GB Memory and Hard disk Index: R*-tree 100 buffers I/O cost and CPU cost Average cost per query Data sets Three real data sets (up to 25M points) CA, LA and NA Synthetic data sets follows different distributions (up to 20M points) Source code and data sets are available online 10

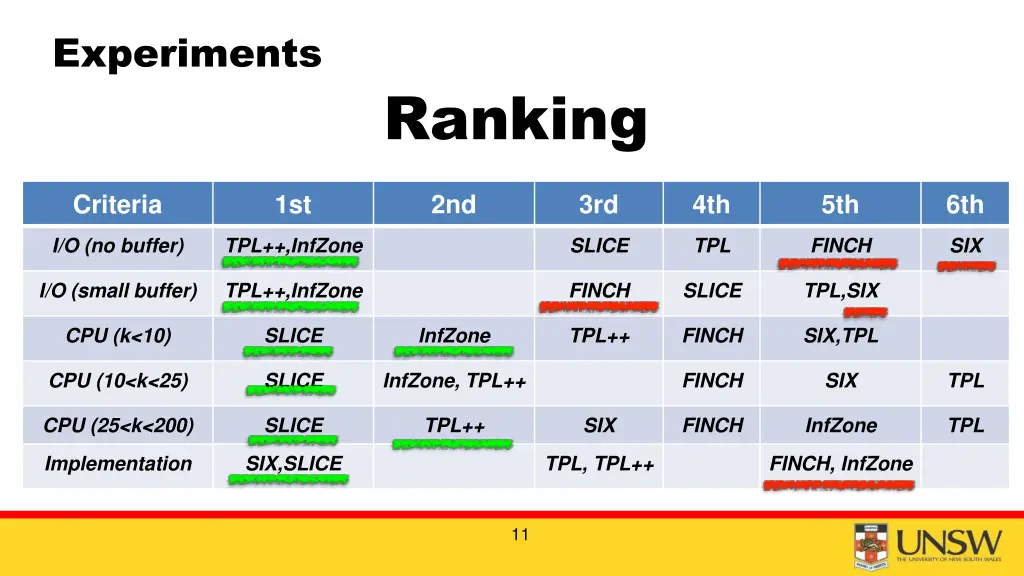

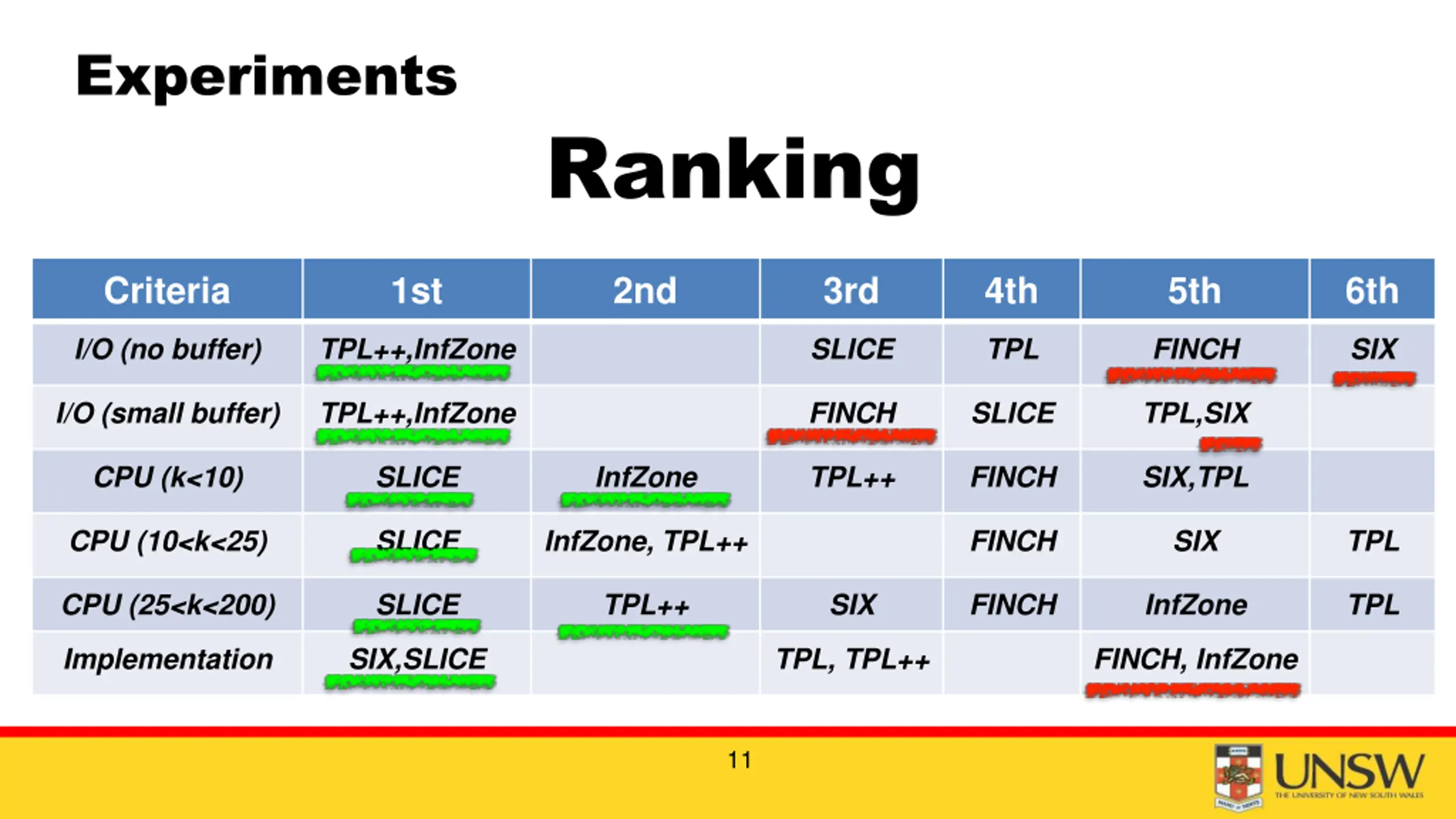

11. Experiments Ranking Criteria 1st 2nd 3rd 4th 5th 6th I/O (no buffer) TPL++,InfZone SLICE TPL FINCH SIX I/O (small buffer) TPL++,InfZone FINCH SLICE TPL,SIX CPU (k<10) SLICE InfZone TPL++ FINCH SIX,TPL CPU (10<k<25) SLICE InfZone, TPL++ FINCH SIX TPL CPU (25<k<200) SLICE TPL++ SIX FINCH InfZone TPL Implementation SIX,SLICE TPL, TPL++ FINCH, InfZone 11

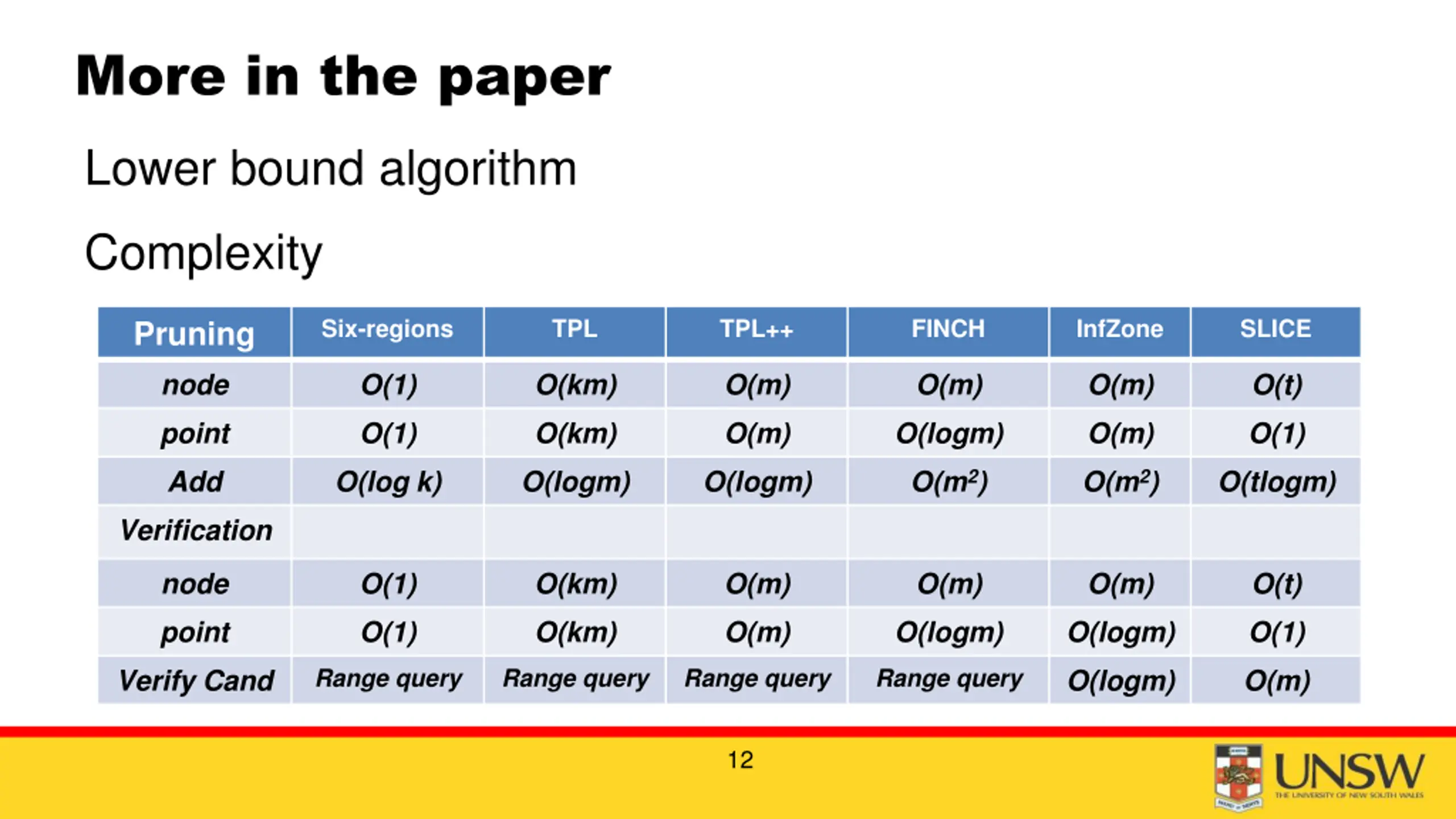

12. More in the paper Lower bound algorithm Complexity Six-regions TPL TPL++ FINCH InfZone SLICE Pruning node O(1) O(km) O(m) O(m) O(m) O(t) point O(1) O(km) O(m) O(logm) O(m) O(1) Add O(log k) O(logm) O(logm) O(m2) O(m2) O(tlogm) Verification node O(1) O(km) O(m) O(m) O(m) O(t) point O(1) O(km) O(m) O(logm) O(logm) O(1) Verify Cand O(logm) O(m) Range query Range query Range query Range query 12

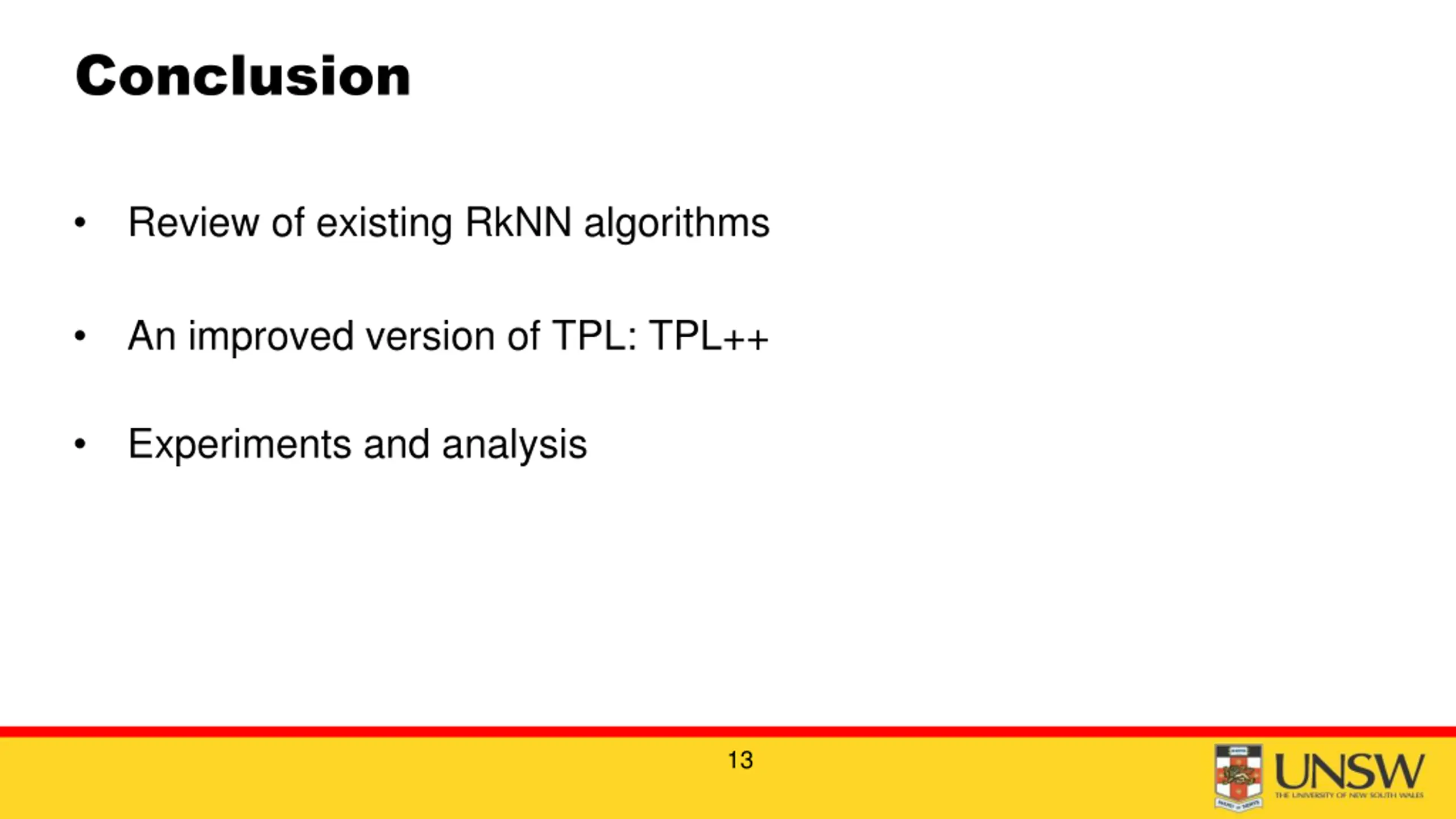

13. Conclusion Review of existing RkNN algorithms An improved version of TPL: TPL++ Experiments and analysis 13

14. Thanks :) Q&A 14
