COMFORT LINE UNIT LEFT_FLOOR Revit Family File

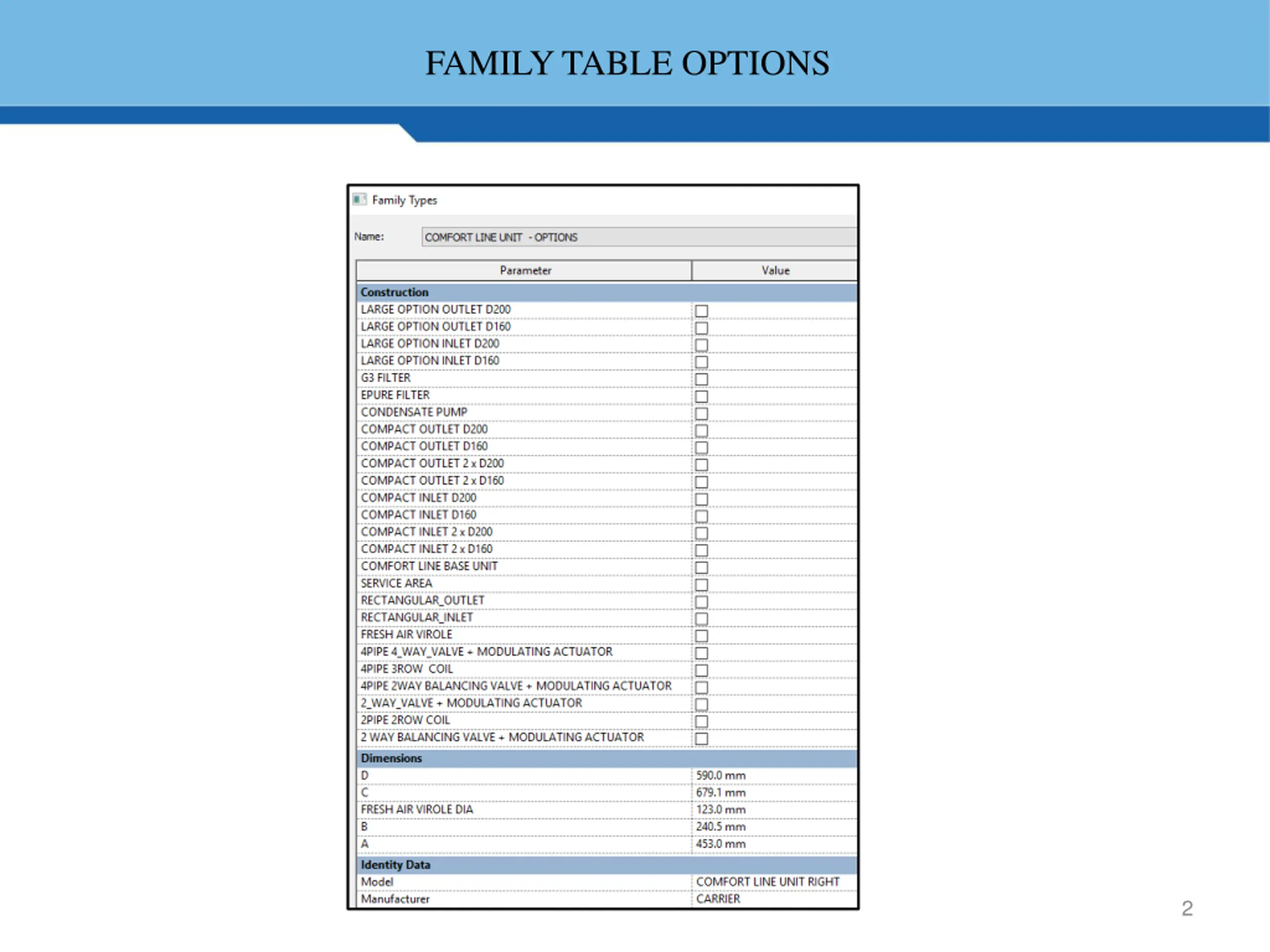

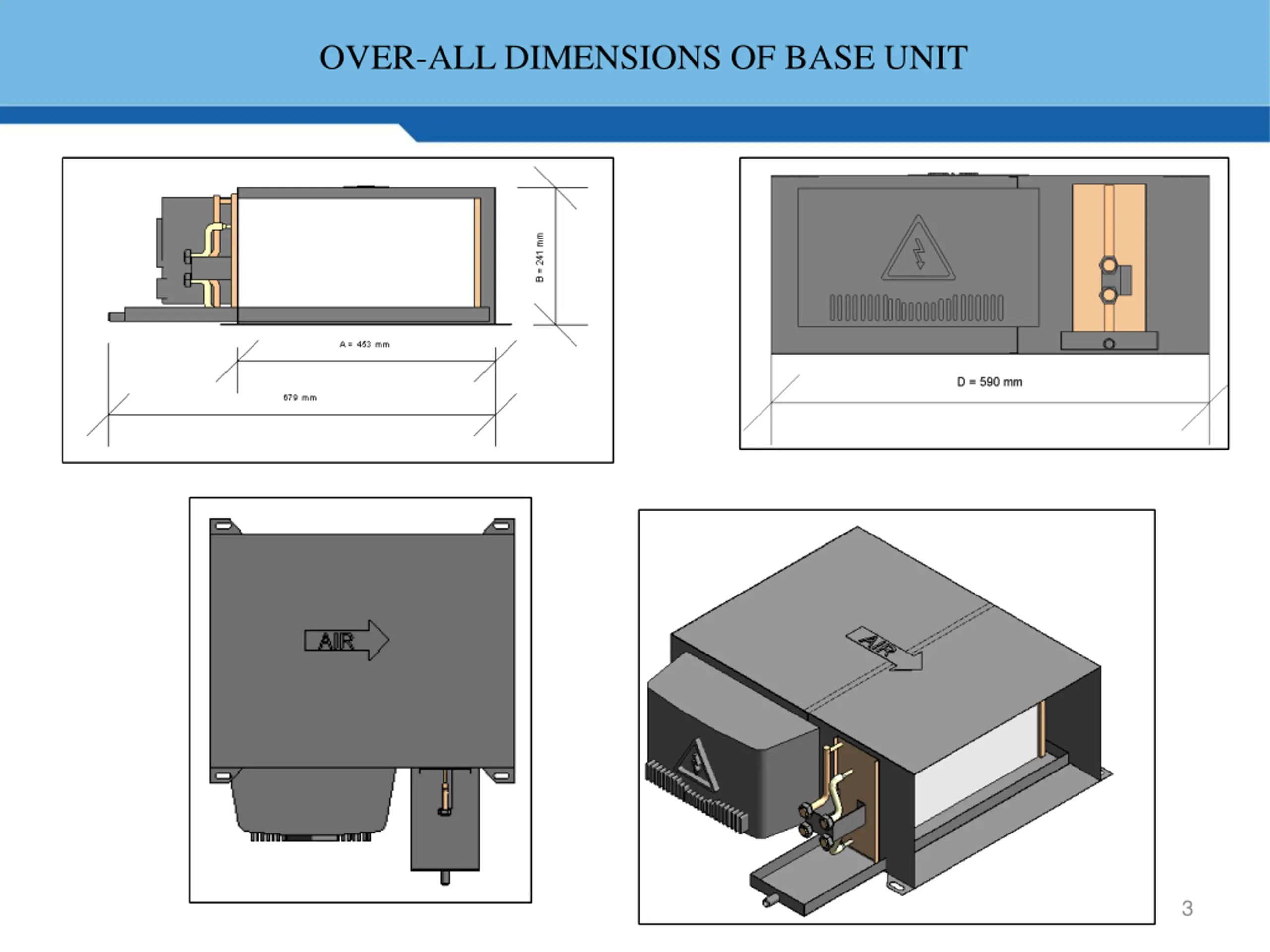

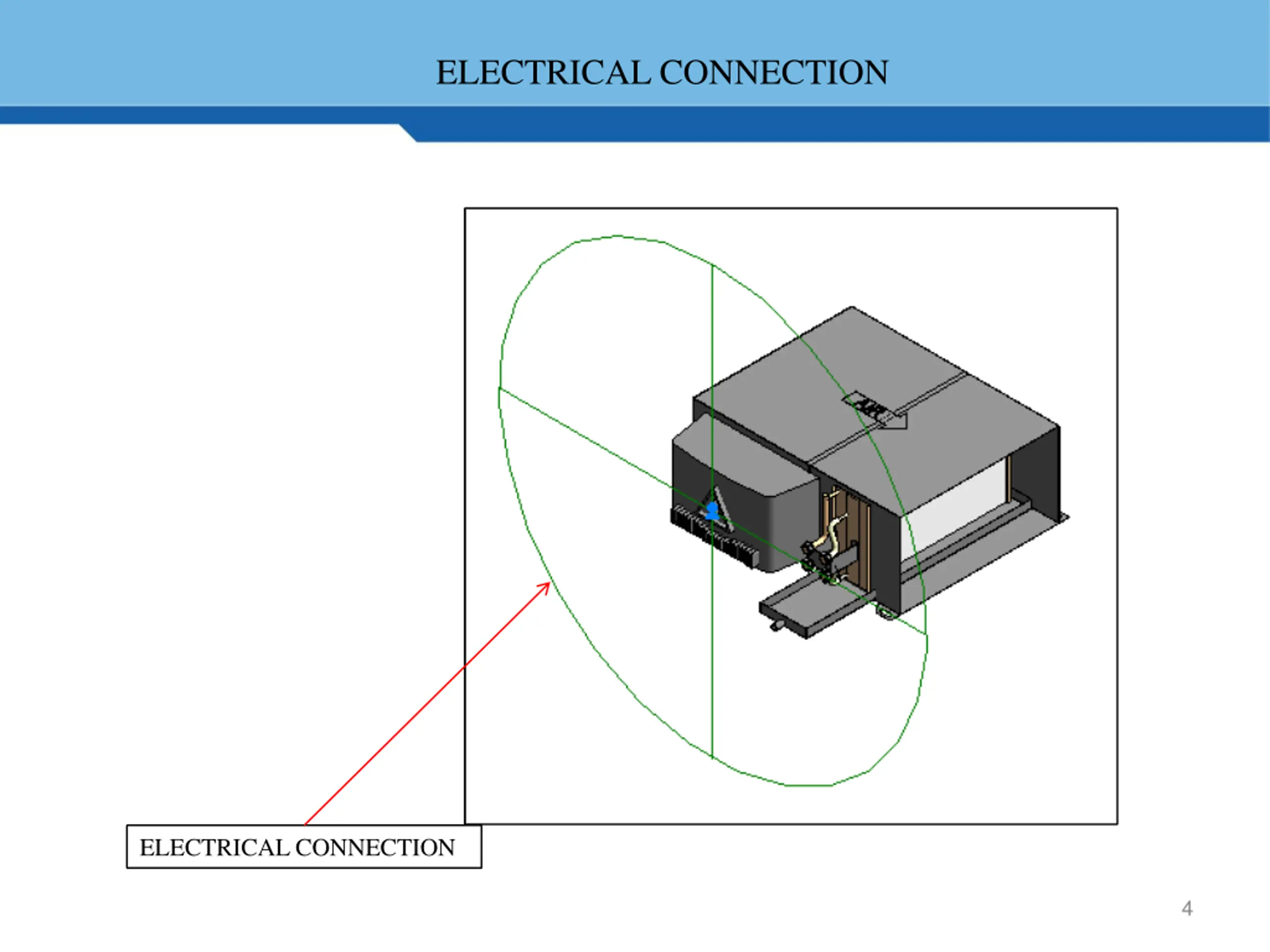

ELECTRICAL CONNECTION ELECTRICAL CONNECTION 4

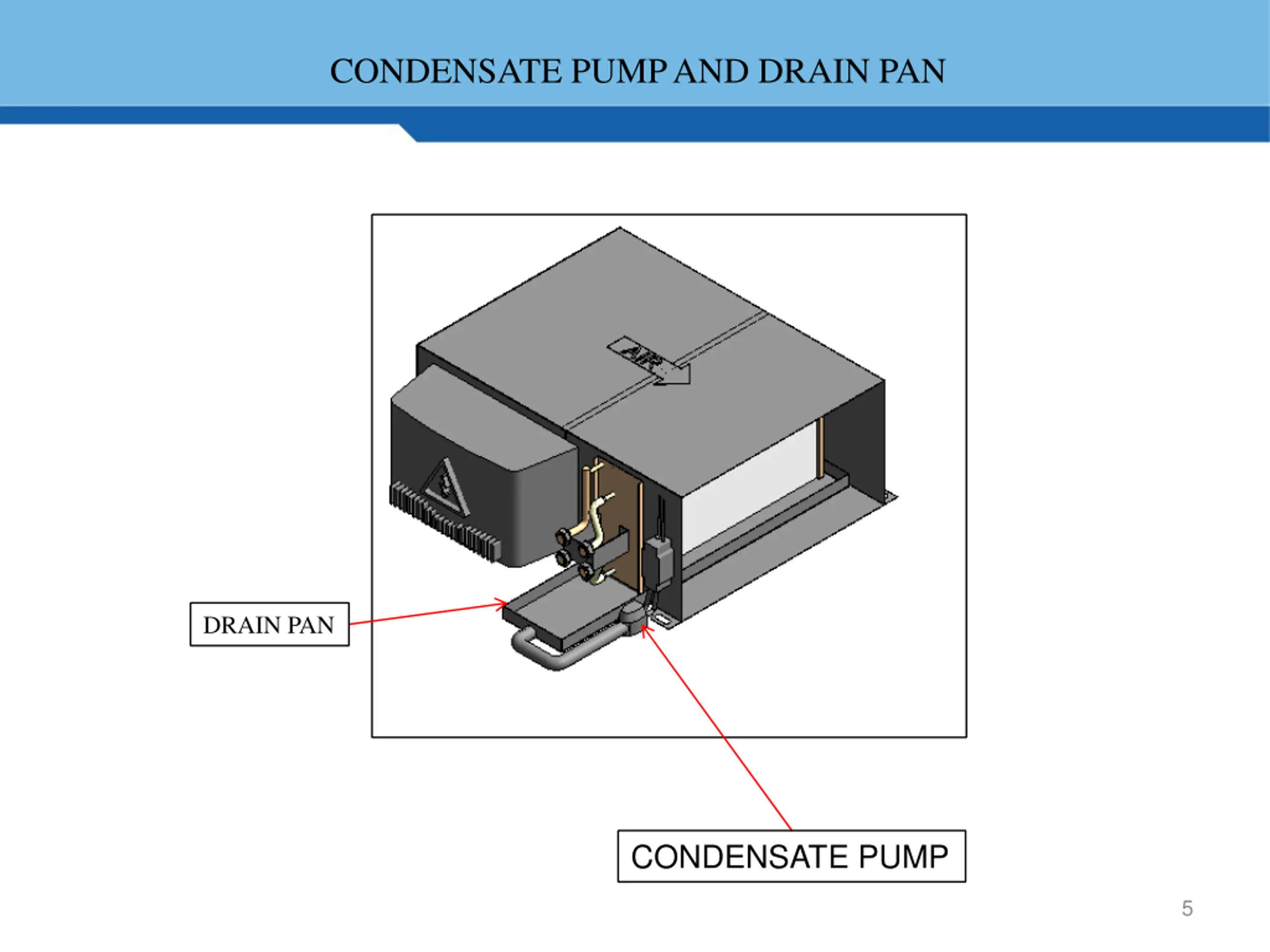

CONDENSATE PUMP AND DRAIN PAN DRAIN PAN CONDENSATE PUMP 5

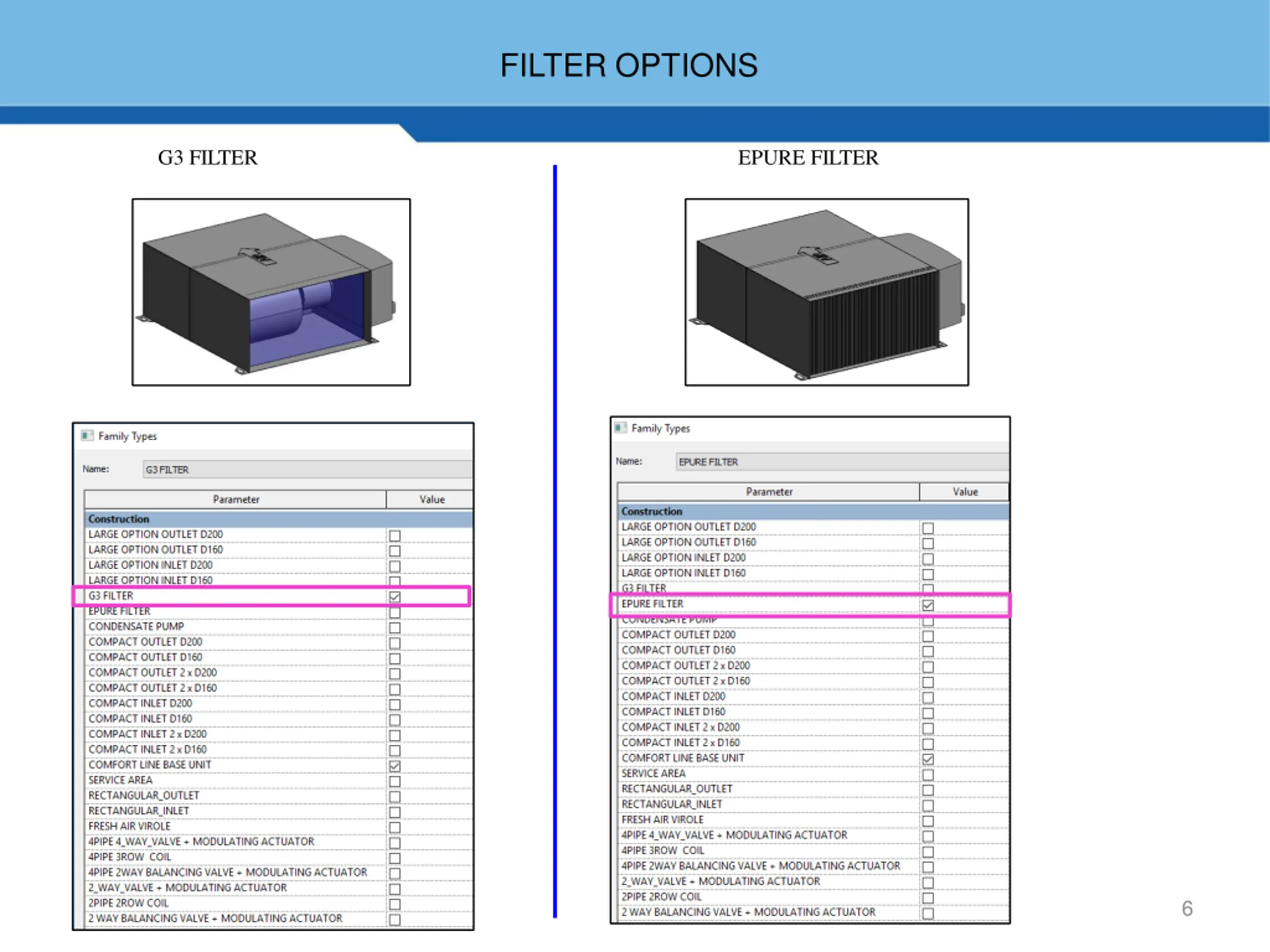

FILTER OPTIONS G3 FILTER EPURE FILTER 6

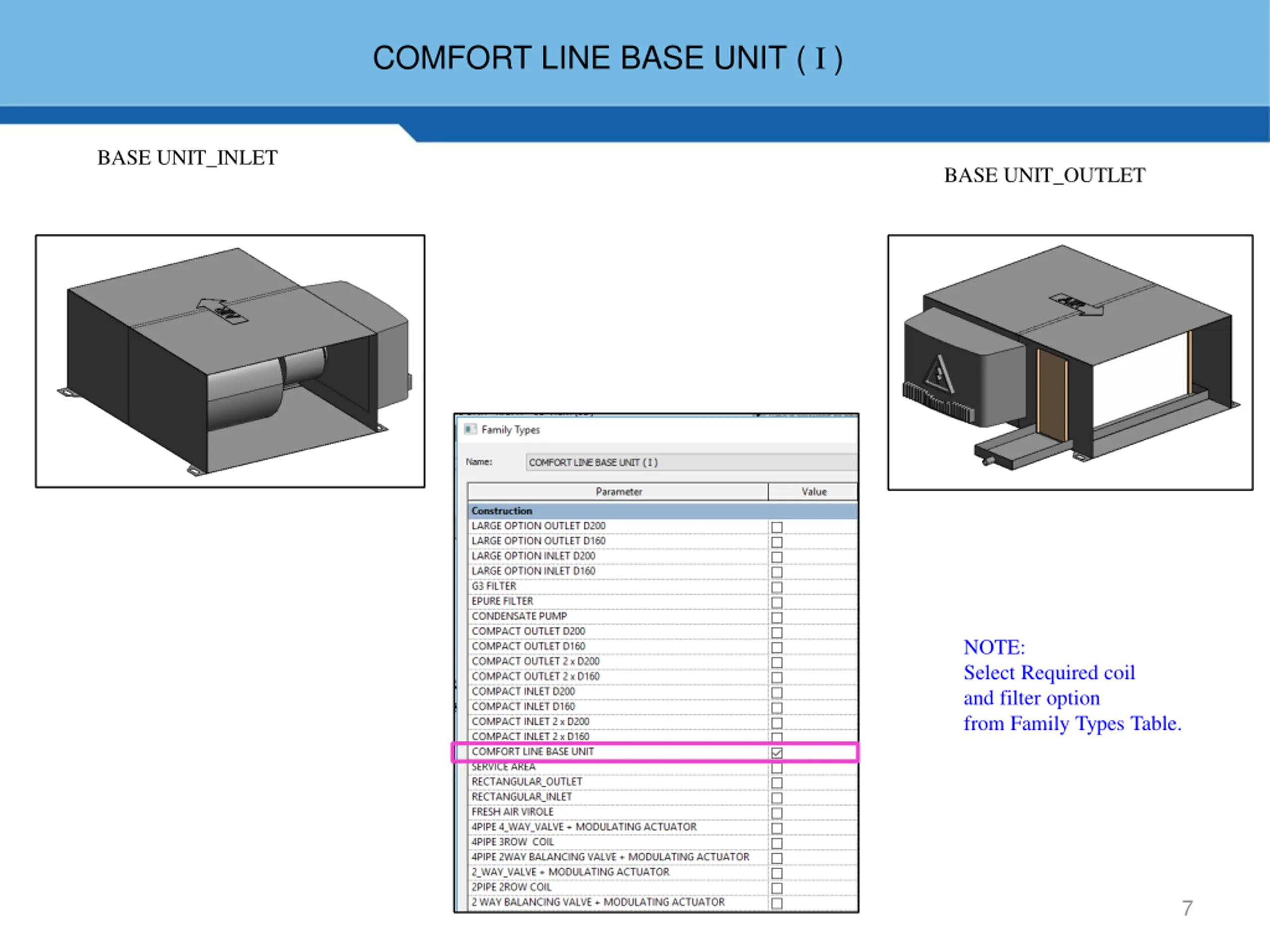

COMFORT LINE BASE UNIT ( I ) BASE UNIT_INLET BASE UNIT_OUTLET NOTE: Select Required coil and filter option from Family Types Table. 7

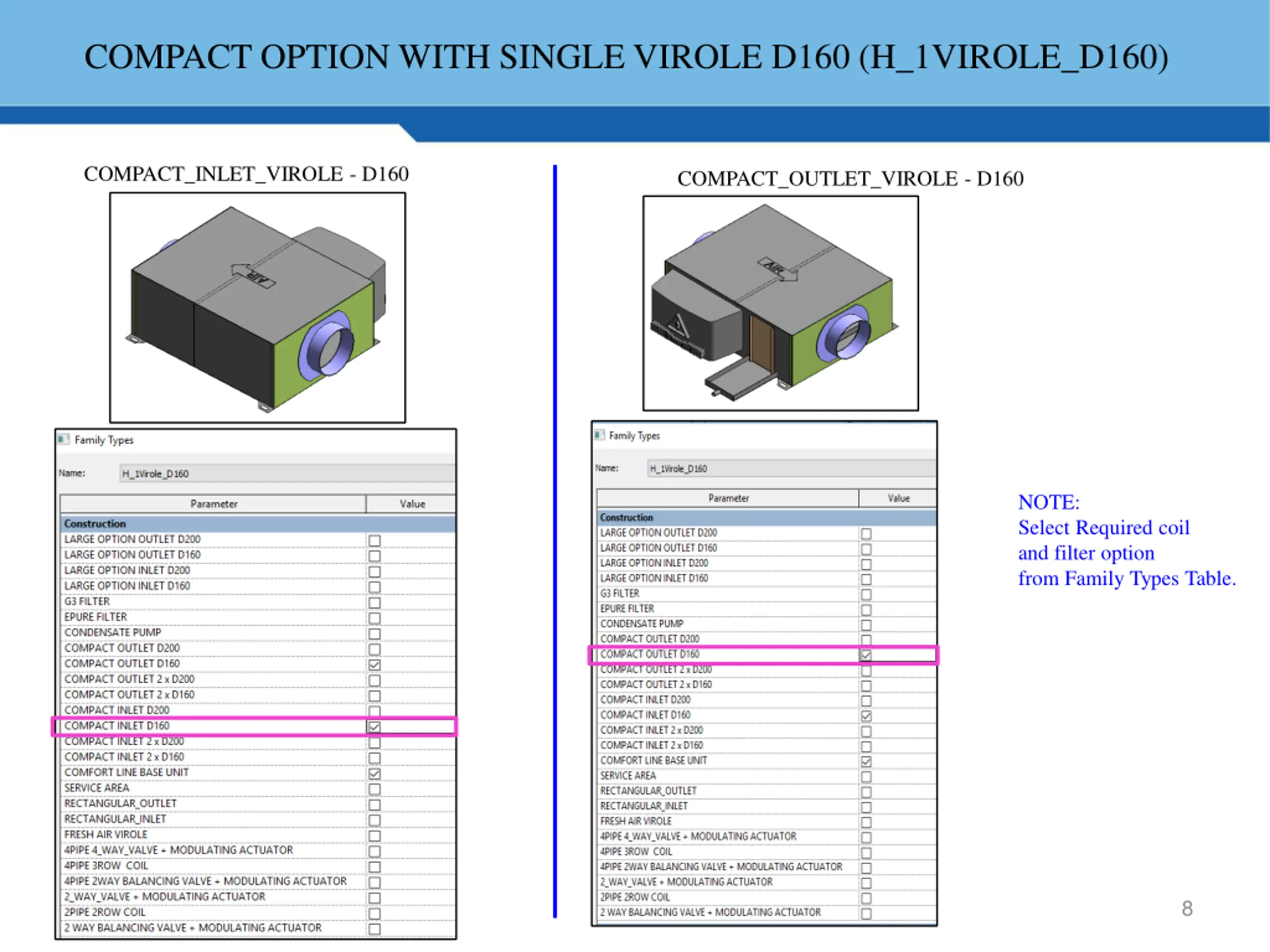

COMPACT OPTION WITH SINGLE VIROLE D160 (H_1VIROLE_D160) COMPACT_INLET_VIROLE - D160 COMPACT_OUTLET_VIROLE - D160 NOTE: Select Required coil and filter option from Family Types Table. 8

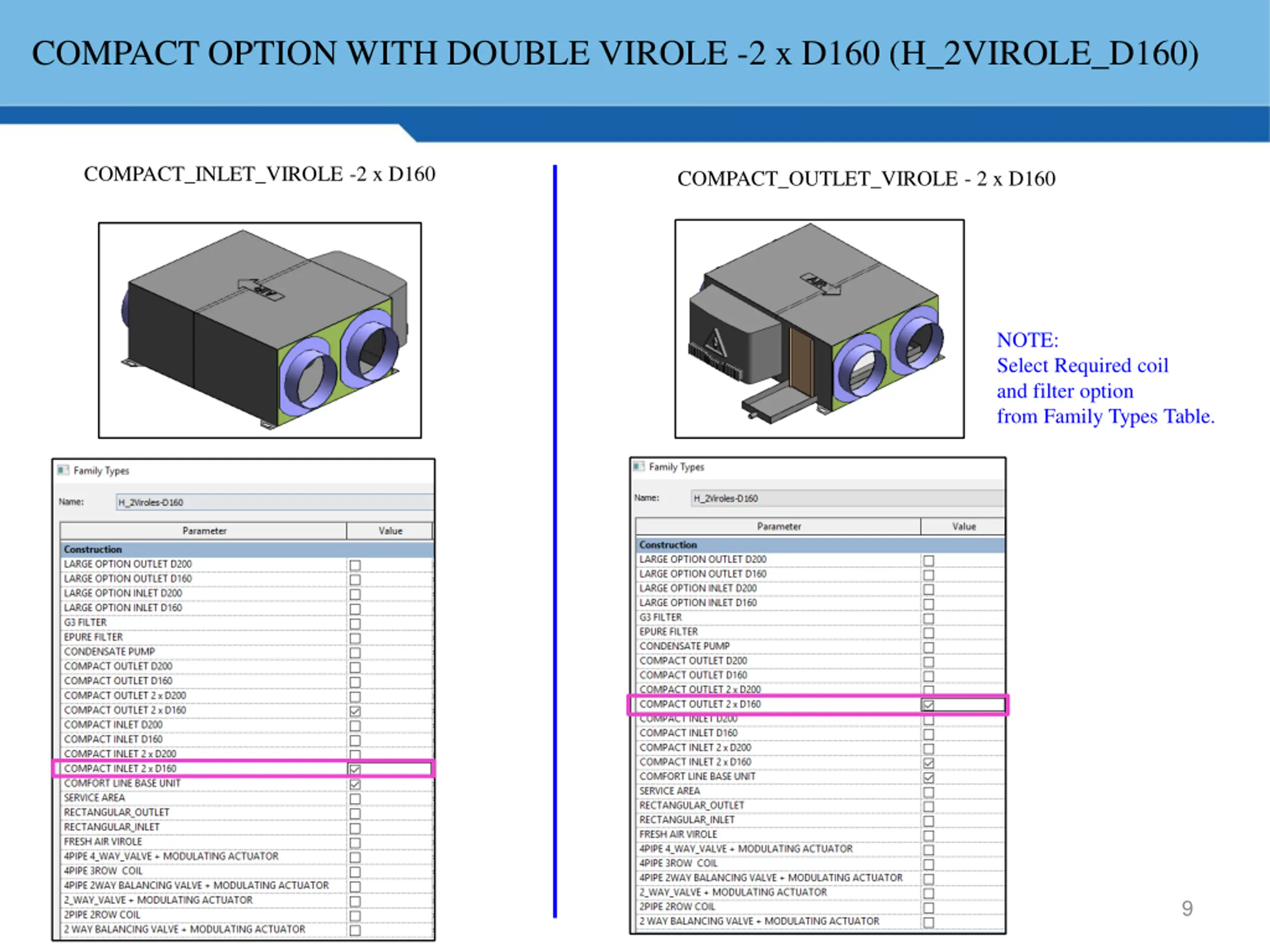

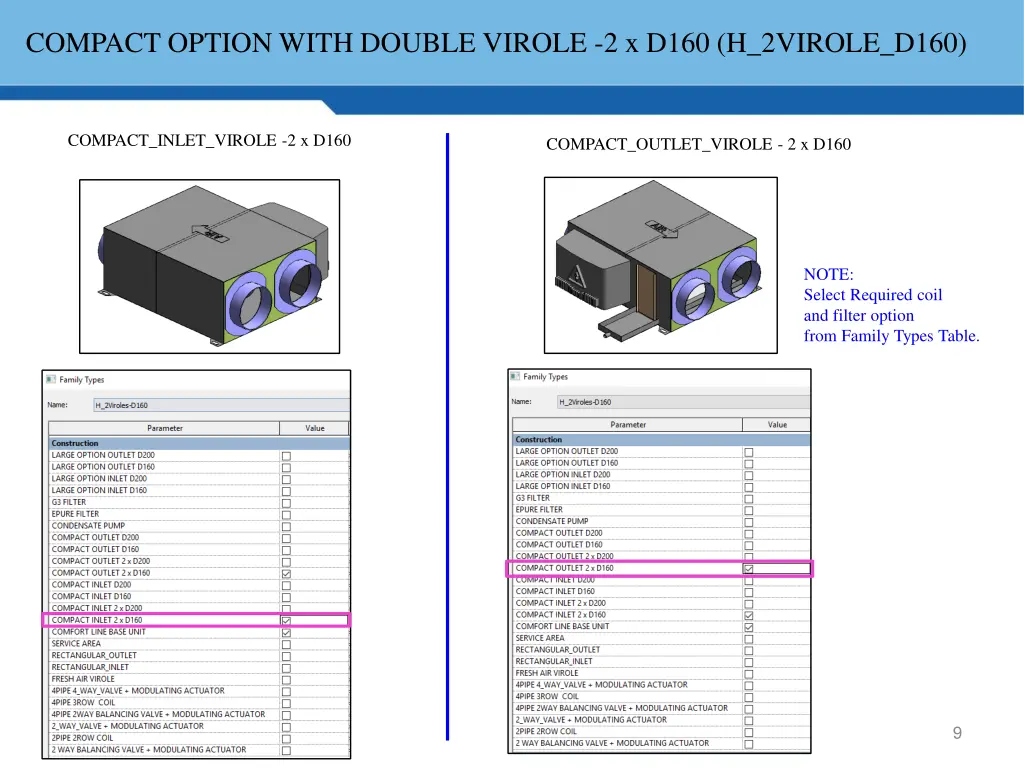

COMPACT OPTION WITH DOUBLE VIROLE -2 x D160 (H_2VIROLE_D160) COMPACT_INLET_VIROLE -2 x D160 COMPACT_OUTLET_VIROLE - 2 x D160 NOTE: Select Required coil and filter option from Family Types Table. 9

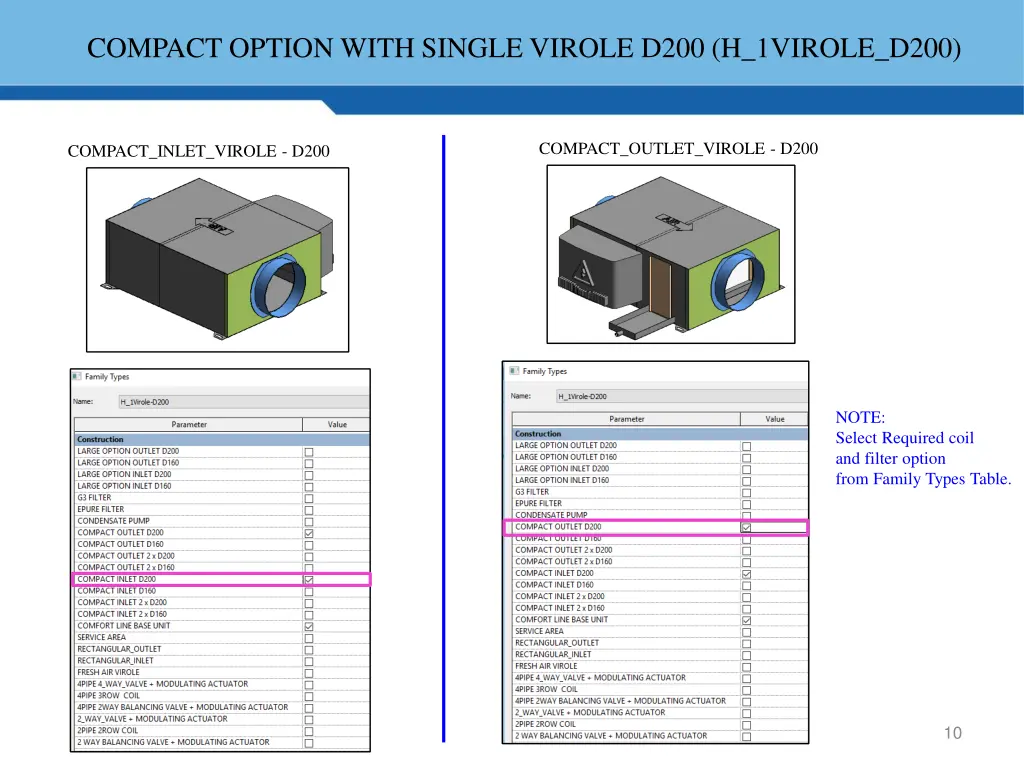

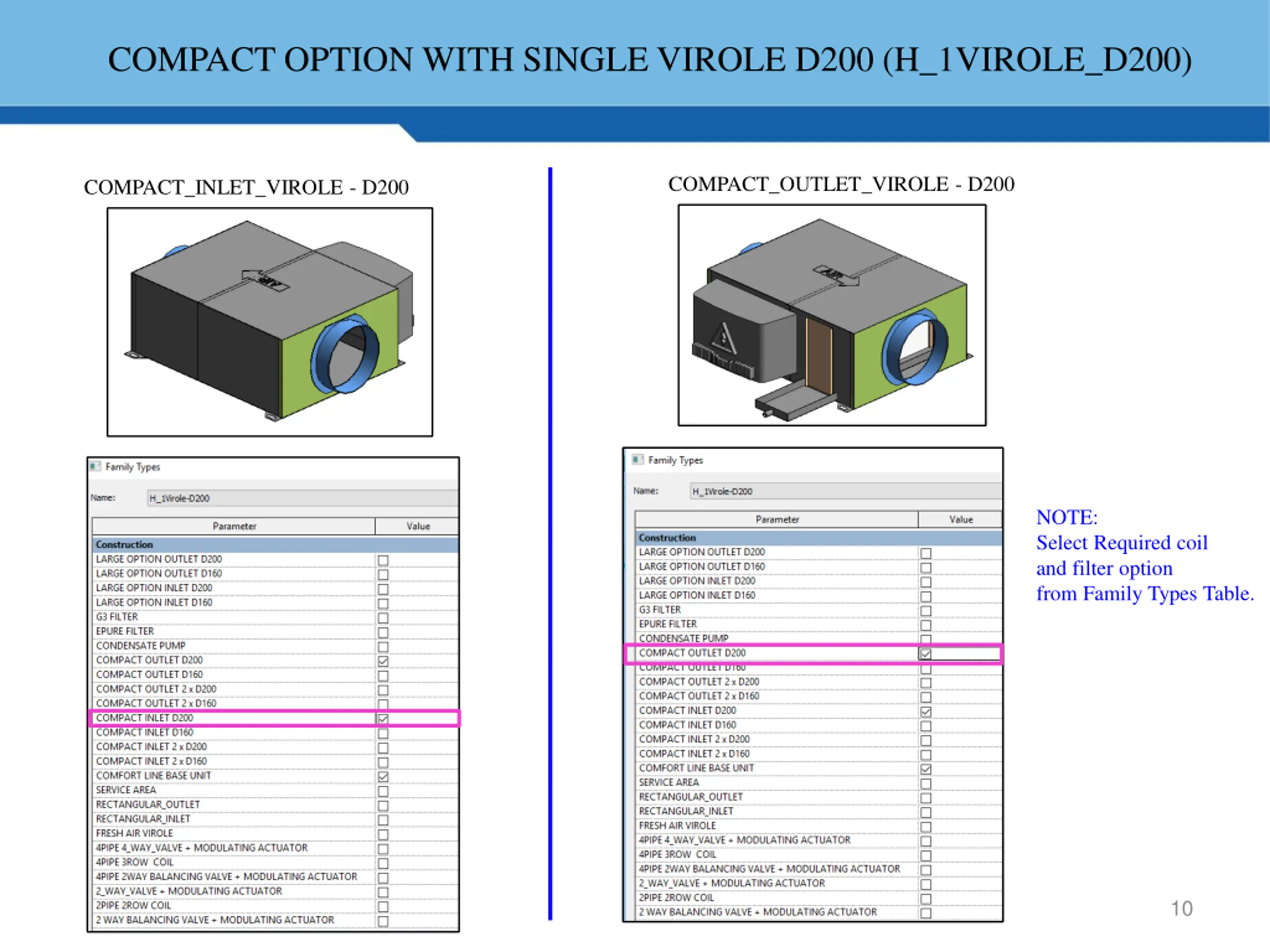

COMPACT OPTION WITH SINGLE VIROLE D200 (H_1VIROLE_D200) COMPACT_OUTLET_VIROLE - D200 COMPACT_INLET_VIROLE - D200 NOTE: Select Required coil and filter option from Family Types Table. 10

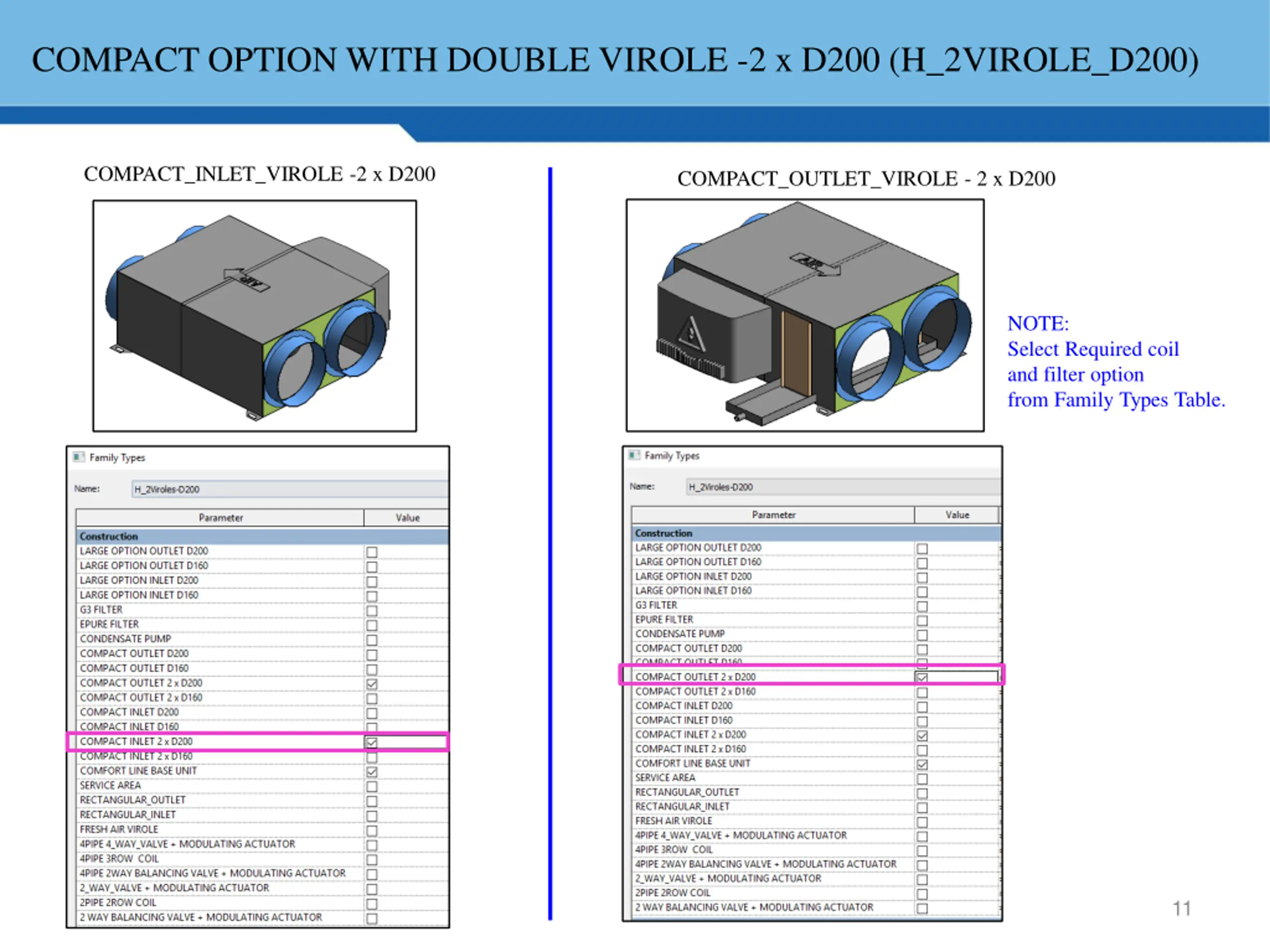

COMPACT OPTION WITH DOUBLE VIROLE -2 x D200 (H_2VIROLE_D200) COMPACT_INLET_VIROLE -2 x D200 COMPACT_OUTLET_VIROLE - 2 x D200 NOTE: Select Required coil and filter option from Family Types Table. 11

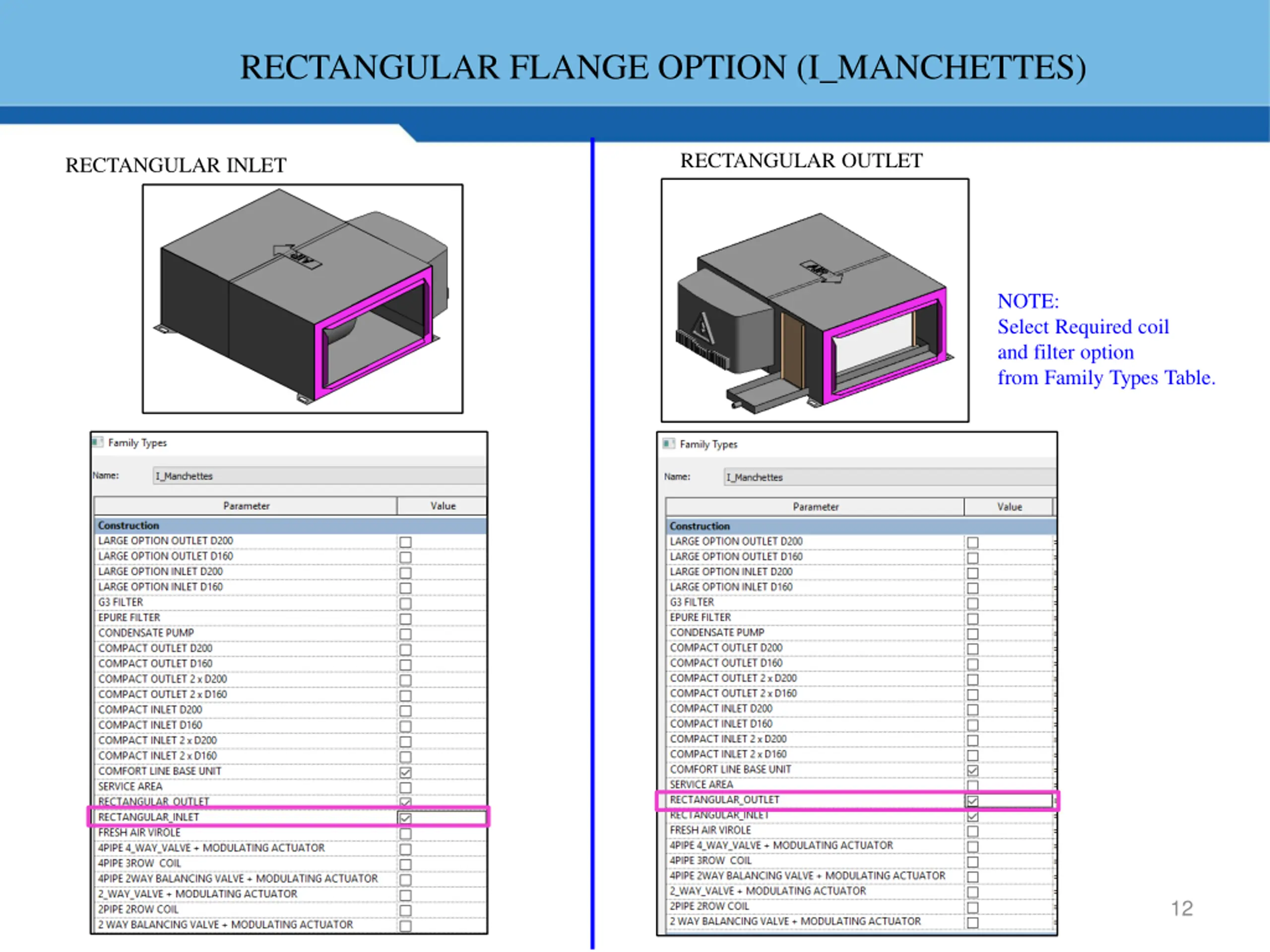

RECTANGULAR FLANGE OPTION (I_MANCHETTES) RECTANGULAR OUTLET RECTANGULAR INLET NOTE: Select Required coil and filter option from Family Types Table. 12

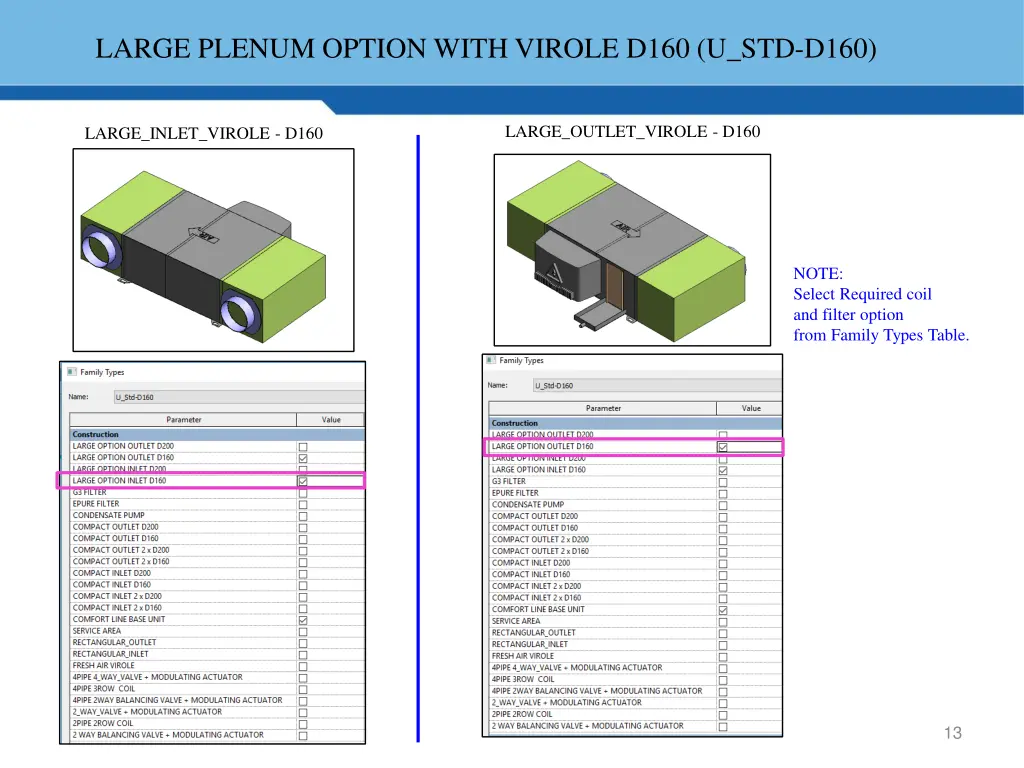

LARGE PLENUM OPTION WITH VIROLE D160 (U_STD-D160) LARGE_OUTLET_VIROLE - D160 LARGE_INLET_VIROLE - D160 NOTE: Select Required coil and filter option from Family Types Table. 13

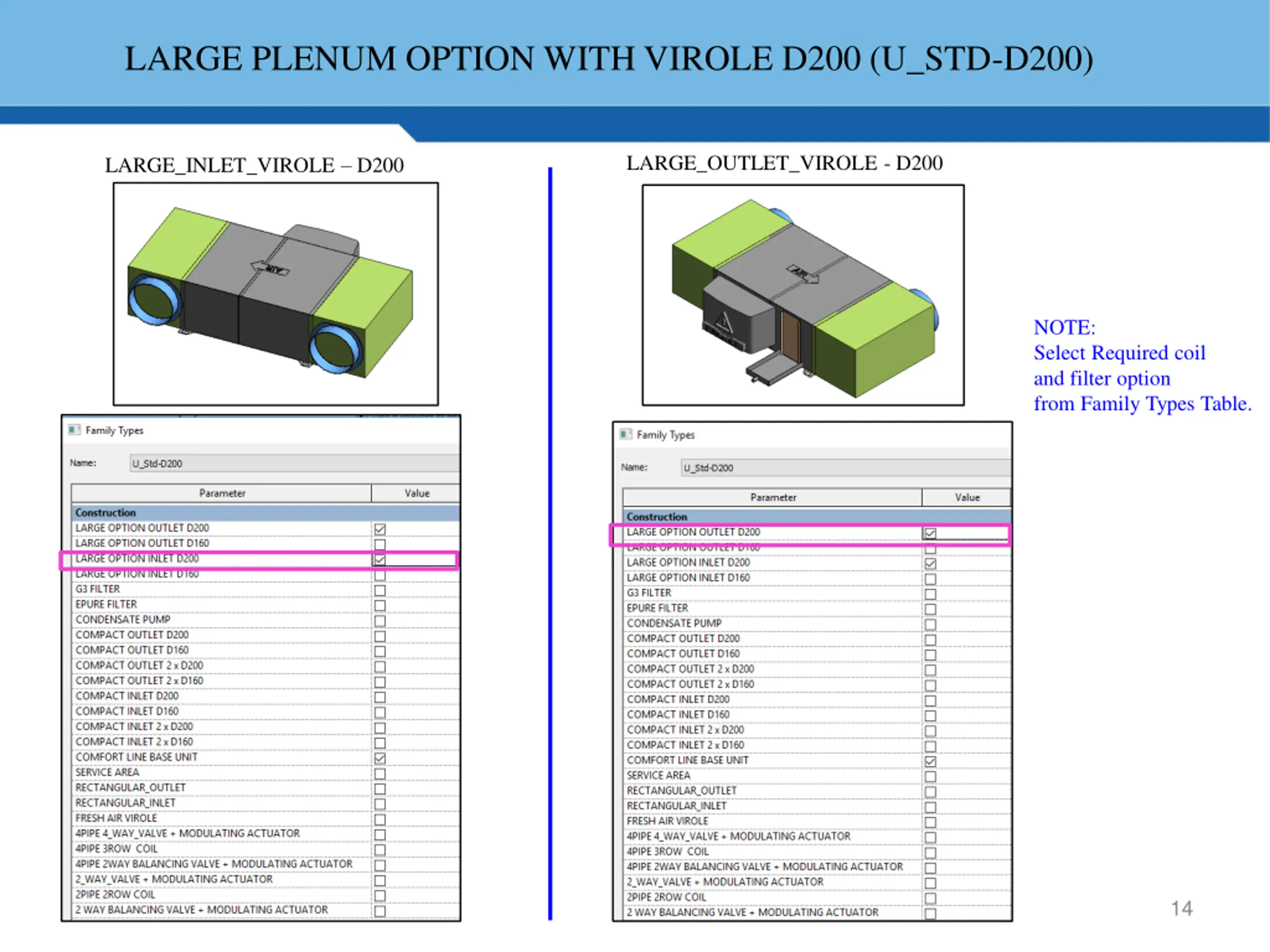

LARGE PLENUM OPTION WITH VIROLE D200 (U_STD-D200) LARGE_OUTLET_VIROLE - D200 LARGE_INLET_VIROLE D200 NOTE: Select Required coil and filter option from Family Types Table. 14

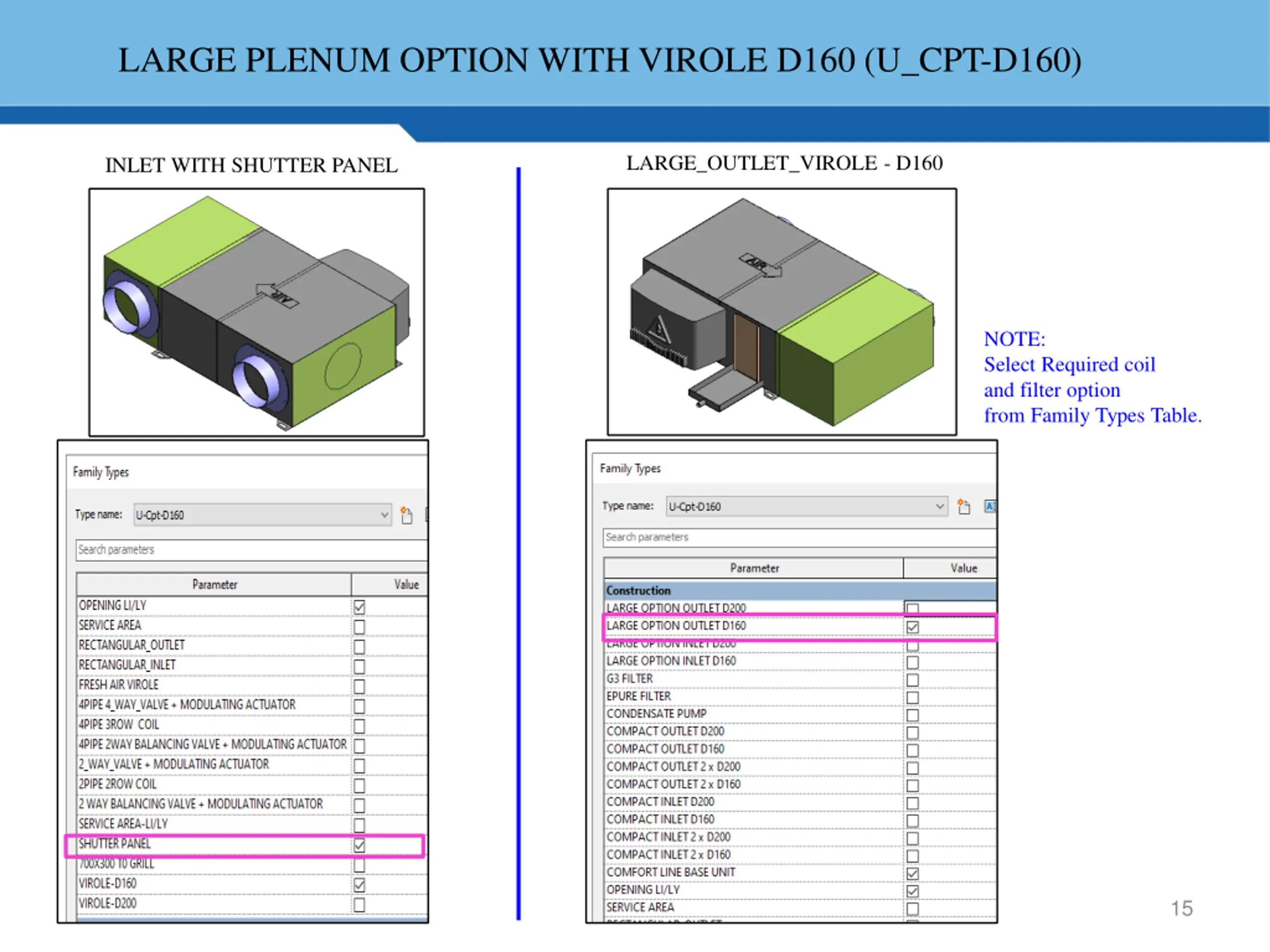

LARGE PLENUM OPTION WITH VIROLE D160 (U_CPT-D160) LARGE_OUTLET_VIROLE - D160 INLET WITH SHUTTER PANEL NOTE: Select Required coil and filter option from Family Types Table. 15

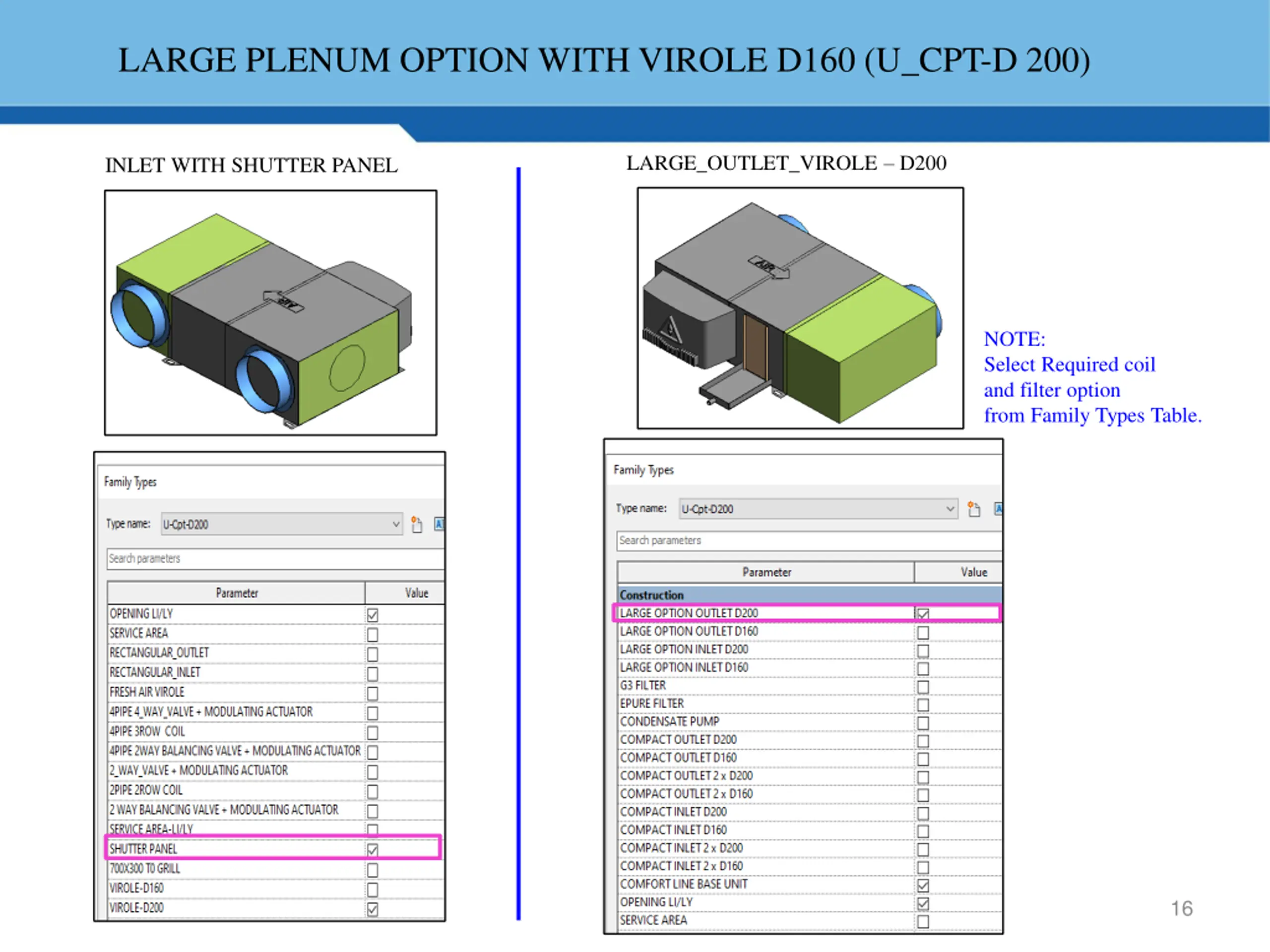

LARGE PLENUM OPTION WITH VIROLE D160 (U_CPT-D 200) LARGE_OUTLET_VIROLE D200 INLET WITH SHUTTER PANEL NOTE: Select Required coil and filter option from Family Types Table. 16
L-PLENUM AND I-CONFIGURATION (LI) INLET WITH SHUTTER PANEL OUTLET WITH RECTANGULAR FLANGE NOTE: Select Required coil and filter option from Family Types Table. 17

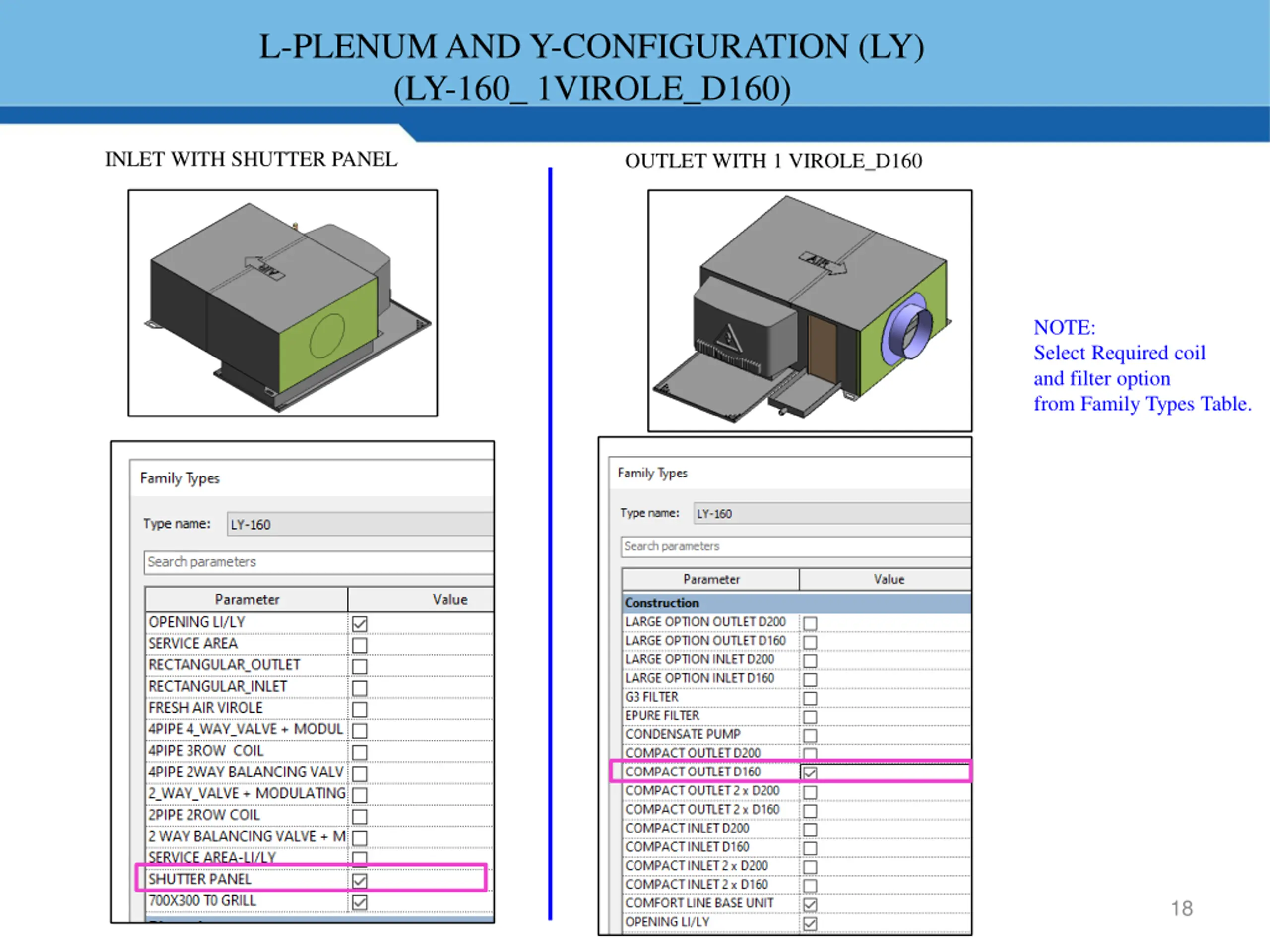

L-PLENUM AND Y-CONFIGURATION (LY) (LY-160_ 1VIROLE_D160) INLET WITH SHUTTER PANEL OUTLET WITH 1 VIROLE_D160 NOTE: Select Required coil and filter option from Family Types Table. 18

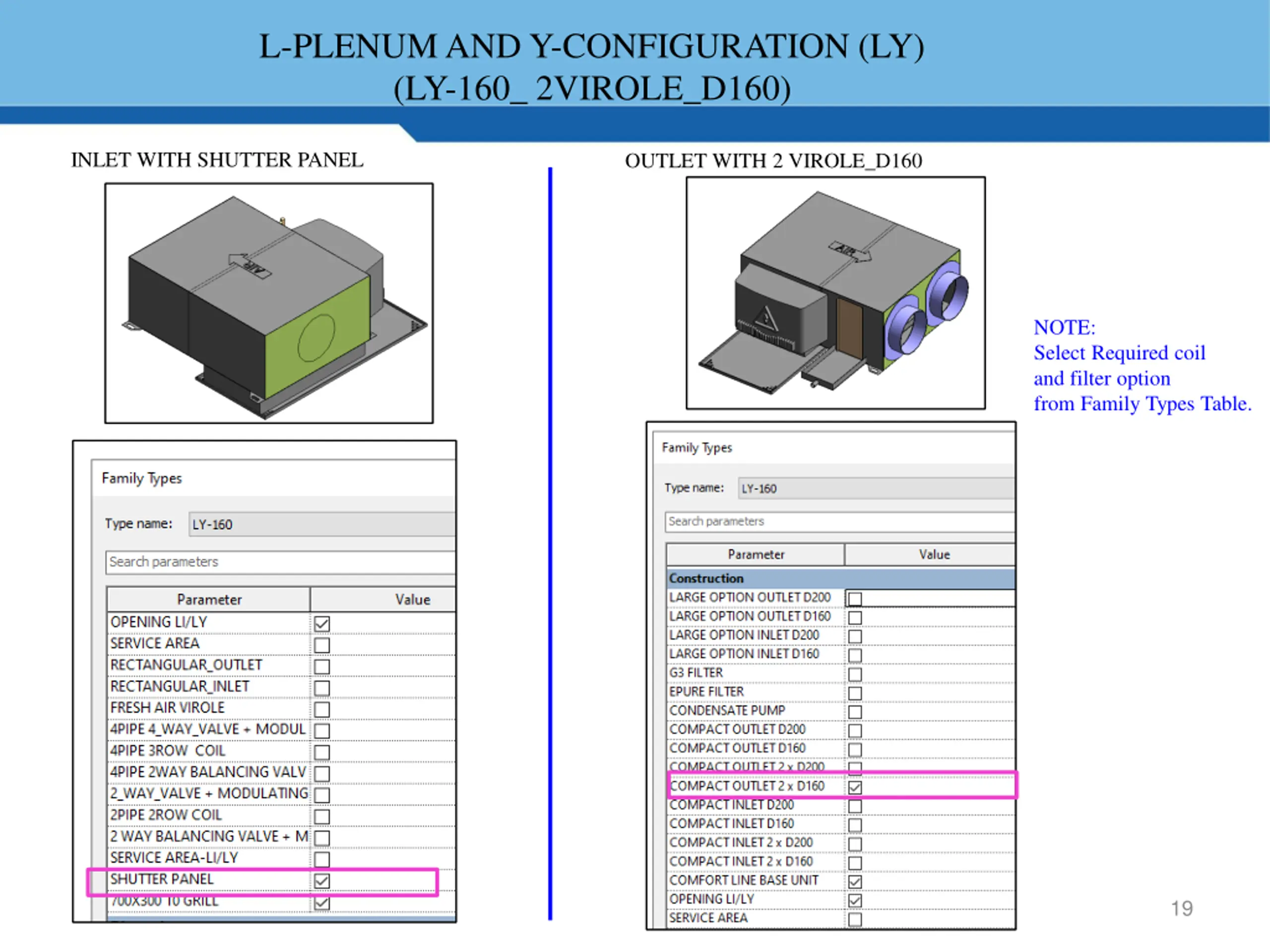

L-PLENUM AND Y-CONFIGURATION (LY) (LY-160_ 2VIROLE_D160) INLET WITH SHUTTER PANEL OUTLET WITH 2 VIROLE_D160 NOTE: Select Required coil and filter option from Family Types Table. 19

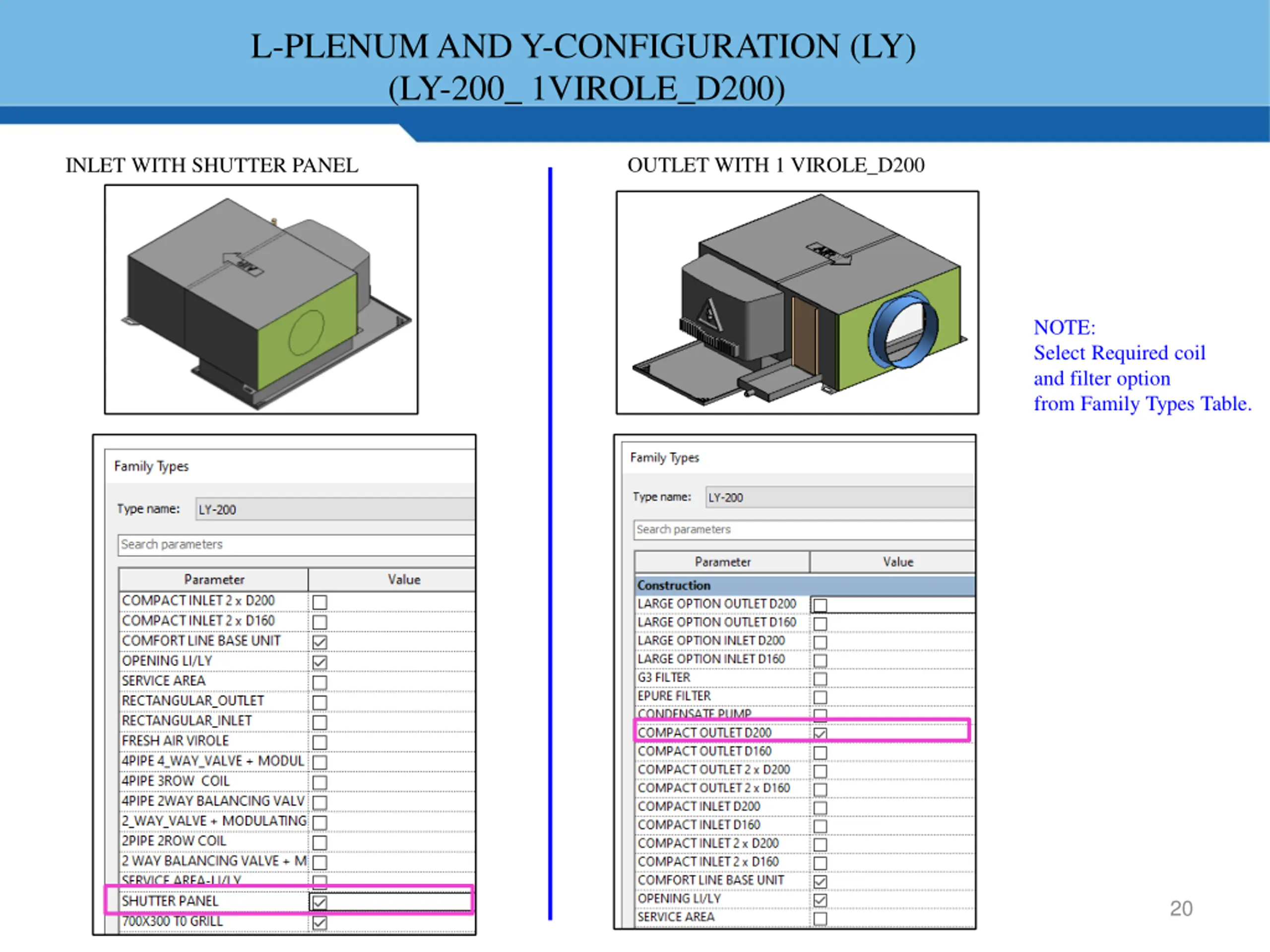

L-PLENUM AND Y-CONFIGURATION (LY) (LY-200_ 1VIROLE_D200) OUTLET WITH 1 VIROLE_D200 INLET WITH SHUTTER PANEL NOTE: Select Required coil and filter option from Family Types Table. 20

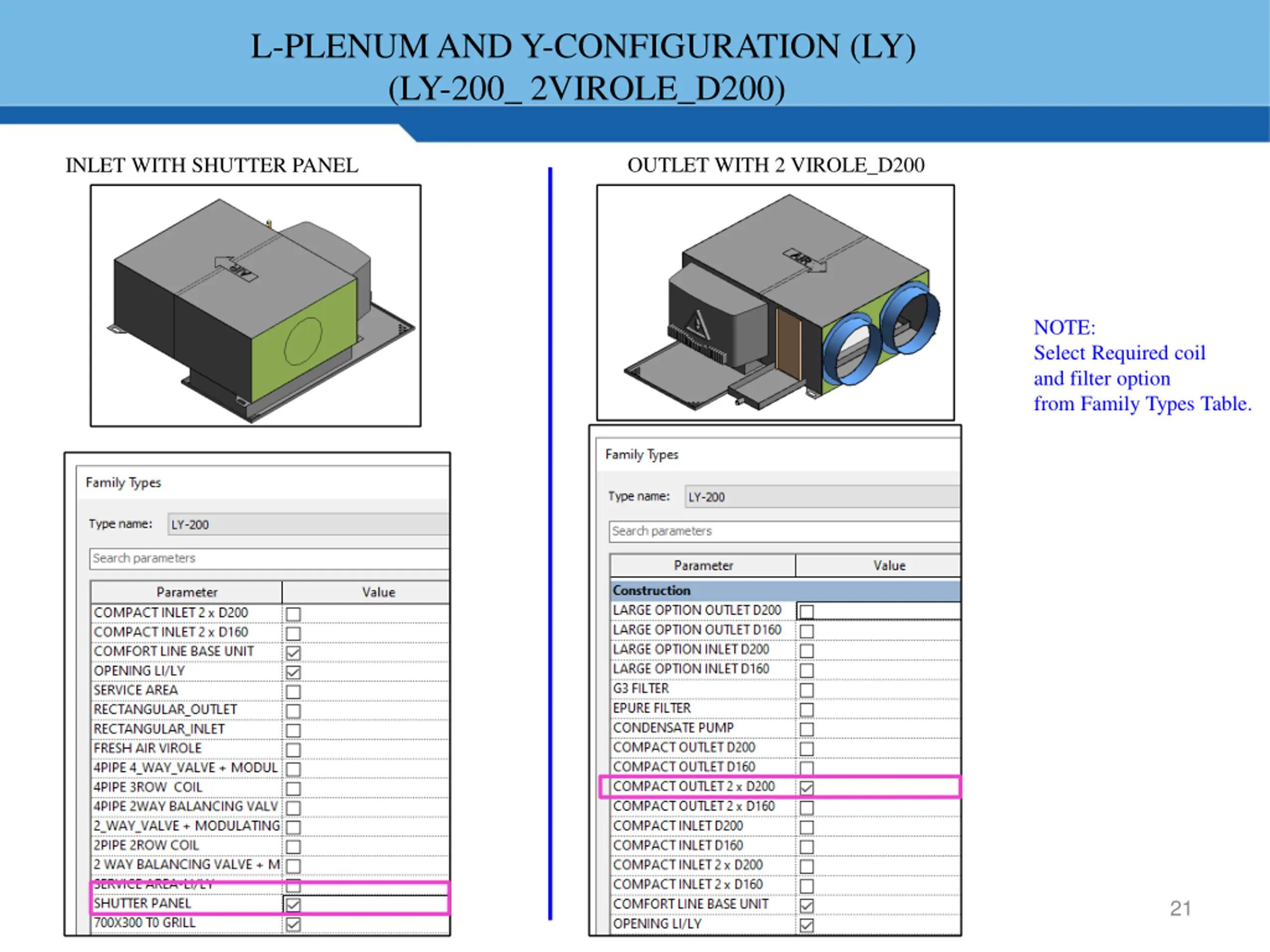

L-PLENUM AND Y-CONFIGURATION (LY) (LY-200_ 2VIROLE_D200) OUTLET WITH 2 VIROLE_D200 INLET WITH SHUTTER PANEL NOTE: Select Required coil and filter option from Family Types Table. 21

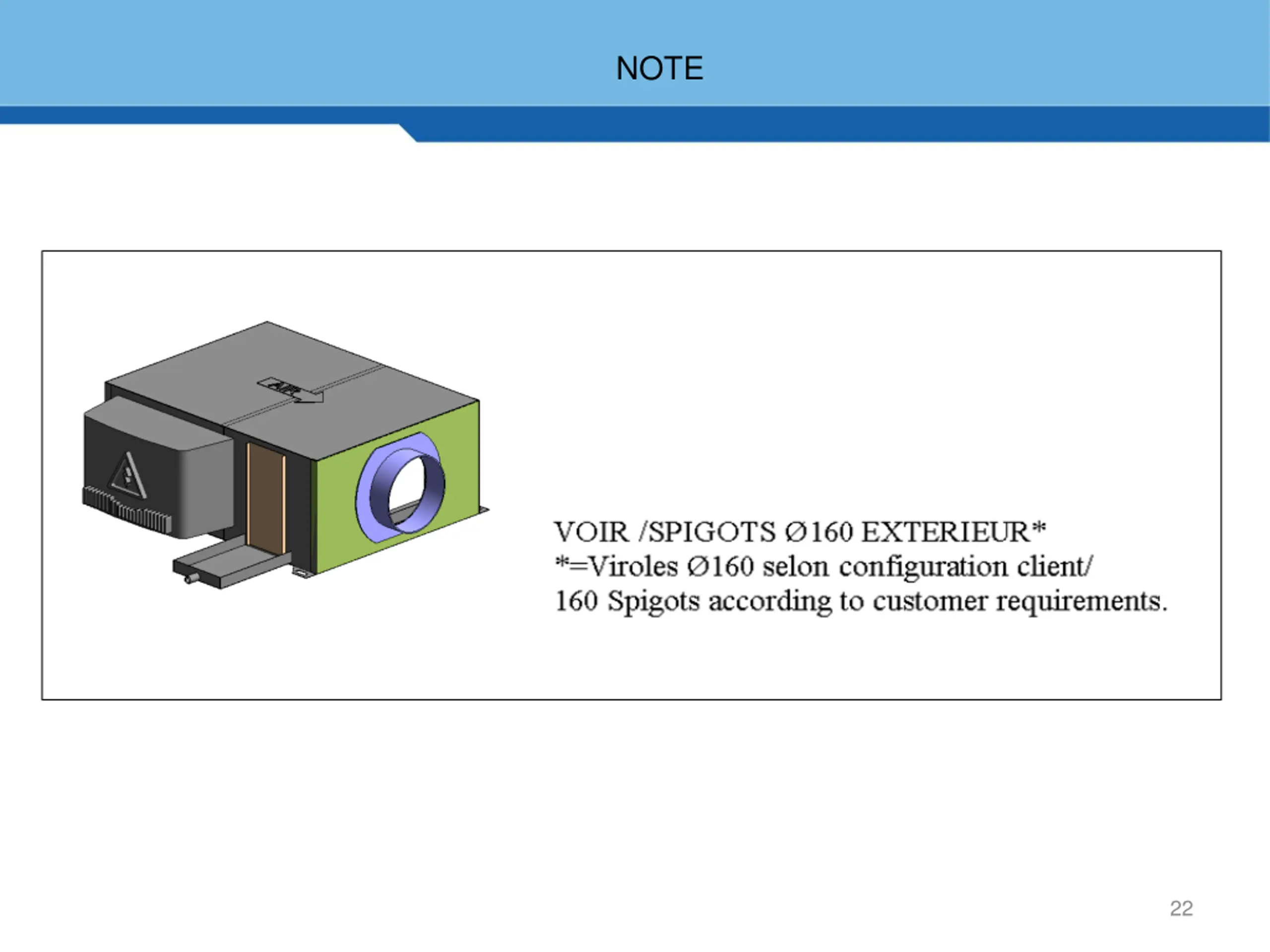

NOTE 22

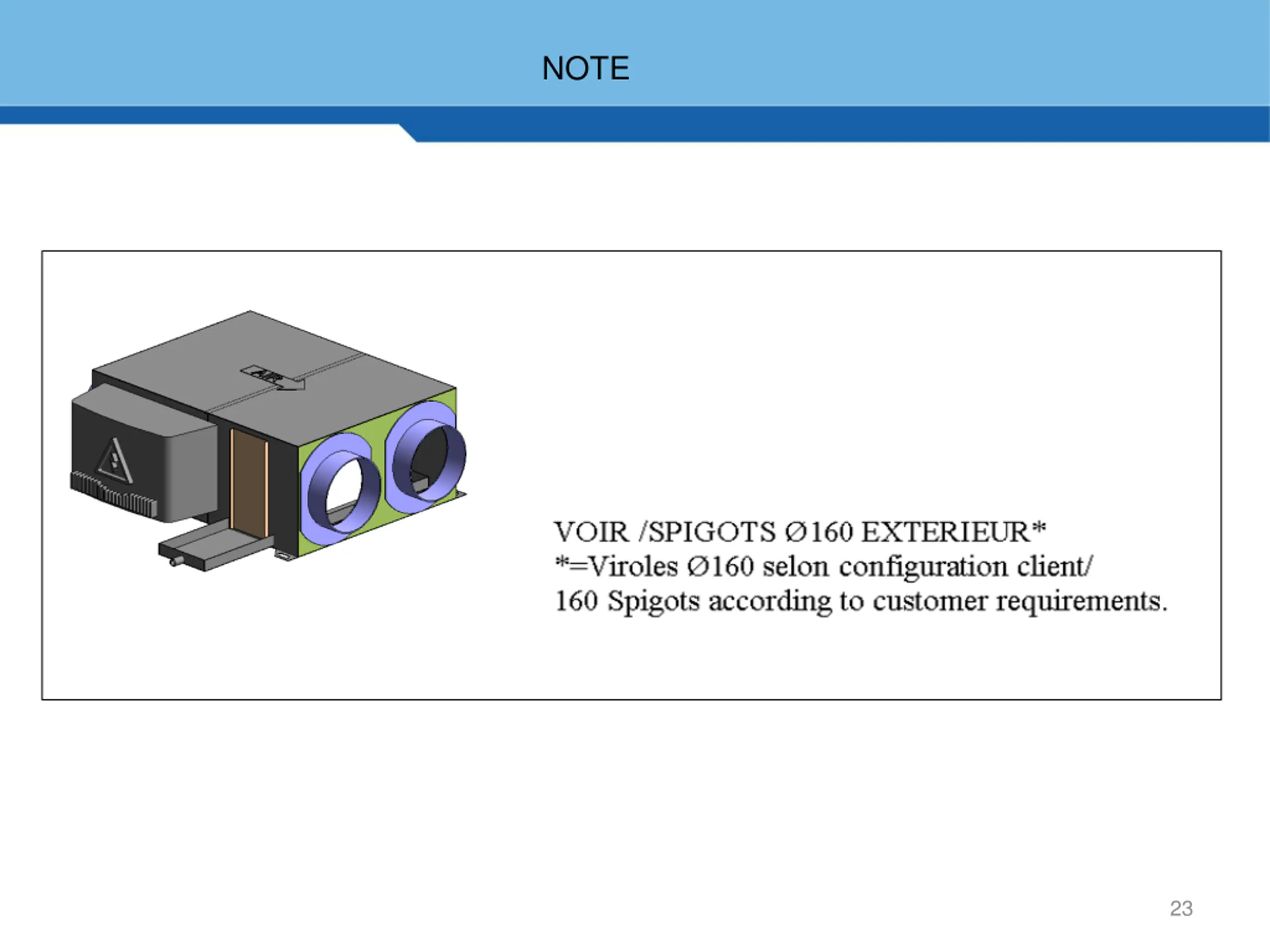

NOTE 23

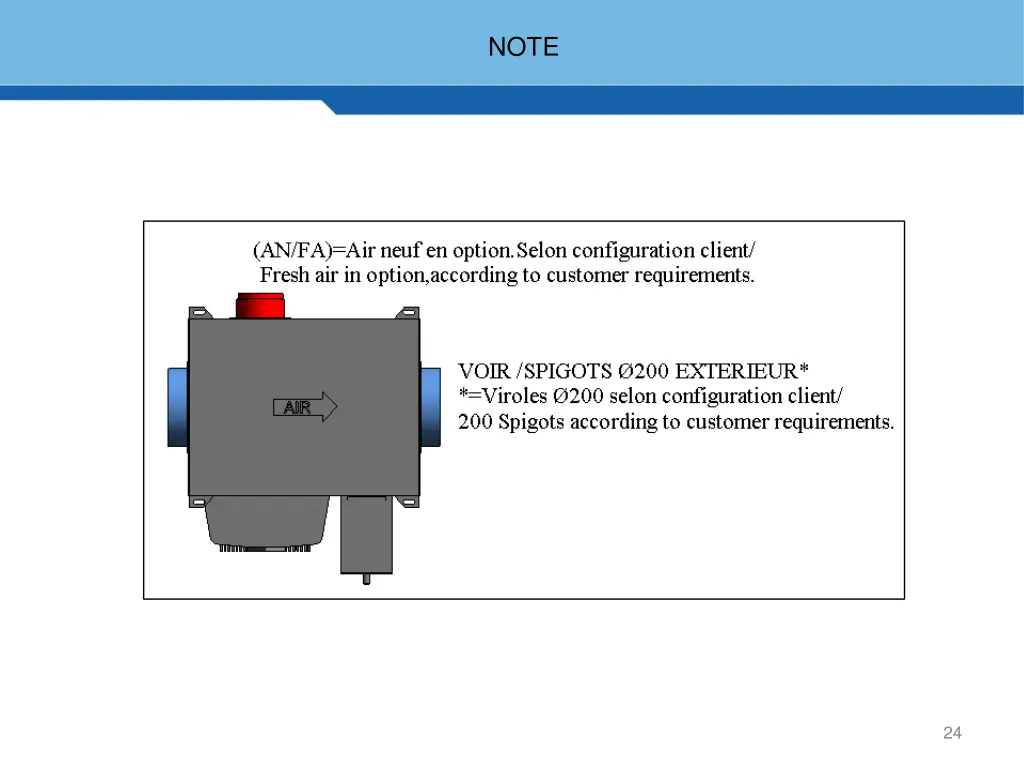

NOTE 24

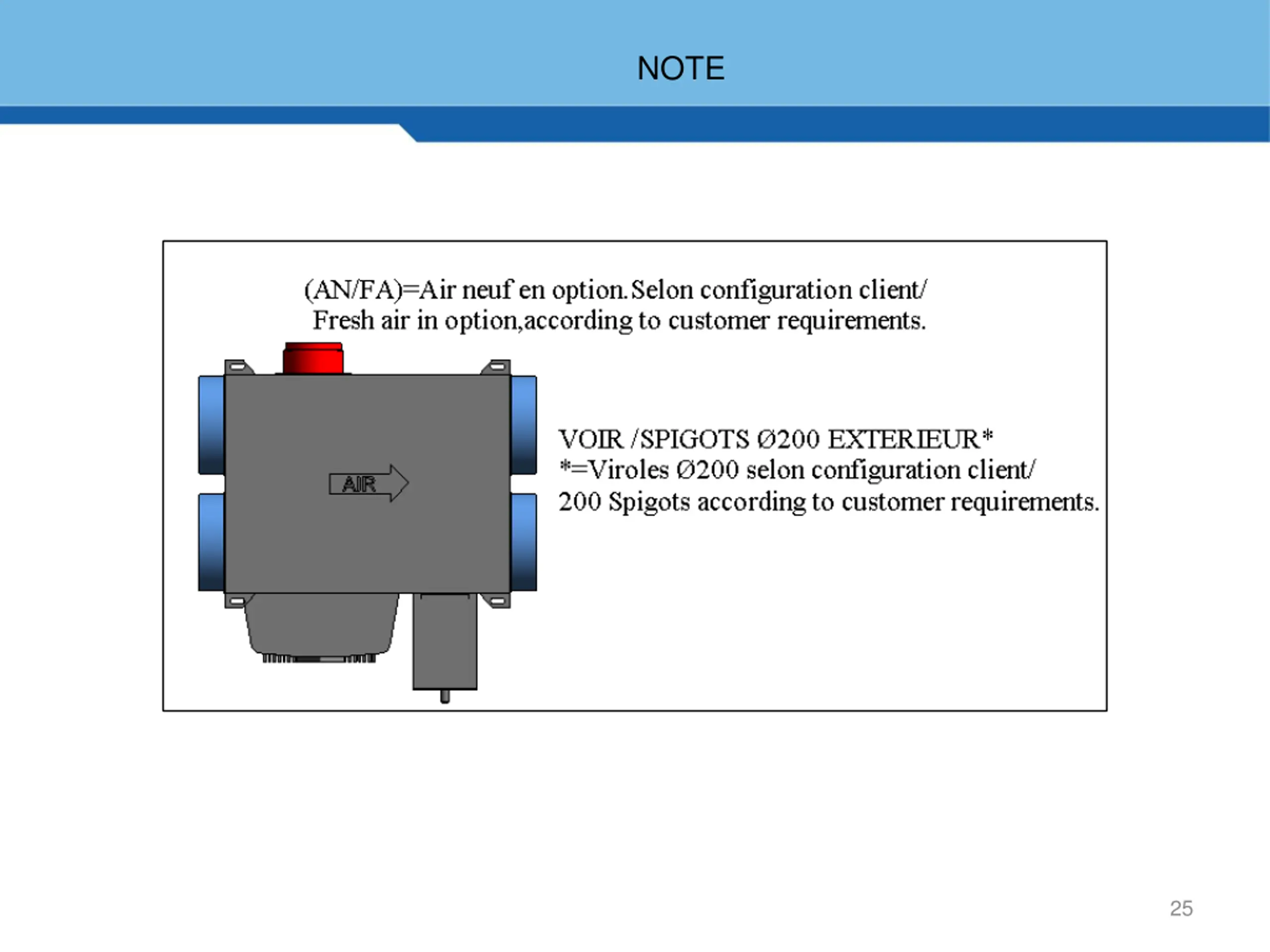

NOTE 25

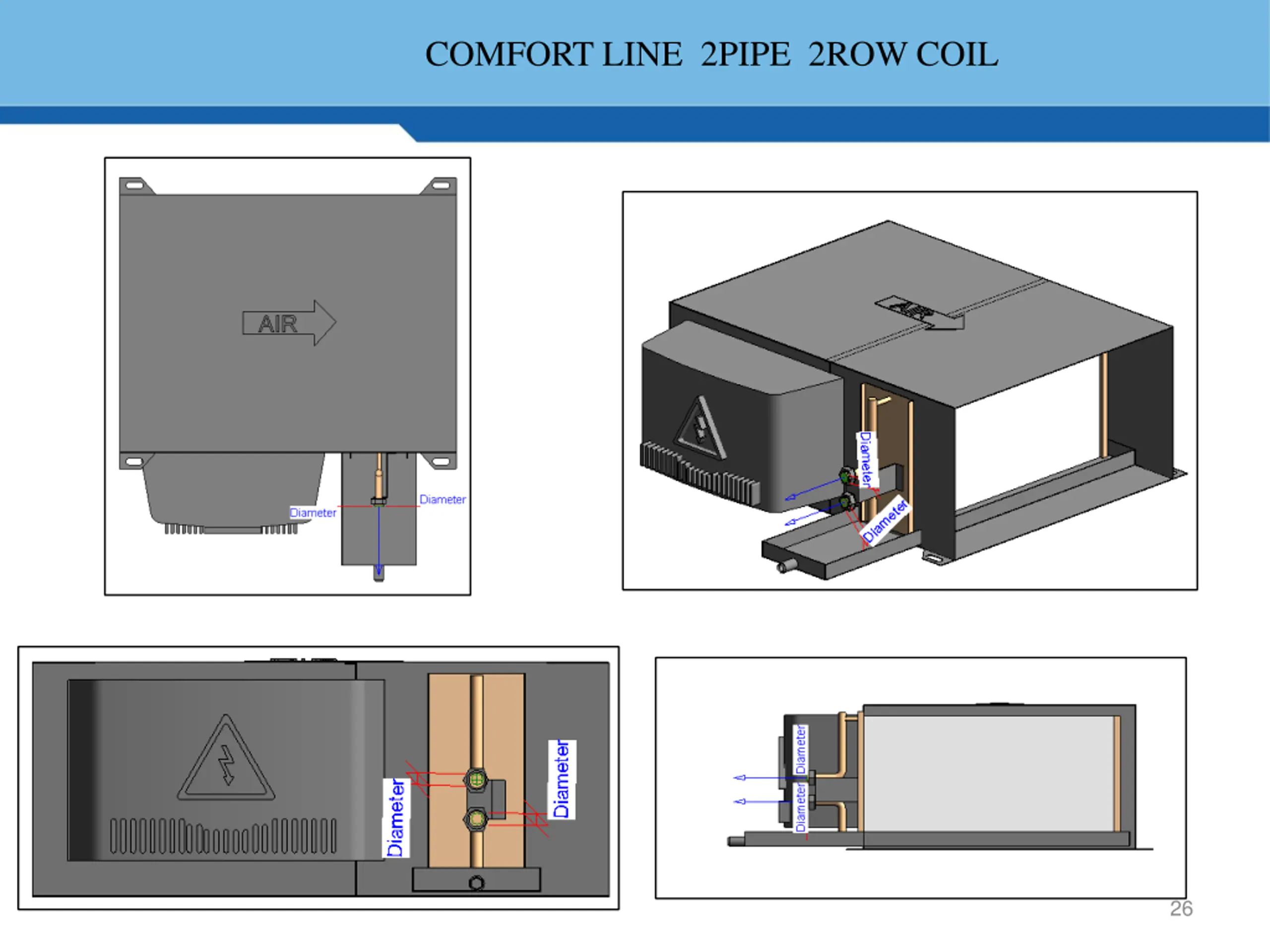

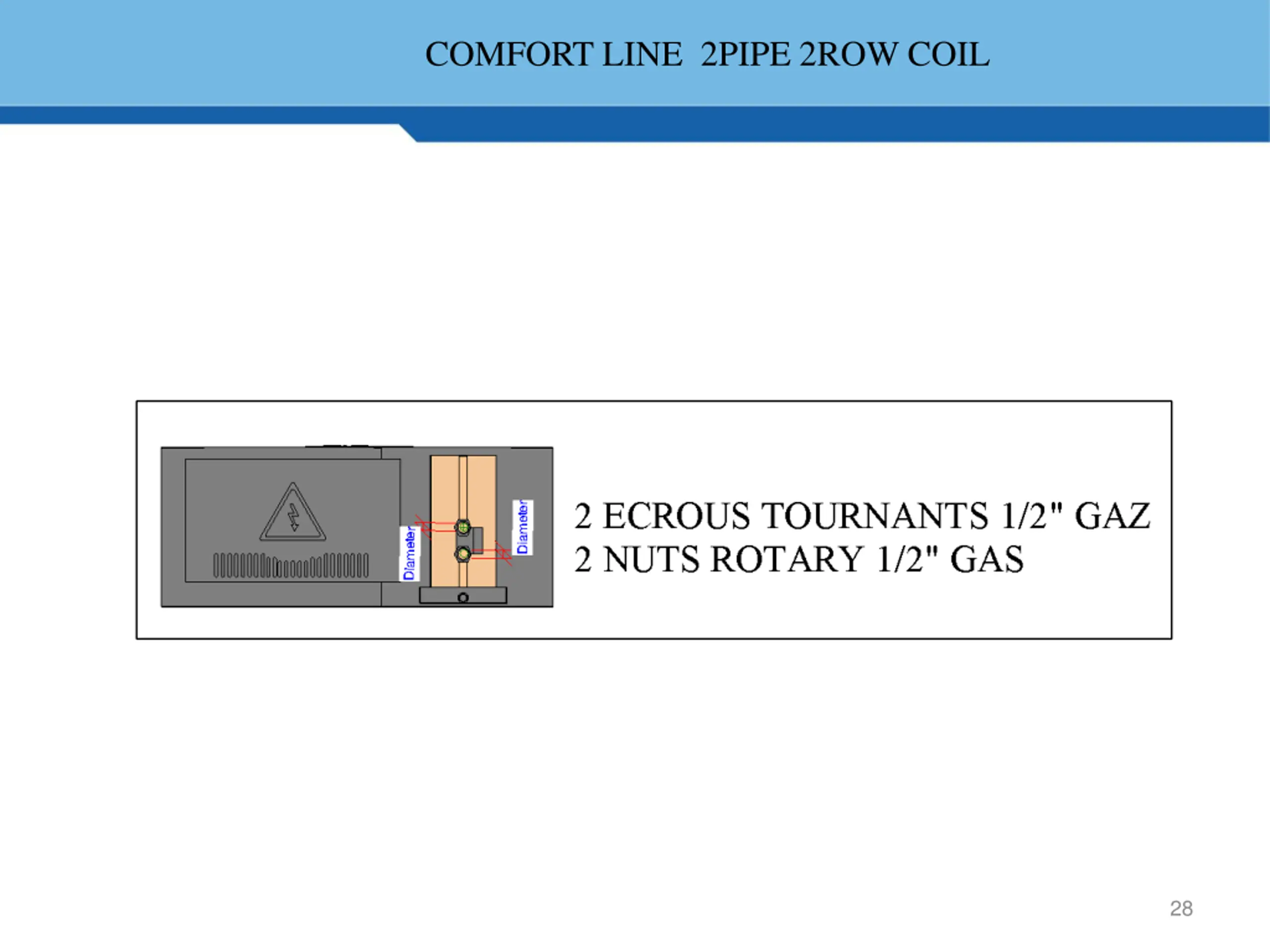

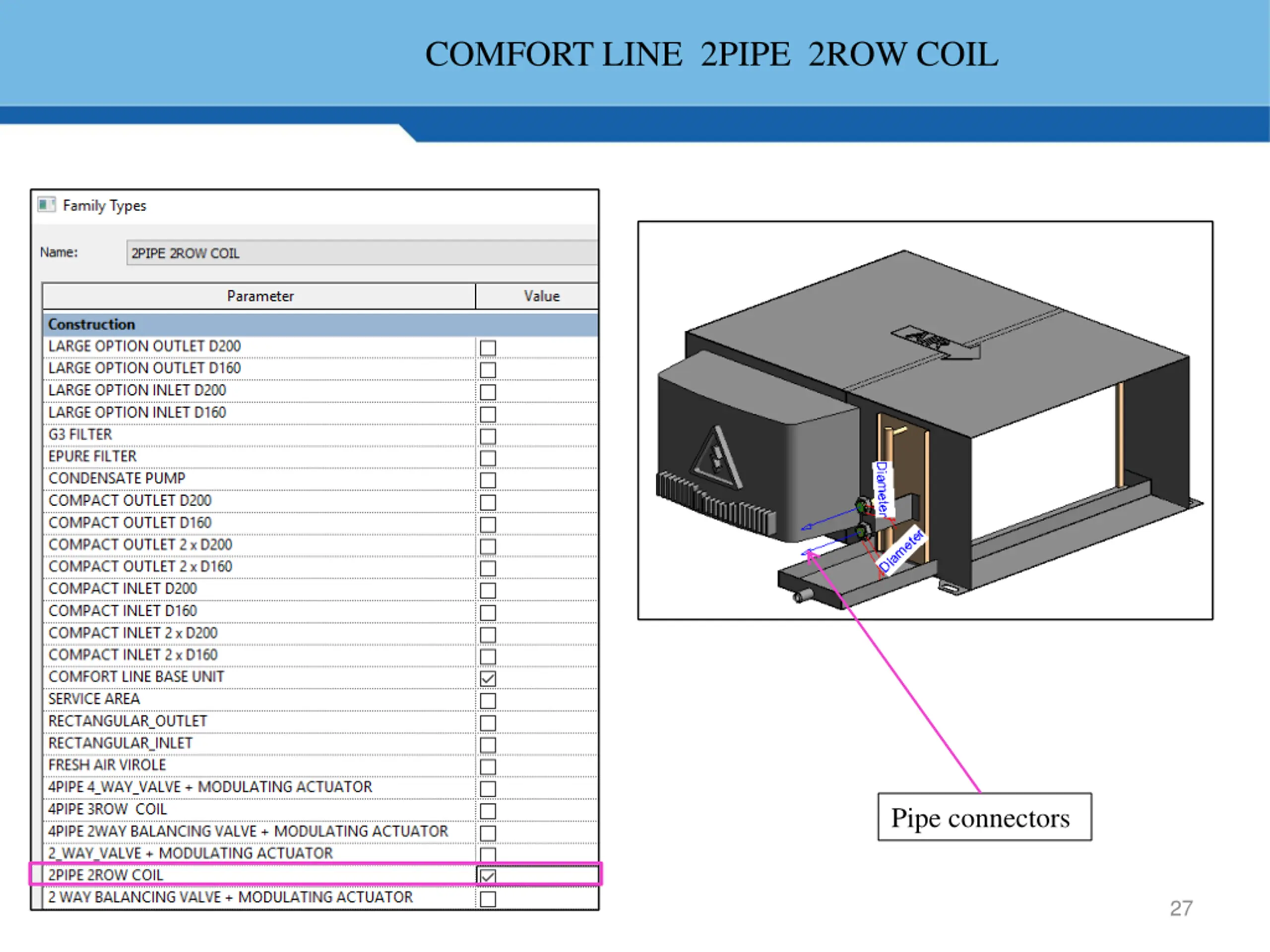

COMFORT LINE 2PIPE 2ROW COIL Pipe connectors 27

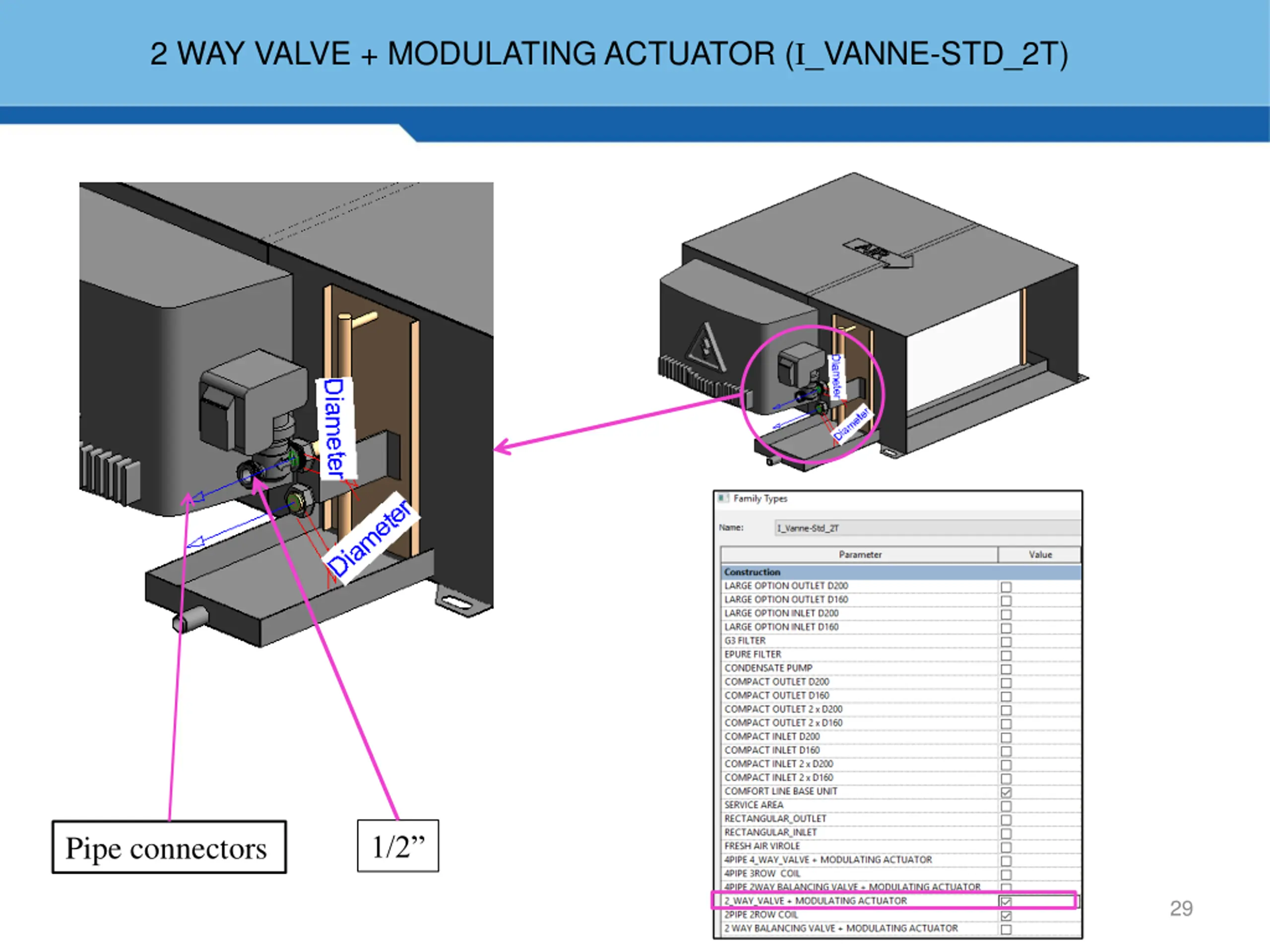

2 WAY VALVE + MODULATING ACTUATOR (I_VANNE-STD_2T) 1/2 Pipe connectors 29

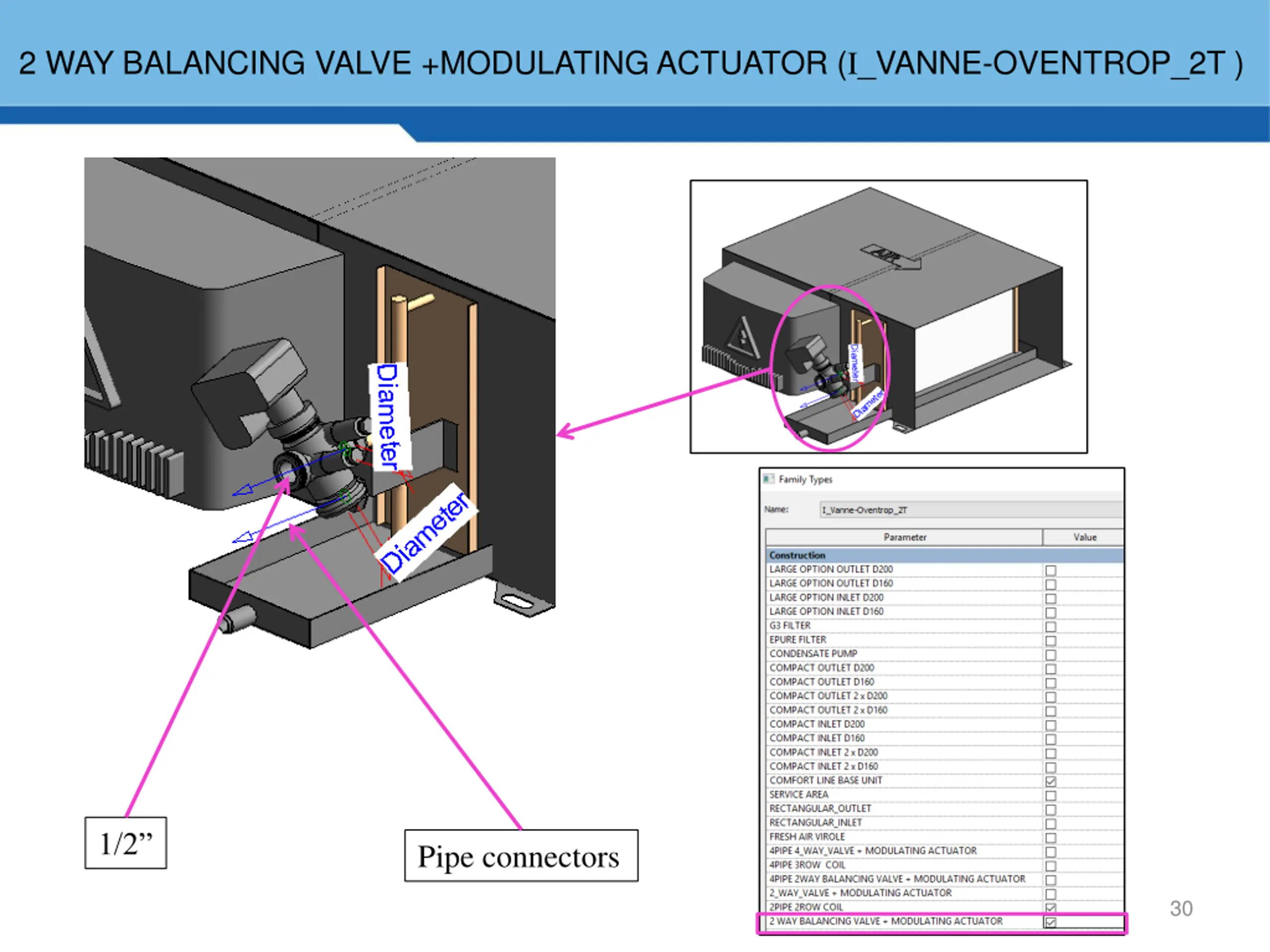

2 WAY BALANCING VALVE +MODULATING ACTUATOR (I_VANNE-OVENTROP_2T ) 1/2 Pipe connectors 30

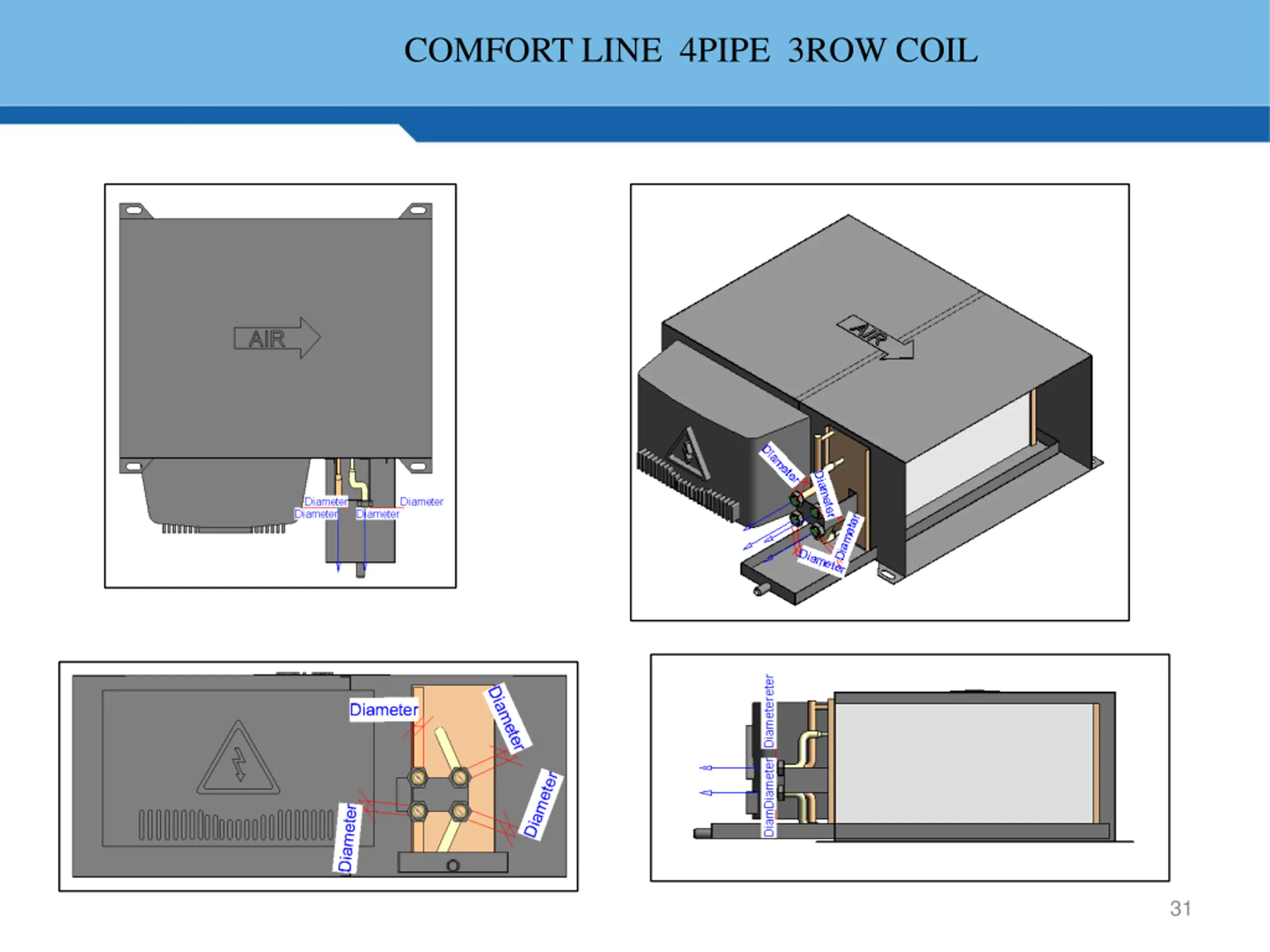

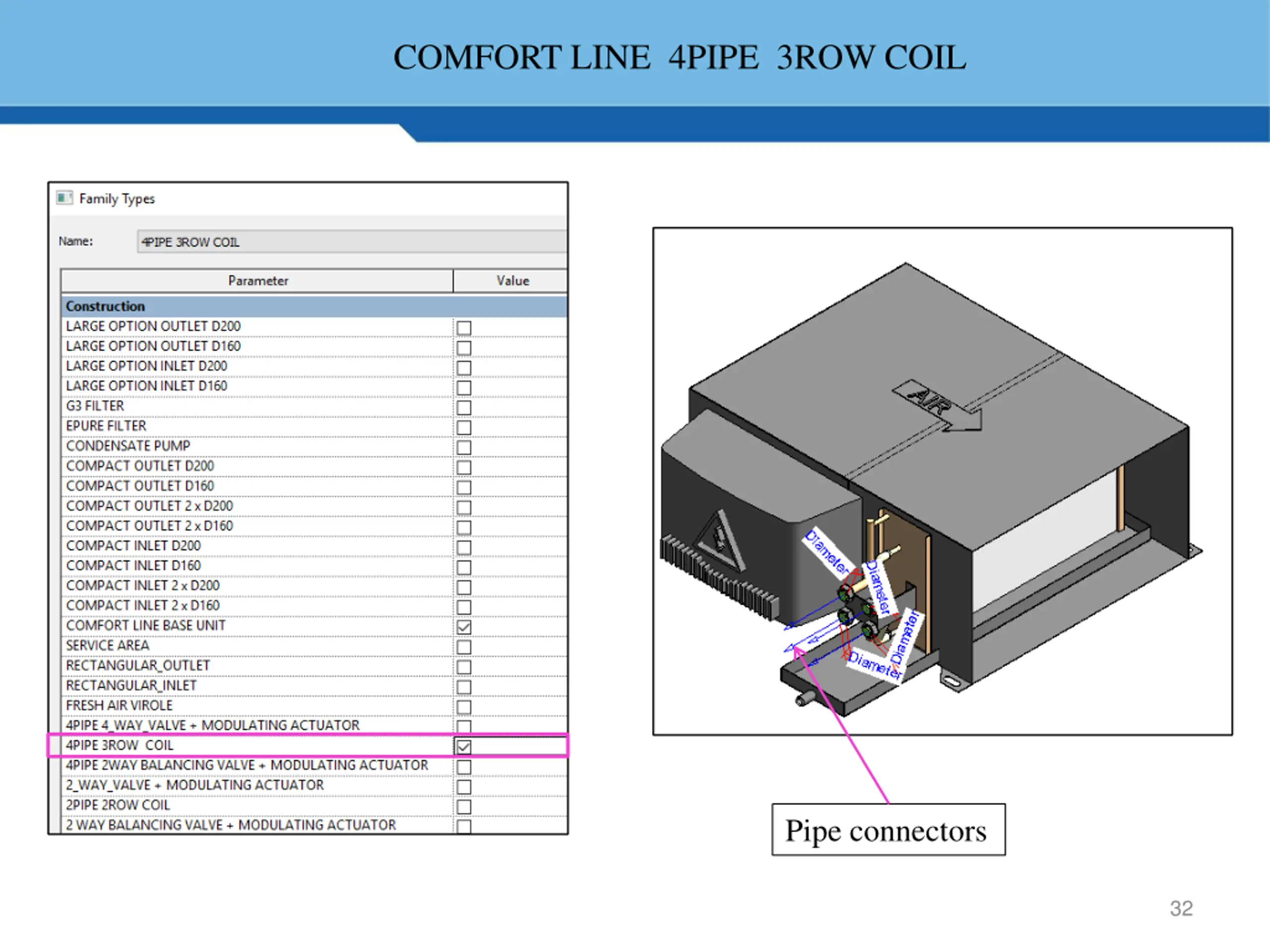

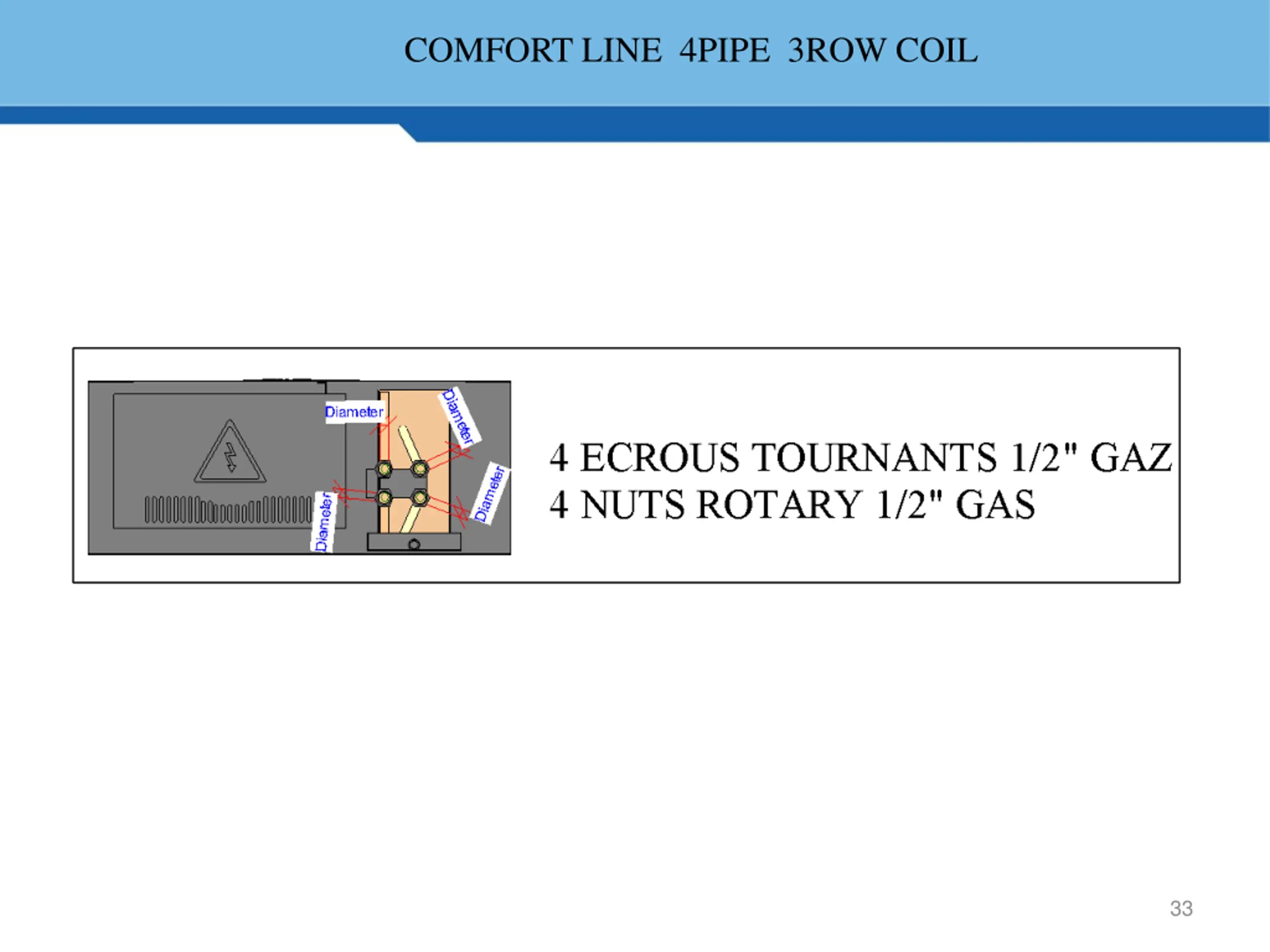

COMFORT LINE 4PIPE 3ROW COIL Pipe connectors 32

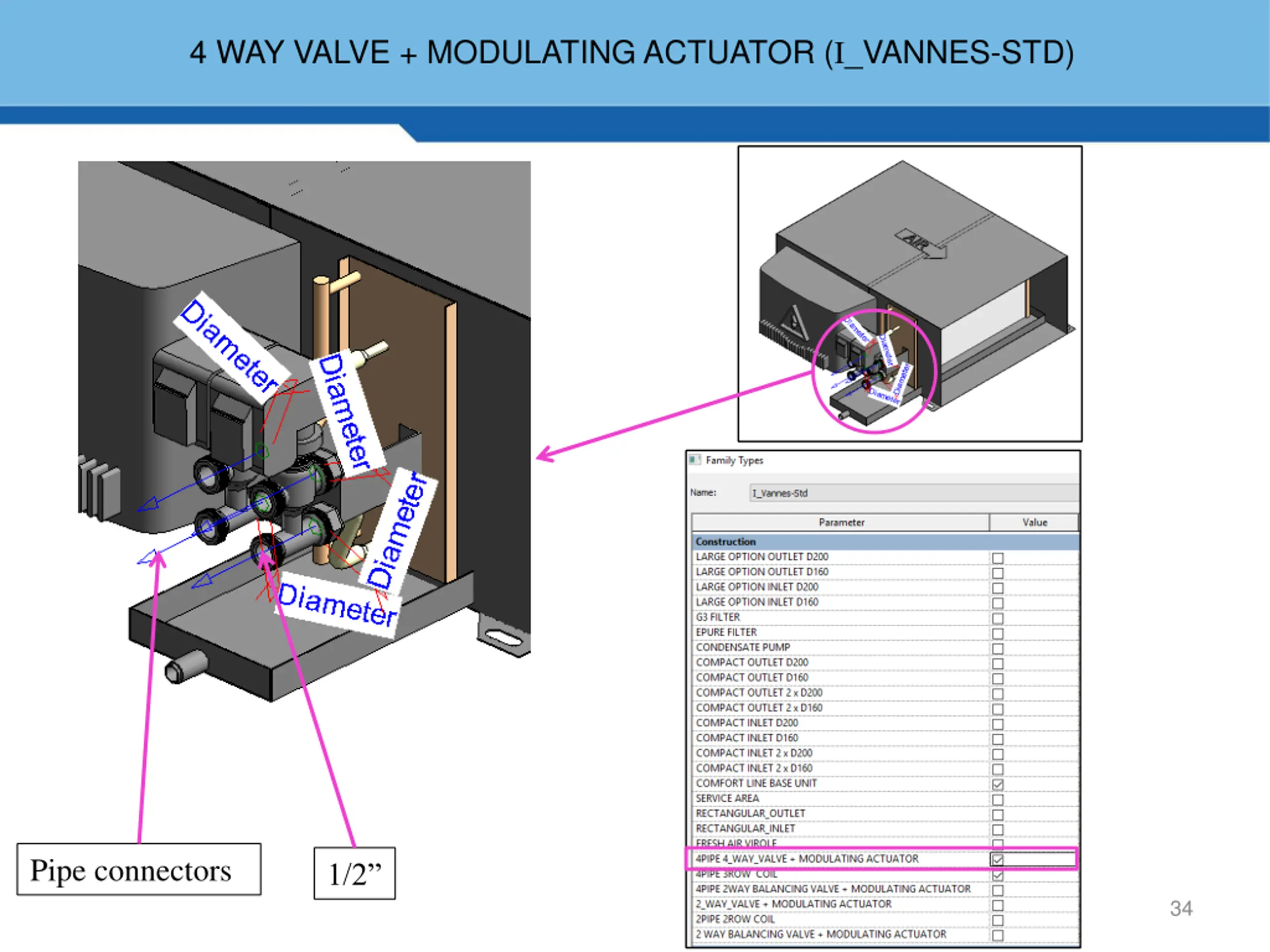

4 WAY VALVE + MODULATING ACTUATOR (I_VANNES-STD) Pipe connectors 1/2 34

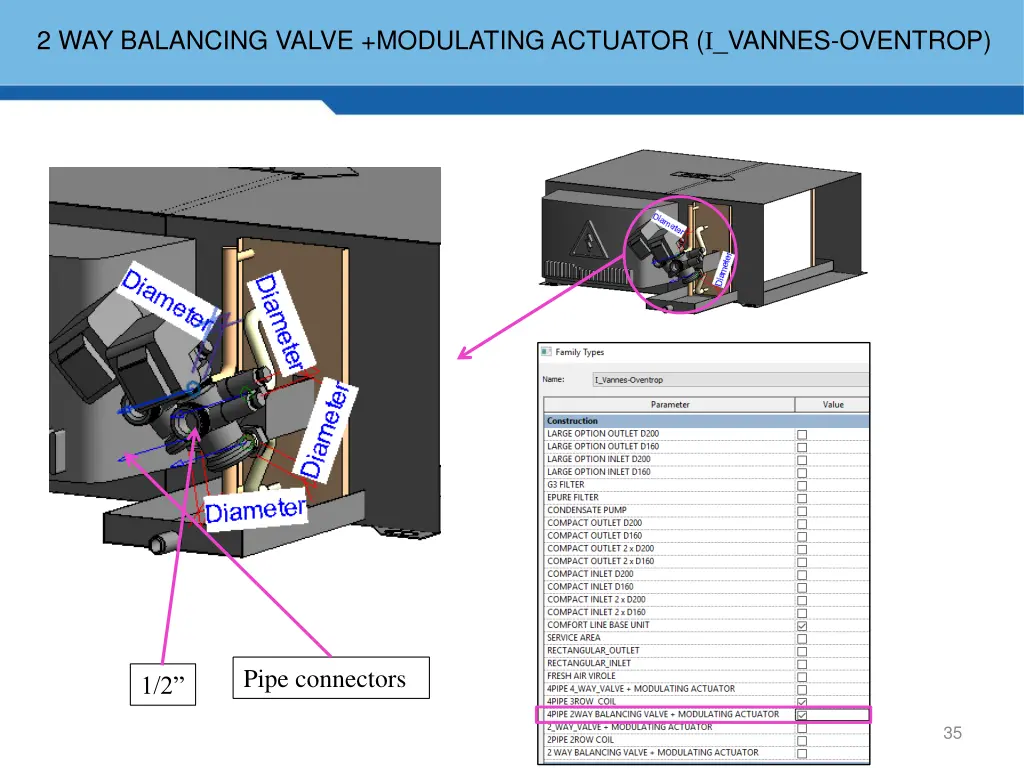

2 WAY BALANCING VALVE +MODULATING ACTUATOR (I_VANNES-OVENTROP) Pipe connectors 1/2 35

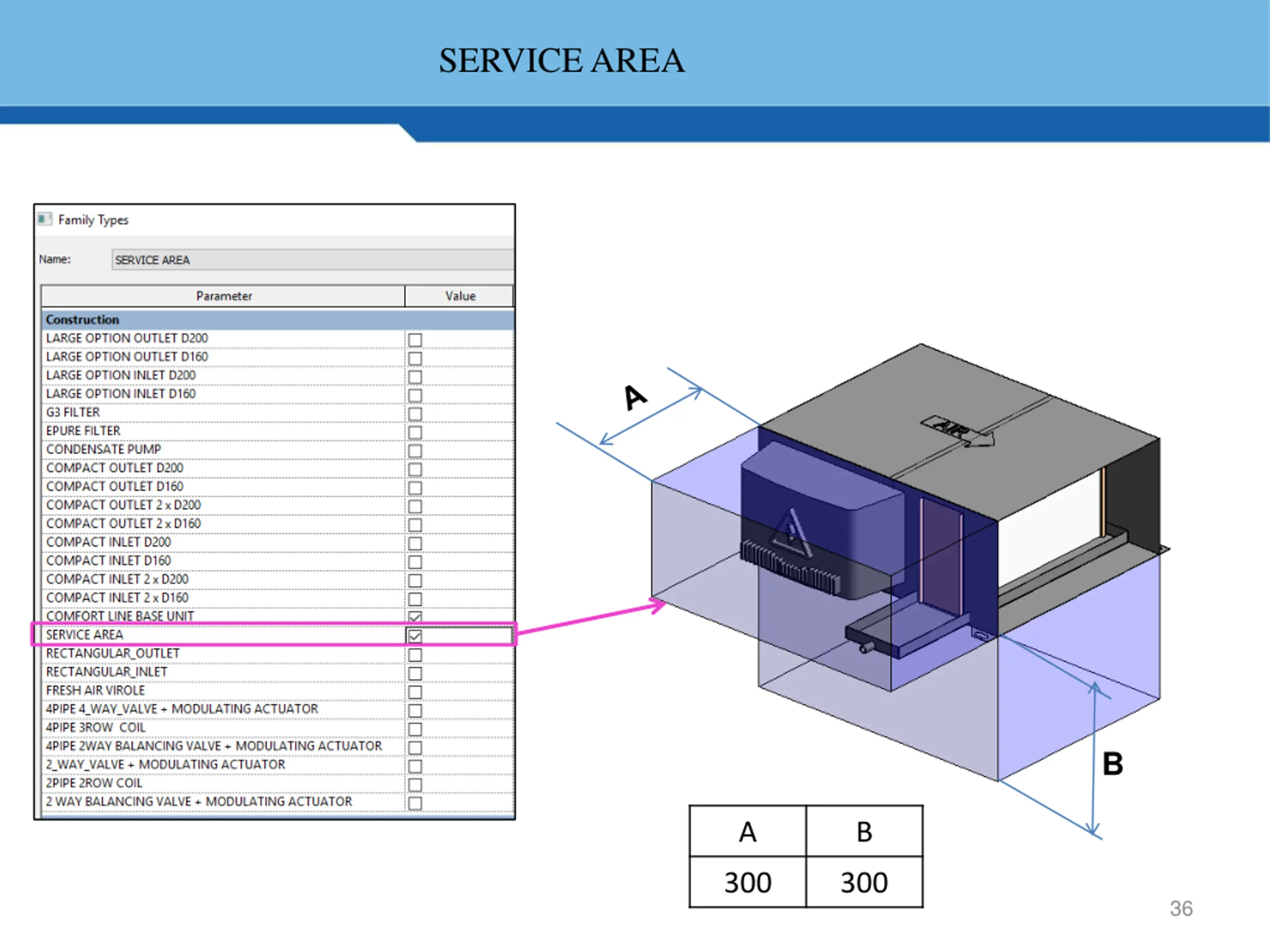

SERVICE AREA B A B 300 300 36
THANK YOU 37
