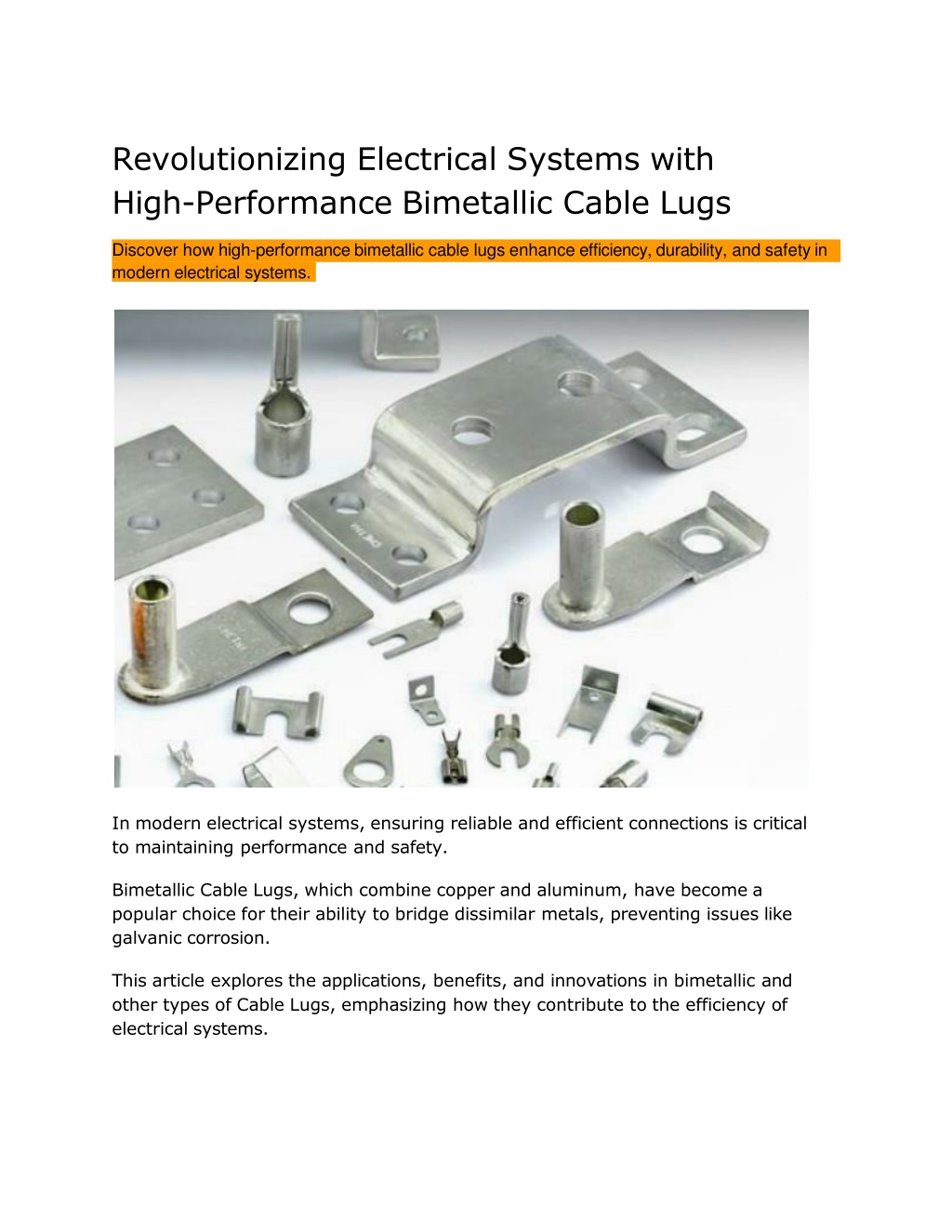

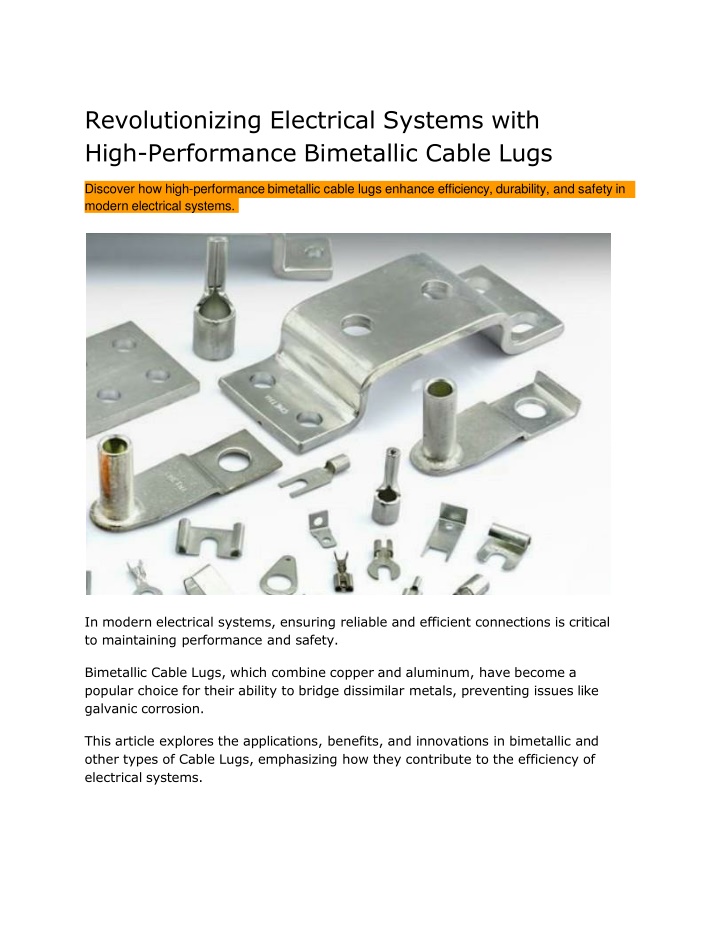

Revolutionizing Electrical Systems with High-Performance Bimetallic Cable Lugs Discover how high-performance bimetallic cable lugs enhance efficiency, durability, and safety in modern electrical systems. In modern electrical systems, ensuring reliable and efficient connections is critical to maintaining performance and safety. Bimetallic Cable Lugs, which combine copper and aluminum, have become a popular choice for their ability to bridge dissimilar metals, preventing issues like galvanic corrosion. This article explores the applications, benefits, and innovations in bimetallic and other types of Cable Lugs, emphasizing how they contribute to the efficiency of electrical systems.
What Are Bimetallic Cable Lugs? Bimetal Cable Lugs are specifically designed for connections involving copper and aluminum conductors. They consist of an aluminum barrel and a copper palm, joined using advanced friction-welding techniques. This unique design prevents oxidation and ensures excellent conductivity, making them a vital component in power distribution and transmission systems. Advantages of Bimetallic Lugs 1. Compatibility with Dissimilar Metals Bimetallic lugs eliminate the risk of galvanic corrosion when connecting Copper Lugs to aluminum conductors. This feature is crucial in industries where both metals are widely used. 2. Enhanced Durability These lugs are resistant to temperature fluctuations and environmental factors, ensuring long-term reliability in both indoor and outdoor applications. 3. Cost-Effectiveness By combining copper and aluminum, Bimetal Cable Lugs provide the conductivity of copper while leveraging the affordability of aluminum. Types of Cable Lugs in Electrical Systems 1. Tubular Lugs Tubular Lugs, including Copper Tubular Lugs, are cylindrical and provide a secure connection for wires. Their robust design makes them suitable for high-voltage applications. 2. Fork Type Lugs These lugs are known for their ease of installation and removal, making them ideal for applications requiring frequent maintenance.

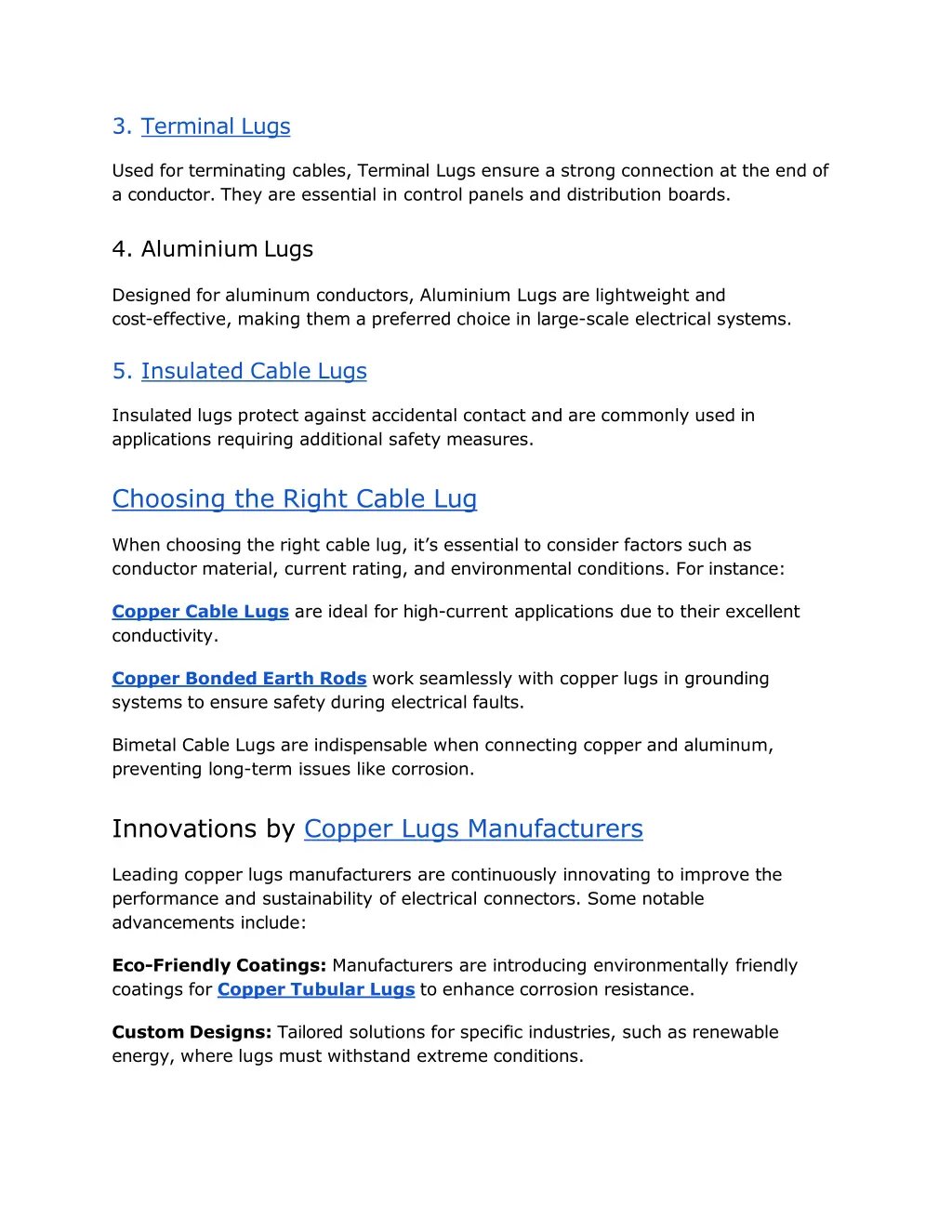

3. Terminal Lugs Used for terminating cables, Terminal Lugs ensure a strong connection at the end of a conductor. They are essential in control panels and distribution boards. 4. Aluminium Lugs Designed for aluminum conductors, Aluminium Lugs are lightweight and cost-effective, making them a preferred choice in large-scale electrical systems. 5. Insulated Cable Lugs Insulated lugs protect against accidental contact and are commonly used in applications requiring additional safety measures. Choosing the Right Cable Lug When choosing the right cable lug, it s essential to consider factors such as conductor material, current rating, and environmental conditions. For instance: Copper Cable Lugs are ideal for high-current applications due to their excellent conductivity. Copper Bonded Earth Rods work seamlessly with copper lugs in grounding systems to ensure safety during electrical faults. Bimetal Cable Lugs are indispensable when connecting copper and aluminum, preventing long-term issues like corrosion. Innovations by Copper Lugs Manufacturers Leading copper lugs manufacturers are continuously innovating to improve the performance and sustainability of electrical connectors. Some notable advancements include: Eco-Friendly Coatings: Manufacturers are introducing environmentally friendly coatings for Copper Tubular Lugs to enhance corrosion resistance. Custom Designs: Tailored solutions for specific industries, such as renewable energy, where lugs must withstand extreme conditions.

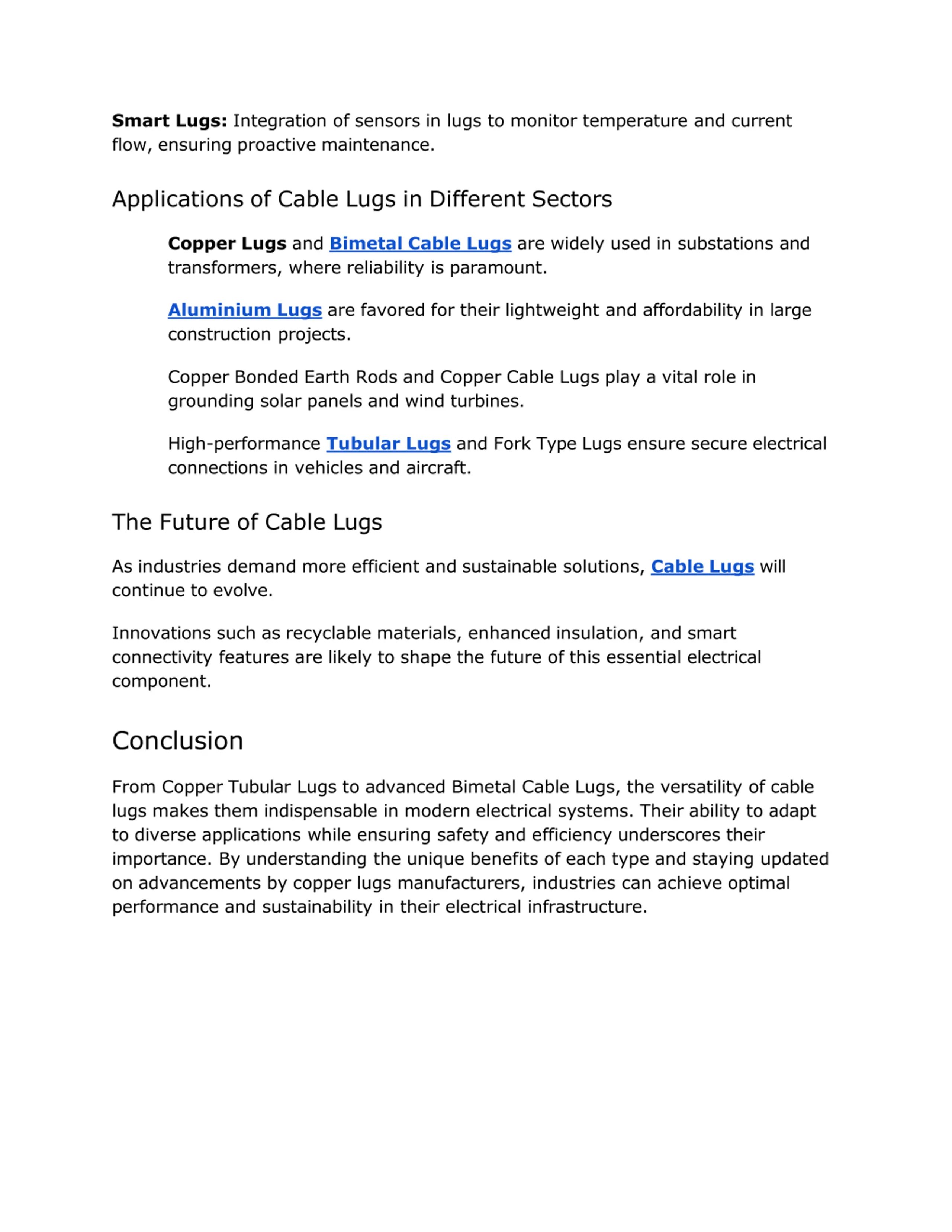

Smart Lugs: Integration of sensors in lugs to monitor temperature and current flow, ensuring proactive maintenance. Applications of Cable Lugs in Different Sectors Copper Lugs and Bimetal Cable Lugs are widely used in substations and transformers, where reliability is paramount. Aluminium Lugs are favored for their lightweight and affordability in large construction projects. Copper Bonded Earth Rods and Copper Cable Lugs play a vital role in grounding solar panels and wind turbines. High-performance Tubular Lugs and Fork Type Lugs ensure secure electrical connections in vehicles and aircraft. The Future of Cable Lugs As industries demand more efficient and sustainable solutions, Cable Lugs will continue to evolve. Innovations such as recyclable materials, enhanced insulation, and smart connectivity features are likely to shape the future of this essential electrical component. Conclusion From Copper Tubular Lugs to advanced Bimetal Cable Lugs, the versatility of cable lugs makes them indispensable in modern electrical systems. Their ability to adapt to diverse applications while ensuring safety and efficiency underscores their importance. By understanding the unique benefits of each type and staying updated on advancements by copper lugs manufacturers, industries can achieve optimal performance and sustainability in their electrical infrastructure.
