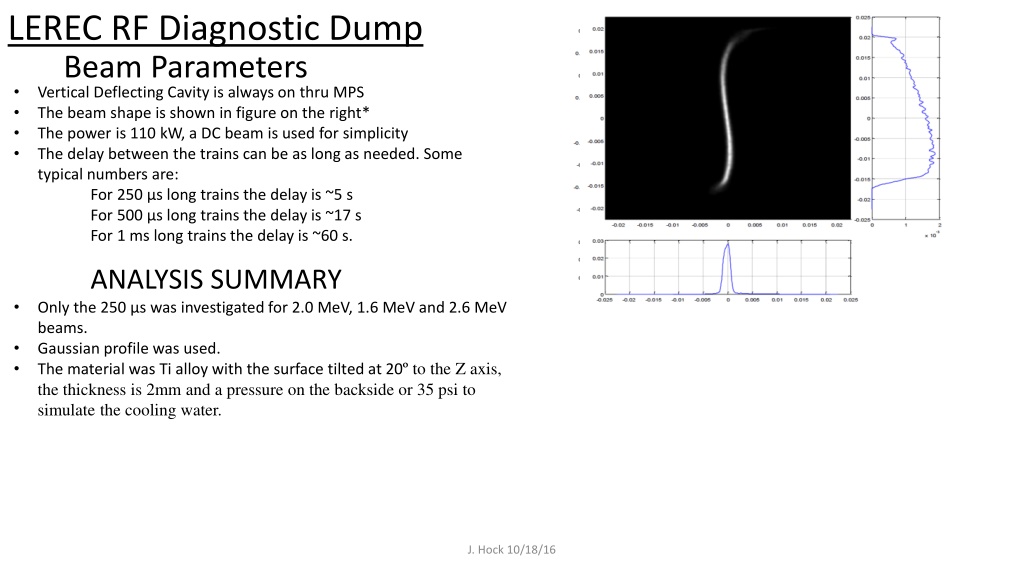

LEREC RF Diagnostic Dump Beam Parameters Vertical Deflecting Cavity is always on thru MPS The beam shape is shown in figure on the right* The power is 110 kW, a DC beam is used for simplicity The delay between the trains can be as long as needed. Some typical numbers are: For 250 s long trains the delay is ~5 s For 500 s long trains the delay is ~17 s For 1 ms long trains the delay is ~60 s. ANALYSIS SUMMARY Only the 250 s was investigated for 2.0 MeV, 1.6 MeV and 2.6 MeV beams. Gaussian profile was used. The material was Ti alloy with the surface tilted at 20 to the Z axis, the thickness is 2mm and a pressure on the backside or 35 psi to simulate the cooling water. J. Hock 10/18/16

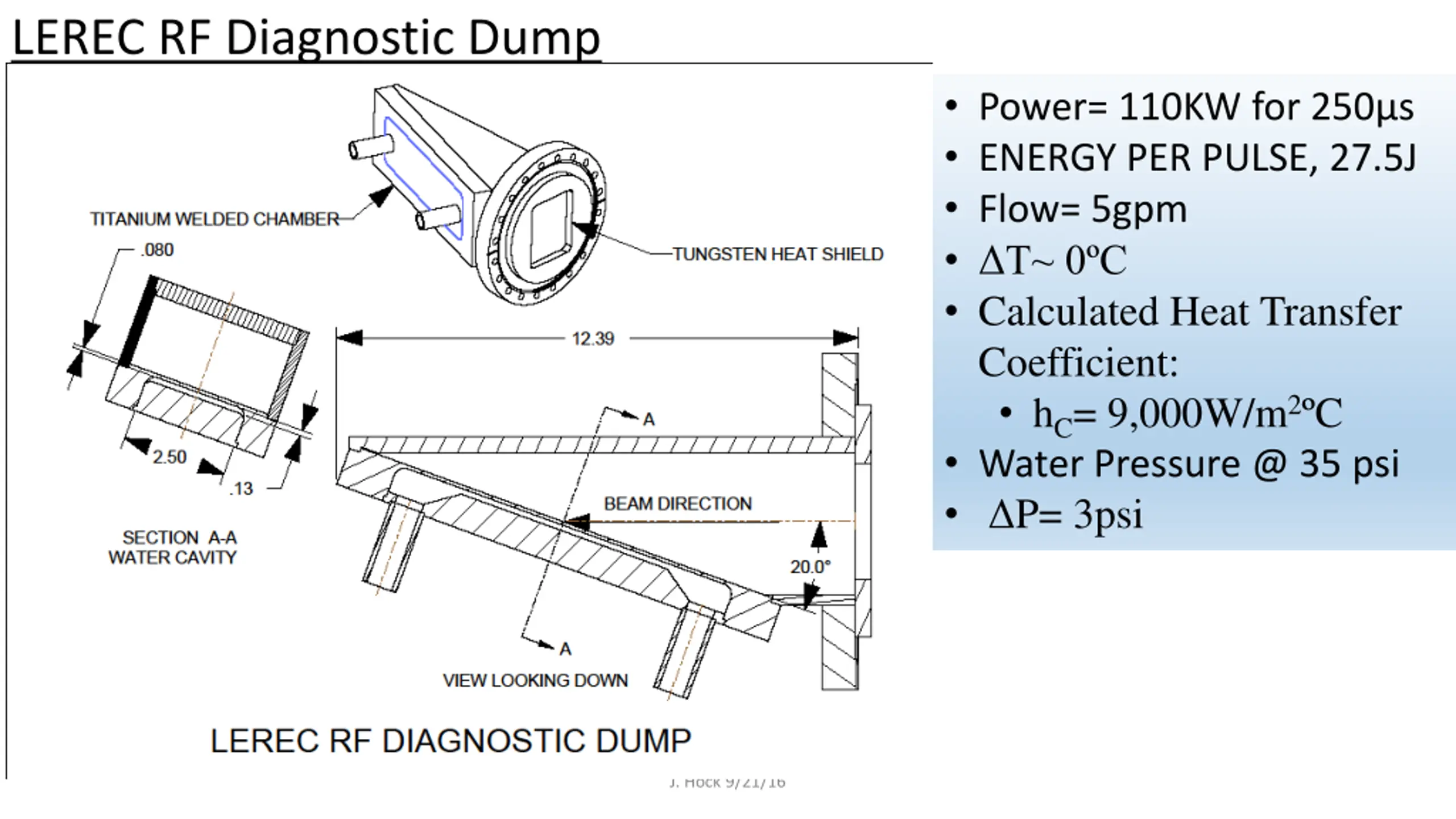

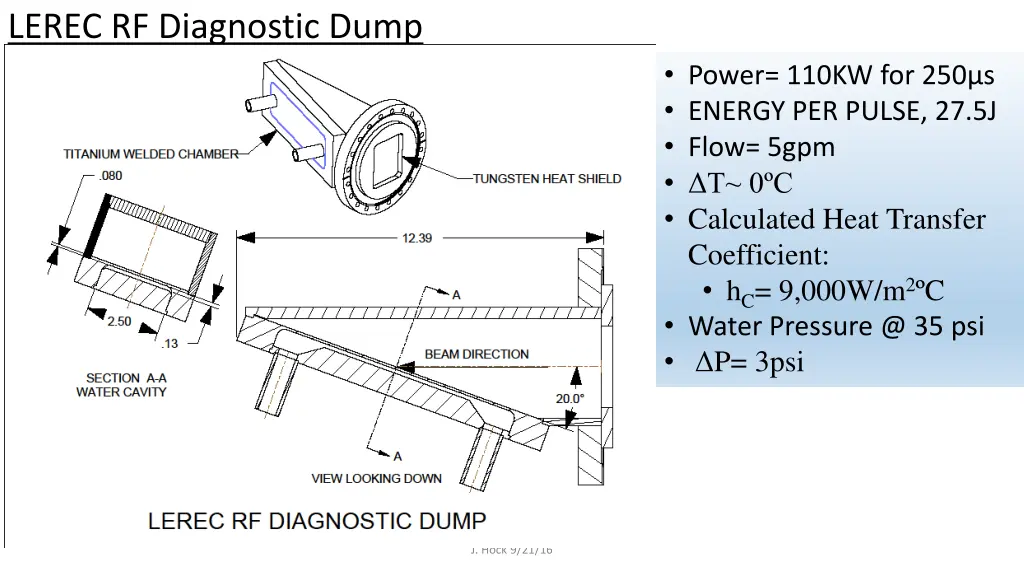

LEREC RF Diagnostic Dump Power= 110KW for 250 s ENERGY PER PULSE, 27.5J Flow= 5gpm T~ 0 C Calculated Heat Transfer Coefficient: hC= 9,000W/m2 C Water Pressure @ 35 psi P= 3psi J. Hock 9/21/16

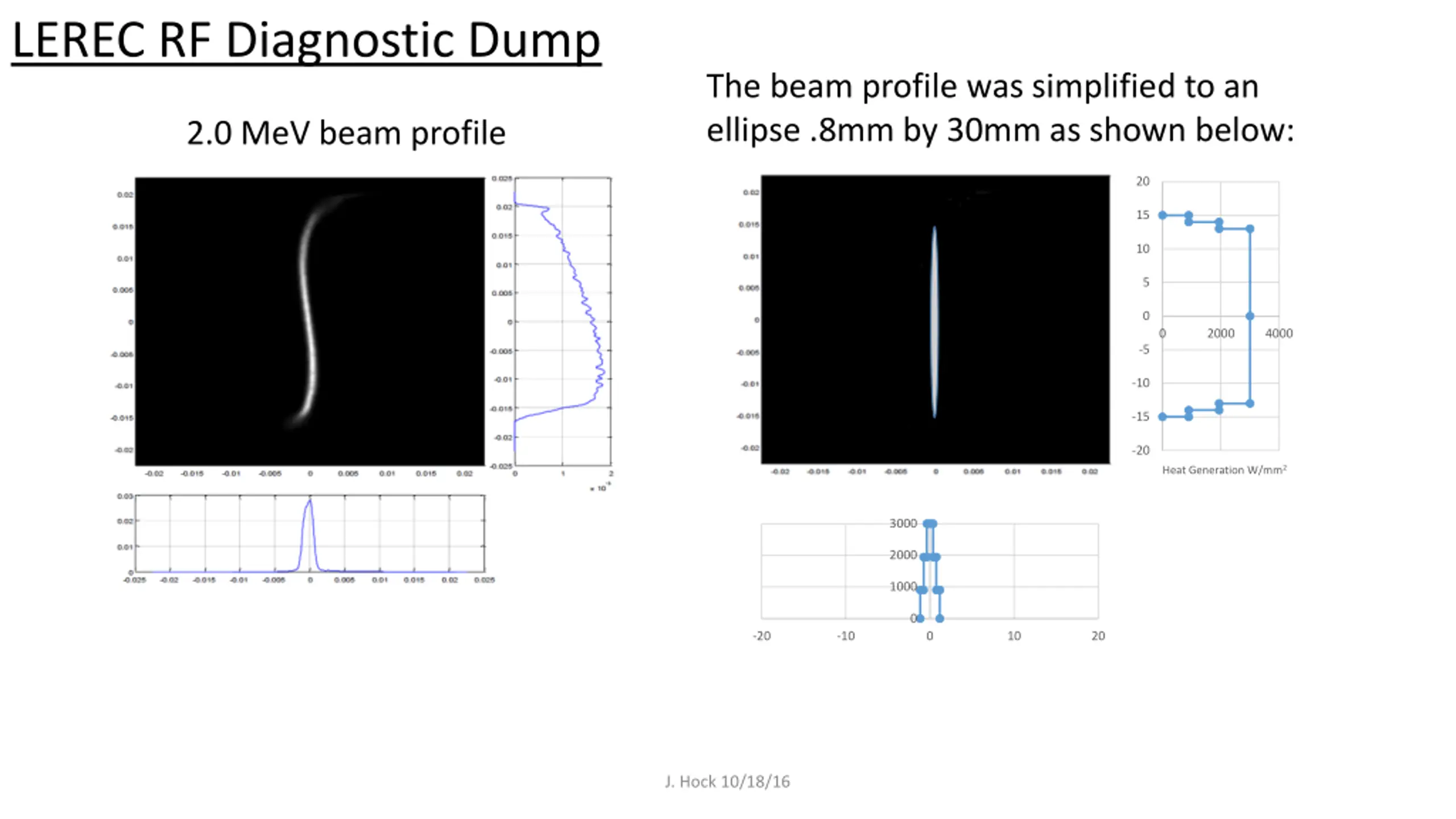

LEREC RF Diagnostic Dump The beam profile was simplified to an ellipse .8mm by 30mm as shown below: 2.0 MeV beam profile 20 15 10 5 0 0 2000 4000 -5 -10 -15 -20 Heat Generation W/mm2 3000 2000 1000 0 -20 -10 0 10 20 J. Hock 10/18/16

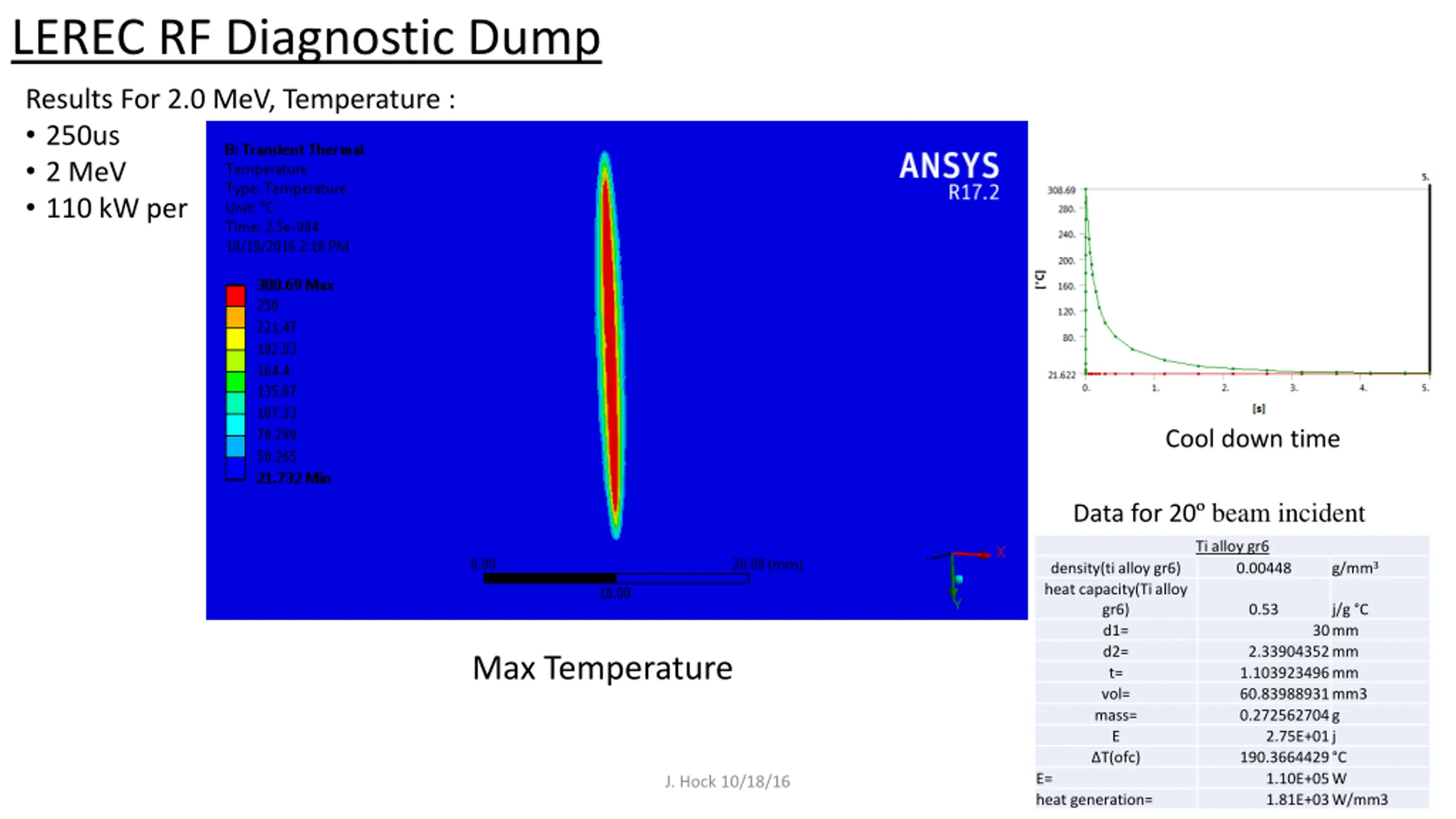

LEREC RF Diagnostic Dump Results For 2.0 MeV, Temperature : 250us 2 MeV 110 kW per Cool down time Data for 20 beam incident Ti alloy gr6 g/mm3 density(ti alloy gr6) heat capacity(Ti alloy gr6) d1= d2= t= vol= mass= E T(ofc) E= heat generation= 0.00448 0.53 j/g C 30mm 2.33904352mm 1.103923496mm 60.83988931mm3 0.272562704g 2.75E+01j 190.3664429 C 1.10E+05W 1.81E+03W/mm3 Max Temperature J. Hock 10/18/16

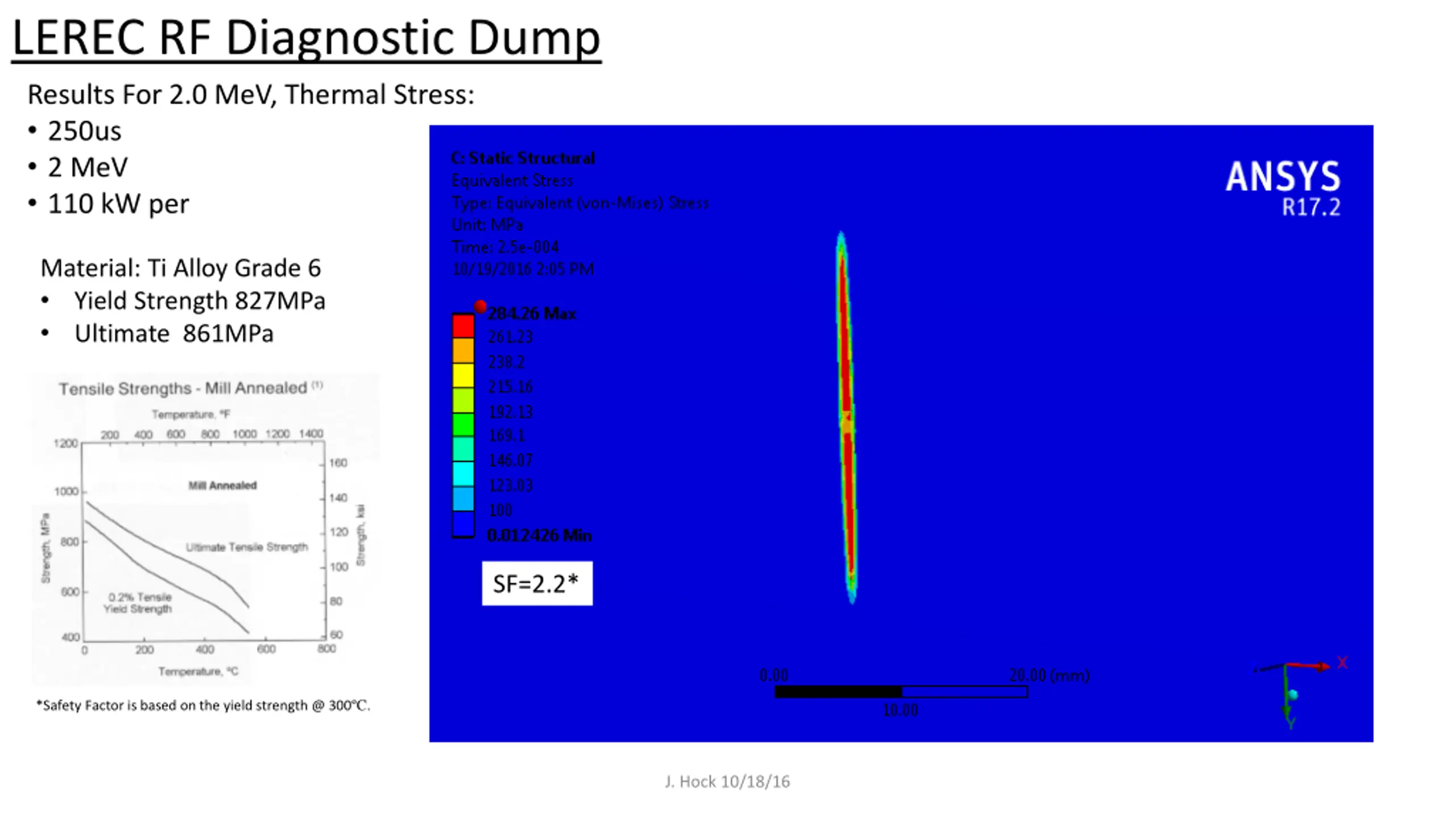

LEREC RF Diagnostic Dump Results For 2.0 MeV, Thermal Stress: 250us 2 MeV 110 kW per Material: Ti Alloy Grade 6 Yield Strength 827MPa Ultimate 861MPa SF=2.2* *Safety Factor is based on the yield strength @ 300 C. J. Hock 10/18/16
LEREC RF Diagnostic Dump The beam profile was simplified to an ellipse .8mm by 30mm as shown below: 1.6 MeV beam profile 20 15 10 5 0 0 2000 4000 -5 -10 -15 -20 Heat Generation W/mm2 4000 2000 0 -20 -10 0 10 20 J. Hock 10/18/16

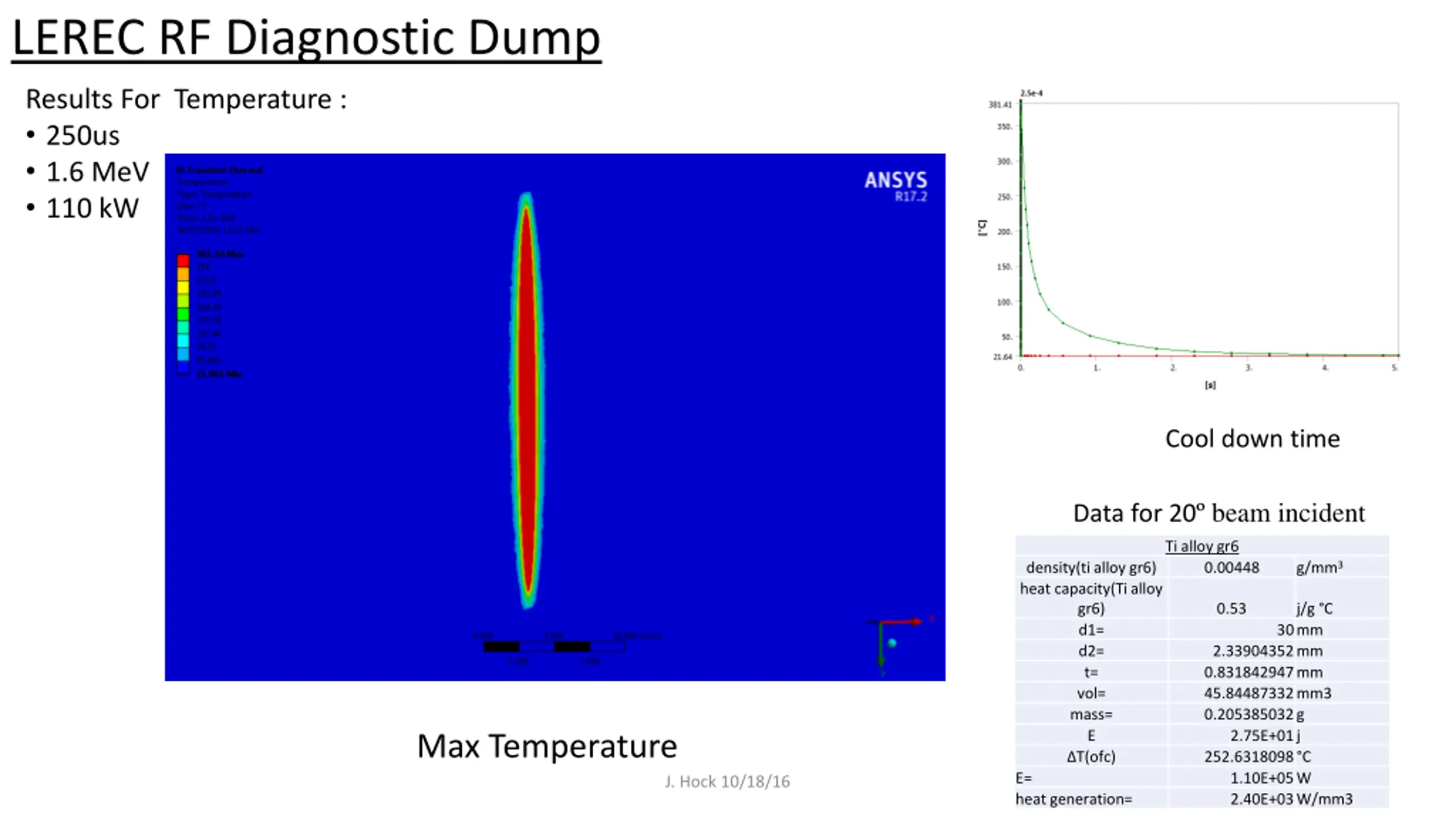

LEREC RF Diagnostic Dump Results For Temperature : 250us 1.6 MeV 110 kW Cool down time Data for 20 beam incident Ti alloy gr6 g/mm3 density(ti alloy gr6) heat capacity(Ti alloy gr6) d1= d2= t= vol= mass= E T(ofc) E= heat generation= 0.00448 0.53 j/g C 30mm 2.33904352mm 0.831842947mm 45.84487332mm3 0.205385032g 2.75E+01j 252.6318098 C 1.10E+05W 2.40E+03W/mm3 Max Temperature J. Hock 10/18/16

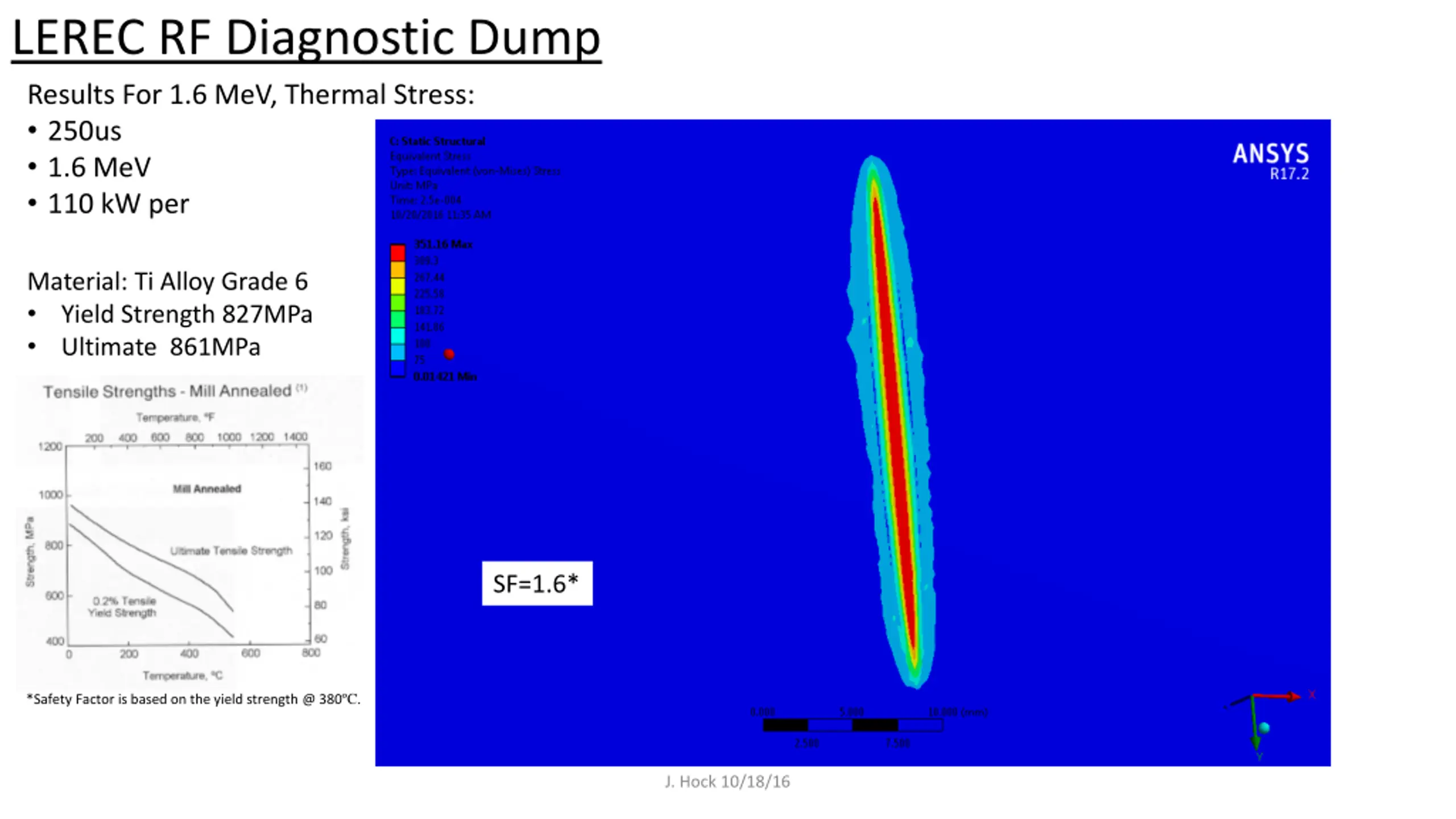

LEREC RF Diagnostic Dump Results For 1.6 MeV, Thermal Stress: 250us 1.6 MeV 110 kW per Material: Ti Alloy Grade 6 Yield Strength 827MPa Ultimate 861MPa SF=1.6* *Safety Factor is based on the yield strength @ 380 C. J. Hock 10/18/16

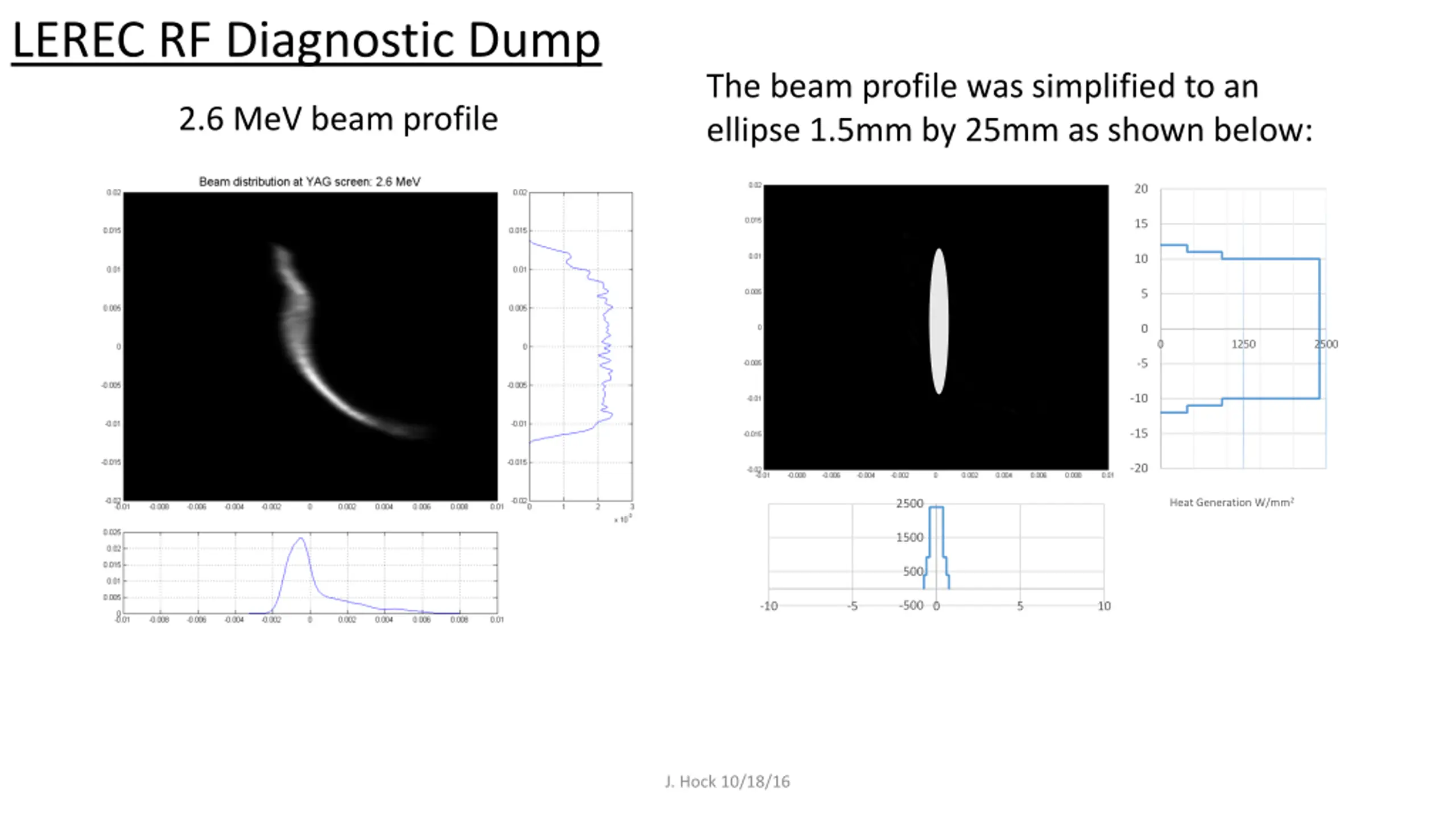

LEREC RF Diagnostic Dump The beam profile was simplified to an ellipse 1.5mm by 25mm as shown below: 2.6 MeV beam profile 20 15 10 5 0 0 1250 2500 -5 -10 -15 -20 Heat Generation W/mm2 2500 1500 500 -500 -10 -5 0 5 10 J. Hock 10/18/16

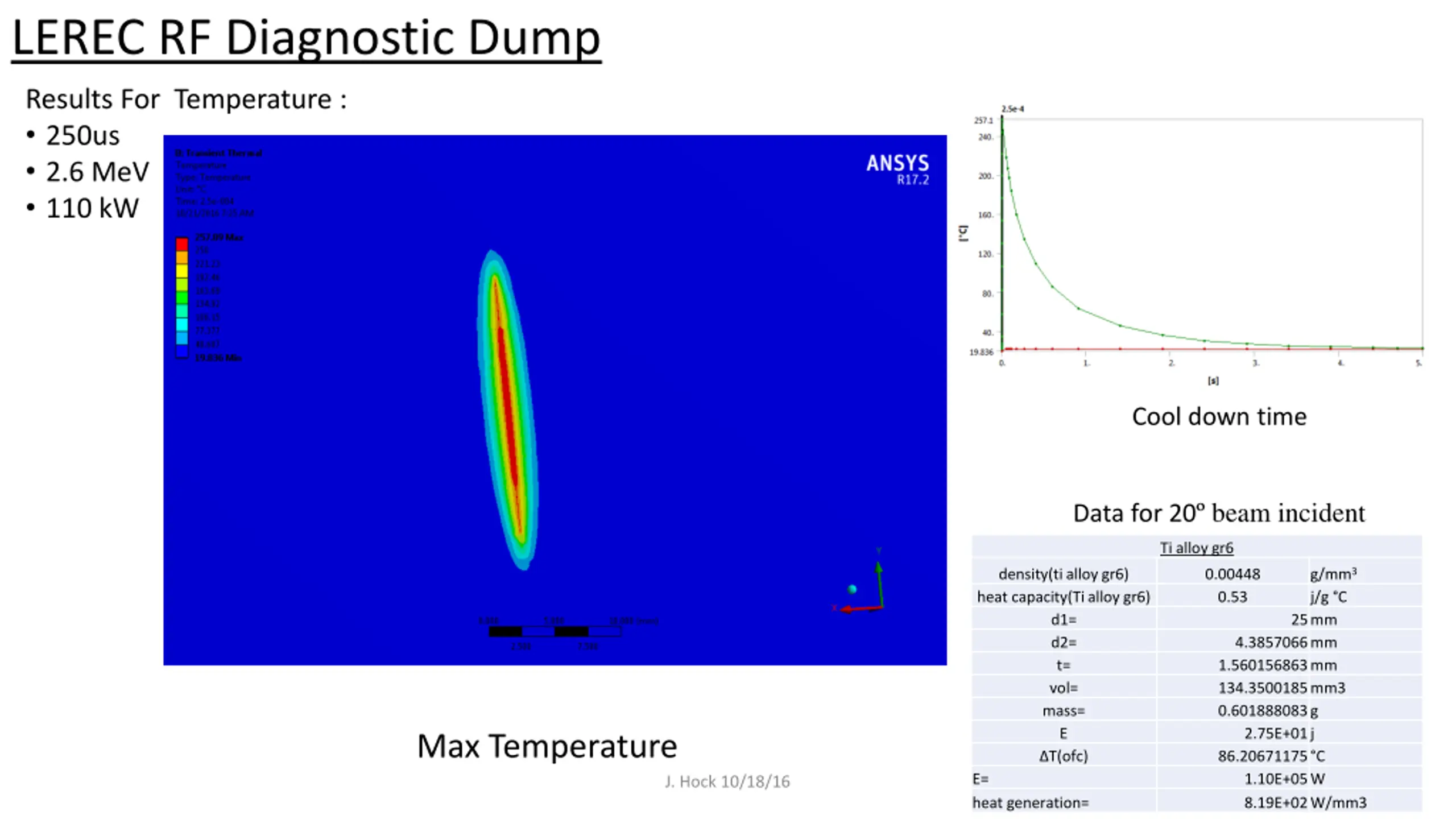

LEREC RF Diagnostic Dump Results For Temperature : 250us 2.6 MeV 110 kW Cool down time Data for 20 beam incident Ti alloy gr6 g/mm3 j/g C 25mm density(ti alloy gr6) heat capacity(Ti alloy gr6) d1= d2= t= vol= mass= E T(ofc) E= heat generation= 0.00448 0.53 4.3857066mm 1.560156863mm 134.3500185mm3 0.601888083g 2.75E+01j 86.20671175 C 1.10E+05W 8.19E+02W/mm3 Max Temperature J. Hock 10/18/16

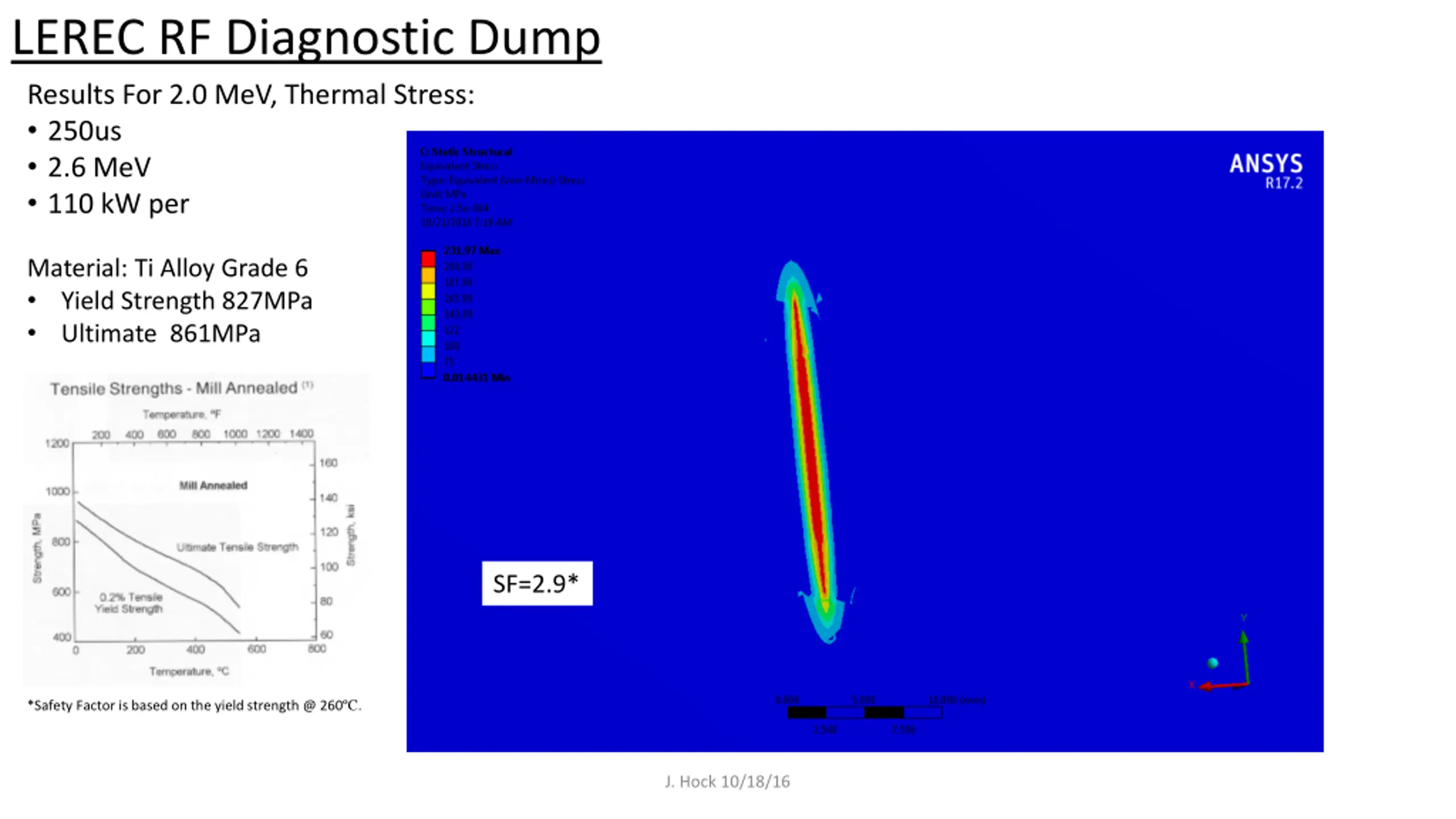

LEREC RF Diagnostic Dump Results For 2.0 MeV, Thermal Stress: 250us 2.6 MeV 110 kW per Material: Ti Alloy Grade 6 Yield Strength 827MPa Ultimate 861MPa SF=2.9* *Safety Factor is based on the yield strength @ 260 C. J. Hock 10/18/16
