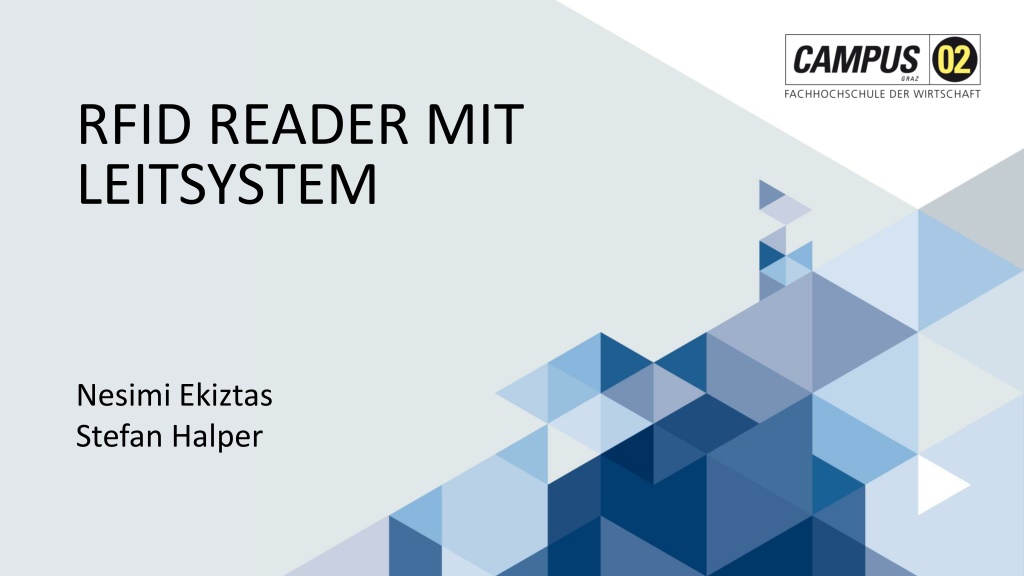

RFID READER MIT LEITSYSTEM Nesimi Ekiztas Stefan Halper

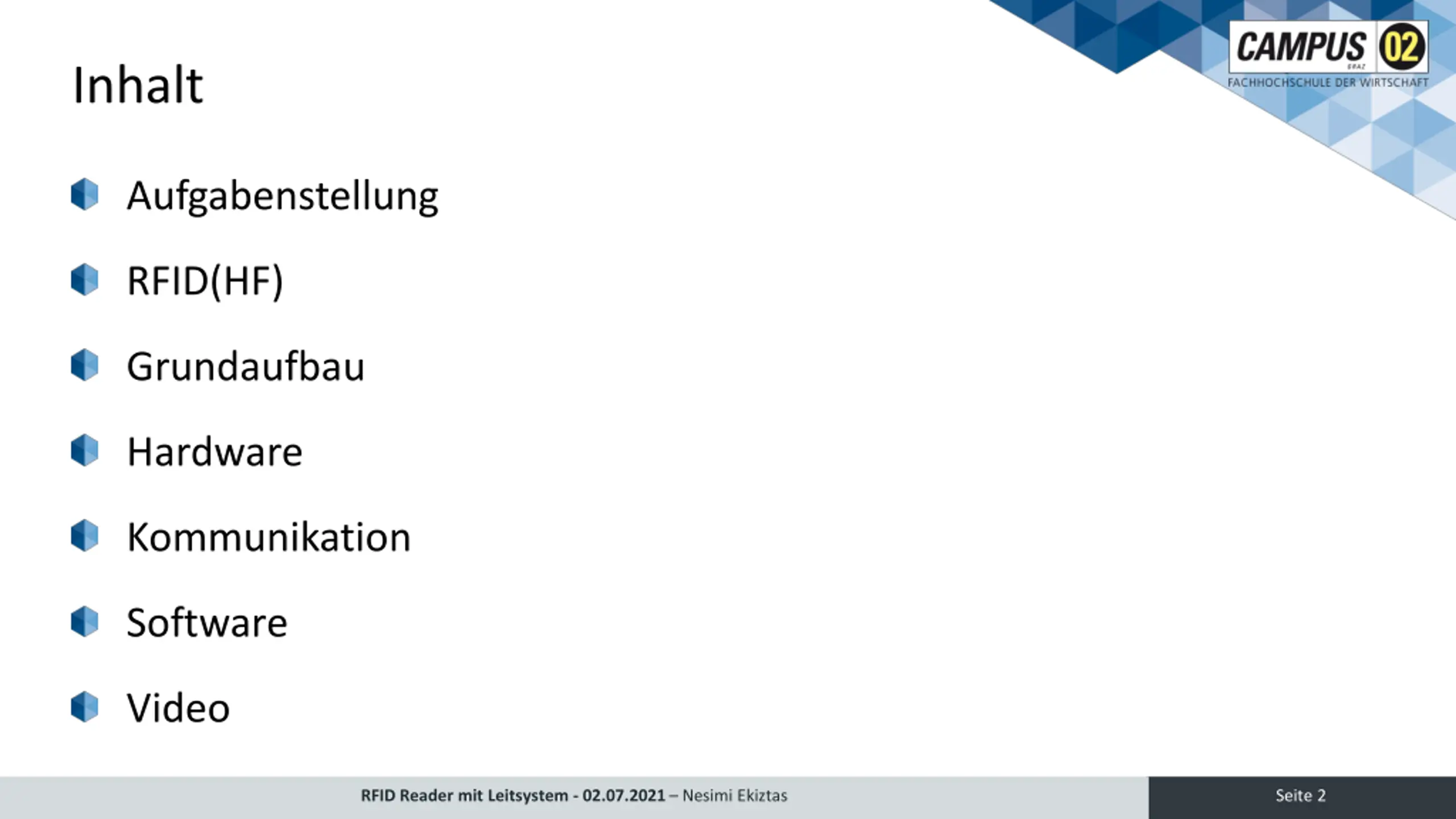

Inhalt Aufgabenstellung RFID(HF) Grundaufbau Hardware Kommunikation Software Video RFID Reader mit Leitsystem - 02.07.2021 Nesimi Ekiztas Seite 2

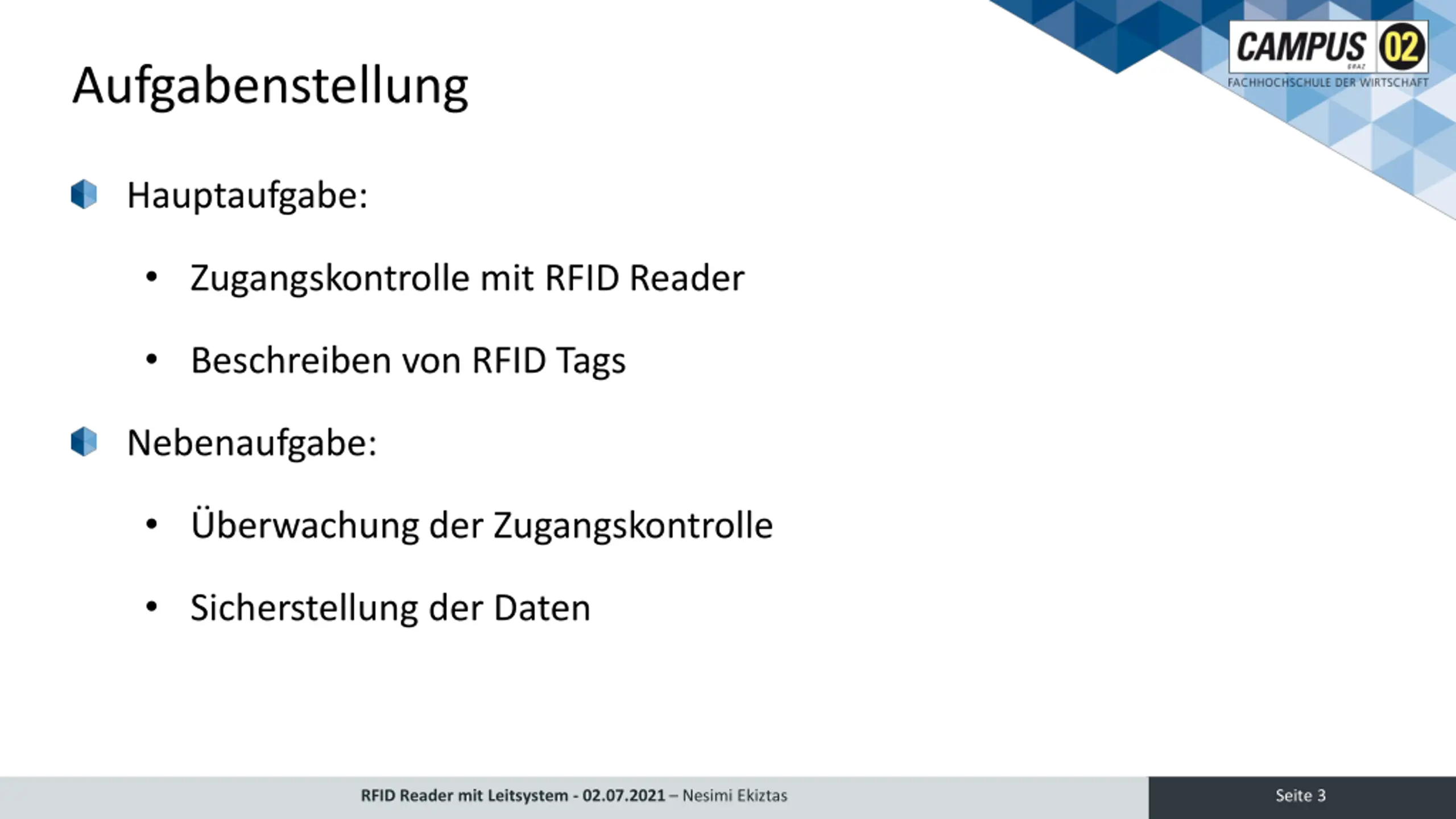

Aufgabenstellung Hauptaufgabe: Zugangskontrolle mit RFID Reader Beschreiben von RFID Tags Nebenaufgabe: berwachung der Zugangskontrolle Sicherstellung der Daten RFID Reader mit Leitsystem - 02.07.2021 Nesimi Ekiztas Seite 3

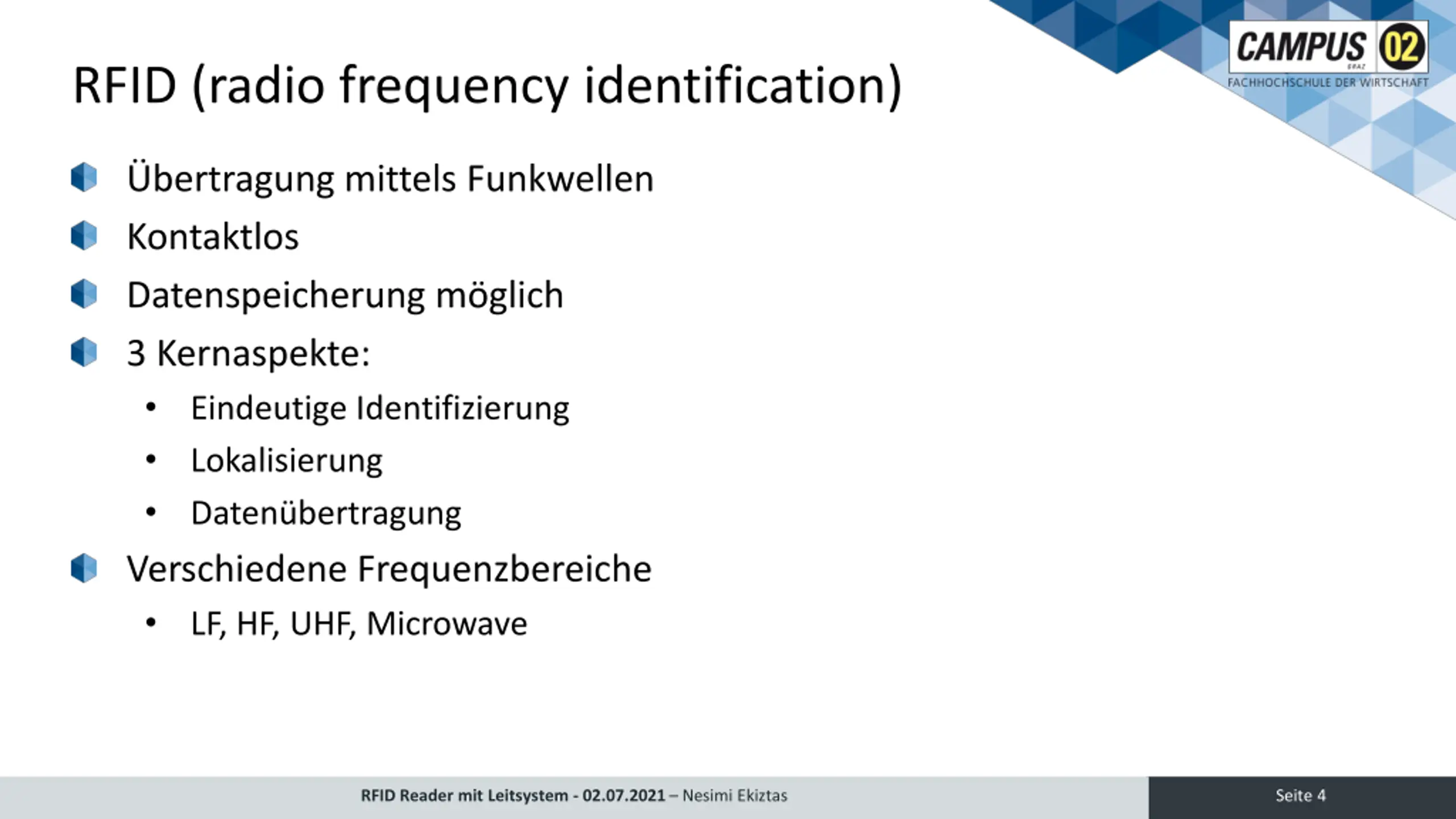

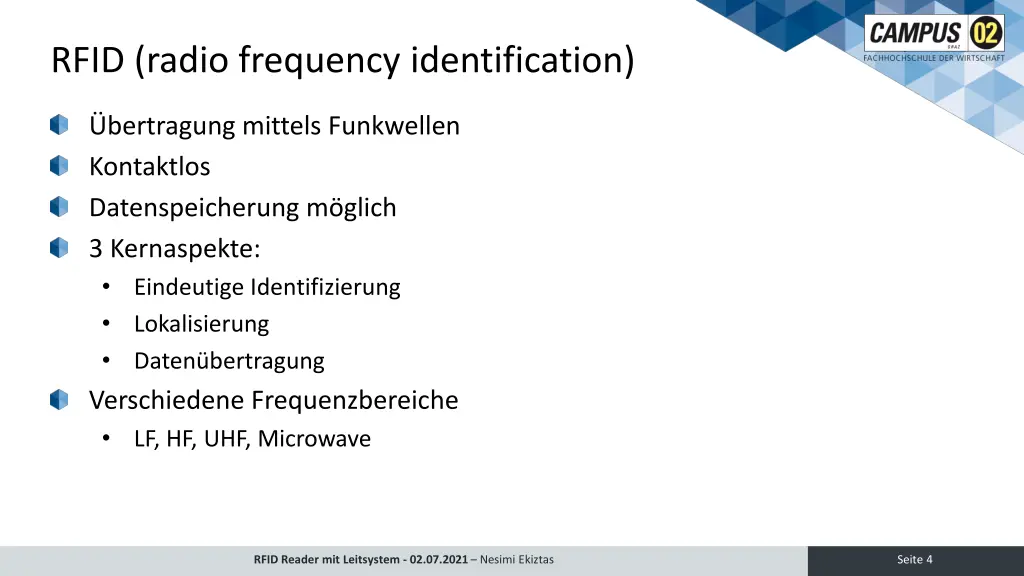

RFID (radio frequency identification) bertragung mittels Funkwellen Kontaktlos Datenspeicherung m glich 3 Kernaspekte: Eindeutige Identifizierung Lokalisierung Daten bertragung Verschiedene Frequenzbereiche LF, HF, UHF, Microwave RFID Reader mit Leitsystem - 02.07.2021 Nesimi Ekiztas Seite 4

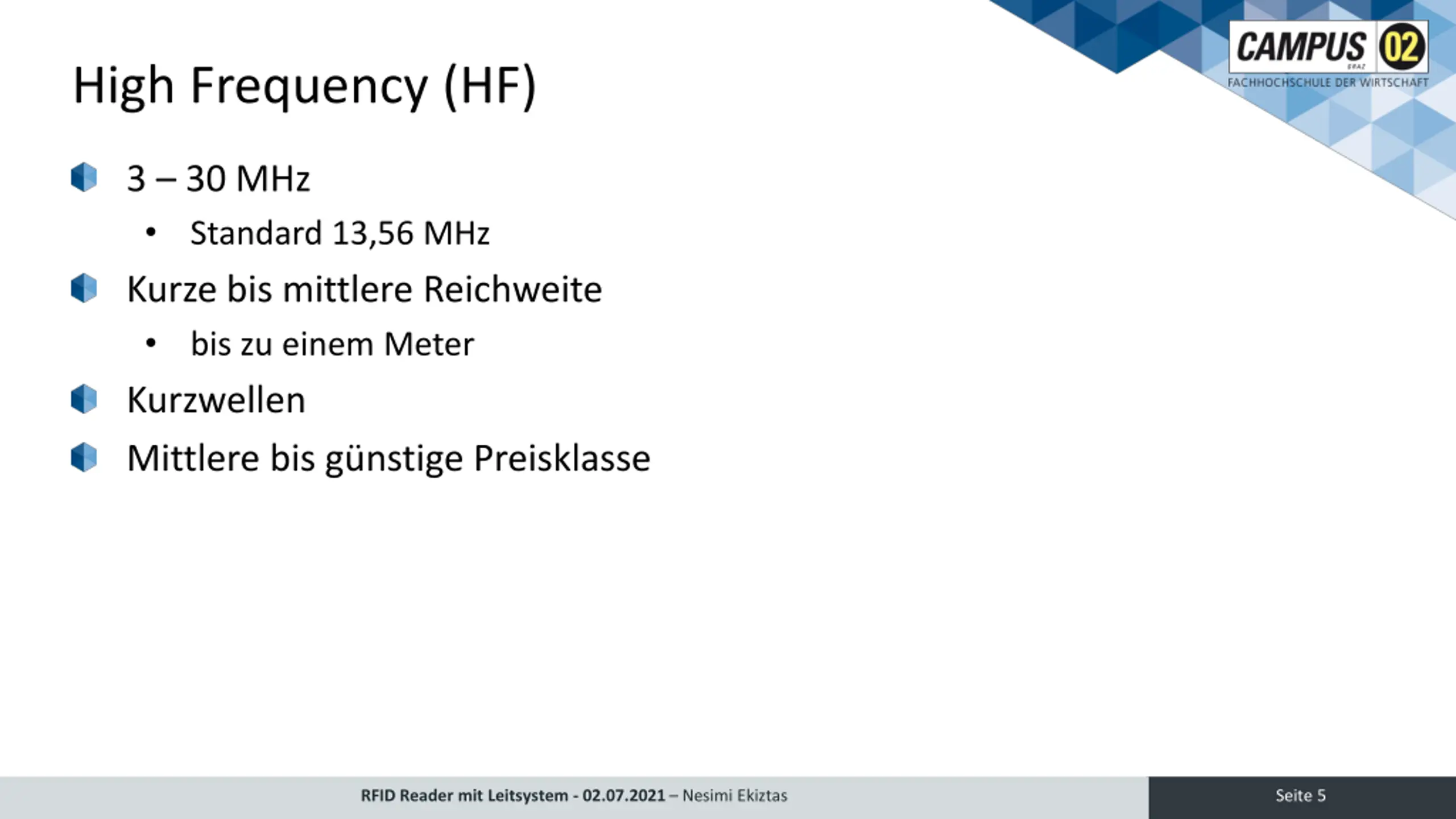

High Frequency (HF) 3 30 MHz Standard 13,56 MHz Kurze bis mittlere Reichweite bis zu einem Meter Kurzwellen Mittlere bis g nstige Preisklasse RFID Reader mit Leitsystem - 02.07.2021 Nesimi Ekiztas Seite 5

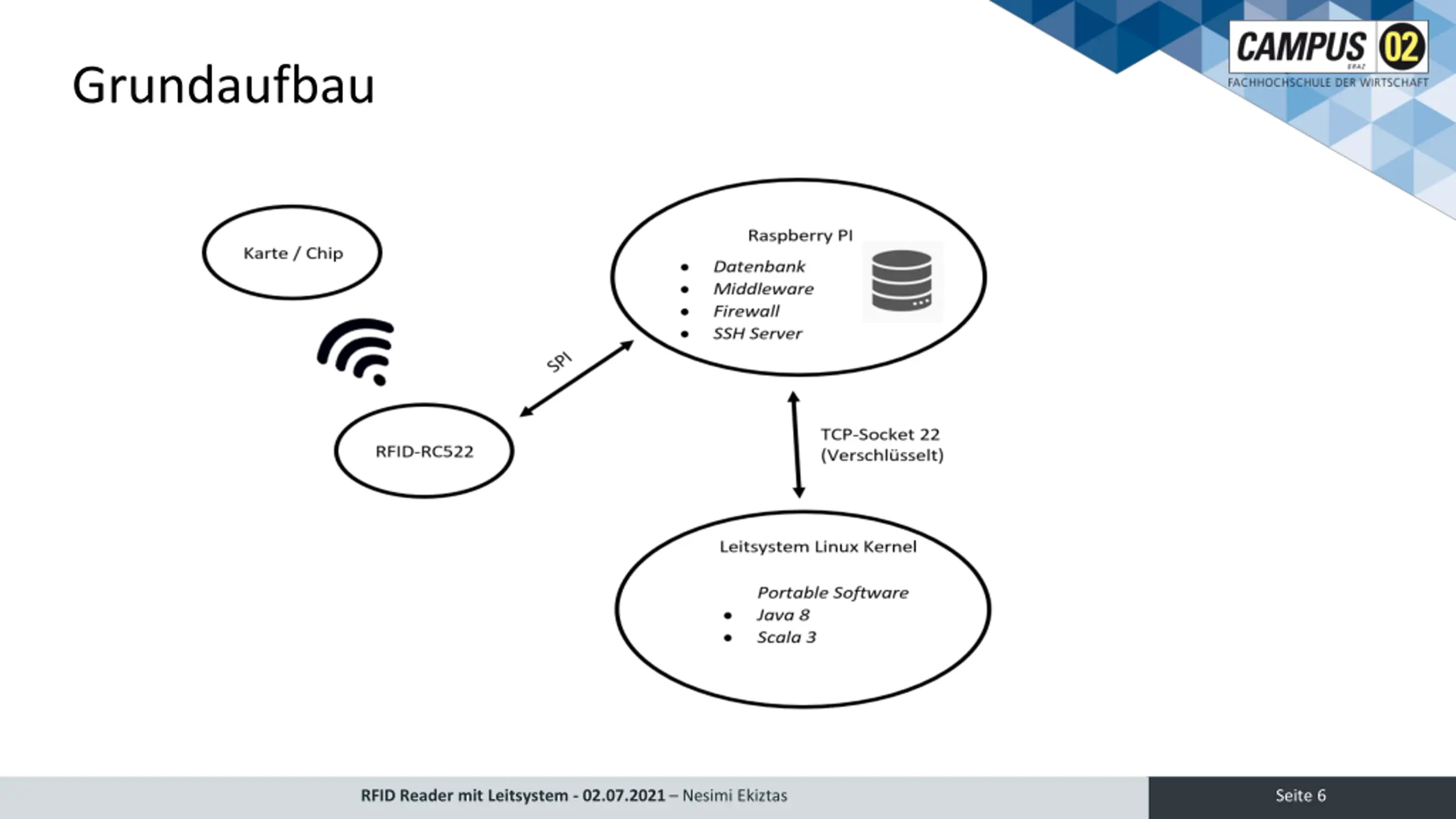

Grundaufbau RFID Reader mit Leitsystem - 02.07.2021 Nesimi Ekiztas Seite 6

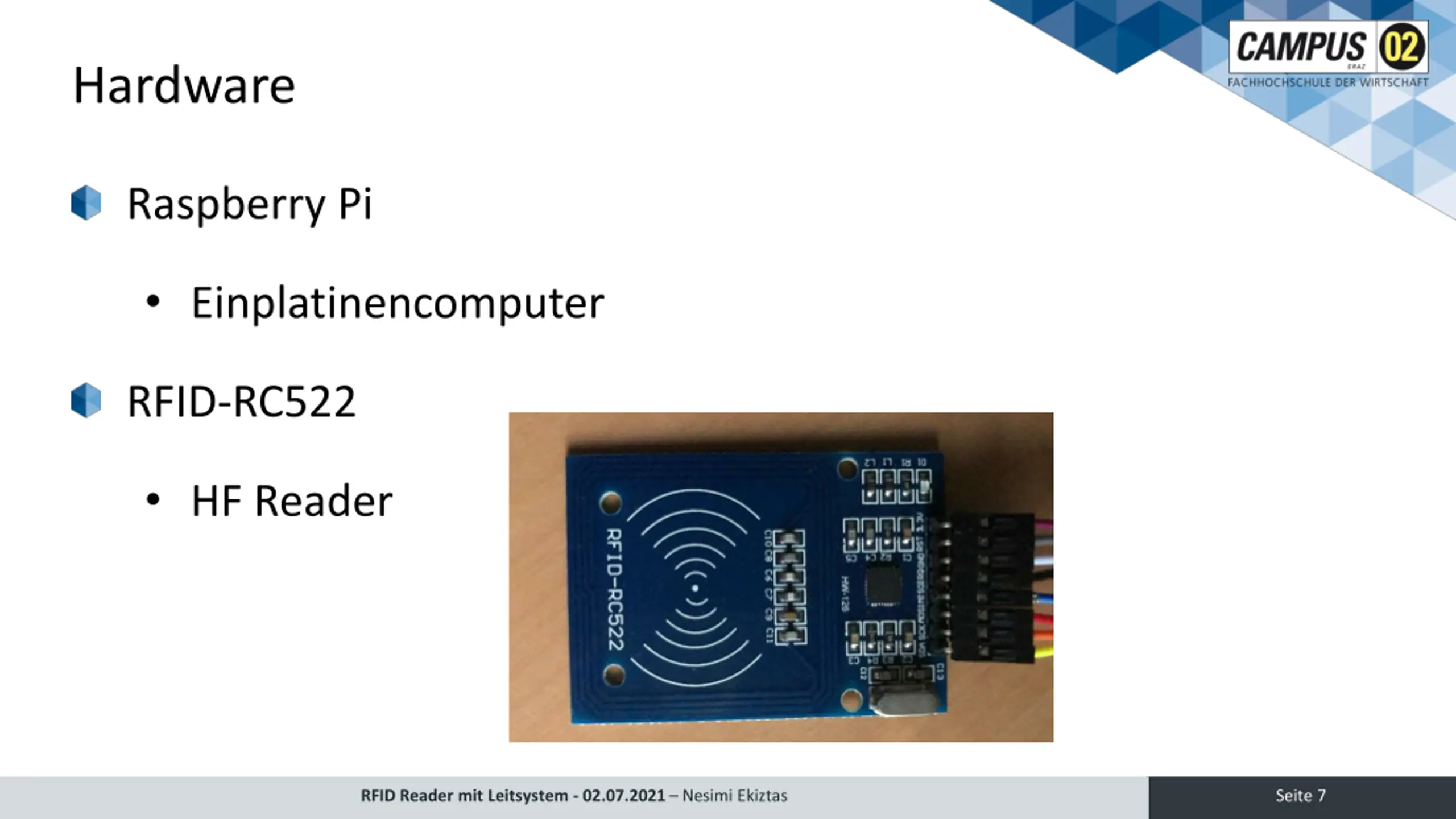

Hardware Raspberry Pi Einplatinencomputer RFID-RC522 HF Reader RFID Reader mit Leitsystem - 02.07.2021 Nesimi Ekiztas Seite 7

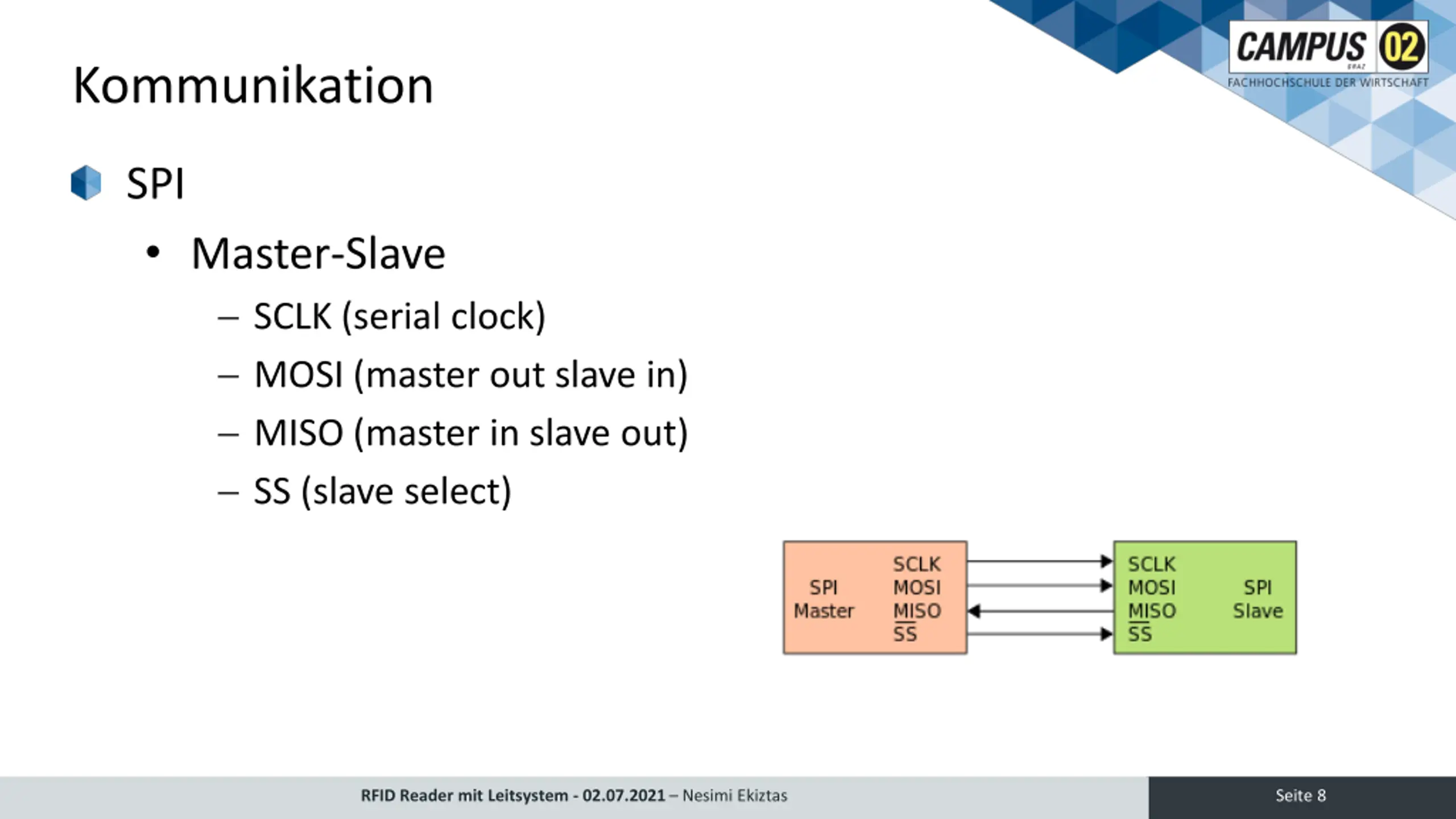

Kommunikation SPI Master-Slave SCLK (serial clock) MOSI (master out slave in) MISO (master in slave out) SS (slave select) RFID Reader mit Leitsystem - 02.07.2021 Nesimi Ekiztas Seite 8

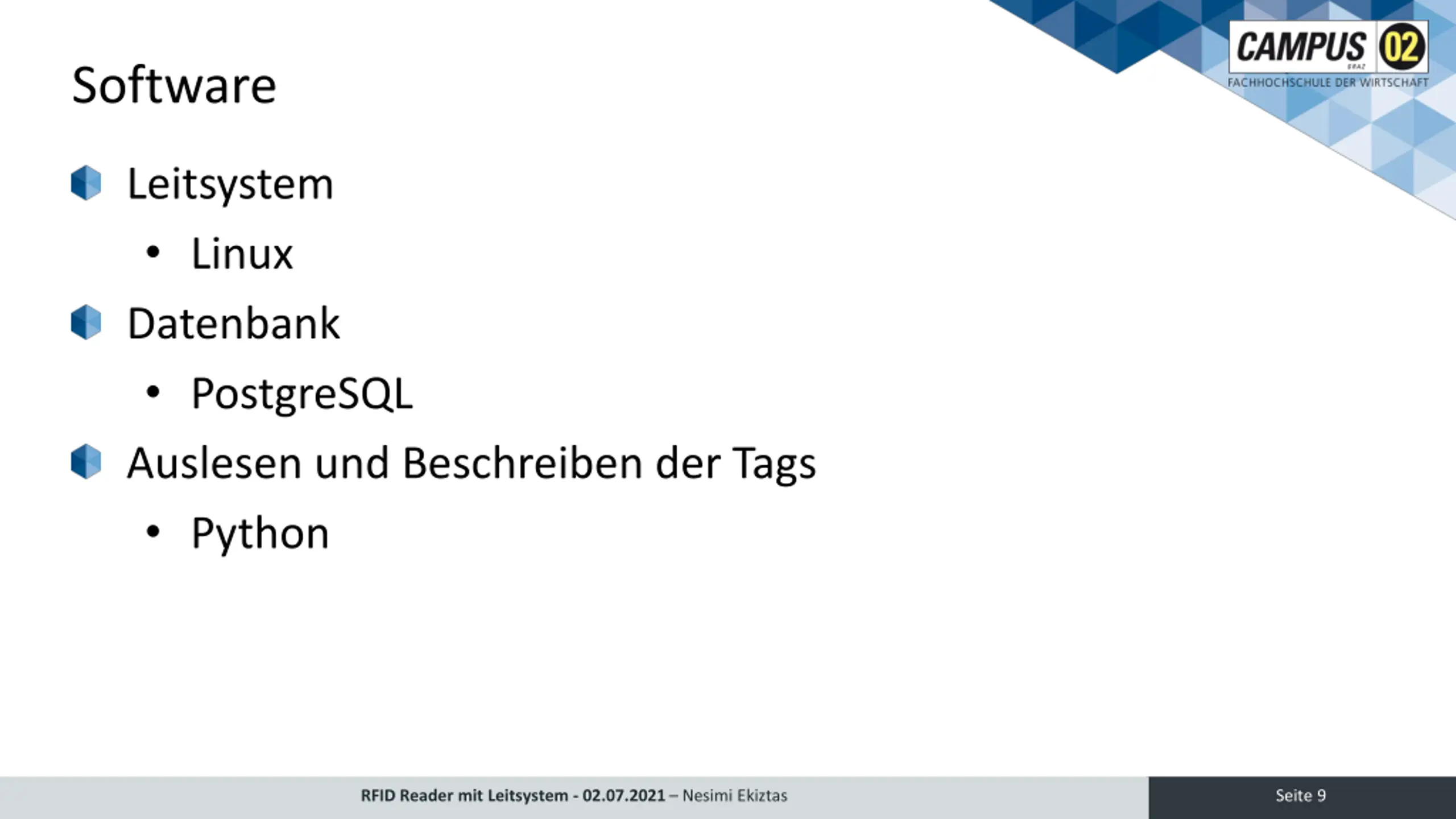

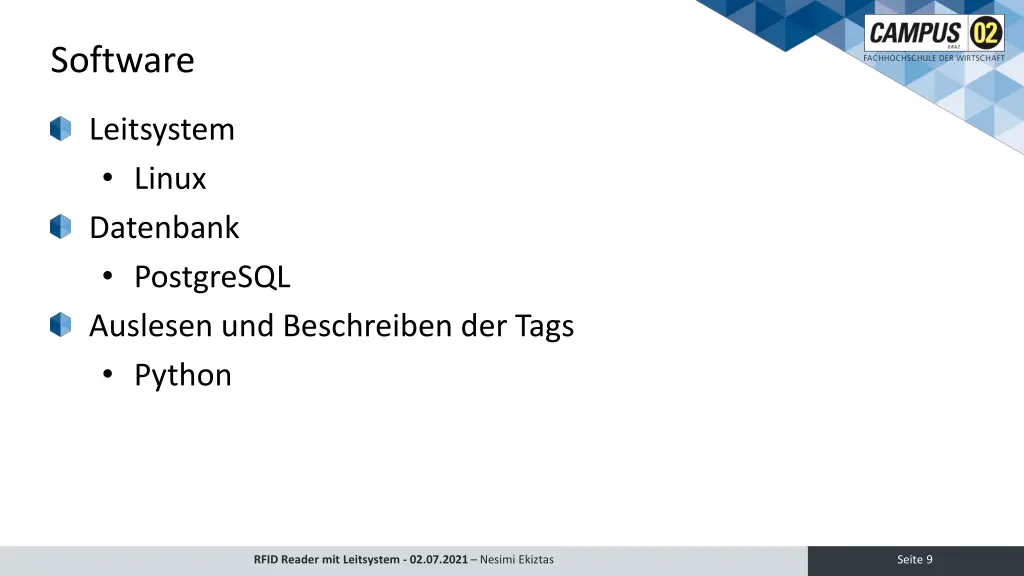

Software Leitsystem Linux Datenbank PostgreSQL Auslesen und Beschreiben der Tags Python RFID Reader mit Leitsystem - 02.07.2021 Nesimi Ekiztas Seite 9

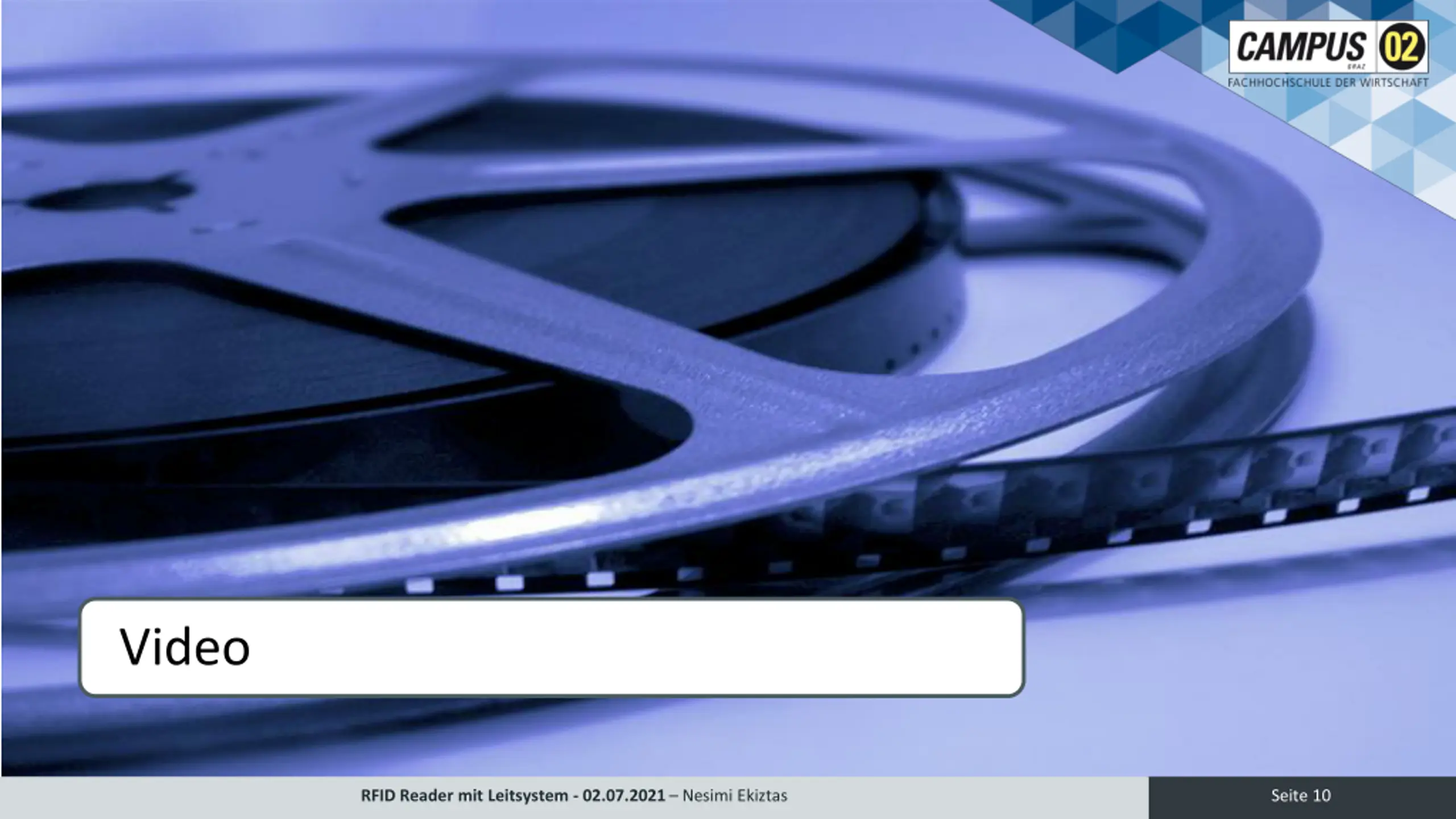

Video RFID Reader mit Leitsystem - 02.07.2021 Nesimi Ekiztas Seite 10
