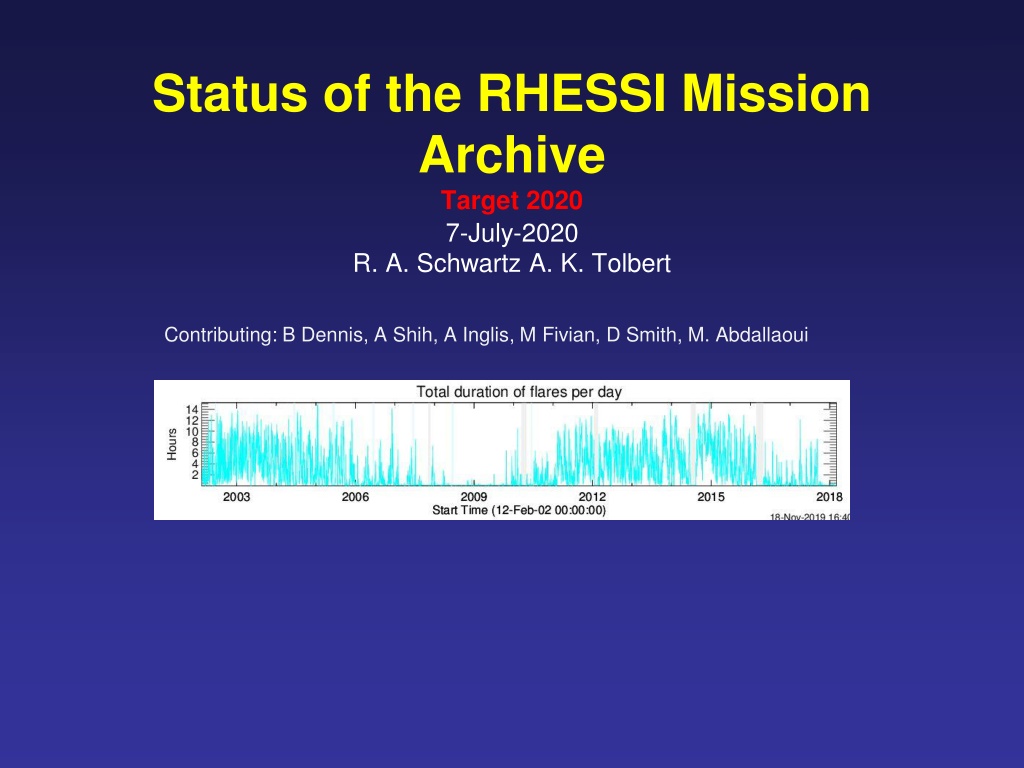

Status of the RHESSI Mission Archive Target 2020 7-July-2020 R. A. Schwartz A. K. Tolbert Contributing: B Dennis, A Shih, A Inglis, M Fivian, D Smith, M. Abdallaoui

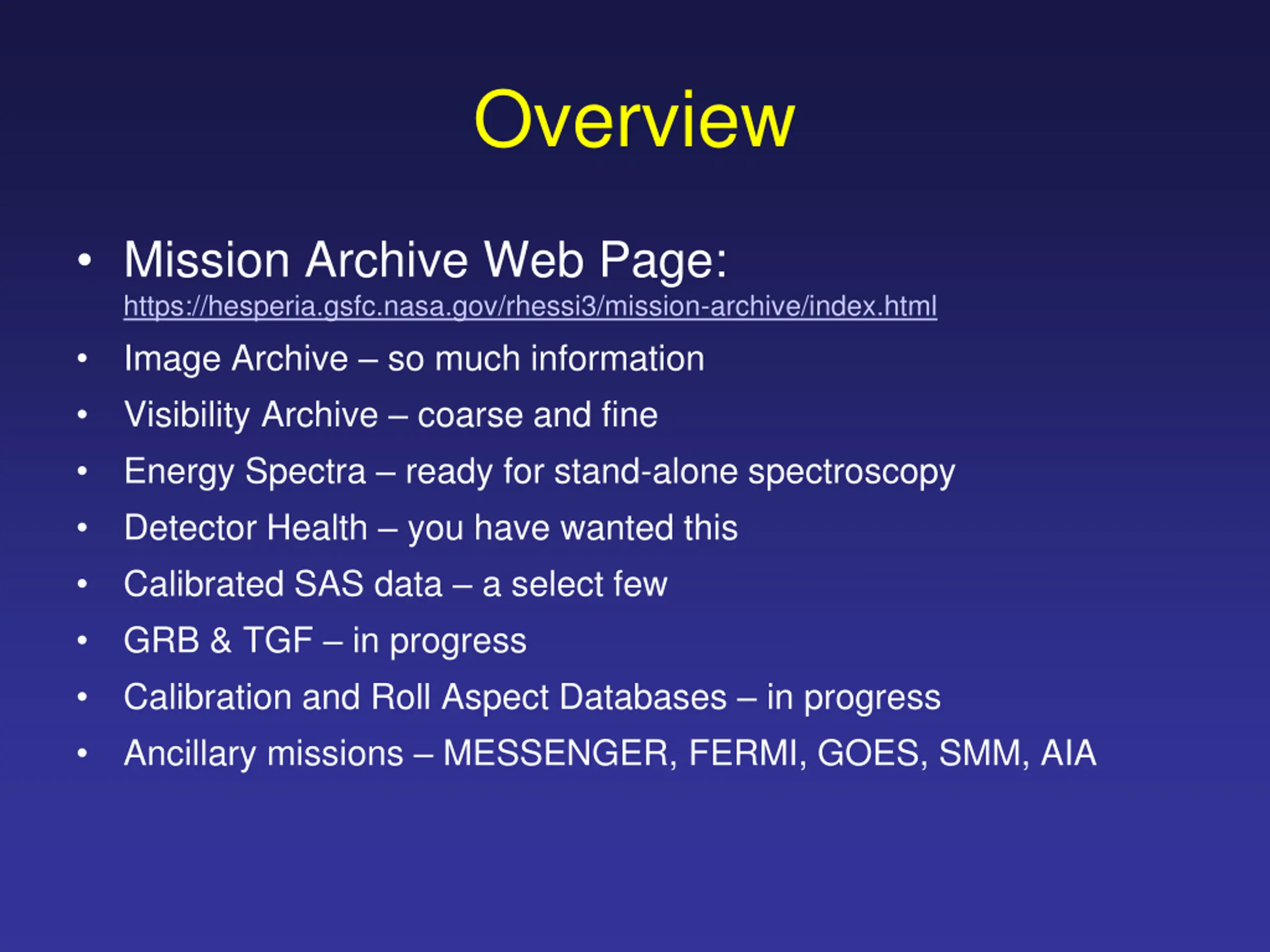

Overview Mission Archive Web Page: https://hesperia.gsfc.nasa.gov/rhessi3/mission-archive/index.html Image Archive so much information Visibility Archive coarse and fine Energy Spectra ready for stand-alone spectroscopy Detector Health you have wanted this Calibrated SAS data a select few GRB & TGF in progress Calibration and Roll Aspect Databases in progress Ancillary missions MESSENGER, FERMI, GOES, SMM, AIA

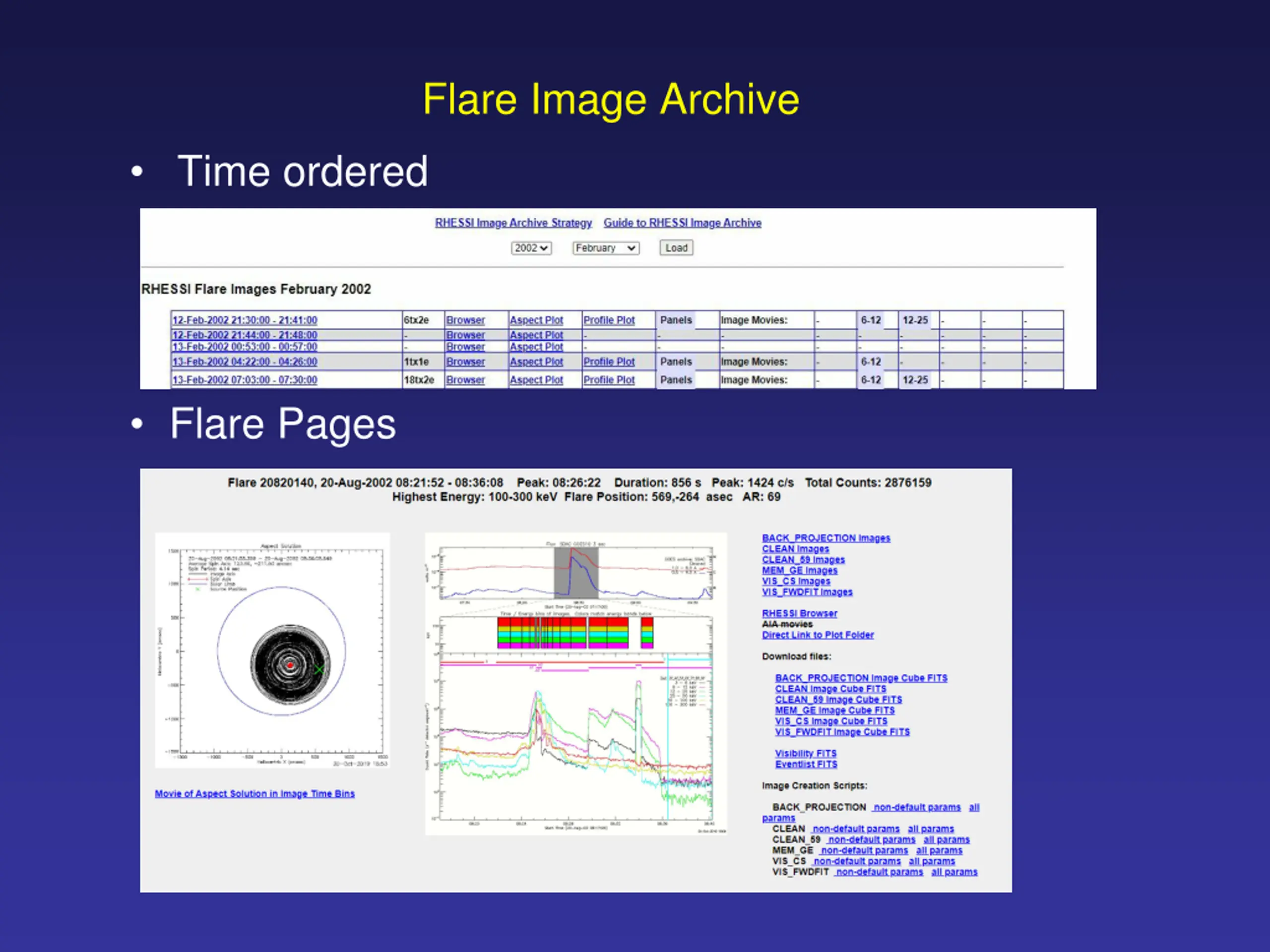

Flare Image Archive Time ordered Flare Pages

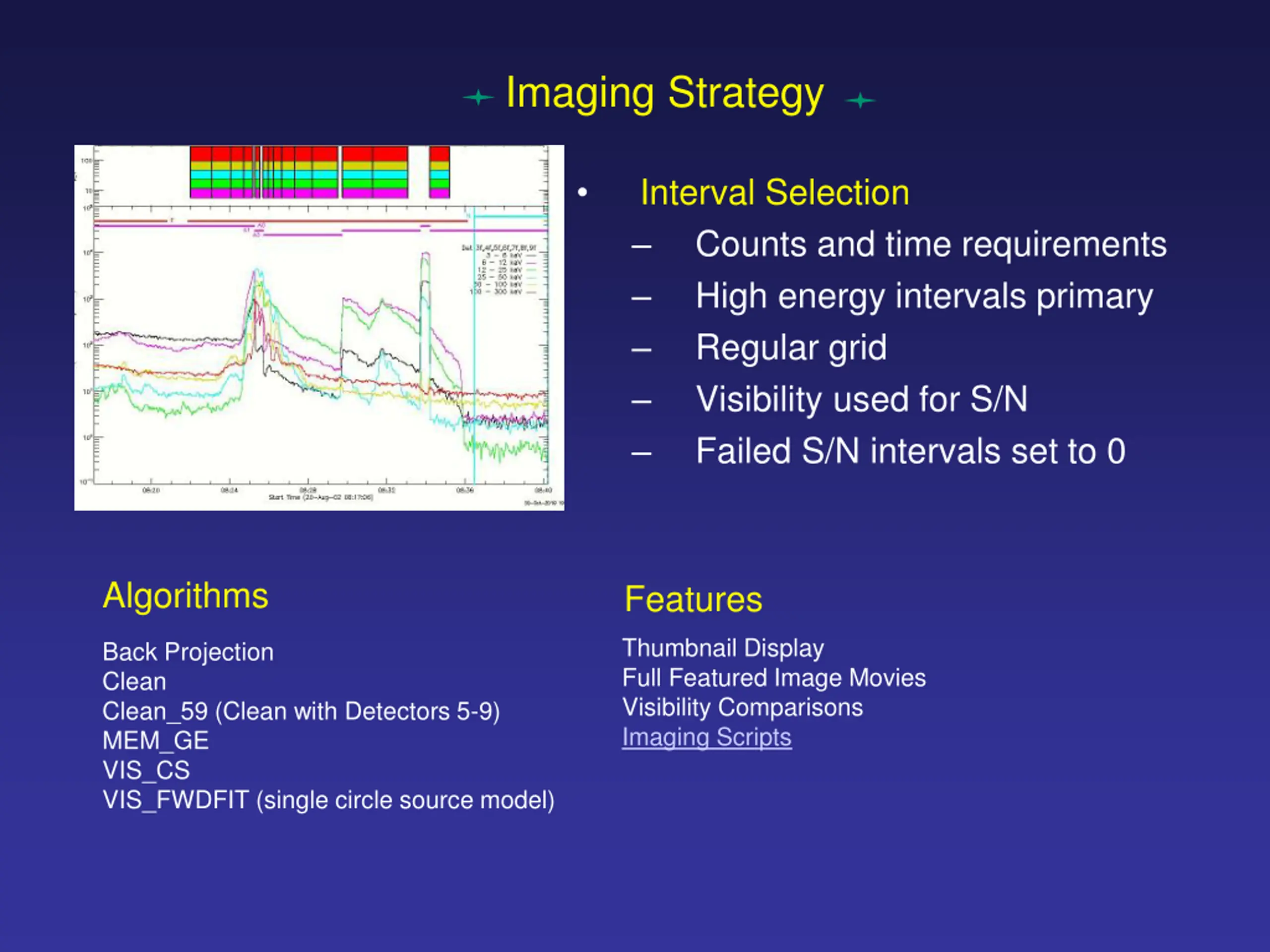

Imaging Strategy Interval Selection Counts and time requirements High energy intervals primary Regular grid Visibility used for S/N Failed S/N intervals set to 0 Algorithms Features Thumbnail Display Full Featured Image Movies Visibility Comparisons Imaging Scripts Back Projection Clean Clean_59 (Clean with Detectors 5-9) MEM_GE VIS_CS VIS_FWDFIT (single circle source model)

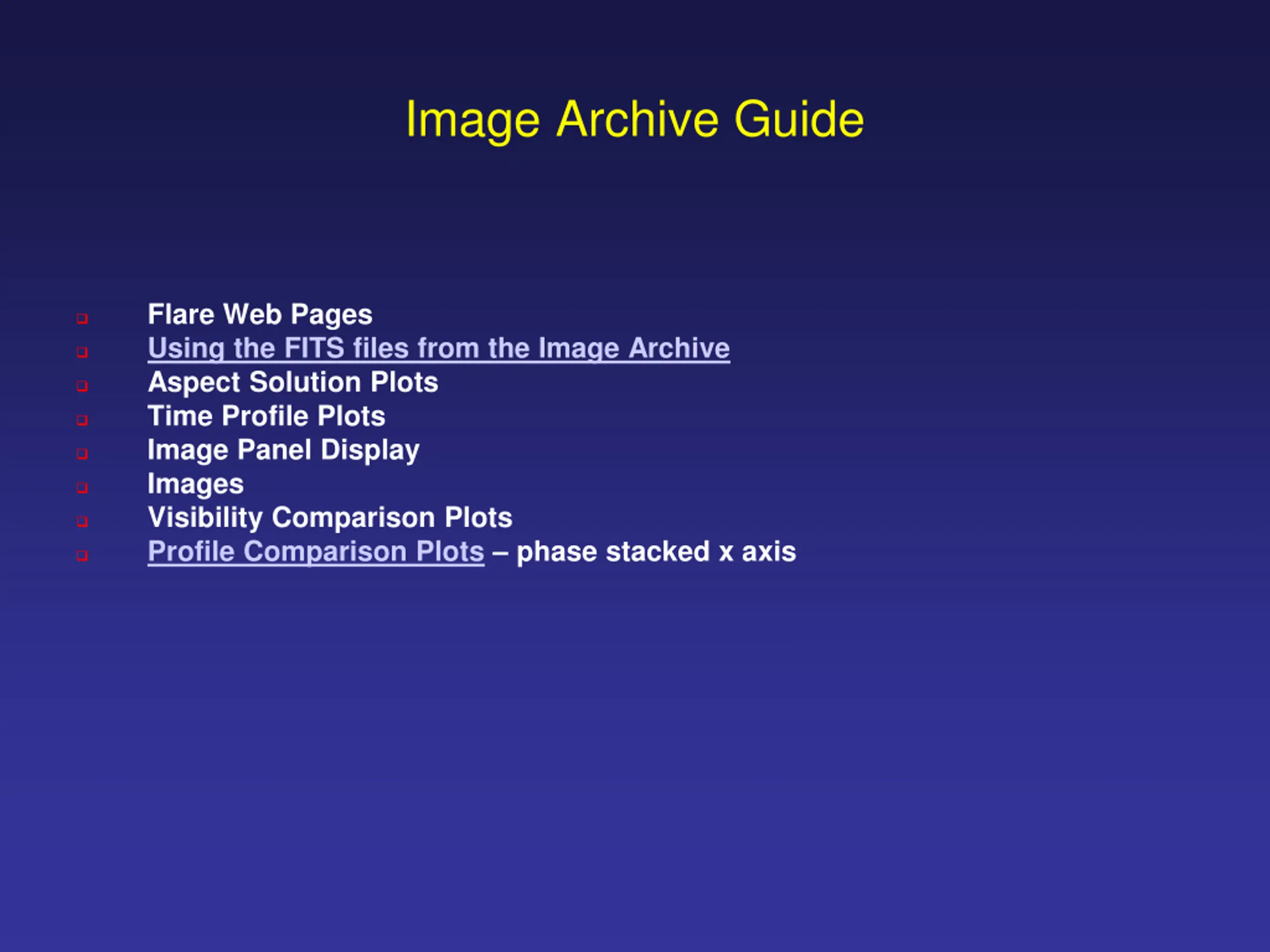

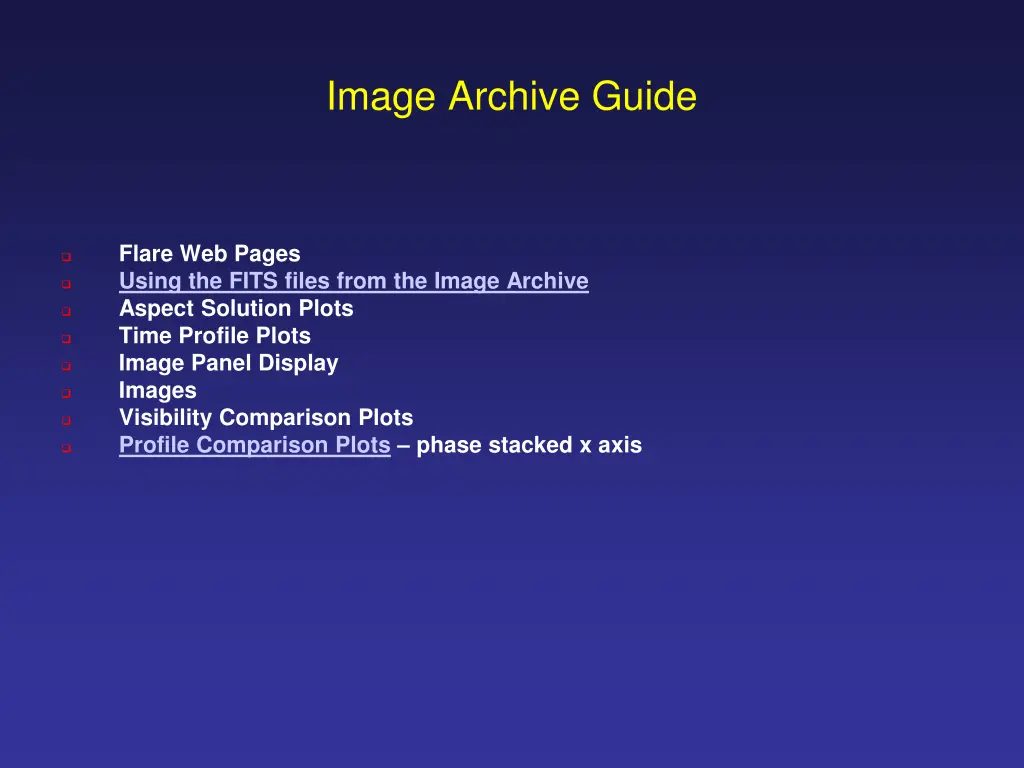

Image Archive Guide Flare Web Pages Using the FITS files from the Image Archive Aspect Solution Plots Time Profile Plots Image Panel Display Images Visibility Comparison Plots Profile Comparison Plots phase stacked x axis

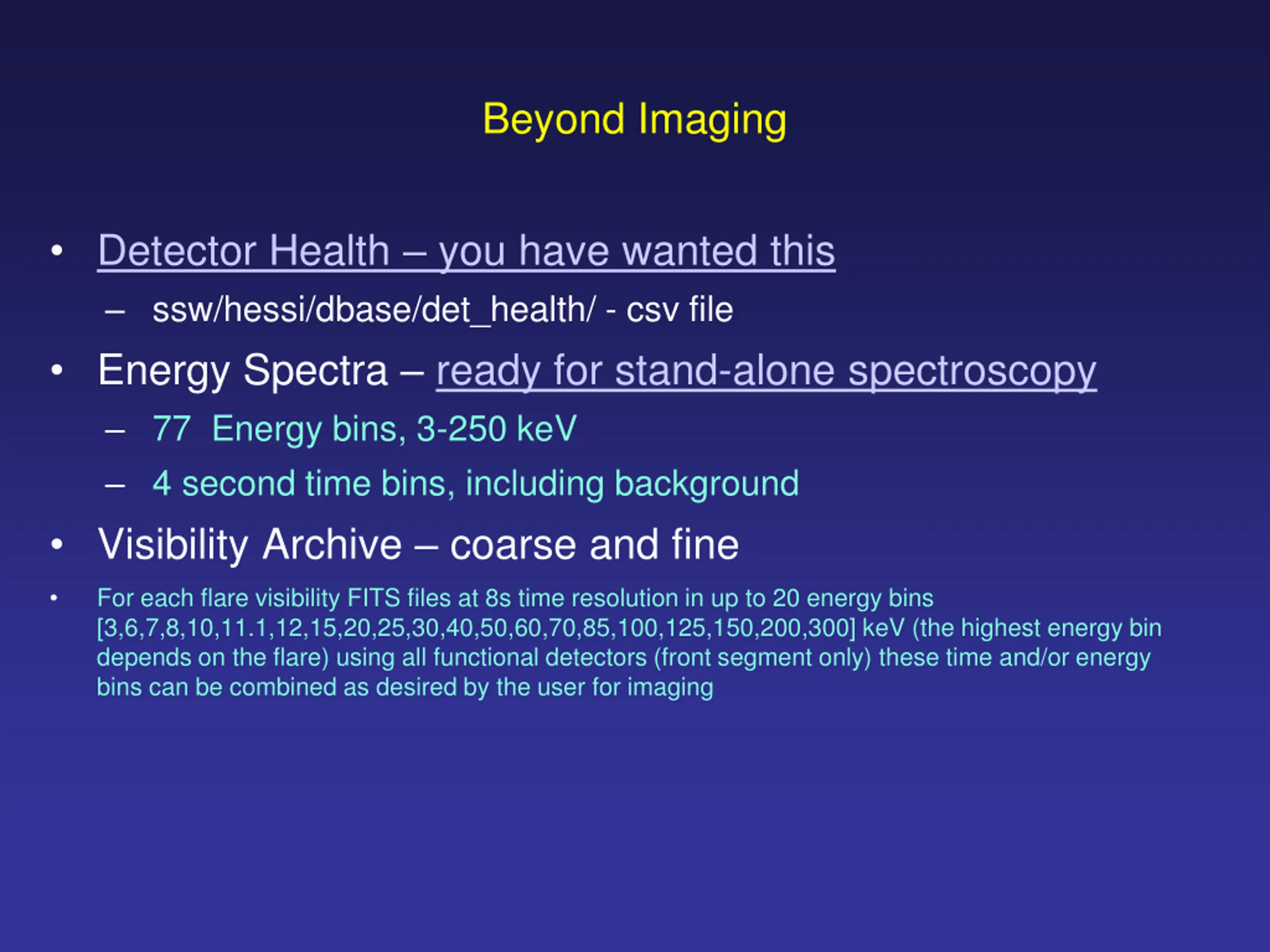

Beyond Imaging Detector Health you have wanted this ssw/hessi/dbase/det_health/ - csv file Energy Spectra ready for stand-alone spectroscopy 77 Energy bins, 3-250 keV 4 second time bins, including background Visibility Archive coarse and fine For each flare visibility FITS files at 8s time resolution in up to 20 energy bins [3,6,7,8,10,11.1,12,15,20,25,30,40,50,60,70,85,100,125,150,200,300] keV (the highest energy bin depends on the flare) using all functional detectors (front segment only) these time and/or energy bins can be combined as desired by the user for imaging

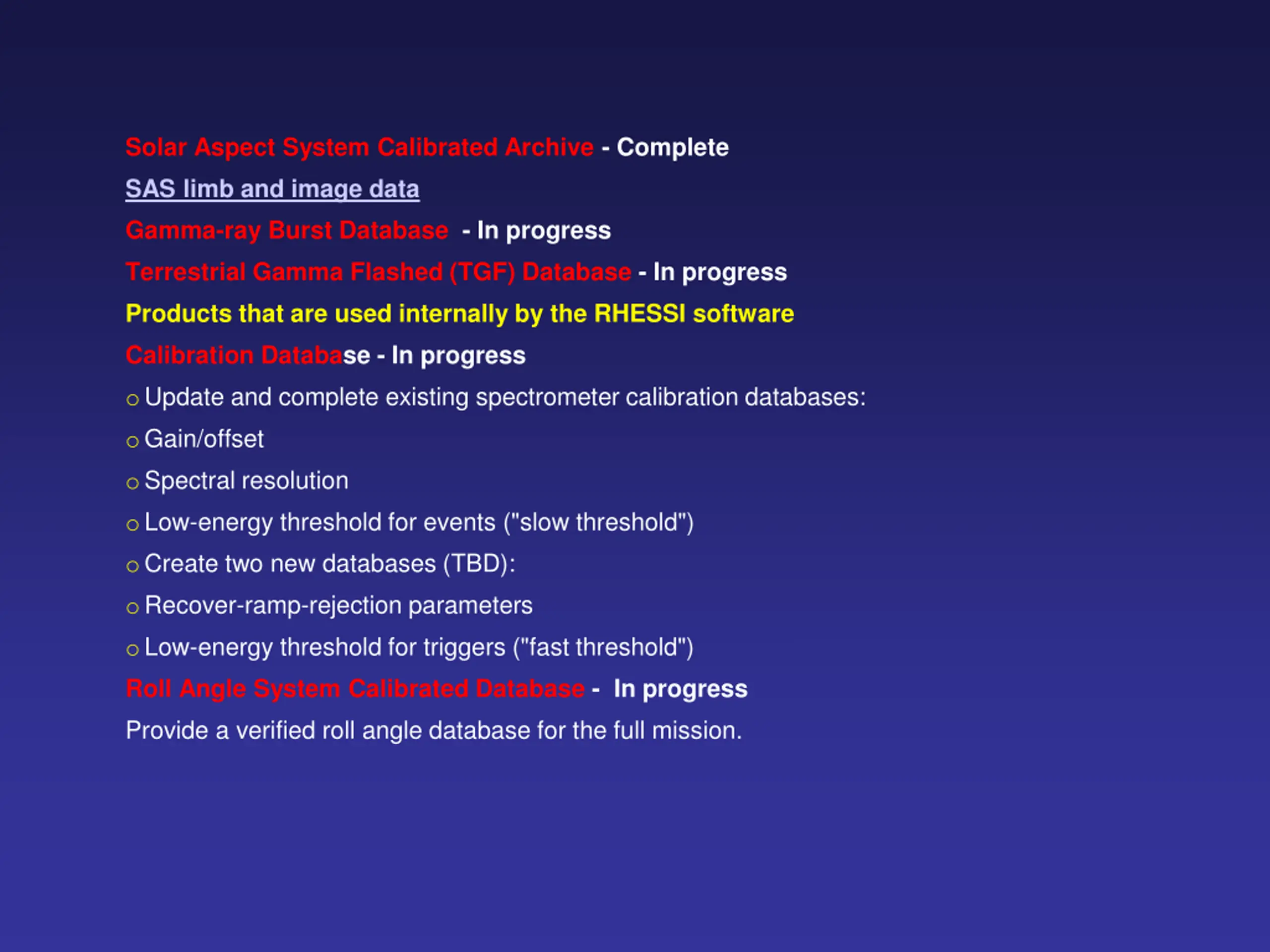

Solar Aspect System Calibrated Archive - Complete SAS limb and image data Gamma-ray Burst Database - In progress Terrestrial Gamma Flashed (TGF) Database - In progress Products that are used internally by the RHESSI software Calibration Database - In progress oUpdate and complete existing spectrometer calibration databases: oGain/offset oSpectral resolution oLow-energy threshold for events ("slow threshold") oCreate two new databases (TBD): oRecover-ramp-rejection parameters oLow-energy threshold for triggers ("fast threshold") Roll Angle System Calibrated Database - In progress Provide a verified roll angle database for the full mission.

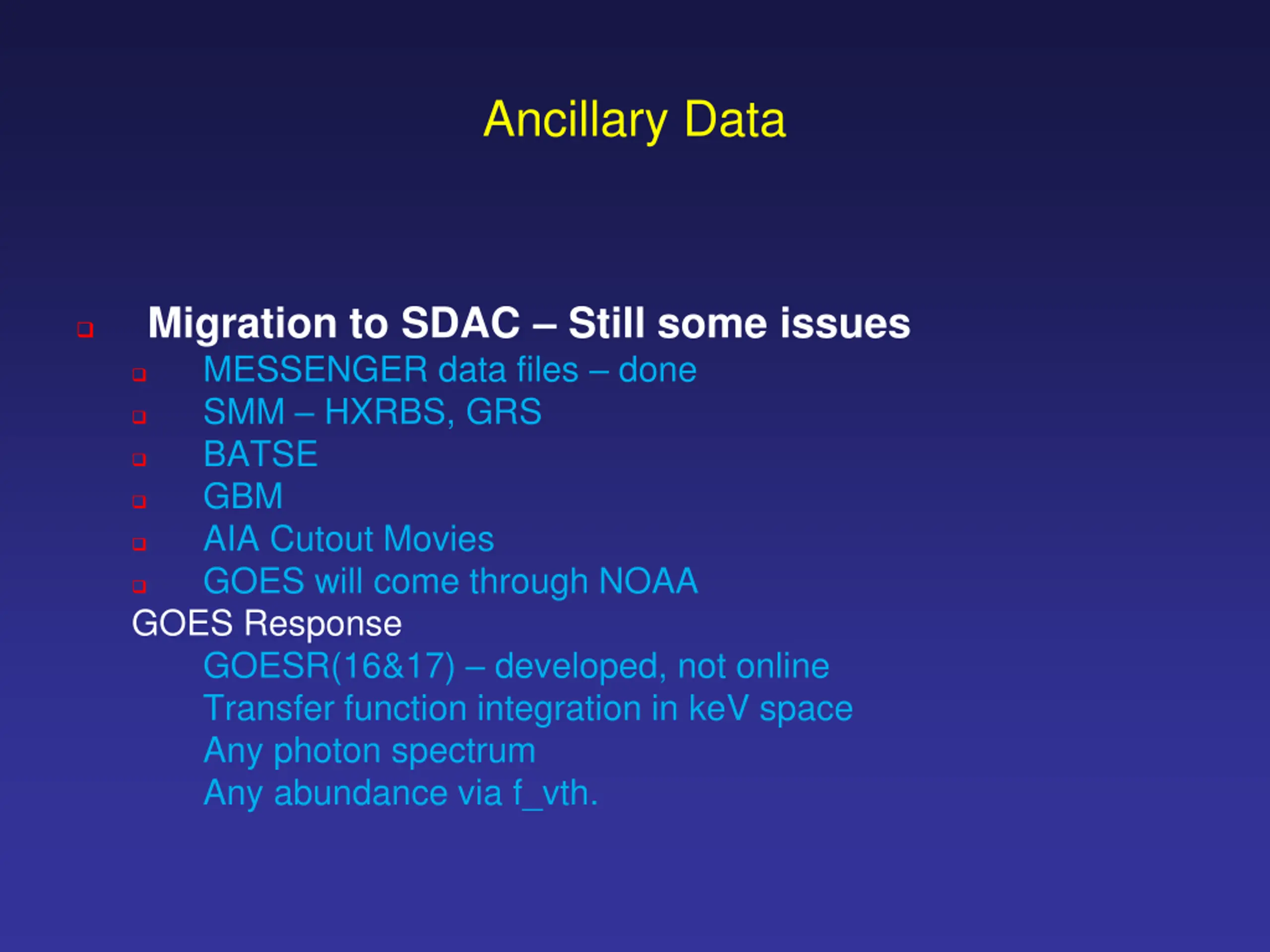

Ancillary Data Migration to SDAC Still some issues MESSENGER data files done SMM HXRBS, GRS BATSE GBM AIA Cutout Movies GOES will come through NOAA GOES Response GOESR(16&17) developed, not online Transfer function integration in keV space Any photon spectrum Any abundance via f_vth.
