Ridiculously Generic Program Analysis James Koppel, MIT

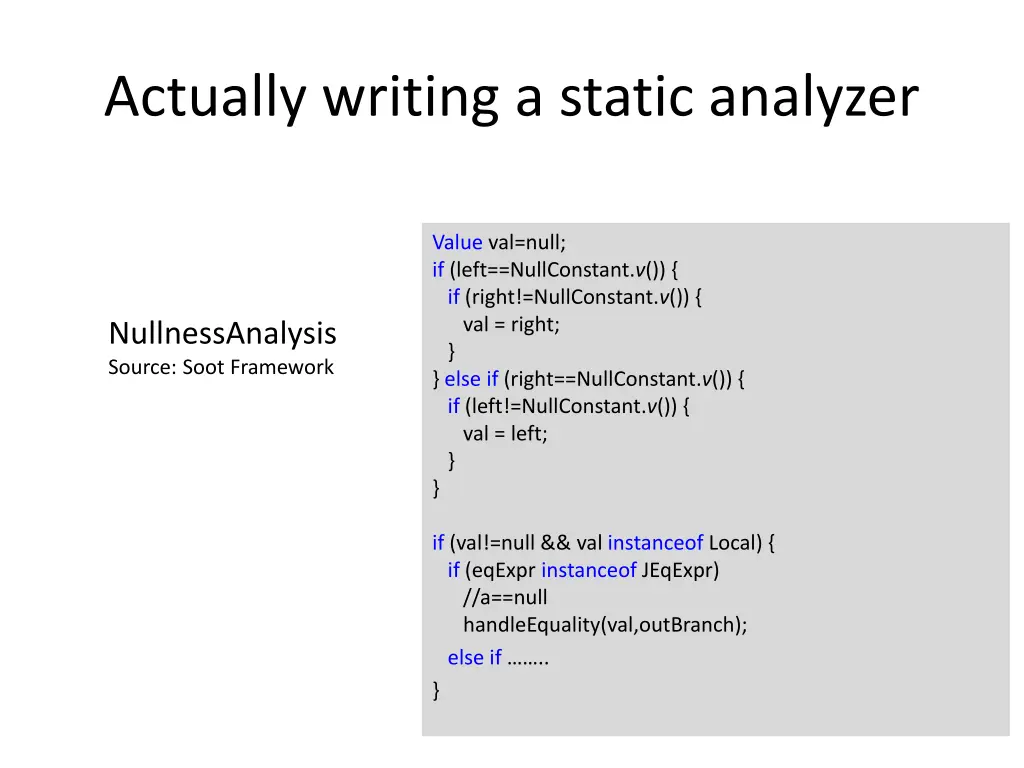

Actually writing a static analyzer Value val=null; if (left==NullConstant.v()) { if (right!=NullConstant.v()) { val = right; } } else if (right==NullConstant.v()) { if (left!=NullConstant.v()) { val = left; } } NullnessAnalysis Source: Soot Framework if (val!=null && val instanceof Local) { if (eqExpr instanceof JEqExpr) //a==null handleEquality(val,outBranch); else if .. }

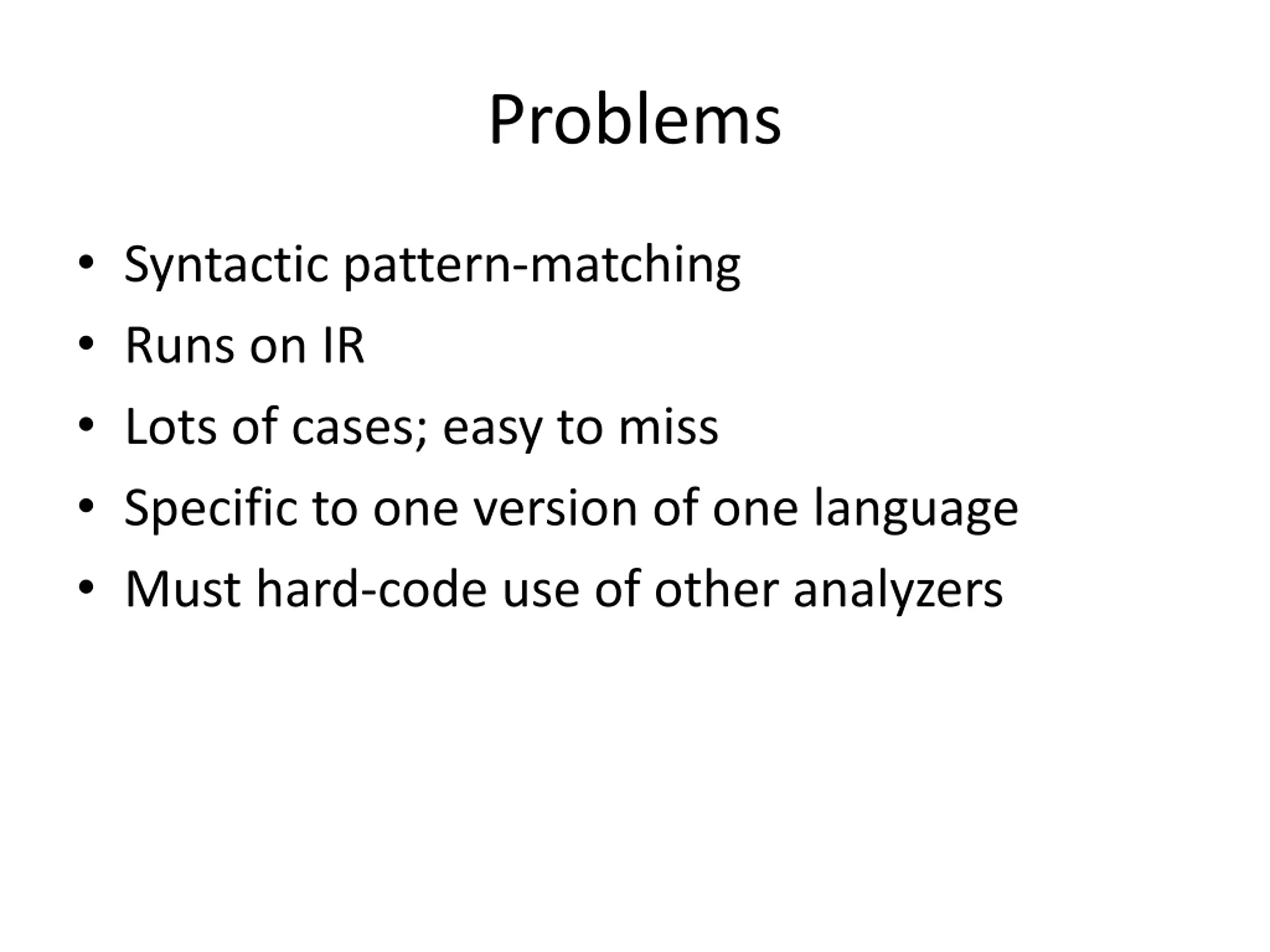

Problems Syntactic pattern-matching Runs on IR Lots of cases; easy to miss Specific to one version of one language Must hard-code use of other analyzers

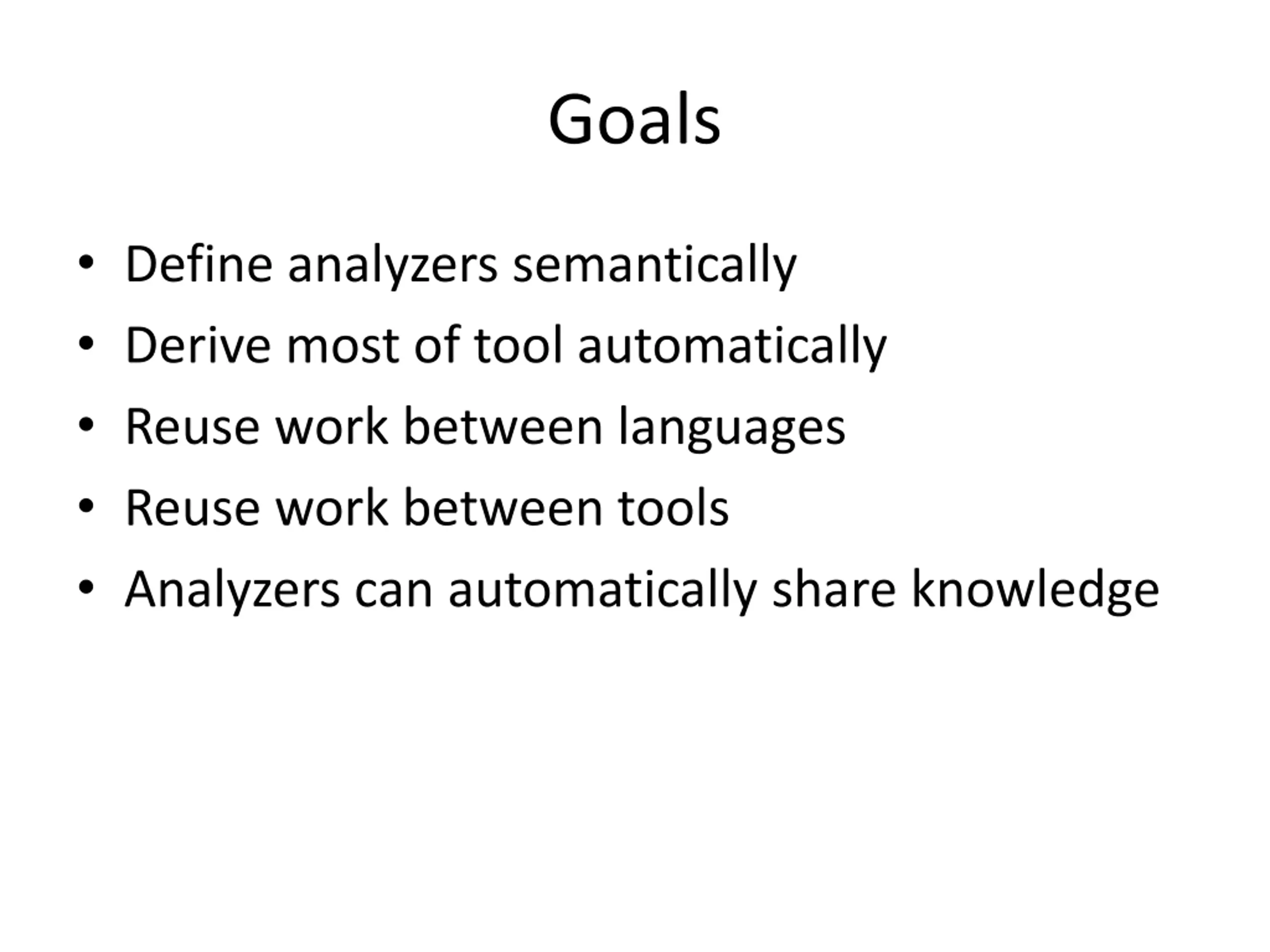

Goals Define analyzers semantically Derive most of tool automatically Reuse work between languages Reuse work between tools Analyzers can automatically share knowledge

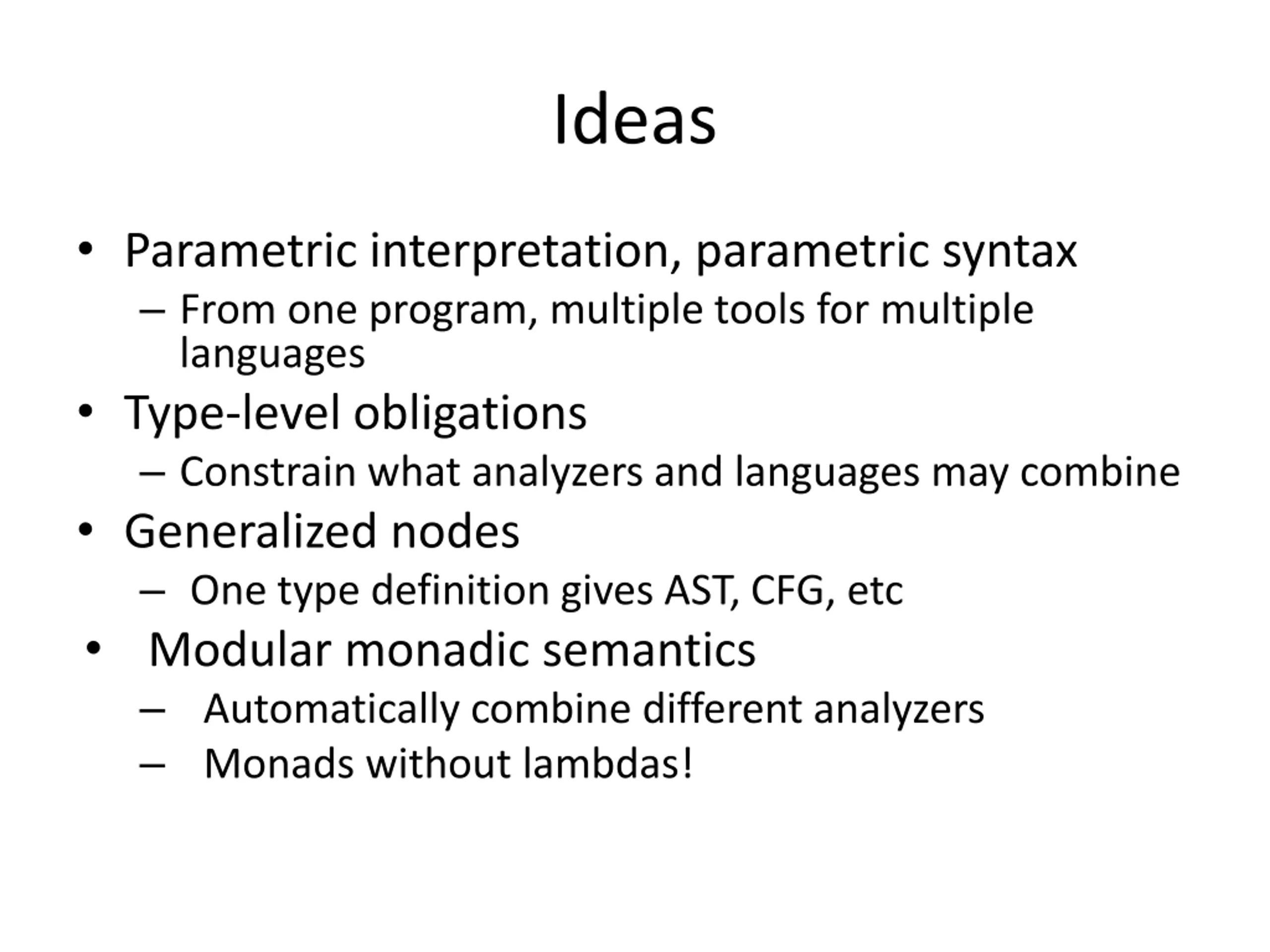

Ideas Parametric interpretation, parametric syntax From one program, multiple tools for multiple languages Type-level obligations Constrain what analyzers and languages may combine Generalized nodes One type definition gives AST, CFG, etc Modular monadic semantics Automatically combine different analyzers Monads without lambdas!

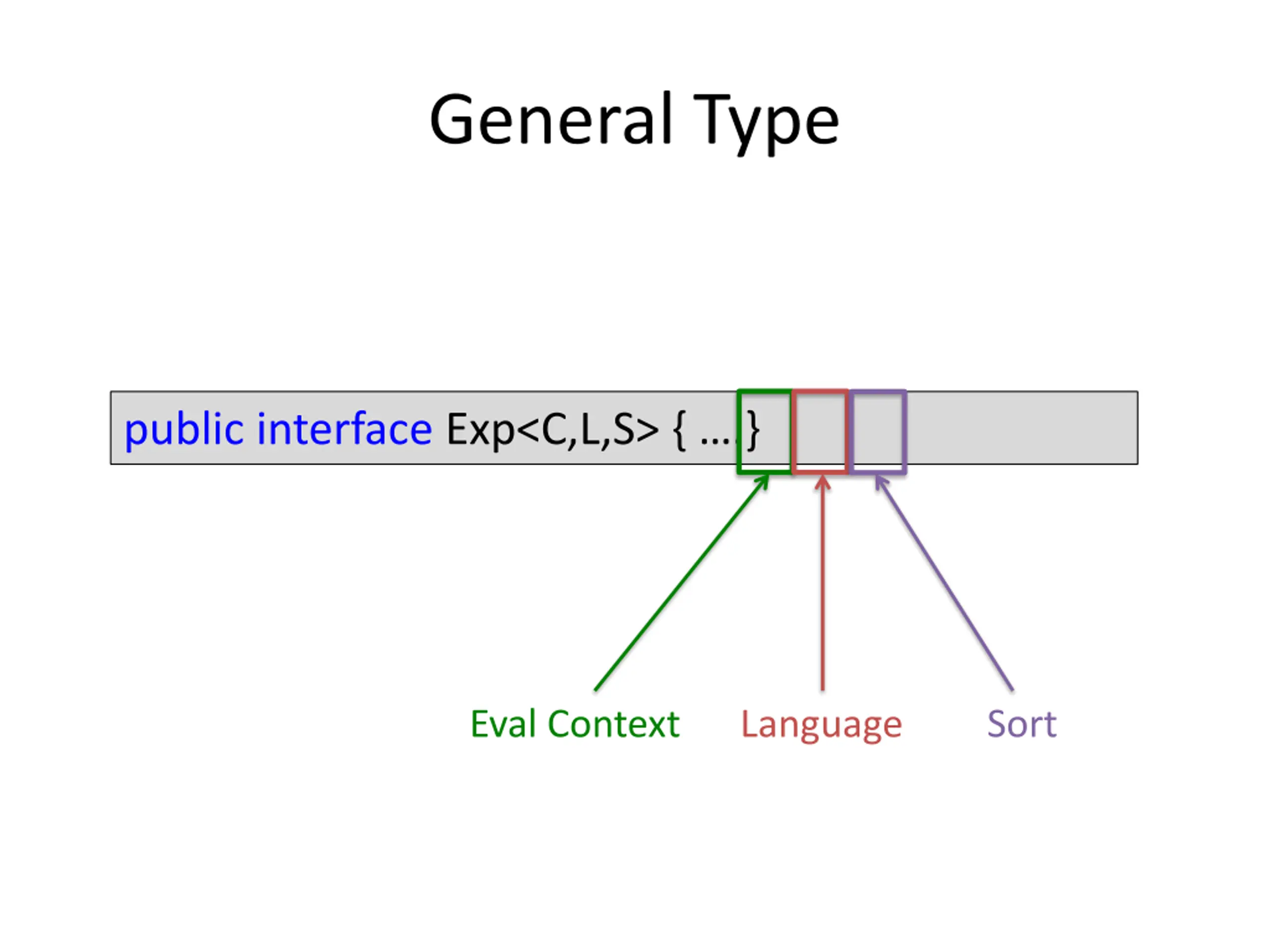

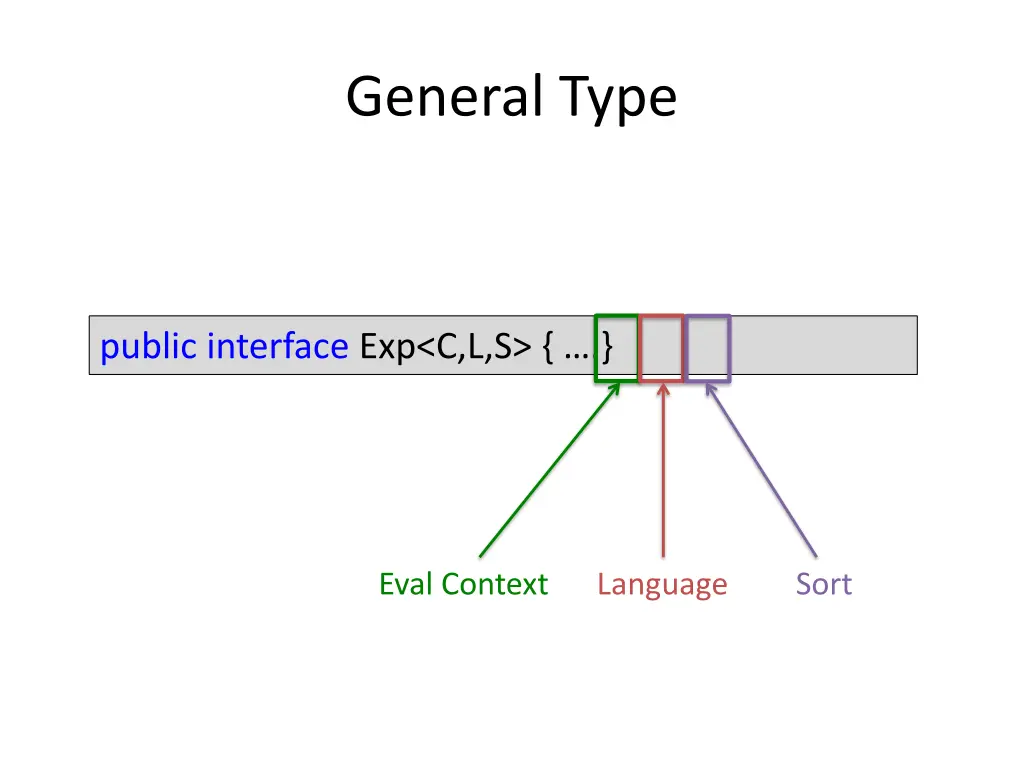

General Type public interface Exp<C,L,S> { .} Eval Context Language Sort

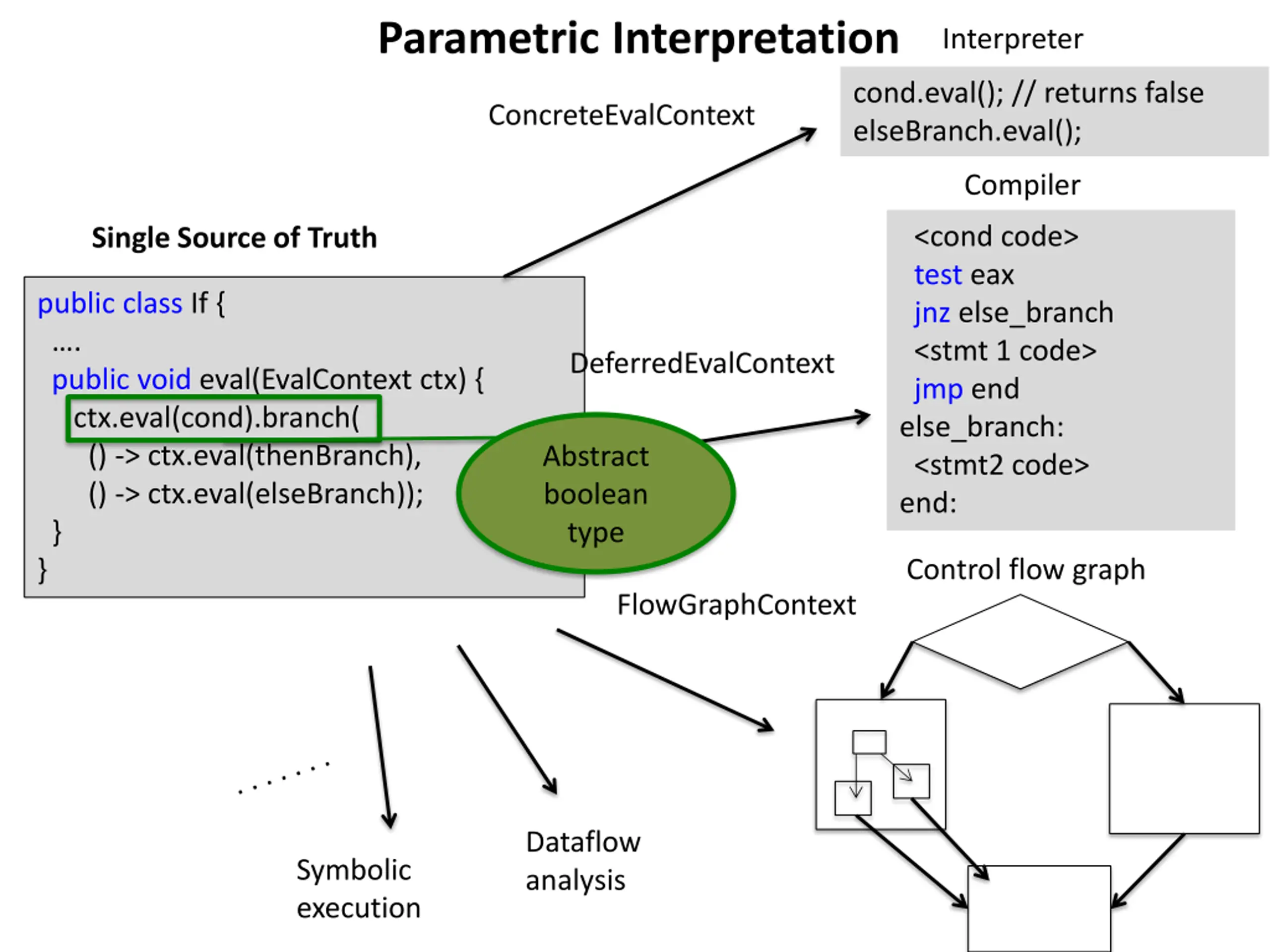

Parametric Interpretation Interpreter cond.eval(); // returns false elseBranch.eval(); ConcreteEvalContext Compiler <cond code> test eax jnz else_branch <stmt 1 code> jmp end else_branch: <stmt2 code> end: Single Source of Truth public class If { . public void eval(EvalContext ctx) { ctx.eval(cond).branch( () -> ctx.eval(thenBranch), () -> ctx.eval(elseBranch)); } } DeferredEvalContext Abstract boolean type Control flow graph FlowGraphContext Dataflow analysis Symbolic execution

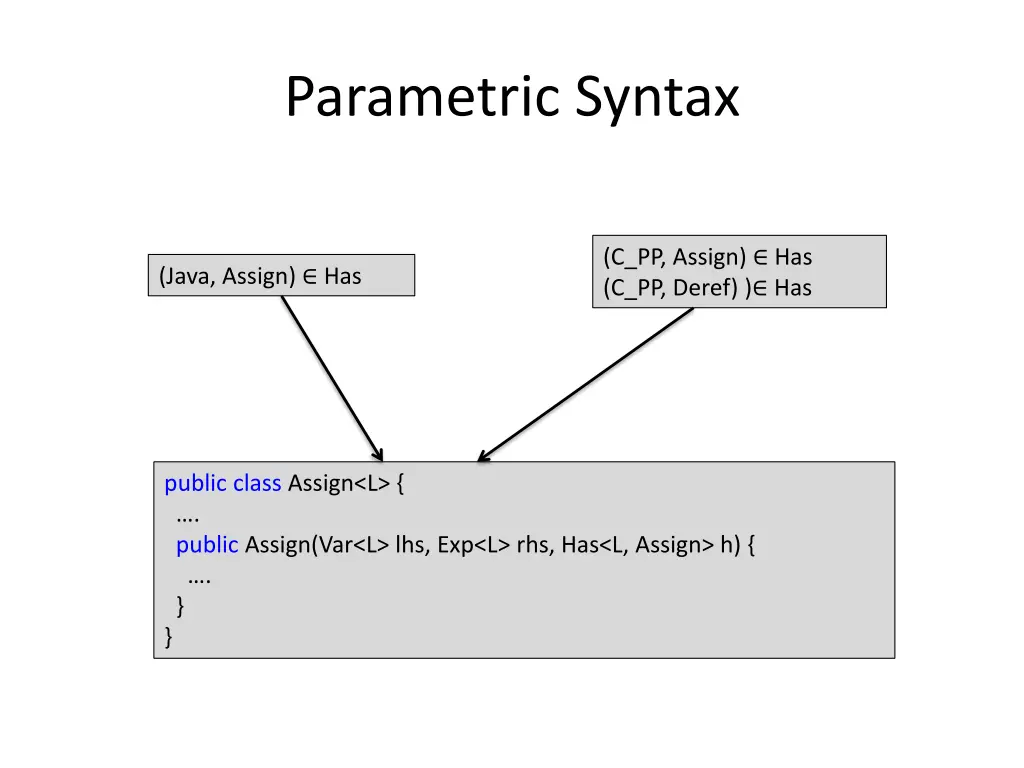

Parametric Syntax (C_PP, Assign) Has (C_PP, Deref) ) Has (Java, Assign) Has public class Assign<L> { . public Assign(Var<L> lhs, Exp<L> rhs, Has<L, Assign> h) { . } }

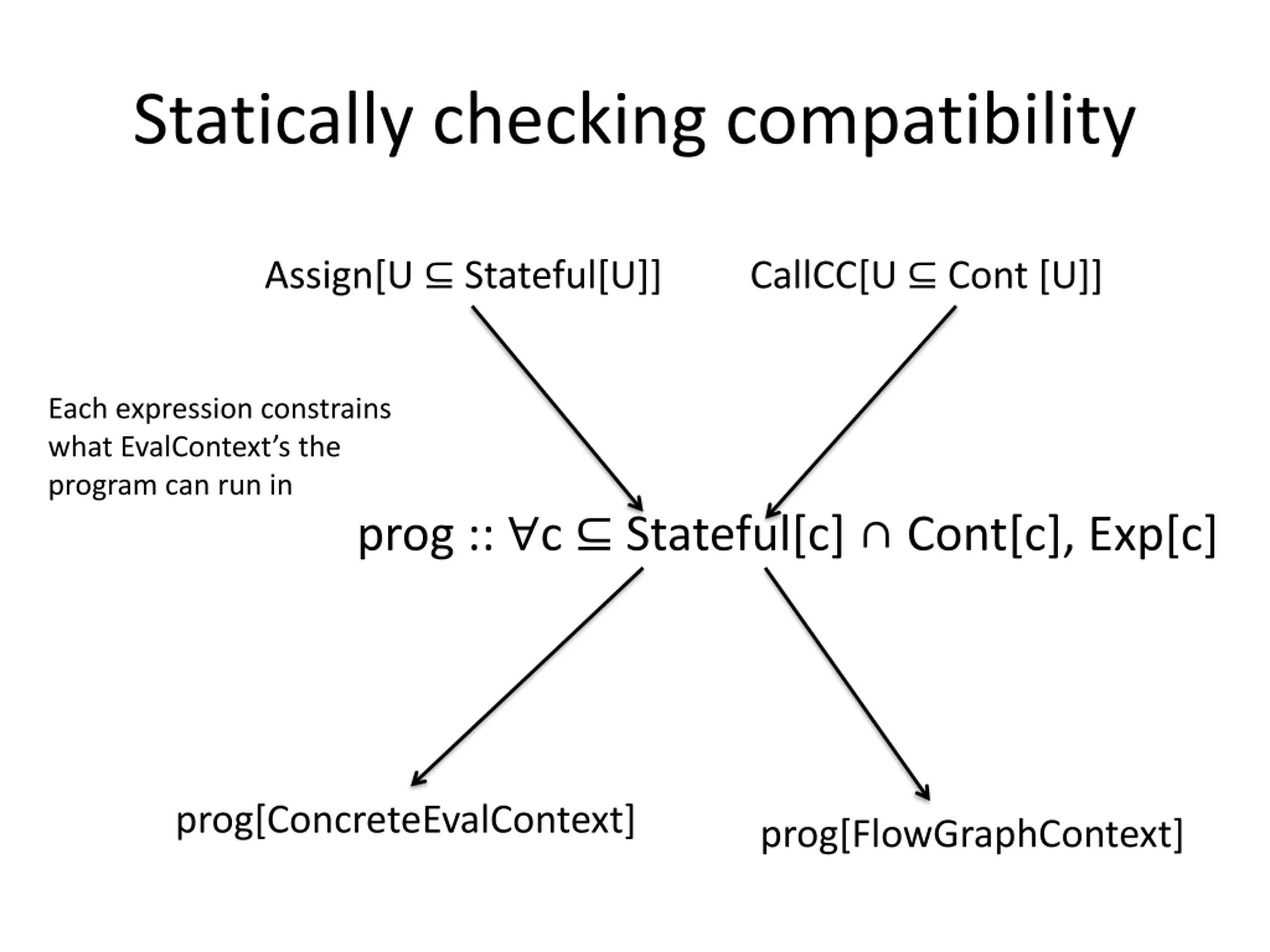

Statically checking compatibility Assign[U Stateful[U]] CallCC[U Cont [U]] Each expression constrains what EvalContext s the program can run in prog :: c Stateful[c] Cont[c], Exp[c] prog[ConcreteEvalContext] prog[FlowGraphContext]
Generalized representation 1 + * x ConcreteExp public class BinOp extends ConcreteExp { private Exp lhs; private Exp rhs; } y z DataflowExp t1 := y *z t2 := x + t1

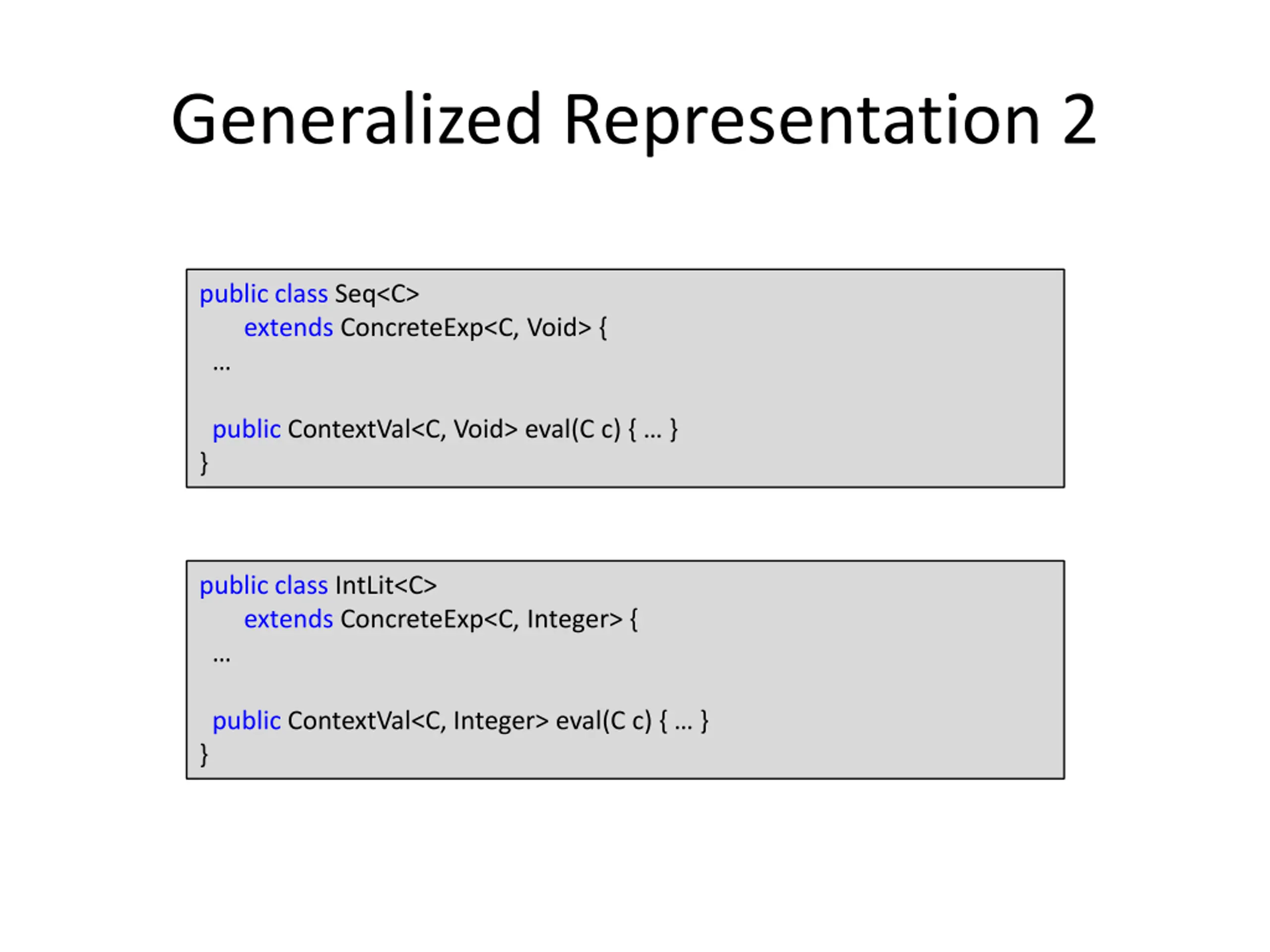

Generalized Representation 2 public class Seq<C> extends ConcreteExp<C, Void> { public ContextVal<C, Void> eval(C c) { } } public class IntLit<C> extends ConcreteExp<C, Integer> { public ContextVal<C, Integer> eval(C c) { } }

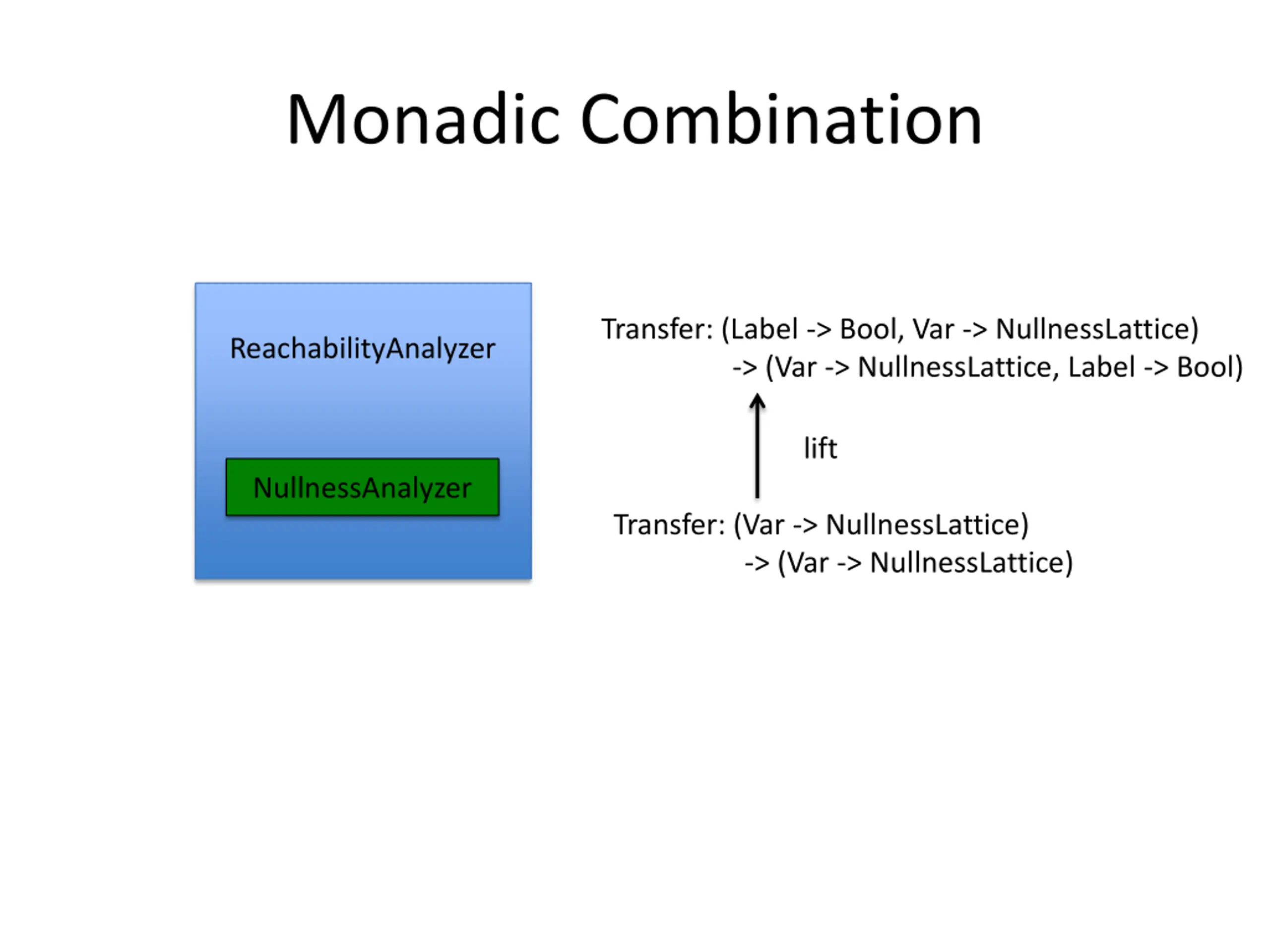

Monadic Combination Transfer: (Label -> Bool, Var -> NullnessLattice) -> (Var -> NullnessLattice, Label -> Bool) ReachabilityAnalyzer lift NullnessAnalyzer Transfer: (Var -> NullnessLattice) -> (Var -> NullnessLattice)

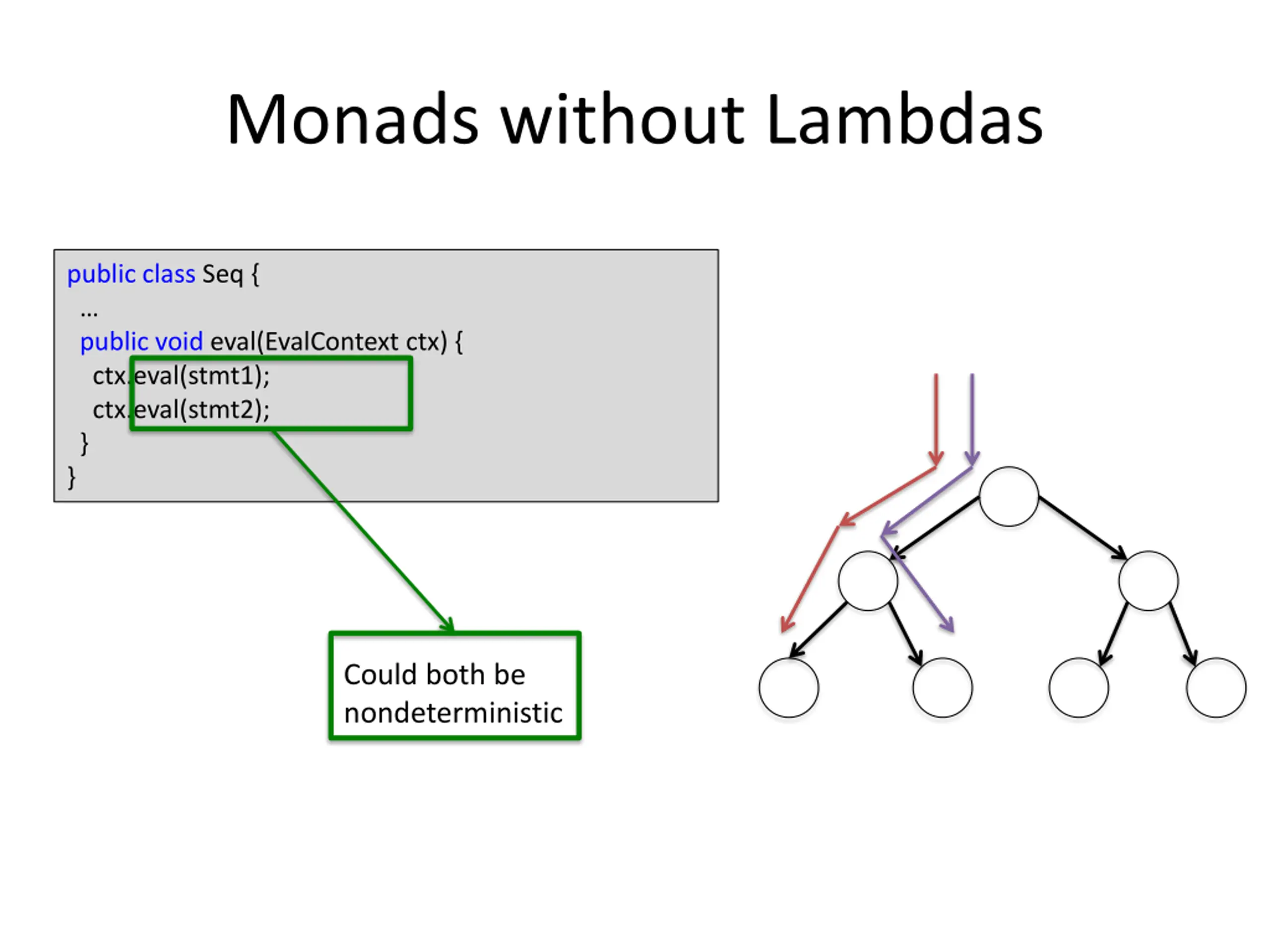

Monads without Lambdas public class Seq { public void eval(EvalContext ctx) { ctx.eval(stmt1); ctx.eval(stmt2); } } Could both be nondeterministic

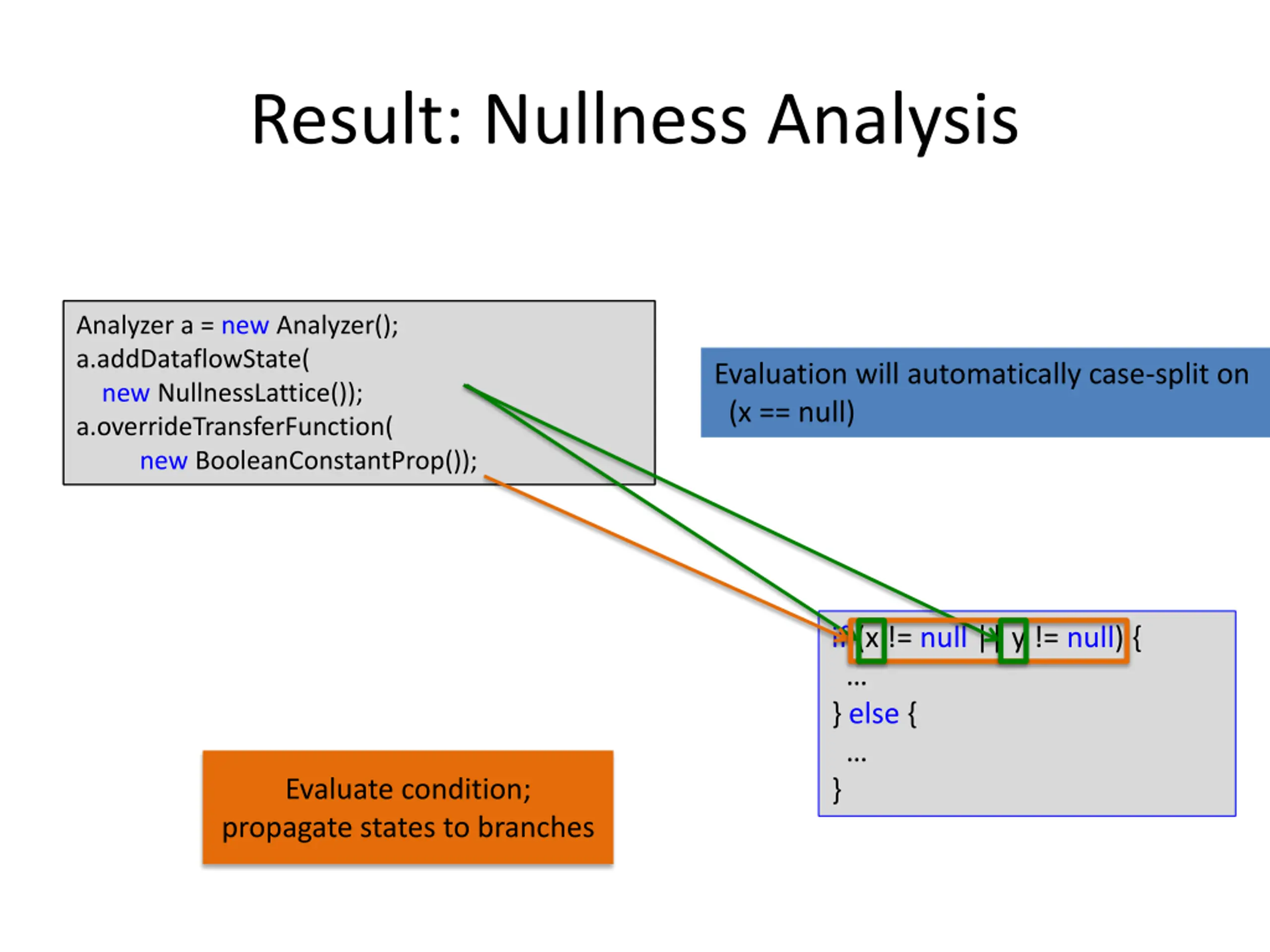

Result: Nullness Analysis Analyzer a = new Analyzer(); a.addDataflowState( new NullnessLattice()); a.overrideTransferFunction( new BooleanConstantProp()); Evaluation will automatically case-split on (x == null) if (x != null || y != null) { } else { } Evaluate condition; propagate states to branches
