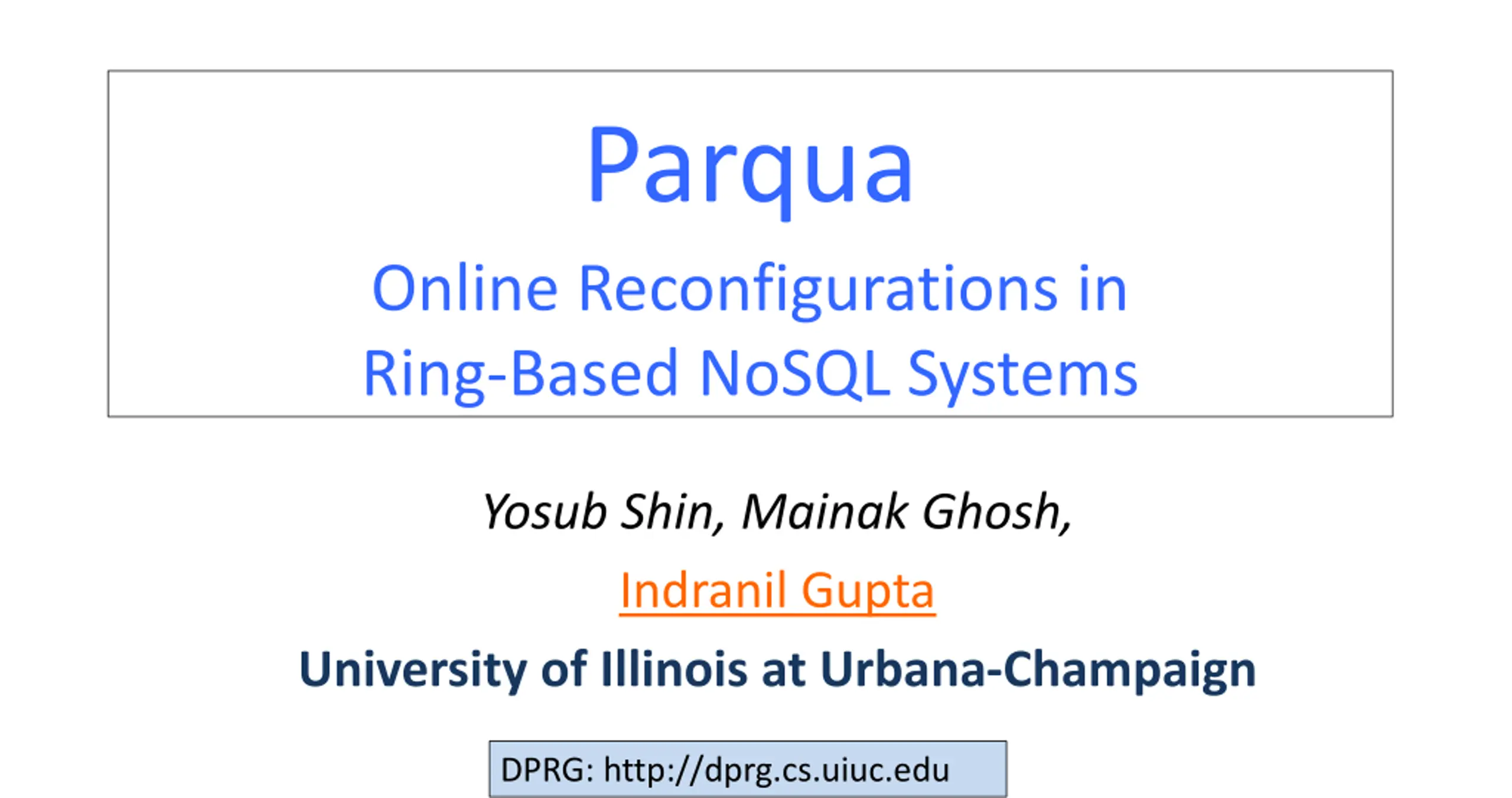

Parqua Online Reconfigurations in Ring-Based NoSQL Systems Yosub Shin, Mainak Ghosh, Indranil Gupta University of Illinois at Urbana-Champaign 1 DPRG: http://dprg.cs.uiuc.edu

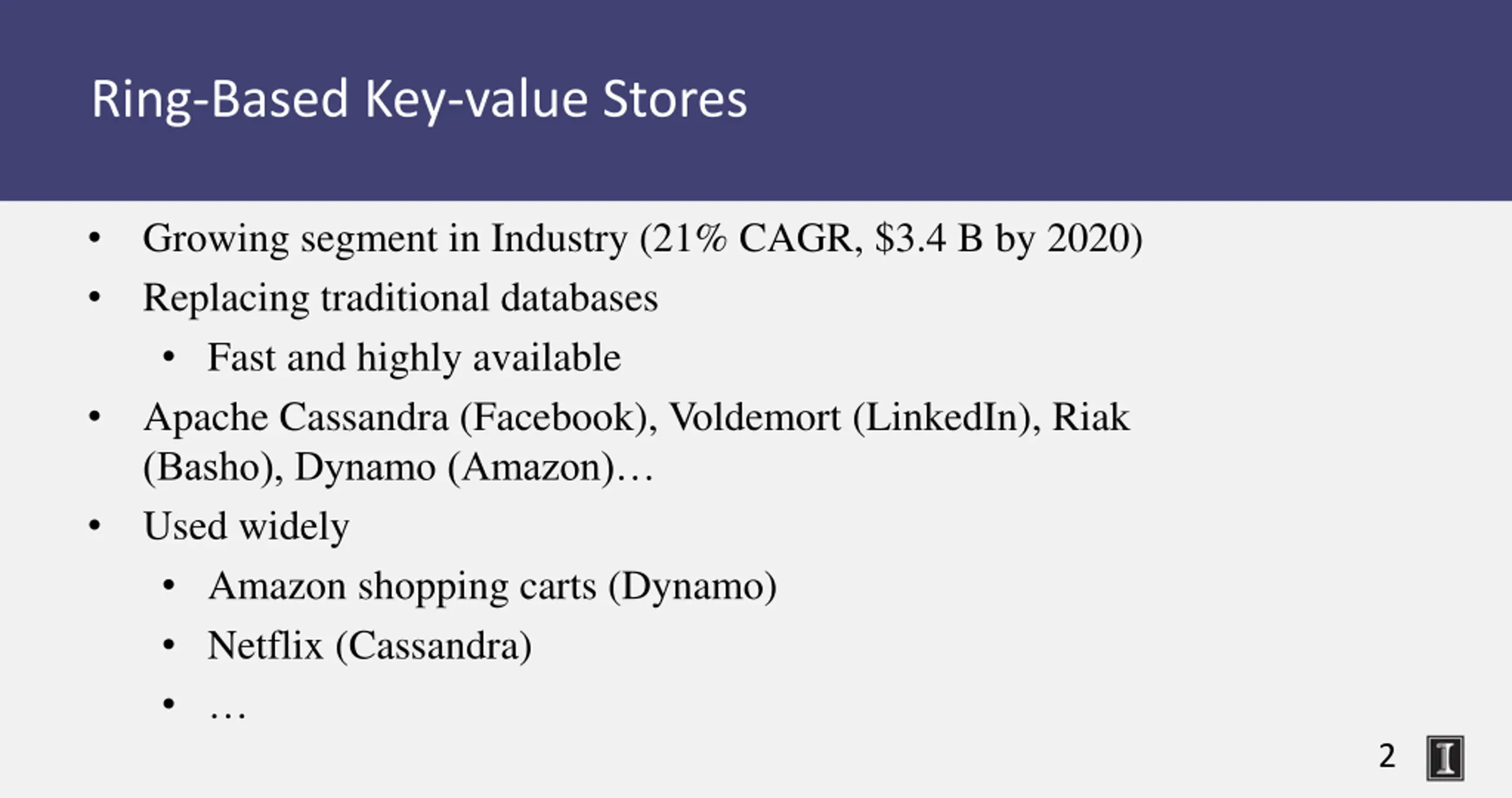

Ring-Based Key-value Stores Growing segment in Industry (21% CAGR, $3.4 B by 2020) Replacing traditional databases Fast and highly available Apache Cassandra (Facebook), Voldemort (LinkedIn), Riak (Basho), Dynamo (Amazon) Used widely Amazon shopping carts (Dynamo) Netflix (Cassandra) 2

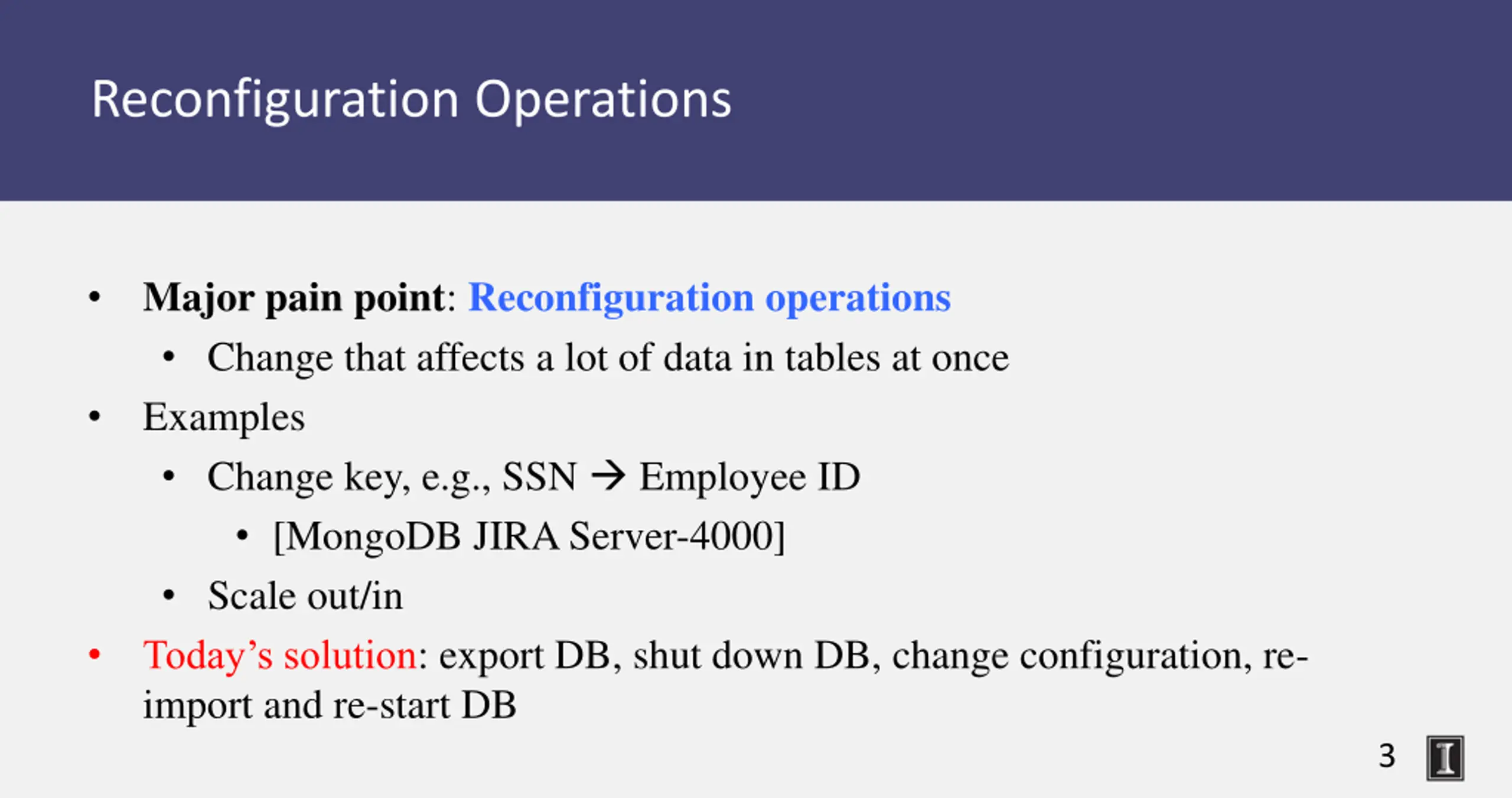

Reconfiguration Operations Major pain point: Reconfiguration operations Change that affects a lot of data in tables at once Examples Change key, e.g., SSN Employee ID [MongoDB JIRA Server-4000] Scale out/in Today s solution: export DB, shut down DB, change configuration, re- import and re-start DB 3

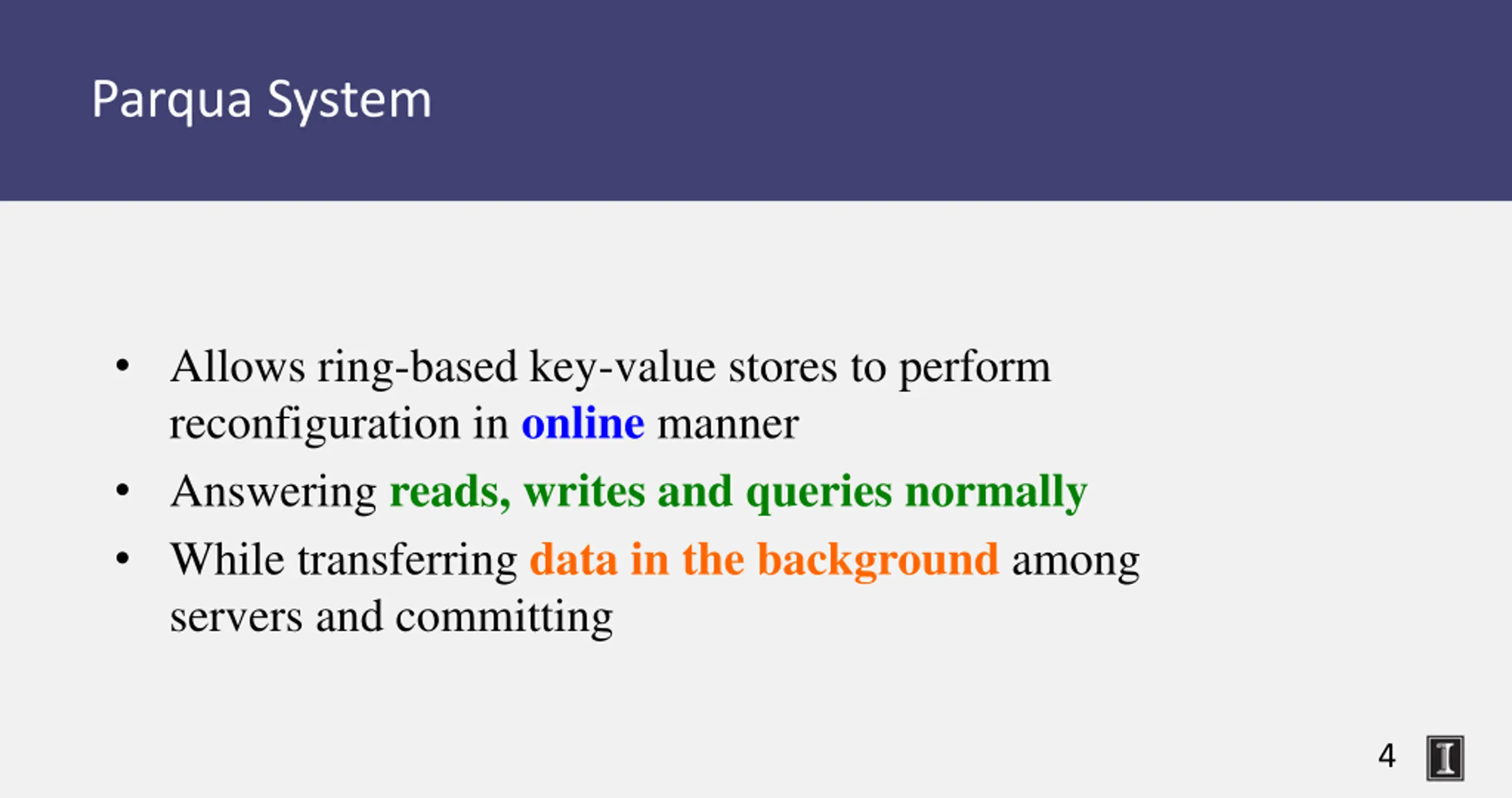

Parqua System Allows ring-based key-value stores to perform reconfiguration in online manner Answering reads, writes and queries normally While transferring data in the background among servers and committing 4

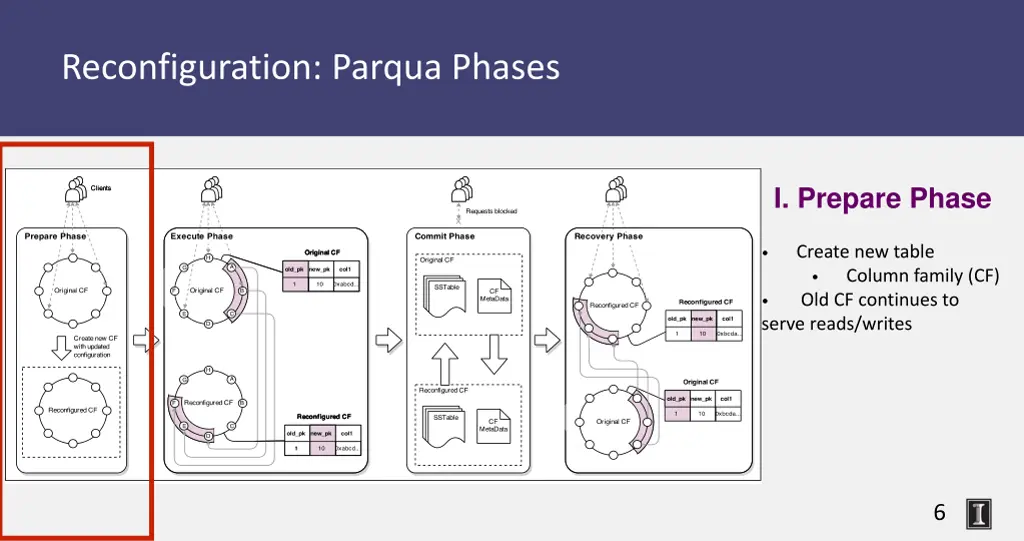

Reconfiguration: Parqua Phases I. Prepare Phase Create new table Column family (CF) Old CF continues to serve reads/writes 6

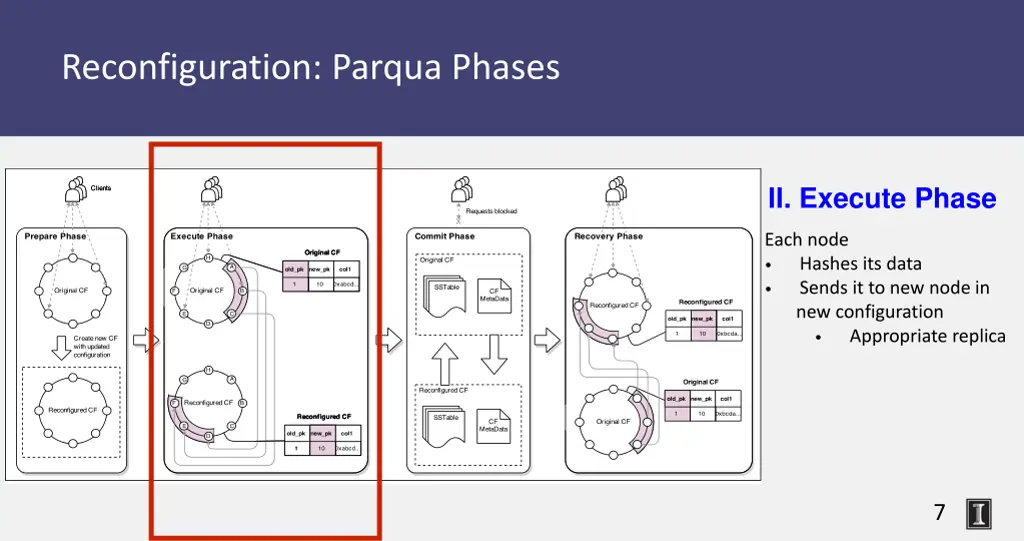

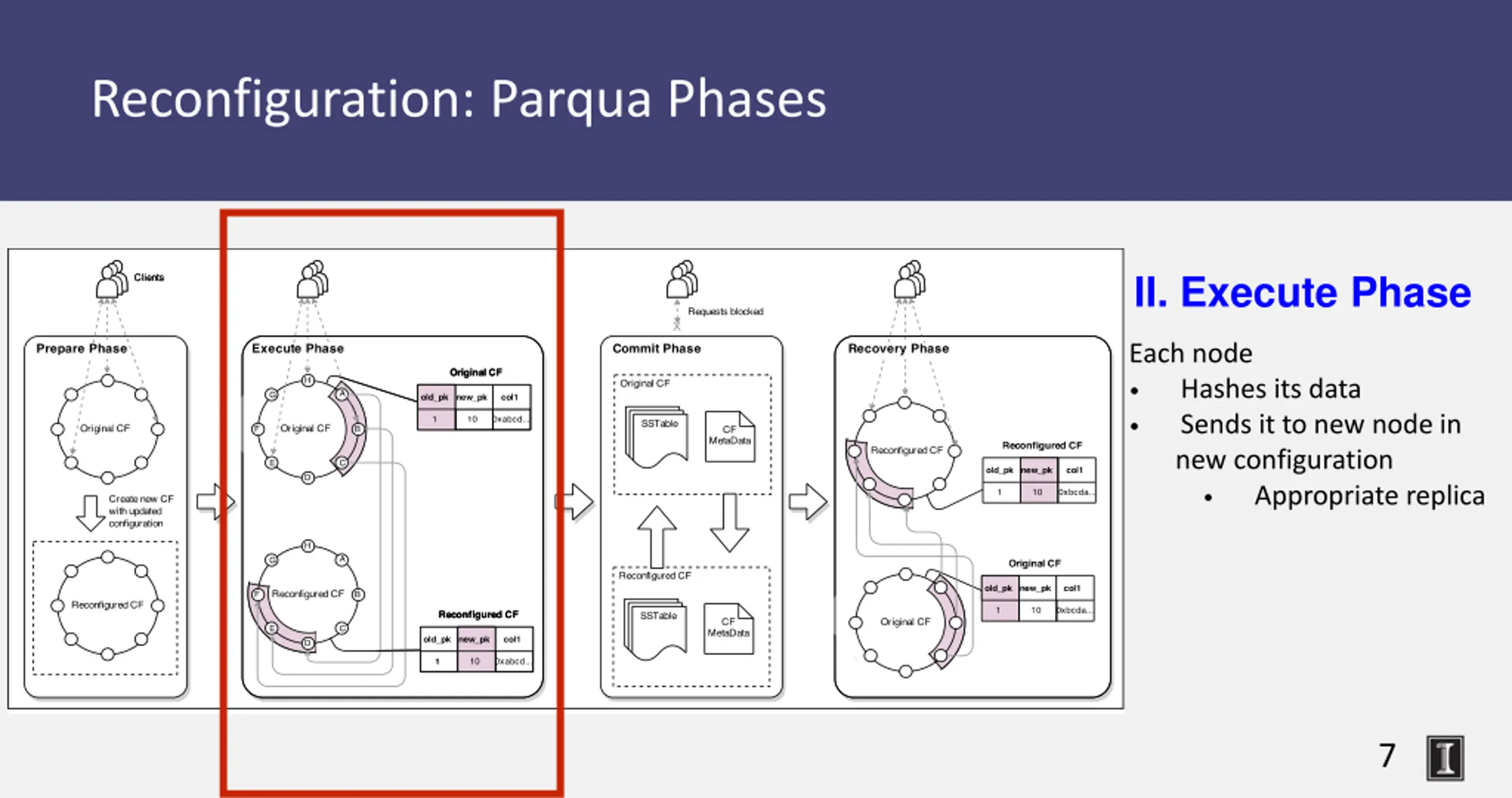

Reconfiguration: Parqua Phases II. Execute Phase Each node Hashes its data Sends it to new node in new configuration Appropriate replica 7

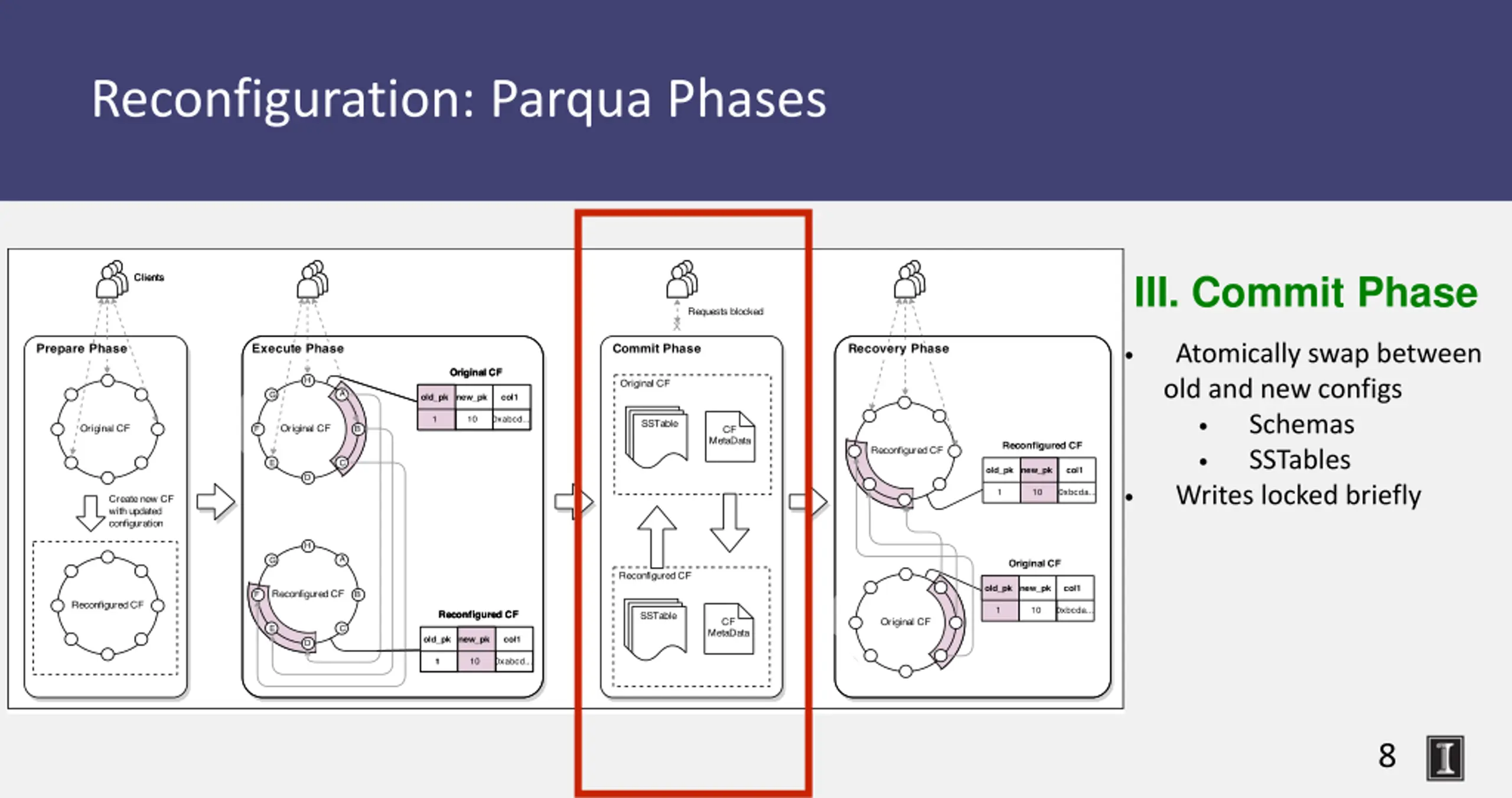

Reconfiguration: Parqua Phases III. Commit Phase Atomically swap between old and new configs Schemas SSTables Writes locked briefly 8

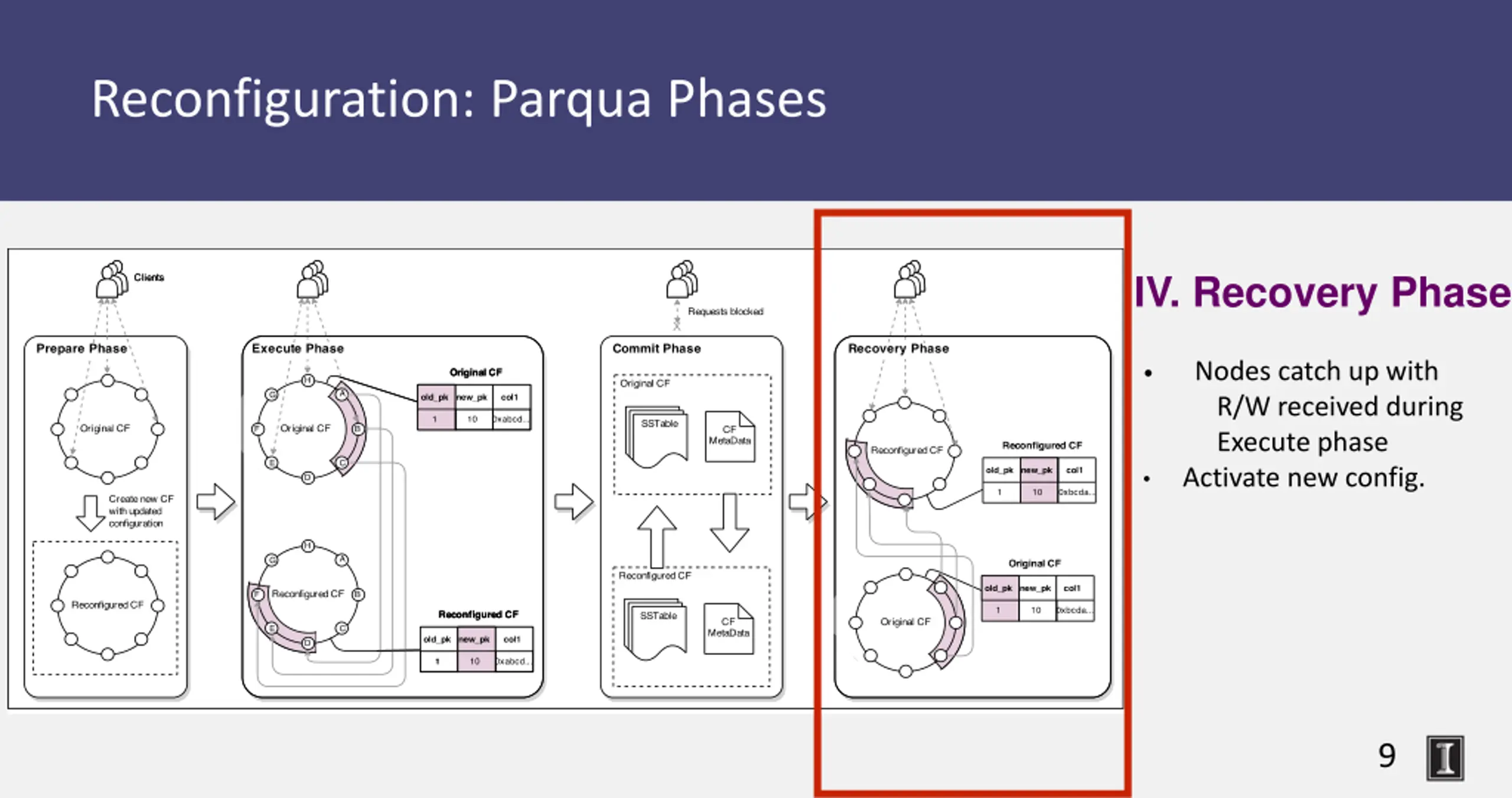

Reconfiguration: Parqua Phases IV. Recovery Phase Nodes catch up with R/W received during Execute phase Activate new config. 9

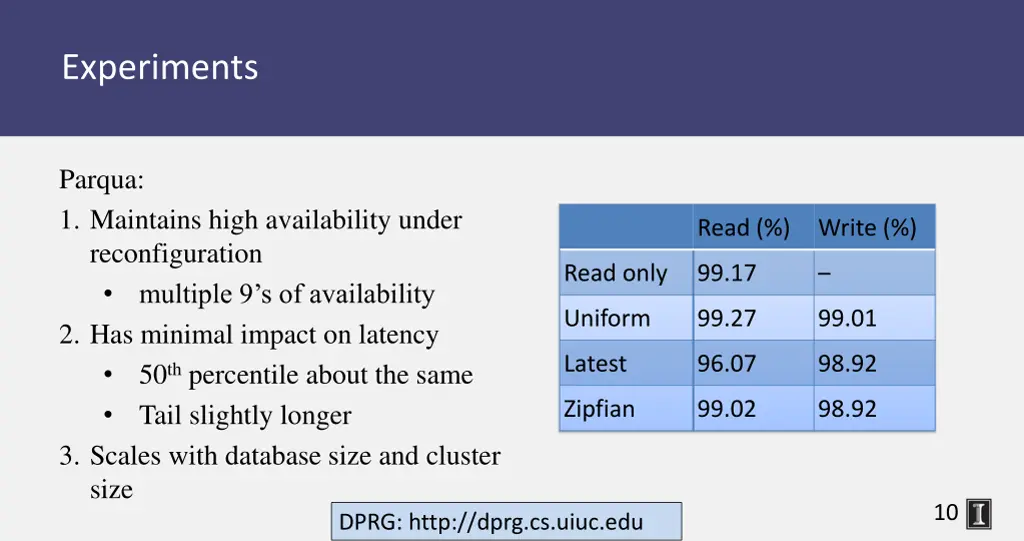

Experiments Parqua: 1. Maintains high availability under reconfiguration multiple 9 s of availability 2. Has minimal impact on latency 50th percentile about the same Tail slightly longer 3. Scales with database size and cluster size Read (%) Write (%) Read only 99.17 Uniform 99.27 99.01 Latest 96.07 98.92 Zipfian 99.02 98.92 10 DPRG: http://dprg.cs.uiuc.edu

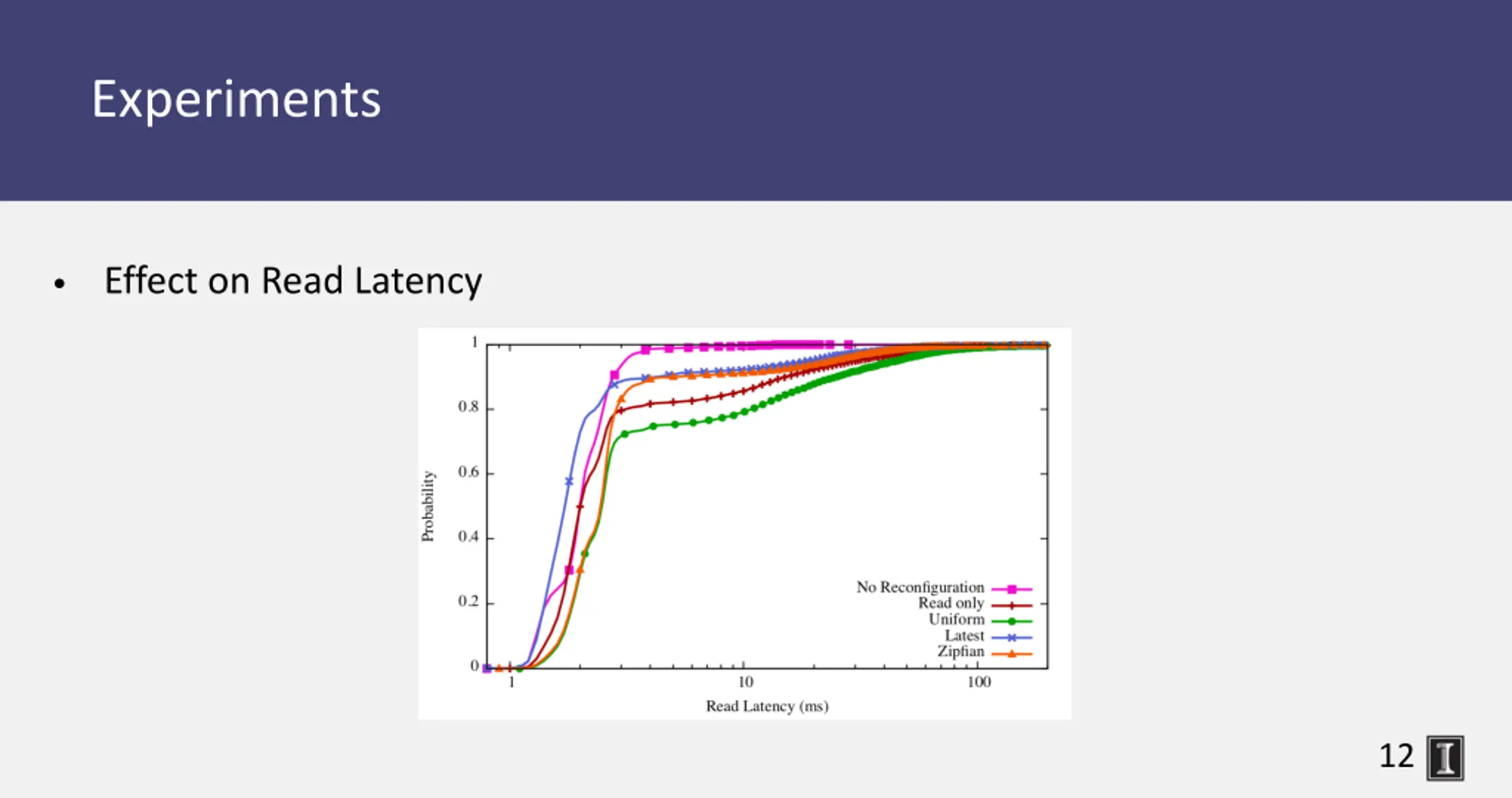

Experiments Effect on Read Latency 12

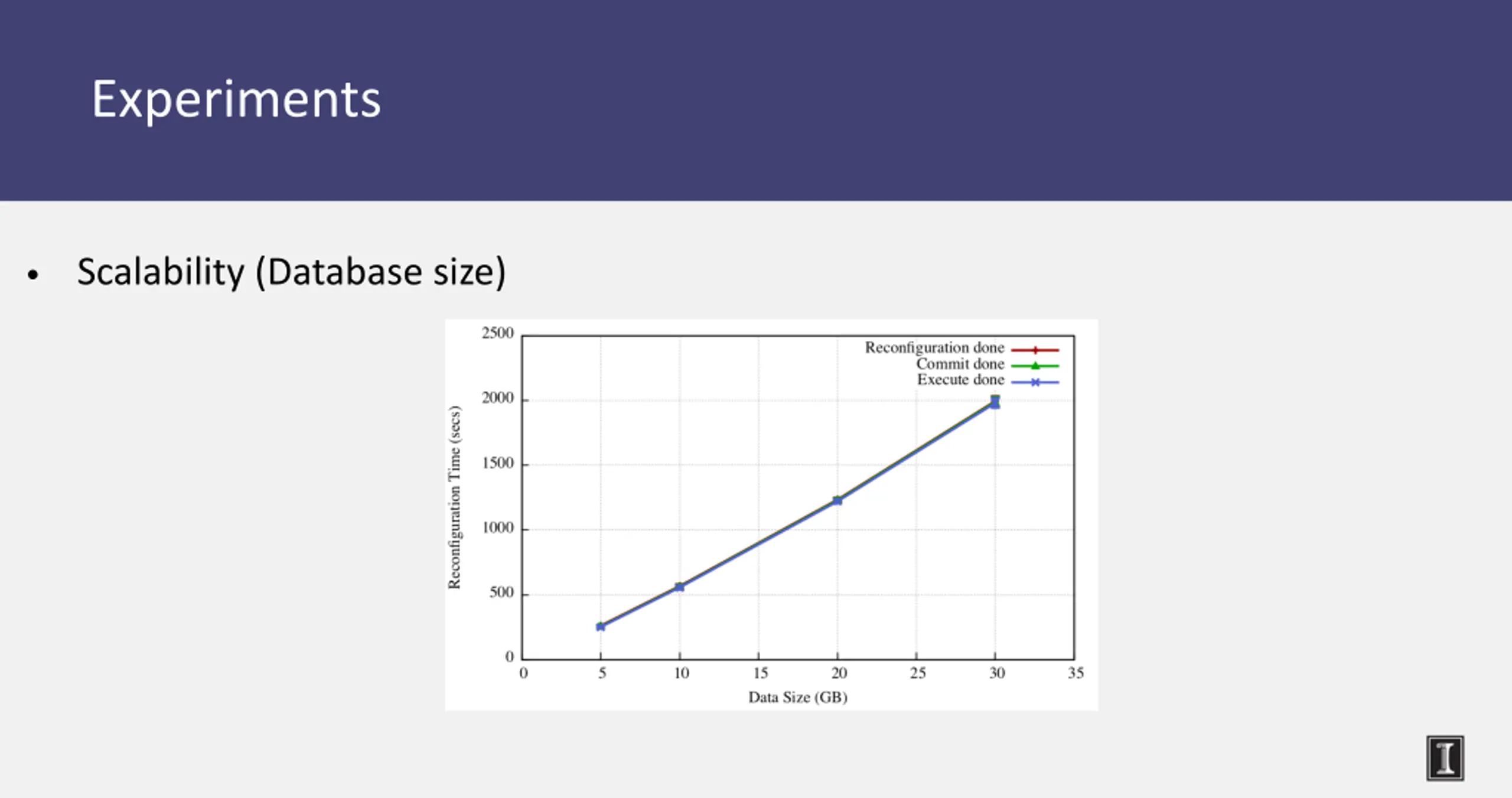

Experiments Scalability (Database size)

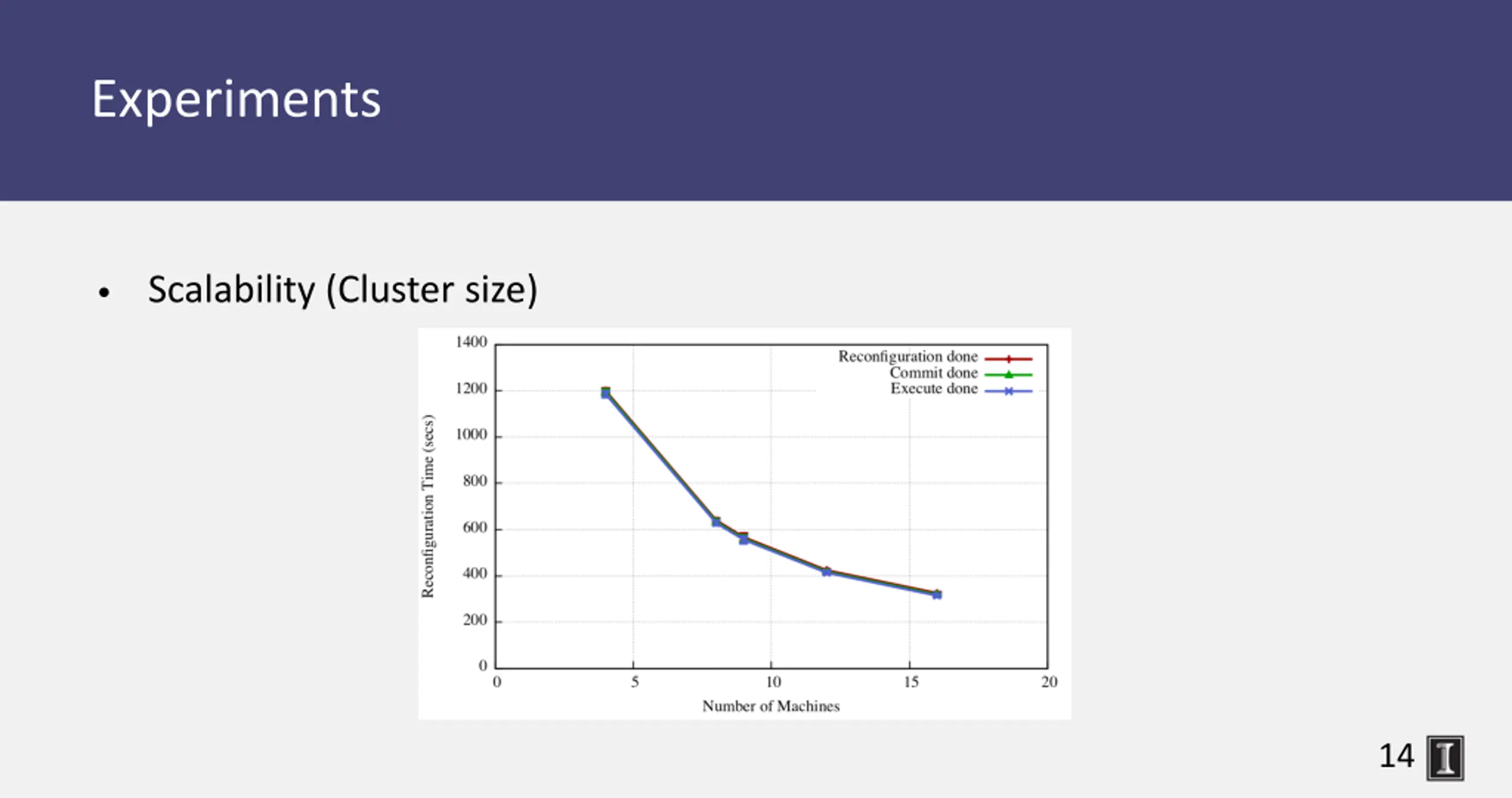

Experiments Scalability (Cluster size) 14
