Robot Engineering Course Overview

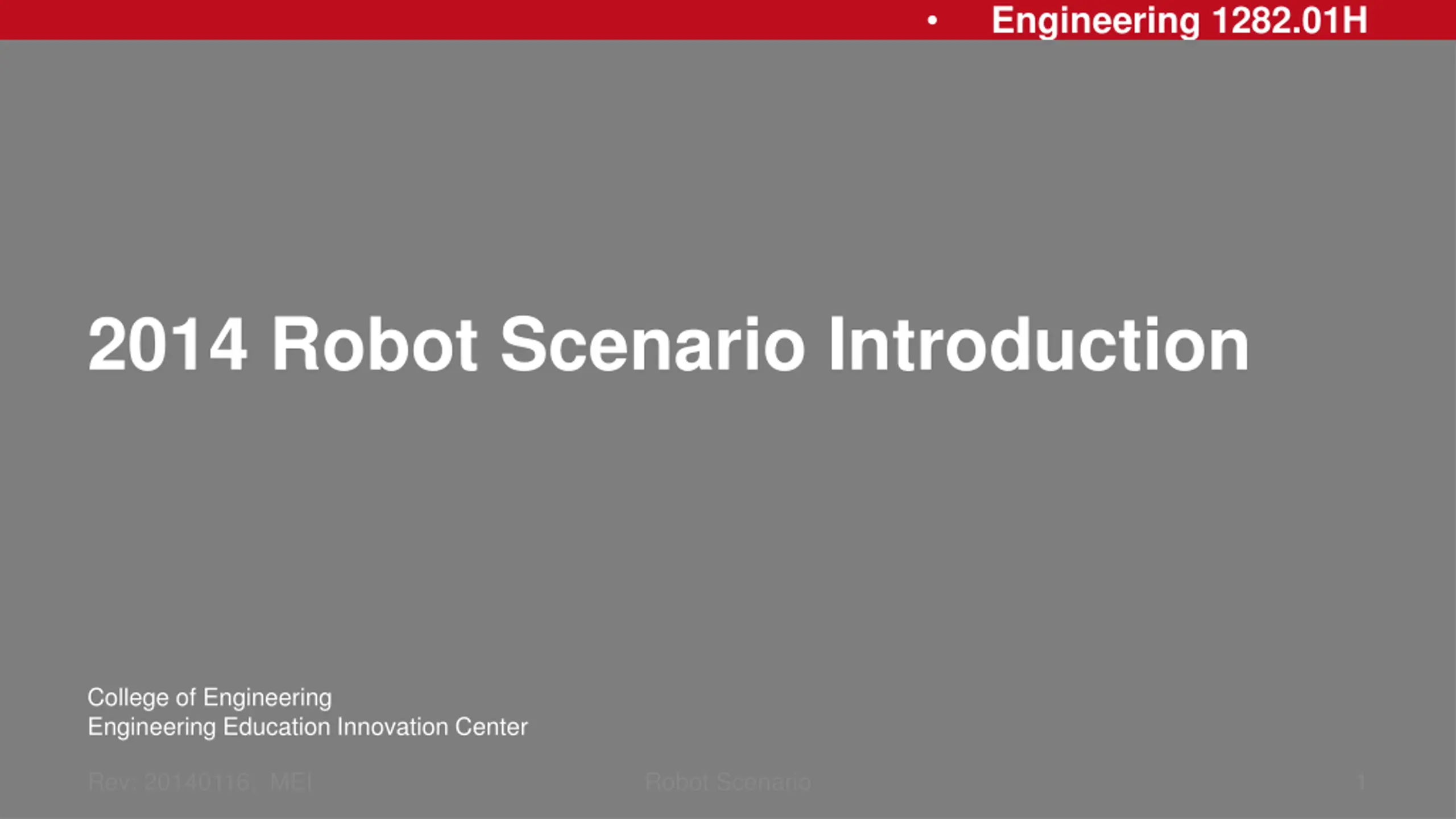

Engineering 1282.01H 2014 Robot Scenario Introduction College of Engineering Engineering Education Innovation Center Rev: 20140116, MEI Robot Scenario 1

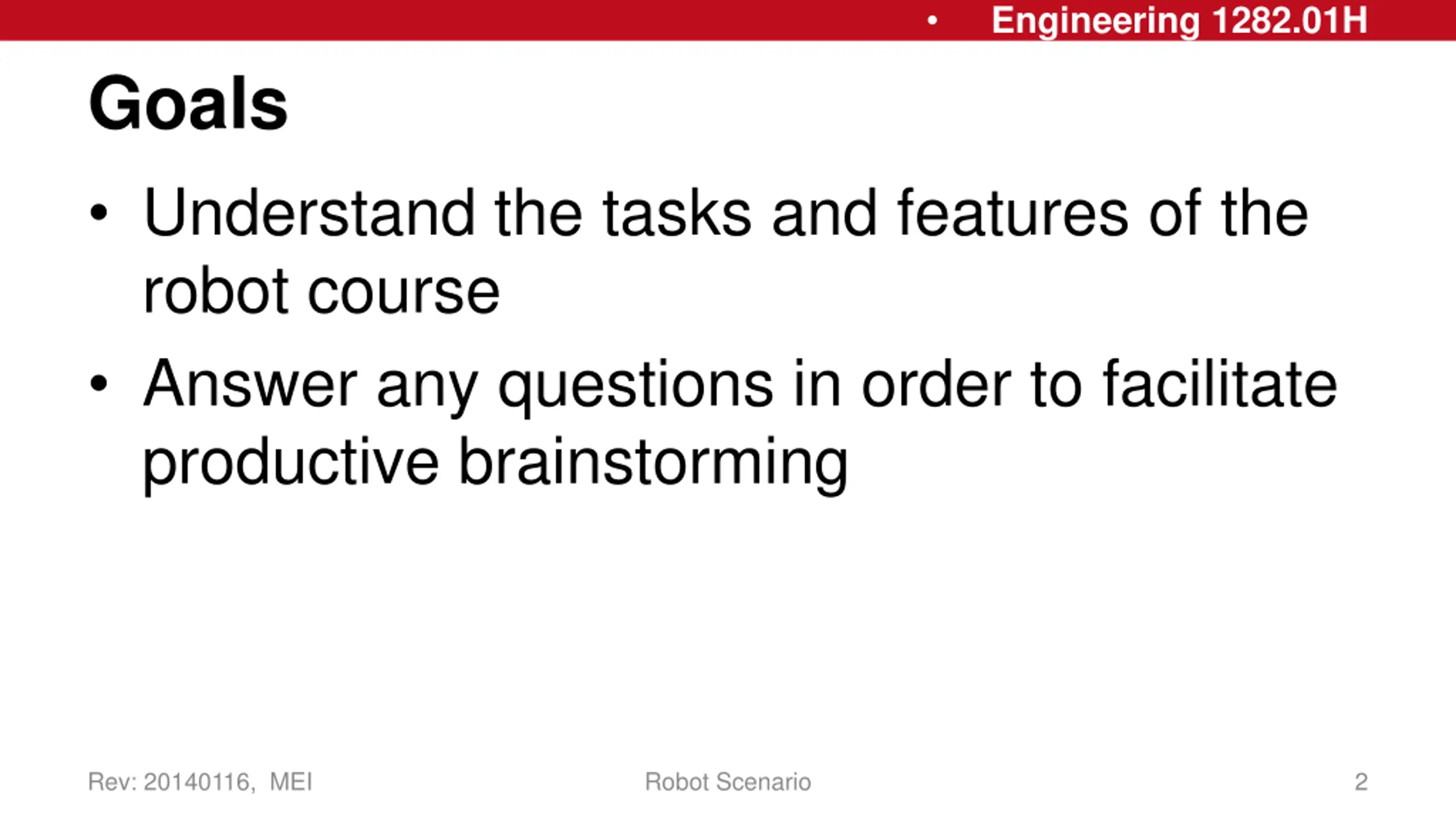

Engineering 1282.01H Goals Understand the tasks and features of the robot course Answer any questions in order to facilitate productive brainstorming Rev: 20140116, MEI Robot Scenario 2

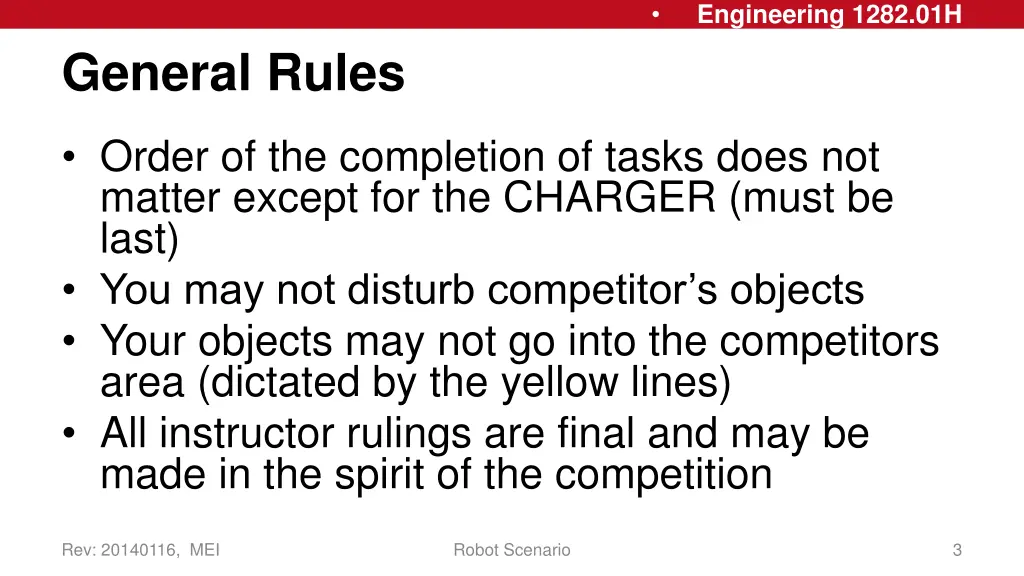

Engineering 1282.01H General Rules Order of the completion of tasks does not matter except for the CHARGER (must be last) You may not disturb competitor s objects Your objects may not go into the competitors area (dictated by the yellow lines) All instructor rulings are final and may be made in the spirit of the competition Rev: 20140116, MEI Robot Scenario 3

Engineering 1282.01H Scoring Task points Required tasks Counts for grade Object points Bonus tasks Used for winning/seeding Rev: 20140116, MEI Robot Scenario 4

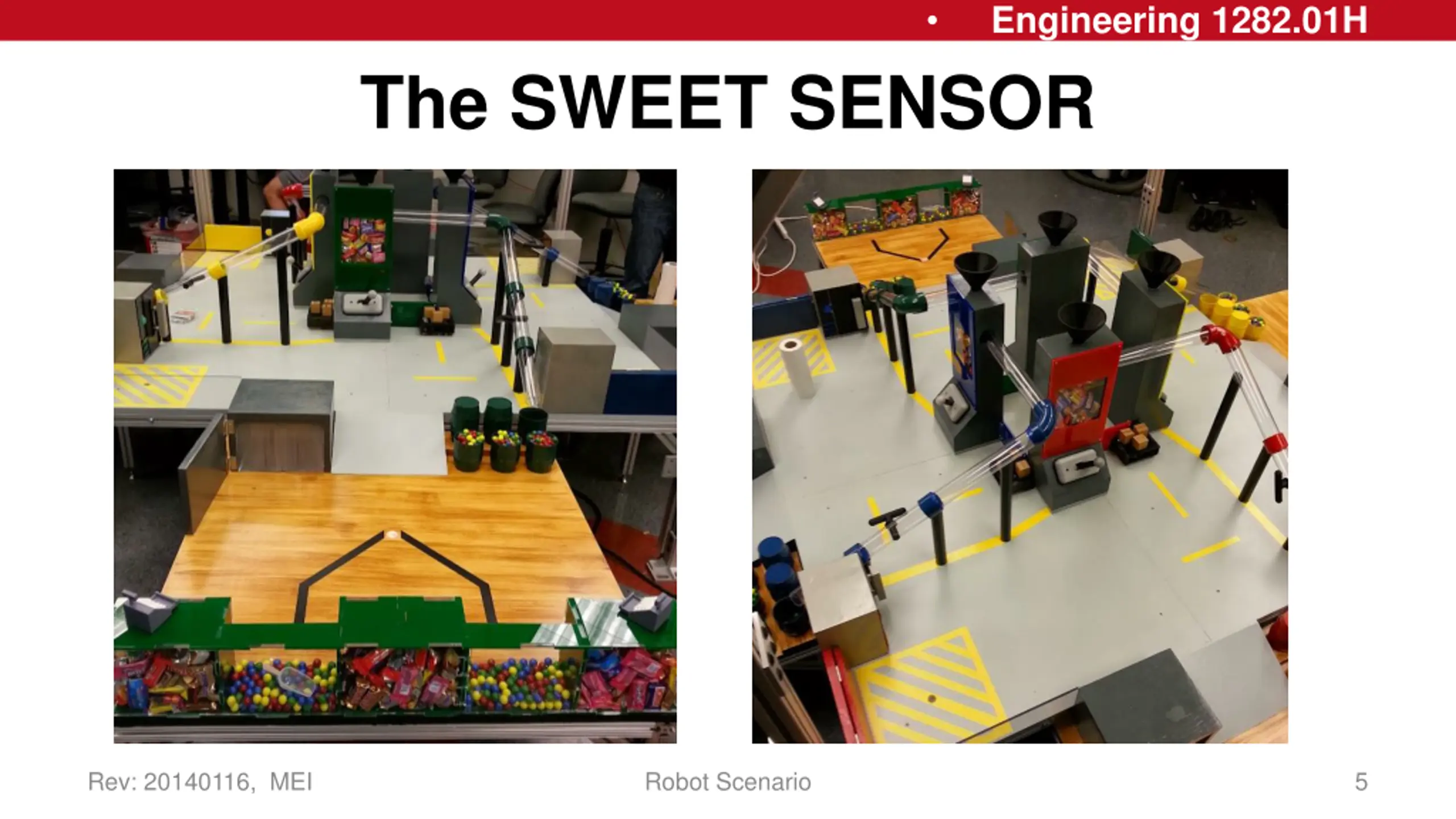

Engineering 1282.01H The SWEET SENSOR Rev: 20140116, MEI Robot Scenario 5

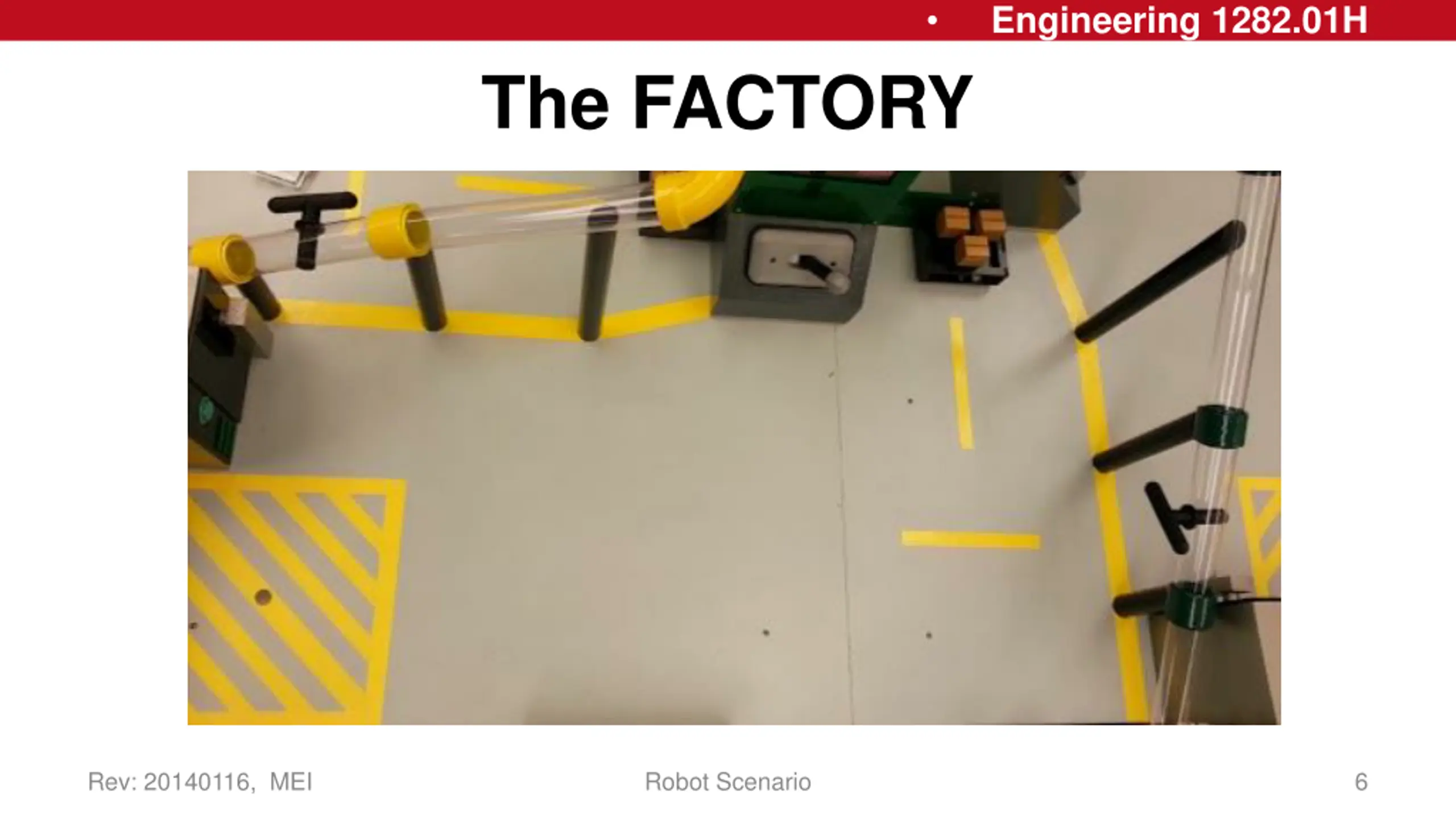

Engineering 1282.01H The FACTORY Rev: 20140116, MEI Robot Scenario 6

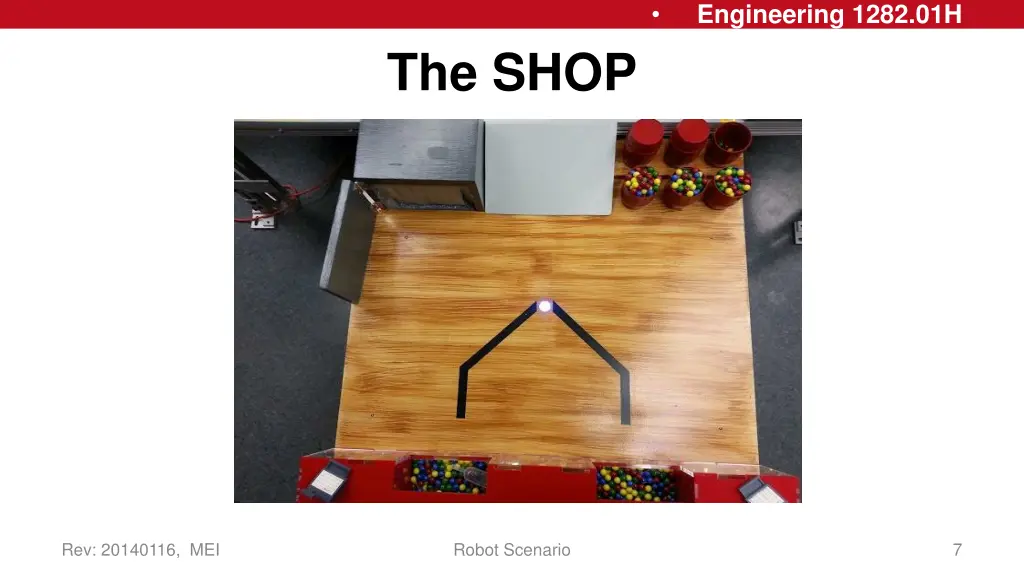

Engineering 1282.01H The SHOP Rev: 20140116, MEI Robot Scenario 7

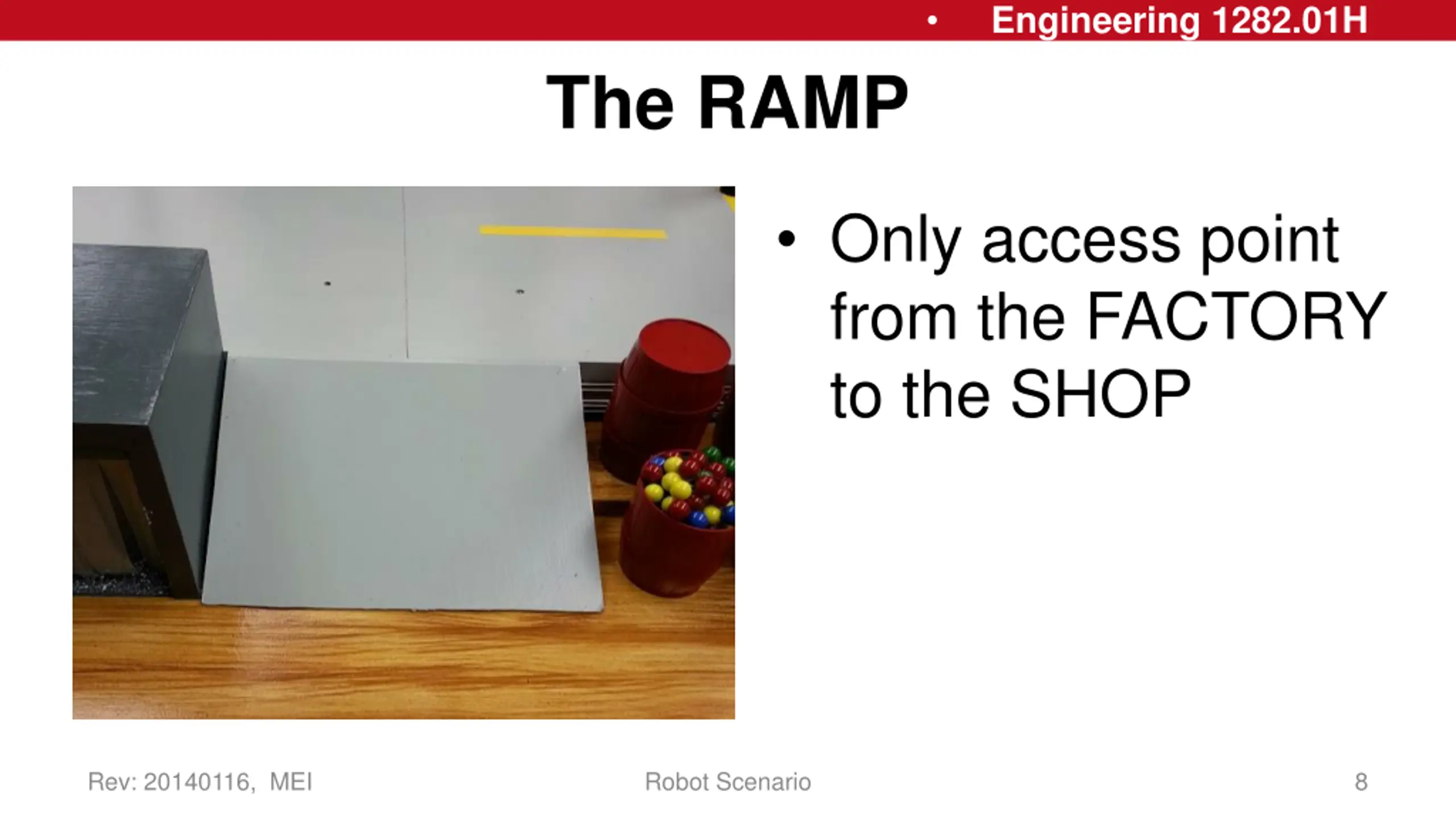

Engineering 1282.01H The RAMP Only access point from the FACTORY to the SHOP Rev: 20140116, MEI Robot Scenario 8

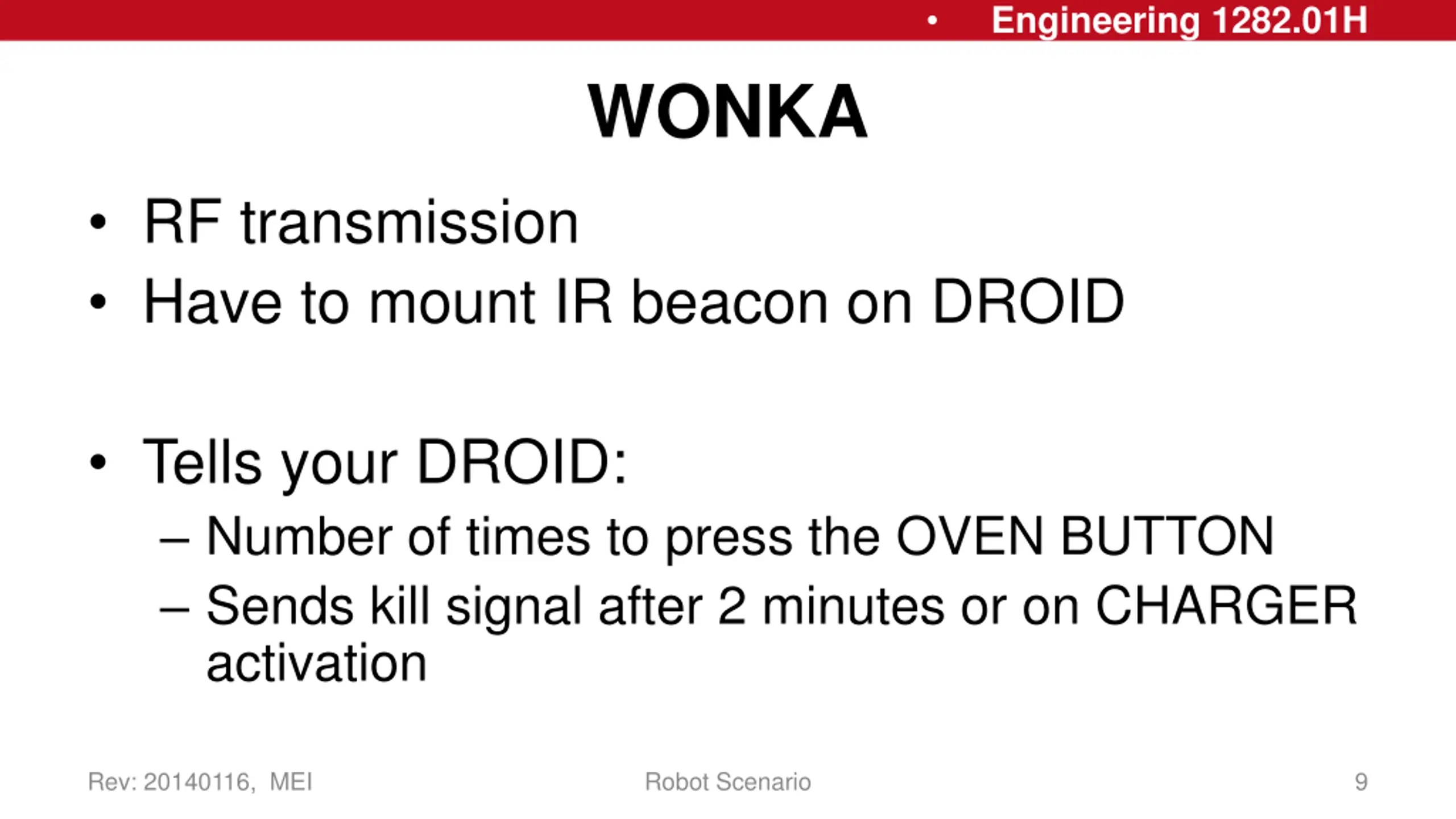

Engineering 1282.01H WONKA RF transmission Have to mount IR beacon on DROID Tells your DROID: Number of times to press the OVEN BUTTON Sends kill signal after 2 minutes or on CHARGER activation Rev: 20140116, MEI Robot Scenario 9

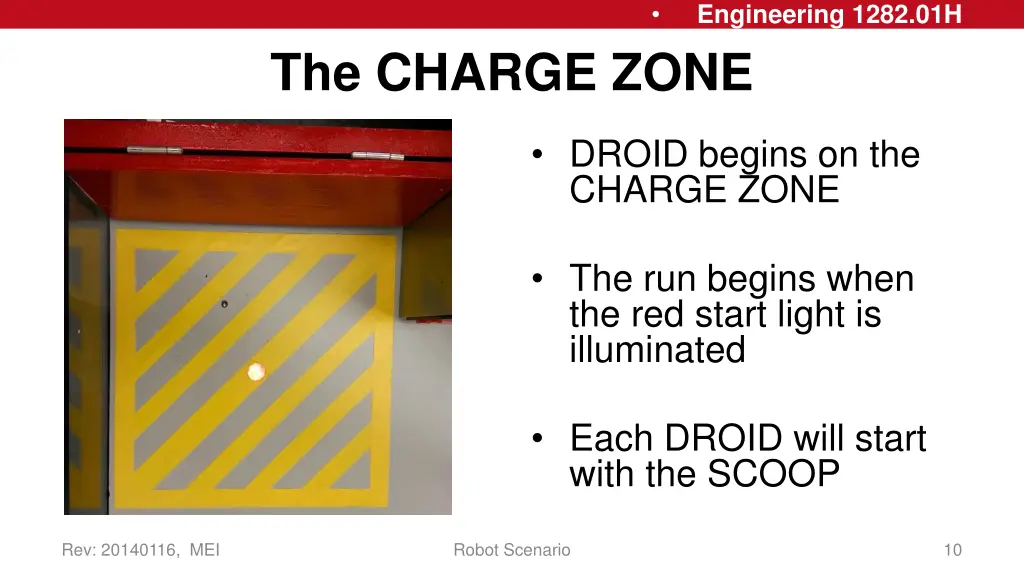

Engineering 1282.01H The CHARGE ZONE DROID begins on the CHARGE ZONE The run begins when the red start light is illuminated Each DROID will start with the SCOOP Rev: 20140116, MEI Robot Scenario 10

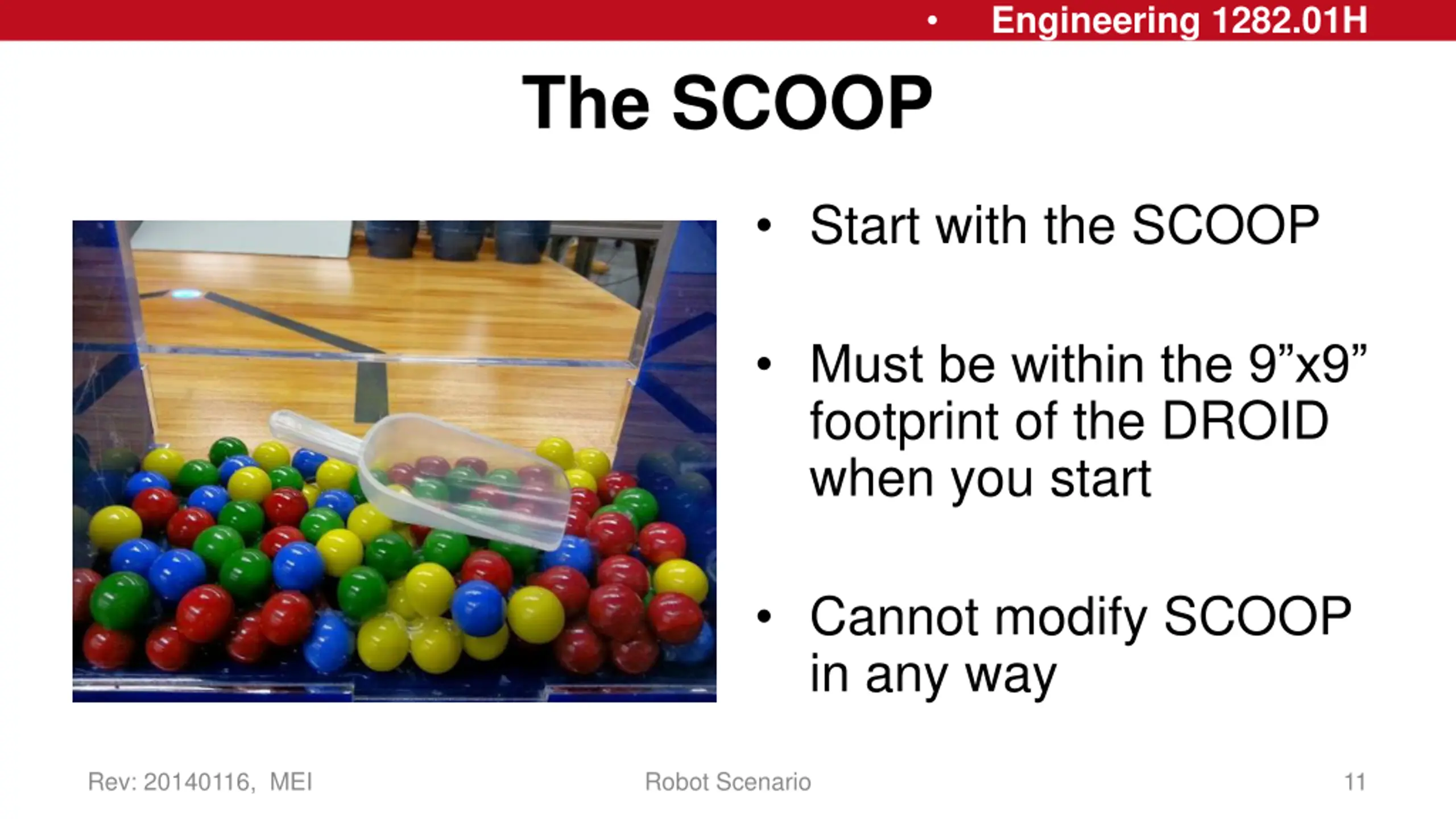

Engineering 1282.01H The SCOOP Start with the SCOOP Must be within the 9 x9 footprint of the DROID when you start Cannot modify SCOOP in any way Rev: 20140116, MEI Robot Scenario 11

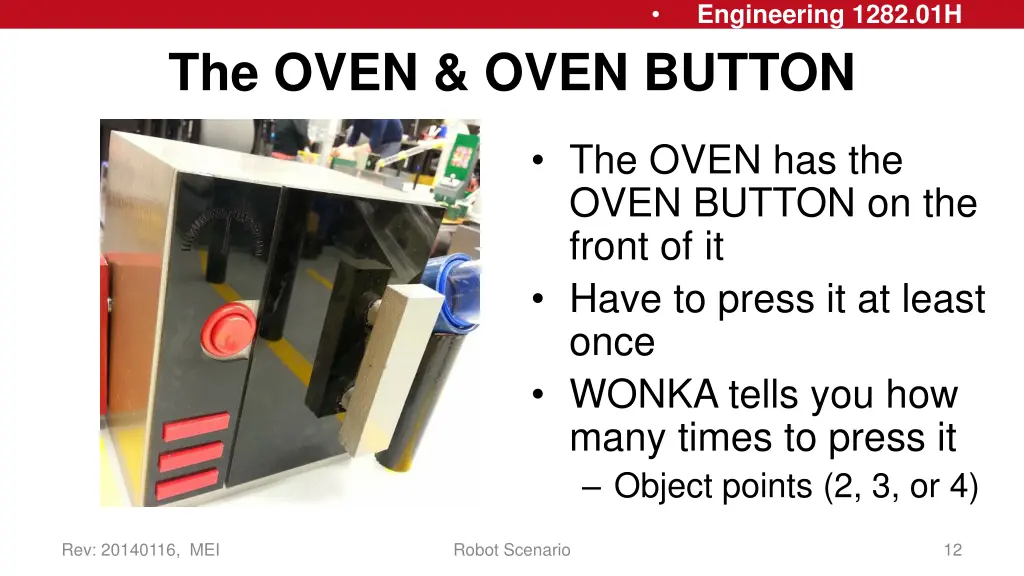

Engineering 1282.01H The OVEN & OVEN BUTTON The OVEN has the OVEN BUTTON on the front of it Have to press it at least once WONKA tells you how many times to press it Object points (2, 3, or 4) Rev: 20140116, MEI Robot Scenario 12

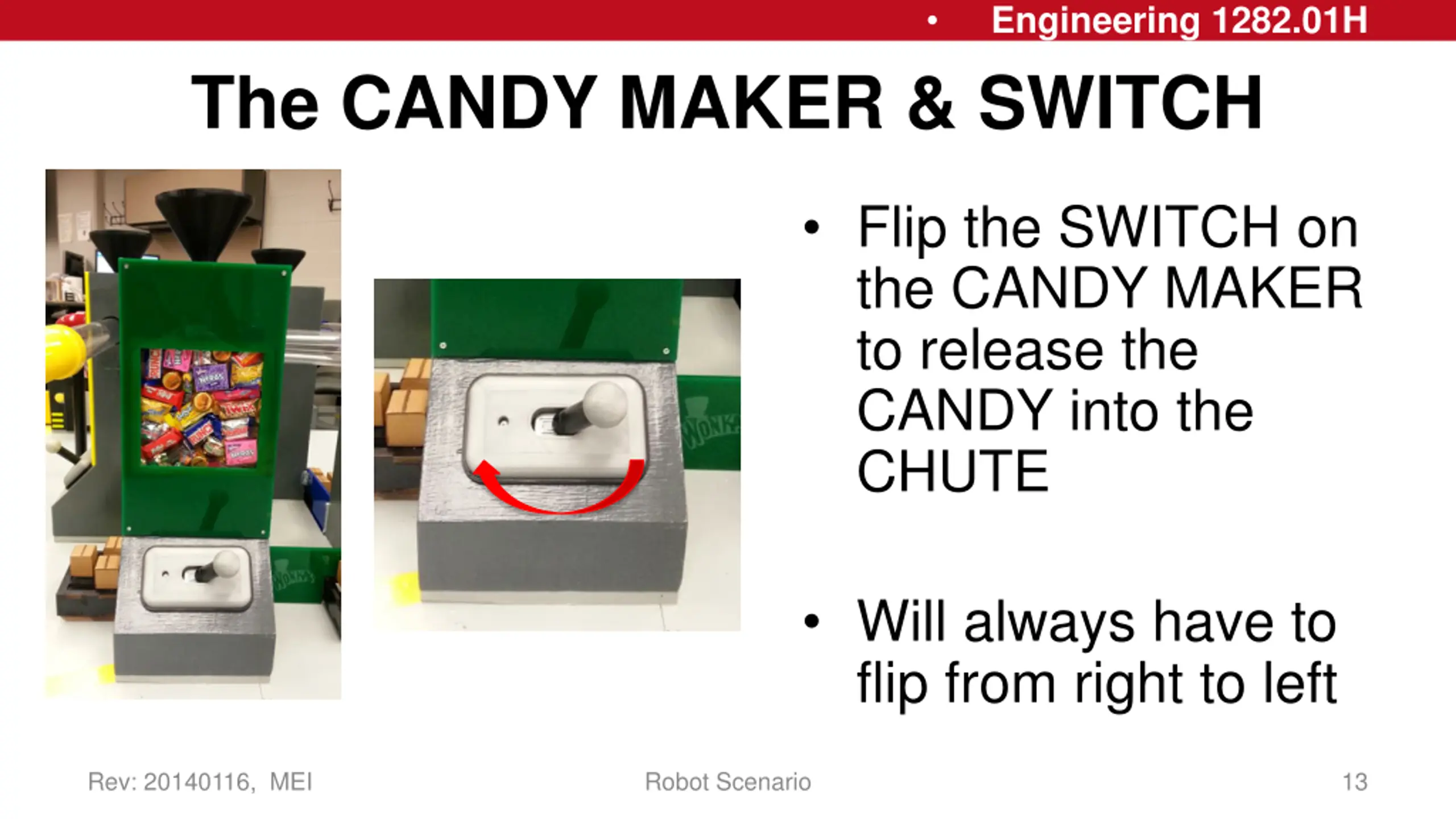

Engineering 1282.01H The CANDY MAKER & SWITCH Flip the SWITCH on the CANDY MAKER to release the CANDY into the CHUTE Will always have to flip from right to left Rev: 20140116, MEI Robot Scenario 13

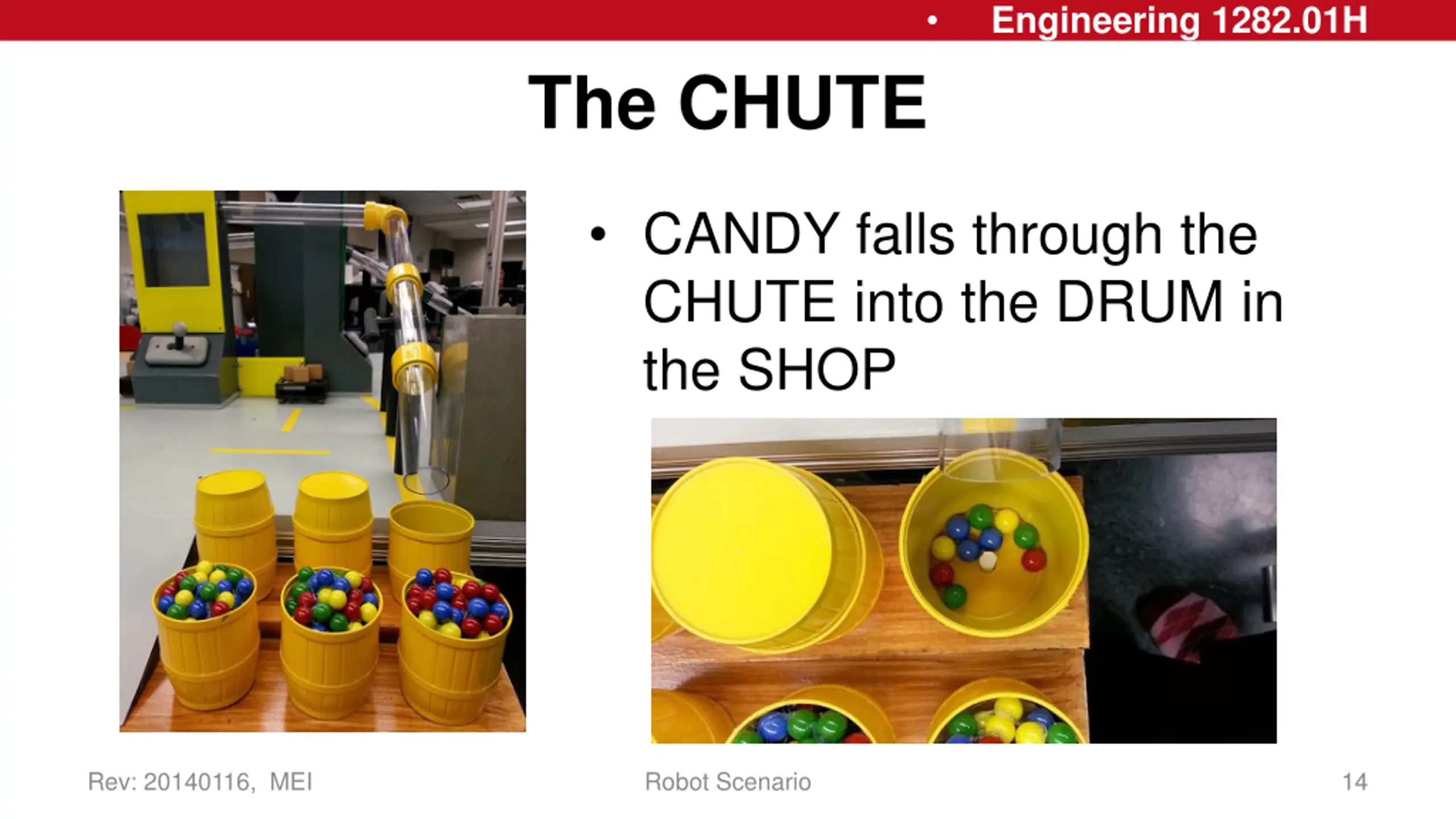

Engineering 1282.01H The CHUTE CANDY falls through the CHUTE into the DRUM in the SHOP Rev: 20140116, MEI Robot Scenario 14

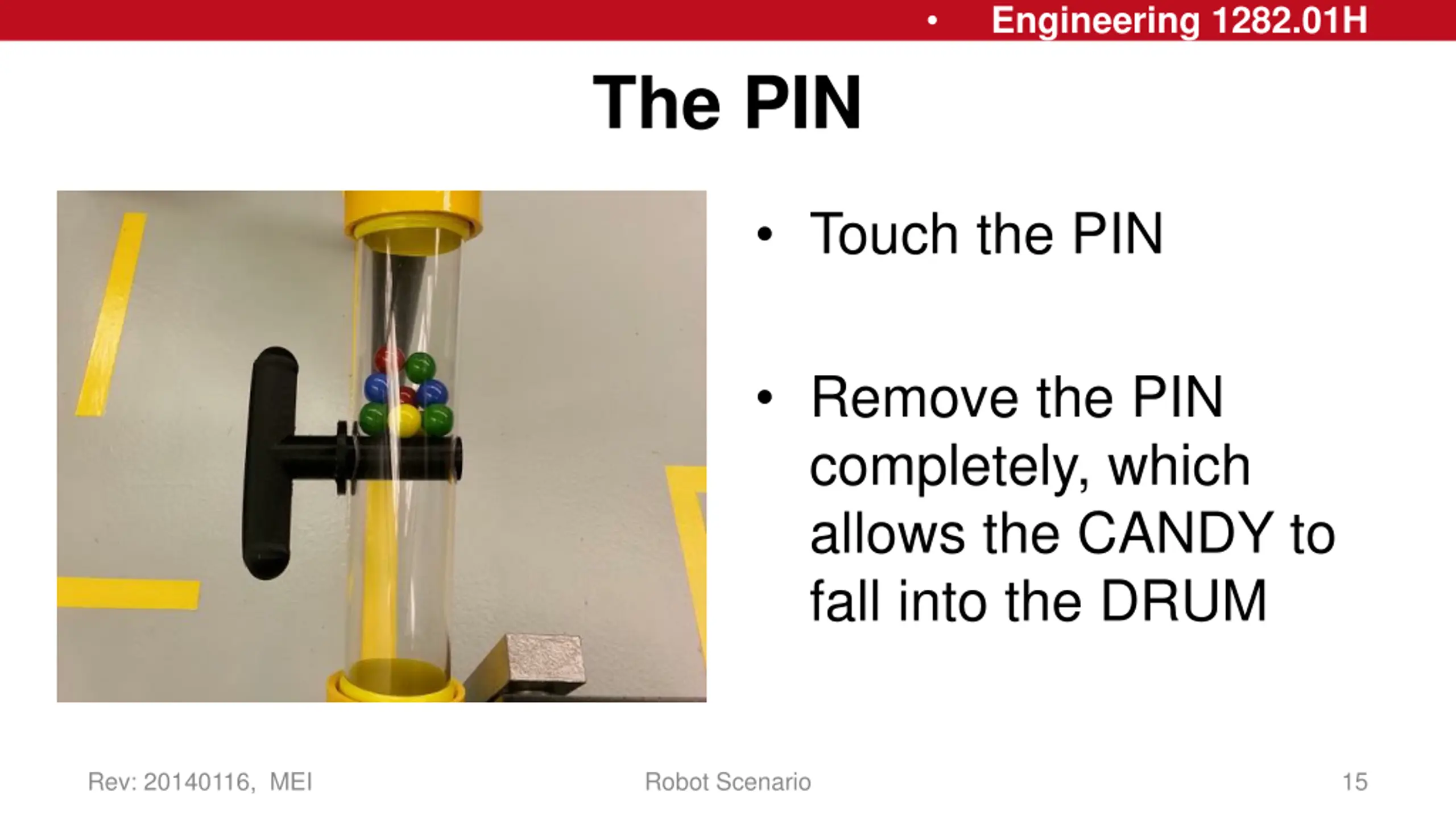

Engineering 1282.01H The PIN Touch the PIN Remove the PIN completely, which allows the CANDY to fall into the DRUM Rev: 20140116, MEI Robot Scenario 15

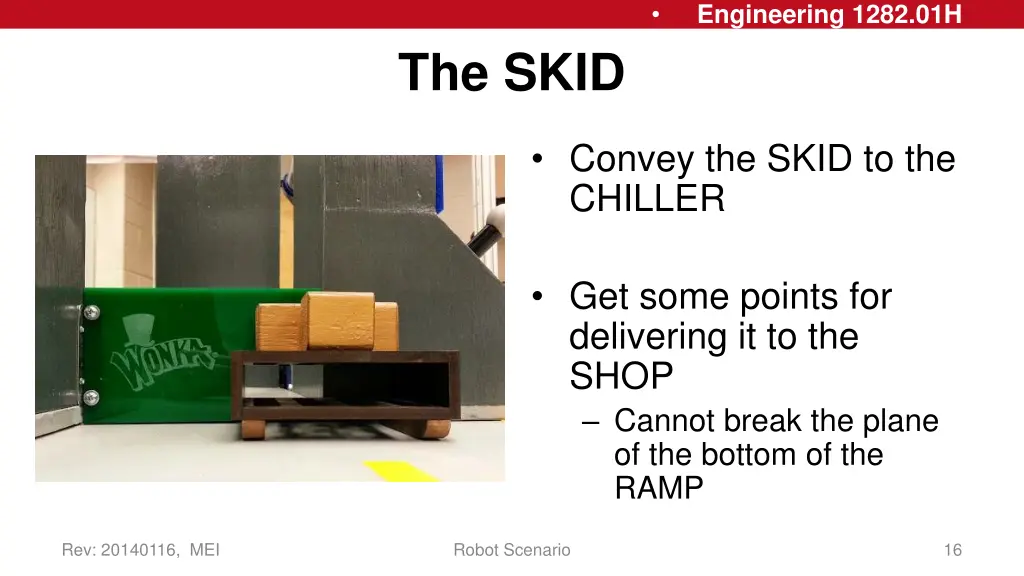

Engineering 1282.01H The SKID Convey the SKID to the CHILLER Get some points for delivering it to the SHOP Cannot break the plane of the bottom of the RAMP Rev: 20140116, MEI Robot Scenario 16

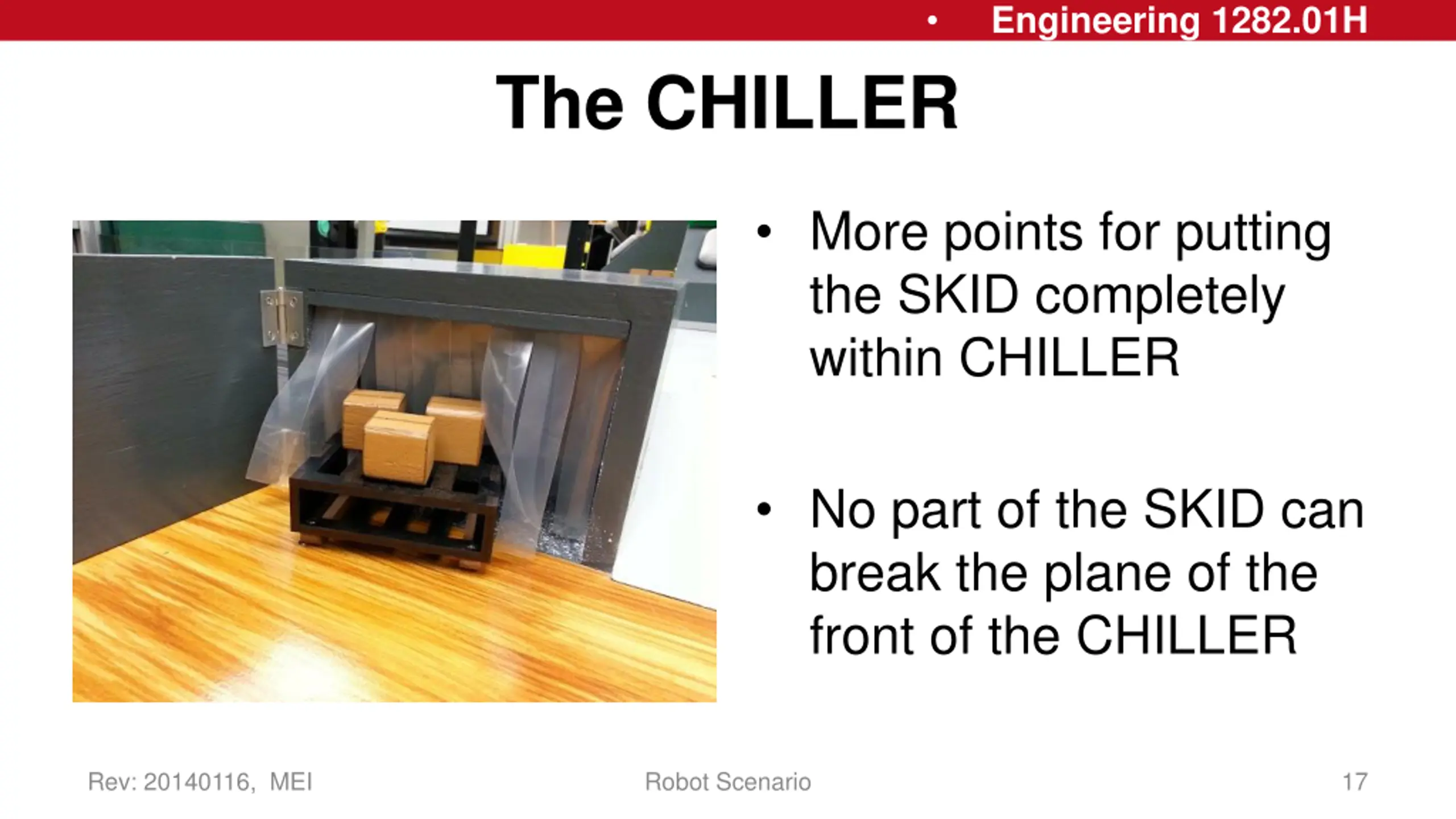

Engineering 1282.01H The CHILLER More points for putting the SKID completely within CHILLER No part of the SKID can break the plane of the front of the CHILLER Rev: 20140116, MEI Robot Scenario 17

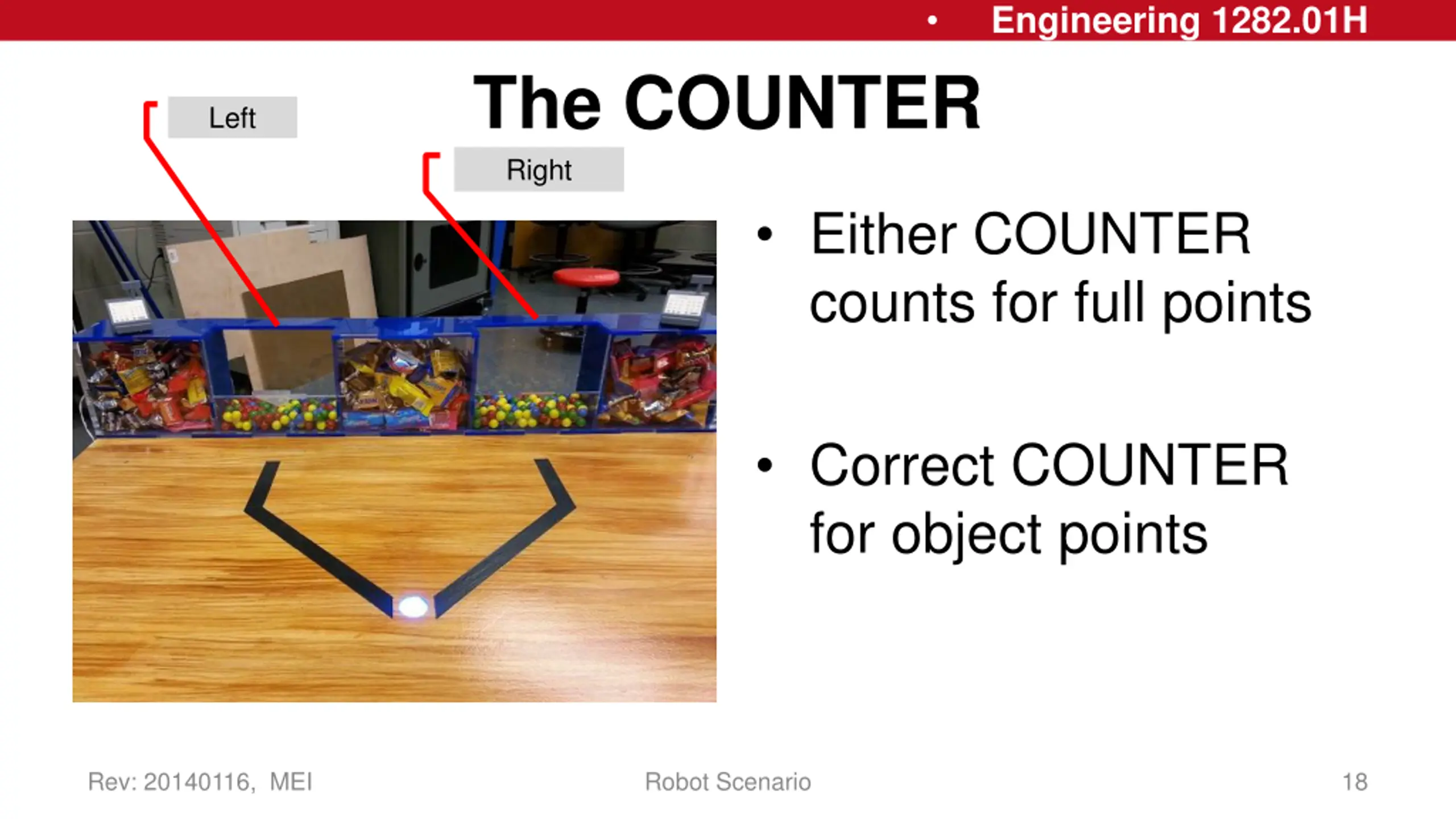

Engineering 1282.01H The COUNTER Right Left Either COUNTER counts for full points Correct COUNTER for object points Rev: 20140116, MEI Robot Scenario 18

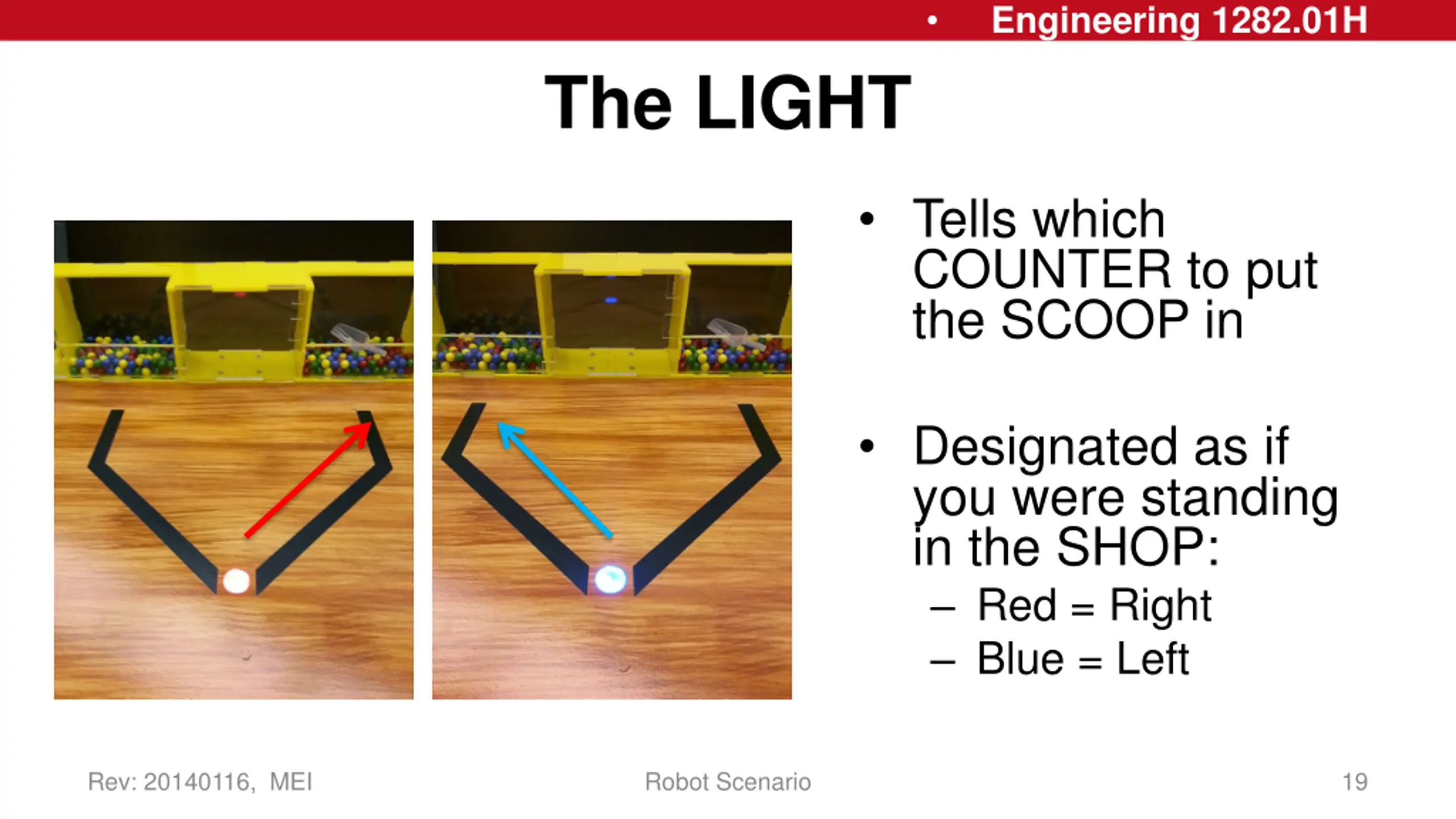

Engineering 1282.01H The LIGHT Tells which COUNTER to put the SCOOP in Designated as if you were standing in the SHOP: Red = Right Blue = Left Rev: 20140116, MEI Robot Scenario 19

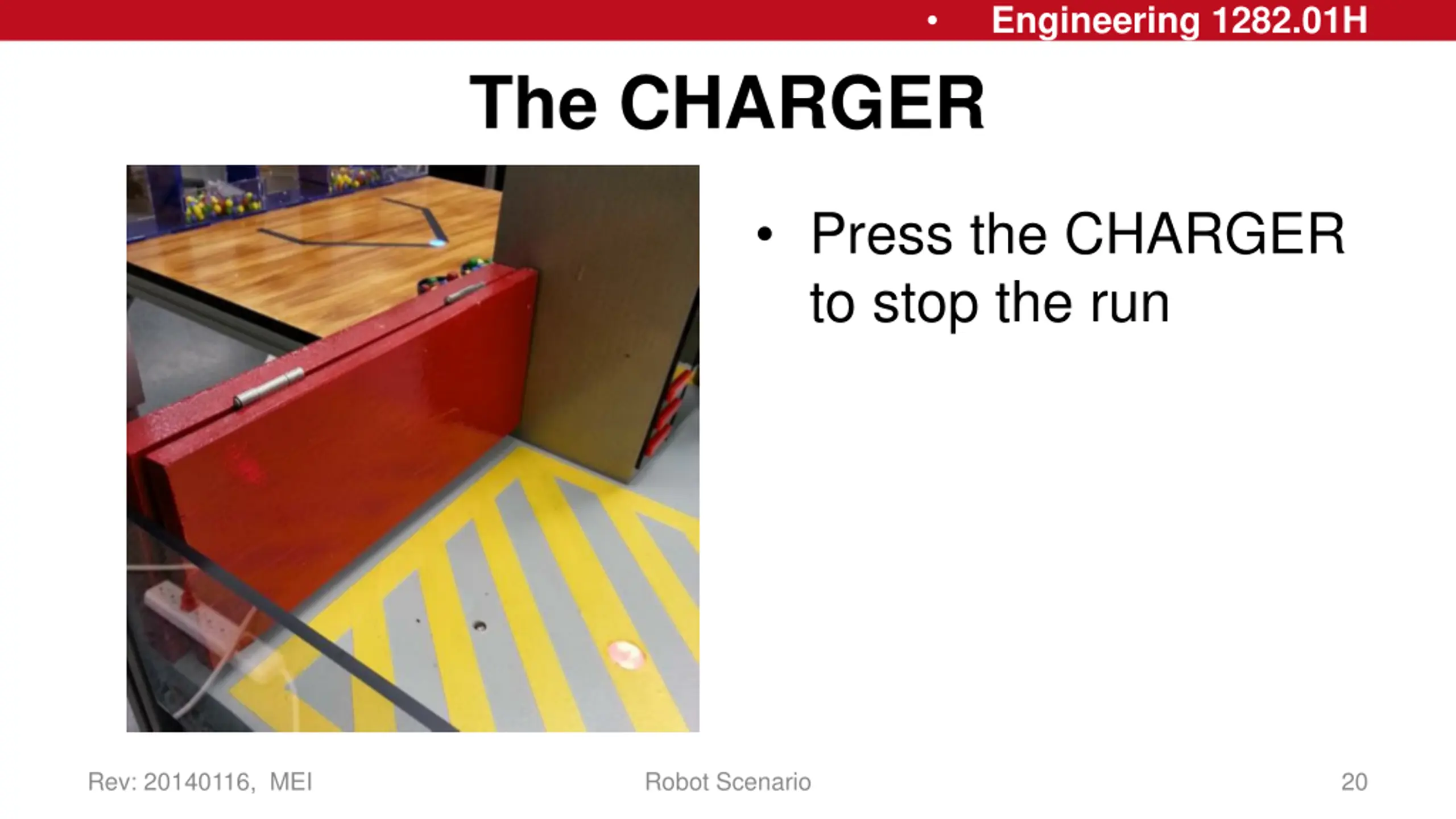

Engineering 1282.01H The CHARGER Press the CHARGER to stop the run Rev: 20140116, MEI Robot Scenario 20

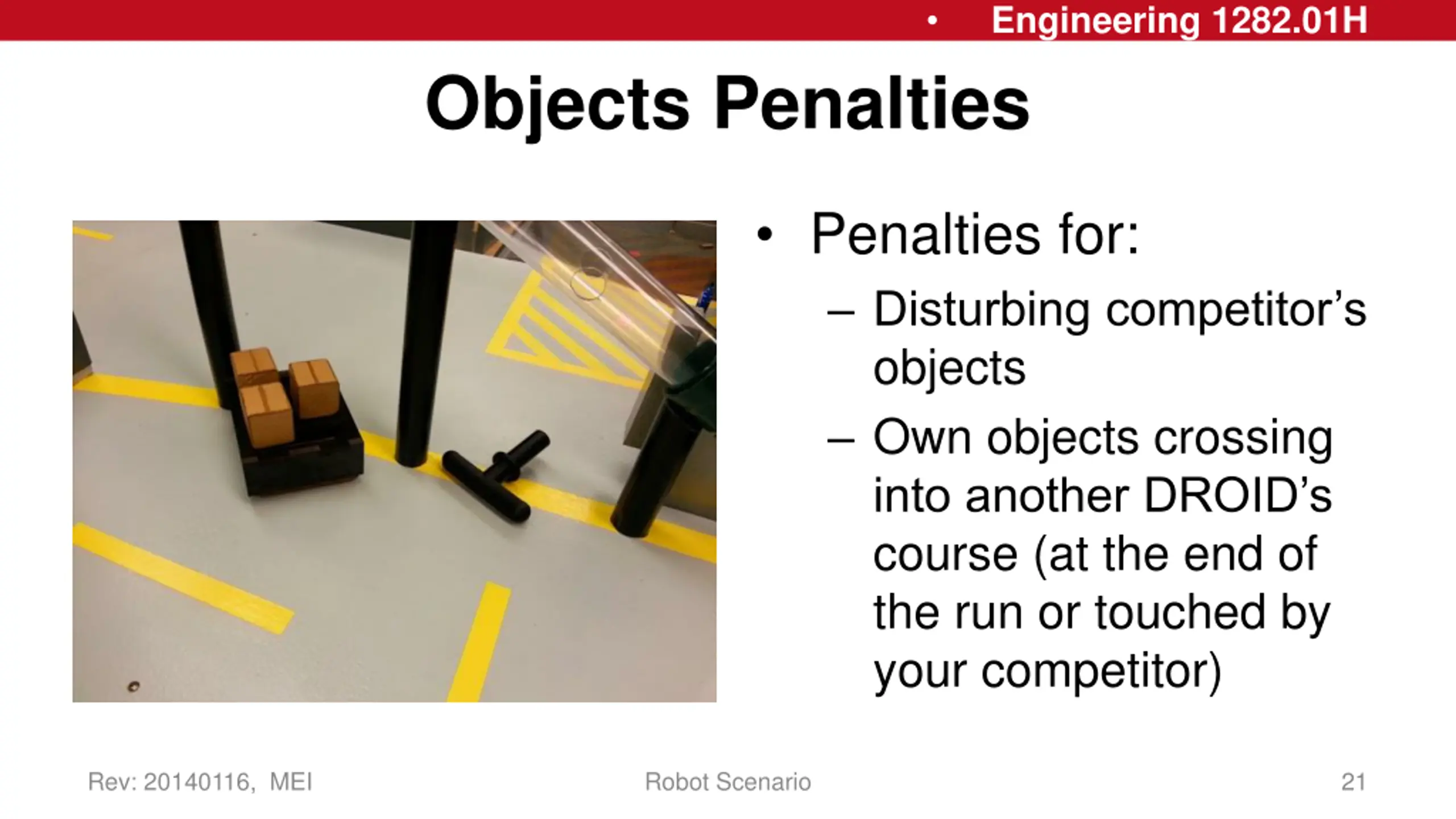

Engineering 1282.01H Objects Penalties Penalties for: Disturbing competitor s objects Own objects crossing into another DROID s course (at the end of the run or touched by your competitor) Rev: 20140116, MEI Robot Scenario 21

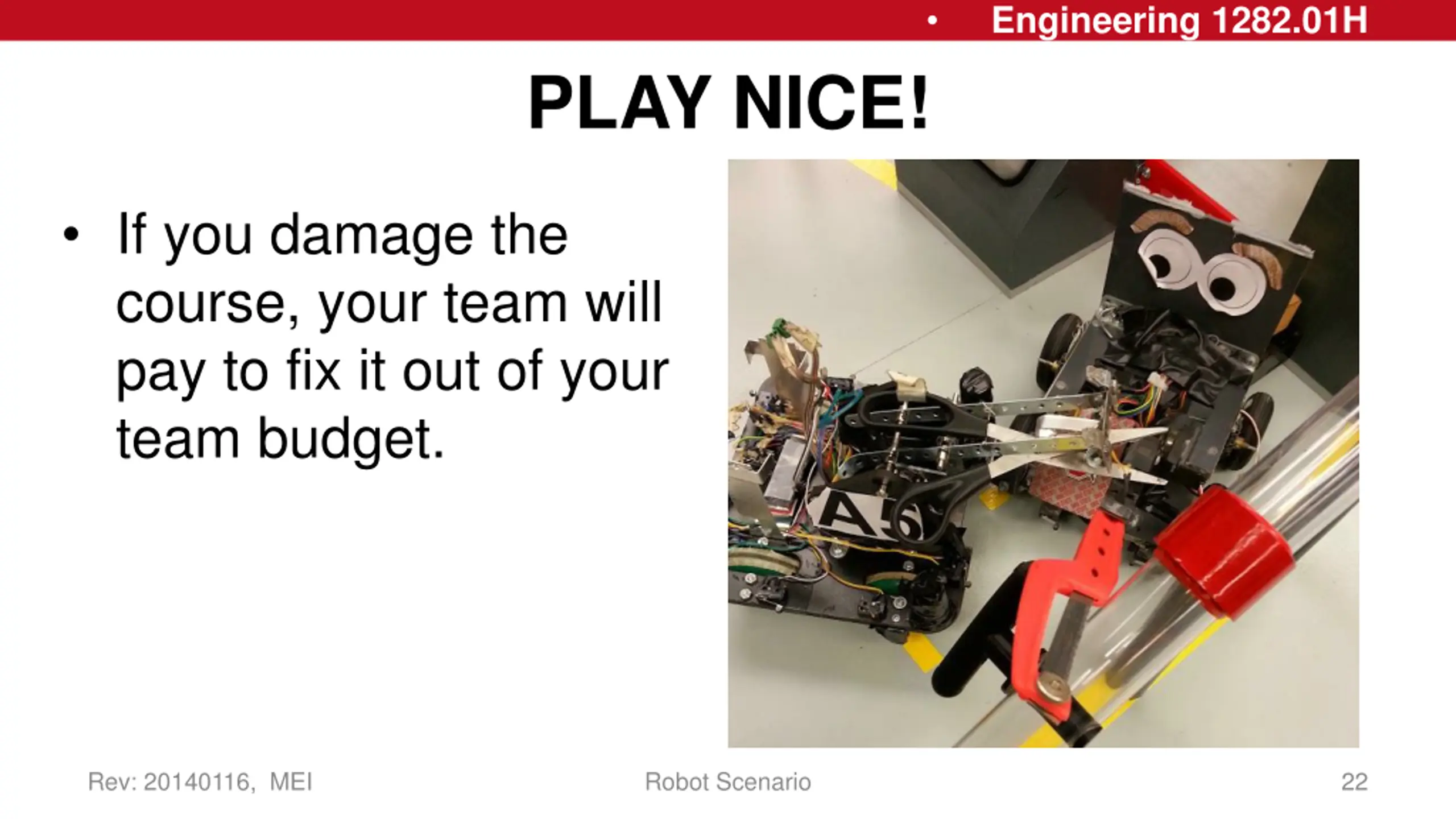

Engineering 1282.01H PLAY NICE! If you damage the course, your team will pay to fix it out of your team budget. Rev: 20140116, MEI Robot Scenario 22

Engineering 1282.01H THE END!! Have fun and good luck!!! Rev: 20140116, MEI Robot Scenario 23
