RT Linux & Tracing of rt_spinlock Kernel Meetup at Bangalore 2024
Introduction Mintu Patel Kernel Developer and Lead at Harman Int. Bangalore. Chinmoy Ghosh System & kernel Architect at Stellantis Bangalore Vimal Kumar Kernel Developer at Harman Int. Bangalore Kernel Meetup at Bangalore 2024

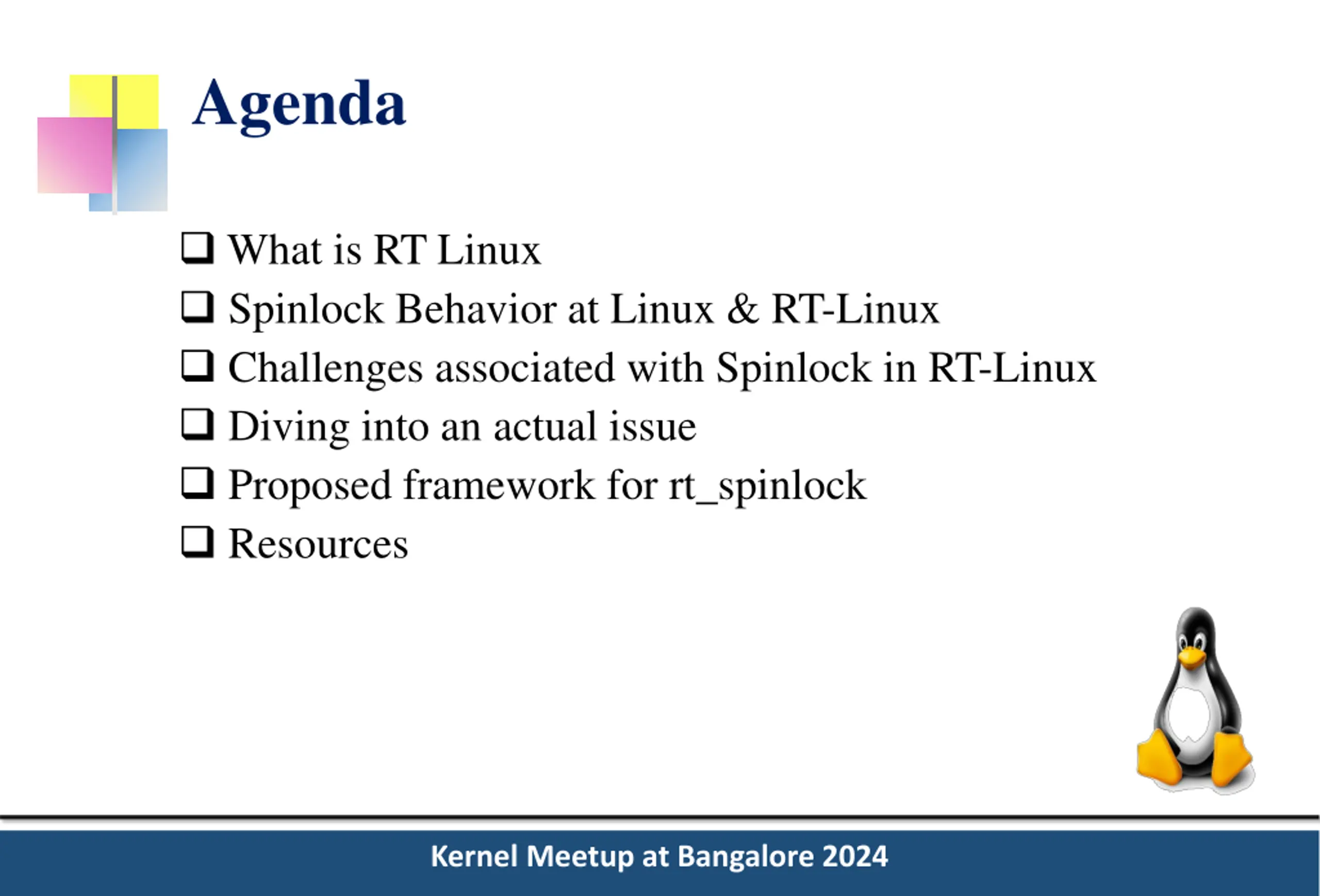

Agenda What is RT Linux Spinlock Behavior at Linux & RT-Linux Challenges associated with Spinlock in RT-Linux Diving into an actual issue Proposed framework for rt_spinlock Resources Kernel Meetup at Bangalore 2024

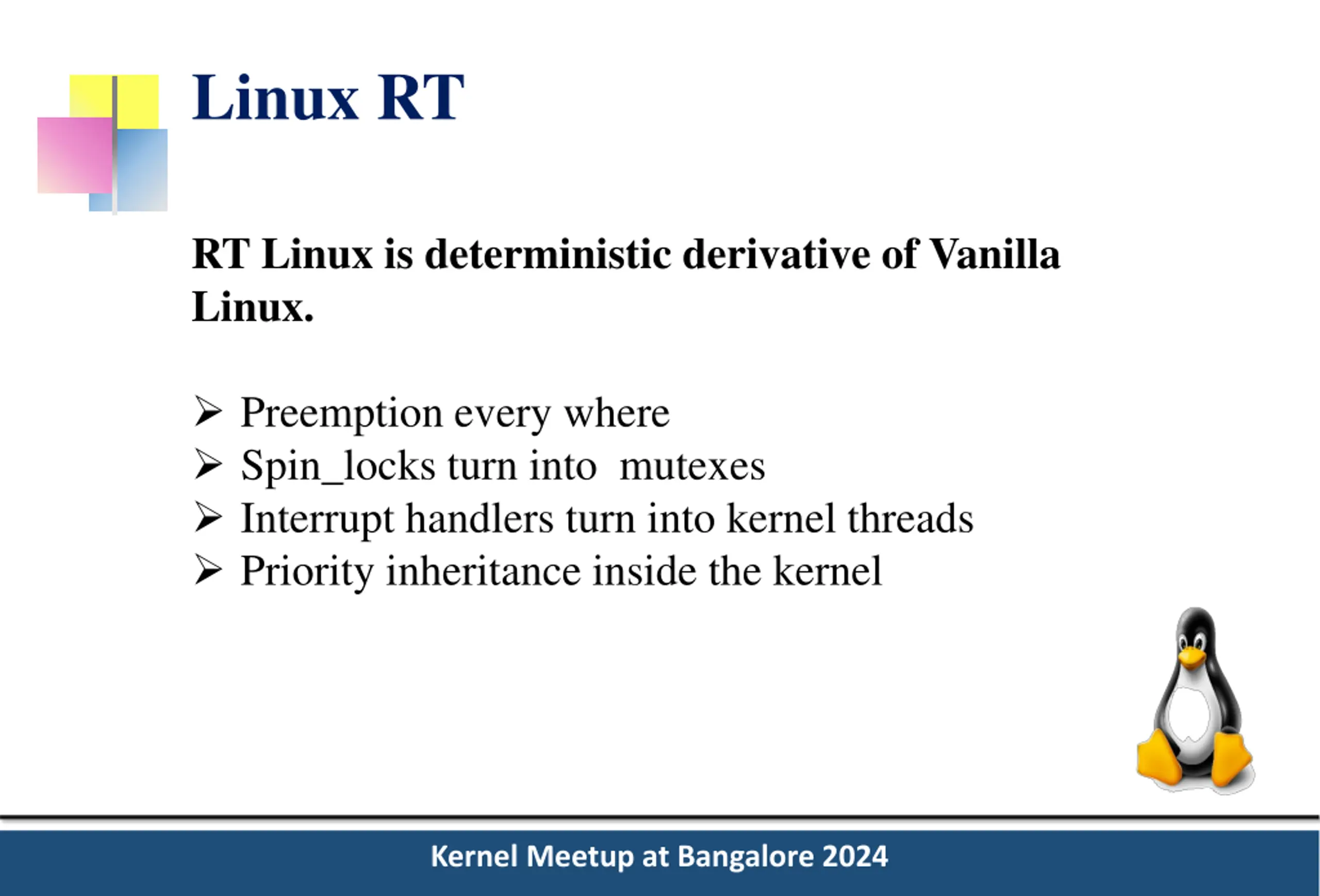

Linux RT RT Linux is deterministic derivative of Vanilla Linux. Preemption every where Spin_locks turn into mutexes Interrupt handlers turn into kernel threads Priority inheritance inside the kernel Kernel Meetup at Bangalore 2024

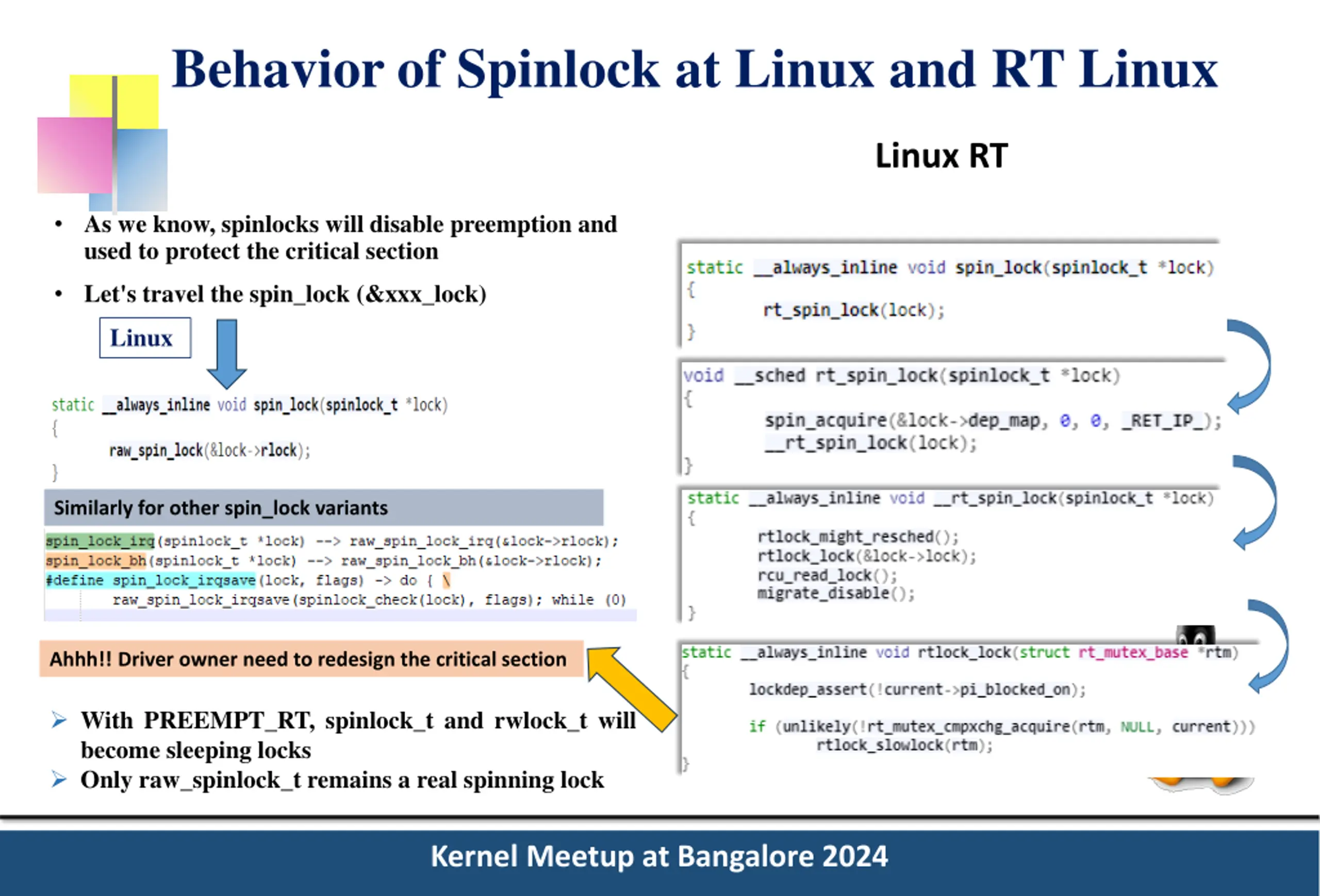

Behaviorof Spinlock at Linux and RT Linux Linux RT As we know, spinlocks will disable preemption and used to protect the critical section Let's travel the spin_lock (&xxx_lock) Linux Similarly for other spin_lock variants Ahhh!! Driver owner need to redesign the critical section With PREEMPT_RT, spinlock_t and rwlock_t will become sleeping locks Only raw_spinlock_t remains a real spinning lock Kernel Meetup at Bangalore 2024

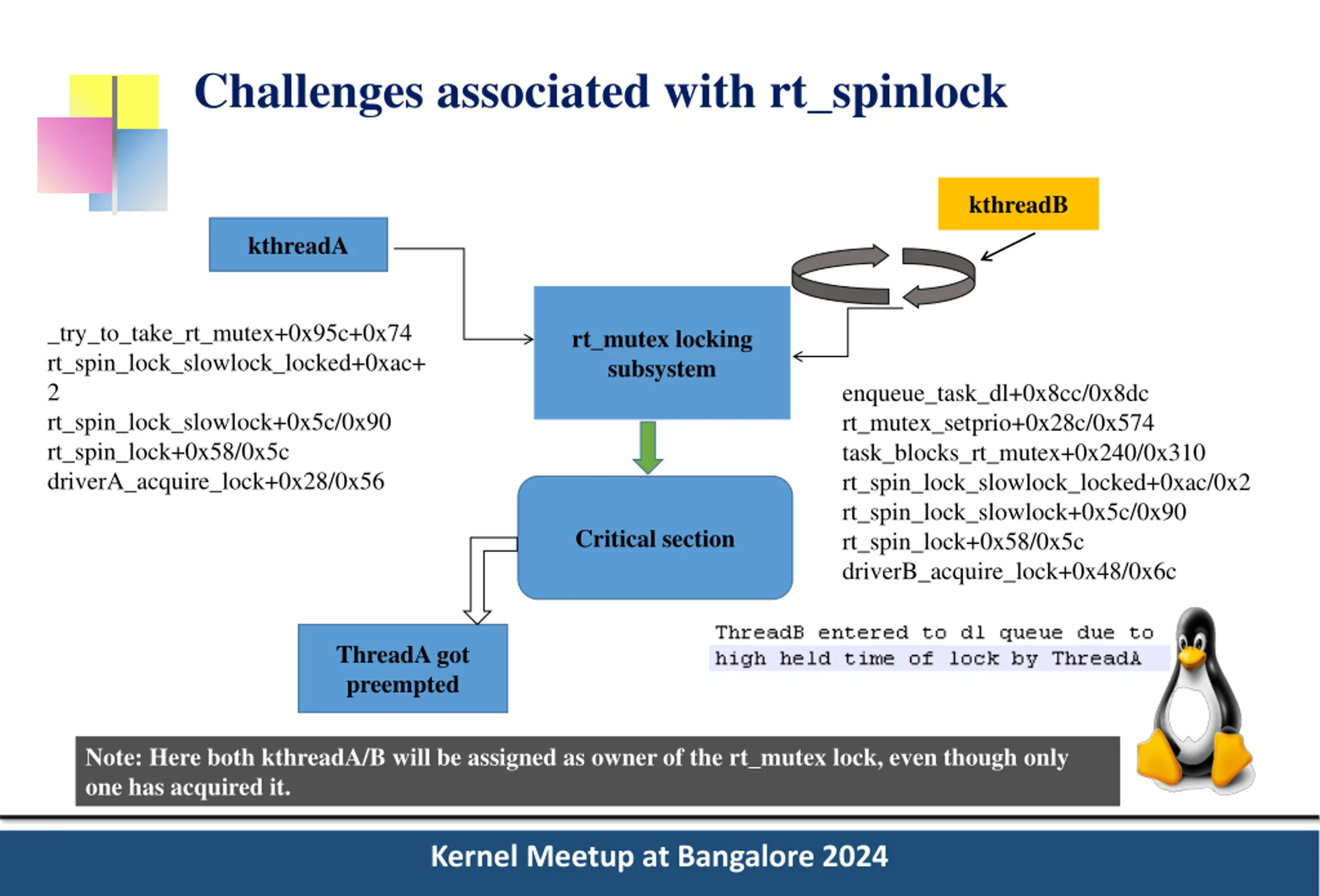

Challenges associated with rt_spinlock kthreadB kthreadA _try_to_take_rt_mutex+0x95c+0x74 rt_spin_lock_slowlock_locked+0xac+ 2 rt_spin_lock_slowlock+0x5c/0x90 rt_spin_lock+0x58/0x5c driverA_acquire_lock+0x28/0x56 rt_mutex locking subsystem enqueue_task_dl+0x8cc/0x8dc rt_mutex_setprio+0x28c/0x574 task_blocks_rt_mutex+0x240/0x310 rt_spin_lock_slowlock_locked+0xac/0x2 rt_spin_lock_slowlock+0x5c/0x90 rt_spin_lock+0x58/0x5c driverB_acquire_lock+0x48/0x6c Critical section ThreadA got preempted Note: Here both kthreadA/B will be assigned as owner of the rt_mutex lock, even though only one has acquired it. Kernel Meetup at Bangalore 2024

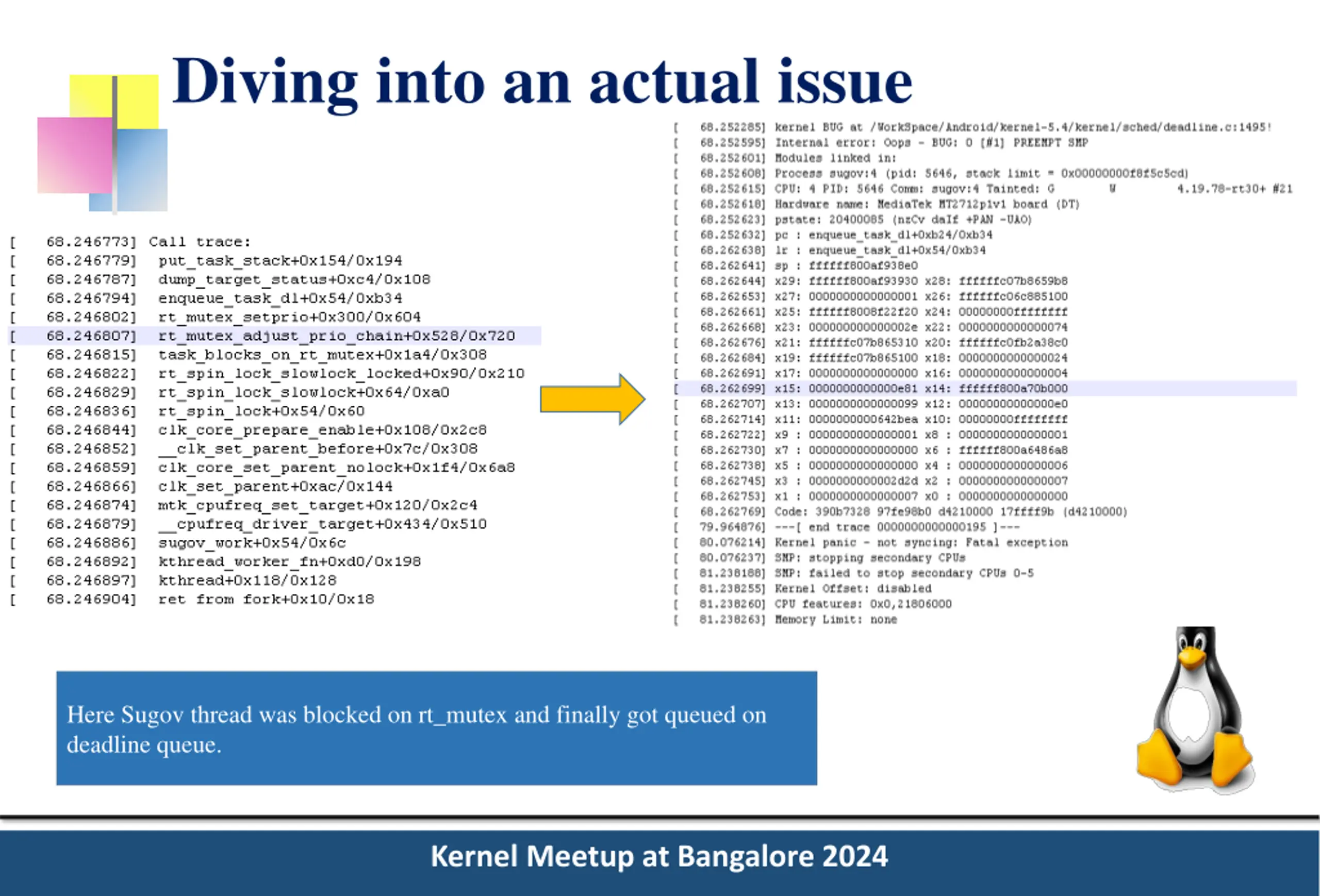

Diving into an actual issue Here Sugov thread was blocked on rt_mutex and finally got queued on deadline queue. Kernel Meetup at Bangalore 2024

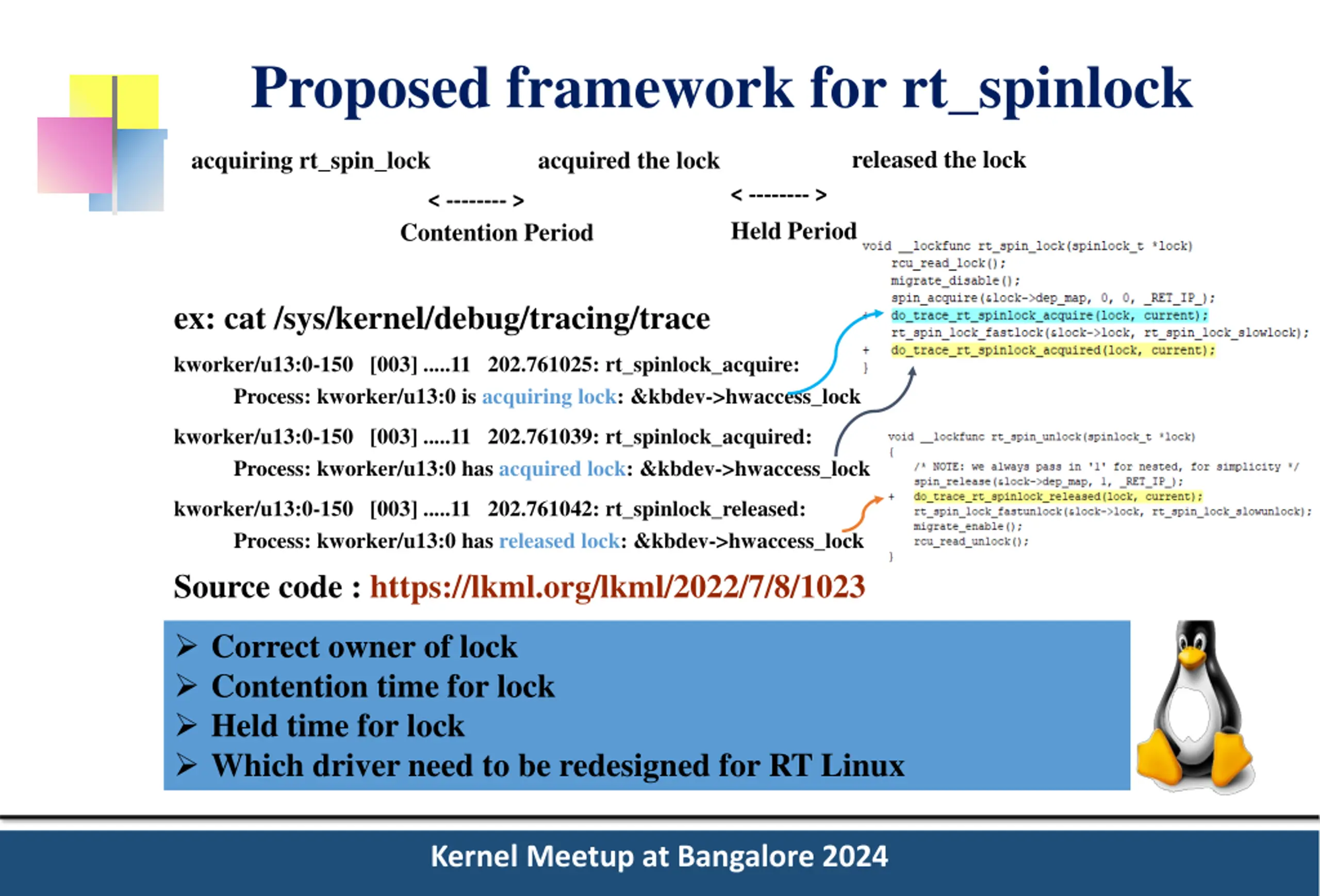

Proposed framework for rt_spinlock releasedthe lock acquiring rt_spin_lock acquired the lock < -------- > HeldPeriod < -------- > ContentionPeriod ex: cat /sys/kernel/debug/tracing/trace kworker/u13:0-150 [003] .....11 202.761025: rt_spinlock_acquire: Process: kworker/u13:0 is acquiring lock: &kbdev->hwaccess_lock kworker/u13:0-150 [003] .....11 202.761039: rt_spinlock_acquired: Process: kworker/u13:0 has acquired lock: &kbdev->hwaccess_lock kworker/u13:0-150 [003] .....11 202.761042: rt_spinlock_released: Process: kworker/u13:0 has released lock: &kbdev->hwaccess_lock Source code : https://lkml.org/lkml/2022/7/8/1023 Correct owner of lock Contention time for lock Held time for lock Which driver need to be redesigned for RT Linux Kernel Meetup at Bangalore 2024

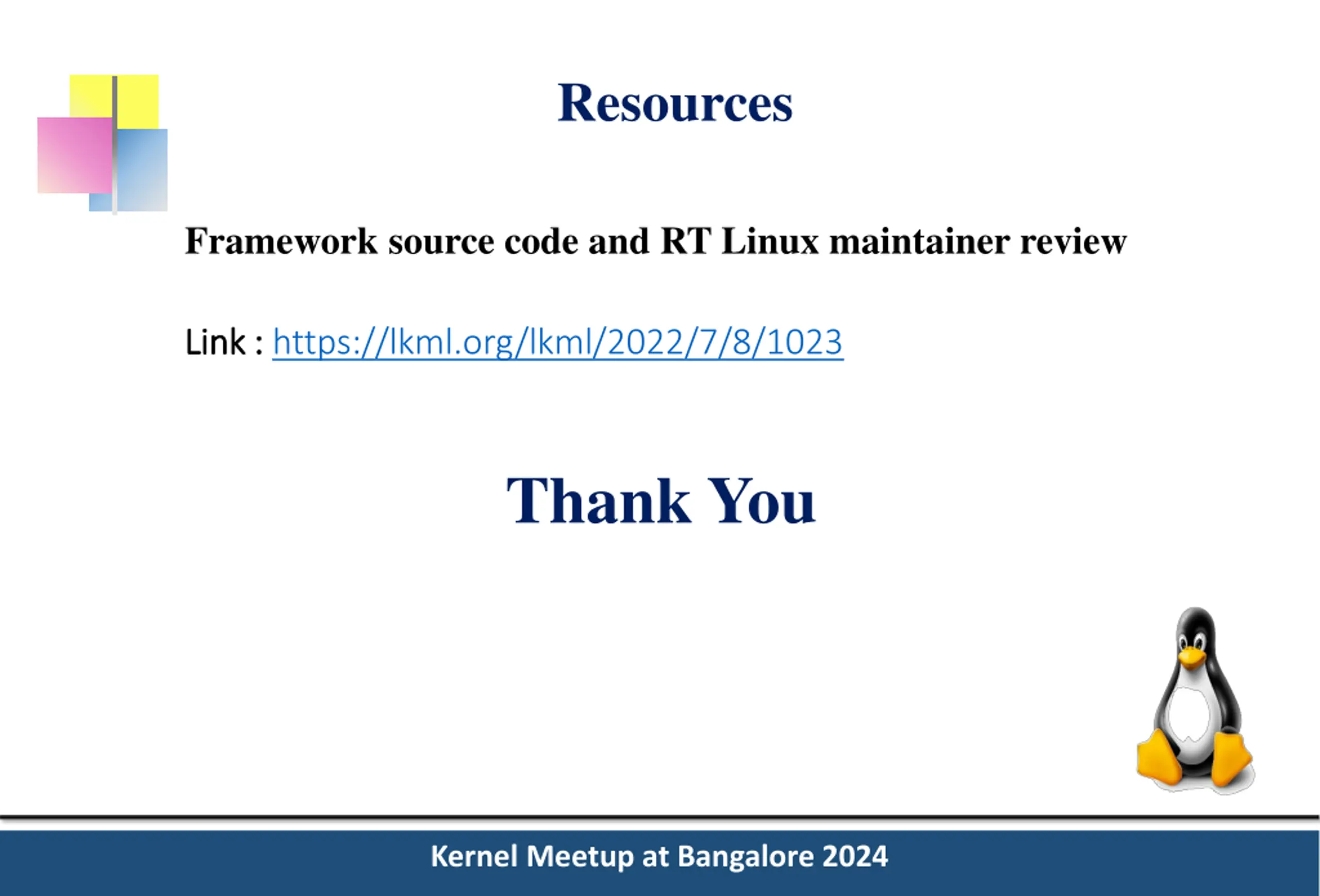

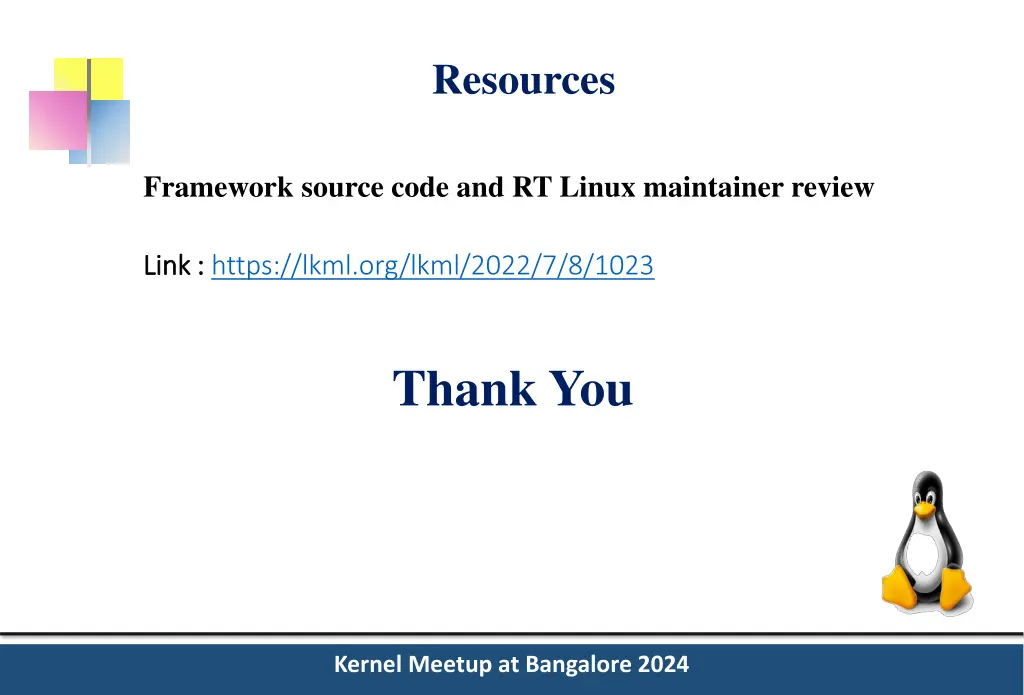

Resources Framework source code and RT Linux maintainer review Link Link : : https://lkml.org/lkml/2022/7/8/1023 Thank You Kernel Meetup at Bangalore 2024
