Safety Issues in EO Supply: Causes and Corrective Actions
Identify and address safety issues in EO supply, such as mechanical and chemical damage to seals, misalignment problems, proper maintenance procedures, and more. Take necessary corrective actions to ensure safe and efficient operation.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

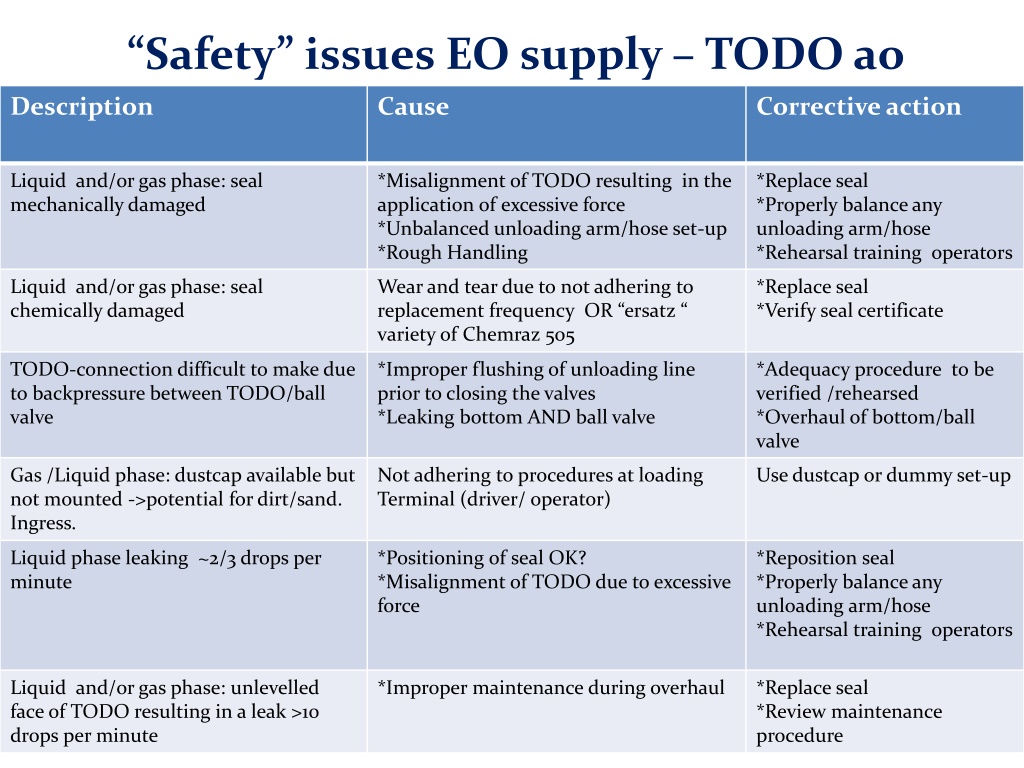

Safety issues EO supply TODO ao Description Cause Correctiveaction Liquid and/or gas phase: seal mechanically damaged *Misalignment of TODO resulting in the application of excessive force *Unbalanced unloading arm/hose set-up *Rough Handling *Replace seal *Properly balance any unloading arm/hose *Rehearsal training operators Liquid and/or gas phase: seal chemically damaged Wear and tear due to not adhering to replacement frequency OR ersatz variety of Chemraz 505 *Replace seal *Verify seal certificate TODO-connection difficult to make due to backpressure between TODO/ball valve *Improper flushing of unloading line prior to closing the valves *Leaking bottom AND ball valve *Adequacy procedure to be verified /rehearsed *Overhaul of bottom/ball valve Gas /Liquid phase: dustcap available but not mounted ->potential for dirt/sand. Ingress. Not adhering to procedures at loading Terminal (driver/ operator) Use dustcap or dummy set-up Liquid phase leaking ~2/3 drops per minute *Positioning of seal OK? *Misalignment of TODO due to excessive force *Reposition seal *Properly balance any unloading arm/hose *Rehearsal training operators Liquid and/or gas phase: unlevelled face of TODO resulting in a leak >10 drops per minute *Improper maintenance during overhaul *Replace seal *Review maintenance procedure

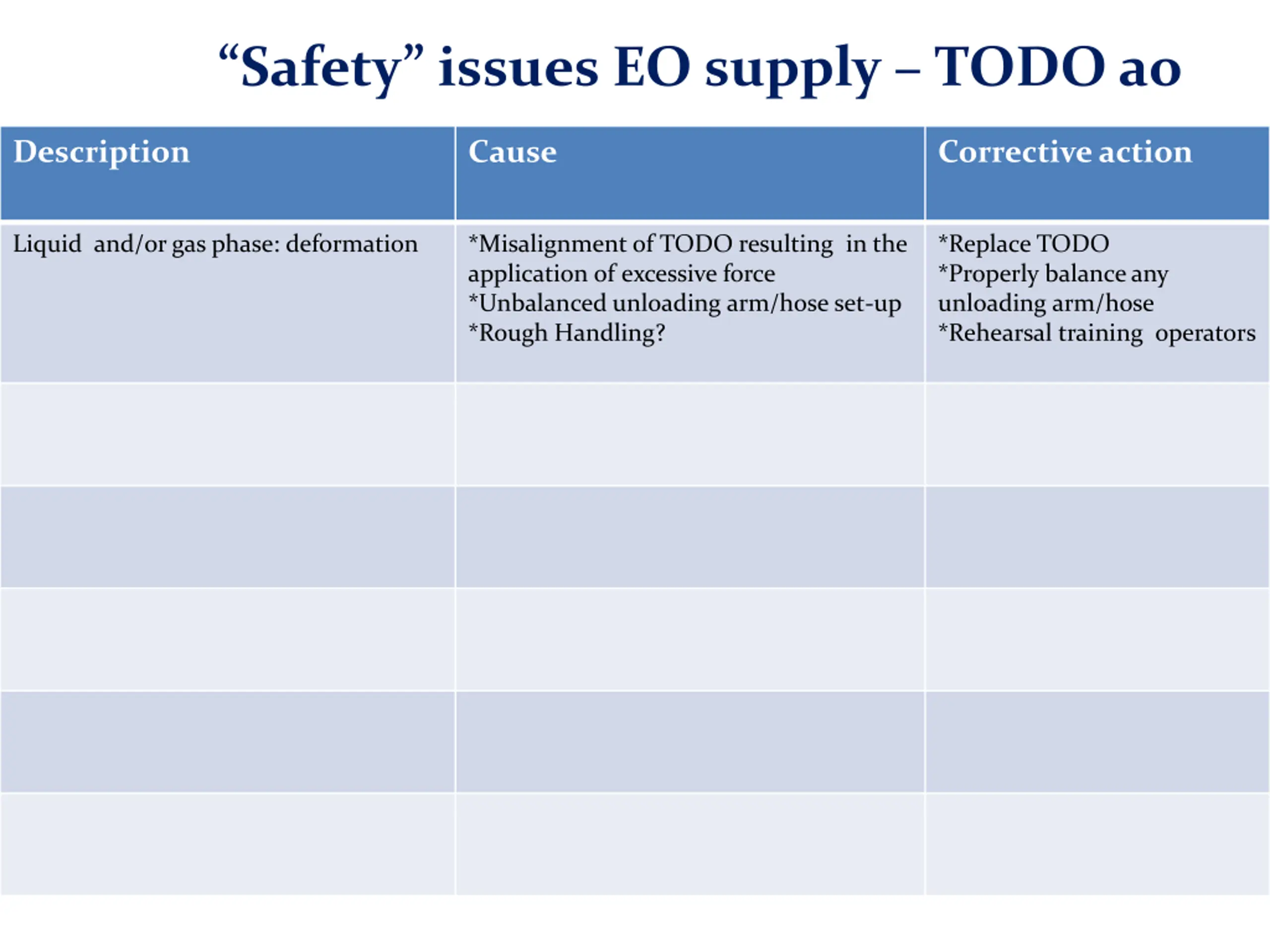

Safety issues EO supply TODO ao Description Cause Corrective action Liquid and/or gas phase: deformation *Misalignment of TODO resulting in the application of excessive force *Unbalanced unloading arm/hose set-up *Rough Handling? *Replace TODO *Properly balance any unloading arm/hose *Rehearsal training operators
