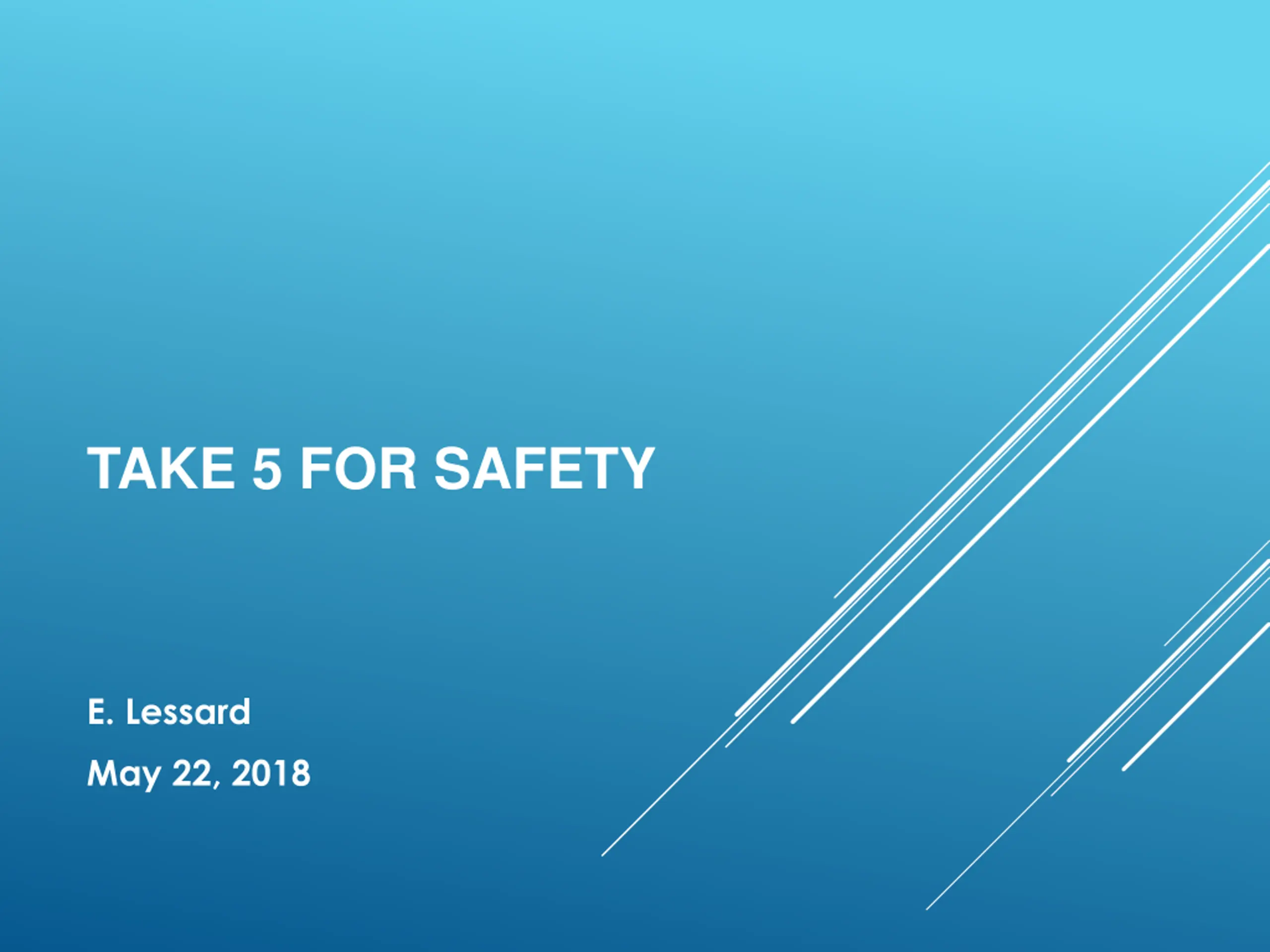

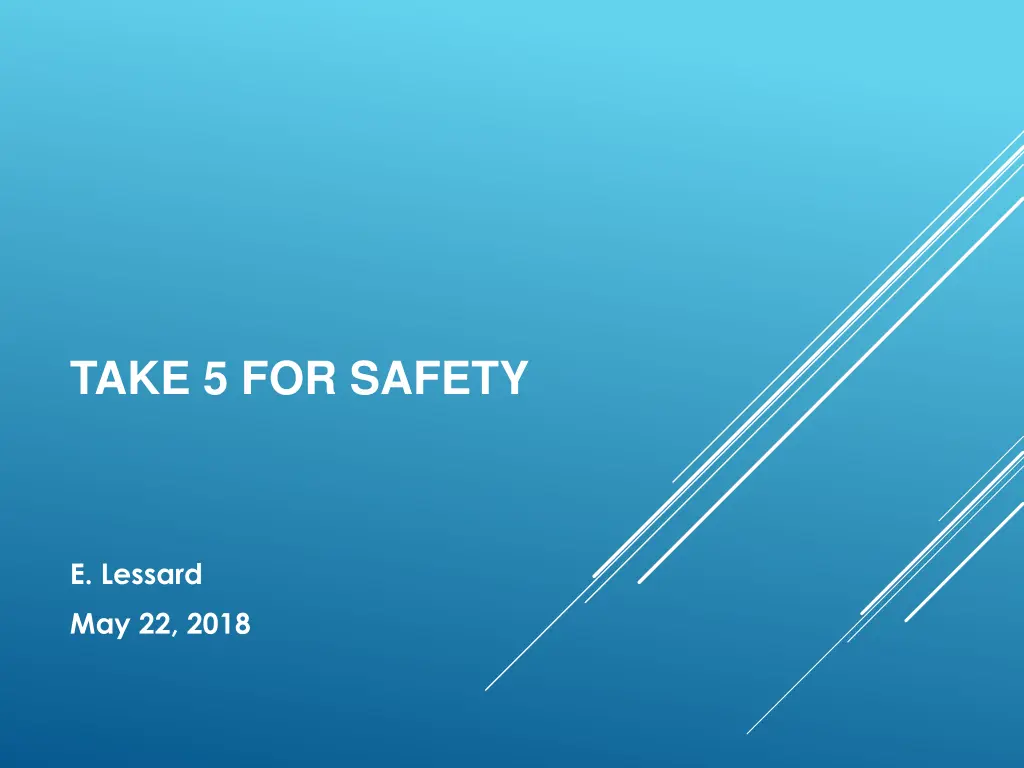

TAKE 5 FOR SAFETY E. Lessard May 22, 2018

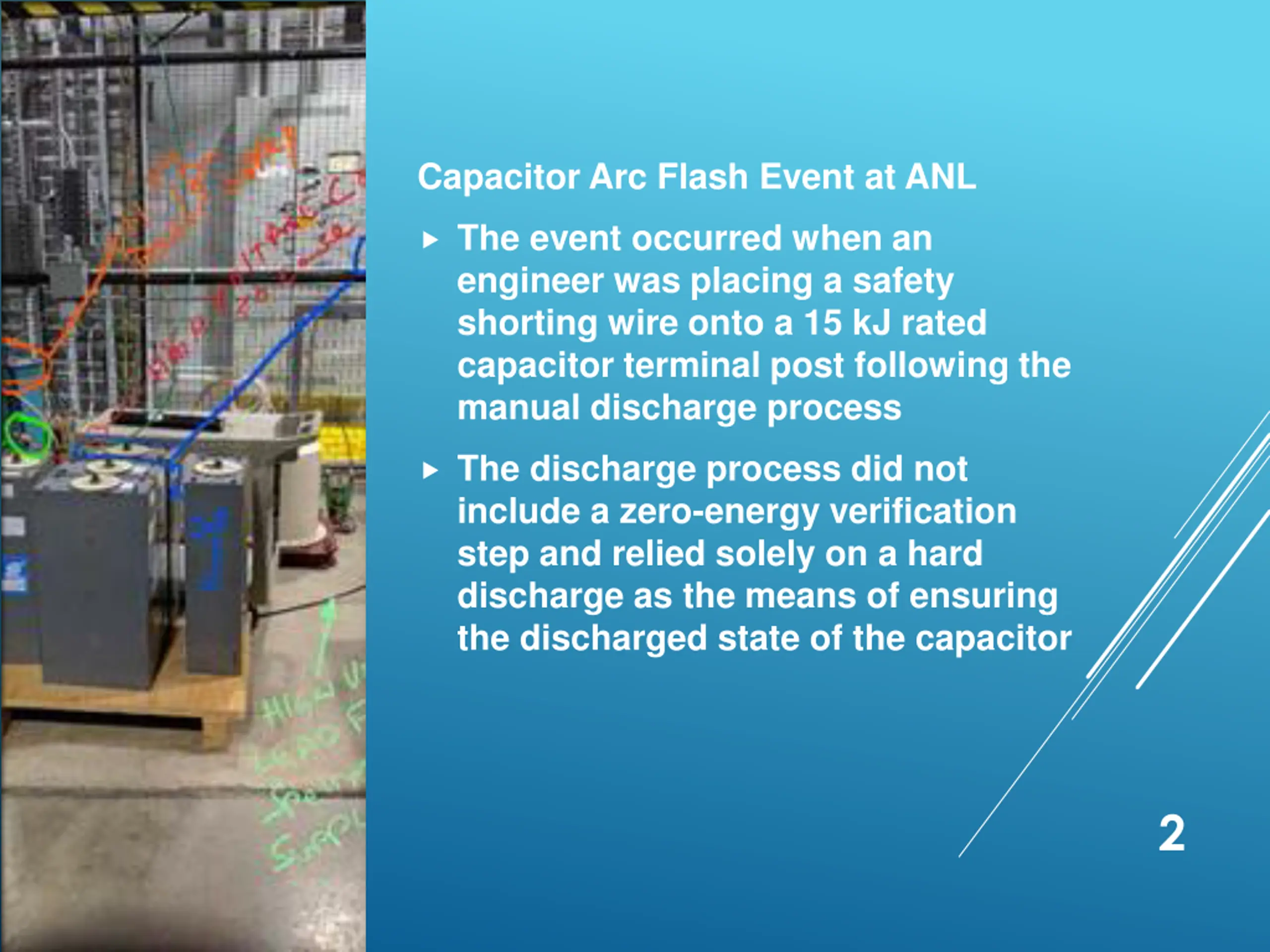

Capacitor Arc Flash Event at ANL The event occurred when an engineer was placing a safety shorting wire onto a 15 kJ rated capacitor terminal post following the manual discharge process The discharge process did not include a zero-energy verification step and relied solely on a hard discharge as the means of ensuring the discharged state of the capacitor 2

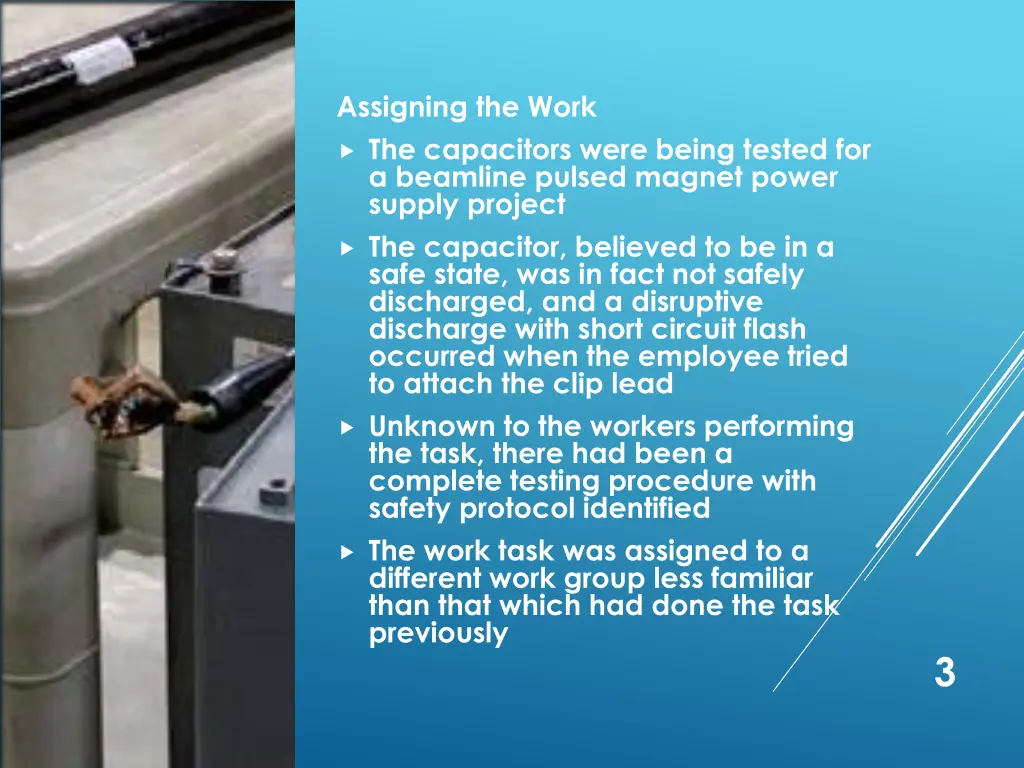

Assigning the Work The capacitors were being tested for a beamline pulsed magnet power supply project The capacitor, believed to be in a safe state, was in fact not safely discharged, and a disruptive discharge with short circuit flash occurred when the employee tried to attach the clip lead Unknown to the workers performing the task, there had been a complete testing procedure with safety protocol identified The work task was assigned to a different work group less familiar than that which had done the task previously 3

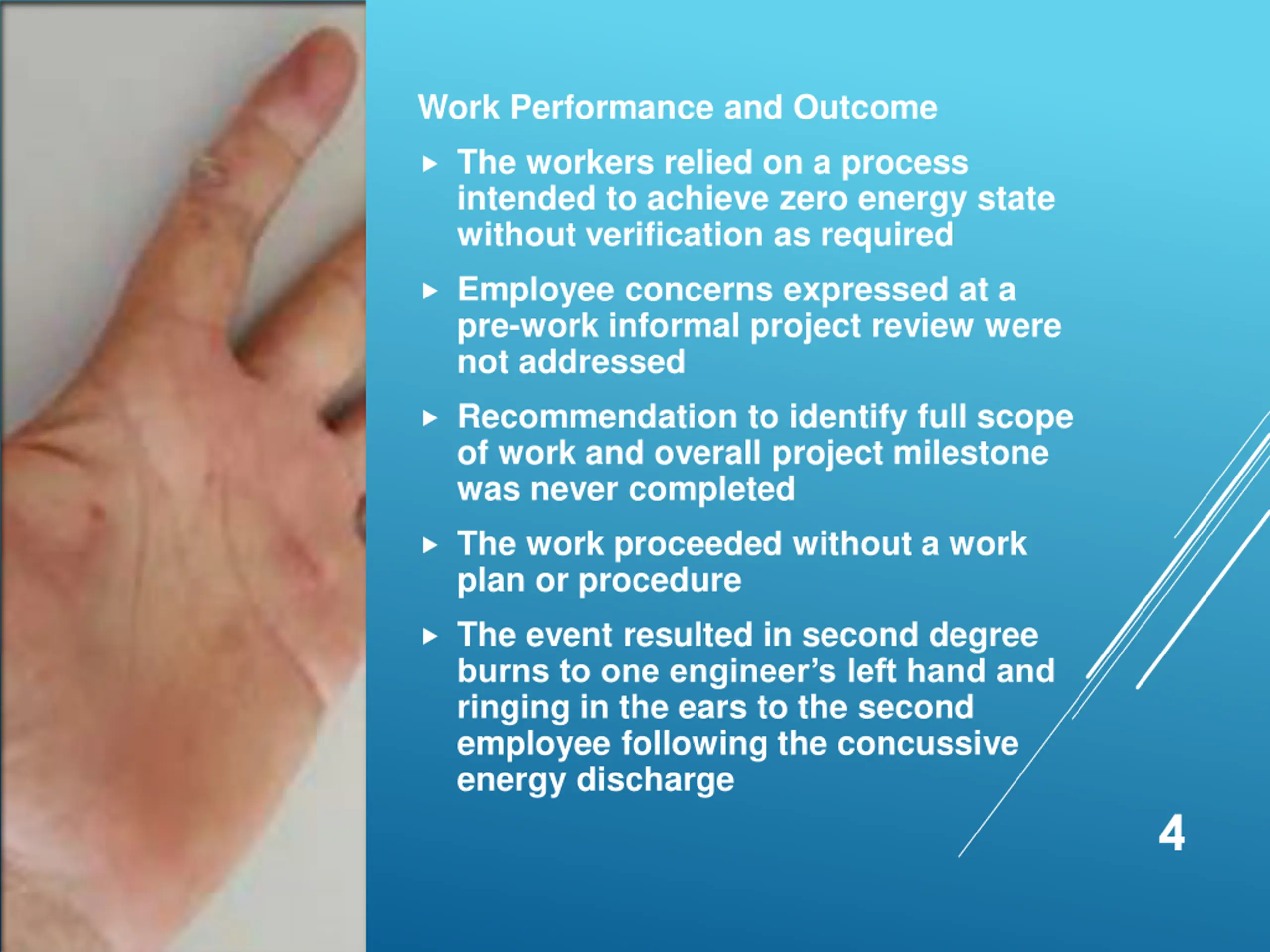

Work Performance and Outcome The workers relied on a process intended to achieve zero energy state without verification as required Employee concerns expressed at a pre-work informal project review were not addressed Recommendation to identify full scope of work and overall project milestone was never completed The work proceeded without a work plan or procedure The event resulted in second degree burns to one engineer s left hand and ringing in the ears to the second employee following the concussive energy discharge 4

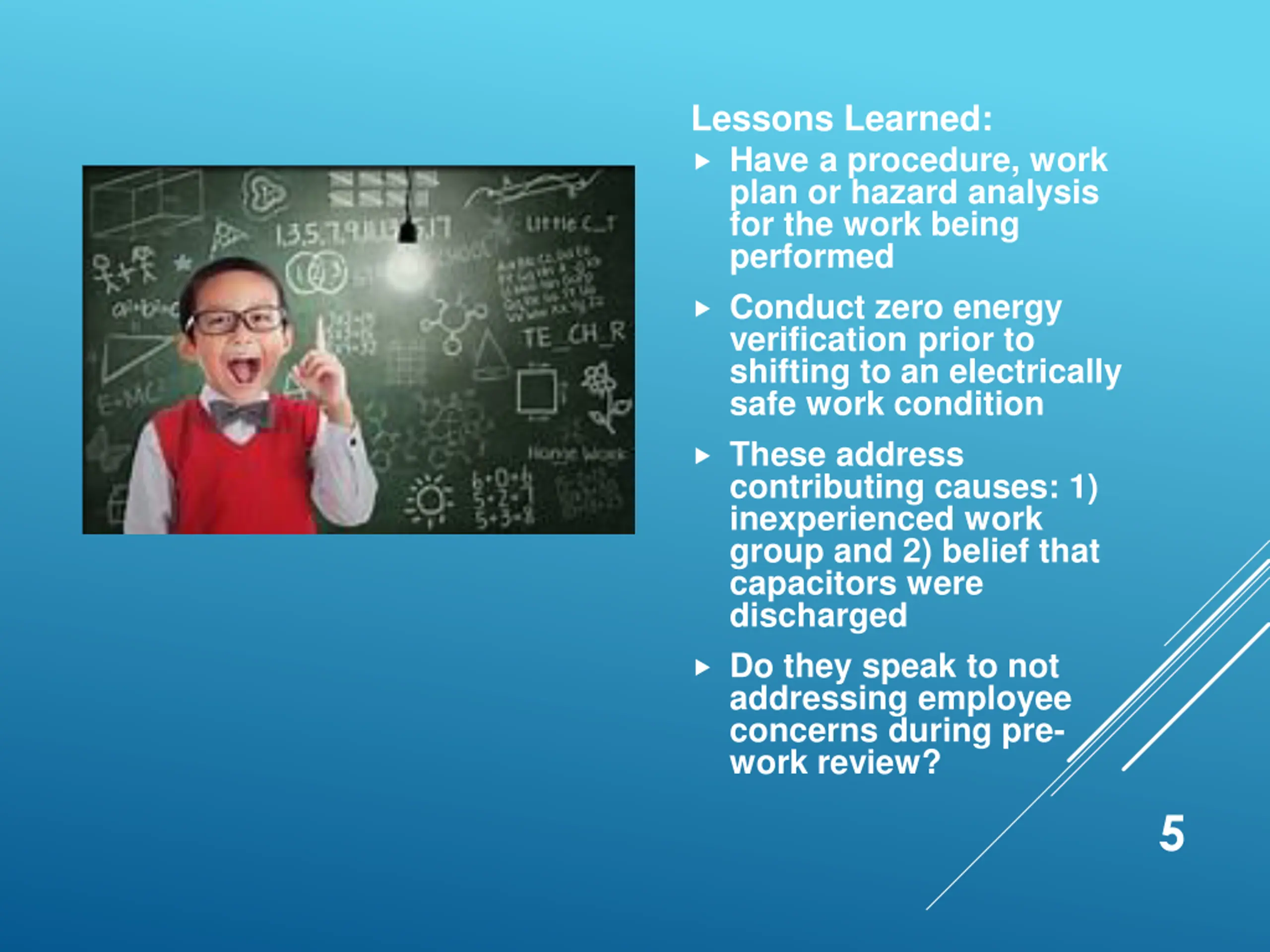

Lessons Learned: Have a procedure, work plan or hazard analysis for the work being performed Conduct zero energy verification prior to shifting to an electrically safe work condition These address contributing causes: 1) inexperienced work group and 2) belief that capacitors were discharged Do they speak to not addressing employee concerns during pre- work review? 5
