SAML and Duo 2FA Part 3 in the 2FA series

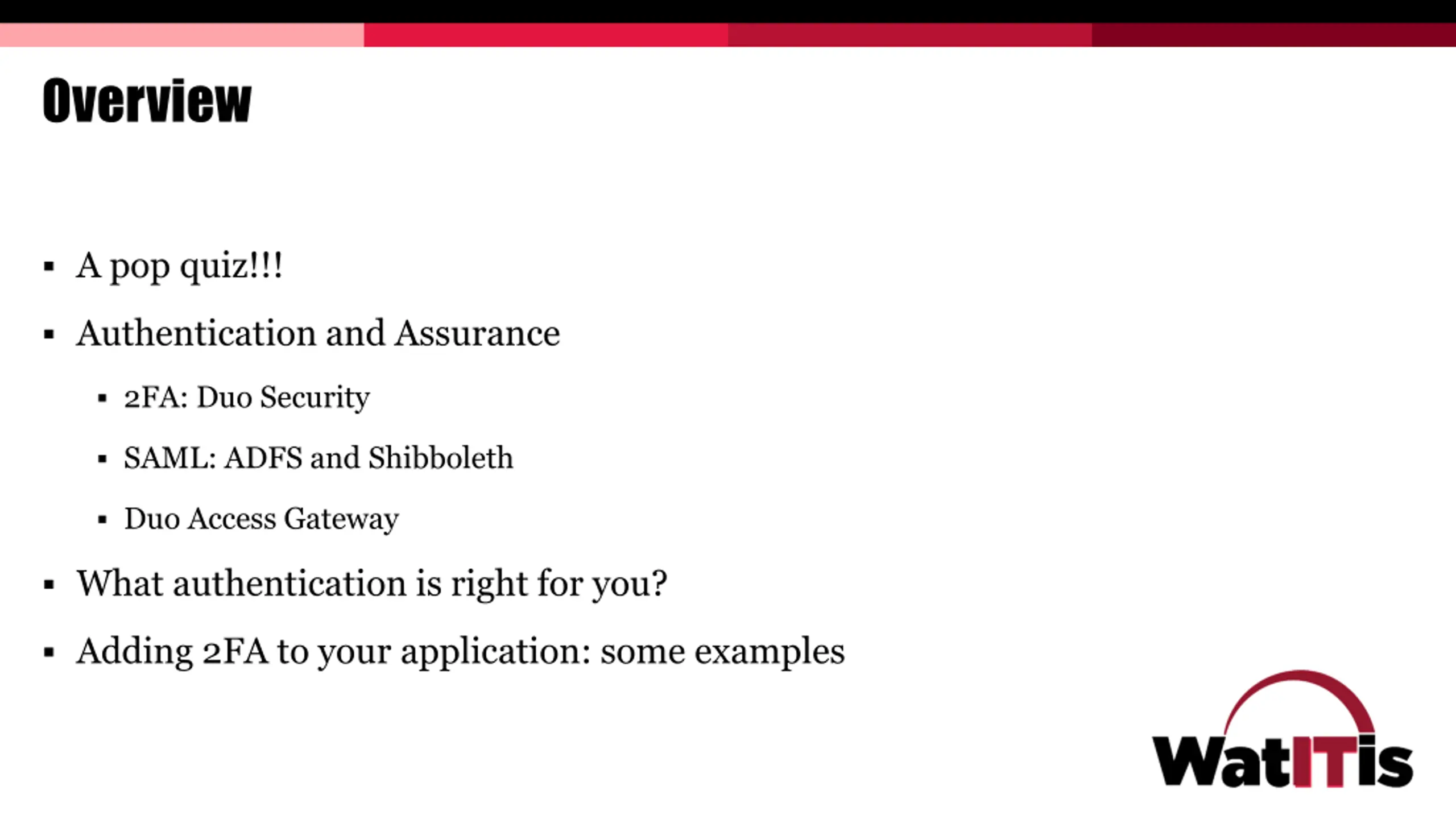

Overview A pop quiz!!! Authentication and Assurance 2FA: Duo Security SAML: ADFS and Shibboleth Duo Access Gateway What authentication is right for you? Adding 2FA to your application: some examples

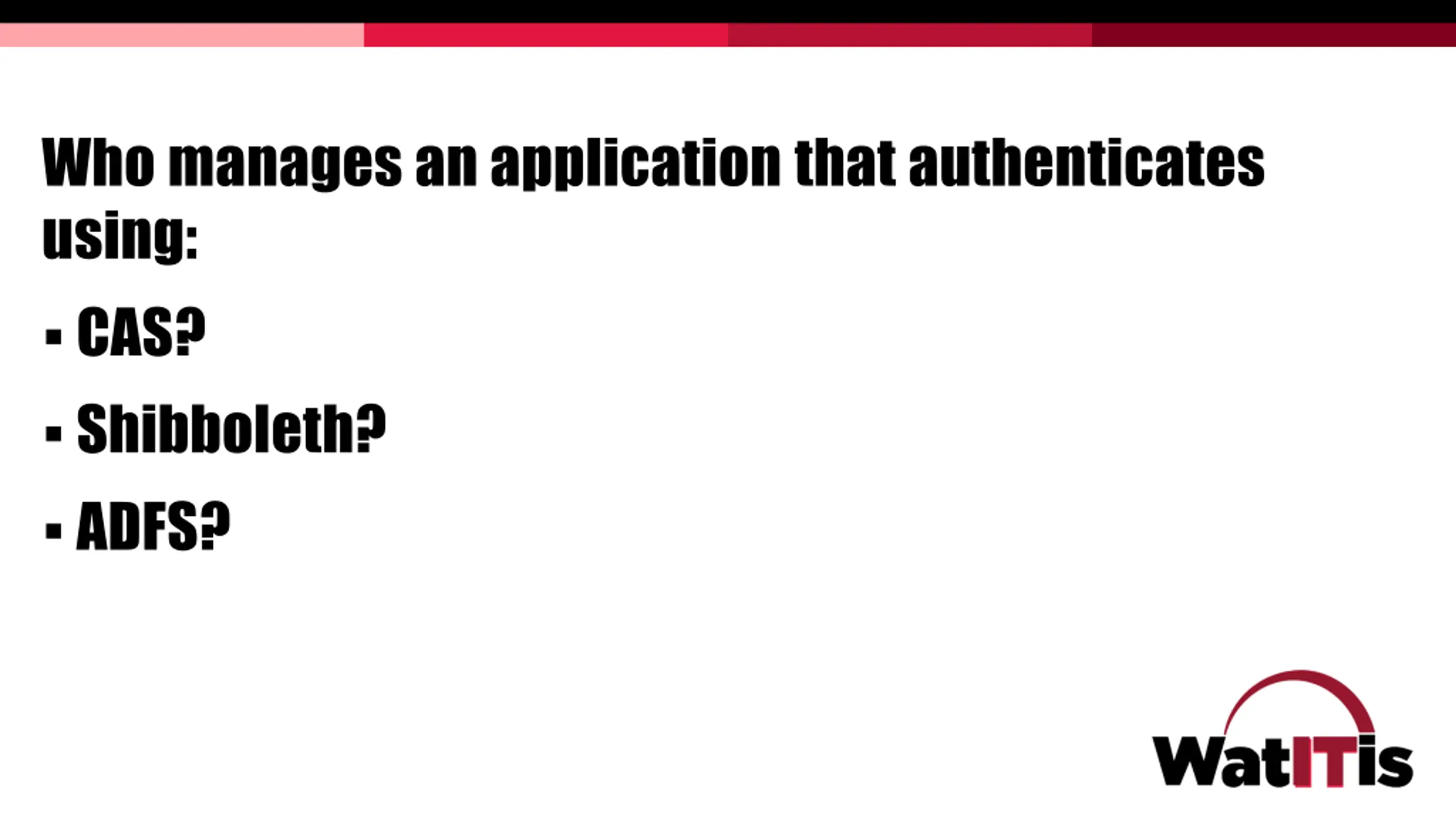

Who manages an application that authenticates using: CAS? Shibboleth? ADFS?

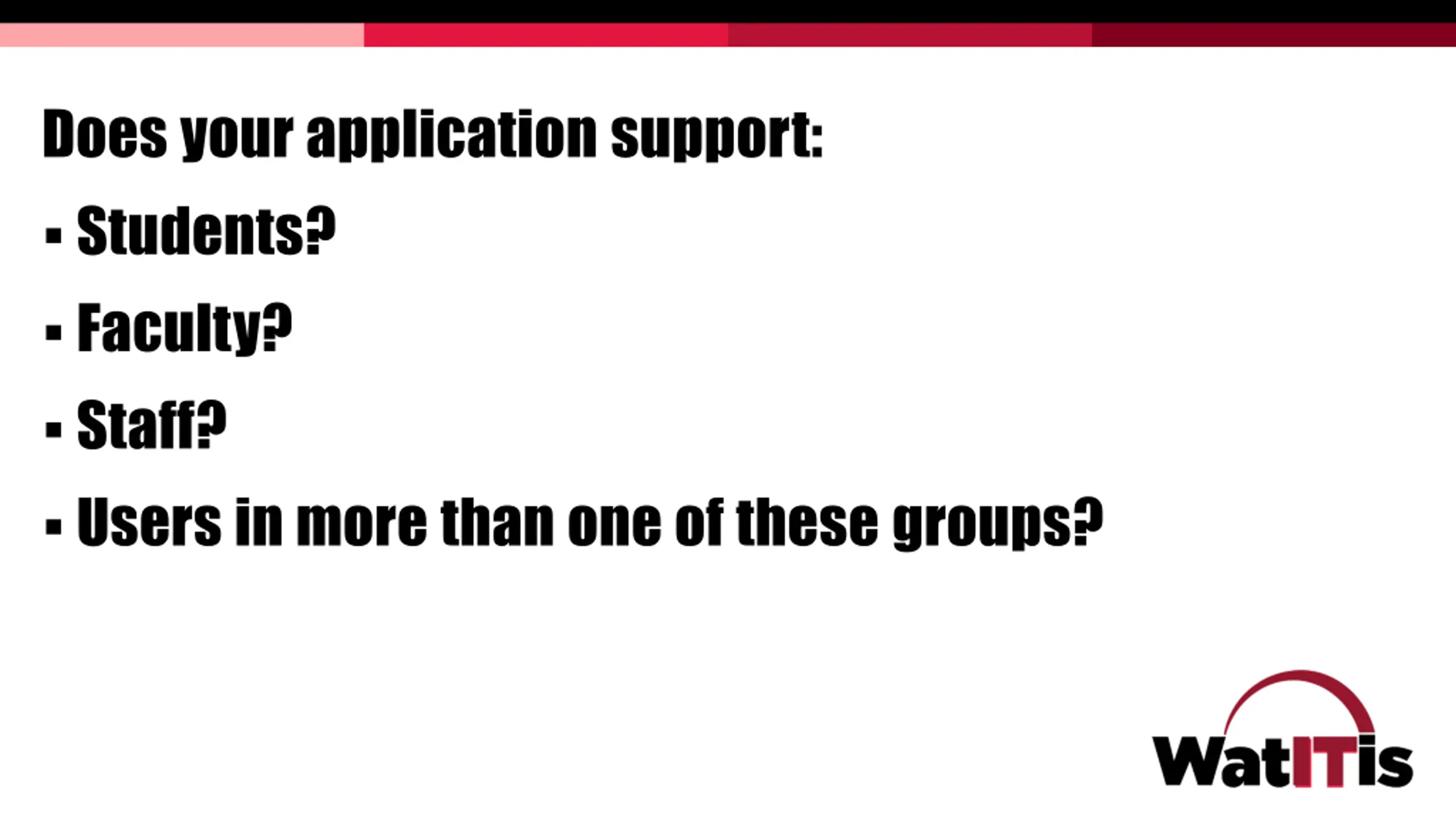

Does your application support: Students? Faculty? Staff? Users in more than one of these groups?

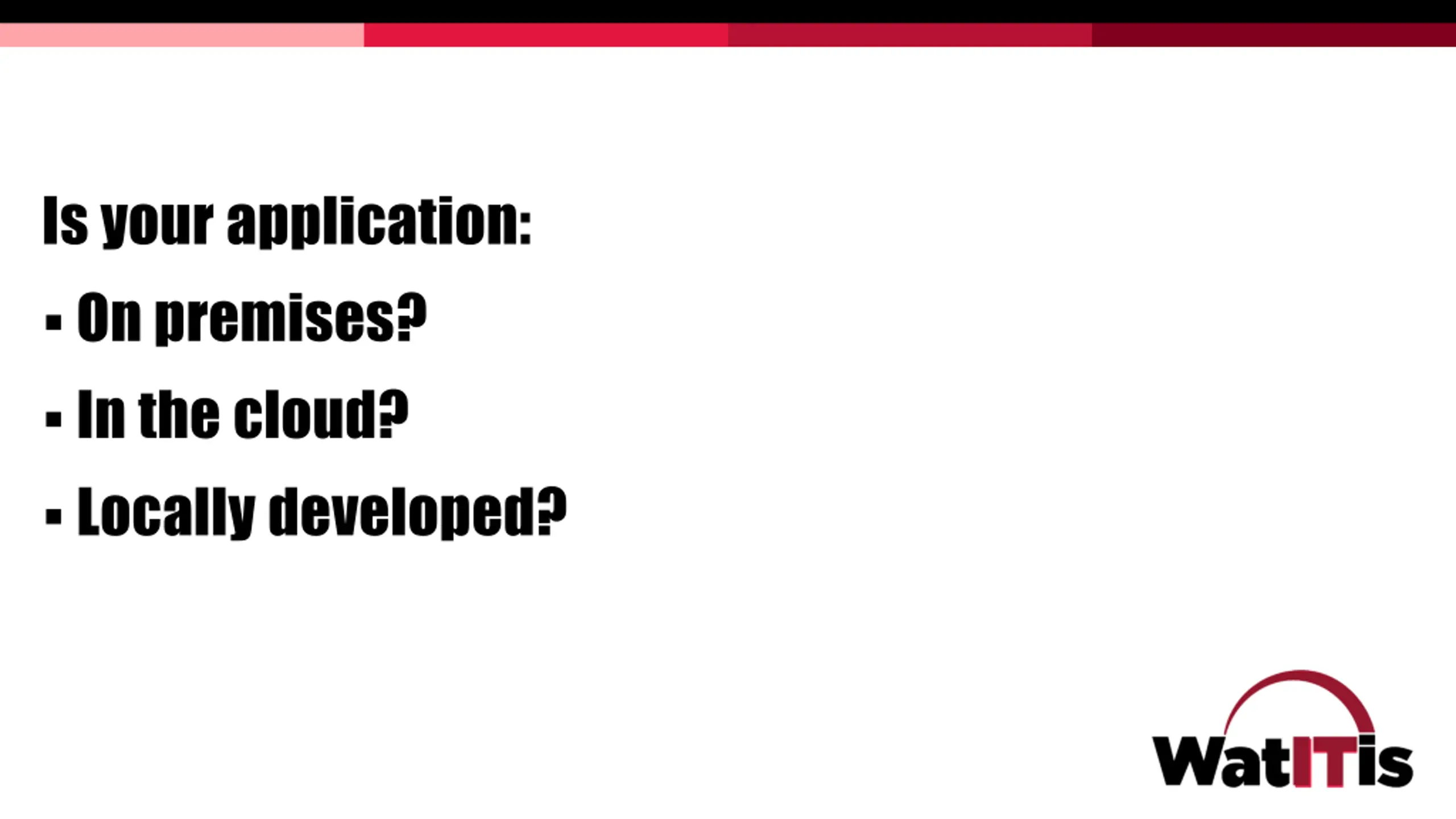

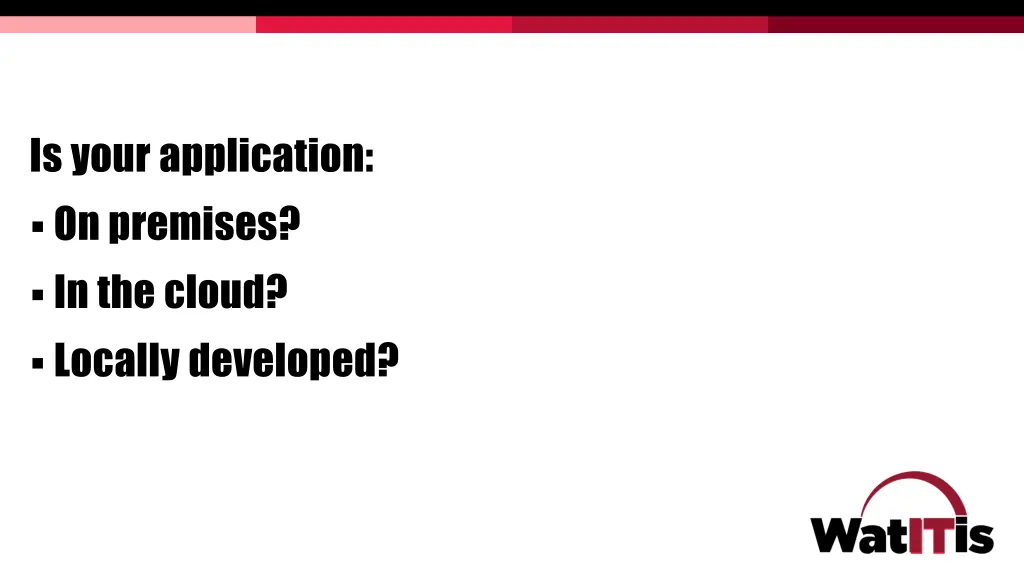

Is your application: On premises? In the cloud? Locally developed?

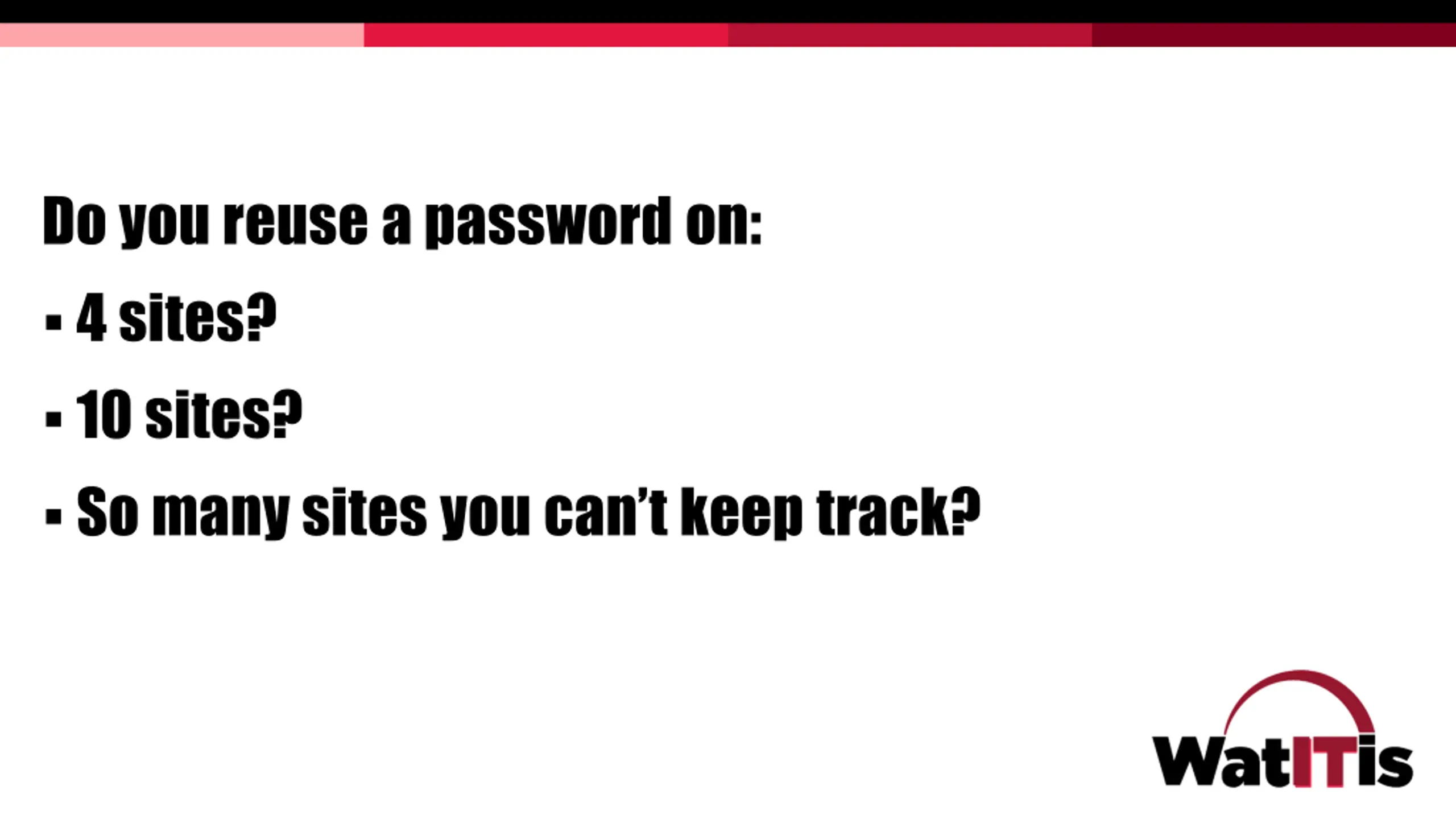

Do you reuse a password on: 4 sites? 10 sites? So many sites you can t keep track?

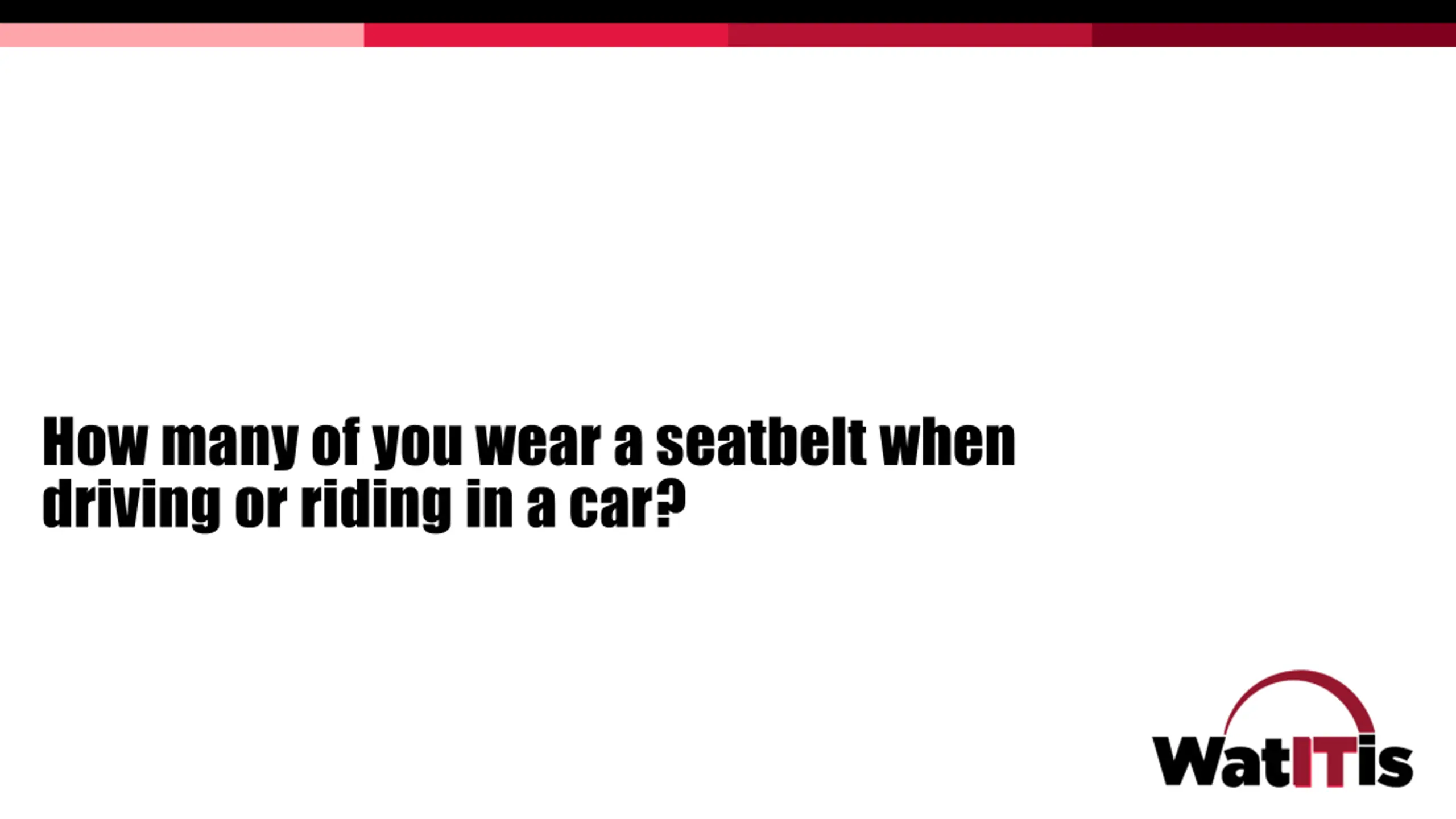

How many of you wear a seatbelt when driving or riding in a car?

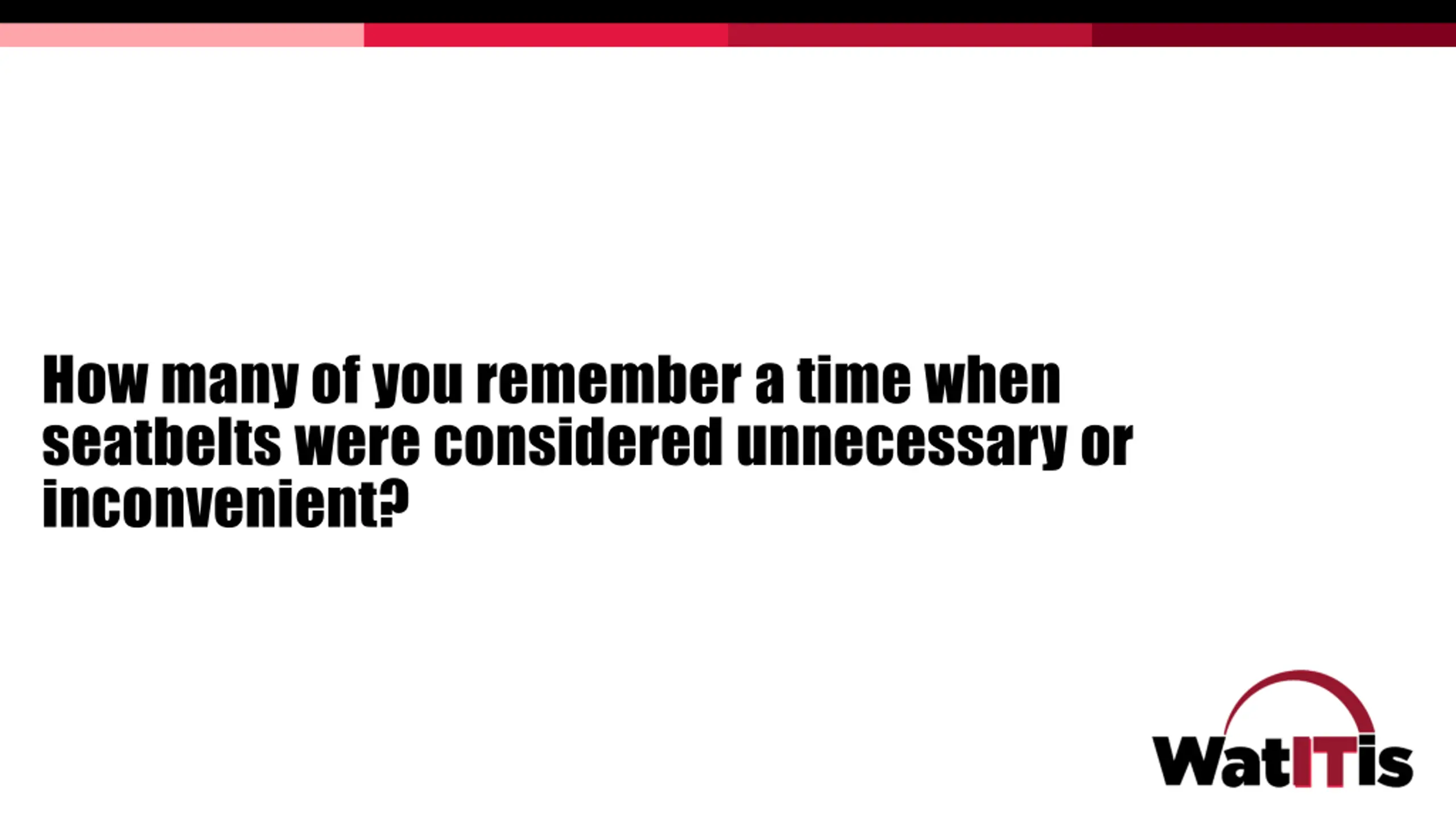

How many of you remember a time when seatbelts were considered unnecessary or inconvenient?

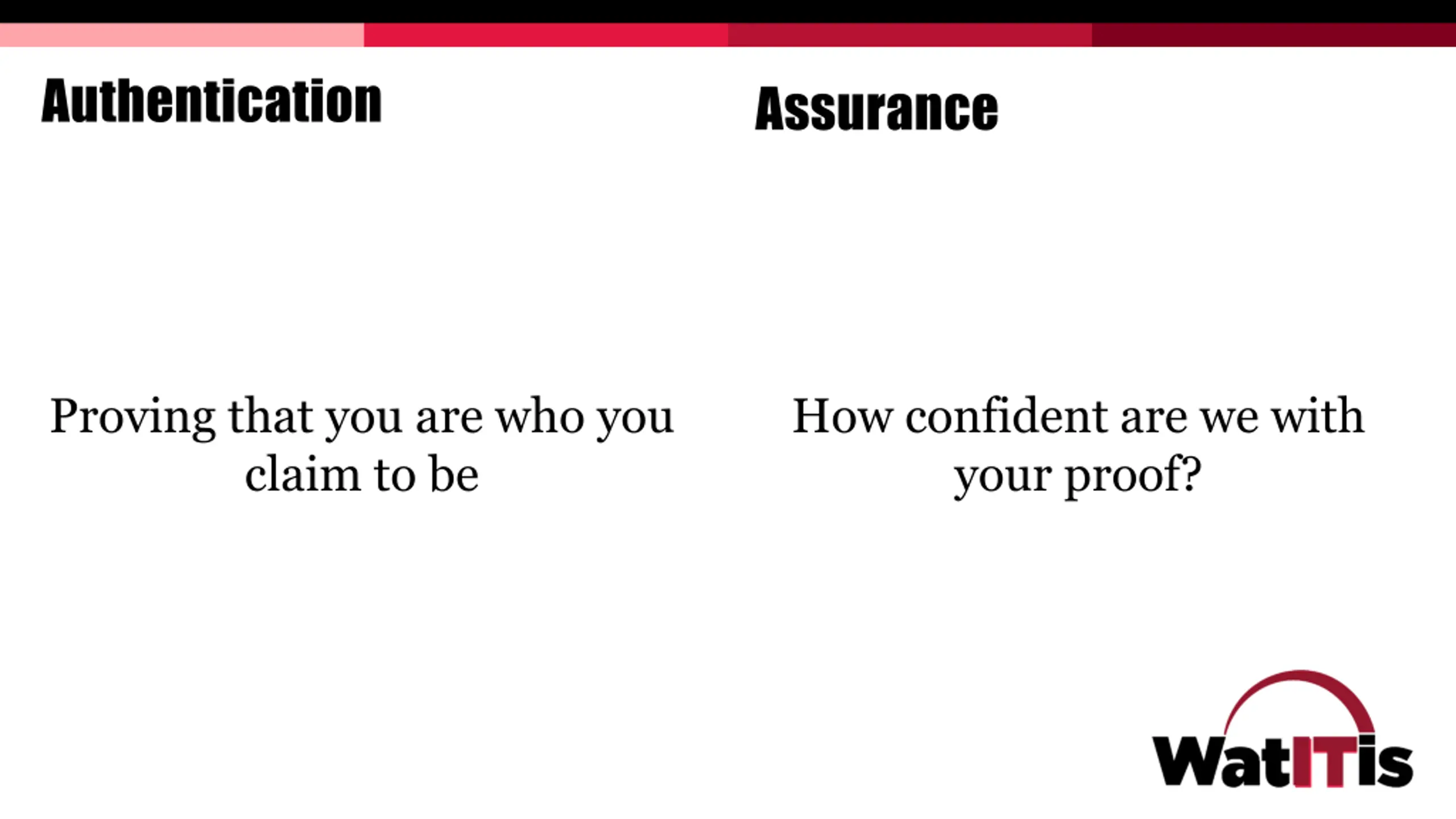

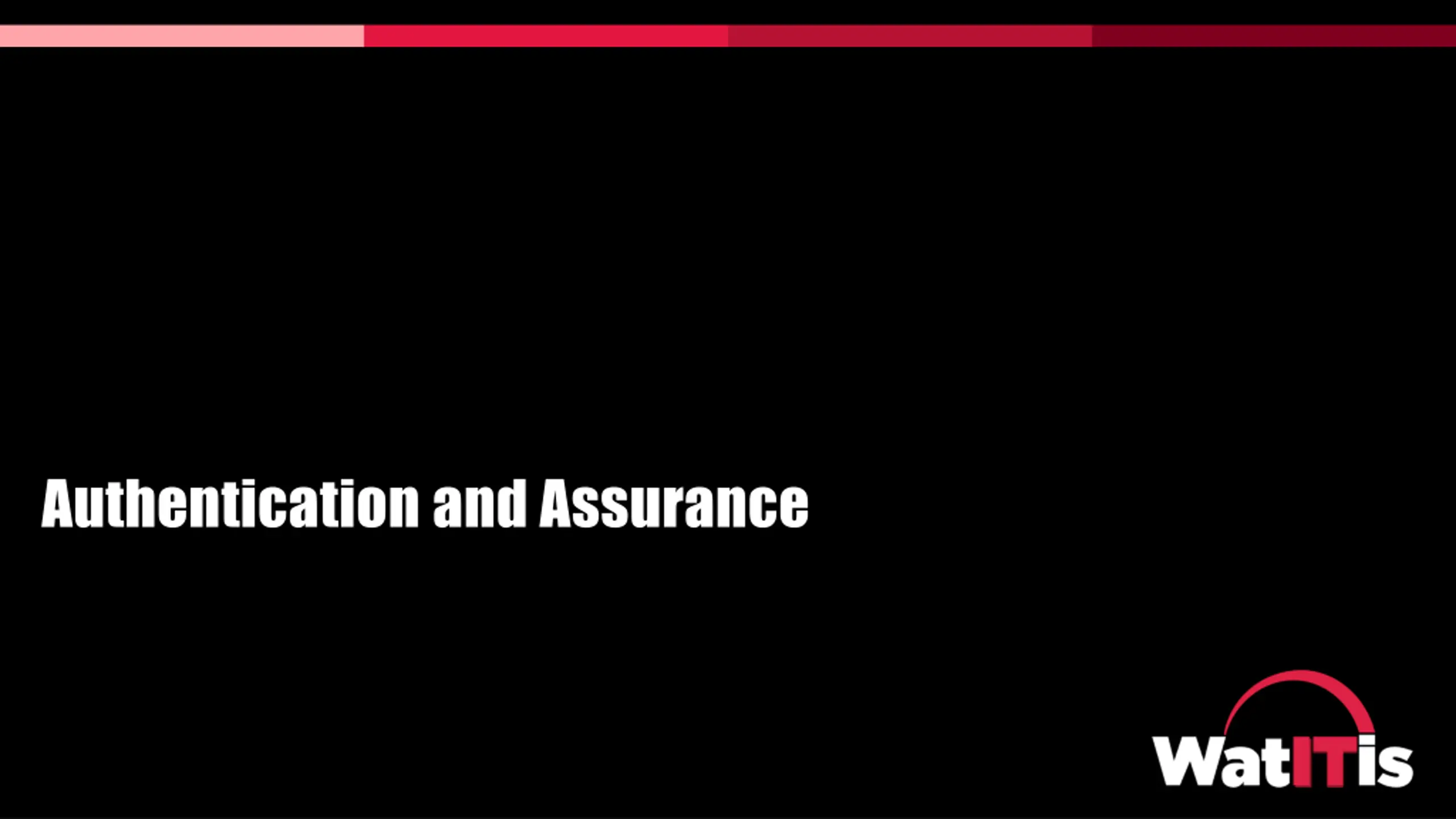

Authentication Assurance Proving that you are who you claim to be How confident are we with your proof?

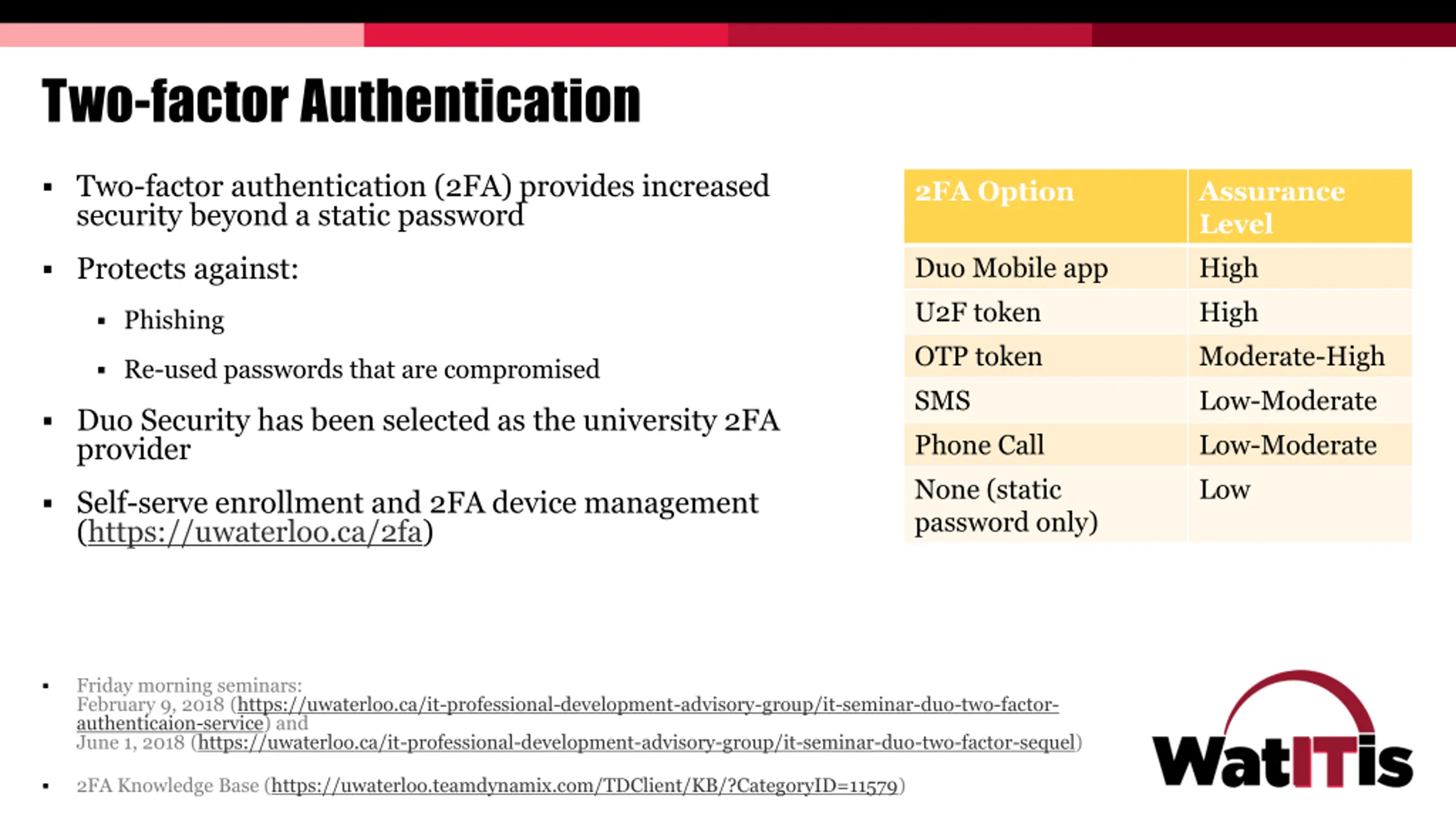

Two-factor Authentication Two-factor authentication (2FA) provides increased security beyond a static password 2FA Option Assurance Level High High Moderate-High Low-Moderate Low-Moderate Low Protects against: Duo Mobile app U2F token OTP token SMS Phone Call None (static password only) Phishing Re-used passwords that are compromised Duo Security has been selected as the university 2FA provider Self-serve enrollment and 2FA device management (https://uwaterloo.ca/2fa) Friday morning seminars: February 9, 2018 (https://uwaterloo.ca/it-professional-development-advisory-group/it-seminar-duo-two-factor- authenticaion-service) and June 1, 2018 (https://uwaterloo.ca/it-professional-development-advisory-group/it-seminar-duo-two-factor-sequel) 2FA Knowledge Base (https://uwaterloo.teamdynamix.com/TDClient/KB/?CategoryID=11579)

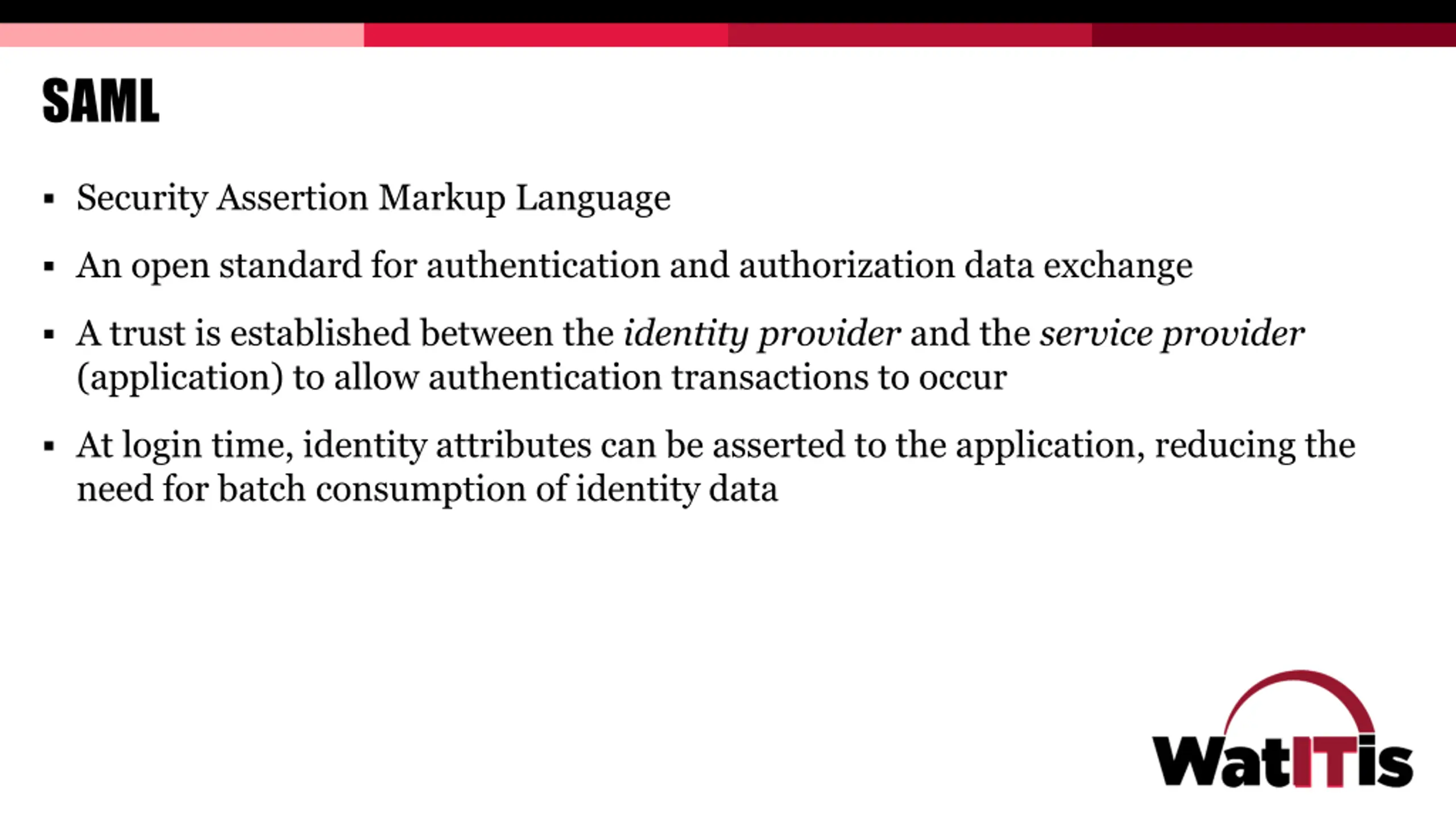

SAML Security Assertion Markup Language An open standard for authentication and authorization data exchange A trust is established between the identity provider and the service provider (application) to allow authentication transactions to occur At login time, identity attributes can be asserted to the application, reducing the need for batch consumption of identity data

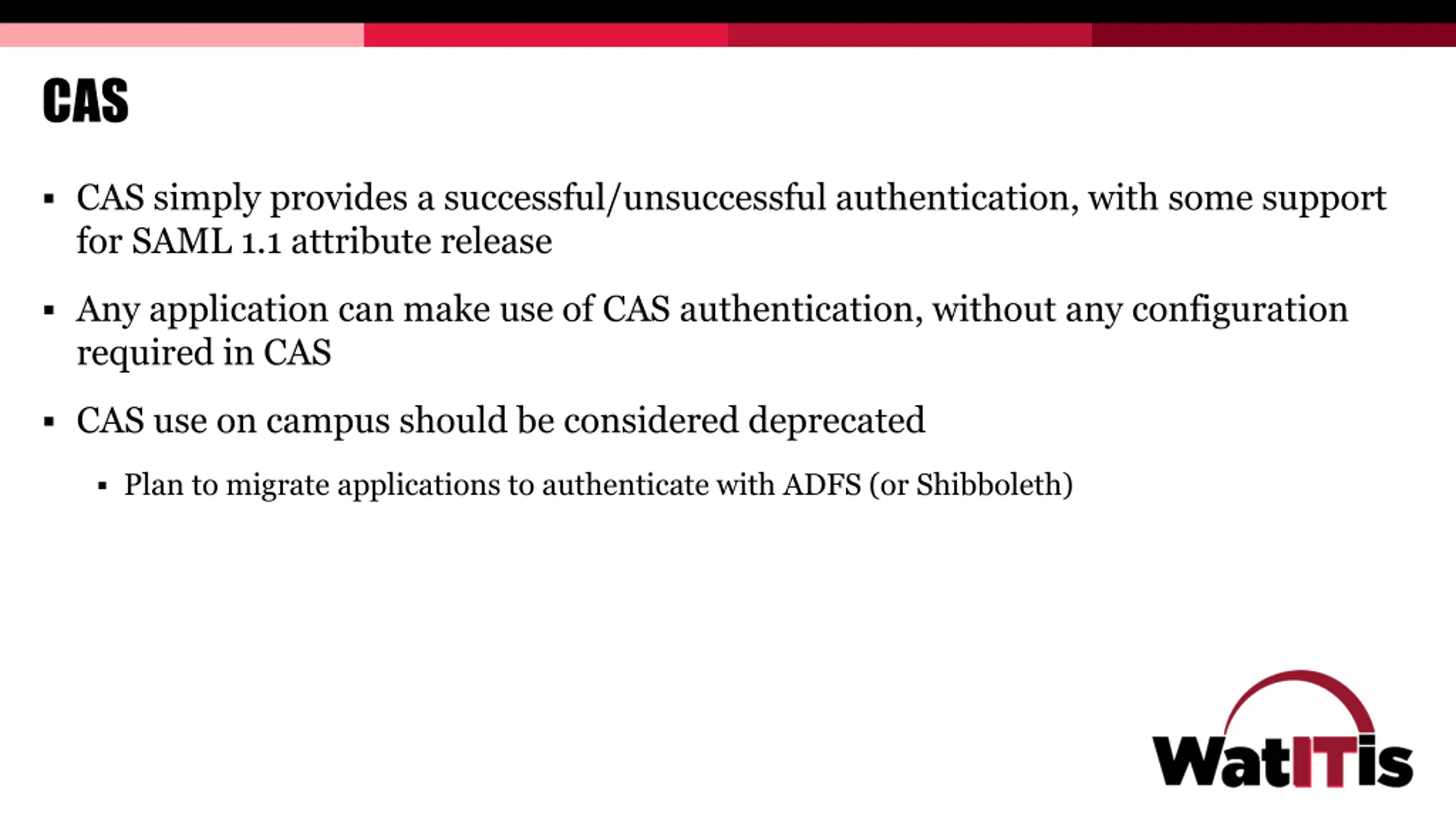

CAS CAS simply provides a successful/unsuccessful authentication, with some support for SAML 1.1 attribute release Any application can make use of CAS authentication, without any configuration required in CAS CAS use on campus should be considered deprecated Plan to migrate applications to authenticate with ADFS (or Shibboleth)

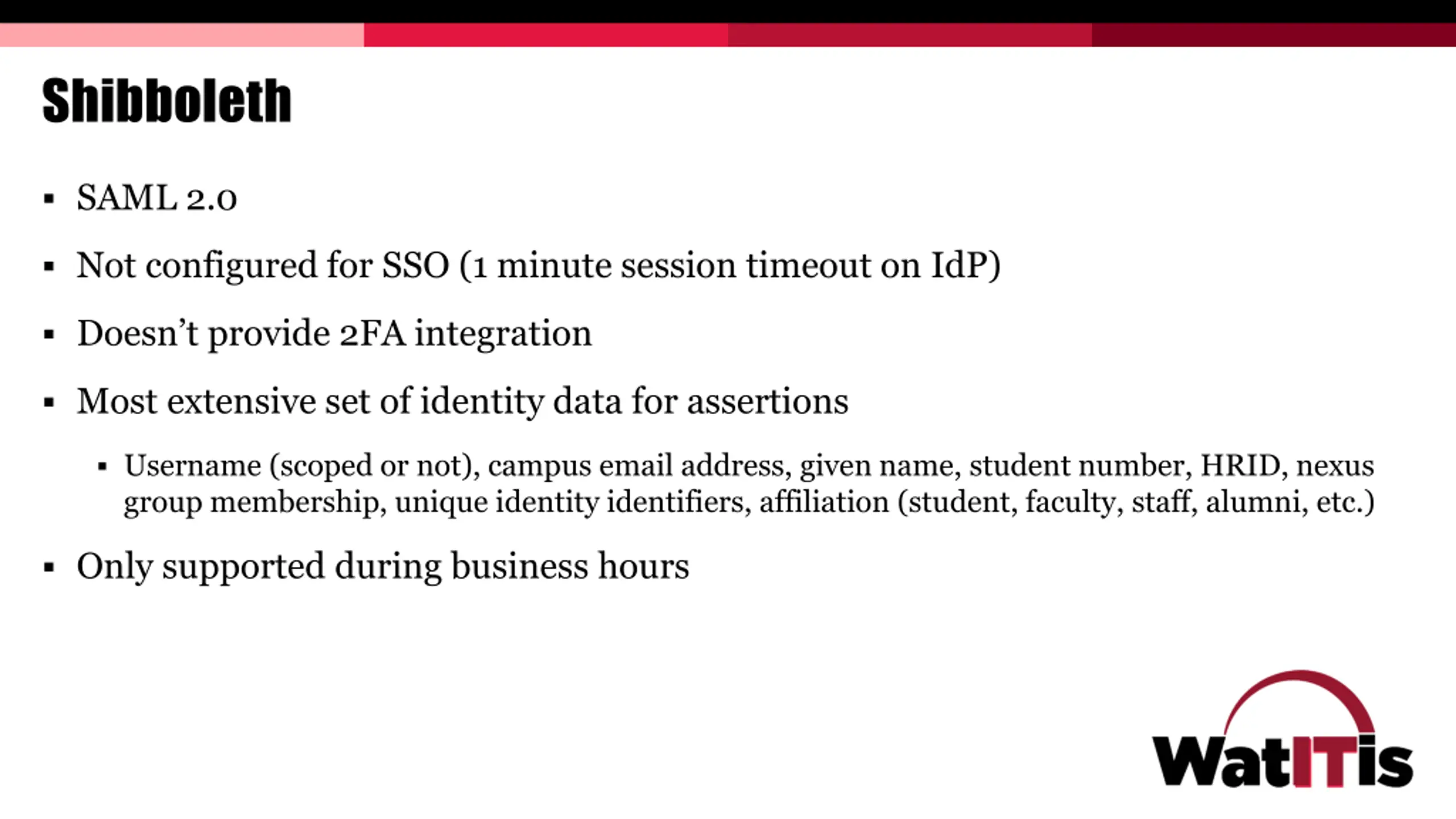

Shibboleth SAML 2.0 Not configured for SSO (1 minute session timeout on IdP) Doesn t provide 2FA integration Most extensive set of identity data for assertions Username (scoped or not), campus email address, given name, student number, HRID, nexus group membership, unique identity identifiers, affiliation (student, faculty, staff, alumni, etc.) Only supported during business hours

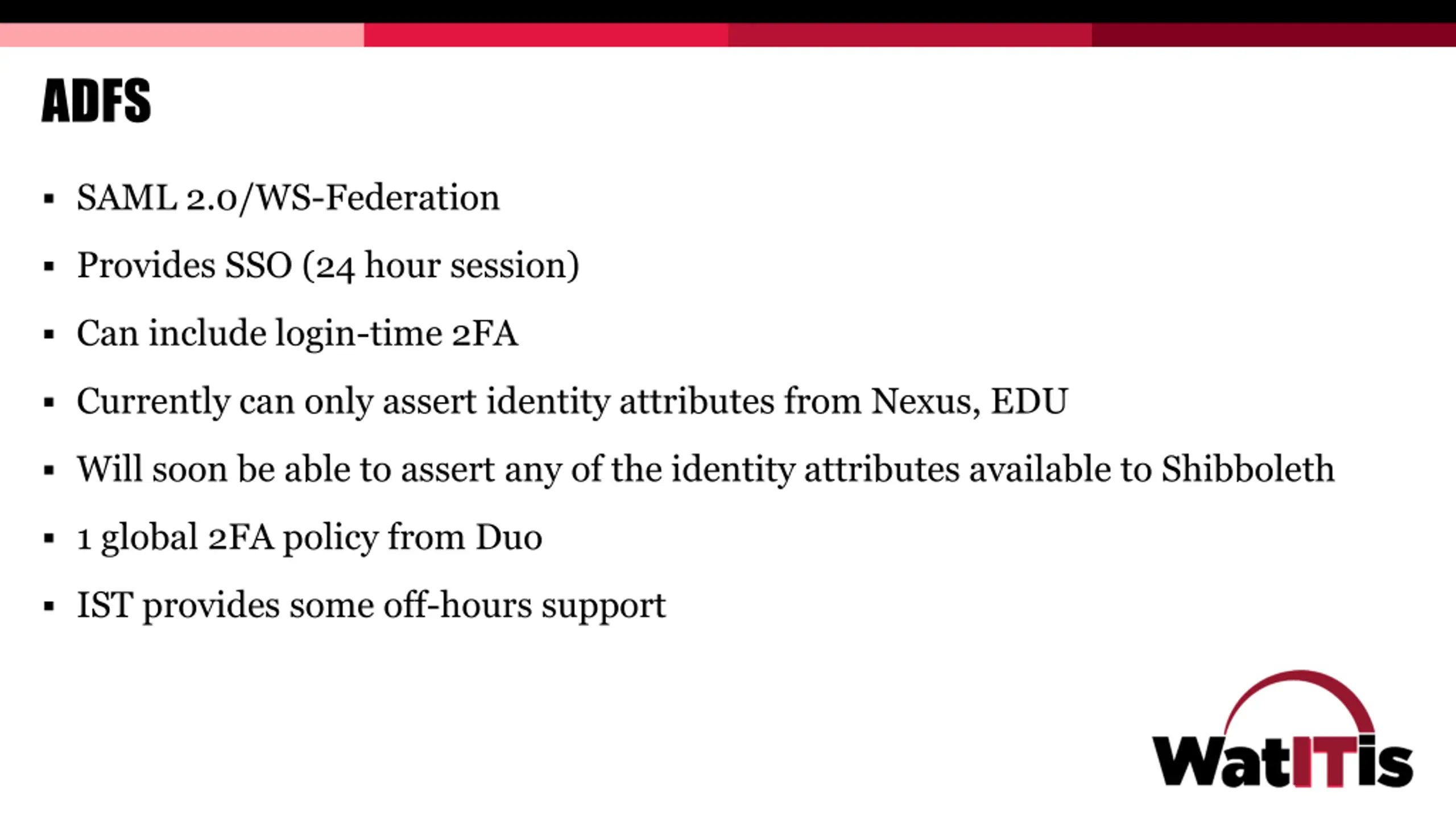

ADFS SAML 2.0/WS-Federation Provides SSO (24 hour session) Can include login-time 2FA Currently can only assert identity attributes from Nexus, EDU Will soon be able to assert any of the identity attributes available to Shibboleth 1 global 2FA policy from Duo IST provides some off-hours support

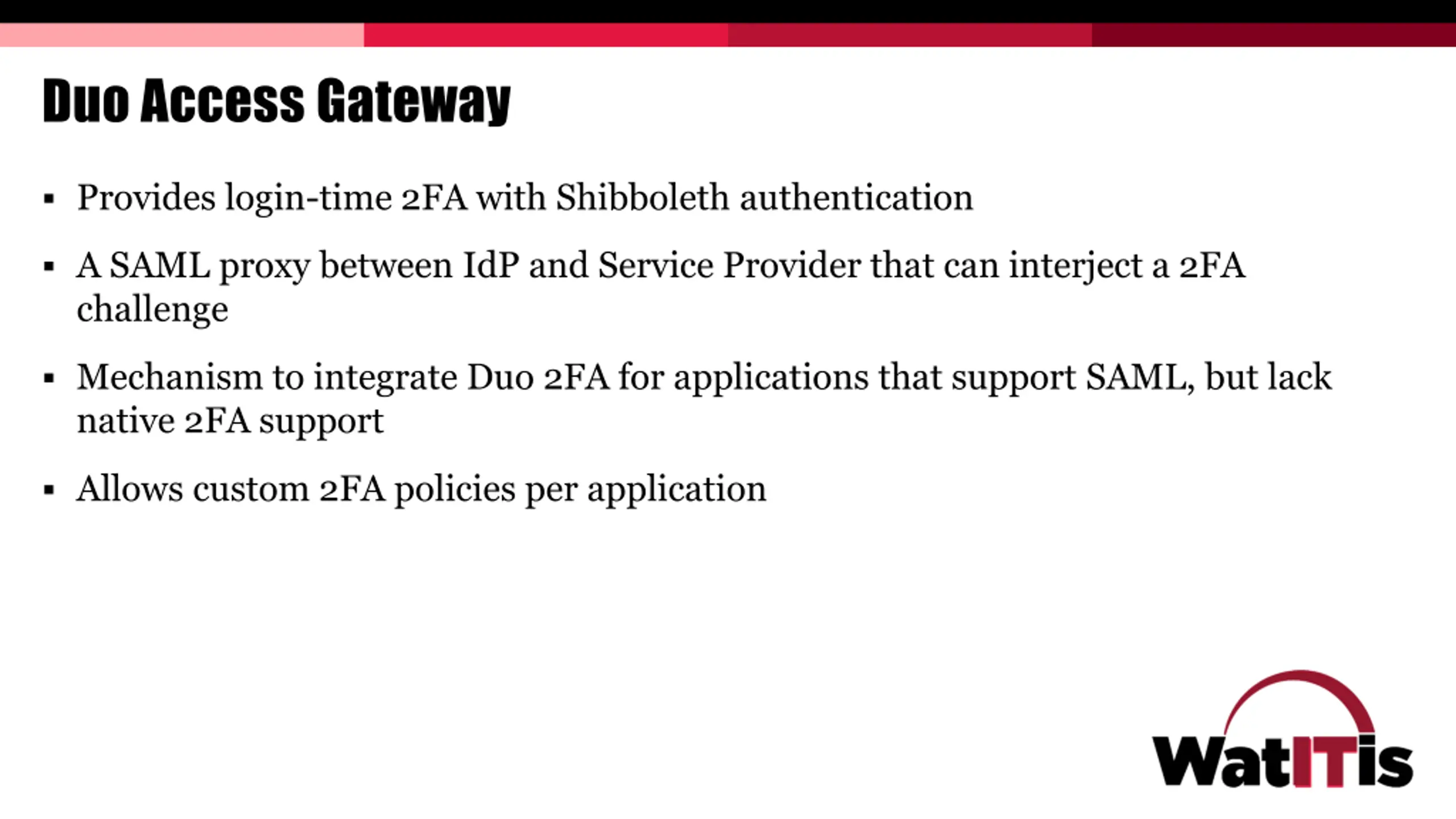

Duo Access Gateway Provides login-time 2FA with Shibboleth authentication A SAML proxy between IdP and Service Provider that can interject a 2FA challenge Mechanism to integrate Duo 2FA for applications that support SAML, but lack native 2FA support Allows custom 2FA policies per application

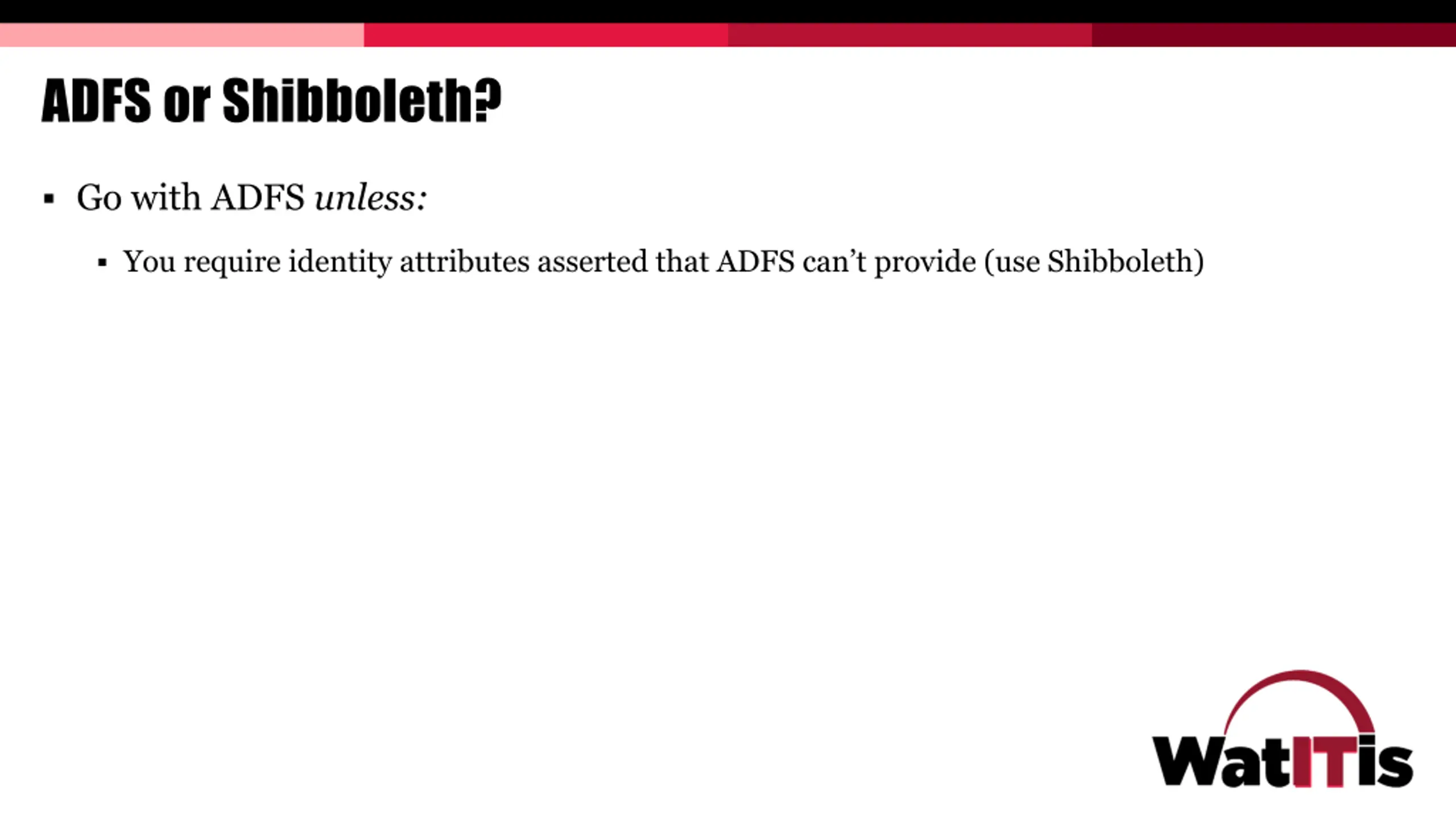

ADFS or Shibboleth? Go with ADFS unless: You require identity attributes asserted that ADFS can t provide (use Shibboleth)

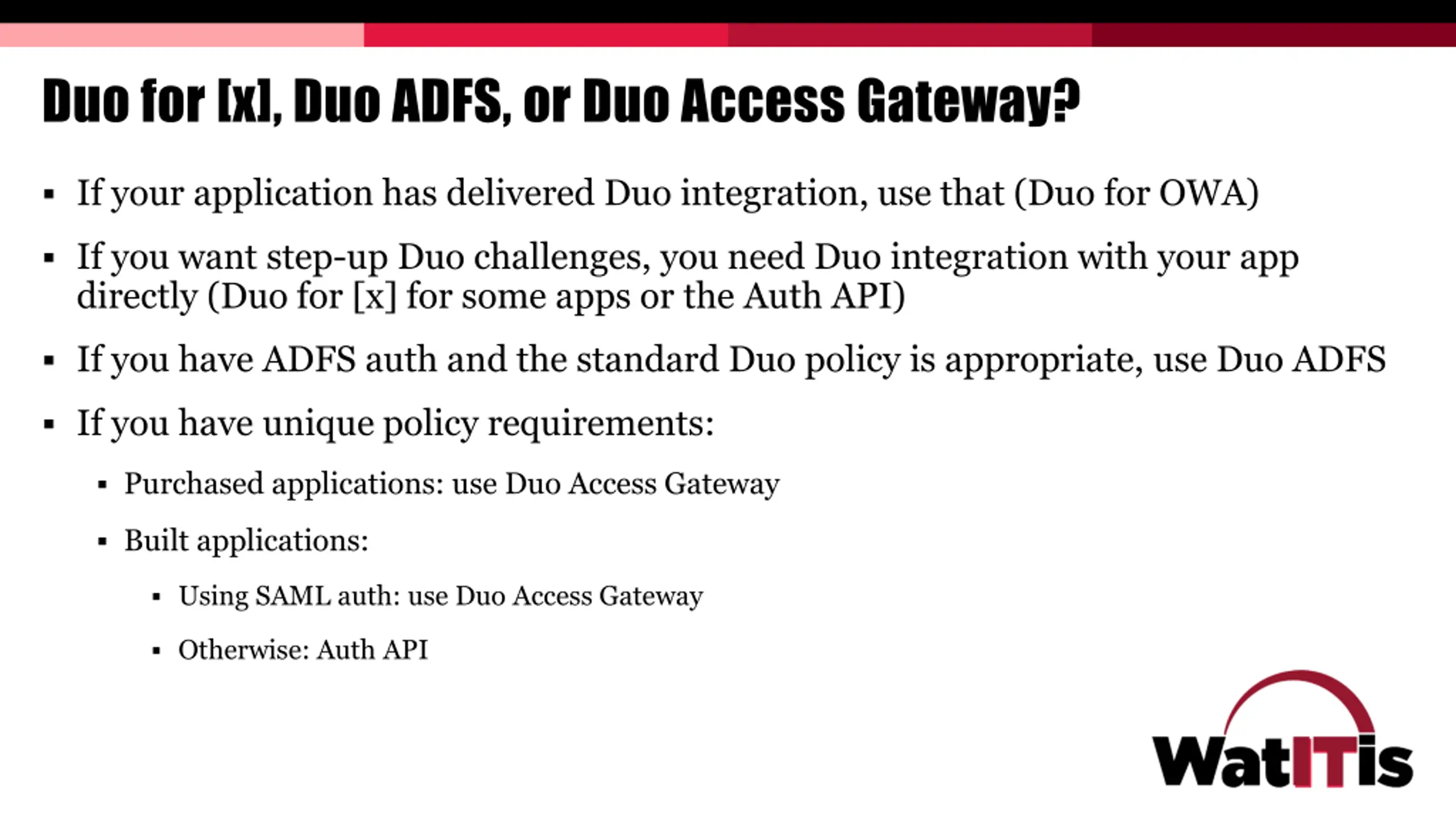

Duo for [x], Duo ADFS, or Duo Access Gateway? If your application has delivered Duo integration, use that (Duo for OWA) If you want step-up Duo challenges, you need Duo integration with your app directly (Duo for [x] for some apps or the Auth API) If you have ADFS auth and the standard Duo policy is appropriate, use Duo ADFS If you have unique policy requirements: Purchased applications: use Duo Access Gateway Built applications: Using SAML auth: use Duo Access Gateway Otherwise: Auth API

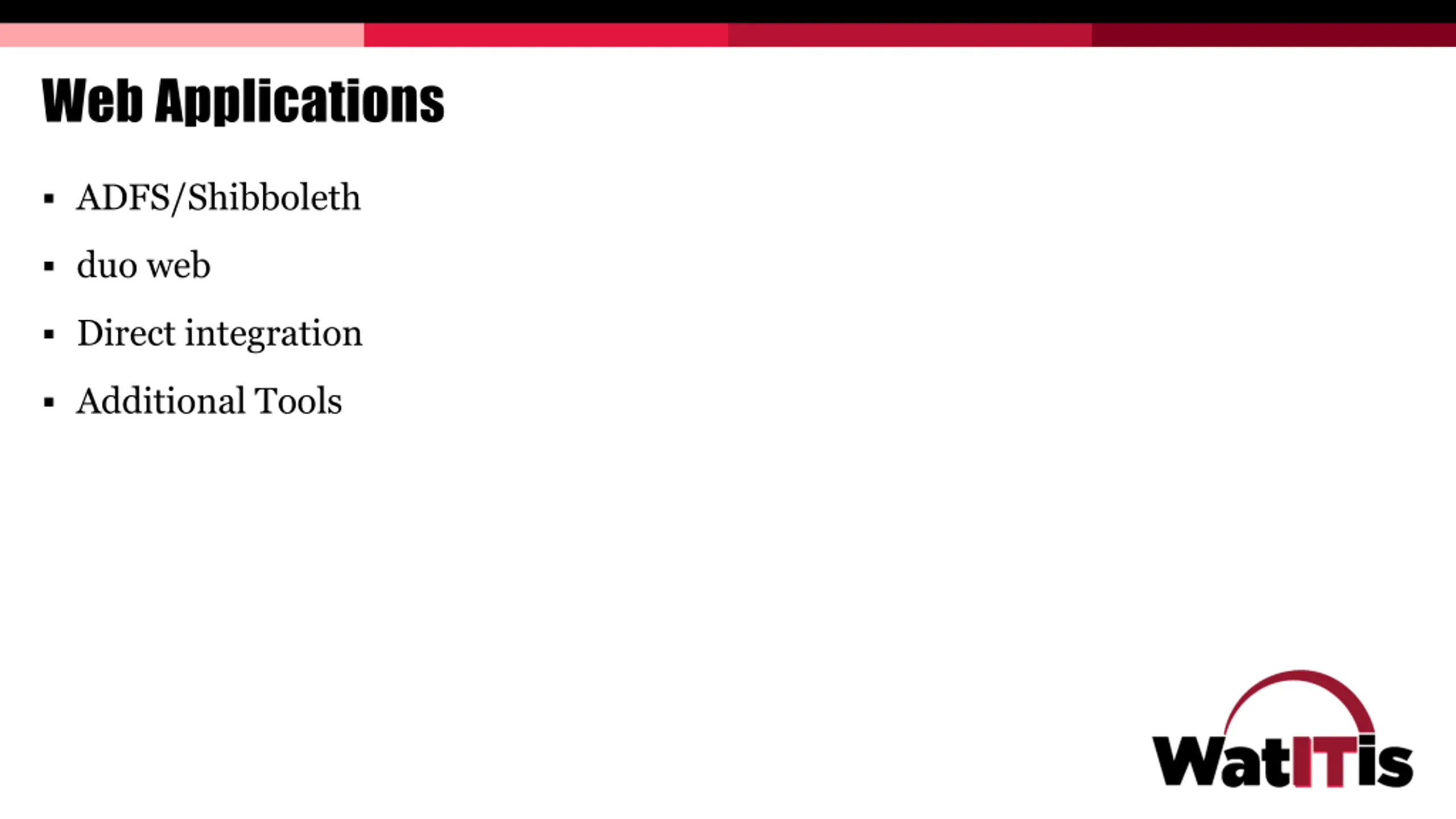

Web Applications ADFS/Shibboleth duo web Direct integration Additional Tools

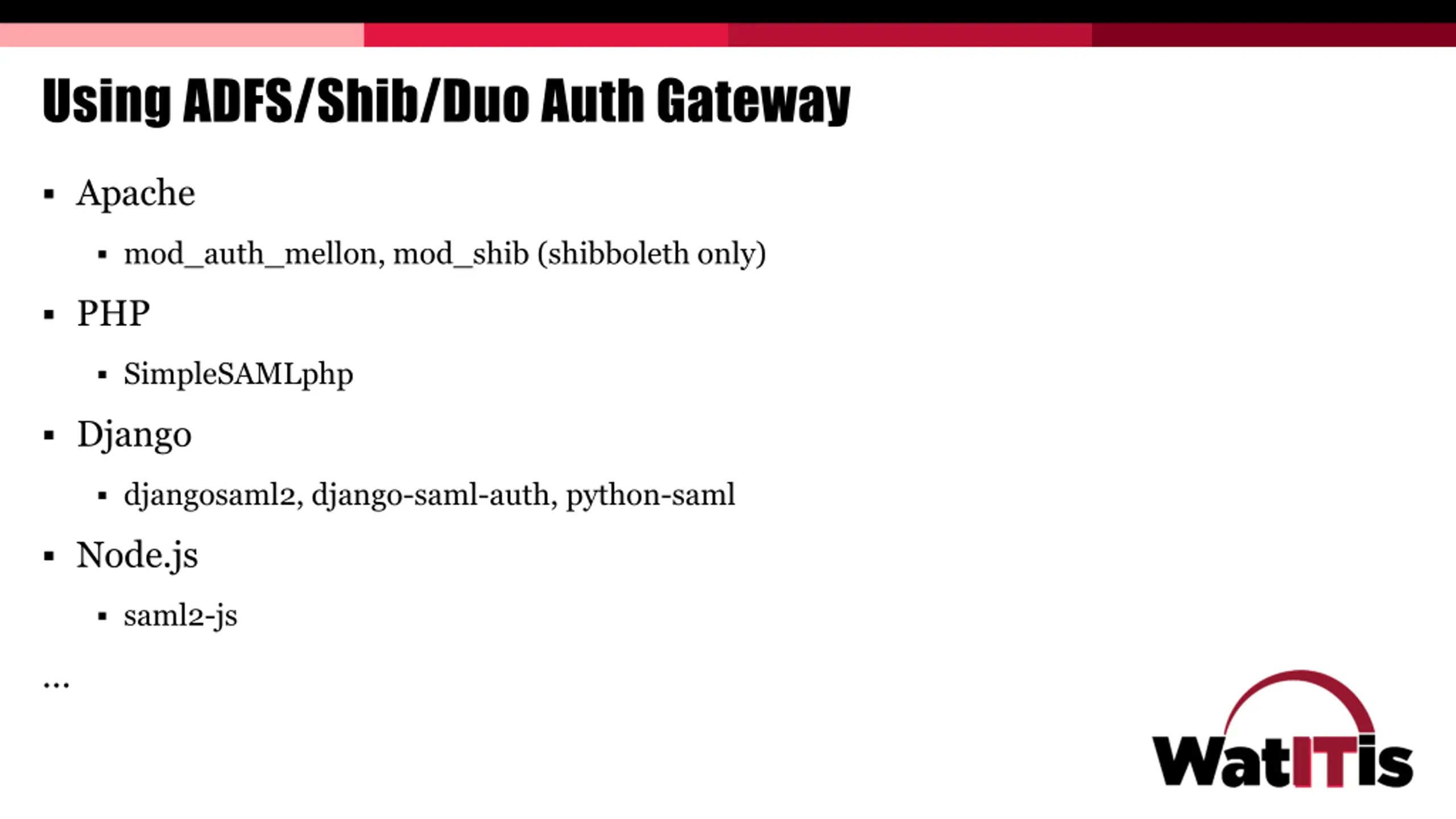

Using ADFS/Shib/Duo Auth Gateway Apache mod_auth_mellon, mod_shib (shibboleth only) PHP SimpleSAMLphp Django djangosaml2, django-saml-auth, python-saml Node.js saml2-js

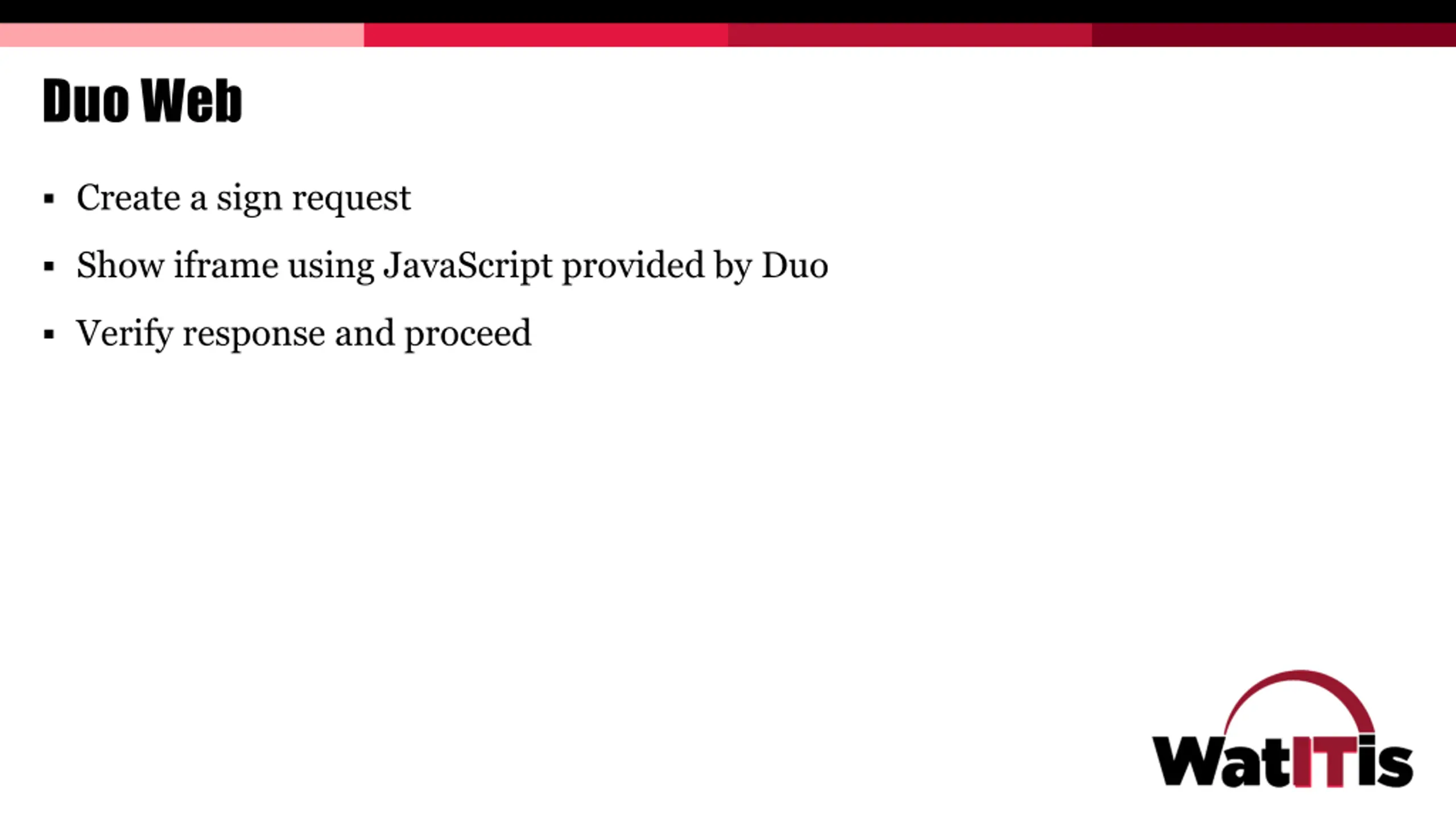

Duo Web Create a sign request Show iframe using JavaScript provided by Duo Verify response and proceed

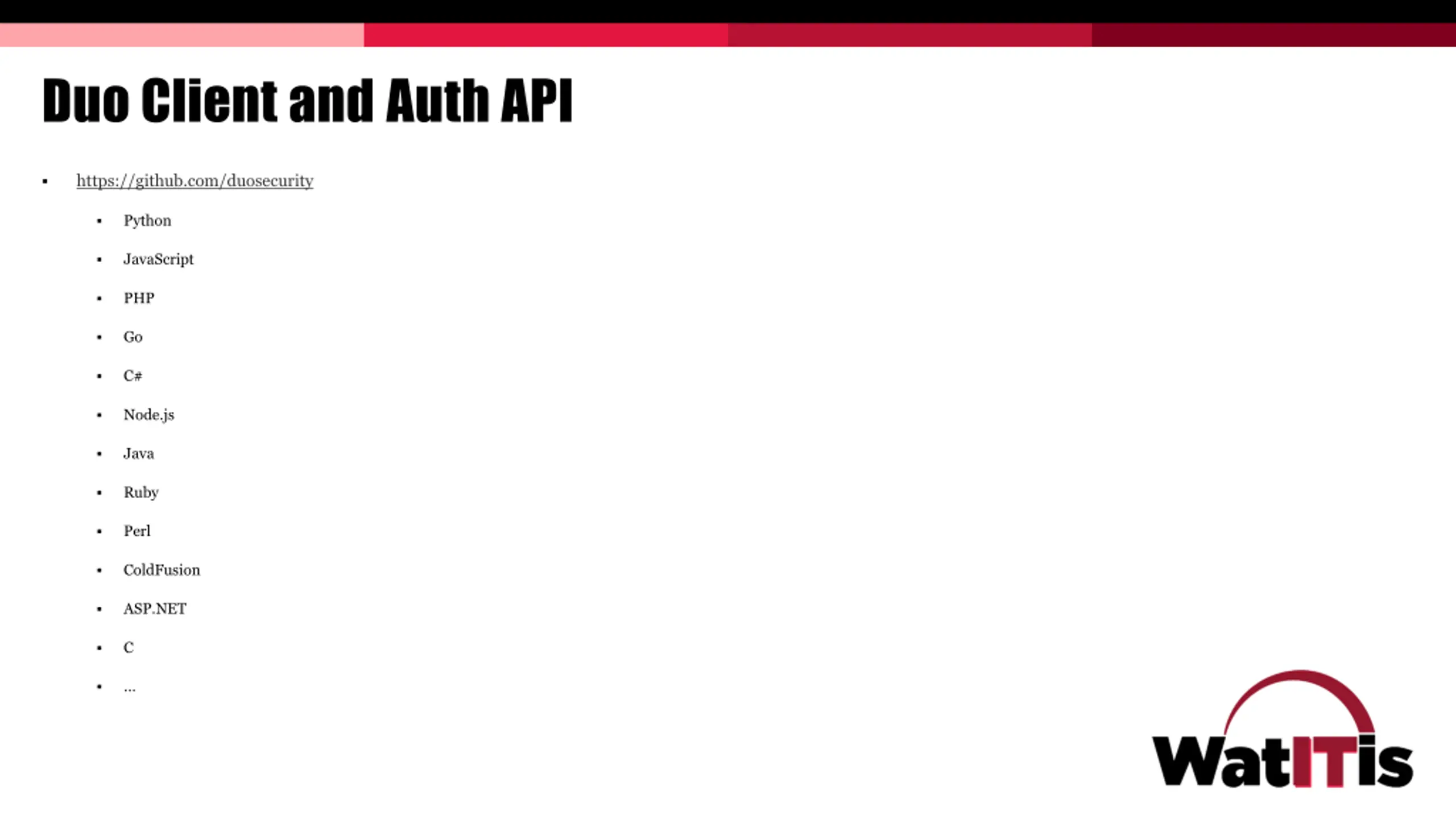

Duo Client and Auth API https://github.com/duosecurity Python JavaScript PHP Go C# Node.js Java Ruby Perl ColdFusion ASP.NET C

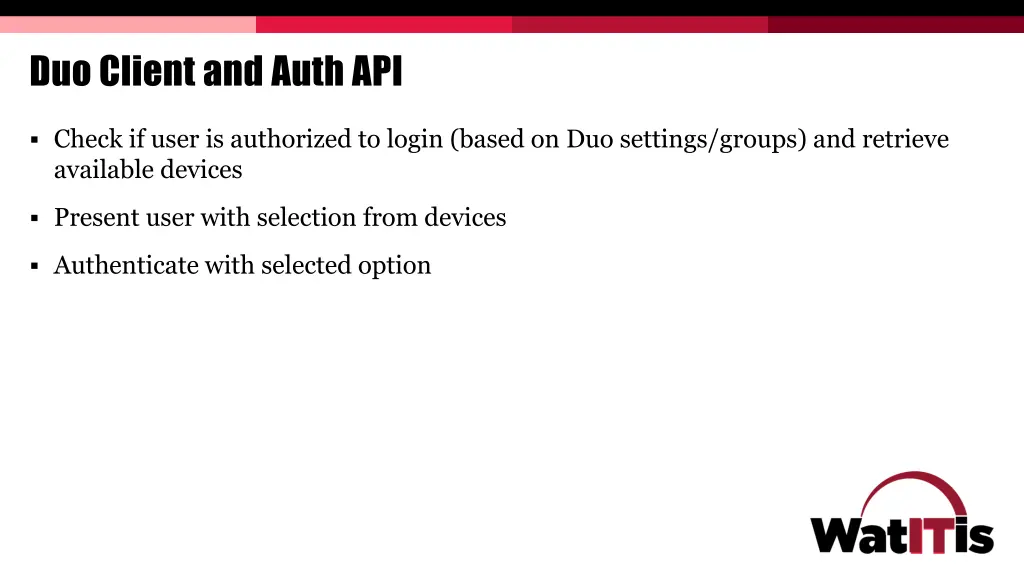

Duo Client and Auth API Check if user is authorized to login (based on Duo settings/groups) and retrieve available devices Present user with selection from devices Authenticate with selected option

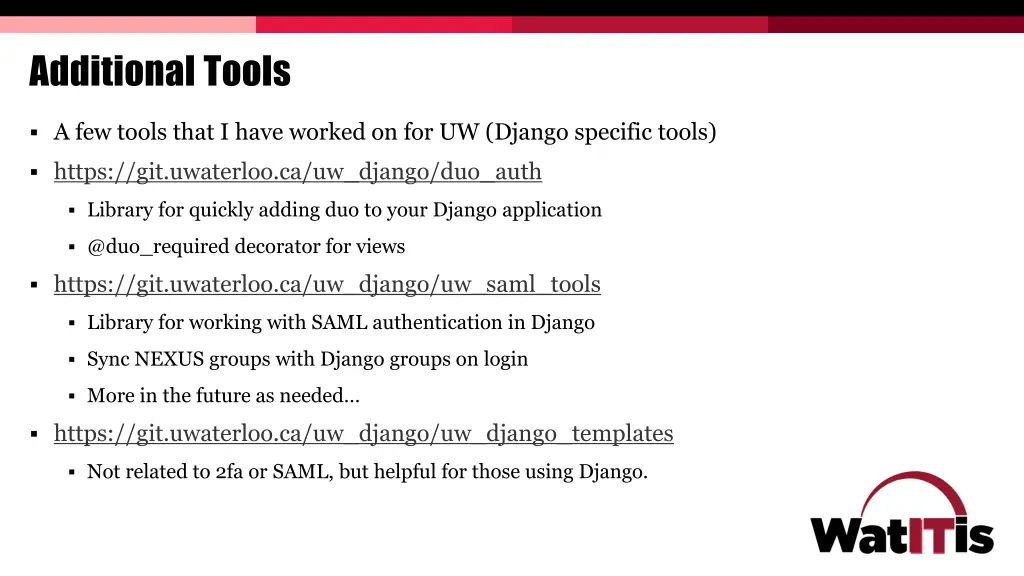

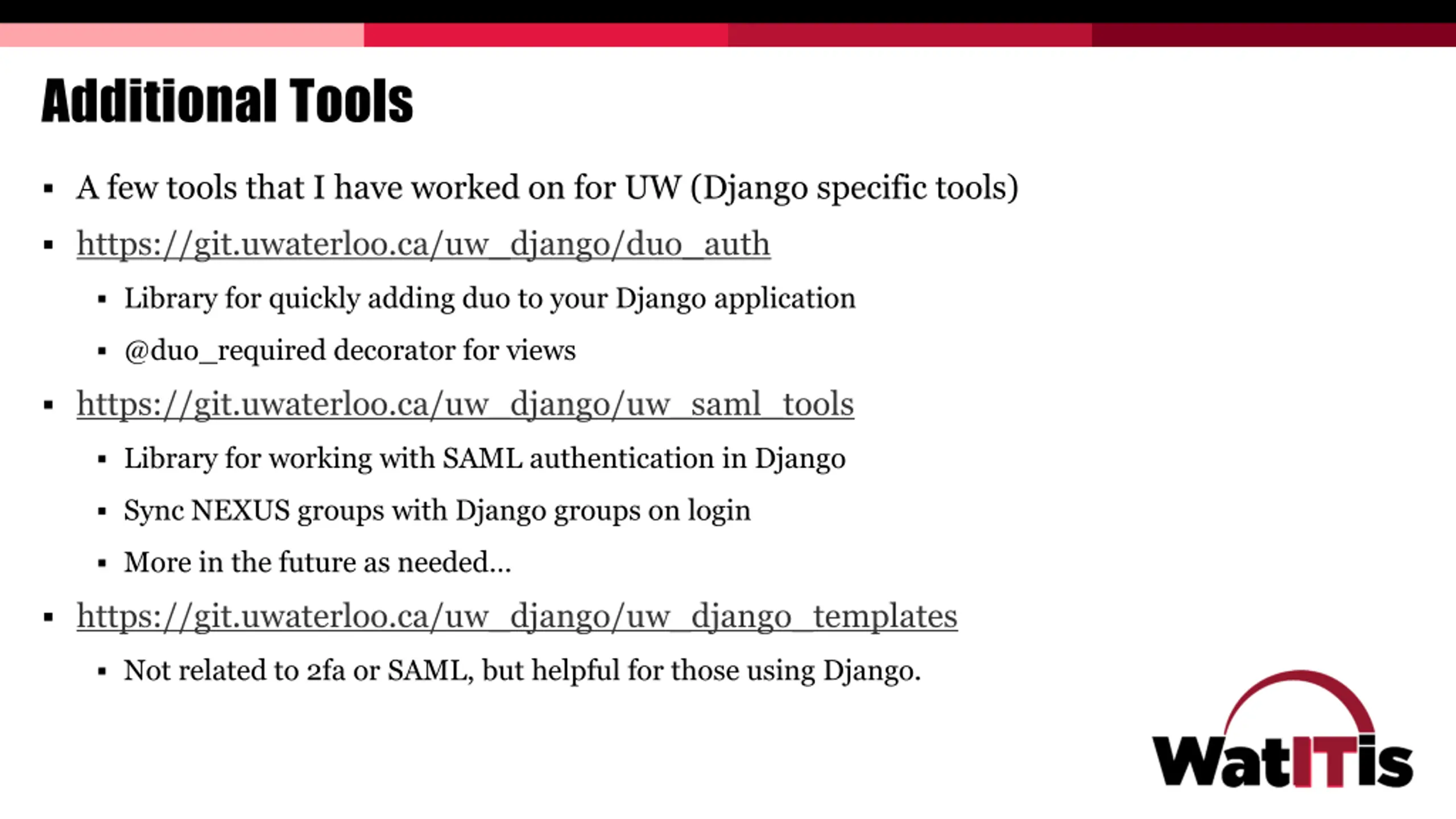

Additional Tools A few tools that I have worked on for UW (Django specific tools) https://git.uwaterloo.ca/uw_django/duo_auth Library for quickly adding duo to your Django application @duo_required decorator for views https://git.uwaterloo.ca/uw_django/uw_saml_tools Library for working with SAML authentication in Django Sync NEXUS groups with Django groups on login More in the future as needed https://git.uwaterloo.ca/uw_django/uw_django_templates Not related to 2fa or SAML, but helpful for those using Django.

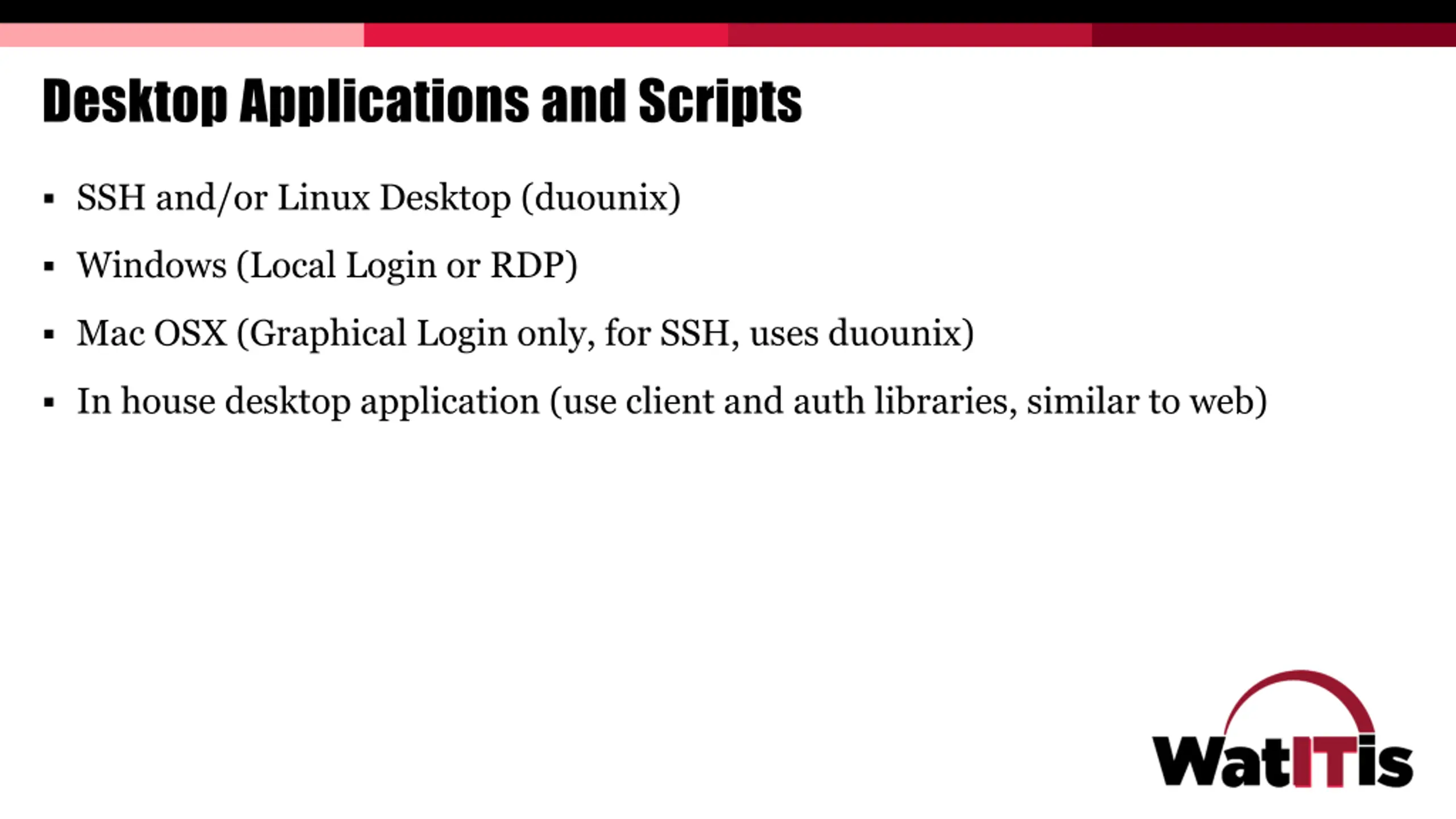

Desktop Applications and Scripts SSH and/or Linux Desktop (duounix) Windows (Local Login or RDP) Mac OSX (Graphical Login only, for SSH, uses duounix) In house desktop application (use client and auth libraries, similar to web)
QUESTIONS? amward@uwaterloo.ca ryan.goggin@uwaterloo.ca
