Saving Lighting Energy with BBC micro:bit LED Prototyping
This unit of work focuses on utilizing the BBC micro:bit to create a prototype lighting system that conserves energy in households. The system is designed to activate lighting only when necessary using LEDs, which are energy-efficient compared to incandescent bulbs. The content covers the basics of LEDs, the importance of protective resistors, and how to calculate the resistor value using Ohm's Law.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

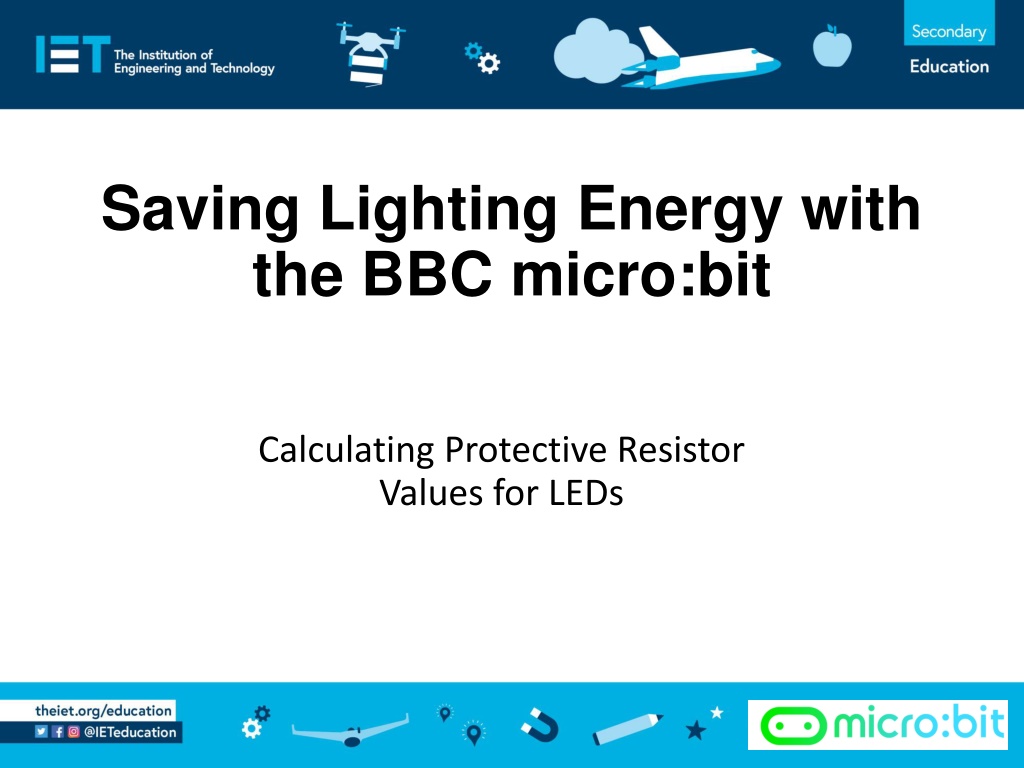

Saving Lighting Energy with the BBC micro:bit Calculating Protective Resistor Values for LEDs

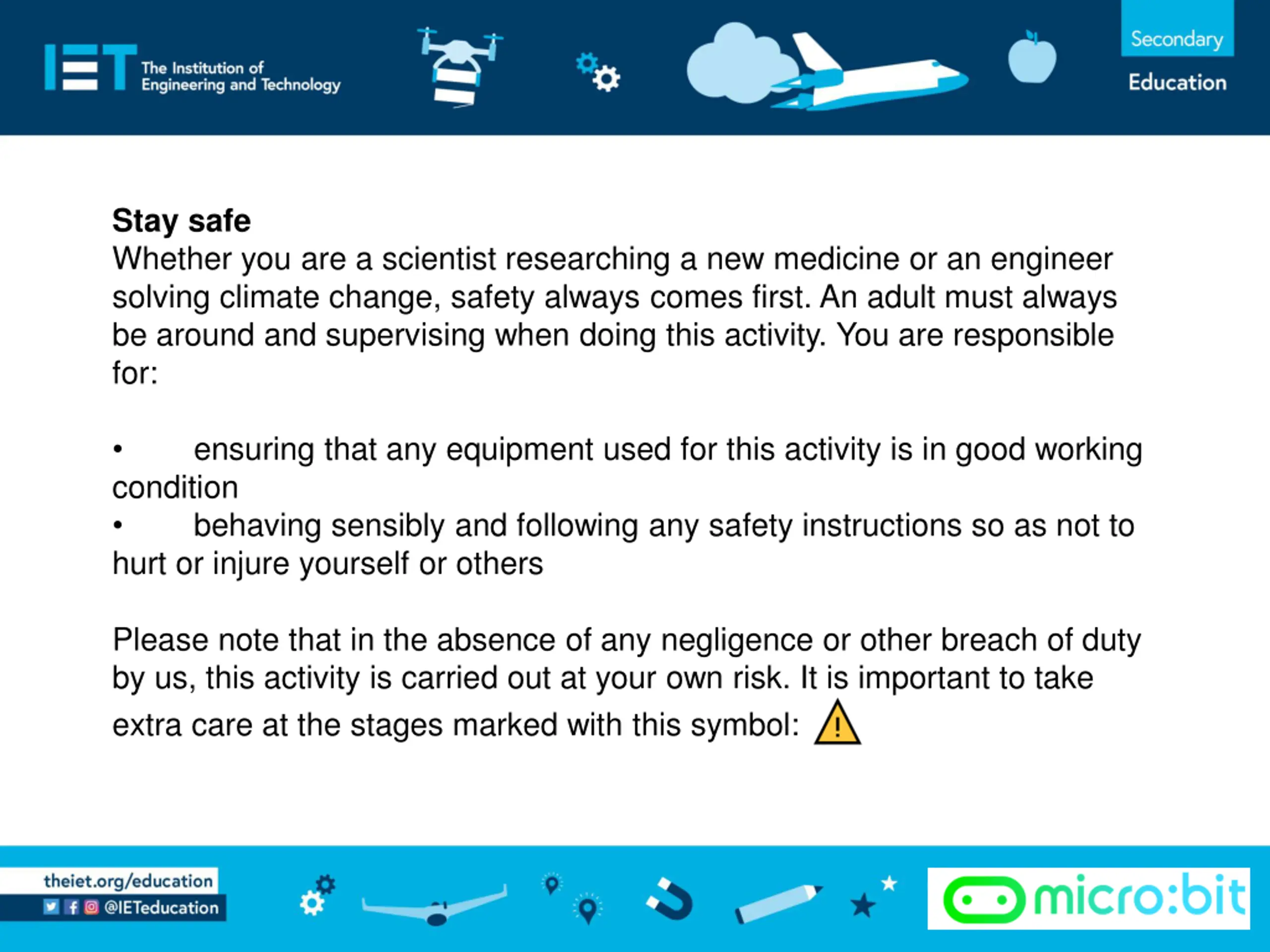

Stay safe Whether you are a scientist researching a new medicine or an engineer solving climate change, safety always comes first. An adult must always be around and supervising when doing this activity. You are responsible for: ensuring that any equipment used for this activity is in good working condition behaving sensibly and following any safety instructions so as not to hurt or injure yourself or others Please note that in the absence of any negligence or other breach of duty by us, this activity is carried out at your own risk. It is important to take extra care at the stages marked with this symbol:

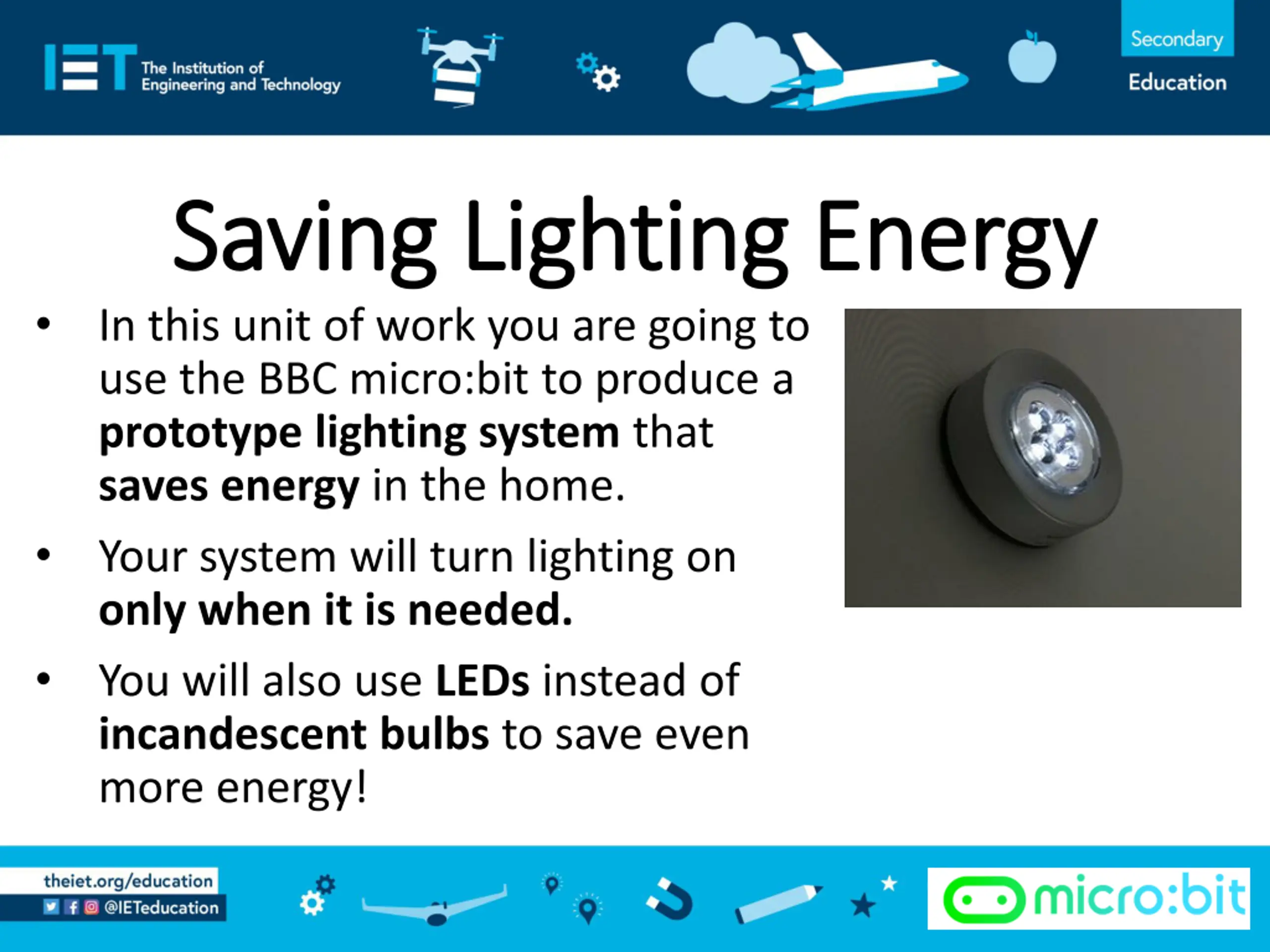

Saving Lighting Energy Saving Lighting Energy In this unit of work you are going to use the BBC micro:bit to produce a prototypelighting system that saves energy in the home. Your system will turn lighting on only when it is needed. You will also use LEDs instead of incandescent bulbs to save even more energy!

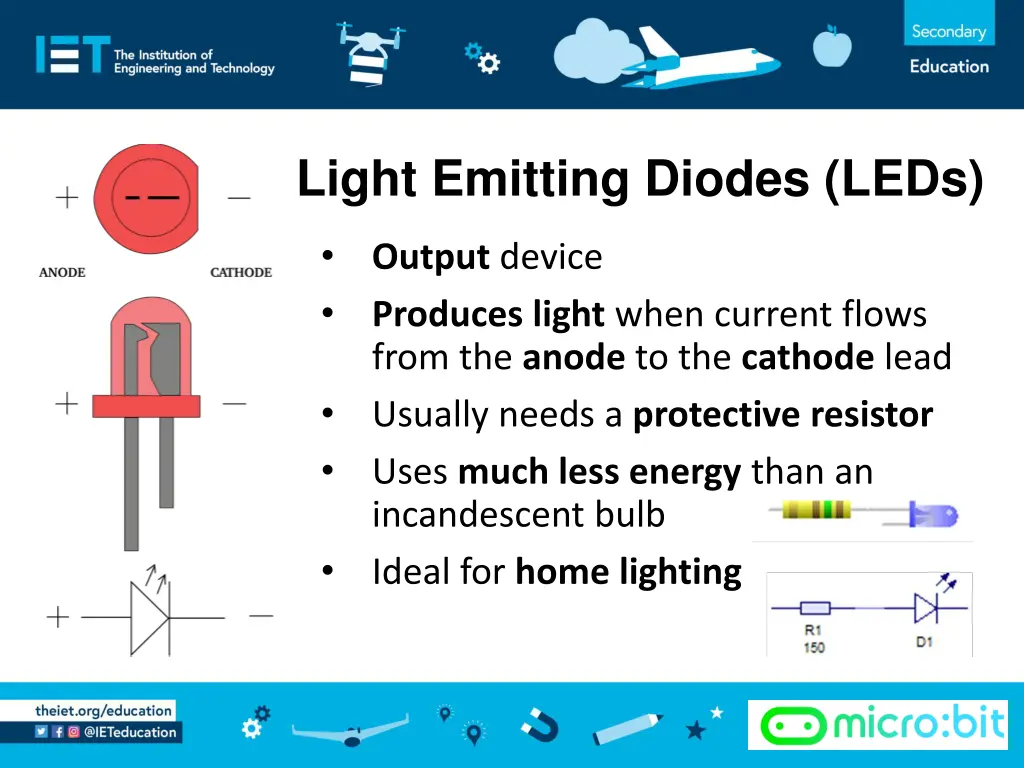

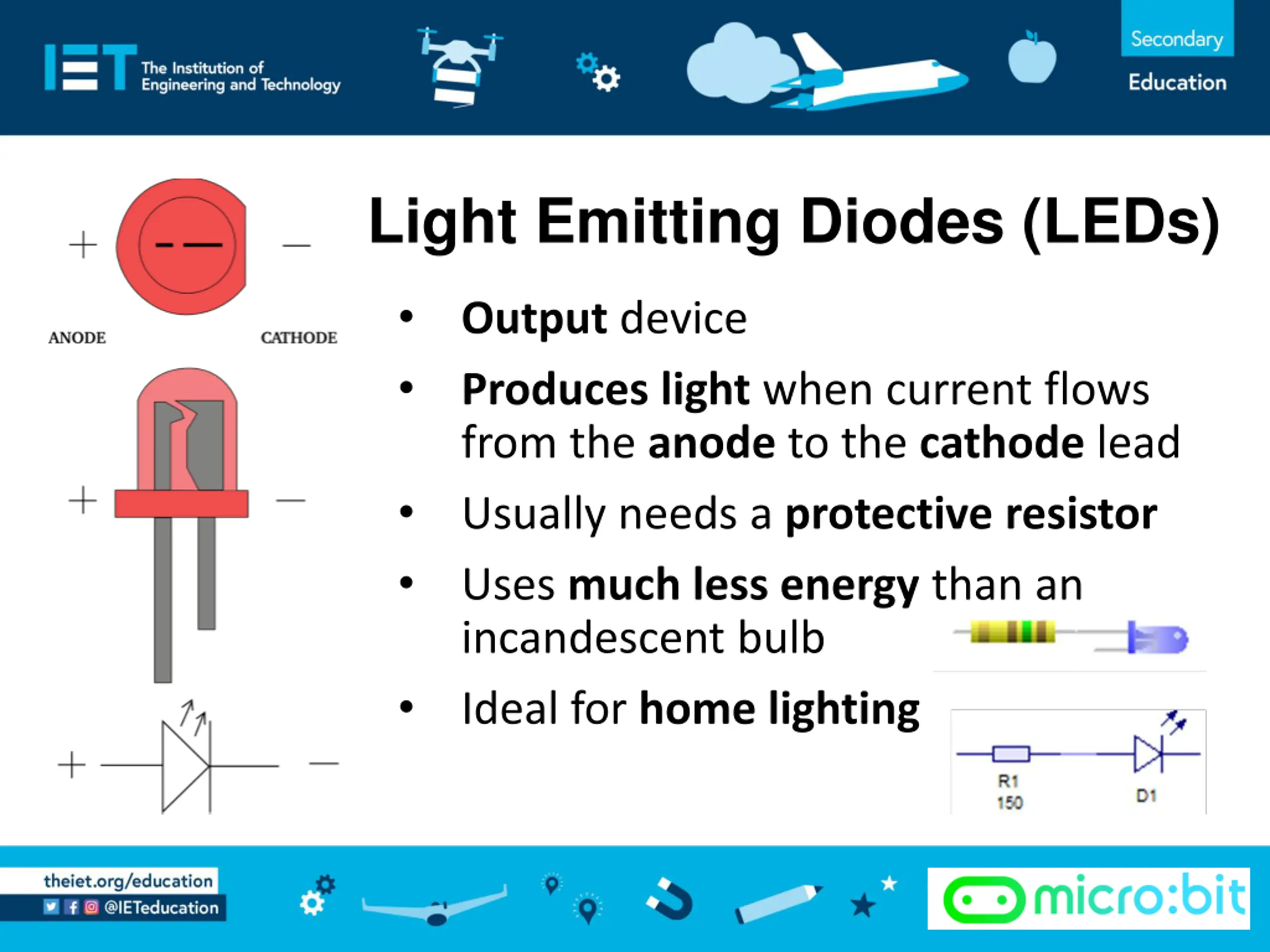

Light Emitting Diodes (LEDs) Output device Produces light when current flows from the anode to the cathode lead Usually needs a protective resistor Uses much less energy than an incandescent bulb Ideal for home lighting

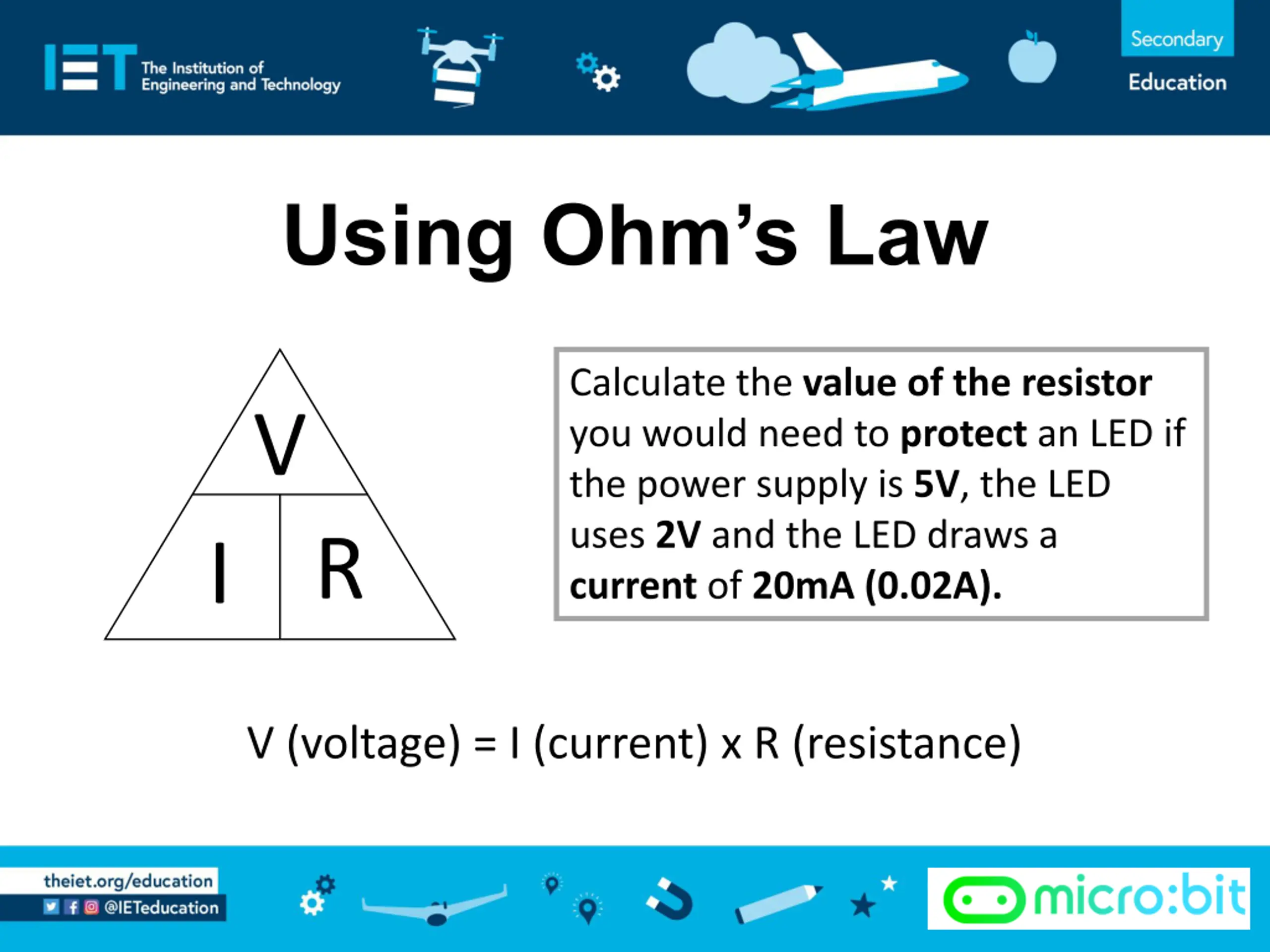

Using Ohms Law Calculate the value of the resistor you would need to protect an LED if the power supply is 5V, the LED uses 2V and the LED draws a current of 20mA (0.02A). V I R V (voltage) = I (current) x R (resistance)
