Reduced Hardware NOrec: A Safe and Scalable Hybrid Transactional Memory Alexander Matveev Nir Shavit MIT
Good: Hardware Transactional Memory (HTM) Bad: The HTM is best-effort HTM may always fail due to: 1. L1 cache capacity 2. Interrupt 3. Unsupported instruction
A Possible Solution is: Lock Elision Thread 1 Thread 2 1. HTM Start 1. Lock 1. HTM Start 1. Lock 2. Read lock and check it is free 2. Read lock and check it is free 3. ... code 3. ... code 4. HTM Commit 4. HTM Commit 2. Unlock 2. Unlock No conflict HTMs commit concurrently
A Possible Solution is: Lock Elision Thread 1 Thread 2 Thread 3 1. HTM Start Wait for Lock 1. HTM Start Wait for Lock 1. HTM Start 1. Acquire Lock 2. Read lock and check it is free 2. Read lock and check it is free 2. Read lock and check it is free 2. ... code 3. ... code 4. ... CONFLICT HTM Restart 3. ... code 4. ... CONFLICT HTM Restart 3. ... code 3. ... FAIL HTM Restart 3. Release Lock No concurrency between hardware and software

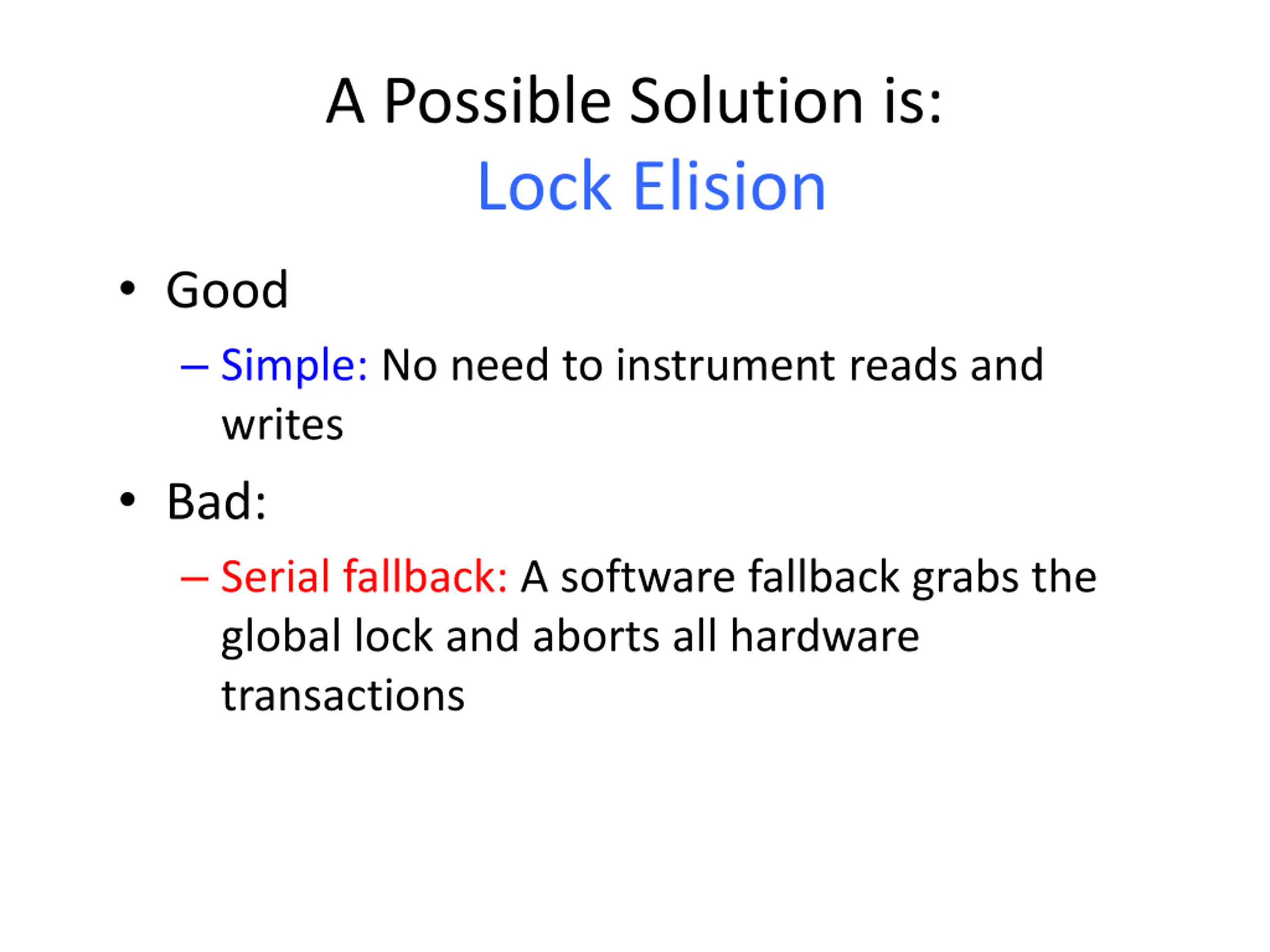

A Possible Solution is: Lock Elision Good Simple: No need to instrument reads and writes Bad: Serial fallback: A software fallback grabs the global lock and aborts all hardware transactions
Another Approach is: Hybrid Transactional Memory Thread 1 Thread 2 Thread 3 1. HTM Start 1. HTM Start 1. HTM Start 1. STM Start 2. Read lock and check it is free 2. Read lock and check it is free 2. Read lock and check it is free 2. ... code 3. ... code 3. ... code 3. ... code 3. ... FAIL HTM Restart 3. more code 4. ... more code 4. ... more code STM and HTM execute concurrently

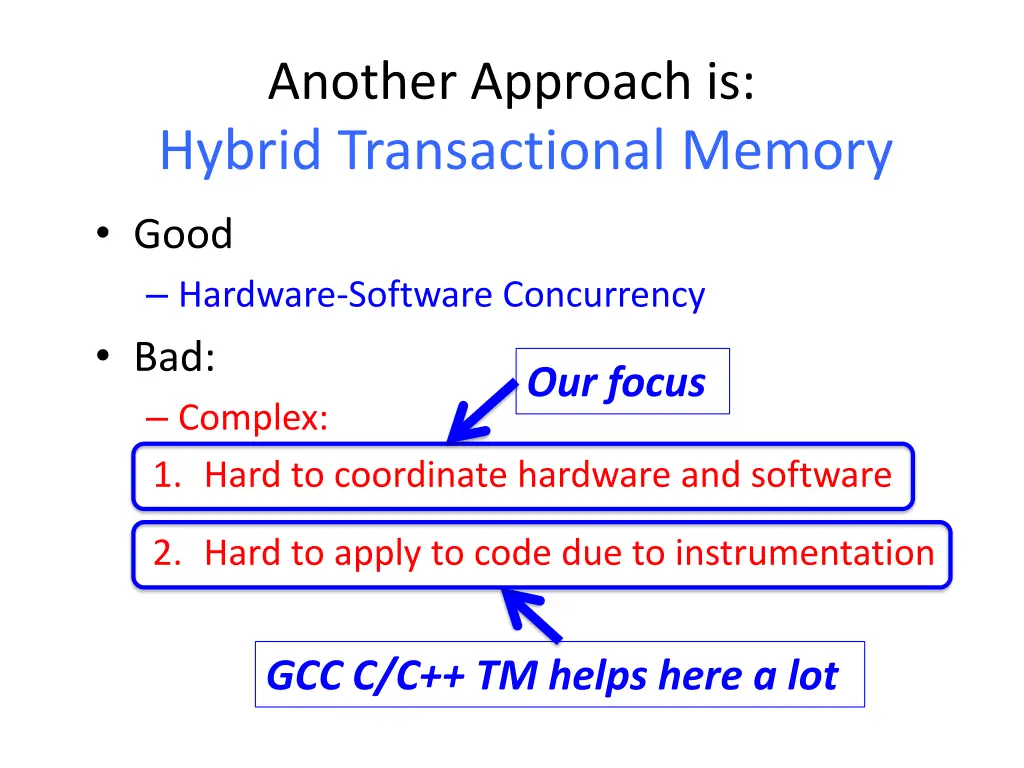

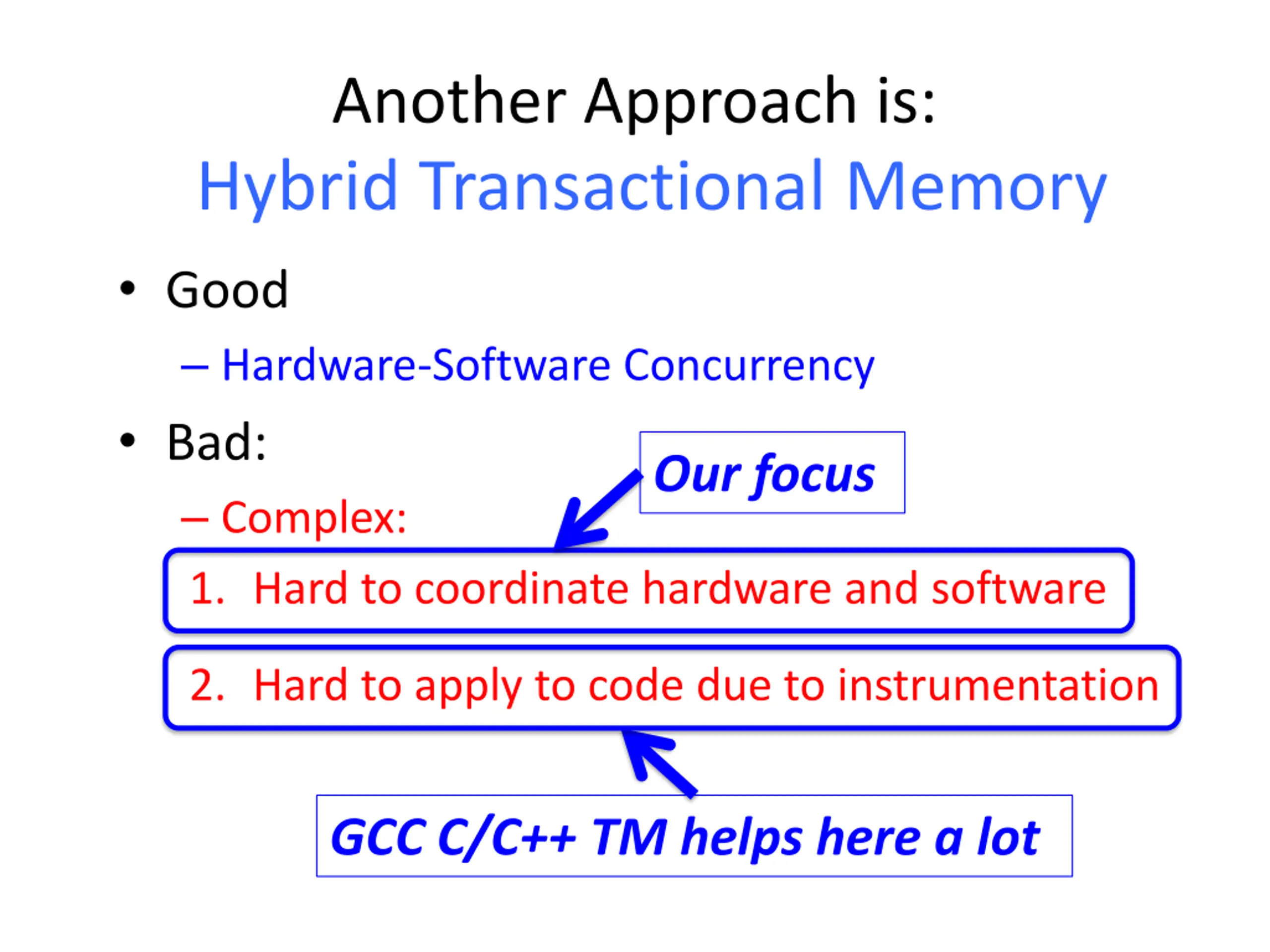

Another Approach is: Hybrid Transactional Memory Good Hardware-Software Concurrency Bad: Complex: 1. Hard to coordinate hardware and software Our focus 2. Hard to apply to code due to instrumentation GCC C/C++ TM helps here a lot
Hybrid TM History 2006: First Hybrid TM [DamronFedorovaLevLuchangcoMoirNussbaum] Key Idea: Use per location metadata version- locks to coordinate hardware and software Bad: Hardware is slow: on each read/write must read the version-lock and execute a branch condition check

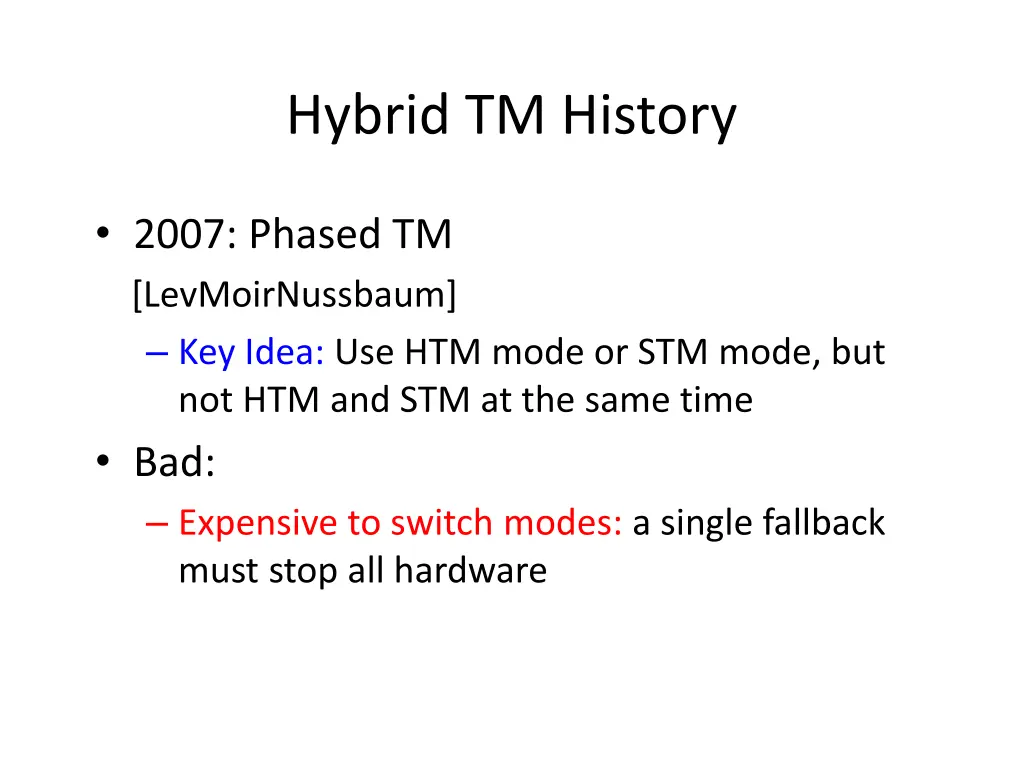

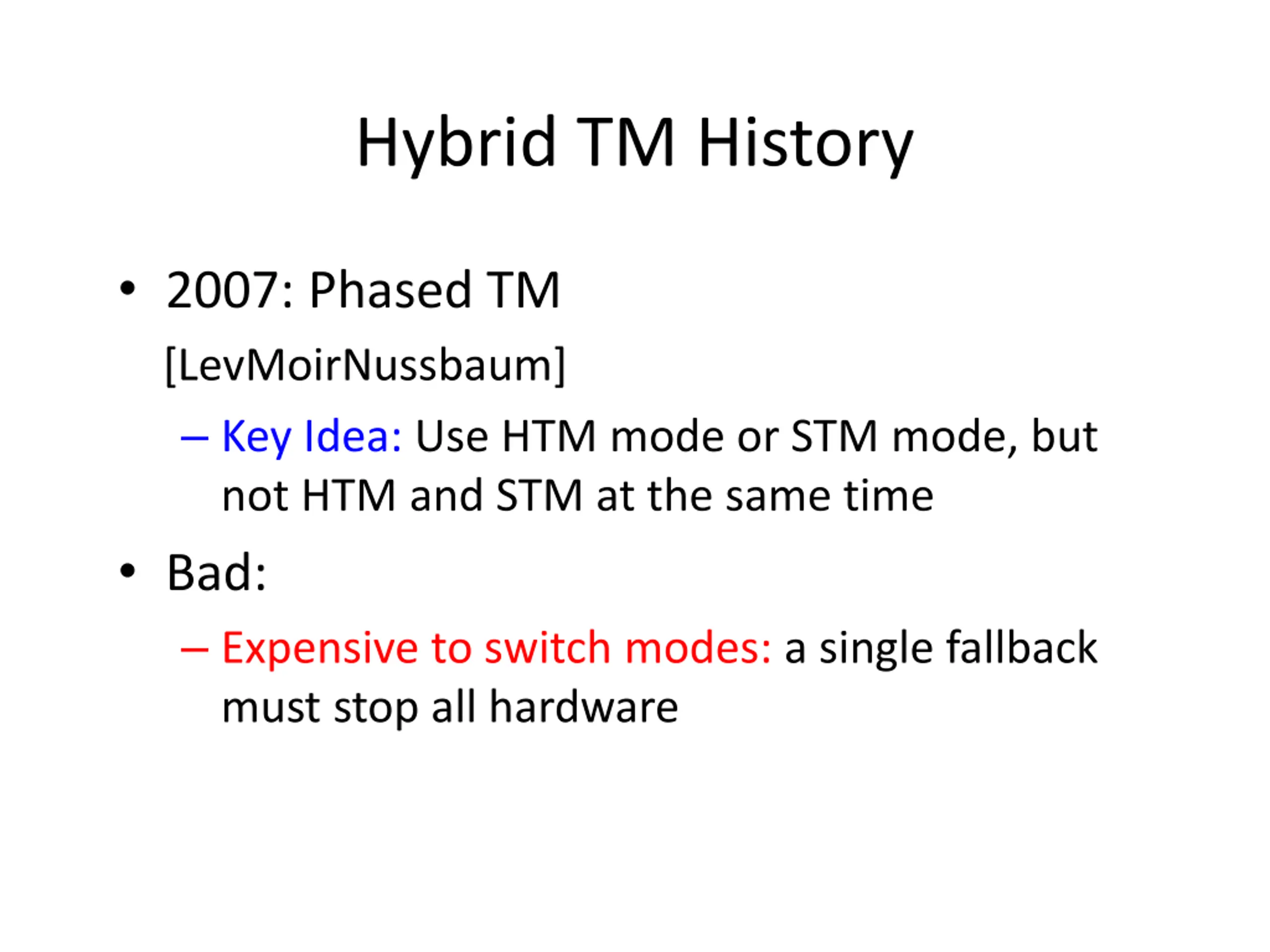

Hybrid TM History 2007: Phased TM [LevMoirNussbaum] Key Idea: Use HTM mode or STM mode, but not HTM and STM at the same time Bad: Expensive to switch modes: a single fallback must stop all hardware

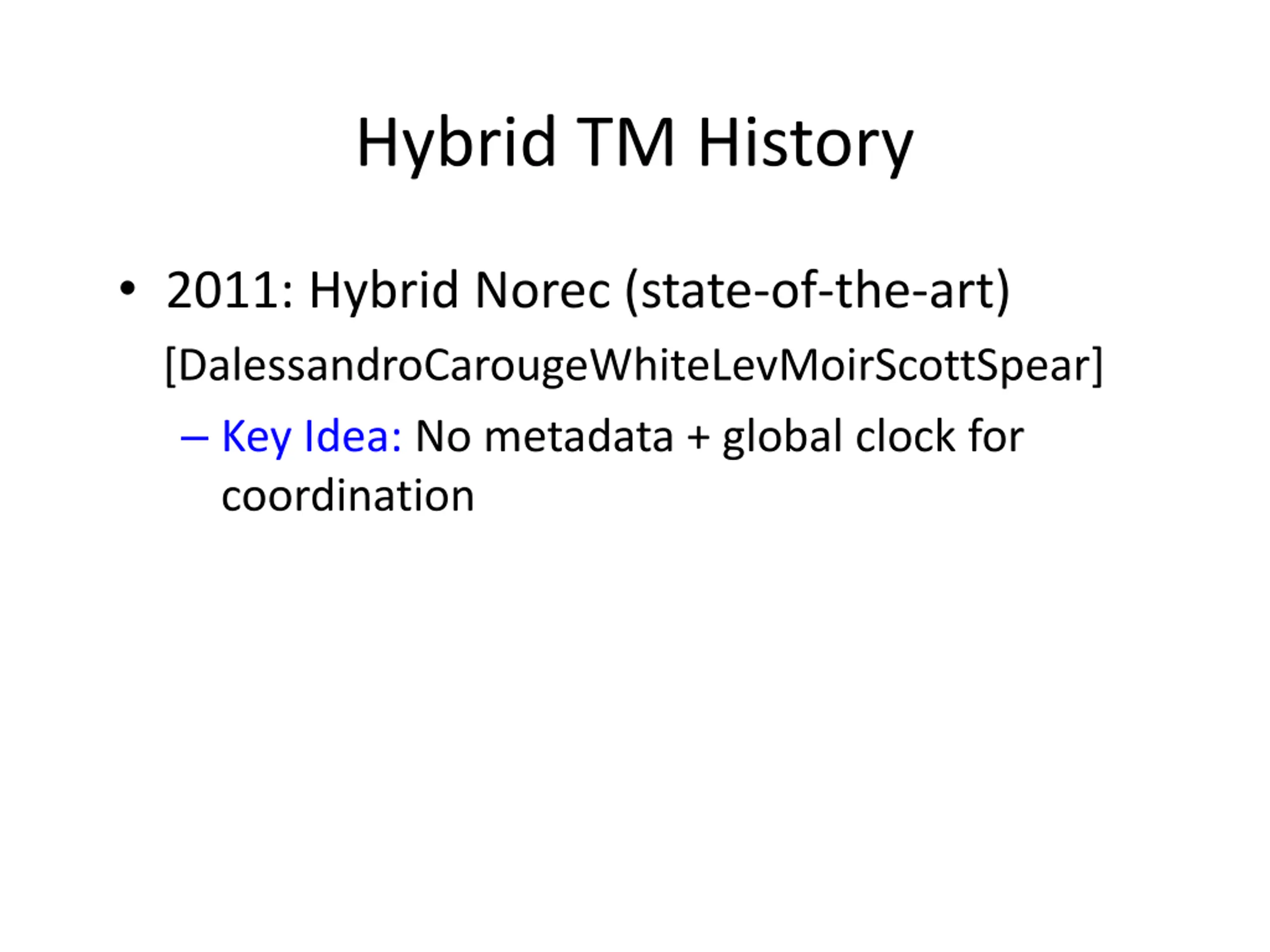

Hybrid TM History 2011: Hybrid Norec (state-of-the-art) [DalessandroCarougeWhiteLevMoirScottSpear] Key Idea: No metadata + global clock for coordination

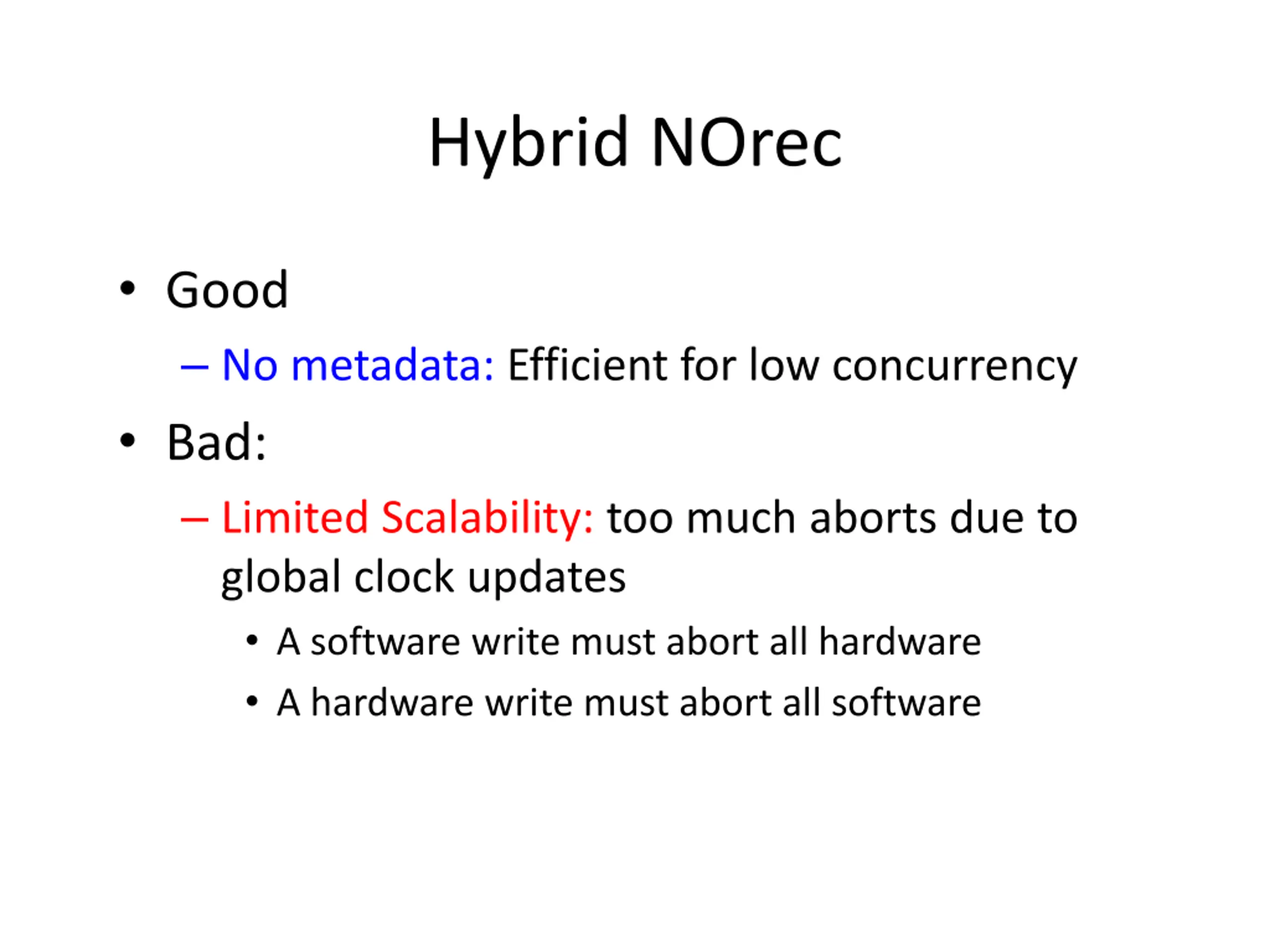

Hybrid NOrec Good No metadata: Efficient for low concurrency Bad: Limited Scalability: too much aborts due to global clock updates A software write must abort all hardware A hardware write must abort all software

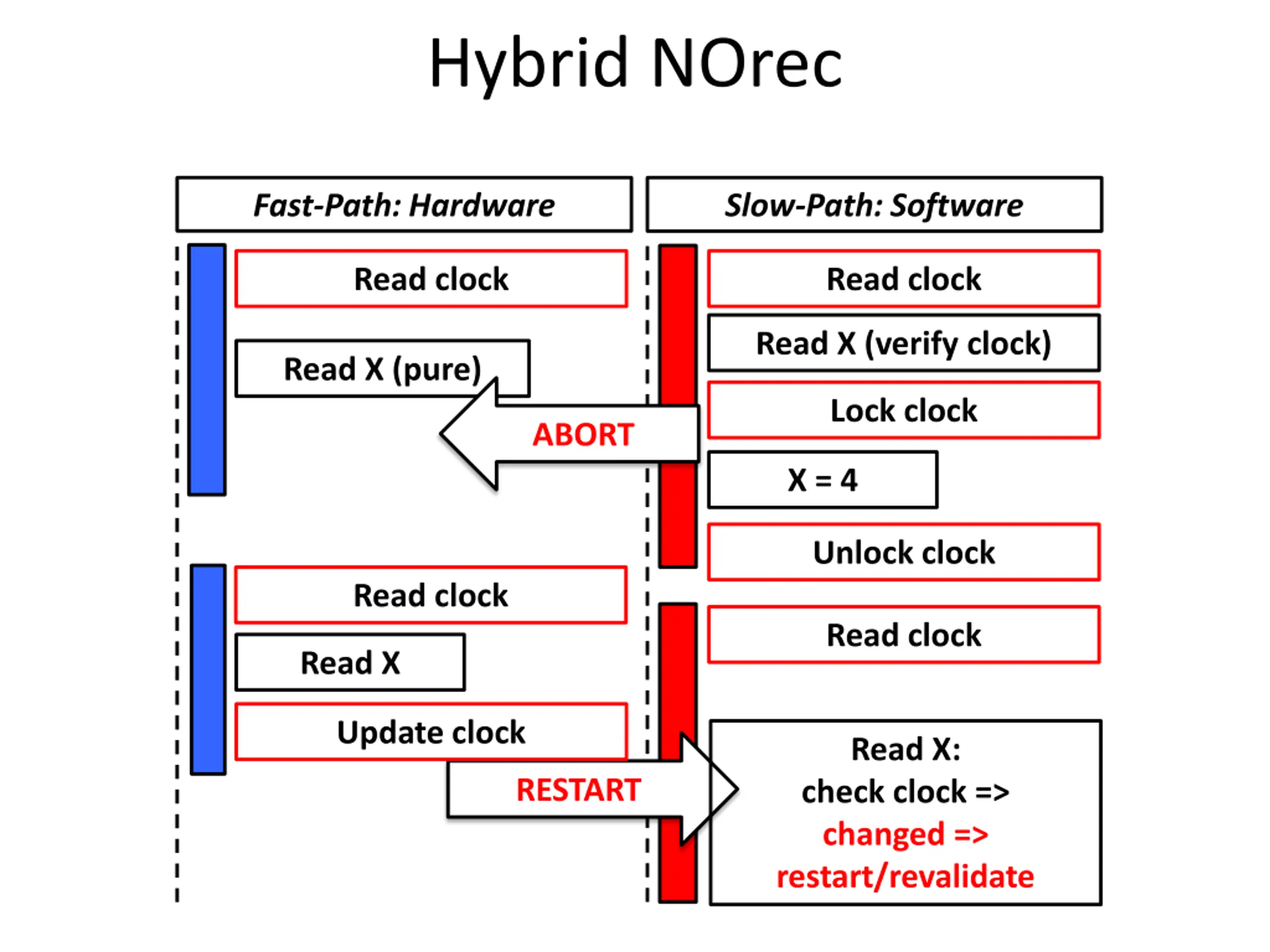

Hybrid NOrec Fast-Path: Hardware Slow-Path: Software Read clock Read clock Read X (verify clock) Read X (pure) Lock clock ABORT X = 4 Unlock clock Read clock Read clock Read X Update clock Read X: check clock => changed => restart/revalidate RESTART

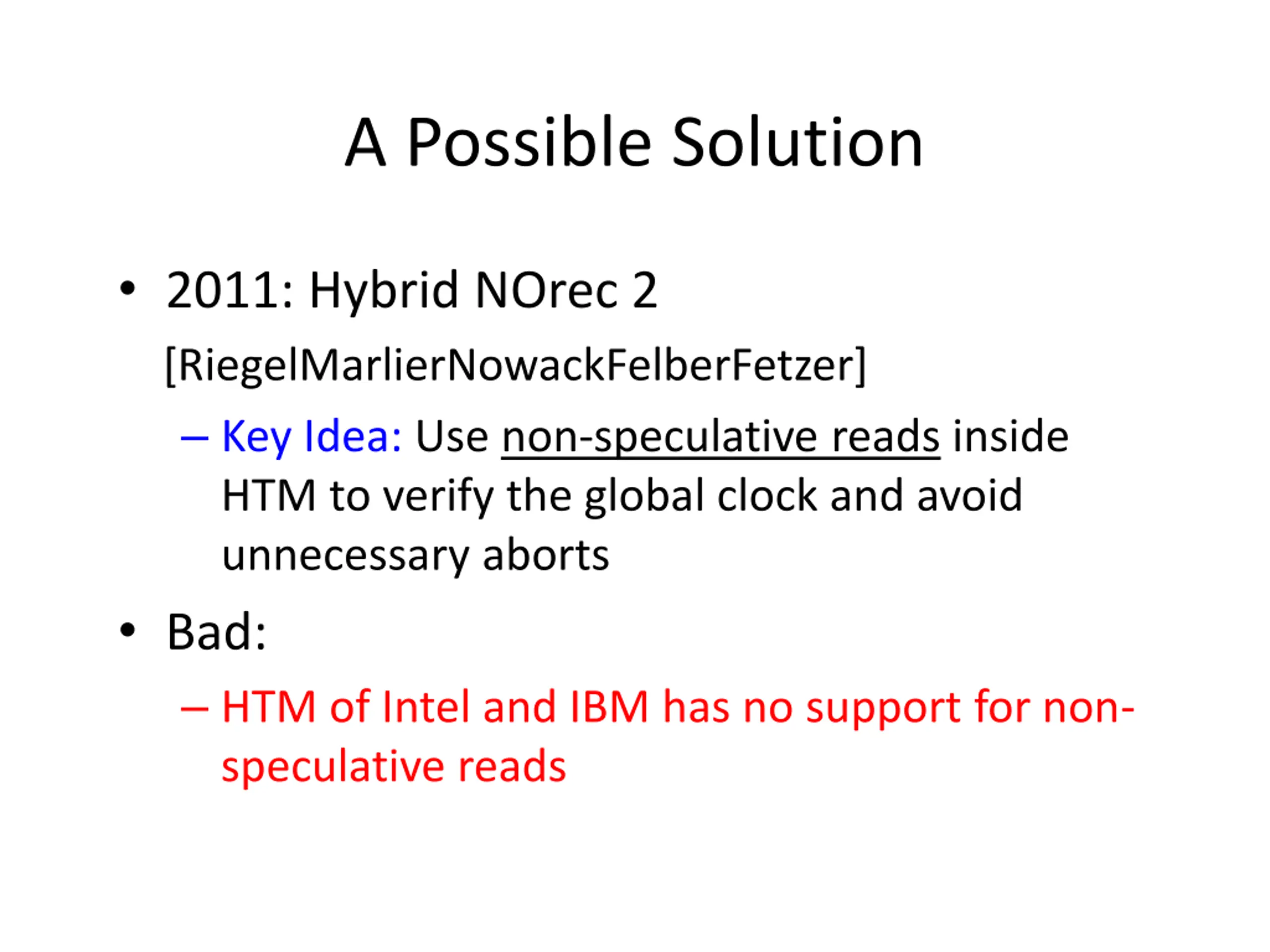

A Possible Solution 2011: Hybrid NOrec 2 [RiegelMarlierNowackFelberFetzer] Key Idea: Use non-speculative reads inside HTM to verify the global clock and avoid unnecessary aborts Bad: HTM of Intel and IBM has no support for non- speculative reads

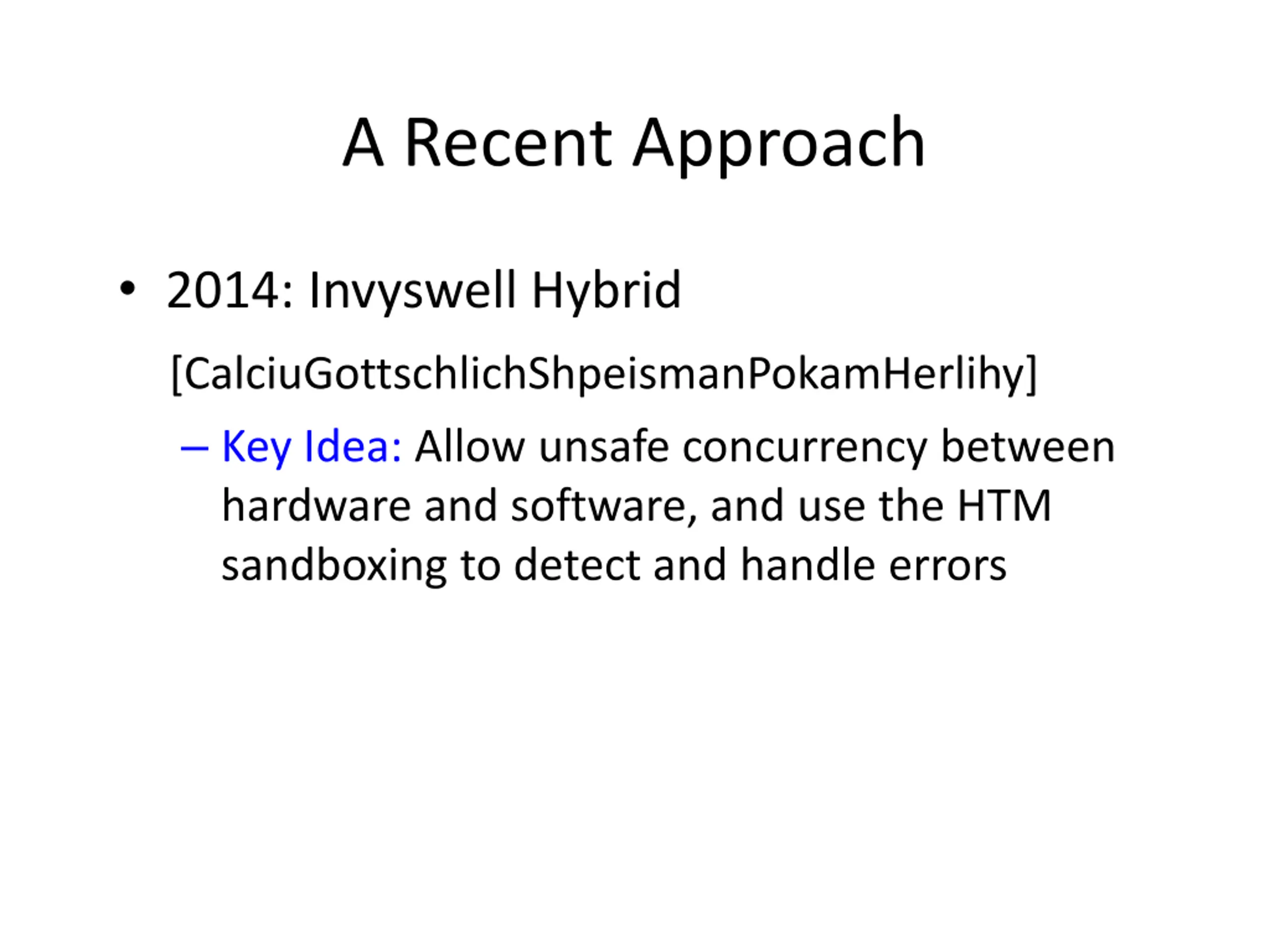

A Recent Approach 2014: Invyswell Hybrid [CalciuGottschlichShpeismanPokamHerlihy] Key Idea: Allow unsafe concurrency between hardware and software, and use the HTM sandboxing to detect and handle errors

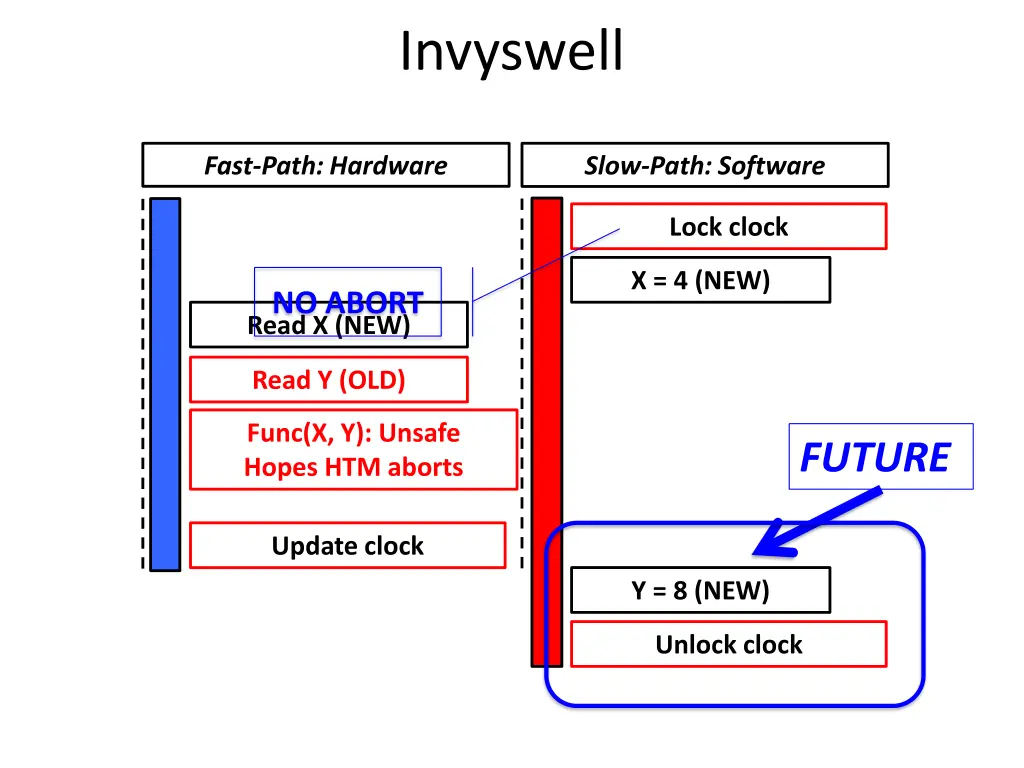

Invyswell Fast-Path: Hardware Slow-Path: Software Lock clock X = 4 (NEW) NO ABORT Read X (NEW) Read Y (OLD) Func(X, Y): Unsafe Hopes HTM aborts FUTURE Update clock Y = 8 (NEW) Unlock clock

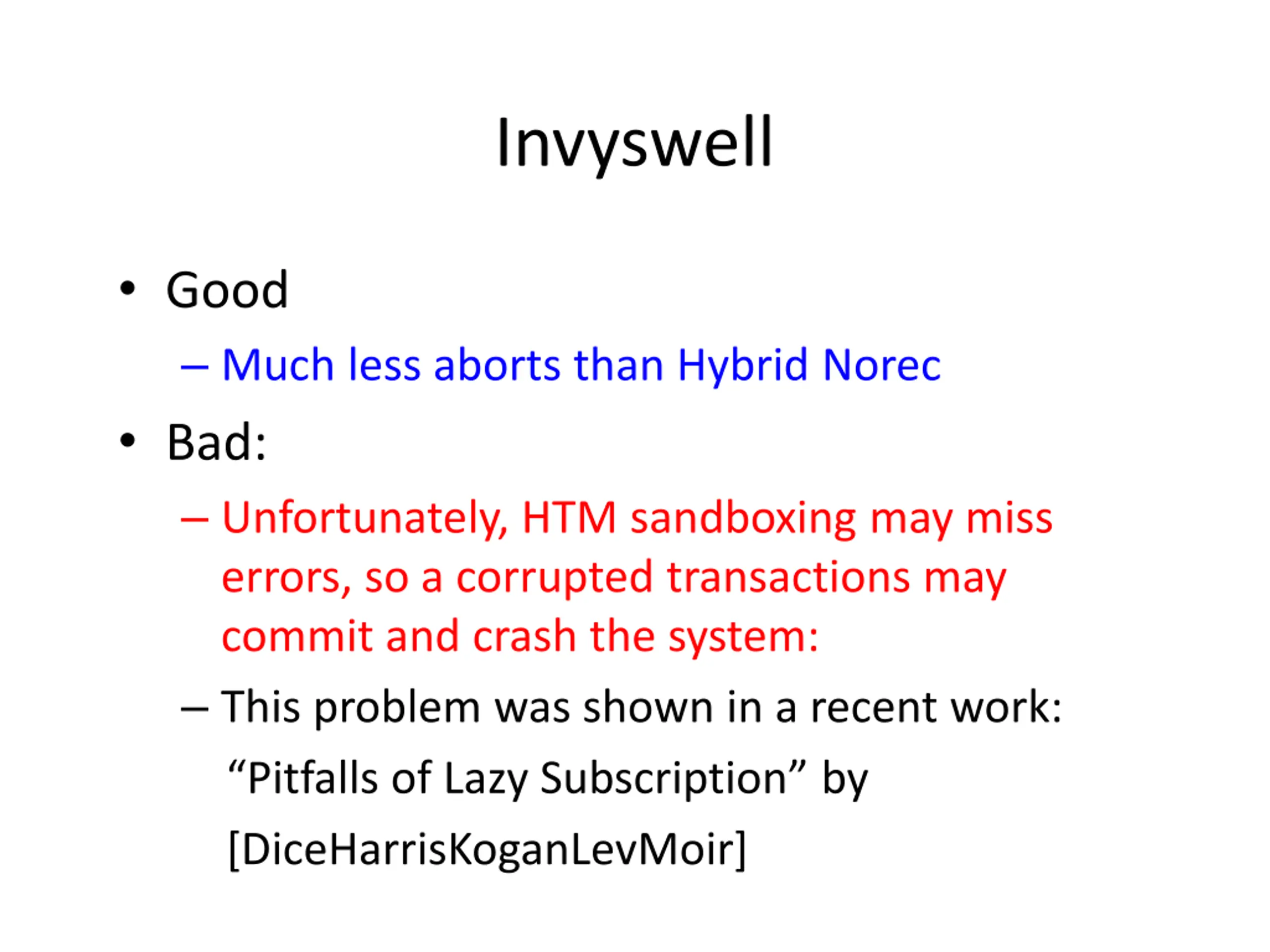

Invyswell Good Much less aborts than Hybrid Norec Bad: Unfortunately, HTM sandboxing may miss errors, so a corrupted transactions may commit and crash the system: This problem was shown in a recent work: Pitfalls of Lazy Subscription by [DiceHarrisKoganLevMoir]

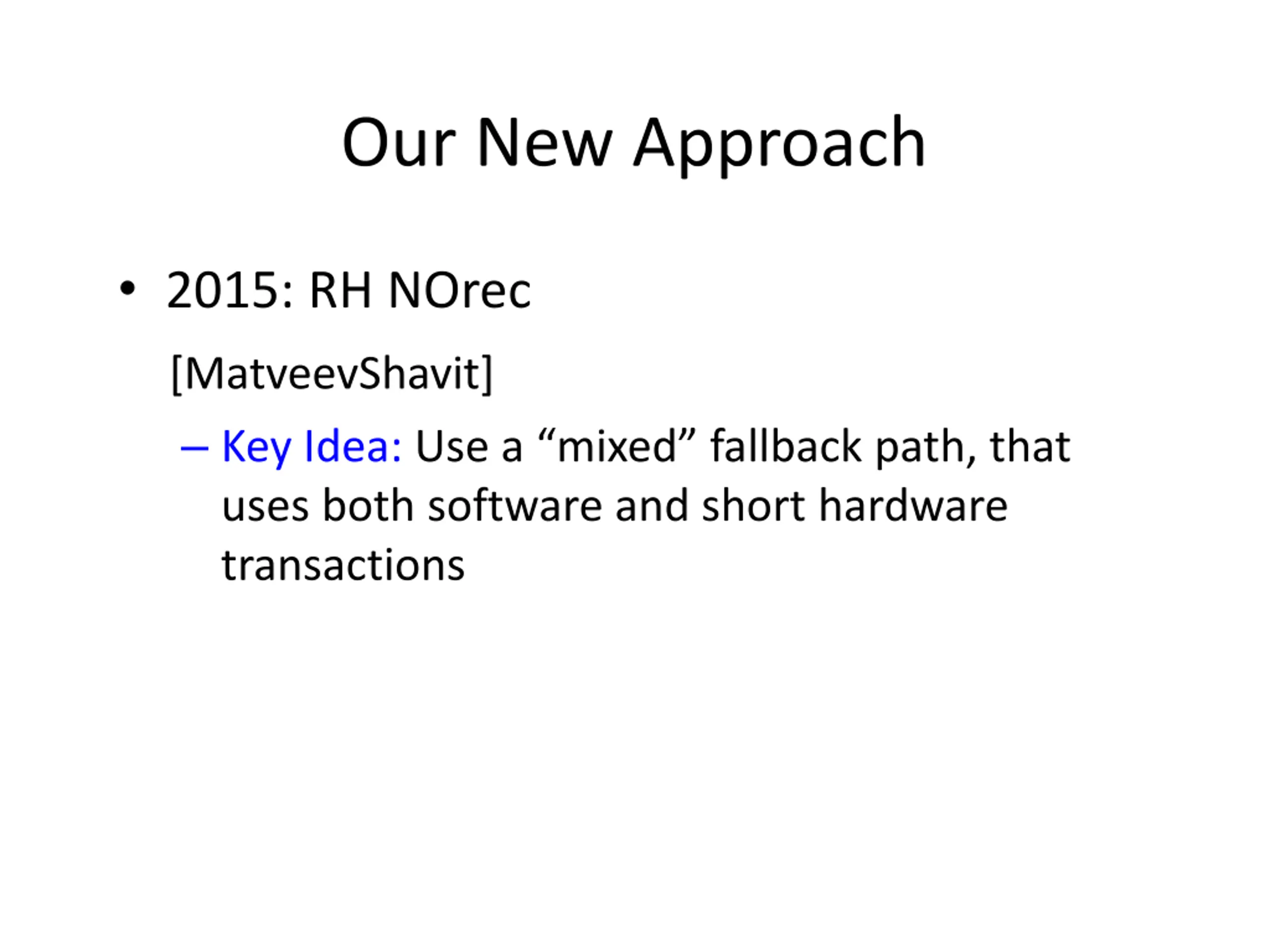

Our New Approach 2015: RH NOrec [MatveevShavit] Key Idea: Use a mixed fallback path, that uses both software and short hardware transactions

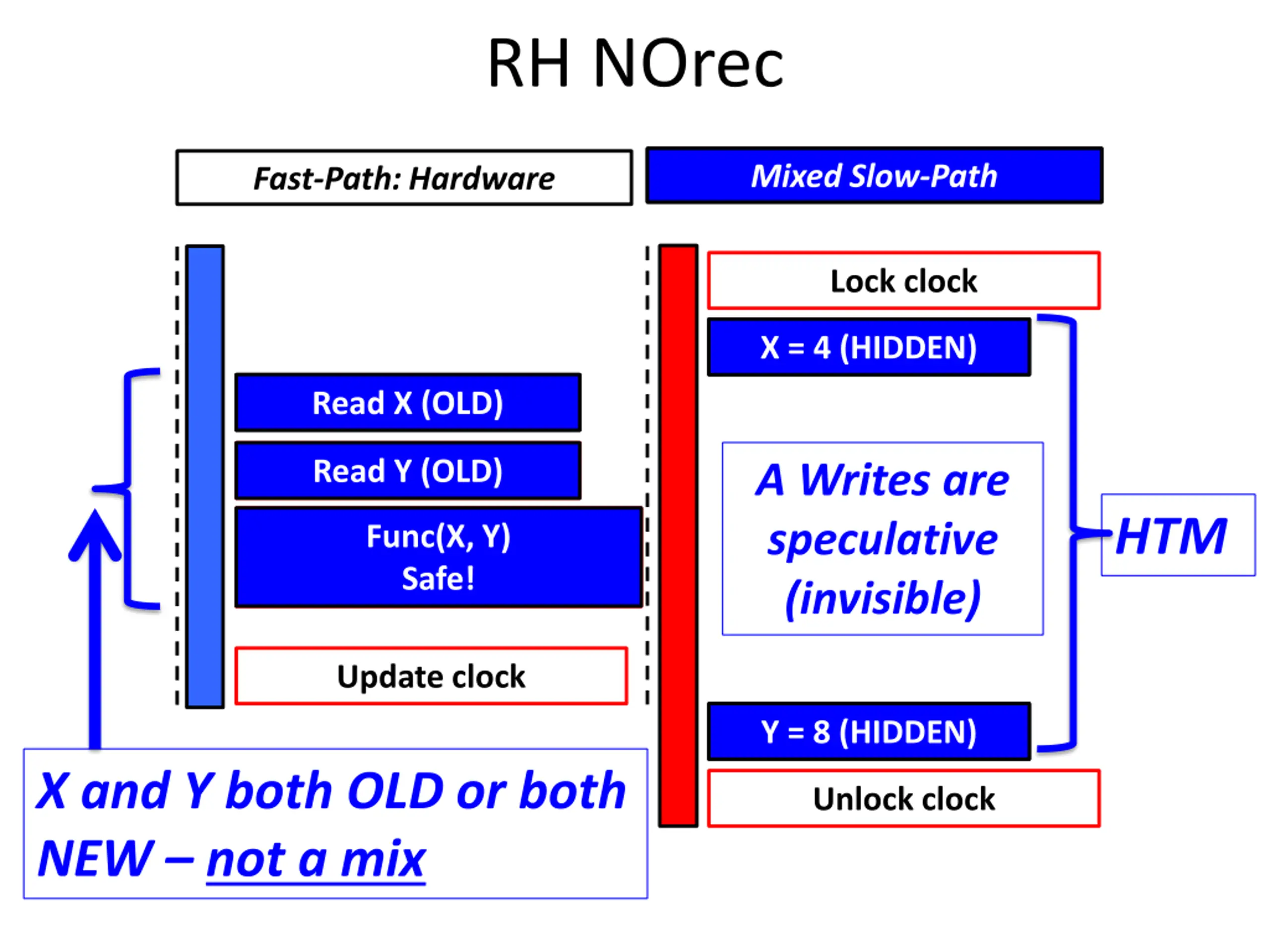

RH NOrec Slow-Path: Software Mixed Slow-Path Fast-Path: Hardware Lock clock X = 4 (NEW) X = 4 (HIDDEN) Read X (NEW) Read X (OLD) Read Y (OLD) Read Y (OLD) A Writes are speculative (invisible) HTM Func(X, Y) Func(X, Y): Unsafe Hopes HTM aborts Safe! Update clock Y = 8 (NEW) Y = 8 (HIDDEN) X and Y both OLD or both NEW not a mix Unlock clock

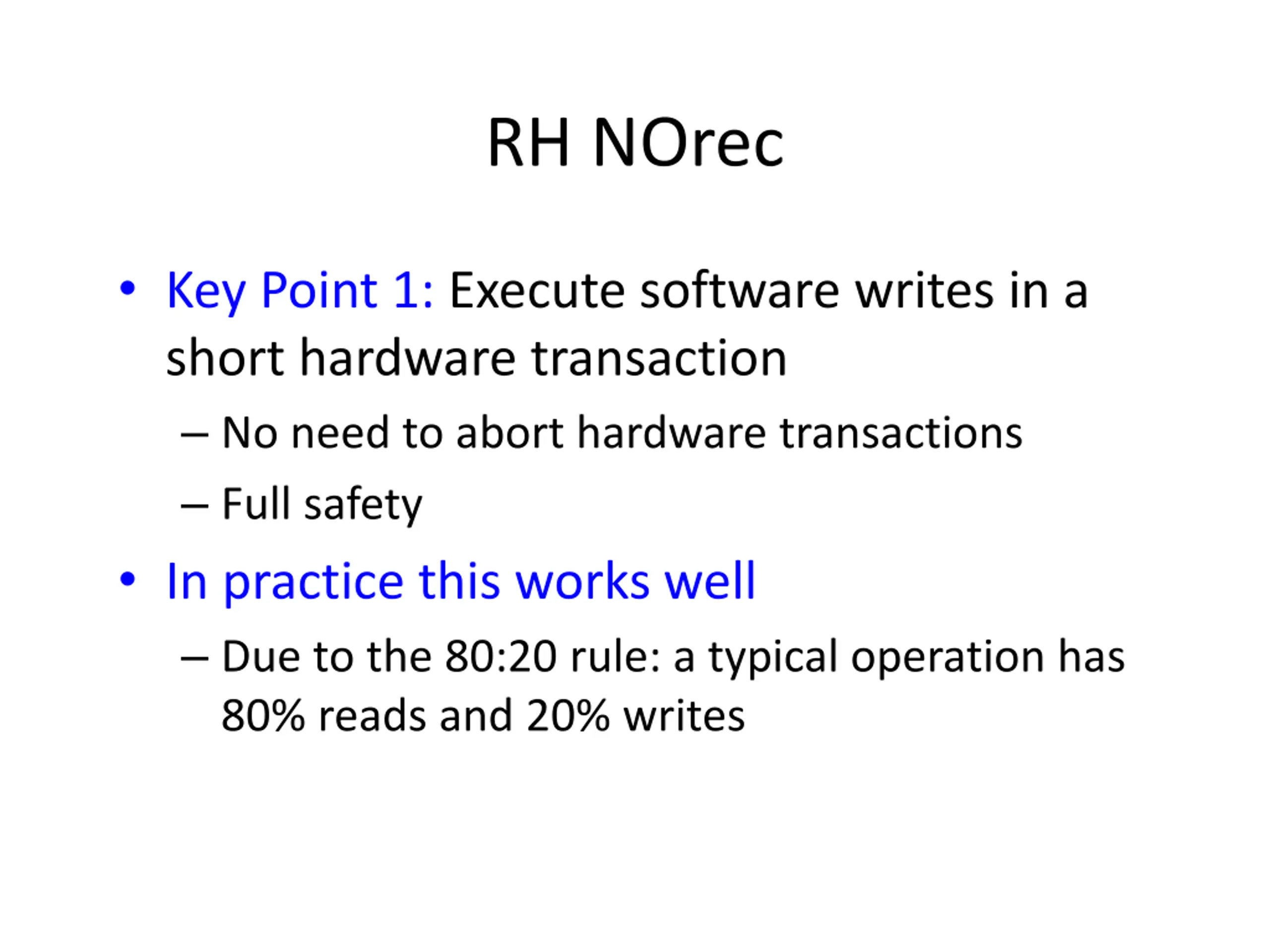

RH NOrec Key Point 1: Execute software writes in a short hardware transaction No need to abort hardware transactions Full safety In practice this works well Due to the 80:20 rule: a typical operation has 80% reads and 20% writes

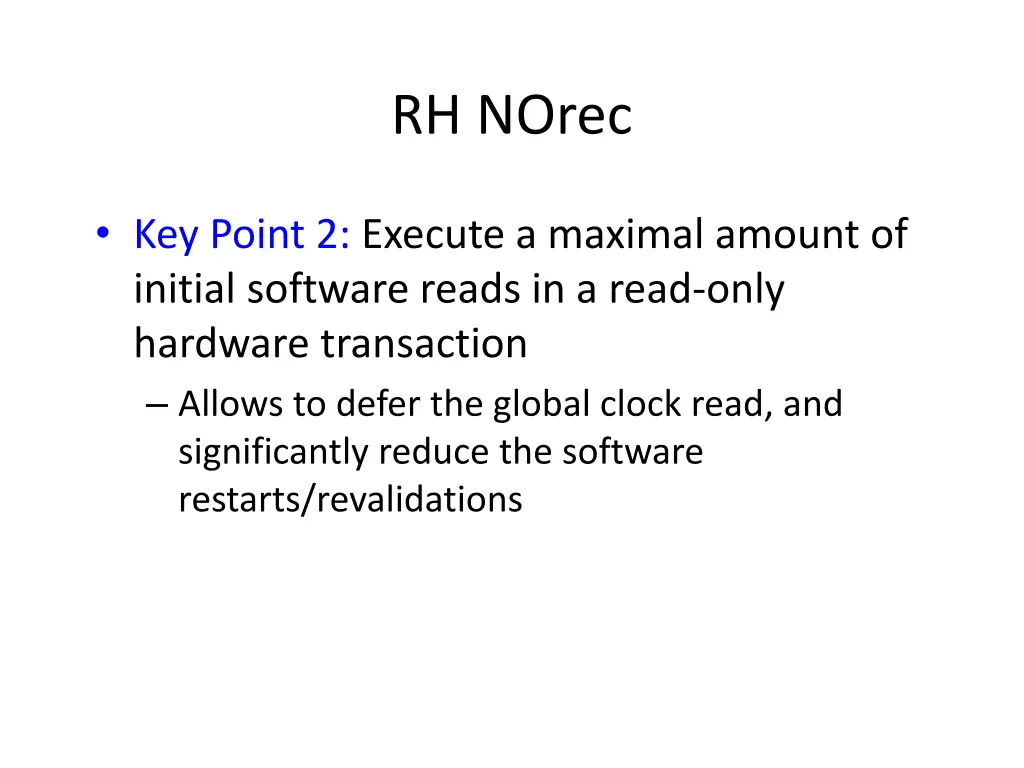

RH NOrec Key Point 2: Execute a maximal amount of initial software reads in a read-only hardware transaction Allows to defer the global clock read, and significantly reduce the software restarts/revalidations

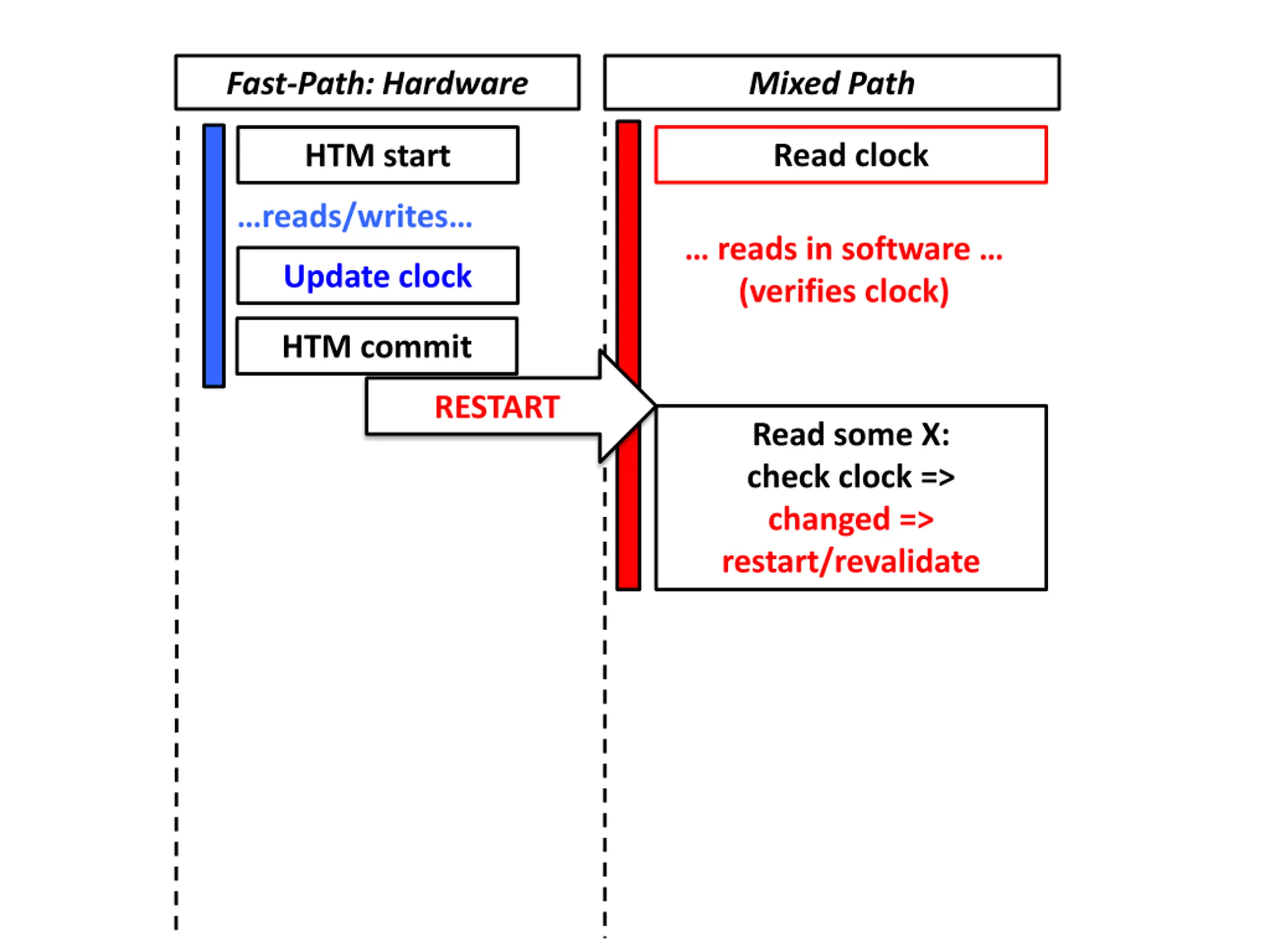

Fast-Path: Hardware Mixed Path Read clock HTM start reads/writes reads in software (verifies clock) Update clock HTM commit RESTART Read some X: check clock => changed => restart/revalidate

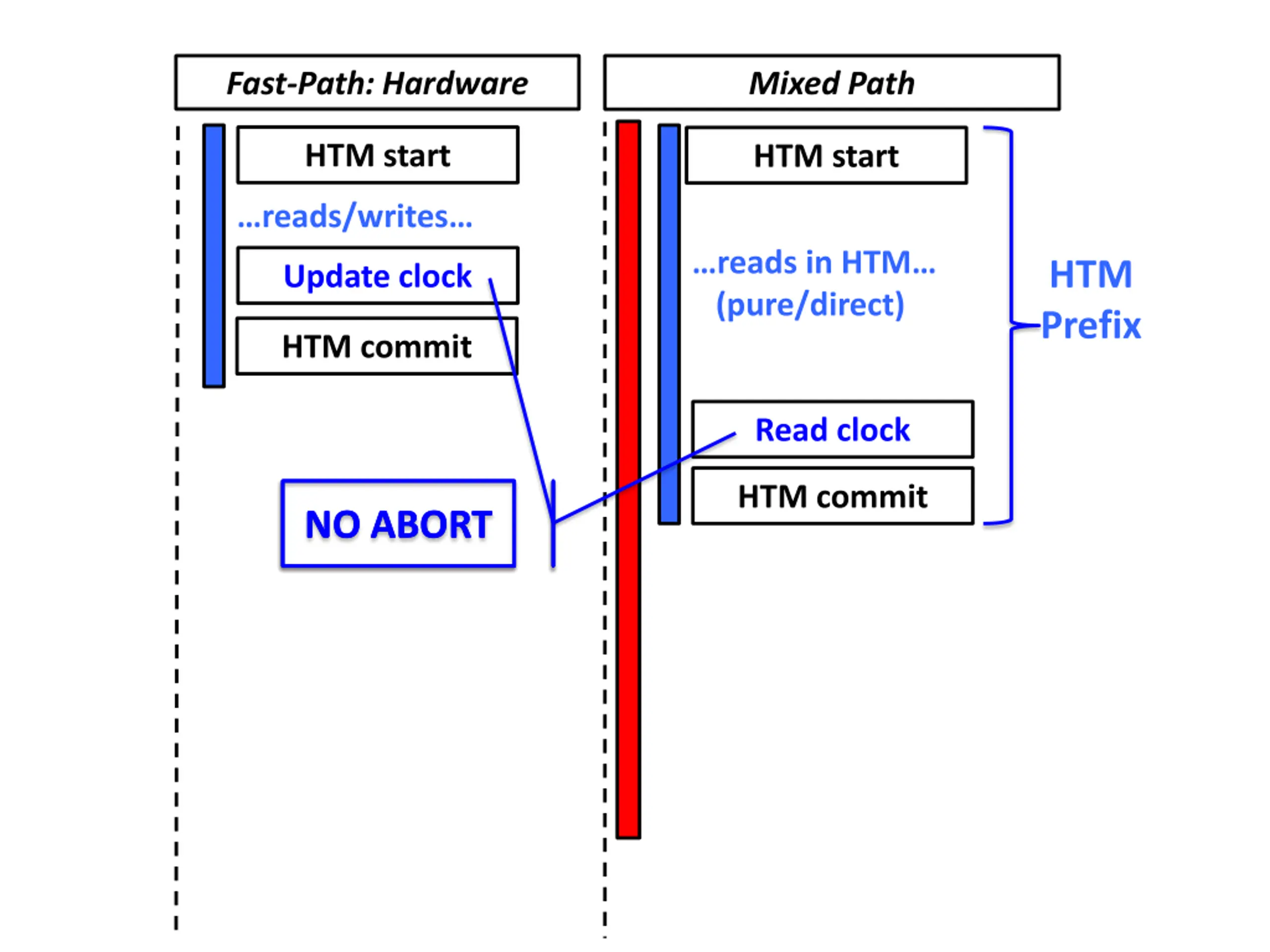

Fast-Path: Hardware Mixed Path HTM start HTM start reads/writes reads in HTM (pure/direct) HTM Prefix Update clock HTM commit Read clock HTM commit NO ABORT NO ABORT

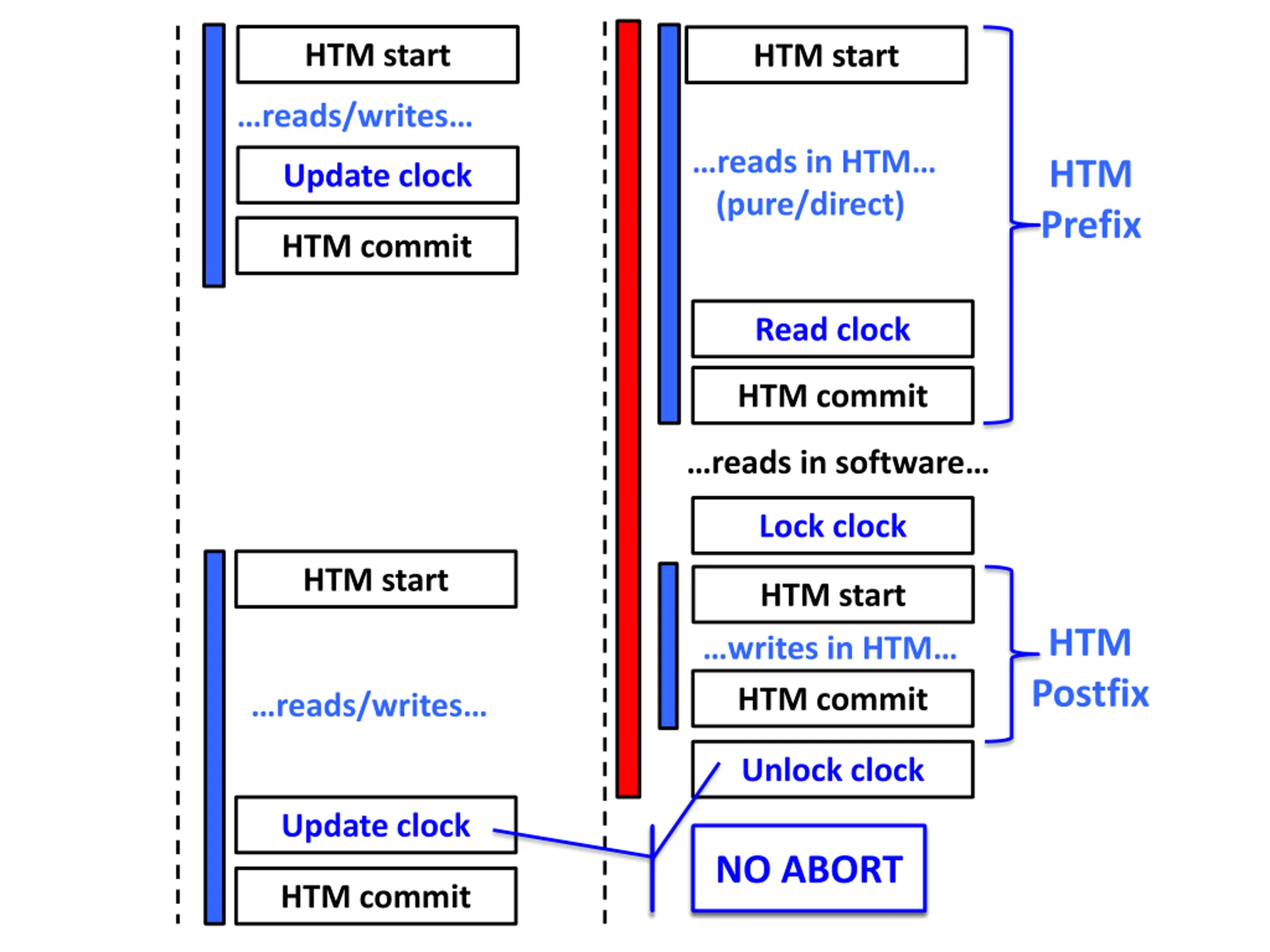

HTM start HTM start reads/writes reads in HTM (pure/direct) HTM Prefix Update clock HTM commit Read clock HTM commit reads in software Lock clock HTM start HTM start writes in HTM HTM Postfix HTM commit reads/writes Unlock clock Update clock NO ABORT NO ABORT HTM commit

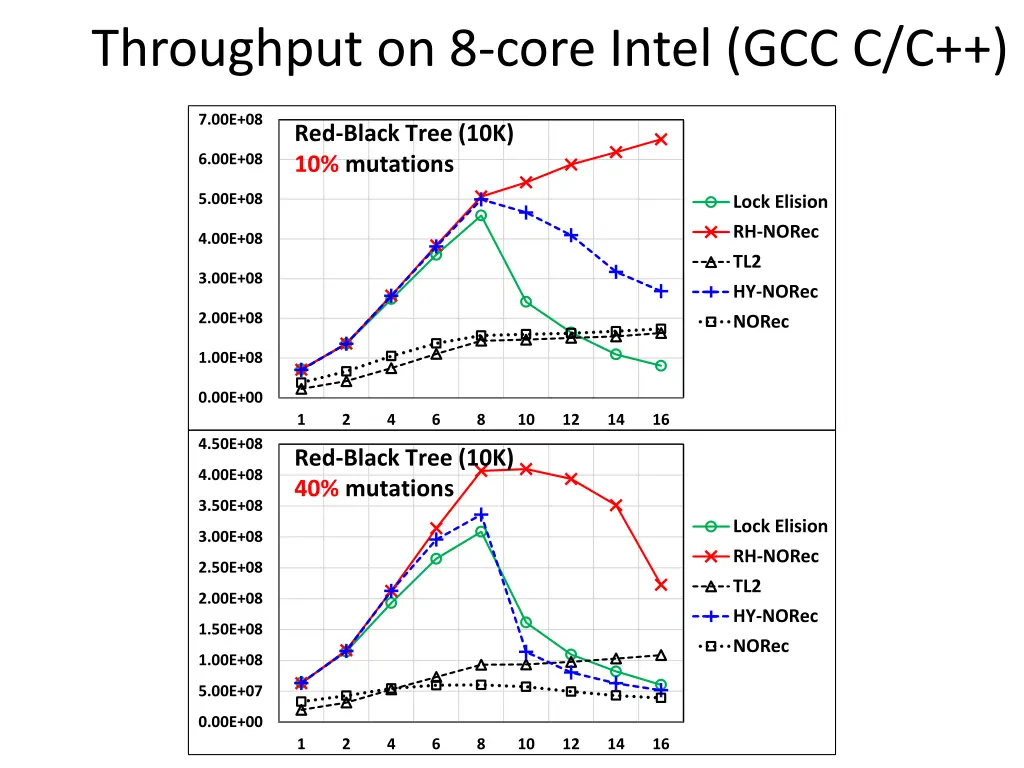

Throughput on 8-core Intel (GCC C/C++) 7.00E+08 Red-Black Tree (10K) 10% mutations 6.00E+08 5.00E+08 Lock Elision RH-NORec 4.00E+08 TL2 HY-NORec NORec 3.00E+08 2.00E+08 1.00E+08 0.00E+00 1 2 4 6 8 10 12 14 16 4.50E+08 Red-Black Tree (10K) 40% mutations 4.00E+08 3.50E+08 Lock Elision RH-NORec TL2 HY-NORec 3.00E+08 2.50E+08 2.00E+08 1.50E+08 NORec 1.00E+08 5.00E+07 0.00E+00 1 2 4 6 8 10 12 14 16

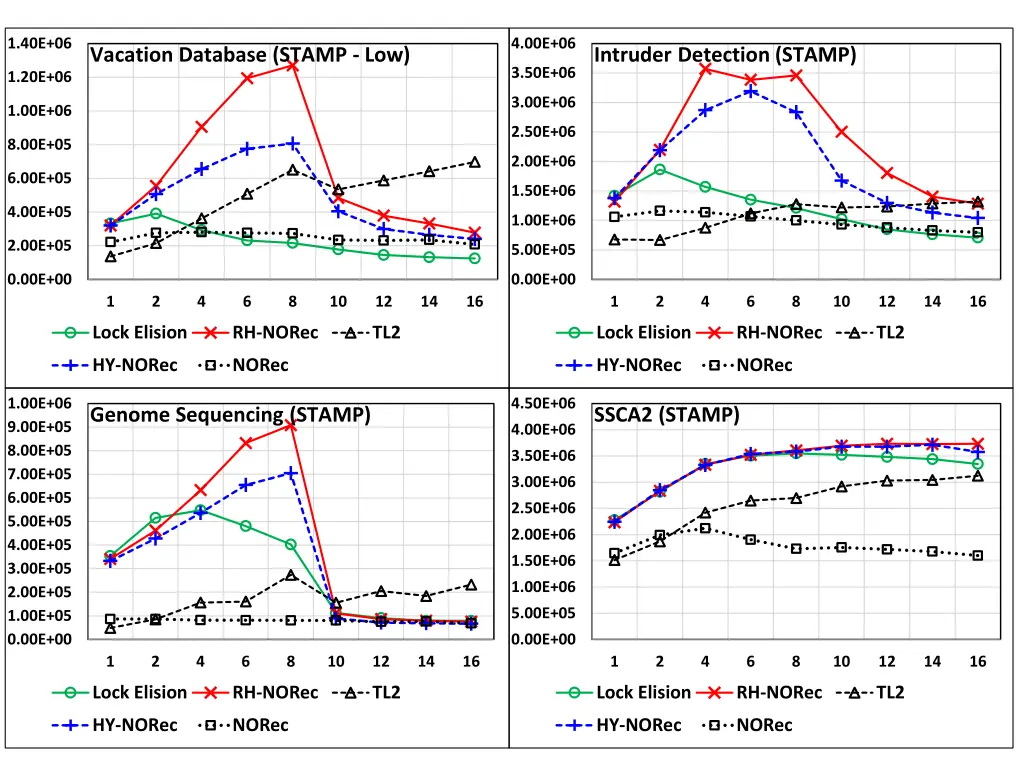

1.40E+06 4.00E+06 Vacation Database (STAMP - Low) Intruder Detection (STAMP) 3.50E+06 1.20E+06 3.00E+06 1.00E+06 2.50E+06 8.00E+05 2.00E+06 6.00E+05 1.50E+06 4.00E+05 1.00E+06 2.00E+05 5.00E+05 0.00E+00 0.00E+00 1 2 4 6 8 10 12 14 16 1 2 4 6 8 10 12 14 16 Lock Elision RH-NORec TL2 Lock Elision RH-NORec TL2 HY-NORec NORec HY-NORec NORec 1.00E+06 4.50E+06 Genome Sequencing (STAMP) SSCA2 (STAMP) 9.00E+05 4.00E+06 8.00E+05 3.50E+06 7.00E+05 3.00E+06 6.00E+05 2.50E+06 5.00E+05 2.00E+06 4.00E+05 1.50E+06 3.00E+05 1.00E+06 2.00E+05 5.00E+05 1.00E+05 0.00E+00 0.00E+00 1 2 4 6 8 10 12 14 16 1 2 4 6 8 10 12 14 16 Lock Elision RH-NORec TL2 Lock Elision RH-NORec TL2 HY-NORec NORec HY-NORec NORec

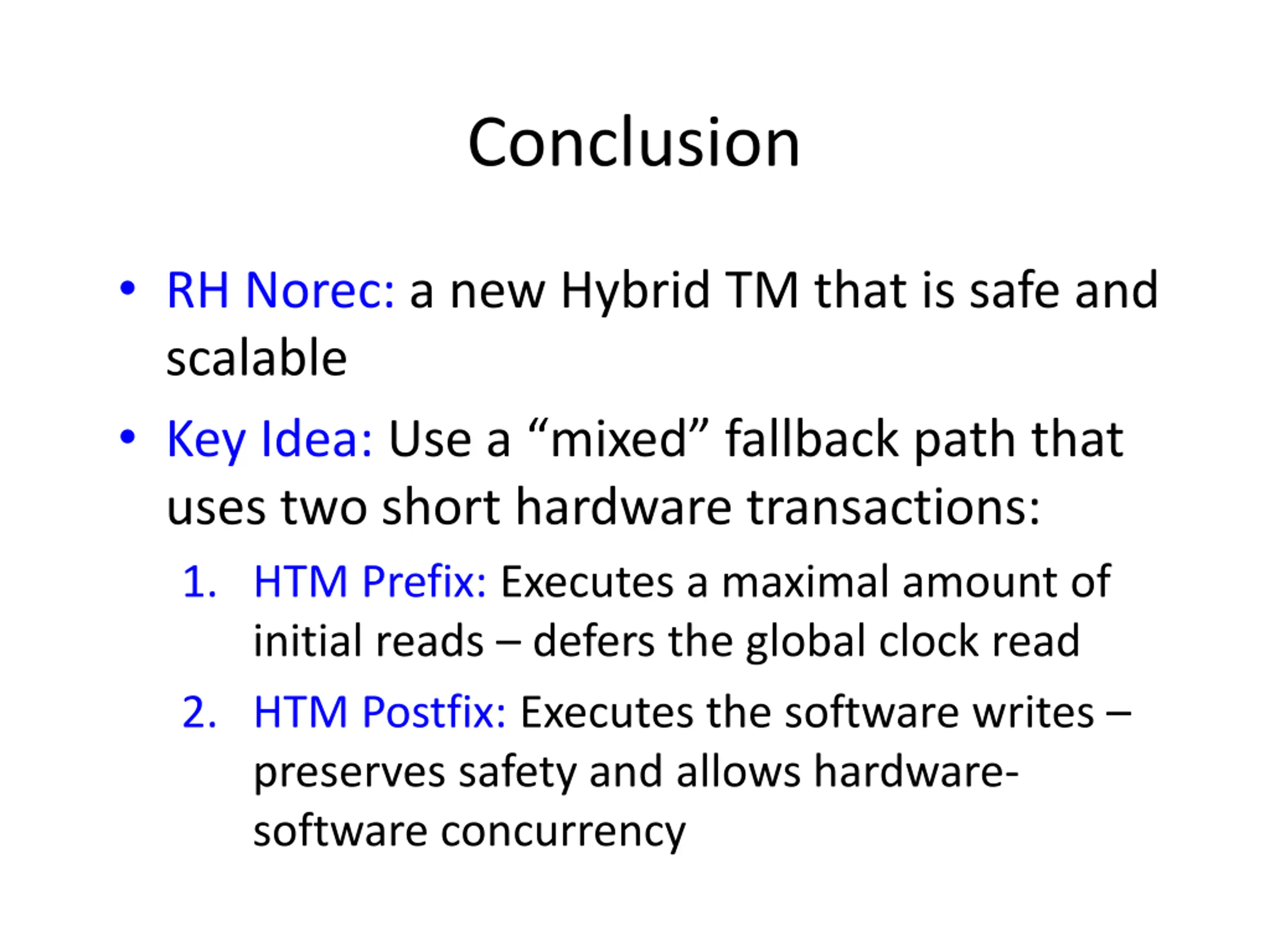

Conclusion RH Norec: a new Hybrid TM that is safe and scalable Key Idea: Use a mixed fallback path that uses two short hardware transactions: 1. HTM Prefix: Executes a maximal amount of initial reads defers the global clock read 2. HTM Postfix: Executes the software writes preserves safety and allows hardware- software concurrency
