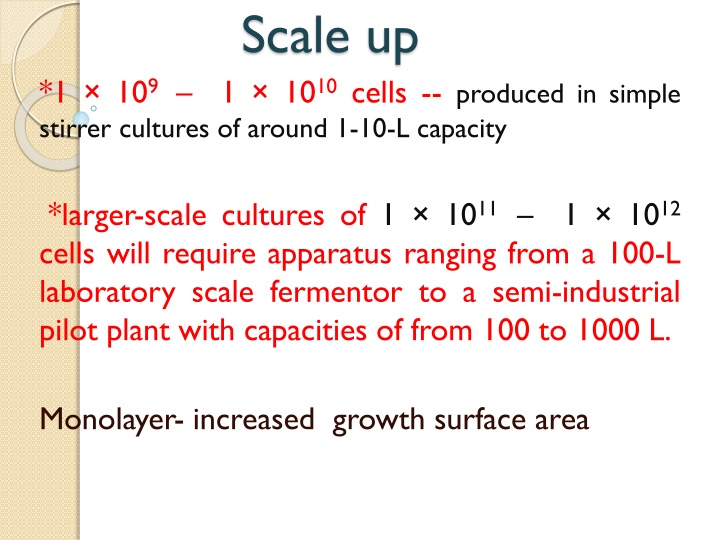

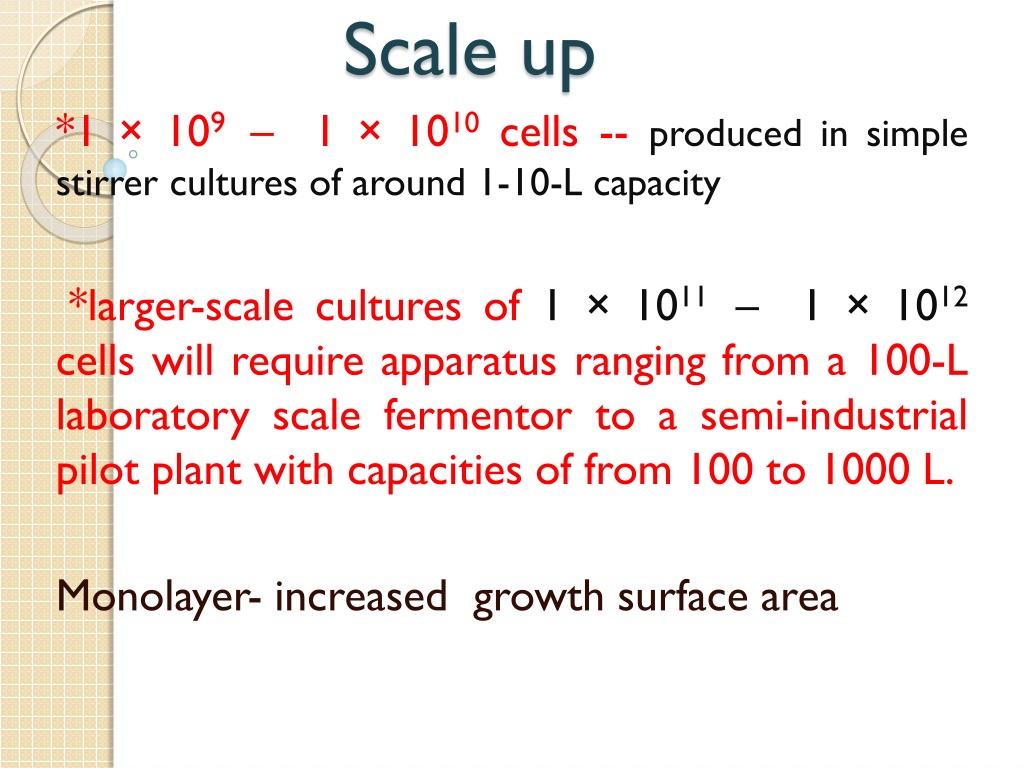

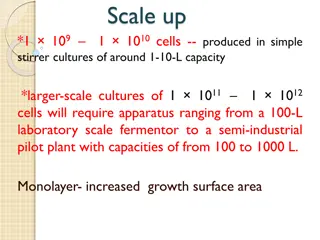

Scale up *1 109 1 1010cells -- produced in simple stirrer cultures of around 1-10-L capacity *larger-scale cultures of 1 1011 cells will require apparatus ranging from a 100-L laboratory scale fermentor to a semi-industrial pilot plant with capacities of from 100 to 1000 L. 1 1012 Monolayer- increased growth surface area

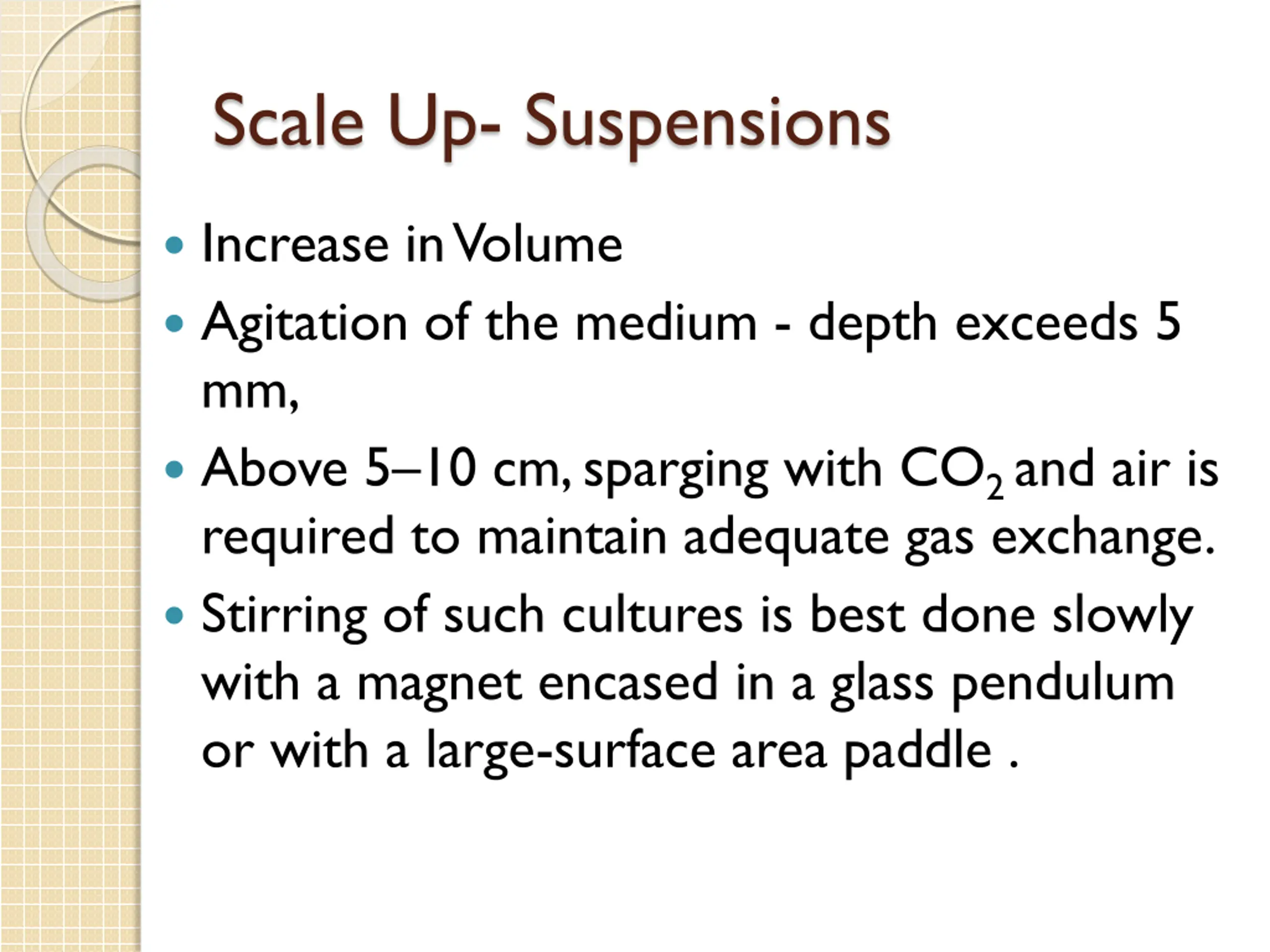

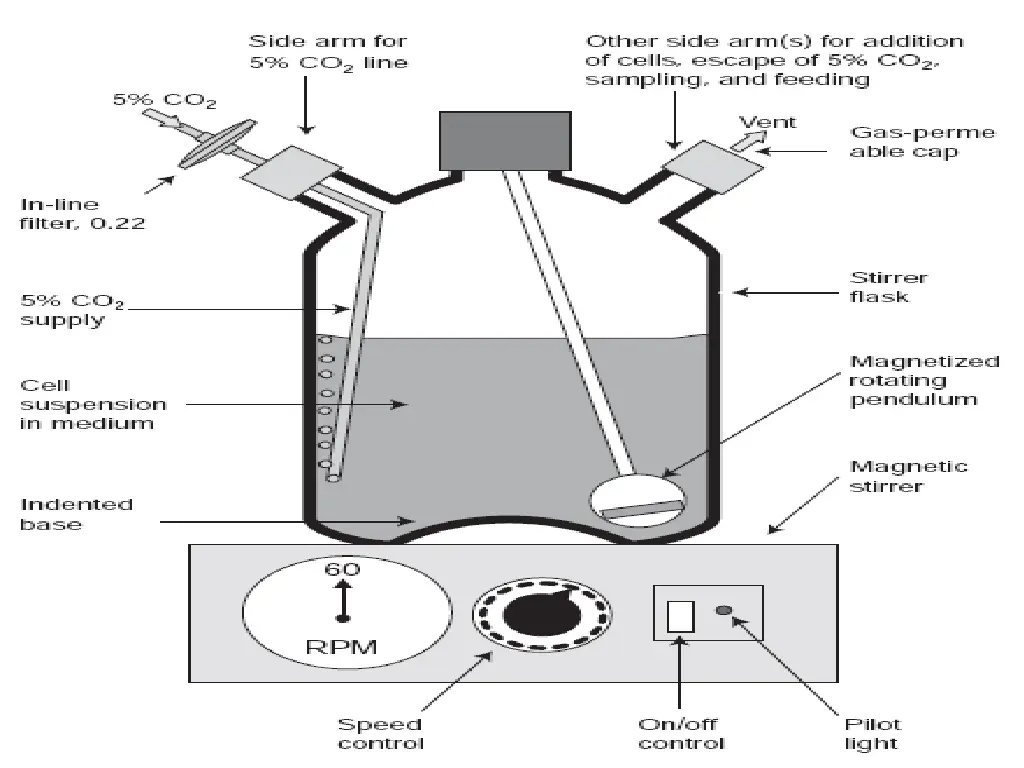

Scale Up- Suspensions Increase in Volume Agitation of the medium - depth exceeds 5 mm, Above 5 10 cm, sparging with CO2 and air is required to maintain adequate gas exchange. Stirring of such cultures is best done slowly with a magnet encased in a glass pendulum or with a large-surface area paddle .

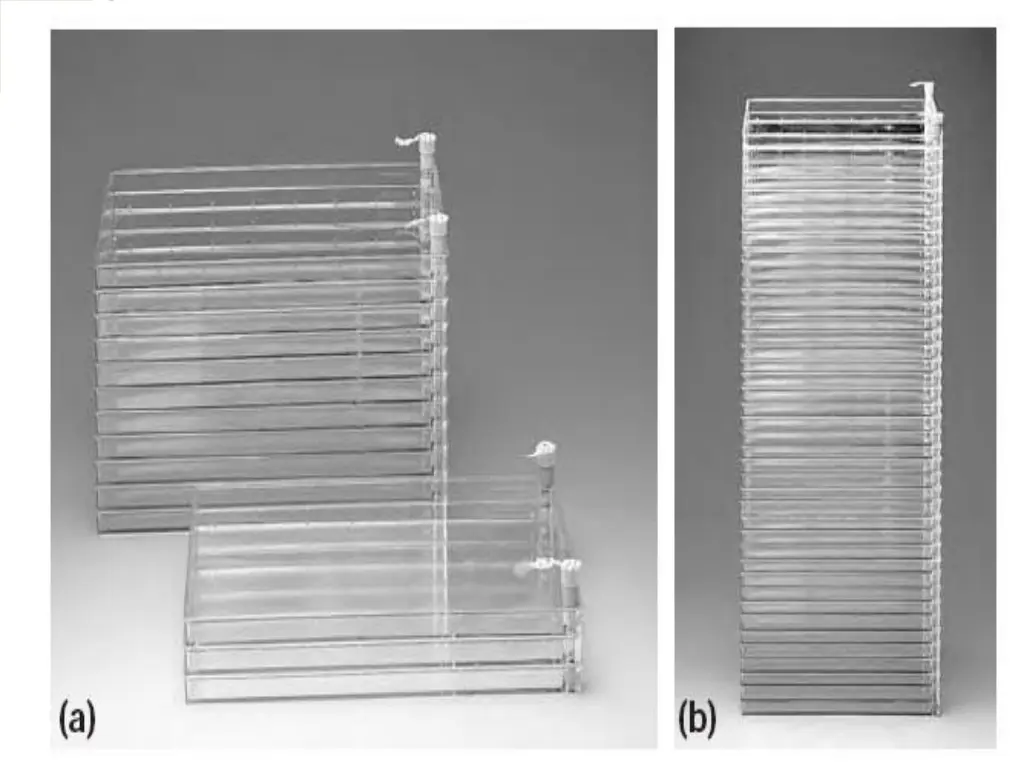

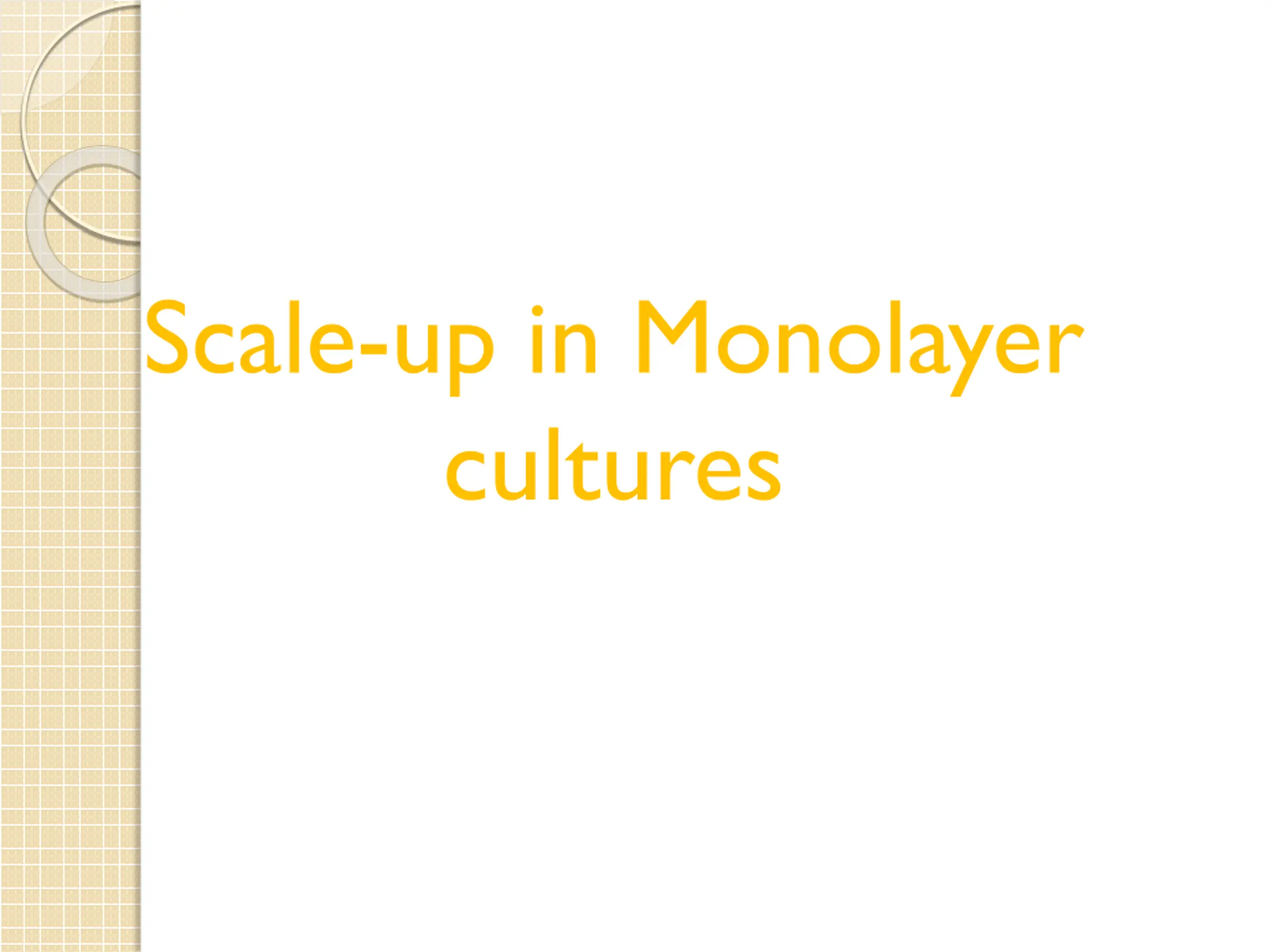

Scale-up in Monolayer cultures
