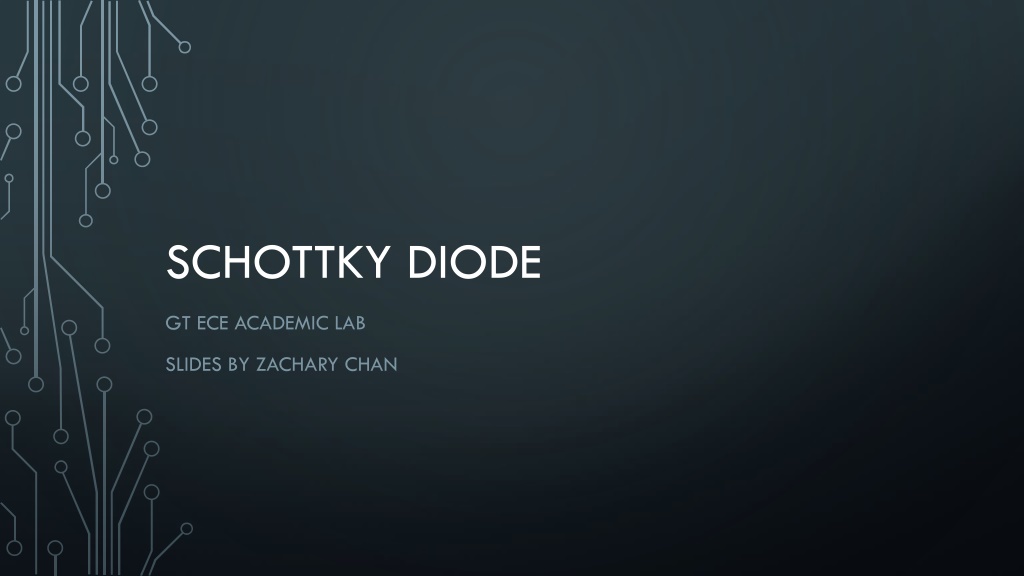

SCHOTTKY DIODE GT ECE ACADEMIC LAB SLIDES BY ZACHARY CHAN

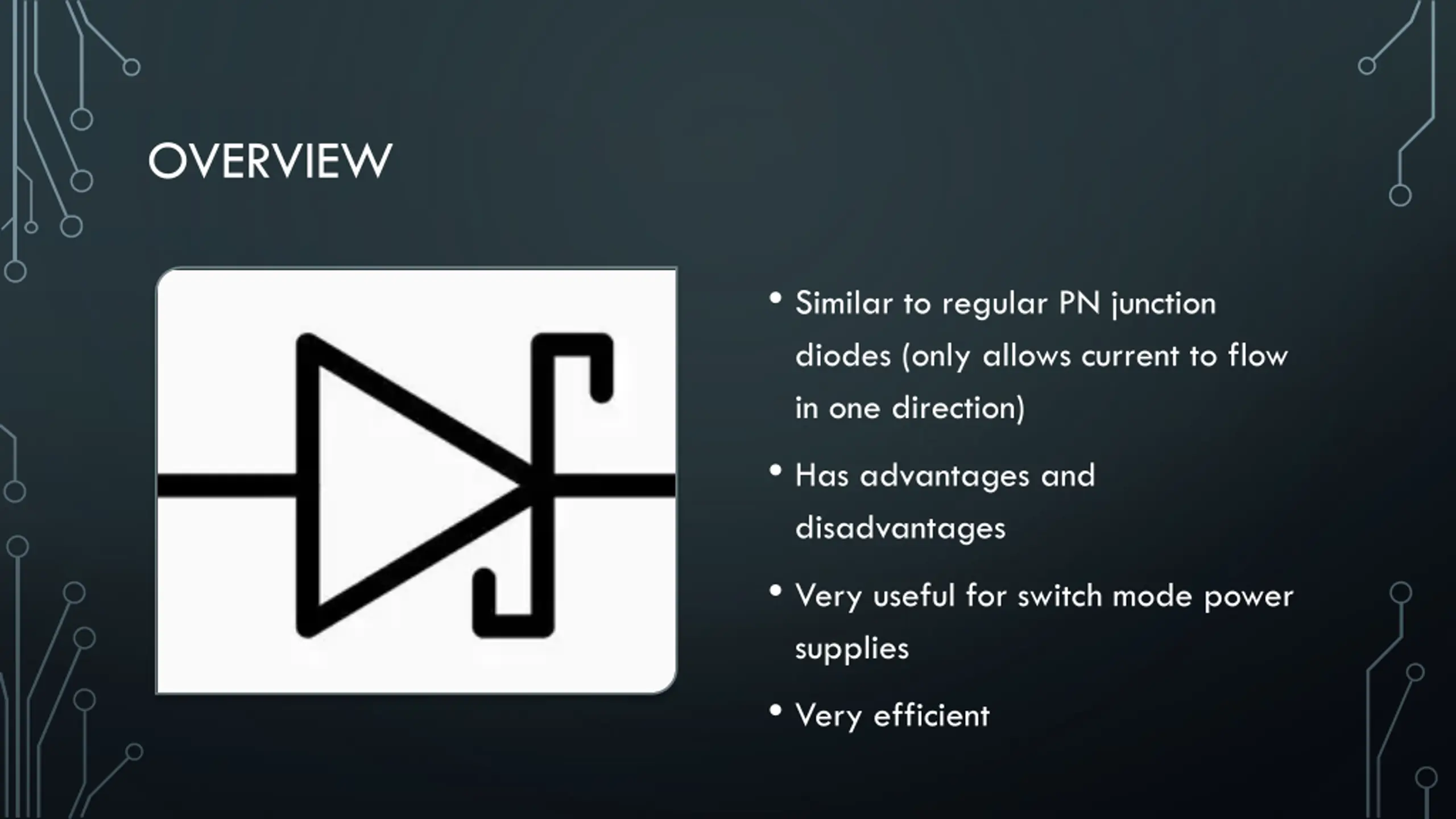

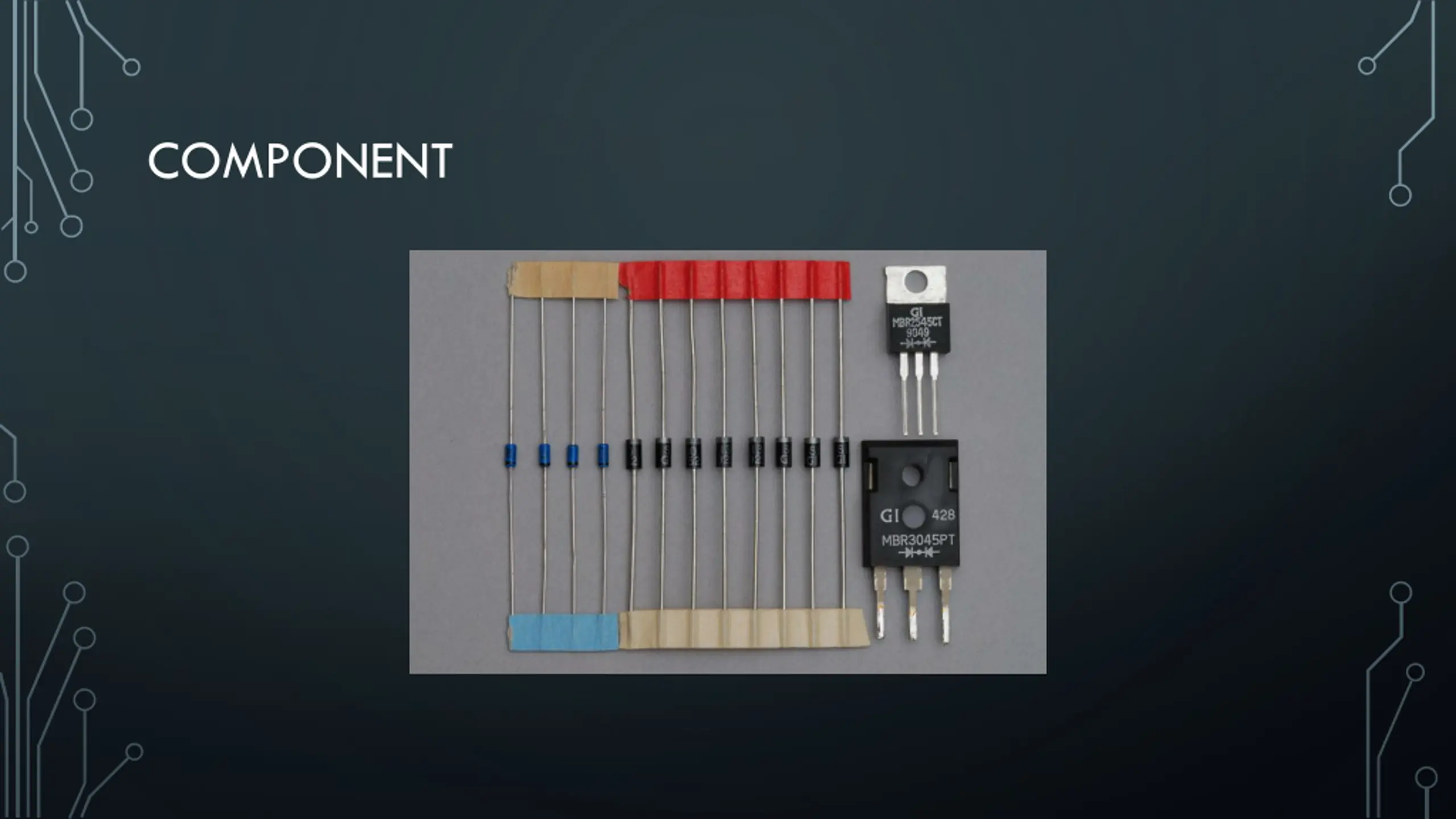

OVERVIEW Similar to regular PN junction diodes (only allows current to flow in one direction) Has advantages and disadvantages Very useful for switch mode power supplies Very efficient

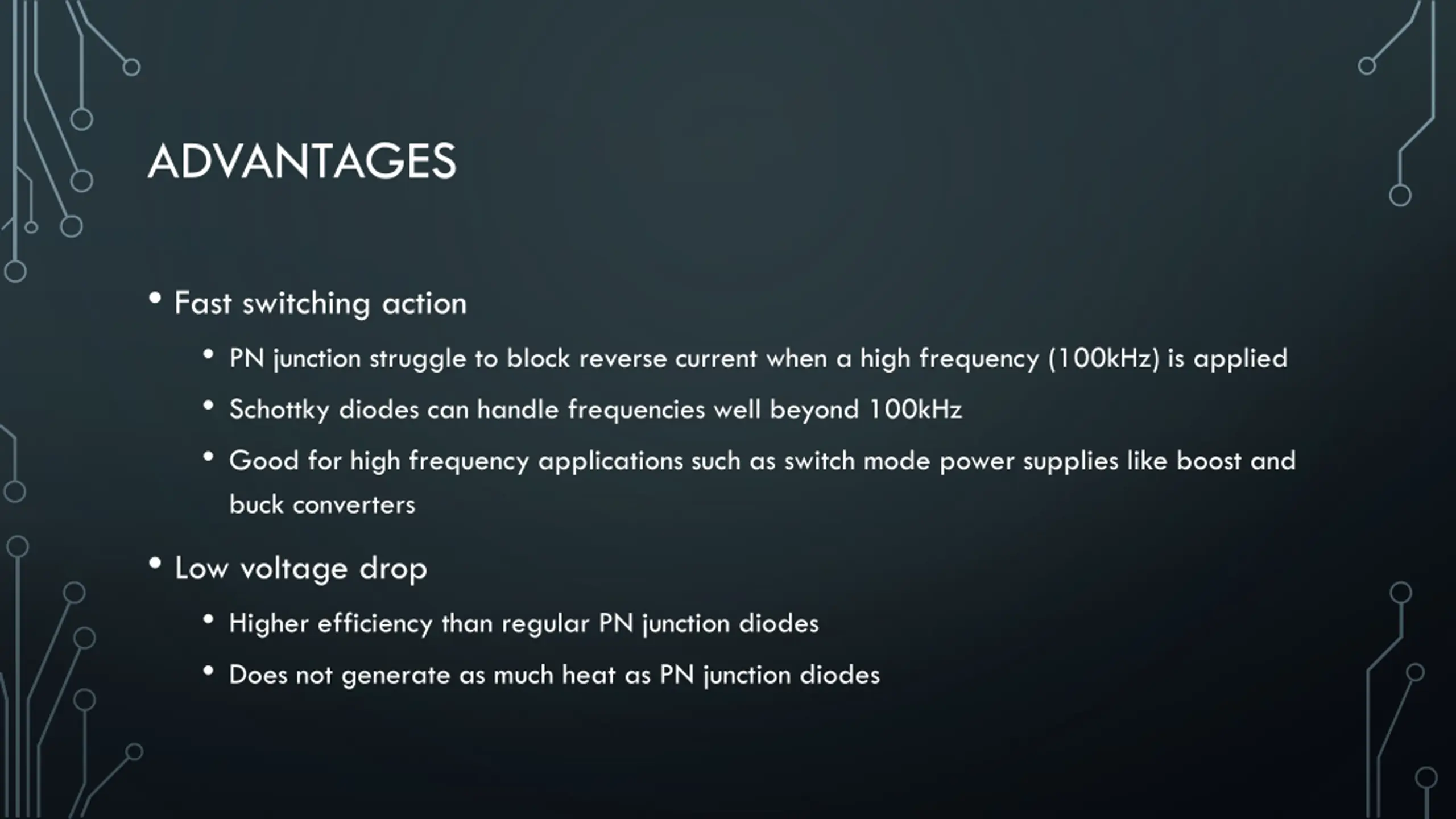

ADVANTAGES Fast switching action PN junction struggle to block reverse current when a high frequency (100kHz) is applied Schottky diodes can handle frequencies well beyond 100kHz Good for high frequency applications such as switch mode power supplies like boost and buck converters Low voltage drop Higher efficiency than regular PN junction diodes Does not generate as much heat as PN junction diodes

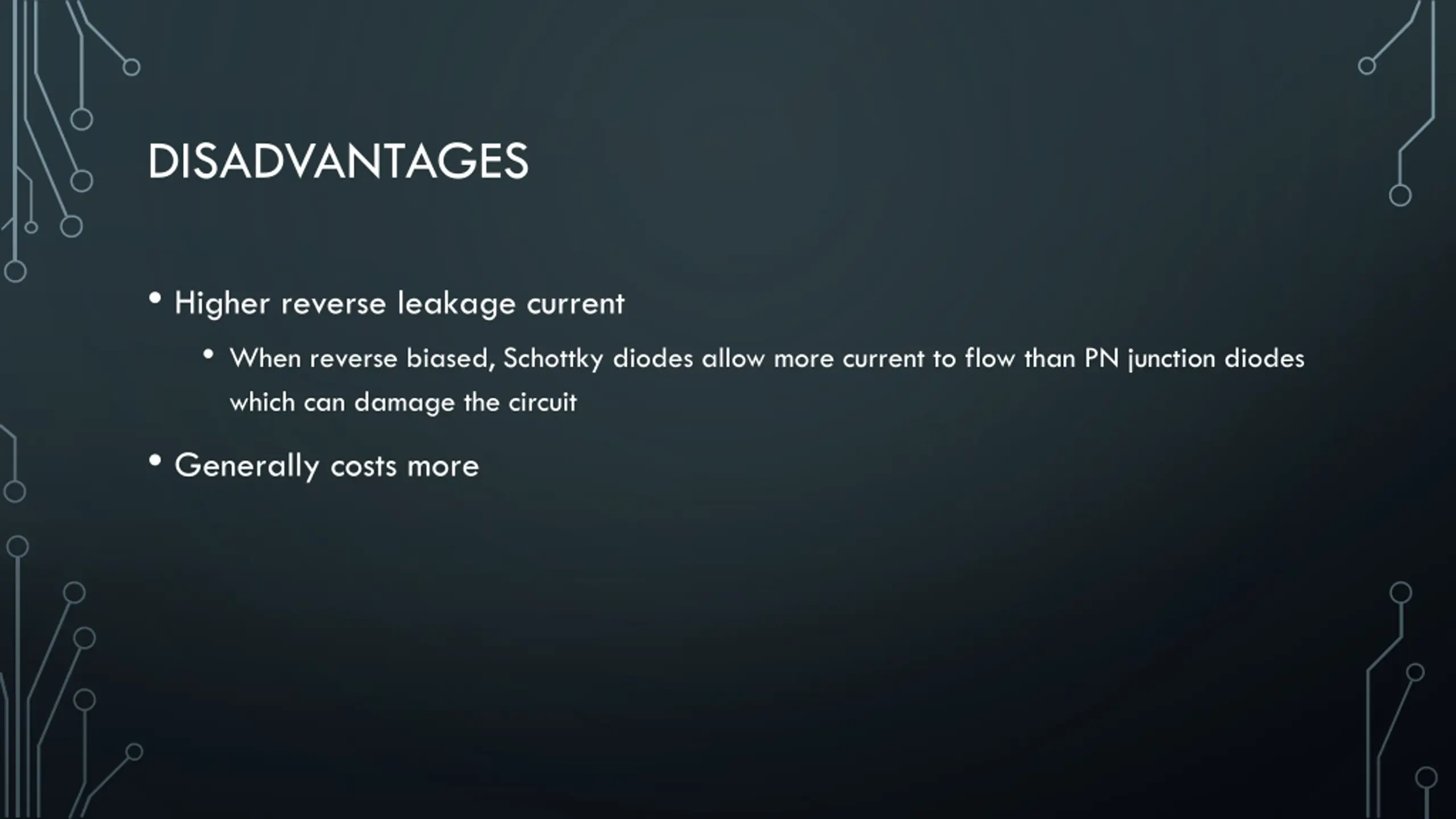

DISADVANTAGES Higher reverse leakage current When reverse biased, Schottky diodes allow more current to flow than PN junction diodes which can damage the circuit Generally costs more
