Sentinel-6 technical outline Klaus-Peter K ble Airbus project manager Pierrik Vuilleumier ESA project manager ESA UNCLASSIFIED - For Official Use

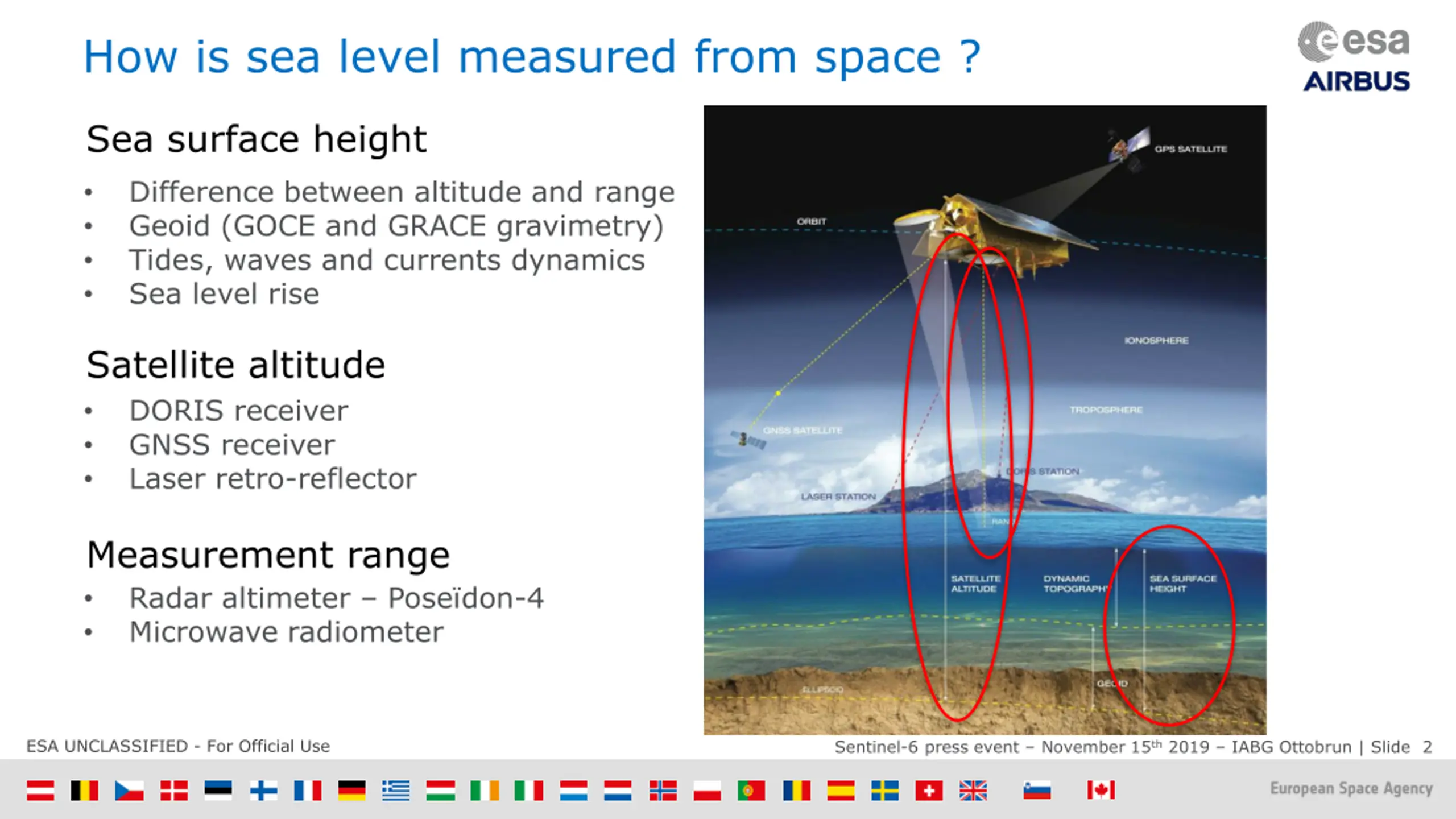

How is sea level measured from space ? Sea surface height Difference between altitude and range Geoid (GOCE and GRACE gravimetry) Tides, waves and currents dynamics Sea level rise Satellite altitude DORIS receiver GNSS receiver Laser retro-reflector Measurement range Radar altimeter Pose don-4 Microwave radiometer ESA UNCLASSIFIED - For Official Use Sentinel-6 press event November 15th 2019 IABG Ottobrun | Slide 2

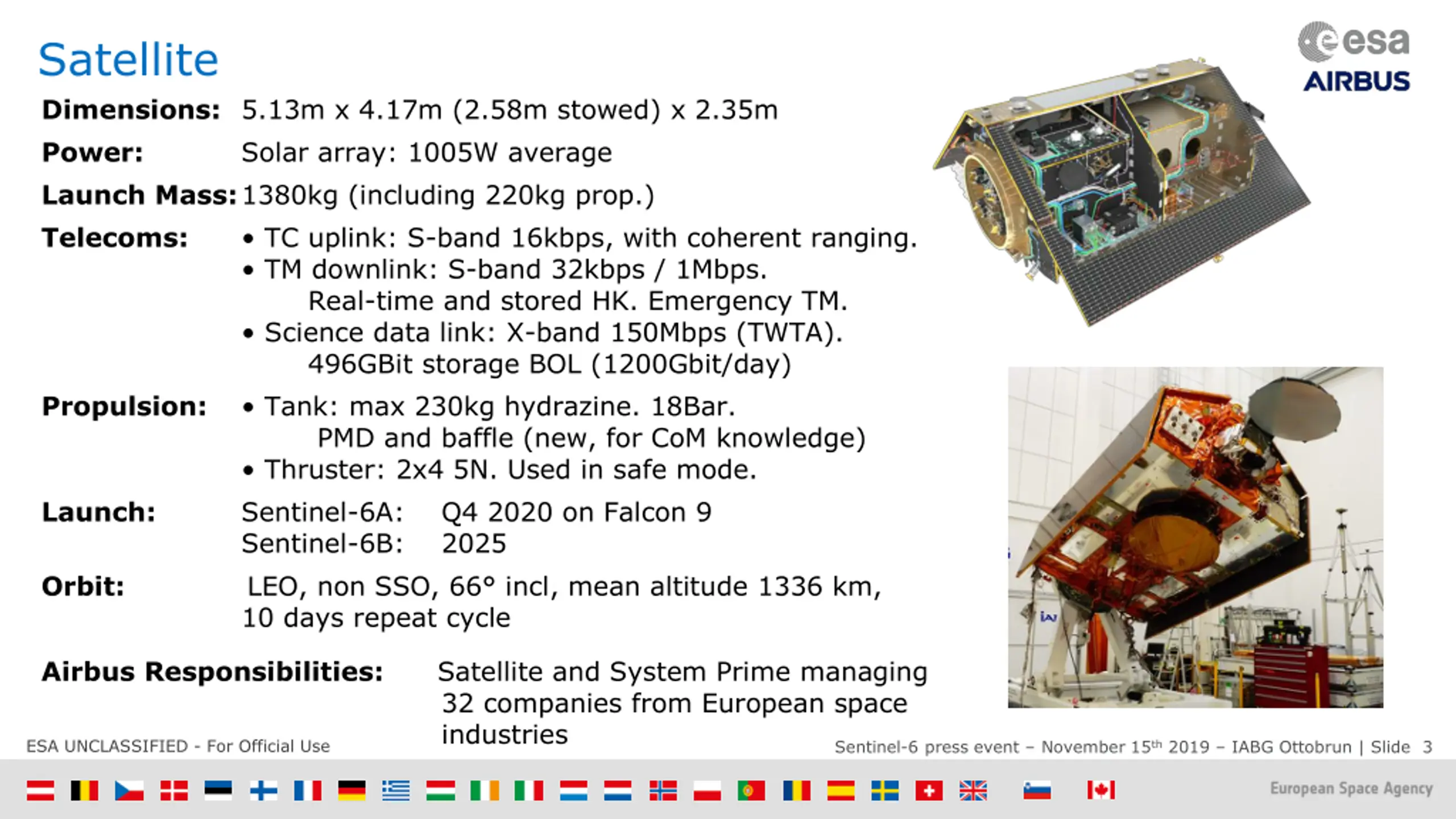

Satellite Dimensions: 5.13m x 4.17m (2.58m stowed) x 2.35m Power: Solar array: 1005W average Launch Mass: 1380kg (including 220kg prop.) Telecoms: TC uplink: S-band 16kbps, with coherent ranging. TM downlink: S-band 32kbps / 1Mbps. Real-time and stored HK. Emergency TM. Science data link: X-band 150Mbps (TWTA). 496GBit storage BOL (1200Gbit/day) Propulsion: Tank: max 230kg hydrazine. 18Bar. PMD and baffle (new, for CoM knowledge) Thruster: 2x4 5N. Used in safe mode. Launch: Sentinel-6A: Q4 2020 on Falcon 9 Sentinel-6B: 2025 Orbit: LEO, non SSO, 66 incl, mean altitude 1336 km, 10 days repeat cycle Airbus Responsibilities: Satellite and System Prime managing 32 companies from European space industries ESA UNCLASSIFIED - For Official Use Sentinel-6 press event November 15th 2019 IABG Ottobrun | Slide 3
Thank you for your attention. ESA UNCLASSIFIED - For Official Use
