CORBA and omniORB with TLS Duncan Grisby

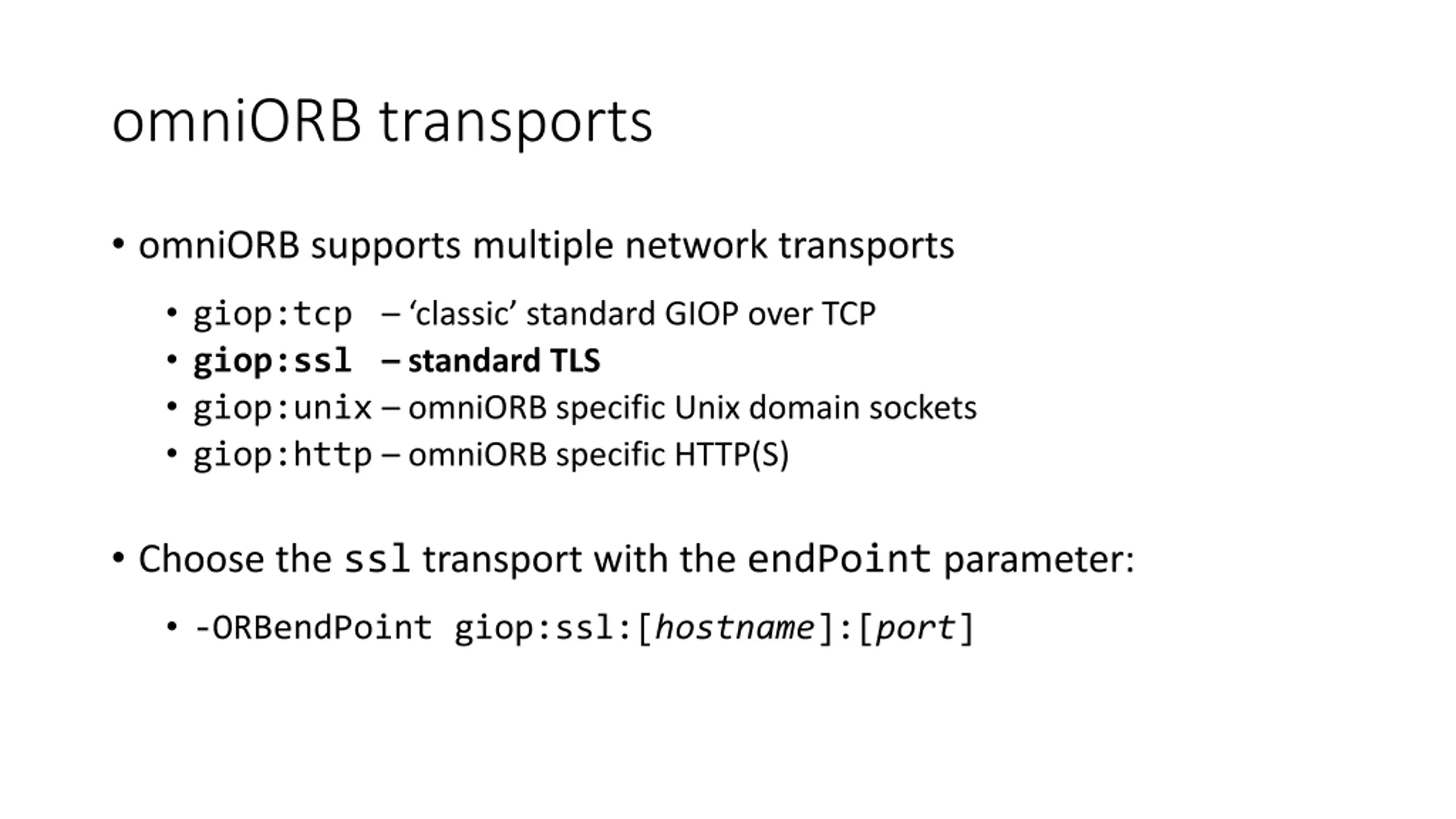

omniORB transports omniORB supports multiple network transports giop:tcp classic standard GIOP over TCP giop:ssl standard TLS giop:unix omniORB specific Unix domain sockets giop:http omniORB specific HTTP(S) Choose the ssl transport with the endPoint parameter: -ORBendPoint giop:ssl:[hostname]:[port]

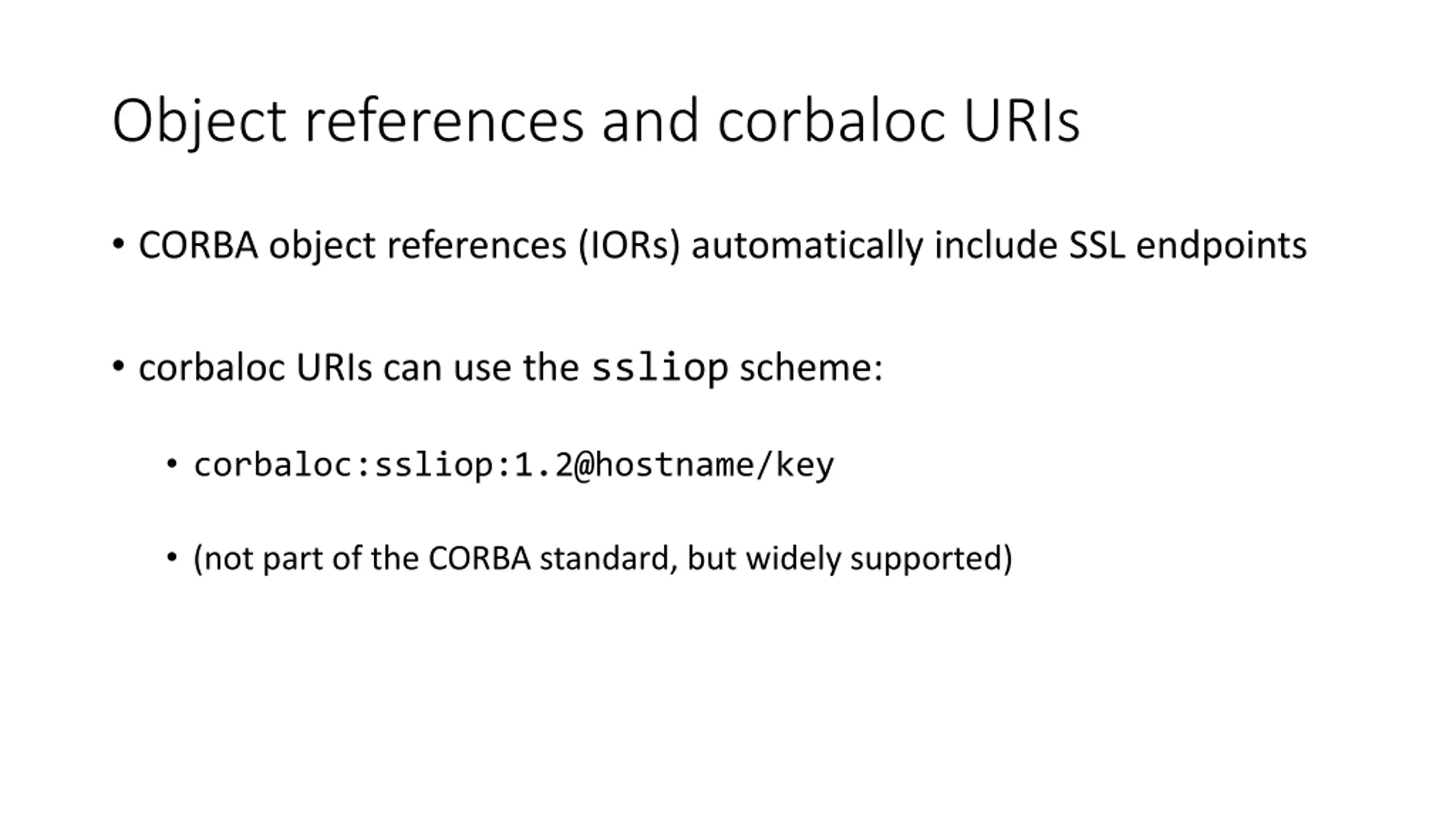

Object references and corbaloc URIs CORBA object references (IORs) automatically include SSL endpoints corbaloc URIs can use the ssliop scheme: corbaloc:ssliop:1.2@hostname/key (not part of the CORBA standard, but widely supported)

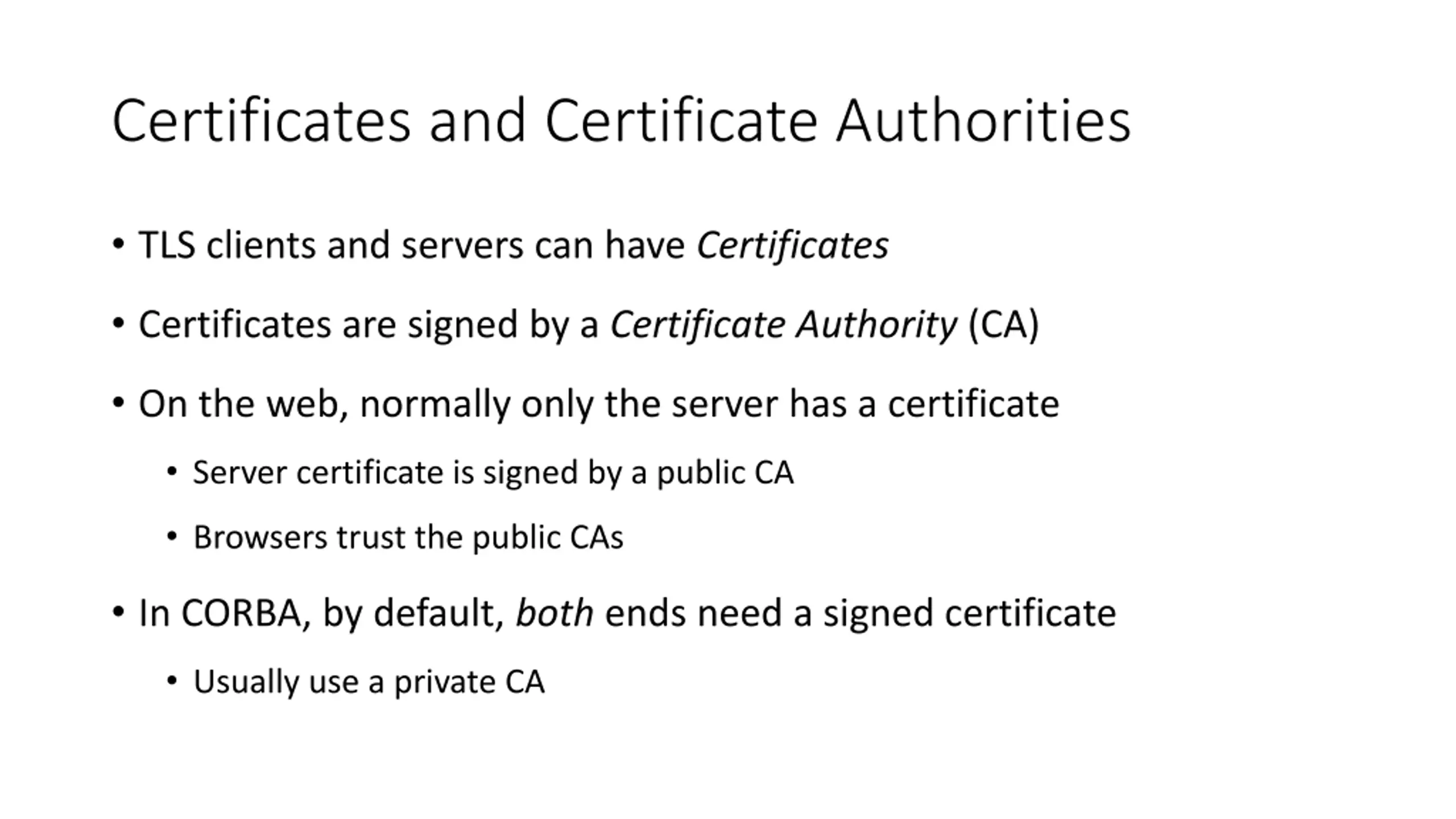

Certificates and Certificate Authorities TLS clients and servers can have Certificates Certificates are signed by a Certificate Authority (CA) On the web, normally only the server has a certificate Server certificate is signed by a public CA Browsers trust the public CAs In CORBA, by default, both ends need a signed certificate Usually use a private CA

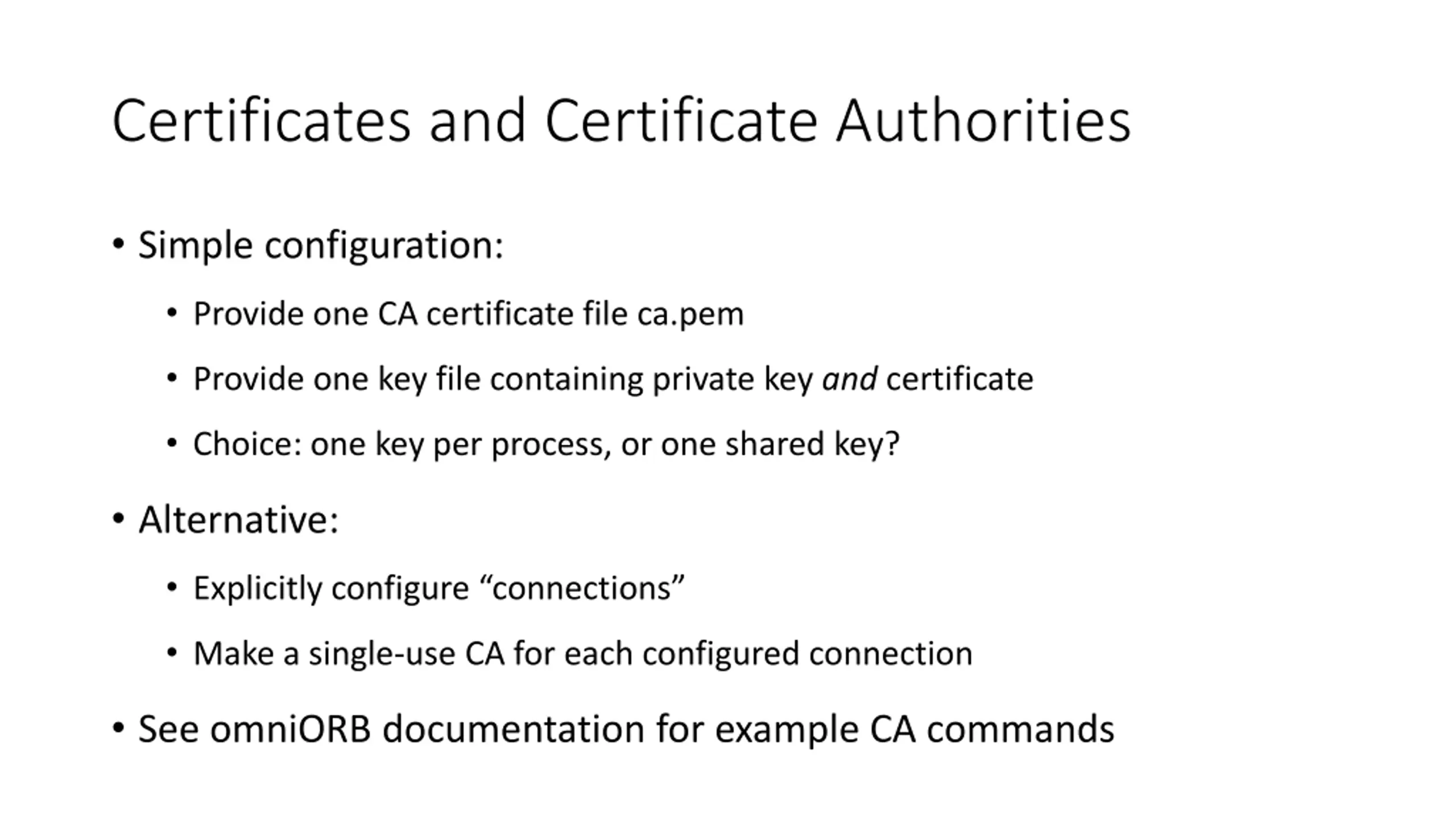

Certificates and Certificate Authorities Simple configuration: Provide one CA certificate file ca.pem Provide one key file containing private key and certificate Choice: one key per process, or one shared key? Alternative: Explicitly configure connections Make a single-use CA for each configured connection See omniORB documentation for example CA commands

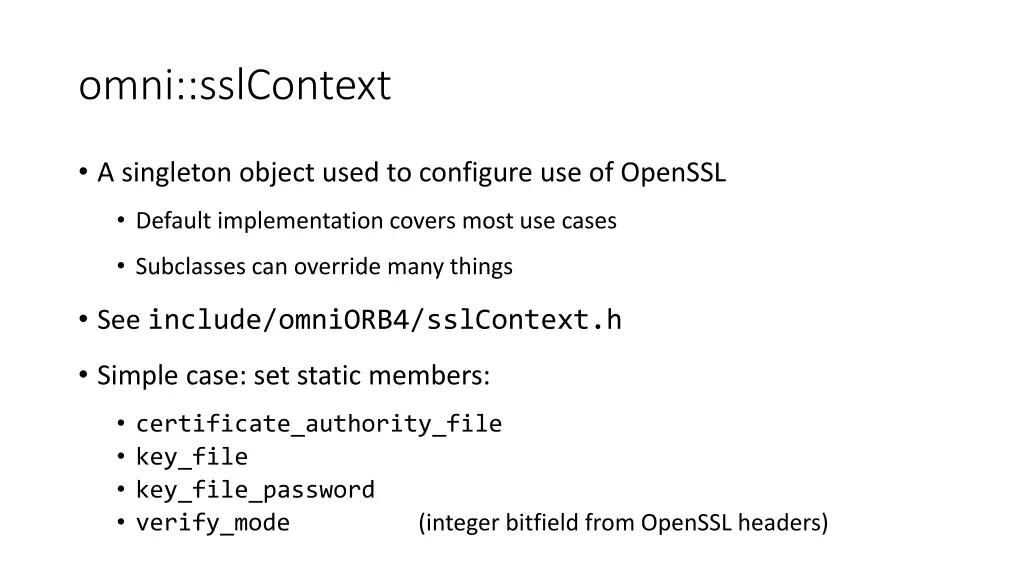

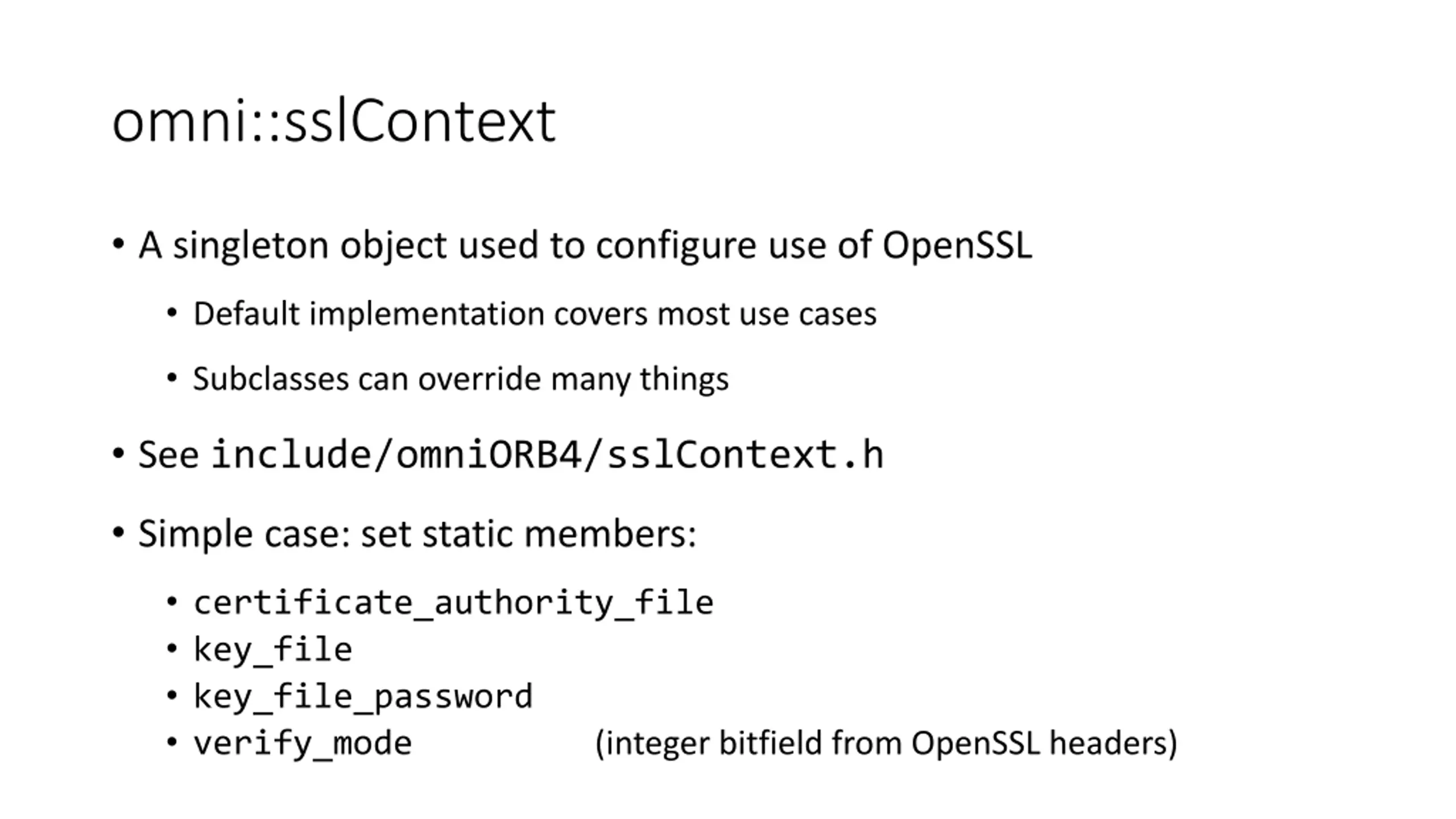

omni::sslContext A singleton object used to configure use of OpenSSL Default implementation covers most use cases Subclasses can override many things See include/omniORB4/sslContext.h Simple case: set static members: certificate_authority_file key_file key_file_password verify_mode (integer bitfield from OpenSSL headers)

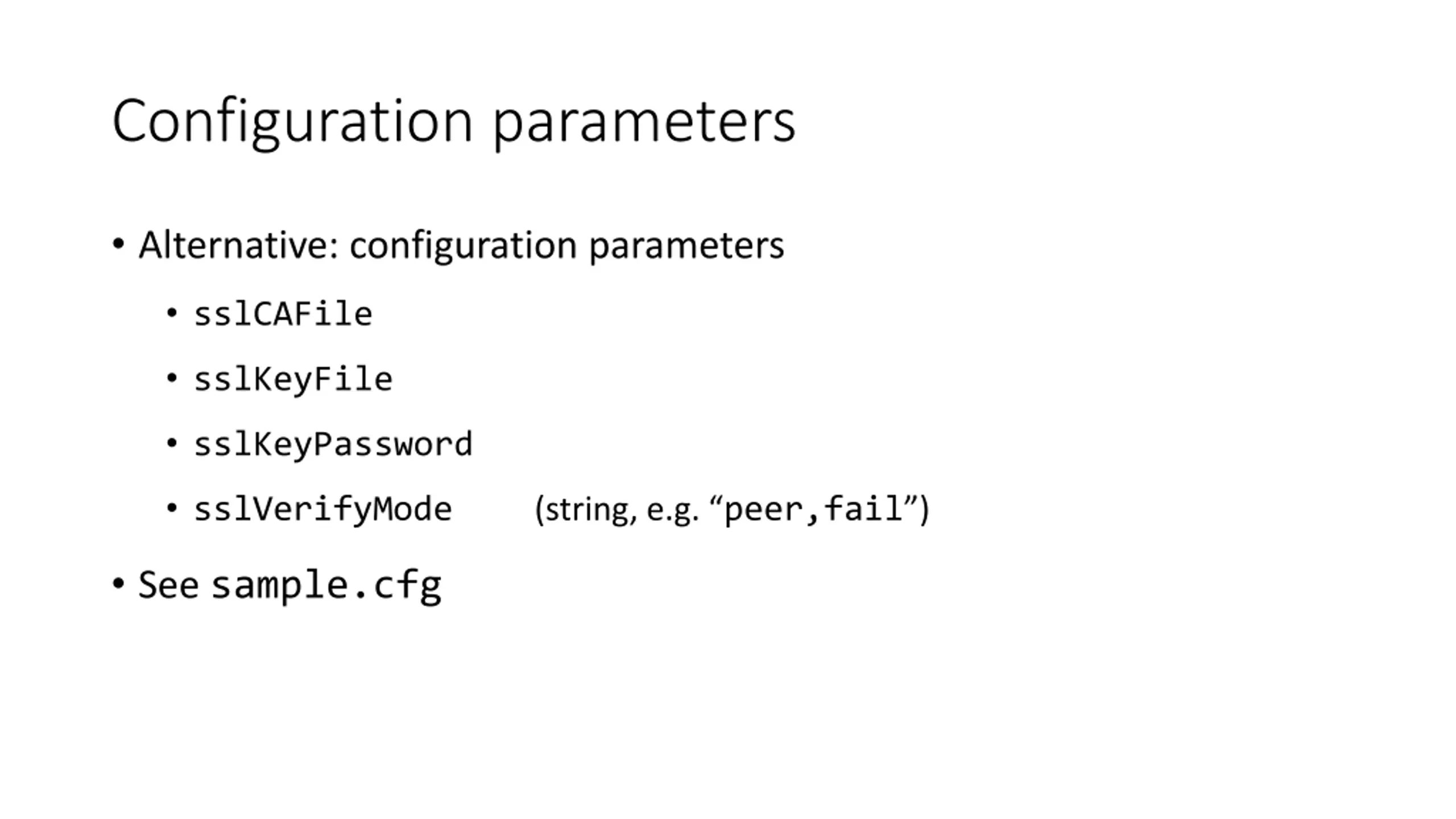

Configuration parameters Alternative: configuration parameters sslCAFile sslKeyFile sslKeyPassword sslVerifyMode (string, e.g. peer,fail ) See sample.cfg

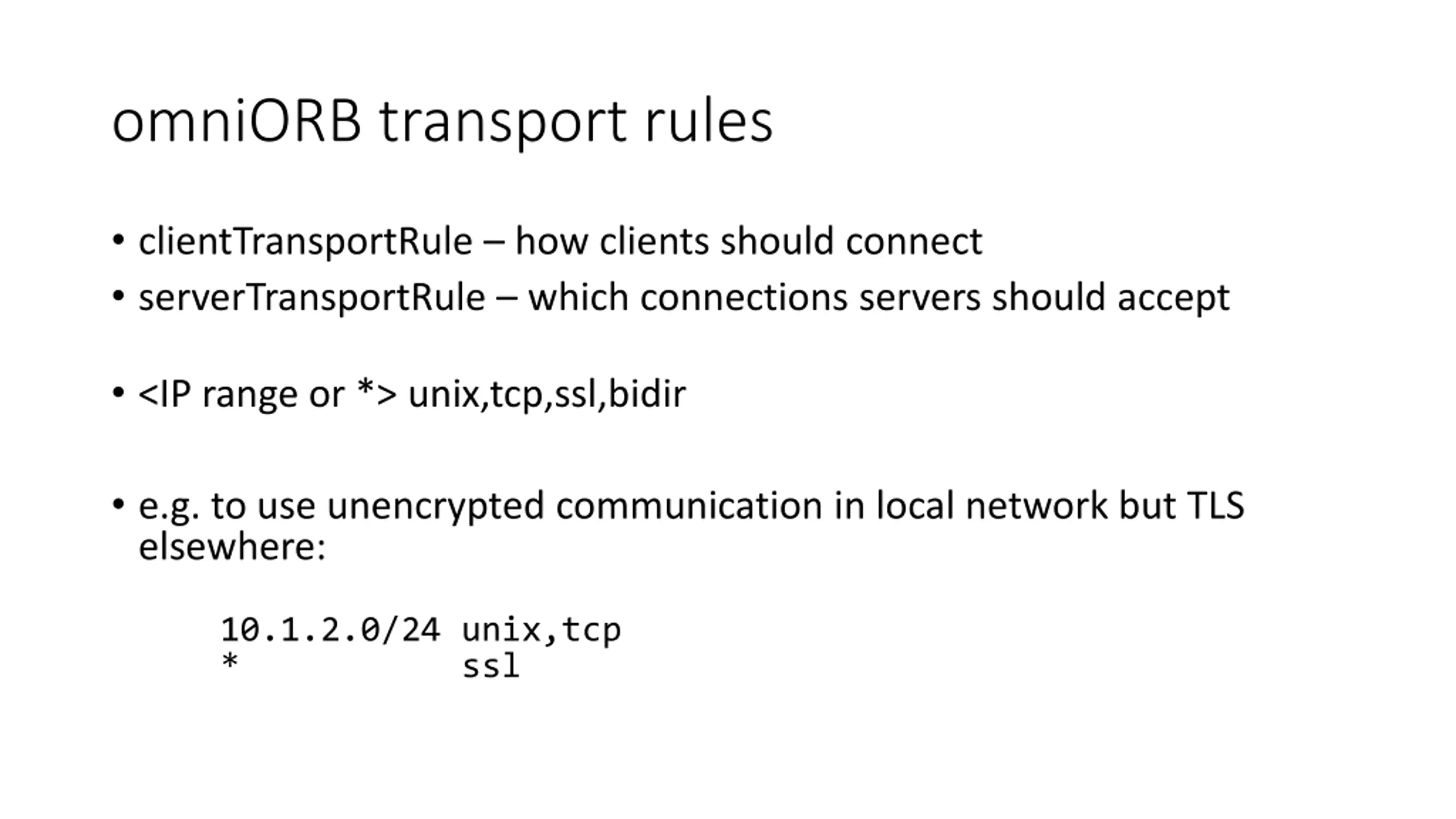

omniORB transport rules clientTransportRule how clients should connect serverTransportRule which connections servers should accept <IP range or *> unix,tcp,ssl,bidir e.g. to use unencrypted communication in local network but TLS elsewhere: 10.1.2.0/24 unix,tcp * ssl

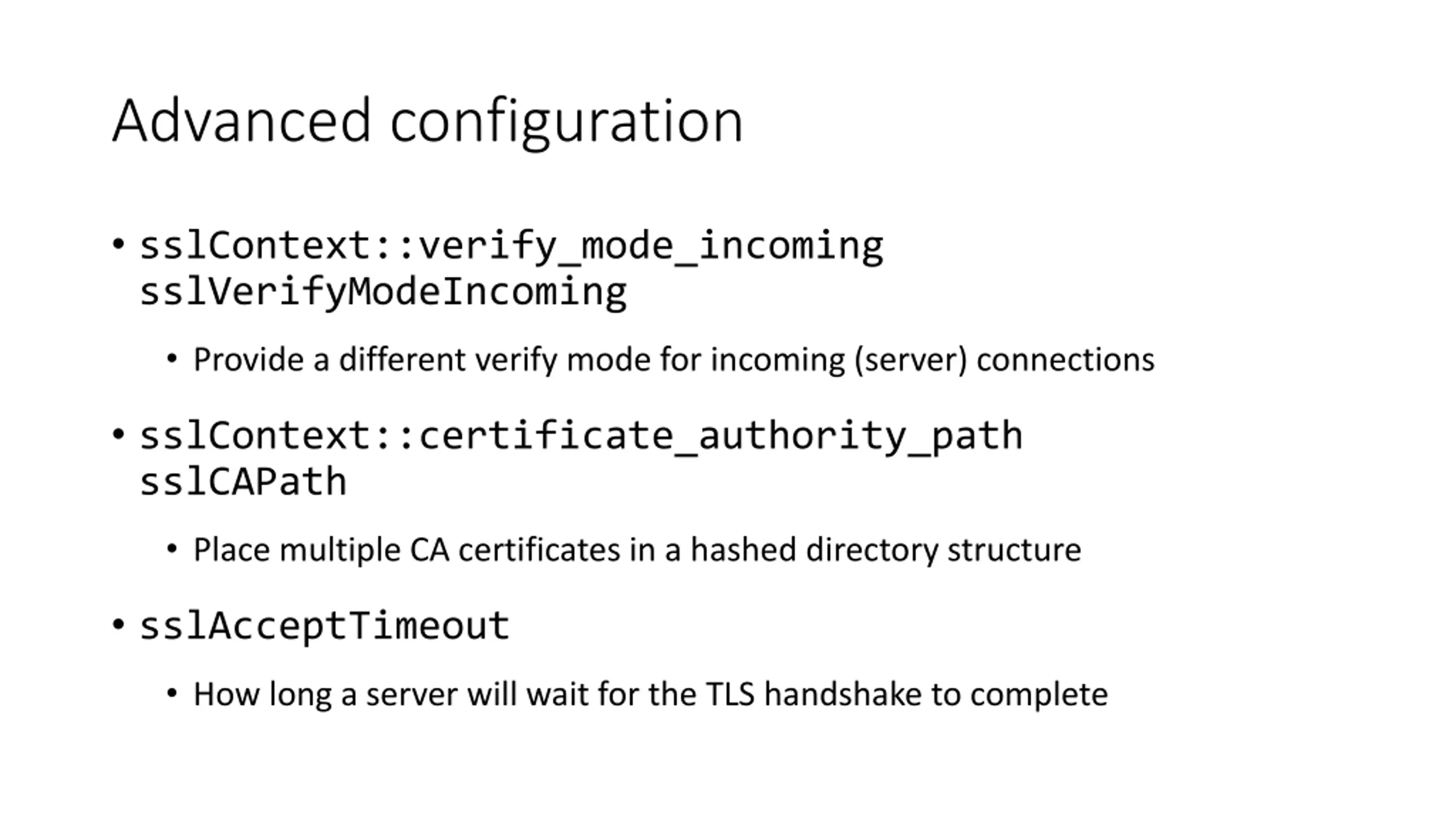

Advanced configuration sslContext::verify_mode_incoming sslVerifyModeIncoming Provide a different verify mode for incoming (server) connections sslContext::certificate_authority_path sslCAPath Place multiple CA certificates in a hashed directory structure sslAcceptTimeout How long a server will wait for the TLS handshake to complete

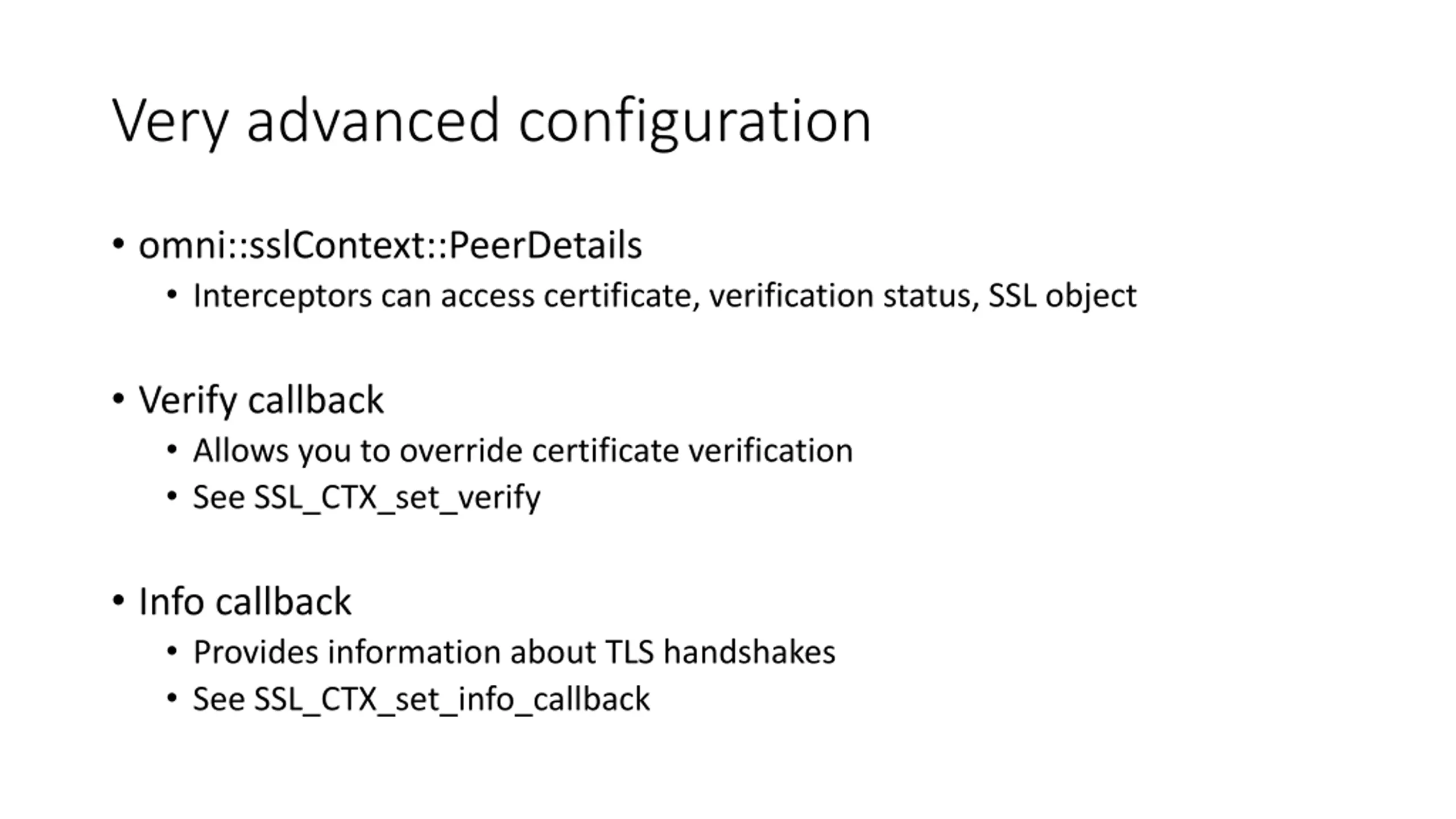

Very advanced configuration omni::sslContext::PeerDetails Interceptors can access certificate, verification status, SSL object Verify callback Allows you to override certificate verification See SSL_CTX_set_verify Info callback Provides information about TLS handshakes See SSL_CTX_set_info_callback
