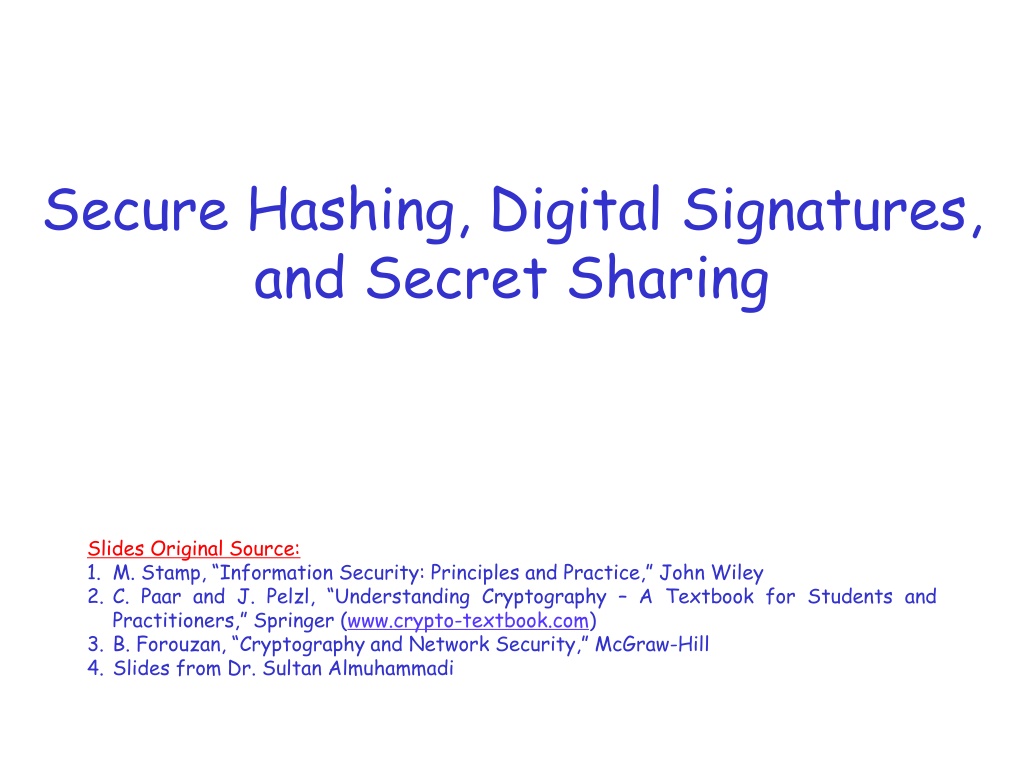

1. Secure Hashing, Digital Signatures, and Secret Sharing Slides Original Source: 1. M. Stamp, Information Security: Principles and Practice, John Wiley 2. C. Paar and J. Pelzl, Understanding Cryptography A Textbook for Students and Practitioners, Springer (www.crypto-textbook.com) 3. B. Forouzan, Cryptography and Network Security, McGraw-Hill 4. Slides from Dr. Sultan Almuhammadi

2. Outline Crypto Hash Functions Motivation and Desired Properties Examples HMAC Uses of Crypto Hash Functions Digital Signatures Secret Sharing 2/92

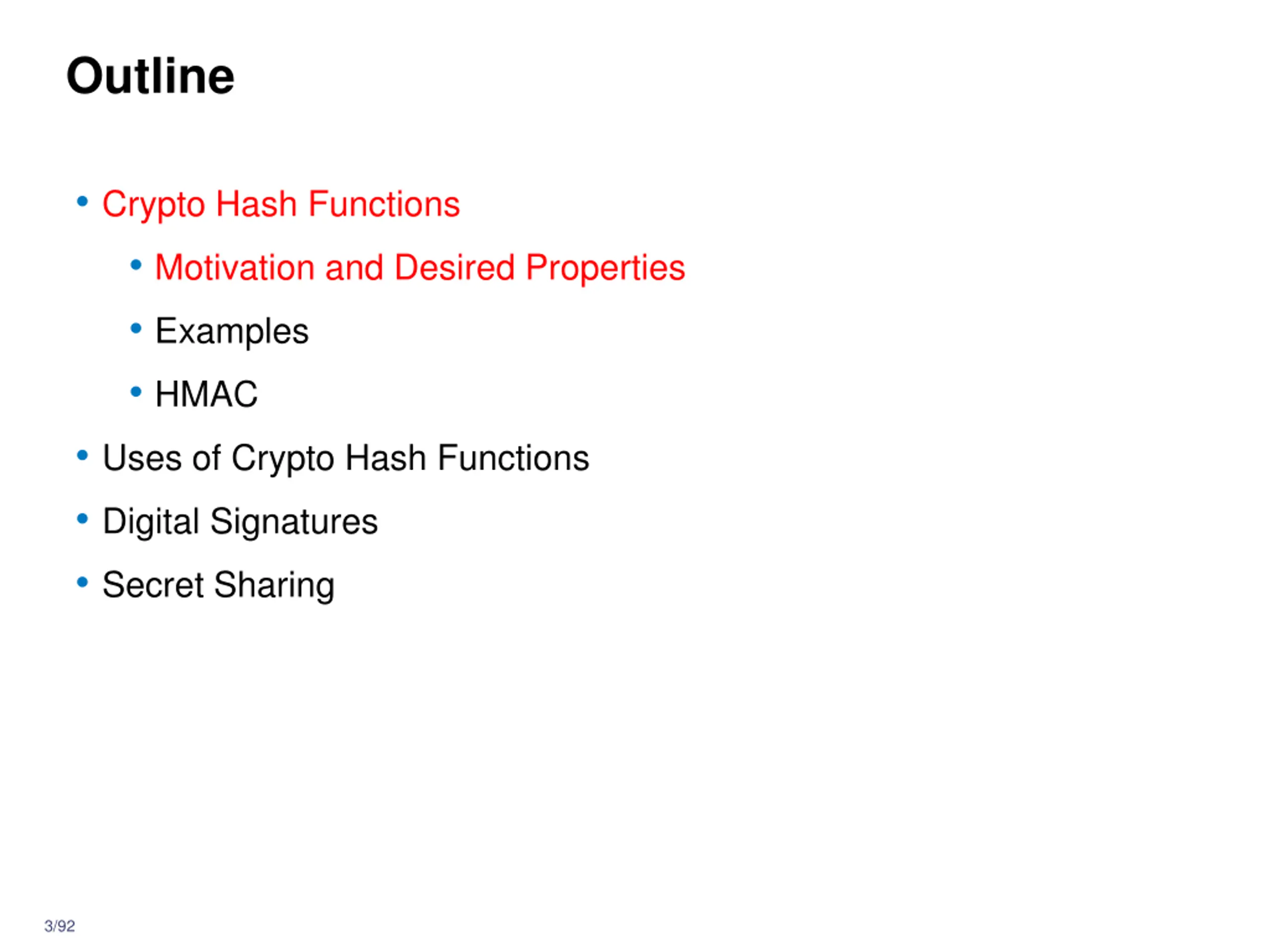

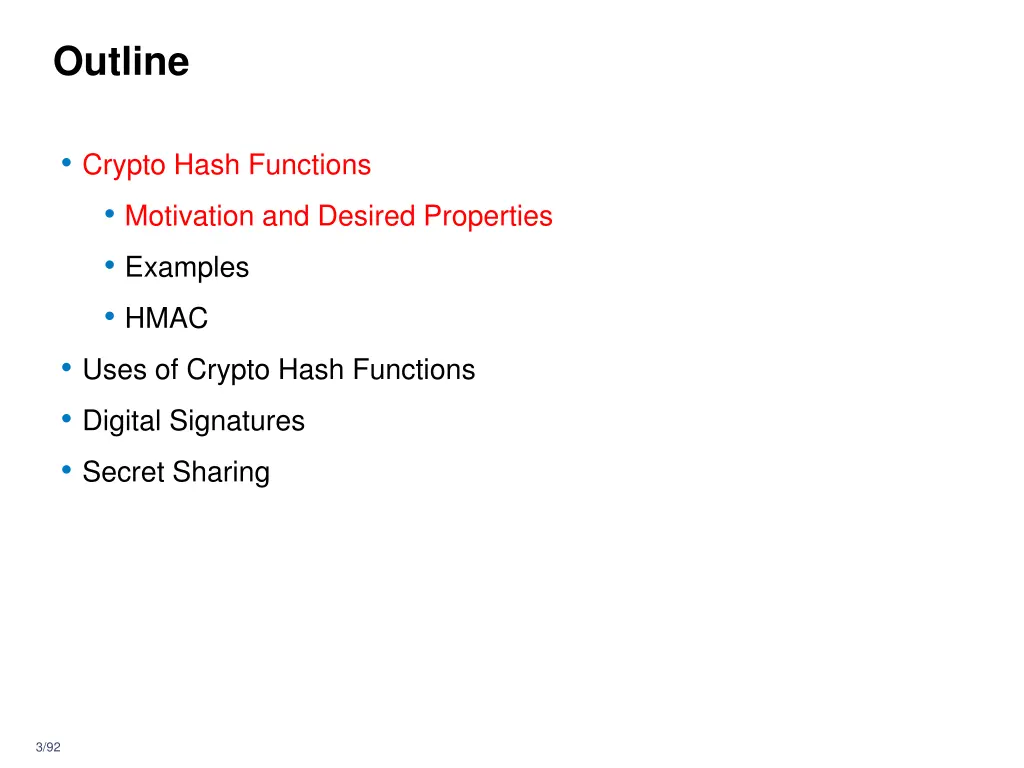

3. Outline Crypto Hash Functions Motivation and Desired Properties Examples HMAC Uses of Crypto Hash Functions Digital Signatures Secret Sharing 3/92

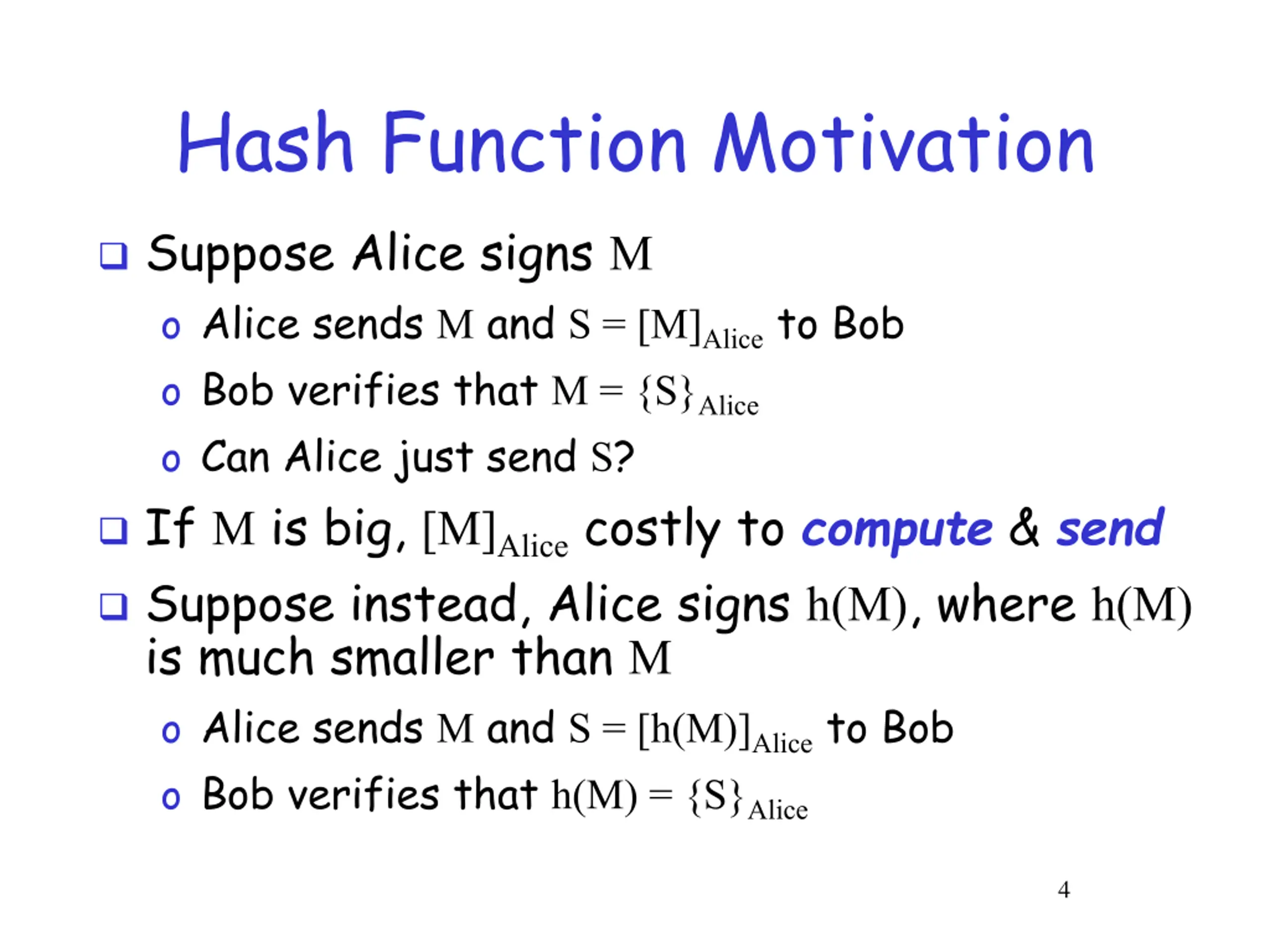

4. Hash Function Motivation Suppose Alice signs M o Alice sends M and S = [M]Alice to Bob o Bob verifies that M = {S}Alice o Can Alice just send S? If M is big, [M]Alice costly to compute & send Suppose instead, Alice signs h(M), where h(M) is much smaller than M o Alice sends M and S = [h(M)]Alice to Bob o Bob verifies that h(M) = {S}Alice 4

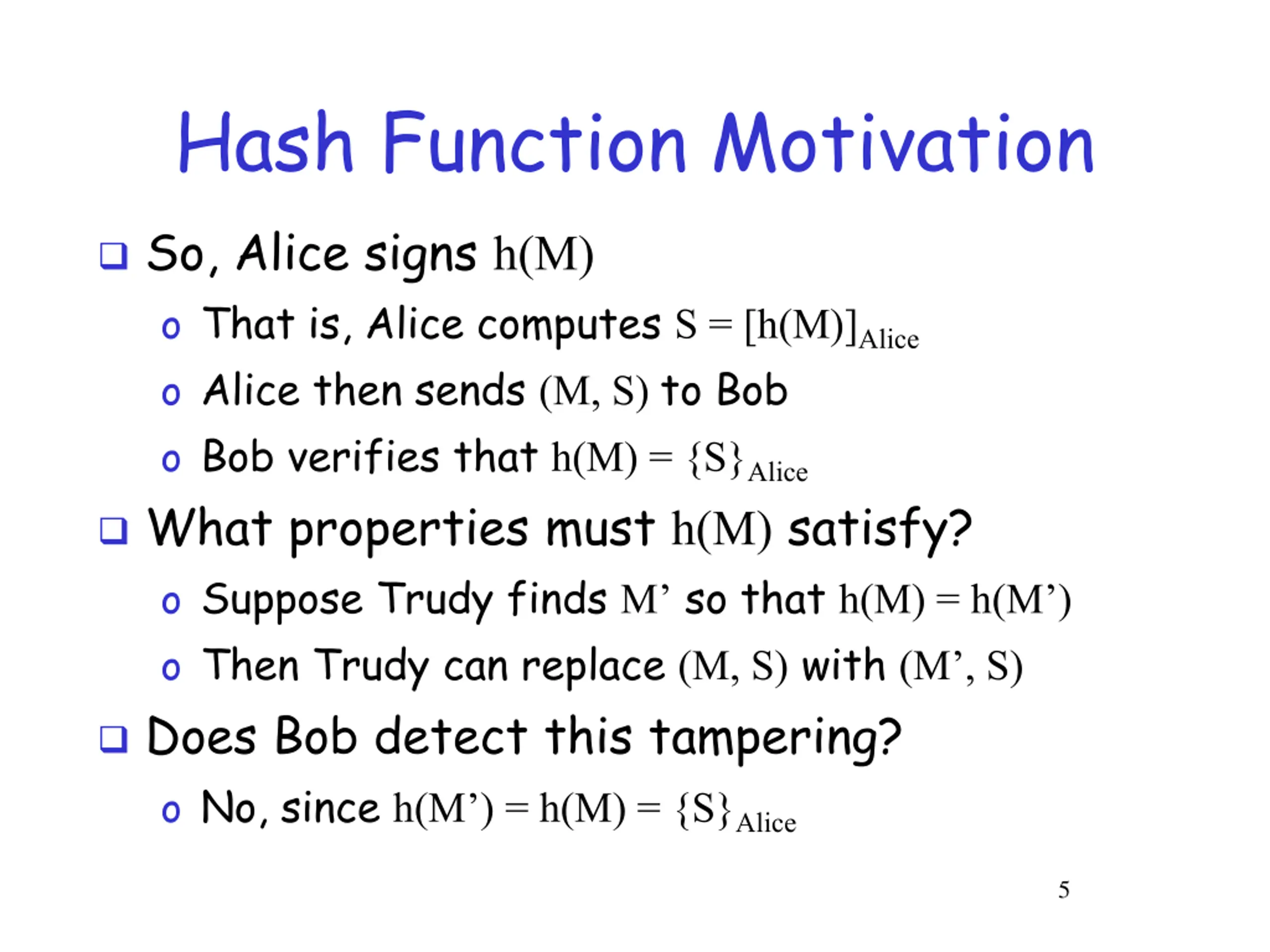

5. Hash Function Motivation So, Alice signs h(M) o That is, Alice computes S = [h(M)]Alice o Alice then sends (M, S) to Bob o Bob verifies that h(M) = {S}Alice What properties must h(M) satisfy? o Suppose Trudy finds M so that h(M) = h(M ) o Then Trudy can replace (M, S) with (M , S) Does Bob detect this tampering? o No, since h(M ) = h(M) = {S}Alice 5

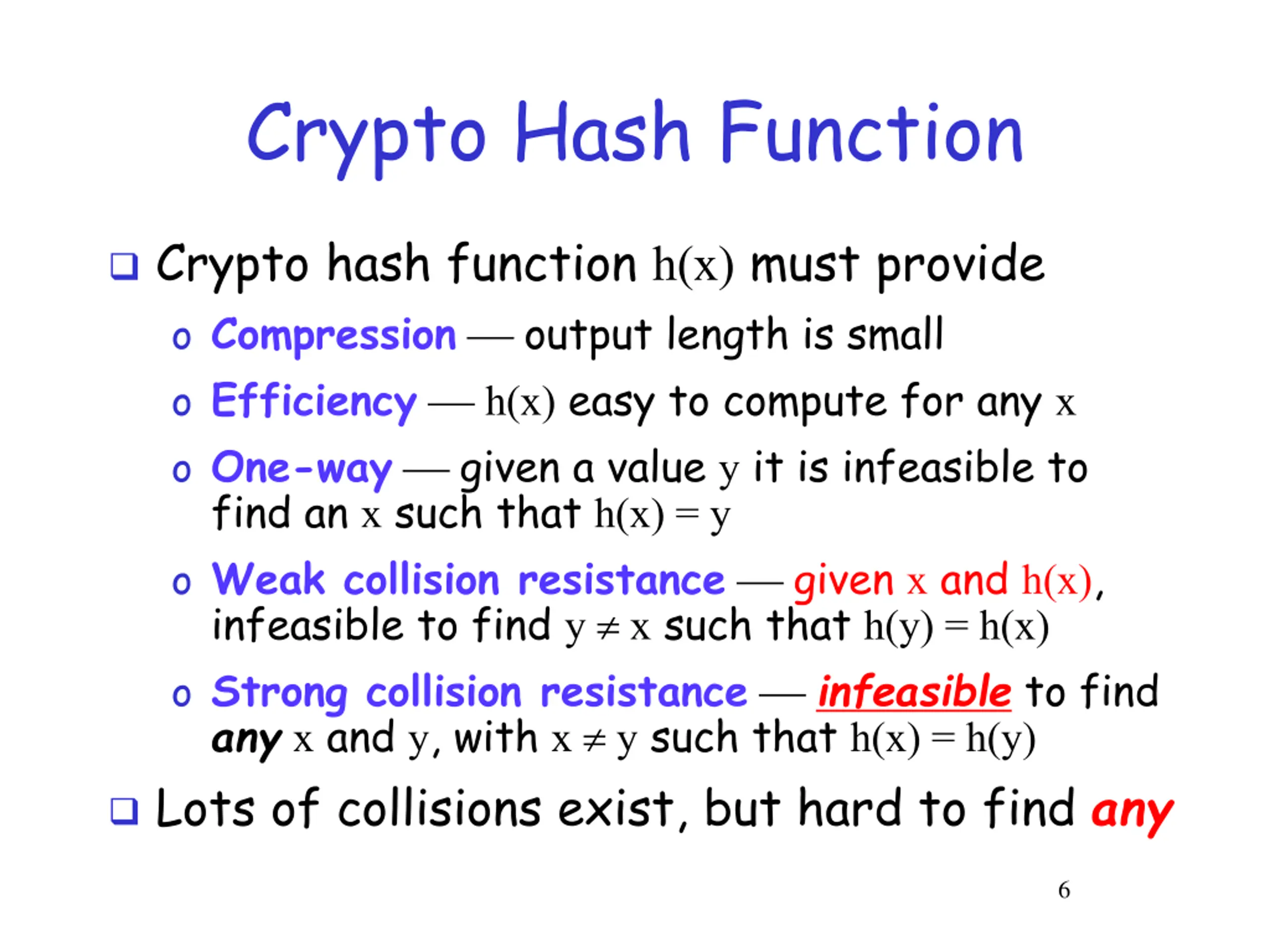

6. Crypto Hash Function Crypto hash function h(x) must provide o Compression output length is small o Efficiency h(x) easy to compute for any x o One-way given a value y it is infeasible to find an x such that h(x) = y o Weak collision resistance given x and h(x), infeasible to find y x such that h(y) = h(x) o Strong collision resistance infeasible to find anyx and y, with x y such that h(x) = h(y) Lots of collisions exist, but hard to find any 6

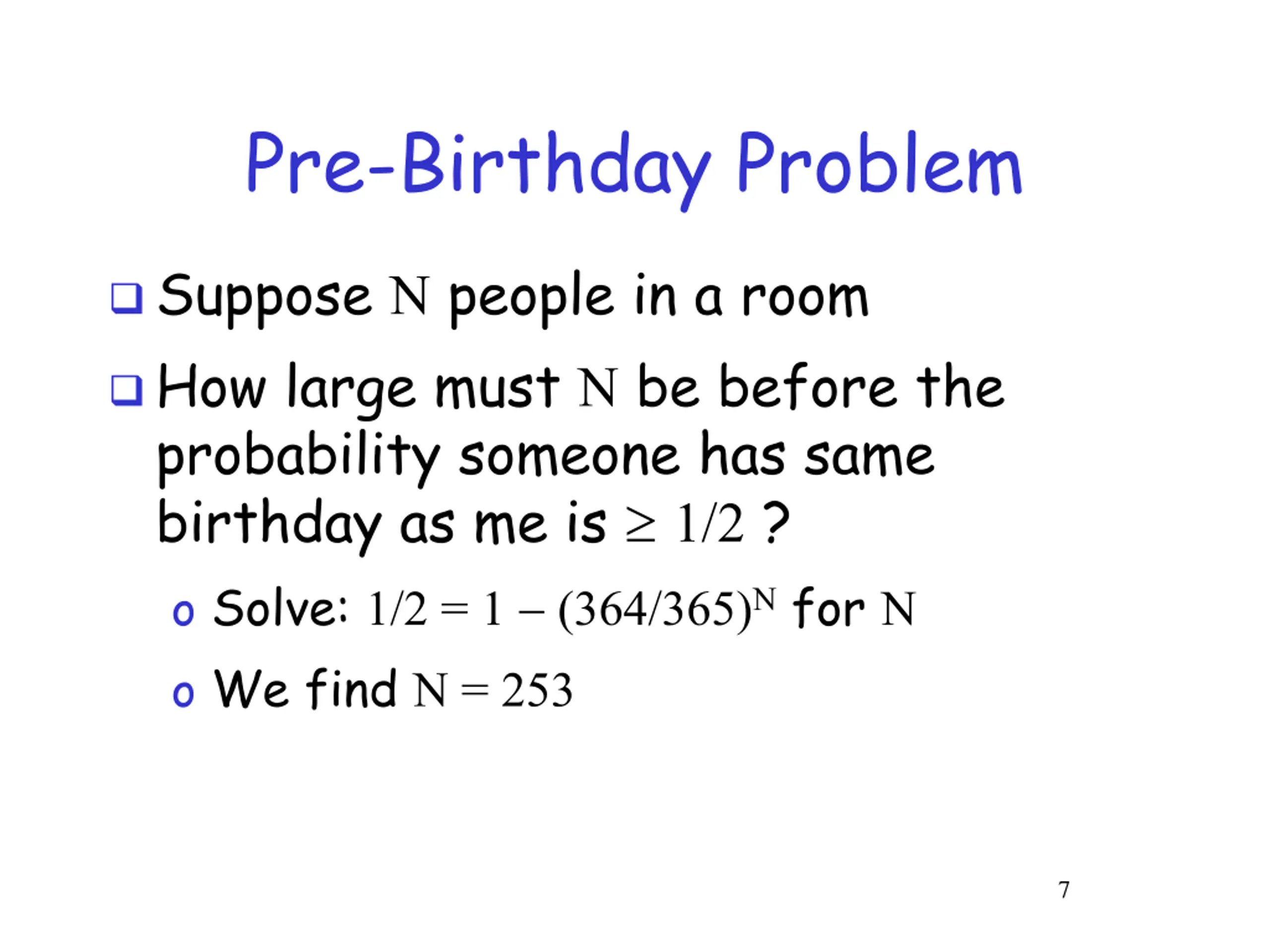

7. Pre-Birthday Problem Suppose N people in a room How large must N be before the probability someone has same birthday as me is 1/2 ? o Solve: 1/2 = 1 (364/365)N for N o We find N = 253 7

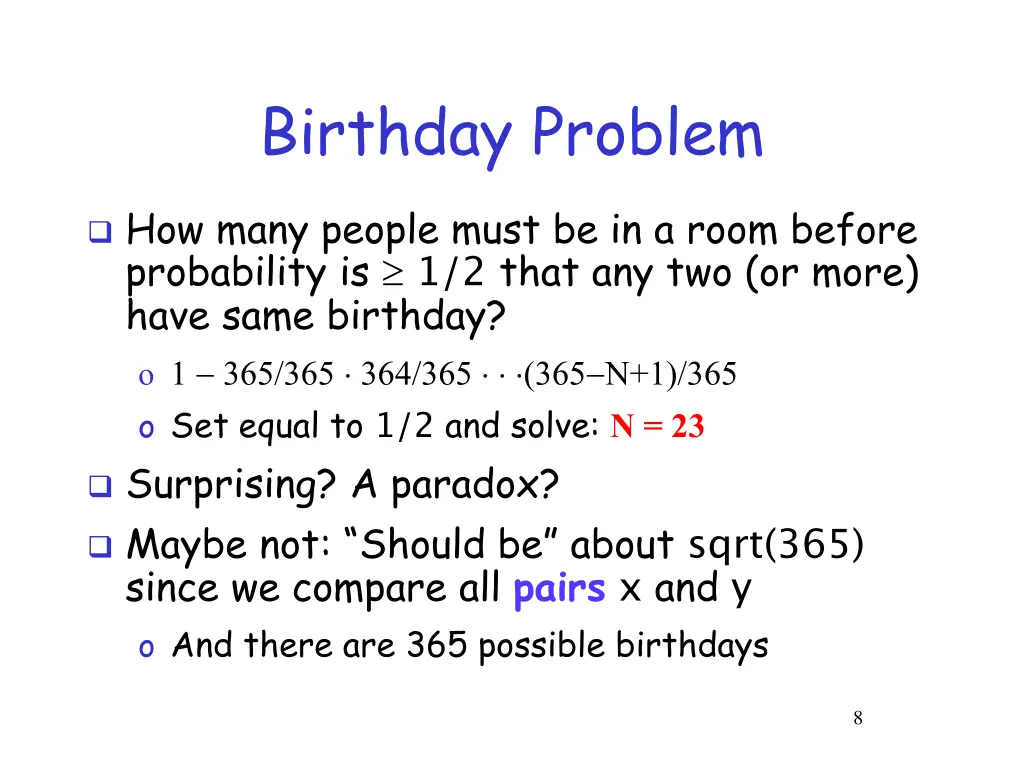

8. Birthday Problem How many people must be in a room before probability is 1/2 that any two (or more) have same birthday? o 1 365/365 364/365 (365 N+1)/365 o Set equal to 1/2 and solve: N = 23 Surprising? A paradox? Maybe not: Should be about sqrt(365) since we compare all pairsx and y o And there are 365 possible birthdays 8

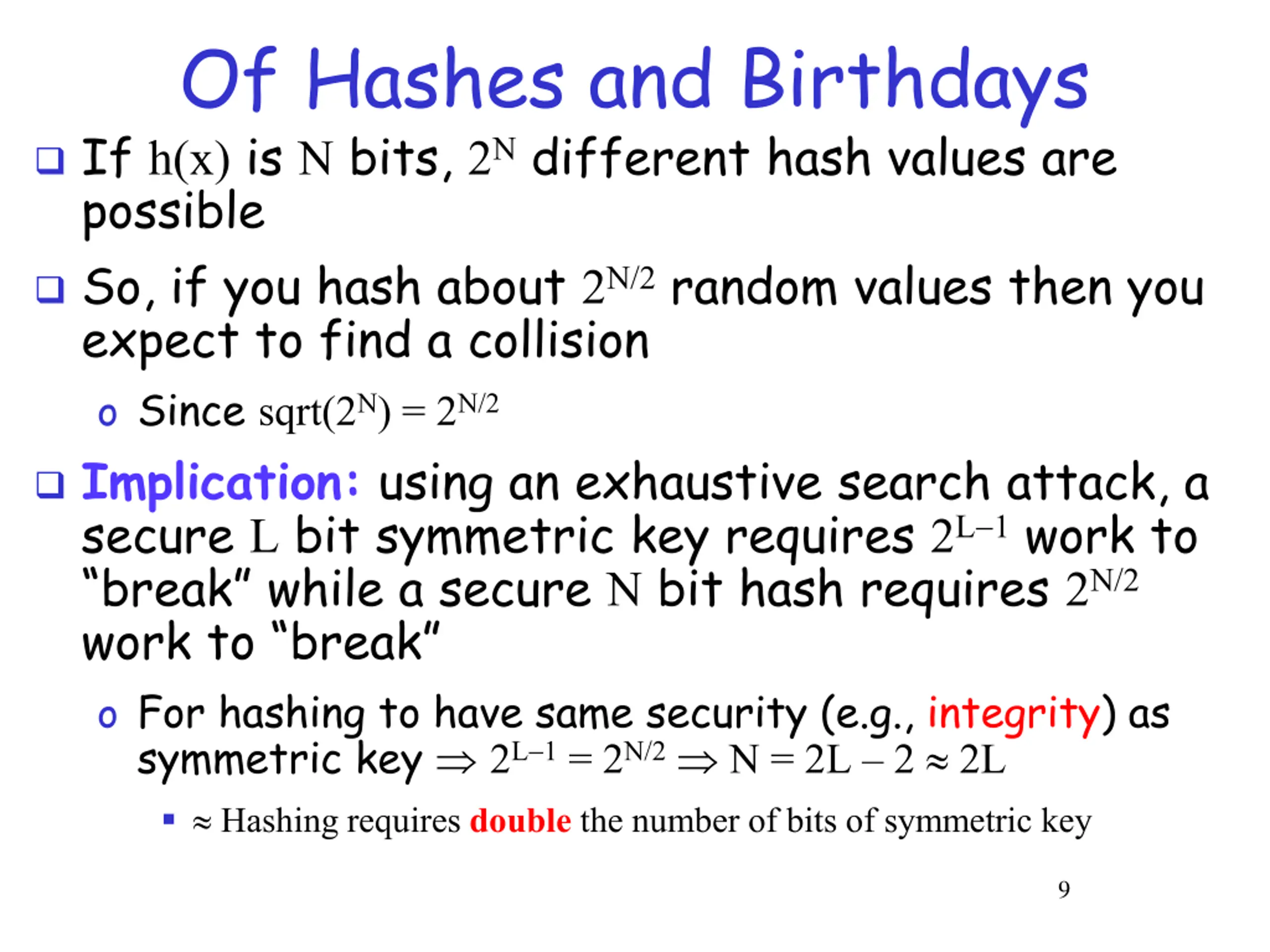

9. Of Hashes and Birthdays If h(x) is N bits, 2N different hash values are possible So, if you hash about 2N/2 random values then you expect to find a collision o Since sqrt(2N) = 2N/2 Implication: using an exhaustive search attack, a secure L bit symmetric key requires 2L 1 work to break while a secure N bit hash requires 2N/2 work to break o For hashing to have same security (e.g., integrity) as symmetric key 2L 1 = 2N/2 N = 2L 2 2L Hashing requires double the number of bits of symmetric key 9

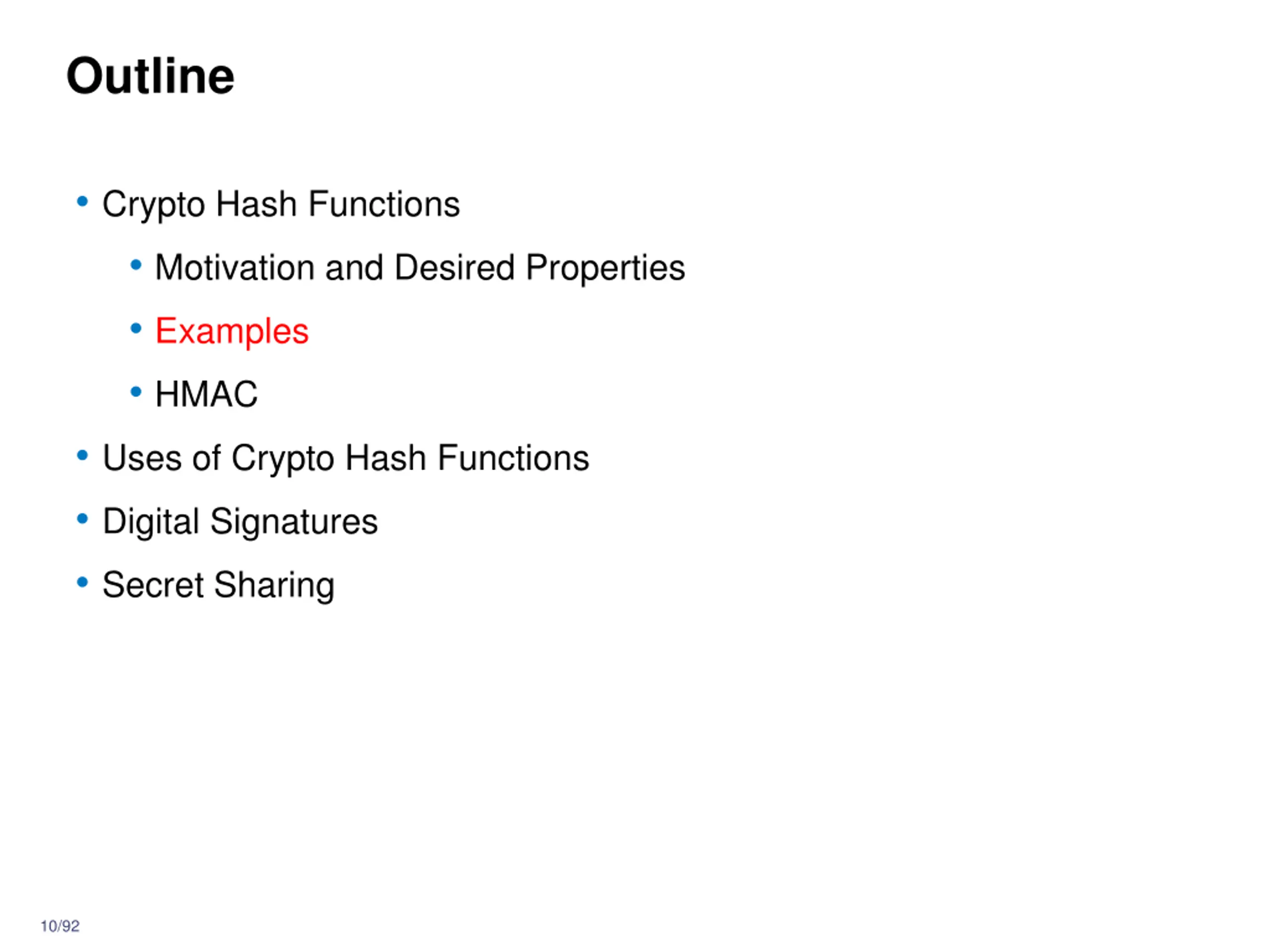

10. Outline Crypto Hash Functions Motivation and Desired Properties Examples HMAC Uses of Crypto Hash Functions Digital Signatures Secret Sharing 10/92

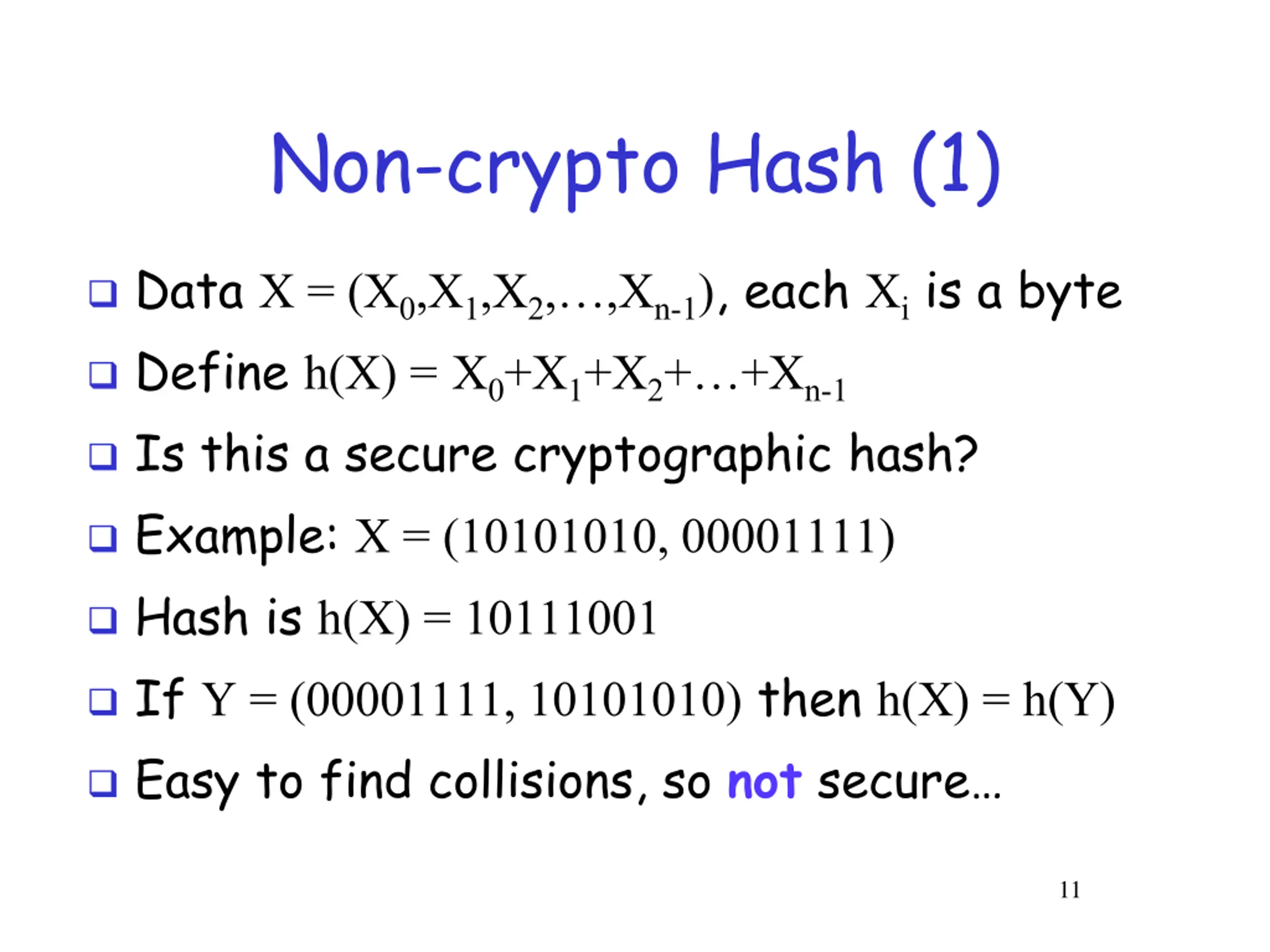

11. Non-crypto Hash (1) Data X = (X0,X1,X2, ,Xn-1), each Xi is a byte Define h(X) =X0+X1+X2+ +Xn-1 Is this a secure cryptographic hash? Example: X = (10101010, 00001111) Hash is h(X) = 10111001 If Y = (00001111, 10101010) then h(X) = h(Y) Easy to find collisions, so notsecure 11

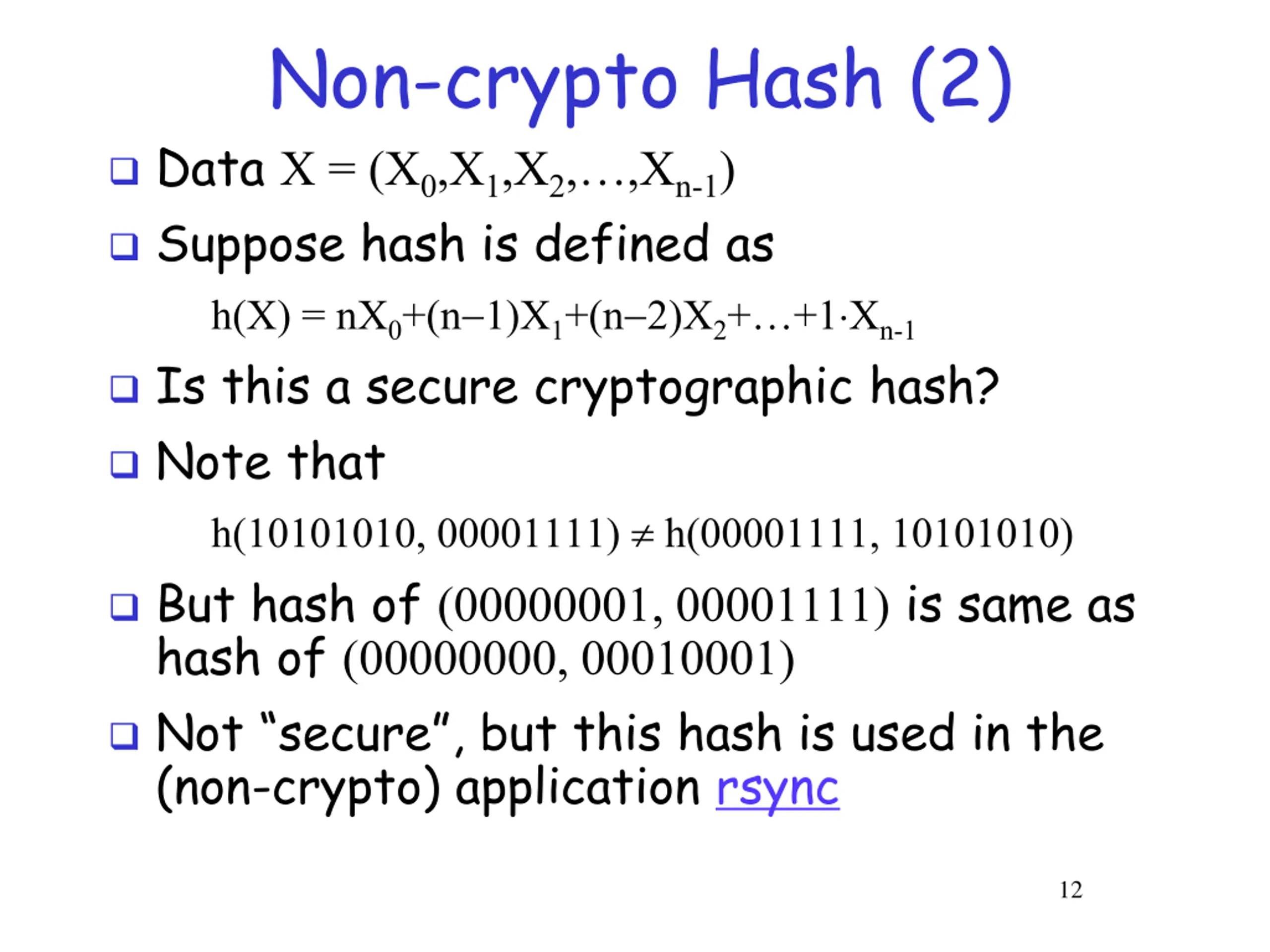

12. Non-crypto Hash (2) Data X = (X0,X1,X2, ,Xn-1) Suppose hash is defined as h(X) = nX0+(n 1)X1+(n 2)X2+ +1 Xn-1 Is this a secure cryptographic hash? Note that h(10101010, 00001111) h(00001111, 10101010) But hash of (00000001, 00001111) is same as hash of (00000000, 00010001) Not secure , but this hash is used in the (non-crypto) application rsync 12

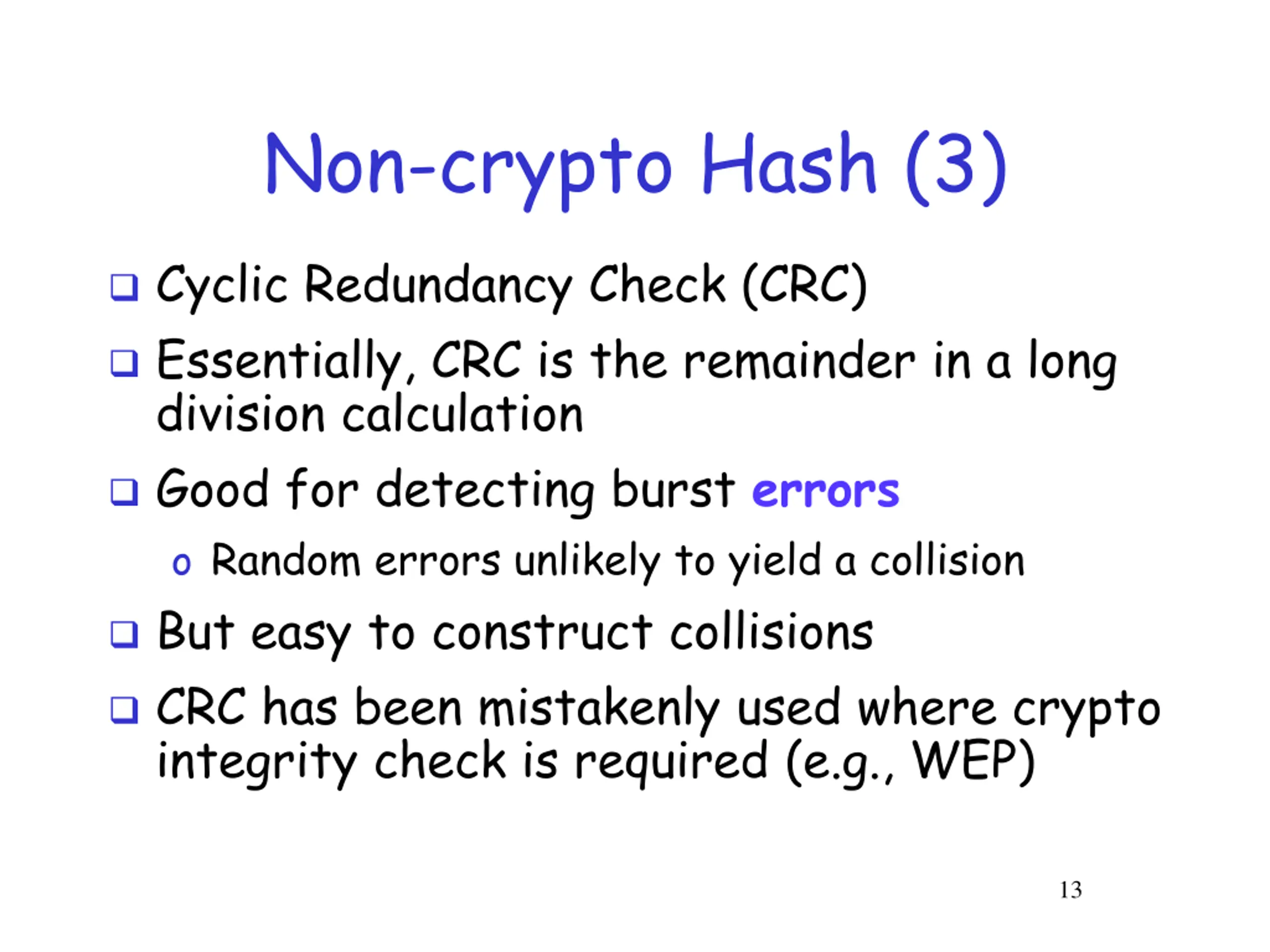

13. Non-crypto Hash (3) Cyclic Redundancy Check (CRC) Essentially, CRC is the remainder in a long division calculation Good for detecting burst errors o Random errors unlikely to yield a collision But easy to construct collisions CRC has been mistakenly used where crypto integrity check is required (e.g., WEP) 13

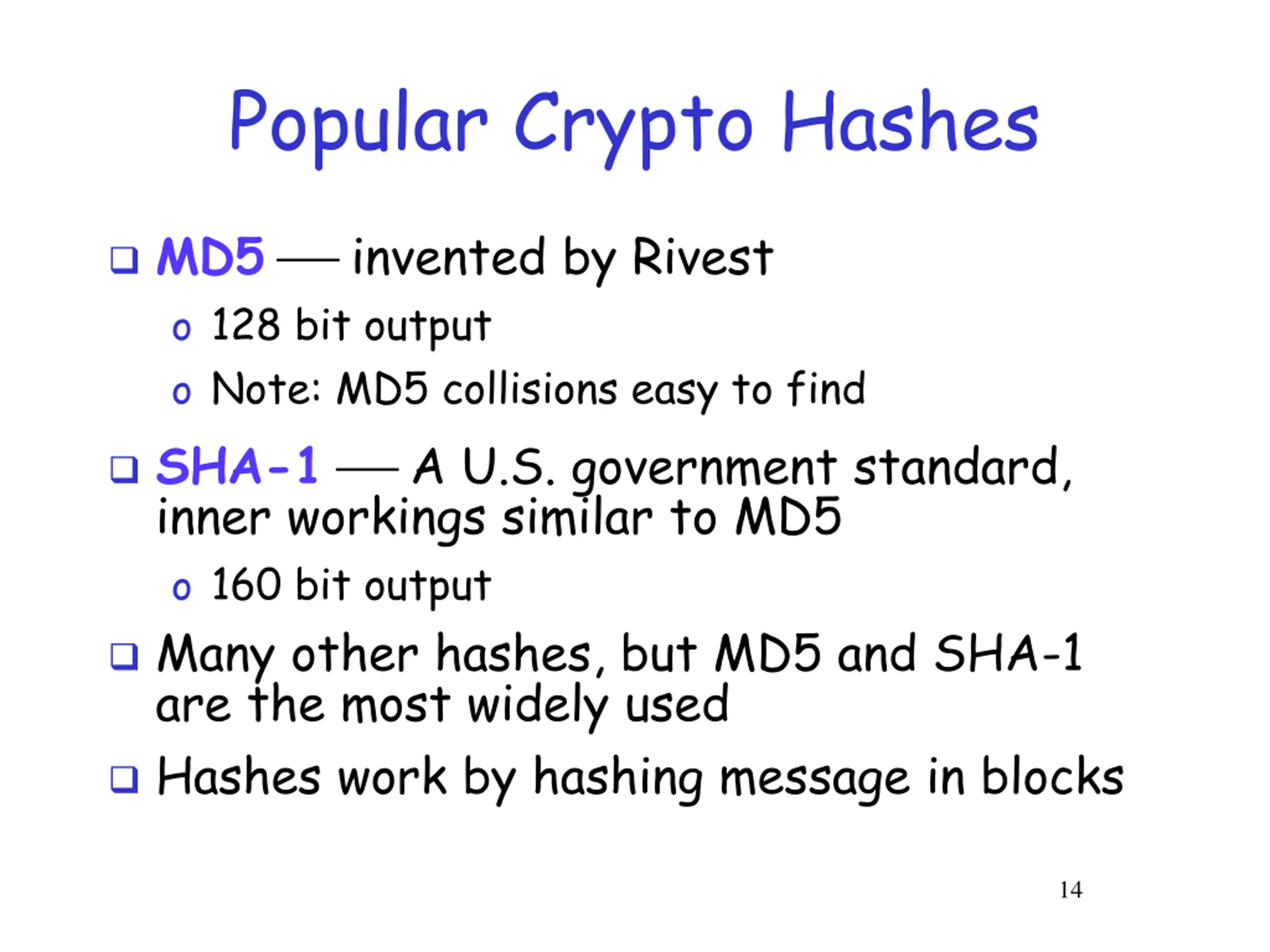

14. Popular Crypto Hashes MD5 invented by Rivest o 128 bit output o Note: MD5 collisions easy to find SHA-1 A U.S. government standard, inner workings similar to MD5 o 160 bit output Many other hashes, but MD5 and SHA-1 are the most widely used Hashes work by hashing message in blocks 14

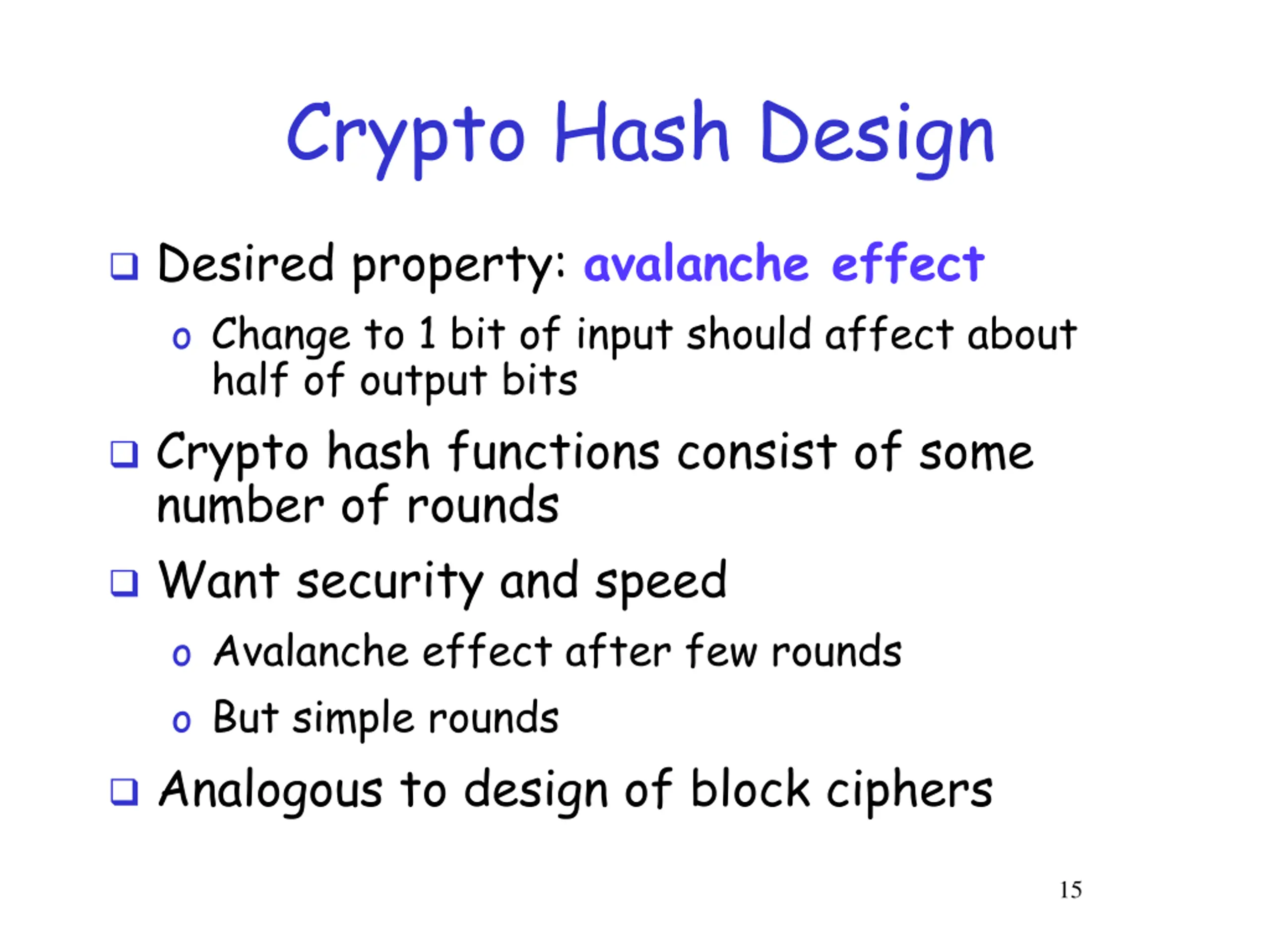

15. Crypto Hash Design Desired property: avalanche effect o Change to 1 bit of input should affect about half of output bits Crypto hash functions consist of some number of rounds Want security and speed o Avalanche effect after few rounds o But simple rounds Analogous to design of block ciphers 15

16. Tiger Hash Fast and strong Designed by Ross Anderson and Eli Biham leading cryptographers Design criteria o Secure o Optimized for 64-bit processors o Easy replacement for MD5 or SHA-1 16

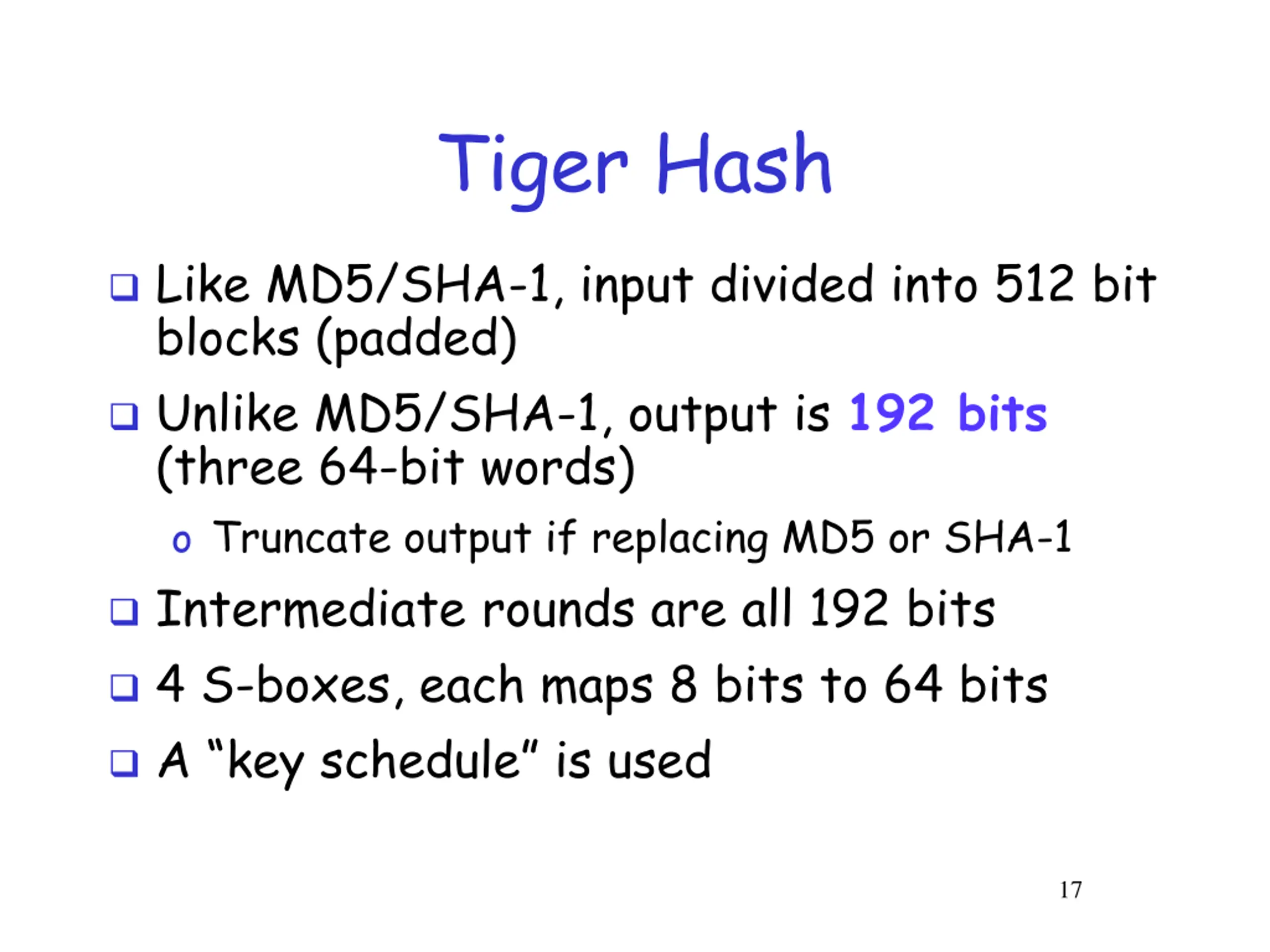

17. Tiger Hash Like MD5/SHA-1, input divided into 512 bit blocks (padded) Unlike MD5/SHA-1, output is 192 bits (three 64-bit words) o Truncate output if replacing MD5 or SHA-1 Intermediate rounds are all 192 bits 4 S-boxes, each maps 8 bits to 64 bits A key schedule is used 17

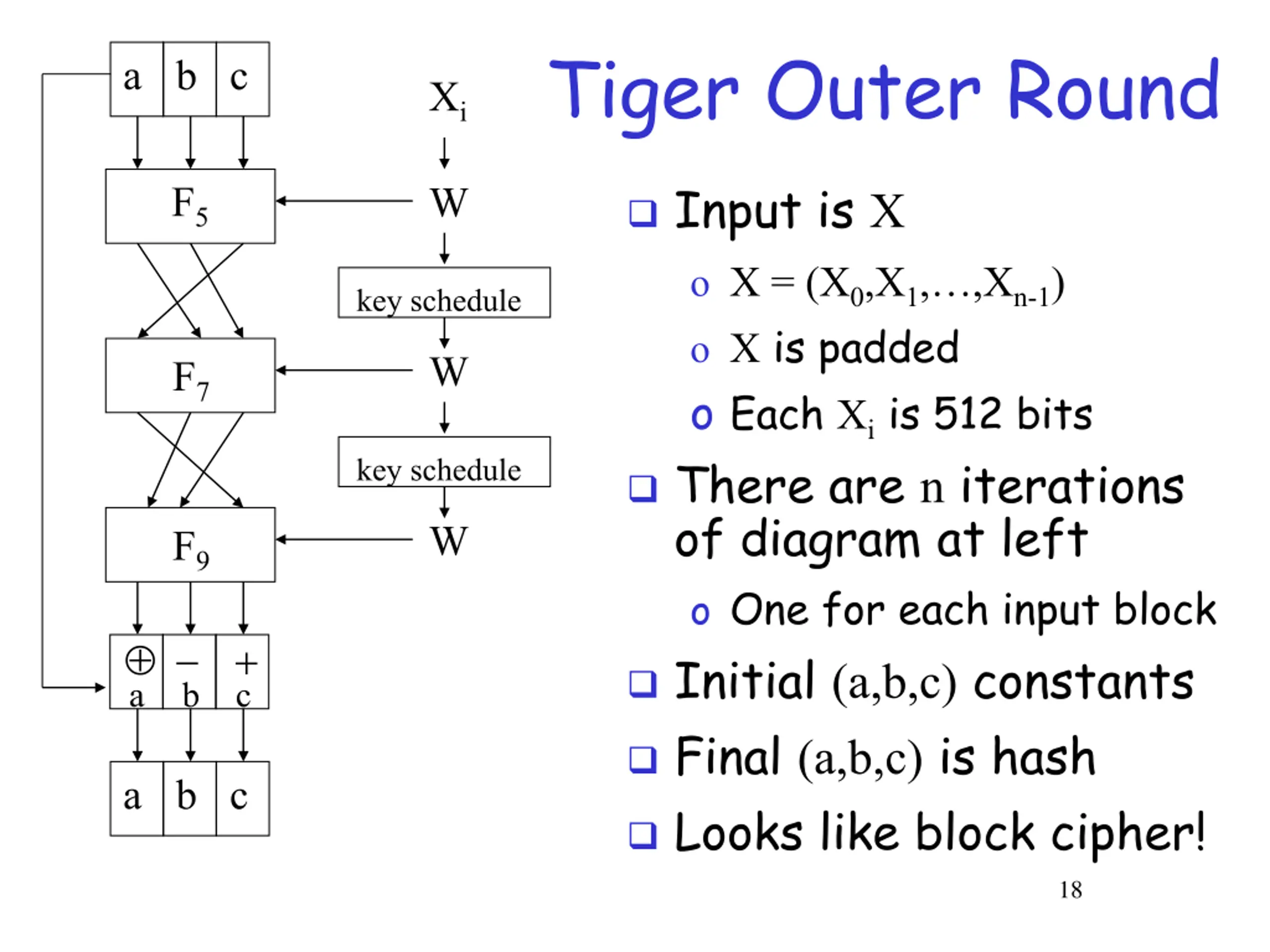

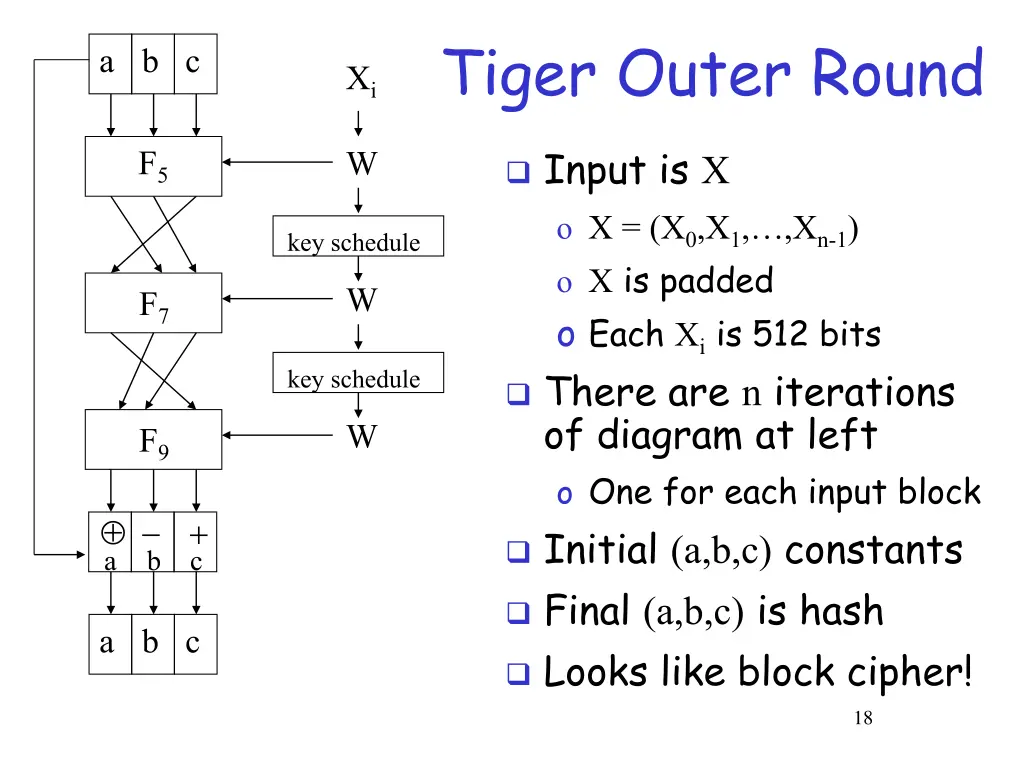

18. Tiger Outer Round a b c Xi Input is X o X = (X0,X1, ,Xn-1) o X is padded o Each Xi is 512 bits There are n iterations of diagram at left o One for each input block Initial (a,b,c) constants Final (a,b,c) is hash Looks like block cipher! F5 W key schedule W F7 key schedule W F9 a + c b a b c 18

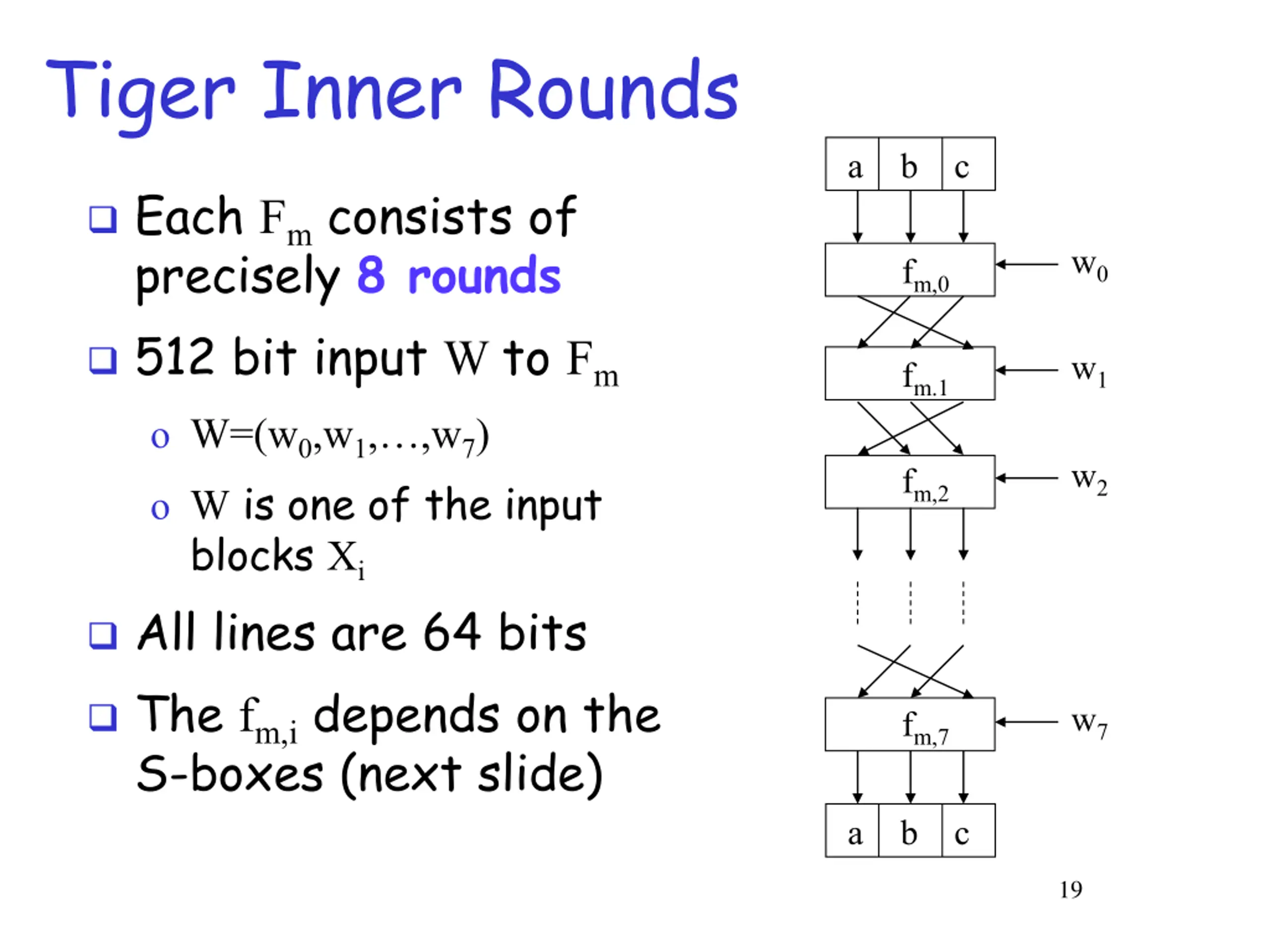

19. Tiger Inner Rounds a b c Each Fm consists of precisely 8 rounds 512 bit input W to Fm o W=(w0,w1, ,w7) o W is one of the input blocks Xi All lines are 64 bits The fm,i depends on the S-boxes (next slide) w0 fm,0 w1 fm.1 w2 fm,2 w7 fm,7 a b c 19

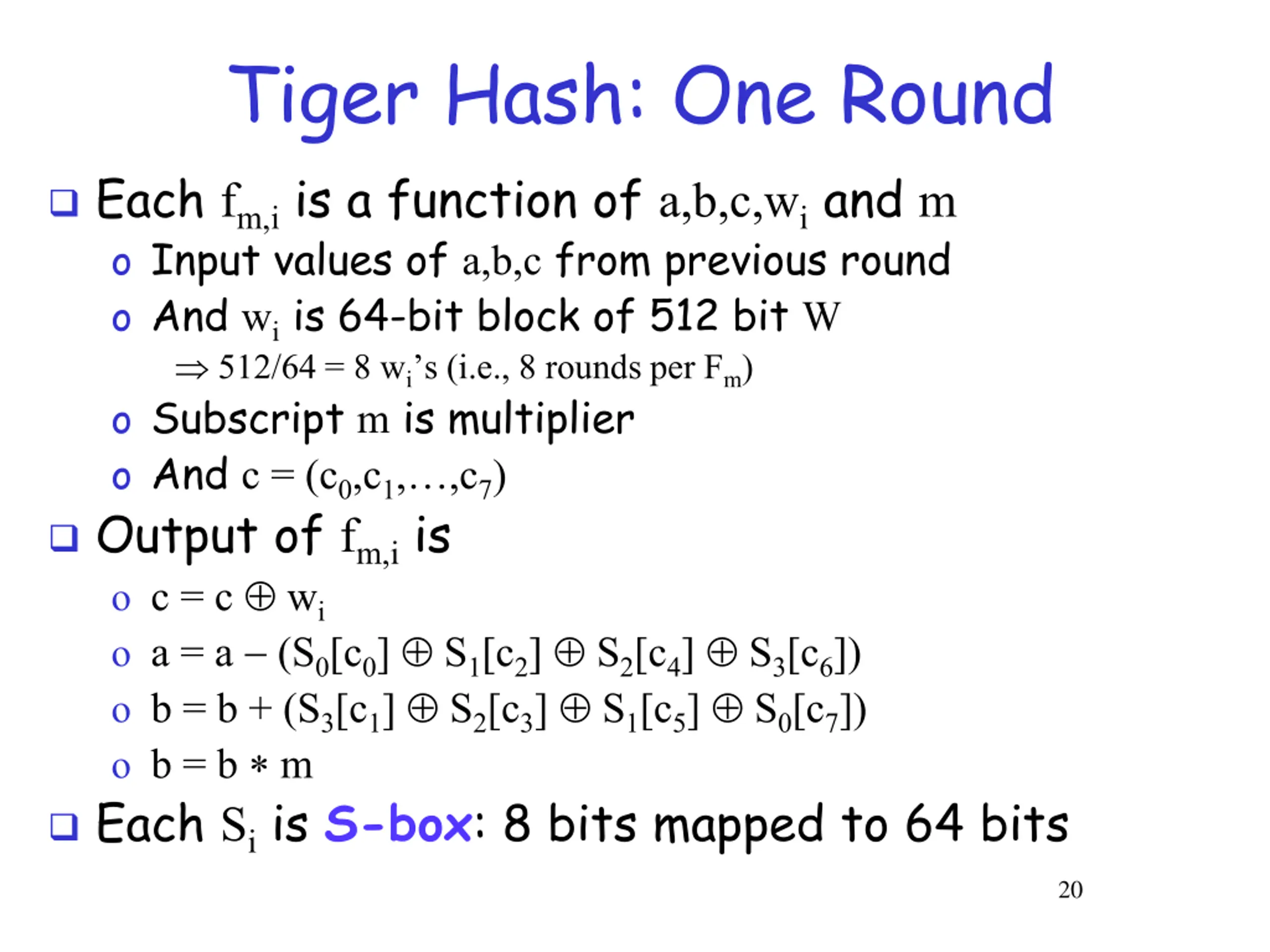

20. Tiger Hash: One Round Each fm,i is a function of a,b,c,wi and m o Input values of a,b,c from previous round o And wi is 64-bit block of 512 bit W 512/64 = 8 wi s (i.e., 8 rounds per Fm) o Subscript m is multiplier o And c = (c0,c1, ,c7) Output of fm,i is o c = c wi o a = a (S0[c0] S1[c2] S2[c4] S3[c6]) o b = b + (S3[c1] S2[c3] S1[c5] S0[c7]) o b = b m Each Si is S-box: 8 bits mapped to 64 bits 20

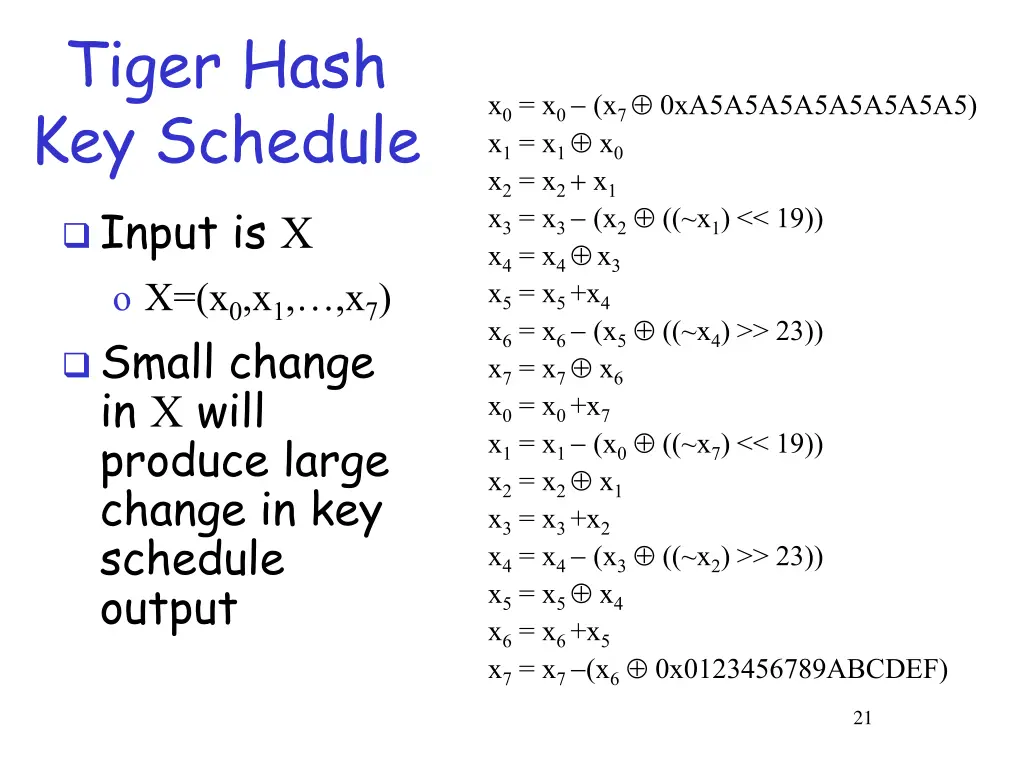

21. Tiger Hash Key Schedule x0 = x0 (x7 0xA5A5A5A5A5A5A5A5) x1 = x1 x0 x2 = x2 + x1 x3 = x3 (x2 ((~x1) << 19)) x4 = x4 x3 x5 = x5 +x4 x6 = x6 (x5 ((~x4) >> 23)) x7 = x7 x6 x0 = x0 +x7 x1 = x1 (x0 ((~x7) << 19)) x2 = x2 x1 x3 = x3 +x2 x4 = x4 (x3 ((~x2) >> 23)) x5 = x5 x4 x6 = x6 +x5 x7 = x7 (x6 0x0123456789ABCDEF) Input is X o X=(x0,x1, ,x7) Small change in X will produce large change in key schedule output 21

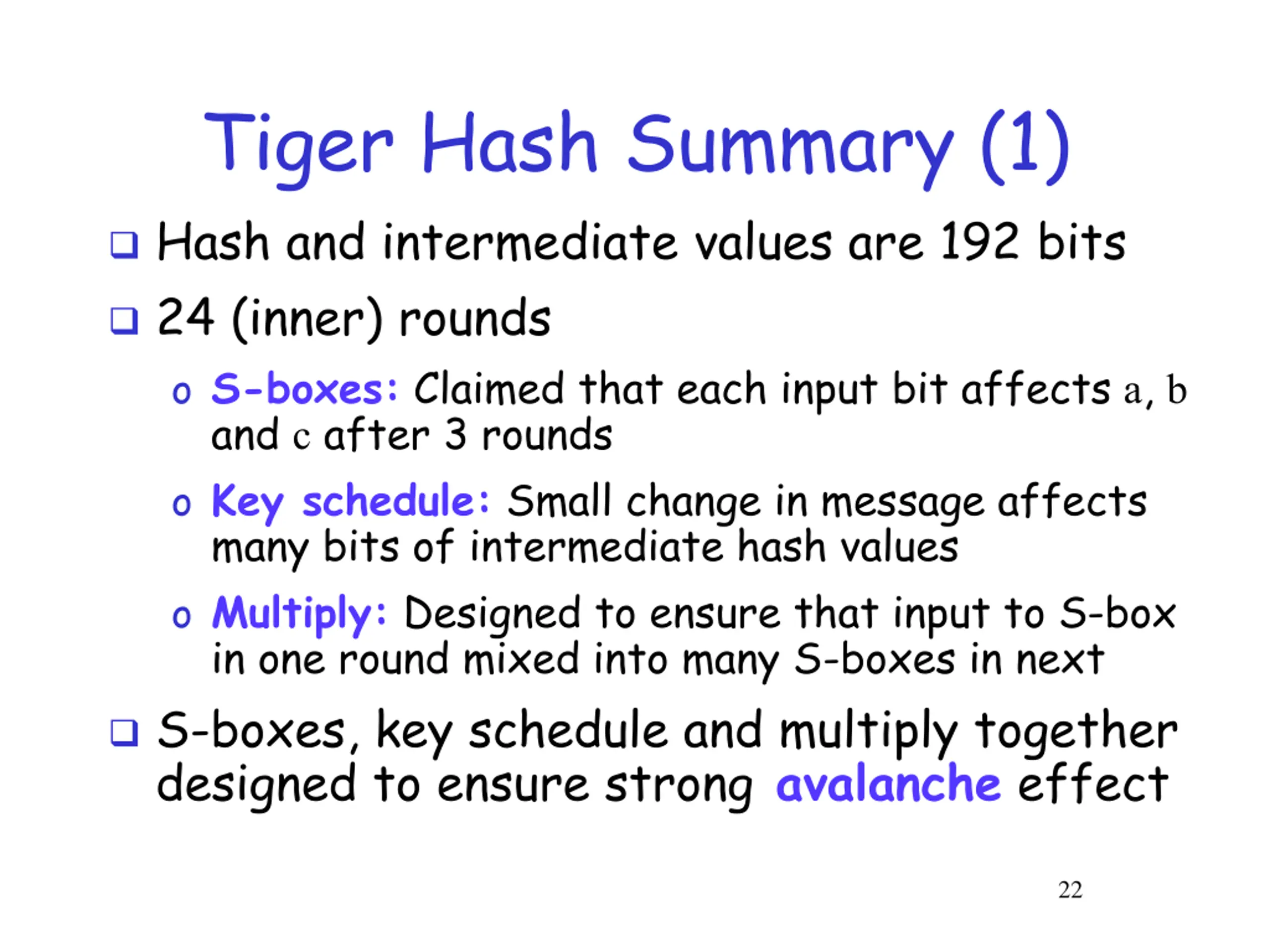

22. Tiger Hash Summary (1) Hash and intermediate values are 192 bits 24 (inner) rounds o S-boxes: Claimed that each input bit affects a, b and c after 3 rounds o Key schedule: Small change in message affects many bits of intermediate hash values o Multiply: Designed to ensure that input to S-box in one round mixed into many S-boxes in next S-boxes, key schedule and multiply together designed to ensure strong avalanche effect 22

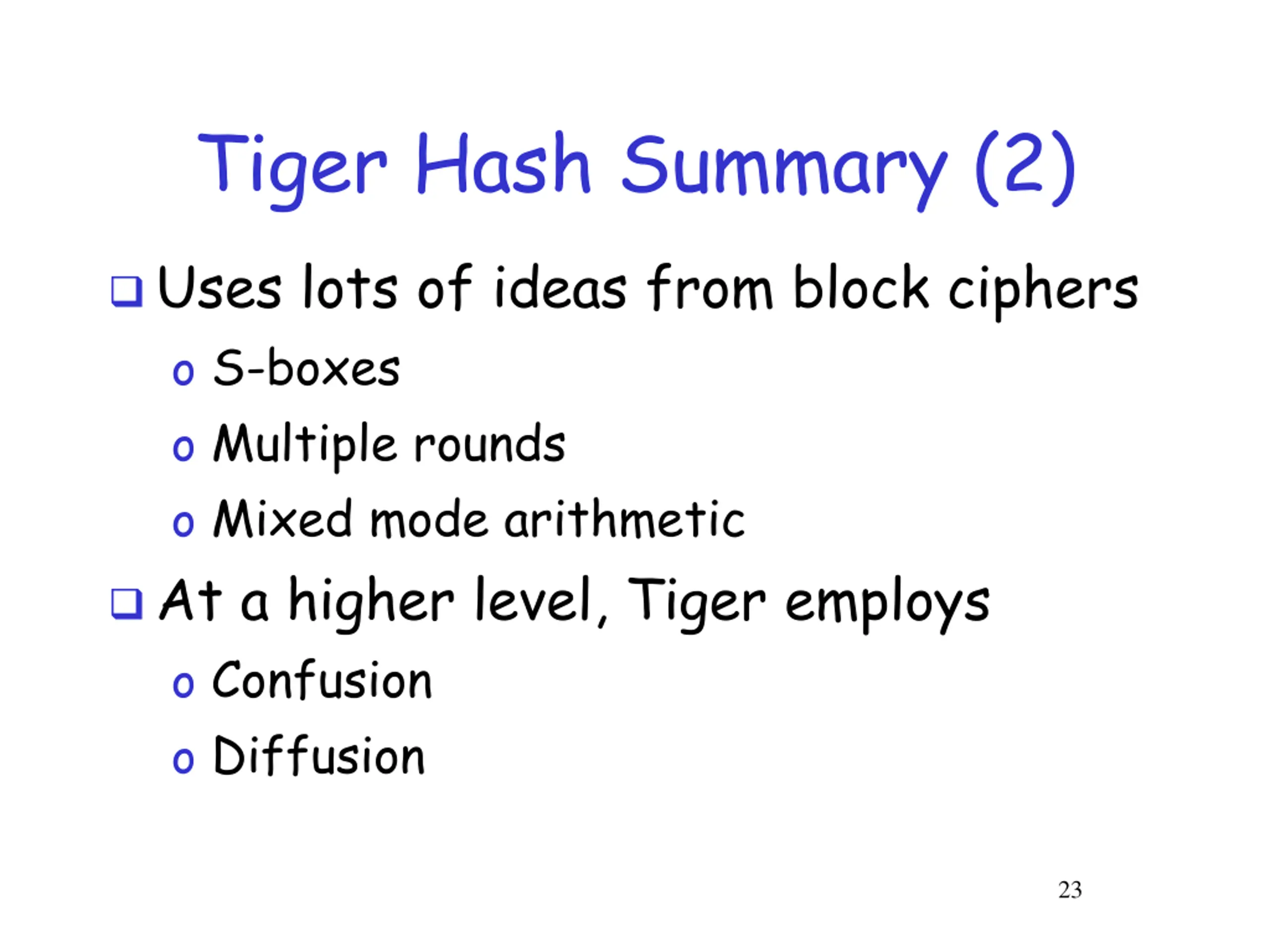

23. Tiger Hash Summary (2) Uses lots of ideas from block ciphers o S-boxes o Multiple rounds o Mixed mode arithmetic At a higher level, Tiger employs o Confusion o Diffusion 23

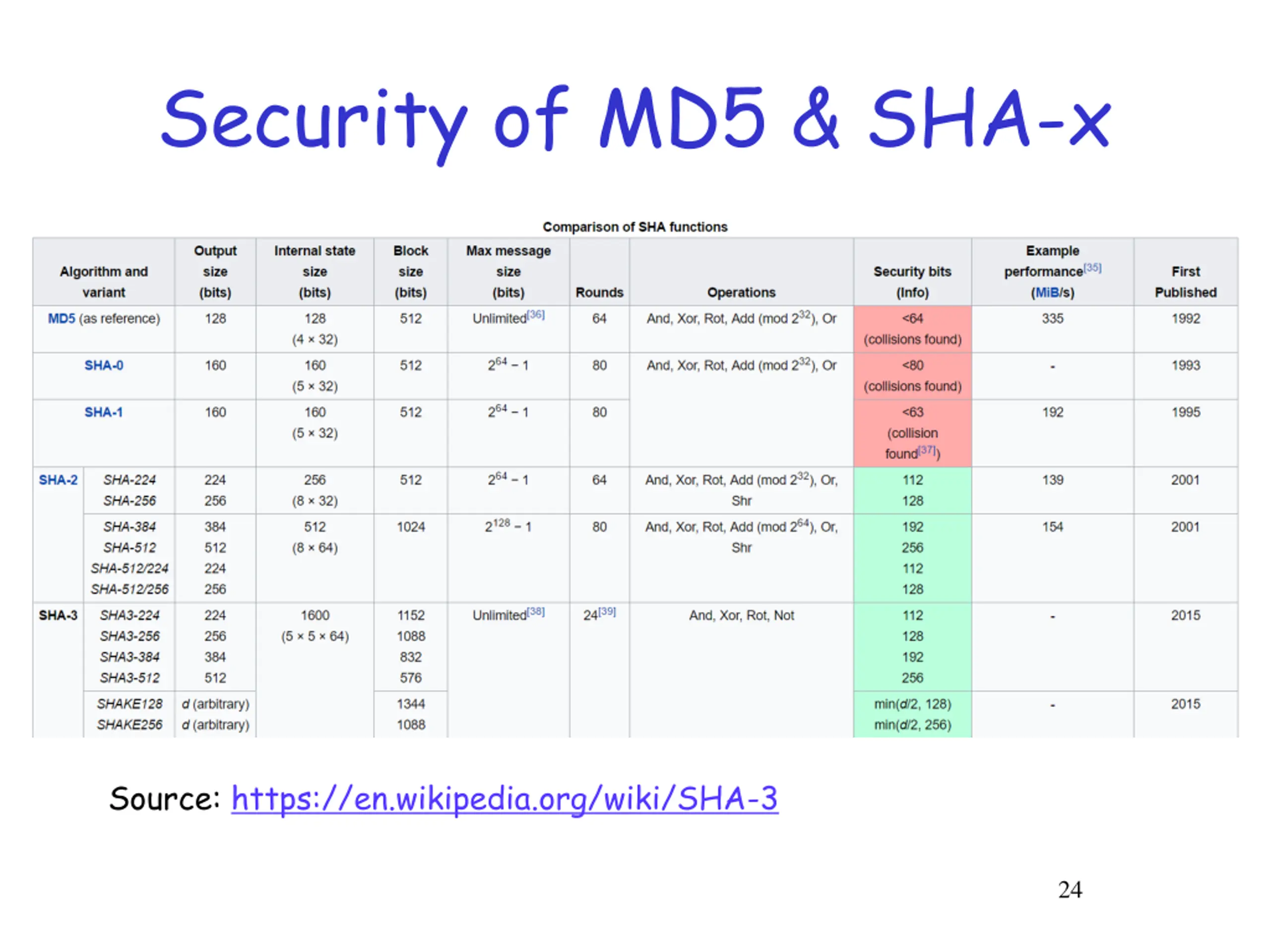

24. Security of MD5 & SHA-x Source: https://en.wikipedia.org/wiki/SHA-3 24

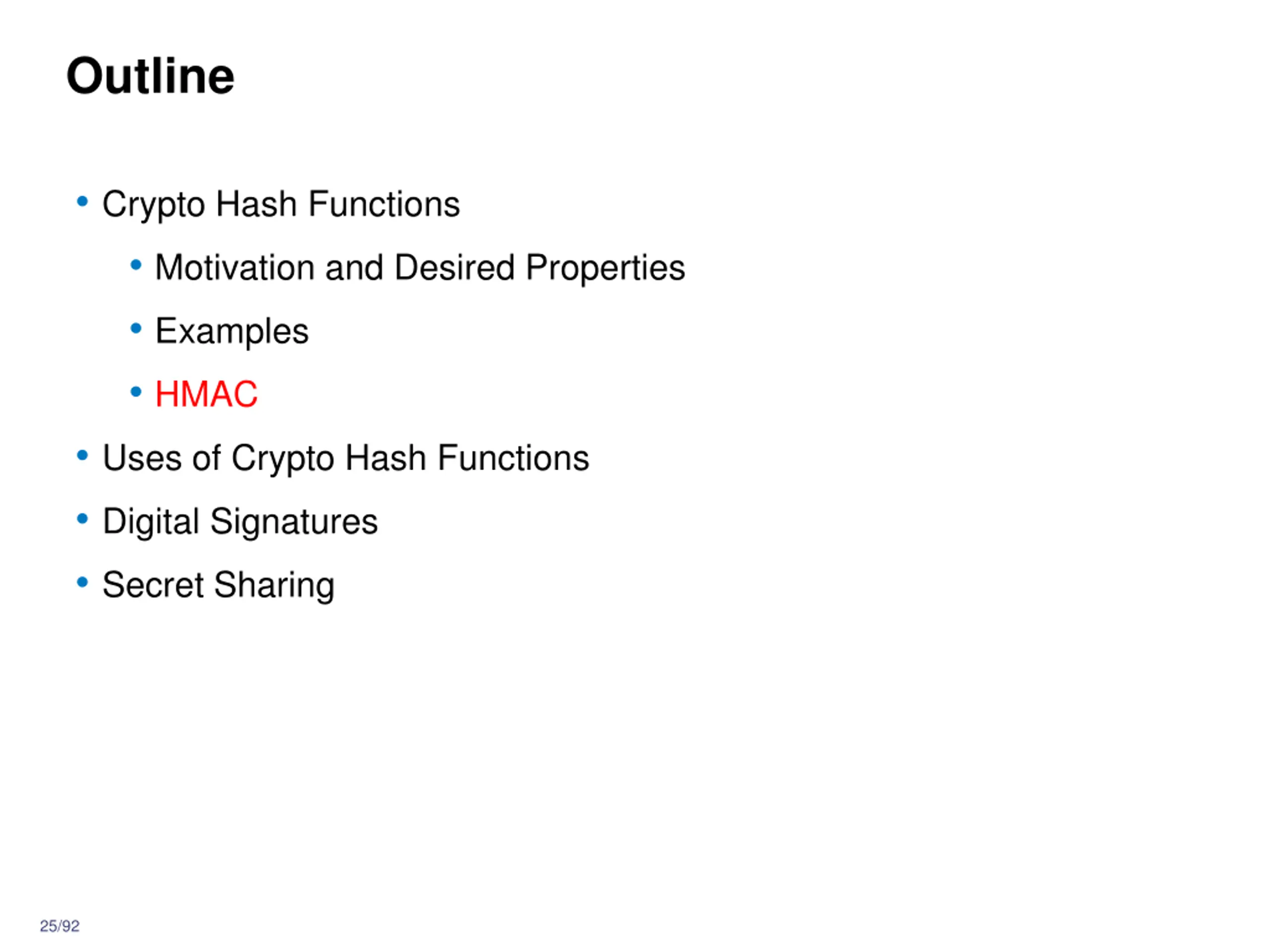

25. Outline Crypto Hash Functions Motivation and Desired Properties Examples HMAC Uses of Crypto Hash Functions Digital Signatures Secret Sharing 25/92

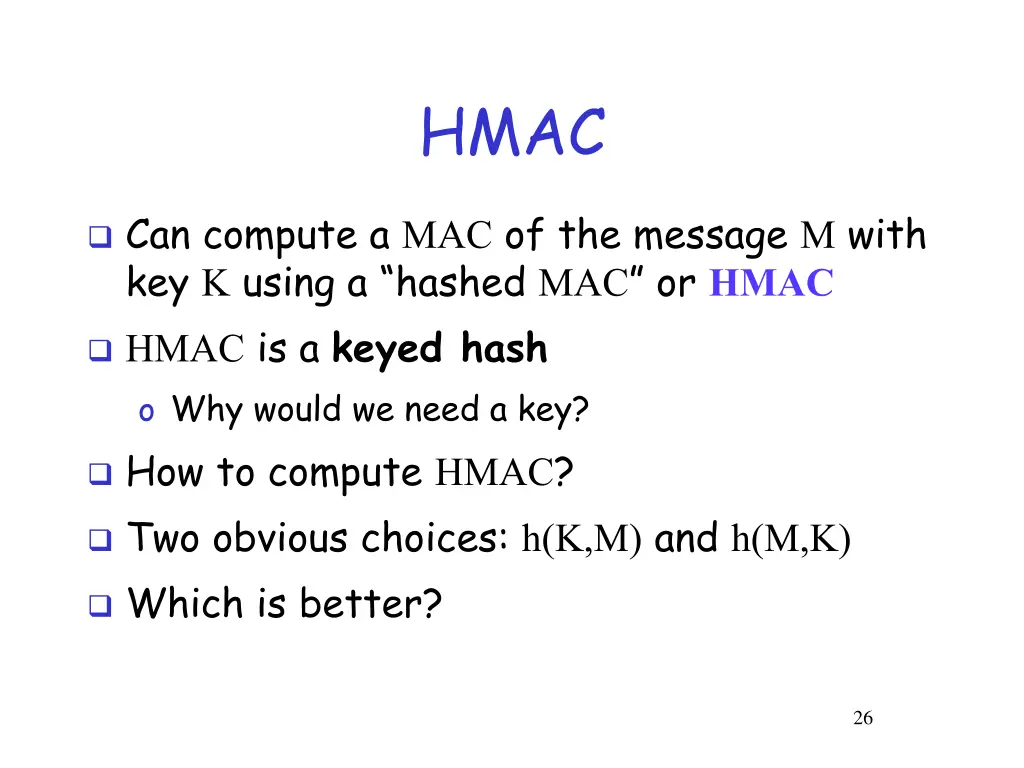

26. HMAC Can compute a MAC of the message M with key Kusing a hashed MAC or HMAC HMAC is a keyed hash o Why would we need a key? How to compute HMAC? Two obvious choices: h(K,M) and h(M,K) Which is better? 26

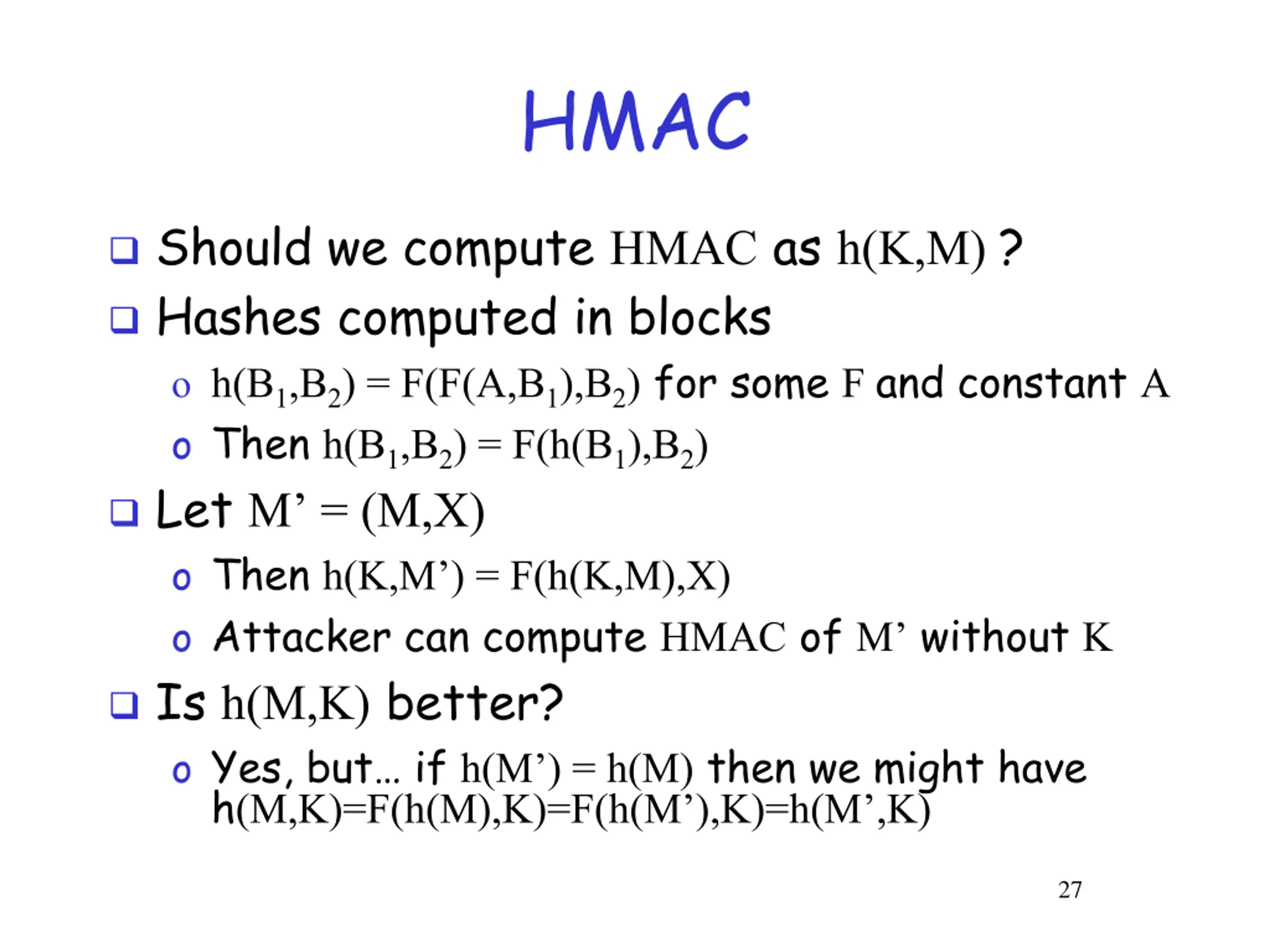

27. HMAC Should we compute HMAC as h(K,M) ? Hashes computed in blocks o h(B1,B2) = F(F(A,B1),B2) for some F and constant A o Then h(B1,B2) = F(h(B1),B2) Let M = (M,X) o Then h(K,M ) = F(h(K,M),X) o Attacker can compute HMAC of M without K Is h(M,K) better? o Yes, but if h(M ) = h(M) then we might have h(M,K)=F(h(M),K)=F(h(M ),K)=h(M ,K) 27

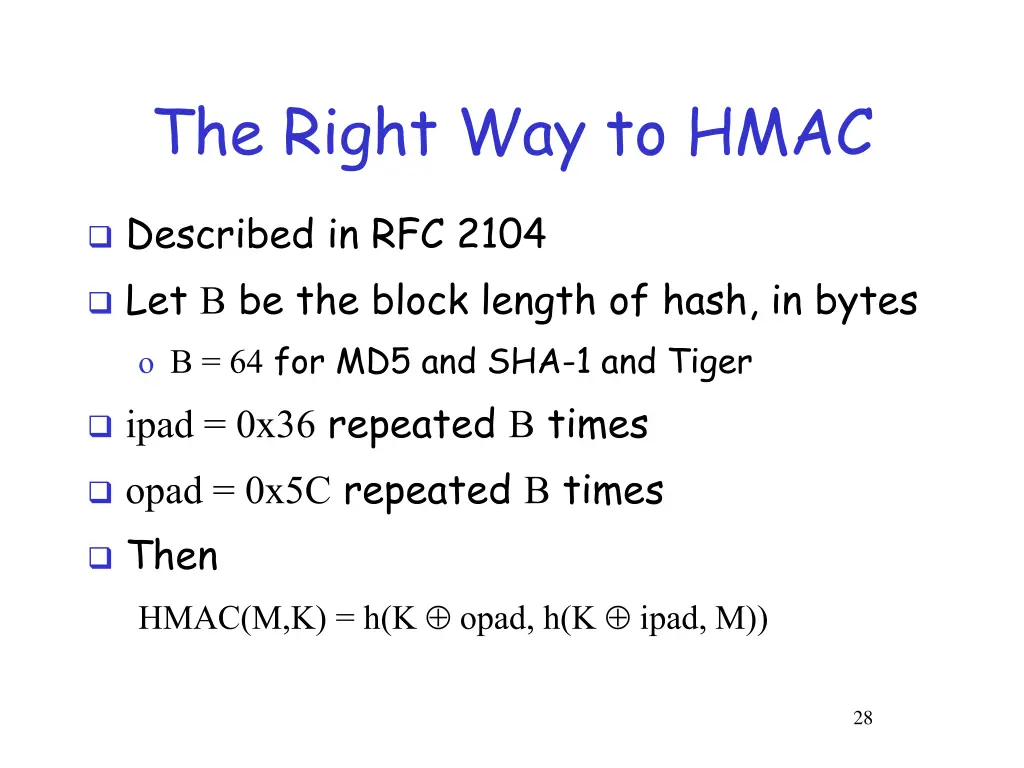

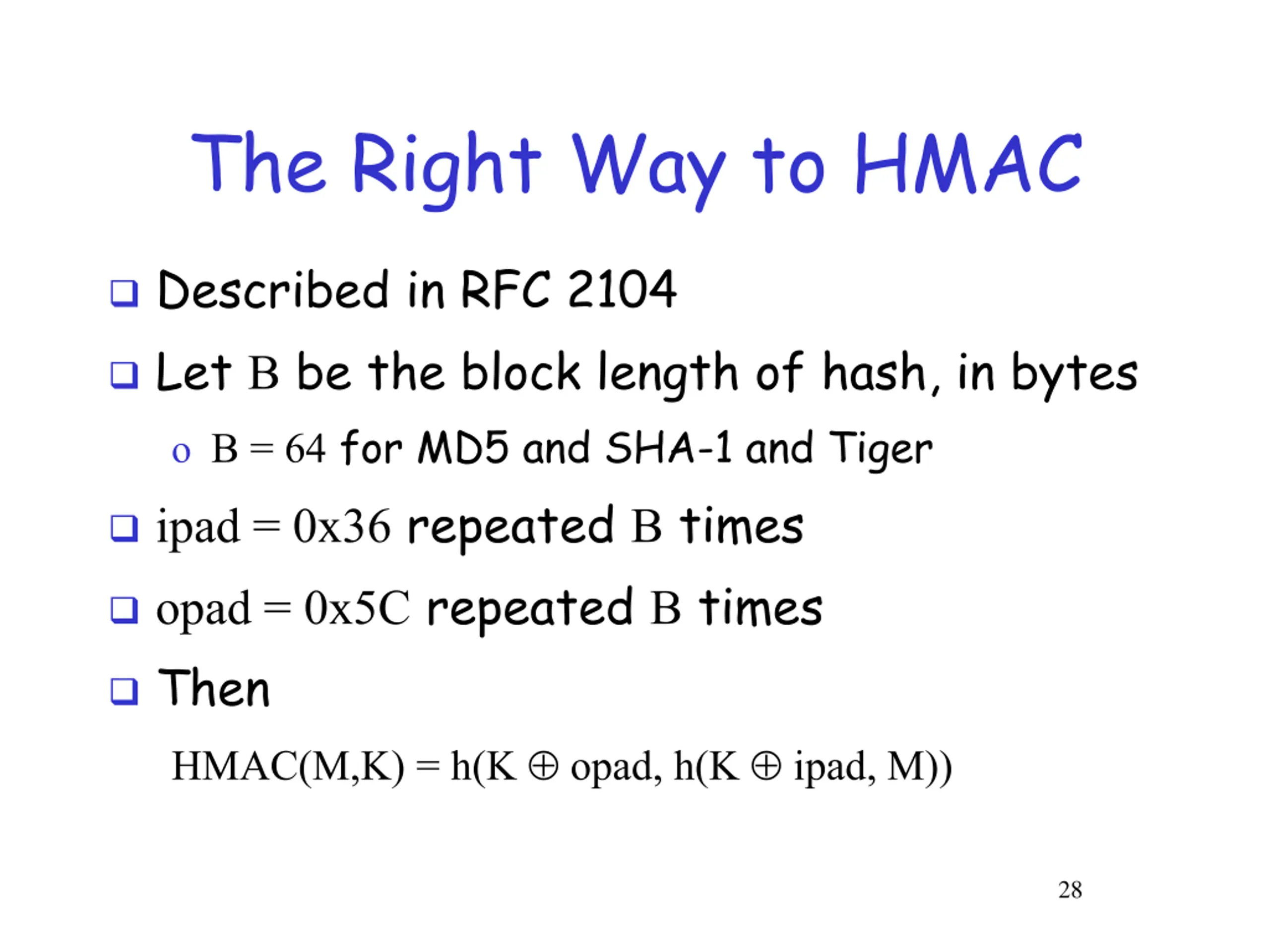

28. The Right Way to HMAC Described in RFC 2104 Let B be the block length of hash, in bytes o B = 64 for MD5 and SHA-1 and Tiger ipad = 0x36 repeated B times opad = 0x5C repeated B times Then HMAC(M,K) = h(K opad, h(K ipad, M)) 28

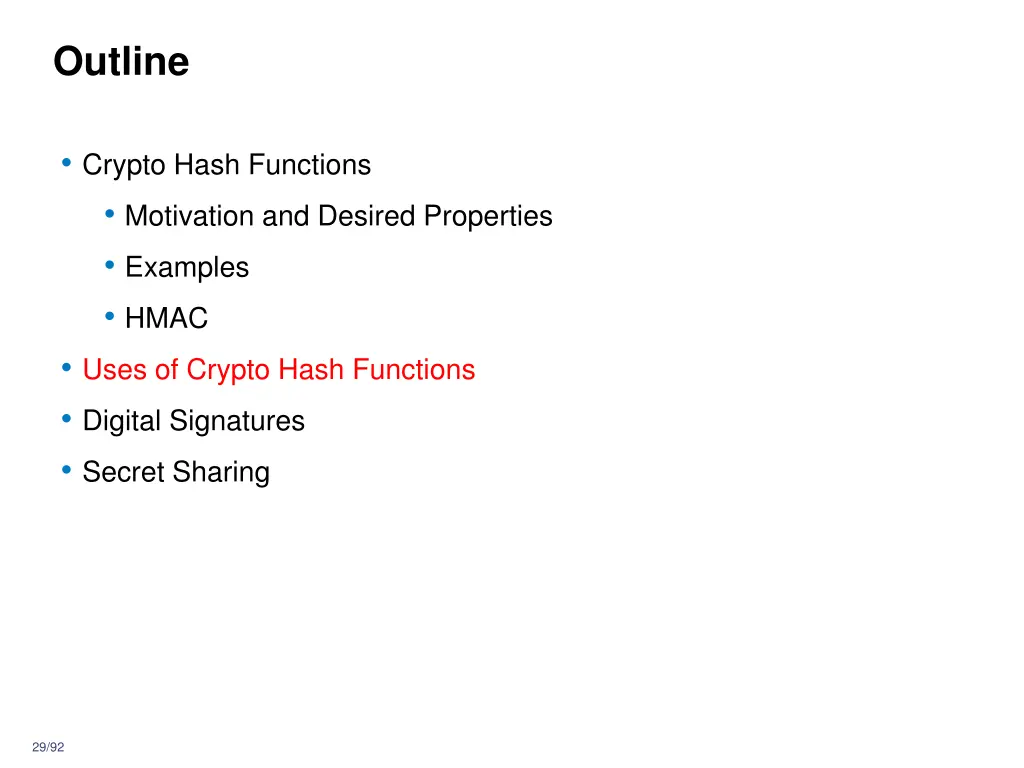

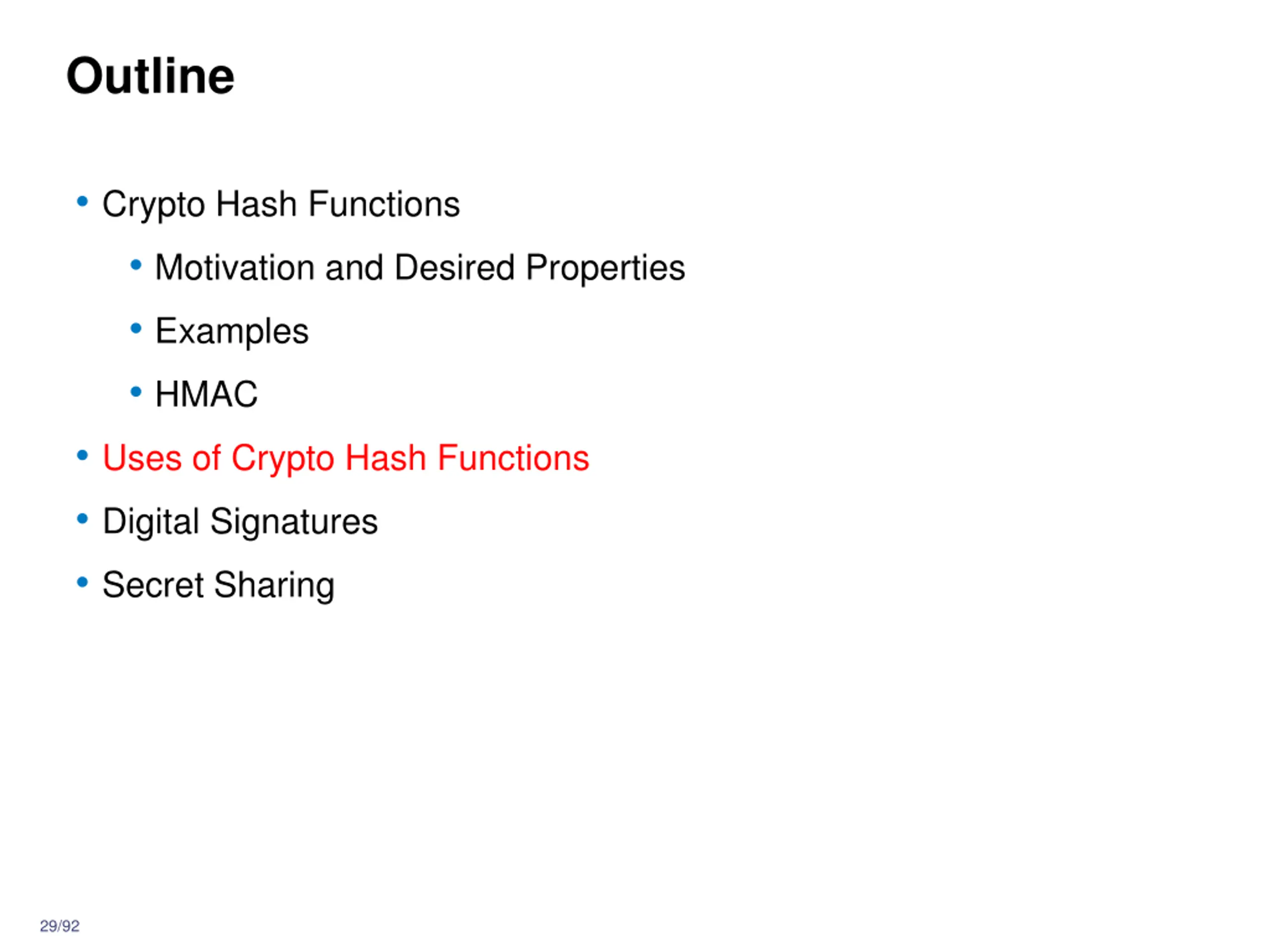

29. Outline Crypto Hash Functions Motivation and Desired Properties Examples HMAC Uses of Crypto Hash Functions Digital Signatures Secret Sharing 29/92

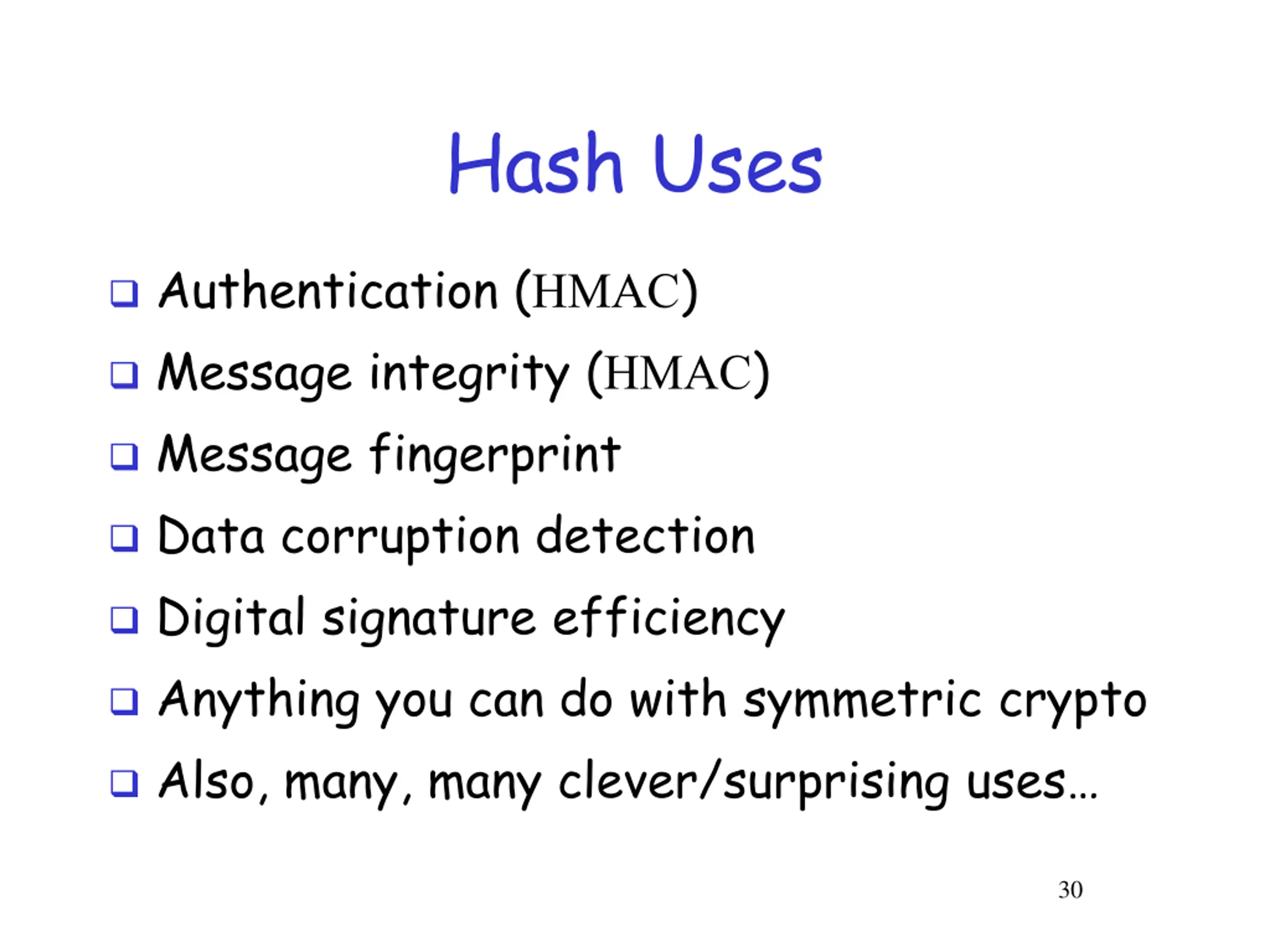

30. Hash Uses Authentication (HMAC) Message integrity (HMAC) Message fingerprint Data corruption detection Digital signature efficiency Anything you can do with symmetric crypto Also, many, many clever/surprising uses 30

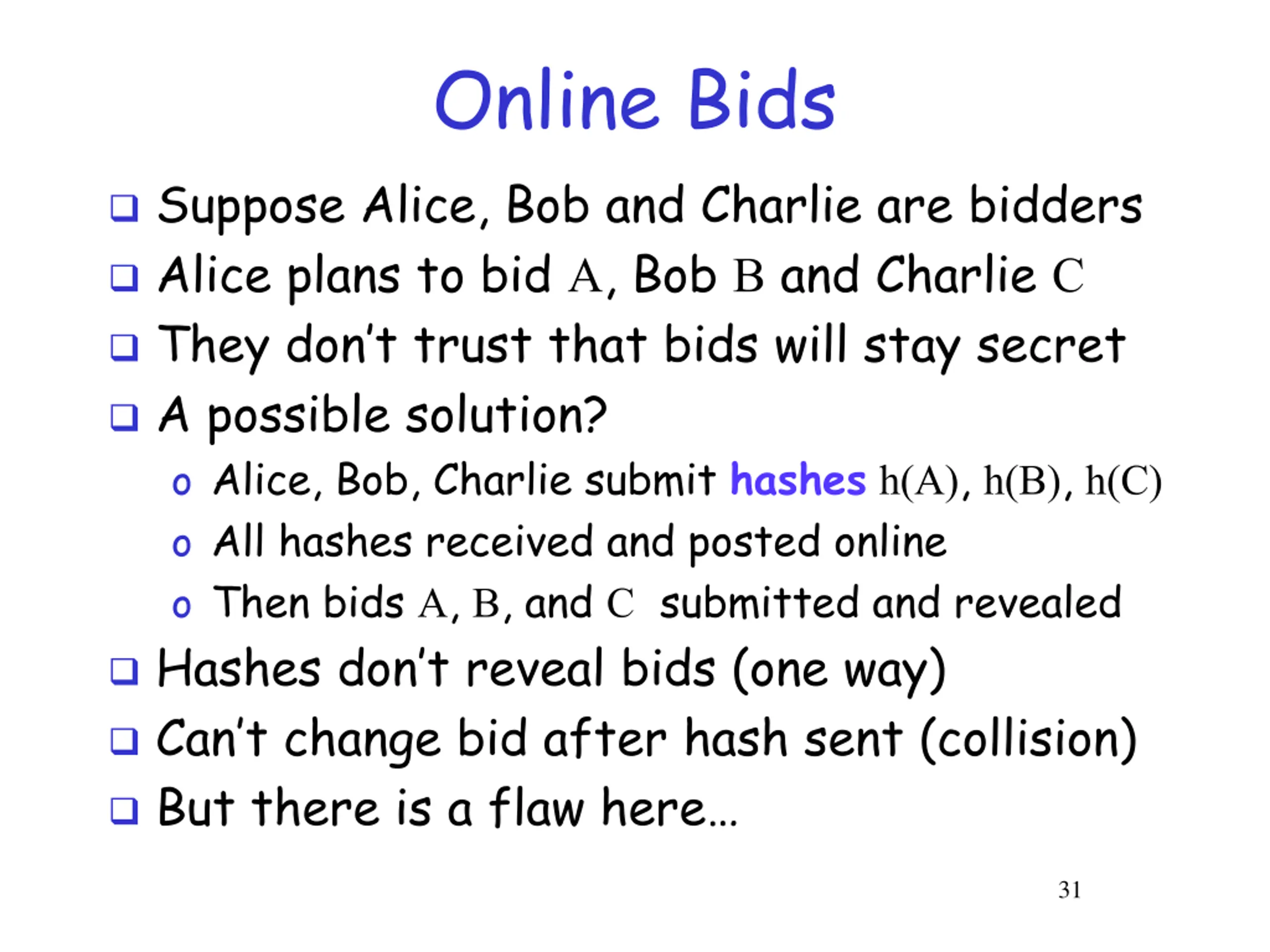

31. Online Bids Suppose Alice, Bob and Charlie are bidders Alice plans to bid A, Bob B and Charlie C They don t trust that bids will stay secret A possible solution? o Alice, Bob, Charlie submit hashesh(A), h(B), h(C) o All hashes received and posted online o Then bids A, B, and C submitted and revealed Hashes don t reveal bids (one way) Can t change bid after hash sent (collision) But there is a flaw here 31

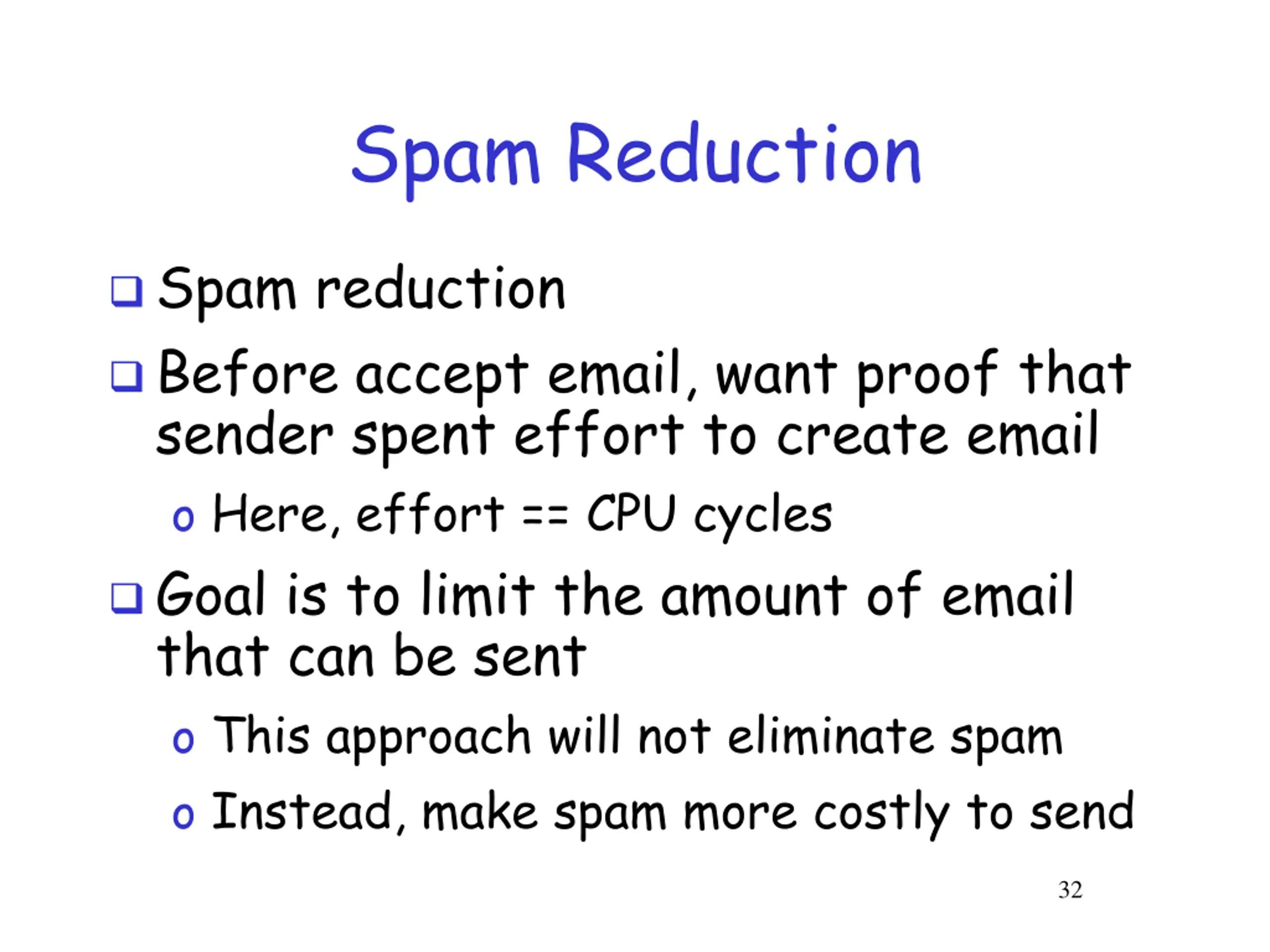

32. Spam Reduction Spam reduction Before accept email, want proof that sender spent effort to create email o Here, effort == CPU cycles Goal is to limit the amount of email that can be sent o This approach will not eliminate spam o Instead, make spam more costly to send 32

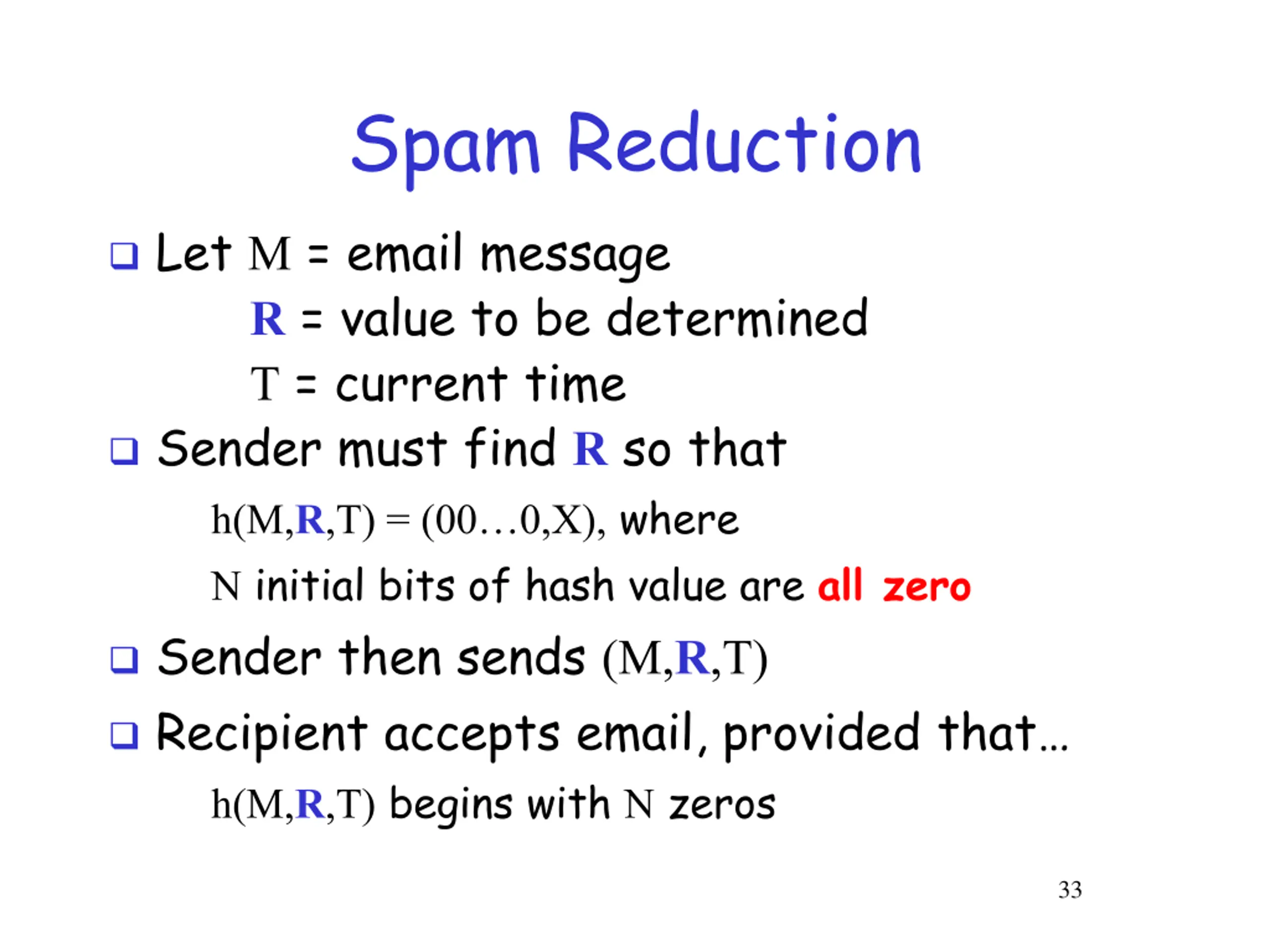

33. Spam Reduction Let M = email message R = value to be determined T = current time Sender must find R so that h(M,R,T) = (00 0,X), where N initial bits of hash value are all zero Sender then sends (M,R,T) Recipient accepts email, provided that h(M,R,T) begins with N zeros 33

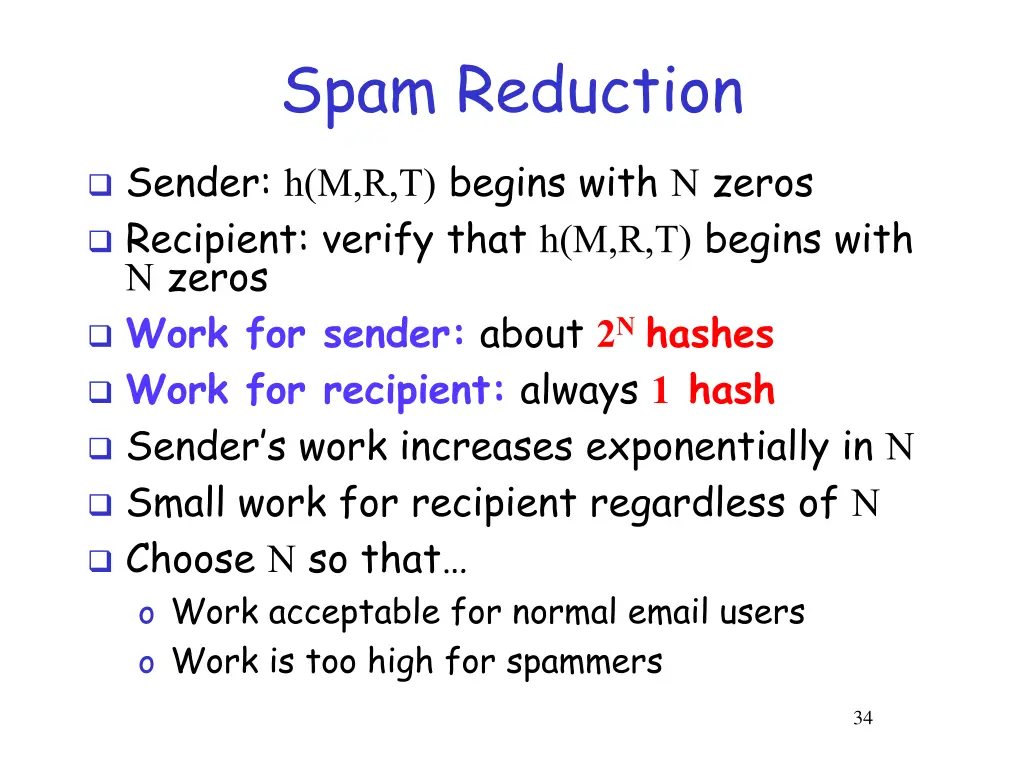

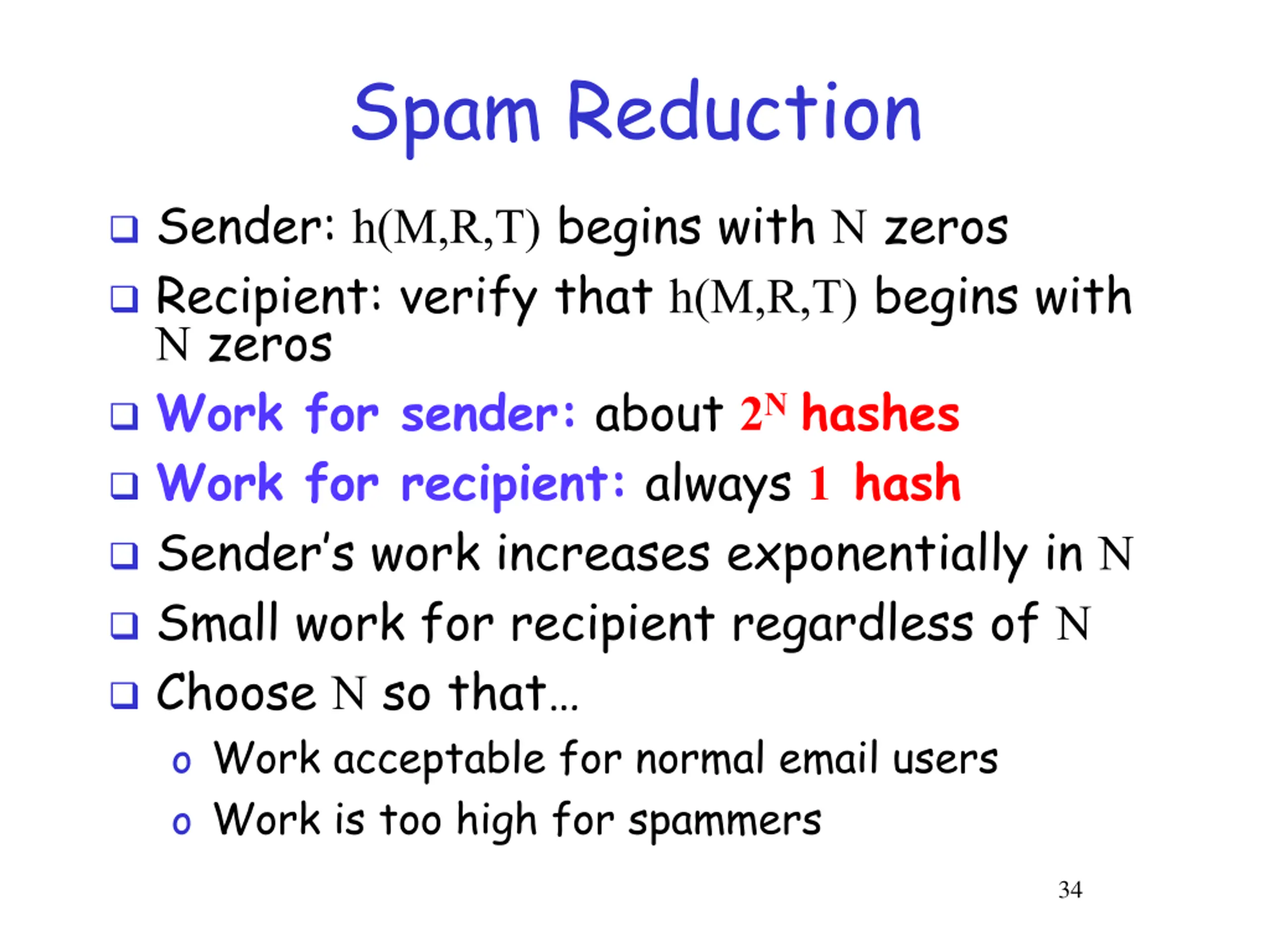

34. Spam Reduction Sender: h(M,R,T) begins with N zeros Recipient: verify that h(M,R,T) begins with N zeros Work for sender: about 2Nhashes Work for recipient: always 1 hash Sender s work increases exponentially in N Small work for recipient regardless of N Choose N so that o Work acceptable for normal email users o Work is too high for spammers 34

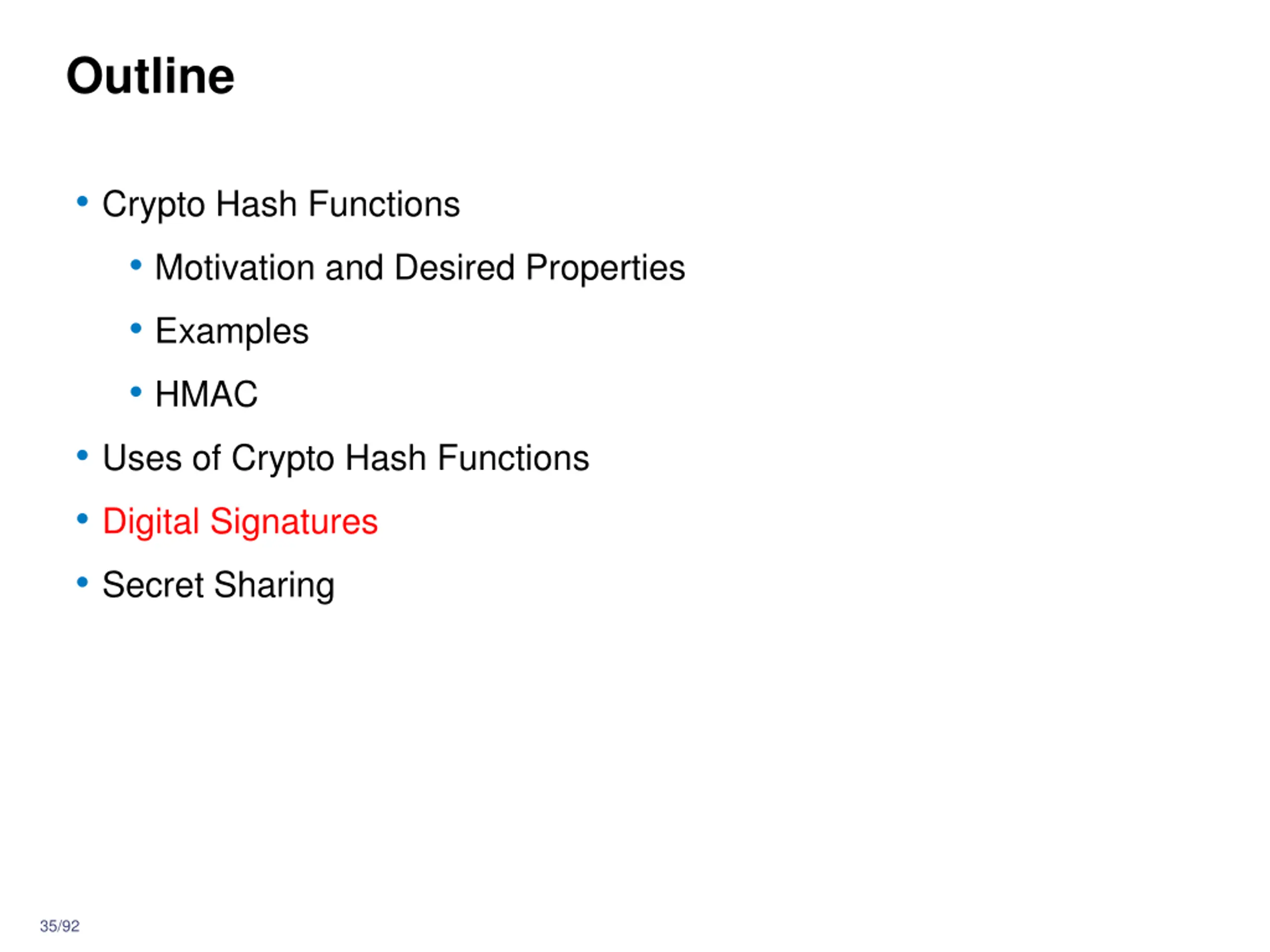

35. Outline Crypto Hash Functions Motivation and Desired Properties Examples HMAC Uses of Crypto Hash Functions Digital Signatures Secret Sharing 35/92

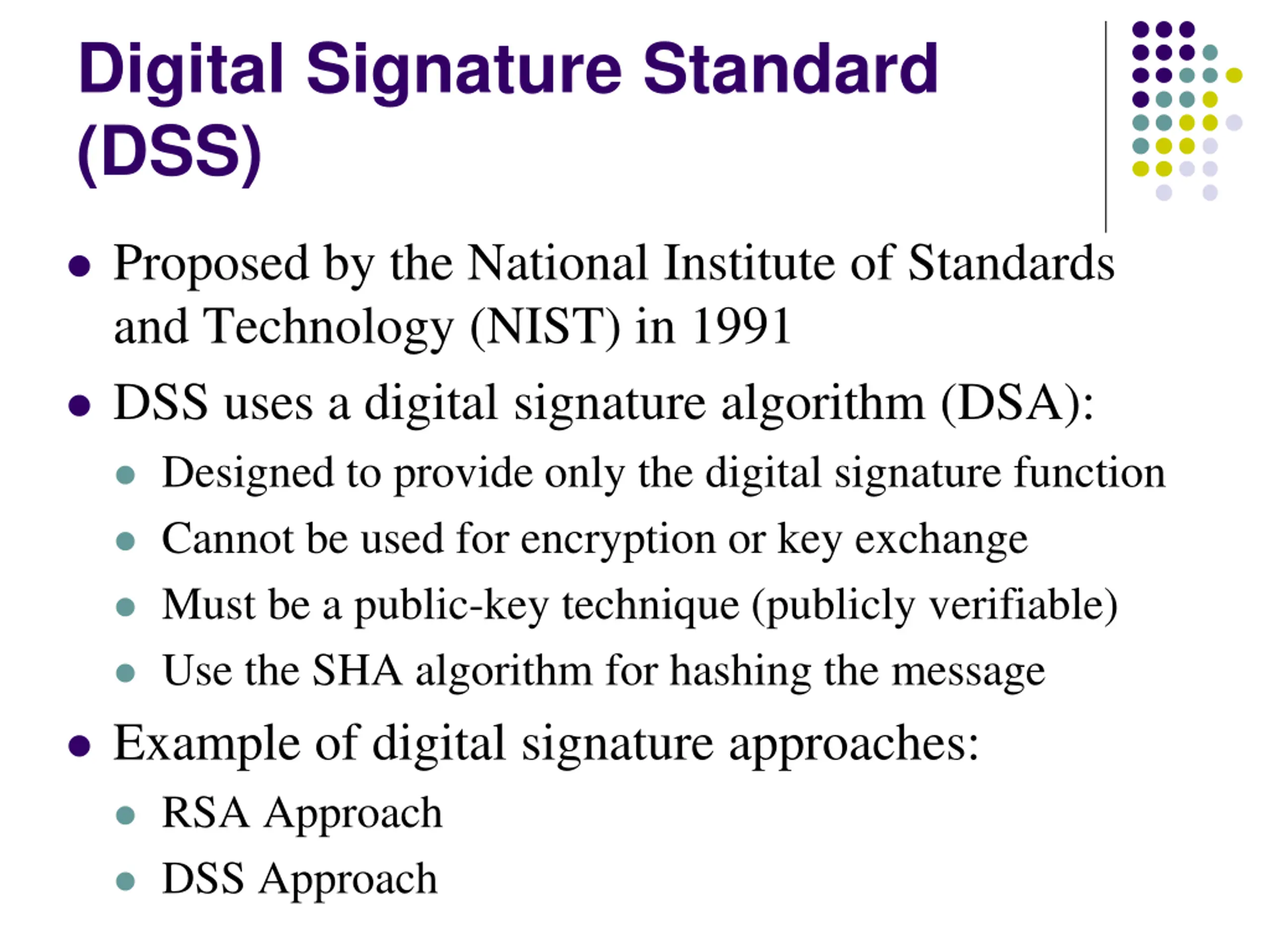

36. Digital Signature Standard (DSS) Proposed by the National Institute of Standards and Technology (NIST) in 1991 DSS uses a digital signature algorithm (DSA): Designed to provide only the digital signature function Cannot be used for encryption or key exchange Must be a public-key technique (publicly verifiable) Use the SHA algorithm for hashing the message Example of digital signature approaches: RSA Approach DSS Approach

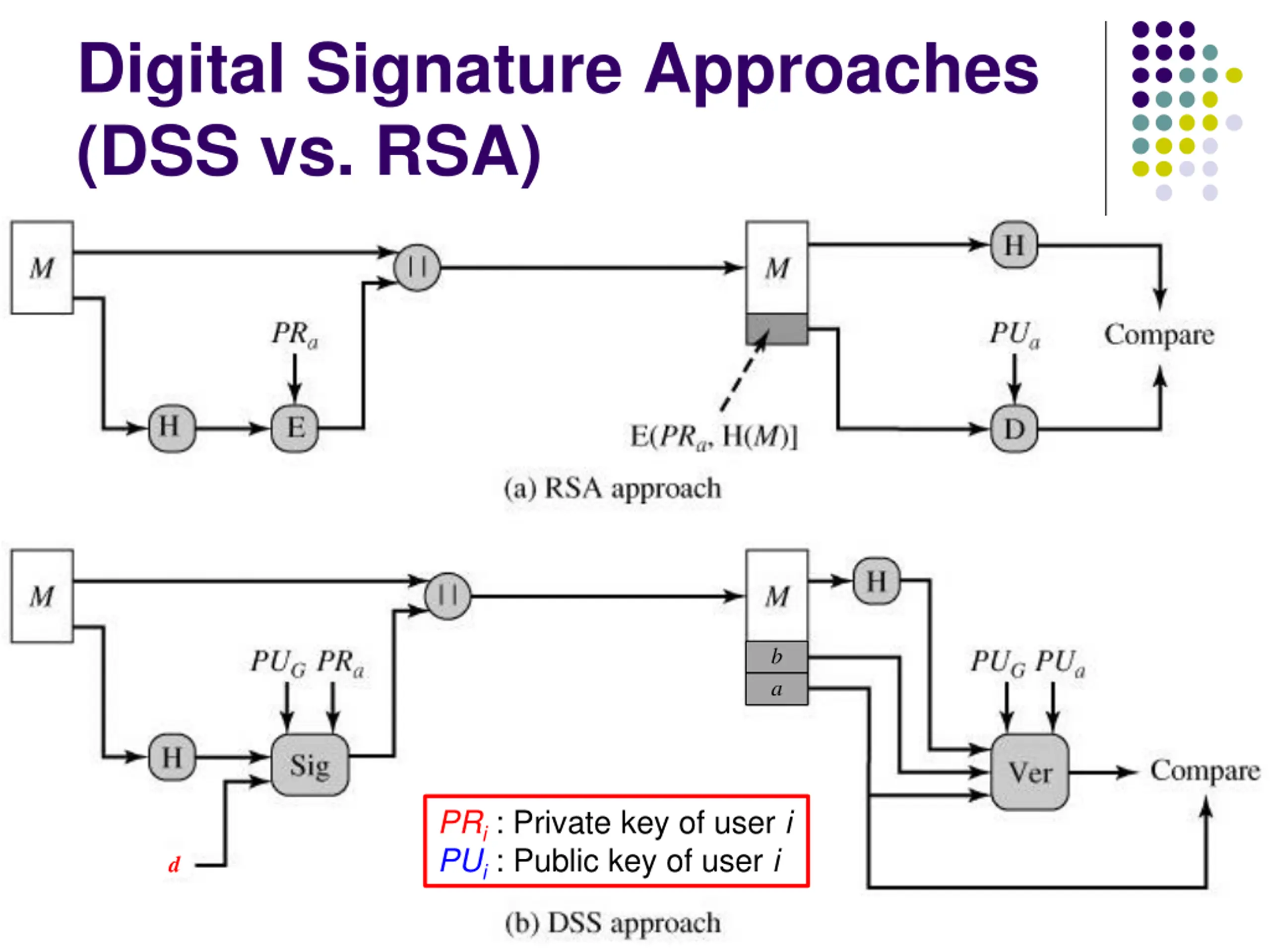

37. Digital Signature Approaches (DSS vs. RSA) b a PRi : Private key of user i PUi : Public key of user i d

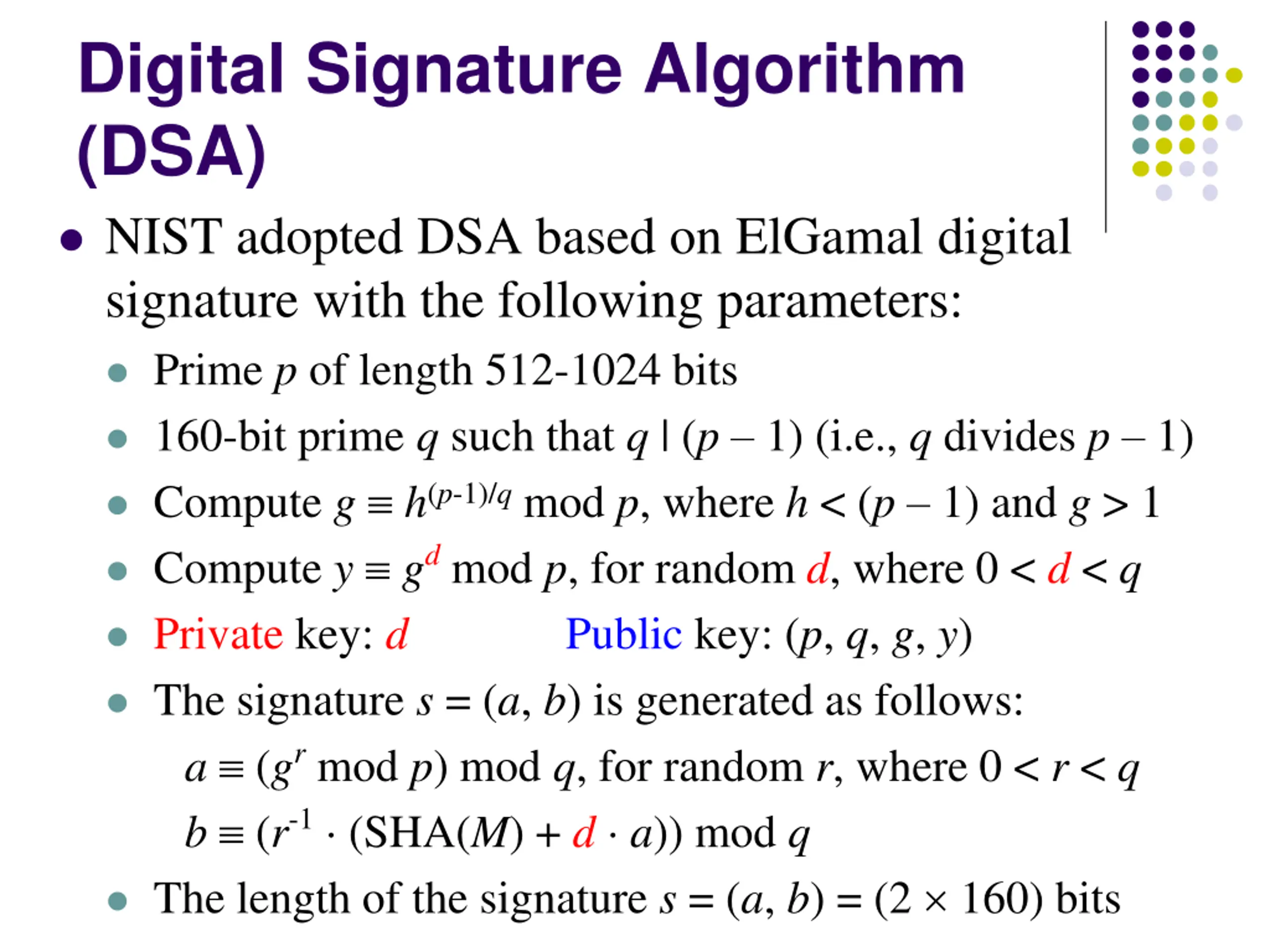

38. Digital Signature Algorithm (DSA) NIST adopted DSA based on ElGamal digital signature with the following parameters: Prime p of length 512-1024 bits 160-bit prime q such that q | (p 1) (i.e., q divides p 1) Compute g h(p-1)/q mod p, where h < (p 1) and g > 1 Compute y gd mod p, for random d, where 0 < d < q Private key: d Public key: (p, q, g, y) The signature s = (a, b) is generated as follows: a (gr mod p) mod q, for random r, where 0 < r < q b (r-1 (SHA(M) + d a)) mod q The length of the signature s = (a, b) = (2 160) bits

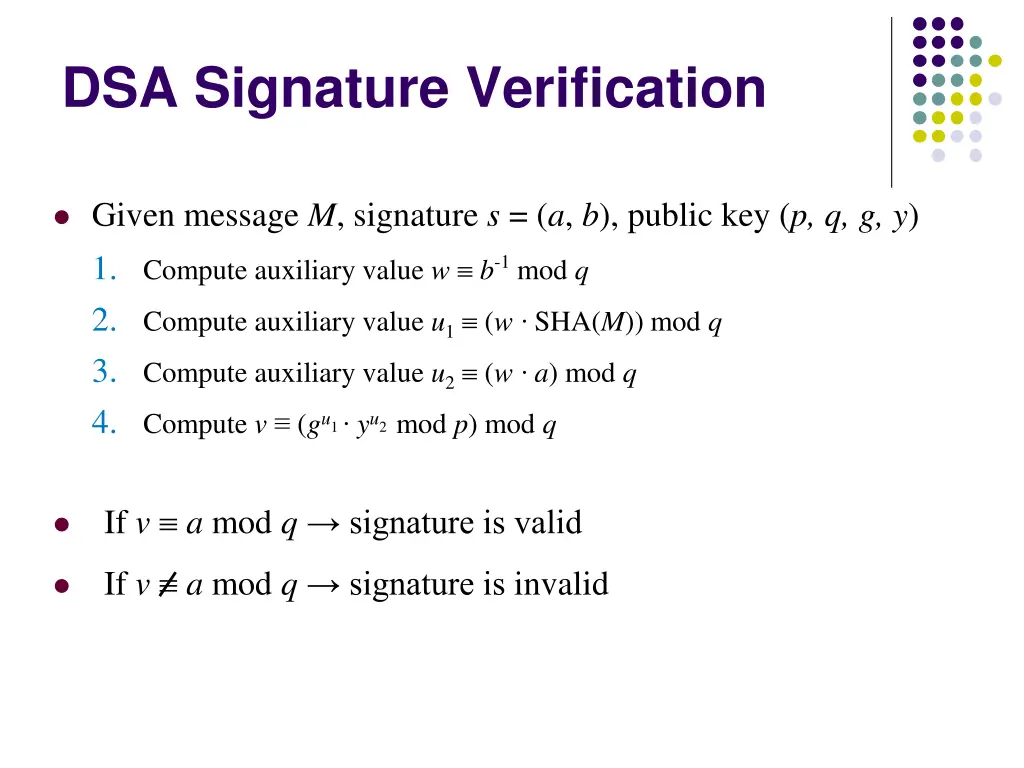

39. DSA Signature Verification Given message M, signature s = (a, b), public key (p, q, g, y) 1. Compute auxiliary value w b-1 mod q 2. Compute auxiliary value u1 (w SHA(M))mod q 3. Compute auxiliary value u2 (w a) mod q 4. Compute v (gu1 yu2mod p) mod q If v a mod q signature is valid If v a mod q signature is invalid

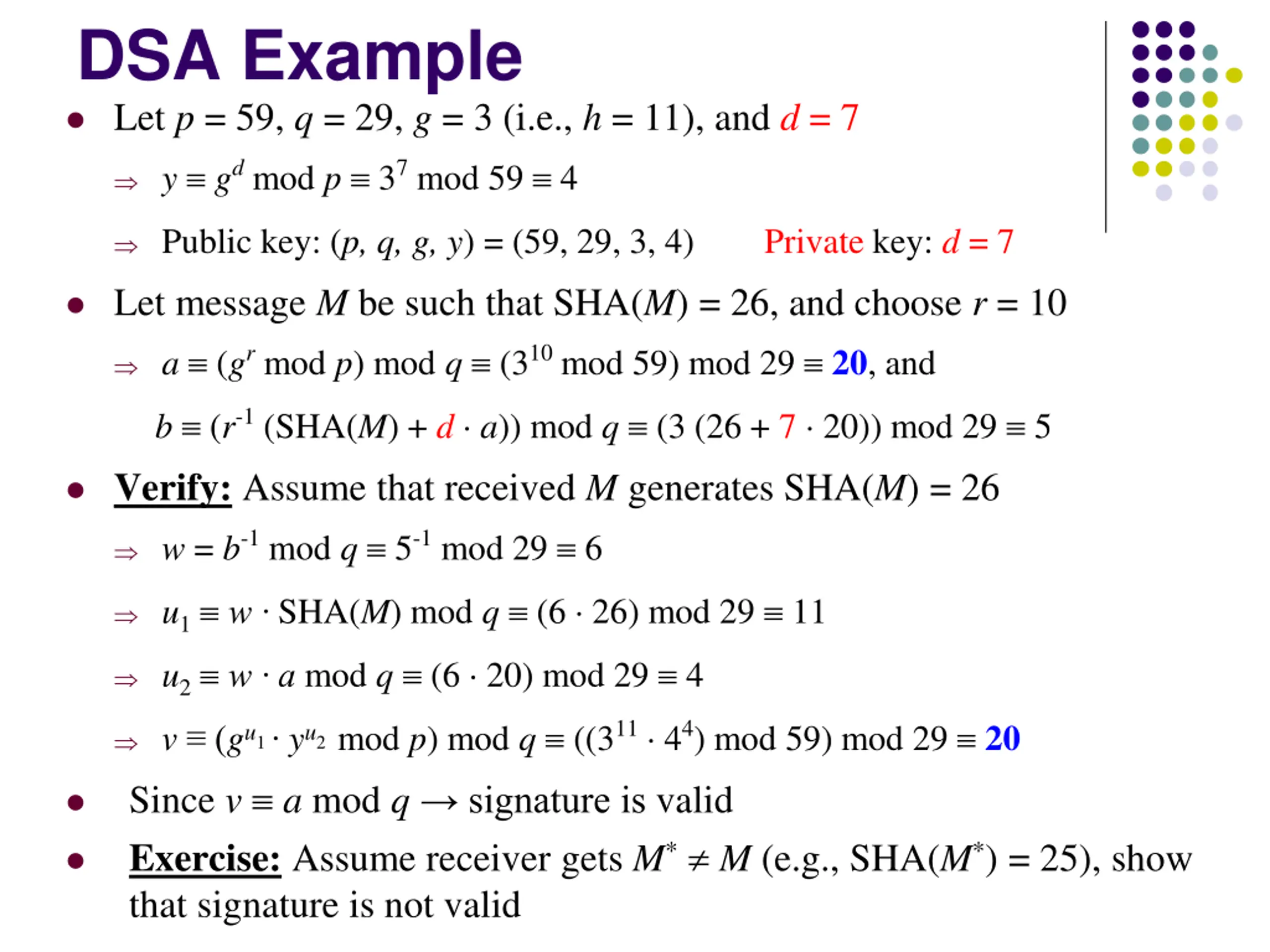

40. DSA Example Let p = 59, q = 29, g = 3 (i.e., h = 11), and d = 7 y gd mod p 37 mod 59 4 Public key: (p, q, g, y) = (59, 29, 3, 4) Private key: d = 7 Let message M be such that SHA(M) = 26, and choose r = 10 a (gr mod p) mod q (310 mod 59) mod 29 20, and b (r-1 (SHA(M) + d a)) mod q (3 (26 + 7 20)) mod 29 5 Verify: Assume that received M generates SHA(M) = 26 w = b-1 mod q 5-1 mod 29 6 u1 w SHA(M)mod q (6 26) mod 29 11 u2 w a mod q (6 20) mod 29 4 v (gu1 yu2mod p) mod q ((311 44) mod 59) mod 29 20 Since v a mod q signature is valid Exercise: Assume receiver gets M* M (e.g., SHA(M*) = 25), show that signature is not valid

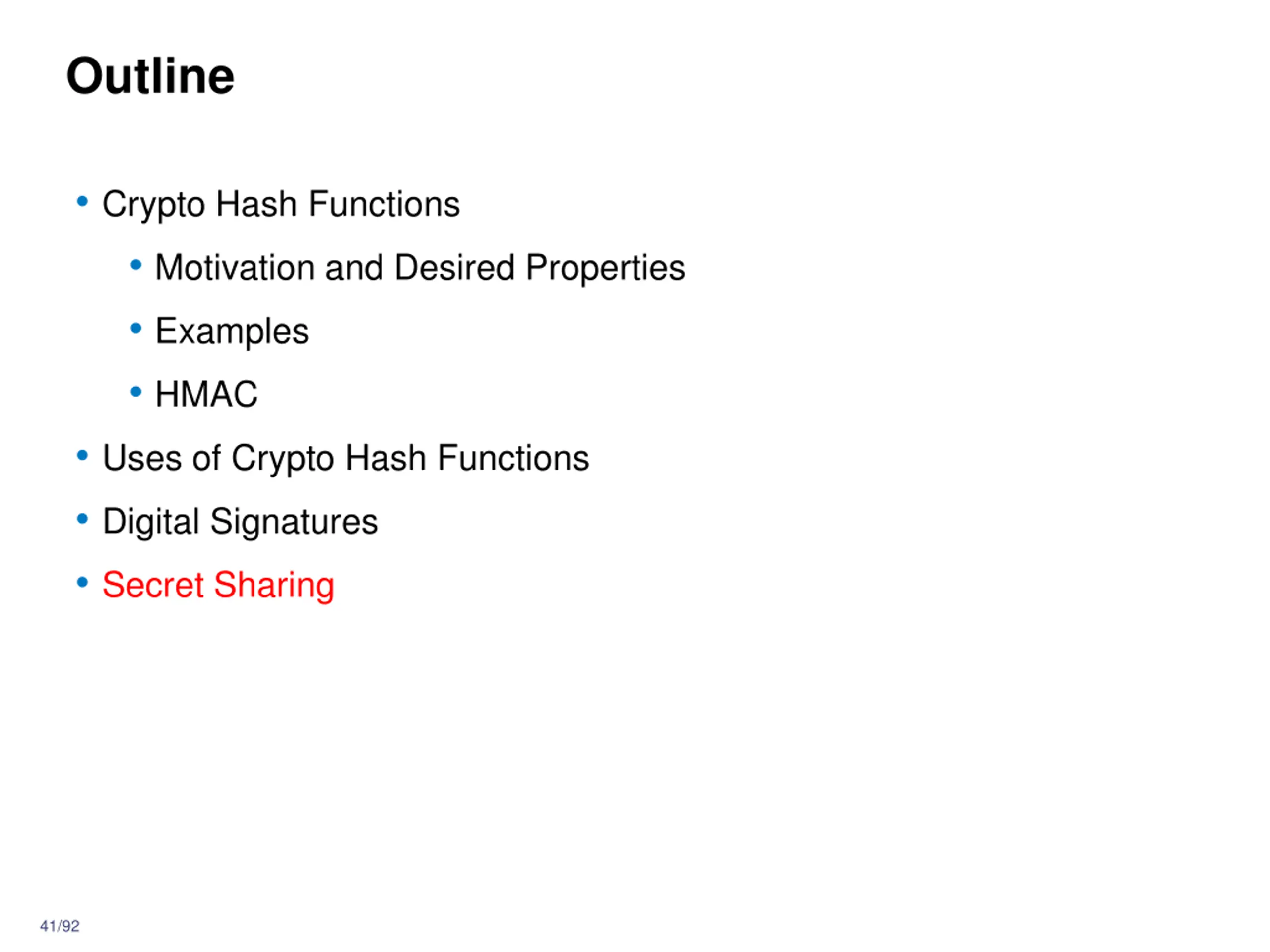

41. Outline Crypto Hash Functions Motivation and Desired Properties Examples HMAC Uses of Crypto Hash Functions Digital Signatures Secret Sharing 41/92

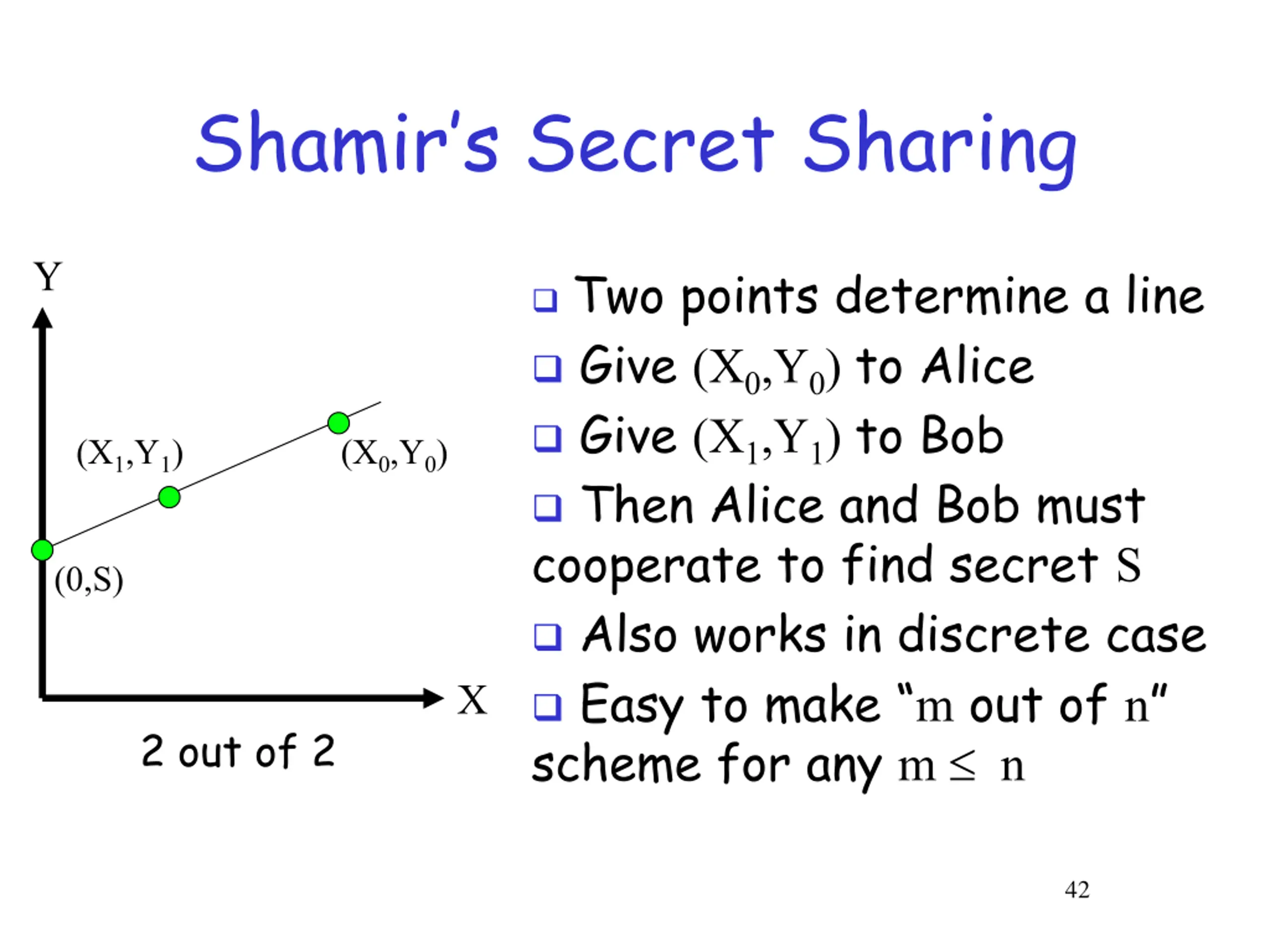

42. Shamirs Secret Sharing Y Two points determine a line Give (X0,Y0) to Alice Give (X1,Y1) to Bob Then Alice and Bob must cooperate to find secret S Also works in discrete case Easy to make m out of n scheme for any m n (X1,Y1) (X0,Y0) (0,S) X 2 out of 2 42

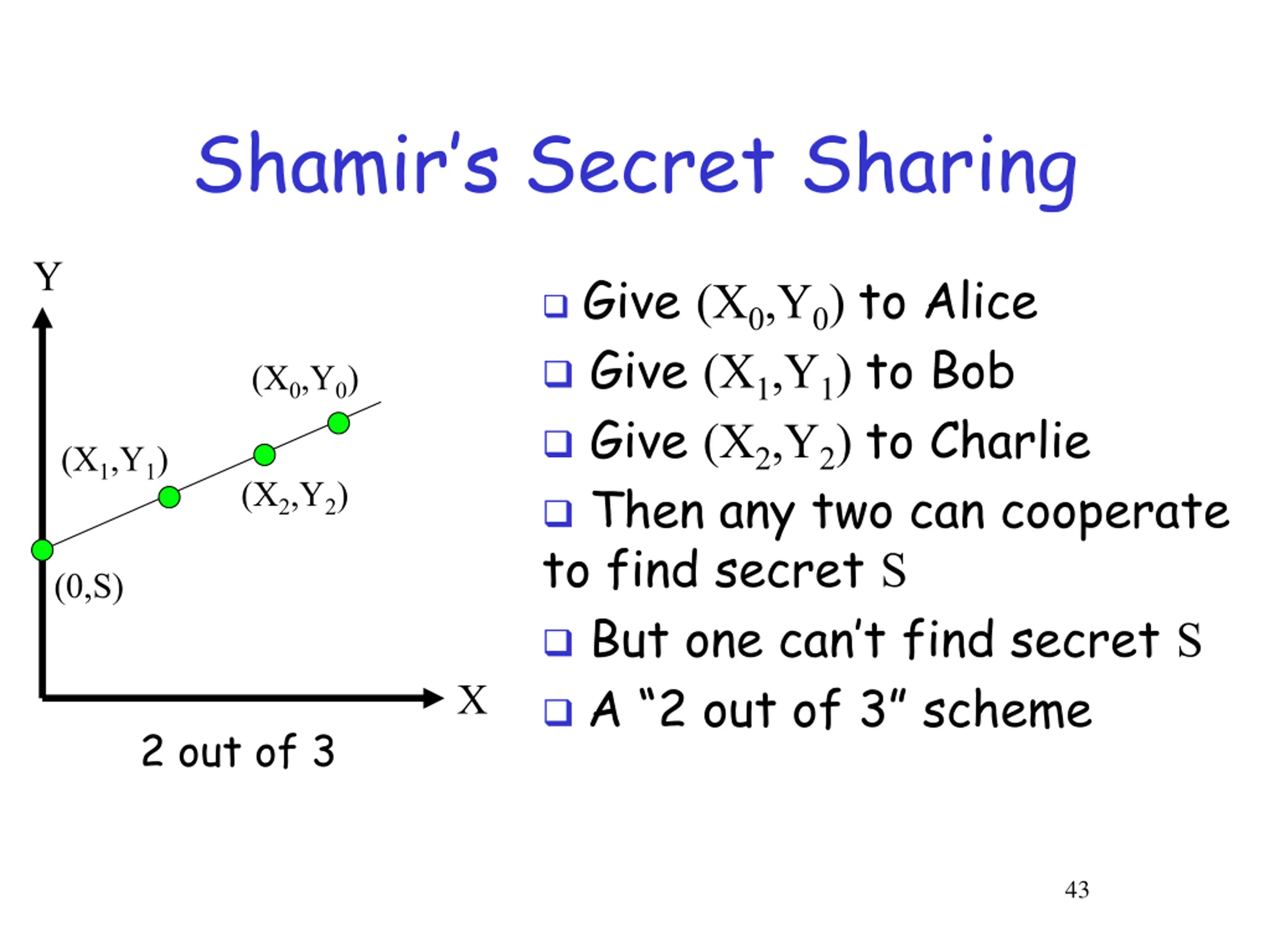

43. Shamirs Secret Sharing Y Give (X0,Y0) to Alice Give (X1,Y1) to Bob Give (X2,Y2) to Charlie Then any two can cooperate to find secret S But one can t find secret S A 2 out of 3 scheme (X0,Y0) (X1,Y1) (X2,Y2) (0,S) X 2 out of 3 43

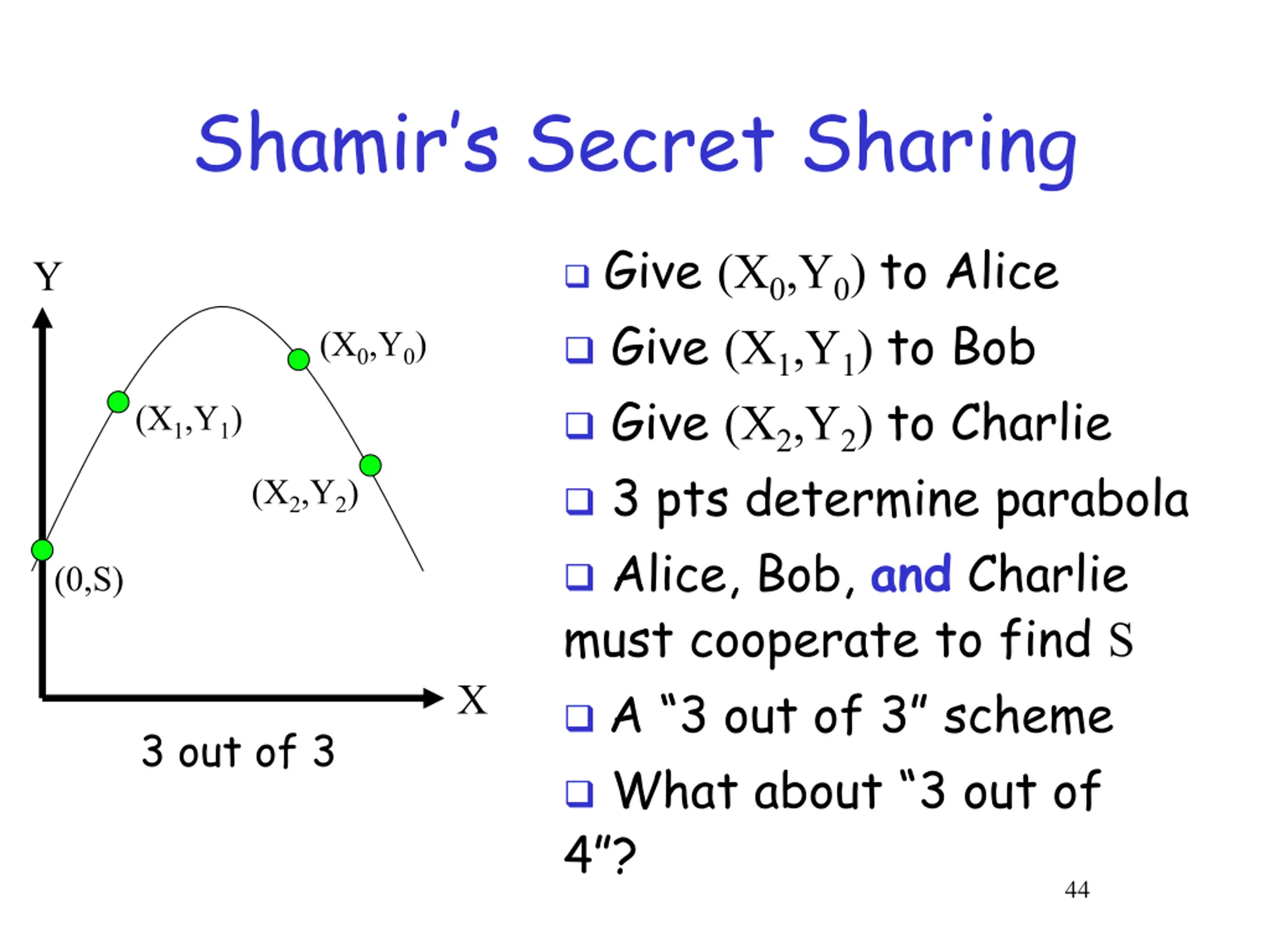

44. Shamirs Secret Sharing Give (X0,Y0) to Alice Give (X1,Y1) to Bob Give (X2,Y2) to Charlie 3 pts determine parabola Alice, Bob, and Charlie must cooperate to find S A 3 out of 3 scheme What about 3 out of 4 ? Y (X0,Y0) (X1,Y1) (X2,Y2) (0,S) X 3 out of 3 44

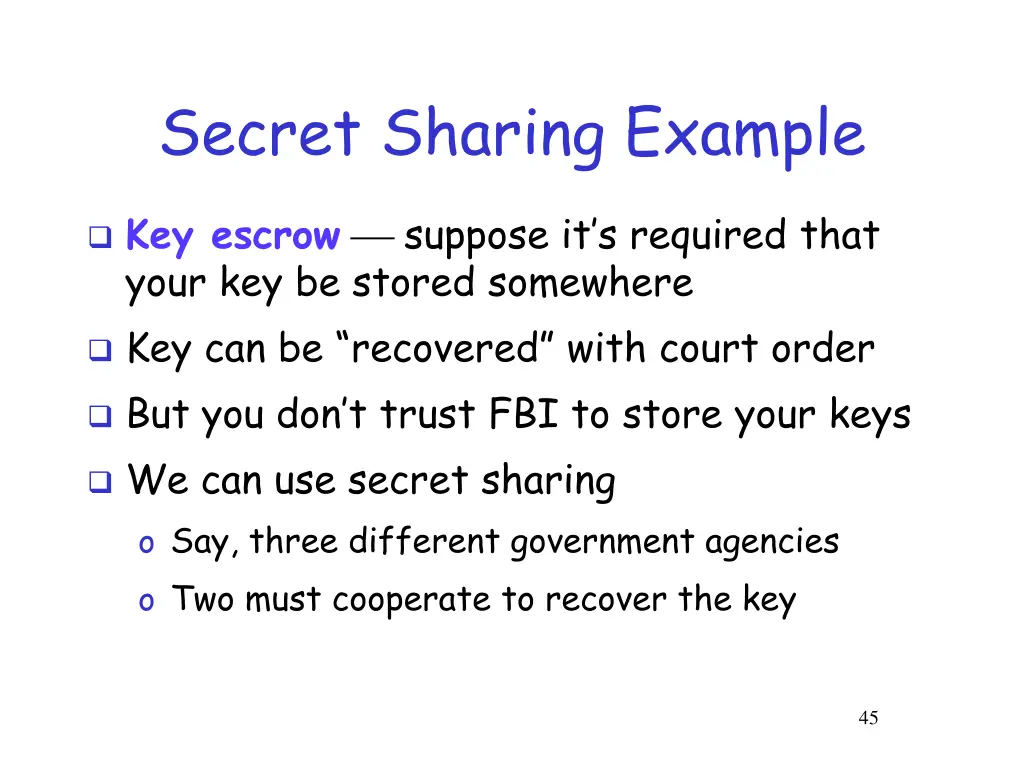

45. Secret Sharing Example Key escrow suppose it s required that your key be stored somewhere Key can be recovered with court order But you don t trust FBI to store your keys We can use secret sharing o Say, three different government agencies o Two must cooperate to recover the key 45

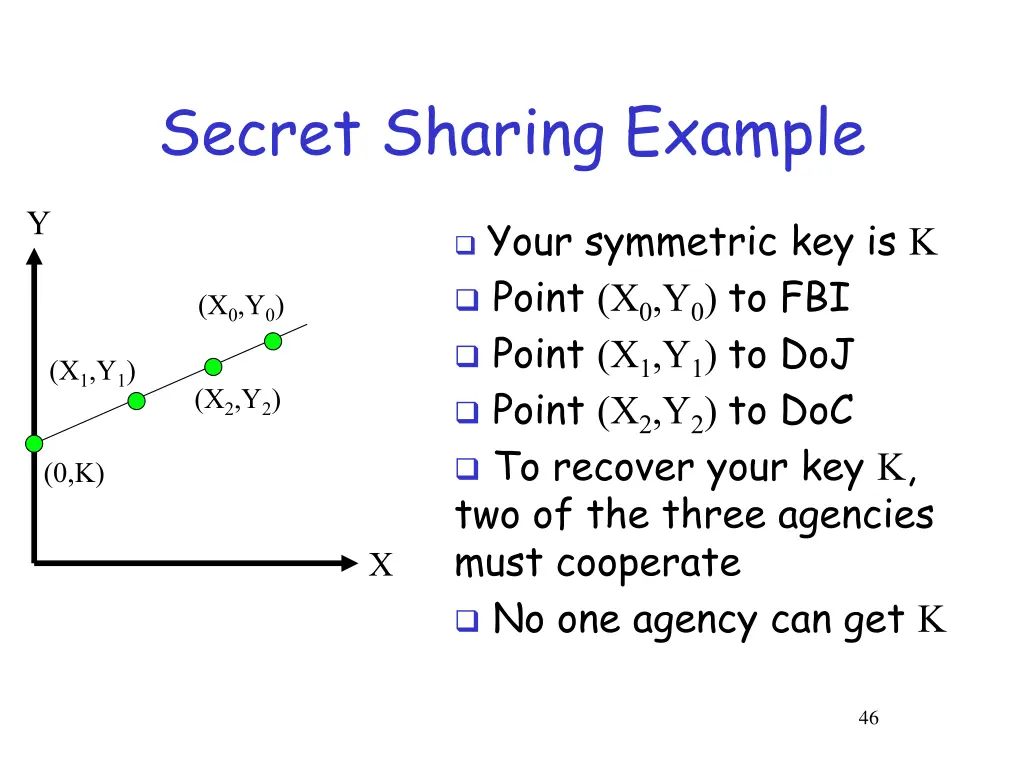

46. Secret Sharing Example Y Your symmetric key is K Point (X0,Y0) to FBI Point (X1,Y1) to DoJ Point (X2,Y2) to DoC To recover your key K, two of the three agencies must cooperate No one agency can get K (X0,Y0) (X1,Y1) (X2,Y2) (0,K) X 46
