Information Security - 2 Topic: Architectural Aid to Secure Systems Engineering V. Kamakoti RISE LAB, Department of Computer Science and Engineering IIT Madras SESSION 3: FUNCTION CALLS AND STACKS

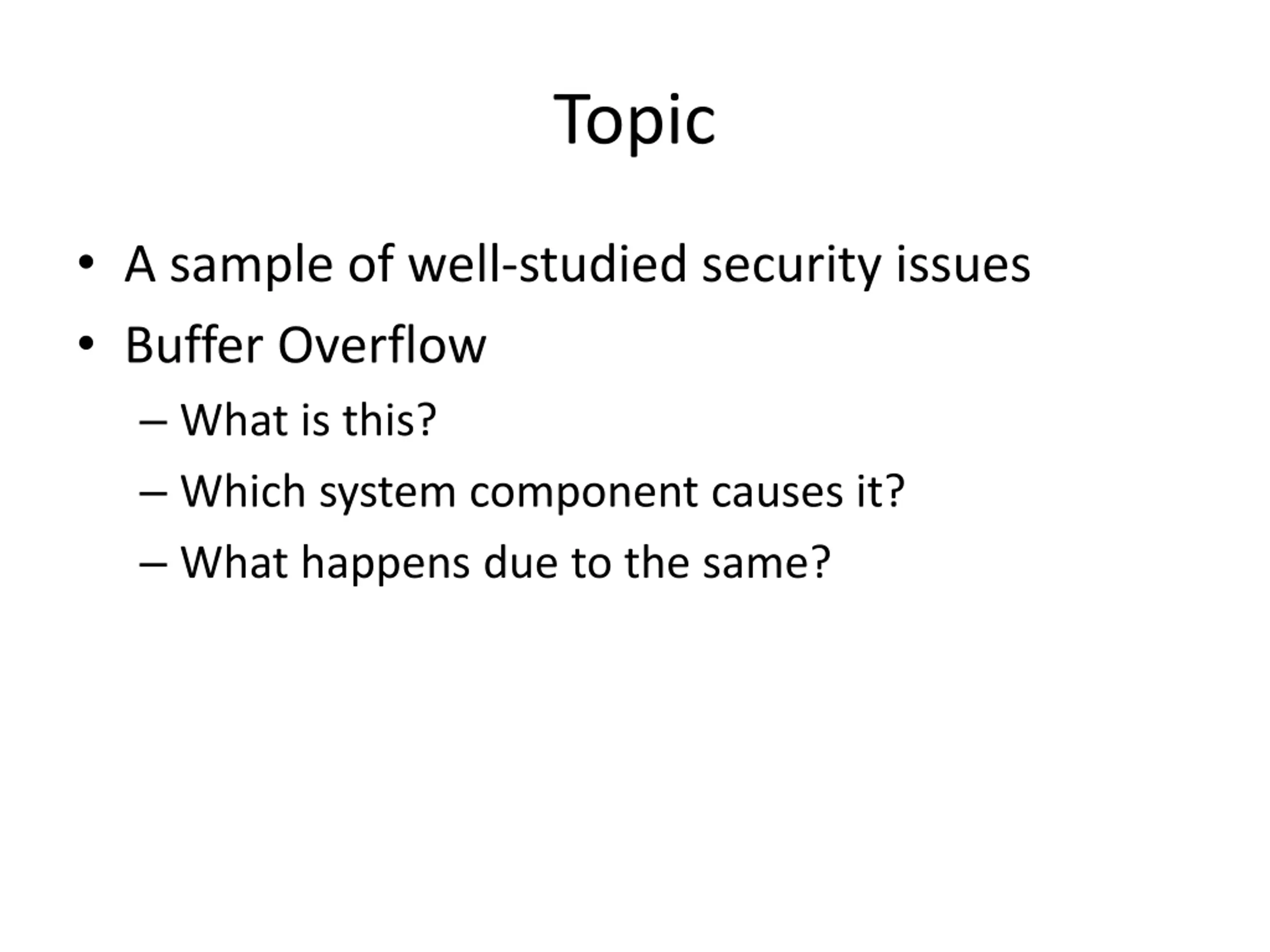

Topic A sample of well-studied security issues Buffer Overflow What is this? Which system component causes it? What happens due to the same?

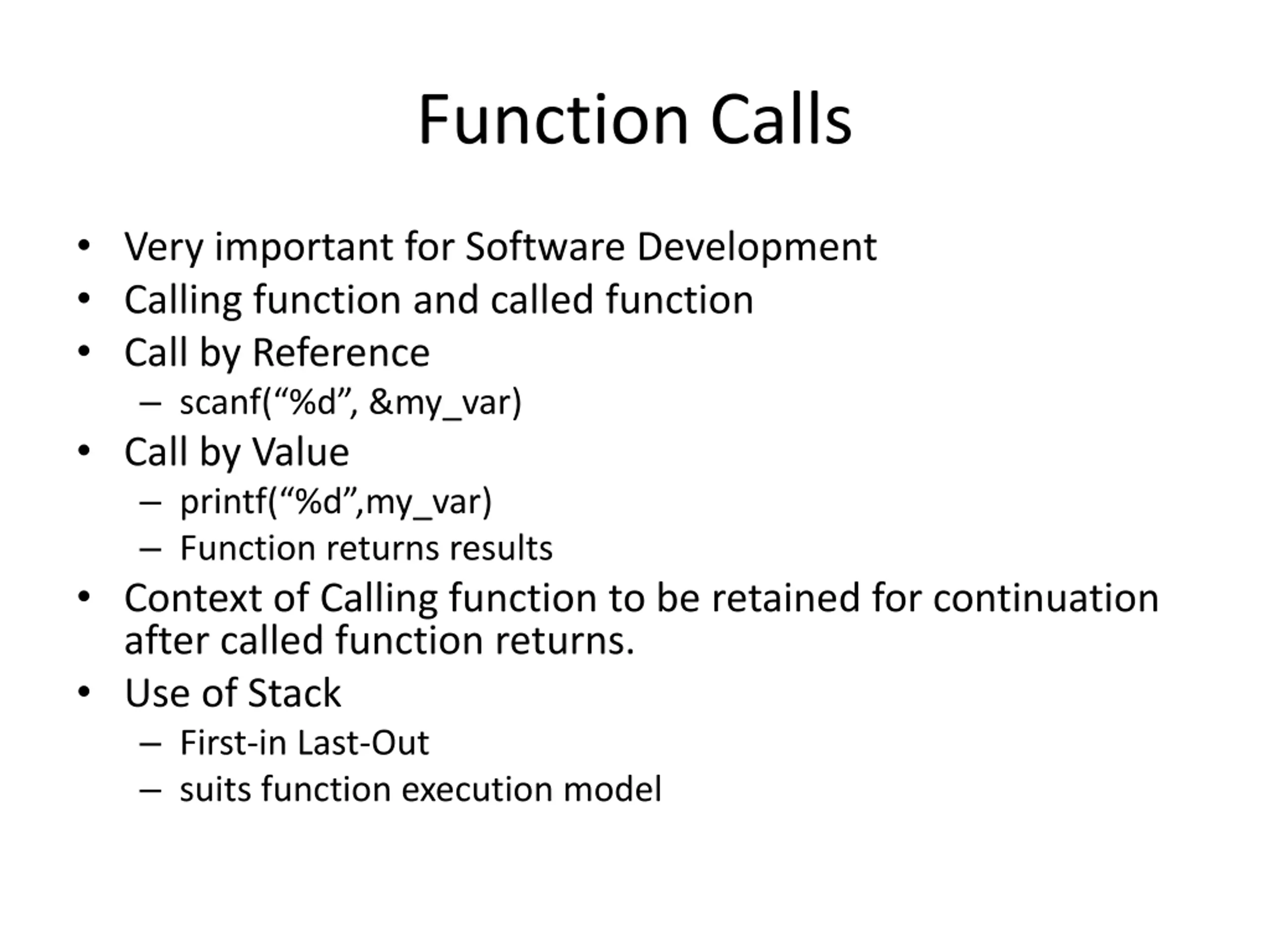

Function Calls Very important for Software Development Calling function and called function Call by Reference scanf( %d , &my_var) Call by Value printf( %d ,my_var) Function returns results Context of Calling function to be retained for continuation after called function returns. Use of Stack First-in Last-Out suits function execution model

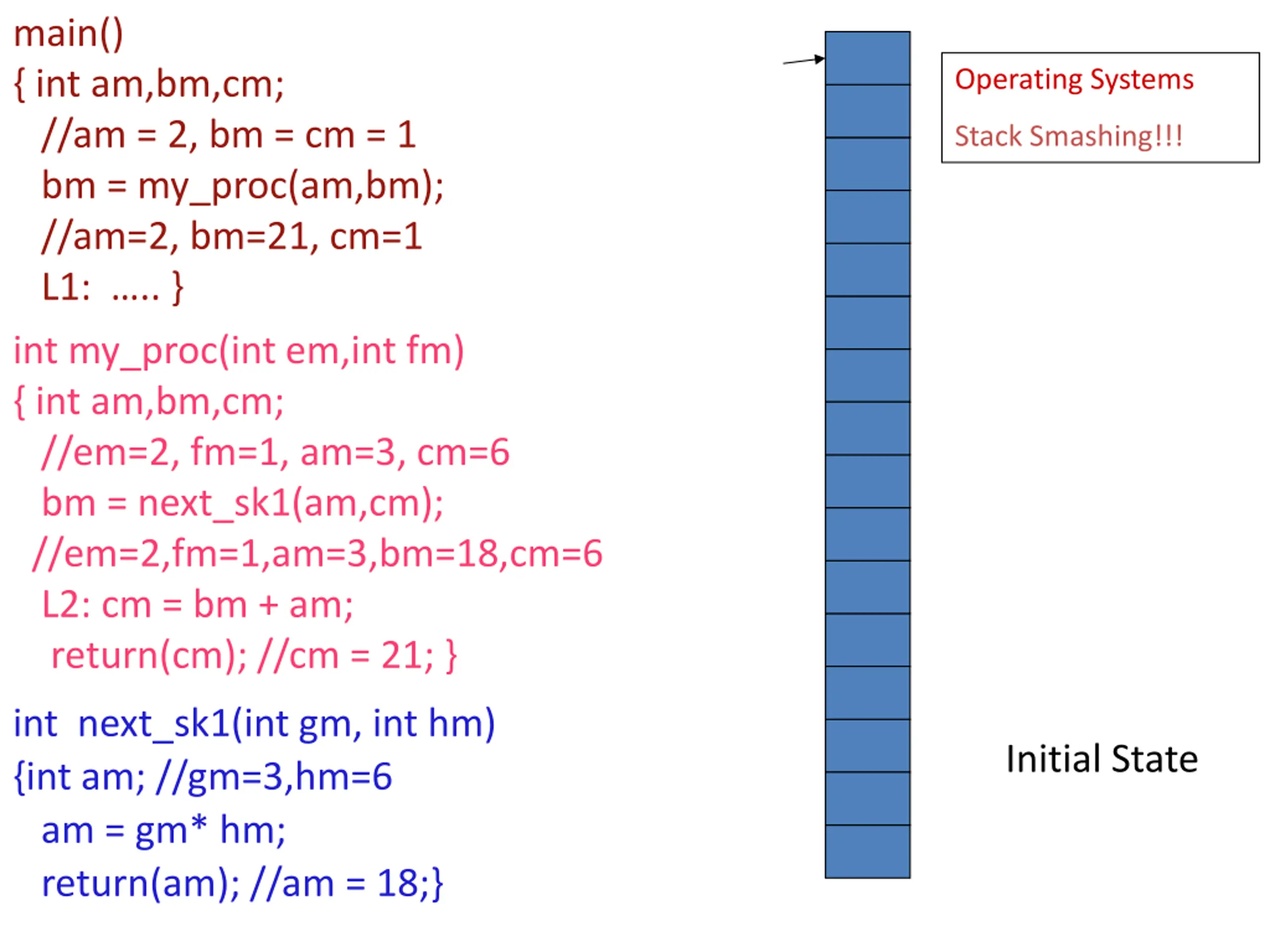

main() { int am,bm,cm; //am = 2, bm = cm = 1 bm = my_proc(am,bm); //am=2, bm=21, cm=1 L1: .. } Operating Systems Stack Smashing!!! int my_proc(int em,int fm) { int am,bm,cm; //em=2, fm=1, am=3, cm=6 bm = next_sk1(am,cm); //em=2,fm=1,am=3,bm=18,cm=6 L2: cm = bm + am; return(cm); //cm = 21; } int next_sk1(int gm, int hm) {int am; //gm=3,hm=6 am = gm* hm; return(am); //am = 18;} Initial State

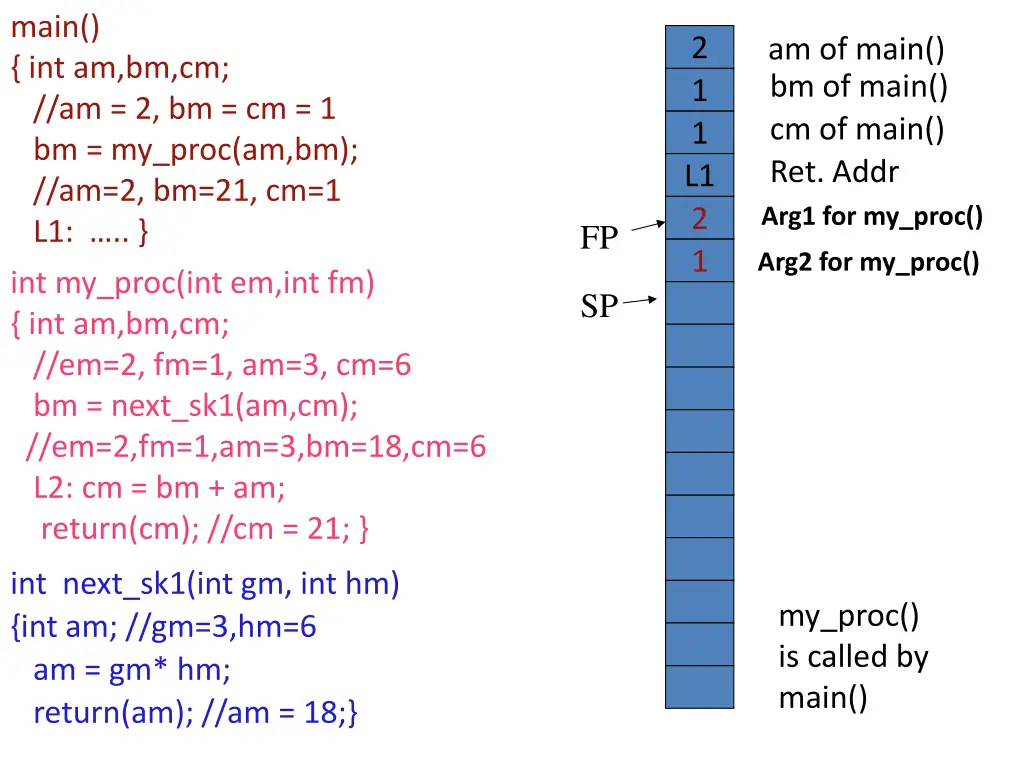

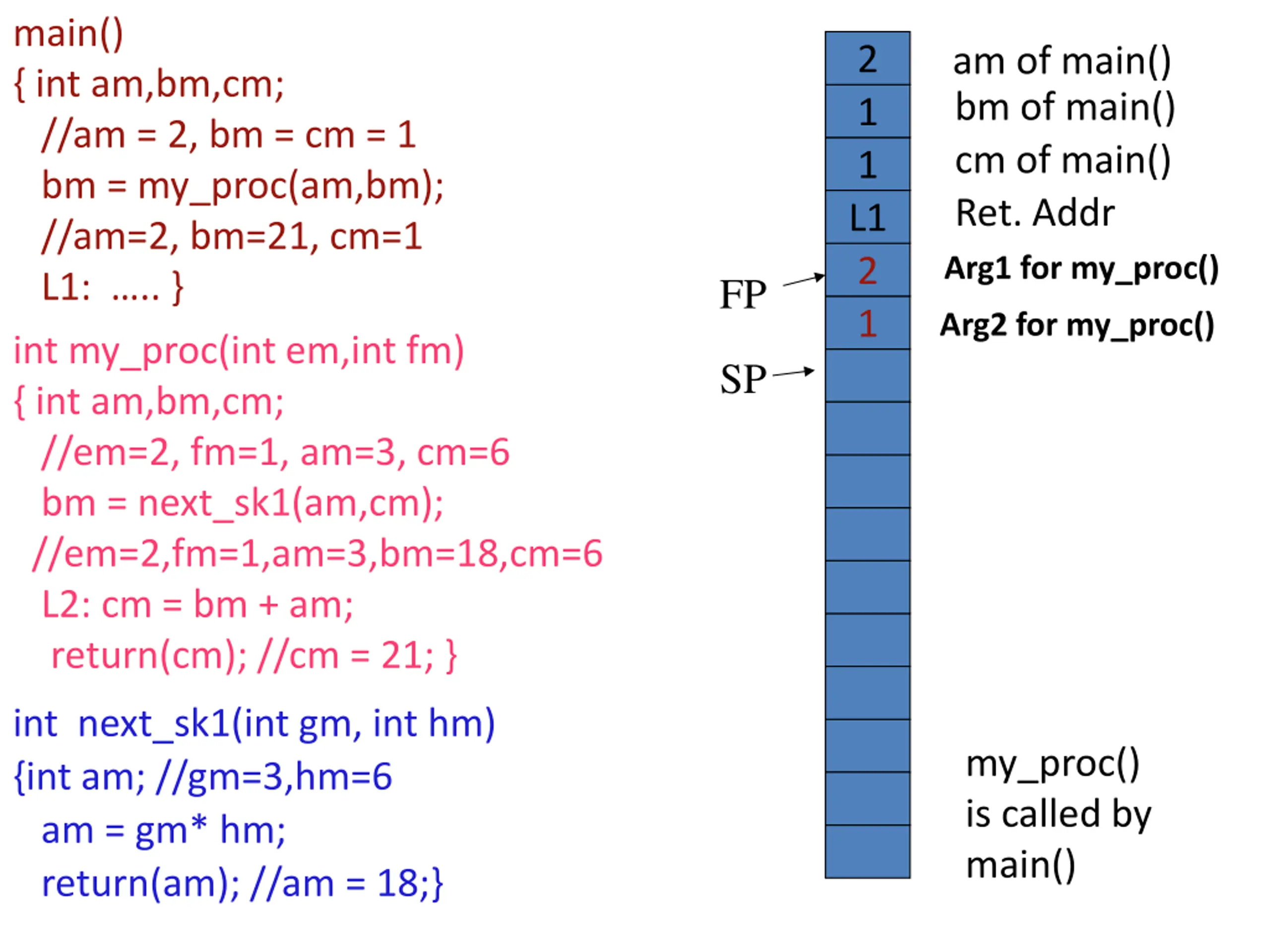

main() { int am,bm,cm; //am = 2, bm = cm = 1 bm = my_proc(am,bm); //am=2, bm=21, cm=1 L1: .. } 2 am of main() bm of main() cm of main() 1 1 Ret. Addr Arg1 for my_proc() L1 2 FP 1 Arg2 for my_proc() int my_proc(int em,int fm) { int am,bm,cm; //em=2, fm=1, am=3, cm=6 bm = next_sk1(am,cm); //em=2,fm=1,am=3,bm=18,cm=6 L2: cm = bm + am; return(cm); //cm = 21; } SP int next_sk1(int gm, int hm) {int am; //gm=3,hm=6 am = gm* hm; return(am); //am = 18;} my_proc() is called by main()

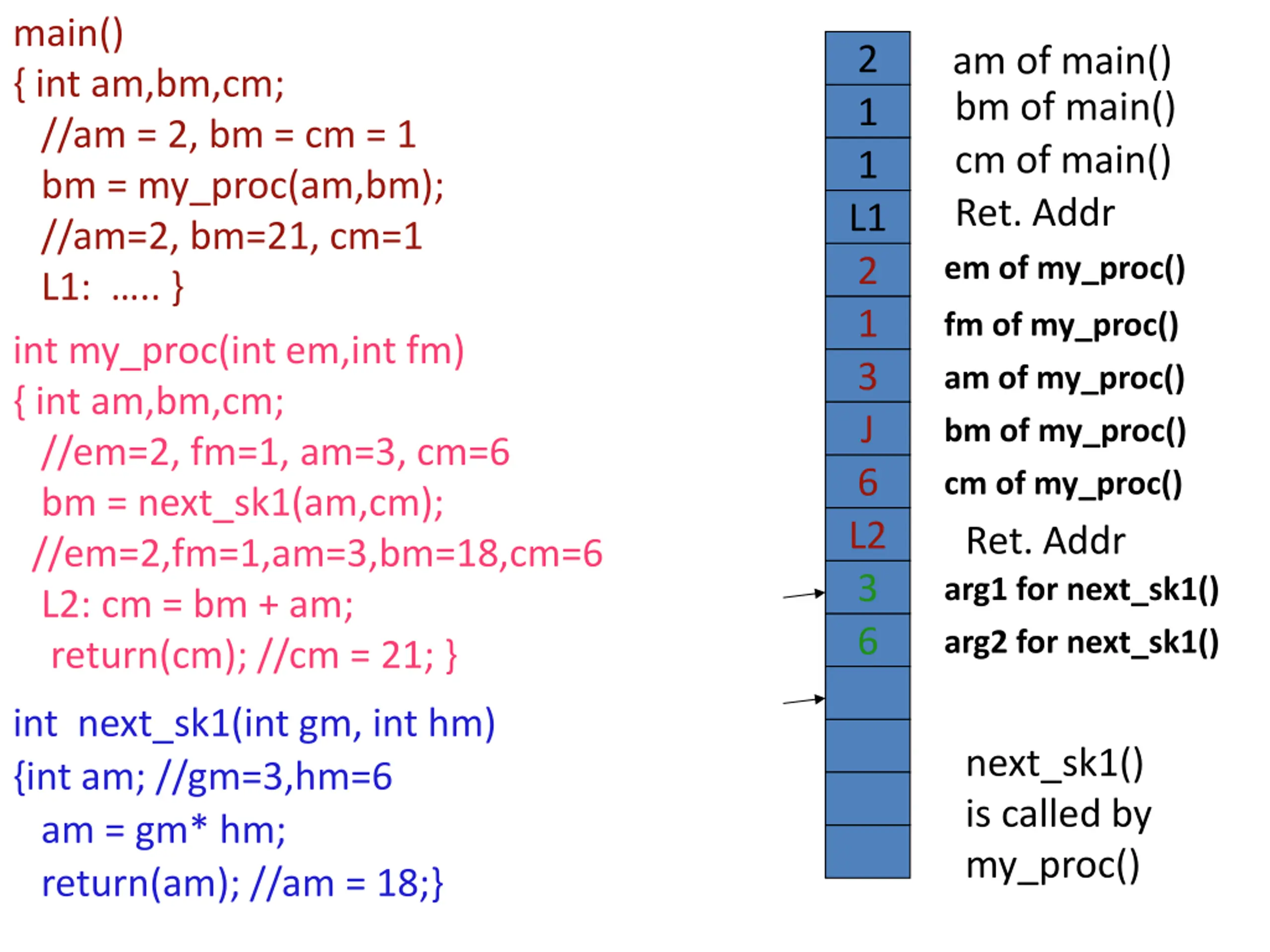

main() { int am,bm,cm; //am = 2, bm = cm = 1 bm = my_proc(am,bm); //am=2, bm=21, cm=1 L1: .. } 2 am of main() bm of main() cm of main() 1 1 Ret. Addr em of my_proc() L1 2 1 fm of my_proc() am of my_proc() int my_proc(int em,int fm) { int am,bm,cm; //em=2, fm=1, am=3, cm=6 bm = next_sk1(am,cm); //em=2,fm=1,am=3,bm=18,cm=6 L2: cm = bm + am; return(cm); //cm = 21; } 3 J bm of my_proc() cm of my_proc() Ret. Addr 6 L2 3 arg1 for next_sk1() arg2 for next_sk1() 6 int next_sk1(int gm, int hm) {int am; //gm=3,hm=6 am = gm* hm; return(am); //am = 18;} next_sk1() is called by my_proc()

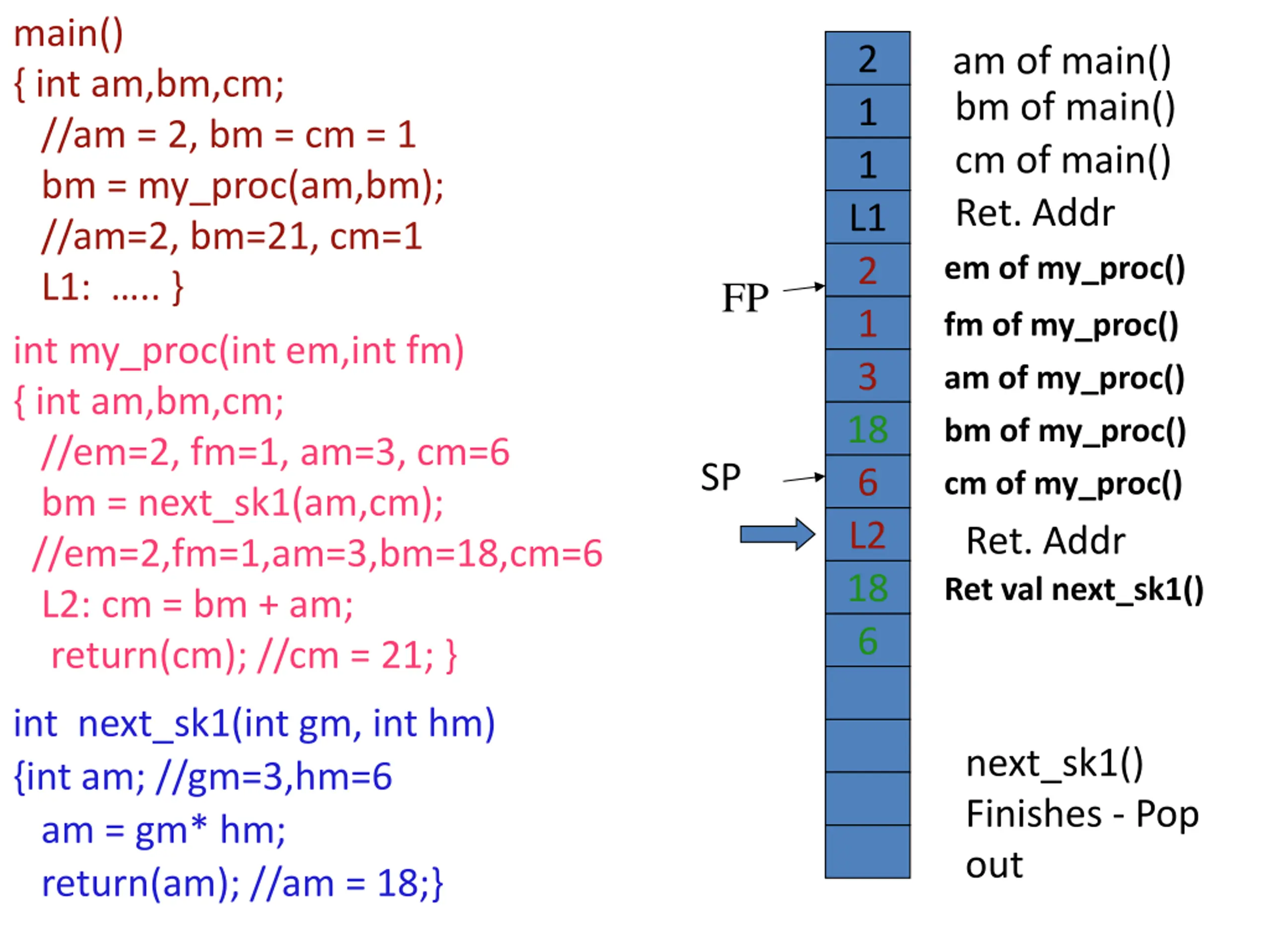

main() { int am,bm,cm; //am = 2, bm = cm = 1 bm = my_proc(am,bm); //am=2, bm=21, cm=1 L1: .. } 2 am of main() bm of main() cm of main() 1 1 Ret. Addr em of my_proc() L1 2 FP 1 fm of my_proc() am of my_proc() int my_proc(int em,int fm) { int am,bm,cm; //em=2, fm=1, am=3, cm=6 bm = next_sk1(am,cm); //em=2,fm=1,am=3,bm=18,cm=6 L2: cm = bm + am; return(cm); //cm = 21; } 3 18 bm of my_proc() cm of my_proc() Ret. Addr SP 6 L2 18 Ret val next_sk1() 6 int next_sk1(int gm, int hm) {int am; //gm=3,hm=6 am = gm* hm; return(am); //am = 18;} next_sk1() Finishes - Pop out

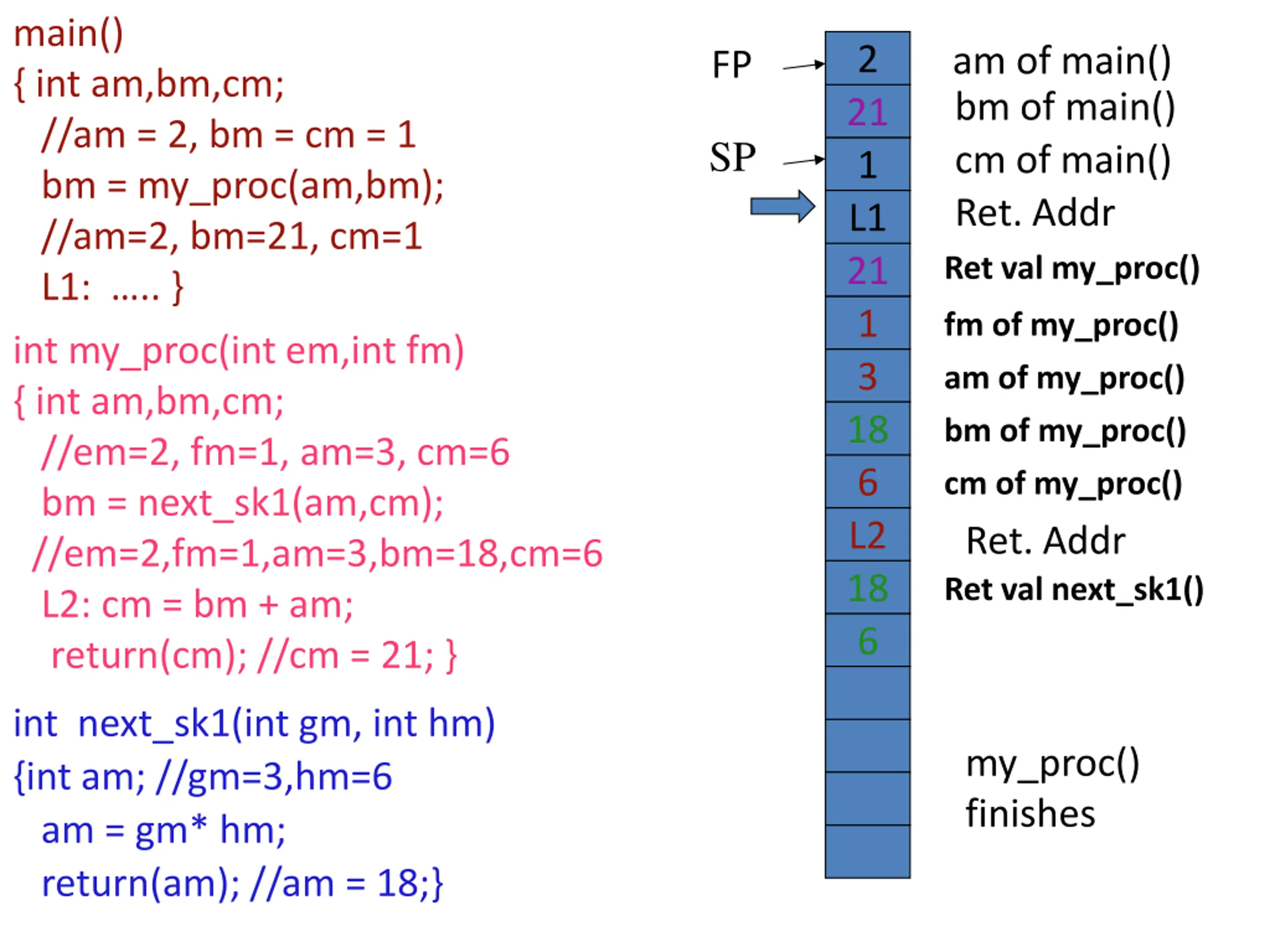

main() { int am,bm,cm; //am = 2, bm = cm = 1 bm = my_proc(am,bm); //am=2, bm=21, cm=1 L1: .. } 2 am of main() bm of main() cm of main() FP 21 SP 1 Ret. Addr Ret val my_proc() L1 21 1 fm of my_proc() am of my_proc() int my_proc(int em,int fm) { int am,bm,cm; //em=2, fm=1, am=3, cm=6 bm = next_sk1(am,cm); //em=2,fm=1,am=3,bm=18,cm=6 L2: cm = bm + am; return(cm); //cm = 21; } 3 18 bm of my_proc() cm of my_proc() Ret. Addr 6 L2 18 Ret val next_sk1() 6 int next_sk1(int gm, int hm) {int am; //gm=3,hm=6 am = gm* hm; return(am); //am = 18;} my_proc() finishes
End of Session-3 Thank You
