Security Analysis of NIST CTR-DRBG Viet Tung Hoang Florida State University Yaobin Shen Shanghai Jiao Tong University CRYPTO 2020 August 19, 2020 1

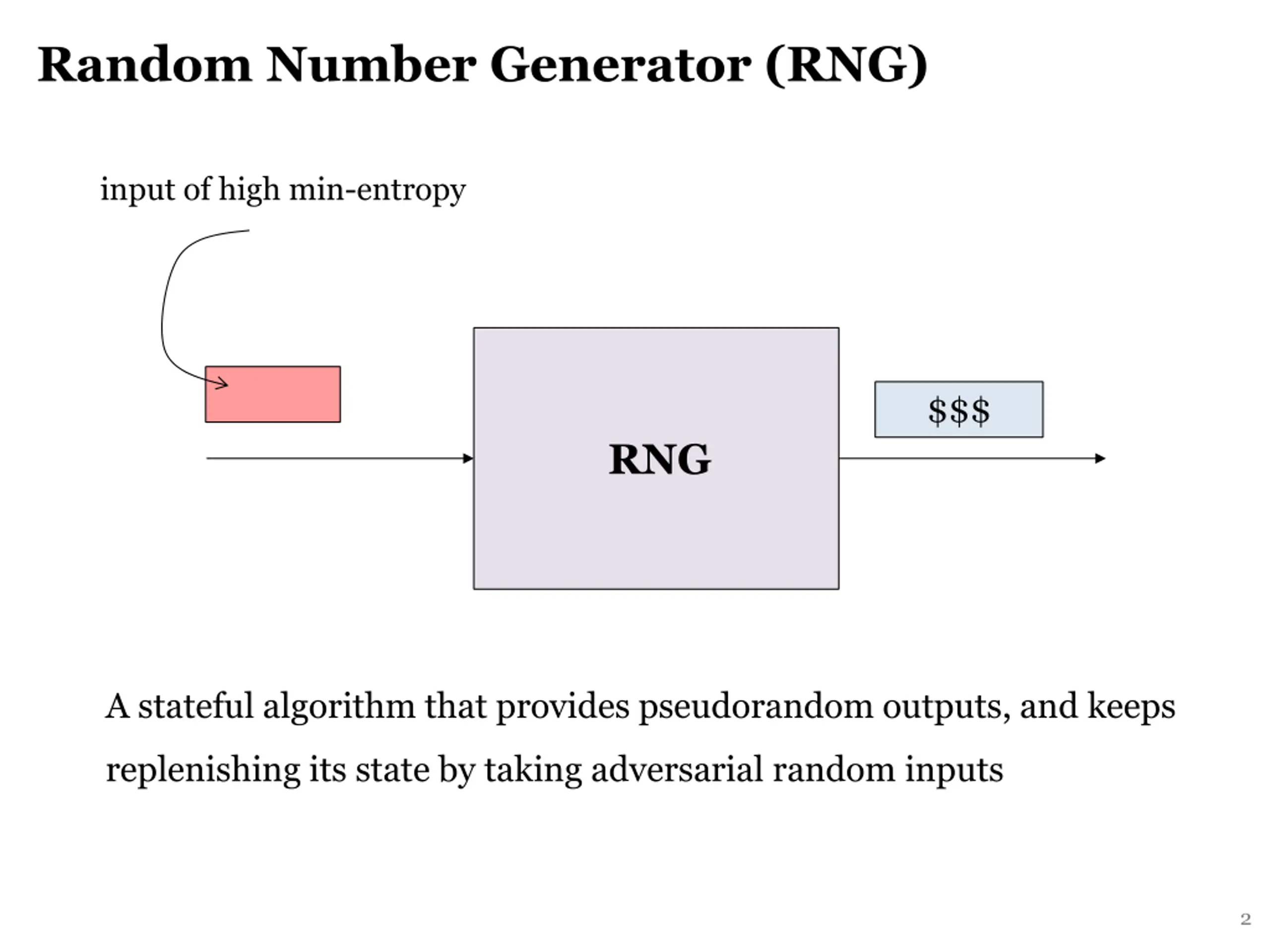

Random Number Generator (RNG) input of high min-entropy $$$ RNG A stateful algorithm that provides pseudorandom outputs, and keeps replenishing its state by taking adversarial random inputs 2
Today: CTR-DRBG The most popular standardized RNG 3

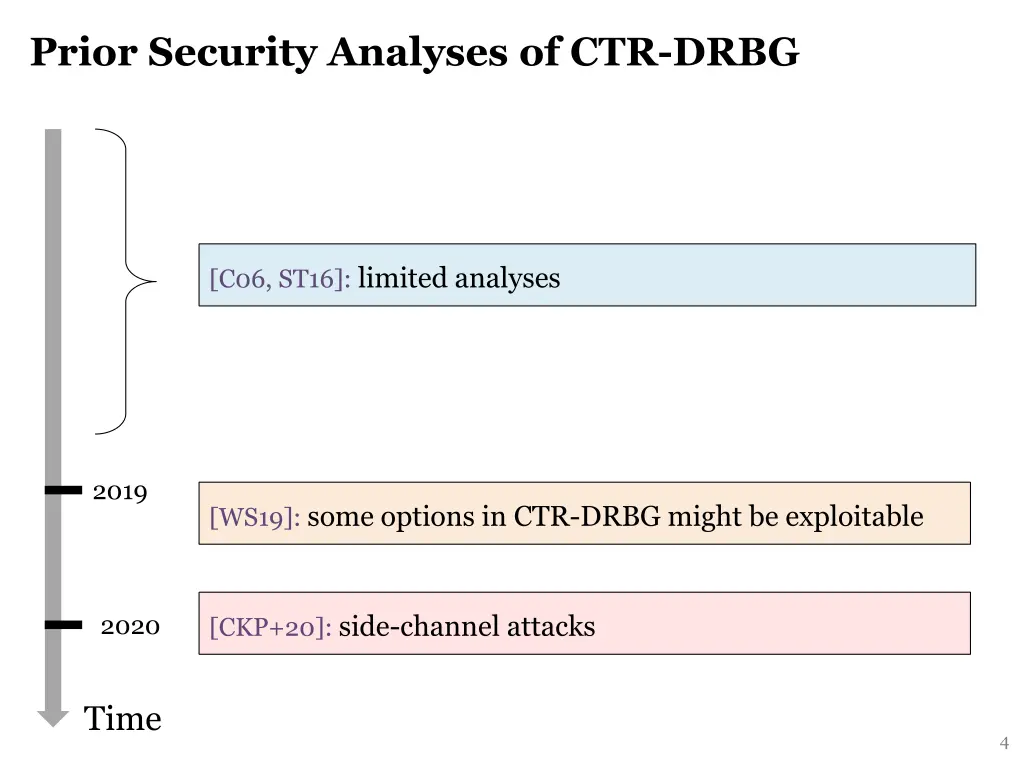

Prior Security Analyses of CTR-DRBG [C06, ST16]: limited analyses 2019 [WS19]: some options in CTR-DRBG might be exploitable [CKP+20]: side-channel attacks 2020 Time 4

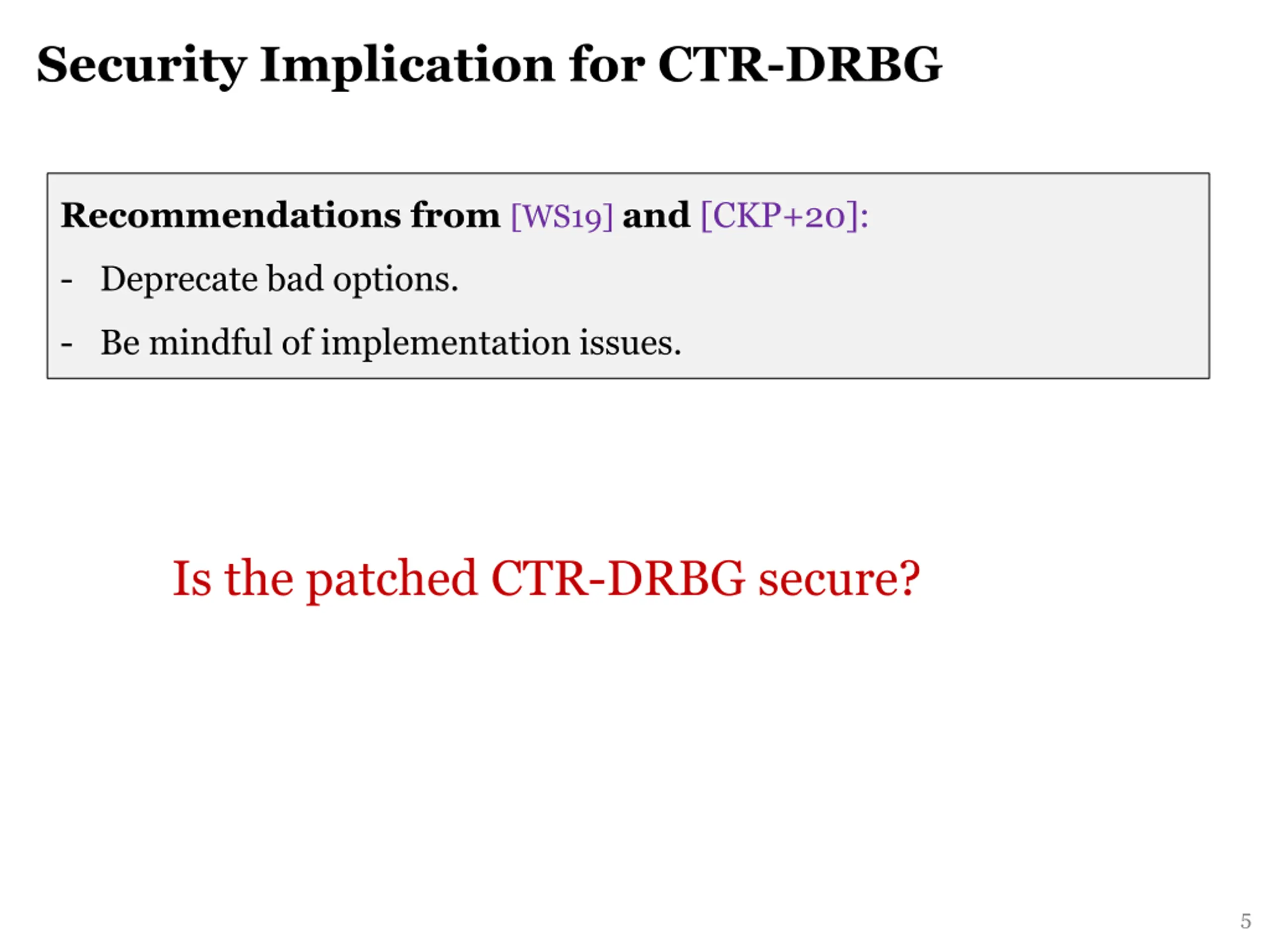

Security Implication for CTR-DRBG Recommendations from [WS19] and [CKP+20]: - Deprecate bad options. - Be mindful of implementation issues. Is the patched CTR-DRBG secure? 5

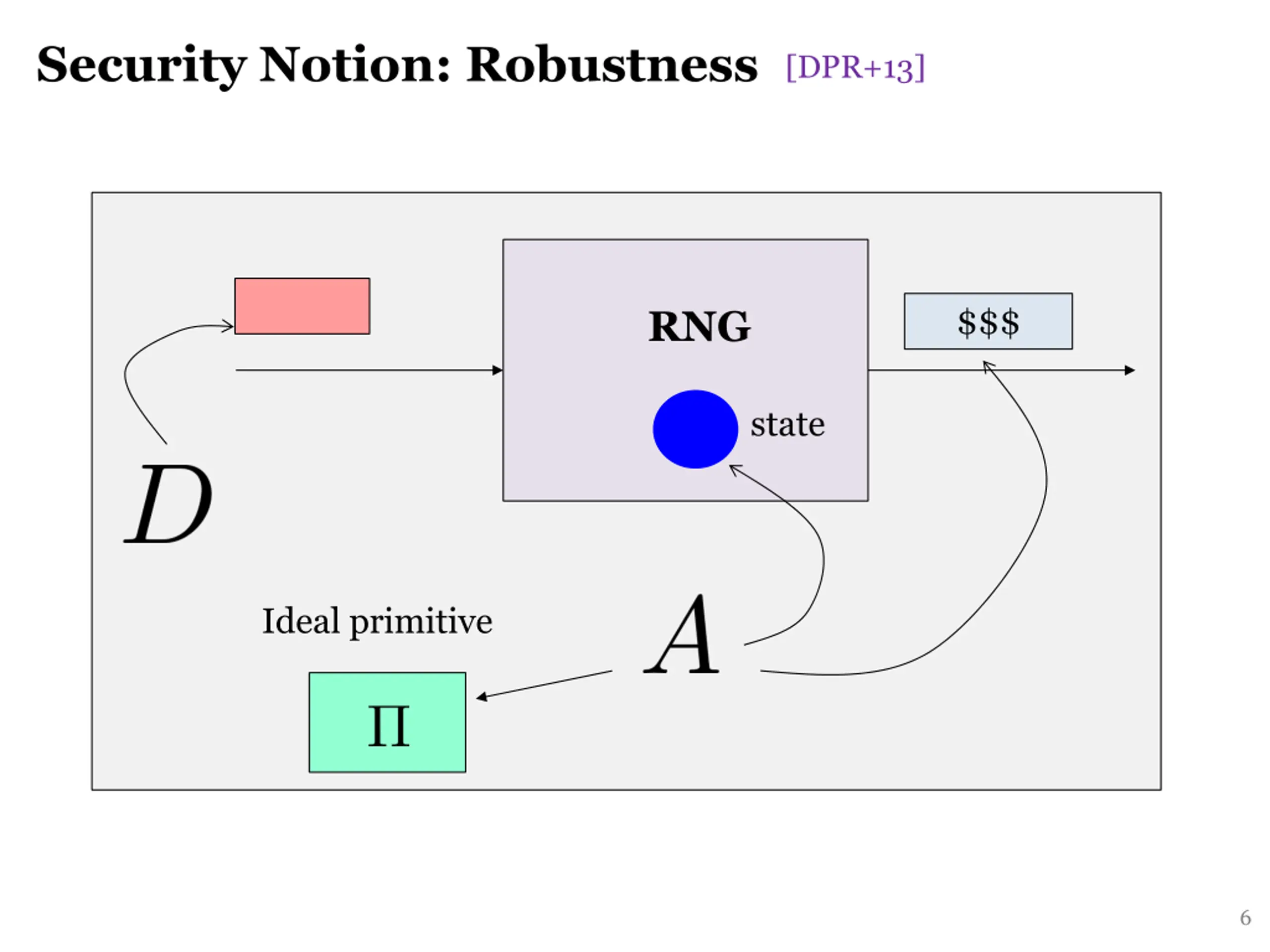

Security Notion: Robustness [DPR+13] $$$ RNG state Ideal primitive 6

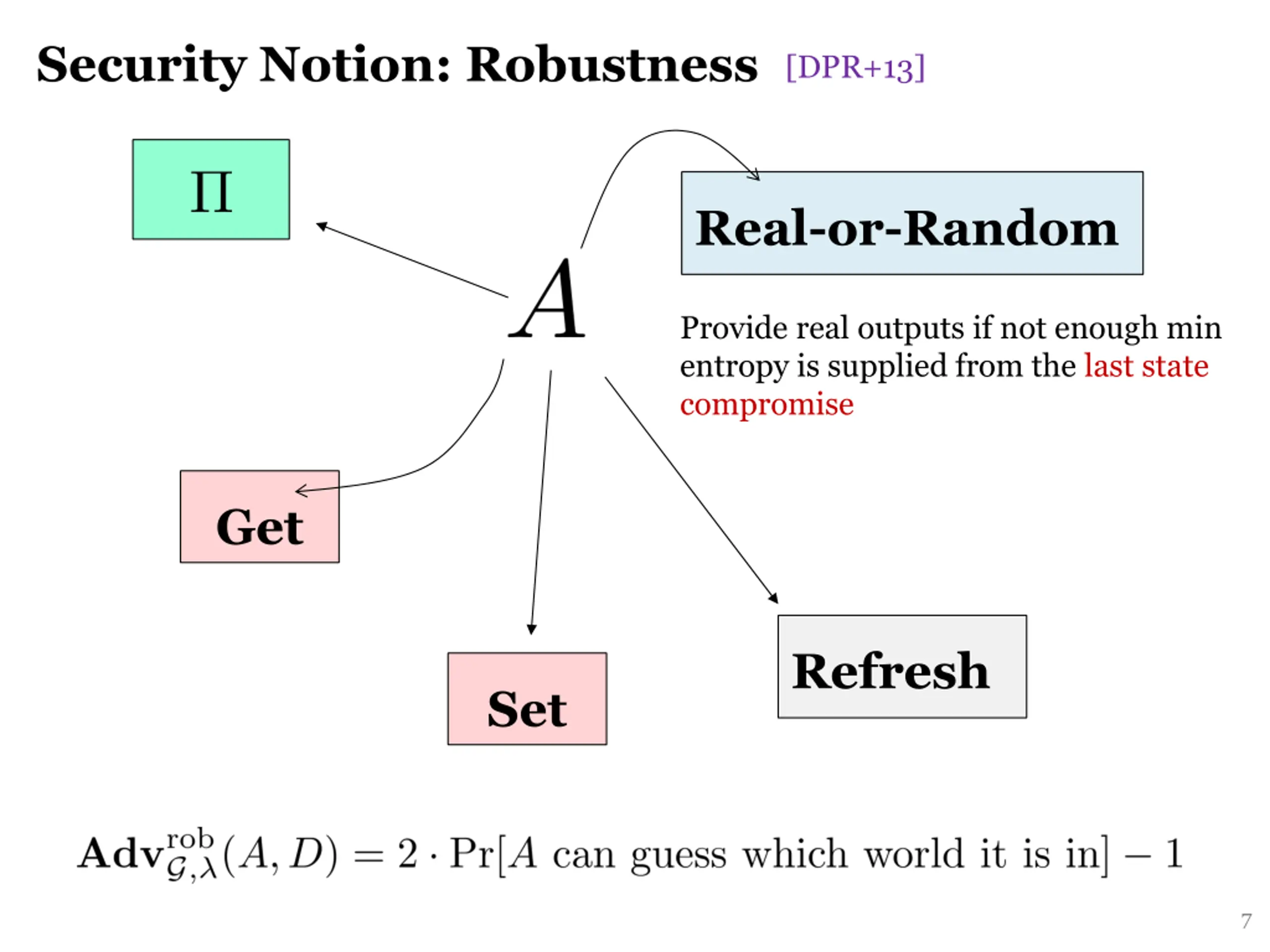

Security Notion: Robustness [DPR+13] Real-or-Random Provide real outputs if not enough min entropy is supplied from the last state compromise Get Refresh Set 7

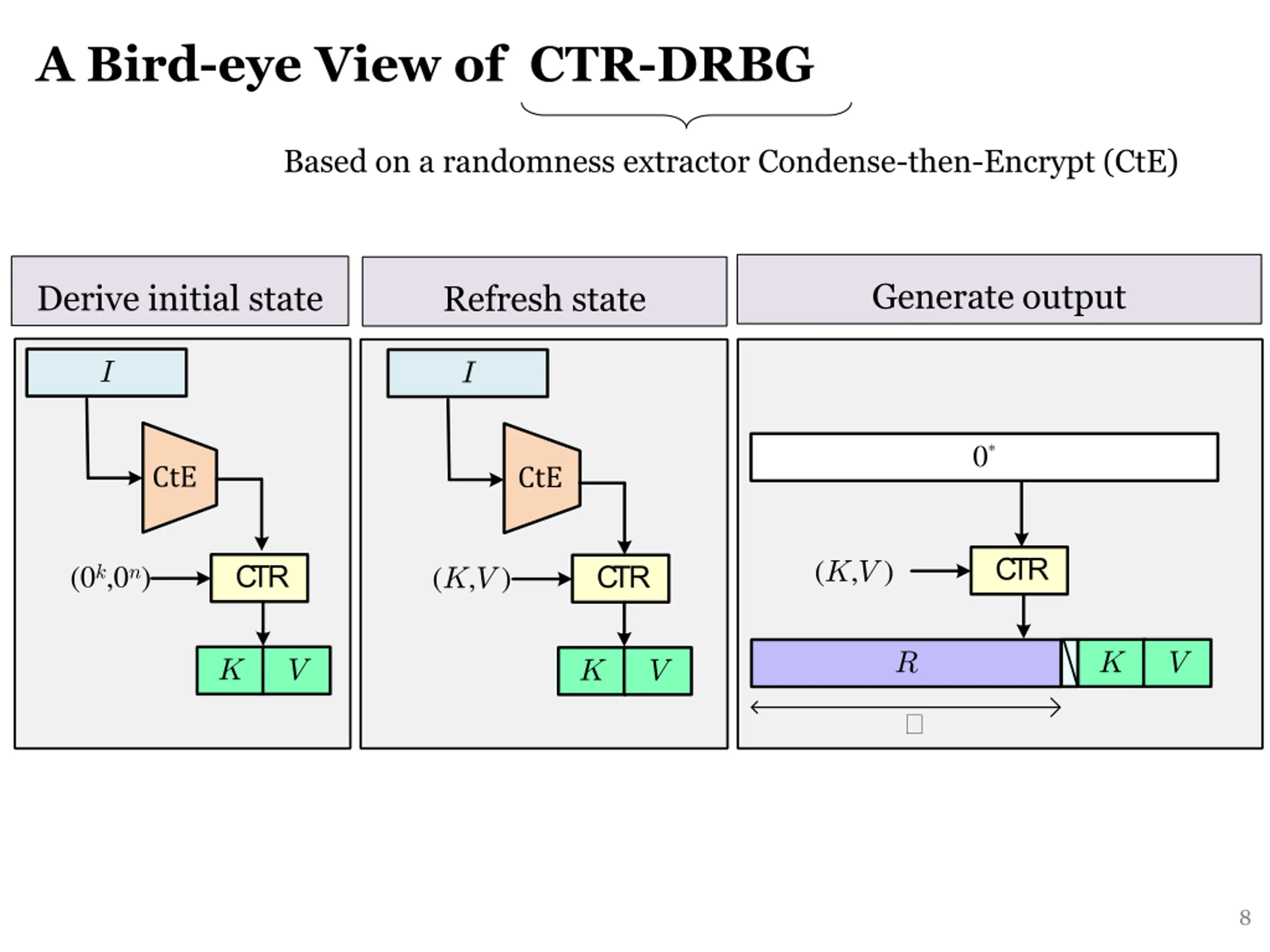

A Bird-eye View of CTR-DRBG Based on a randomness extractor Condense-then-Encrypt (CtE) Generate output Derive initial state Refresh state I I 0* CtE CtE CTR (K,V ) (0k,0n) CTR (K,V ) CTR K V R K V K V ` 8

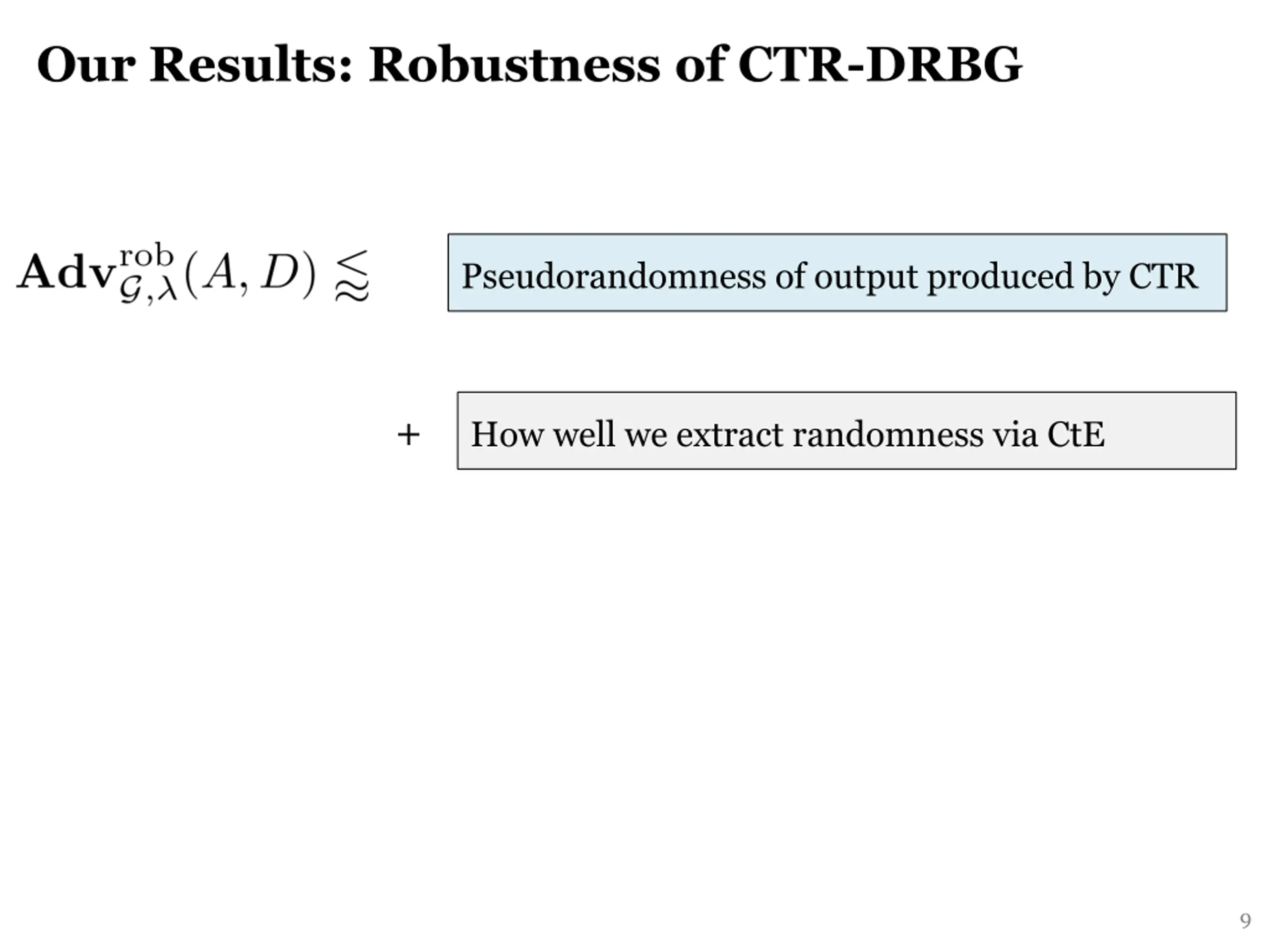

Our Results: Robustness of CTR-DRBG Pseudorandomness of output produced by CTR + How well we extract randomness via CtE 9

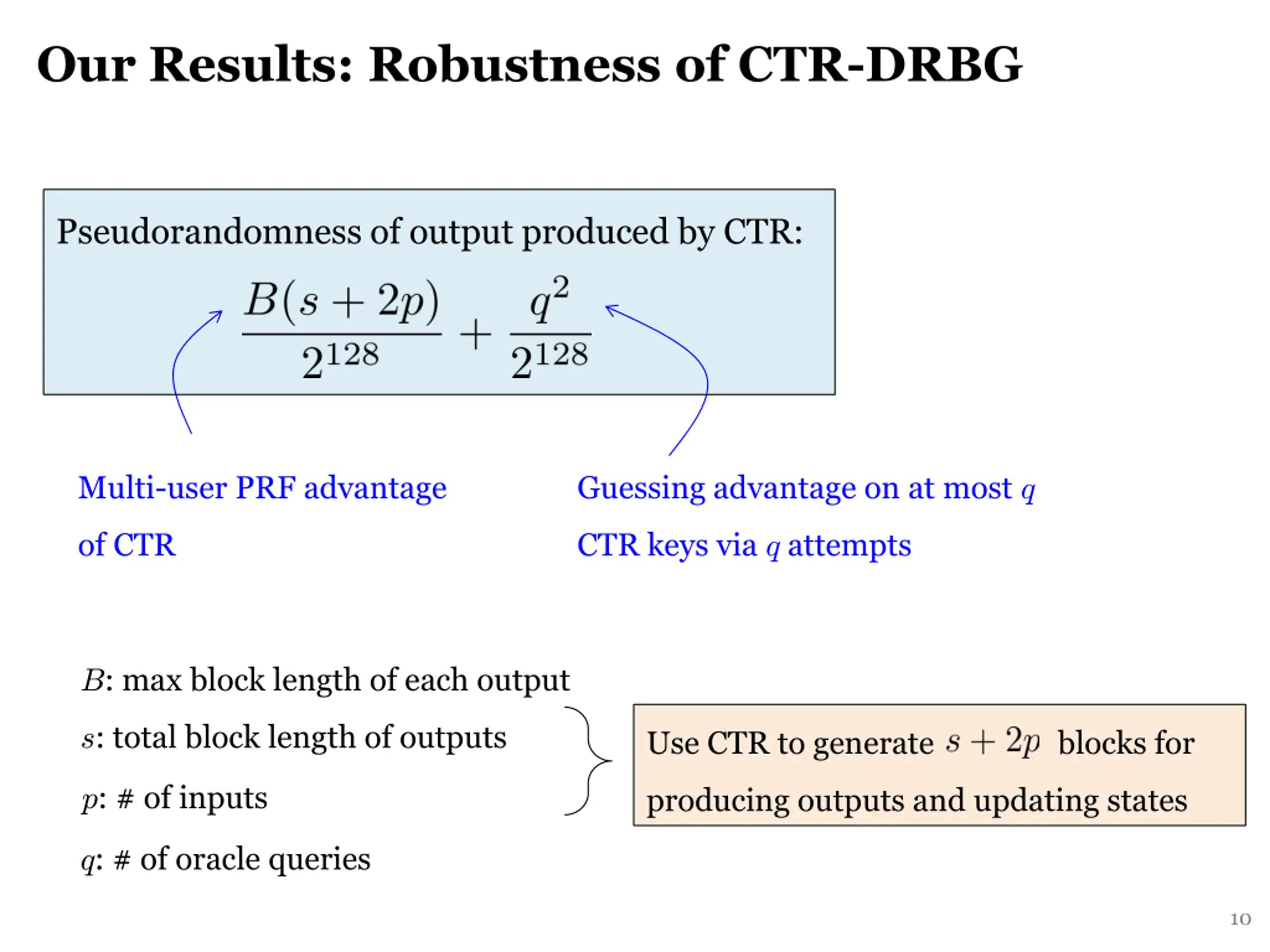

Our Results: Robustness of CTR-DRBG Pseudorandomness of output produced by CTR: Multi-user PRF advantage Guessing advantage on at most q of CTR CTR keys via q attempts B: max block length of each output s: total block length of outputs Use CTR to generate blocks for p: # of inputs producing outputs and updating states q: # of oracle queries 10

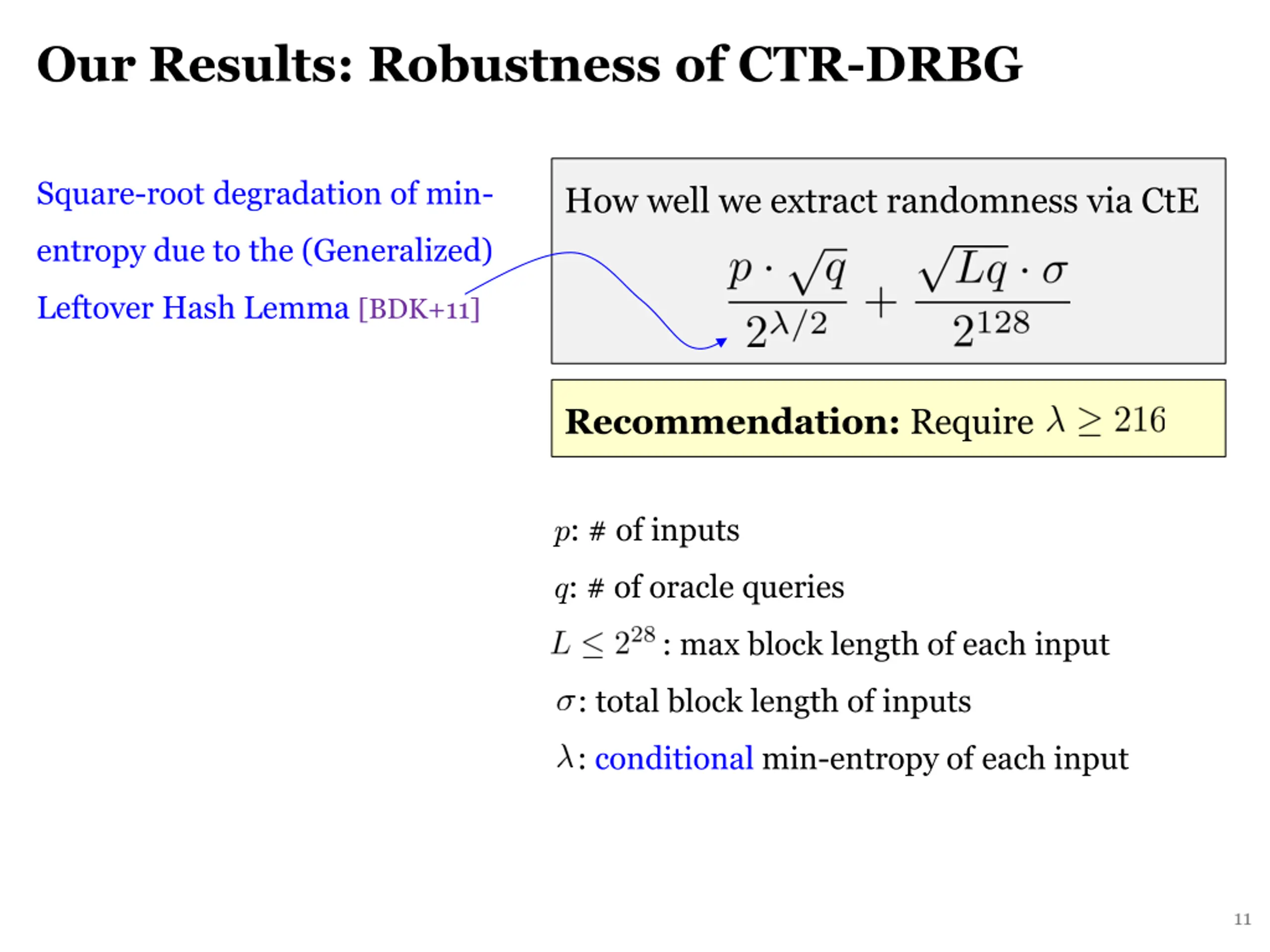

Our Results: Robustness of CTR-DRBG Square-root degradation of min- How well we extract randomness via CtE entropy due to the (Generalized) Leftover Hash Lemma [BDK+11] Recommendation: Require p: # of inputs q: # of oracle queries : max block length of each input : total block length of inputs : conditional min-entropy of each input 11

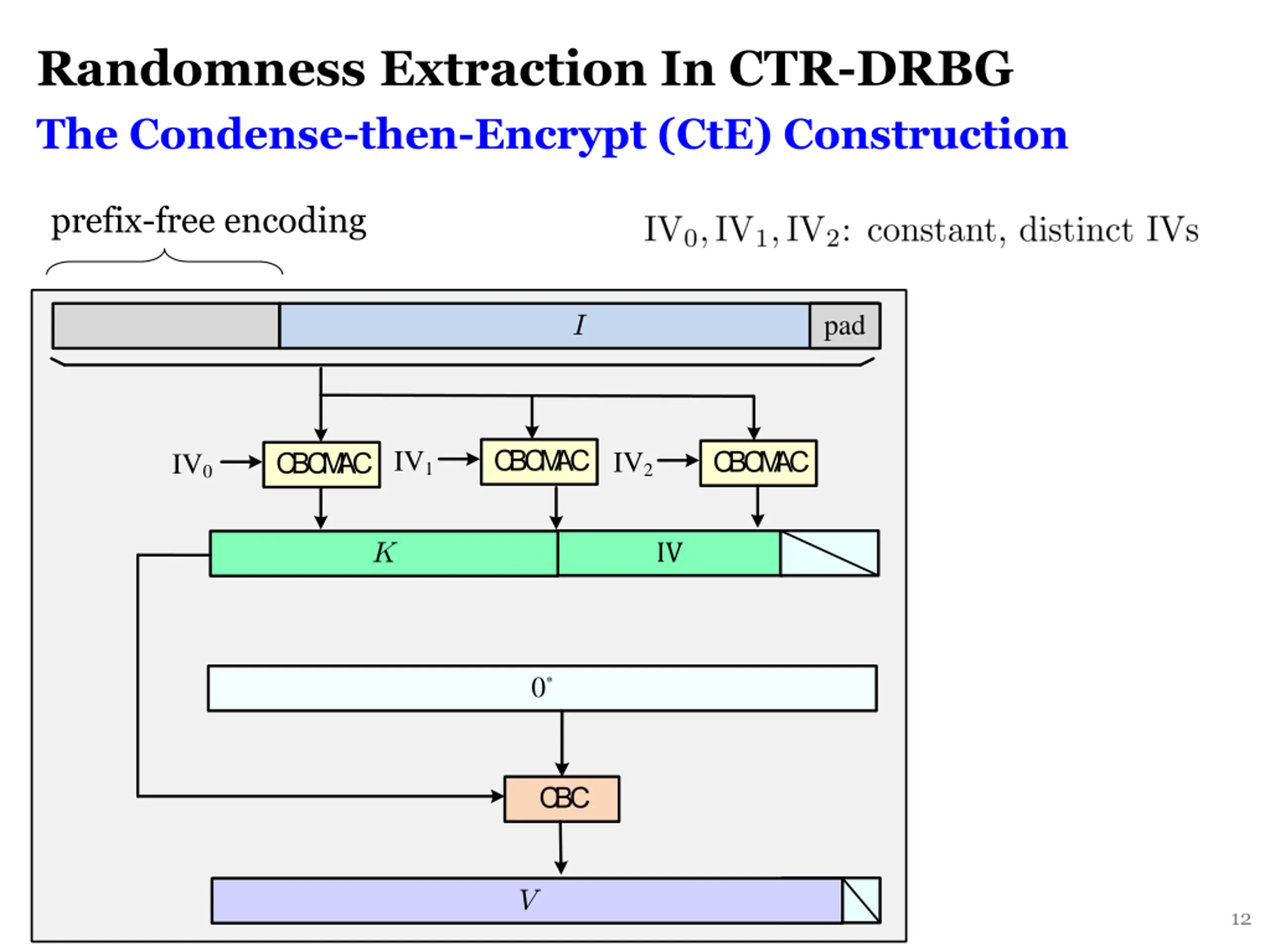

Randomness Extraction In CTR-DRBG The Condense-then-Encrypt (CtE) Construction prefix-free encoding pad I IV1 CBCM AC IV2 CBCM AC IV0 CBCM AC IV K 0* CBC V 12

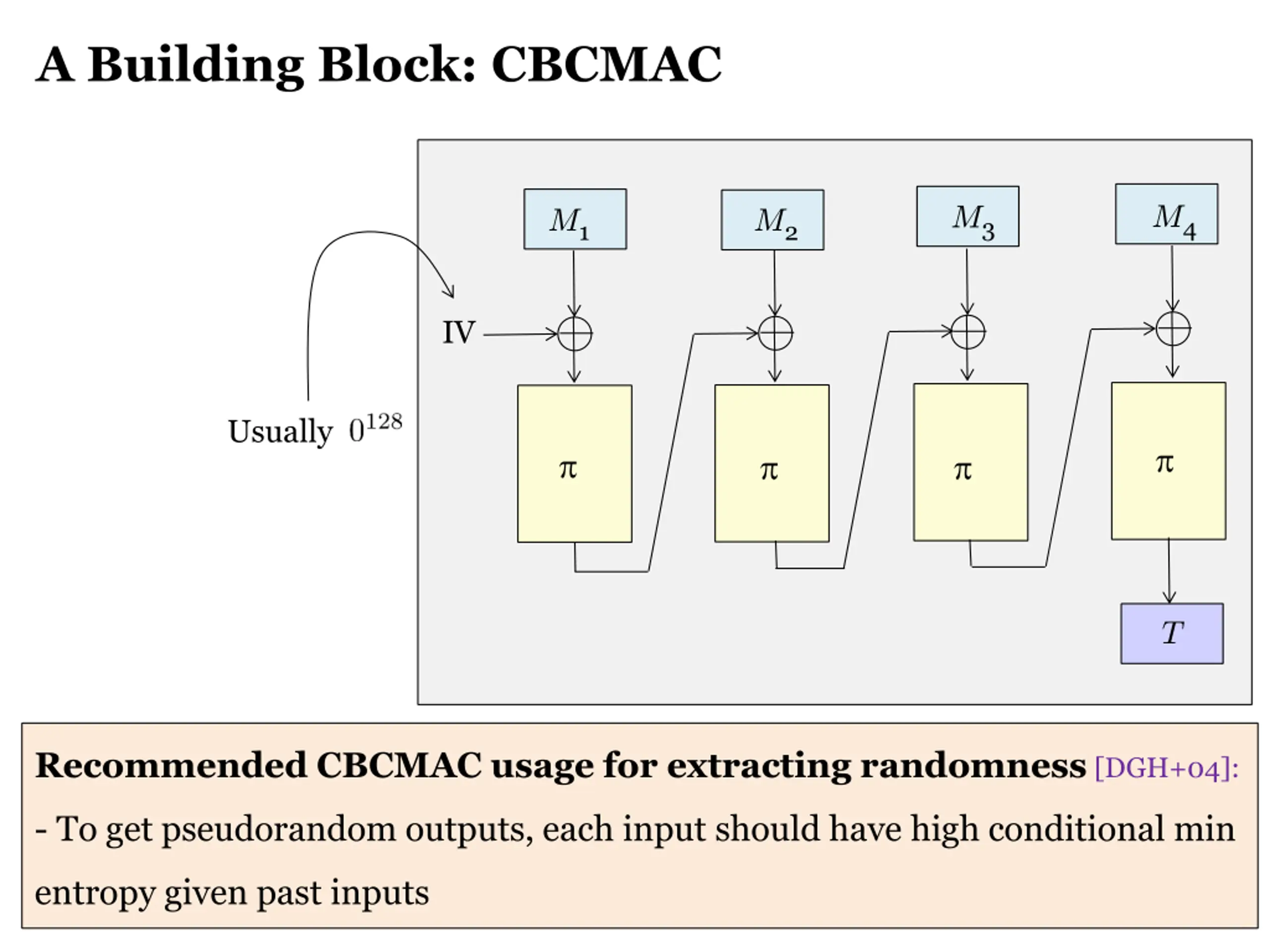

A Building Block: CBCMAC M4 M3 M1 M2 IV Usually T Recommended CBCMAC usage for extracting randomness [DGH+04]: - To get pseudorandom outputs, each input should have high conditional min entropy given past inputs 13

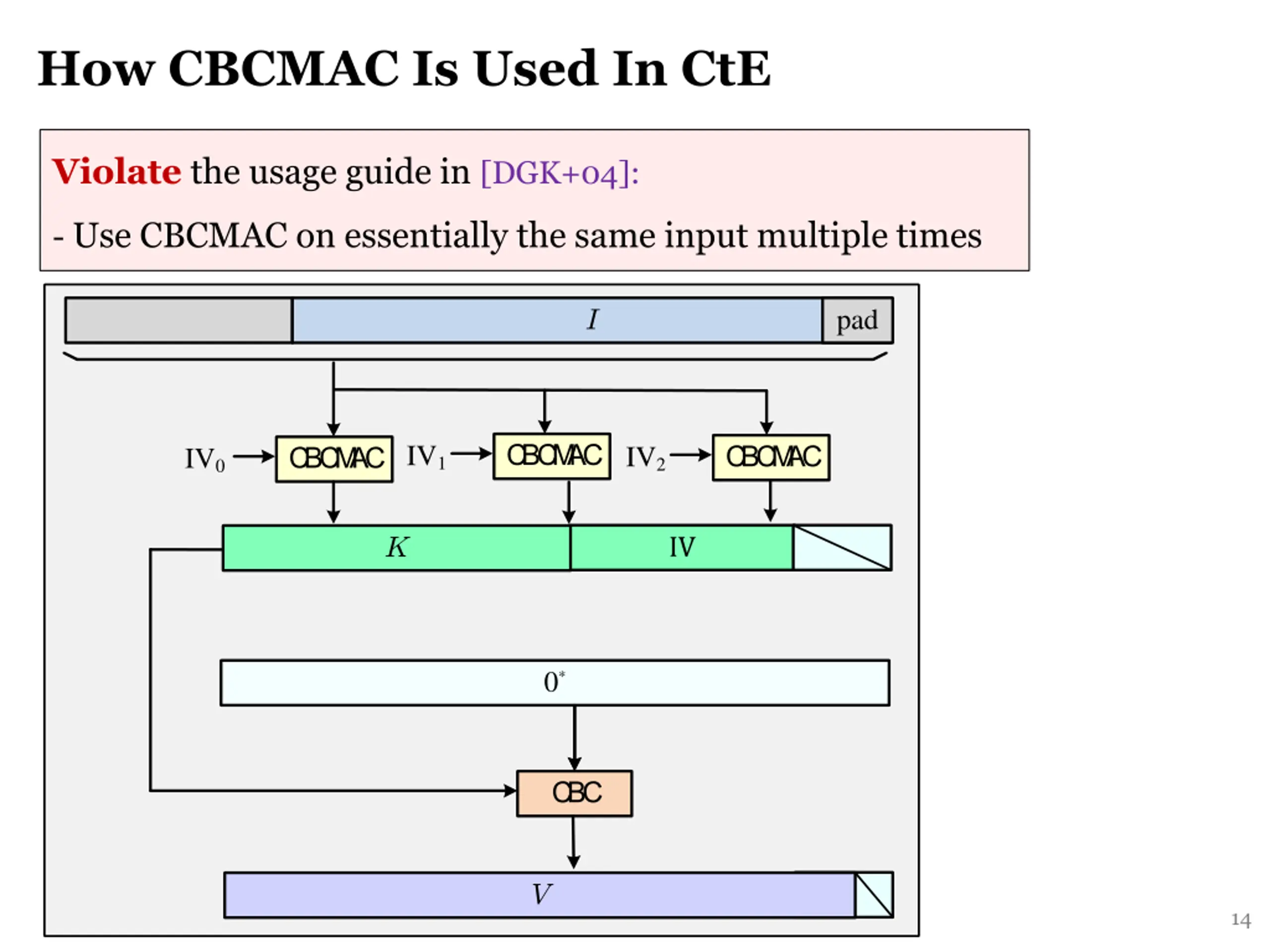

How CBCMAC Is Used In CtE Violate the usage guide in [DGK+04]: - Use CBCMAC on essentially the same input multiple times pad I IV1 CBCM AC IV2 CBCM AC IV0 CBCM AC IV K 0* CBC V 14

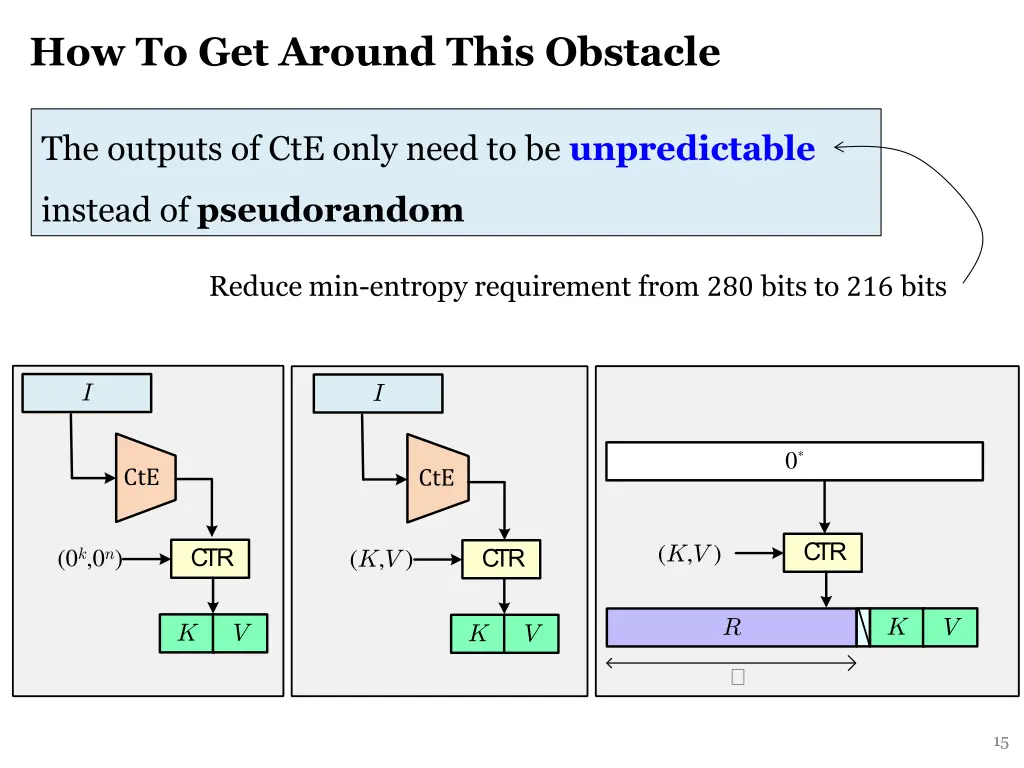

How To Get Around This Obstacle The outputs of CtE only need to be unpredictable instead of pseudorandom Reduce min-entropy requirement from 280 bits to 216 bits I I 0* CtE CtE CTR (K,V ) (0k,0n) CTR (K,V ) CTR K V R K V K V ` 15

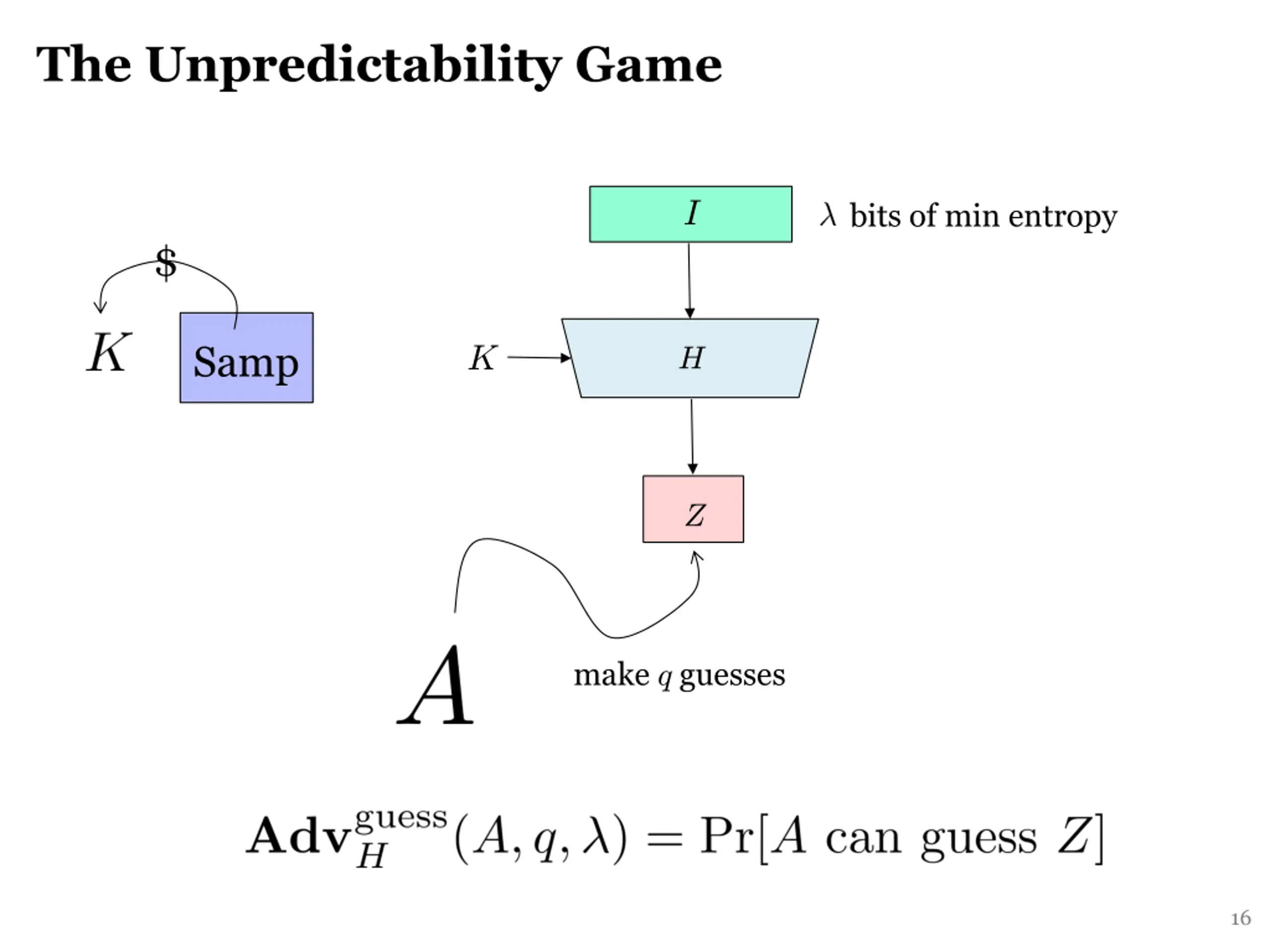

The Unpredictability Game bits of min entropy I $ Samp K H Z make q guesses 16

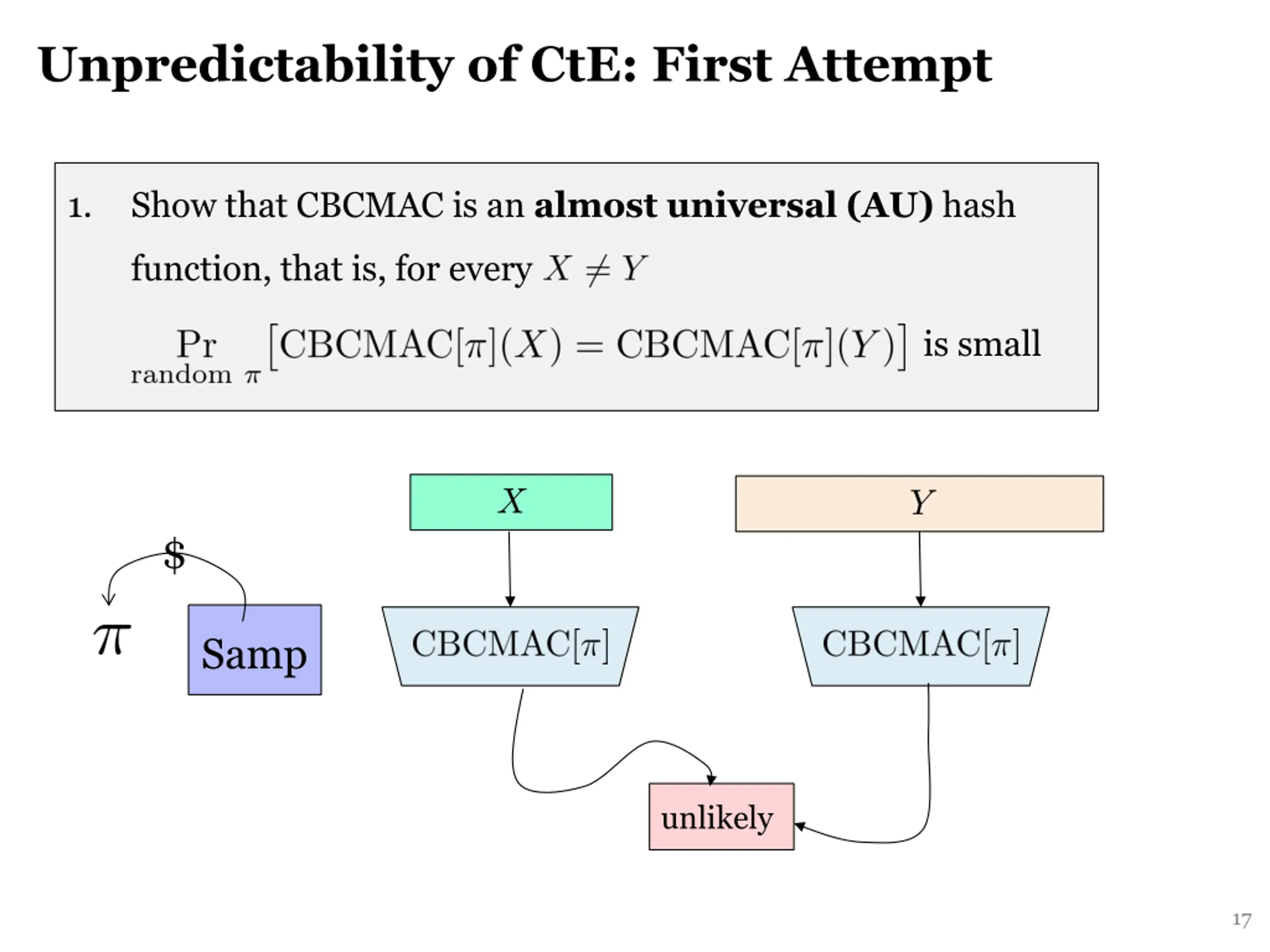

Unpredictability of CtE: First Attempt 1. Show that CBCMAC is an almost universal (AU) hash function, that is, for every is small X Y $ Samp unlikely 17

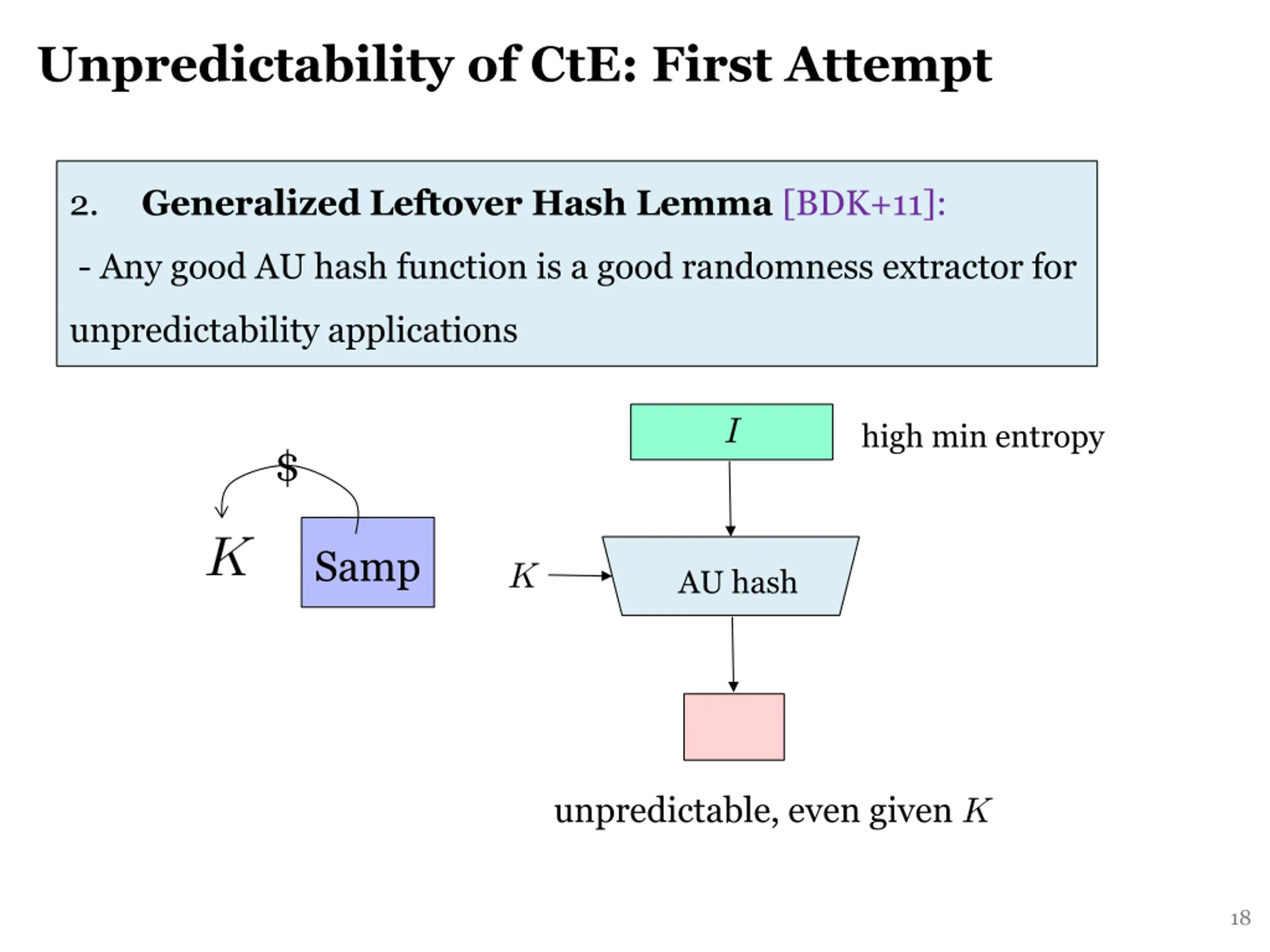

Unpredictability of CtE: First Attempt 2. Generalized Leftover Hash Lemma [BDK+11]: - Any good AU hash function is a good randomness extractor for unpredictability applications I high min entropy $ Samp K AU hash unpredictable, even given K 18

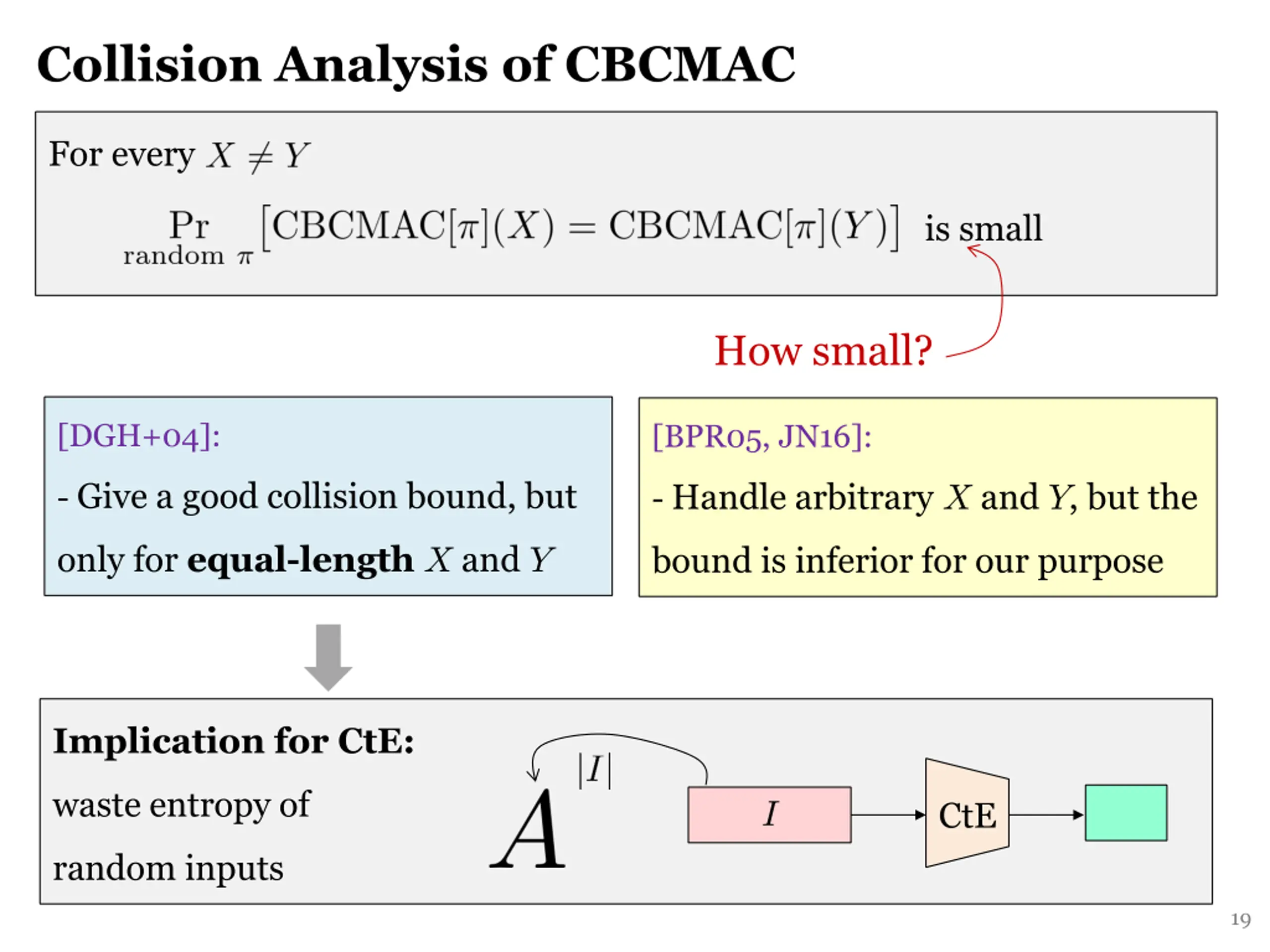

Collision Analysis of CBCMAC For every is small How small? [DGH+04]: [BPR05, JN16]: - Give a good collision bound, but - Handle arbitrary X and Y, but the only for equal-lengthX and Y bound is inferior for our purpose Implication for CtE: waste entropy of CtE I random inputs 19

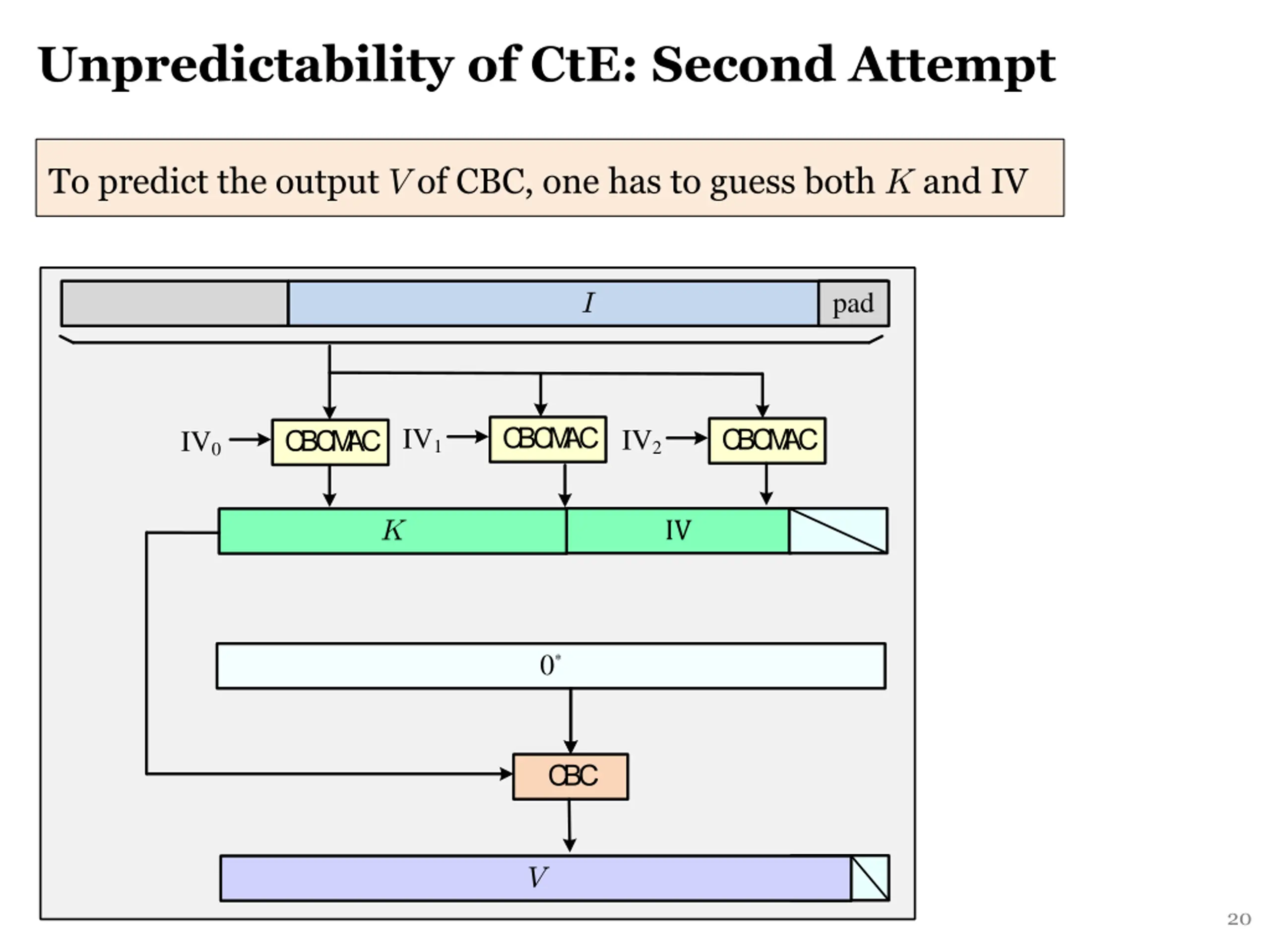

Unpredictability of CtE: Second Attempt To predict the output V of CBC, one has to guess both K and IV pad I IV1 CBCM AC IV2 CBCM AC IV0 CBCM AC IV K 0* CBC V 20

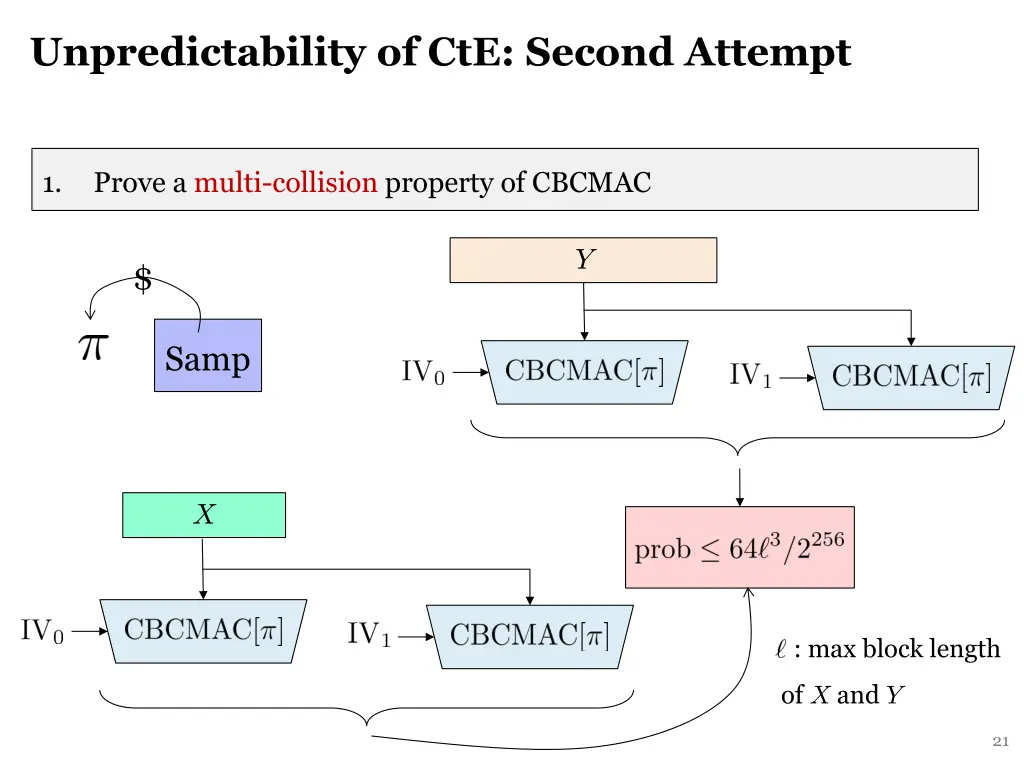

Unpredictability of CtE: Second Attempt 1. Prove a multi-collision property of CBCMAC Y $ Samp X : max block length of X and Y 21

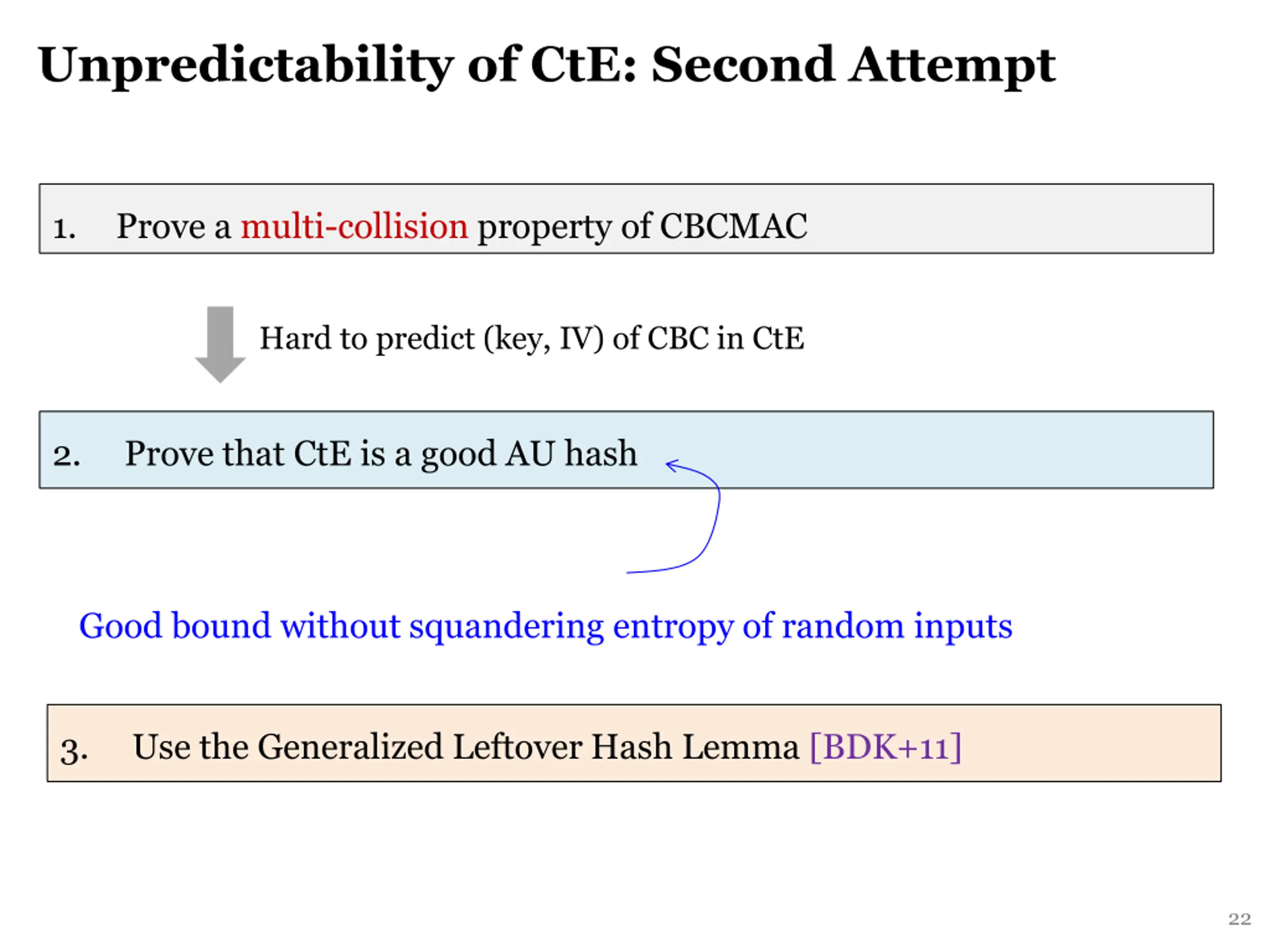

Unpredictability of CtE: Second Attempt 1. Prove a multi-collision property of CBCMAC Hard to predict (key, IV) of CBC in CtE 2. Prove that CtE is a good AU hash Good bound without squandering entropy of random inputs 3. Use the Generalized Leftover Hash Lemma [BDK+11] 22

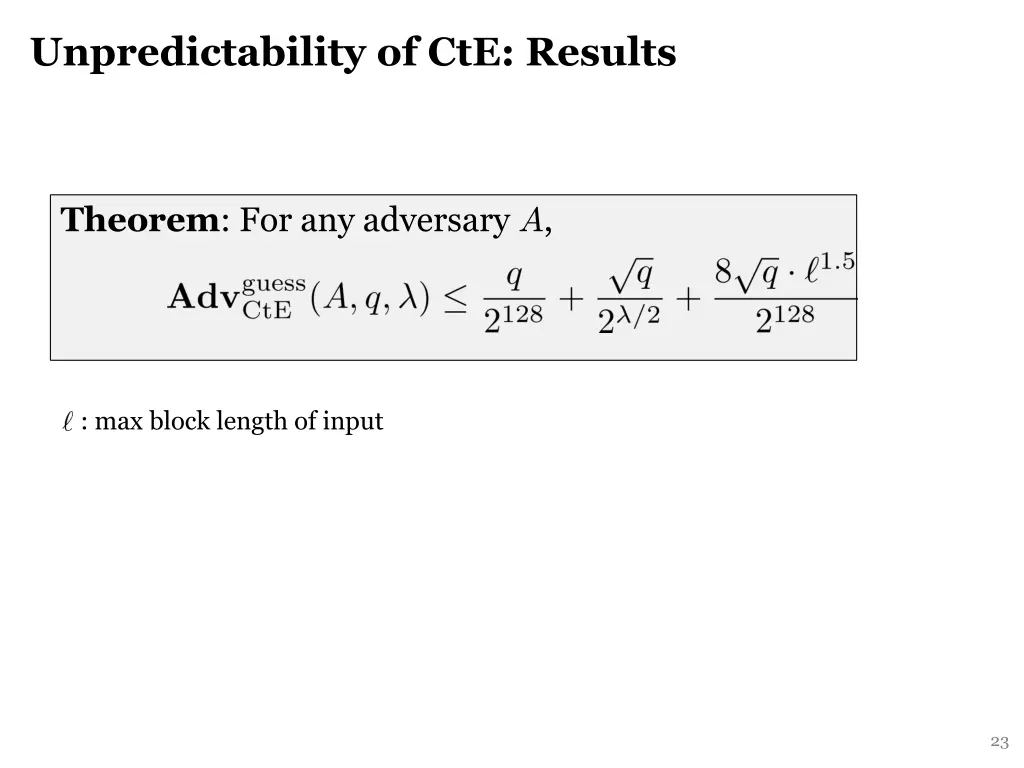

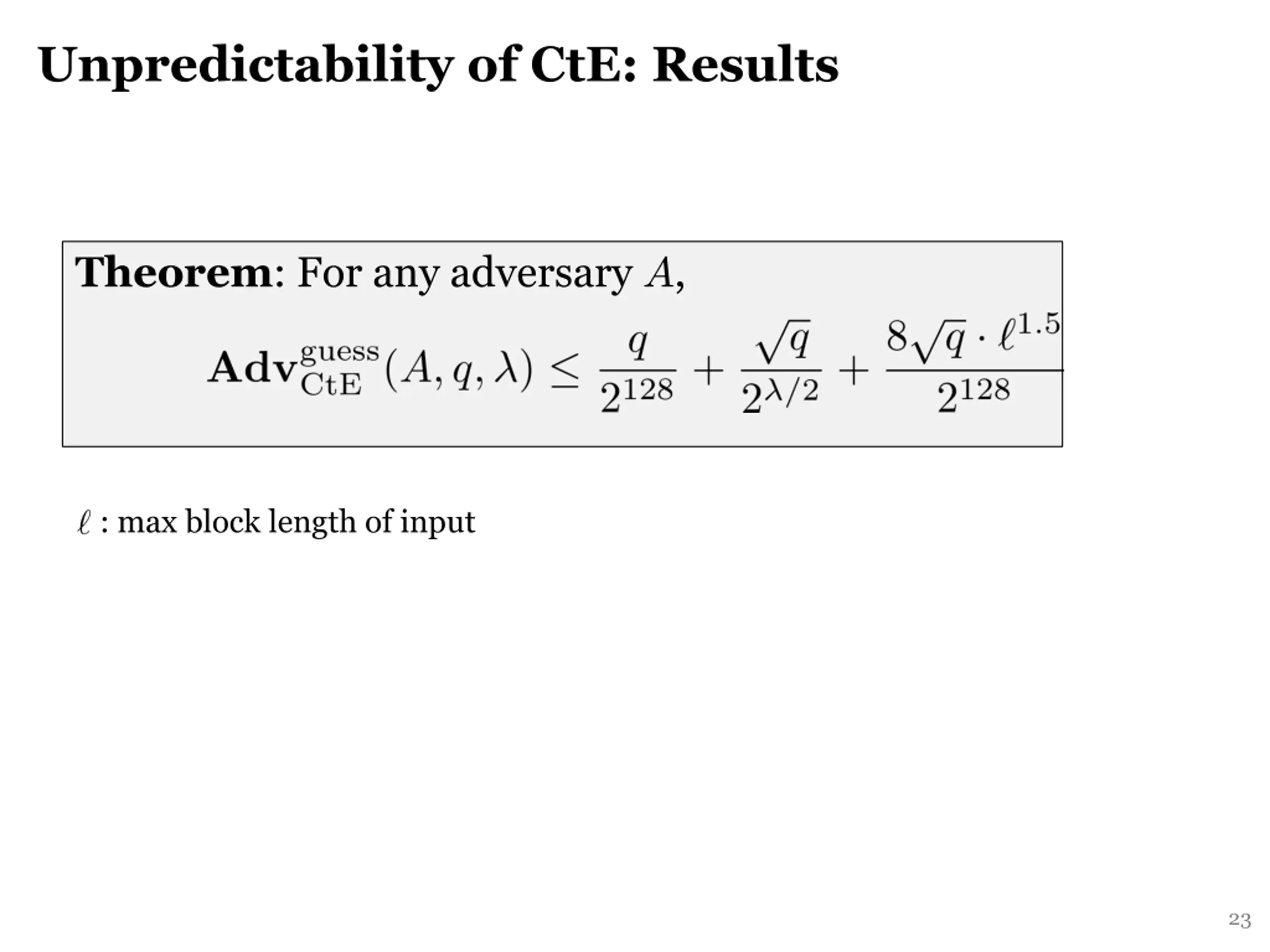

Unpredictability of CtE: Results Theorem: For any adversary A, : max block length of input 23

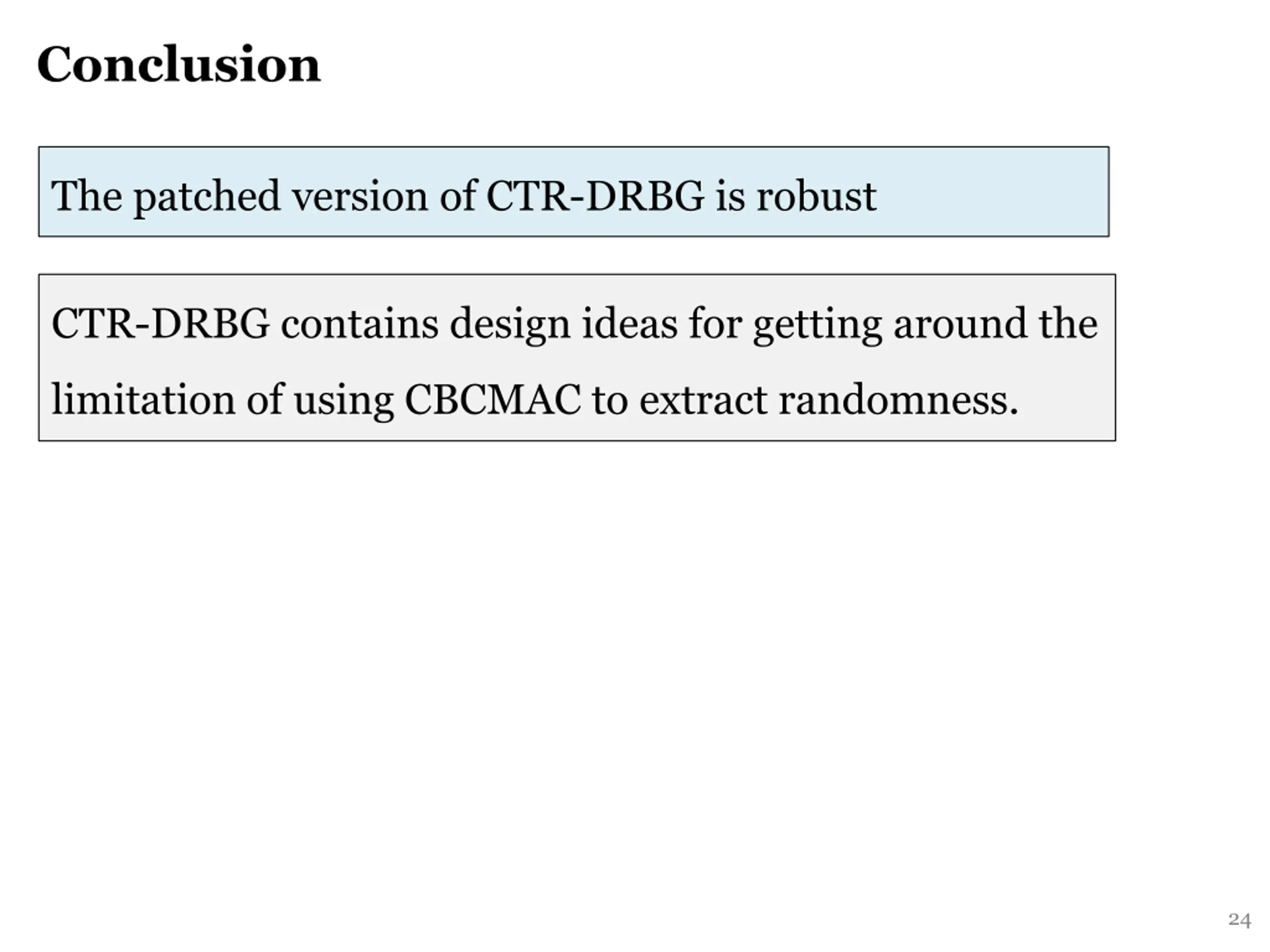

Conclusion The patched version of CTR-DRBG is robust CTR-DRBG contains design ideas for getting around the limitation of using CBCMAC to extract randomness. 24
