  1. Self-stabilizing (f,g)-Alliances with Safe Convergence Fabienne Carrier Ajoy K. Datta St phane Devismes Lawrence L. Larmore Yvan Rivierre

  2. Co-Autors Ajoy K. Datta & Lawrence L. Larmore Fabienne Carrier & Yvan Rivierre 14/11/13 SSS 2013, Osaka

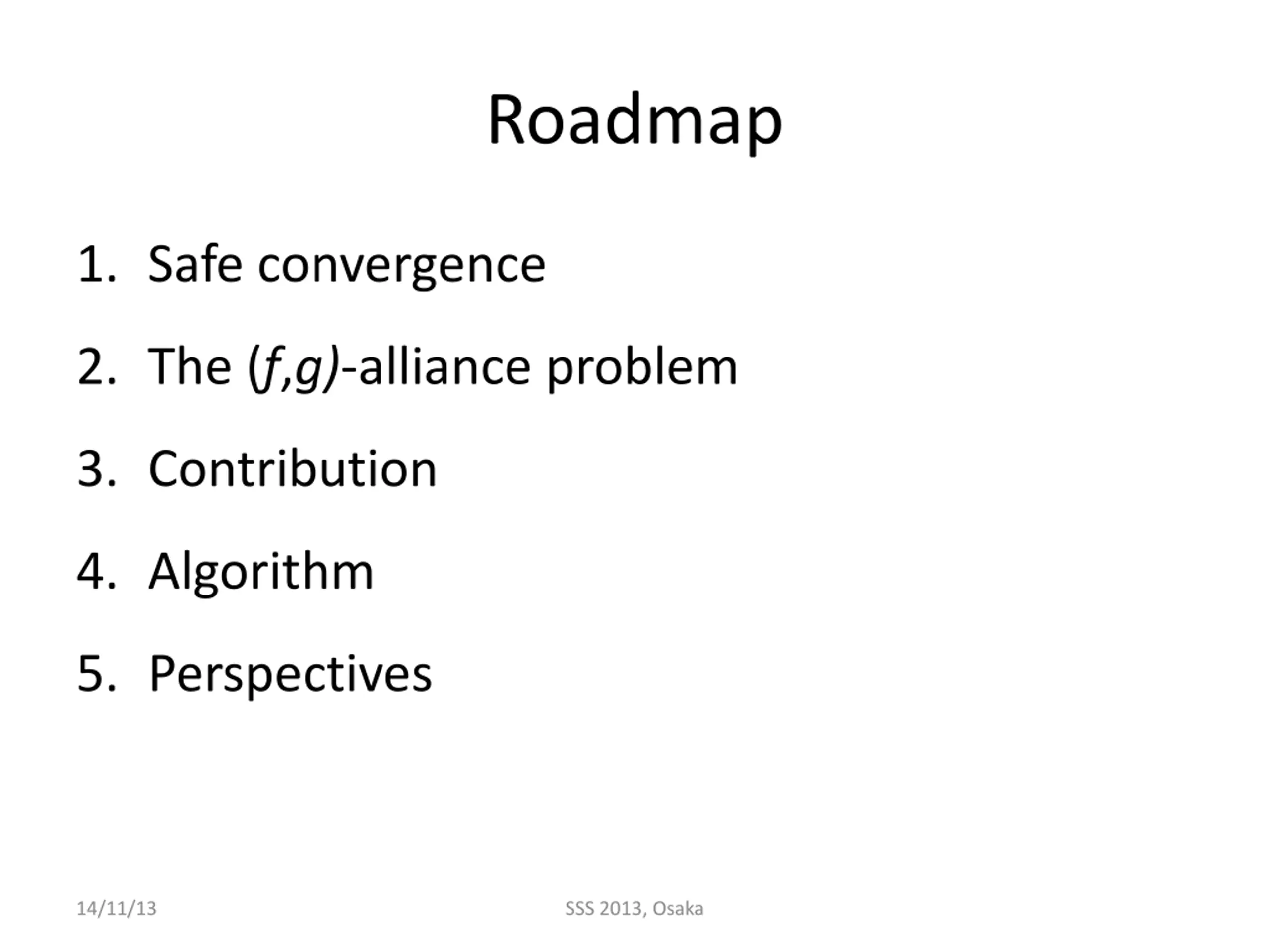

  3. Roadmap 1. Safe convergence 2. The (f,g)-alliance problem 3. Contribution 4. Algorithm 5. Perspectives 14/11/13 SSS 2013, Osaka

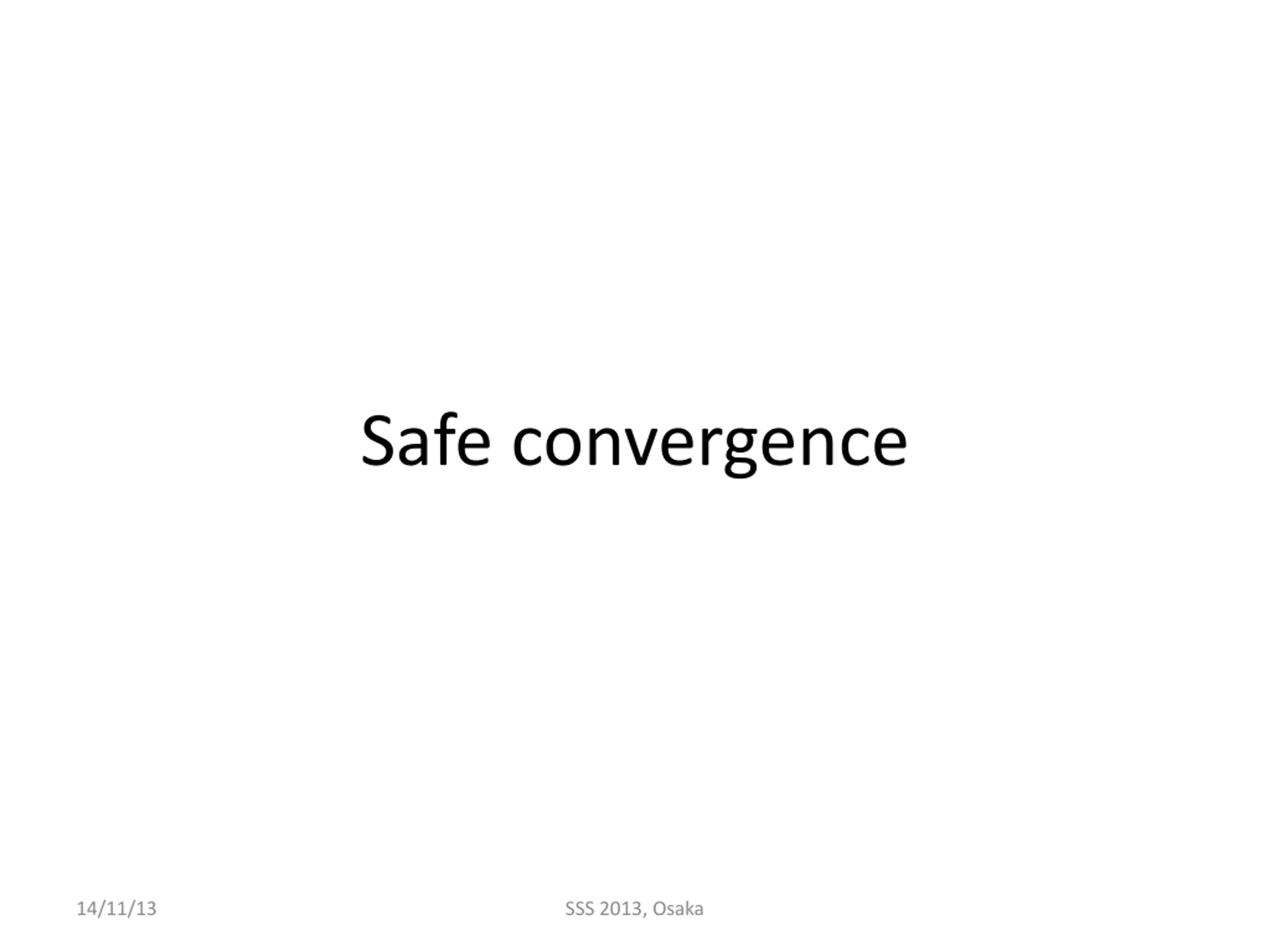

  4. Safe convergence 14/11/13 SSS 2013, Osaka

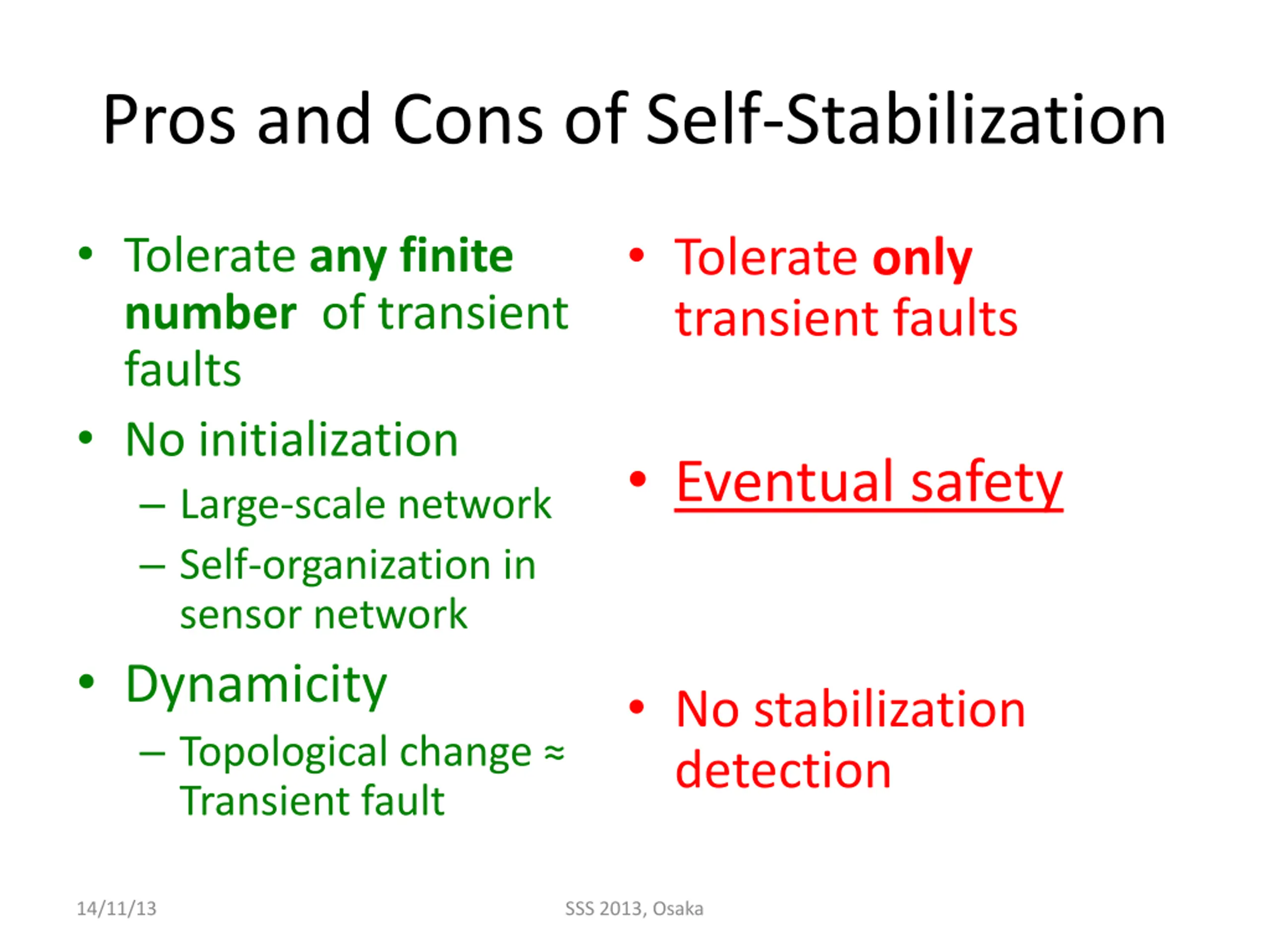

  5. Pros and Cons of Self-Stabilization Tolerate only transient faults Tolerate any finite number of transient faults No initialization Large-scale network Self-organization in sensor network Dynamicity Topological change Transient fault Eventual safety No stabilization detection 14/11/13 SSS 2013, Osaka

  6. Pros and Cons of Self-Stabilization Tolerate only transient faults Tolerate any finite number of transient faults No initialization Large-scale network Self-organization in sensor network Dynamicity Topological change Transient fault Eventual safety No stabilization detection 14/11/13 SSS 2013, Osaka

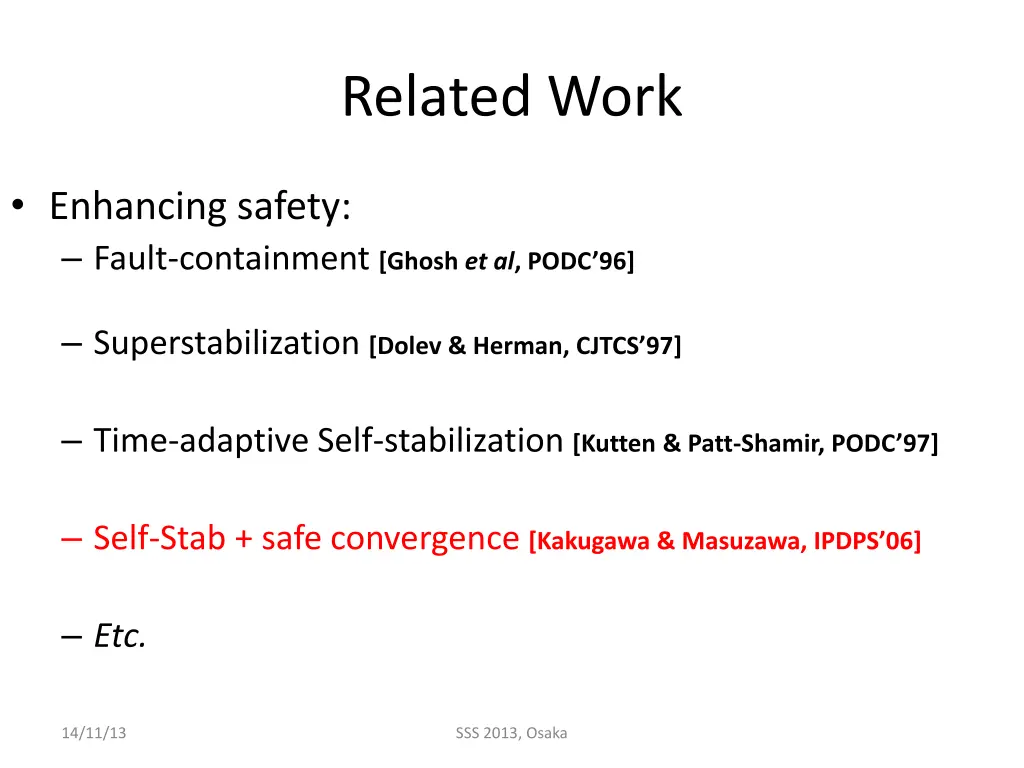

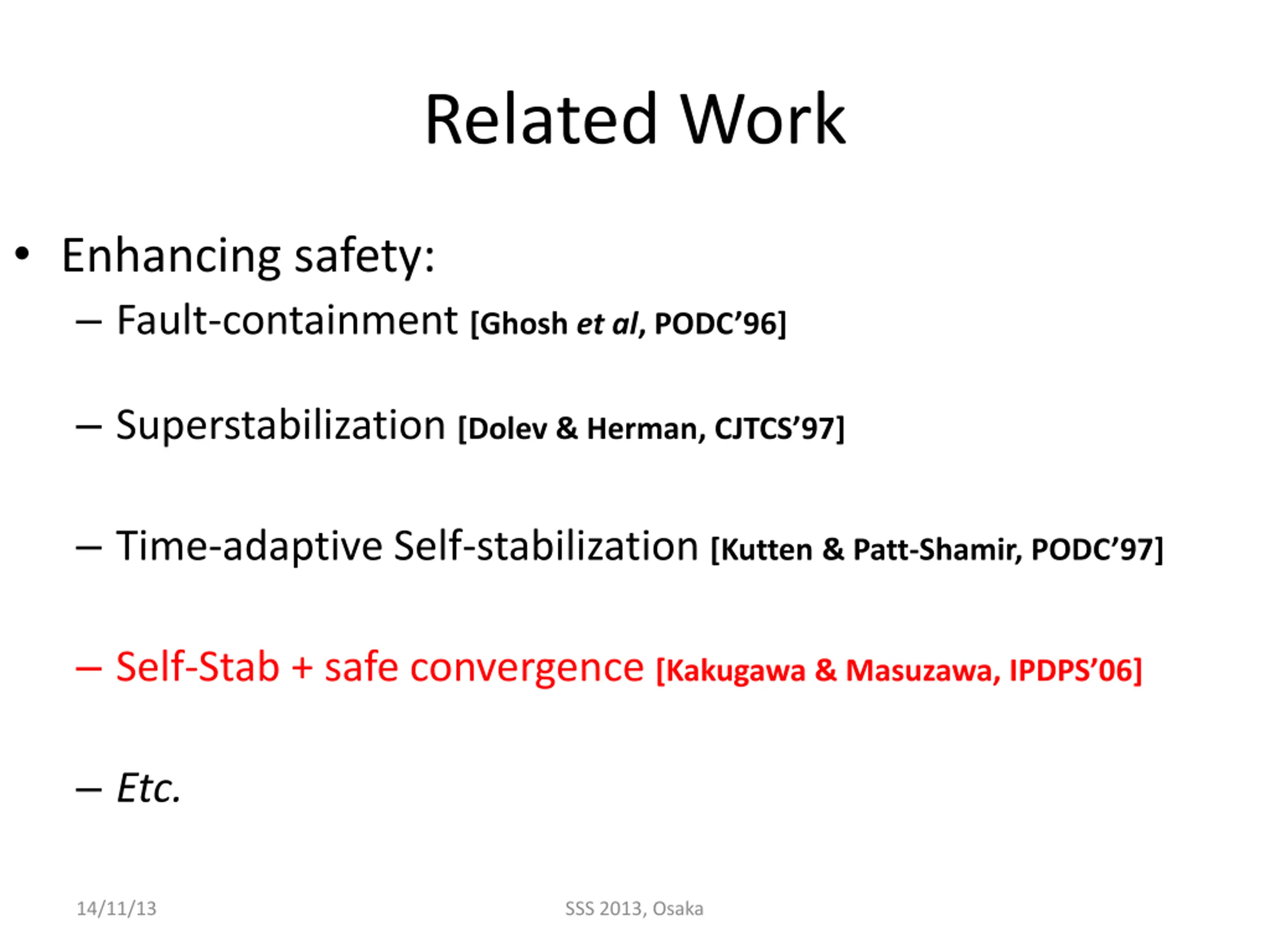

  7. Related Work Enhancing safety: Fault-containment [Ghosh et al, PODC 96] Superstabilization [Dolev & Herman, CJTCS 97] Time-adaptive Self-stabilization [Kutten & Patt-Shamir, PODC 97] Self-Stab + safe convergence [Kakugawa & Masuzawa, IPDPS 06] Etc. 14/11/13 SSS 2013, Osaka

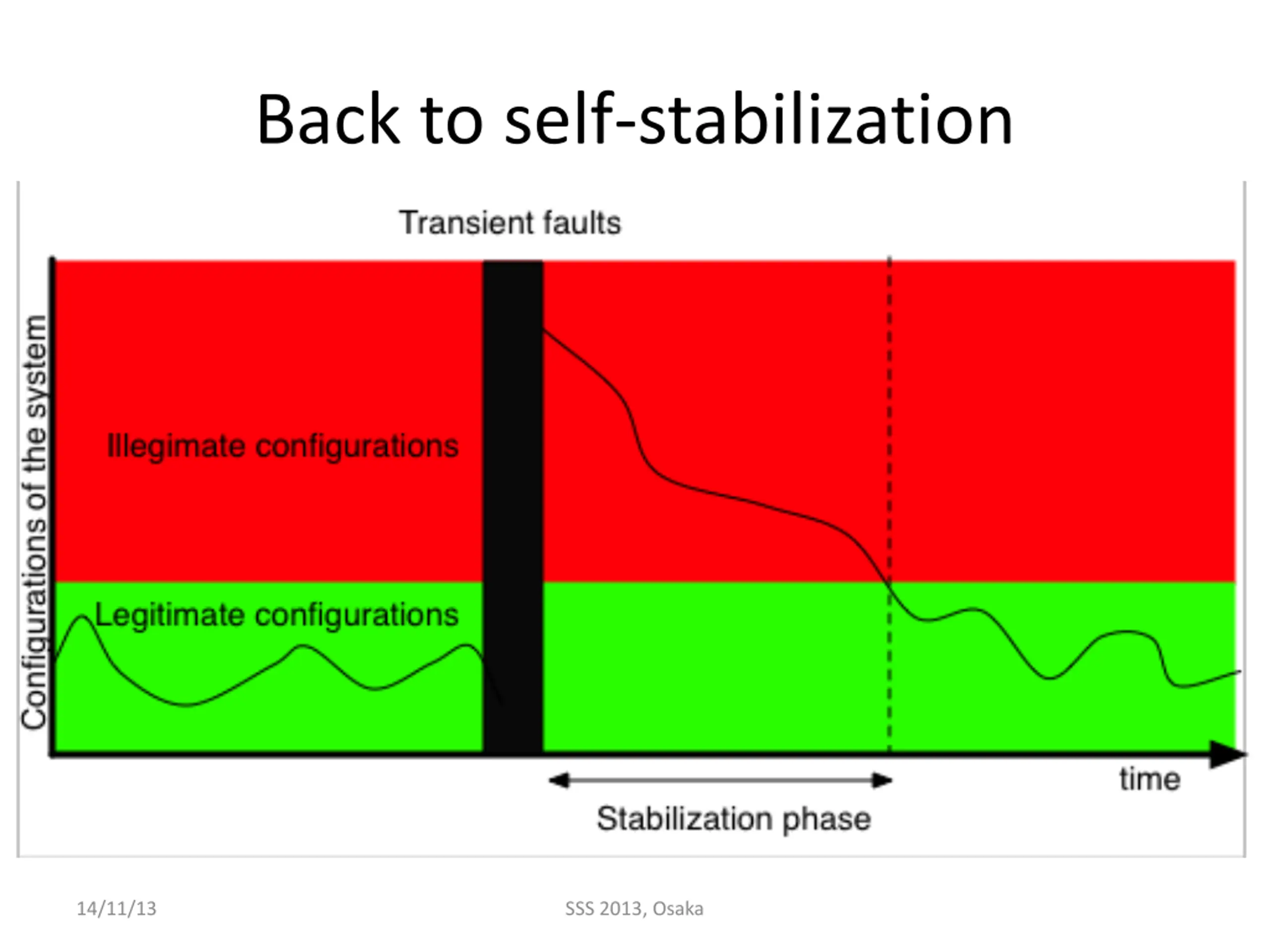

  8. Back to self-stabilization 14/11/13 SSS 2013, Osaka

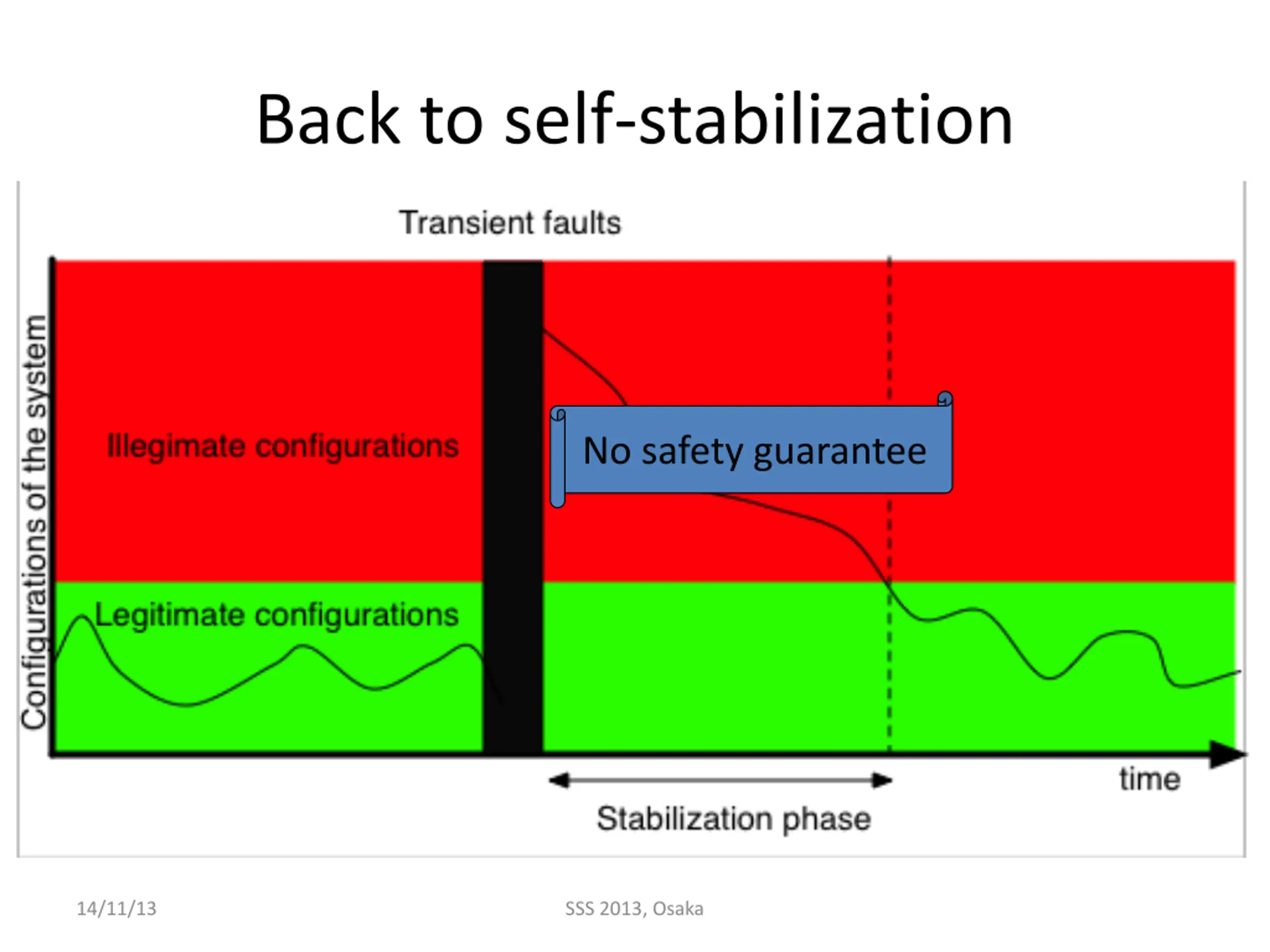

  9. Back to self-stabilization No safety guarantee 14/11/13 SSS 2013, Osaka

  10. Back to self-stabilization (D) 14/11/13 SSS 2013, Osaka

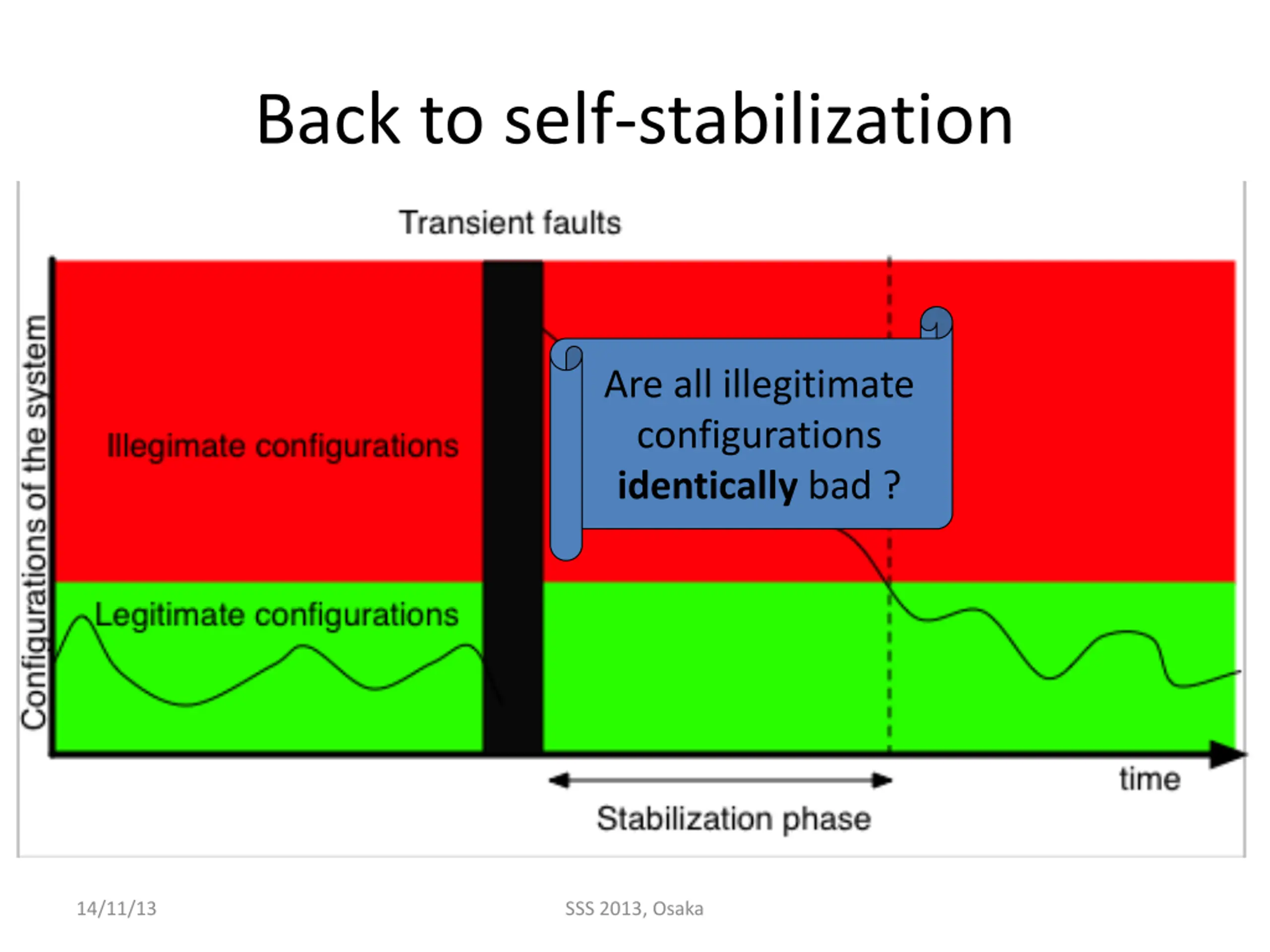

  11. Back to self-stabilization Are all illegitimate configurations identically bad ? 14/11/13 SSS 2013, Osaka

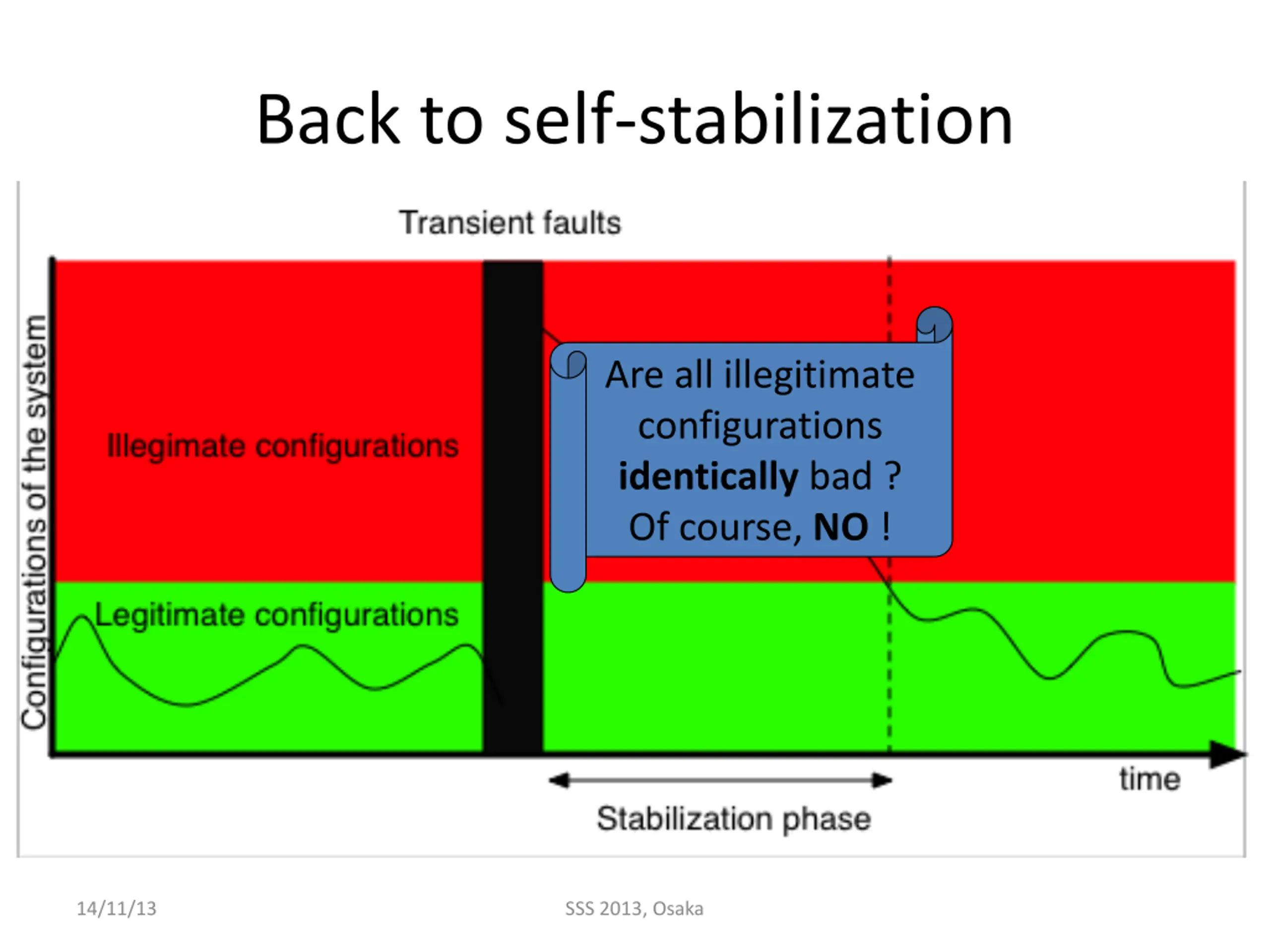

  12. Back to self-stabilization Are all illegitimate configurations identically bad ? Of course, NO ! 14/11/13 SSS 2013, Osaka

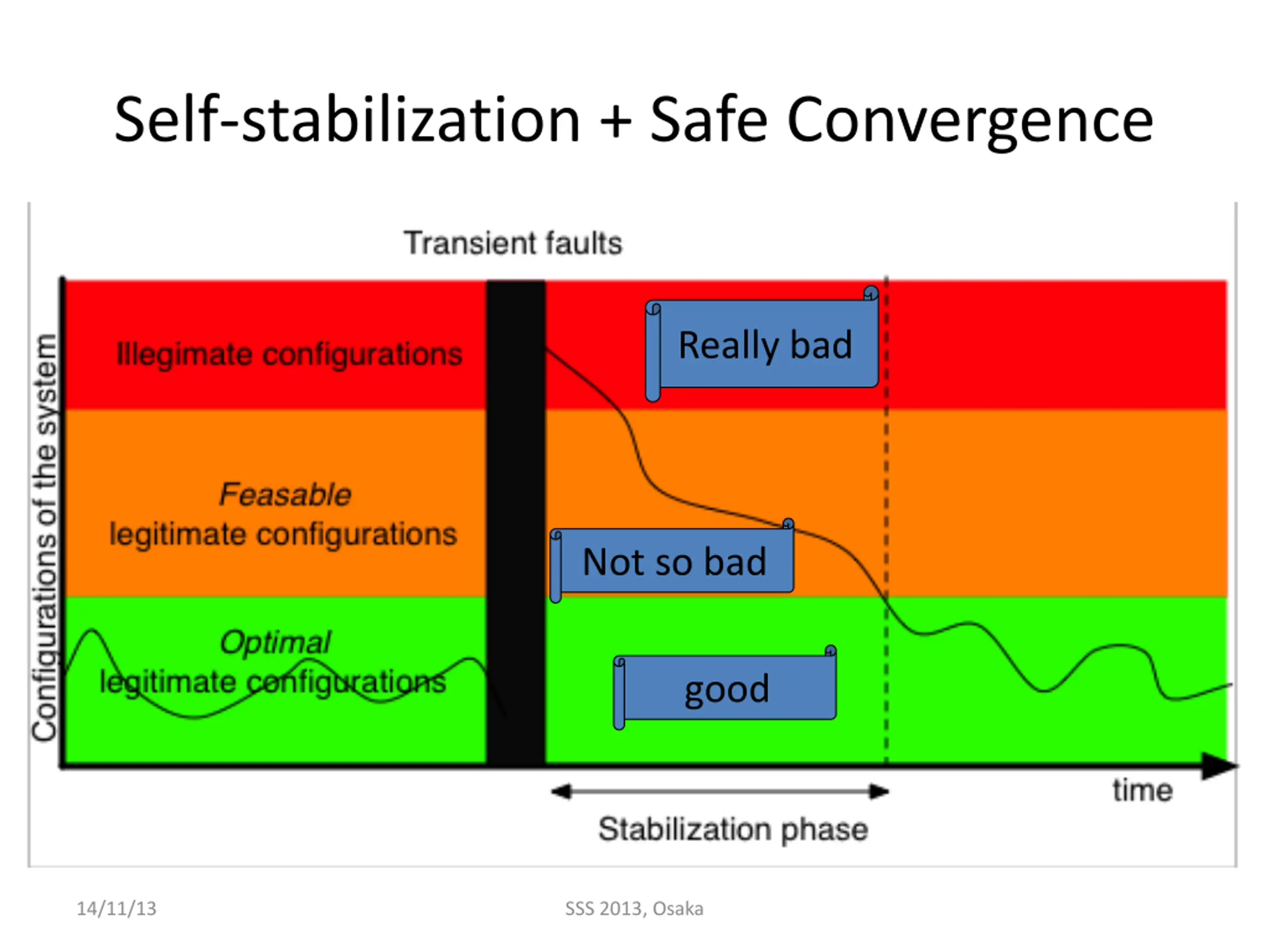

  13. Self-stabilization + Safe Convergence Really bad Not so bad good 14/11/13 SSS 2013, Osaka

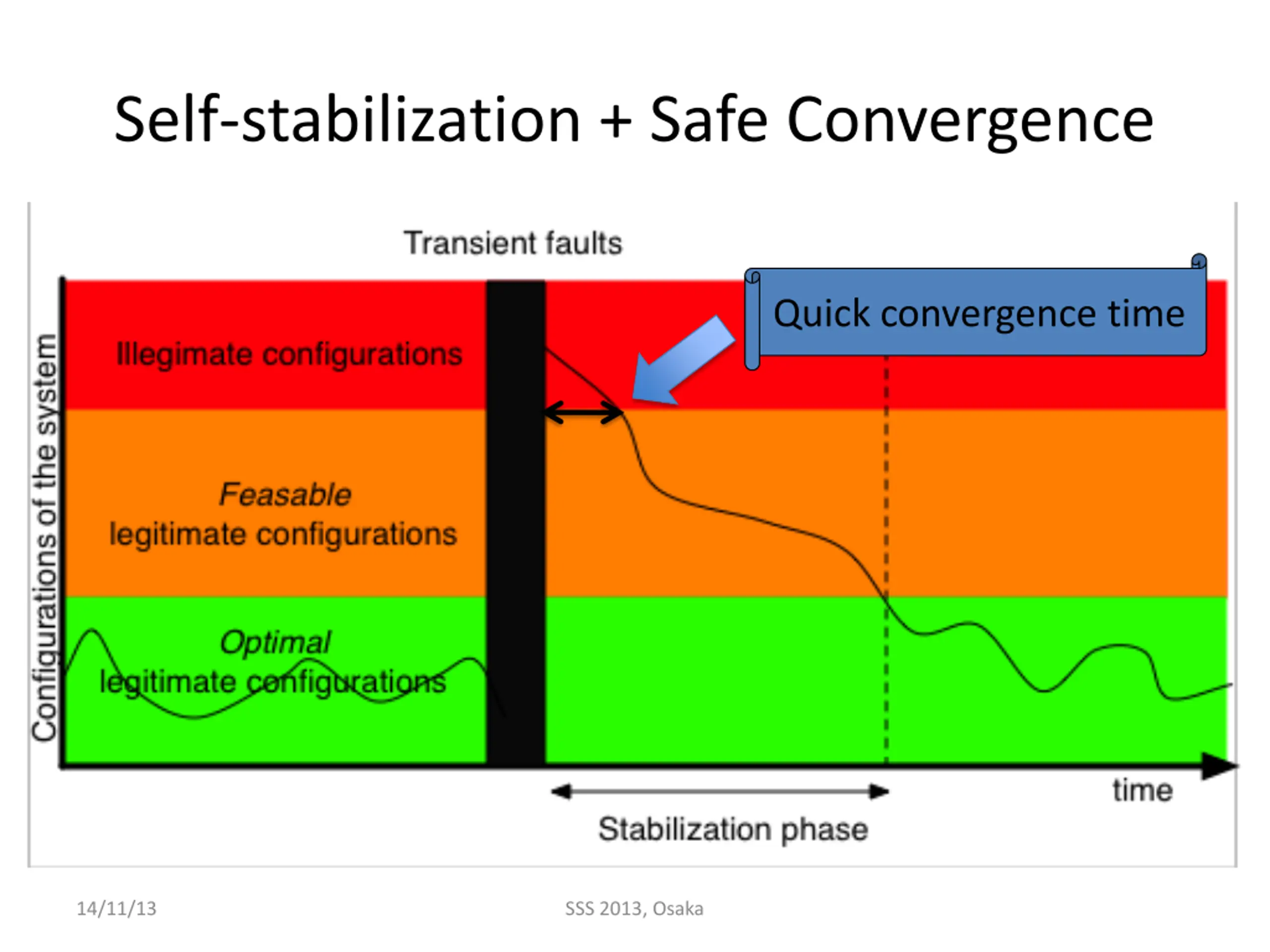

  14. Self-stabilization + Safe Convergence Quick convergence time 14/11/13 SSS 2013, Osaka

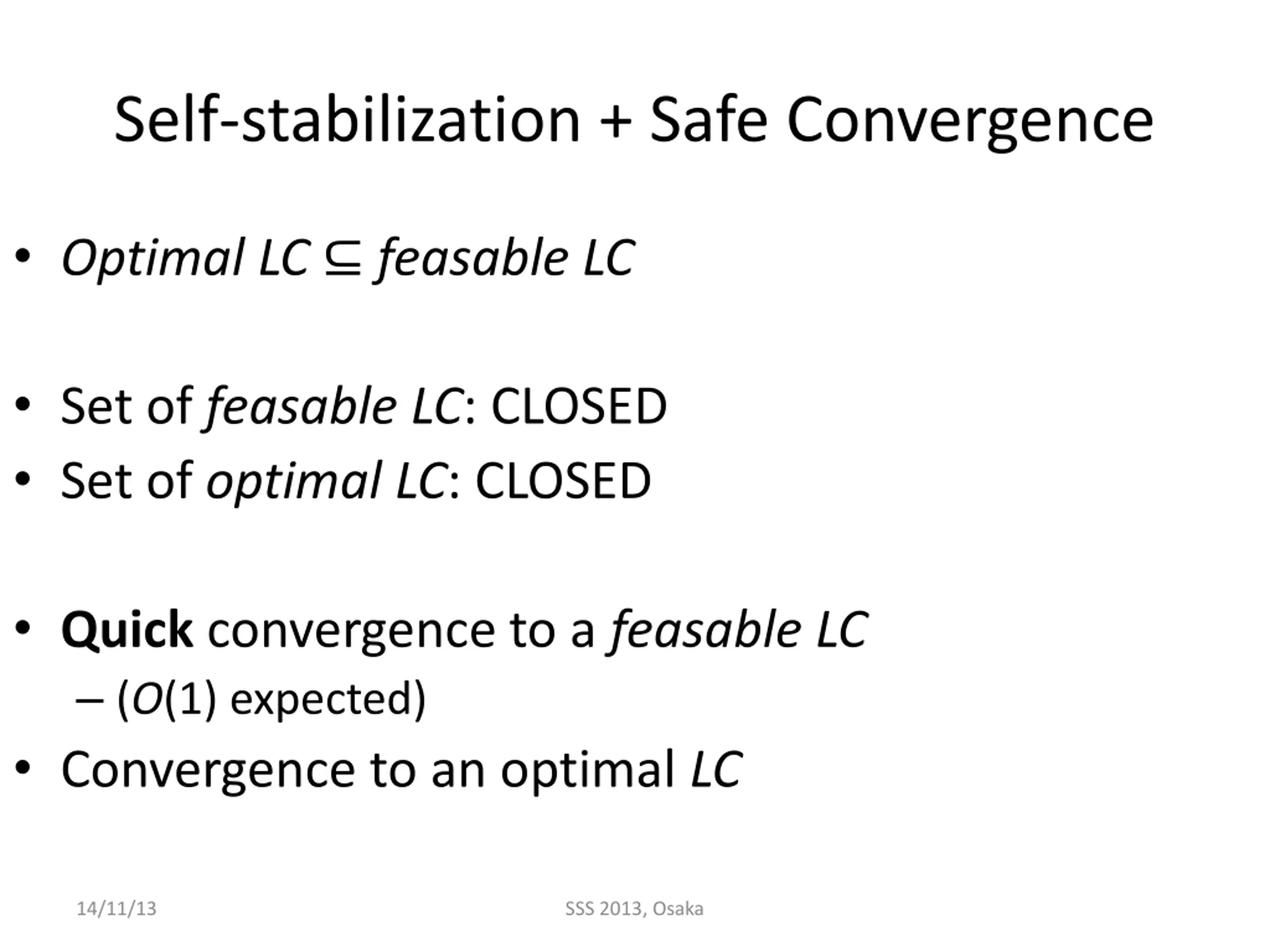

  15. Self-stabilization + Safe Convergence Optimal LC feasable LC Set of feasable LC: CLOSED Set of optimal LC: CLOSED Quick convergence to a feasable LC (O(1) expected) Convergence to an optimal LC 14/11/13 SSS 2013, Osaka

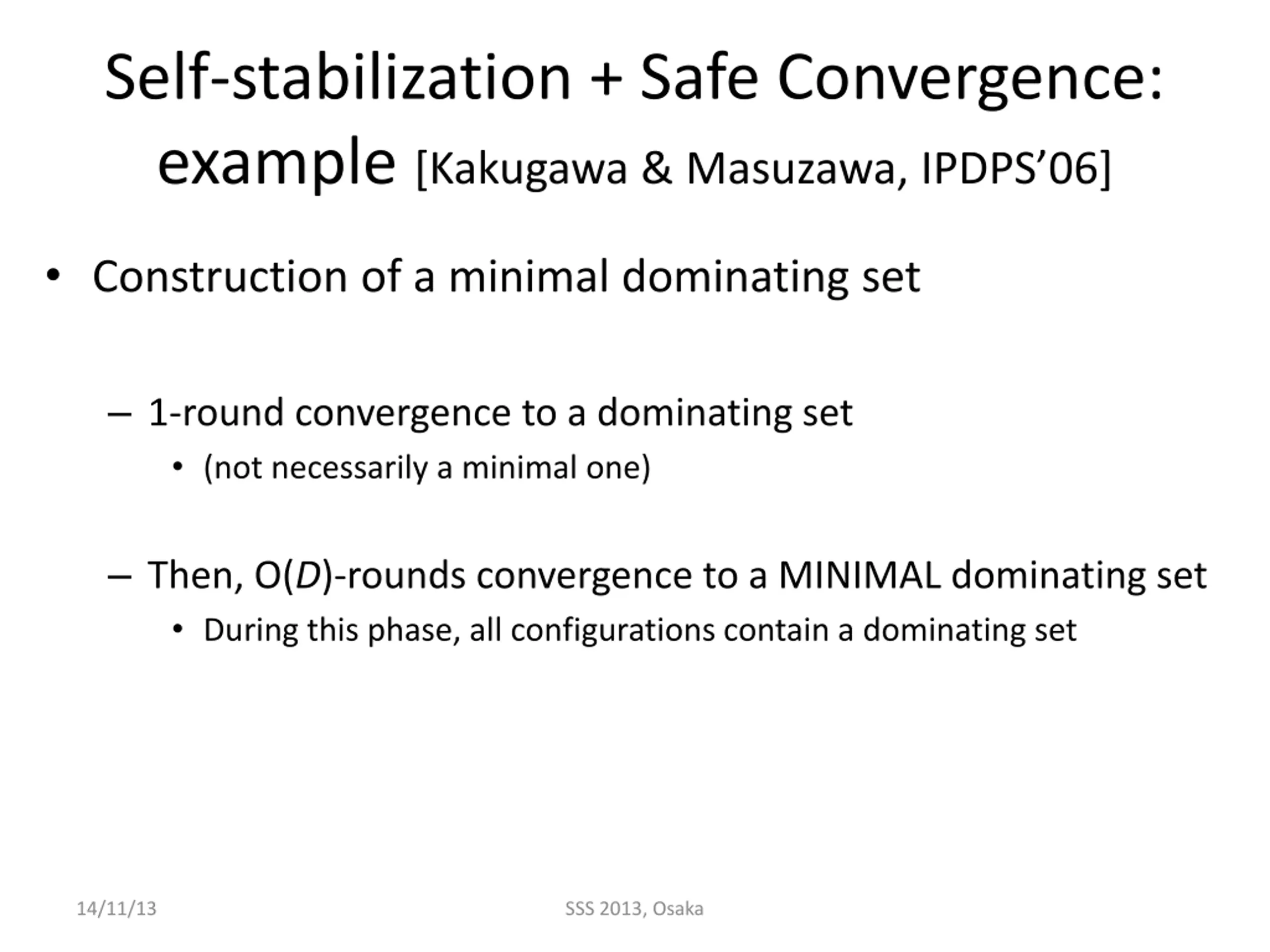

  16. Self-stabilization + Safe Convergence: example [Kakugawa & Masuzawa, IPDPS 06] Construction of a minimal dominating set 1-round convergence to a dominating set (not necessarily a minimal one) Then, O(D)-rounds convergence to a MINIMAL dominating set During this phase, all configurations contain a dominating set 14/11/13 SSS 2013, Osaka

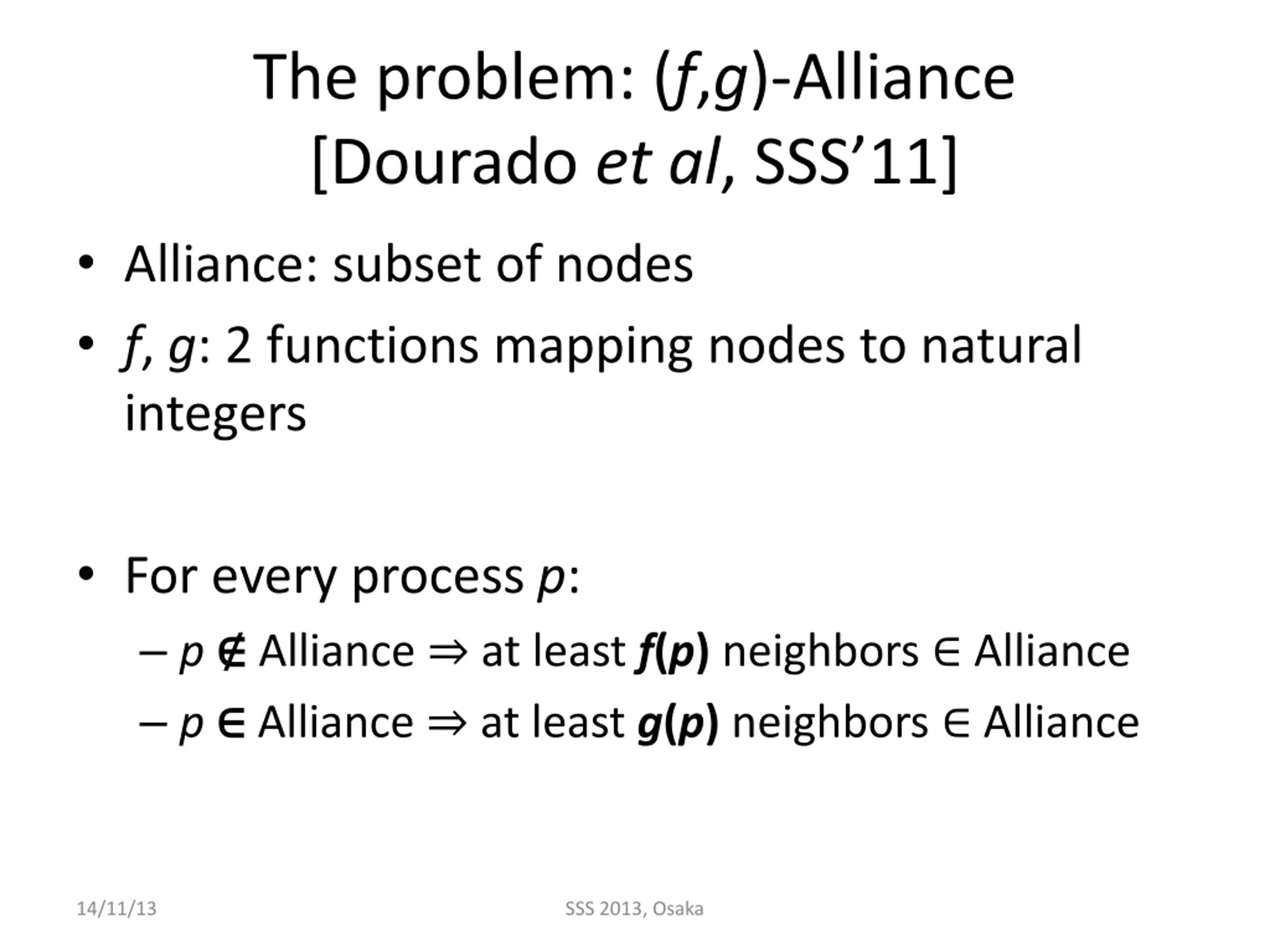

  17. The problem: (f,g)-Alliance [Dourado et al, SSS 11] Alliance: subset of nodes f, g: 2 functions mapping nodes to natural integers For every process p: p Alliance at least f(p) neighbors Alliance p Alliance at least g(p) neighbors Alliance 14/11/13 SSS 2013, Osaka

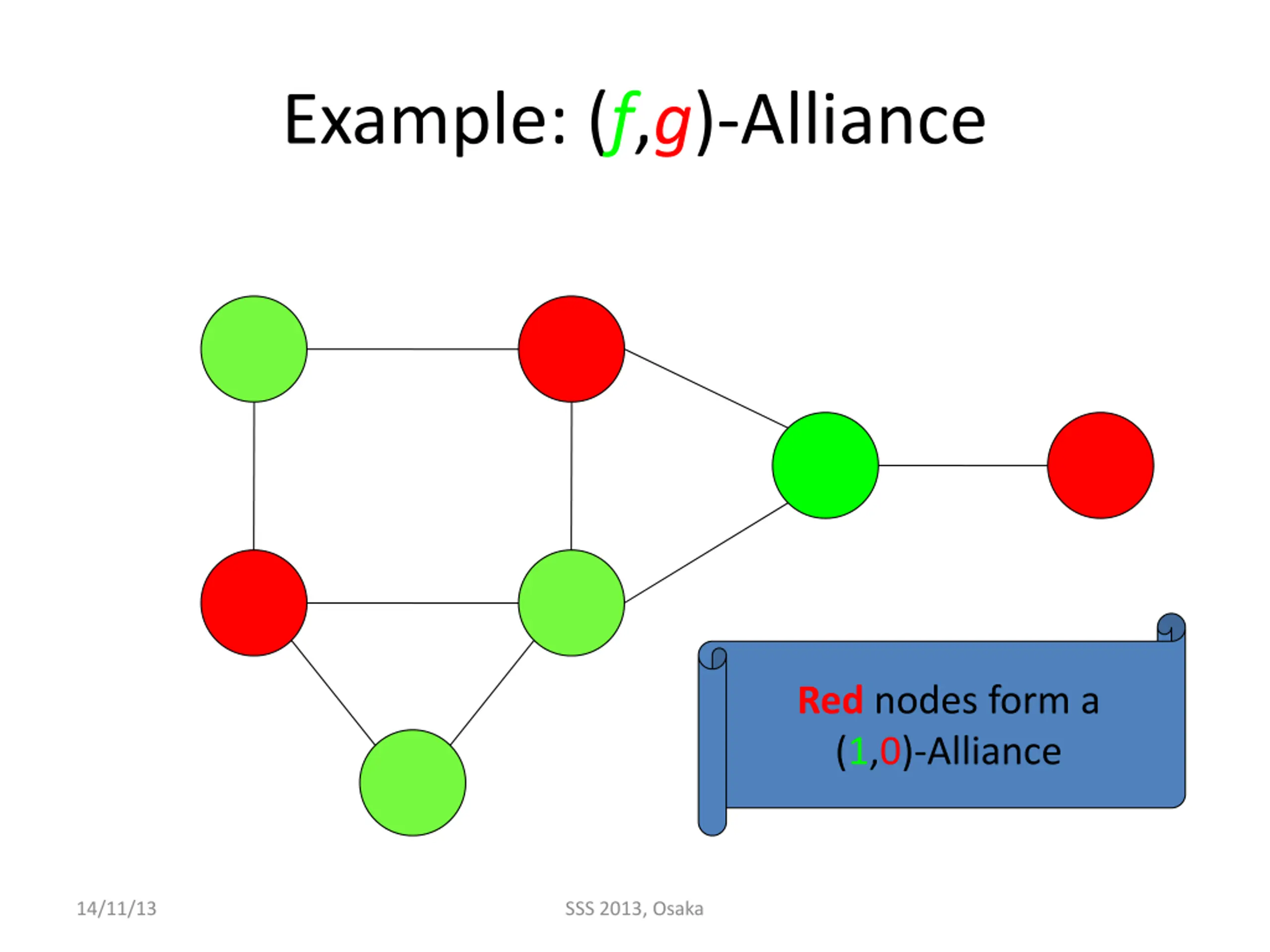

  18. Example: (f,g)-Alliance Red nodes form a (1,0)-Alliance 14/11/13 SSS 2013, Osaka

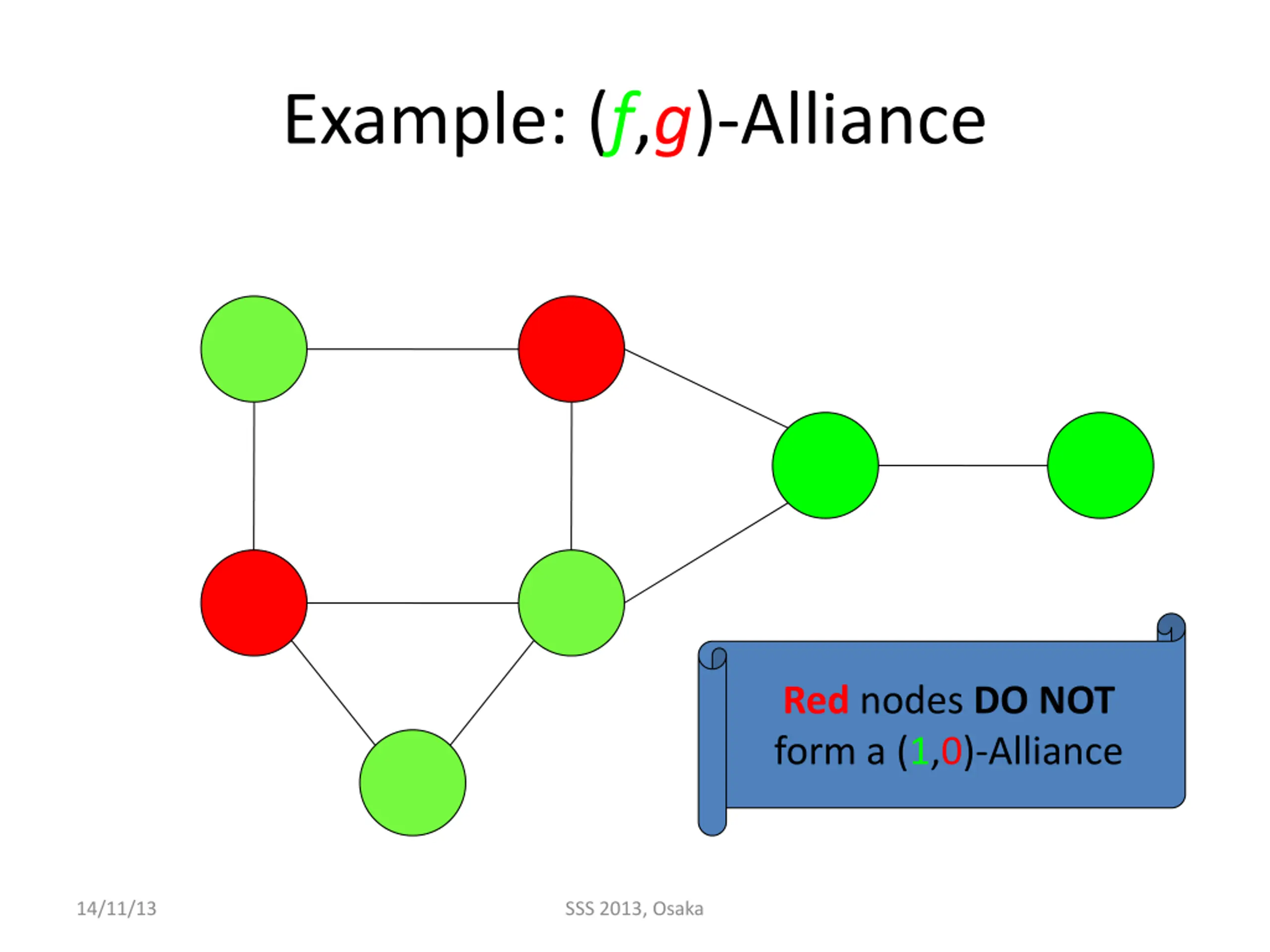

  19. Example: (f,g)-Alliance Red nodes DO NOT form a (1,0)-Alliance 14/11/13 SSS 2013, Osaka

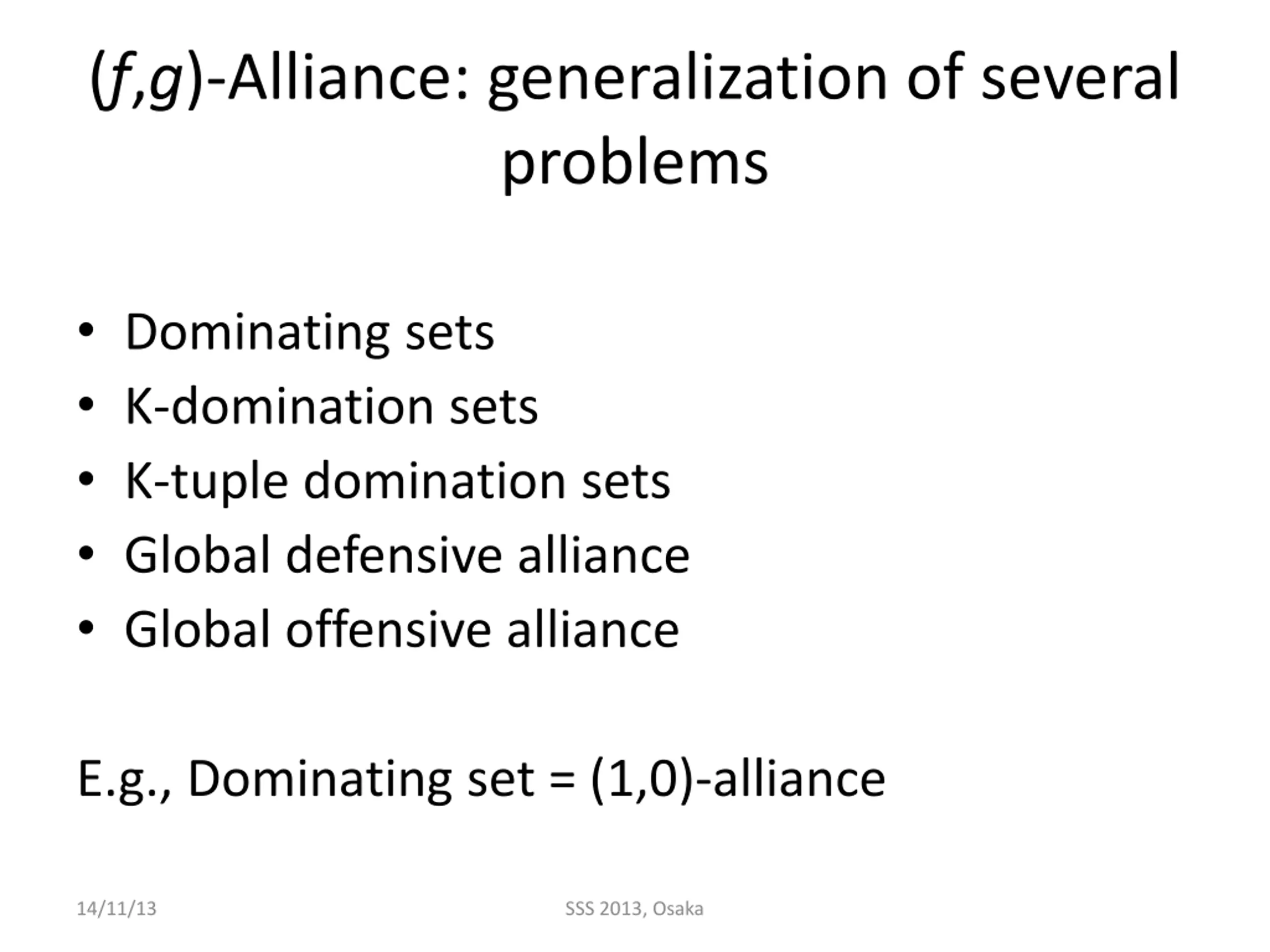

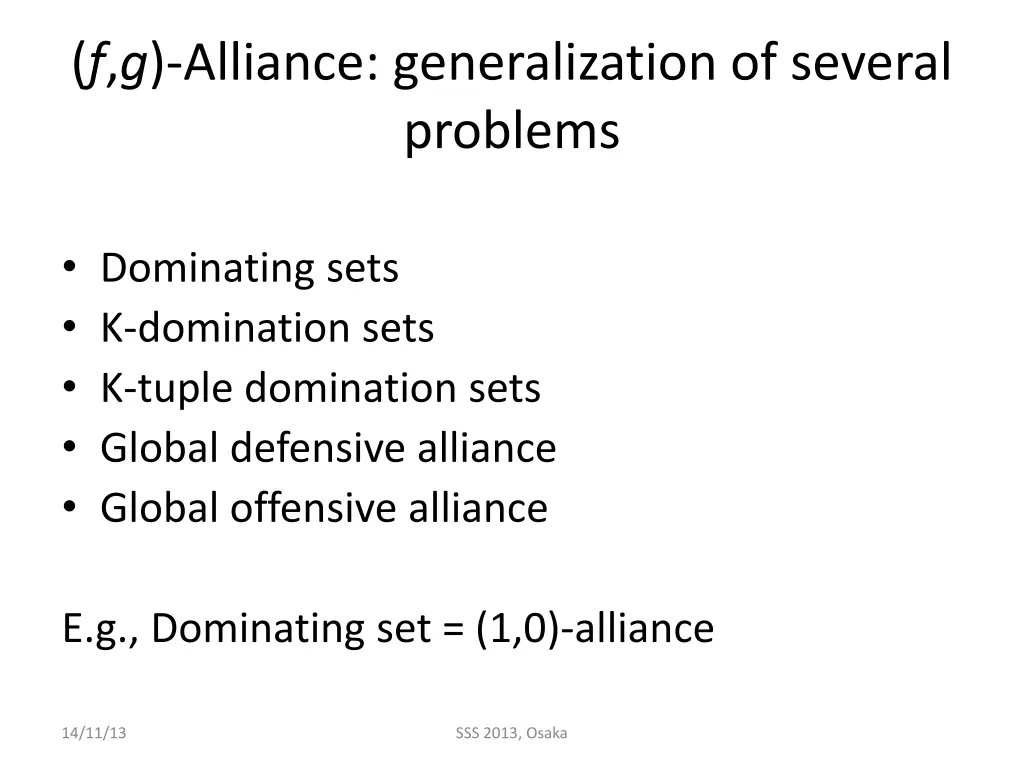

  20. (f,g)-Alliance: generalization of several problems Dominating sets K-domination sets K-tuple domination sets Global defensive alliance Global offensive alliance E.g., Dominating set = (1,0)-alliance 14/11/13 SSS 2013, Osaka

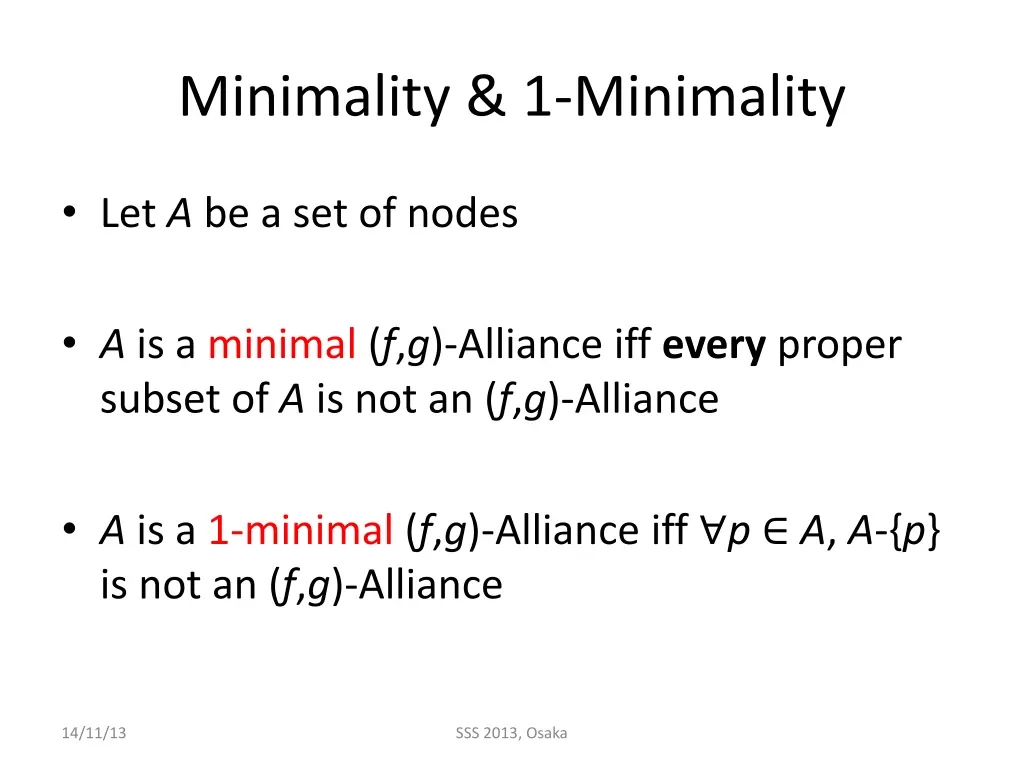

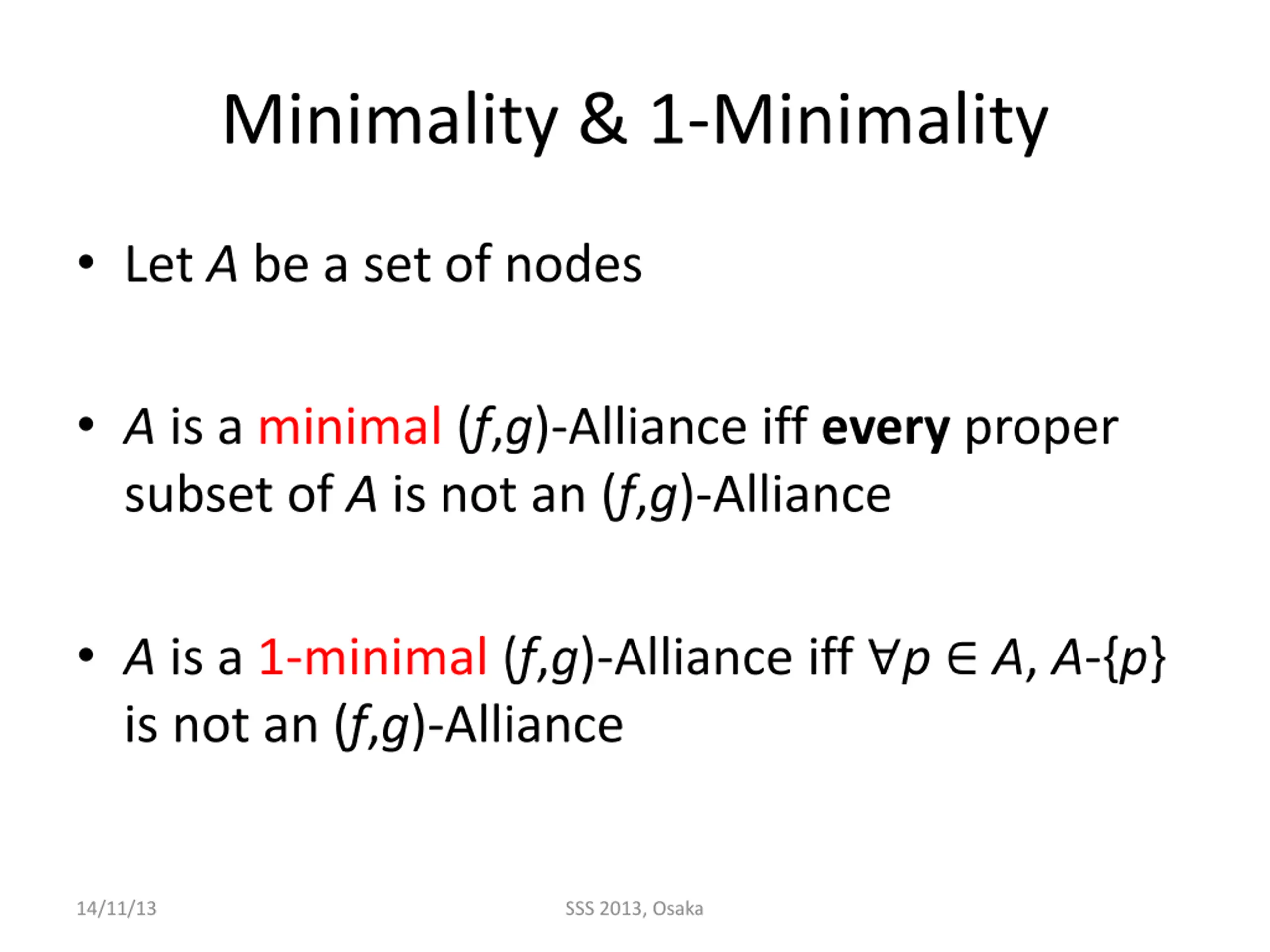

  21. Minimality & 1-Minimality Let A be a set of nodes A is a minimal (f,g)-Alliance iff every proper subset of A is not an (f,g)-Alliance A is a 1-minimal (f,g)-Alliance iff p A, A-{p} is not an (f,g)-Alliance 14/11/13 SSS 2013, Osaka

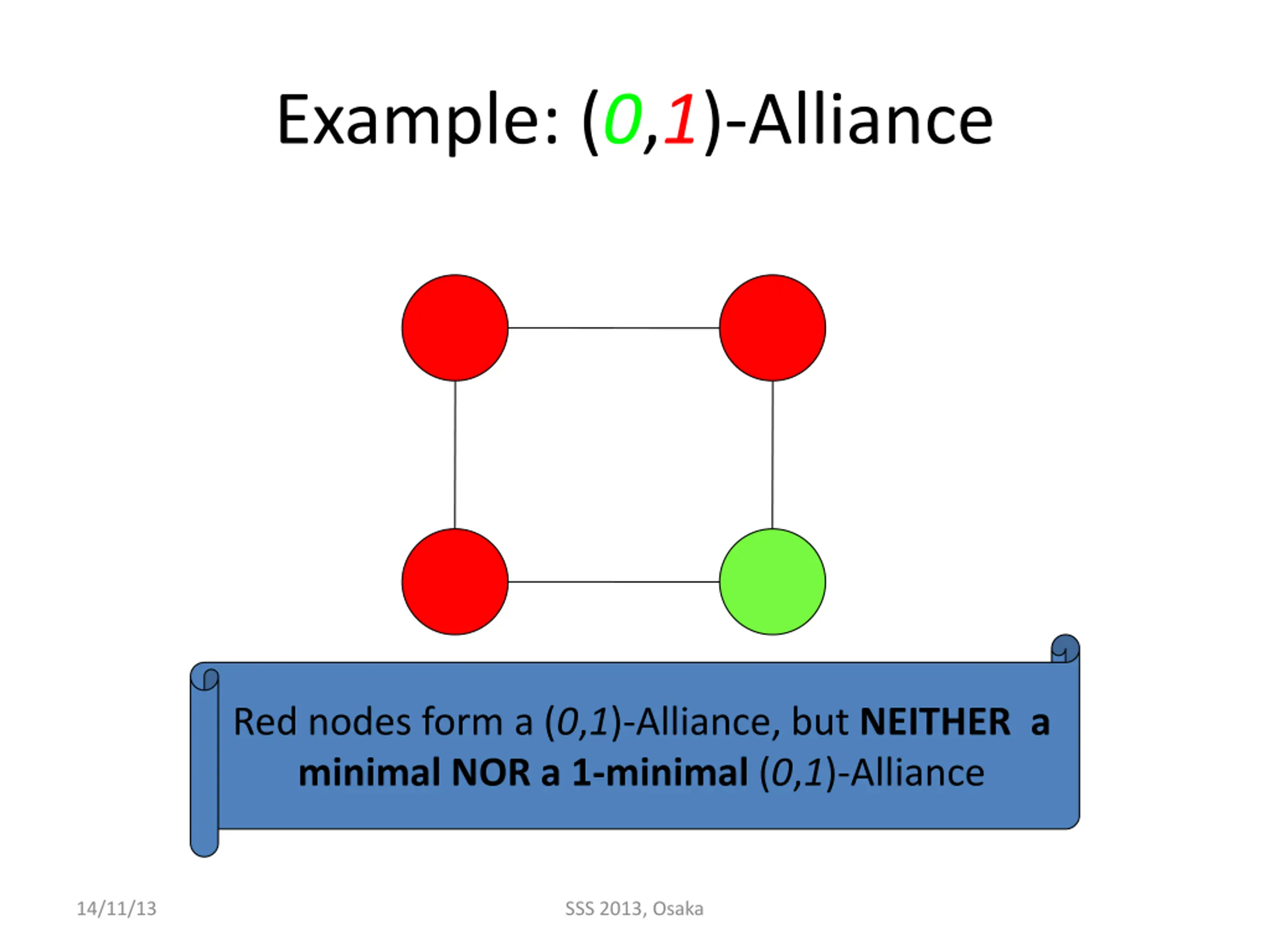

  22. Example: (0,1)-Alliance Red nodes form a (0,1)-Alliance, but NEITHER a minimal NOR a 1-minimal (0,1)-Alliance 14/11/13 SSS 2013, Osaka

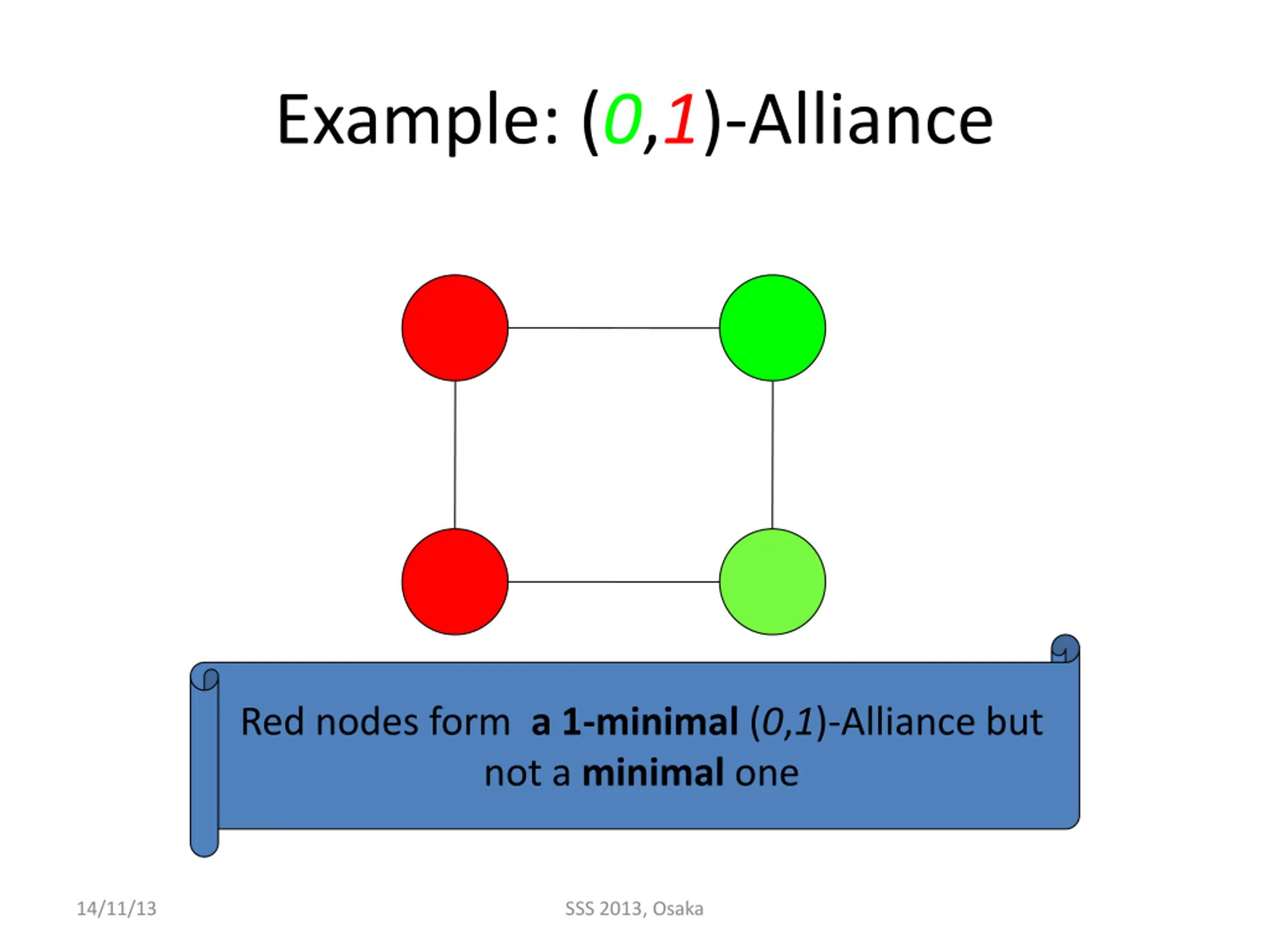

  23. Example: (0,1)-Alliance Red nodes form a 1-minimal (0,1)-Alliance but not a minimal one 14/11/13 SSS 2013, Osaka

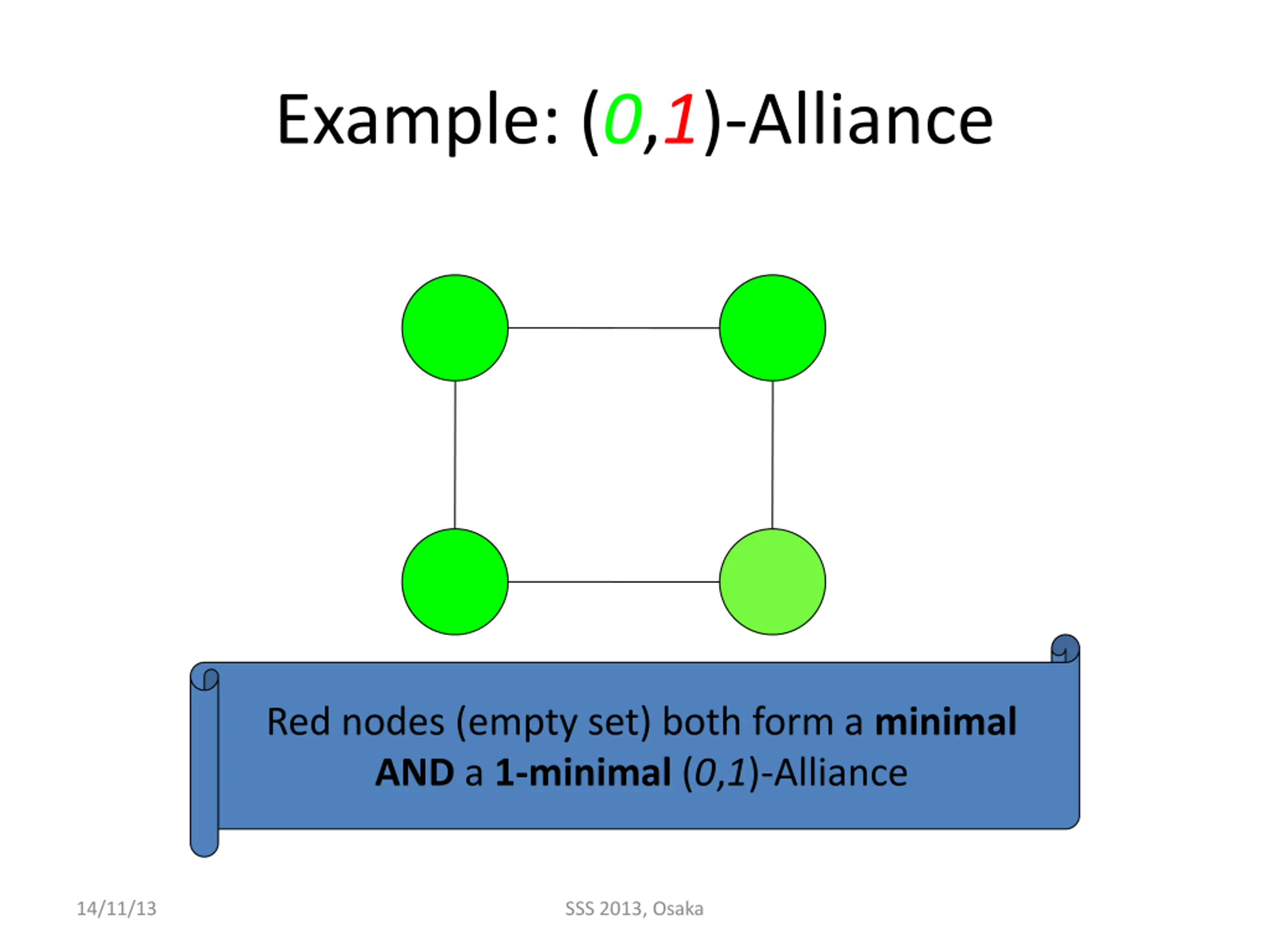

  24. Example: (0,1)-Alliance Red nodes (empty set) both form a minimal AND a 1-minimal (0,1)-Alliance 14/11/13 SSS 2013, Osaka

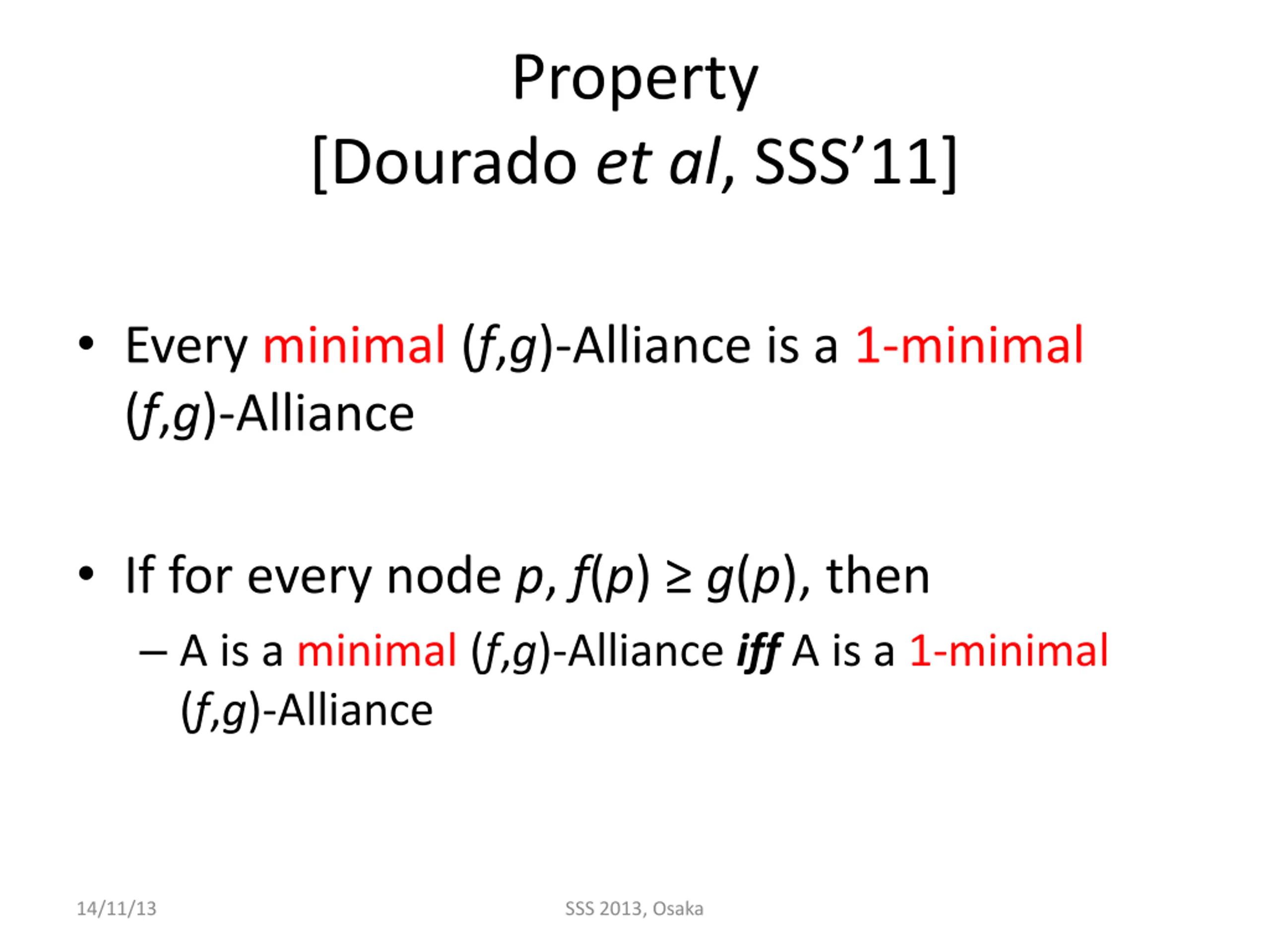

  25. Property [Dourado et al, SSS 11] Every minimal (f,g)-Alliance is a 1-minimal (f,g)-Alliance If for every node p, f(p) g(p), then A is a minimal (f,g)-Alliance iff A is a 1-minimal (f,g)-Alliance 14/11/13 SSS 2013, Osaka

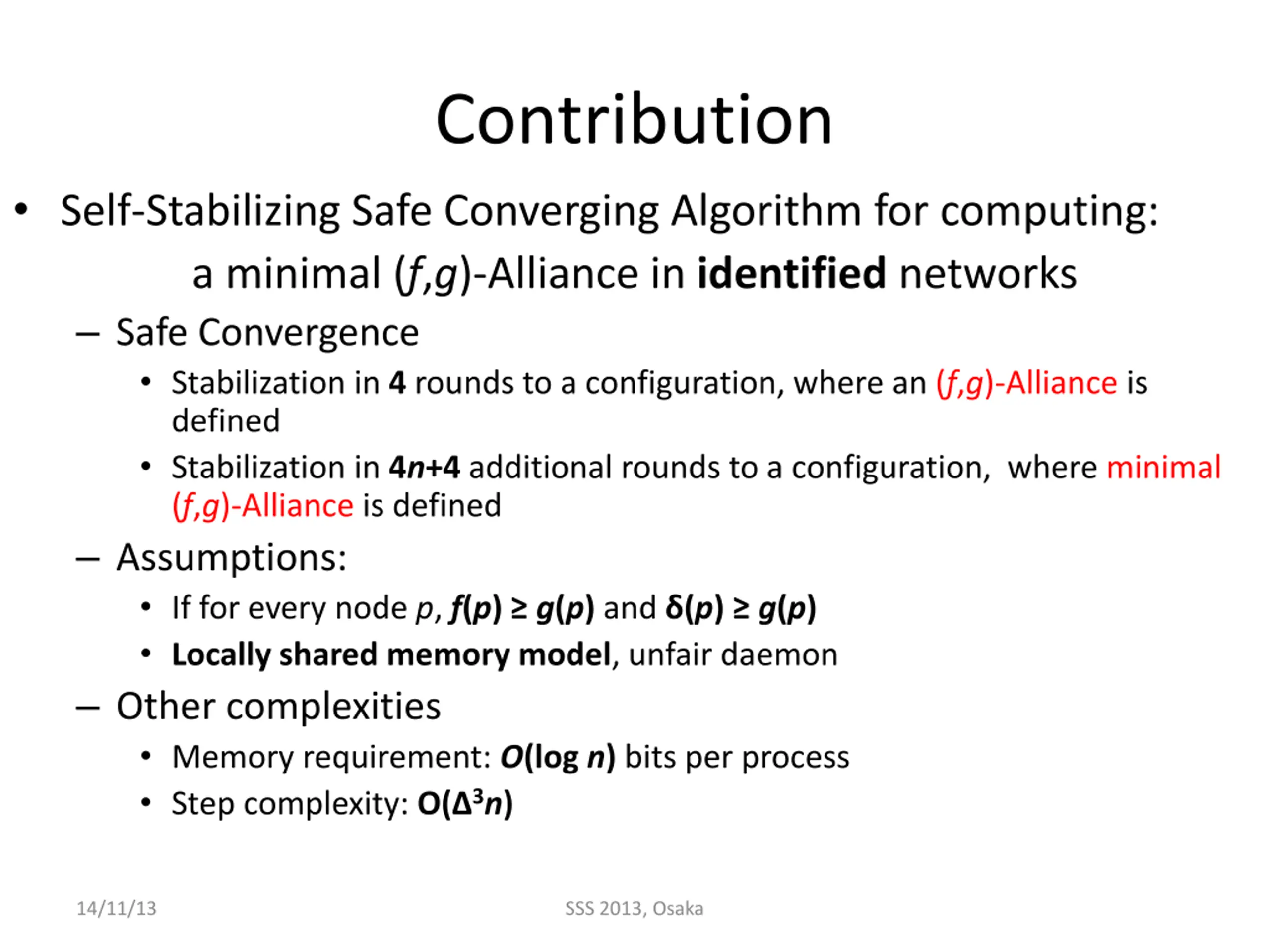

  26. Contribution Self-Stabilizing Safe Converging Algorithm for computing: a minimal (f,g)-Alliance in identified networks Safe Convergence Stabilization in 4 rounds to a configuration, where an (f,g)-Alliance is defined Stabilization in 4n+4 additional rounds to a configuration, where minimal (f,g)-Alliance is defined Assumptions: If for every node p, f(p) g(p) and (p) g(p) Locally shared memory model, unfair daemon Other complexities Memory requirement: O(log n) bits per process Step complexity: O( 3n) 14/11/13 SSS 2013, Osaka

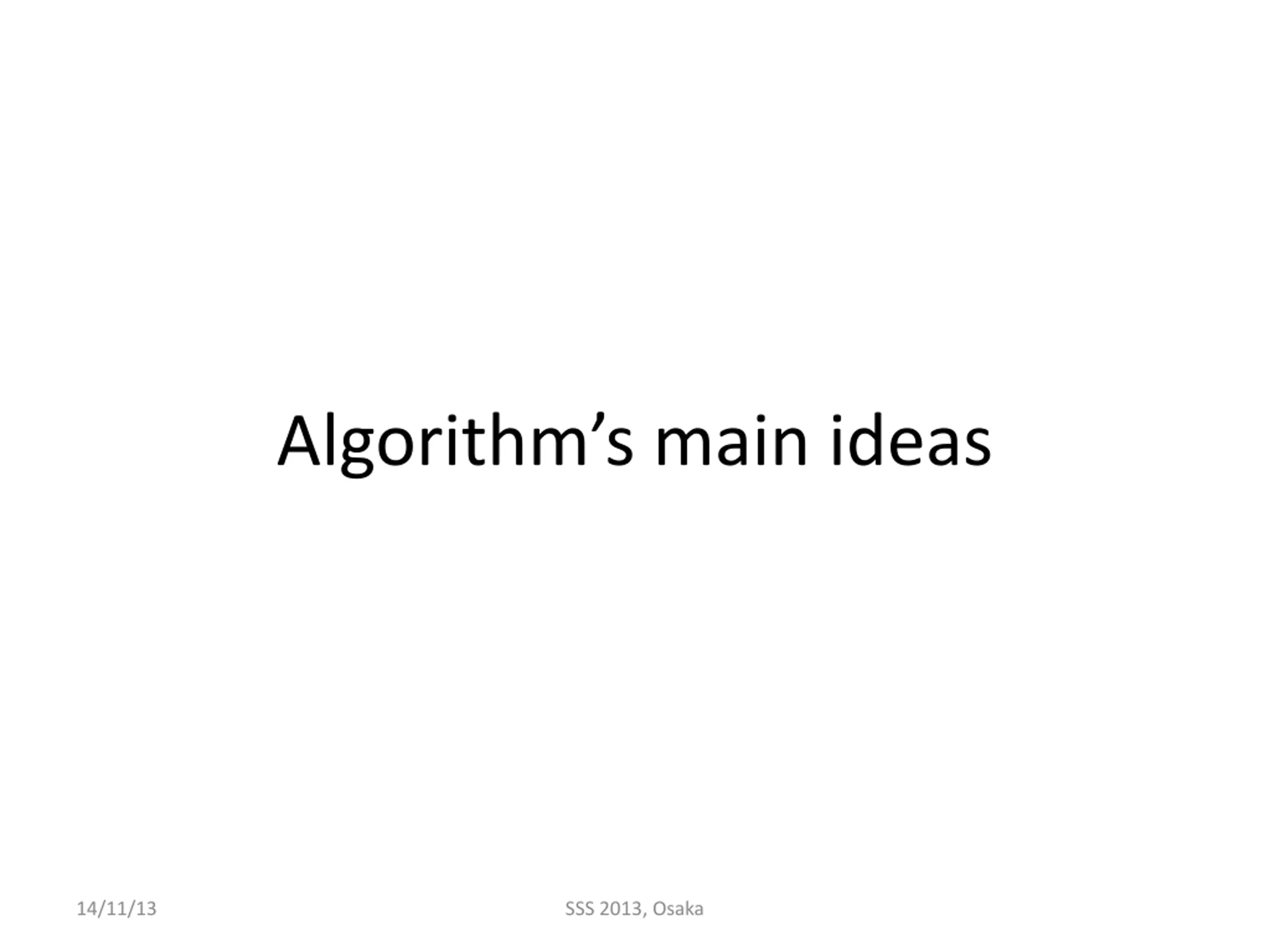

  27. Algorithms main ideas 14/11/13 SSS 2013, Osaka

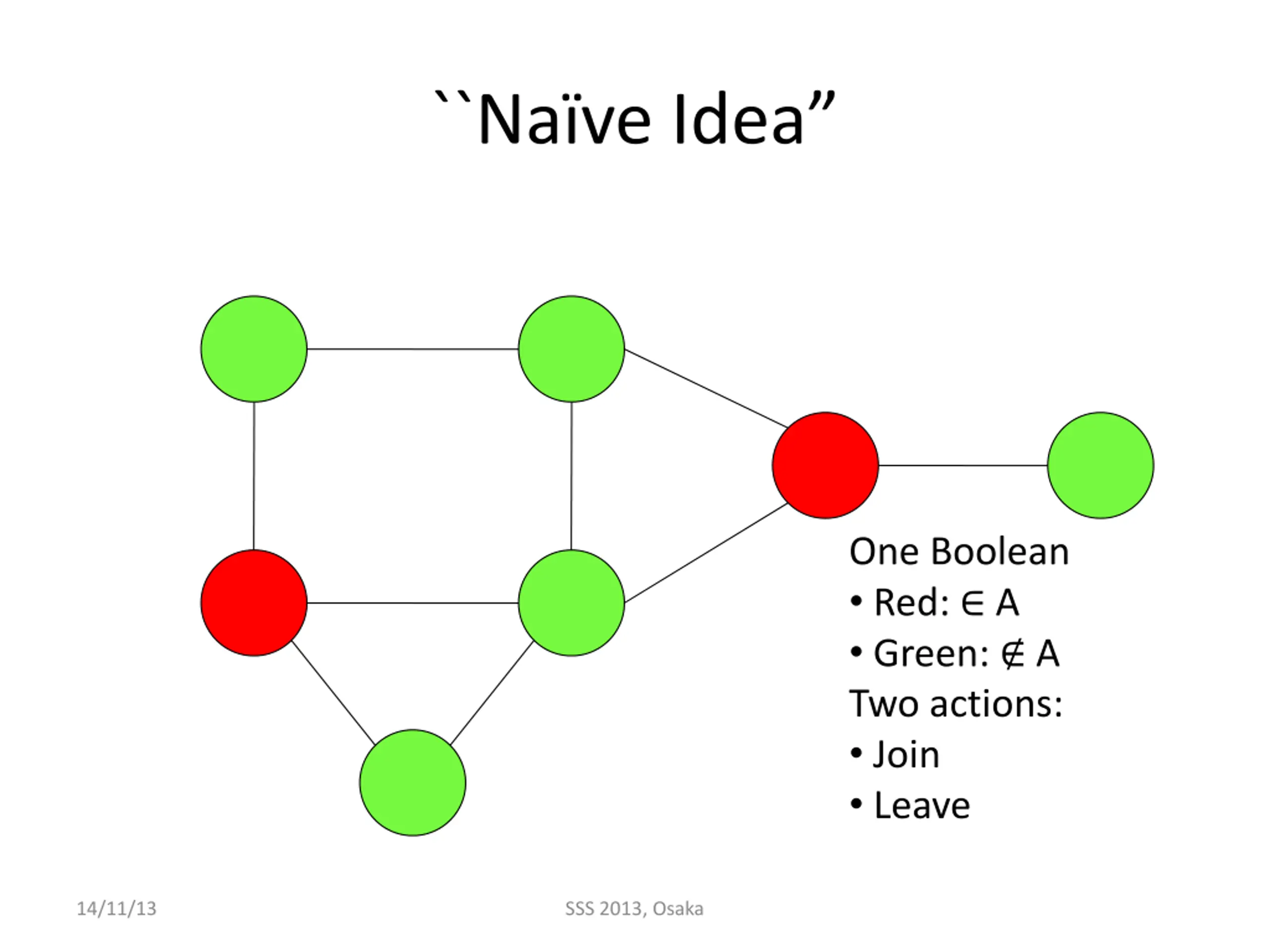

  28. ``Nave Idea One Boolean Red: A Green: A Two actions: Join Leave 14/11/13 SSS 2013, Osaka

  29. ``Nave Idea To obtain safe convergence, it should be harder to leave than to join One boolean Red: A Green: A Two actions: Join Leave 14/11/13 SSS 2013, Osaka

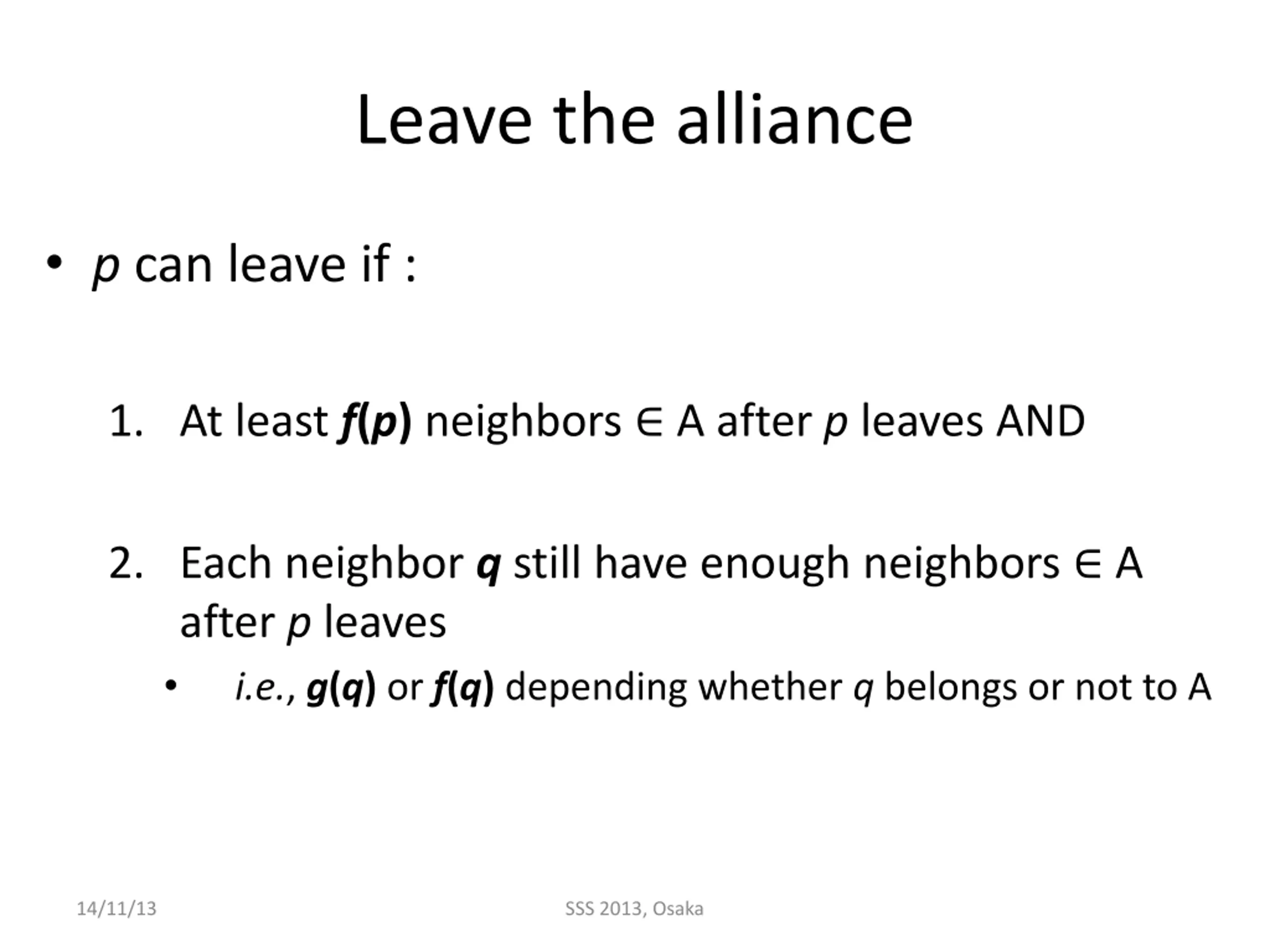

  30. Leave the alliance p can leave if : 1. At least f(p) neighbors A after p leaves AND 2. Each neighbor q still have enough neighbors A after p leaves i.e., g(q) or f(q) depending whether q belongs or not to A 14/11/13 SSS 2013, Osaka

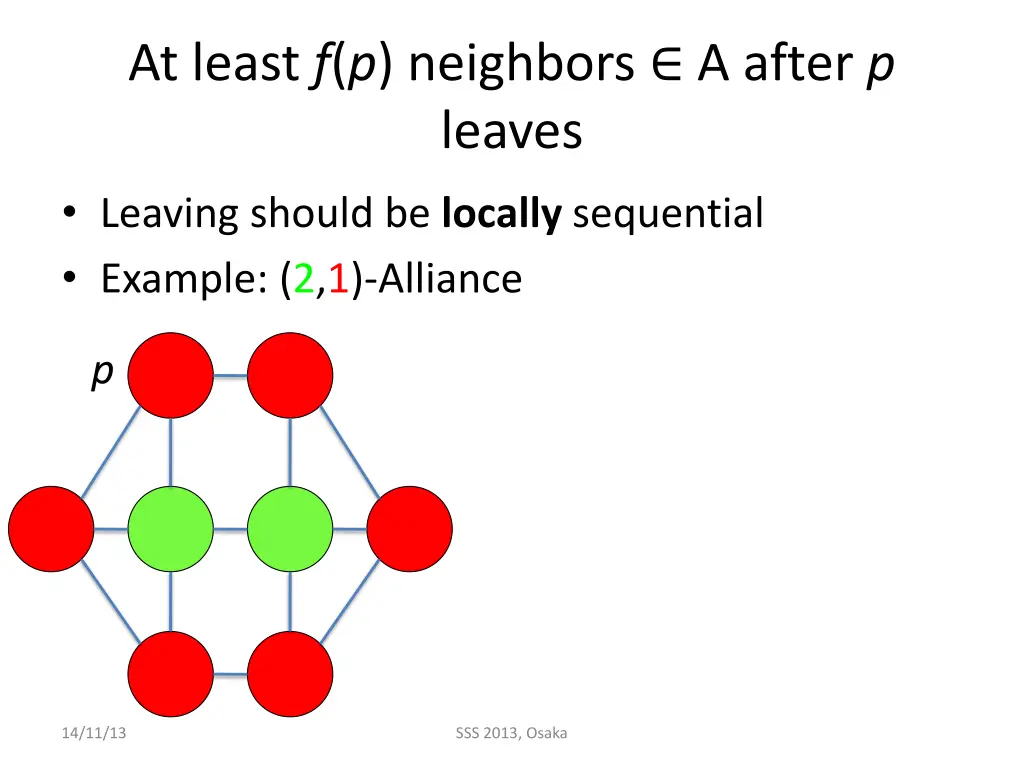

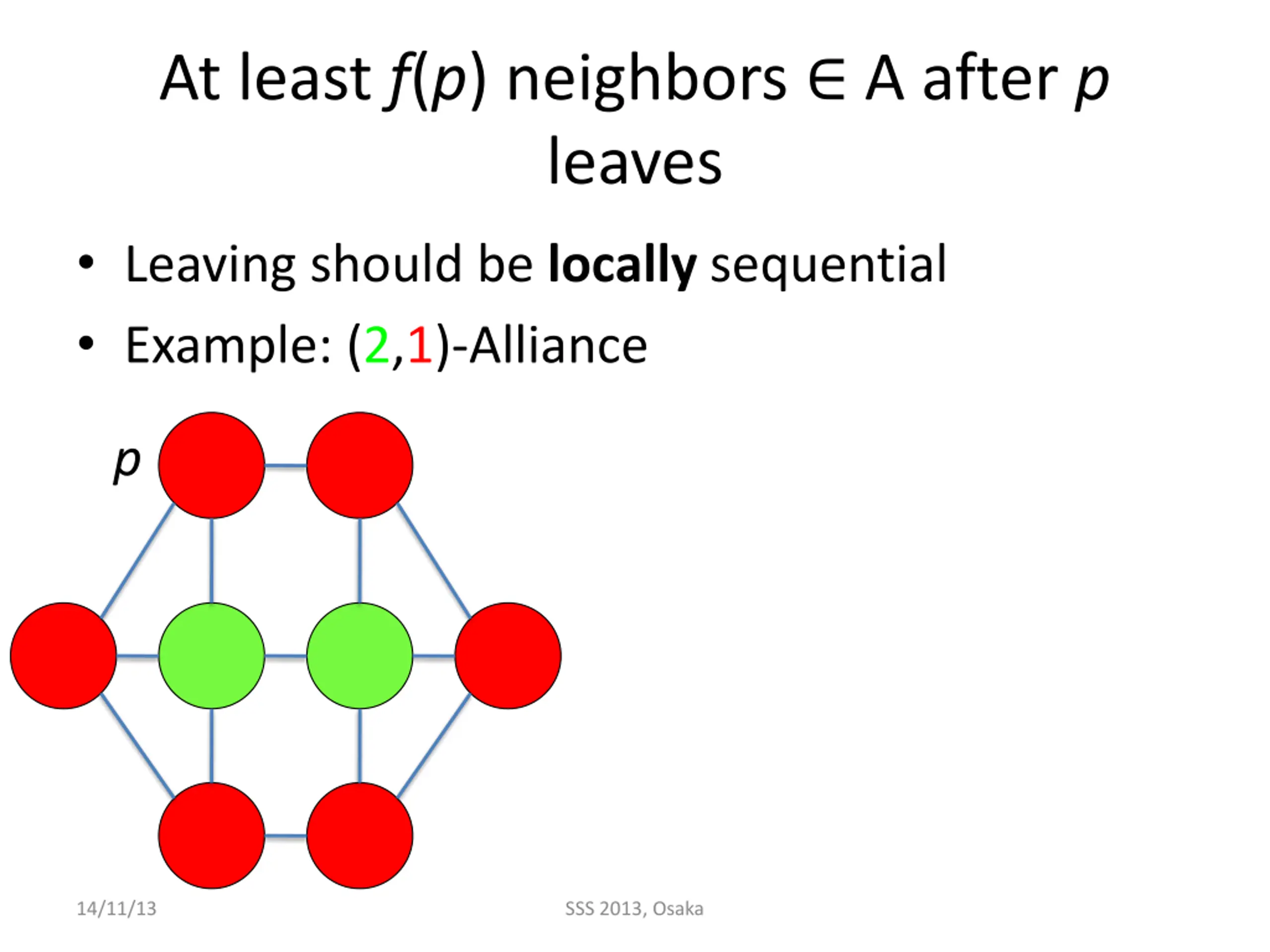

  31. At least f(p) neighbors A after p leaves Leaving should be locally sequential Example: (2,1)-Alliance p 14/11/13 SSS 2013, Osaka

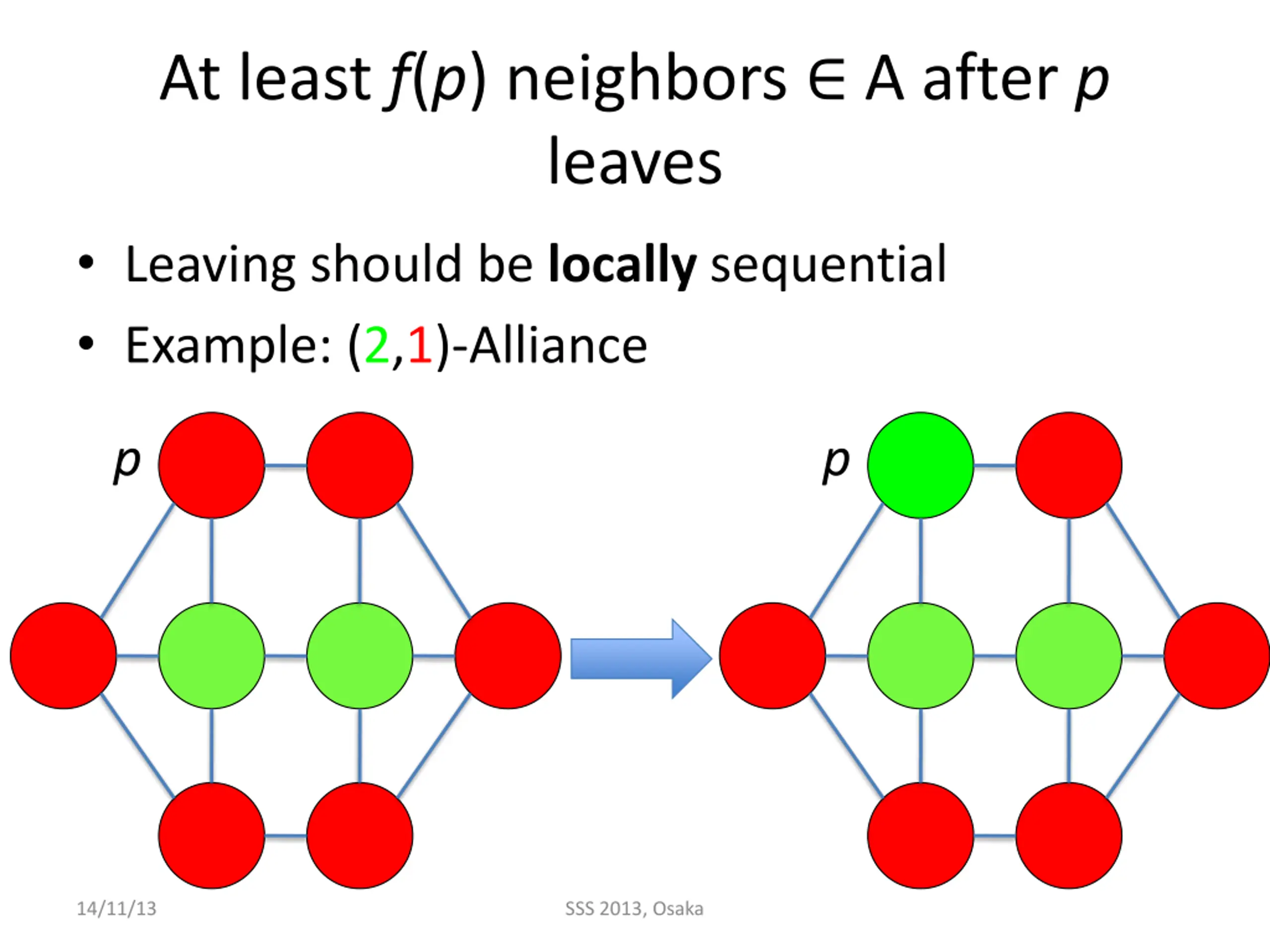

  32. At least f(p) neighbors A after p leaves Leaving should be locally sequential Example: (2,1)-Alliance p p 14/11/13 SSS 2013, Osaka

  33. At least f(p) neighbors A after p leaves Leaving should be locally sequential Example: (2,1)-Alliance p 14/11/13 SSS 2013, Osaka

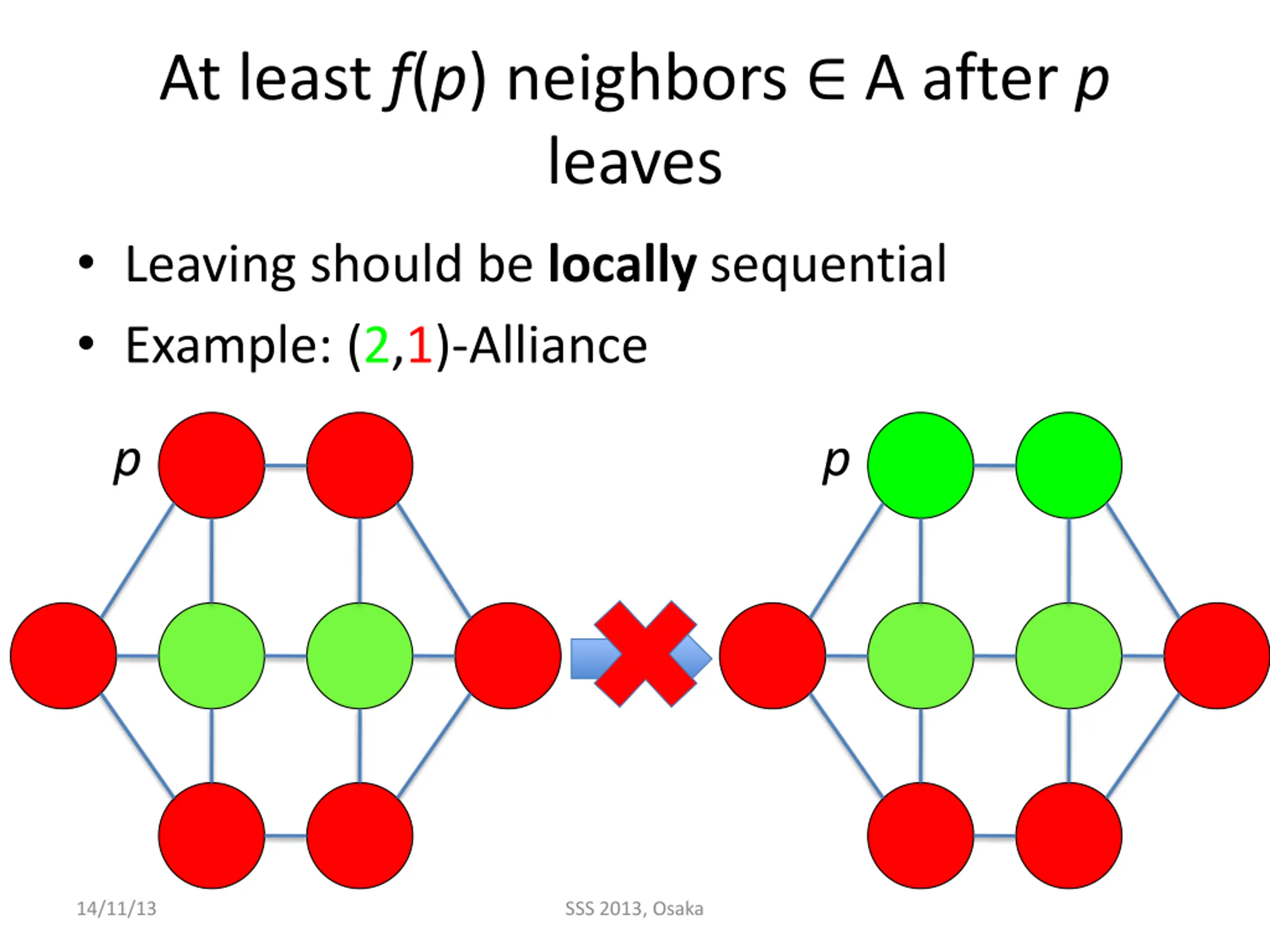

  34. At least f(p) neighbors A after p leaves Leaving should be locally sequential Example: (2,1)-Alliance p p 14/11/13 SSS 2013, Osaka

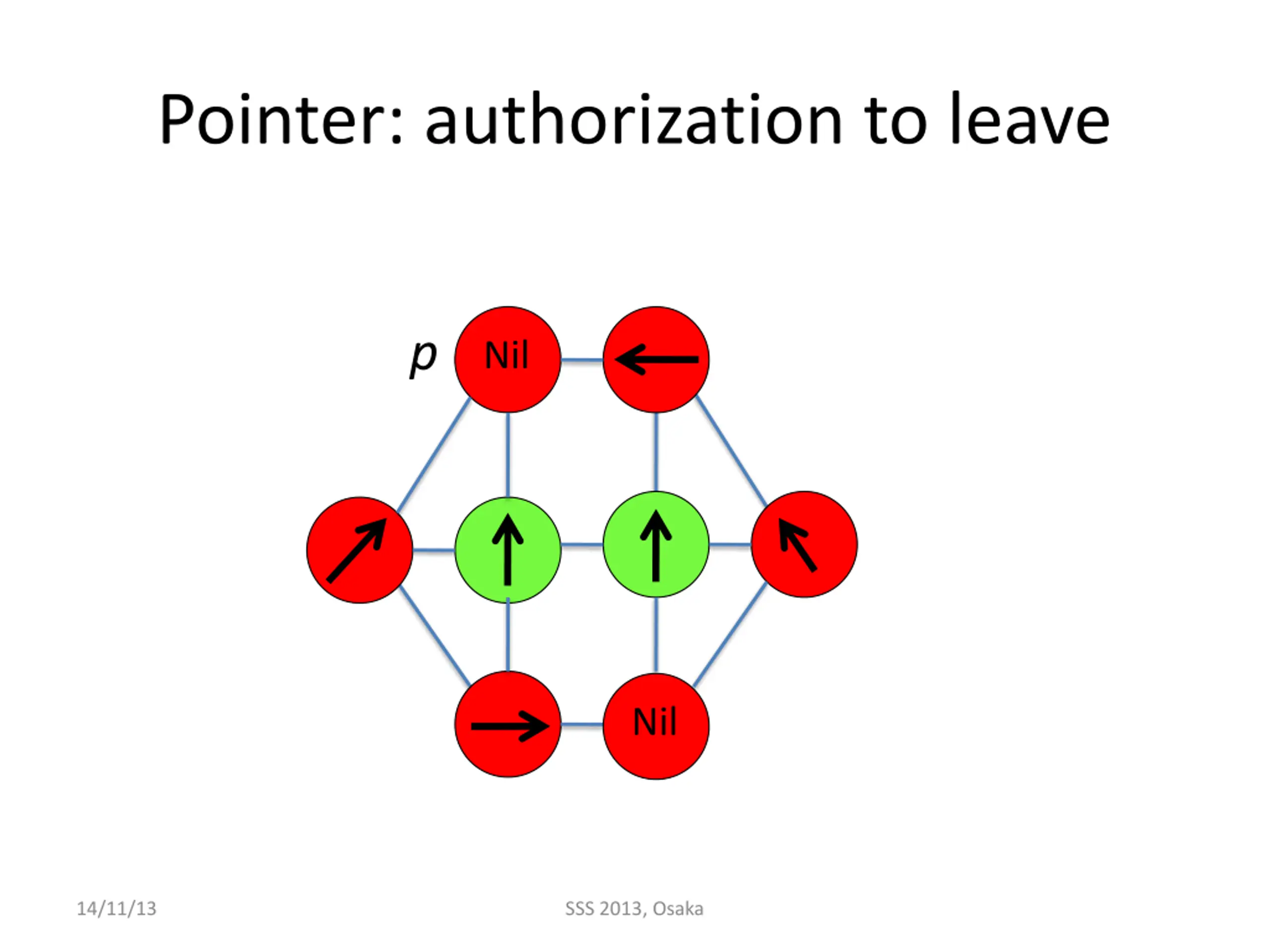

  35. Pointer: authorization to leave p Nil Nil 14/11/13 SSS 2013, Osaka

  36. Pointer: authorization to leave p Nil Nil 14/11/13 SSS 2013, Osaka

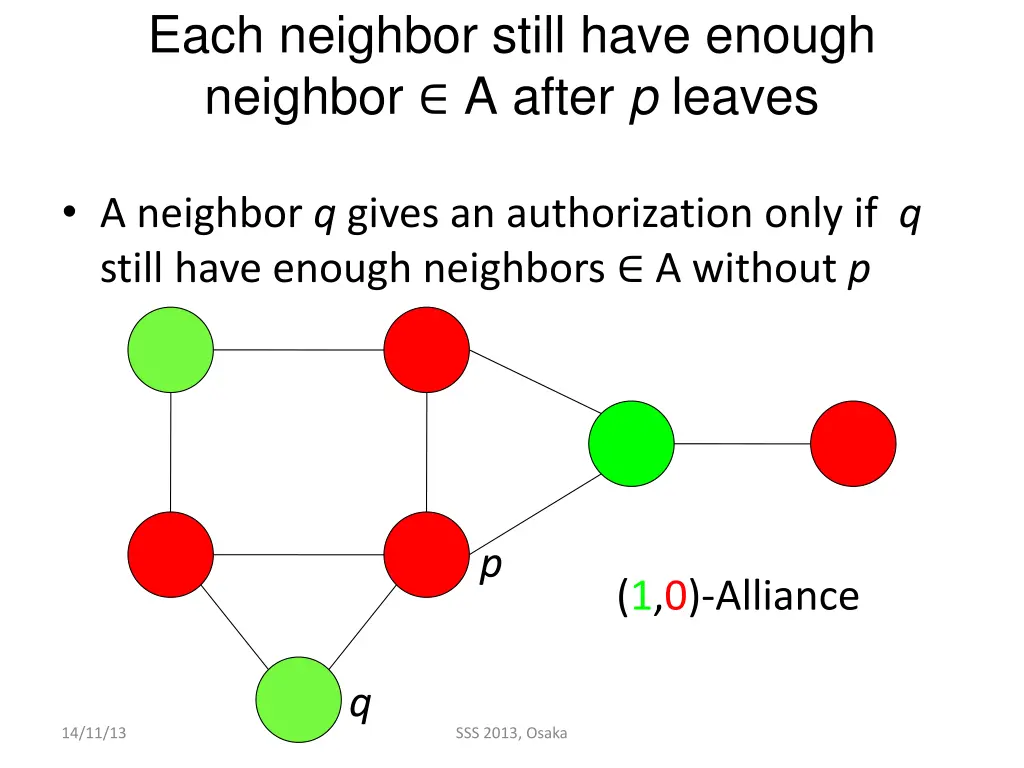

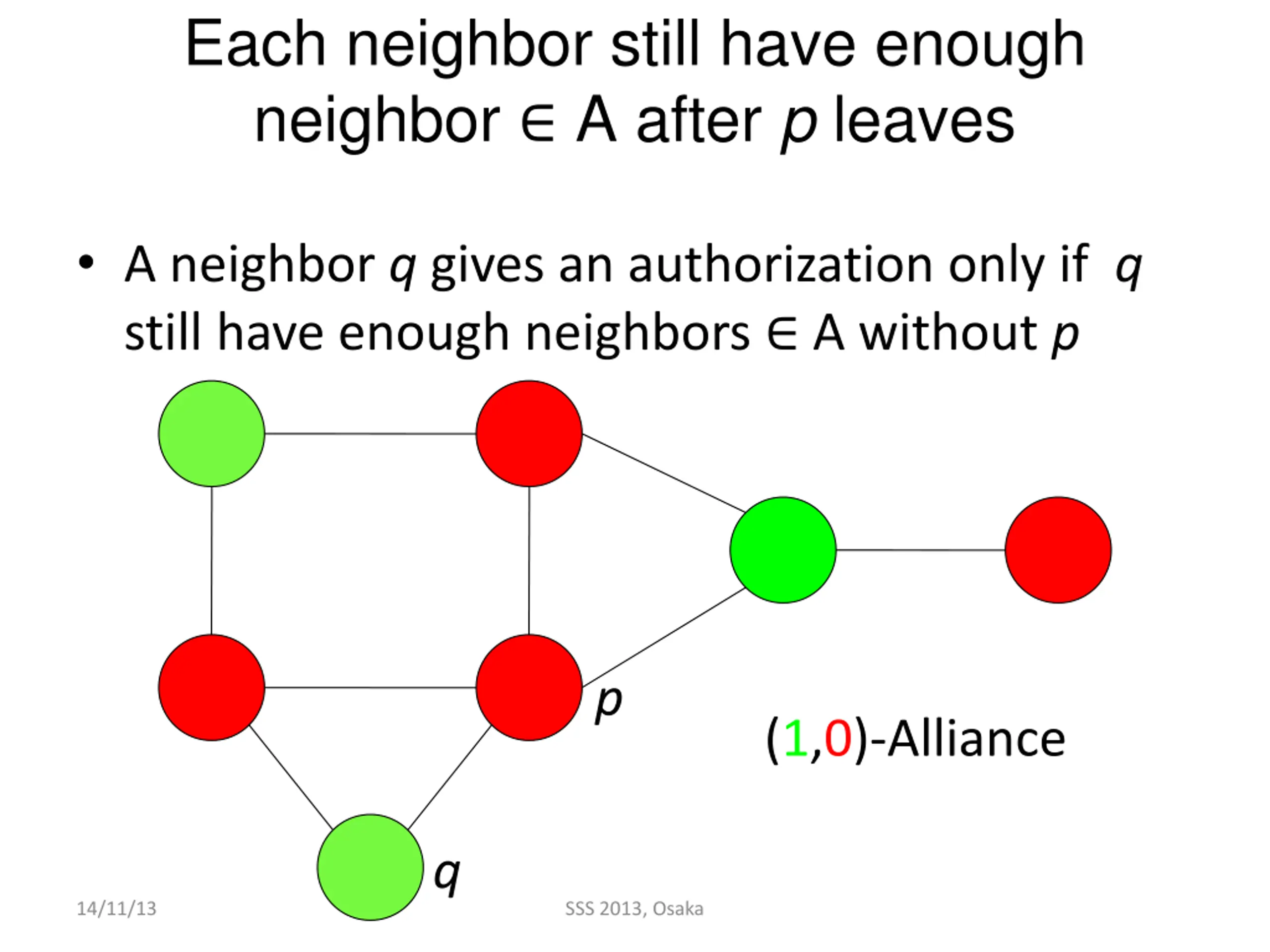

  37. Each neighbor still have enough neighbor A after p leaves A neighbor q gives an authorization only if q still have enough neighbors A without p p (1,0)-Alliance q 14/11/13 SSS 2013, Osaka

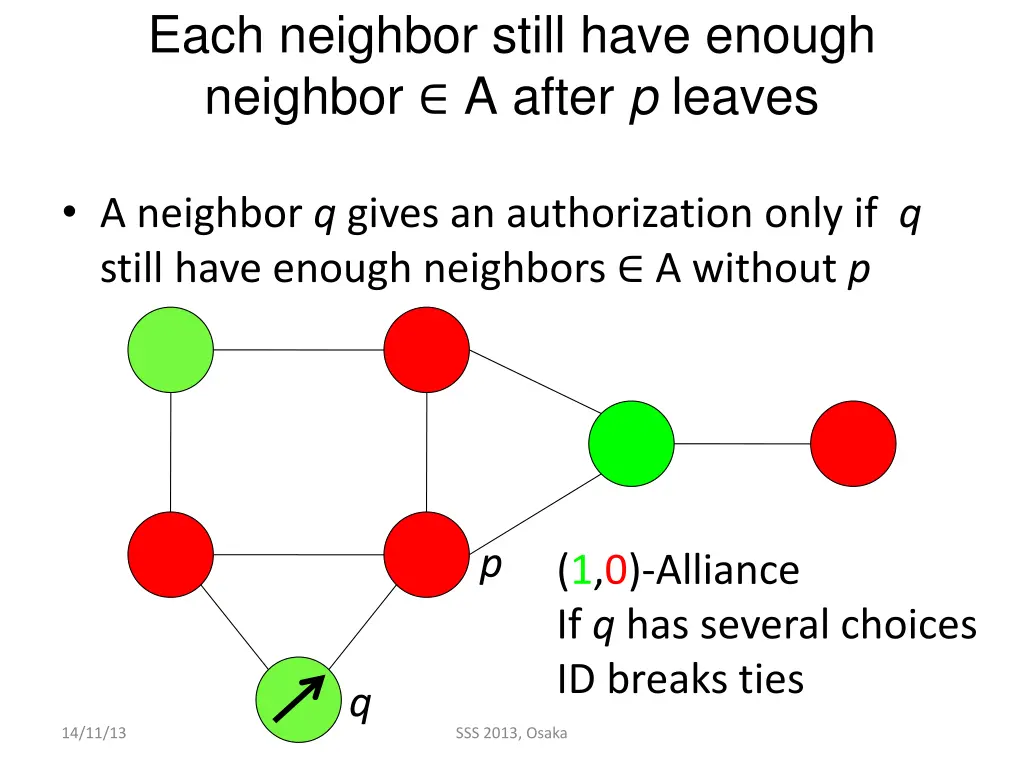

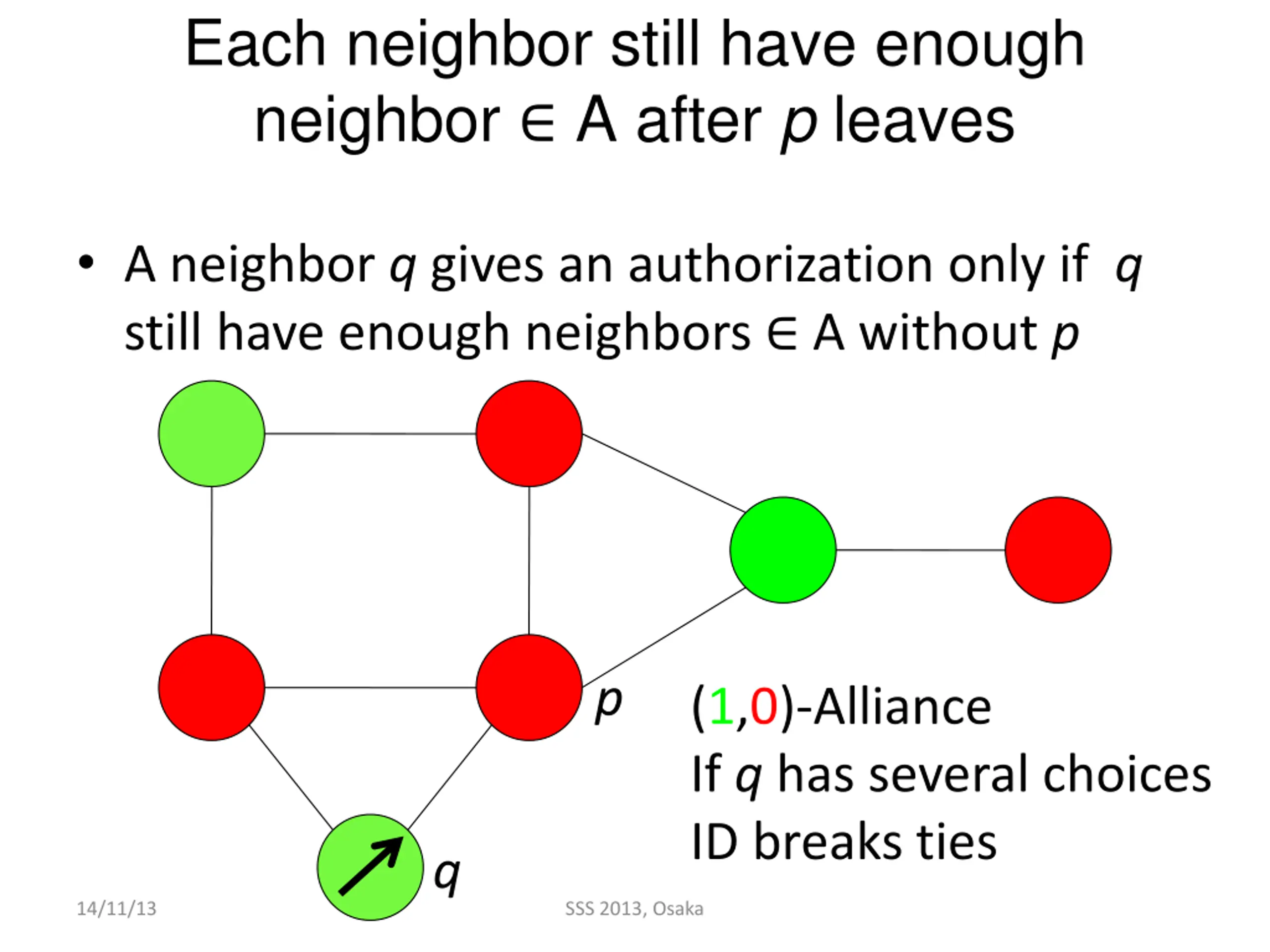

  38. Each neighbor still have enough neighbor A after p leaves A neighbor q gives an authorization only if q still have enough neighbors A without p p (1,0)-Alliance If q has several choices ID breaks ties q 14/11/13 SSS 2013, Osaka

  39. Deadlock problems Nil Nil (1,0)-Alliance 14/11/13 SSS 2013, Osaka

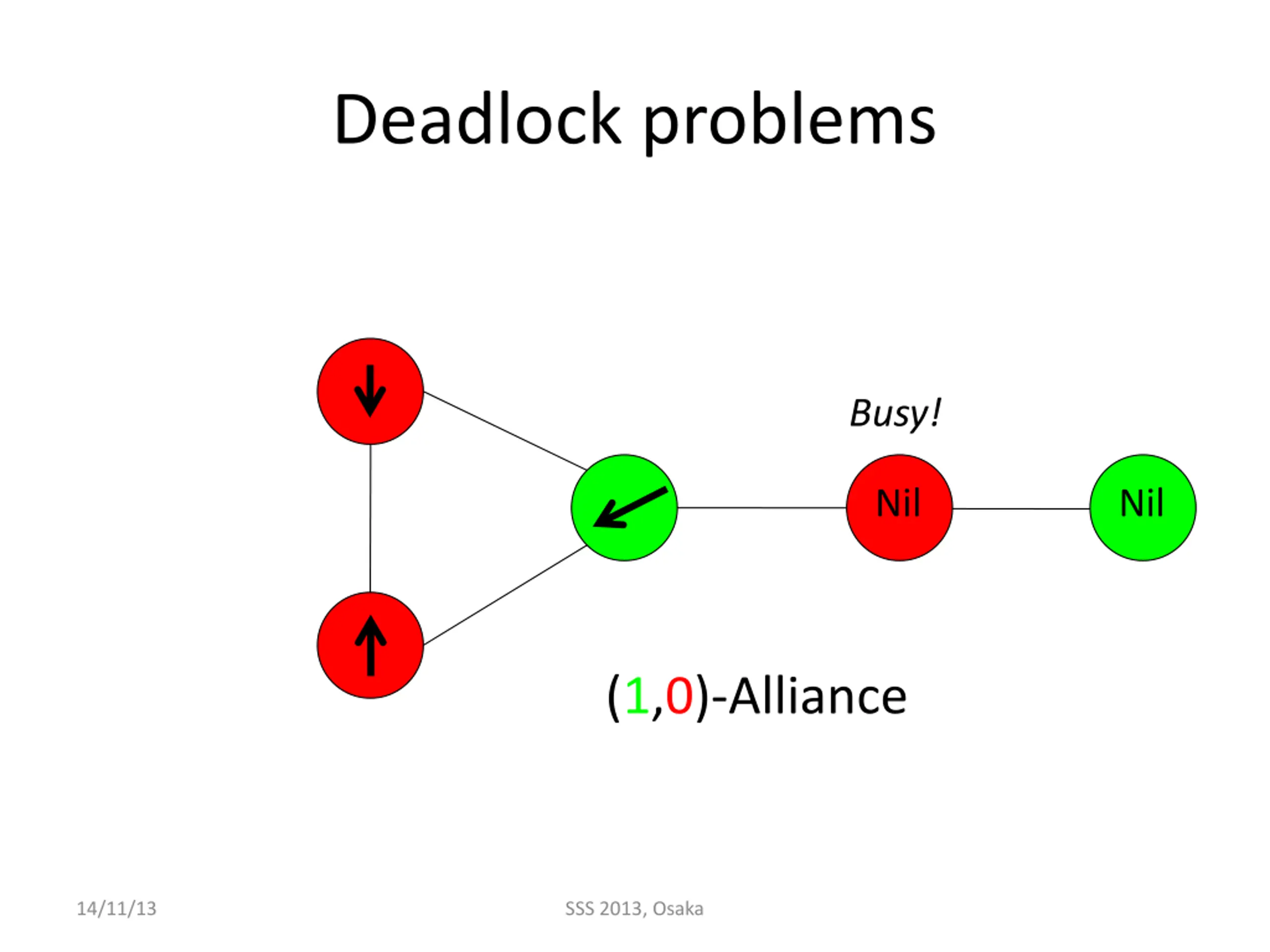

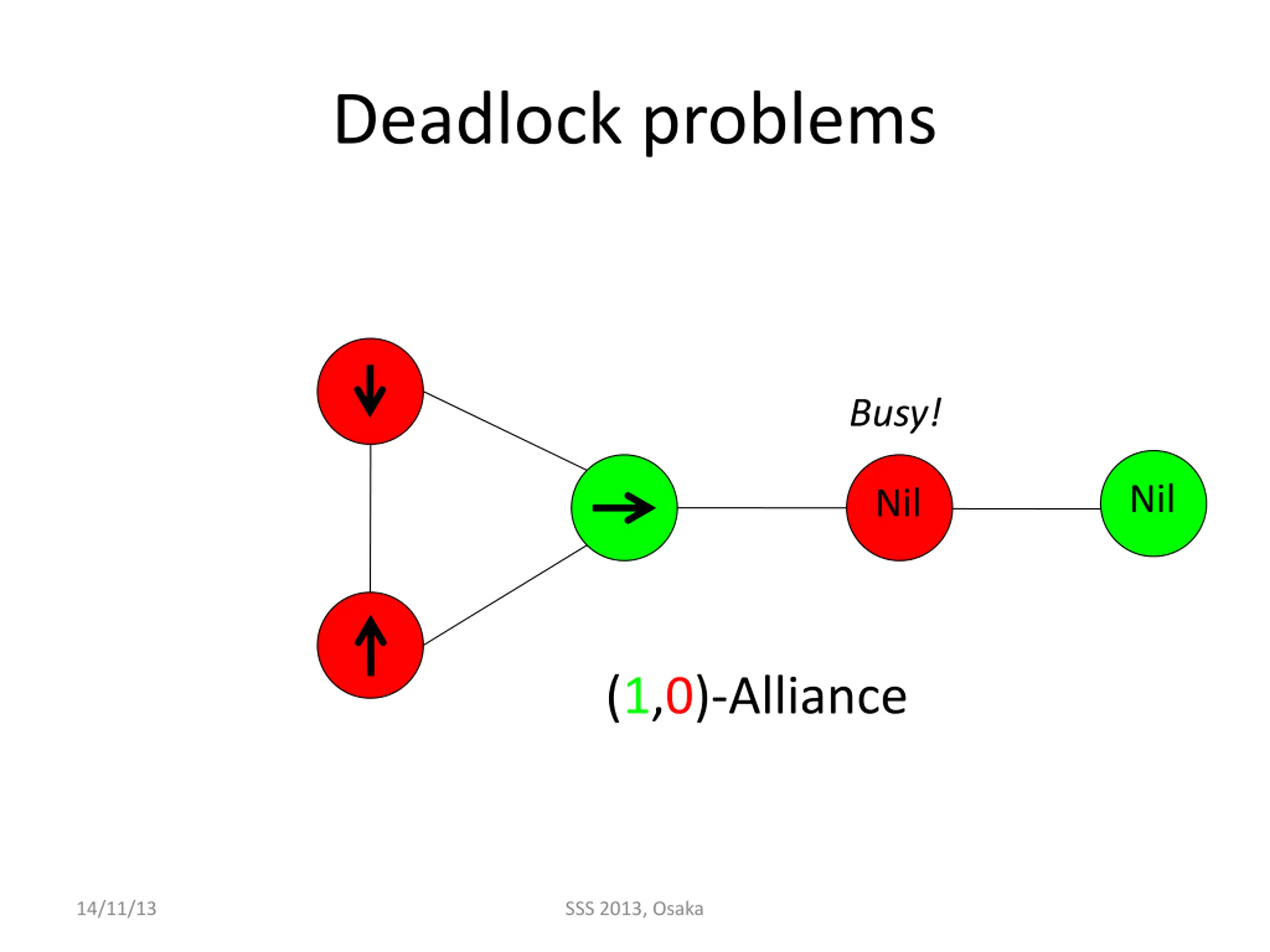

  40. Deadlock problems Busy! Nil Nil (1,0)-Alliance 14/11/13 SSS 2013, Osaka

  41. Deadlock problems Busy! Nil Nil (1,0)-Alliance 14/11/13 SSS 2013, Osaka

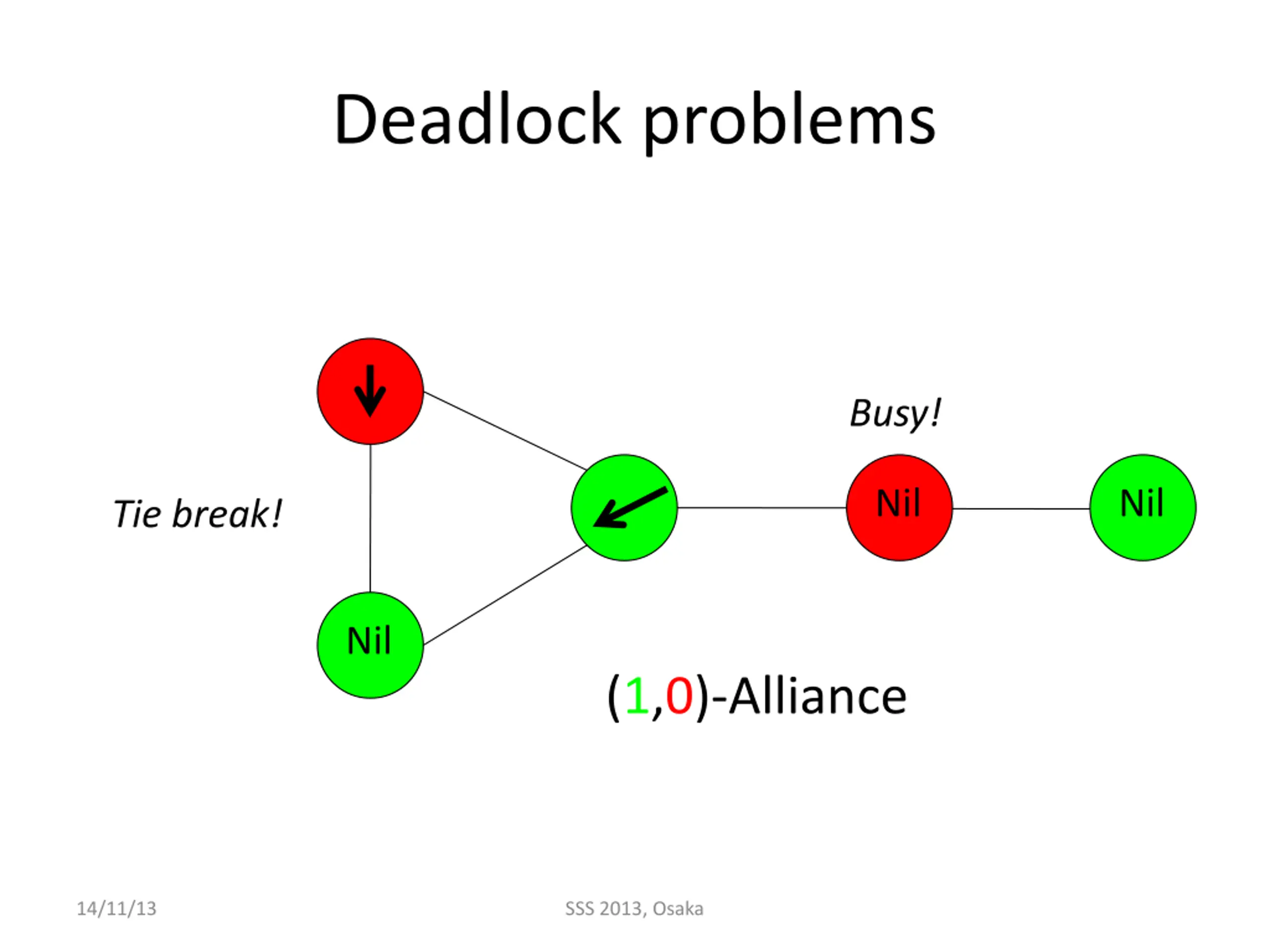

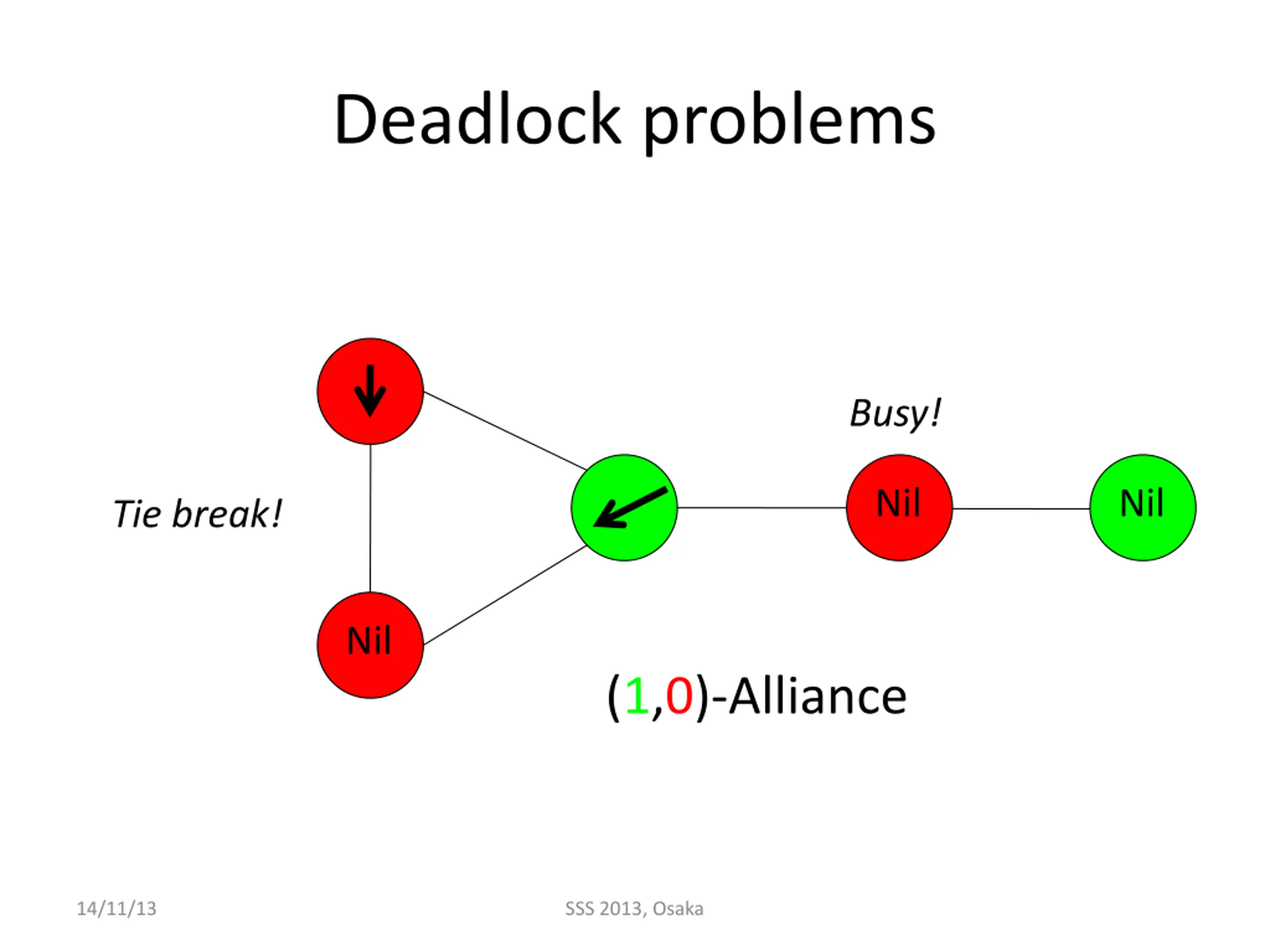

  42. Deadlock problems Busy! Nil Nil Tie break! (1,0)-Alliance 14/11/13 SSS 2013, Osaka

  43. Deadlock problems Busy! Nil Nil Tie break! Nil (1,0)-Alliance 14/11/13 SSS 2013, Osaka

  44. Deadlock problems Busy! Nil Nil Tie break! Nil (1,0)-Alliance 14/11/13 SSS 2013, Osaka

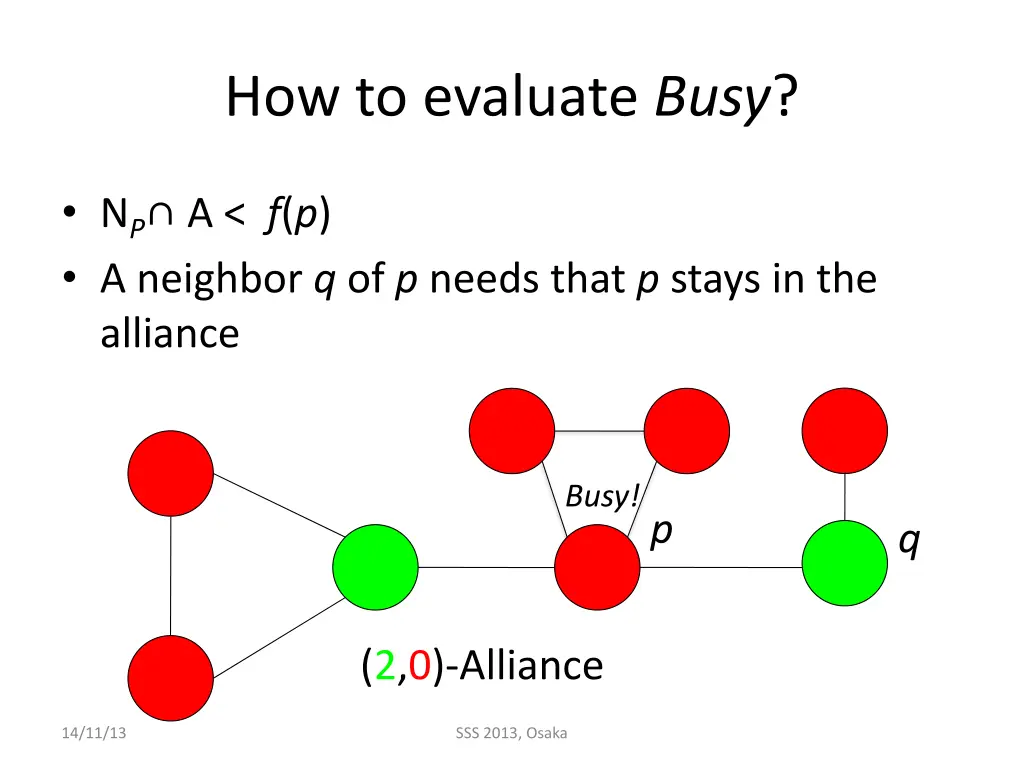

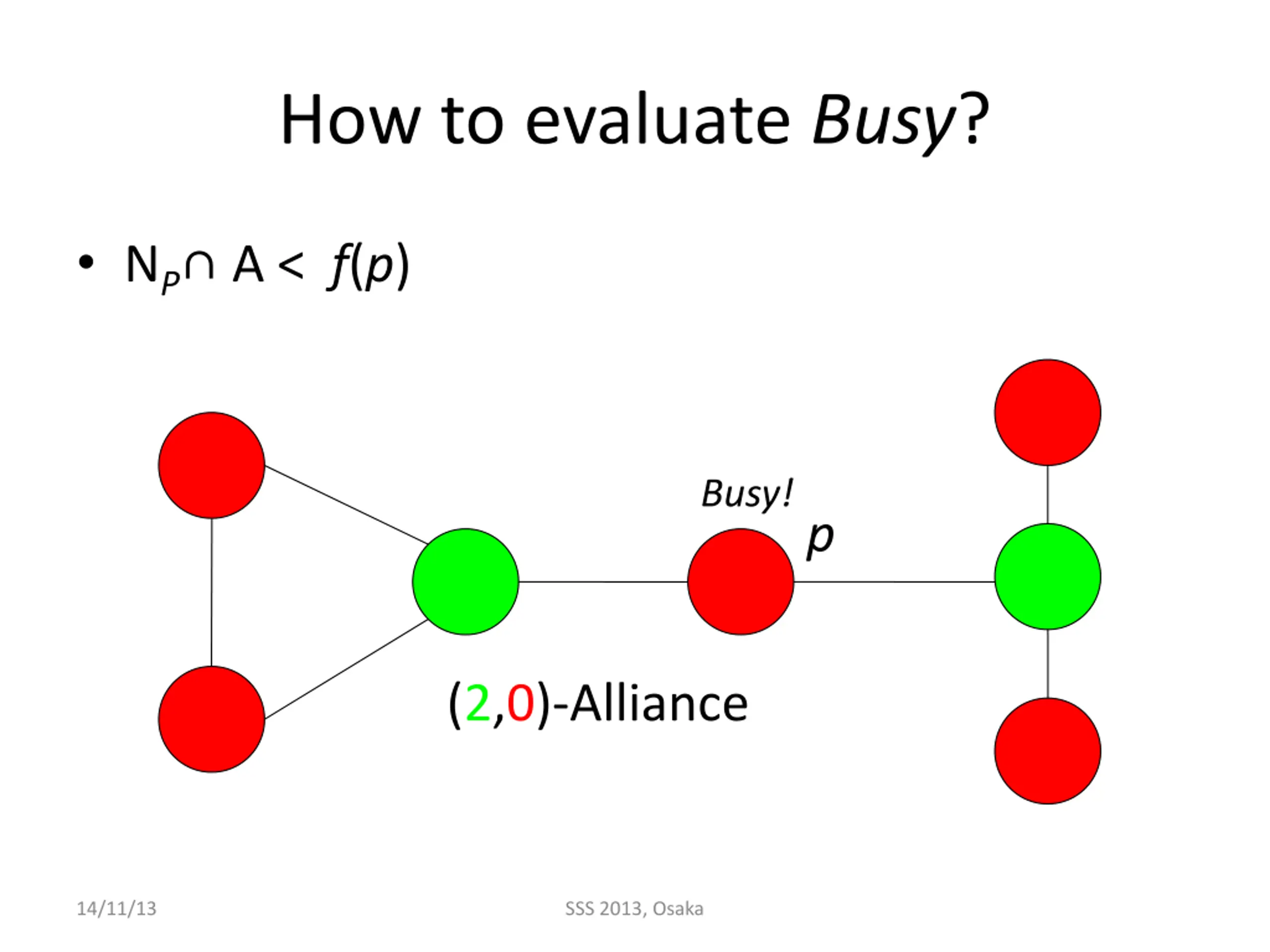

  45. How to evaluate Busy? NP A < f(p) Busy! p (2,0)-Alliance 14/11/13 SSS 2013, Osaka

  46. How to evaluate Busy? NP A < f(p) A neighbor q of p needs that p stays in the alliance Busy! p q (2,0)-Alliance 14/11/13 SSS 2013, Osaka

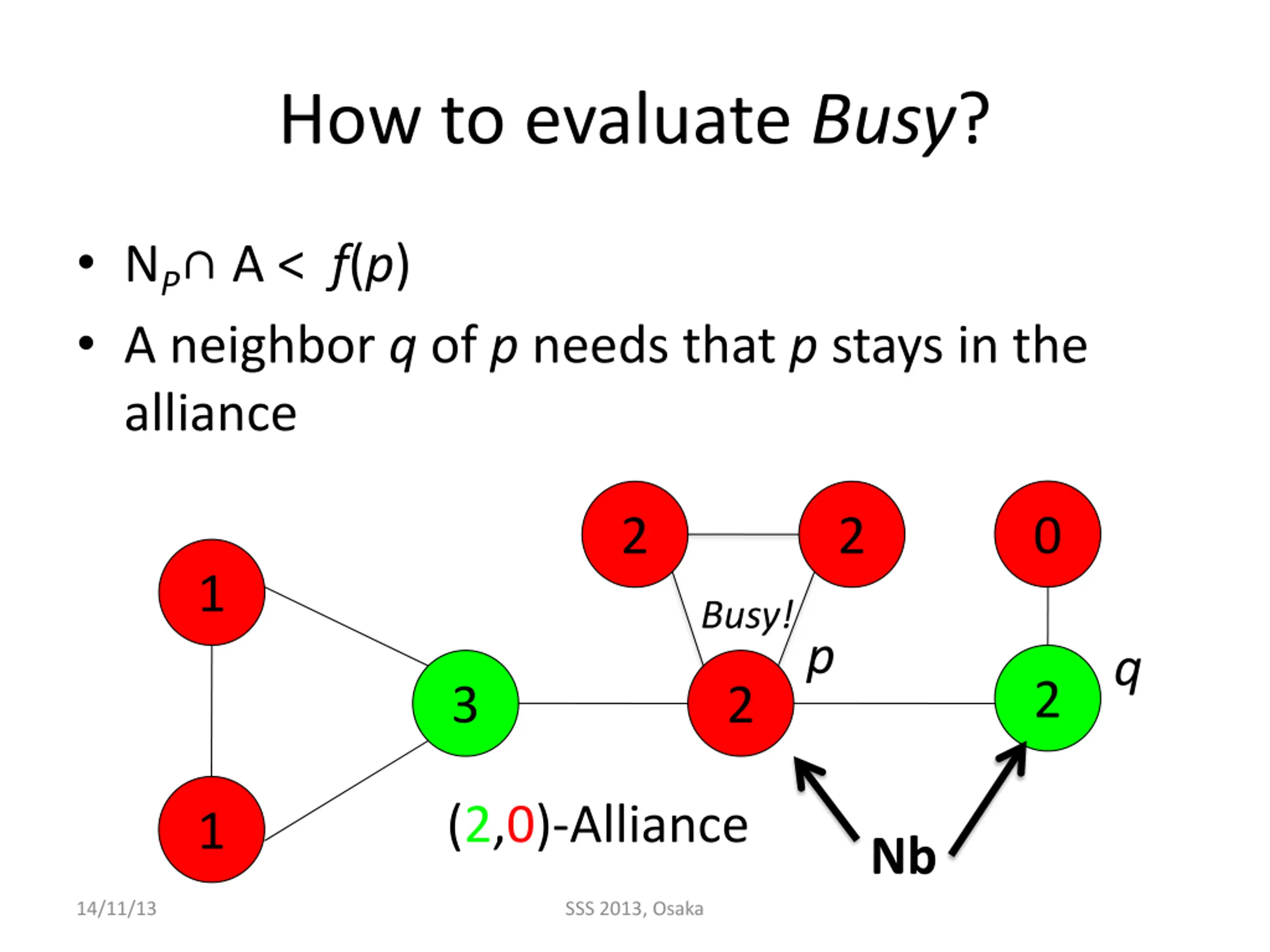

  47. How to evaluate Busy? NP A < f(p) A neighbor q of p needs that p stays in the alliance 0 2 2 1 Busy! p q 2 3 2 (2,0)-Alliance 1 Nb 14/11/13 SSS 2013, Osaka

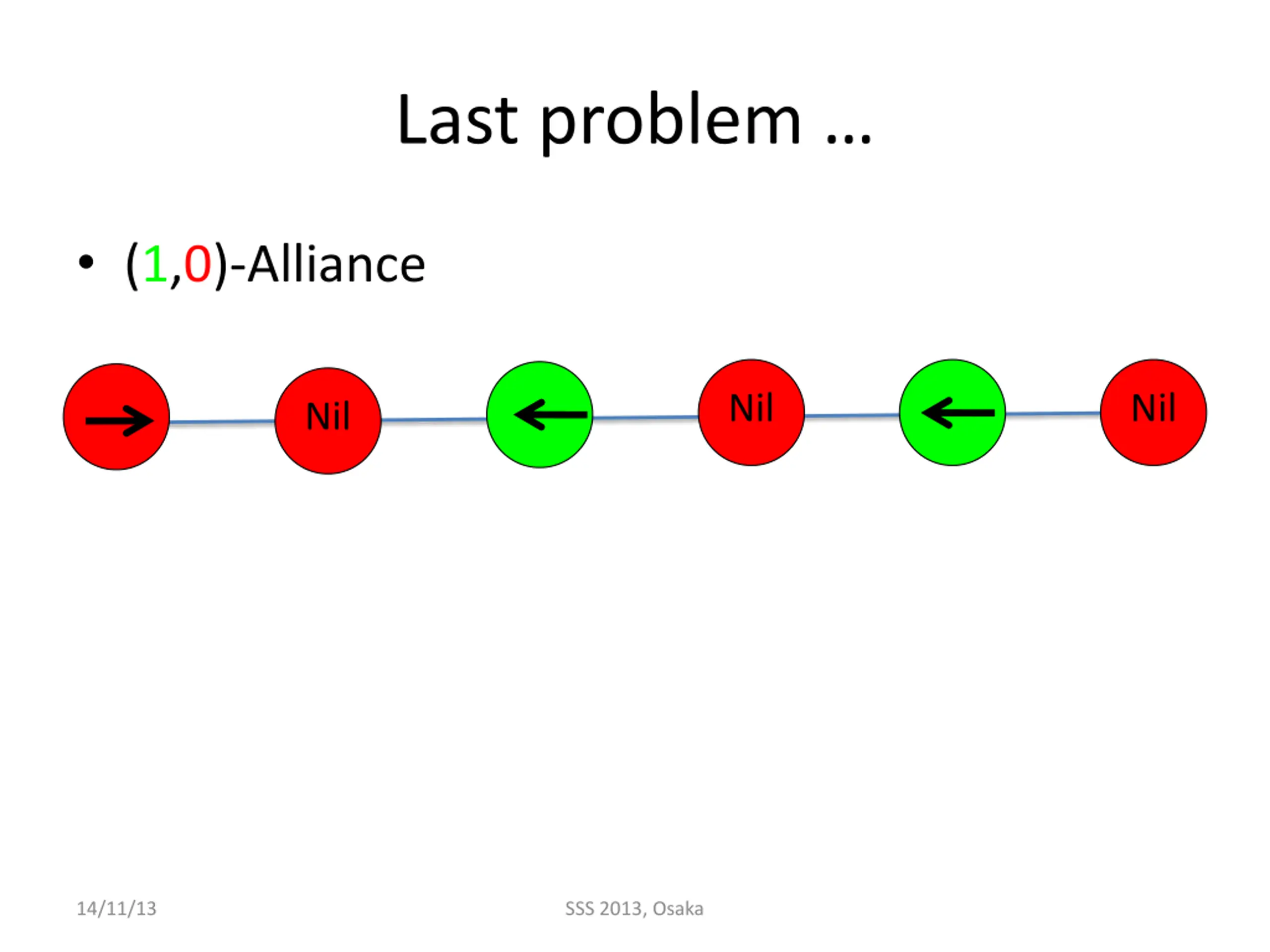

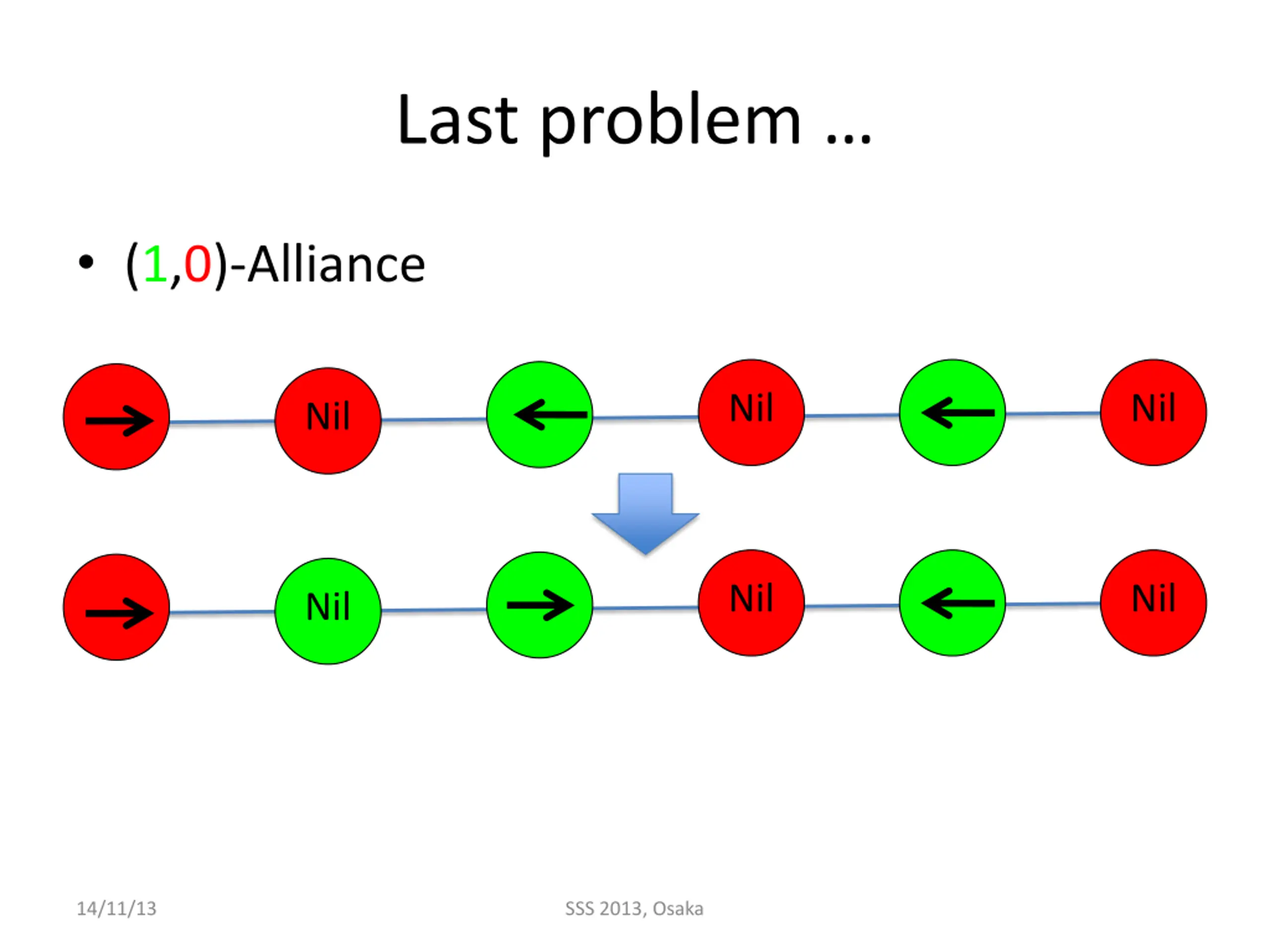

  48. Last problem (1,0)-Alliance Nil Nil Nil 14/11/13 SSS 2013, Osaka

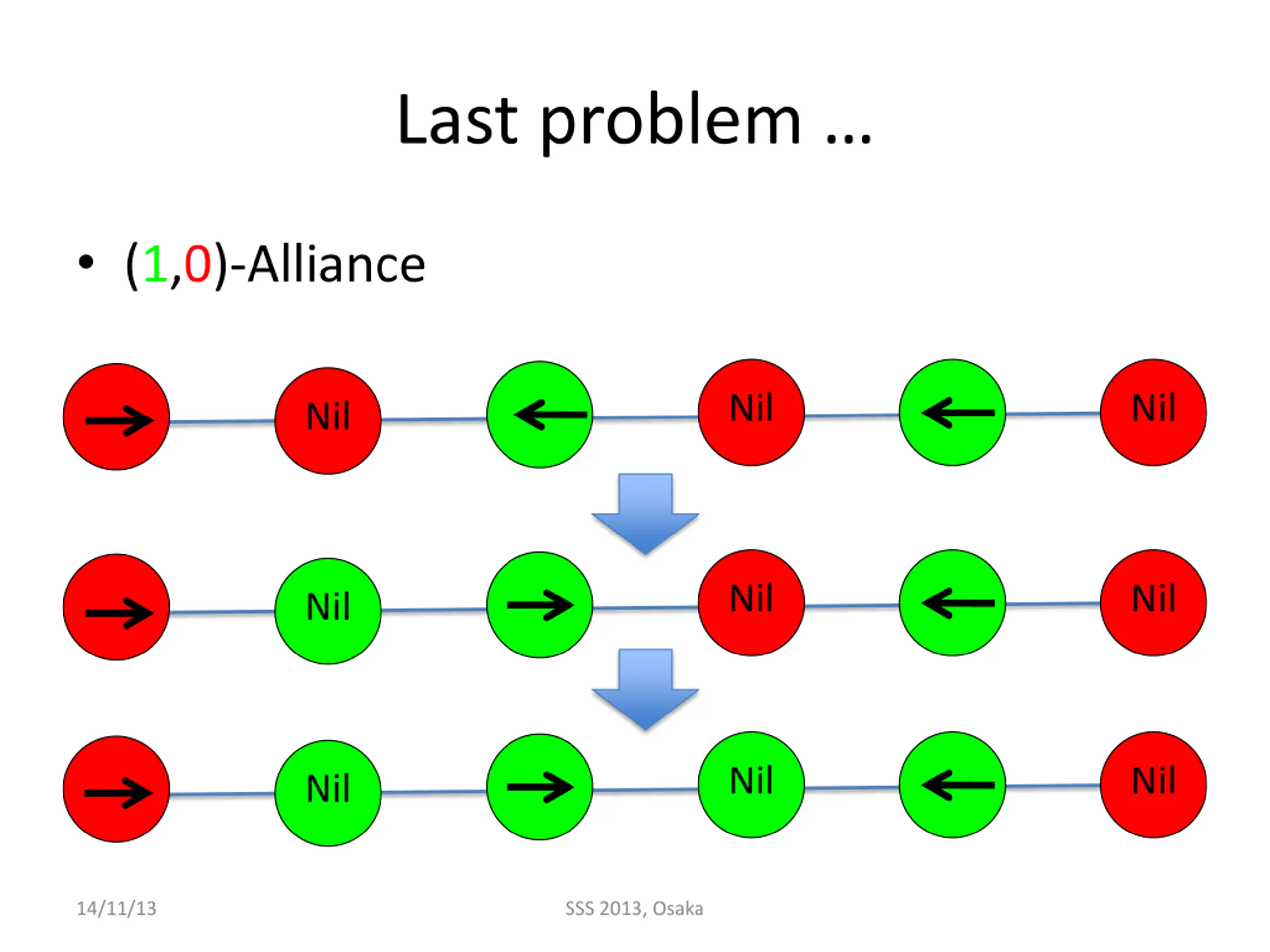

  49. Last problem (1,0)-Alliance Nil Nil Nil Nil Nil Nil 14/11/13 SSS 2013, Osaka

  50. Last problem (1,0)-Alliance Nil Nil Nil Nil Nil Nil Nil Nil Nil 14/11/13 SSS 2013, Osaka
