  1. gFPC: A Self-Tuning Compression Algorithm Martin Burtscher1and Paruj Ratanaworabhan2 1The University of Texas at Austin 2Kasetsart University

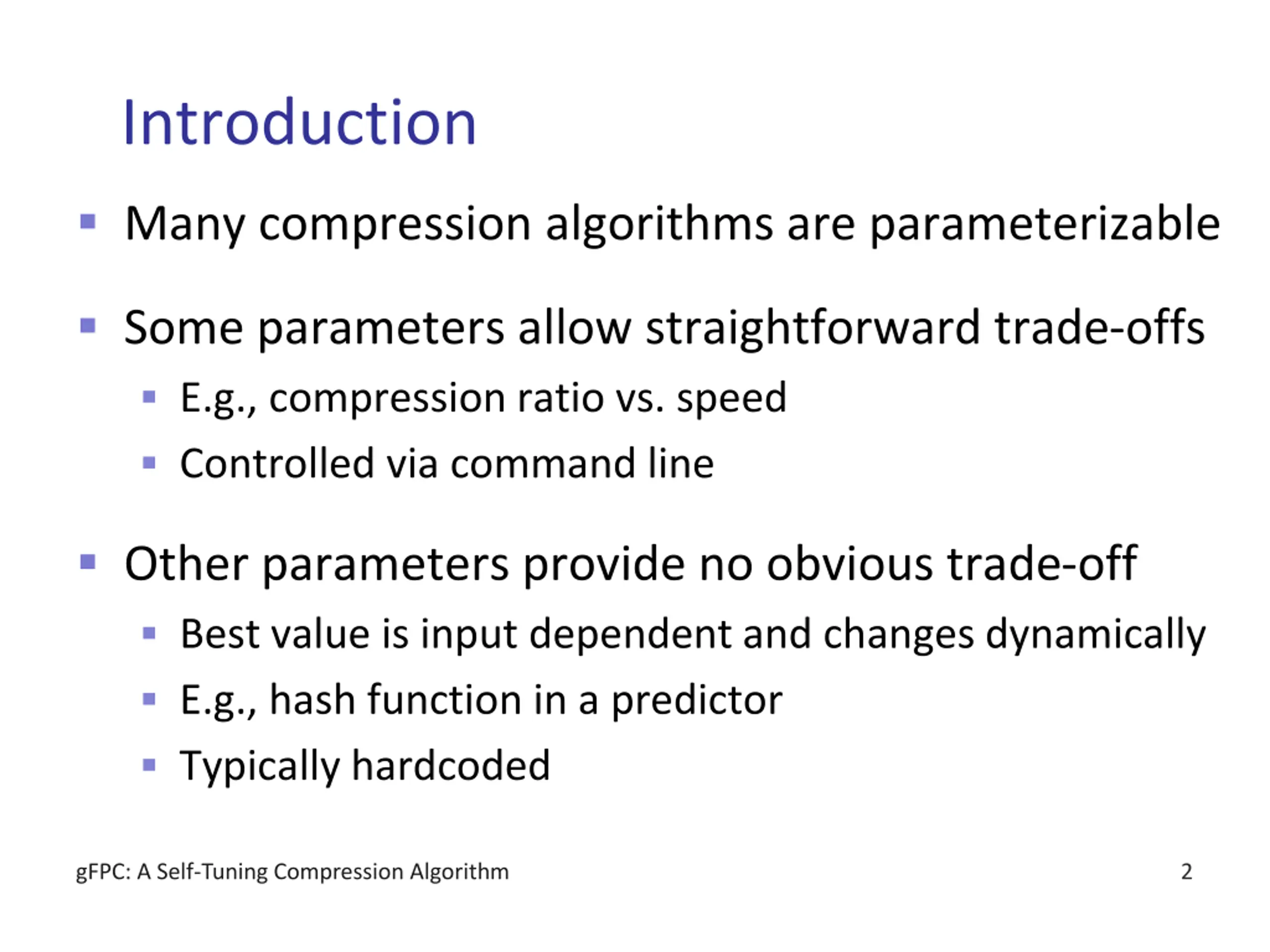

  2. Introduction Many compression algorithms are parameterizable Some parameters allow straightforward trade-offs E.g., compression ratio vs. speed Controlled via command line Other parameters provide no obvious trade-off Best value is input dependent and changes dynamically E.g., hash function in a predictor Typically hardcoded gFPC: A Self-Tuning Compression Algorithm 2

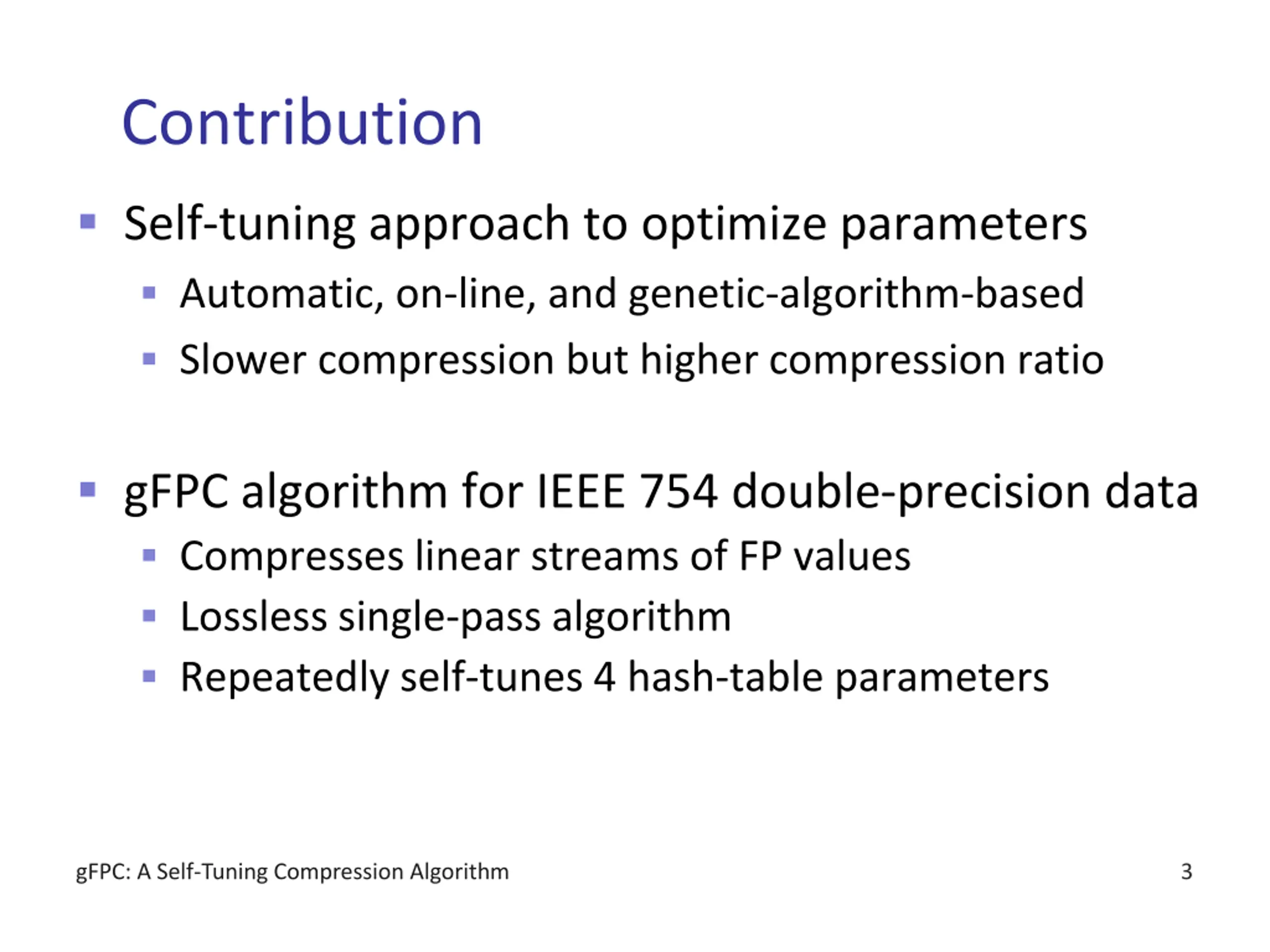

  3. Contribution Self-tuning approach to optimize parameters Automatic, on-line, and genetic-algorithm-based Slower compression but higher compression ratio gFPC algorithm for IEEE 754 double-precision data Compresses linear streams of FP values Lossless single-pass algorithm Repeatedly self-tunes 4 hash-table parameters gFPC: A Self-Tuning Compression Algorithm 3

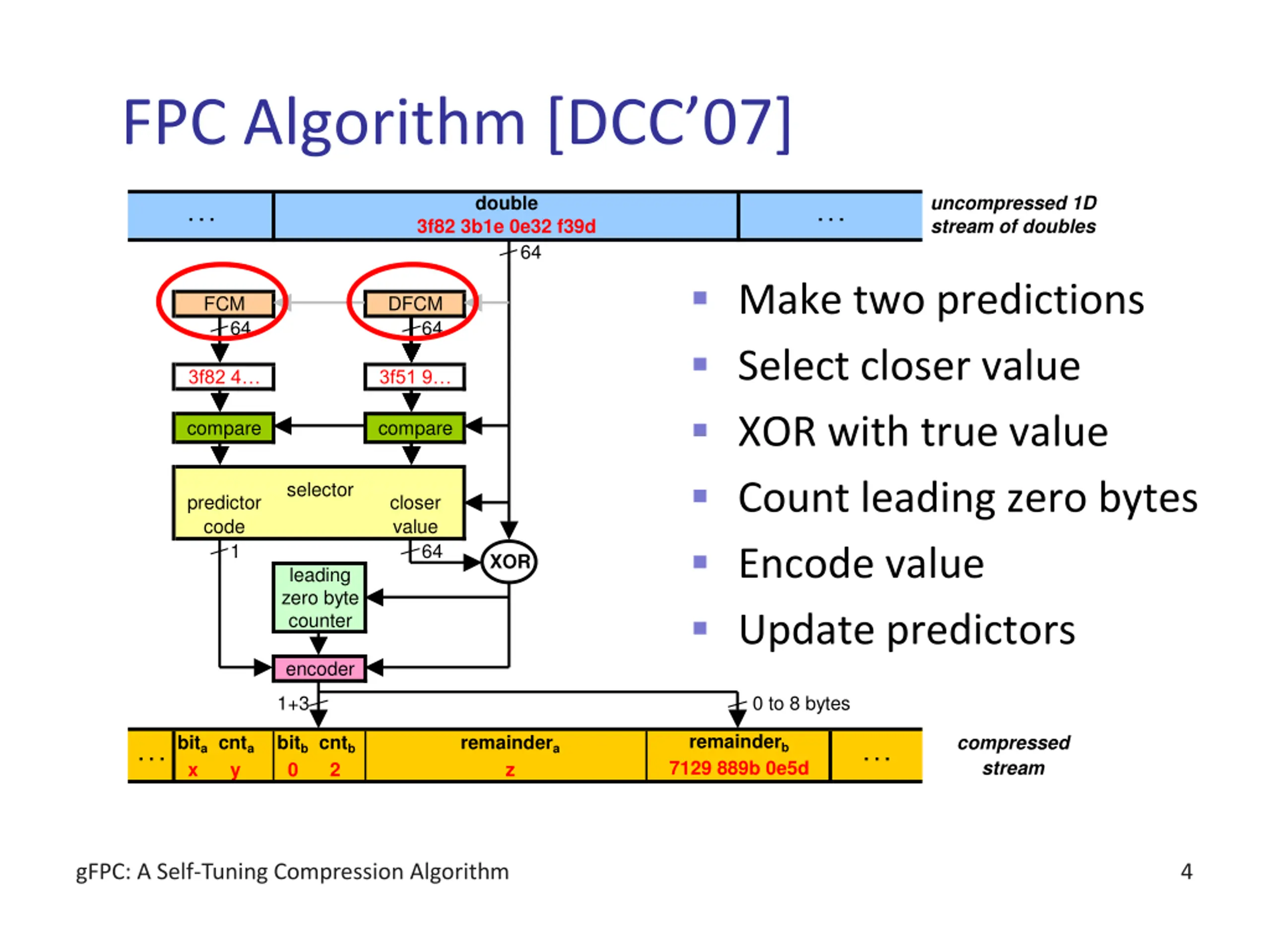

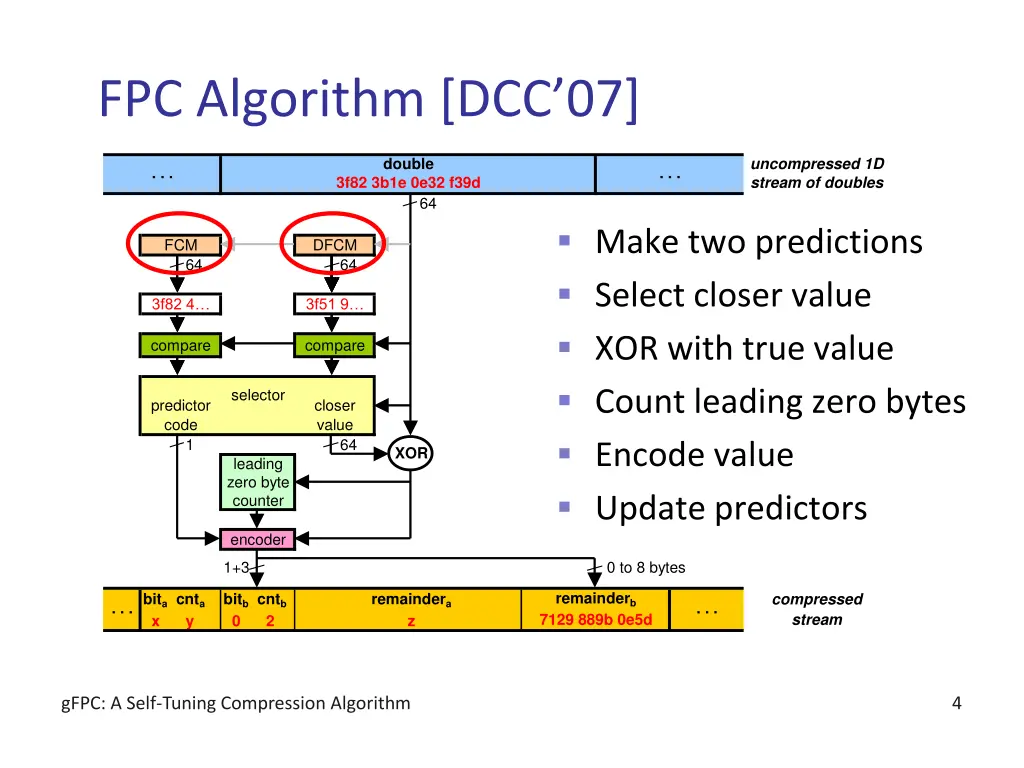

  4. FPC Algorithm [DCC07] uncompressed 1D stream of doubles double . . . . . . 3f82 3b1e 0e32 f39d 64 Make two predictions Select closer value XOR with true value Count leading zero bytes Encode value Update predictors FCM DFCM 64 64 3f82 4 3f51 9 compare compare selector predictor code 1 closer value 64 XOR leading zero byte counter encoder 1+3 0 to 8 bytes remainderb 7129 889b 0e5d bita cnta x y bitb cntb 0 2 remaindera z compressed stream . . . . . . gFPC: A Self-Tuning Compression Algorithm 4

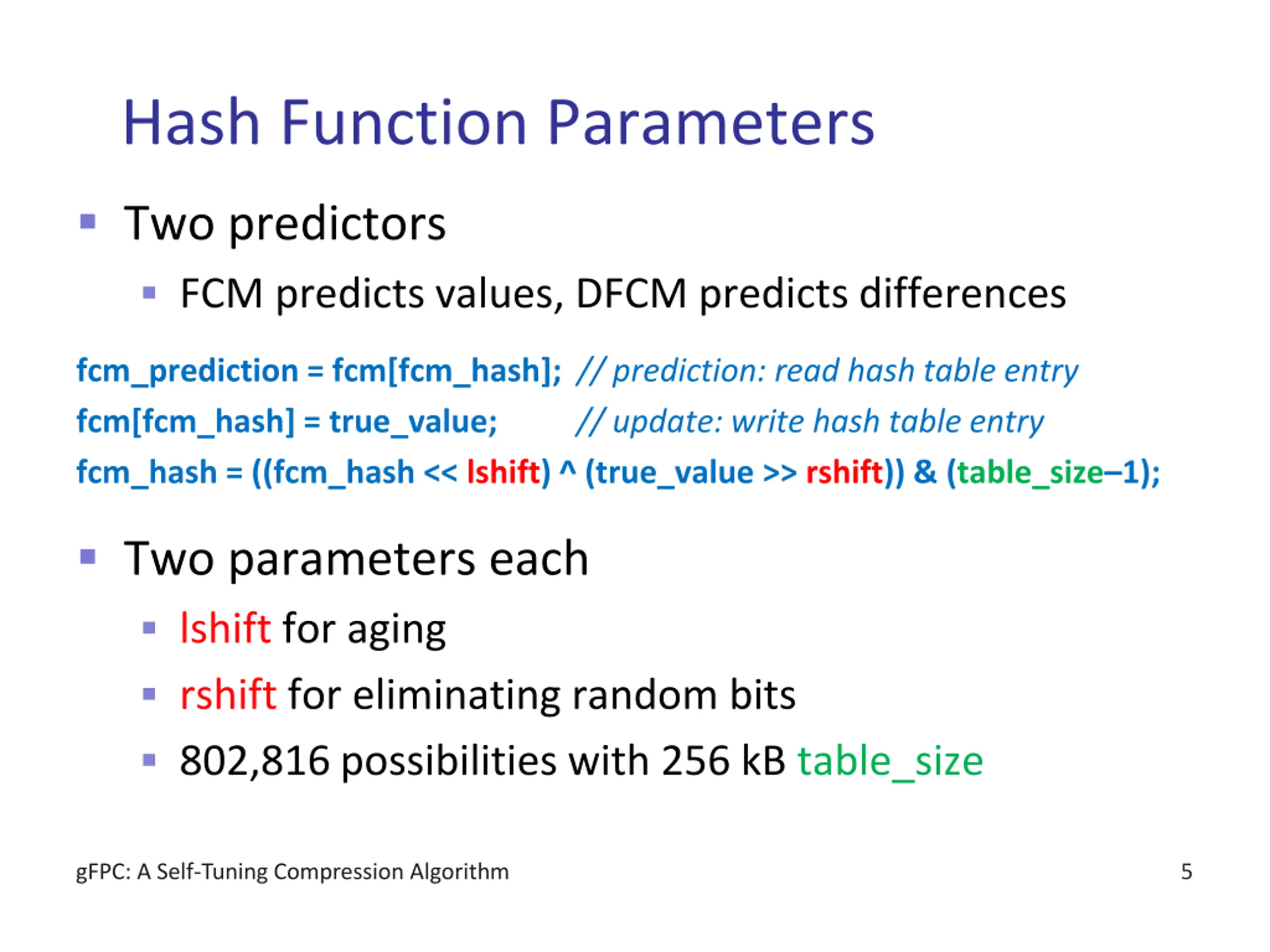

  5. Hash Function Parameters Two predictors FCM predicts values, DFCM predicts differences fcm_prediction = fcm[fcm_hash]; // prediction: read hash table entry fcm[fcm_hash] = true_value; // update: write hash table entry fcm_hash = ((fcm_hash << lshift) ^ (true_value >> rshift)) & (table_size 1); Two parameters each lshift for aging rshift for eliminating random bits 802,816 possibilities with 256 kB table_size gFPC: A Self-Tuning Compression Algorithm 5

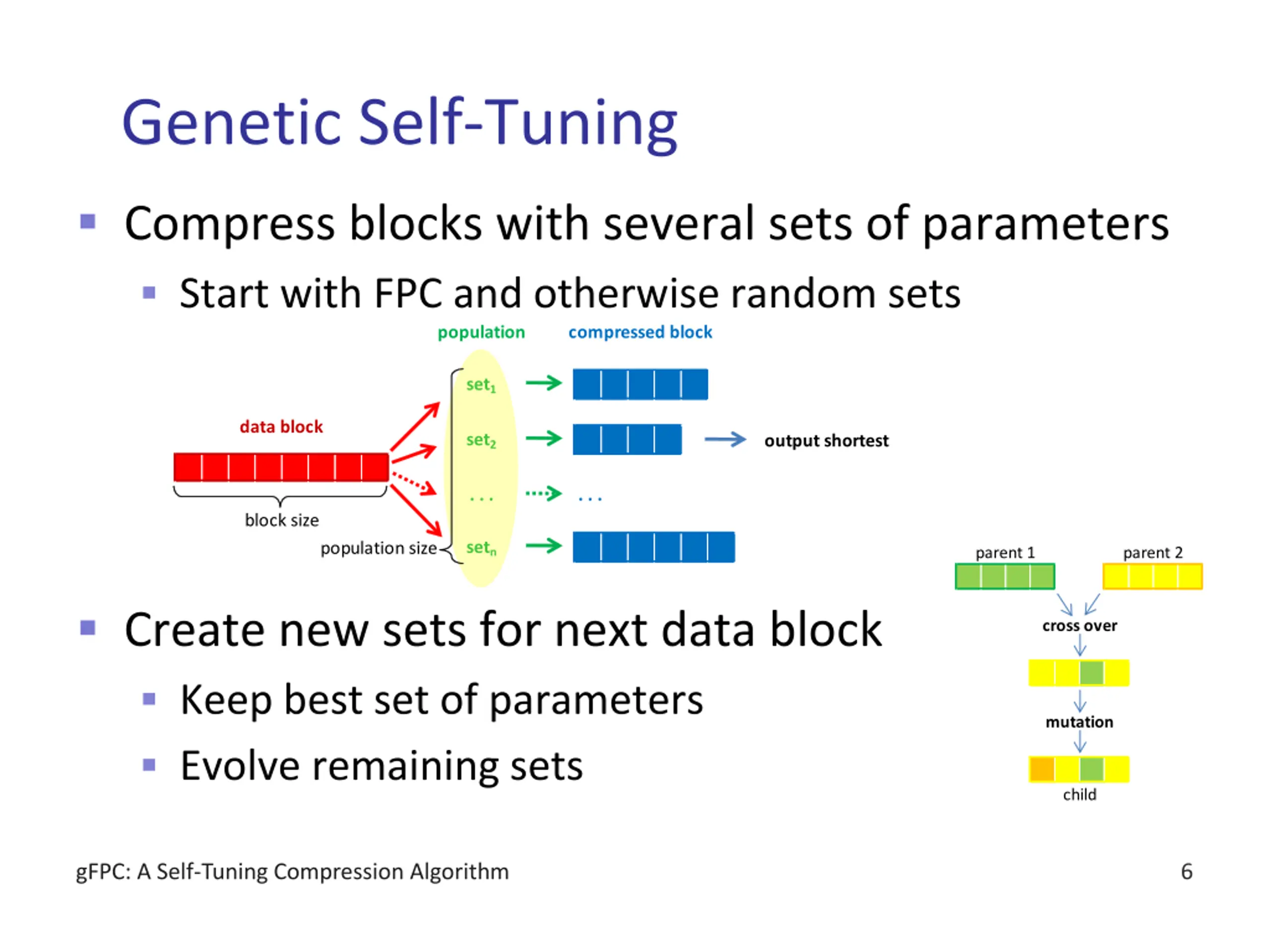

  6. Genetic Self-Tuning Compress blocks with several sets of parameters Start with FPC and otherwise random sets population compressed block set1 data block set2 output shortest . . . . . . block size setn population size parent 1 parent 2 Create new sets for next data block Keep best set of parameters Evolve remaining sets cross over mutation child gFPC: A Self-Tuning Compression Algorithm 6

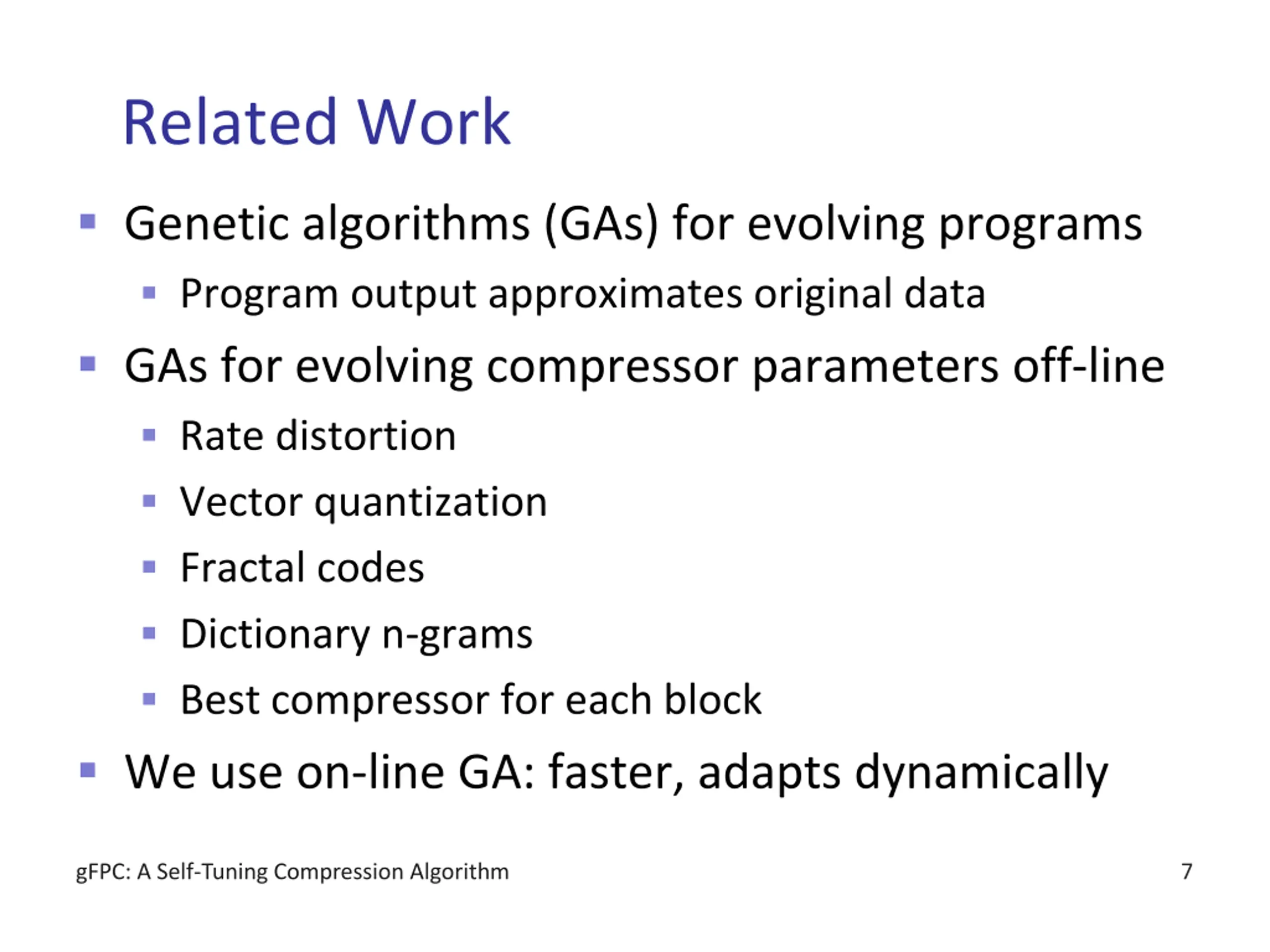

  7. Related Work Genetic algorithms (GAs) for evolving programs Program output approximates original data GAs for evolving compressor parameters off-line Rate distortion Vector quantization Fractal codes Dictionary n-grams Best compressor for each block We use on-line GA: faster, adapts dynamically gFPC: A Self-Tuning Compression Algorithm 7

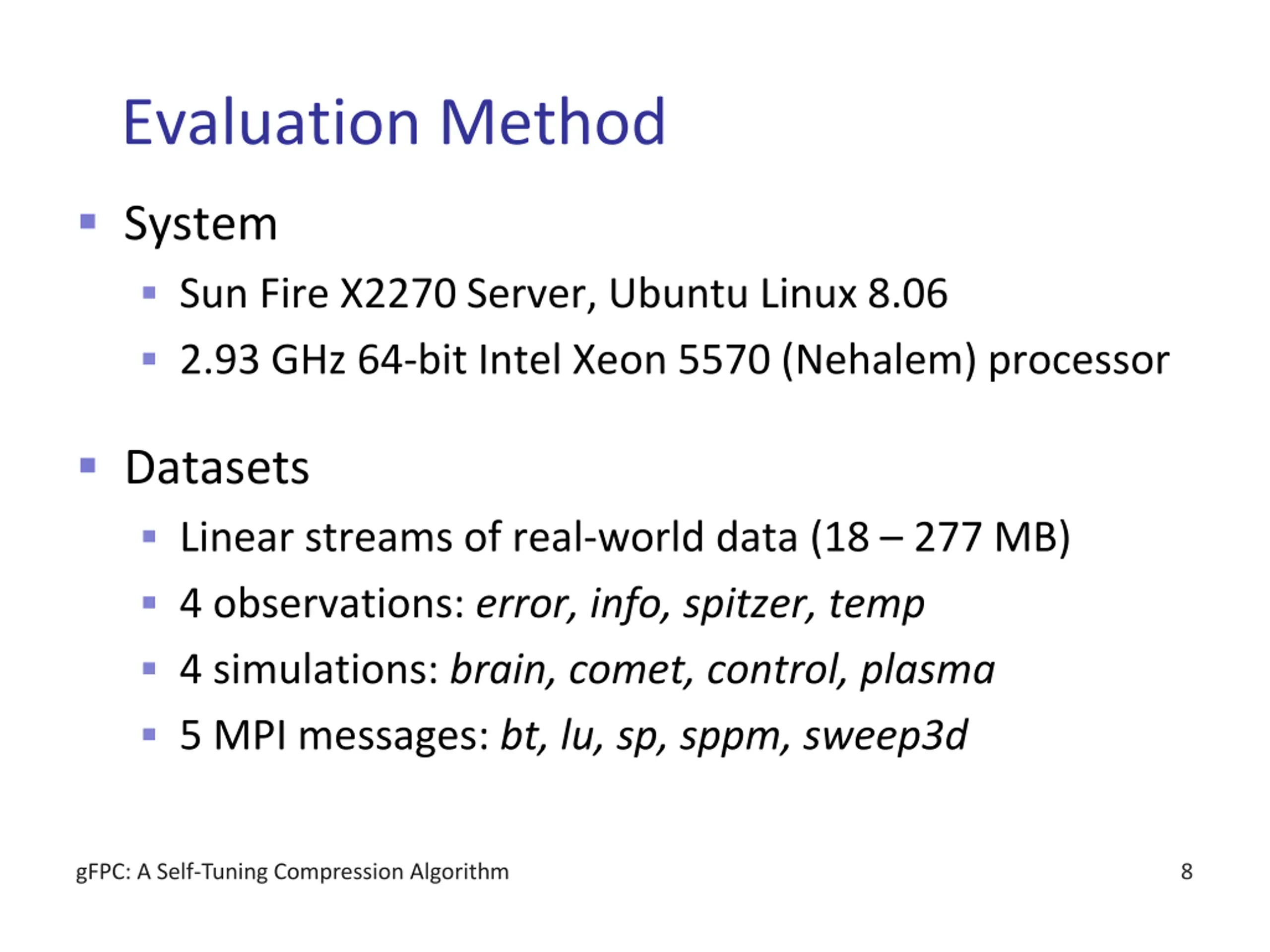

  8. Evaluation Method System Sun Fire X2270 Server, Ubuntu Linux 8.06 2.93 GHz 64-bit Intel Xeon 5570 (Nehalem) processor Datasets Linear streams of real-world data (18 277 MB) 4 observations: error, info, spitzer, temp 4 simulations: brain, comet, control, plasma 5 MPI messages: bt, lu, sp, sppm, sweep3d gFPC: A Self-Tuning Compression Algorithm 8

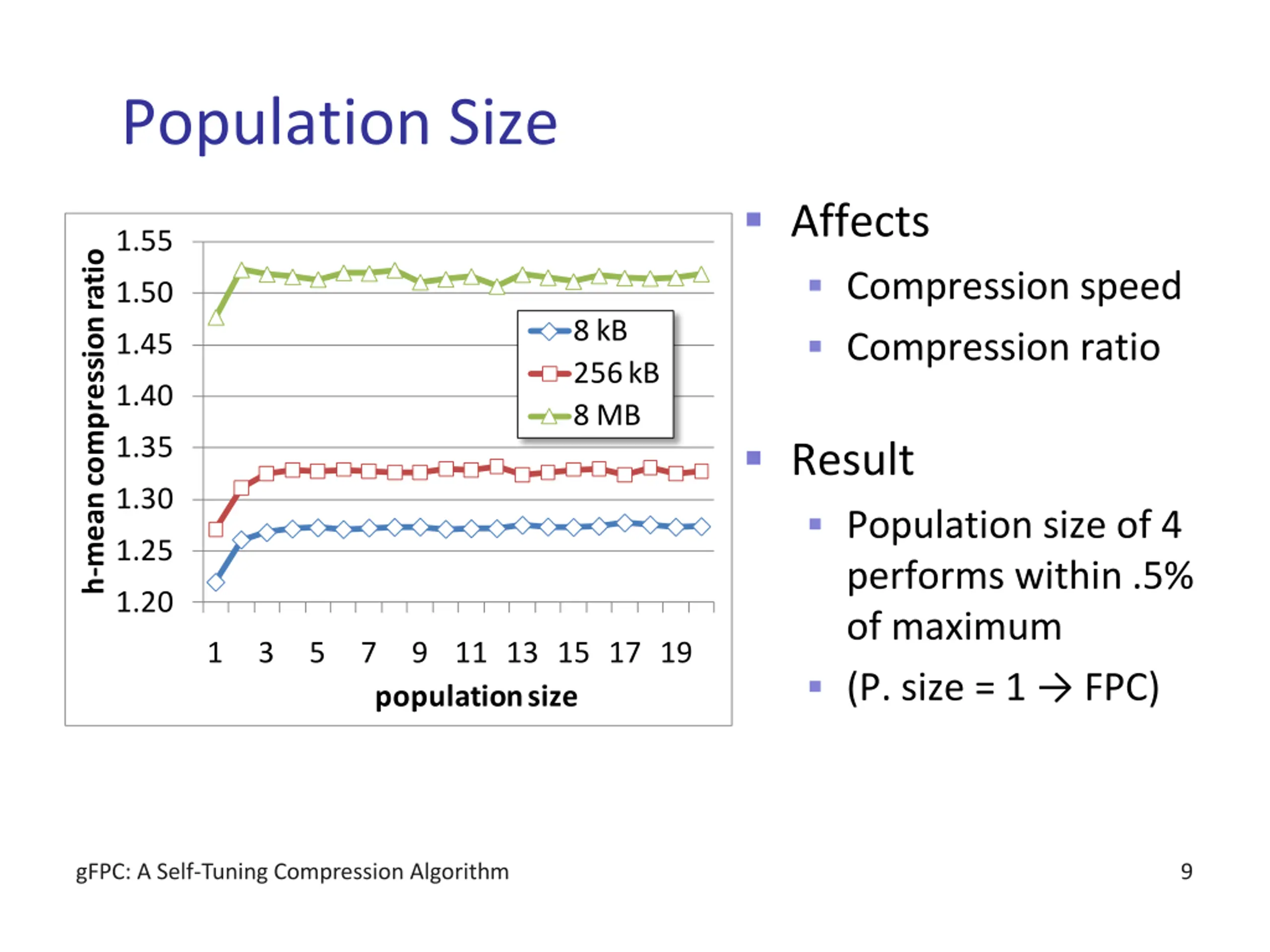

  9. Population Size Affects Compression speed Compression ratio 1.55 h-mean compression ratio 1.50 8 kB 256 kB 8 MB 1.45 1.40 Result Population size of 4 performs within .5% of maximum (P. size = 1 FPC) 1.35 1.30 1.25 1.20 1 3 5 7 9 11 13 15 17 19 population size gFPC: A Self-Tuning Compression Algorithm 9

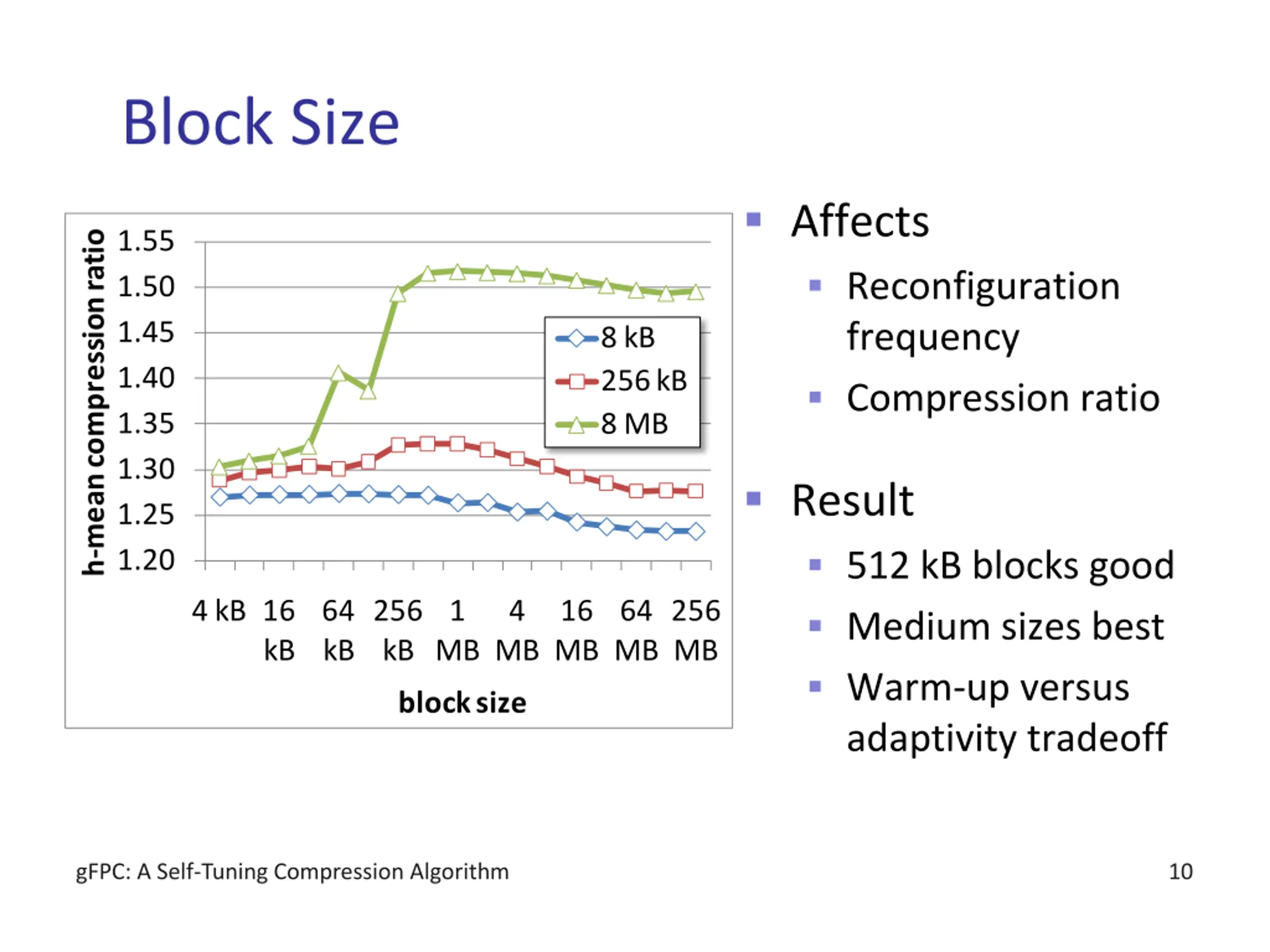

  10. Block Size Affects Reconfiguration frequency Compression ratio 1.55 h-mean compression ratio 1.50 1.45 8 kB 256 kB 8 MB 1.40 1.35 1.30 Result 512 kB blocks good Medium sizes best Warm-up versus adaptivity tradeoff 1.25 1.20 4 kB 16 64 kB 256 kB 1 4 16 MB 64 MB 256 MB kB MB MB block size gFPC: A Self-Tuning Compression Algorithm 10

  11. Compression Ratio Comparison FPCsize and FPCall Use off-line GA an LS to find best parameters for each size (and input) Results FPC is 5% worse FPCsize no input adaptivity FPCall (mostly) better gFPC is retroactive (but can adapt on-the-fly) gFPC is 317 times faster 1.55 h-mean compression ratio FPC gFPC FPCsize FPCall 1.50 1.45 1.40 1.35 1.30 1.25 1.20 1 MB 2 MB 4 MB 8 MB 128 kB 256 kB 512 kB 64 kB 16 kB 32 kB 8 kB predictor size gFPC: A Self-Tuning Compression Algorithm 11

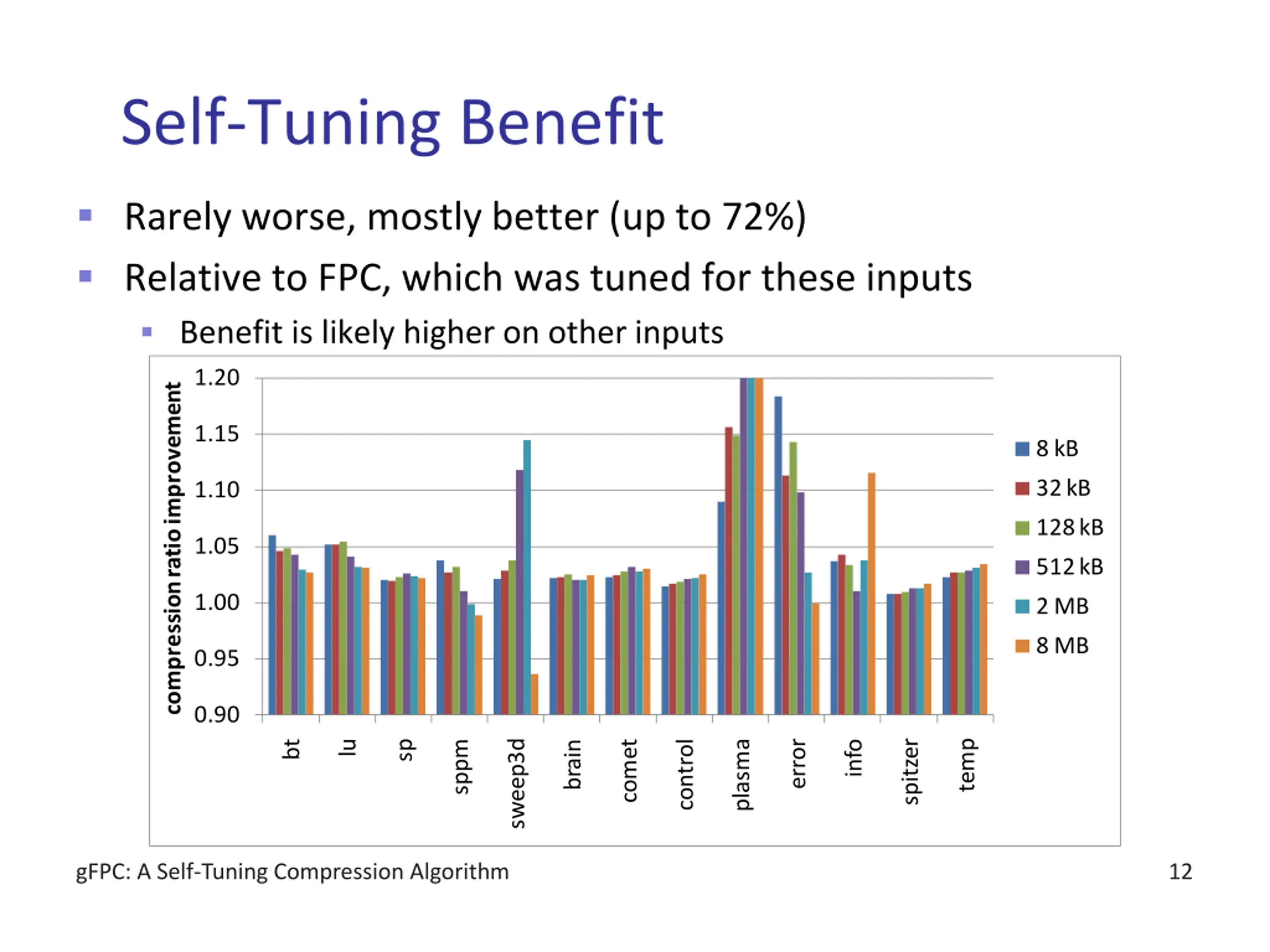

  12. Self-Tuning Benefit Rarely worse, mostly better (up to 72%) Relative to FPC, which was tuned for these inputs Benefit is likely higher on other inputs 1.20 compression ratio improvement 1.15 8 kB 32 kB 1.10 128 kB 1.05 512 kB 1.00 2 MB 8 MB 0.95 0.90 sweep3d temp spitzer plasma lu sp error comet sppm control bt info brain gFPC: A Self-Tuning Compression Algorithm 12

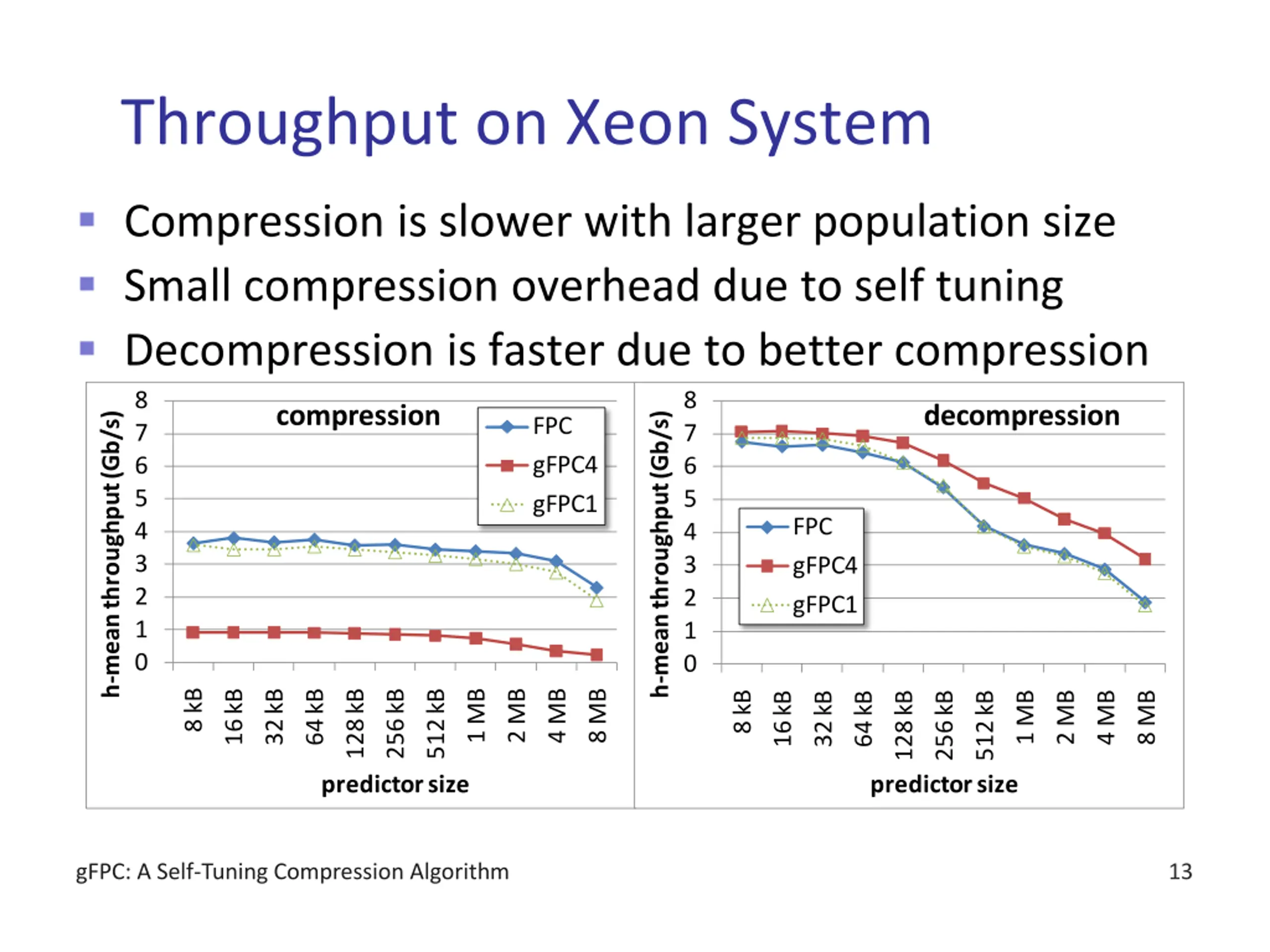

  13. Throughput on Xeon System Compression is slower with larger population size Small compression overhead due to self tuning Decompression is faster due to better compression 8 h-mean throughput (Gb/s) 8 compression decompression h-mean throughput (Gb/s) FPC gFPC4 gFPC1 7 7 6 6 5 5 FPC gFPC4 gFPC1 4 4 3 3 2 2 1 1 0 0 8 kB 1 MB 4 MB 8 MB 2 MB 128 kB 256 kB 512 kB 16 kB 64 kB 32 kB 8 kB 1 MB 4 MB 8 MB 2 MB 128 kB 256 kB 512 kB 16 kB 64 kB 32 kB predictor size predictor size gFPC: A Self-Tuning Compression Algorithm 13

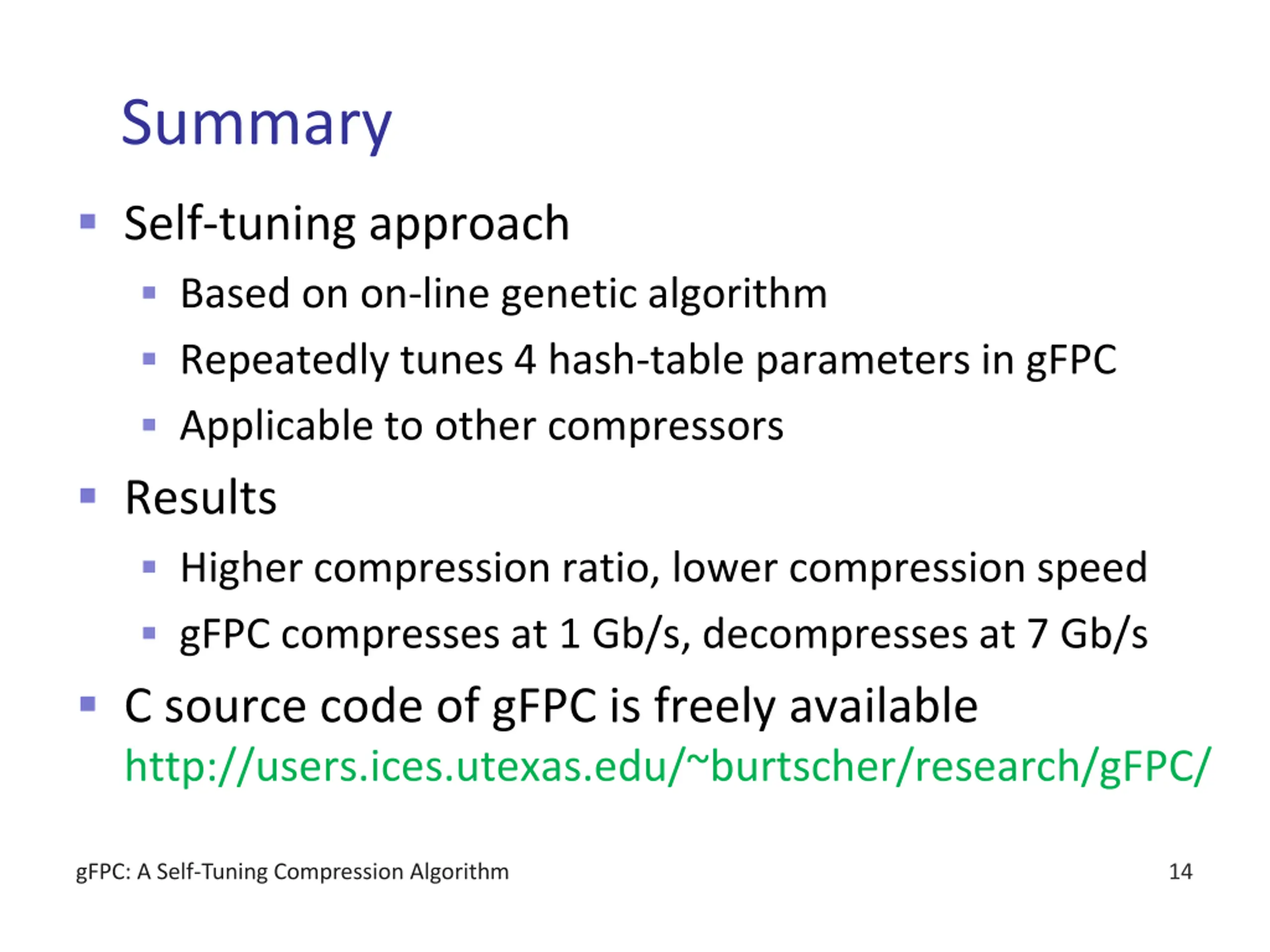

  14. Summary Self-tuning approach Based on on-line genetic algorithm Repeatedly tunes 4 hash-table parameters in gFPC Applicable to other compressors Results Higher compression ratio, lower compression speed gFPC compresses at 1 Gb/s, decompresses at 7 Gb/s C source code of gFPC is freely available http://users.ices.utexas.edu/~burtscher/research/gFPC/ gFPC: A Self-Tuning Compression Algorithm 14
