Review of September RENA Market Analysis and Validation CMWG Jan. 9th, 2023

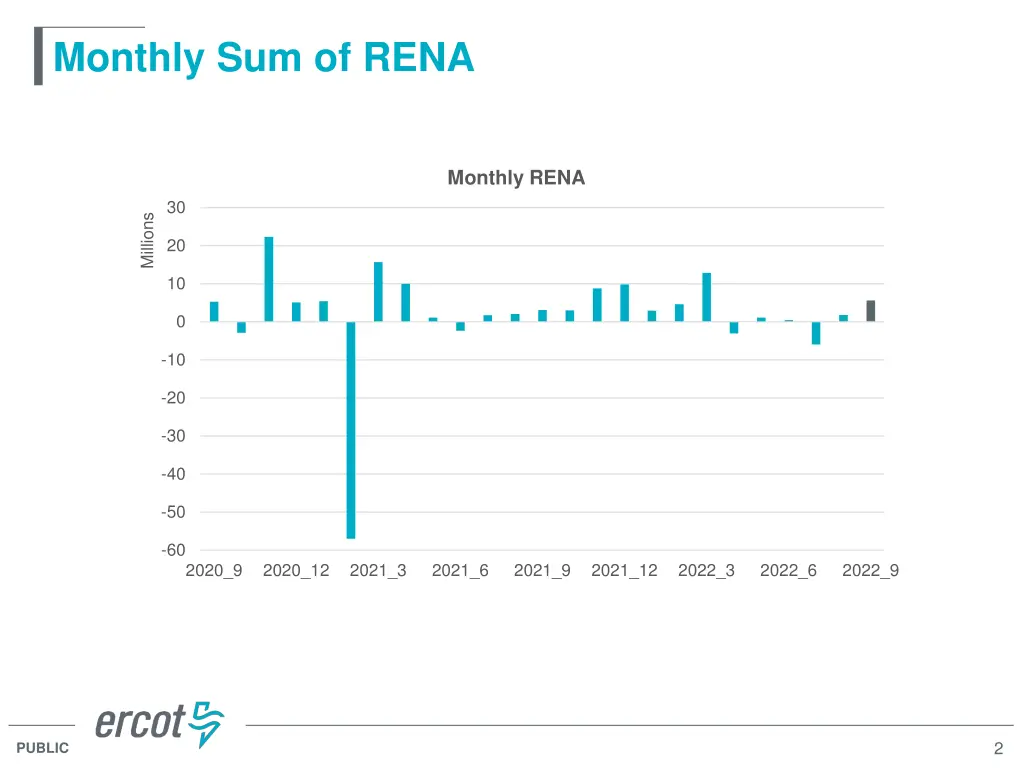

Monthly Sum of RENA Monthly RENA 30 Millions 20 10 0 -10 -20 -30 -40 -50 -60 2020_9 2020_12 2021_3 2021_6 2021_9 2021_12 2022_3 2022_6 2022_9 2 PUBLIC

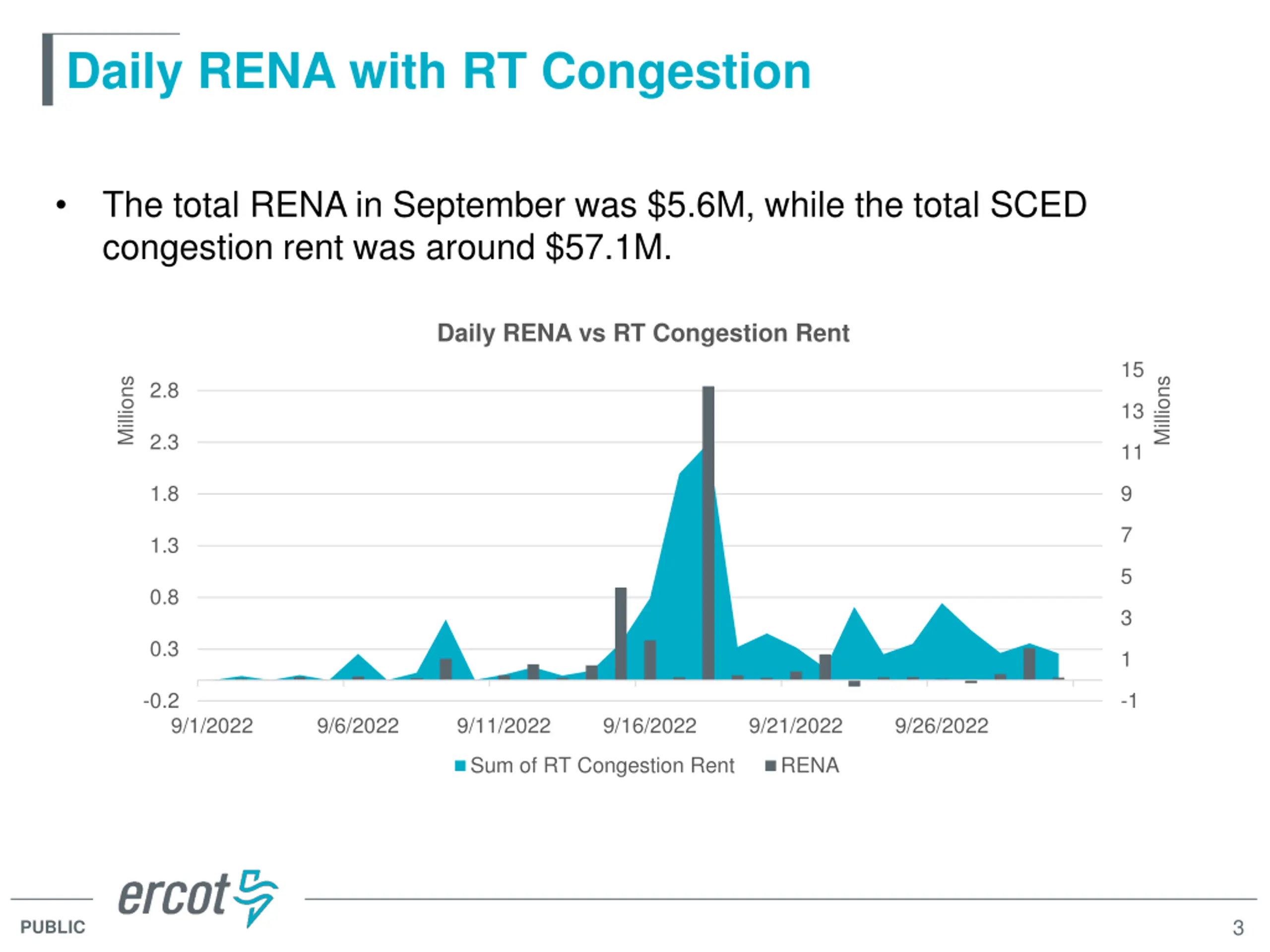

Daily RENA with RT Congestion The total RENA in September was $5.6M, while the total SCED congestion rent was around $57.1M. Daily RENA vs RT Congestion Rent 15 Millions Millions 2.8 13 2.3 11 1.8 9 7 1.3 5 0.8 3 0.3 1 -0.2 -1 9/1/2022 9/6/2022 9/11/2022 9/16/2022 9/21/2022 9/26/2022 Sum of RT Congestion Rent RENA 3 PUBLIC

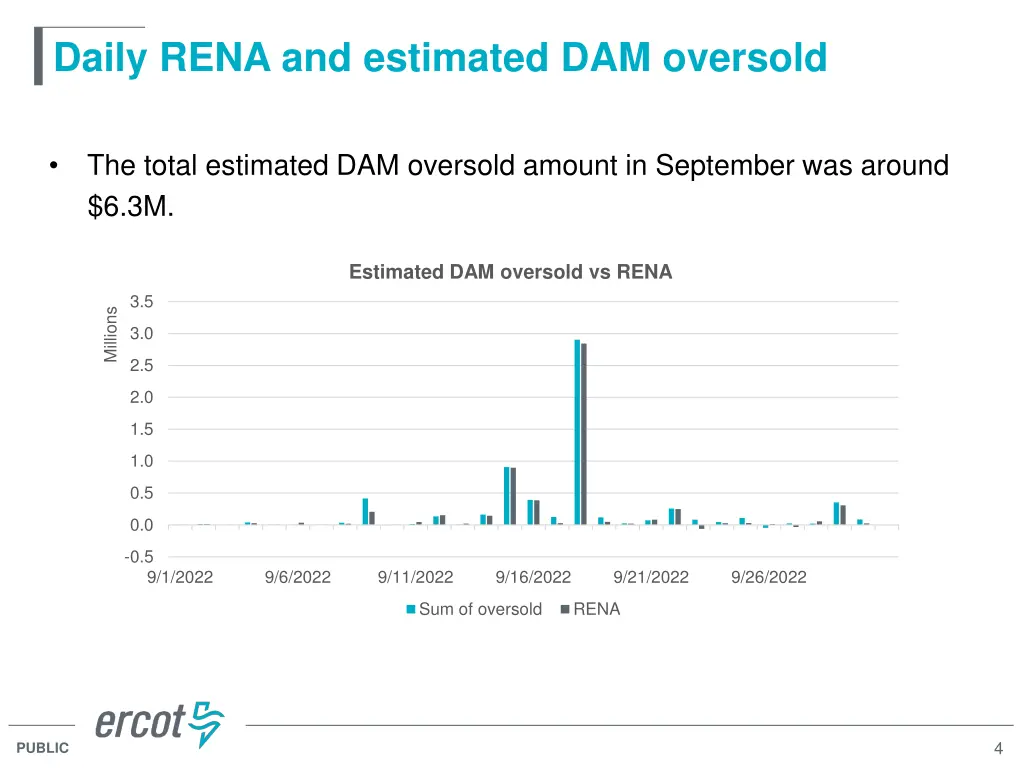

Daily RENA and estimated DAM oversold The total estimated DAM oversold amount in September was around $6.3M. Estimated DAM oversold vs RENA 3.5 Millions 3.0 2.5 2.0 1.5 1.0 0.5 0.0 -0.5 9/1/2022 9/6/2022 9/11/2022 9/16/2022 9/21/2022 9/26/2022 Sum of oversold RENA 4 PUBLIC

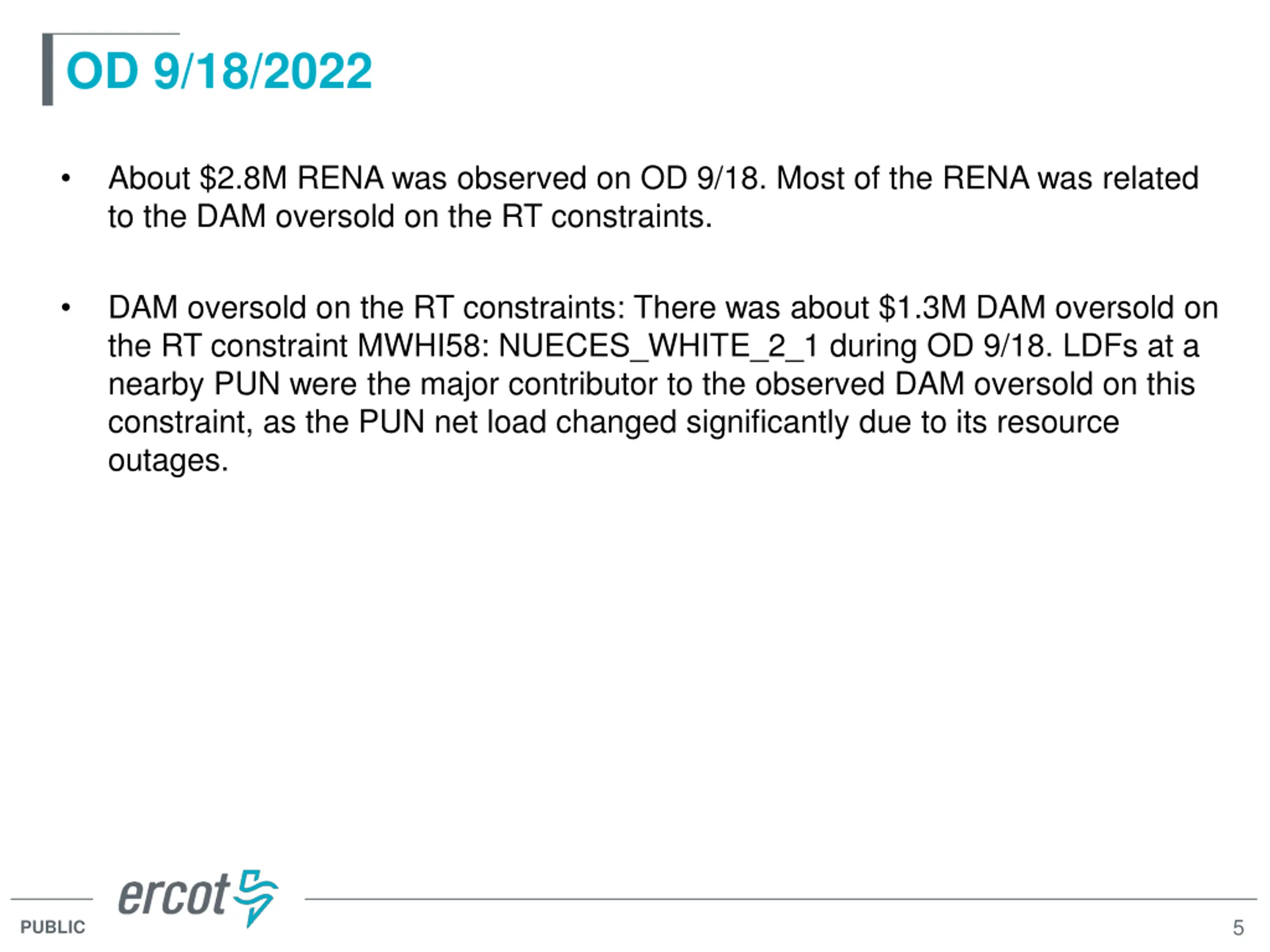

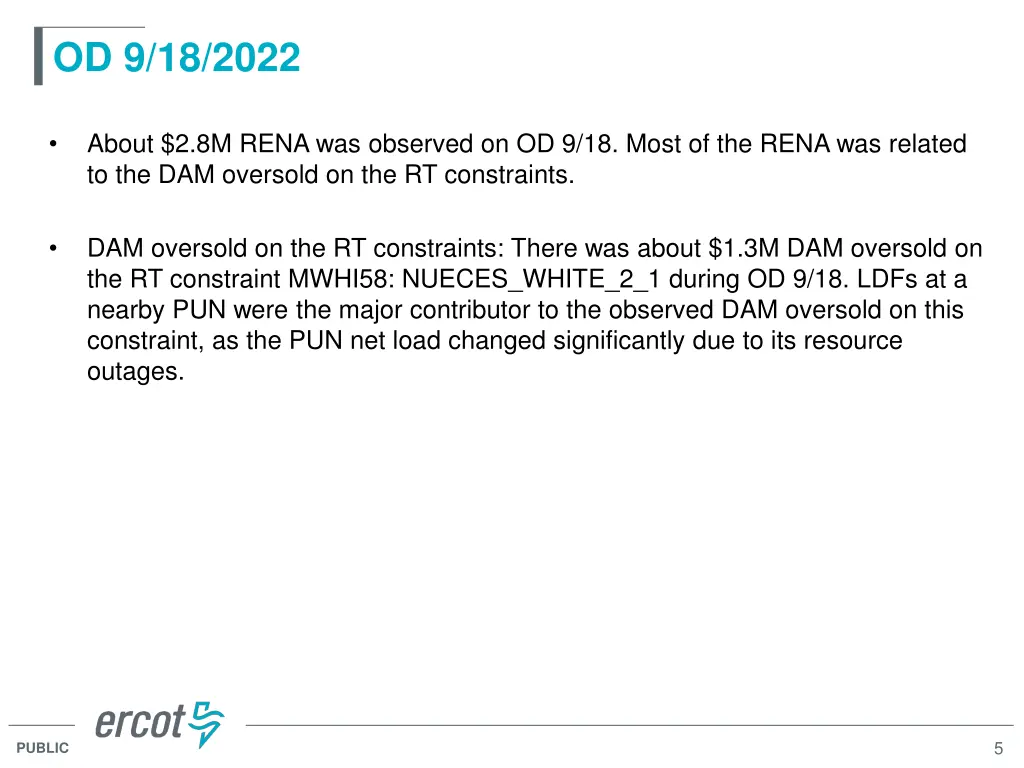

OD 9/18/2022 About $2.8M RENA was observed on OD 9/18. Most of the RENA was related to the DAM oversold on the RT constraints. DAM oversold on the RT constraints: There was about $1.3M DAM oversold on the RT constraint MWHI58: NUECES_WHITE_2_1 during OD 9/18. LDFs at a nearby PUN were the major contributor to the observed DAM oversold on this constraint, as the PUN net load changed significantly due to its resource outages. 5 PUBLIC

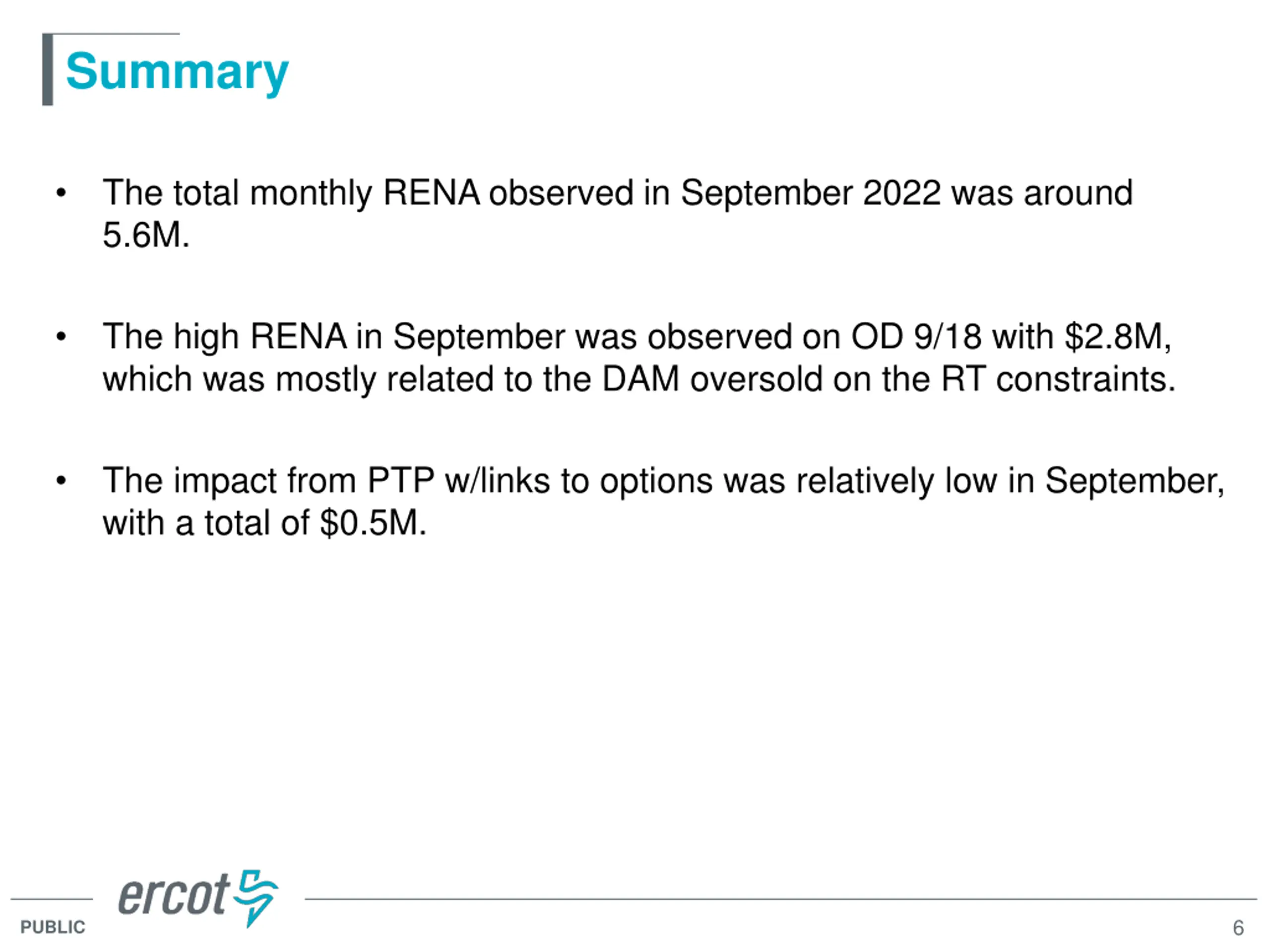

Summary The total monthly RENA observed in September 2022 was around 5.6M. The high RENA in September was observed on OD 9/18 with $2.8M, which was mostly related to the DAM oversold on the RT constraints. The impact from PTP w/links to options was relatively low in September, with a total of $0.5M. 6 PUBLIC

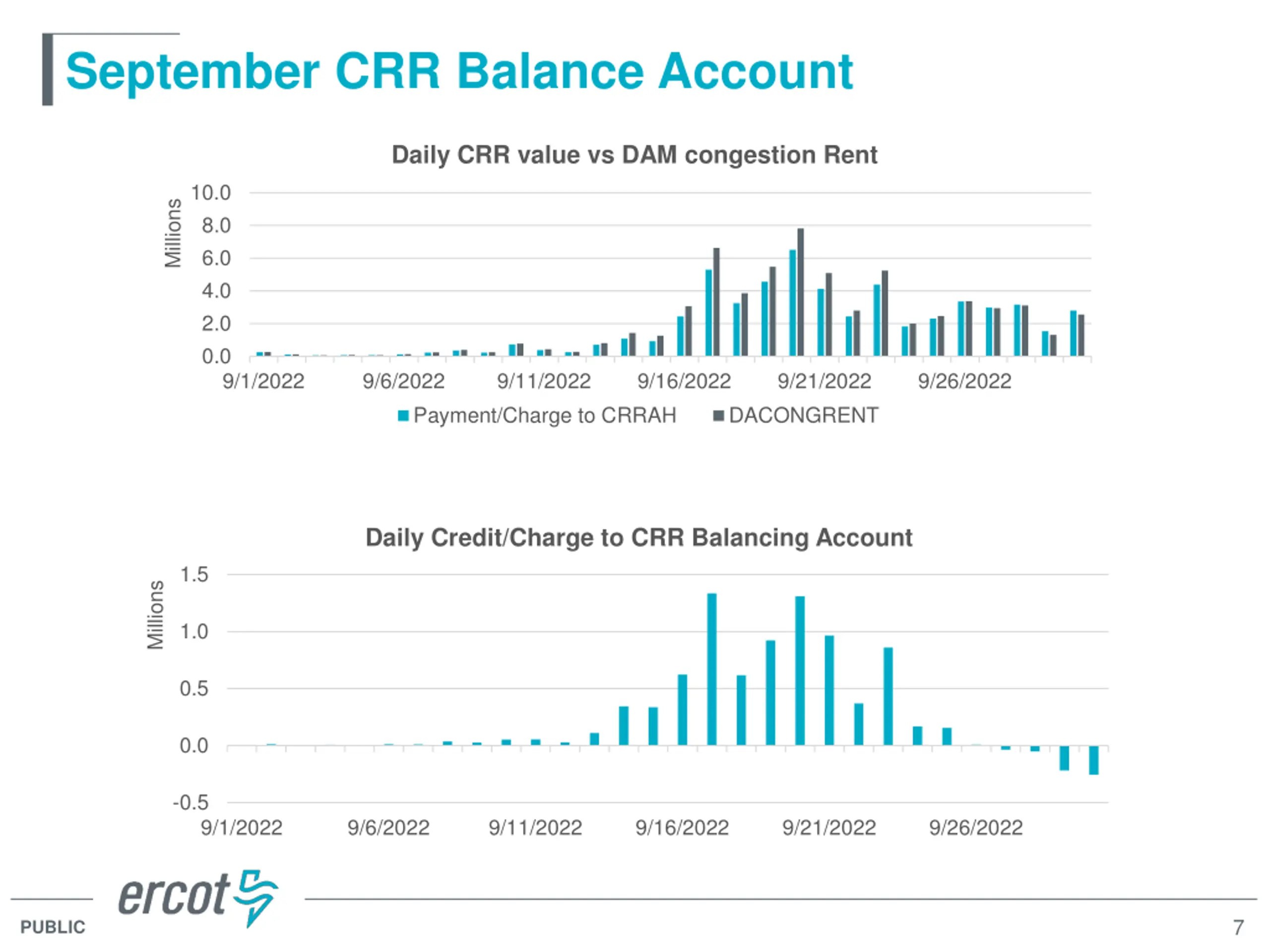

September CRR Balance Account Daily CRR value vs DAM congestion Rent 10.0 Millions 8.0 6.0 4.0 2.0 0.0 9/1/2022 9/6/2022 9/11/2022 9/16/2022 9/21/2022 9/26/2022 Payment/Charge to CRRAH DACONGRENT Daily Credit/Charge to CRR Balancing Account 1.5 Millions 1.0 0.5 0.0 -0.5 9/1/2022 9/6/2022 9/11/2022 9/16/2022 9/21/2022 9/26/2022 7 PUBLIC
