Presentation Transcript
Semantics-preserving Sharing Actors Mohsen Lesani{1,2} University of California, Los Angeles1 Antonio Lain2 HP Labs, Palo Alto2

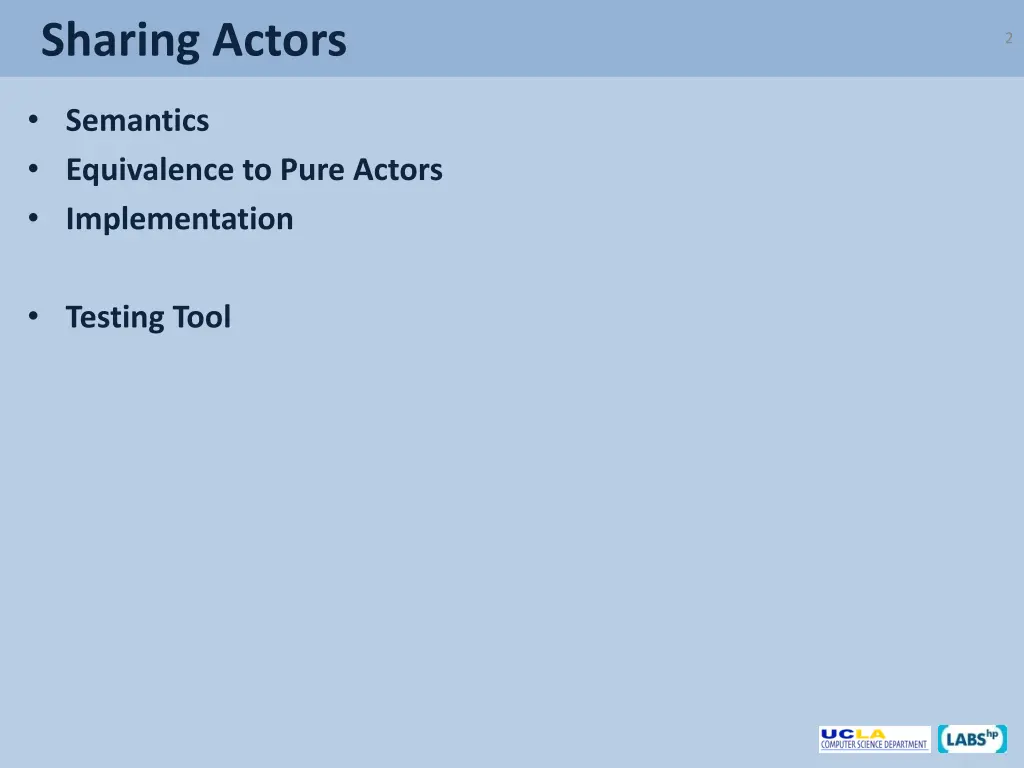

Sharing Actors 2 Semantics Equivalence to Pure Actors Implementation Testing Tool

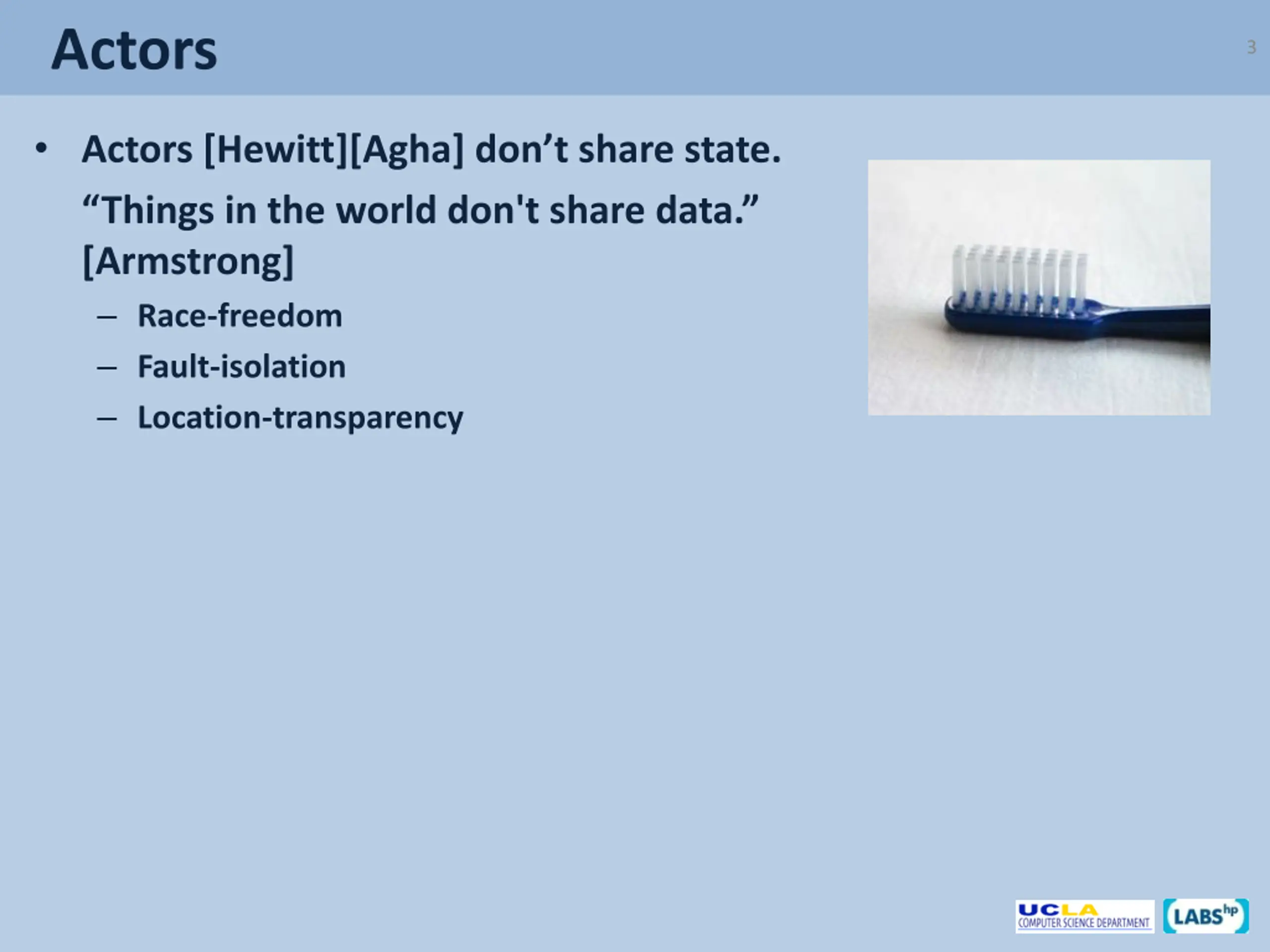

Actors 3 Actors [Hewitt][Agha] don t share state. Things in the world don't share data. [Armstrong] Race-freedom Fault-isolation Location-transparency

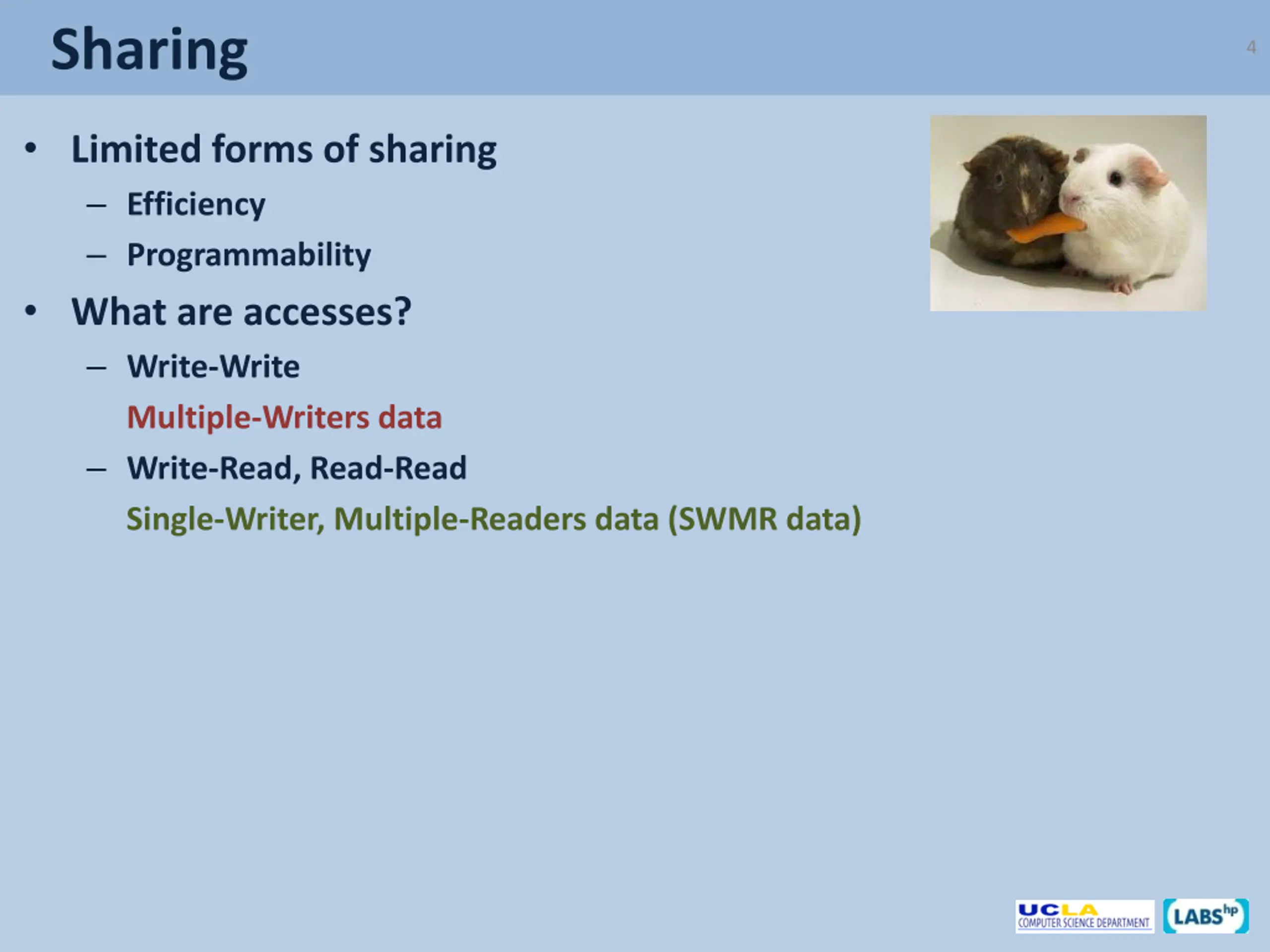

Sharing 4 Limited forms of sharing Efficiency Programmability What are accesses? Write-Write Multiple-Writers data Write-Read, Read-Read Single-Writer, Multiple-Readers data (SWMR data)

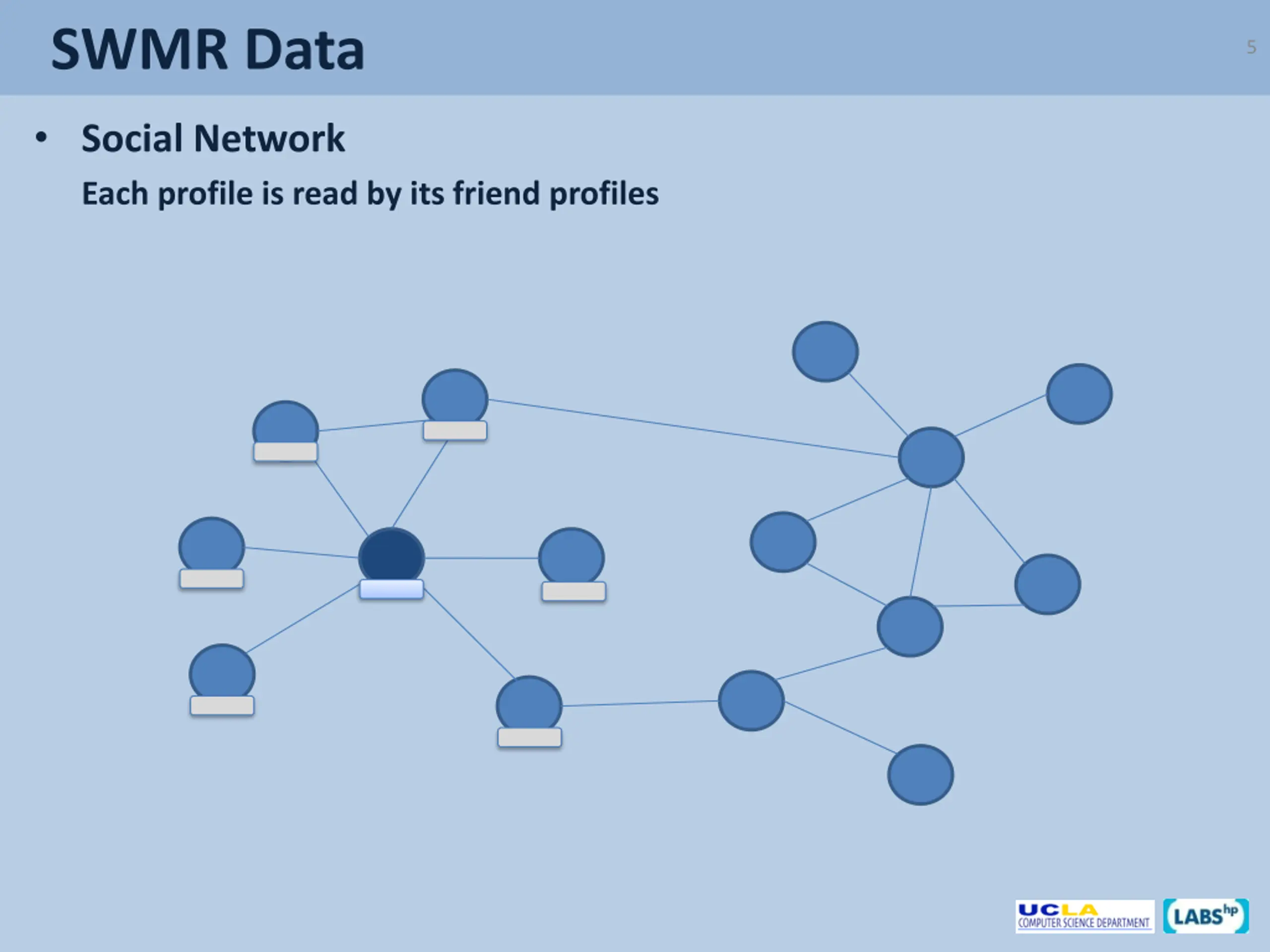

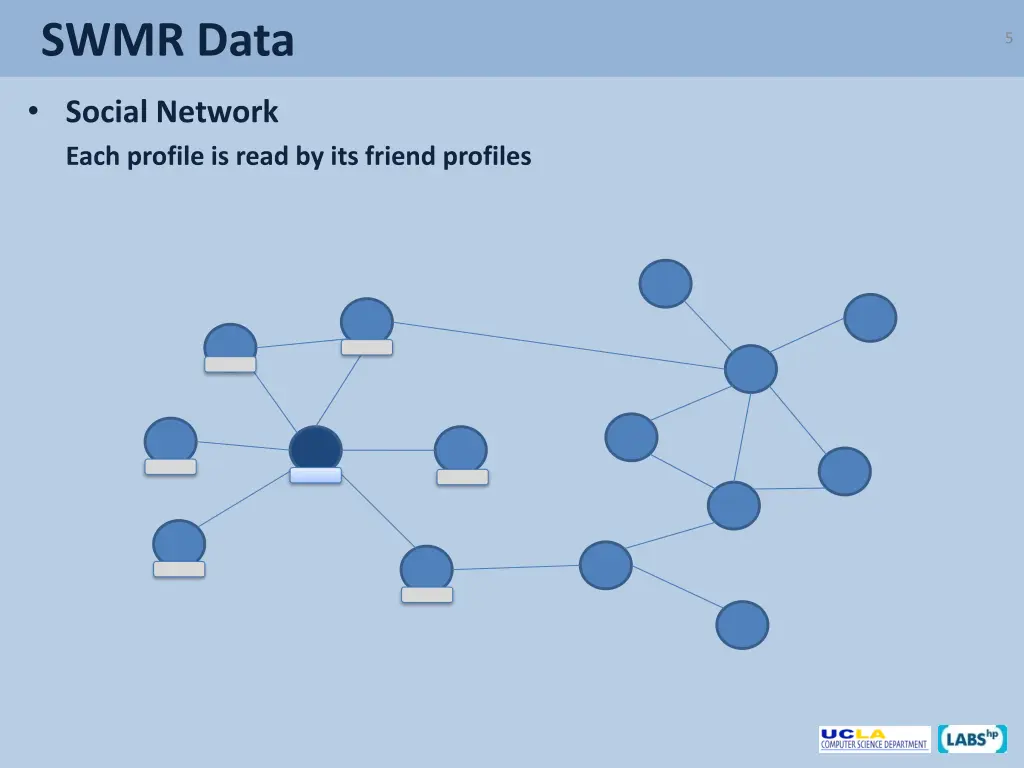

SWMR Data 5 Social Network Each profile is read by its friend profiles

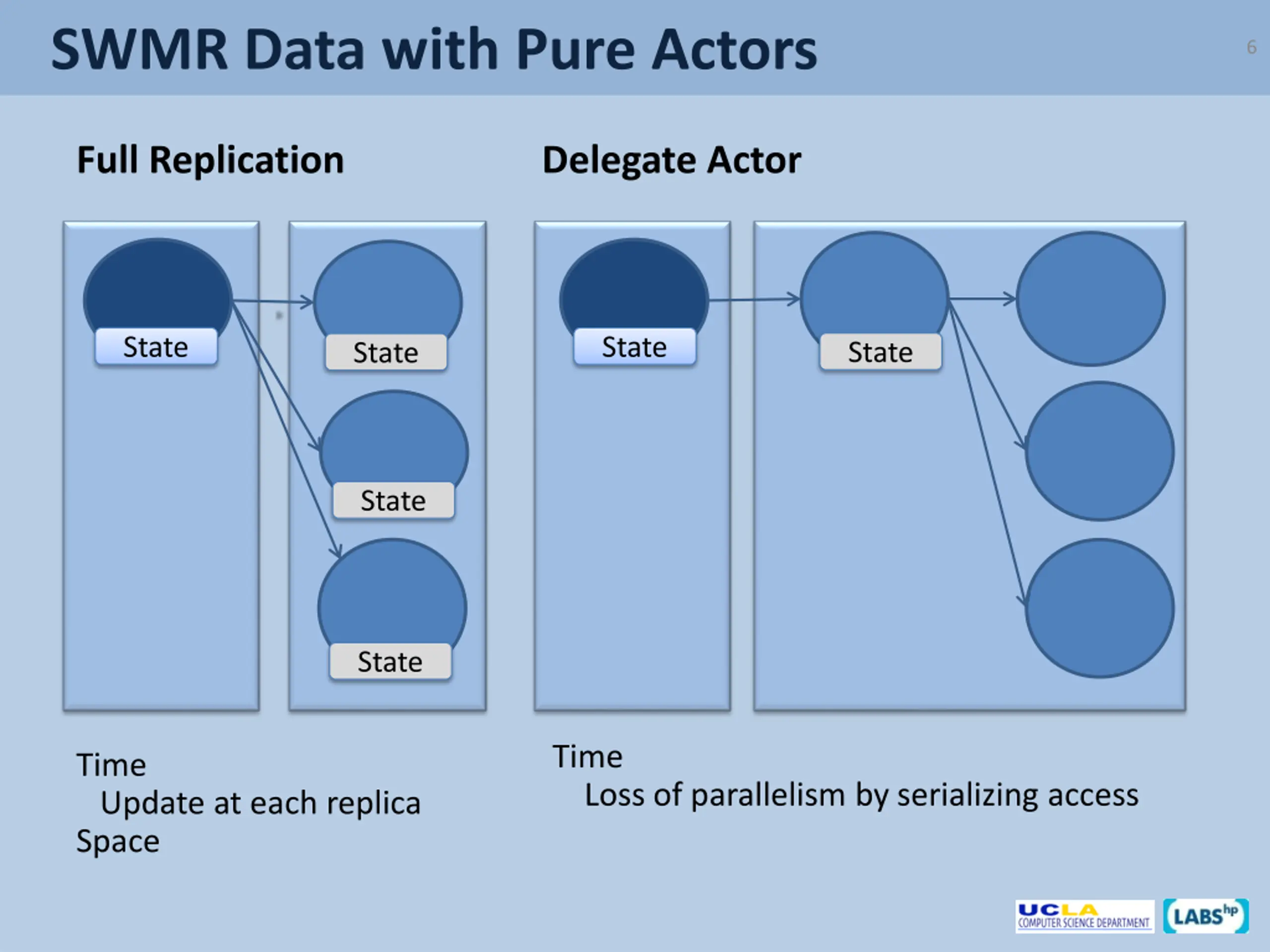

SWMR Data with Pure Actors 6 Full Replication Delegate Actor State State State State State State Time Loss of parallelism by serializing access Time Update at each replica Space

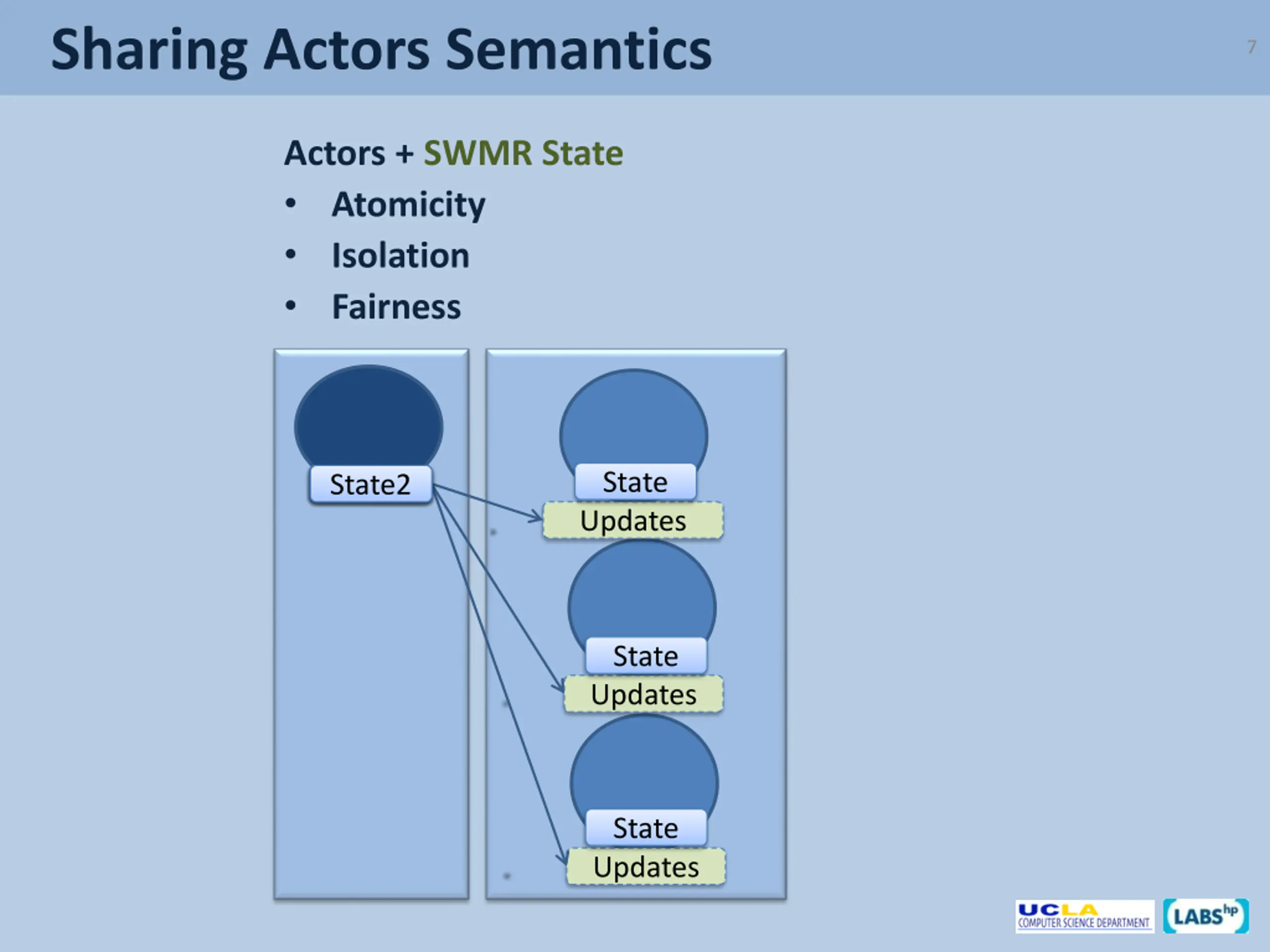

Sharing Actors Semantics 7 Actors + SWMR State Atomicity Isolation Fairness State State State2 State2 Updates State Updates State Updates

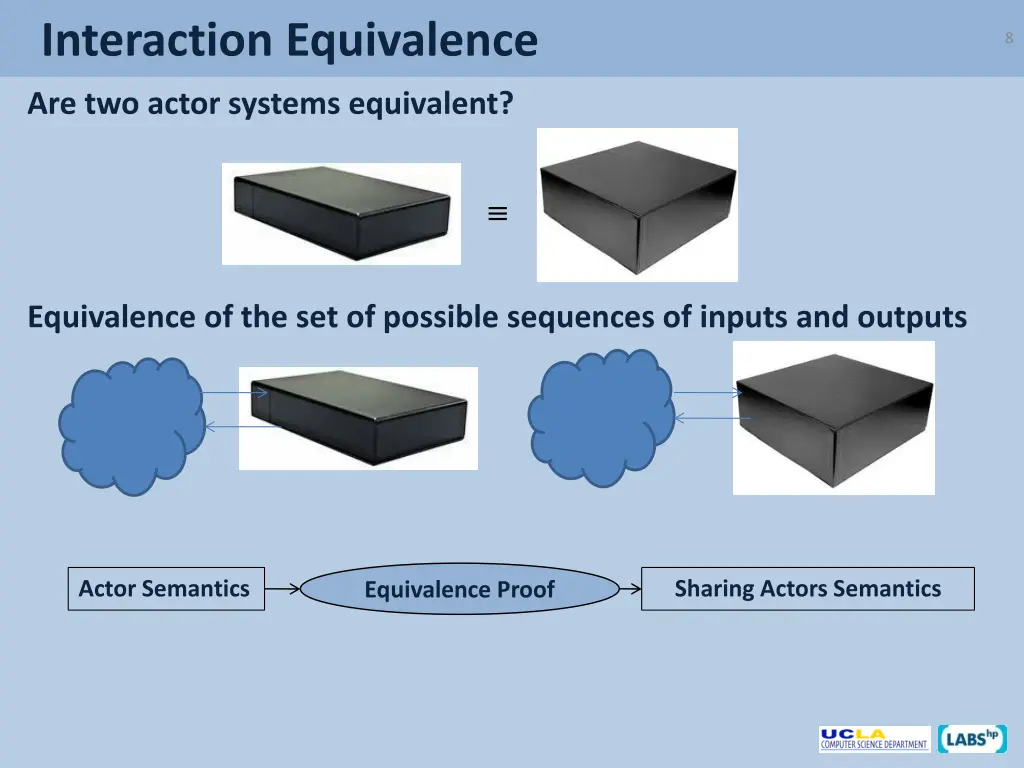

Interaction Equivalence 8 Are two actor systems equivalent? Equivalence of the set of possible sequences of inputs and outputs Actor Semantics Sharing Actors Semantics Equivalence Proof

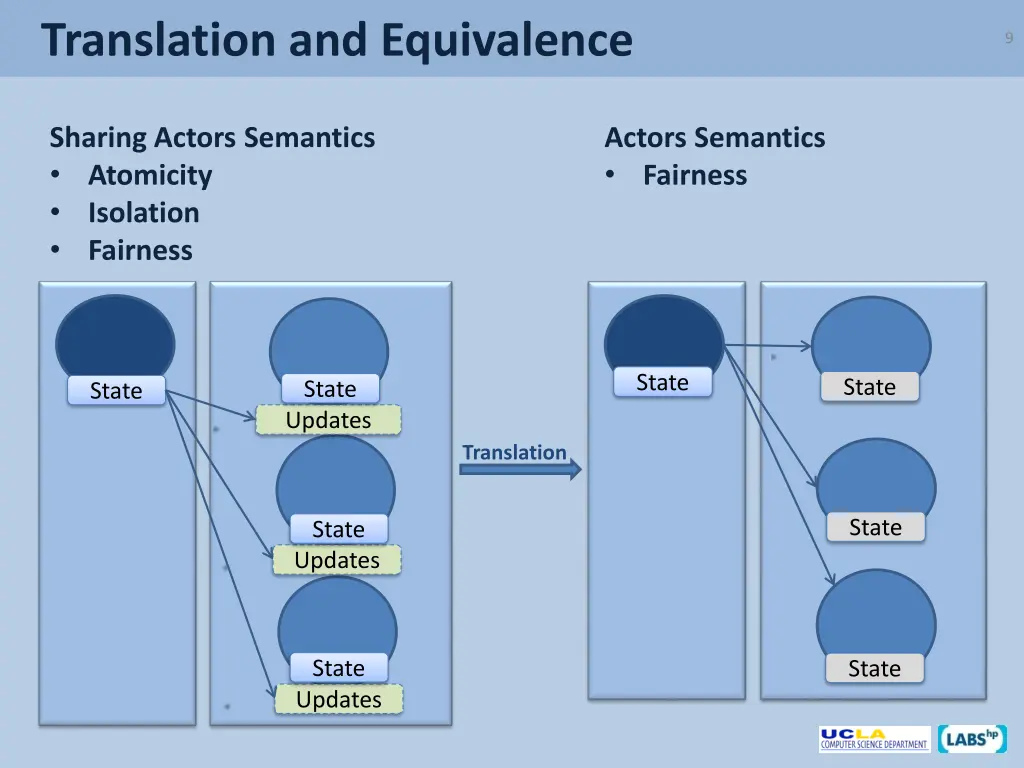

Translation and Equivalence 9 Sharing Actors Semantics Atomicity Isolation Fairness Actors Semantics Fairness State State State State Updates Translation State State Updates State State Updates

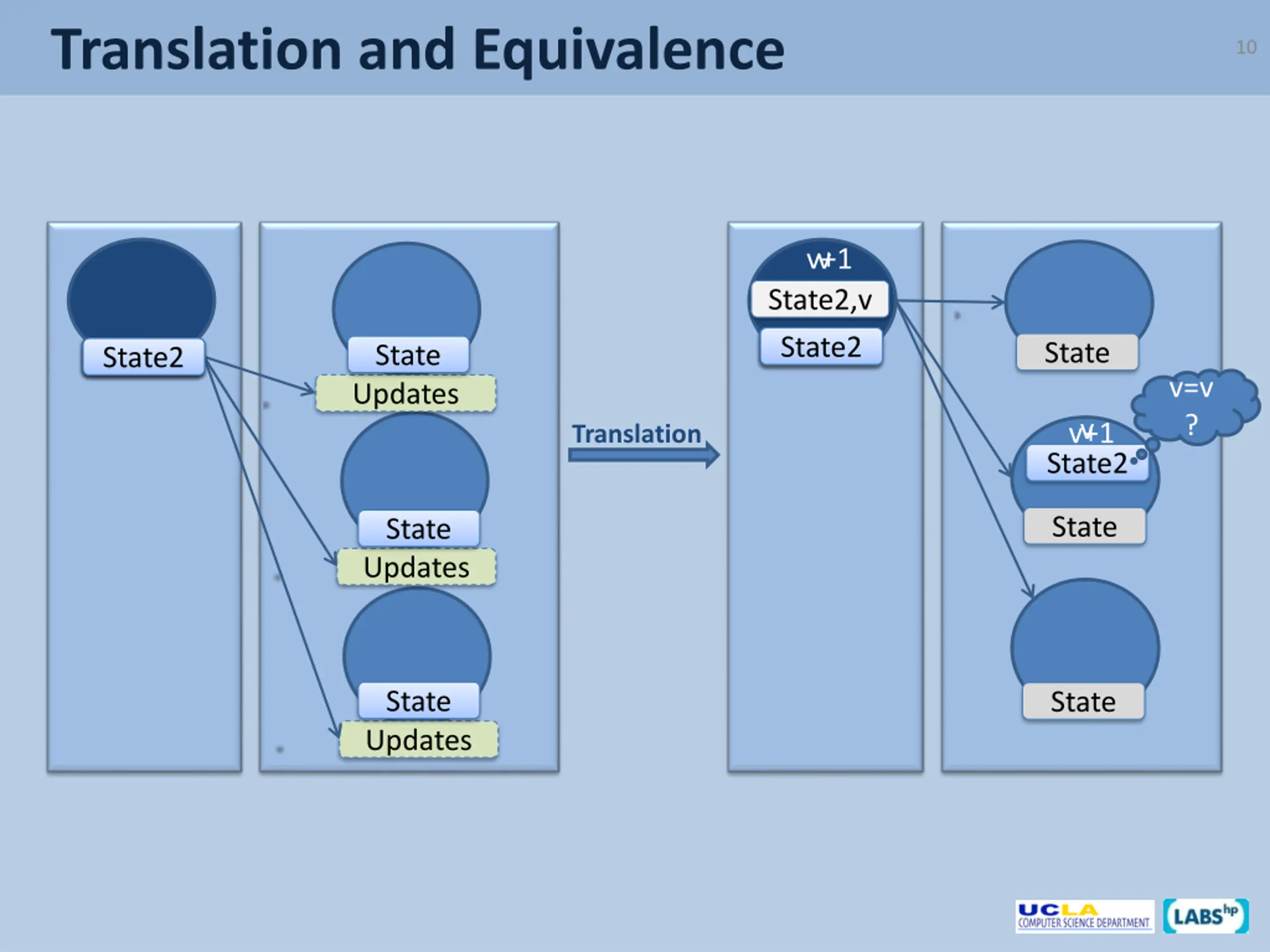

Translation and Equivalence 10 v+1 v State2,v State State2 State State State State2 State2 v=v ? Updates v v+1 Translation State2 State State Updates State State Updates

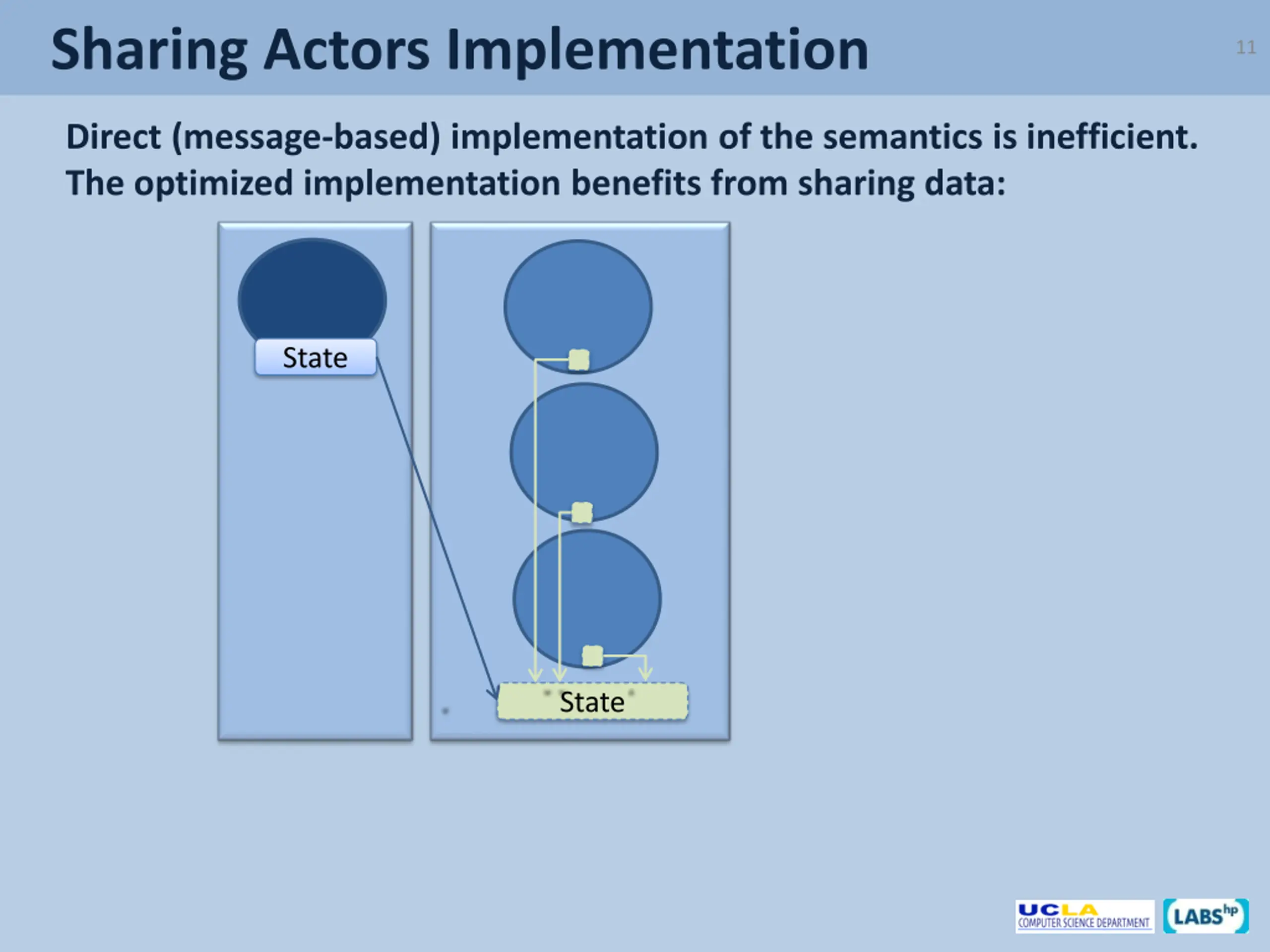

Sharing Actors Implementation 11 Direct (message-based) implementation of the semantics is inefficient. The optimized implementation benefits from sharing data: State State

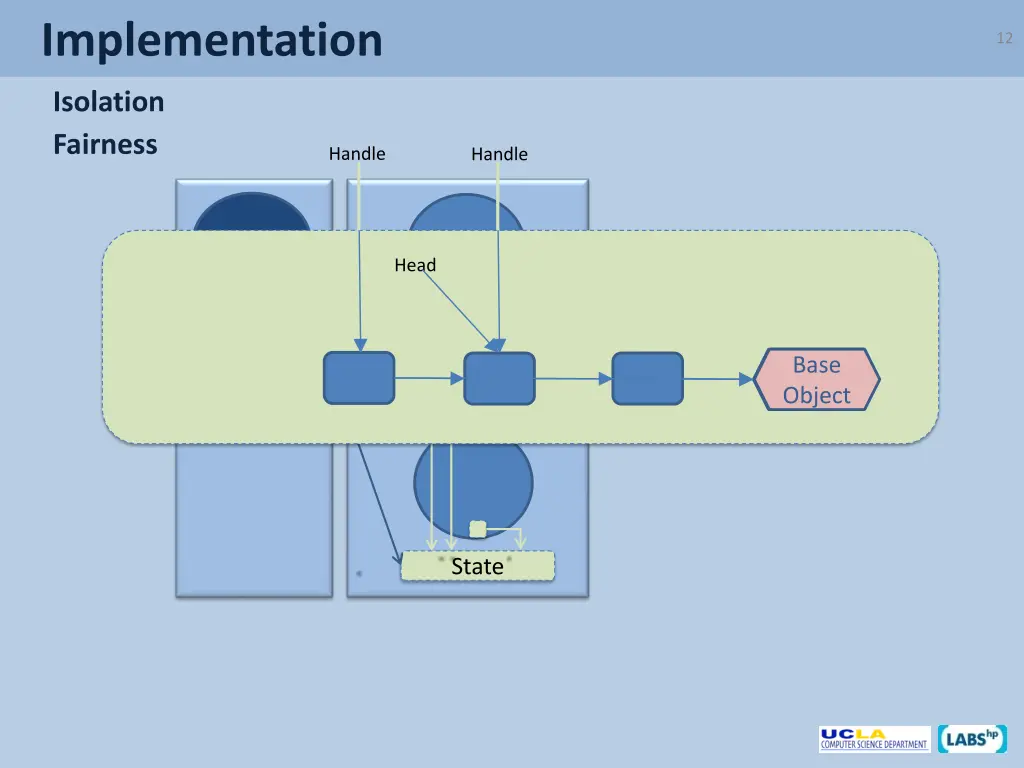

Implementation 12 Isolation Fairness Handle Handle Head State Base Object Object Base State

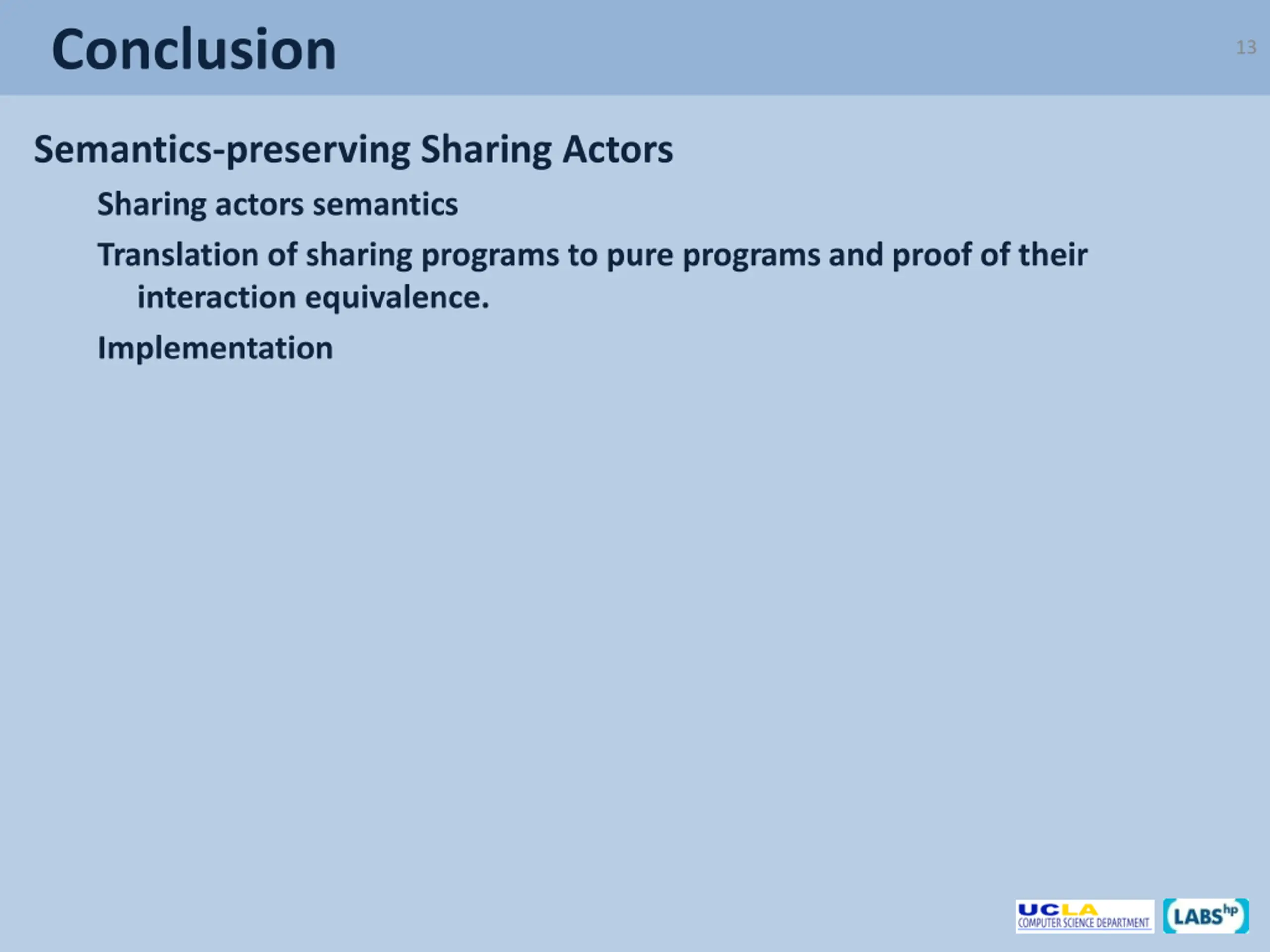

Conclusion 13 Semantics-preserving Sharing Actors Sharing actors semantics Translation of sharing programs to pure programs and proof of their interaction equivalence. Implementation

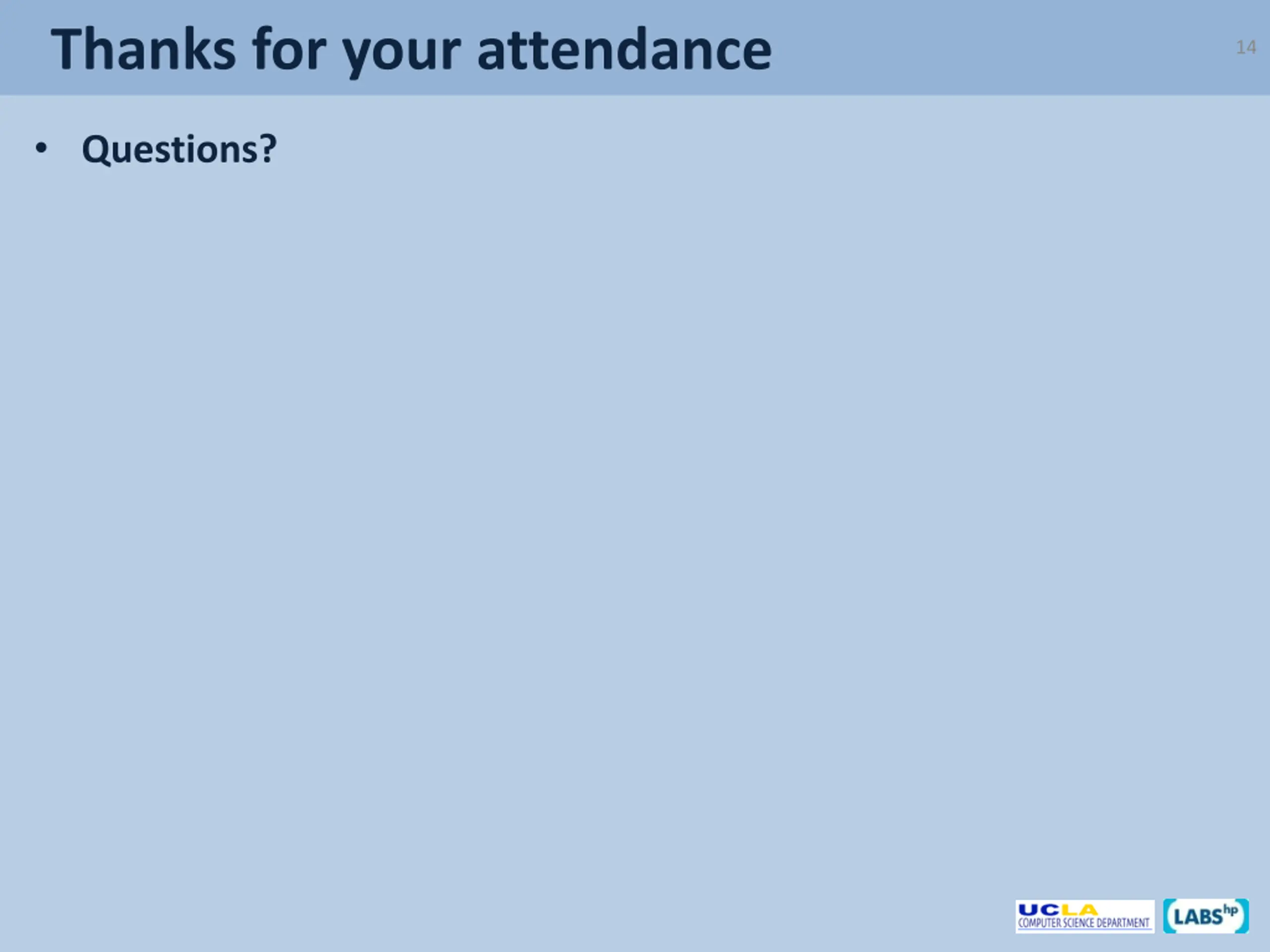

Thanks for your attendance 14 Questions?

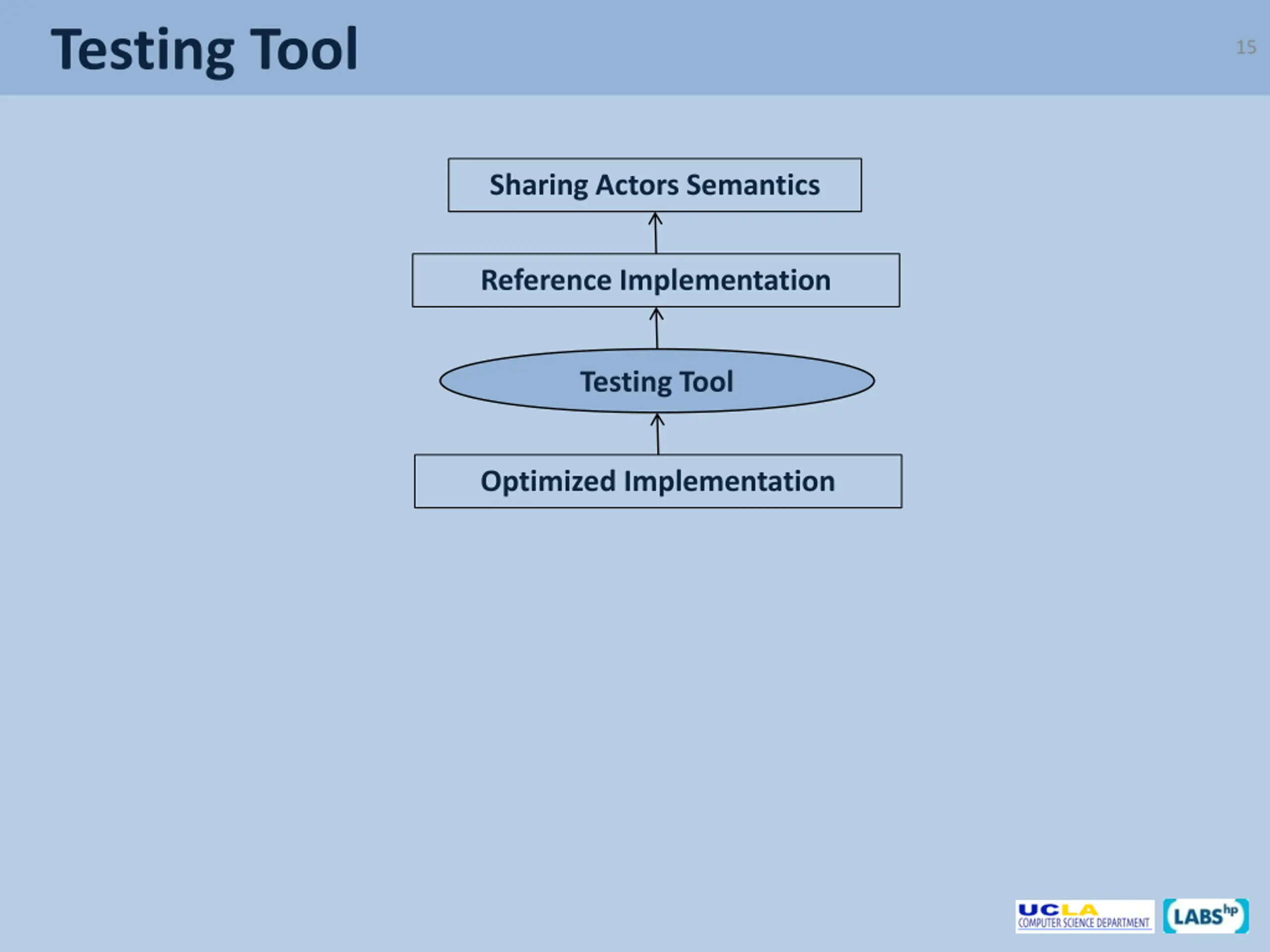

Testing Tool 15 Sharing Actors Semantics Reference Implementation Testing Tool Optimized Implementation

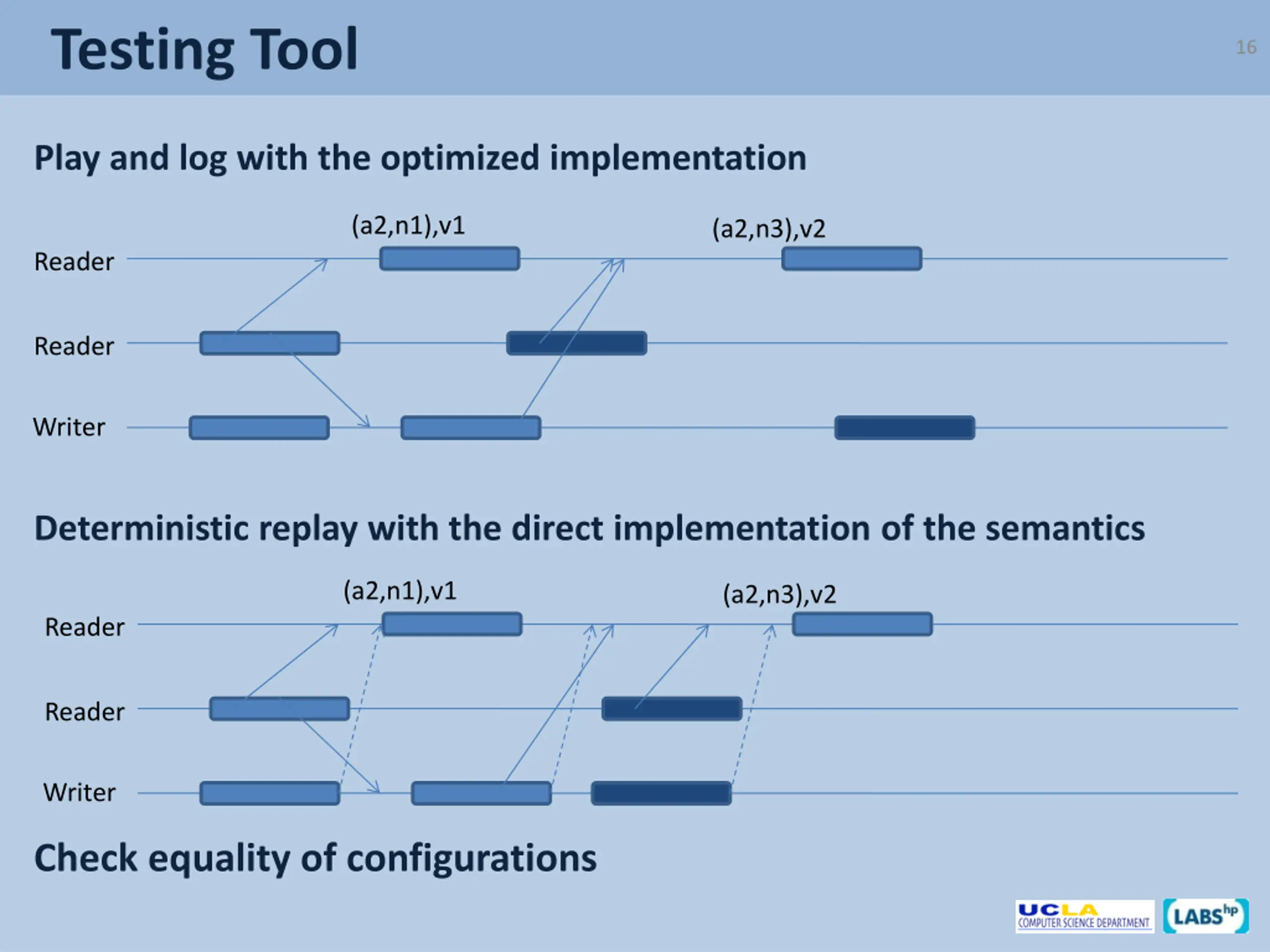

Testing Tool 16 Play and log with the optimized implementation (a2,n1),v1 (a2,n3),v2 Reader Reader Writer Deterministic replay with the direct implementation of the semantics (a2,n1),v1 (a2,n3),v2 Reader Reader Writer Check equality of configurations
