Signal Strength and Attenuation in Decibels
Explore the concept of measuring signal strength and attenuation using decibels. Learn about the unit of decibel, calculation formulas, signal amplification, and why engineers use decibels in signal measurements. Dive into examples and understand how decibel values can be added or subtracted to measure changes in signal strength across multiple points.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

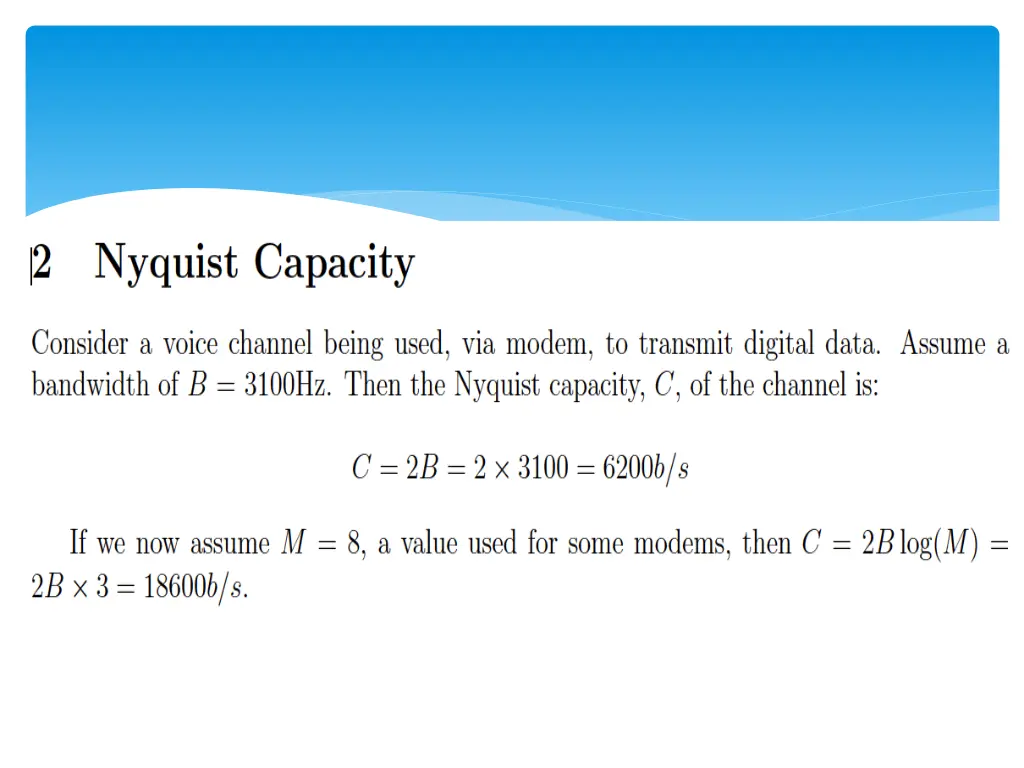

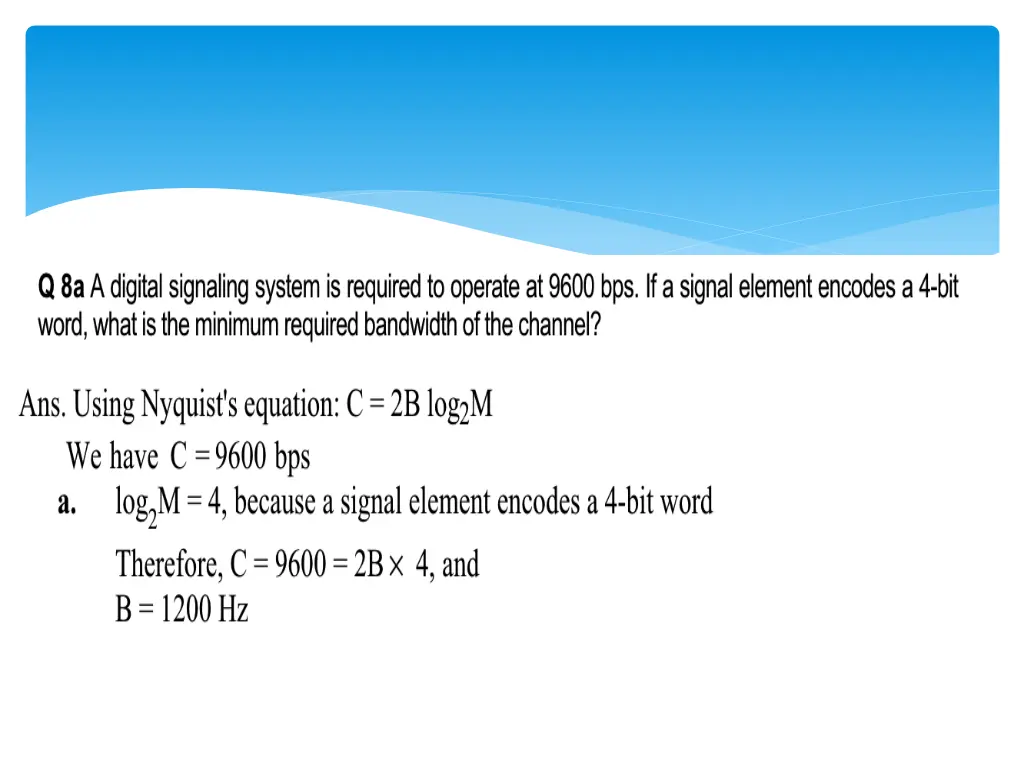

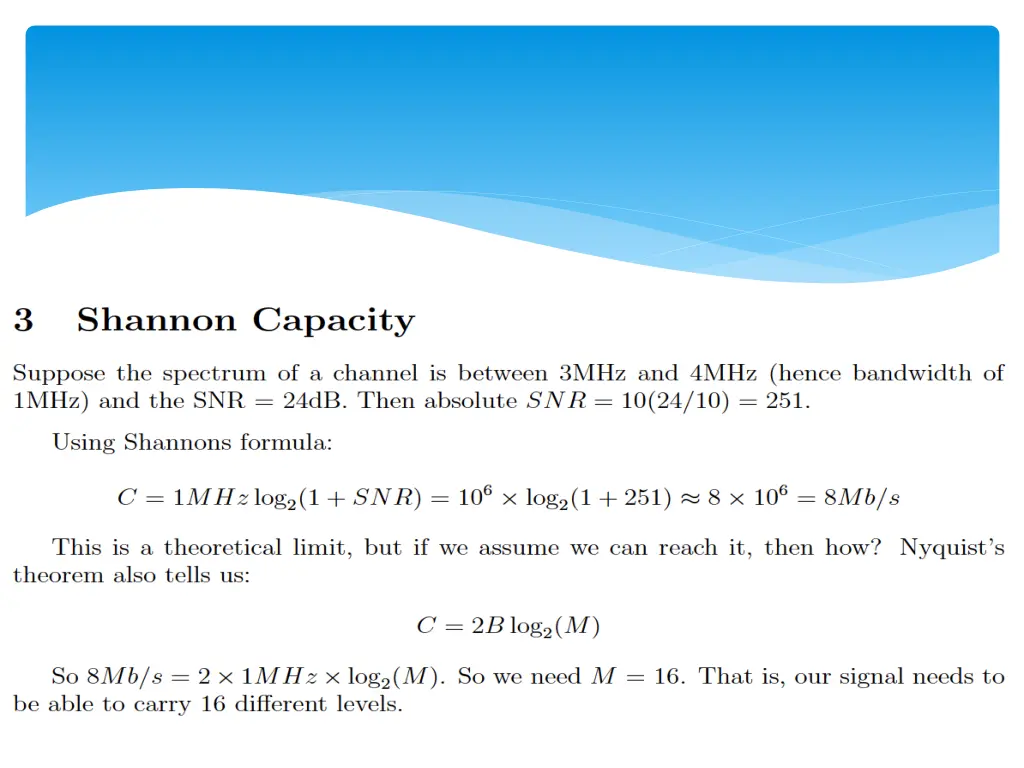

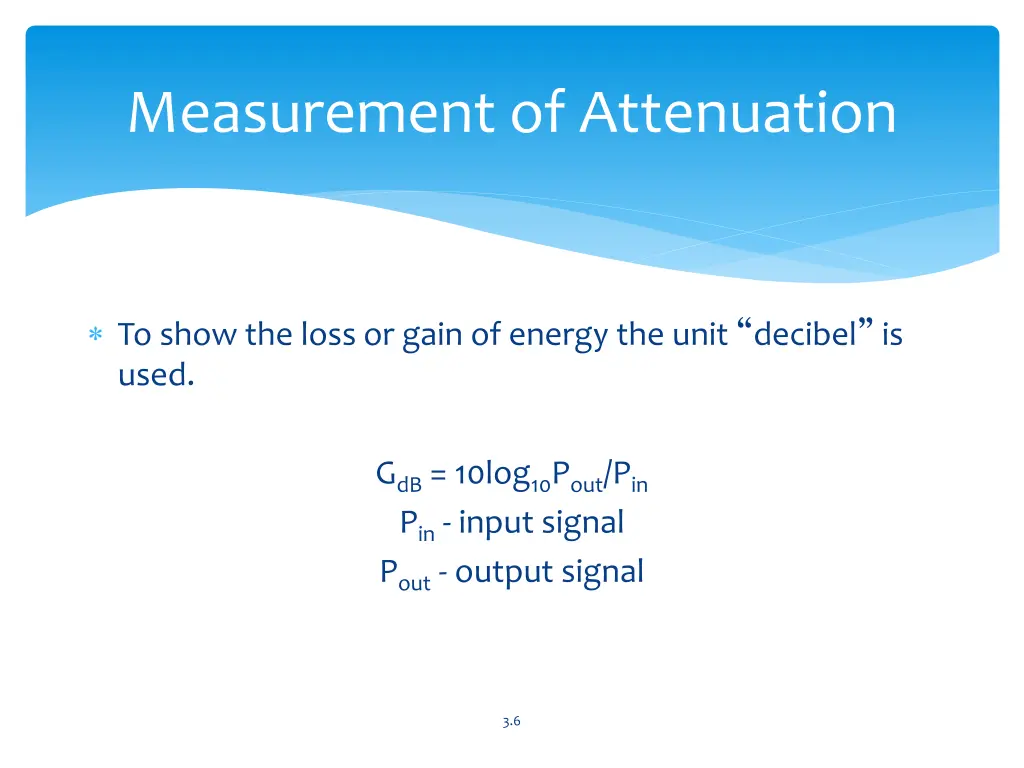

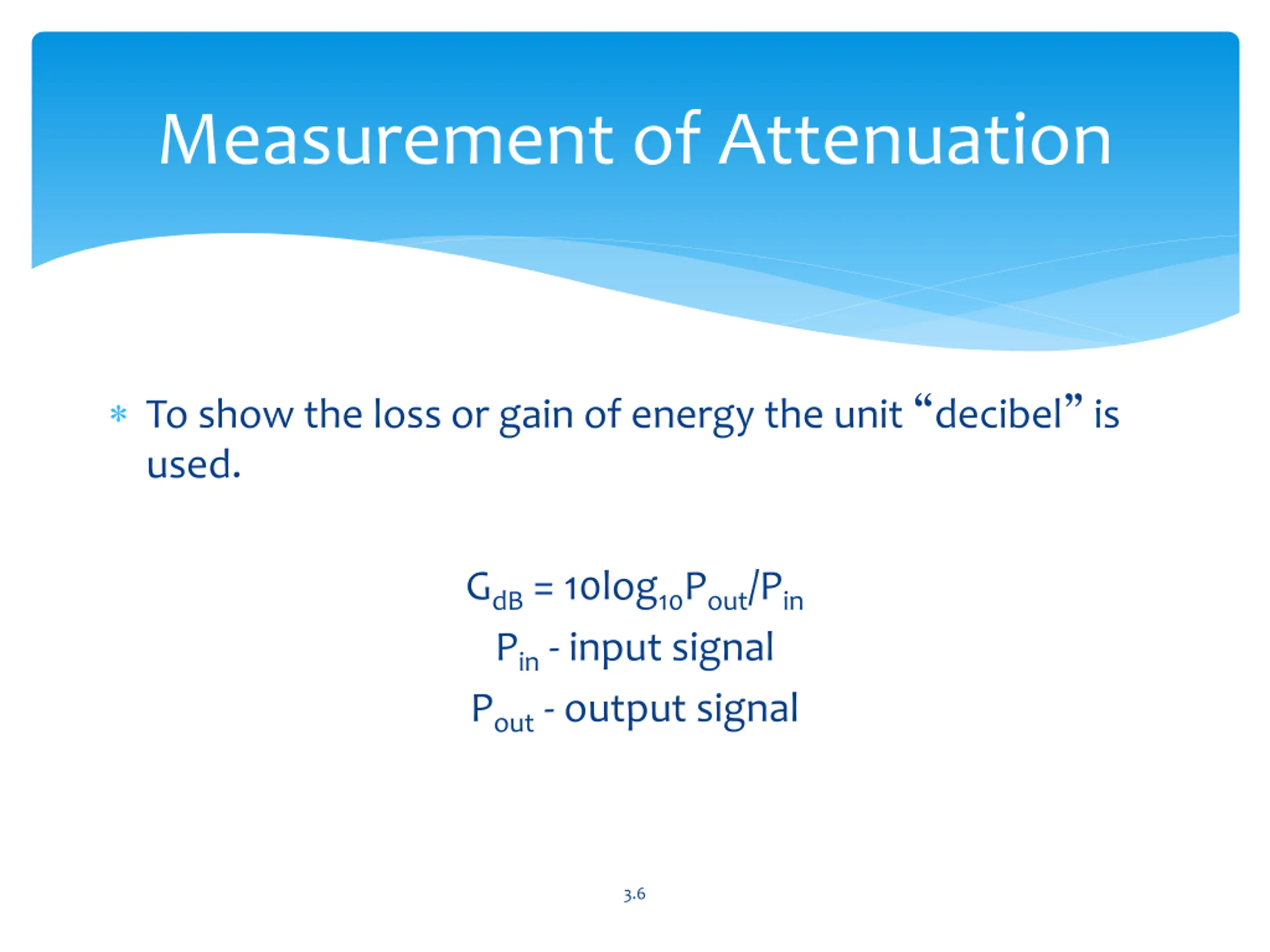

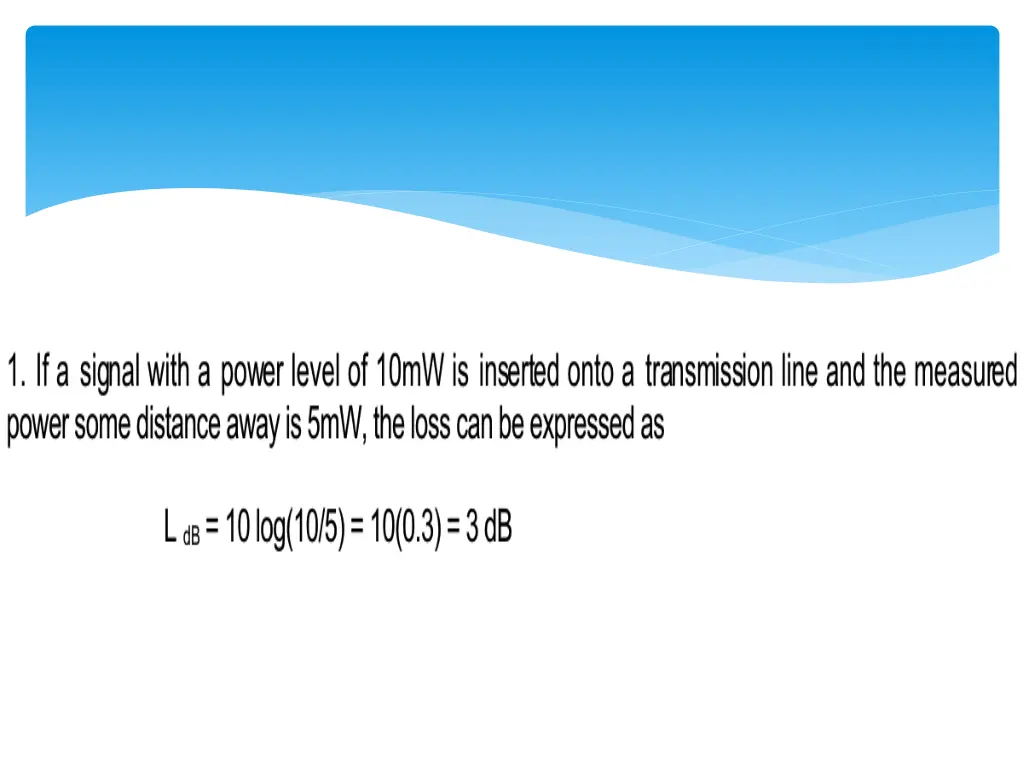

Measurement of Attenuation To show the loss or gain of energy the unit decibel is used. GdB= 10log10Pout/Pin Pin- input signal Pout- output signal 3.6

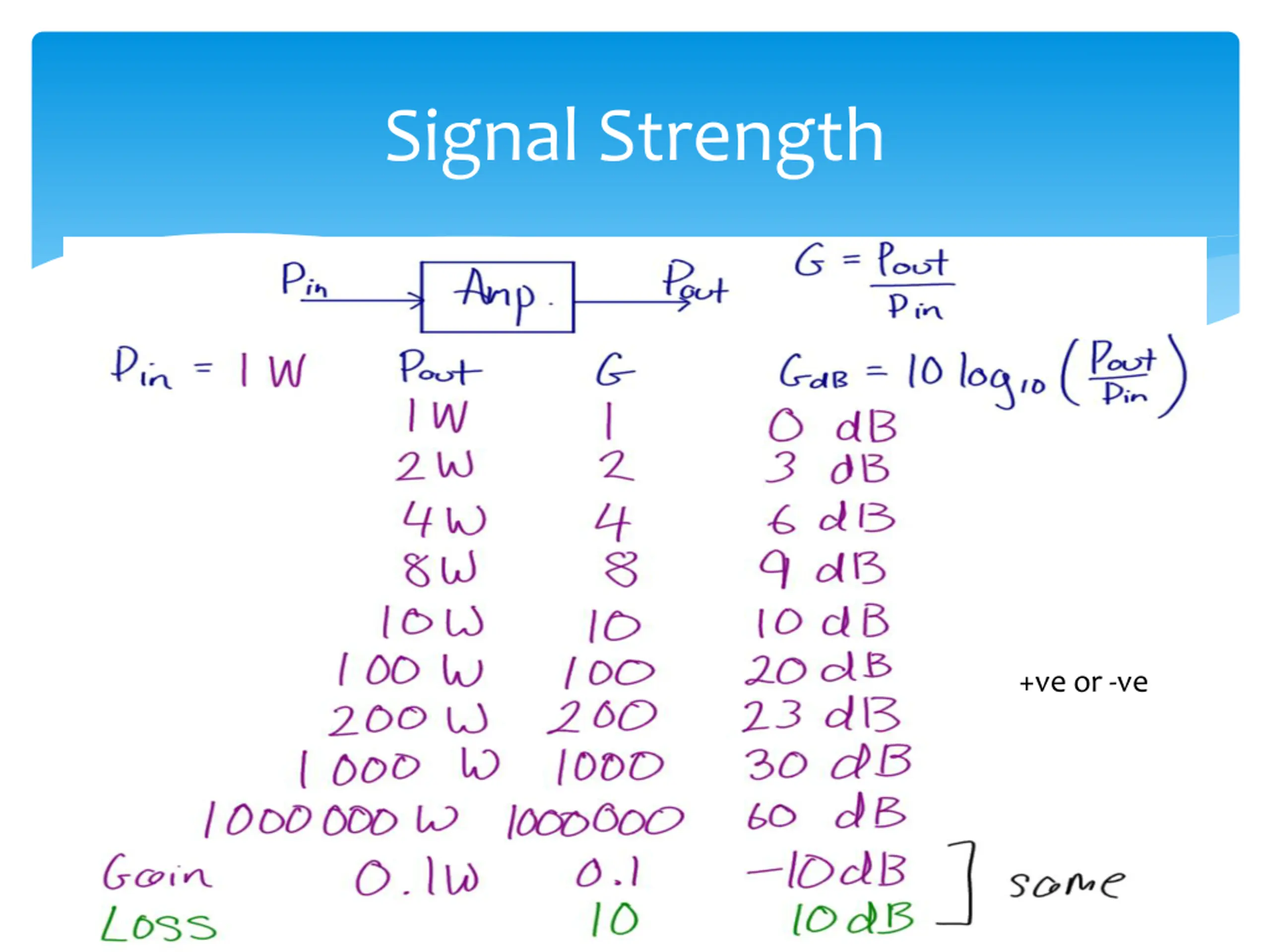

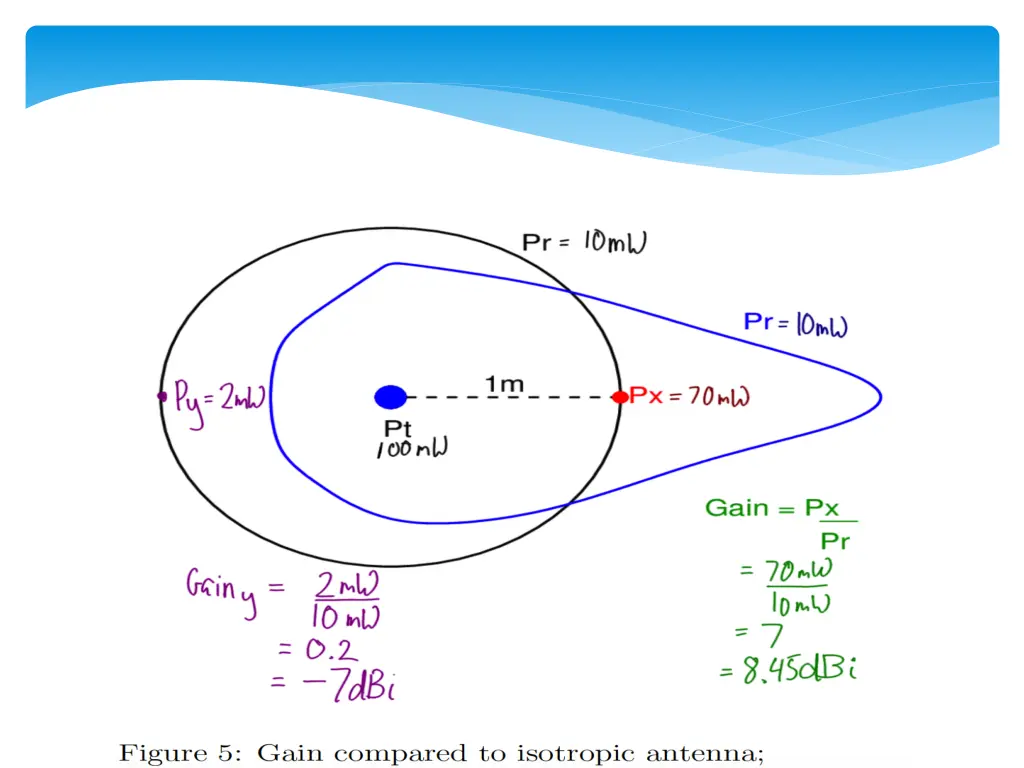

Signal Strength +ve or -ve

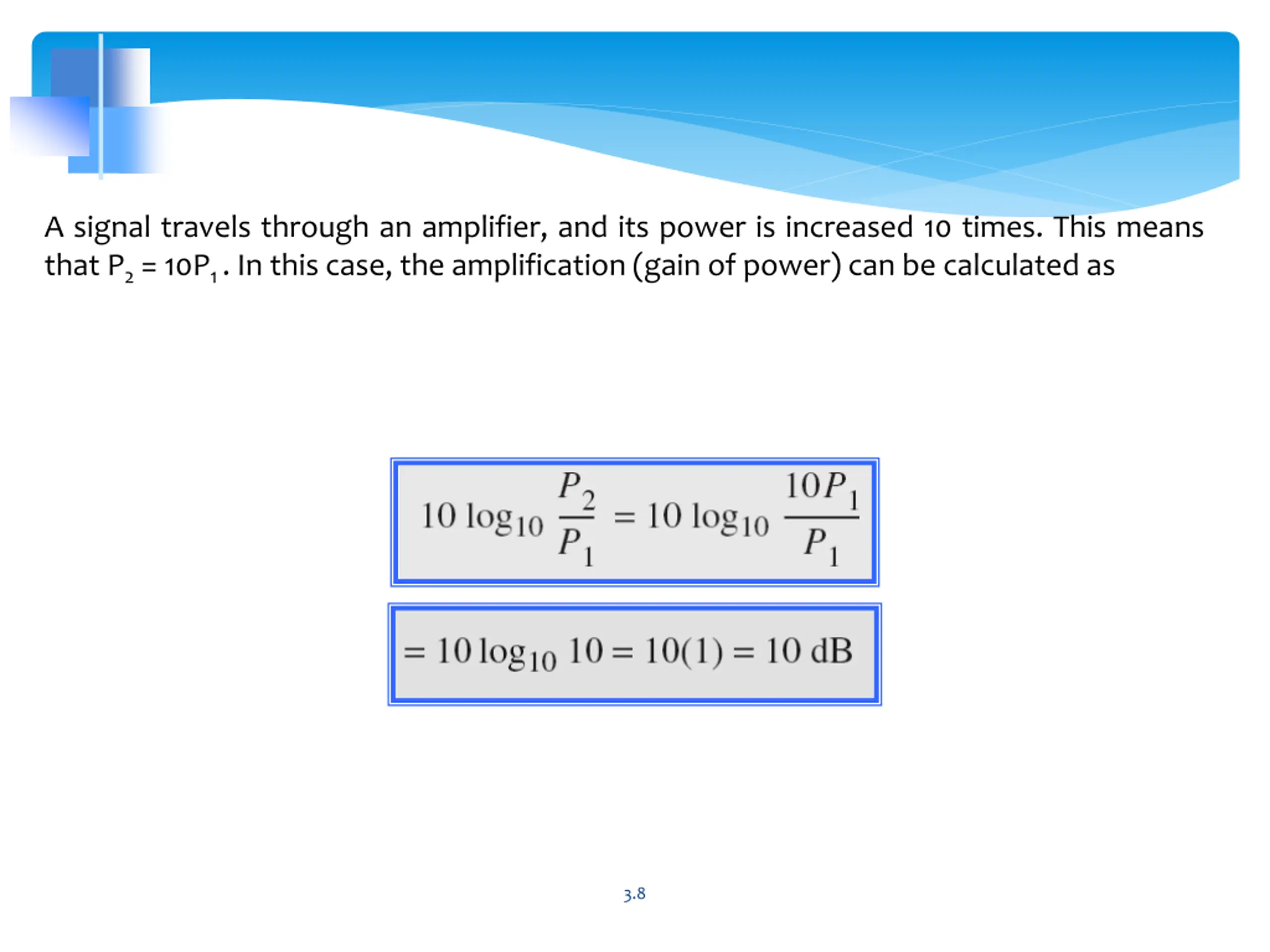

A signal travels through an amplifier, and its power is increased 10 times. This means that P2 = 10P1 . In this case, the amplification (gain of power) can be calculated as 3.8

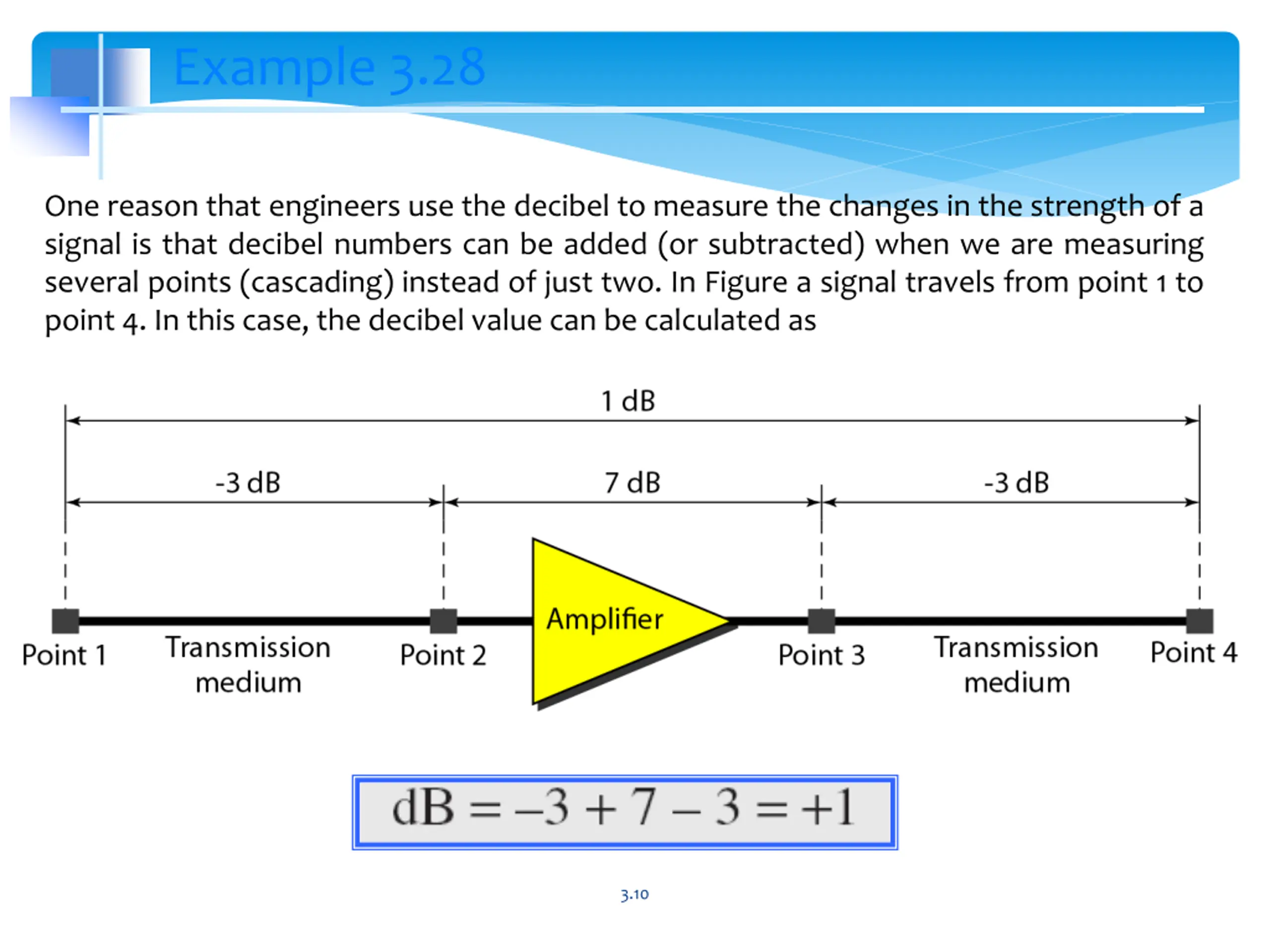

Example 3.28 One reason that engineers use the decibel to measure the changes in the strength of a signal is that decibel numbers can be added (or subtracted) when we are measuring several points (cascading) instead of just two. In Figure a signal travels from point 1 to point 4. In this case, the decibel value can be calculated as 3.10
