Simulation Function Between PLC and HMI with LS XGT Systems
Discover how LS XGT PLC and HMI systems can simulate programs simultaneously for testing before real implementation. Follow the steps to set up simulation in XP-Builder and XG5000 tools, enabling you to check program results efficiently.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
FAQ Simulation function between PLC and HMI

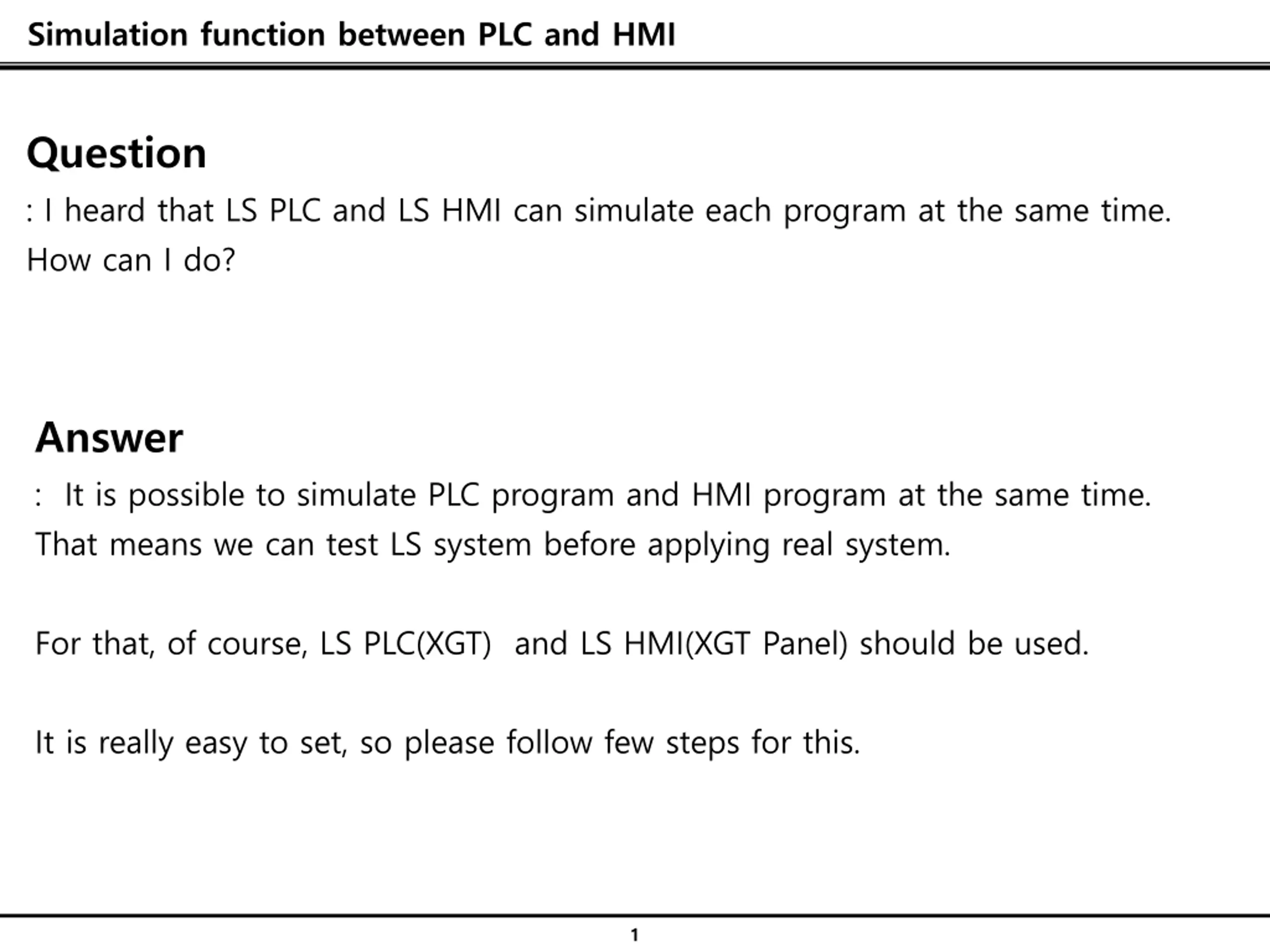

Simulation function between PLC and HMI Question : I heard that LS PLC and LS HMI can simulate each program at the same time. How can I do? Answer : It is possible to simulate PLC program and HMI program at the same time. That means we can test LS system before applying real system. For that, of course, LS PLC(XGT) and LS HMI(XGT Panel) should be used. It is really easy to set, so please follow few steps for this. 1

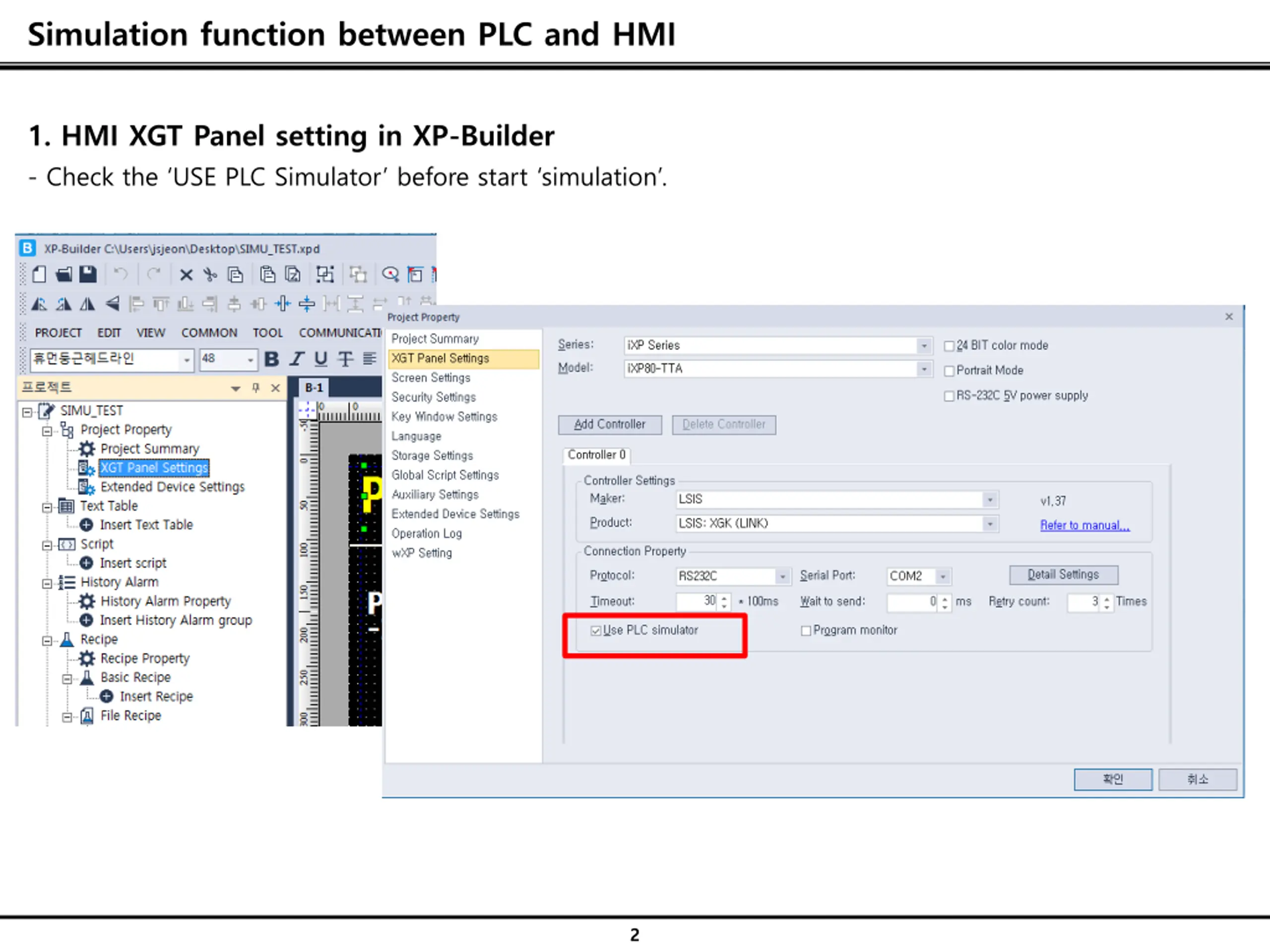

Simulation function between PLC and HMI 1. HMI XGT Panel setting in XP-Builder - Check the USE PLC Simulator before start simulation . 2

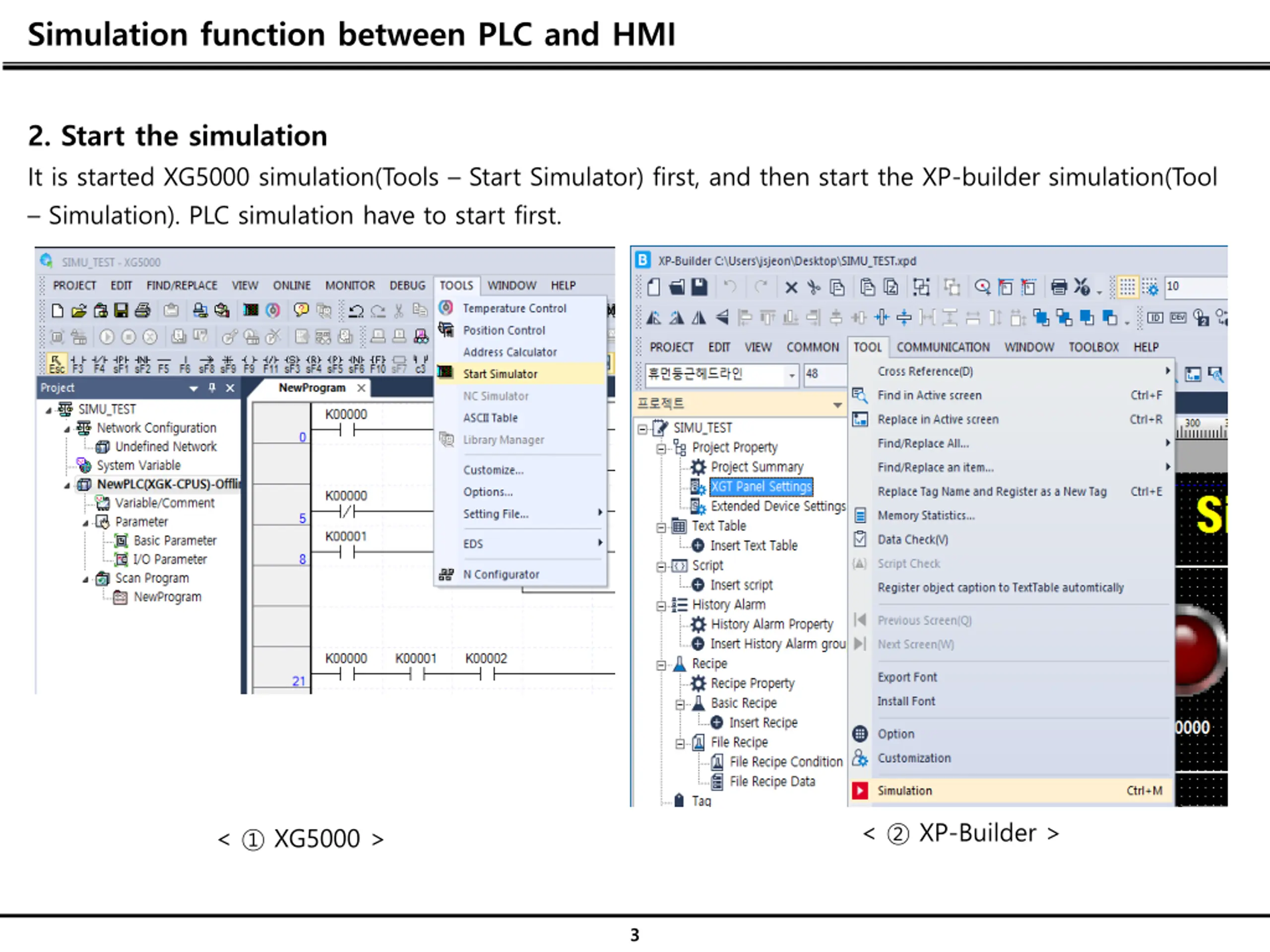

Simulation function between PLC and HMI 2. Start the simulation It is started XG5000 simulation(Tools Start Simulator) first, and then start the XP-builder simulation(Tool Simulation). PLC simulation have to start first. < XP-Builder > < XG5000 > 3

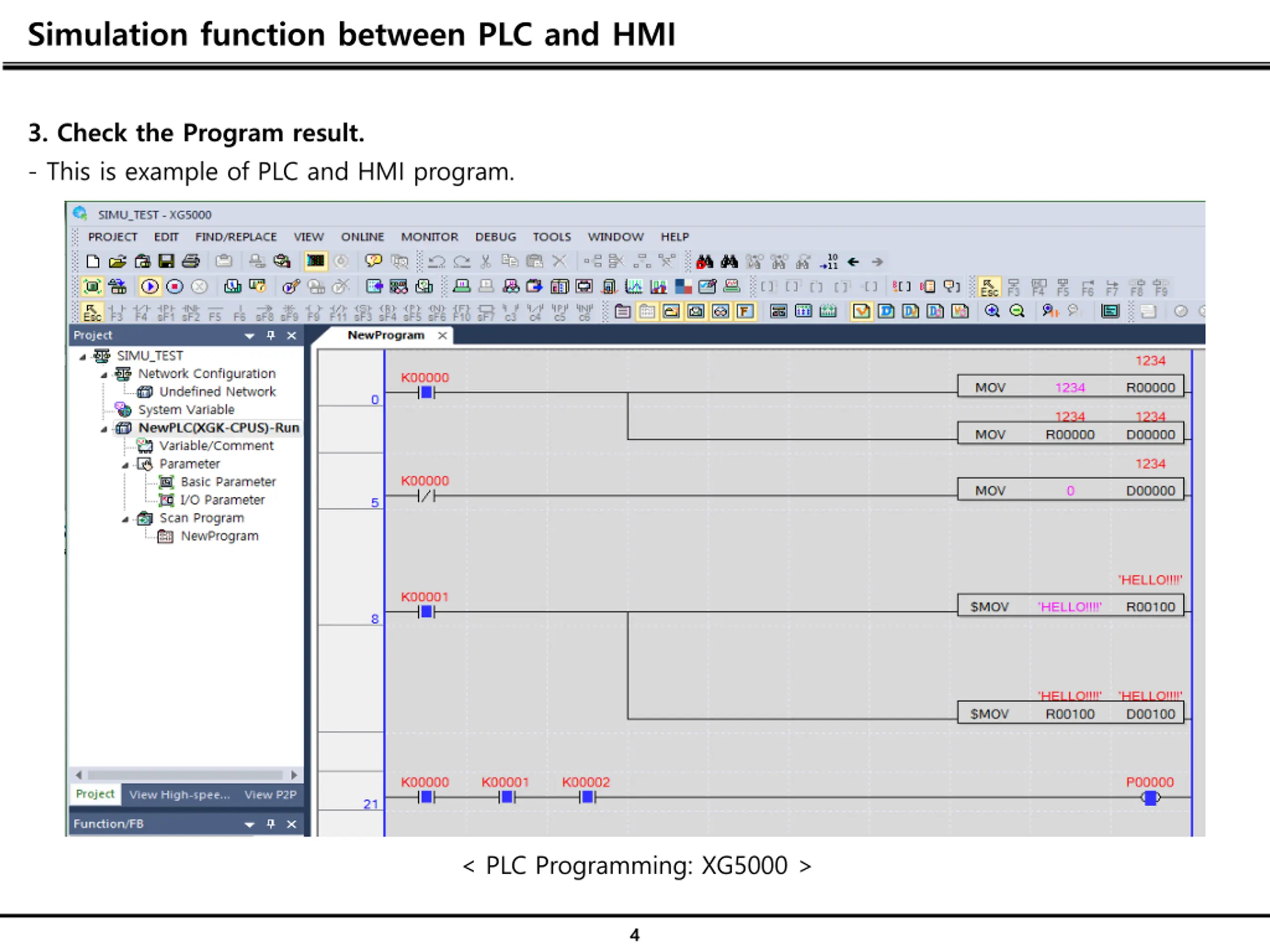

Simulation function between PLC and HMI 3. Check the Program result. - This is example of PLC and HMI program. < PLC Programming: XG5000 > 4

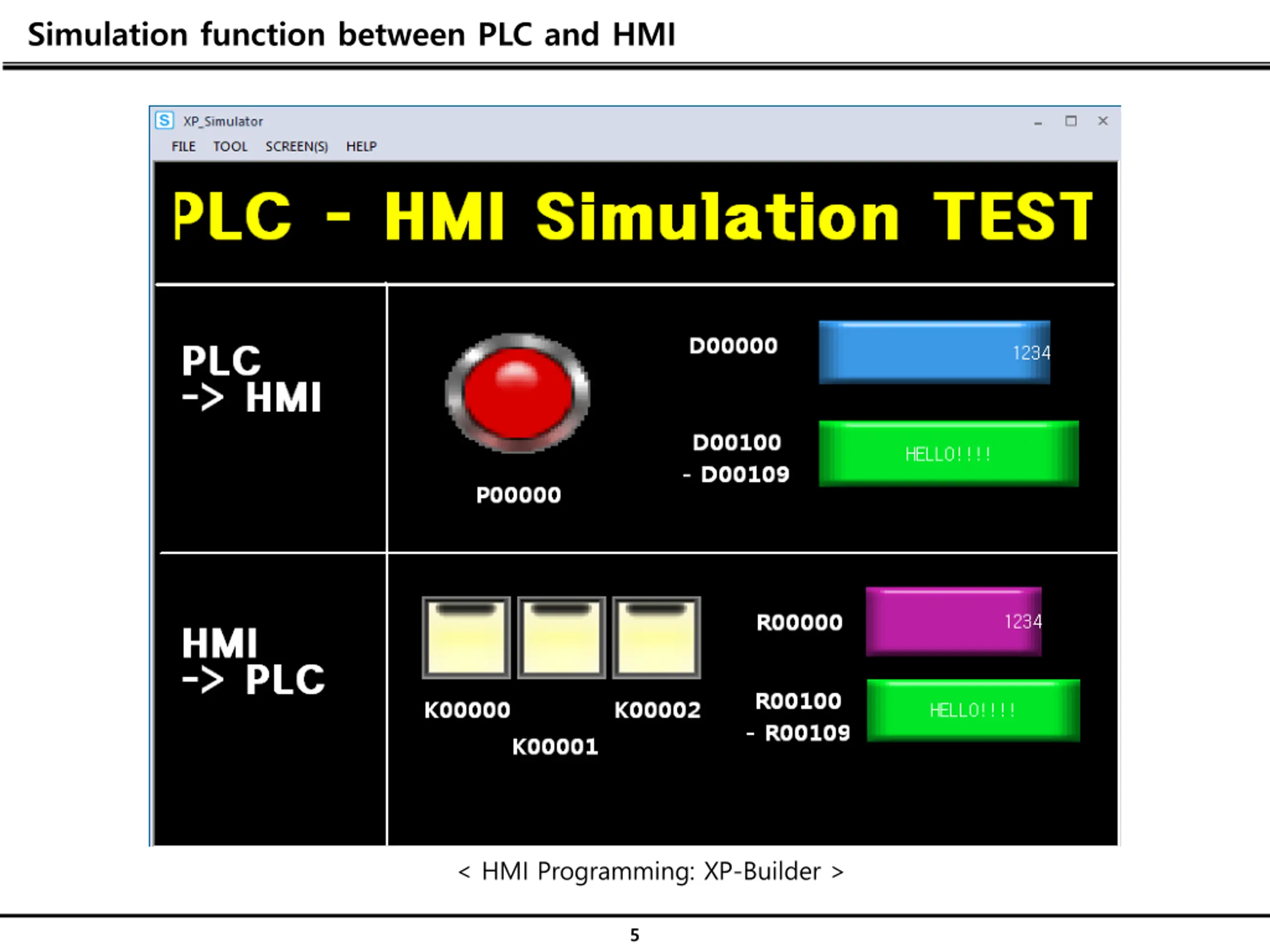

Simulation function between PLC and HMI < HMI Programming: XP-Builder > 5
