1. ELEC-E8423 - Smart Grid Communication solutions for Smart Grid Ruwansi Kaldasani 07.02.2018

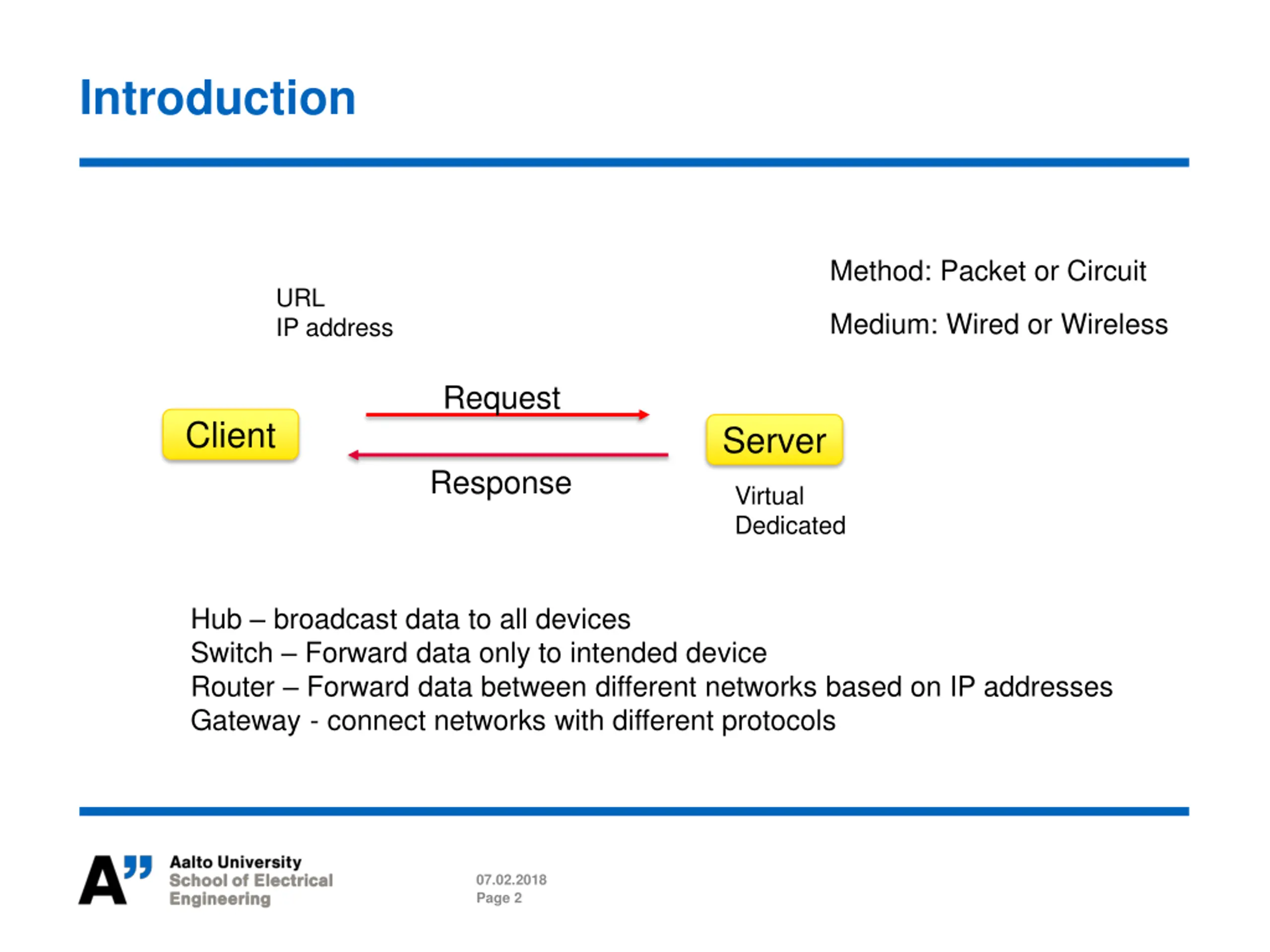

2. Introduction Method: Packet or Circuit URL IP address Medium: Wired or Wireless Request Client Server Response Virtual Dedicated Hub broadcast data to all devices Switch Forward data only to intended device Router Forward data between different networks based on IP addresses Gateway - connect networks with different protocols 07.02.2018 Page 2

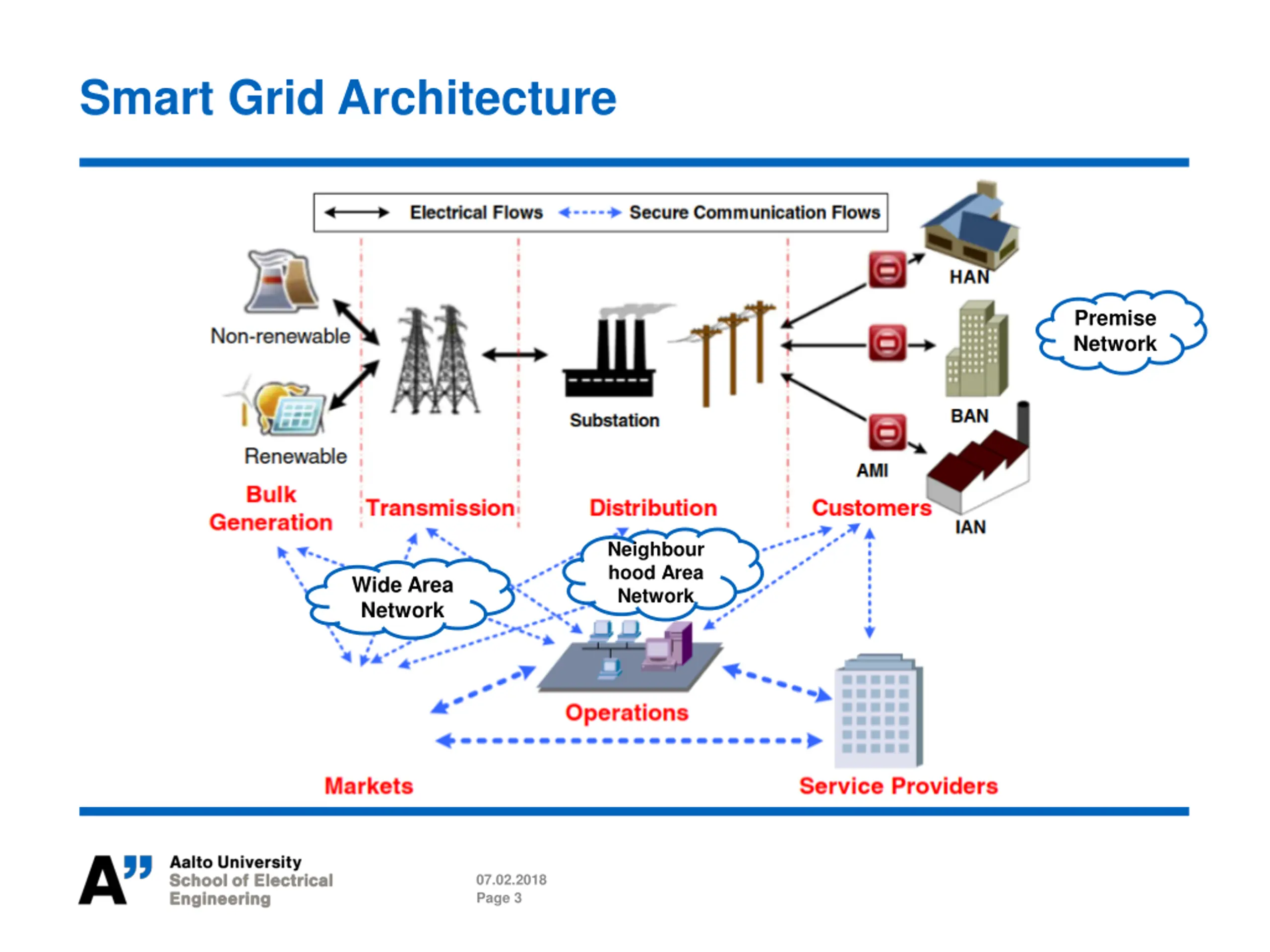

3. Smart Grid Architecture Premise Network Neighbour hood Area Network Wide Area Network 07.02.2018 Page 3

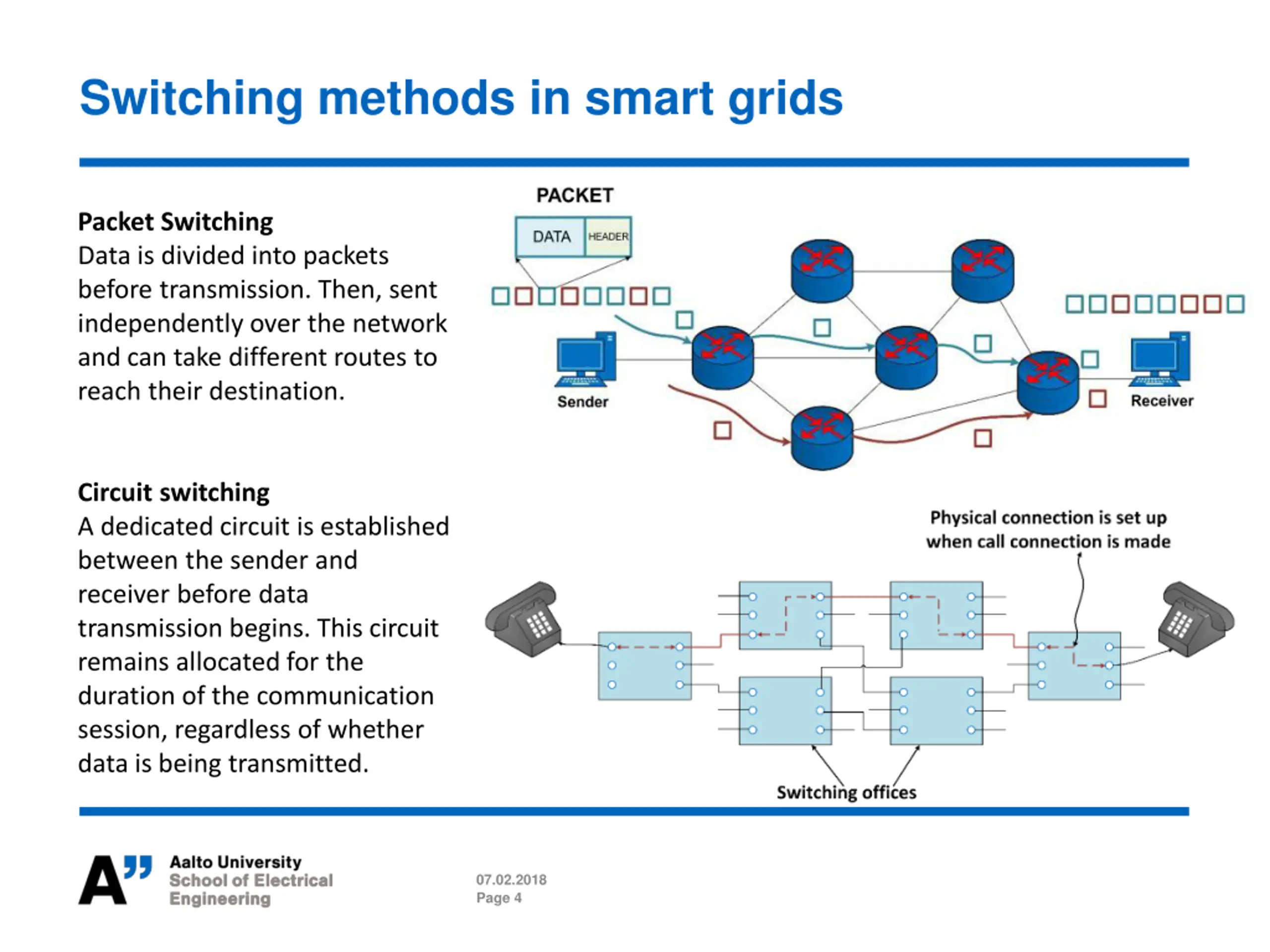

4. Switching methods in smart grids Packet Switching Data is divided into packets before transmission. Then, sent independently over the network and can take different routes to reach their destination. Circuit switching A dedicated circuit is established between the sender and receiver before data transmission begins. This circuit remains allocated for the duration of the communication session, regardless of whether data is being transmitted. 07.02.2018 Page 4

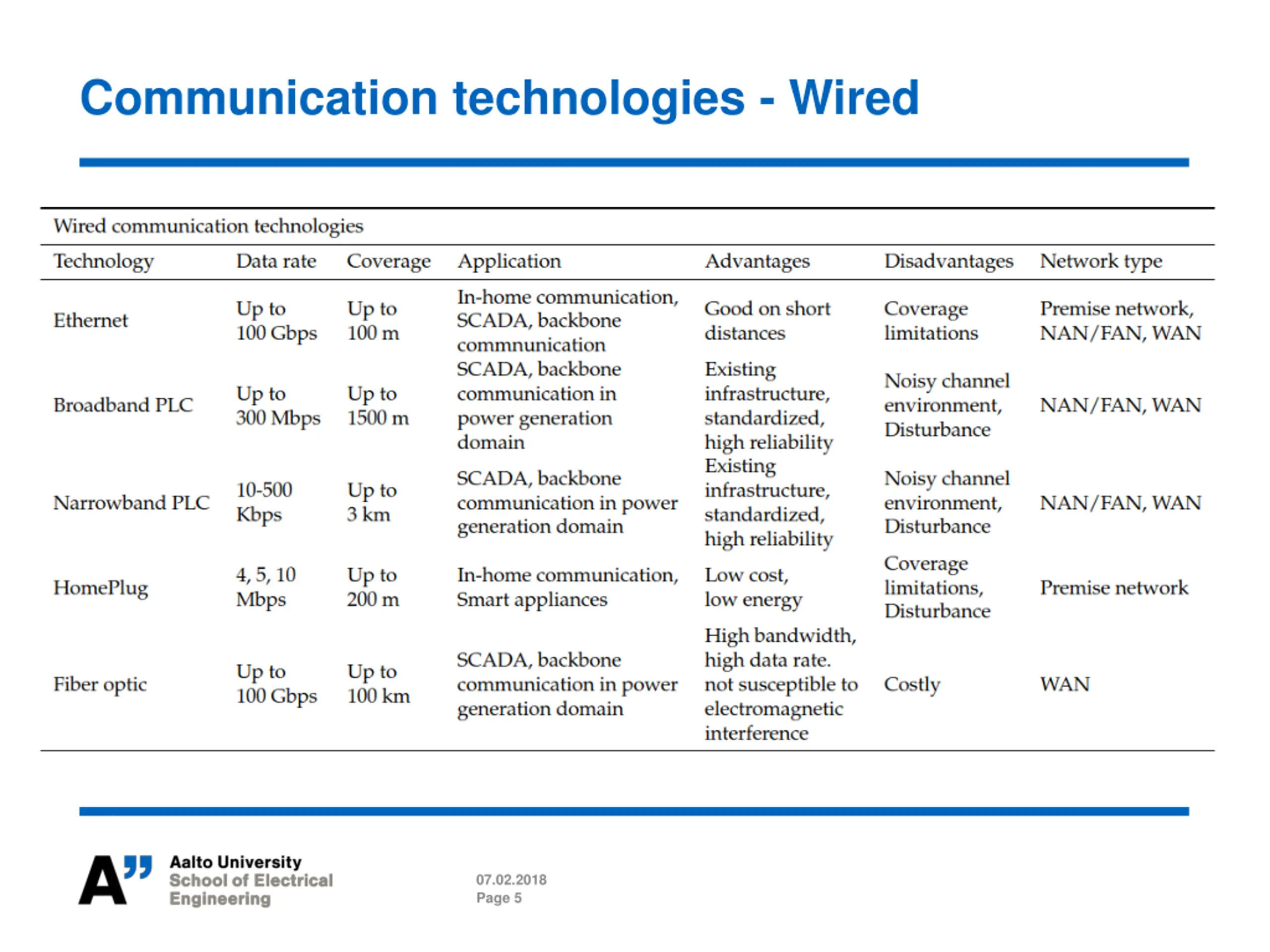

5. Communication technologies - Wired Wired 07.02.2018 Page 5

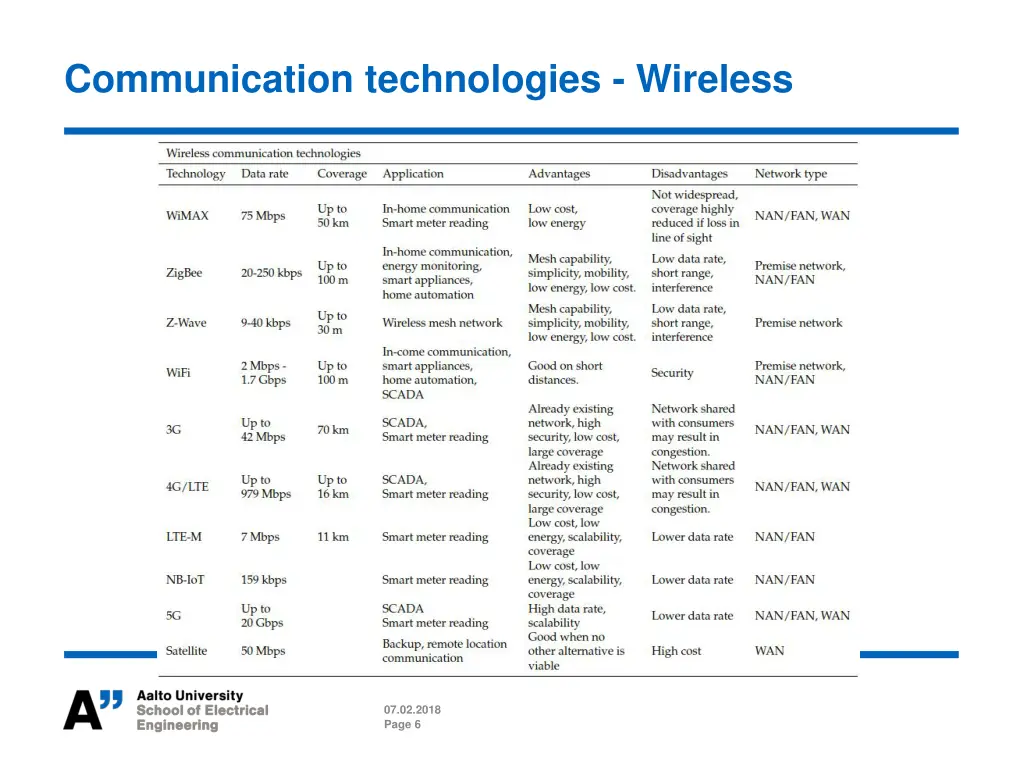

6. Communication technologies - Wireless 07.02.2018 Page 6

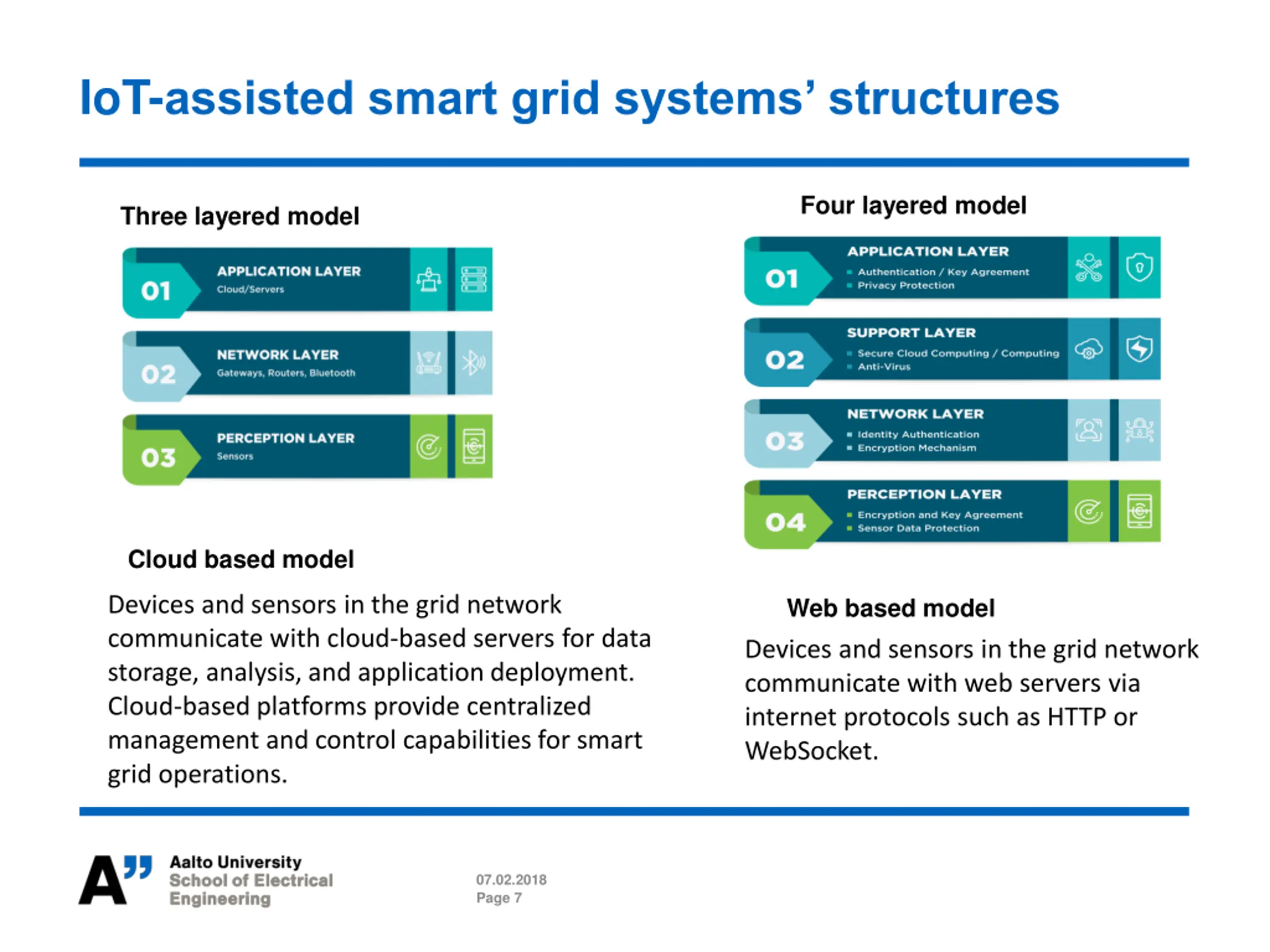

7. IoT-assisted smart grid systems structures Four layered model Three layered model Cloud based model Devices and sensors in the grid network communicate with cloud-based servers for data storage, analysis, and application deployment. Cloud-based platforms provide centralized management and control capabilities for smart grid operations. Web based model Devices and sensors in the grid network communicate with web servers via internet protocols such as HTTP or WebSocket. 07.02.2018 Page 7

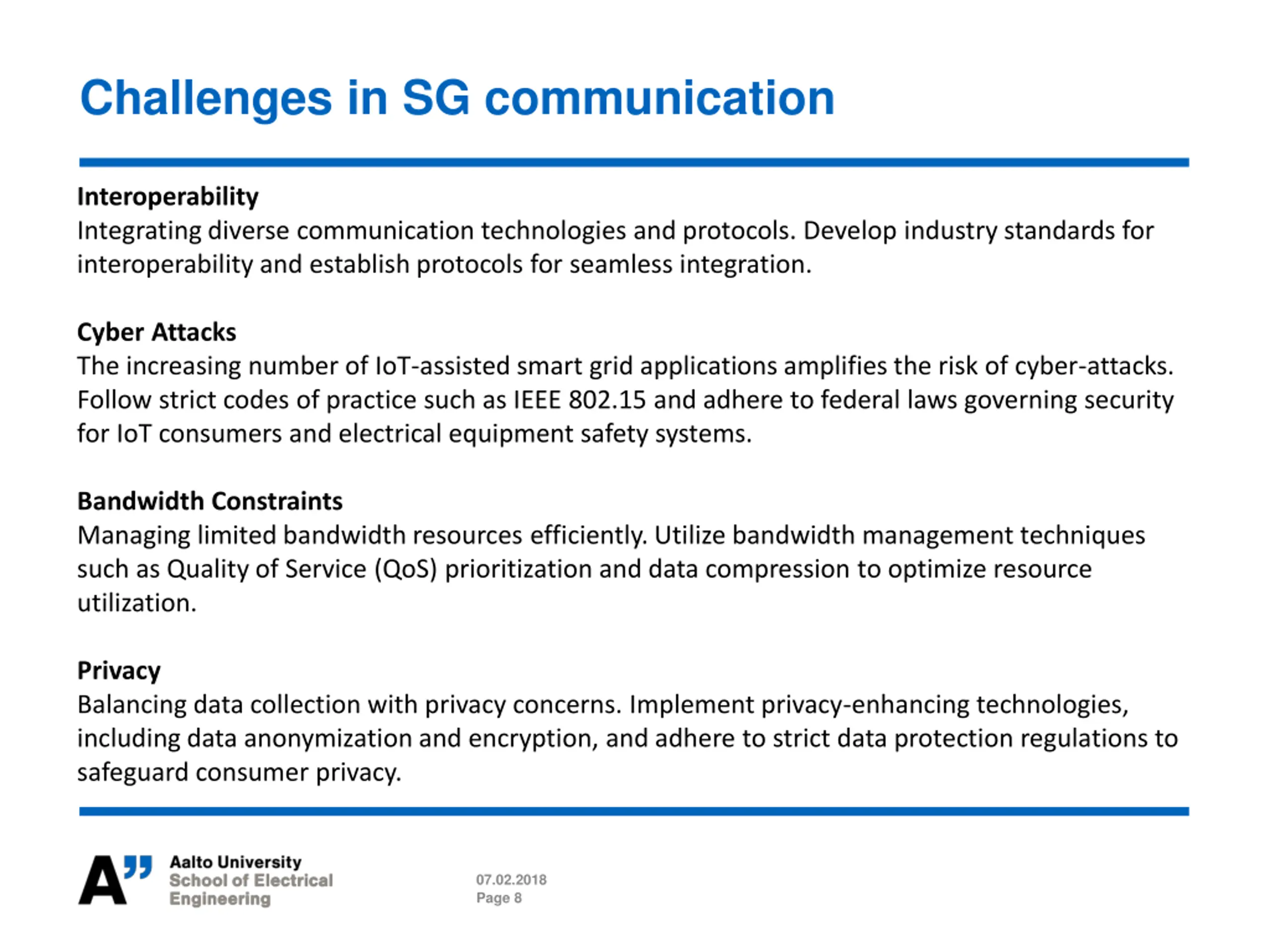

8. Challenges in SG communication Interoperability Integrating diverse communication technologies and protocols. Develop industry standards for interoperability and establish protocols for seamless integration. Cyber Attacks The increasing number of IoT-assisted smart grid applications amplifies the risk of cyber-attacks. Follow strict codes of practice such as IEEE 802.15 and adhere to federal laws governing security for IoT consumers and electrical equipment safety systems. Bandwidth Constraints Managing limited bandwidth resources efficiently. Utilize bandwidth management techniques such as Quality of Service (QoS) prioritization and data compression to optimize resource utilization. Privacy Balancing data collection with privacy concerns. Implement privacy-enhancing technologies, including data anonymization and encryption, and adhere to strict data protection regulations to safeguard consumer privacy. 07.02.2018 Page 8

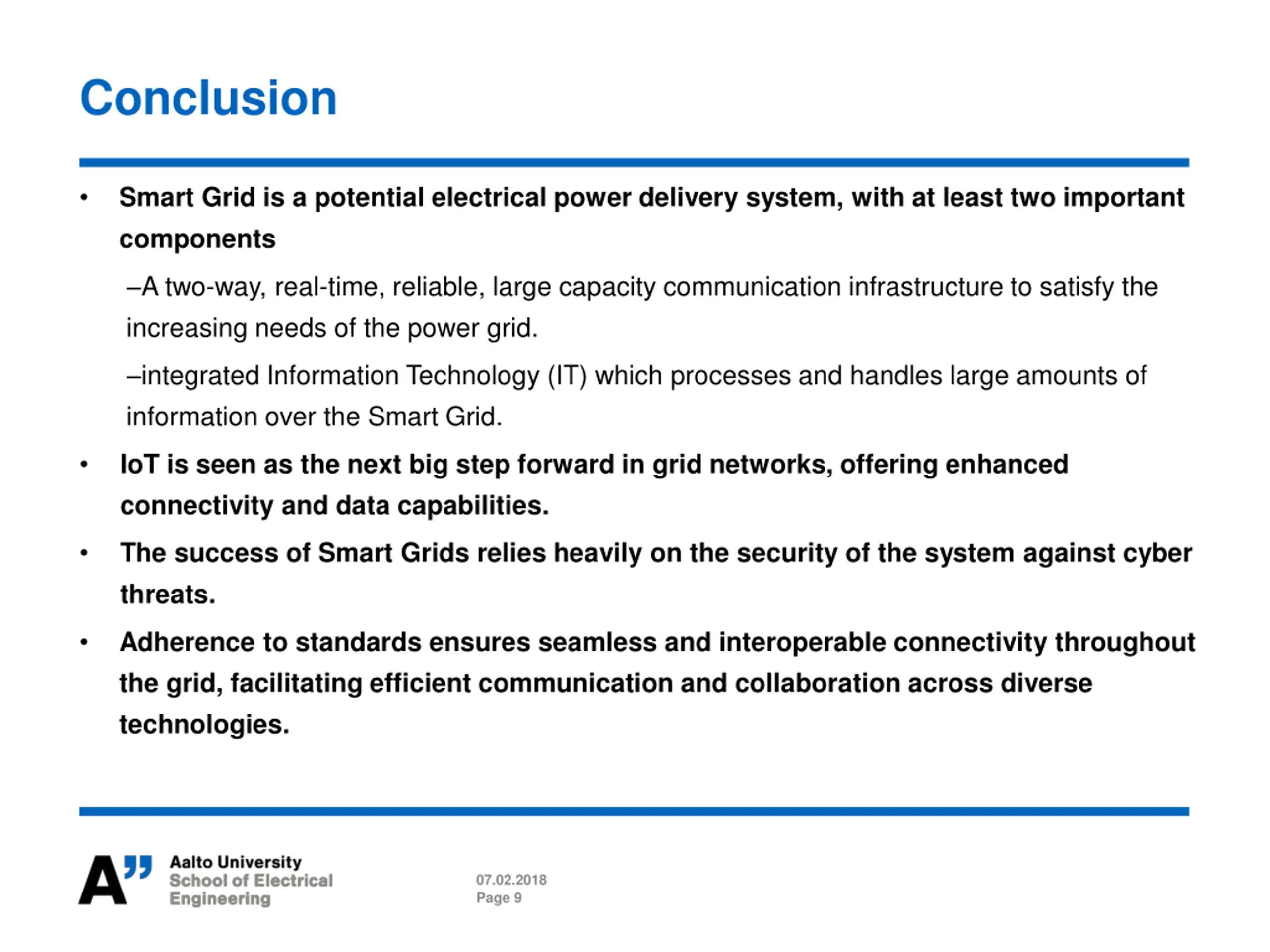

9. Conclusion Smart Grid is a potential electrical power delivery system, with at least two important components A two-way, real-time, reliable, large capacity communication infrastructure to satisfy the increasing needs of the power grid. integrated Information Technology (IT) which processes and handles large amounts of information over the Smart Grid. IoT is seen as the next big step forward in grid networks, offering enhanced connectivity and data capabilities. The success of Smart Grids relies heavily on the security of the system against cyber threats. Adherence to standards ensures seamless and interoperable connectivity throughout the grid, facilitating efficient communication and collaboration across diverse technologies. 07.02.2018 Page 9

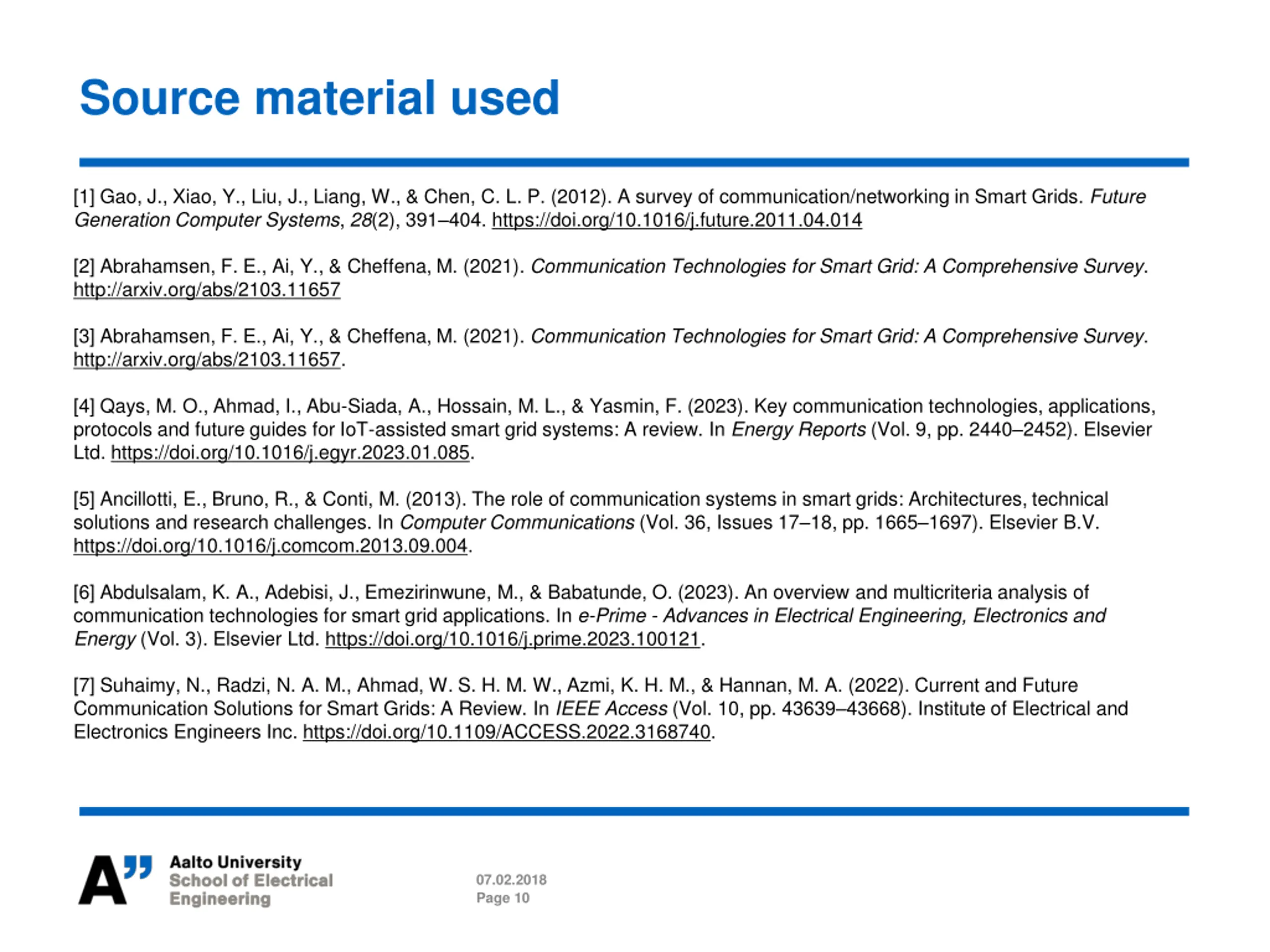

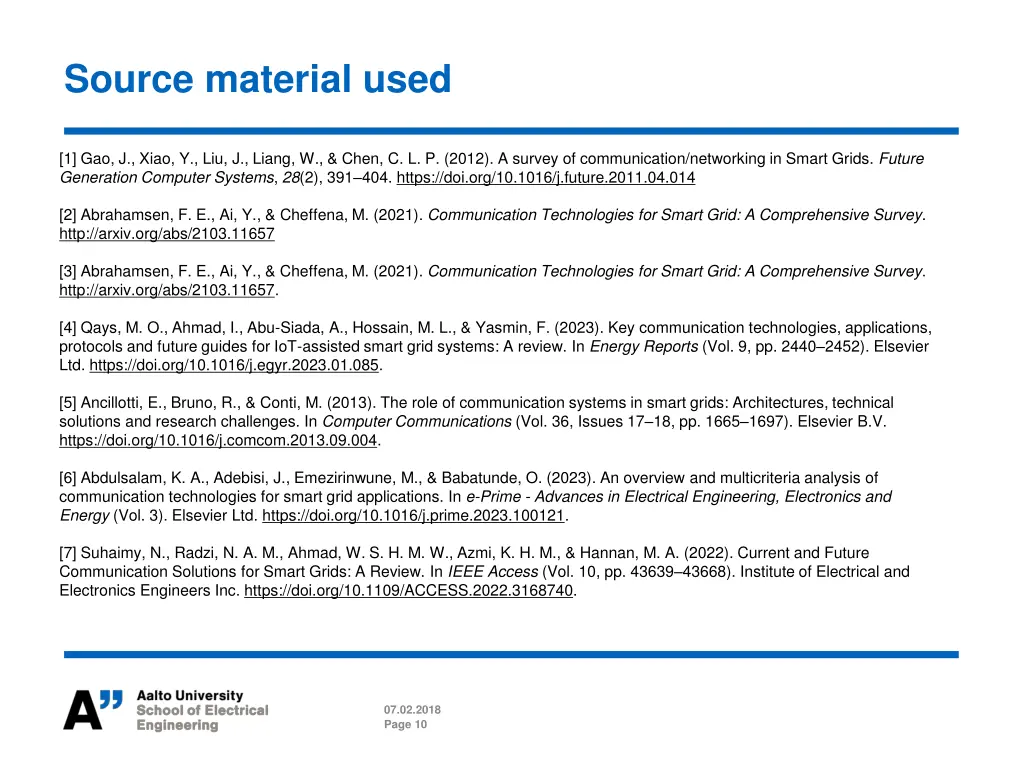

10. Source material used [1] Gao, J., Xiao, Y., Liu, J., Liang, W., & Chen, C. L. P. (2012). A survey of communication/networking in Smart Grids. Future Generation Computer Systems, 28(2), 391 404. https://doi.org/10.1016/j.future.2011.04.014 [2] Abrahamsen, F. E., Ai, Y., & Cheffena, M. (2021). Communication Technologies for Smart Grid: A Comprehensive Survey. http://arxiv.org/abs/2103.11657 [3] Abrahamsen, F. E., Ai, Y., & Cheffena, M. (2021). Communication Technologies for Smart Grid: A Comprehensive Survey. http://arxiv.org/abs/2103.11657. [4] Qays, M. O., Ahmad, I., Abu-Siada, A., Hossain, M. L., & Yasmin, F. (2023). Key communication technologies, applications, protocols and future guides for IoT-assisted smart grid systems: A review. In Energy Reports (Vol. 9, pp. 2440 2452). Elsevier Ltd. https://doi.org/10.1016/j.egyr.2023.01.085. [5] Ancillotti, E., Bruno, R., & Conti, M. (2013). The role of communication systems in smart grids: Architectures, technical solutions and research challenges. In Computer Communications (Vol. 36, Issues 17 18, pp. 1665 1697). Elsevier B.V. https://doi.org/10.1016/j.comcom.2013.09.004. [6] Abdulsalam, K. A., Adebisi, J., Emezirinwune, M., & Babatunde, O. (2023). An overview and multicriteria analysis of communication technologies for smart grid applications. In e-Prime - Advances in Electrical Engineering, Electronics and Energy (Vol. 3). Elsevier Ltd. https://doi.org/10.1016/j.prime.2023.100121. [7] Suhaimy, N., Radzi, N. A. M., Ahmad, W. S. H. M. W., Azmi, K. H. M., & Hannan, M. A. (2022). Current and Future Communication Solutions for Smart Grids: A Review. In IEEE Access (Vol. 10, pp. 43639 43668). Institute of Electrical and Electronics Engineers Inc. https://doi.org/10.1109/ACCESS.2022.3168740. 07.02.2018 Page 10
