Presentation Transcript

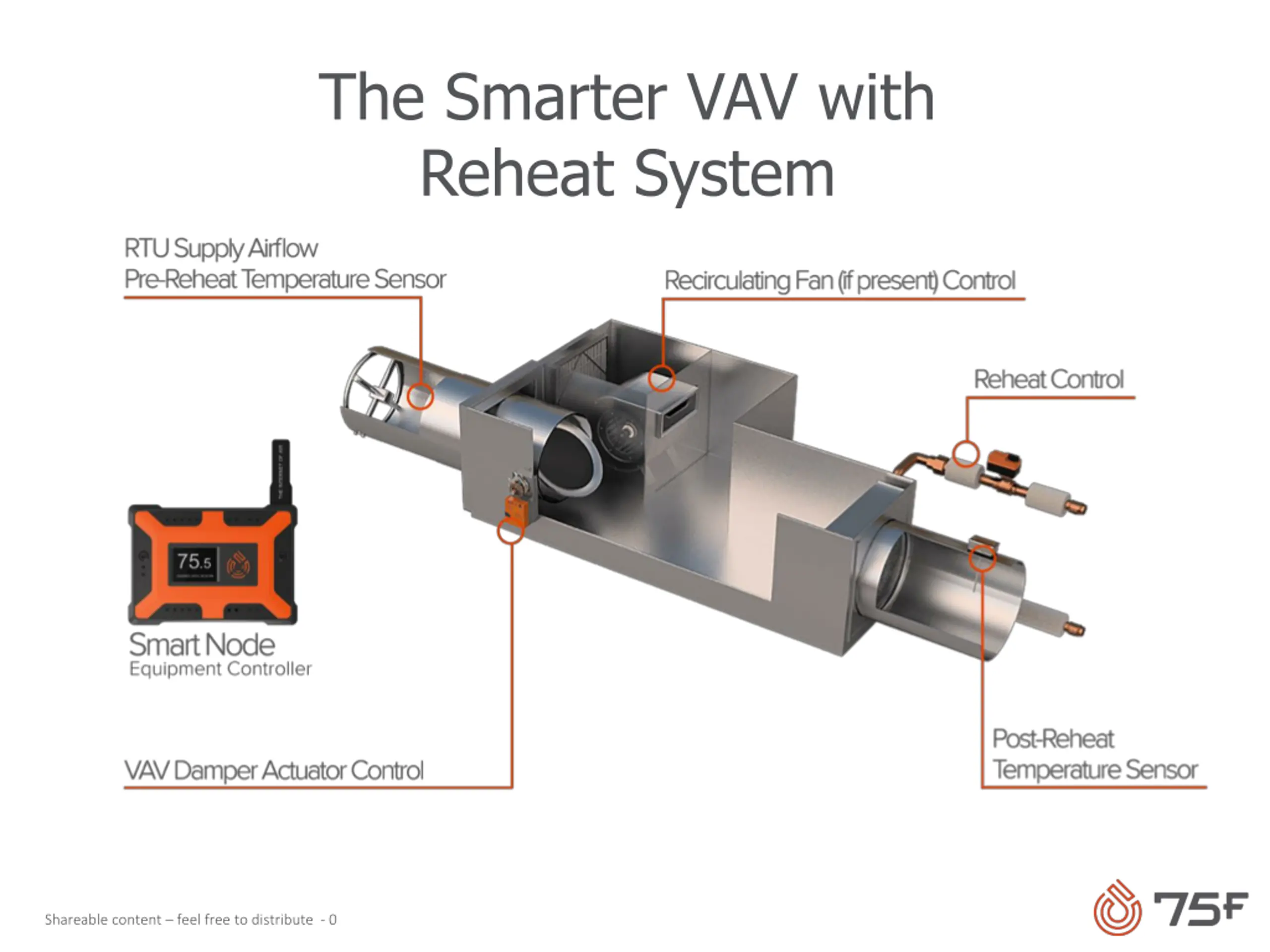

The Smarter VAV with Reheat System Shareable content feel free to distribute - 0

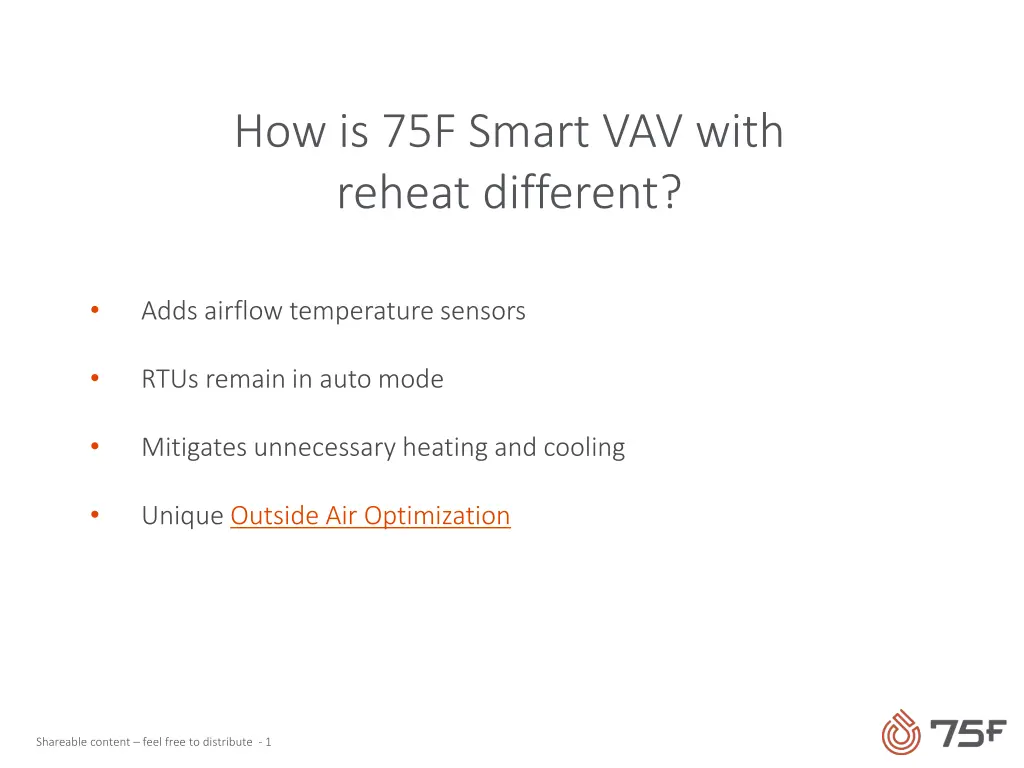

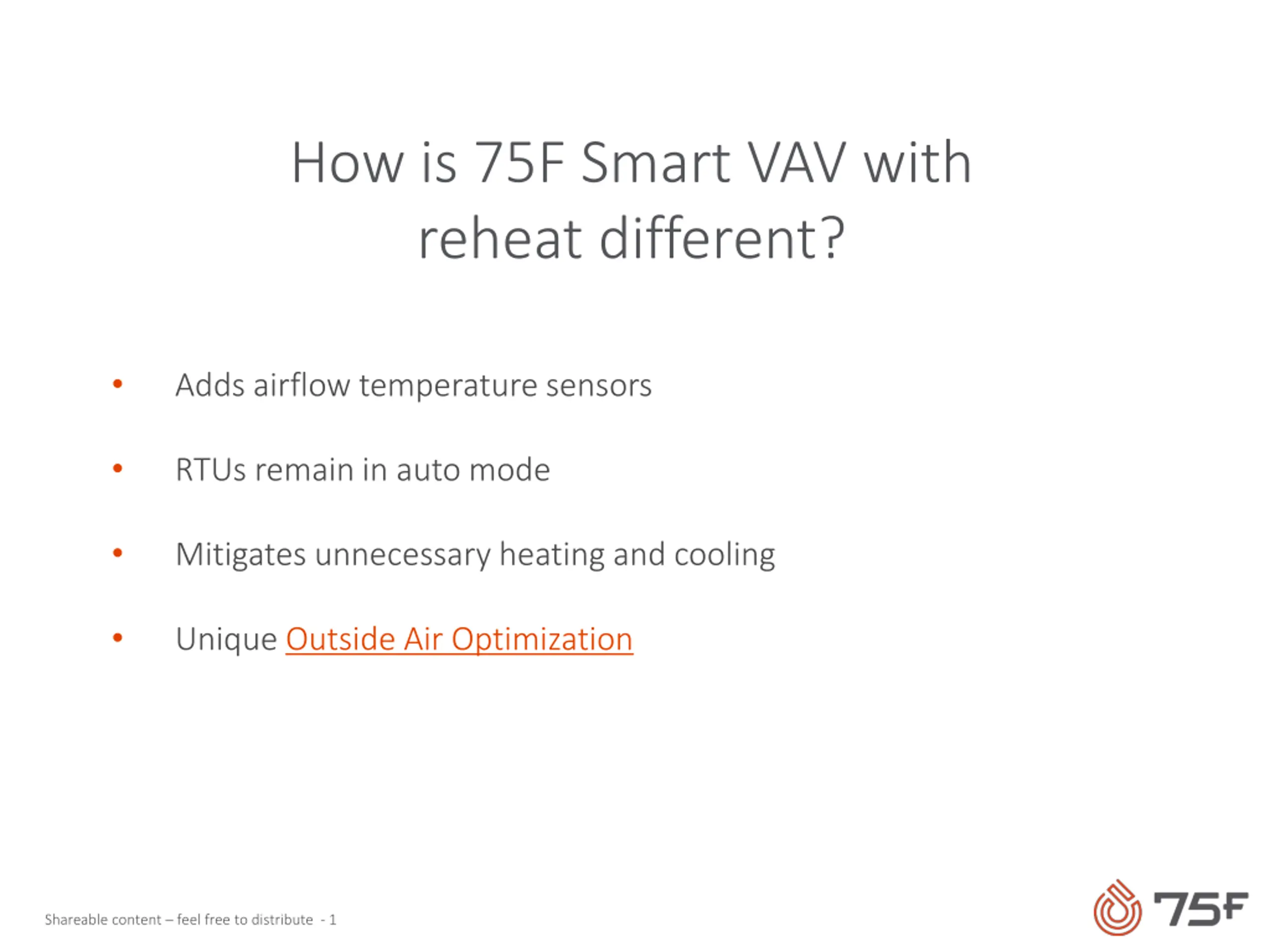

How is 75F Smart VAV with reheat different? Adds airflow temperature sensors RTUs remain in auto mode Mitigates unnecessary heating and cooling Unique Outside Air Optimization Shareable content feel free to distribute - 1

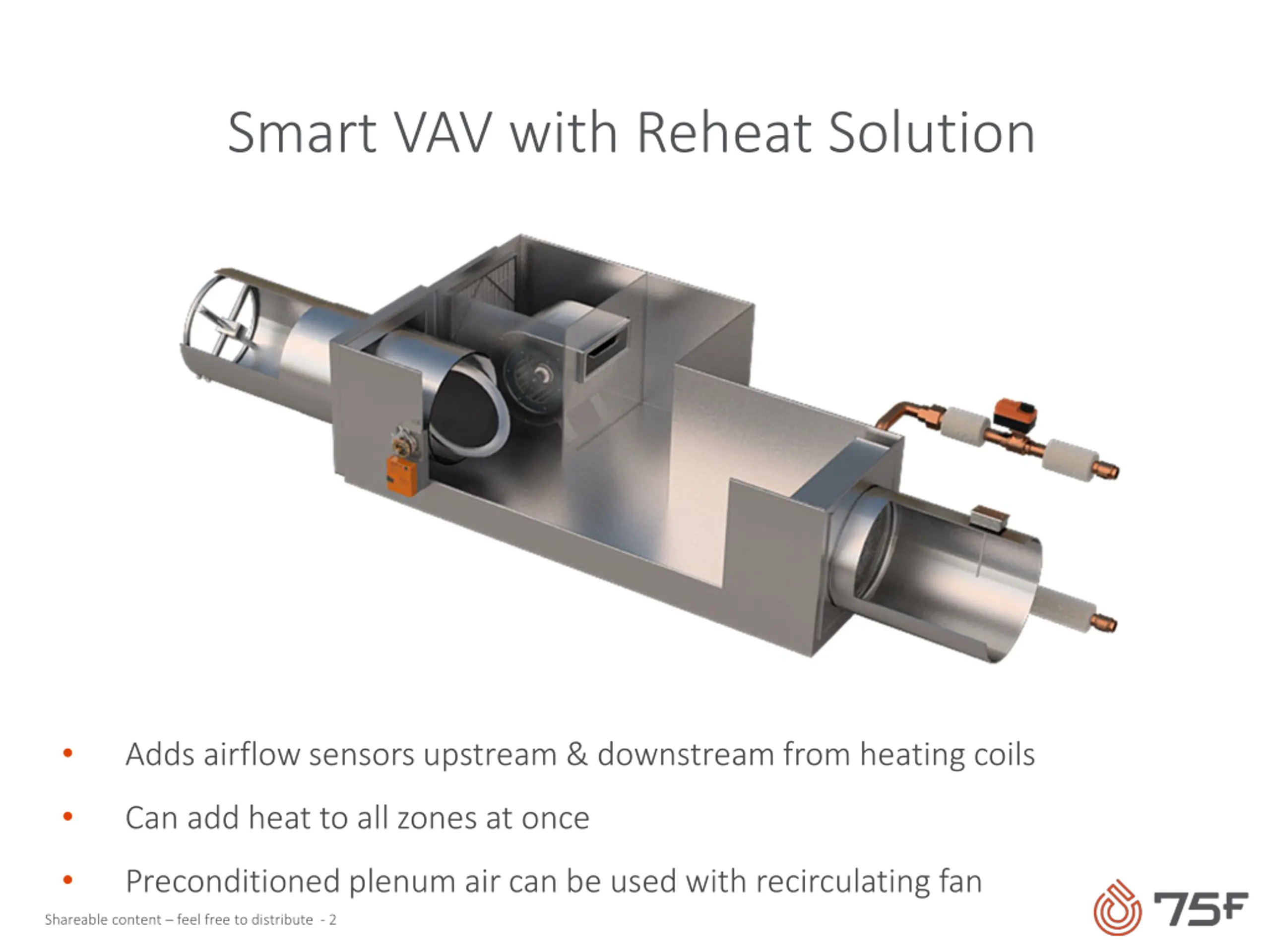

Smart VAV with Reheat Solution Adds airflow sensors upstream & downstream from heating coils Can add heat to all zones at once Preconditioned plenum air can be used with recirculating fan Shareable content feel free to distribute - 2

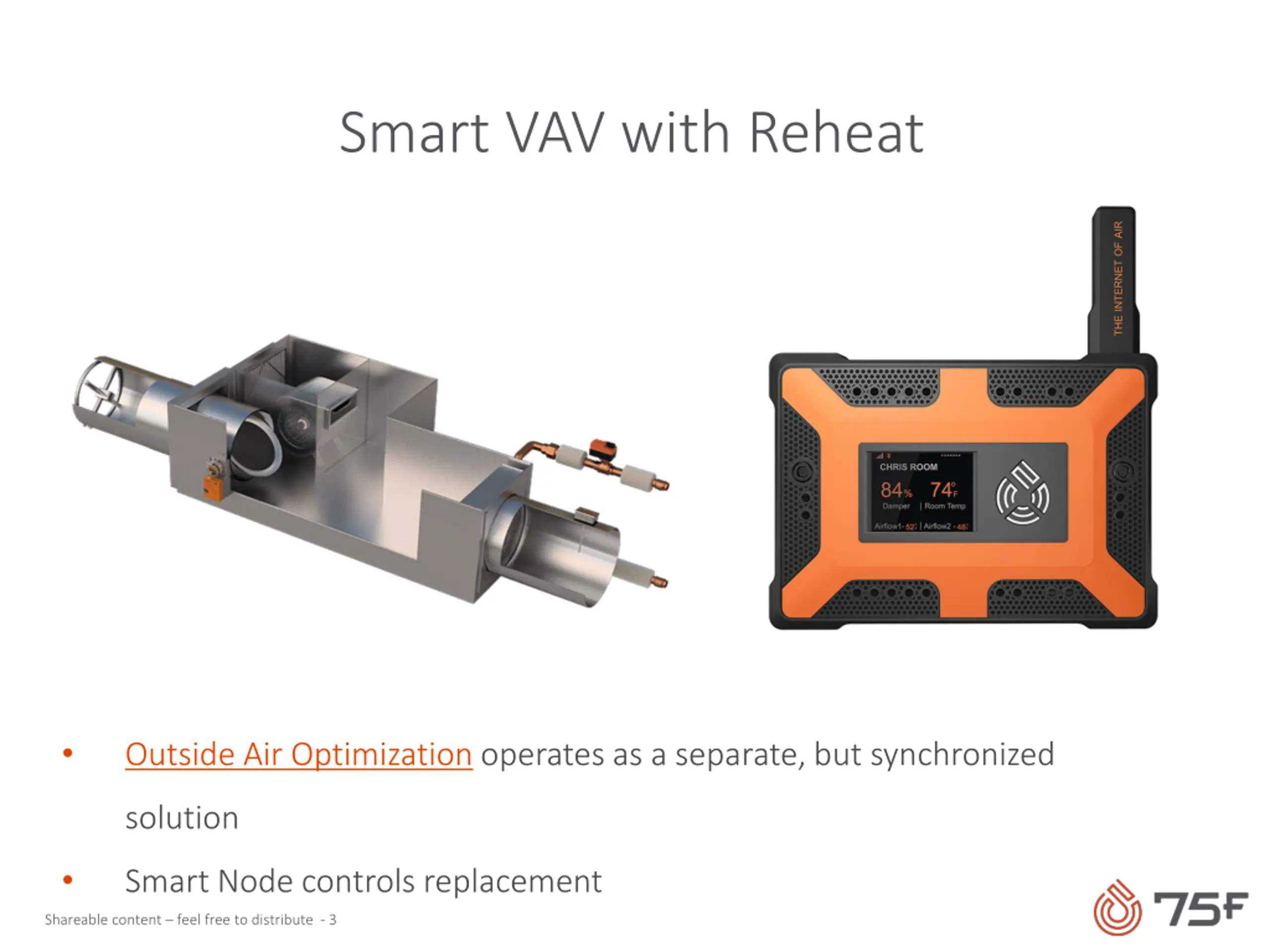

Smart VAV with Reheat Outside Air Optimization operates as a separate, but synchronized solution Smart Node controls replacement Shareable content feel free to distribute - 3

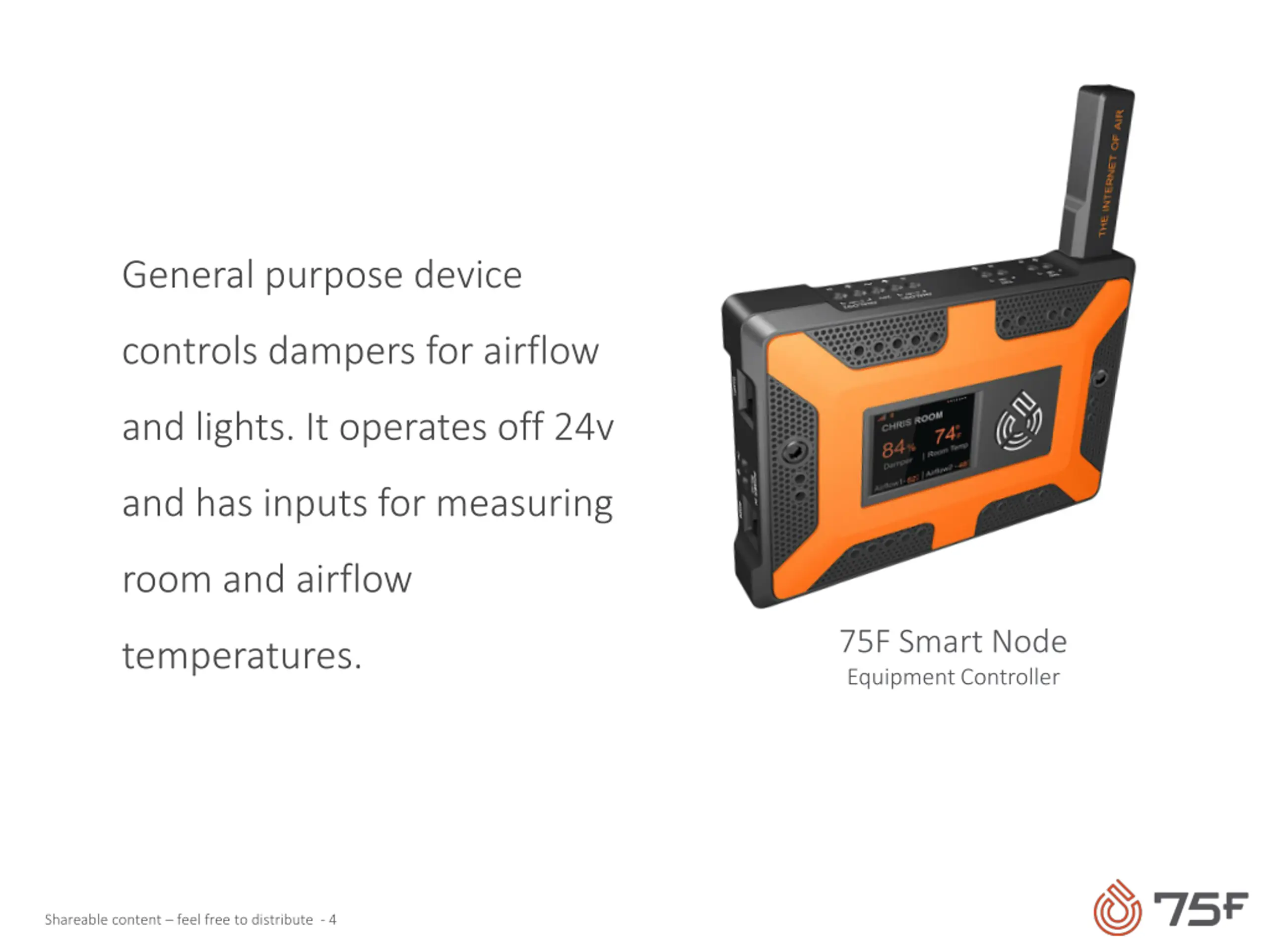

General purpose device controls dampers for airflow and lights. It operates off 24v and has inputs for measuring room and airflow 75F Smart Node Equipment Controller temperatures. Shareable content feel free to distribute - 4
