1. Snapshot-Oblivious RAMs: Sub-Logarithmic Efficiency for Short Transcripts Yang Du1, Daniel Genkin2, Paul Grubbs1 1University of Michigan, 2Georgia Tech Aug 18, 2022 1

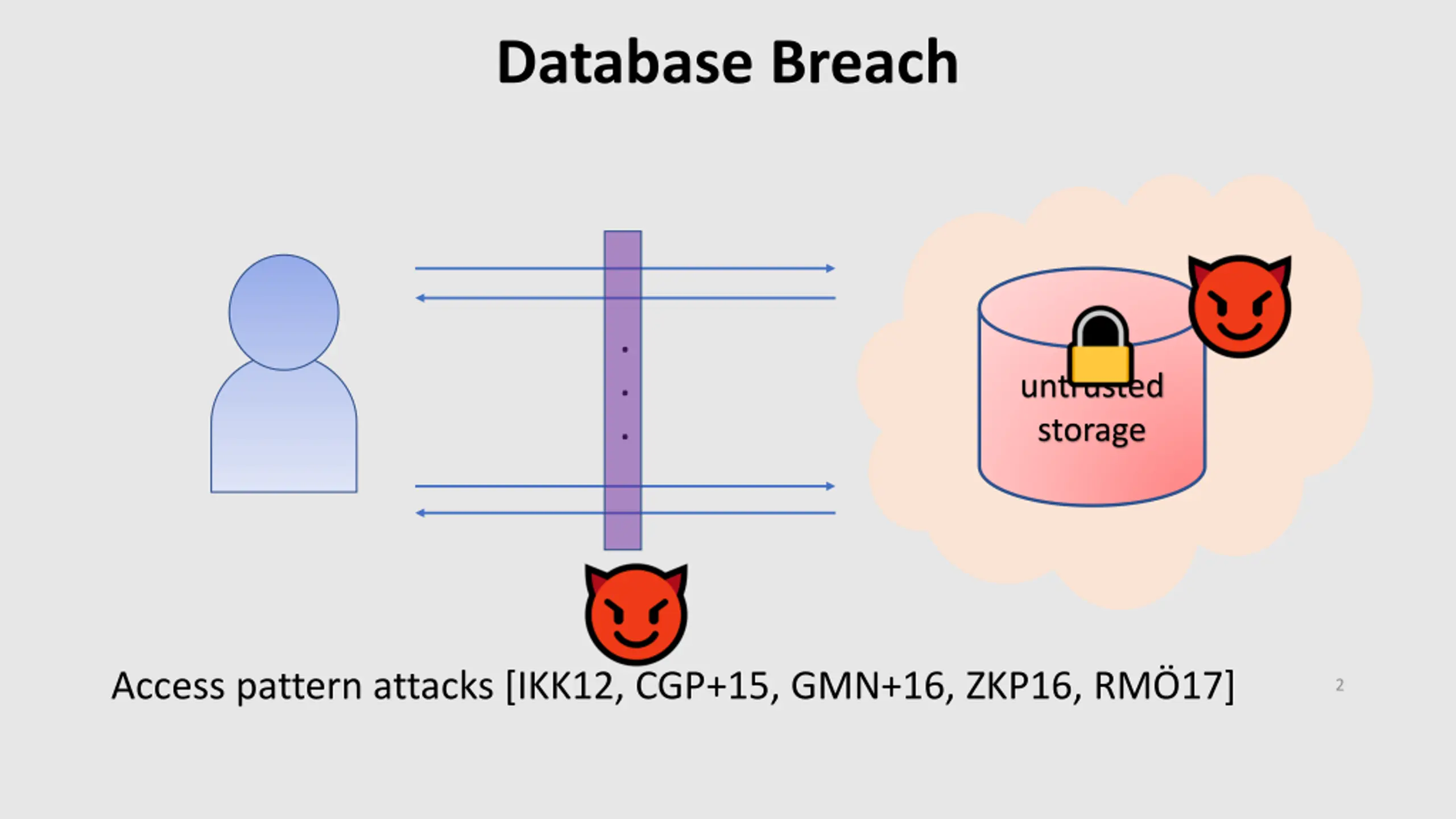

2. Database Breach . . . untrusted storage Access pattern attacks [IKK12, CGP+15, GMN+16, ZKP16, RM 17] 2

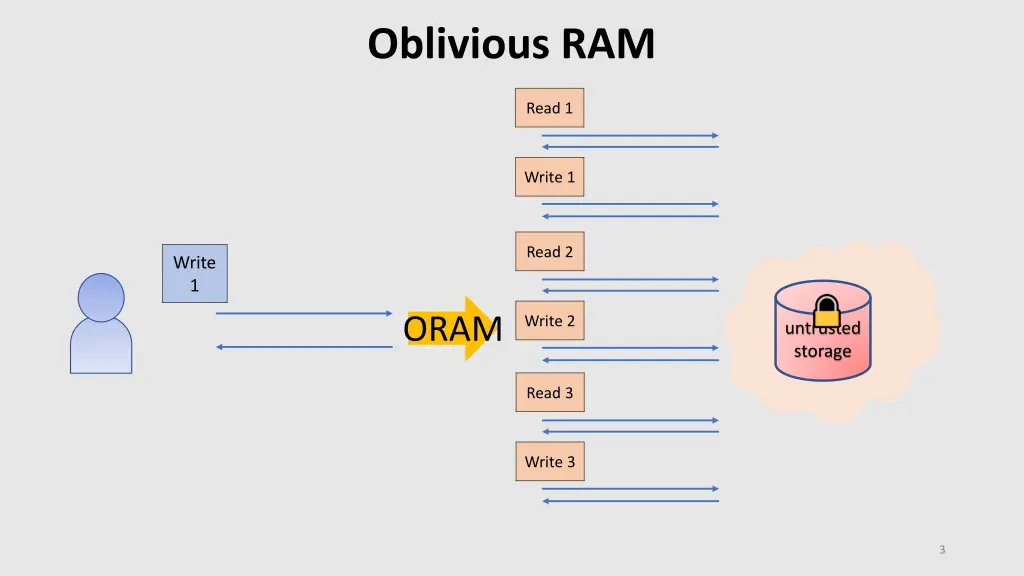

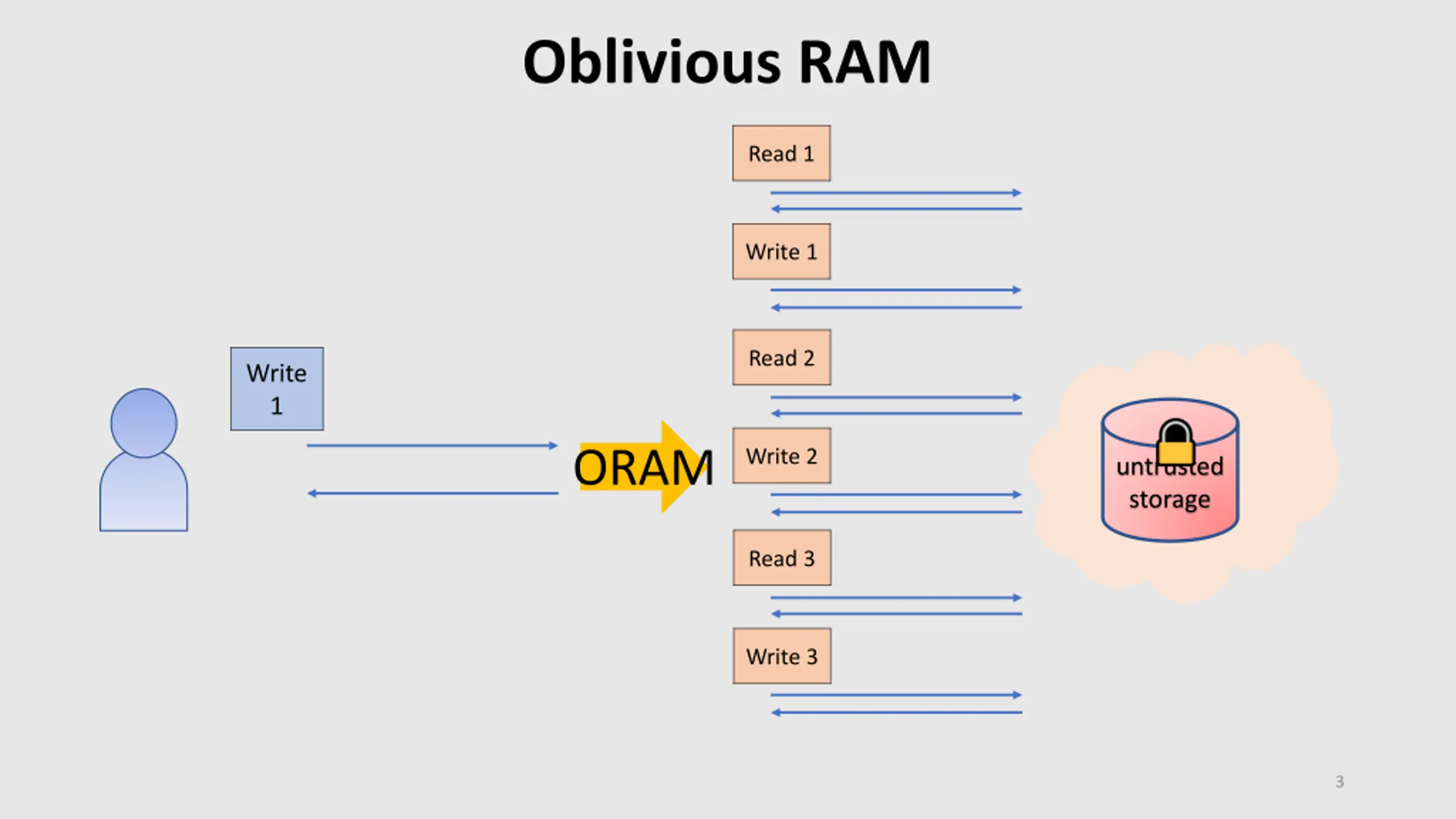

3. Oblivious RAM Read 1 Write 1 Read 2 Write 1 ORAM Write 2 untrusted storage Read 3 Write 3 3

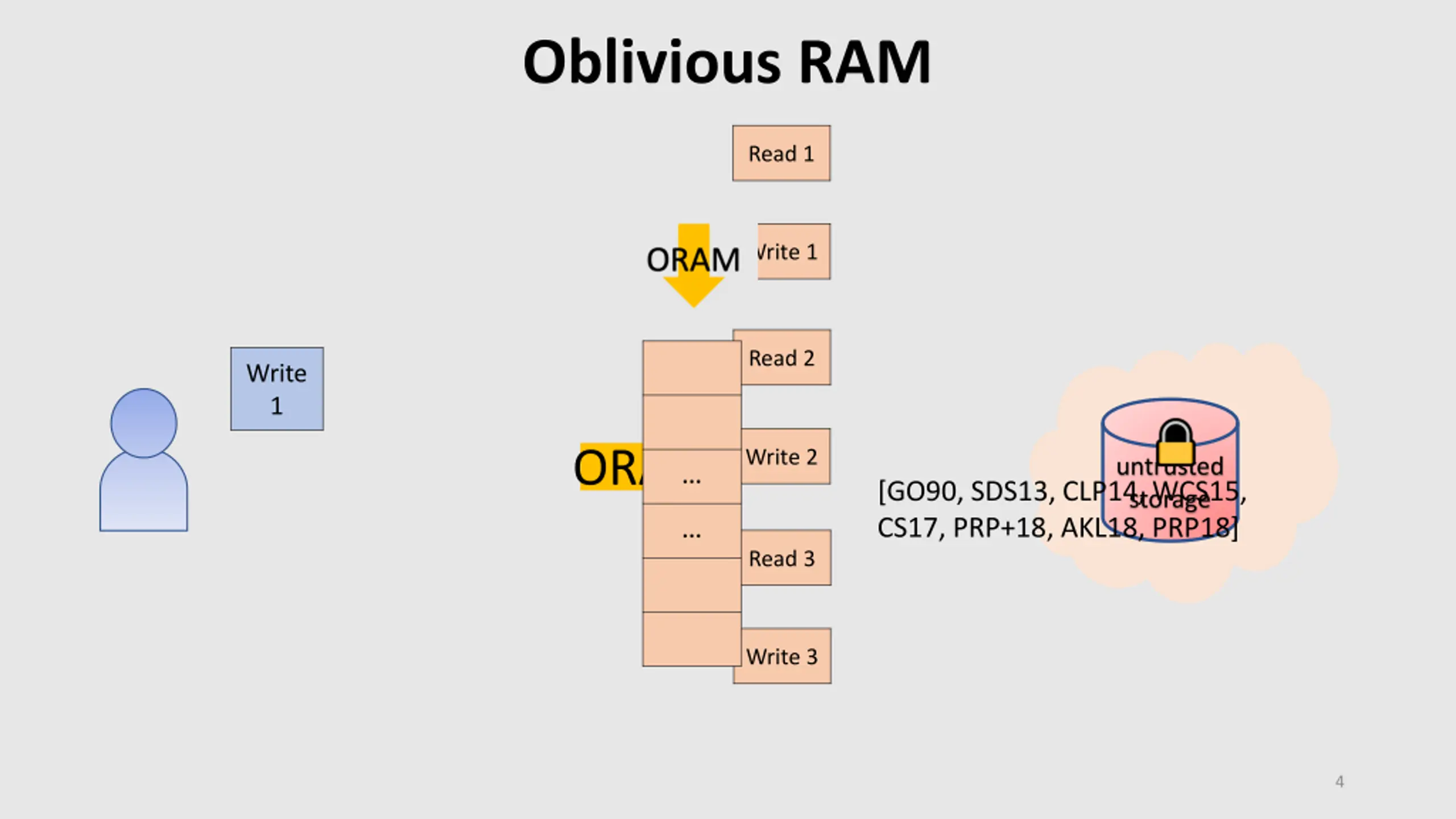

4. Oblivious RAM Read 1 Write 1 Read 2 Write 1 ORAM Write 2 untrusted storage [GO90, SDS13, CLP14, WCS15, CS17, PRP+18, AKL18, PRP18] Read 3 Write 3 4

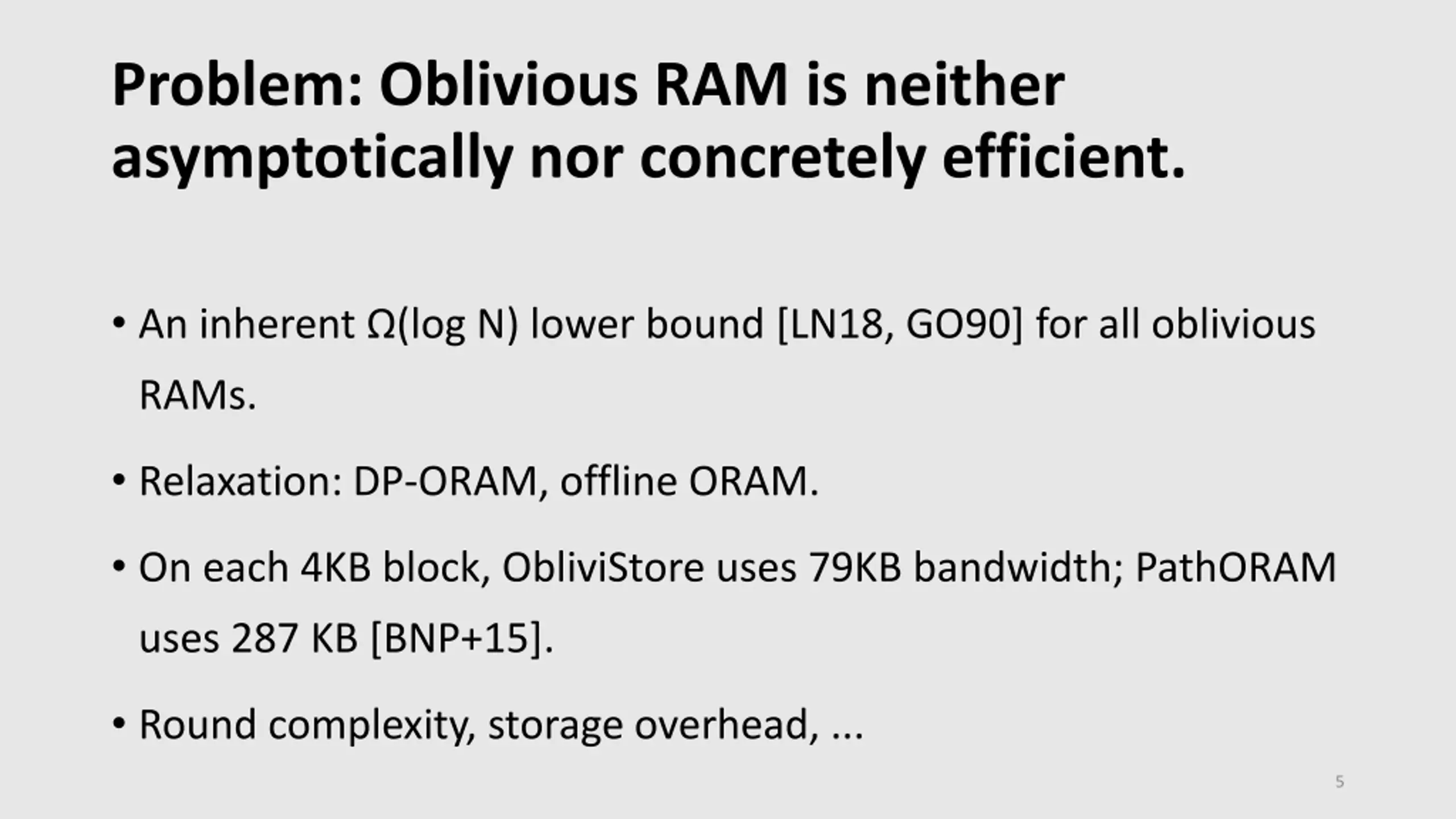

5. Problem: Oblivious RAM is neither asymptotically nor concretely efficient. An inherent (log N) lower bound [LN18, GO90] for all oblivious RAMs. Relaxation: DP-ORAM, offline ORAM. On each 4KB block, ObliviStore uses 79KB bandwidth; PathORAM uses 287 KB [BNP+15]. Round complexity, storage overhead, ... 5

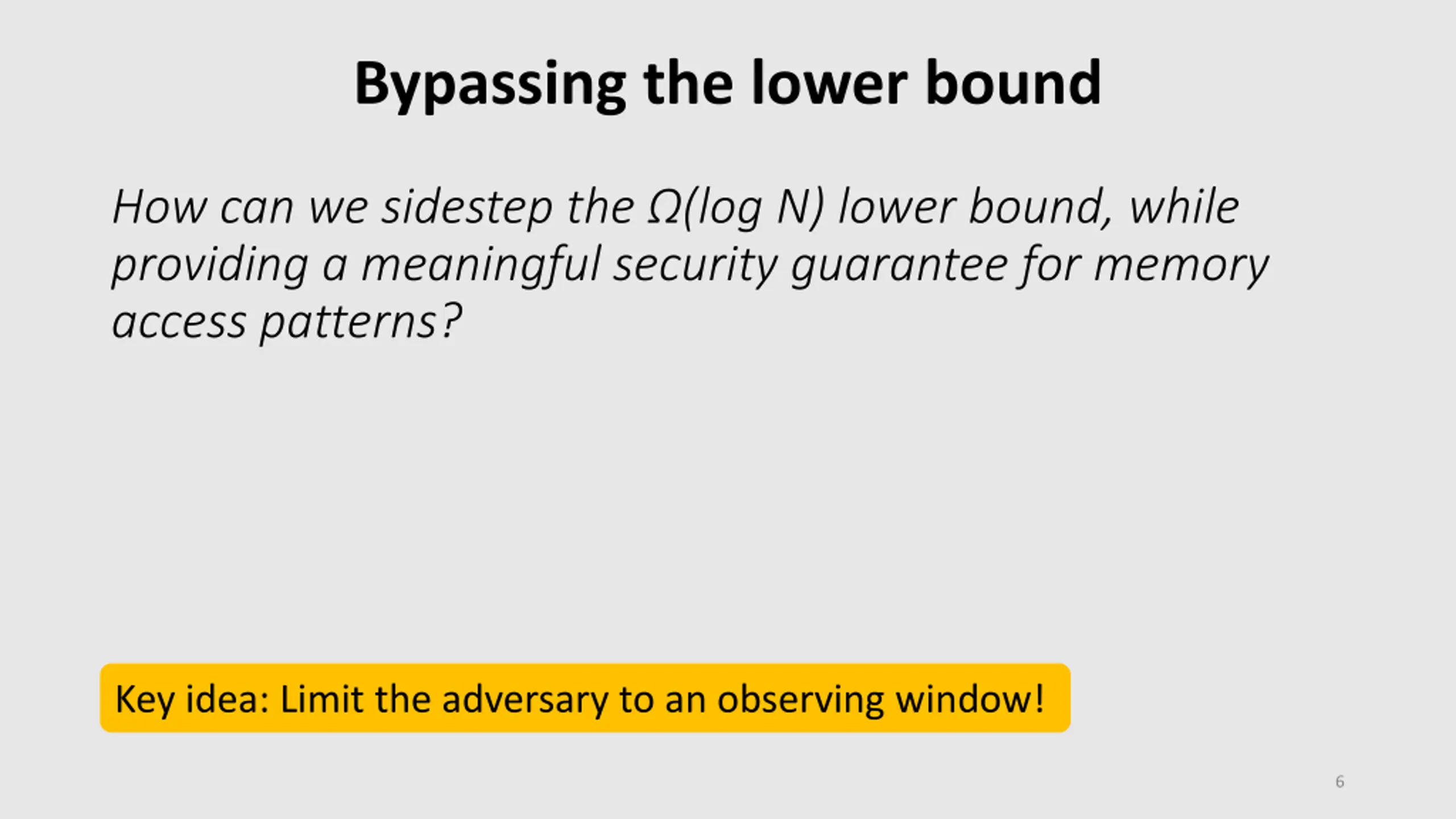

6. Bypassing the lower bound How can we sidestep the (log N) lower bound, while providing a meaningful security guarantee for memory access patterns? Key idea: Limit the adversary to an observing window! 6

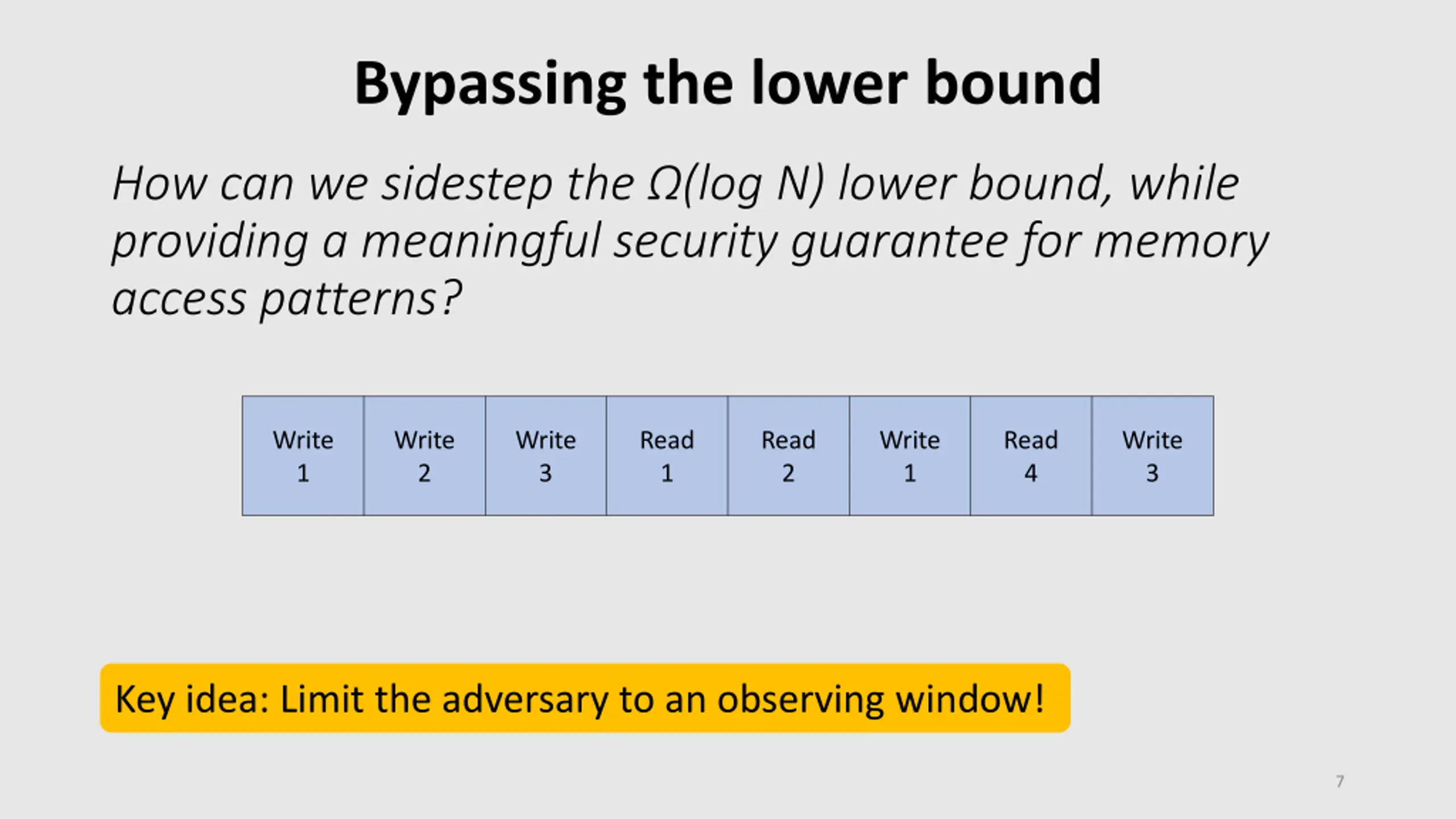

7. Bypassing the lower bound How can we sidestep the (log N) lower bound, while providing a meaningful security guarantee for memory access patterns? Write 1 Write 2 Write 3 Read 1 Read 2 Write 1 Read 4 Write 3 Key idea: Limit the adversary to an observing window! 7

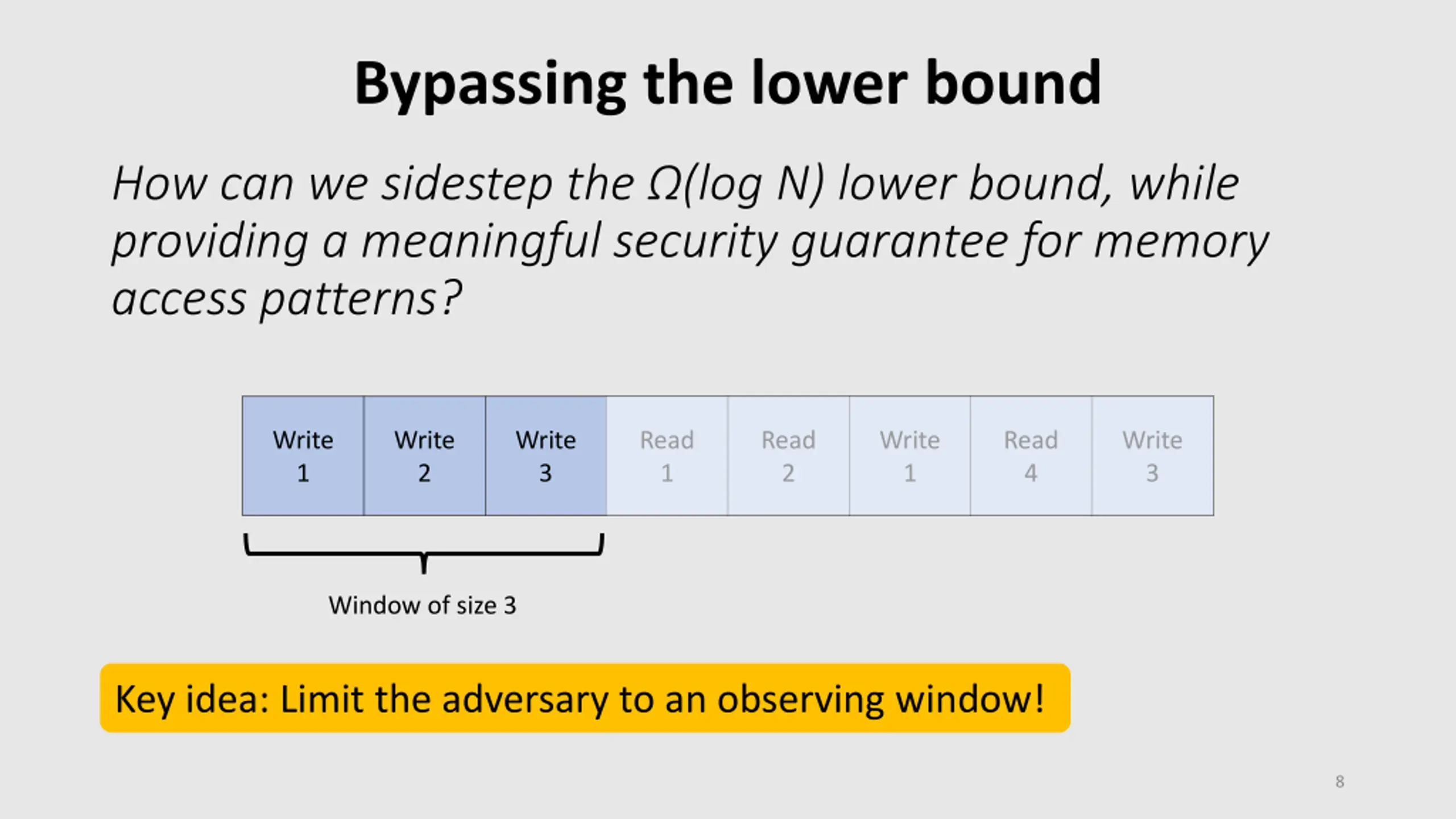

8. Bypassing the lower bound How can we sidestep the (log N) lower bound, while providing a meaningful security guarantee for memory access patterns? Write 1 Write 2 Write 3 Read 1 Read 2 Write 1 Read 4 Write 3 Window of size 3 Key idea: Limit the adversary to an observing window! 8

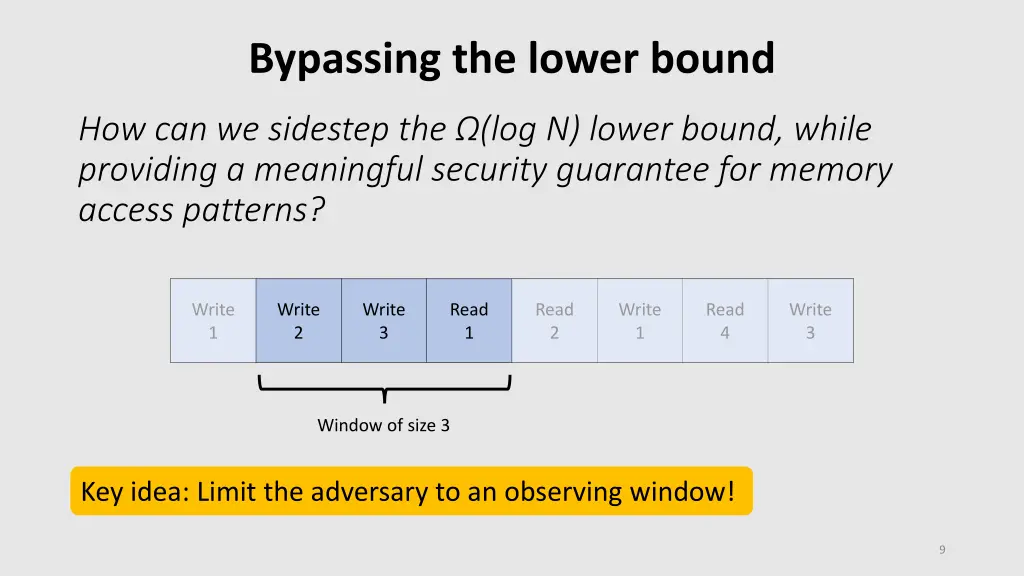

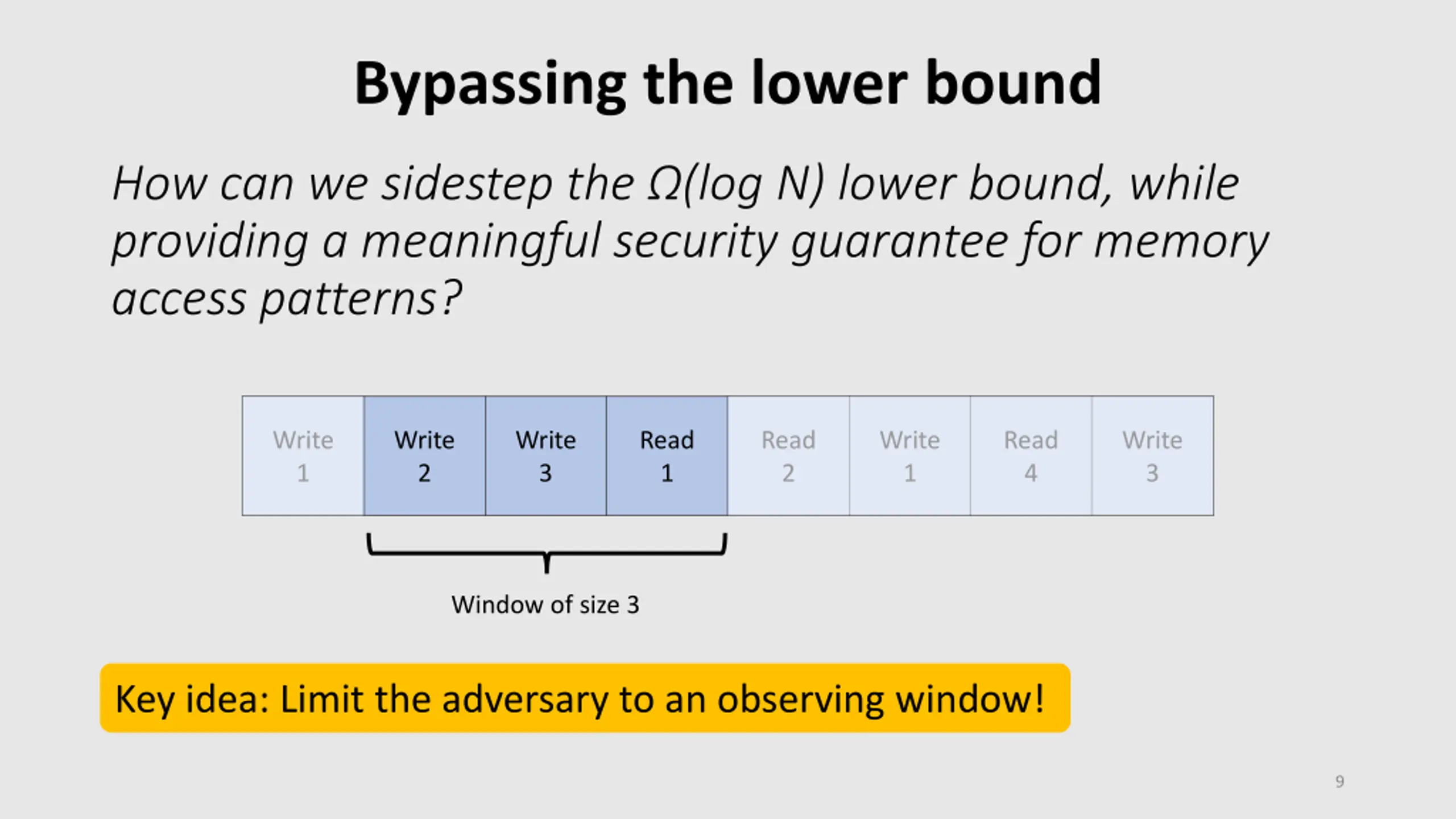

9. Bypassing the lower bound How can we sidestep the (log N) lower bound, while providing a meaningful security guarantee for memory access patterns? Write 1 Write 2 Write 3 Read 1 Read 2 Write 1 Read 4 Write 3 Window of size 3 Key idea: Limit the adversary to an observing window! 9

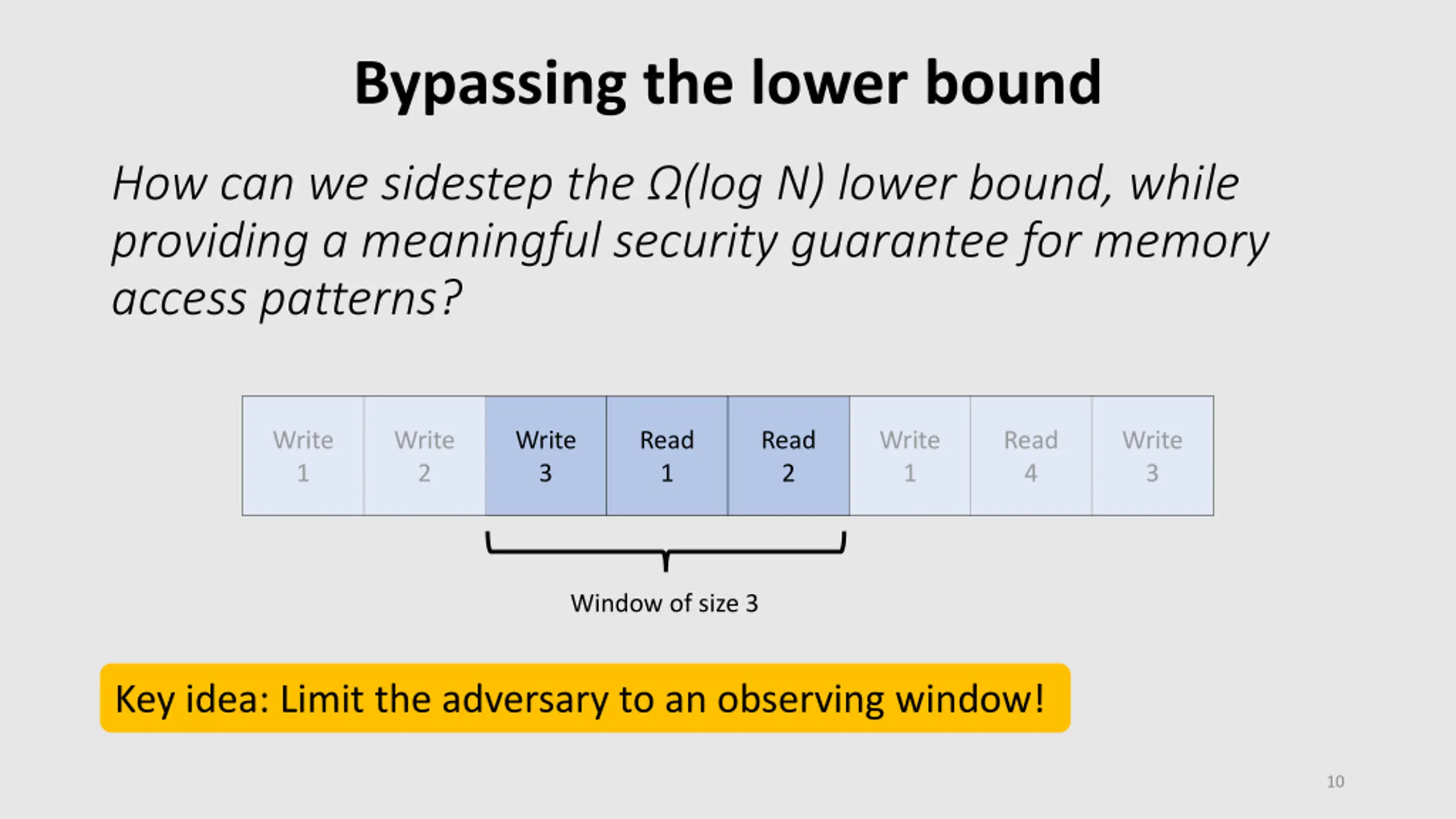

10. Bypassing the lower bound How can we sidestep the (log N) lower bound, while providing a meaningful security guarantee for memory access patterns? Write 1 Write 2 Write 3 Read 1 Read 2 Write 1 Read 4 Write 3 Window of size 3 Key idea: Limit the adversary to an observing window! 10

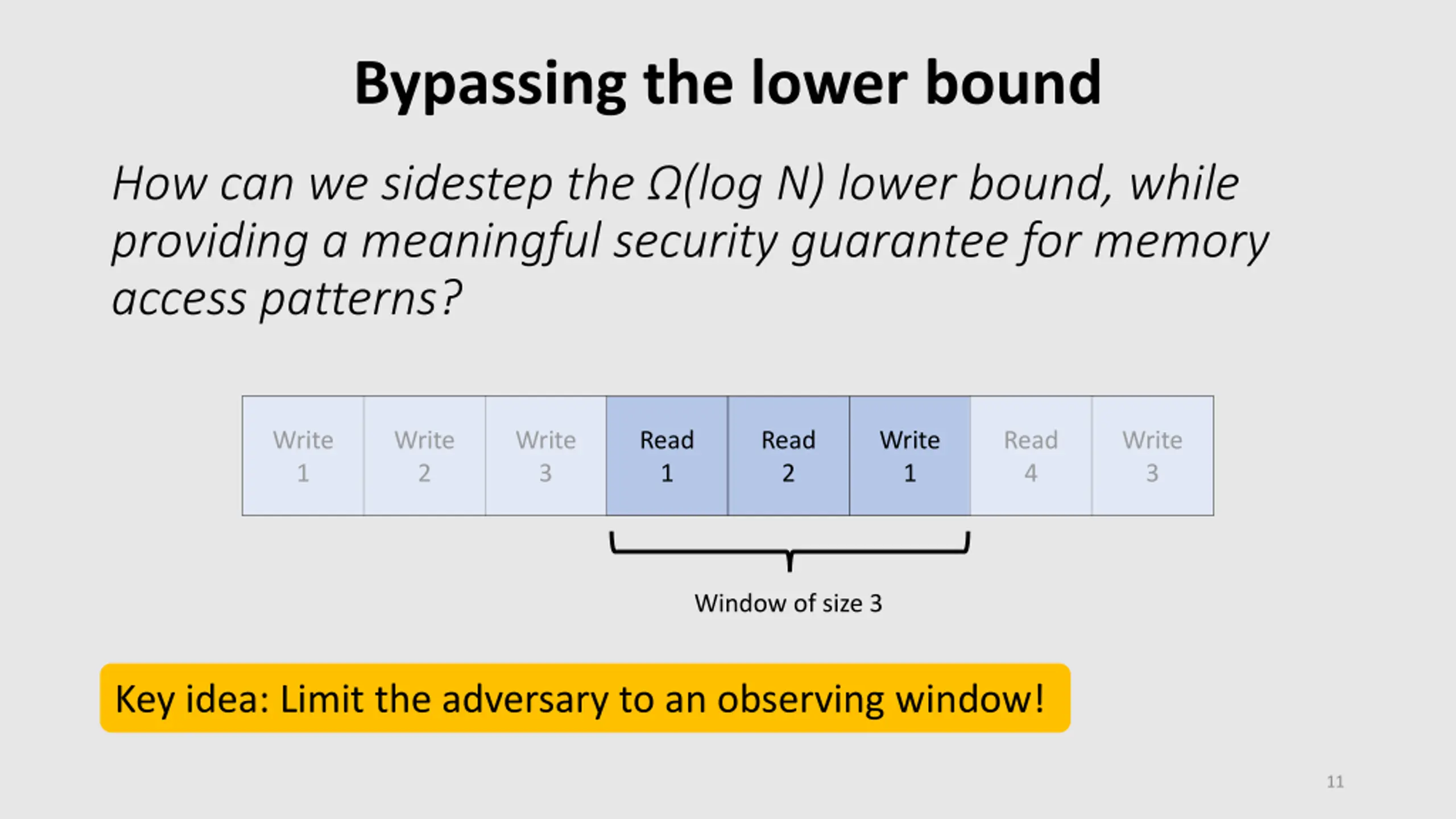

11. Bypassing the lower bound How can we sidestep the (log N) lower bound, while providing a meaningful security guarantee for memory access patterns? Write 1 Write 2 Write 3 Read 1 Read 2 Write 1 Read 4 Write 3 Window of size 3 Key idea: Limit the adversary to an observing window! 11

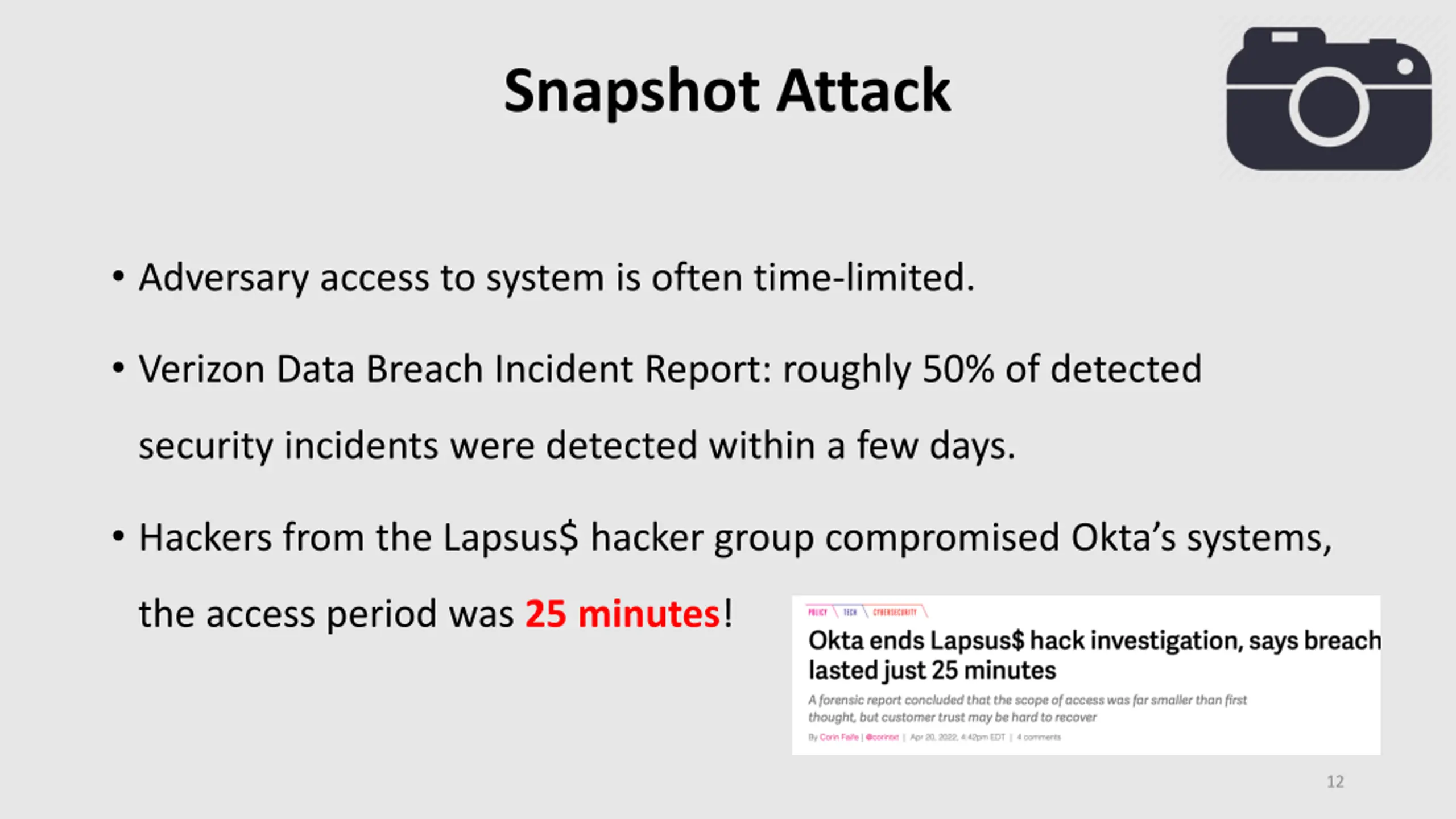

12. Snapshot Attack Adversary access to system is often time-limited. Verizon Data Breach Incident Report: roughly 50% of detected security incidents were detected within a few days. Hackers from the Lapsus$ hacker group compromised Okta s systems, the access period was 25 minutes! 12

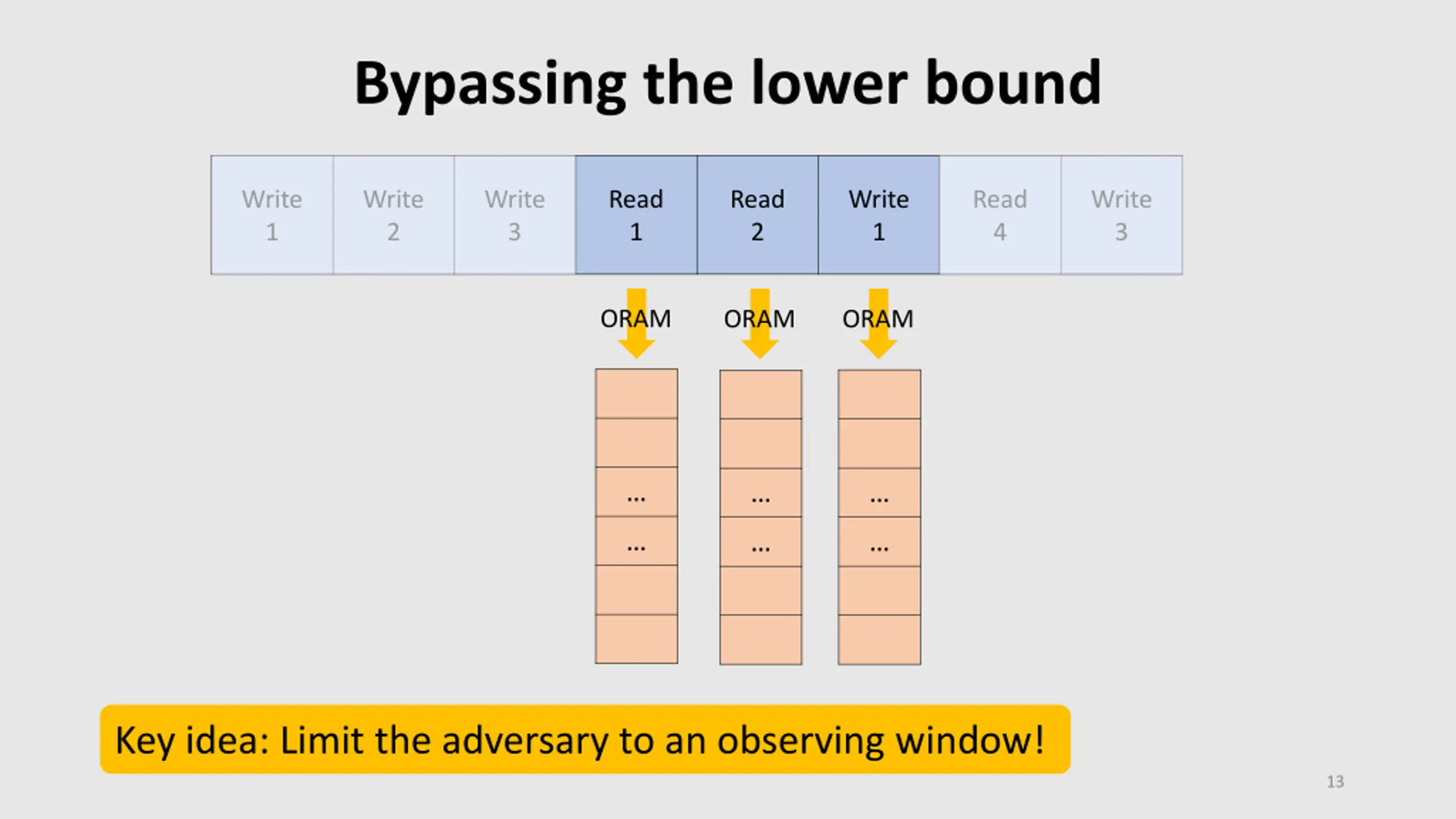

13. Bypassing the lower bound Write 1 Write 2 Write 3 Read 1 Read 2 Write 1 Read 4 Write 3 ORAM ORAM ORAM Key idea: Limit the adversary to an observing window! 13

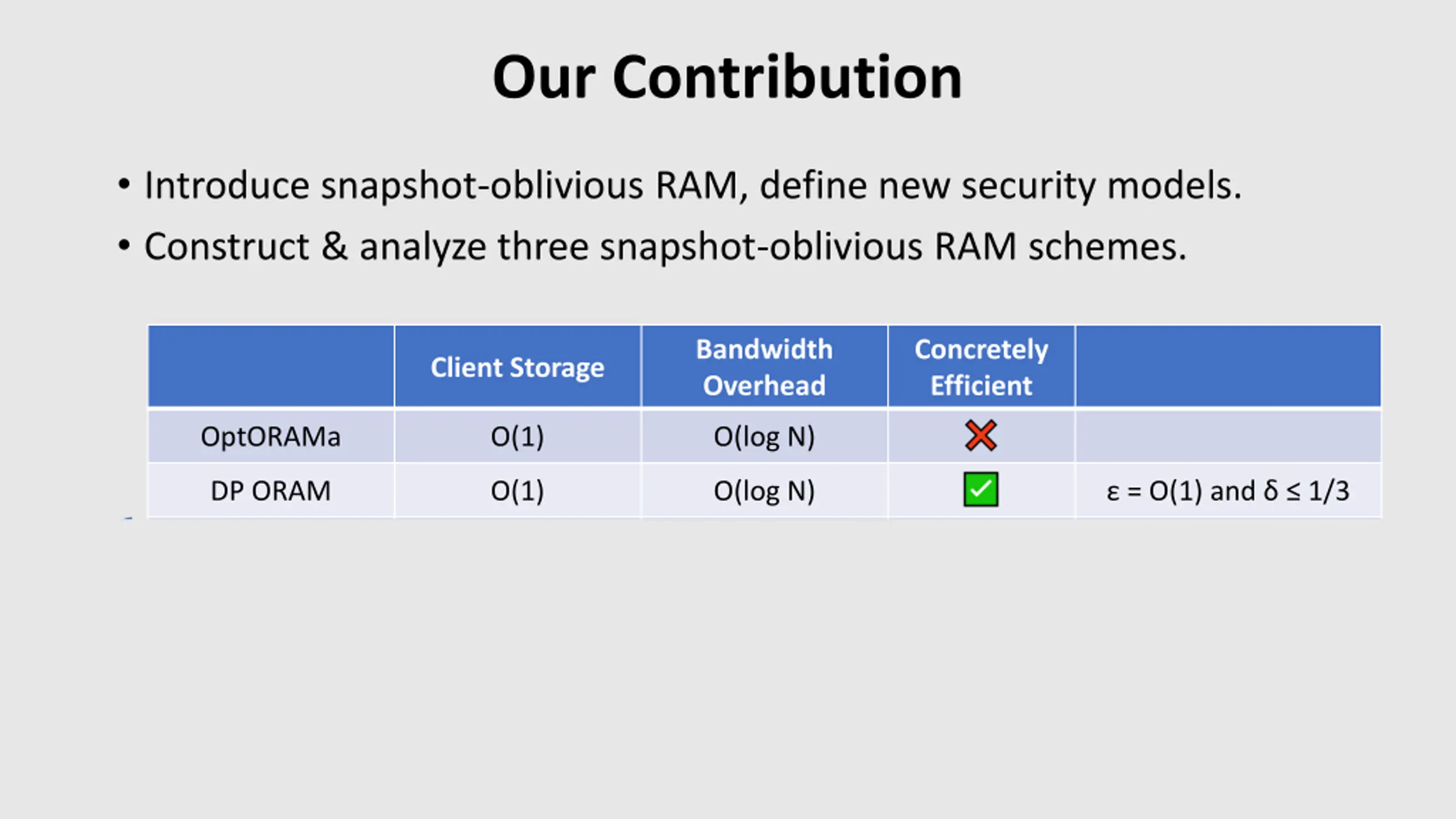

14. Our Contribution Introduce snapshot-oblivious RAM, define new security models. Construct & analyze three snapshot-oblivious RAM schemes. Bandwidth Overhead Concretely Efficient Client Storage OptORAMa O(1) O(log N) DP ORAM O(1) O(log N) = O(1) and 1/3 CQoram O(c) O(1) This Paper O(log2 c) PHQoram O(1) c = window size UHQoram O(1) O(log c) Prove the bandwidth overhead lower bound and show optimality 14

15. Our Contribution Introduce snapshot-oblivious RAM, define new security models. Construct & analyze three snapshot-oblivious RAM schemes. Bandwidth Overhead Concretely Efficient Client Storage OptORAMa O(1) O(log N) DP ORAM O(1) O(log N) = O(1) and 1/3 CQoram O(c) O(1) This Paper O(log2 c) PHQoram O(1) c = window size UHQoram O(1) O(log c) Prove the bandwidth overhead lower bound and show optimality 15

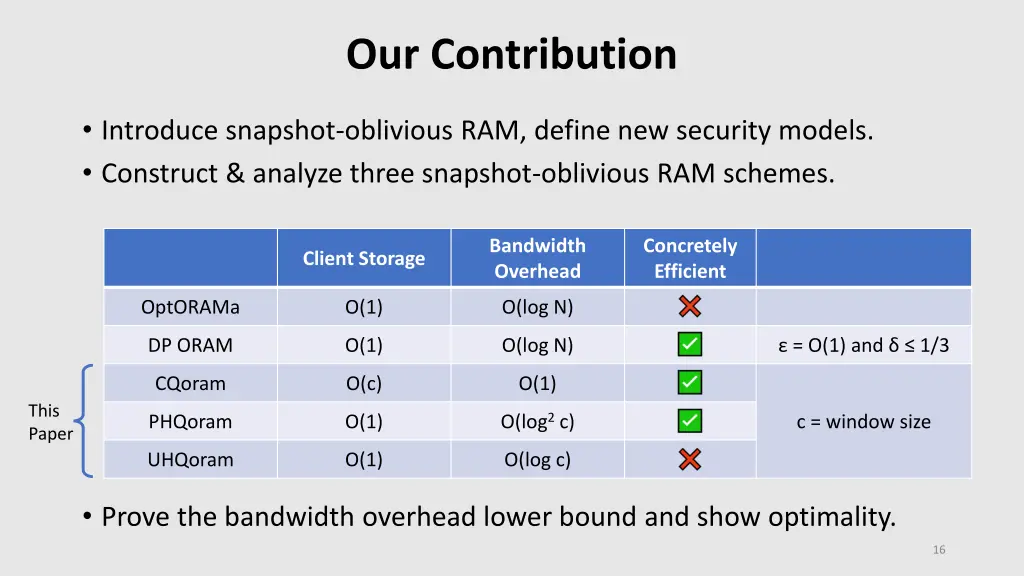

16. Our Contribution Introduce snapshot-oblivious RAM, define new security models. Construct & analyze three snapshot-oblivious RAM schemes. Bandwidth Overhead Concretely Efficient Client Storage OptORAMa O(1) O(log N) DP ORAM O(1) O(log N) = O(1) and 1/3 CQoram O(c) O(1) This Paper O(log2 c) PHQoram O(1) c = window size UHQoram O(1) O(log c) Prove the bandwidth overhead lower bound and show optimality. 16

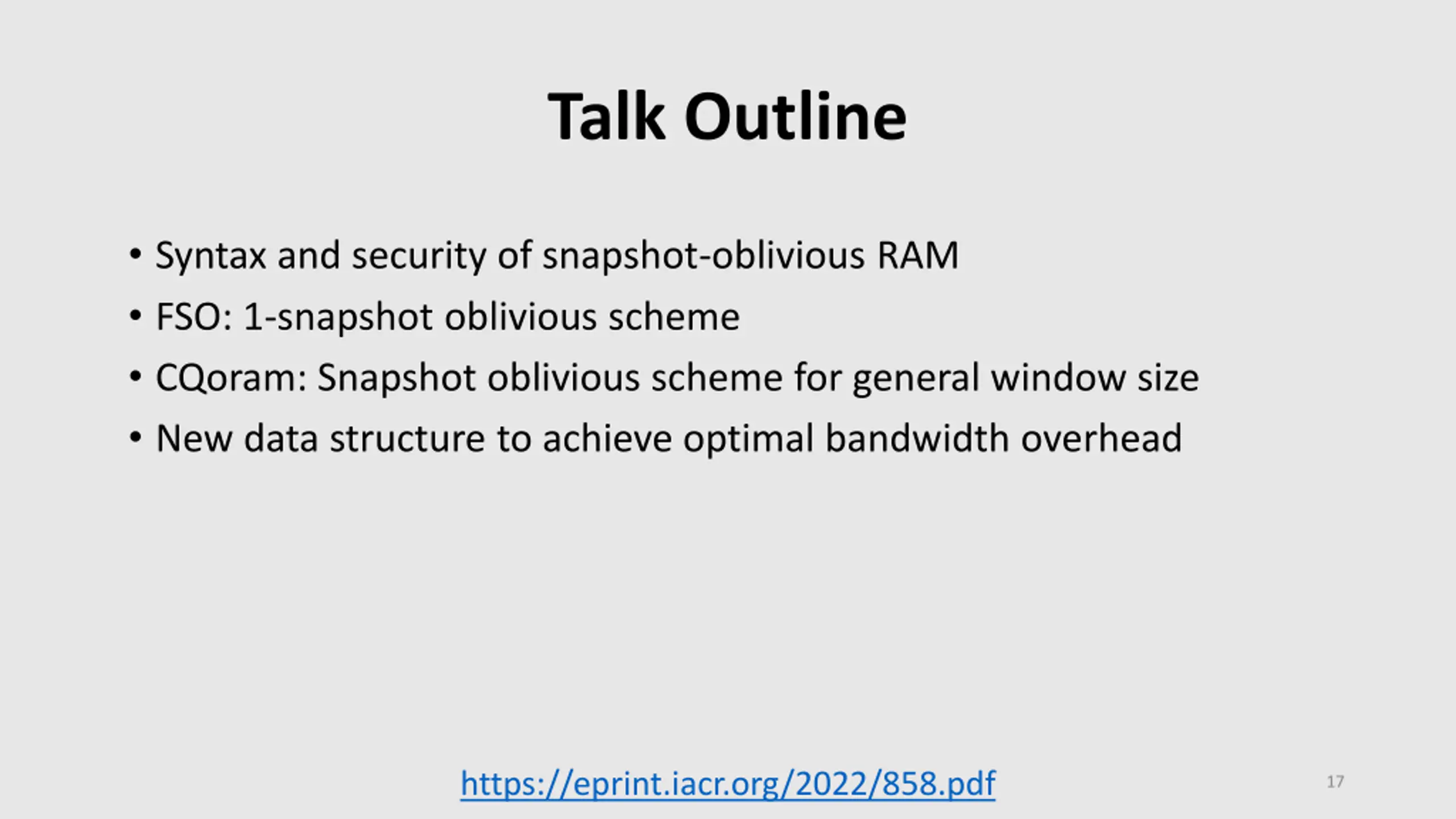

17. Talk Outline Syntax and security of snapshot-oblivious RAM FSO: 1-snapshot oblivious scheme CQoram: Snapshot oblivious scheme for general window size New data structure to achieve optimal bandwidth overhead https://eprint.iacr.org/2022/858.pdf 17

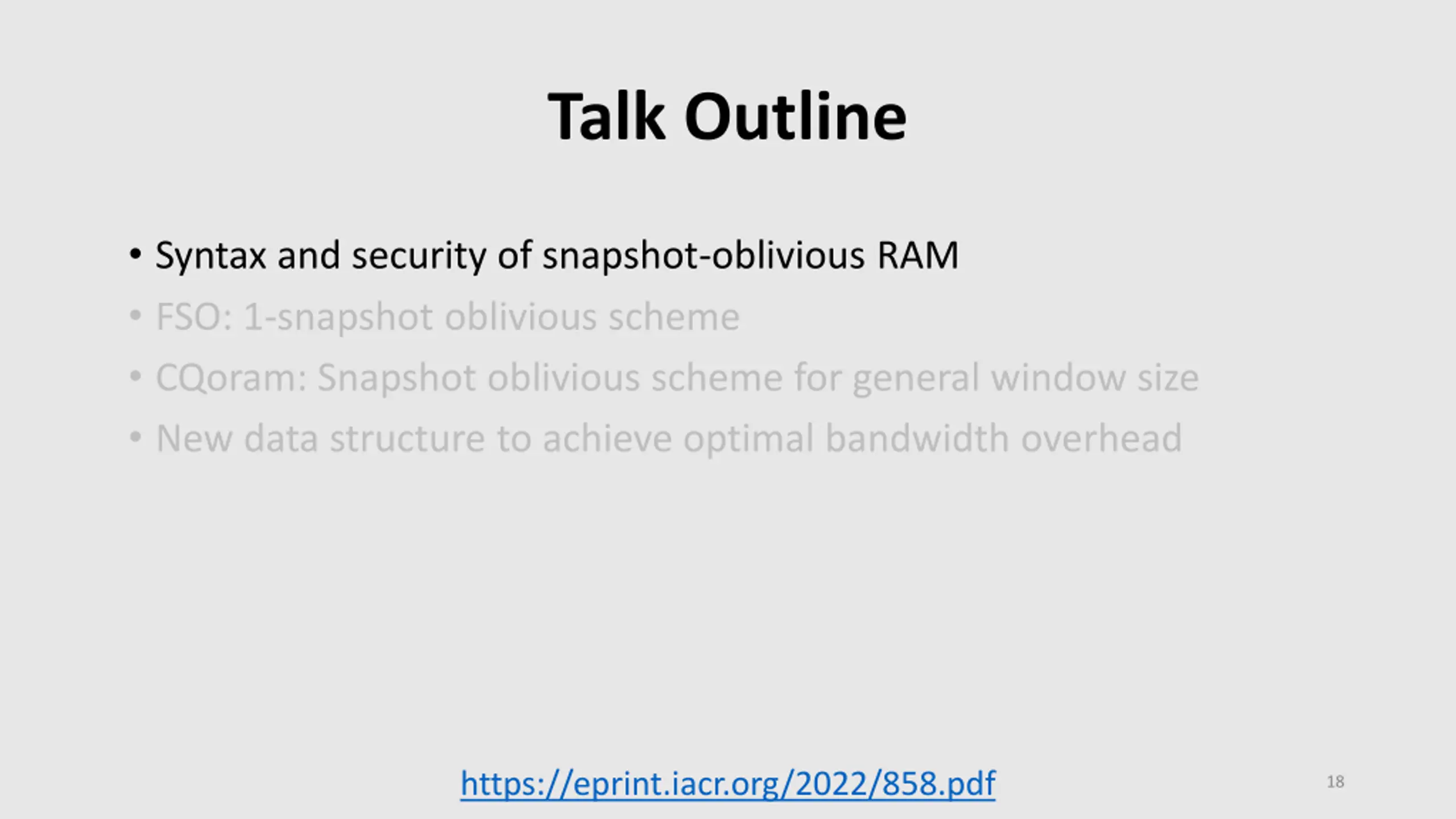

18. Talk Outline Syntax and security of snapshot-oblivious RAM FSO: 1-snapshot oblivious scheme CQoram: Snapshot oblivious scheme for general window size New data structure to achieve optimal bandwidth overhead https://eprint.iacr.org/2022/858.pdf 18

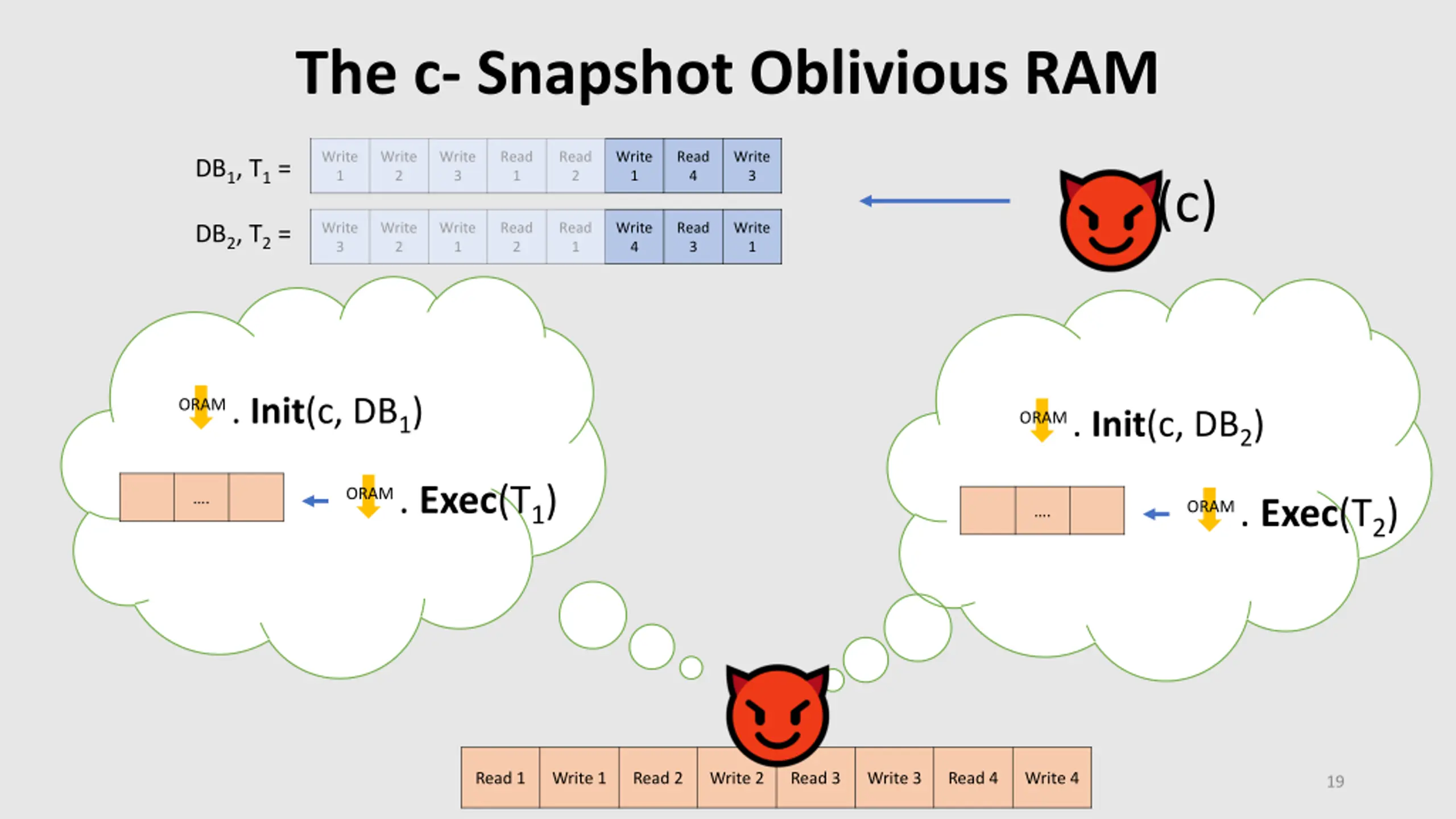

19. The c- Snapshot Oblivious RAM Write 1 Write 2 Write 3 Read 1 Read 2 Write 1 Read 4 Write 3 DB1, T1 = (c) Write 3 Write 2 Write 1 Read 2 Read 1 Write 4 Read 3 Write 1 DB2, T2 = . Init(c, DB1) ORAM . Init(c, DB2) ORAM . Exec(T1) ORAM . . Exec(T2) ORAM . Read 1 Write 1 Read 2 Write 2 Read 3 Write 3 Read 4 Write 4 19

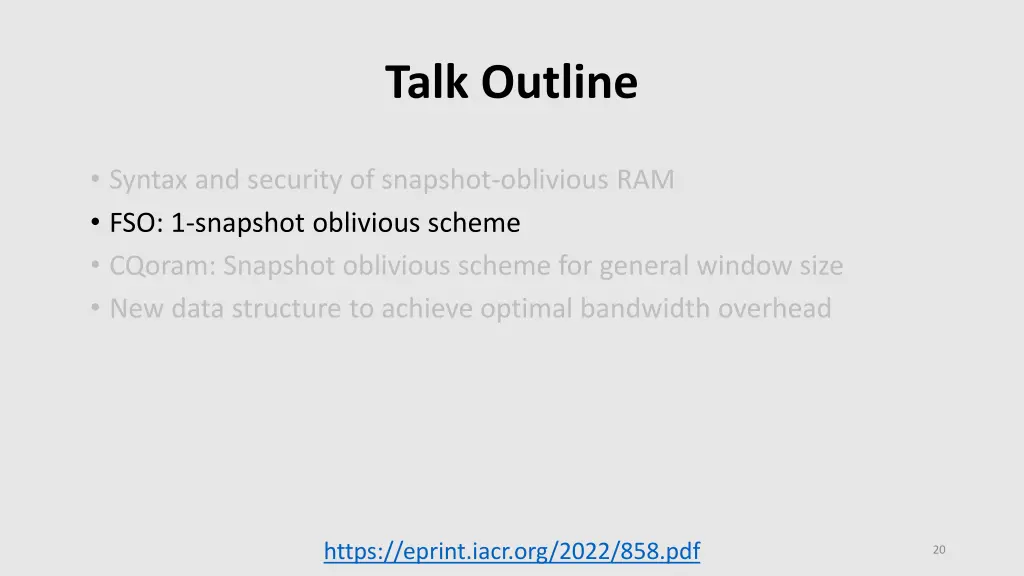

20. Talk Outline Syntax and security of snapshot-oblivious RAM FSO: 1-snapshot oblivious scheme CQoram: Snapshot oblivious scheme for general window size New data structure to achieve optimal bandwidth overhead https://eprint.iacr.org/2022/858.pdf 20

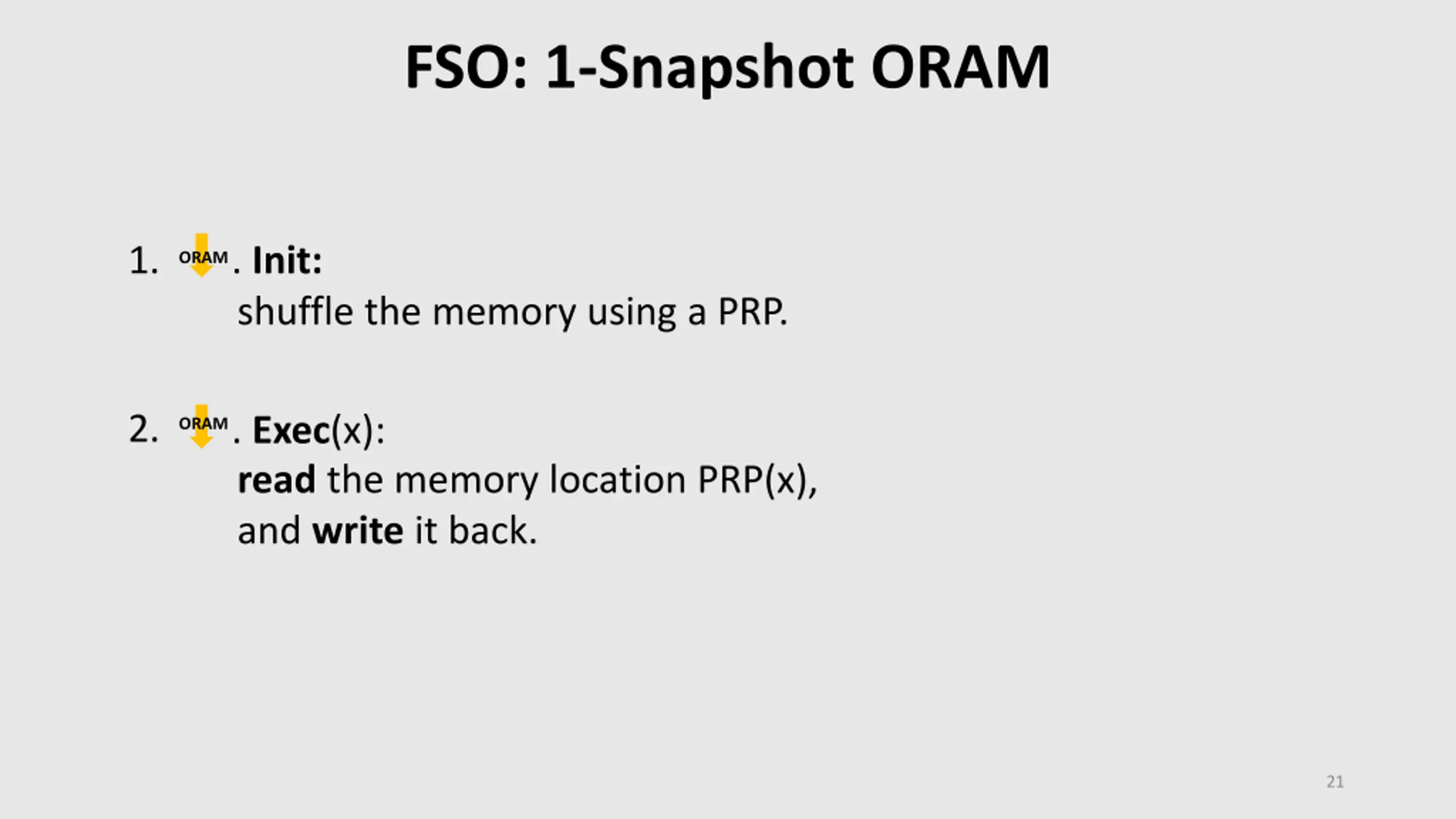

21. FSO: 1-Snapshot ORAM . Init: 1. ORAM shuffle the memory using a PRP. 2. . Exec(x): ORAM read the memory location PRP(x), and write it back. 21

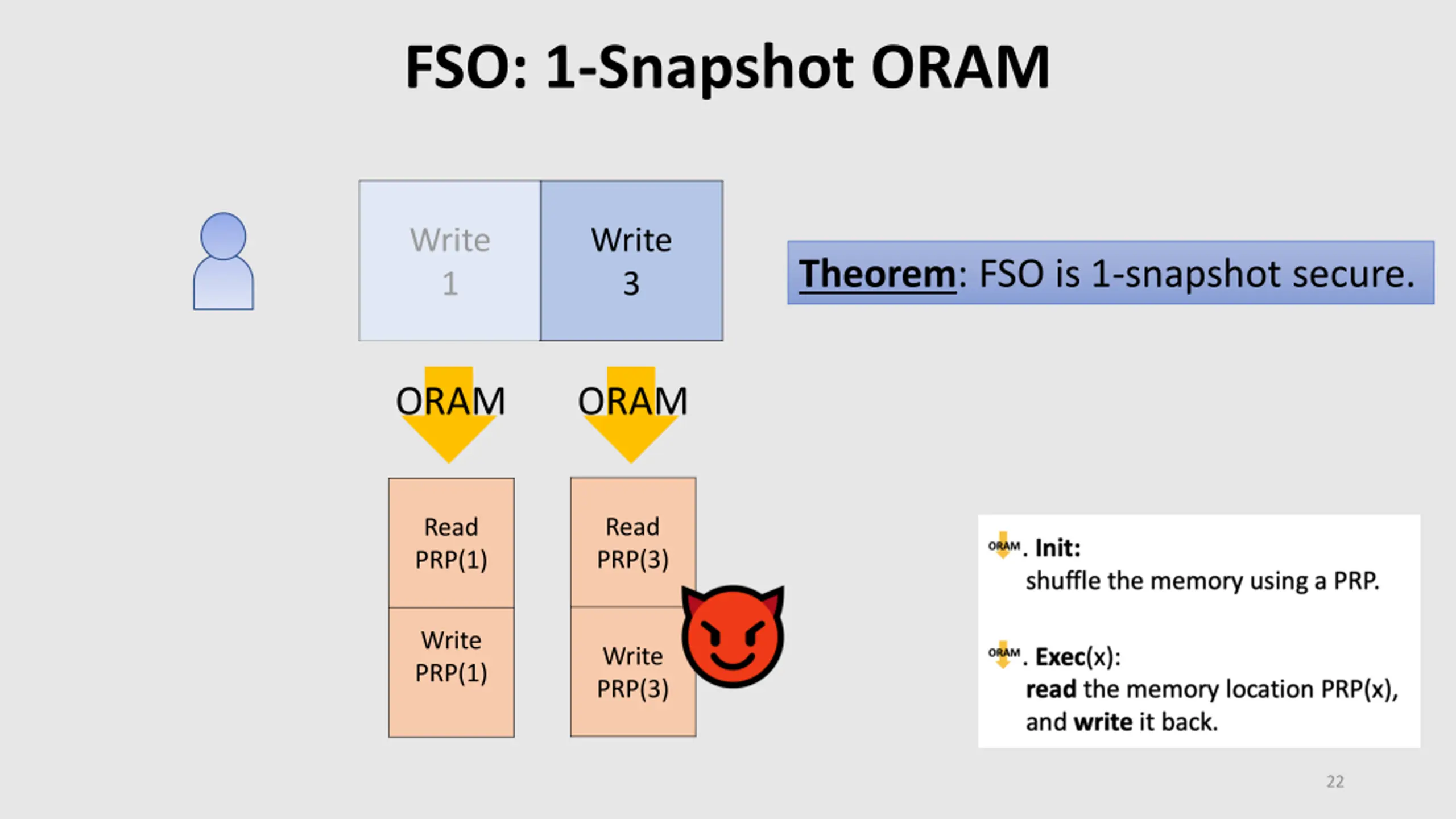

22. FSO: 1-Snapshot ORAM Write 1 Write 3 Theorem: FSO is 1-snapshot secure. ORAM ORAM Read PRP(3) Read PRP(1) Write PRP(1) Write PRP(3) 22

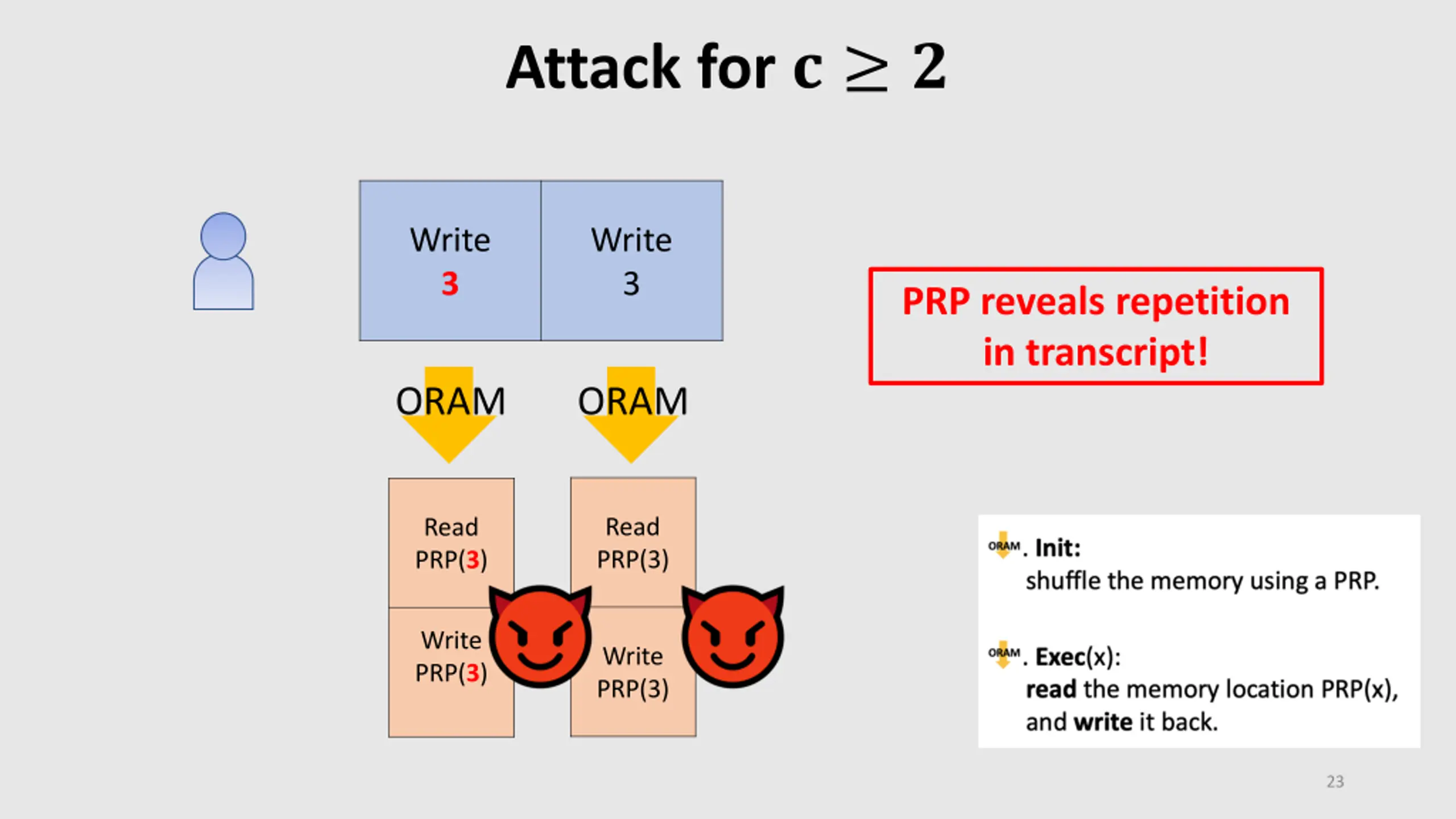

23. Attack for ? ? Write 3 Write 3 PRP reveals repetition in transcript! ORAM ORAM Read PRP(3) Read PRP(3) Write PRP(3) Write PRP(3) 23

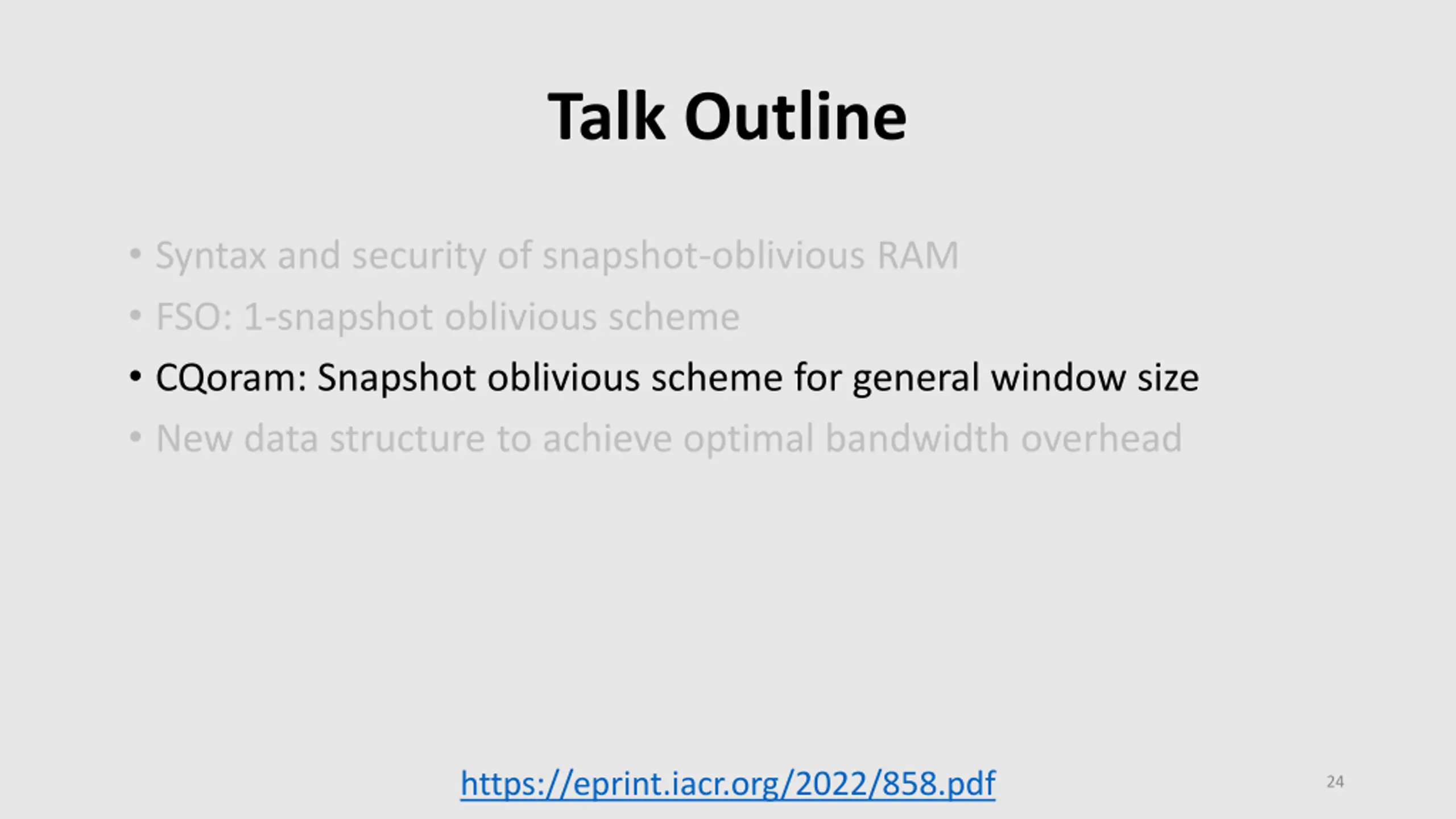

24. Talk Outline Syntax and security of snapshot-oblivious RAM FSO: 1-snapshot oblivious scheme CQoram: Snapshot oblivious scheme for general window size New data structure to achieve optimal bandwidth overhead https://eprint.iacr.org/2022/858.pdf 24

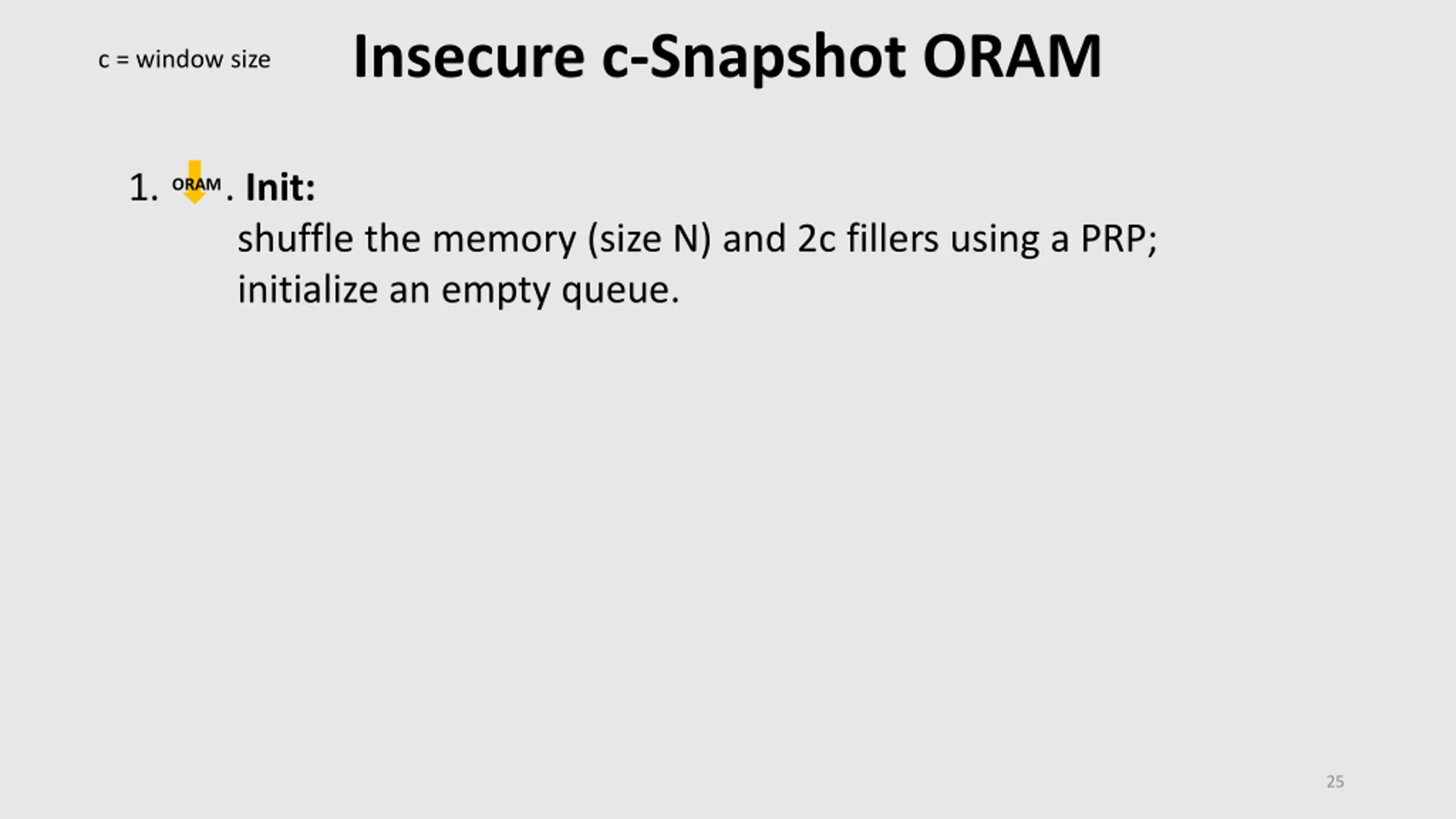

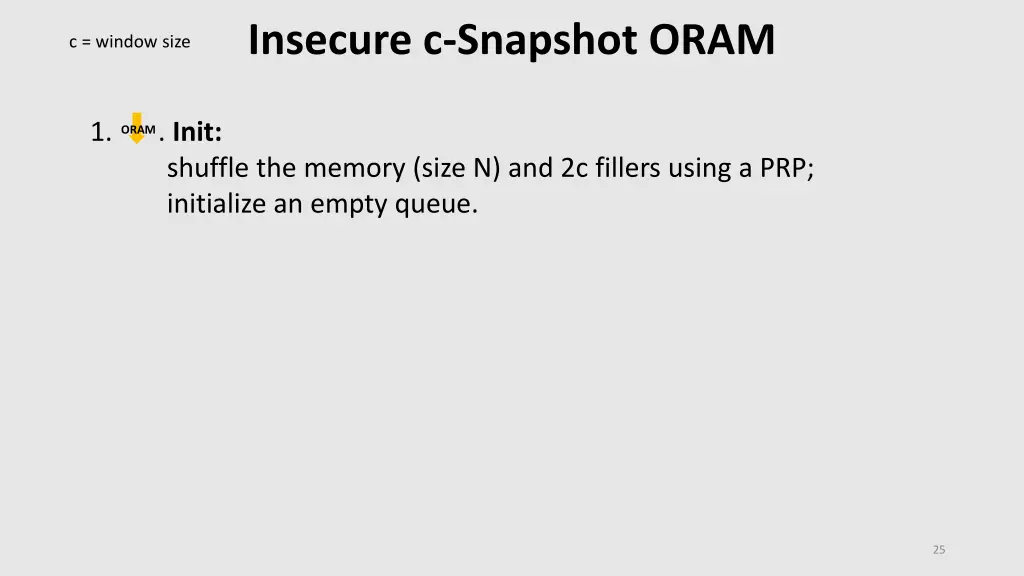

25. Insecure c-Snapshot ORAM c = window size . Init: 1. ORAM shuffle the memory (size N) and 2c fillers using a PRP; initialize an empty queue. 2. . Exec(x): ORAM x not in queue: read the shuffled memory location PRP(x); otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. 25

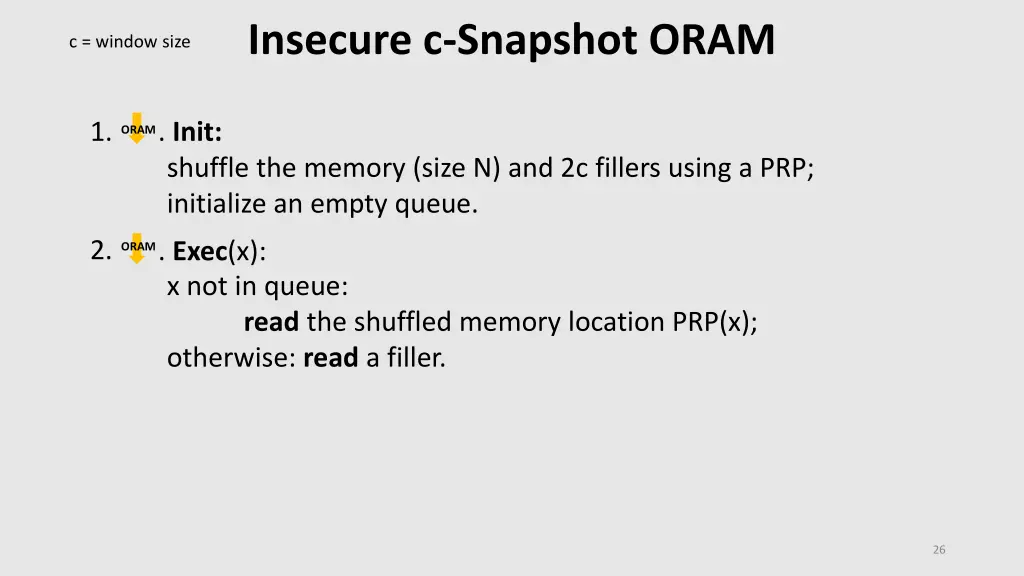

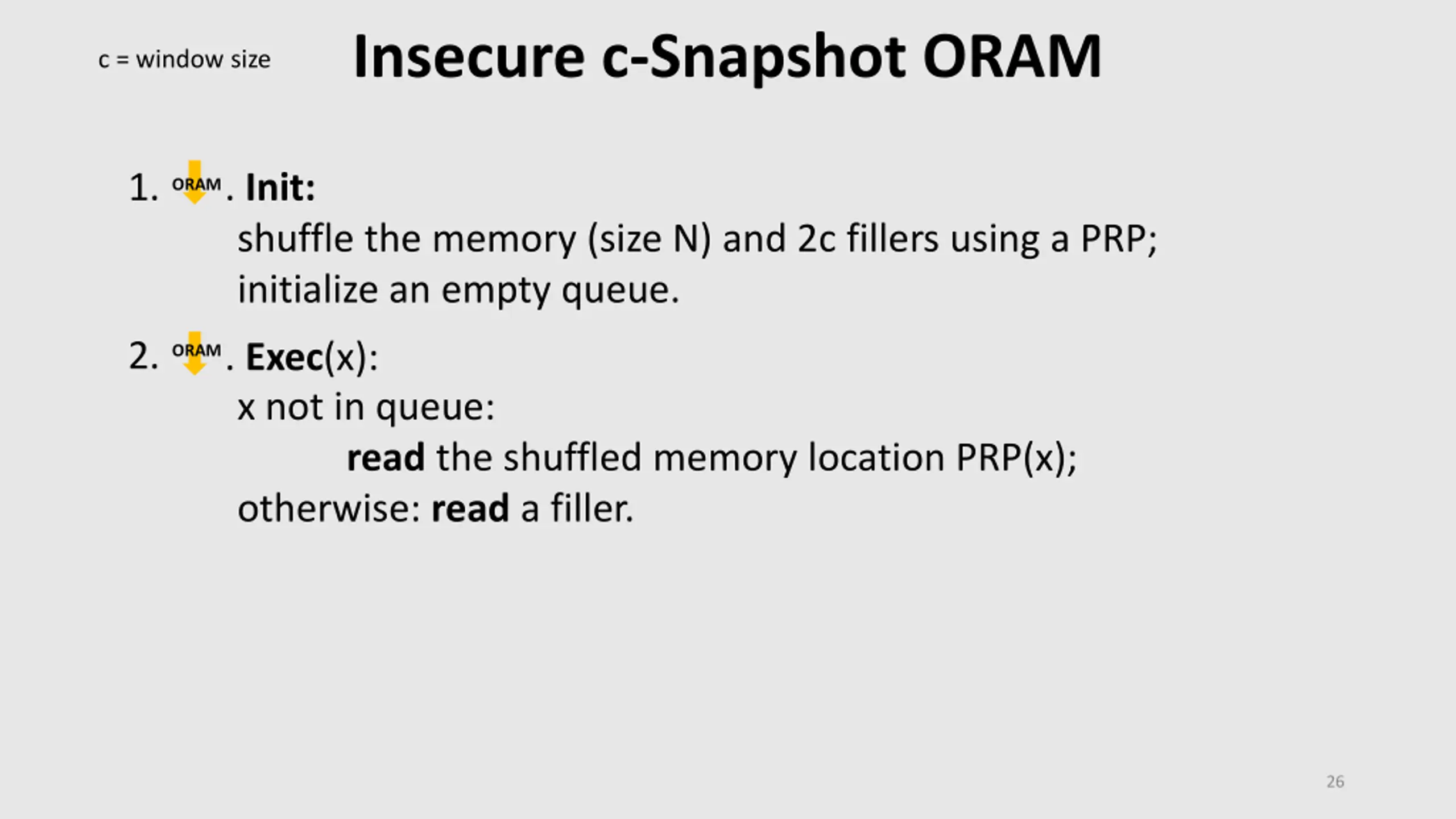

26. Insecure c-Snapshot ORAM c = window size . Init: 1. ORAM shuffle the memory (size N) and 2c fillers using a PRP; initialize an empty queue. 2. . Exec(x): ORAM x not in queue: read the shuffled memory location PRP(x); otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. 26

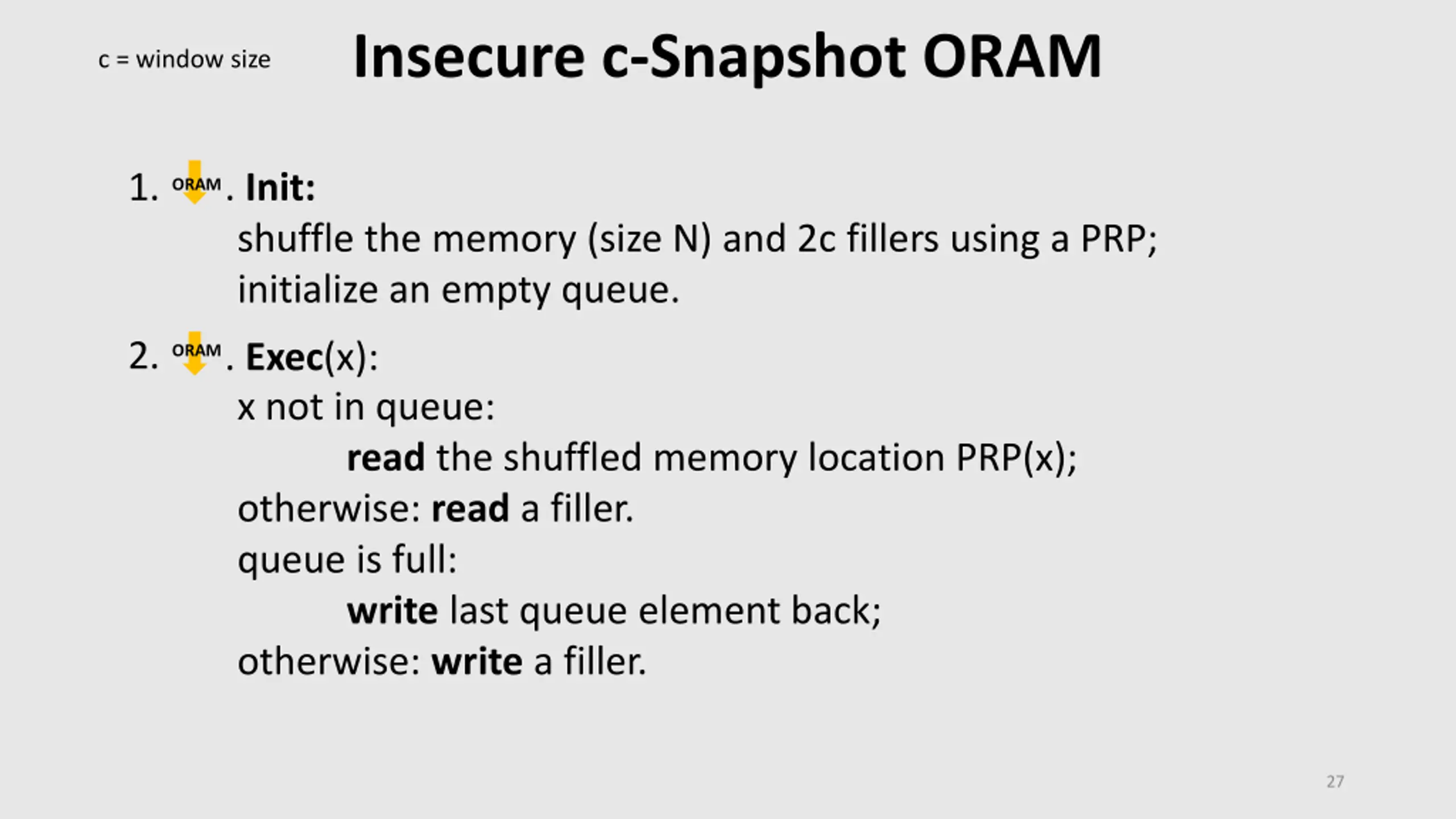

27. Insecure c-Snapshot ORAM c = window size . Init: 1. ORAM shuffle the memory (size N) and 2c fillers using a PRP; initialize an empty queue. 2. . Exec(x): ORAM x not in queue: read the shuffled memory location PRP(x); otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. 27

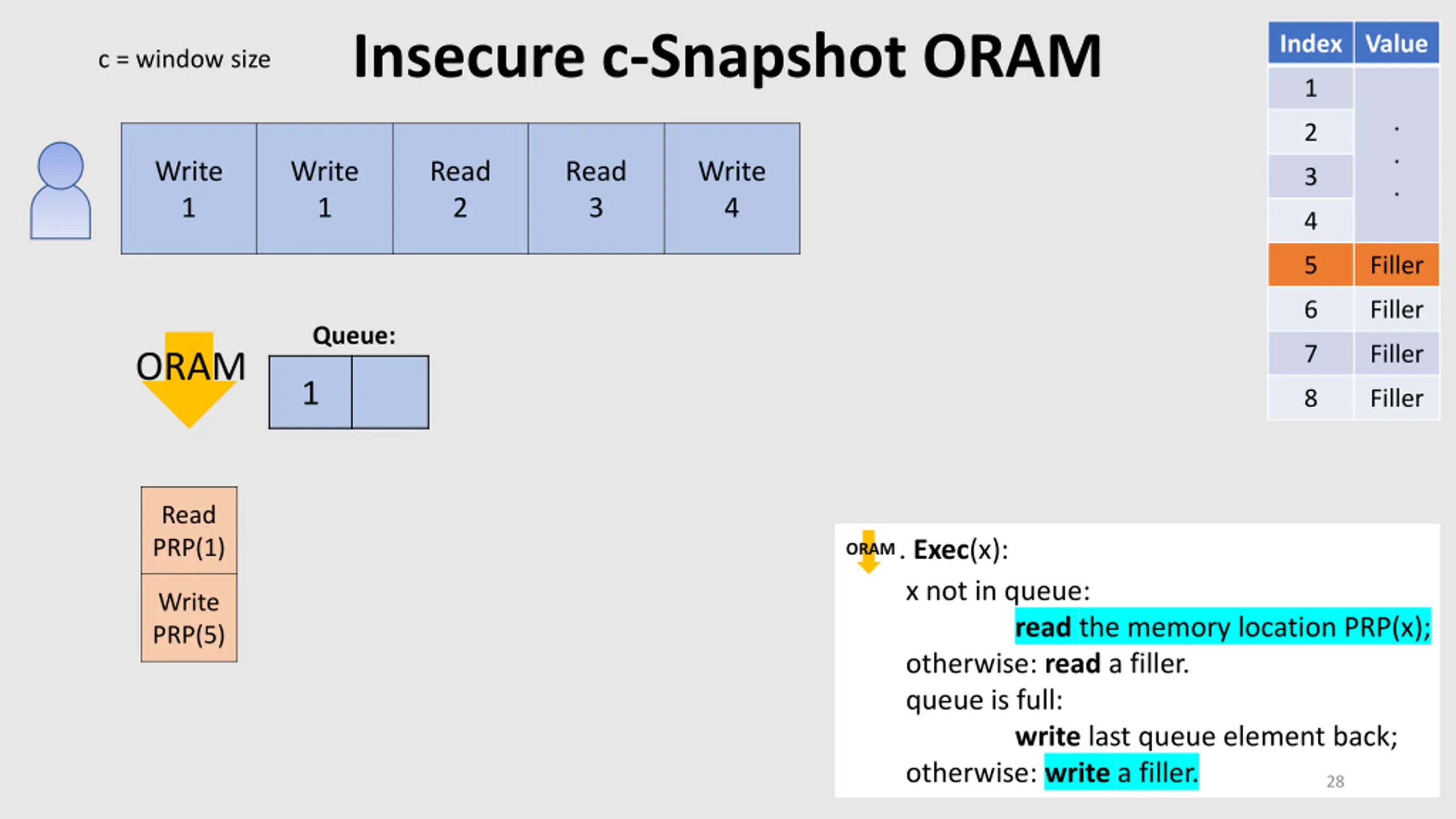

28. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 4 3 4 5 Filler 6 Filler Queue: 7 Filler ORAM 1 8 Filler Read PRP(1) . Exec(x): ORAM x not in queue: Write PRP(5) read the memory location PRP(x); otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. 28

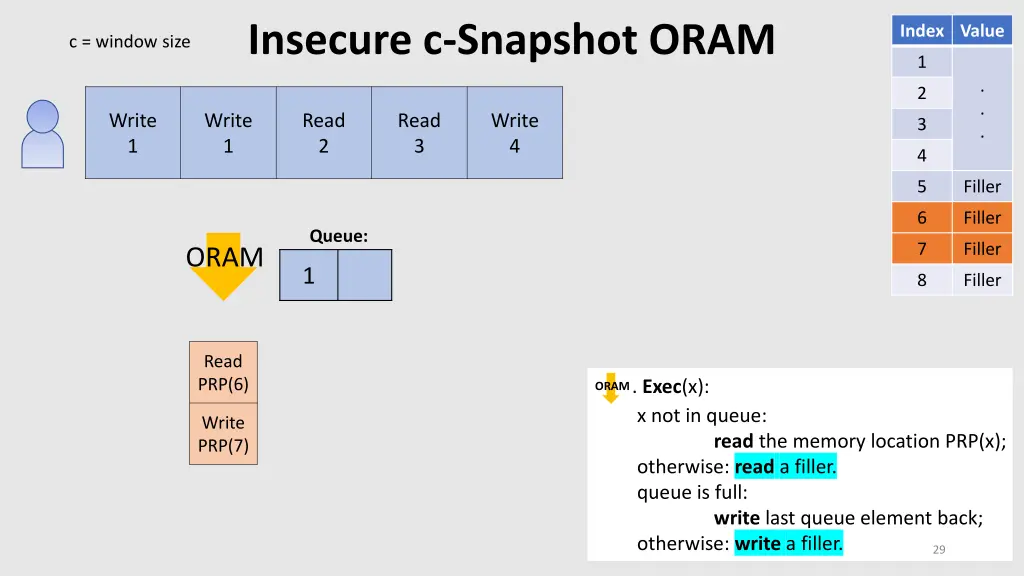

29. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 4 3 4 5 Filler 6 Filler Queue: 7 Filler ORAM 1 8 Filler Read PRP(6) . Exec(x): ORAM x not in queue: otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. Write PRP(7) read the memory location PRP(x); 29

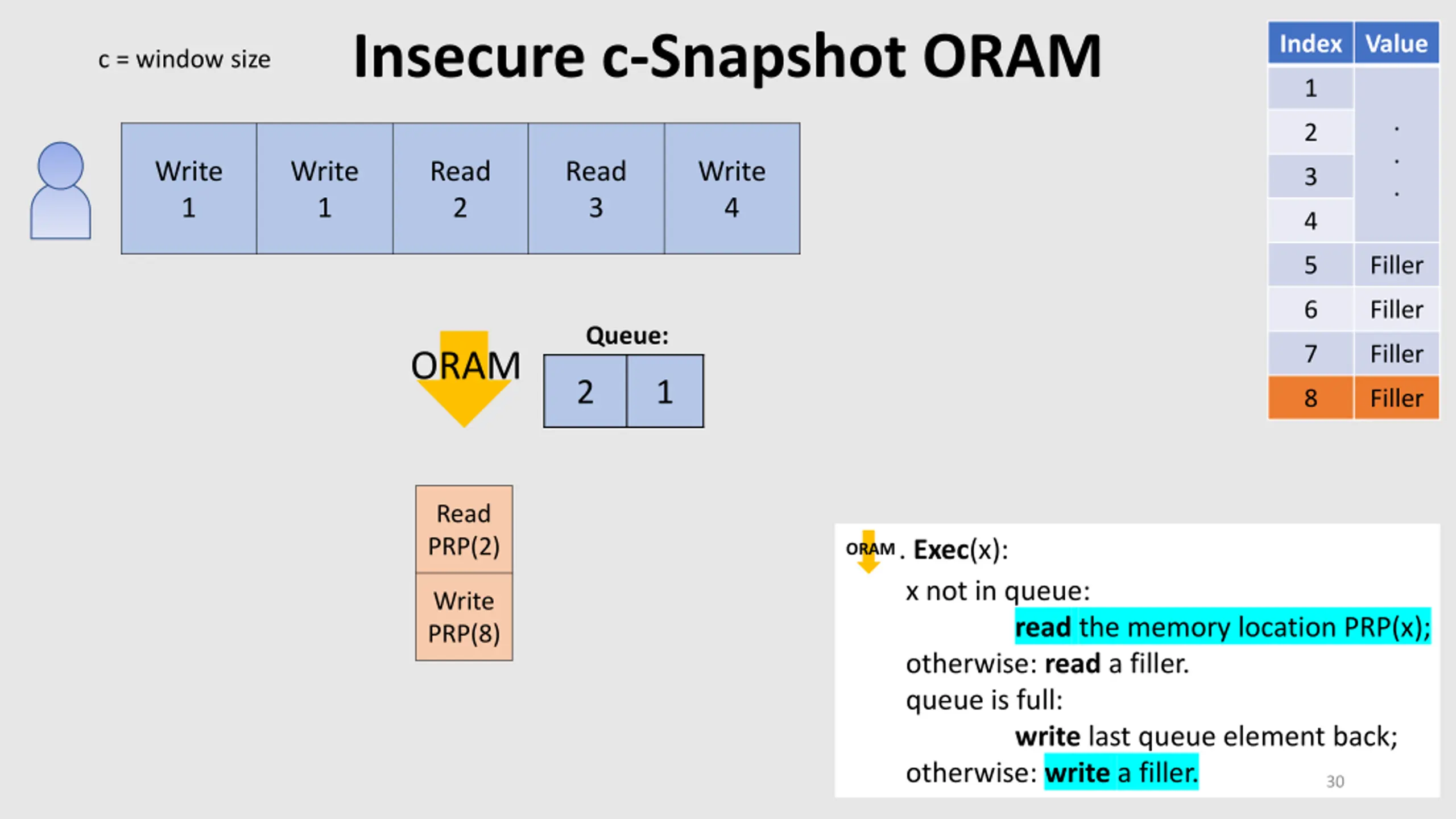

30. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 4 3 4 5 Filler 6 Filler Queue: 7 Filler ORAM 2 1 8 Filler Read PRP(2) . Exec(x): ORAM x not in queue: Write PRP(8) read the memory location PRP(x); otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. 30

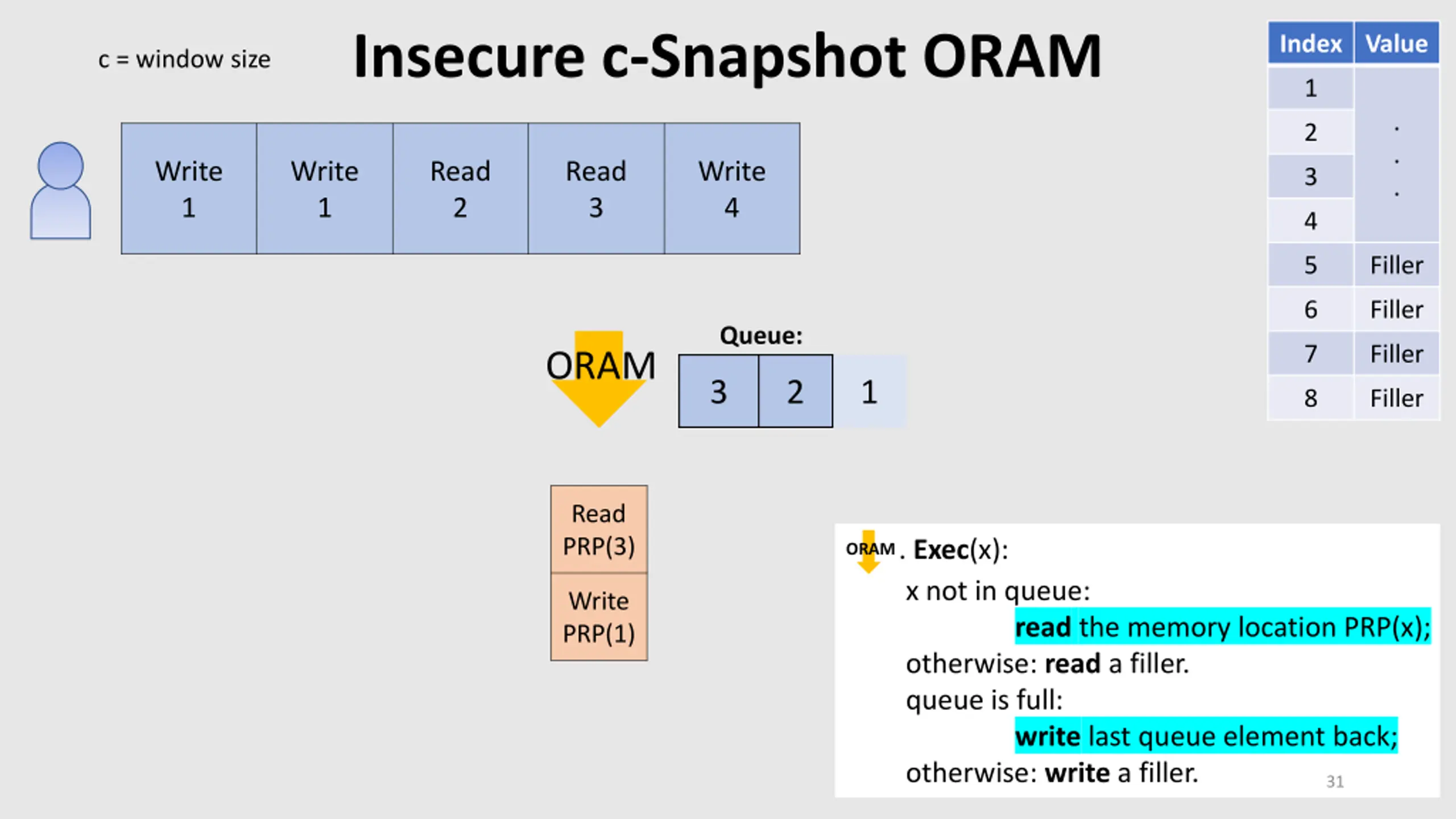

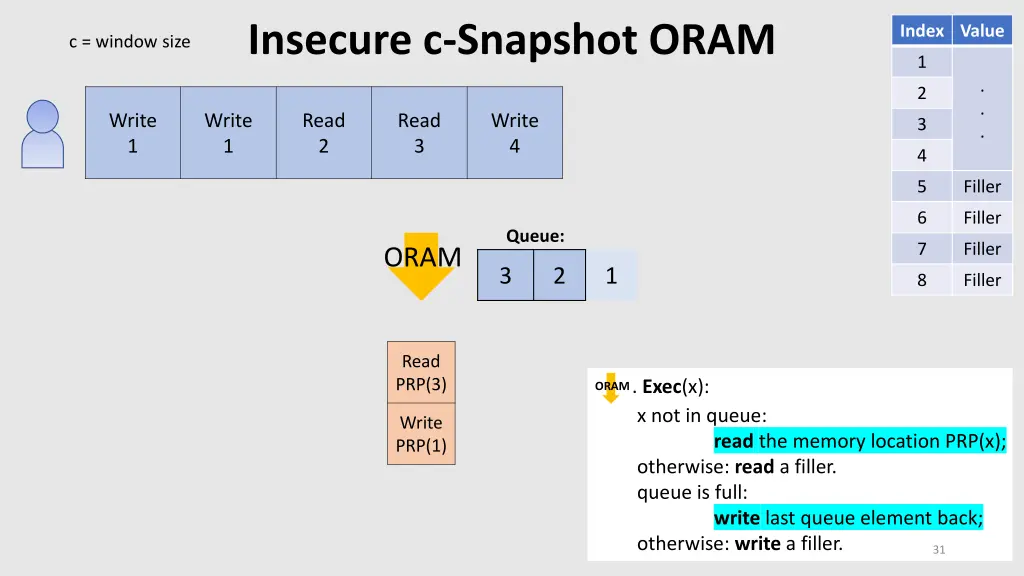

31. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 4 3 4 5 Filler 6 Filler Queue: 7 Filler ORAM 3 2 1 8 Filler Read PRP(3) . Exec(x): ORAM x not in queue: Write PRP(1) read the memory location PRP(x); otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. 31 31

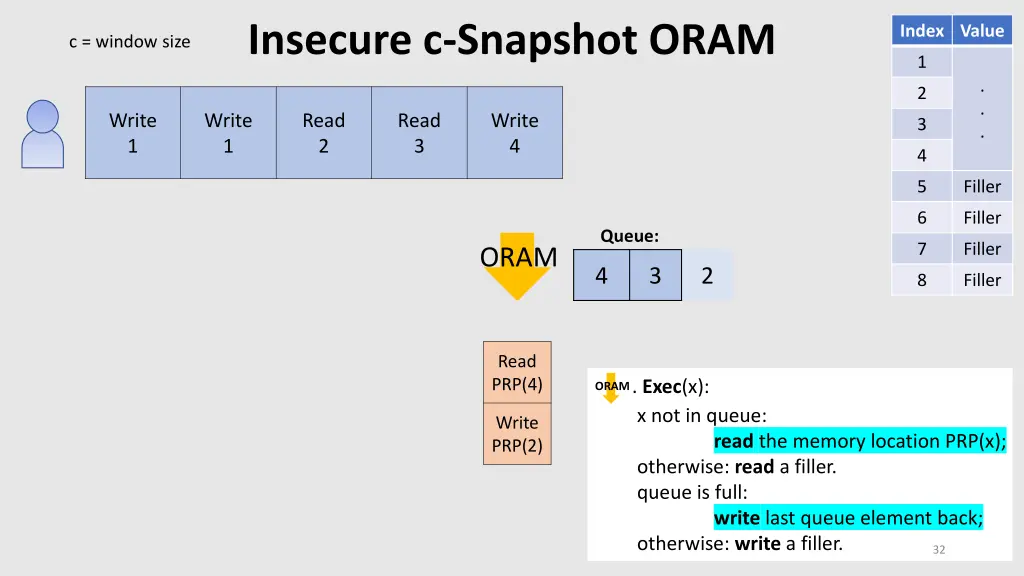

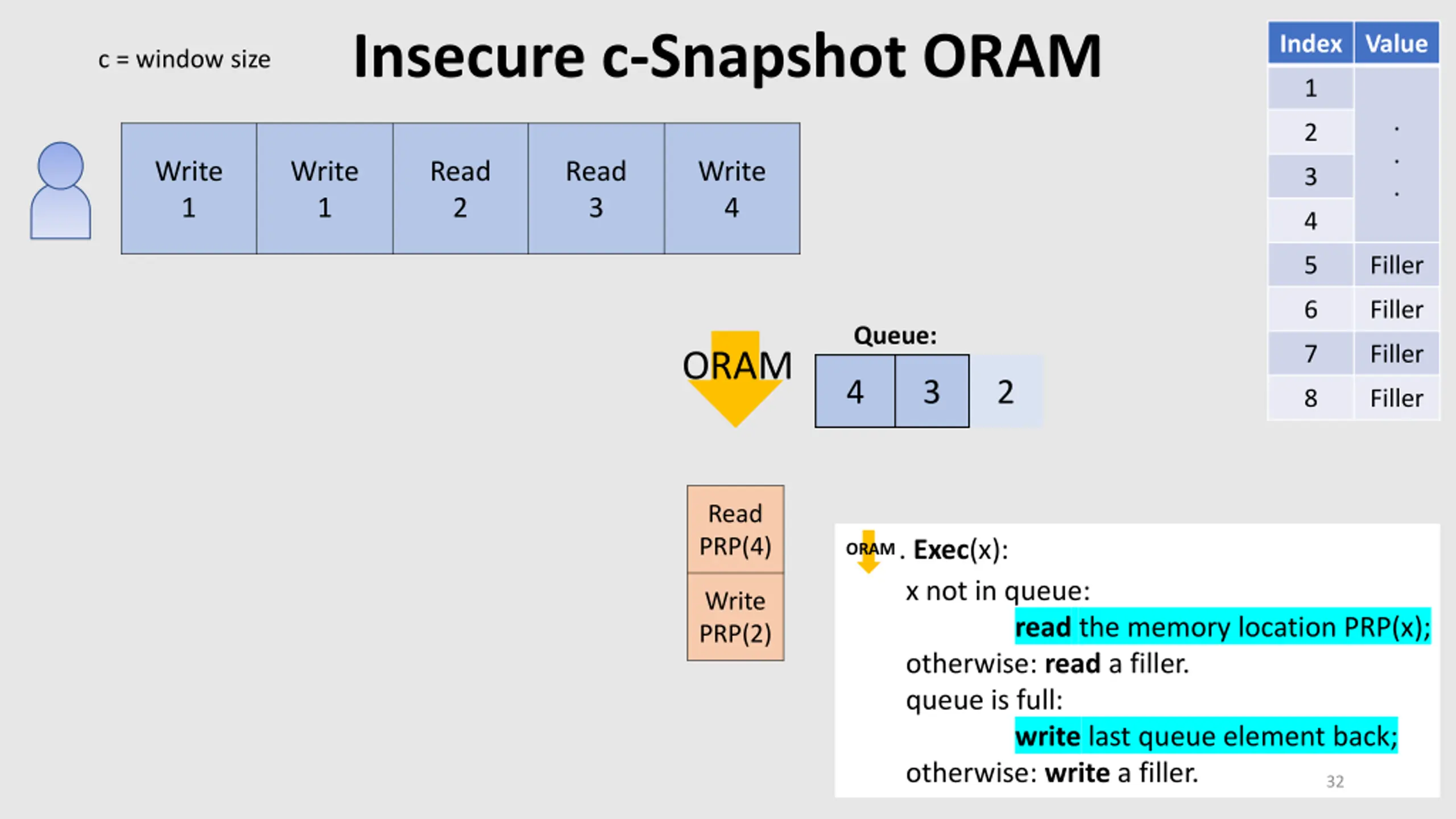

32. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 4 3 4 5 Filler 6 Filler Queue: 7 Filler ORAM 4 3 2 8 Filler Read PRP(4) . Exec(x): ORAM x not in queue: Write PRP(2) read the memory location PRP(x); otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. 32 32

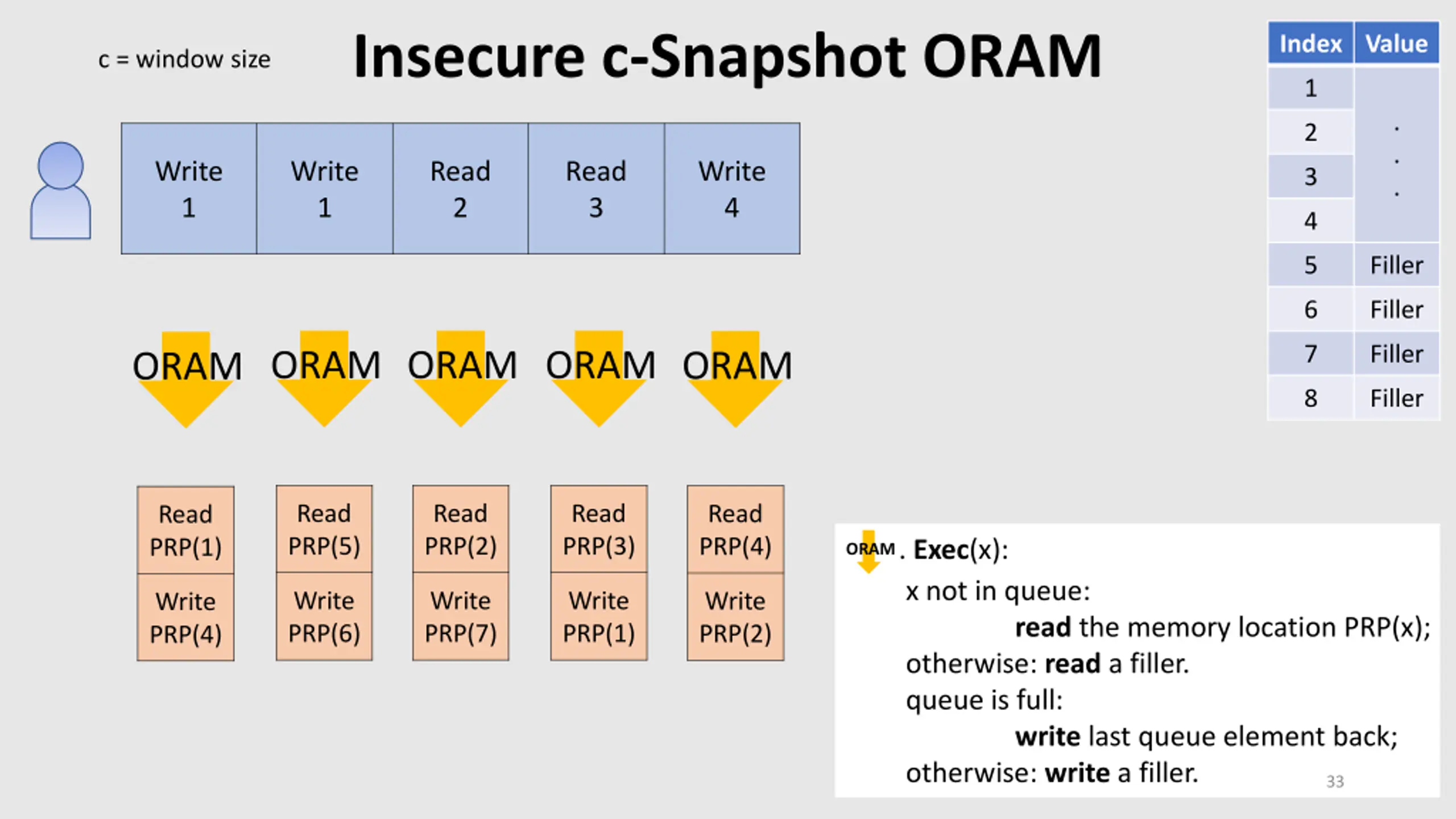

33. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 4 3 4 5 Filler 6 Filler 7 Filler ORAM ORAM ORAM ORAM ORAM 8 Filler Read PRP(5) Read PRP(2) Read PRP(3) Read PRP(4) Read PRP(1) . Exec(x): ORAM x not in queue: otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. Write PRP(6) Write PRP(7) Write PRP(1) Write PRP(2) Write PRP(4) read the memory location PRP(x); 33 33

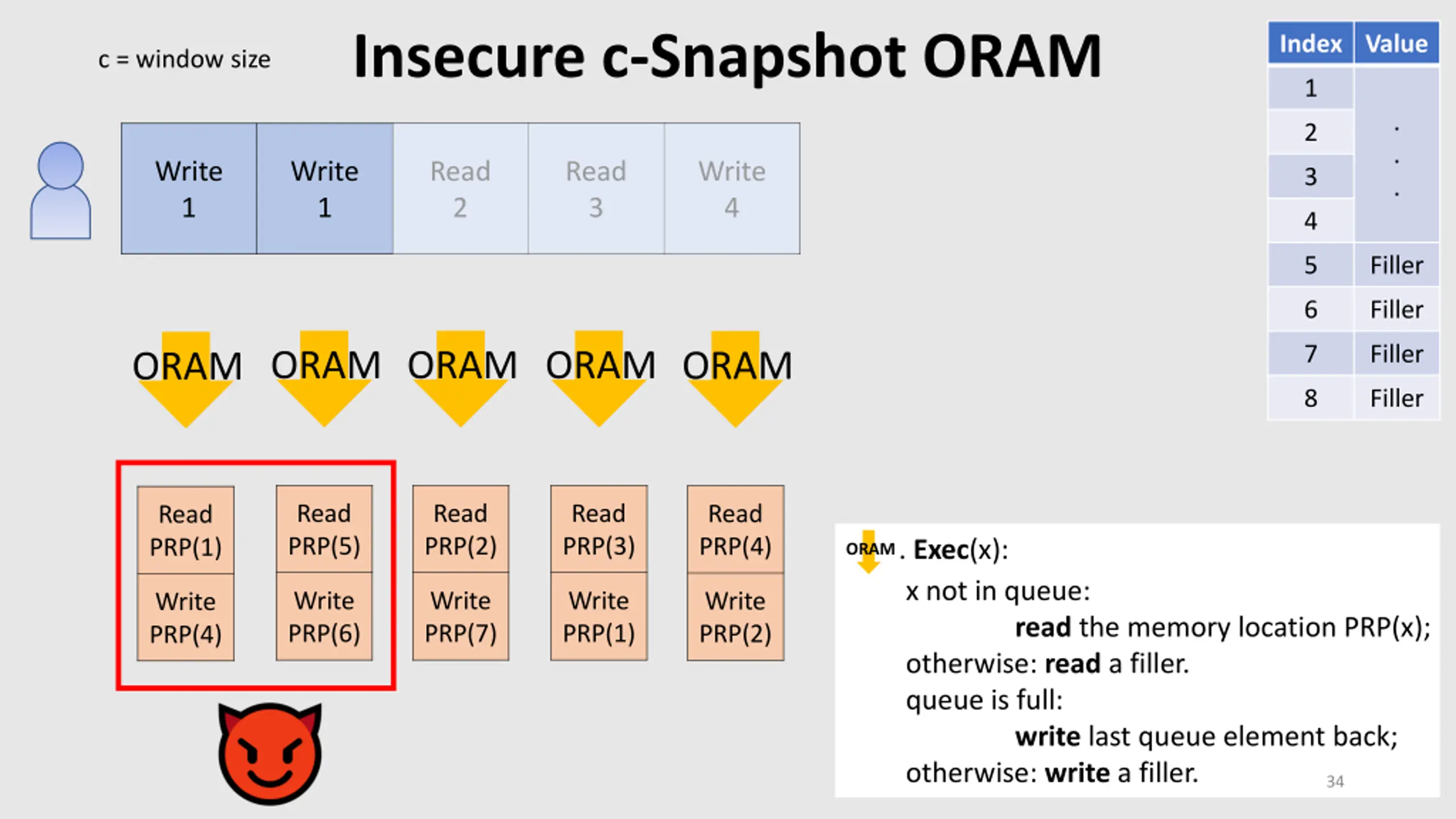

34. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 4 3 4 5 Filler 6 Filler 7 Filler ORAM ORAM ORAM ORAM ORAM 8 Filler Read PRP(5) Read PRP(2) Read PRP(3) Read PRP(4) Read PRP(1) . Exec(x): ORAM x not in queue: otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. Write PRP(6) Write PRP(7) Write PRP(1) Write PRP(2) Write PRP(4) read the memory location PRP(x); 34 34

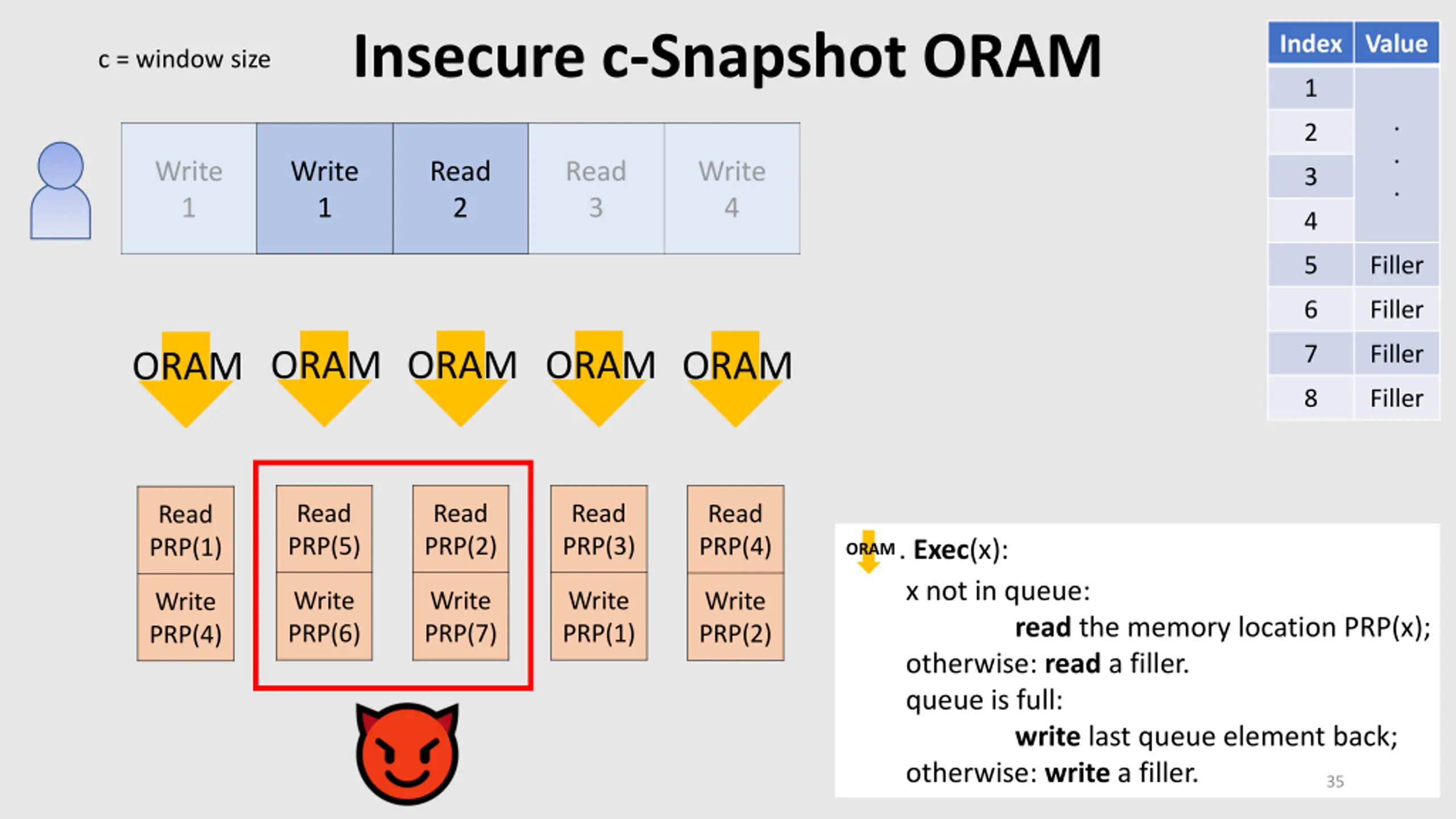

35. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 4 3 4 5 Filler 6 Filler 7 Filler ORAM ORAM ORAM ORAM ORAM 8 Filler Read PRP(5) Read PRP(2) Read PRP(3) Read PRP(4) Read PRP(1) . Exec(x): ORAM x not in queue: otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. Write PRP(6) Write PRP(7) Write PRP(1) Write PRP(2) Write PRP(4) read the memory location PRP(x); 35 35

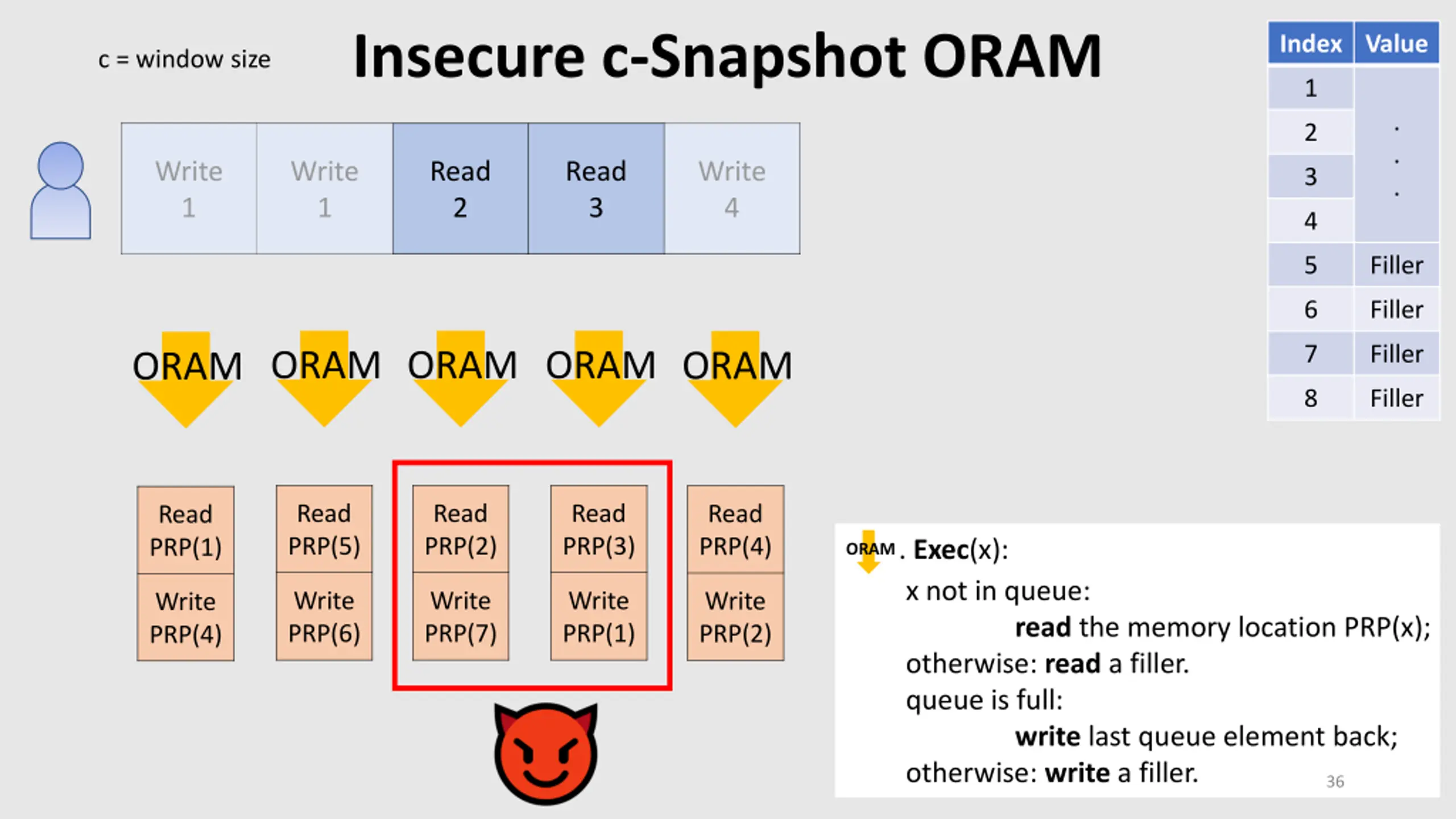

36. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 4 3 4 5 Filler 6 Filler 7 Filler ORAM ORAM ORAM ORAM ORAM 8 Filler Read PRP(5) Read PRP(2) Read PRP(3) Read PRP(4) Read PRP(1) . Exec(x): ORAM x not in queue: otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. Write PRP(6) Write PRP(7) Write PRP(1) Write PRP(2) Write PRP(4) read the memory location PRP(x); 36 36

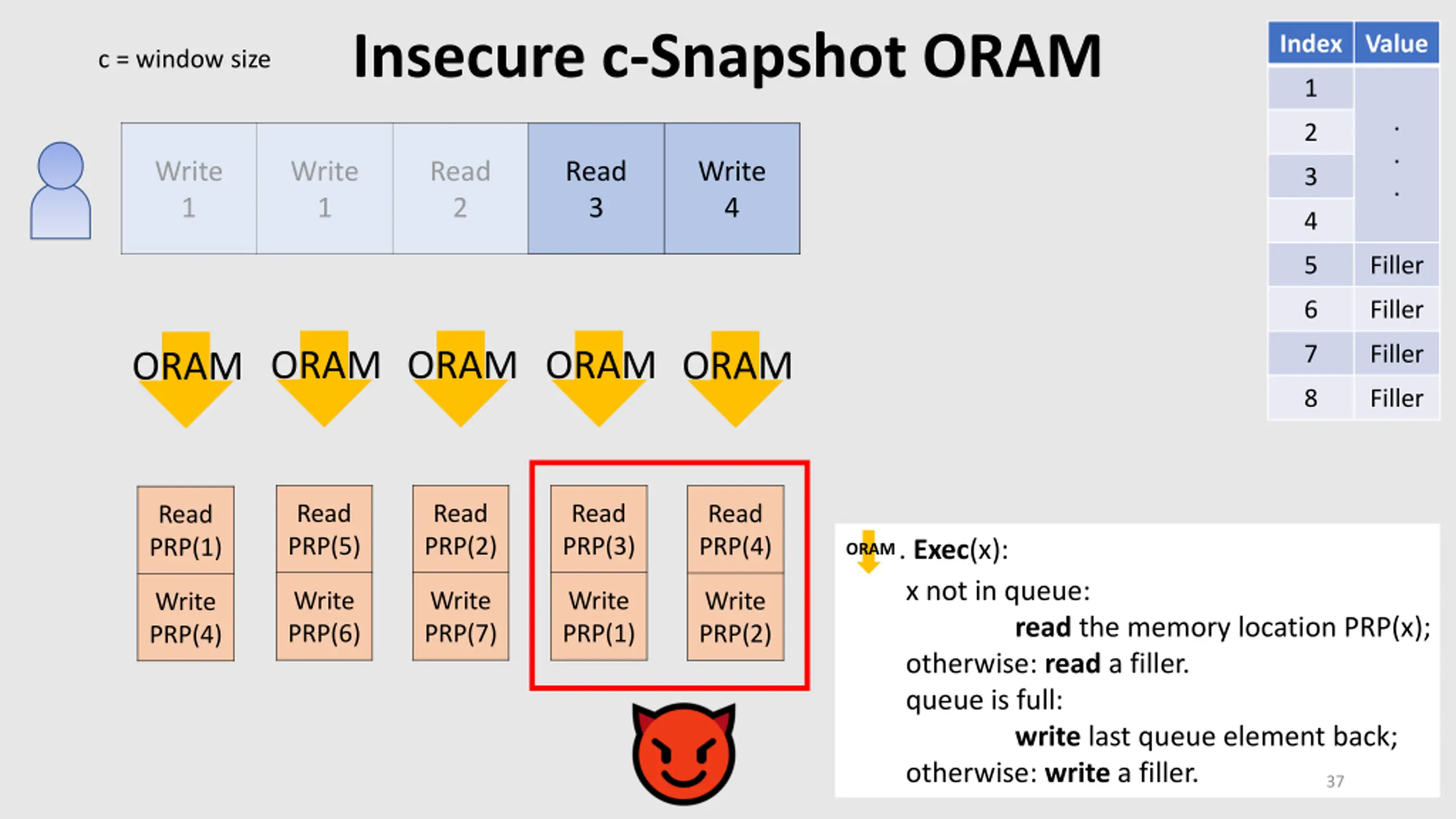

37. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 4 3 4 5 Filler 6 Filler 7 Filler ORAM ORAM ORAM ORAM ORAM 8 Filler Read PRP(5) Read PRP(2) Read PRP(3) Read PRP(4) Read PRP(1) . Exec(x): ORAM x not in queue: otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. Write PRP(6) Write PRP(7) Write PRP(1) Write PRP(2) Write PRP(4) read the memory location PRP(x); 37 37

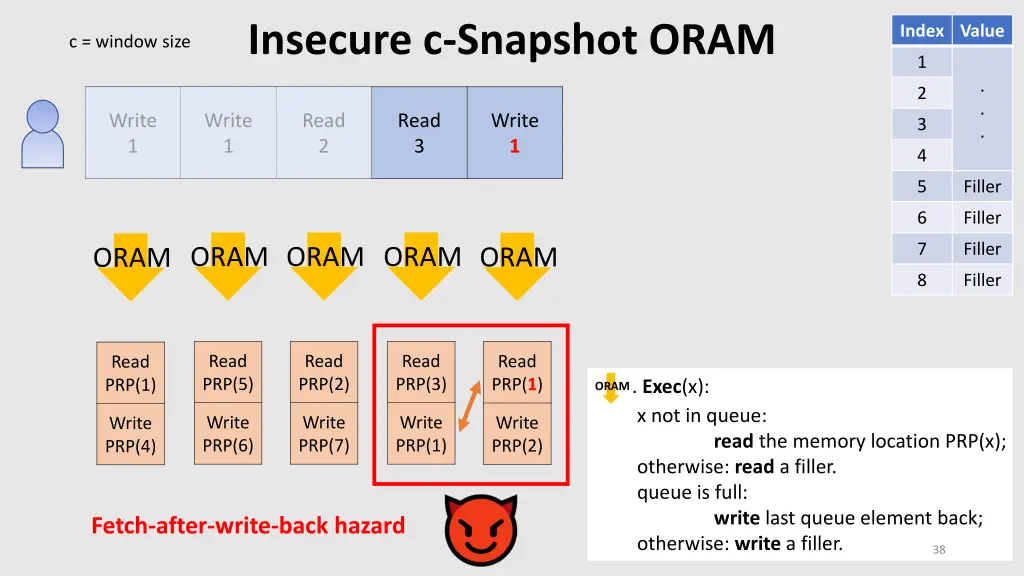

38. Insecure c-Snapshot ORAM Index Value c = window size 1 . . . 2 Write 1 Write 1 Read 2 Read 3 Write 1 3 4 5 Filler 6 Filler 7 Filler ORAM ORAM ORAM ORAM ORAM 8 Filler Read PRP(5) Read PRP(2) Read PRP(3) Read PRP(1) Read PRP(1) . Exec(x): ORAM x not in queue: otherwise: read a filler. queue is full: write last queue element back; otherwise: write a filler. Write PRP(6) Write PRP(7) Write PRP(1) Write PRP(2) Write PRP(4) read the memory location PRP(x); Fetch-after-write-back hazard 38 38

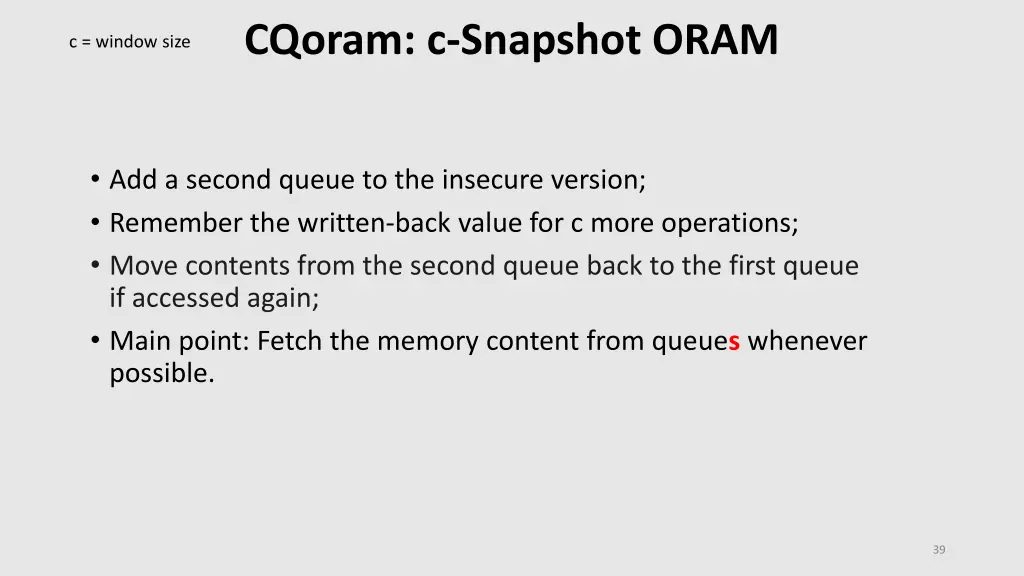

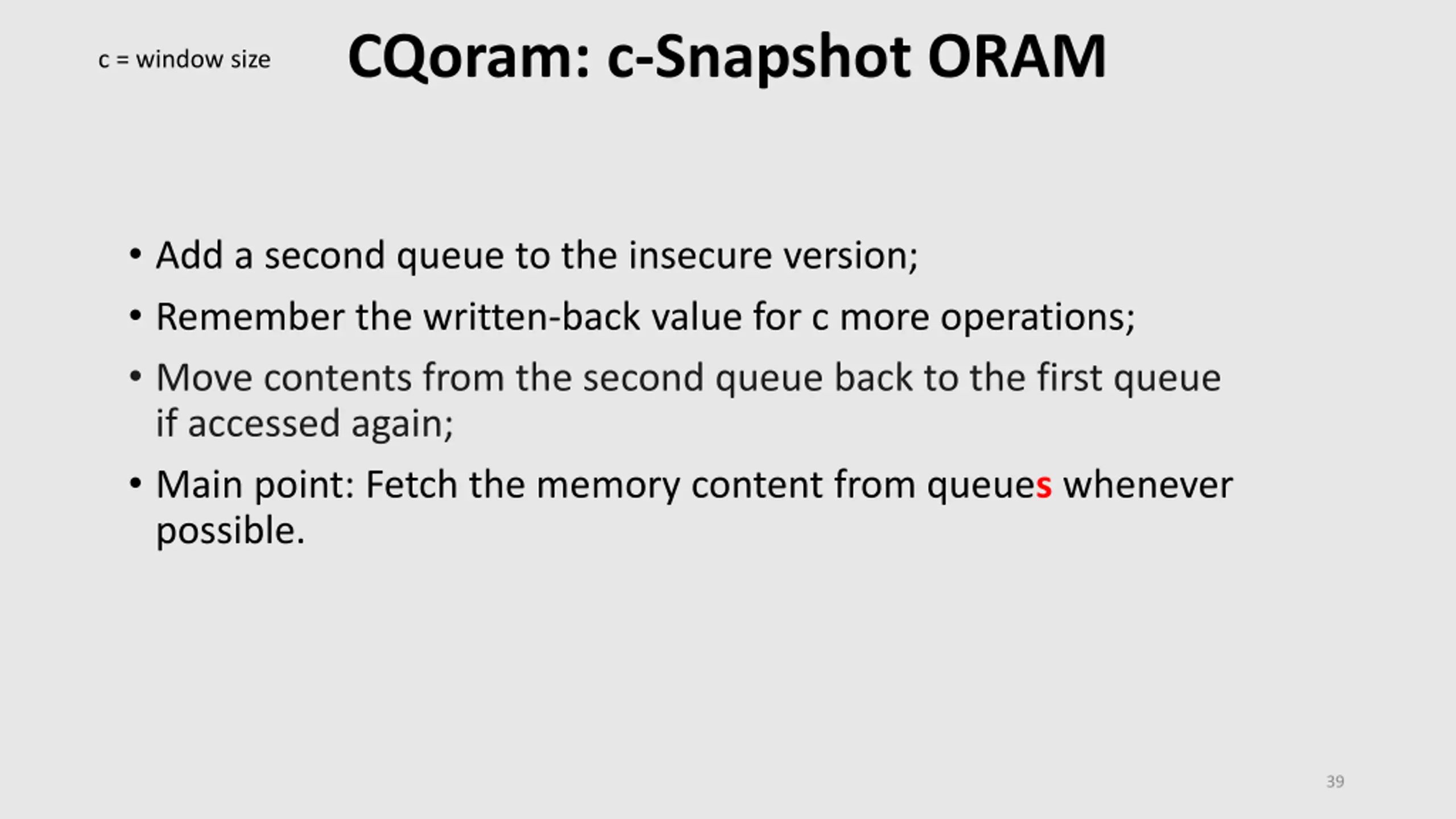

39. CQoram: c-Snapshot ORAM c = window size Add a second queue to the insecure version; Remember the written-back value for c more operations; Move contents from the second queue back to the first queue if accessed again; Main point: Fetch the memory content from queues whenever possible. 39

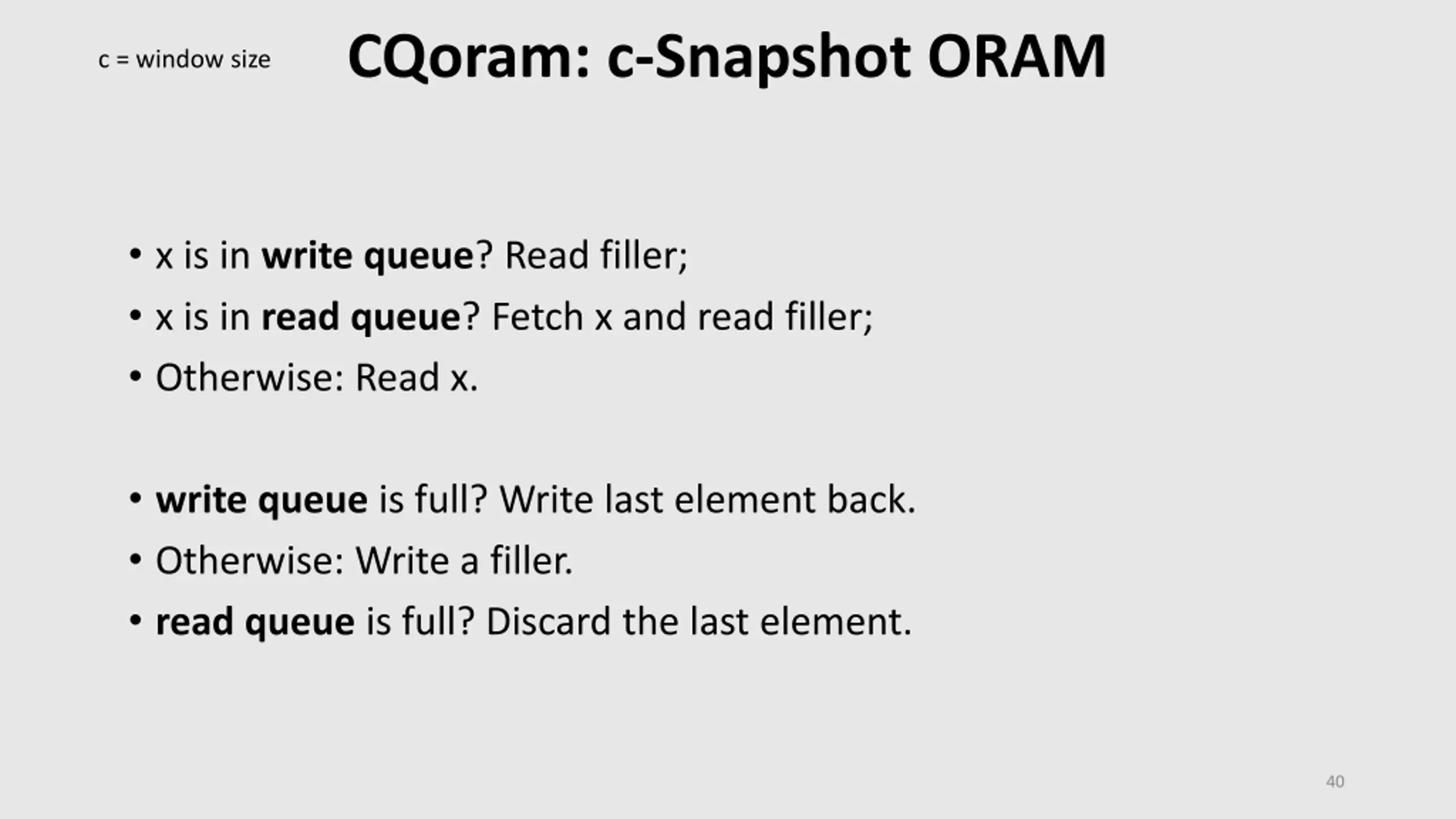

40. CQoram: c-Snapshot ORAM c = window size x is in write queue? Read filler; x is in read queue? Fetch x and read filler; Otherwise: Read x. write queue is full? Write last element back. Otherwise: Write a filler. read queue is full? Discard the last element. 40

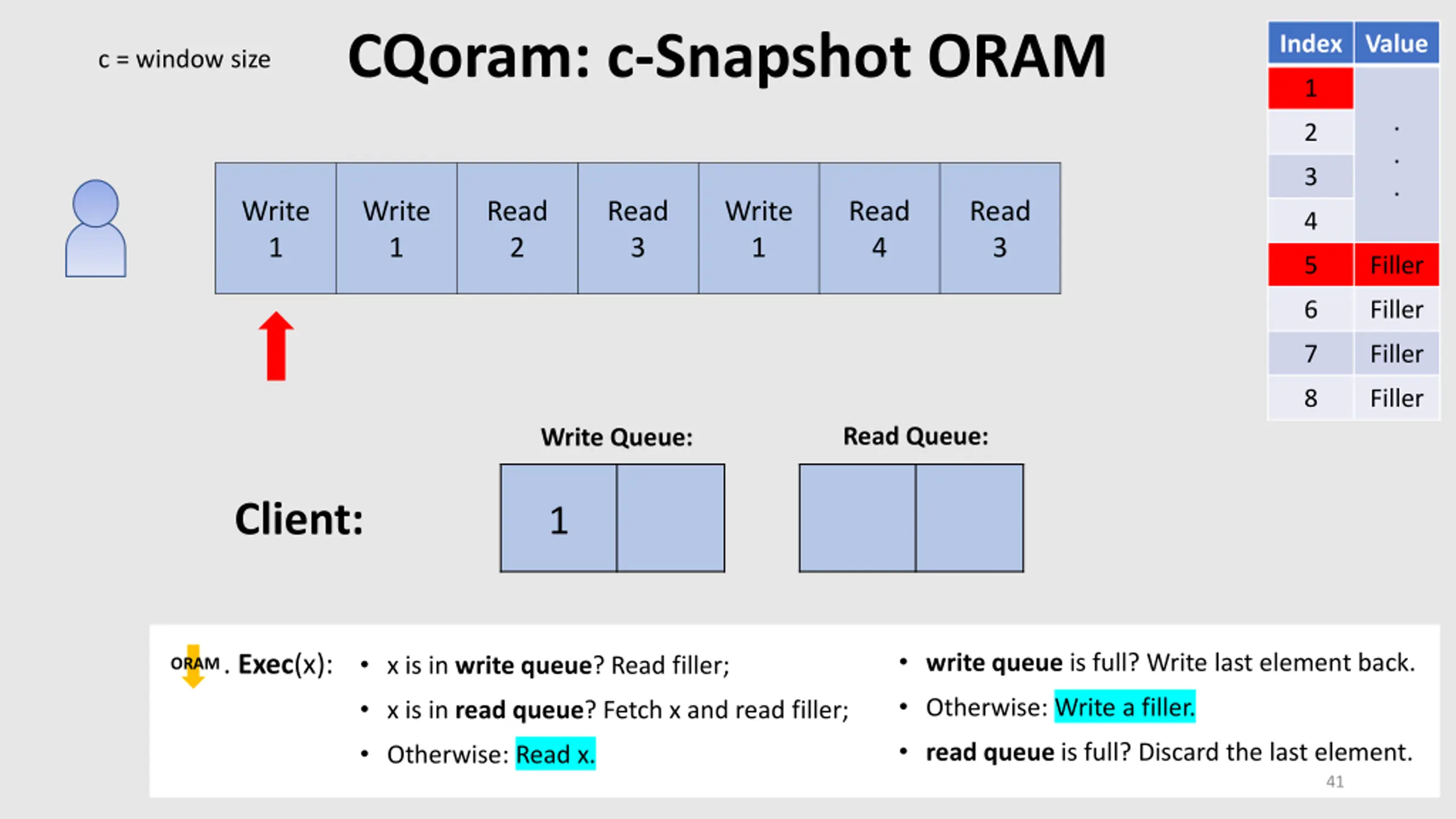

41. CQoram: c-Snapshot ORAM Index Value c = window size 1 . . . 2 3 Write 1 Write 1 Read 2 Read 3 Write 1 Read 4 Read 3 4 5 Filler 6 Filler 7 Filler 8 Filler Read Queue: Write Queue: Client: 1 write queue is full? Write last element back. Otherwise: Write a filler. read queue is full? Discard the last element. x is in write queue? Read filler; x is in read queue? Fetch x and read filler; Otherwise: Read x. . Exec(x): ORAM 41 41 41

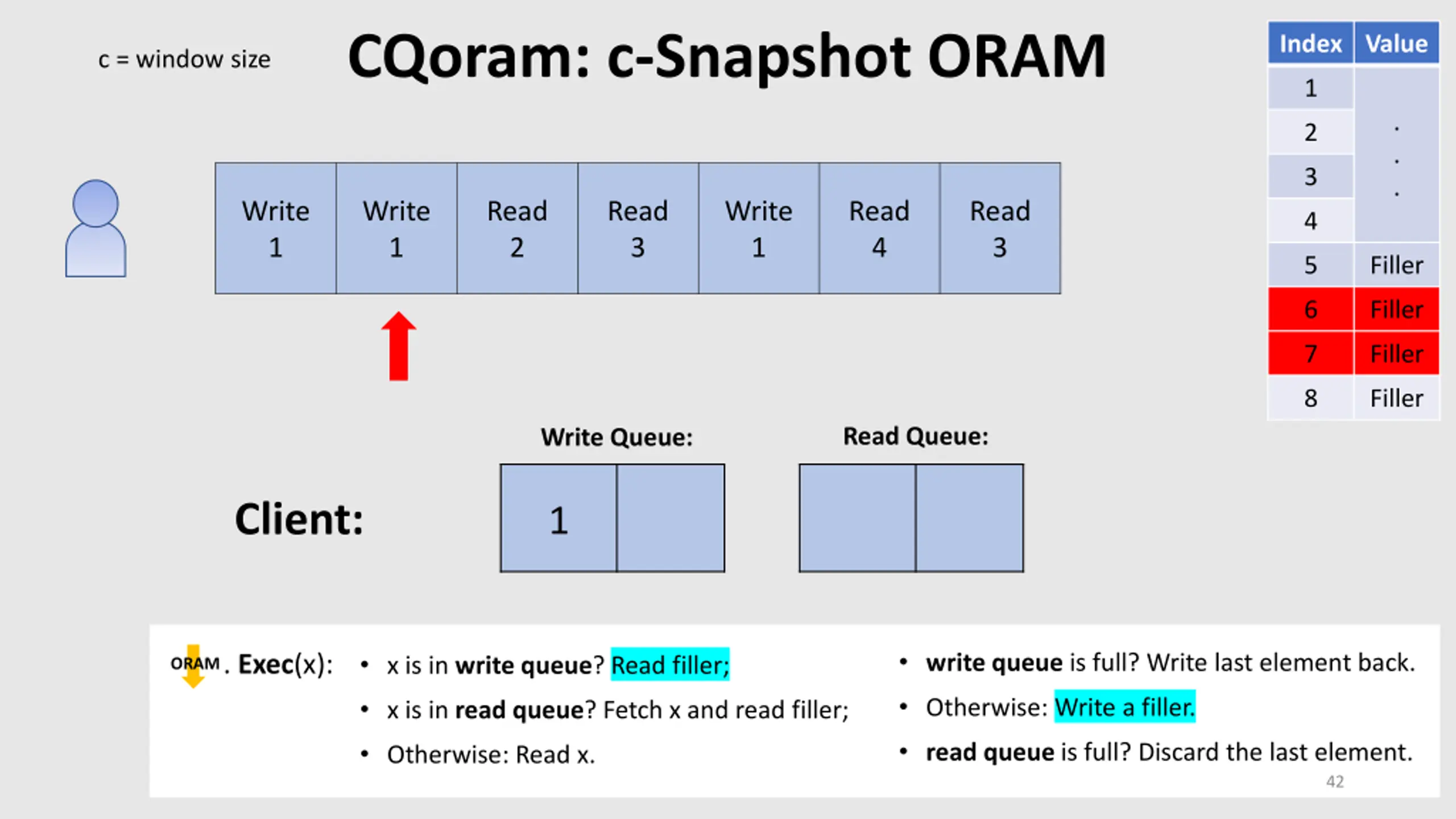

42. CQoram: c-Snapshot ORAM Index Value c = window size 1 . . . 2 3 Write 1 Write 1 Read 2 Read 3 Write 1 Read 4 Read 3 4 5 Filler 6 Filler 7 Filler 8 Filler Read Queue: Write Queue: Client: 1 write queue is full? Write last element back. Otherwise: Write a filler. read queue is full? Discard the last element. x is in write queue? Read filler; x is in read queue? Fetch x and read filler; Otherwise: Read x. . Exec(x): ORAM 42 42 42 42

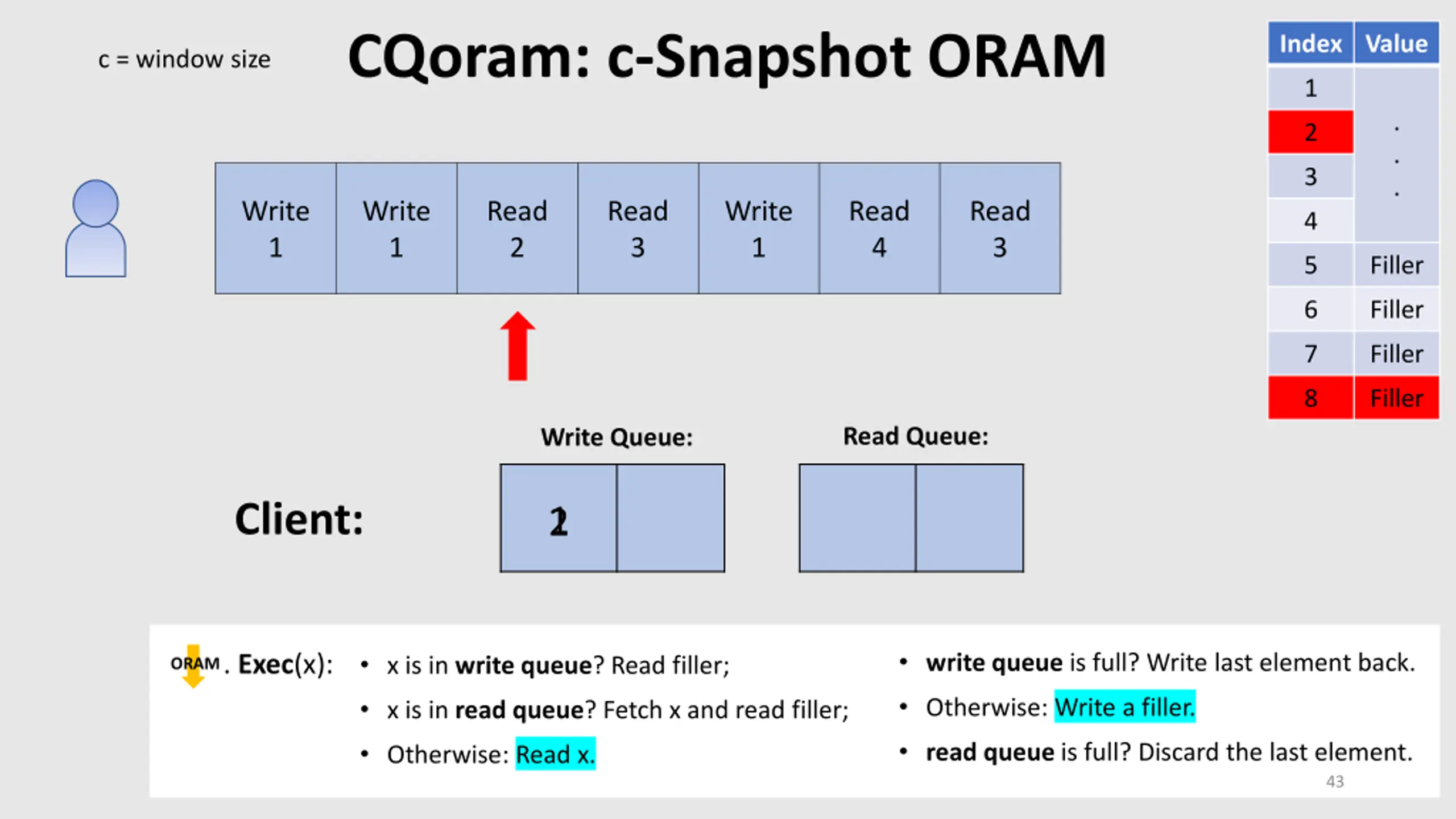

43. CQoram: c-Snapshot ORAM Index Value c = window size 1 . . . 2 3 Write 1 Write 1 Read 2 Read 3 Write 1 Read 4 Read 3 4 5 Filler 6 Filler 7 Filler 8 Filler Read Queue: Write Queue: Client: 1 2 write queue is full? Write last element back. Otherwise: Write a filler. read queue is full? Discard the last element. x is in write queue? Read filler; x is in read queue? Fetch x and read filler; Otherwise: Read x. . Exec(x): ORAM 43 43 43 43

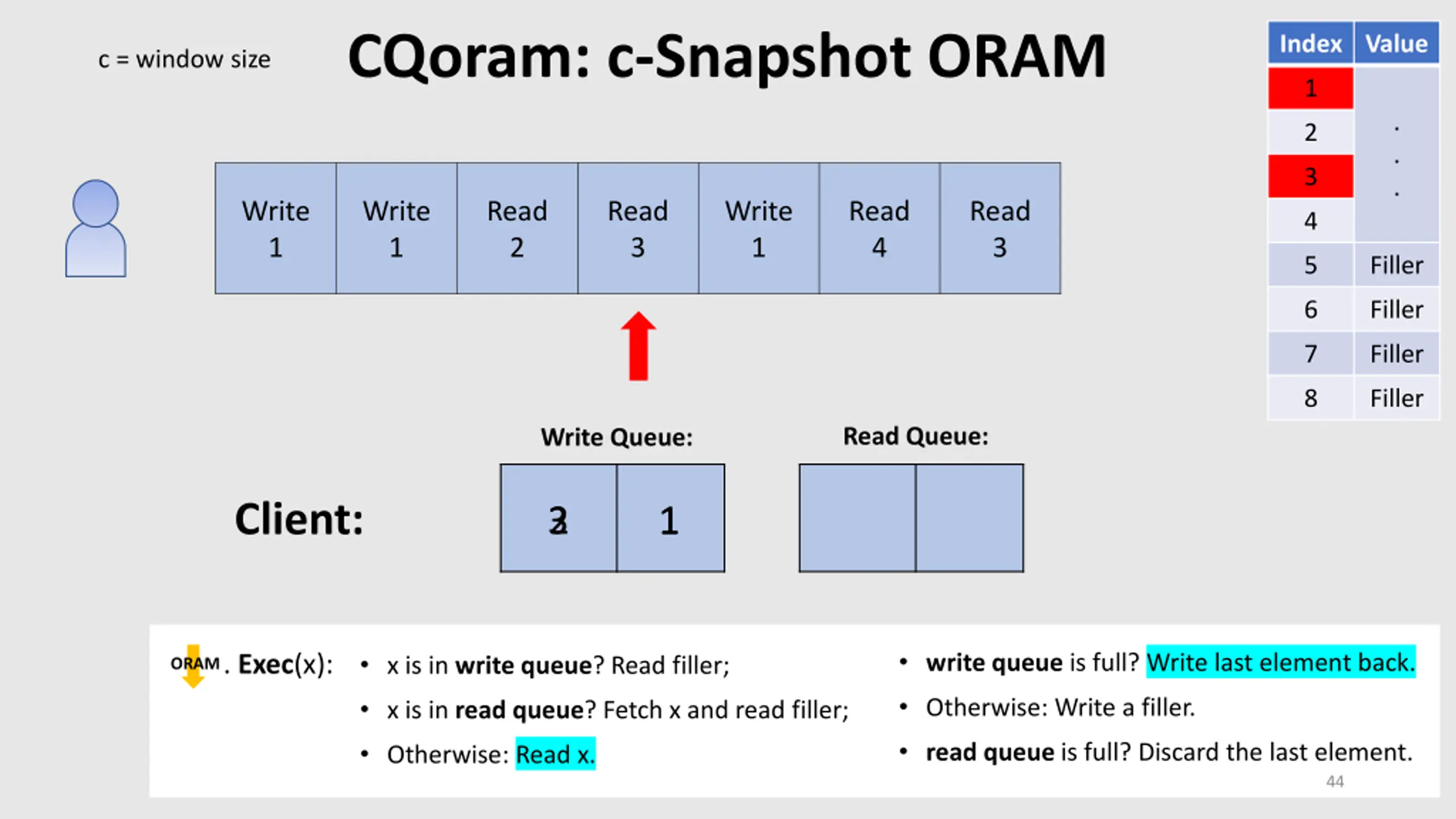

44. CQoram: c-Snapshot ORAM Index Value c = window size 1 . . . 2 3 Write 1 Write 1 Read 2 Read 3 Write 1 Read 4 Read 3 4 5 Filler 6 Filler 7 Filler 8 Filler Read Queue: Write Queue: Client: 2 3 1 1 write queue is full? Write last element back. Otherwise: Write a filler. read queue is full? Discard the last element. x is in write queue? Read filler; x is in read queue? Fetch x and read filler; Otherwise: Read x. . Exec(x): ORAM 44 44 44 44

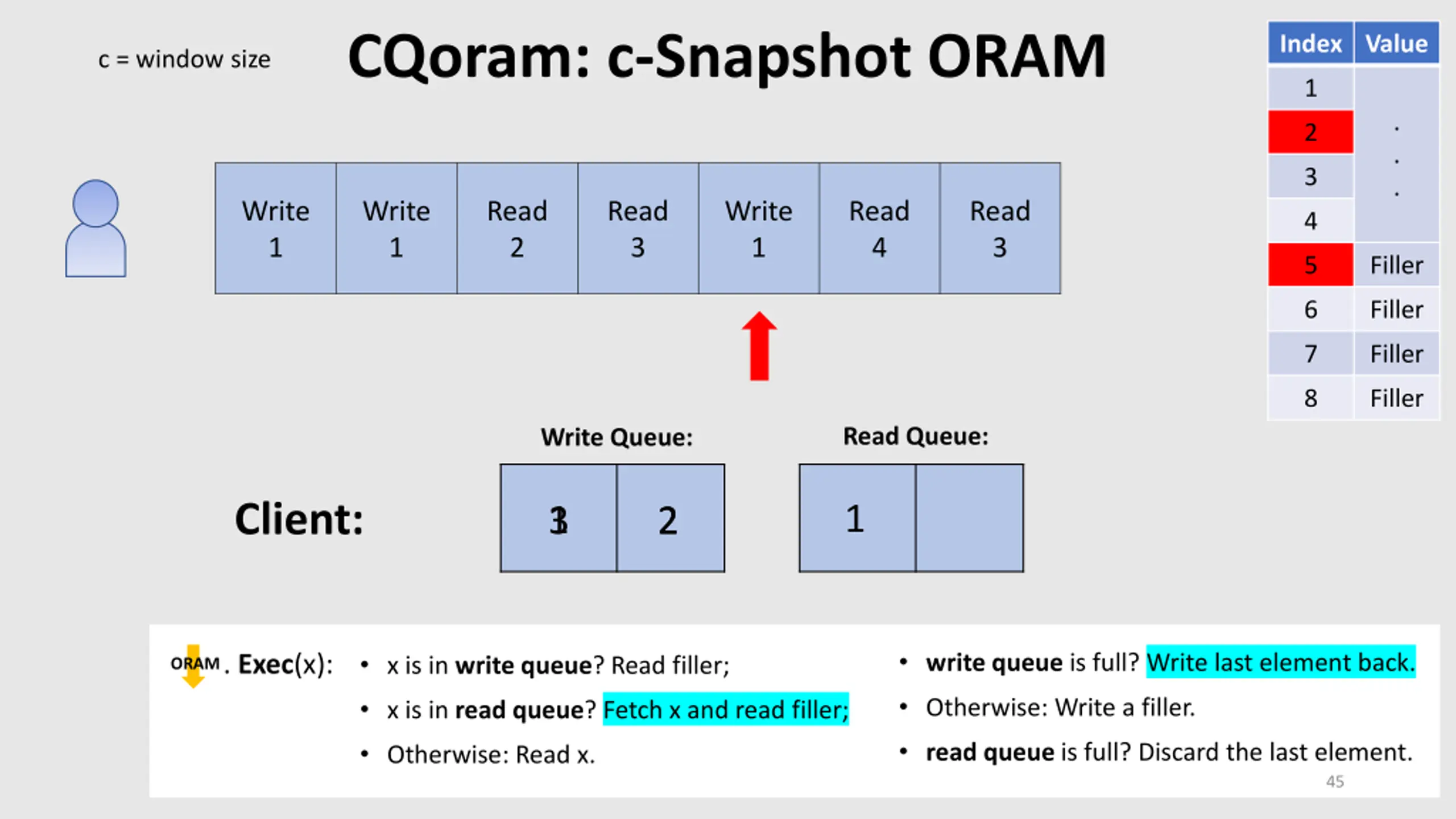

45. CQoram: c-Snapshot ORAM Index Value c = window size 1 . . . 2 3 Write 1 Write 1 Read 2 Read 3 Write 1 Read 4 Read 3 4 5 Filler 6 Filler 7 Filler 8 Filler Read Queue: Write Queue: Client: 1 3 1 2 2 write queue is full? Write last element back. Otherwise: Write a filler. read queue is full? Discard the last element. x is in write queue? Read filler; x is in read queue? Fetch x and read filler; Otherwise: Read x. . Exec(x): ORAM 45 45 45 45

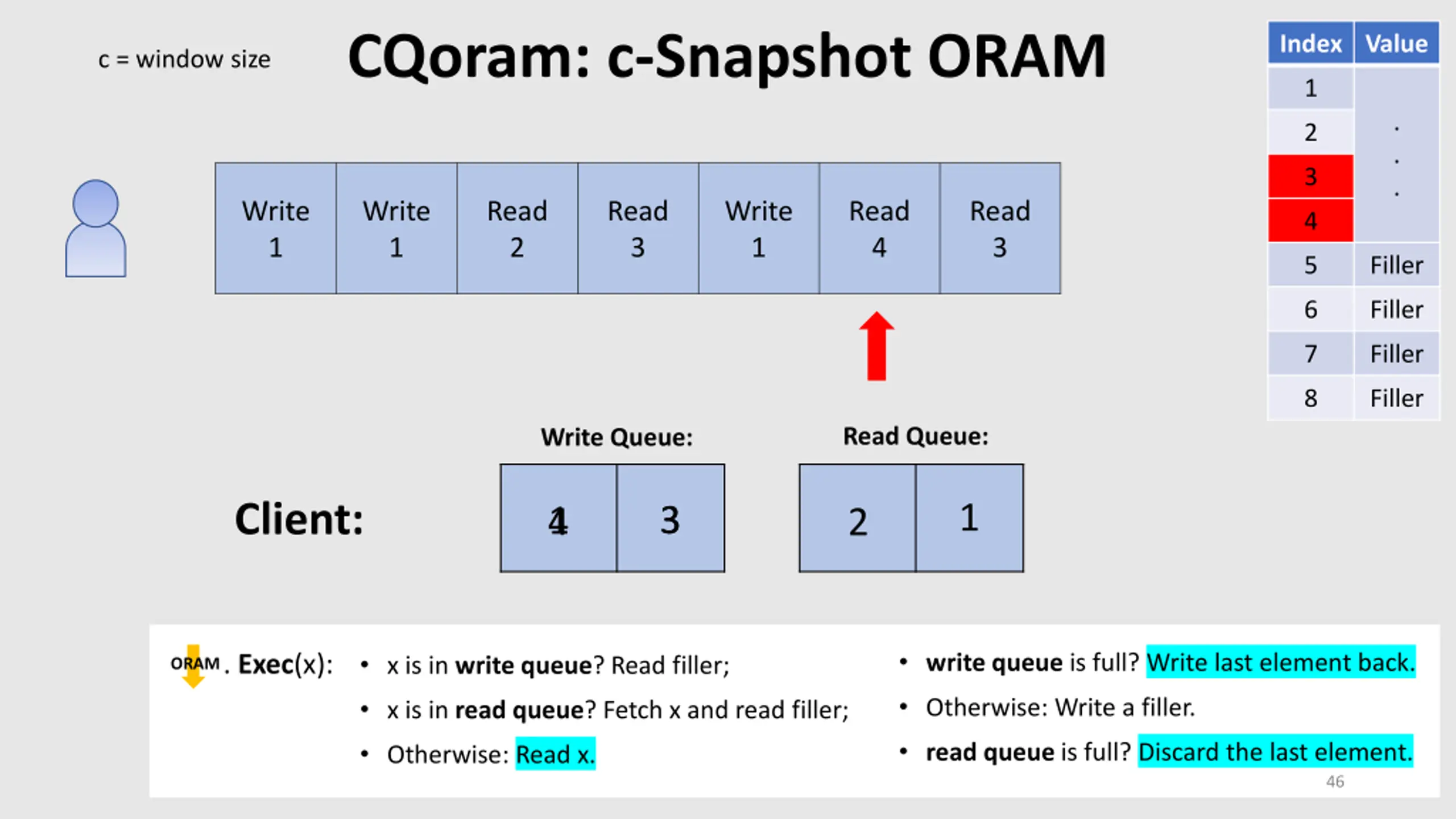

46. CQoram: c-Snapshot ORAM Index Value c = window size 1 . . . 2 3 Write 1 Write 1 Read 2 Read 3 Write 1 Read 4 Read 3 4 5 Filler 6 Filler 7 Filler 8 Filler Read Queue: Write Queue: Client: 1 3 3 1 4 2 write queue is full? Write last element back. Otherwise: Write a filler. read queue is full? Discard the last element. x is in write queue? Read filler; x is in read queue? Fetch x and read filler; Otherwise: Read x. . Exec(x): ORAM 46 46 46 46

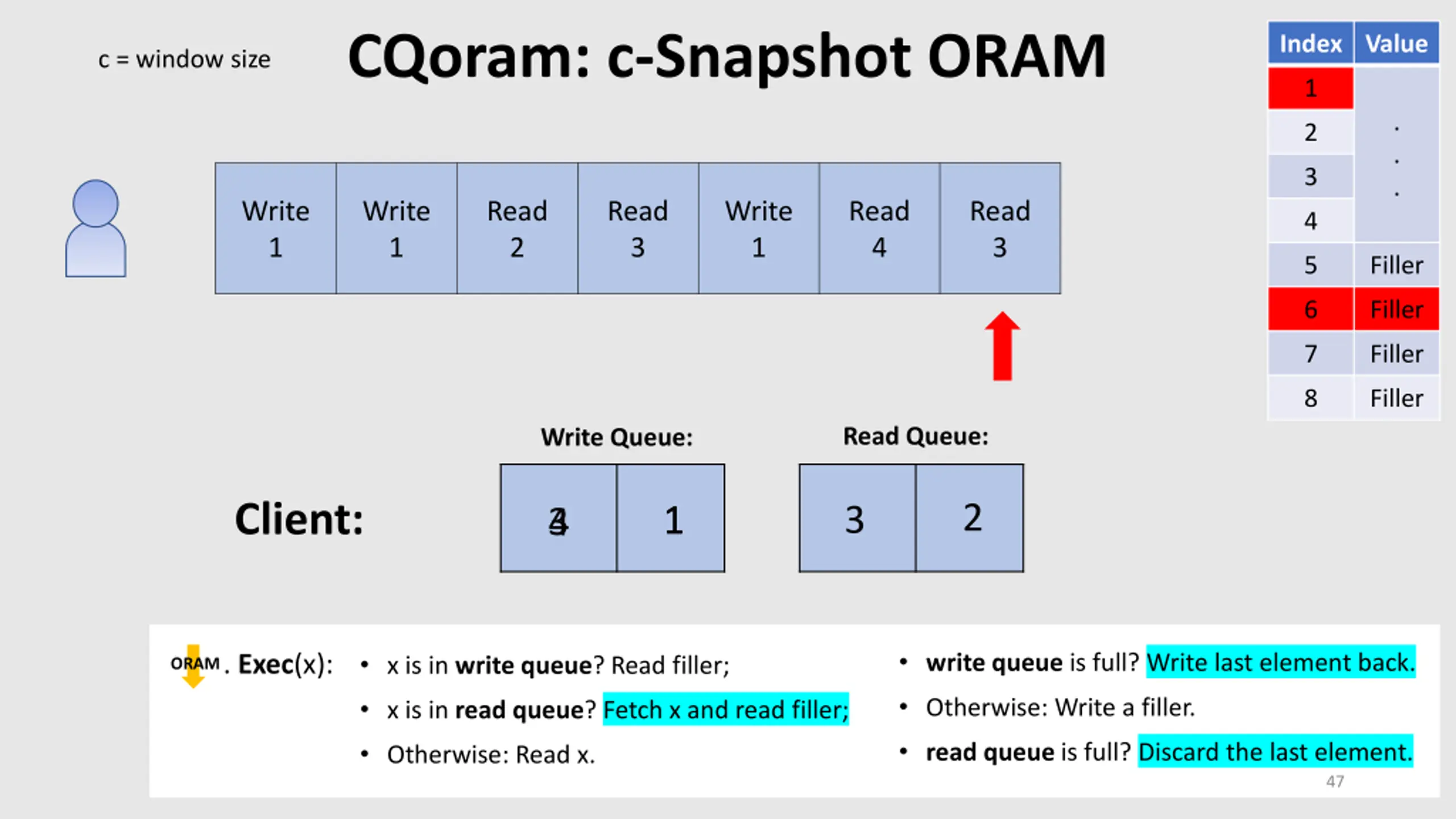

47. CQoram: c-Snapshot ORAM Index Value c = window size 1 . . . 2 3 Write 1 Write 1 Read 2 Read 3 Write 1 Read 4 Read 3 4 5 Filler 6 Filler 7 Filler 8 Filler Read Queue: Write Queue: Client: 2 3 1 1 4 3 write queue is full? Write last element back. Otherwise: Write a filler. read queue is full? Discard the last element. x is in write queue? Read filler; x is in read queue? Fetch x and read filler; Otherwise: Read x. . Exec(x): ORAM 47 47 47 47

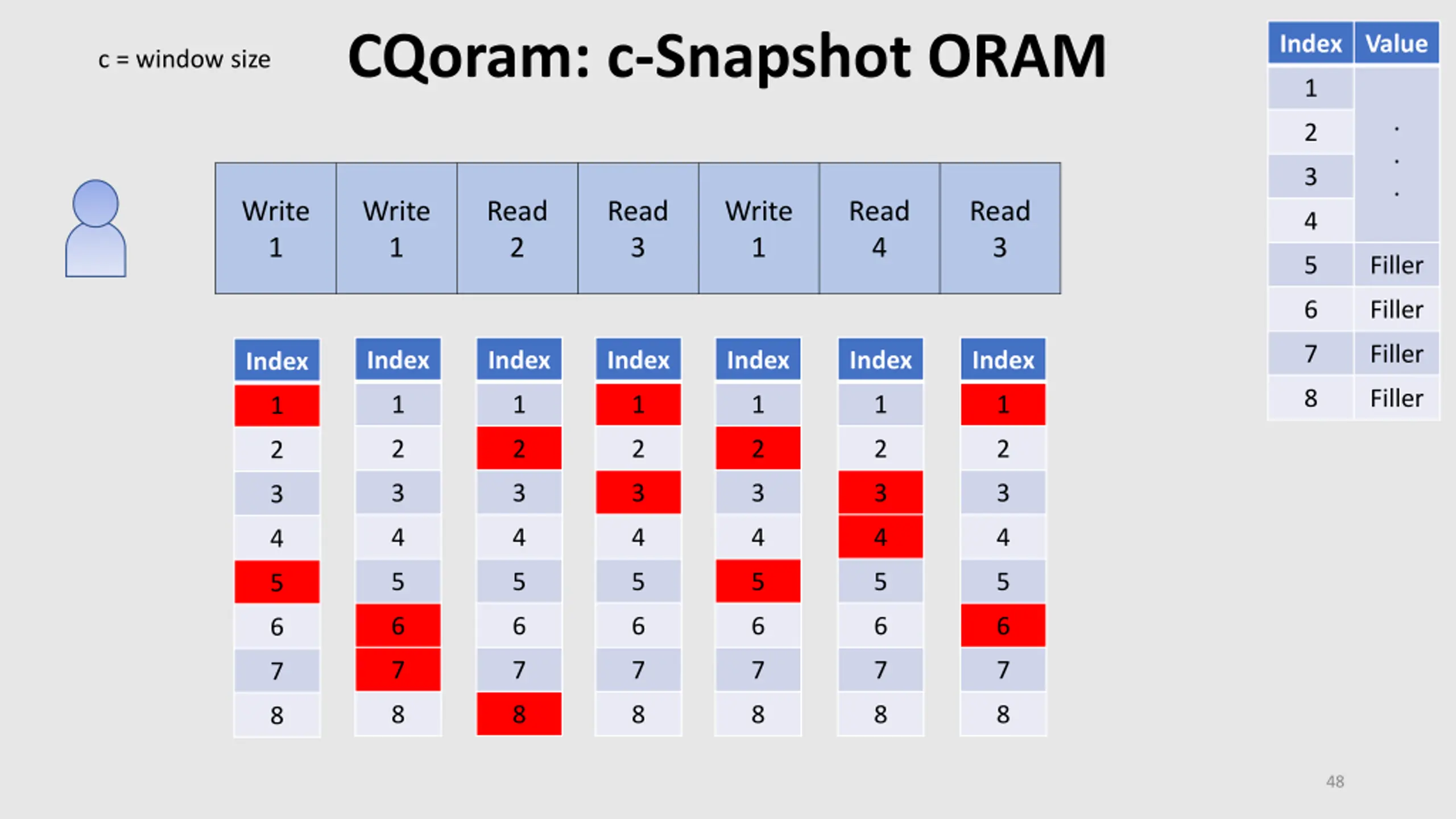

48. CQoram: c-Snapshot ORAM Index Value c = window size 1 . . . 2 3 Write 1 Write 1 Read 2 Read 3 Write 1 Read 4 Read 3 4 5 Filler 6 Filler 7 Filler Index Index Index Index Index Index Index 8 Filler 1 1 1 1 1 1 1 2 2 2 2 2 2 2 3 3 3 3 3 3 3 4 4 4 4 4 4 4 5 5 5 5 5 5 5 6 6 6 6 6 6 6 7 7 7 7 7 7 7 8 8 8 8 8 8 8 48

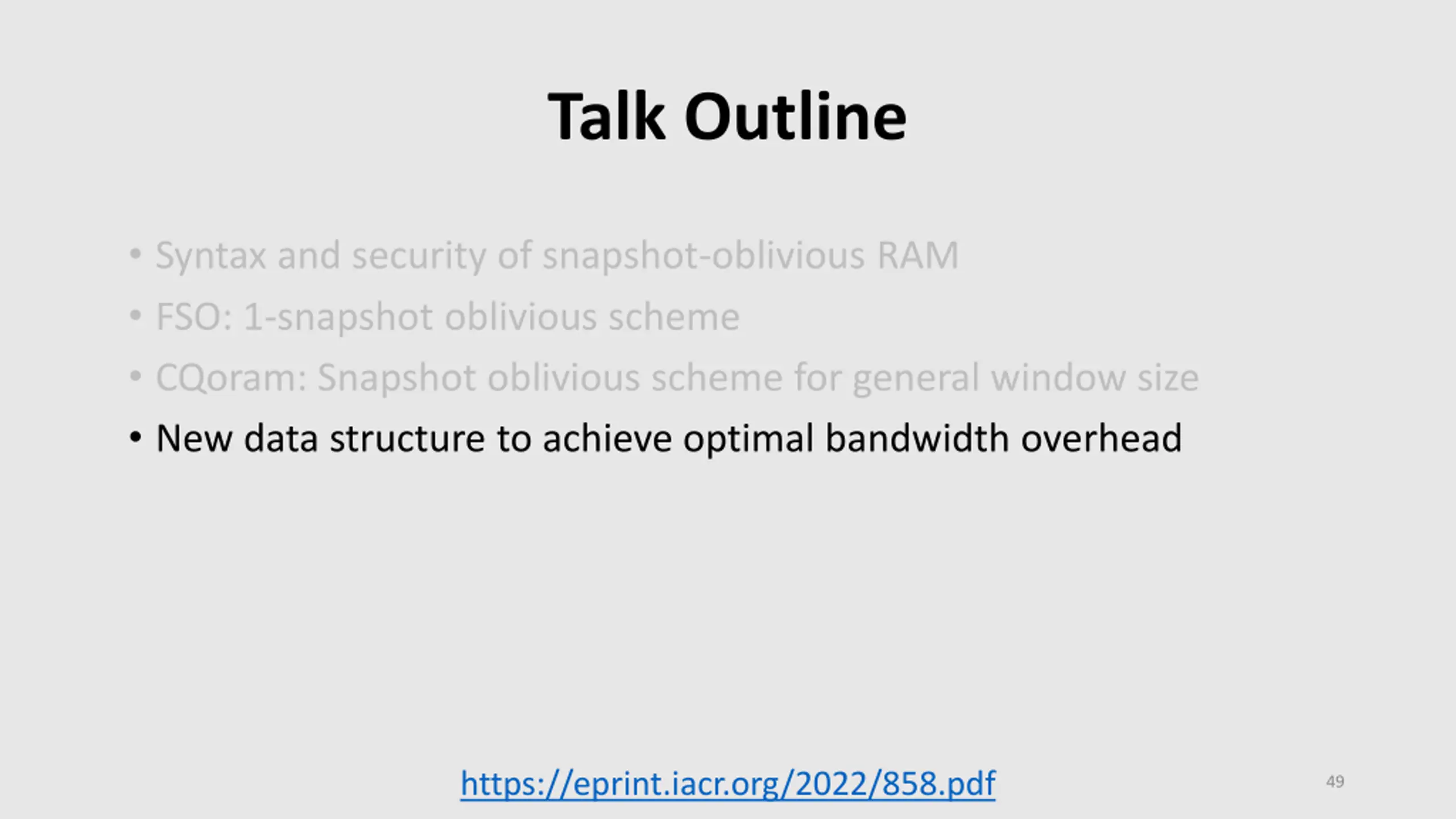

49. Talk Outline Syntax and security of snapshot-oblivious RAM FSO: 1-snapshot oblivious scheme CQoram: Snapshot oblivious scheme for general window size New data structure to achieve optimal bandwidth overhead https://eprint.iacr.org/2022/858.pdf 49

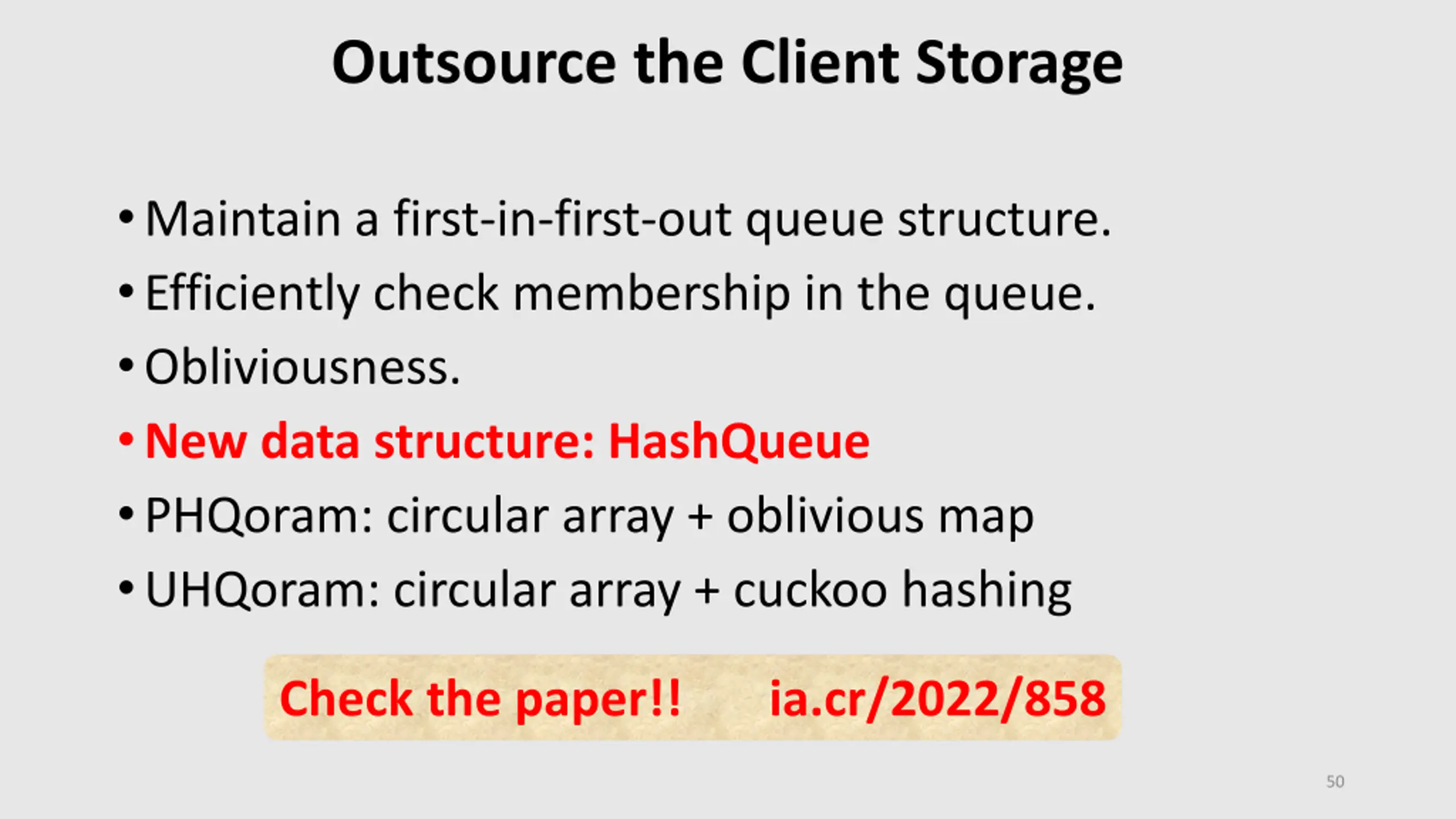

50. Outsource the Client Storage Maintain a first-in-first-out queue structure. Efficiently check membership in the queue. Obliviousness. New data structure: HashQueue PHQoram: circular array + oblivious map UHQoram: circular array + cuckoo hashing Check the paper!! ia.cr/2022/858 50
