SOIL PROBLEMS
the key soil properties of porosity, permeability, and retention through detailed analysis and calculations. Learn about water holding capacity, percolation rate, and soil types based on sand, clay, and silt composition. Gain insights into how these factors affect the quality of soil for various purposes.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

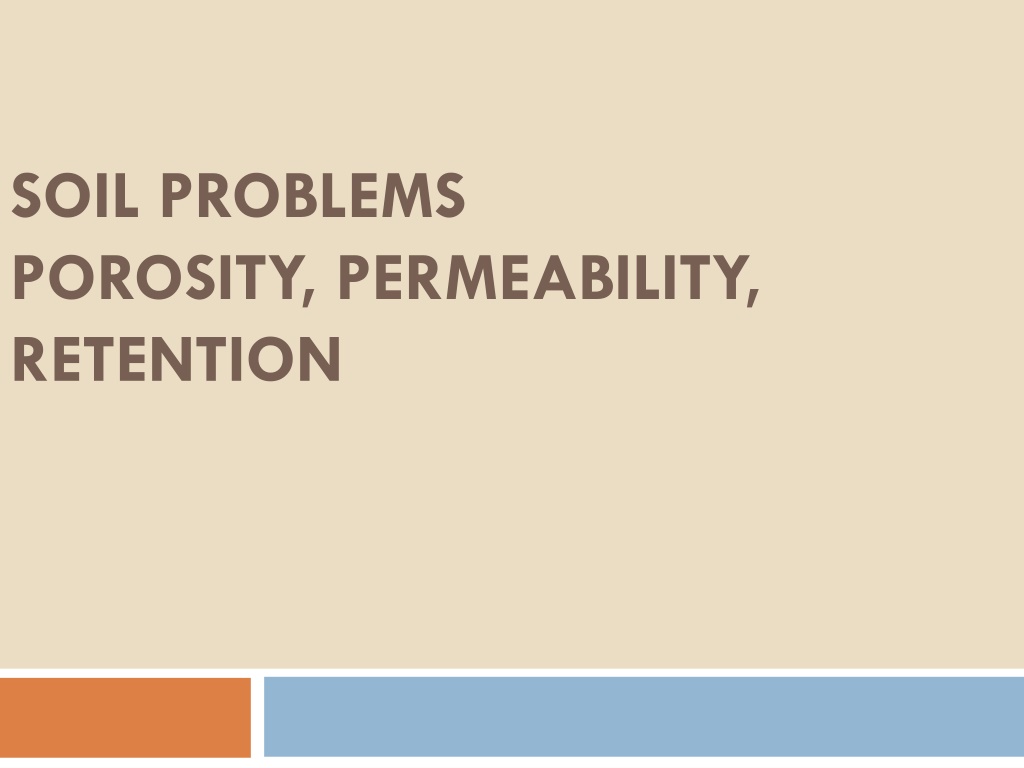

SOIL PROBLEMS POROSITY, PERMEABILITY, RETENTION

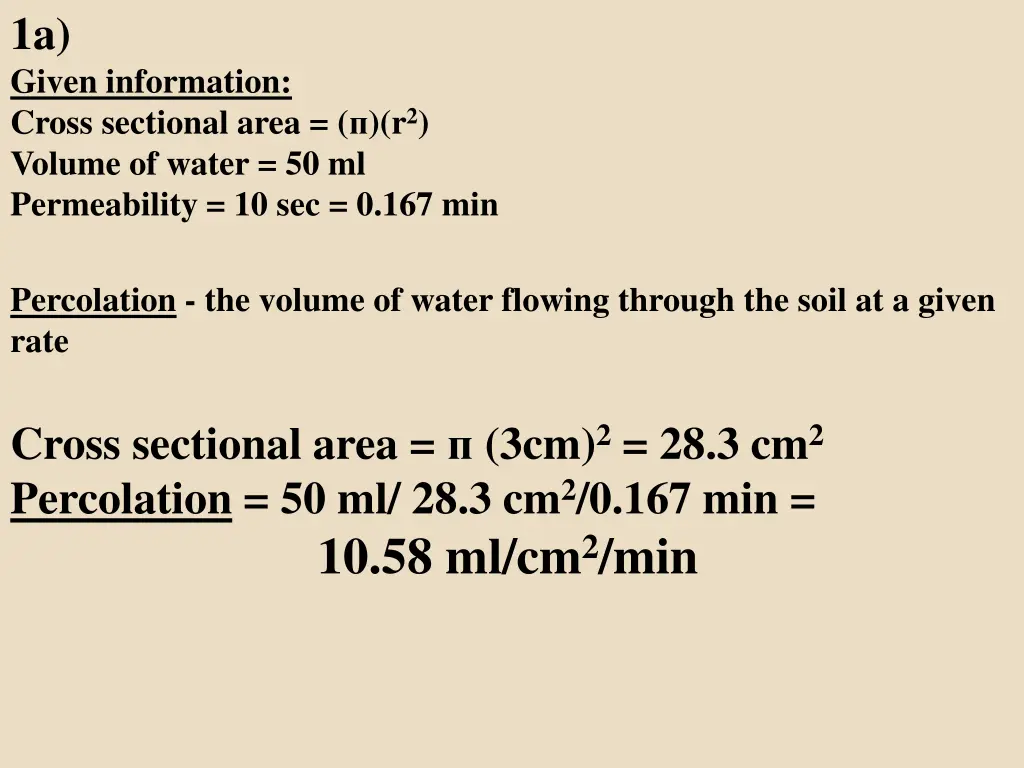

1a) Given information: Cross sectional area = ( )(r2) Volume of water = 50 ml Permeability = 10 sec = 0.167 min Percolation - the volume of water flowing through the soil at a given rate Cross sectional area = (3cm)2 = 28.3 cm2 Percolation = 50 ml/ 28.3 cm2/0.167 min = 10.58 ml/cm2/min

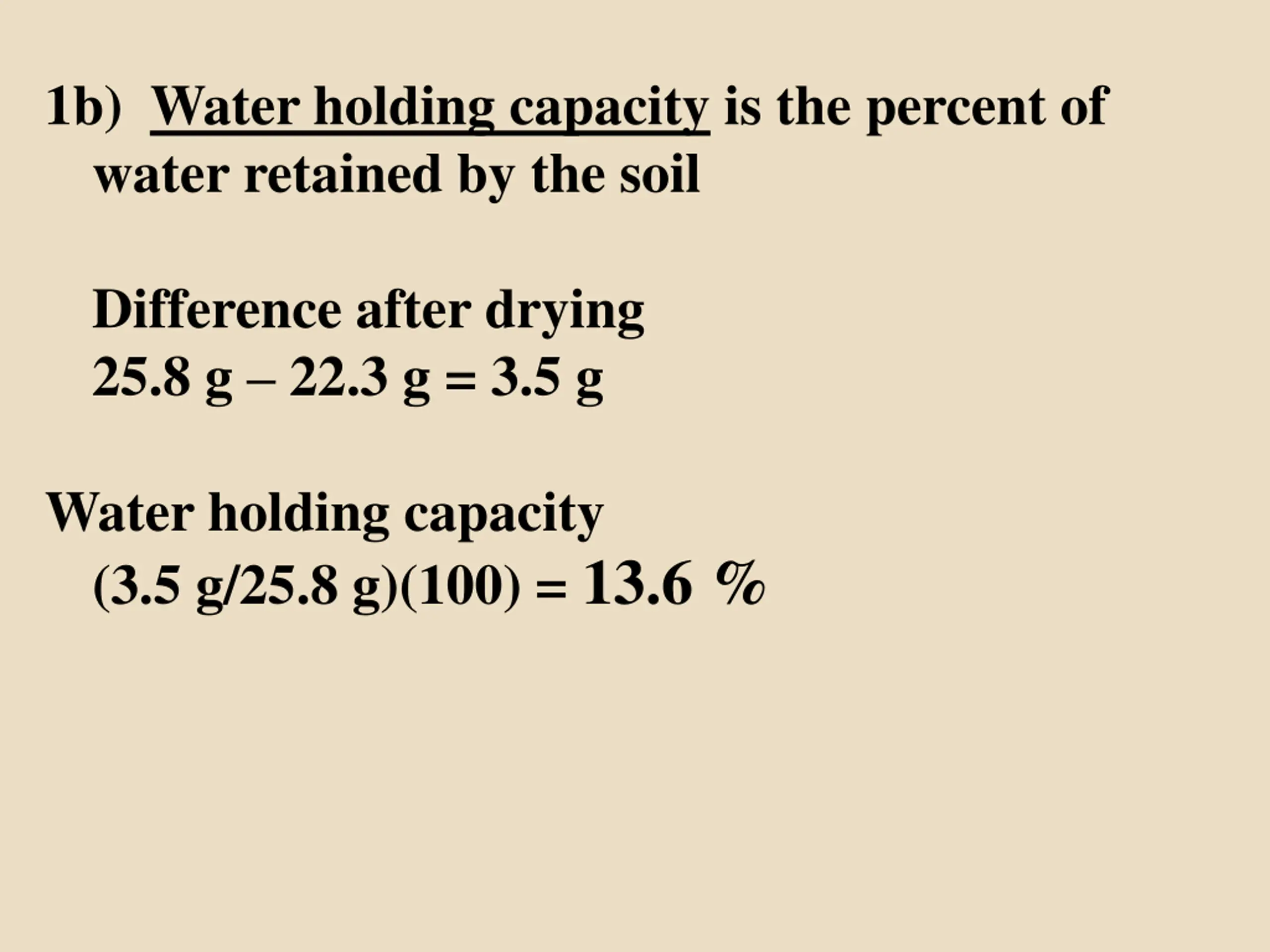

1b) Water holding capacity is the percent of water retained by the soil Difference after drying 25.8 g 22.3 g = 3.5 g Water holding capacity (3.5 g/25.8 g)(100) = 13.6 %

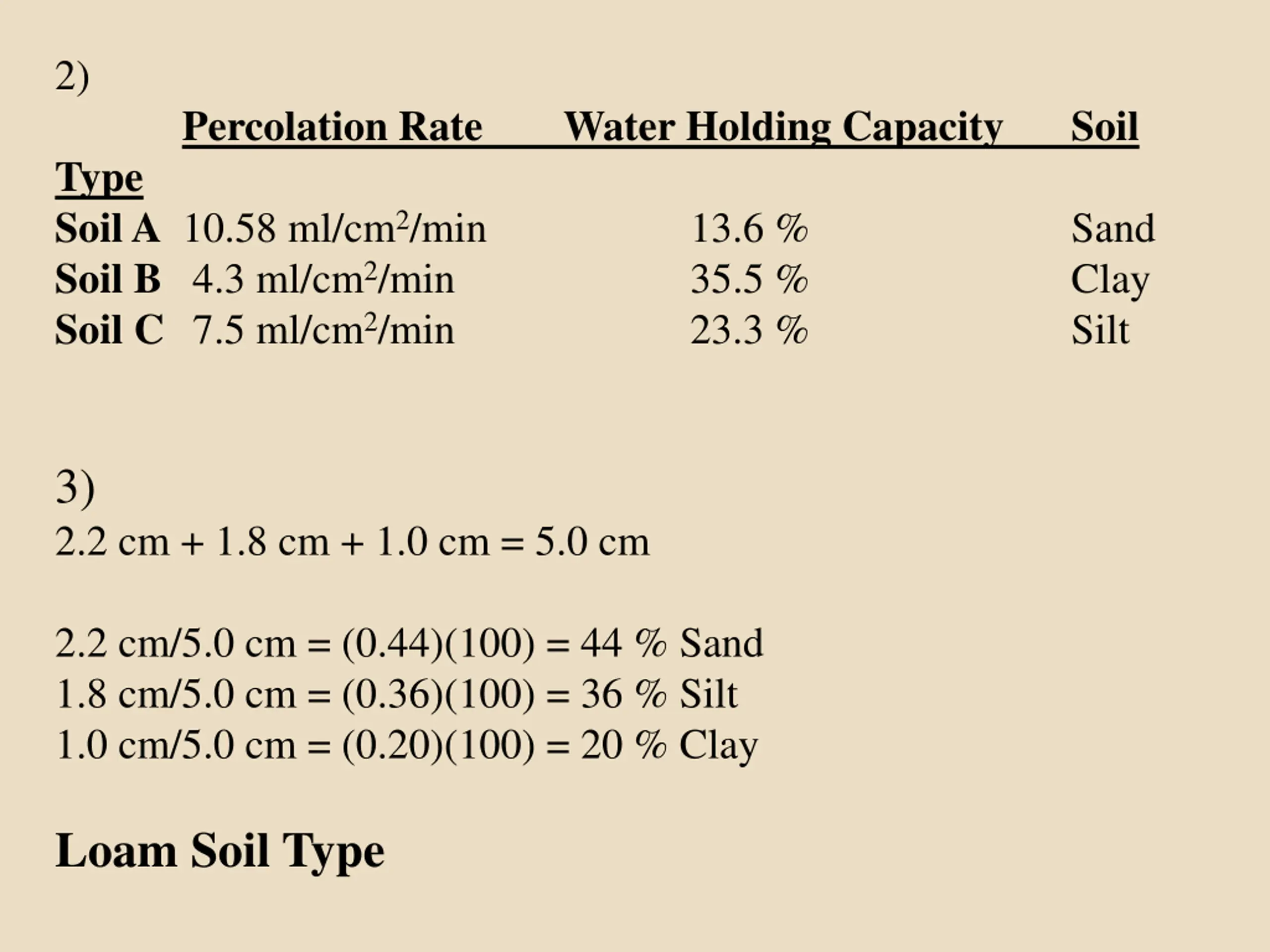

2) Type Soil A 10.58 ml/cm2/min Soil B4.3 ml/cm2/min Soil C 7.5 ml/cm2/min Percolation Rate Water Holding Capacity Soil 13.6 % 35.5 % 23.3 % Sand Clay Silt 3) 2.2 cm + 1.8 cm + 1.0 cm = 5.0 cm 2.2 cm/5.0 cm = (0.44)(100) = 44 % Sand 1.8 cm/5.0 cm = (0.36)(100) = 36 % Silt 1.0 cm/5.0 cm = (0.20)(100) = 20 % Clay Loam Soil Type
