SKN New Scheme Rules Stockholm 5./6. March 2019 Dr. A. Bohren SPF Testing

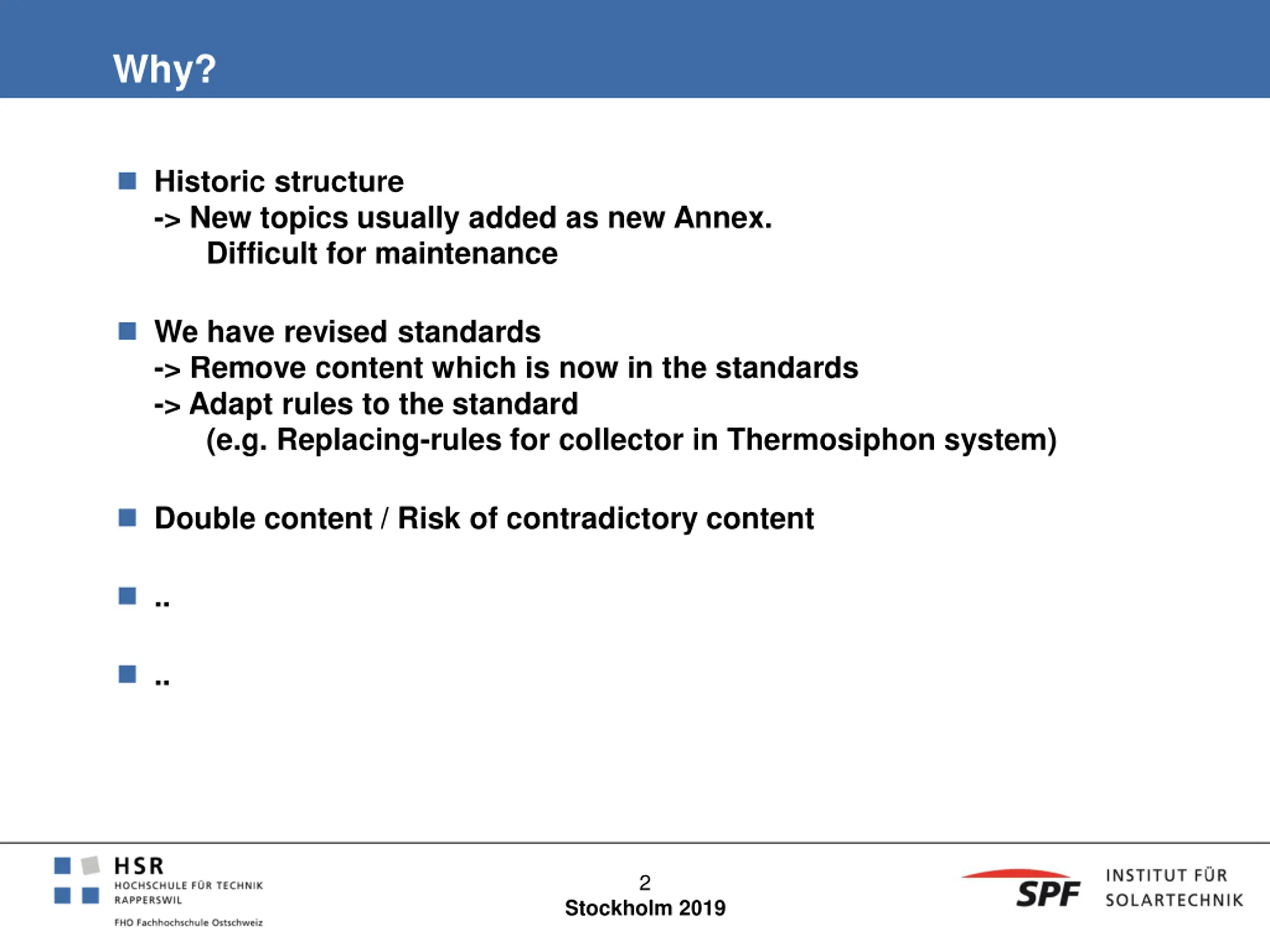

Why? Historic structure -> New topics usually added as new Annex. Difficult for maintenance We have revised standards -> Remove content which is now in the standards -> Adapt rules to the standard (e.g. Replacing-rules for collector in Thermosiphon system) Double content / Risk of contradictory content .. .. 2 Stockholm 2019

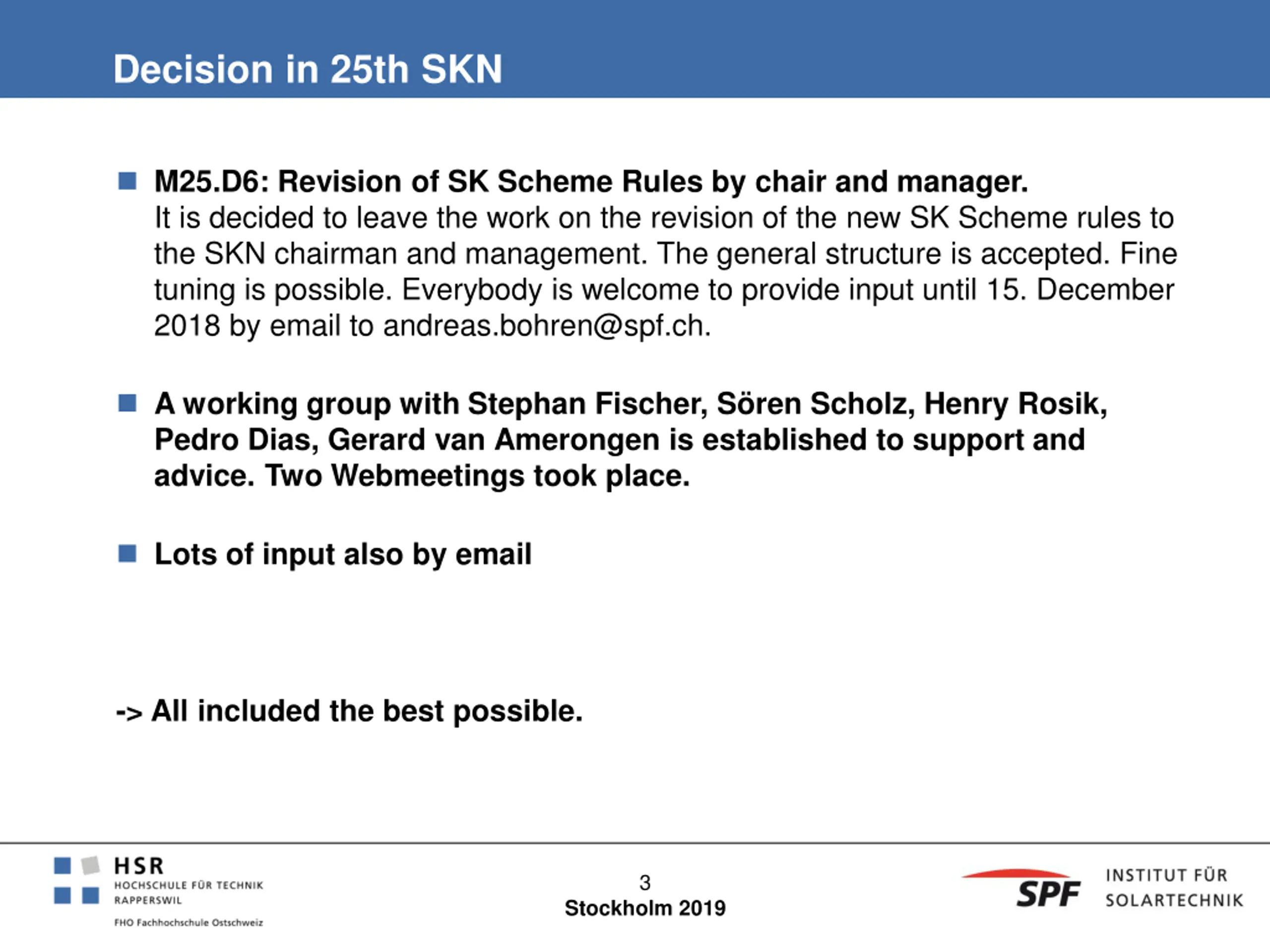

Decision in 25th SKN M25.D6: Revision of SK Scheme Rules by chair and manager. It is decided to leave the work on the revision of the new SK Scheme rules to the SKN chairman and management. The general structure is accepted. Fine tuning is possible. Everybody is welcome to provide input until 15. December 2018 by email to andreas.bohren@spf.ch. A working group with Stephan Fischer, S ren Scholz, Henry Rosik, Pedro Dias, Gerard van Amerongen is established to support and advice. Two Webmeetings took place. Lots of input also by email -> All included the best possible. 3 Stockholm 2019
New Structure Solar Keymark Scheme Rules Annex A Inspection report templates Annex E FPC (to be integrated in PQRs) Annex P Product Specific Annex: Collectors EN 12975 Annex Q Product Specific Annex: Systems EN 12976 Annex R Product Specific Annex: Systems EN 12977 Annex W Weather Database 4 Stockholm 2019

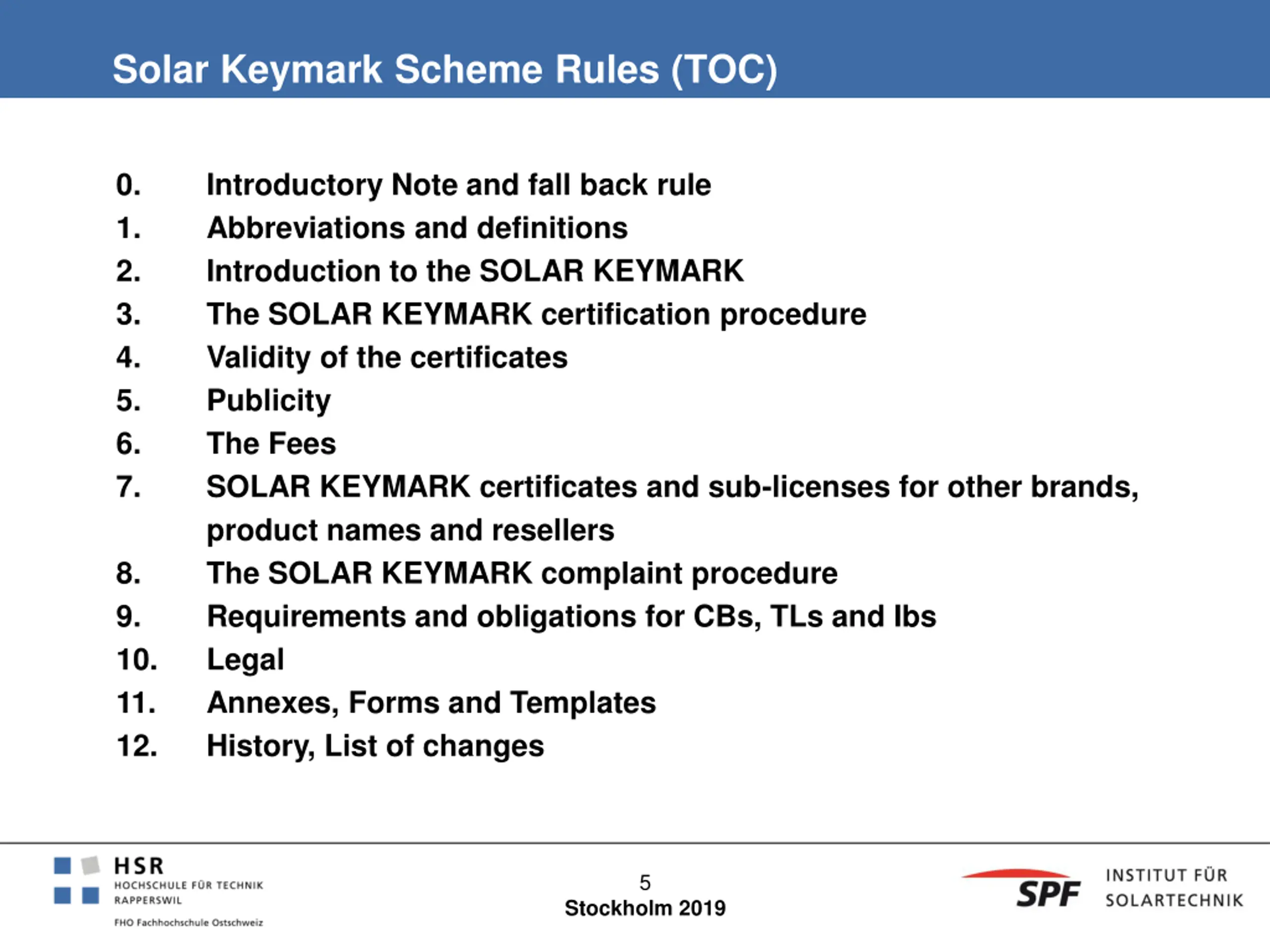

Solar Keymark Scheme Rules (TOC) 0. 1. 2. 3. 4. 5. 6. 7. Introductory Note and fall back rule Abbreviations and definitions Introduction to the SOLAR KEYMARK The SOLAR KEYMARK certification procedure Validity of the certificates Publicity The Fees SOLAR KEYMARK certificates and sub-licenses for other brands, product names and resellers The SOLAR KEYMARK complaint procedure Requirements and obligations for CBs, TLs and Ibs Legal Annexes, Forms and Templates History, List of changes 8. 9. 10. 11. 12. 5 Stockholm 2019

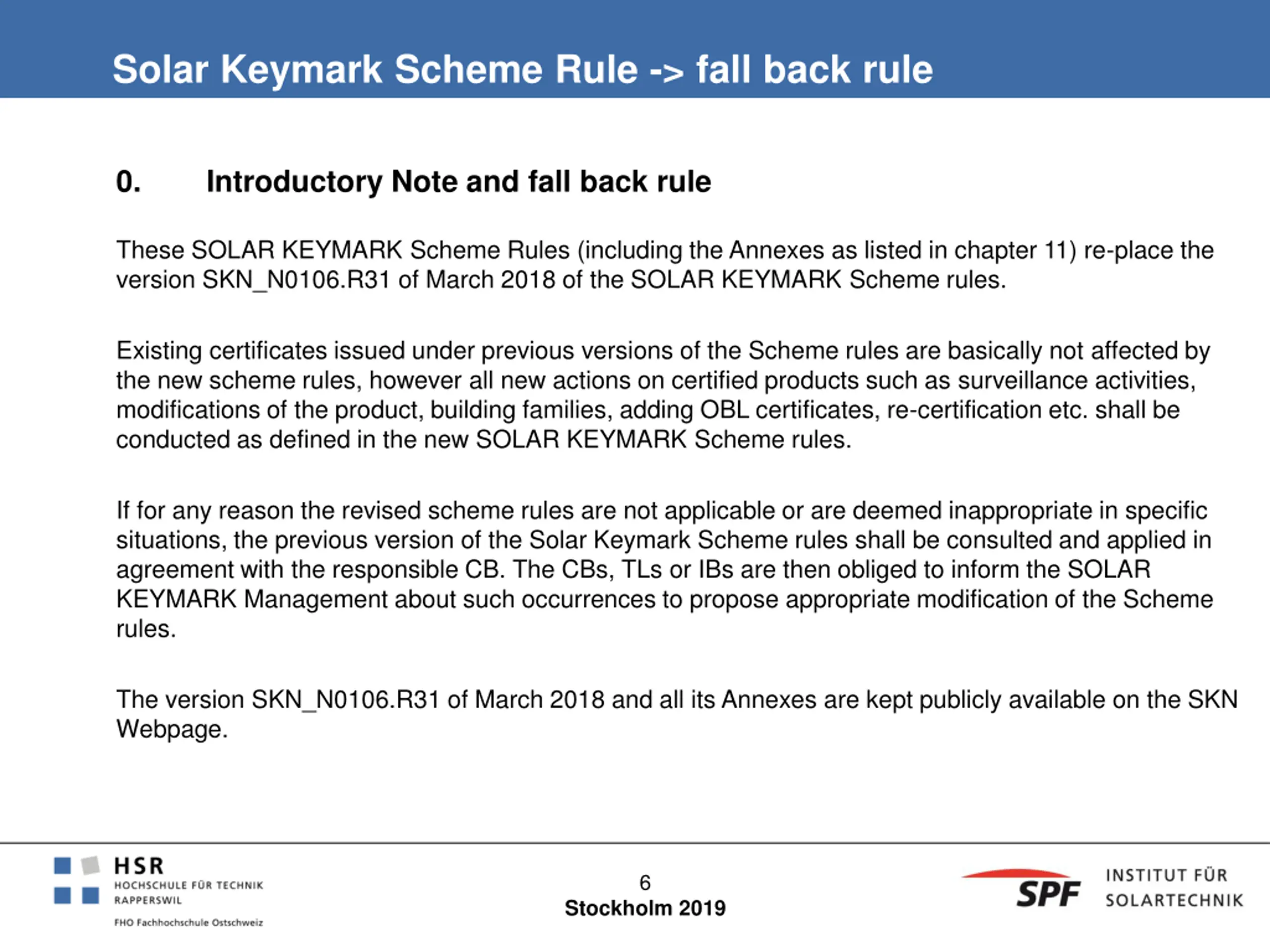

Solar Keymark Scheme Rule -> fall back rule 0. Introductory Note and fall back rule These SOLAR KEYMARK Scheme Rules (including the Annexes as listed in chapter 11) re-place the version SKN_N0106.R31 of March 2018 of the SOLAR KEYMARK Scheme rules. Existing certificates issued under previous versions of the Scheme rules are basically not affected by the new scheme rules, however all new actions on certified products such as surveillance activities, modifications of the product, building families, adding OBL certificates, re-certification etc. shall be conducted as defined in the new SOLAR KEYMARK Scheme rules. If for any reason the revised scheme rules are not applicable or are deemed inappropriate in specific situations, the previous version of the Solar Keymark Scheme rules shall be consulted and applied in agreement with the responsible CB. The CBs, TLs or IBs are then obliged to inform the SOLAR KEYMARK Management about such occurrences to propose appropriate modification of the Scheme rules. The version SKN_N0106.R31 of March 2018 and all its Annexes are kept publicly available on the SKN Webpage. 6 Stockholm 2019

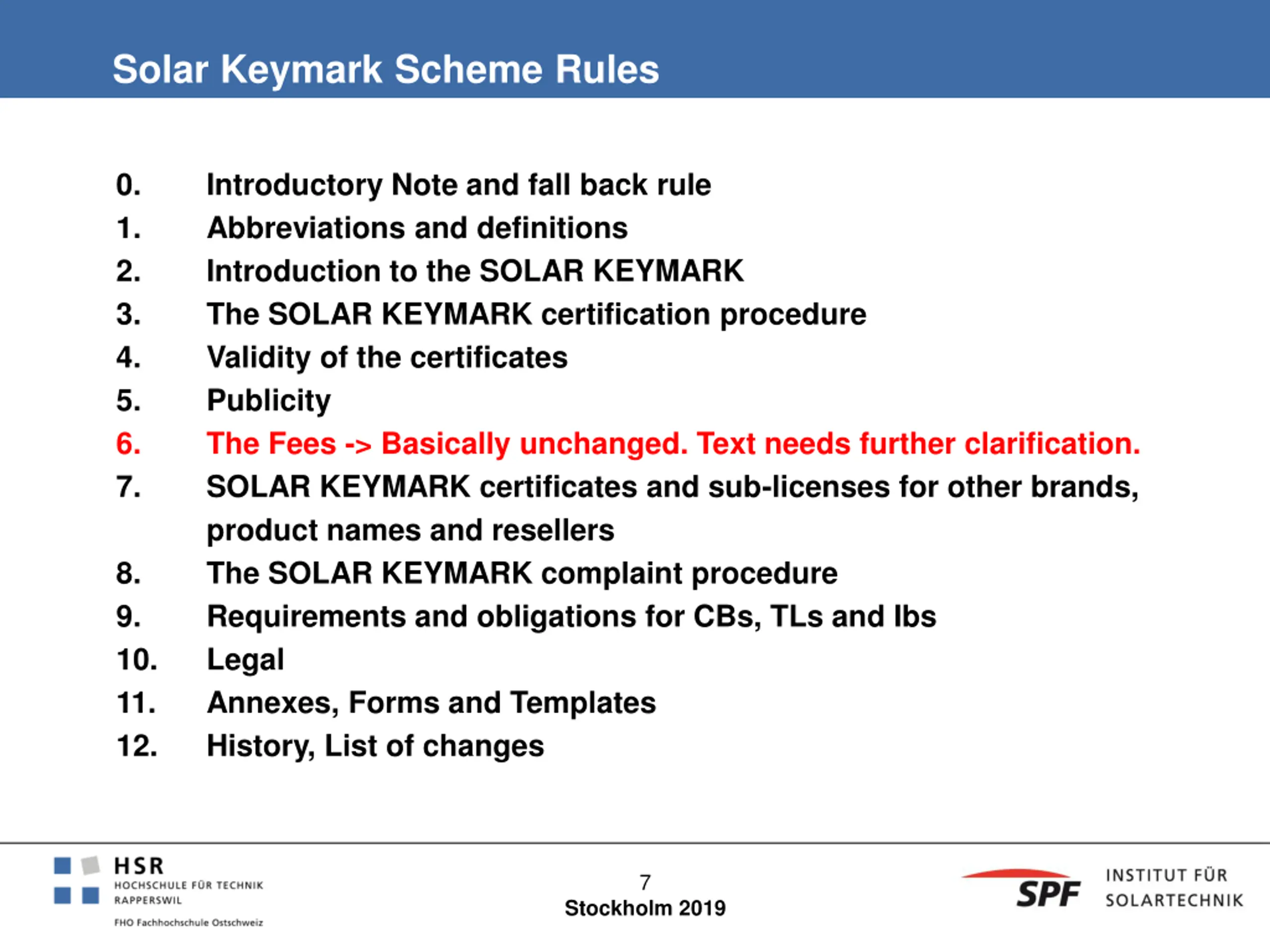

Solar Keymark Scheme Rules 0. 1. 2. 3. 4. 5. 6. 7. Introductory Note and fall back rule Abbreviations and definitions Introduction to the SOLAR KEYMARK The SOLAR KEYMARK certification procedure Validity of the certificates Publicity The Fees -> Basically unchanged. Text needs further clarification. SOLAR KEYMARK certificates and sub-licenses for other brands, product names and resellers The SOLAR KEYMARK complaint procedure Requirements and obligations for CBs, TLs and Ibs Legal Annexes, Forms and Templates History, List of changes 8. 9. 10. 11. 12. 7 Stockholm 2019

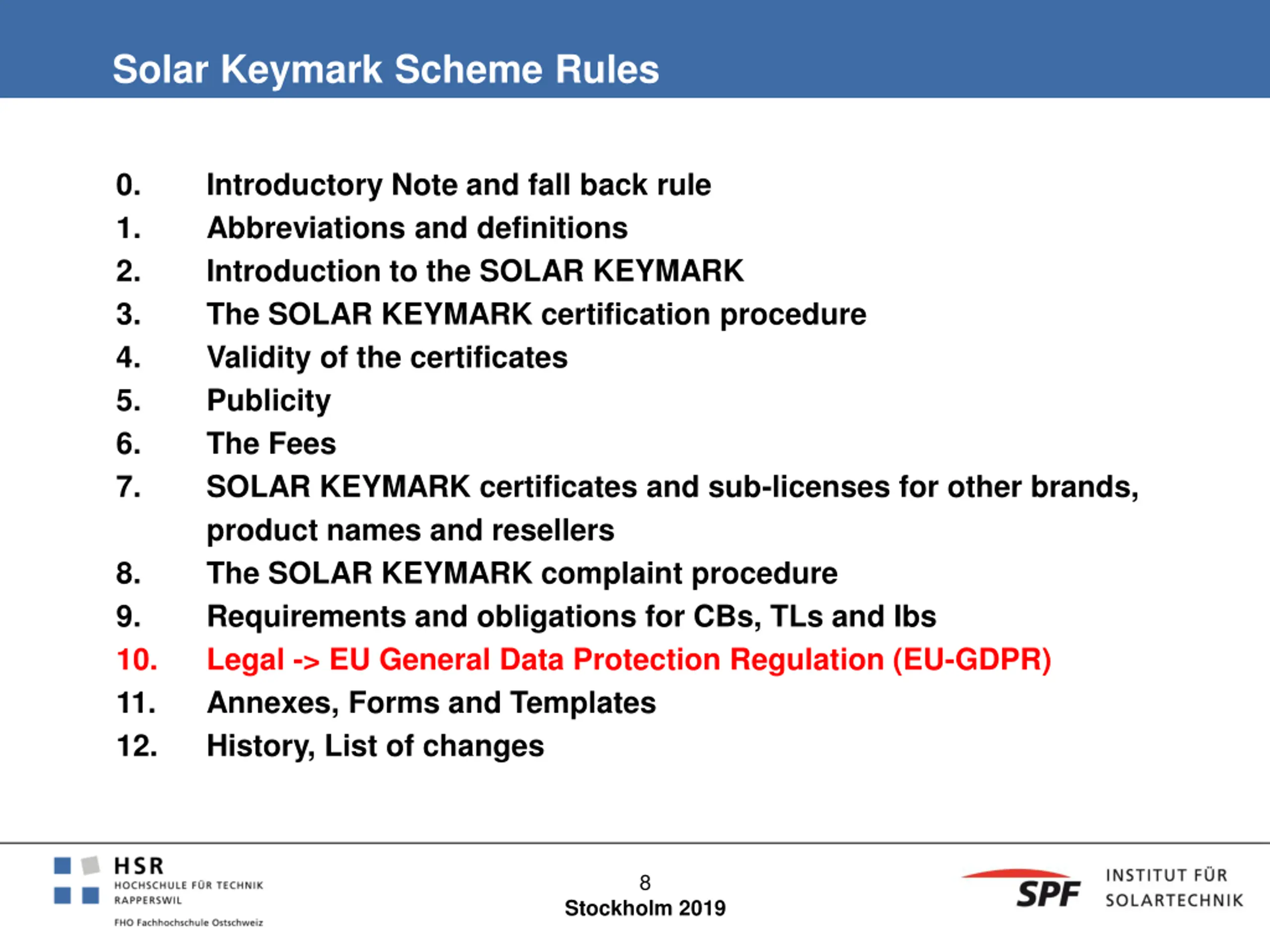

Solar Keymark Scheme Rules 0. 1. 2. 3. 4. 5. 6. 7. Introductory Note and fall back rule Abbreviations and definitions Introduction to the SOLAR KEYMARK The SOLAR KEYMARK certification procedure Validity of the certificates Publicity The Fees SOLAR KEYMARK certificates and sub-licenses for other brands, product names and resellers The SOLAR KEYMARK complaint procedure Requirements and obligations for CBs, TLs and Ibs Legal -> EU General Data Protection Regulation (EU-GDPR) Annexes, Forms and Templates History, List of changes 8. 9. 10. 11. 12. 8 Stockholm 2019
Solar Keymark Scheme Rules 0. 1. 2. 3. 4. 5. 6. 7. Introductory Note and fall back rule Abbreviations and definitions Introduction to the SOLAR KEYMARK The SOLAR KEYMARK certification procedure Validity of the certificates Publicity The Fees SOLAR KEYMARK certificates and sub-licenses for other brands, product names and resellers The SOLAR KEYMARK complaint procedure Requirements and obligations for CBs, TLs and IBs Legal -> EU General Data Protection Regulation (EU-GDPR) Annexes, Forms and Templates History, List of changes 8. 9. 10. 11. 12. 9 Stockholm 2019

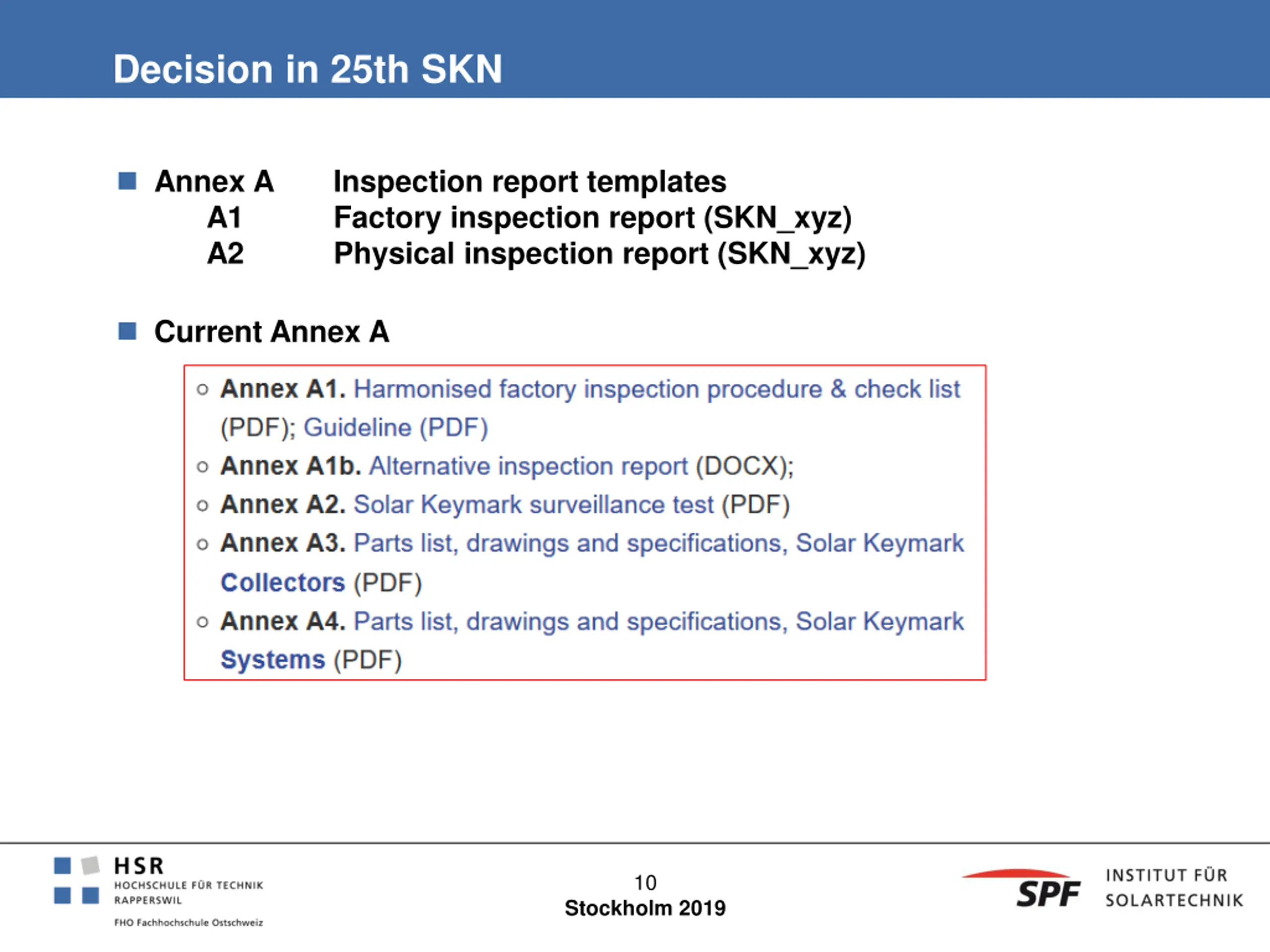

Decision in 25th SKN Annex A Inspection report templates Factory inspection report (SKN_xyz) Physical inspection report (SKN_xyz) A1 A2 Current Annex A 10 Stockholm 2019

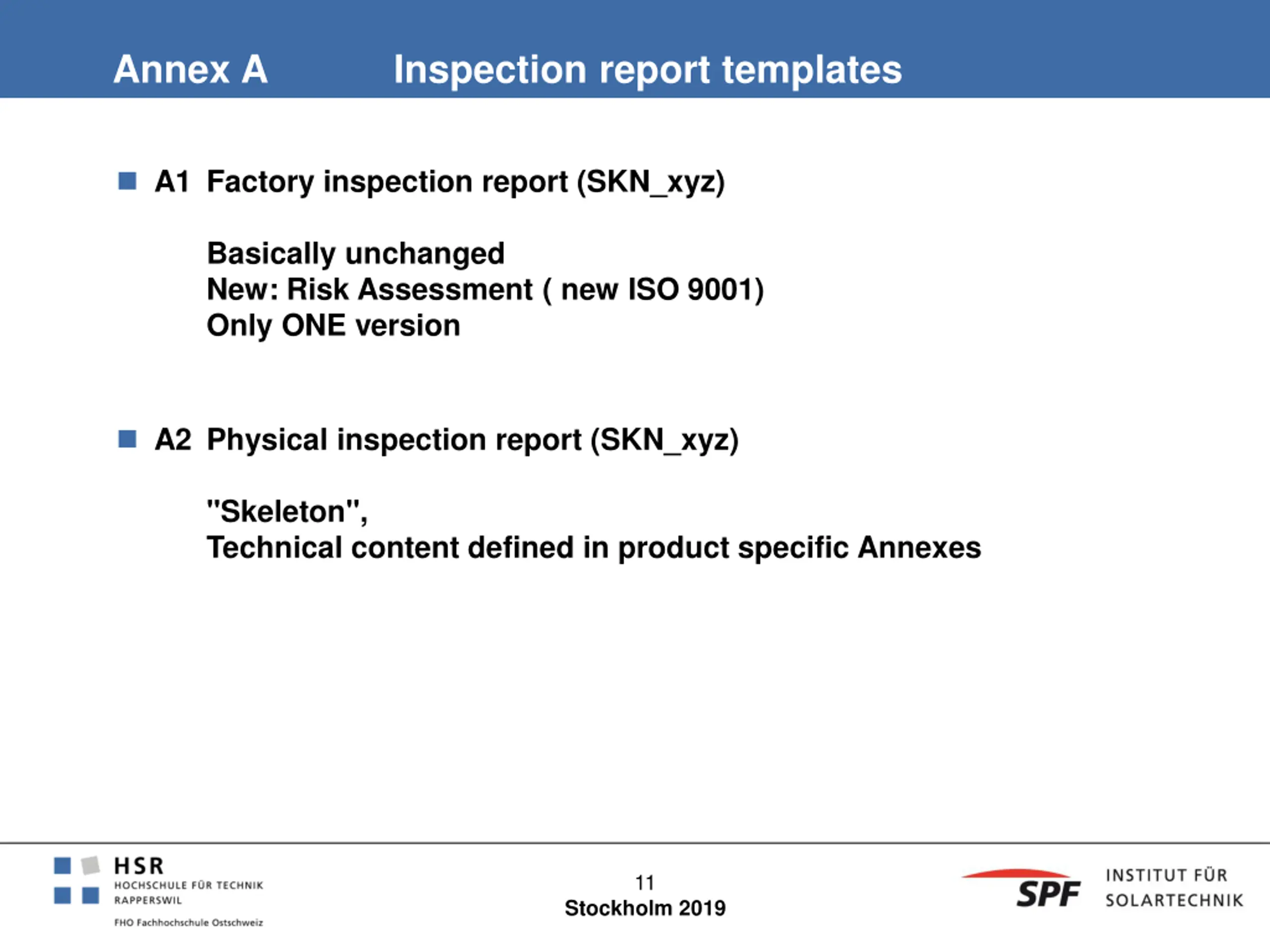

Annex A Inspection report templates A1 Factory inspection report (SKN_xyz) Basically unchanged New: Risk Assessment ( new ISO 9001) Only ONE version A2 Physical inspection report (SKN_xyz) "Skeleton", Technical content defined in product specific Annexes 11 Stockholm 2019

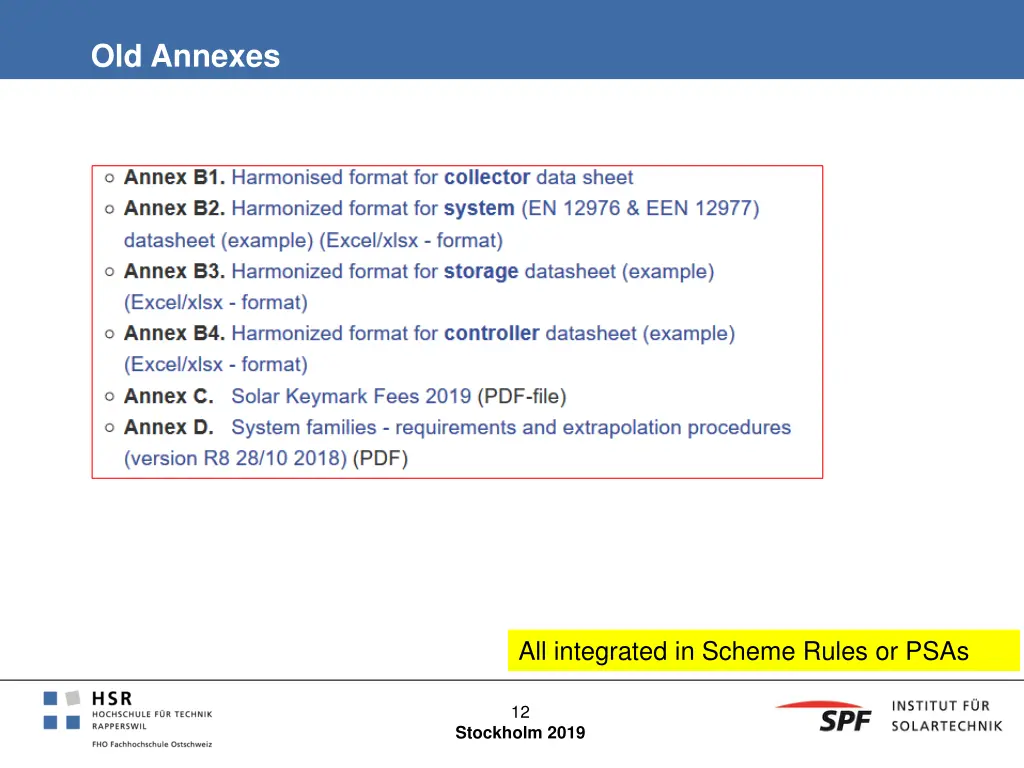

Old Annexes All integrated in Scheme Rules or PSAs 12 Stockholm 2019

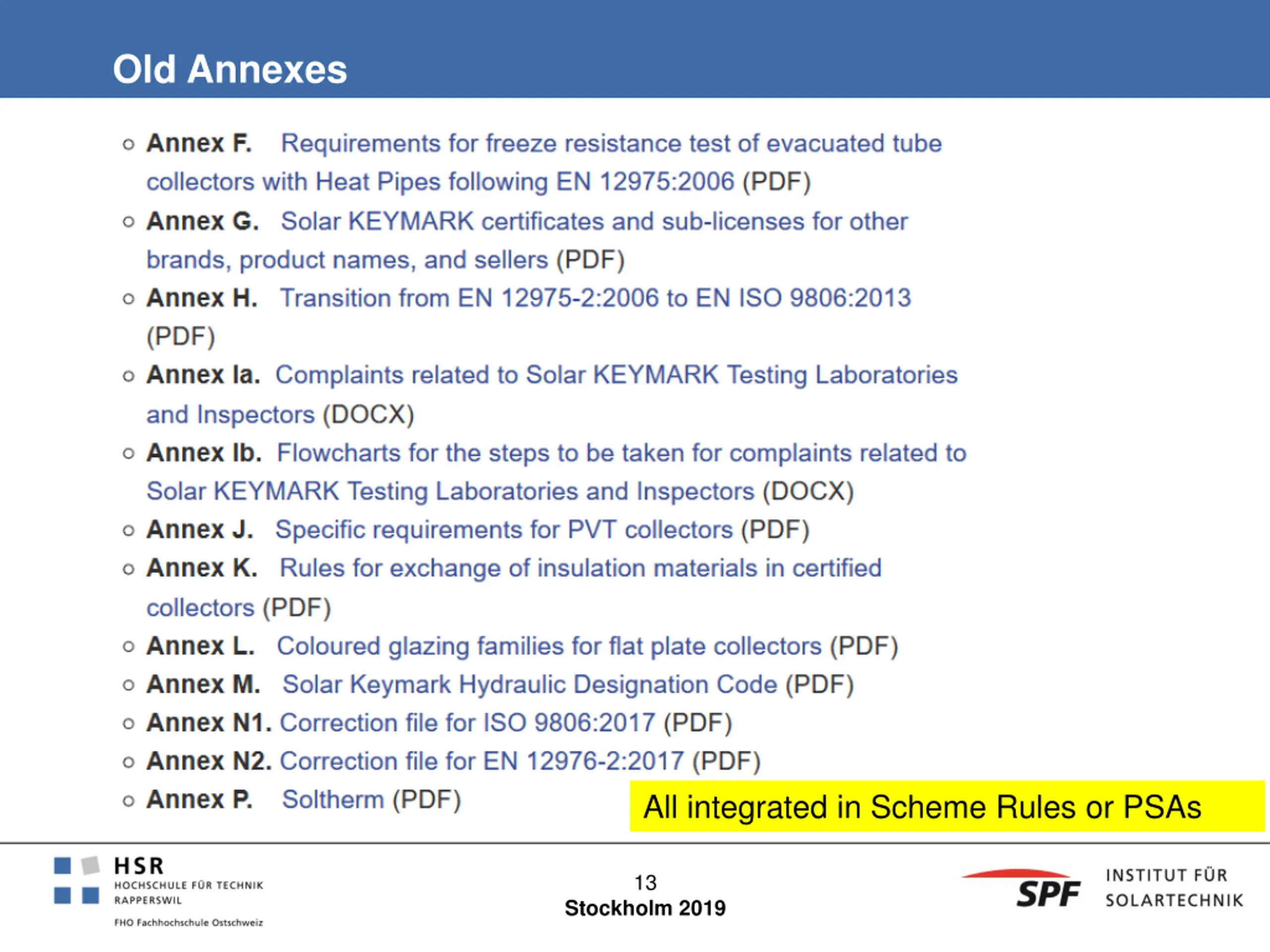

Old Annexes All integrated in Scheme Rules or PSAs 13 Stockholm 2019
Old Annexes Left as it is: But proposal for WG 14 Stockholm 2019

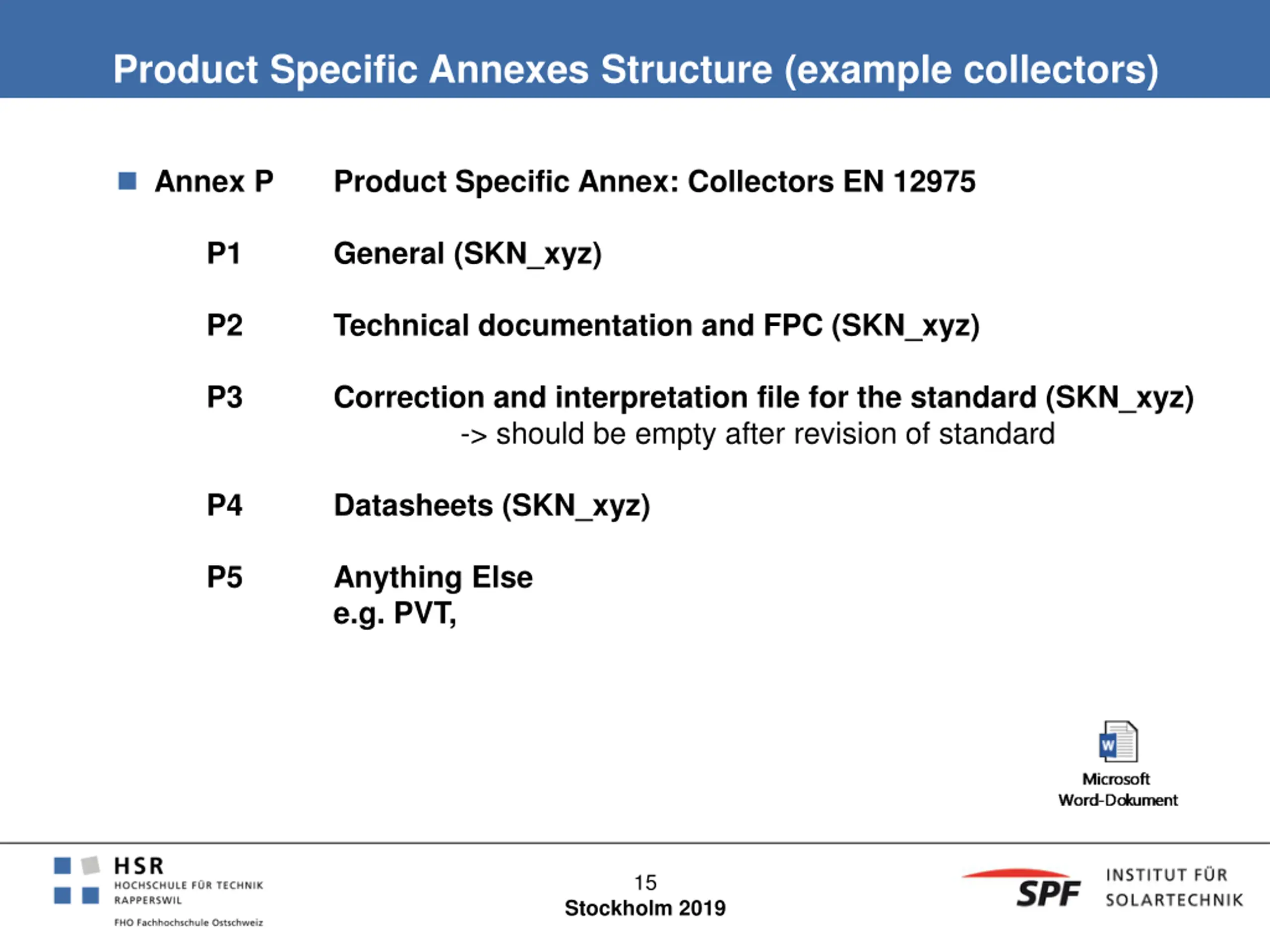

Product Specific Annexes Structure (example collectors) Annex P Product Specific Annex: Collectors EN 12975 P1 General (SKN_xyz) P2 Technical documentation and FPC (SKN_xyz) P3 Correction and interpretation file for the standard (SKN_xyz) -> should be empty after revision of standard P4 Datasheets (SKN_xyz) P5 Anything Else e.g. PVT, 15 Stockholm 2019

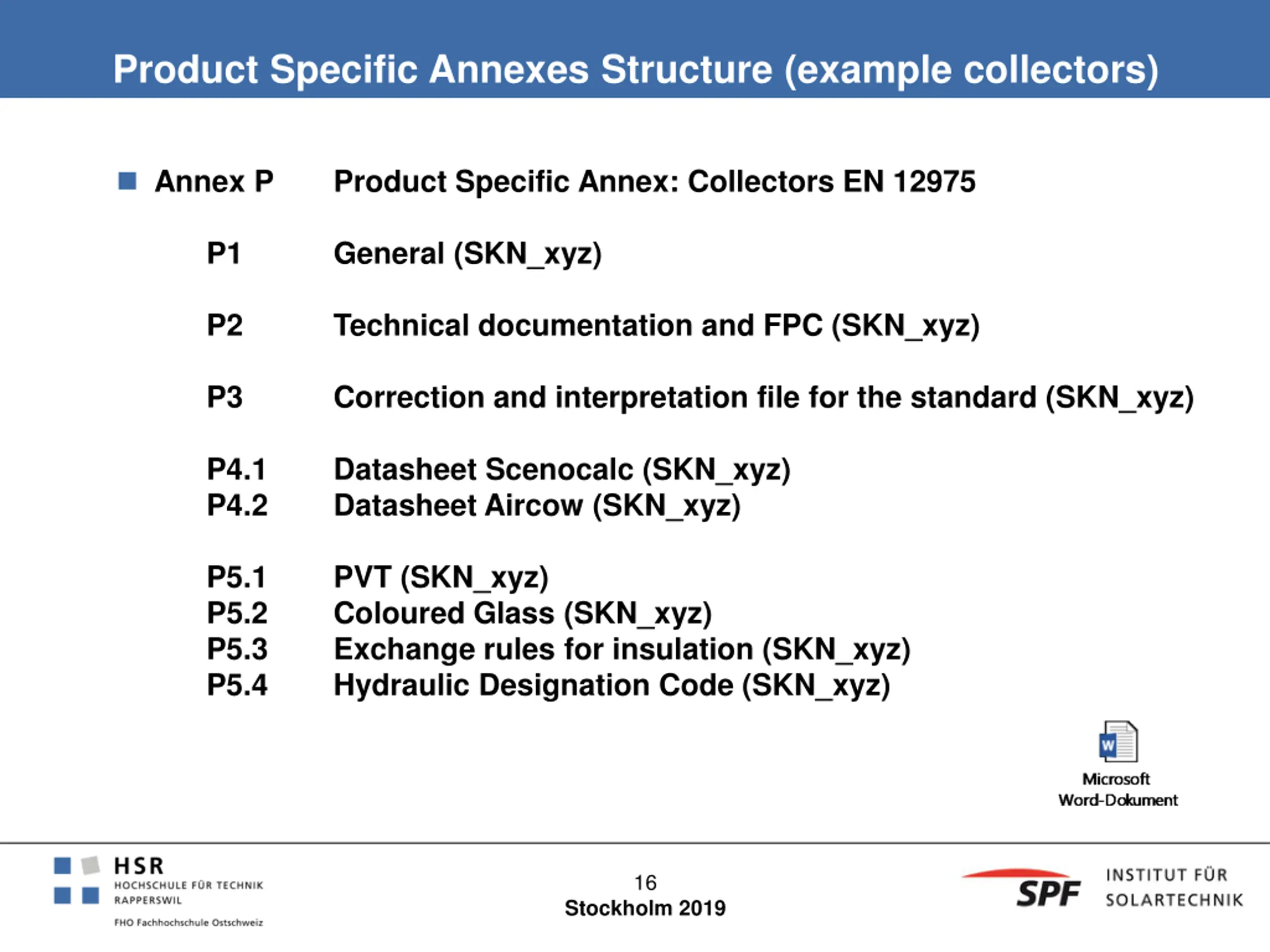

Product Specific Annexes Structure (example collectors) Annex P Product Specific Annex: Collectors EN 12975 P1 General (SKN_xyz) P2 Technical documentation and FPC (SKN_xyz) P3 Correction and interpretation file for the standard (SKN_xyz) P4.1 P4.2 Datasheet Scenocalc (SKN_xyz) Datasheet Aircow (SKN_xyz) P5.1 P5.2 P5.3 P5.4 PVT (SKN_xyz) Coloured Glass (SKN_xyz) Exchange rules for insulation (SKN_xyz) Hydraulic Designation Code (SKN_xyz) 16 Stockholm 2019

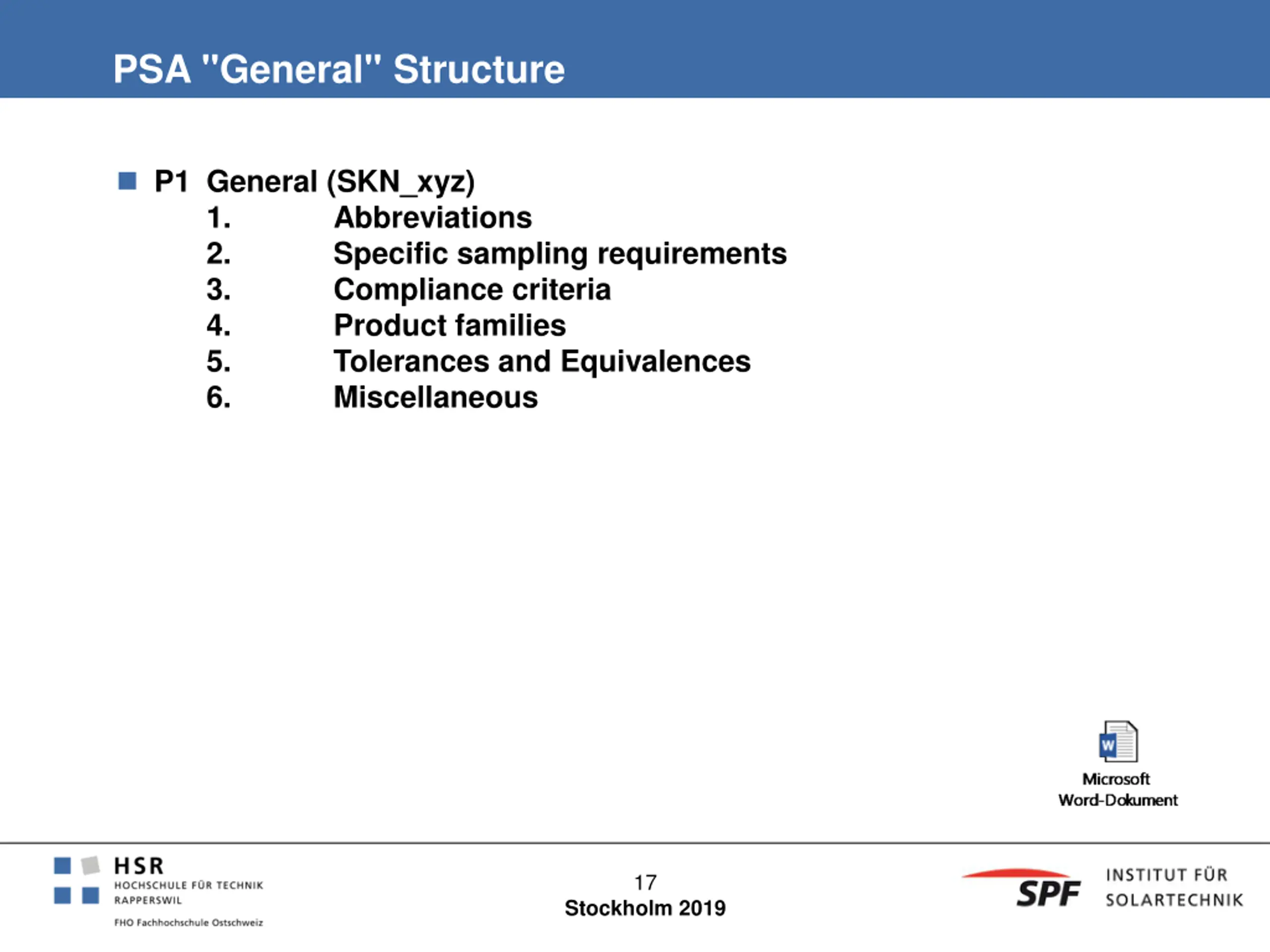

PSA "General" Structure P1 General (SKN_xyz) 1. 2. 3. 4. 5. 6. Abbreviations Specific sampling requirements Compliance criteria Product families Tolerances and Equivalences Miscellaneous 17 Stockholm 2019

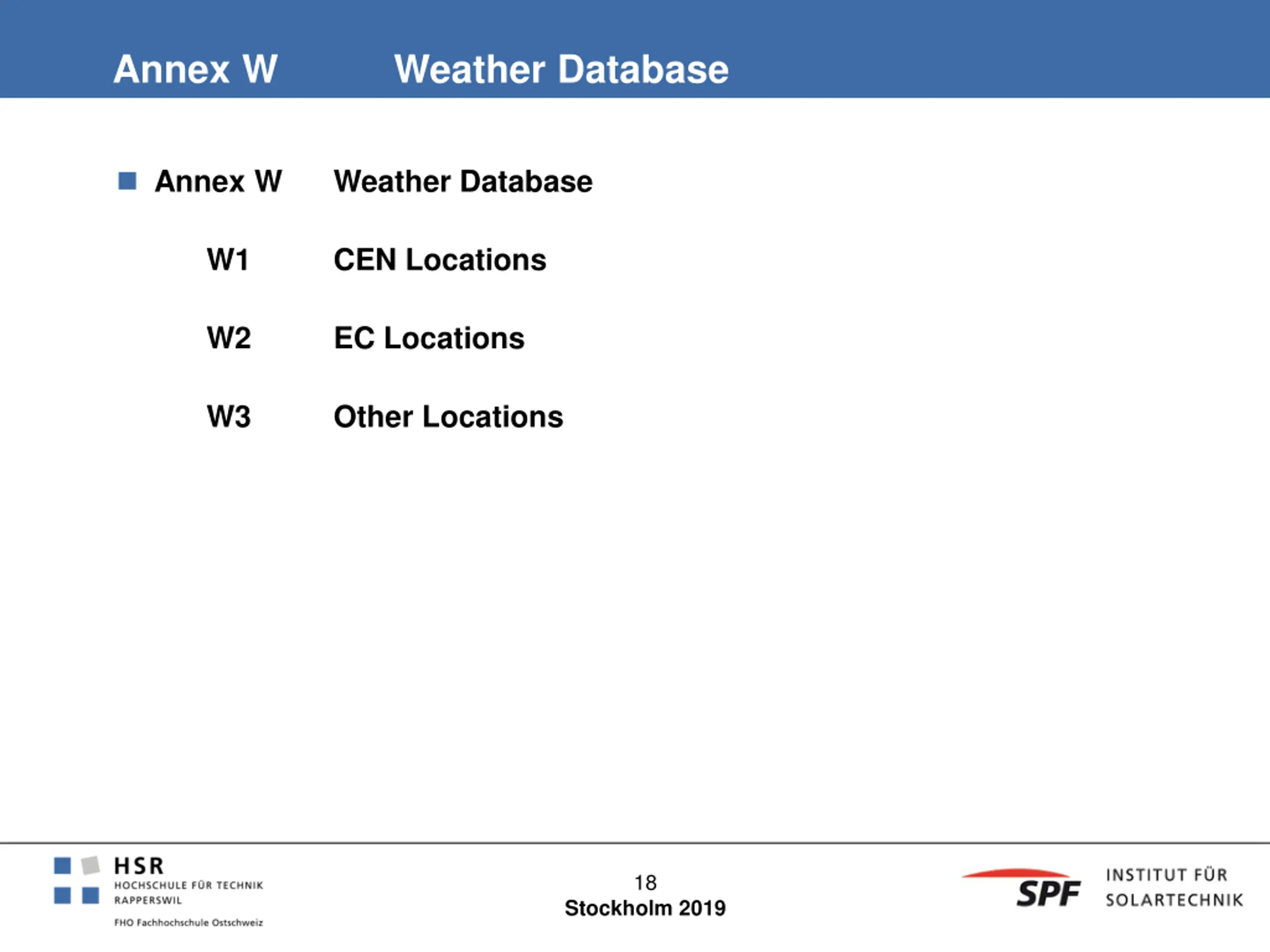

Annex W Weather Database Annex W Weather Database W1 CEN Locations W2 EC Locations W3 Other Locations 18 Stockholm 2019
