Presentation Transcript
Solving MINLP problems with AIMMS Pittsburgh June 4, 2014 Marcel Hunting AIMMS Software Developer www.aimms.com

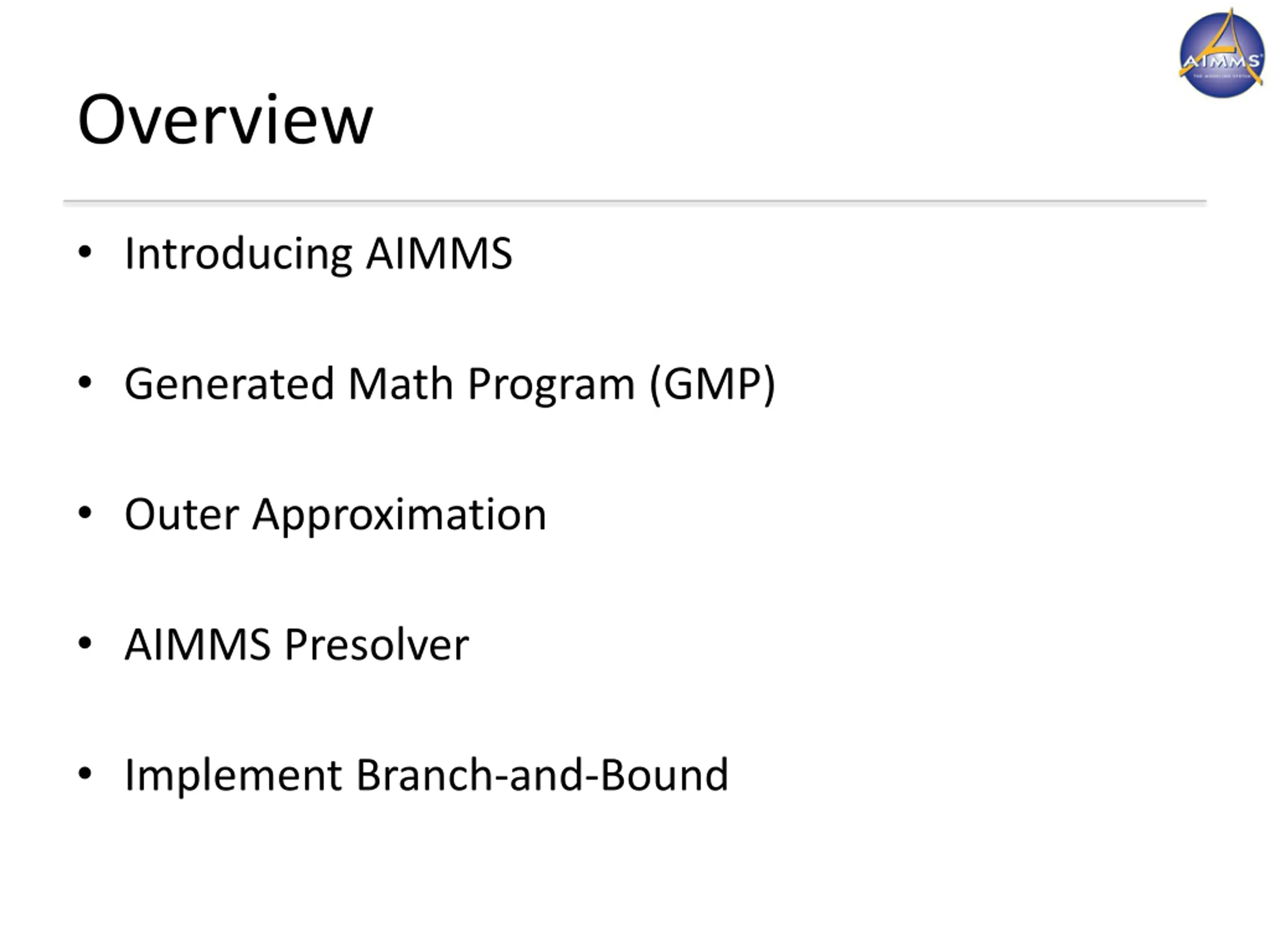

Overview Introducing AIMMS Generated Math Program (GMP) Outer Approximation AIMMS Presolver Implement Branch-and-Bound www.aimms.com

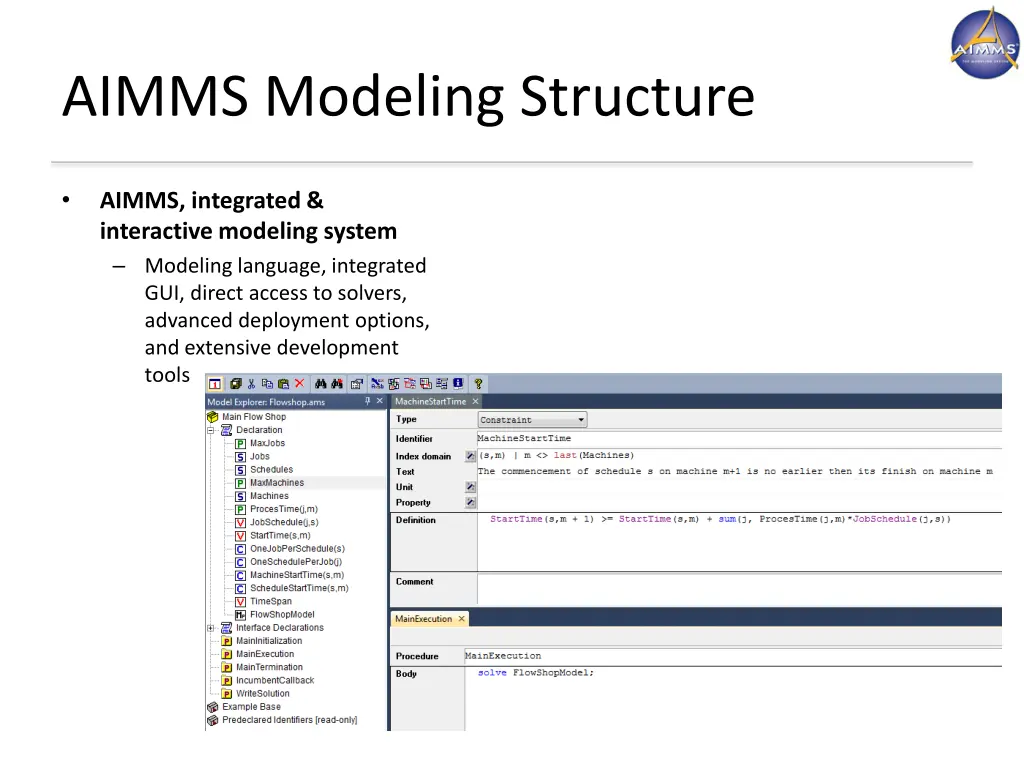

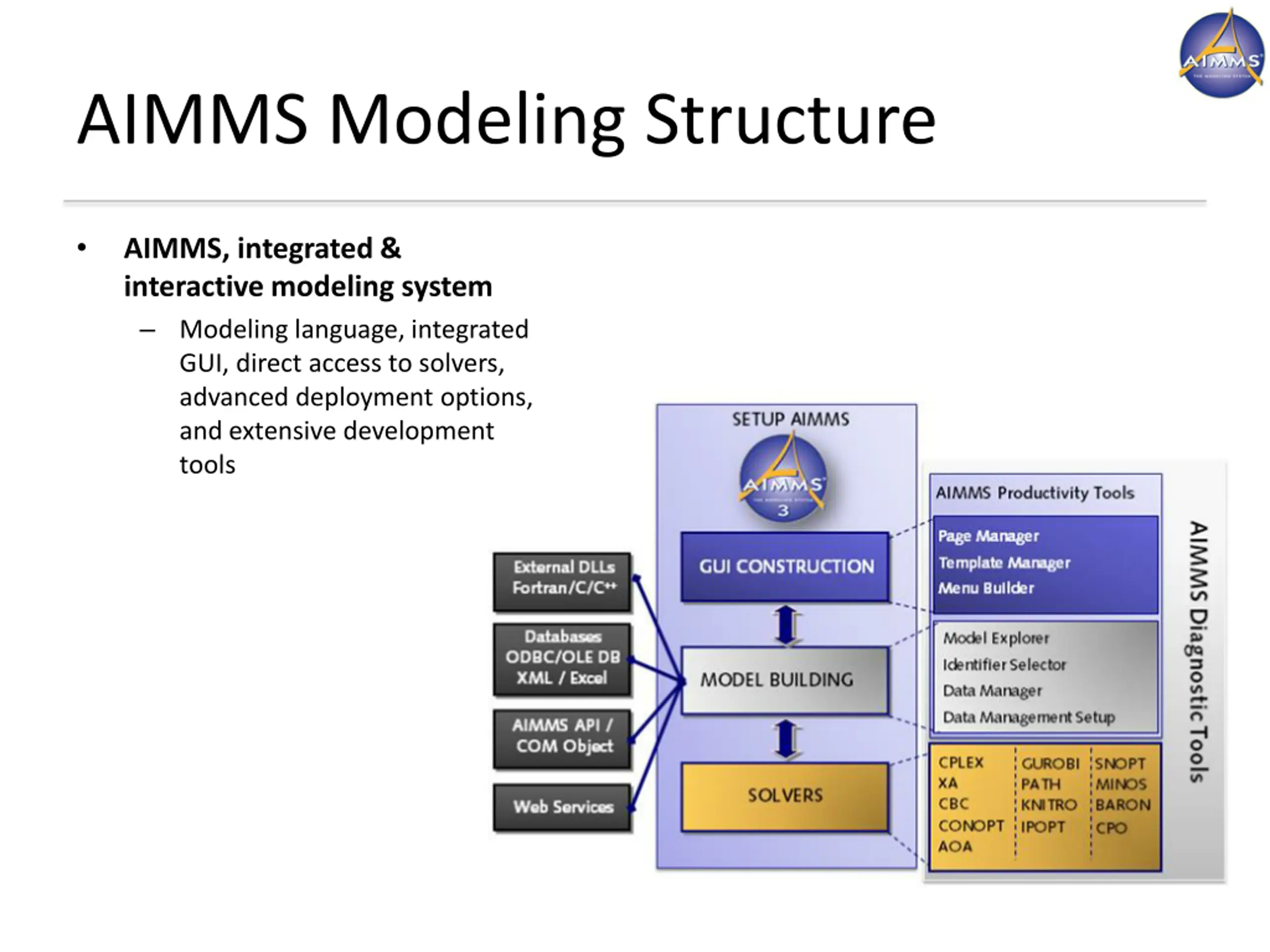

AIMMS Modeling Structure AIMMS, integrated & interactive modeling system Modeling language, integrated GUI, direct access to solvers, advanced deployment options, and extensive development tools www.aimms.com
AIMMS Modeling Structure AIMMS, integrated & interactive modeling system Modeling language, integrated GUI, direct access to solvers, advanced deployment options, and extensive development tools www.aimms.com

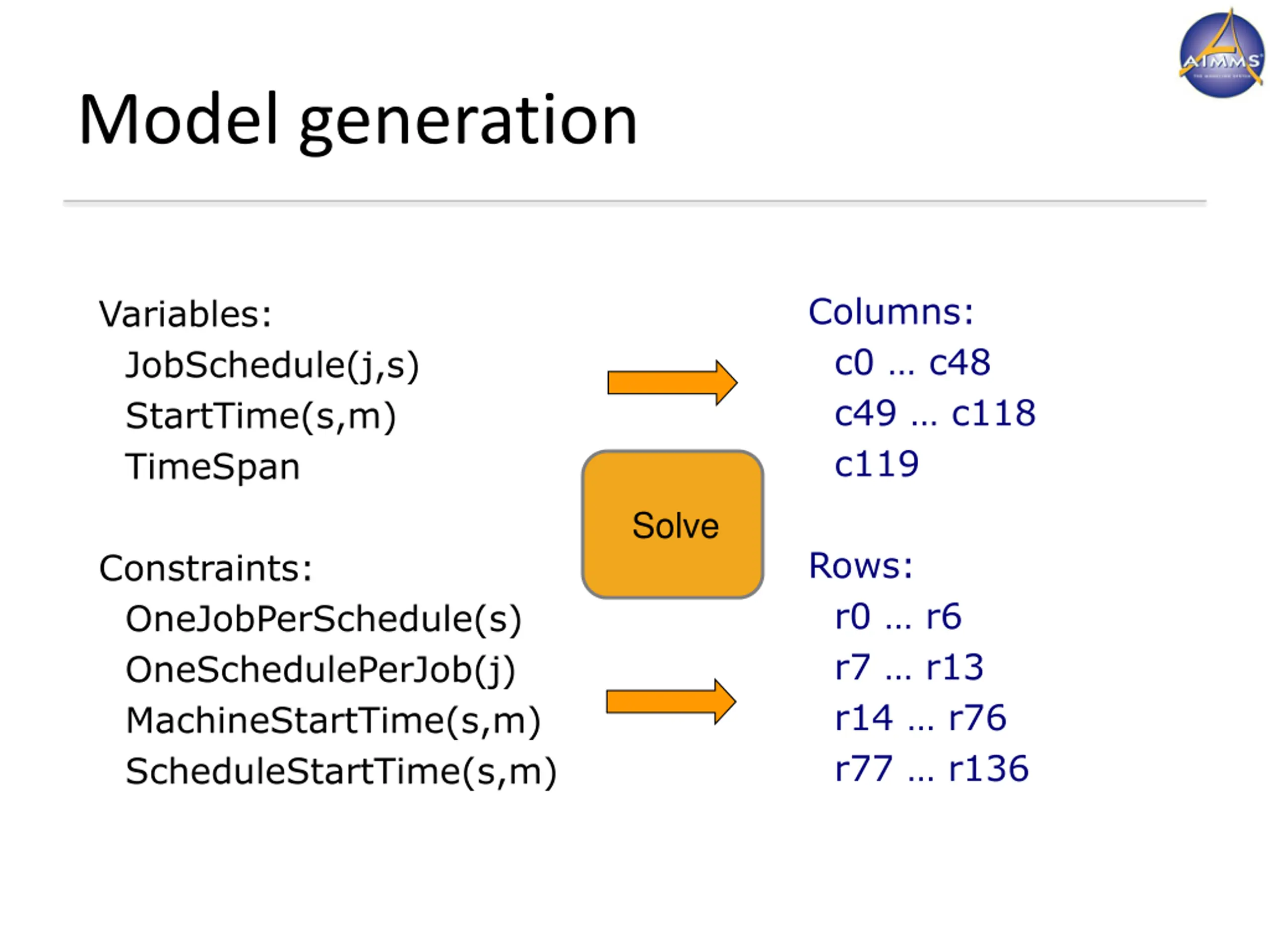

Model generation Columns: c0 c48 c49 c118 c119 Variables: JobSchedule(j,s) StartTime(s,m) TimeSpan Solve Rows: r0 r6 r7 r13 r14 r76 r77 r136 Constraints: OneJobPerSchedule(s) OneSchedulePerJob(j) MachineStartTime(s,m) ScheduleStartTime(s,m) www.aimms.com

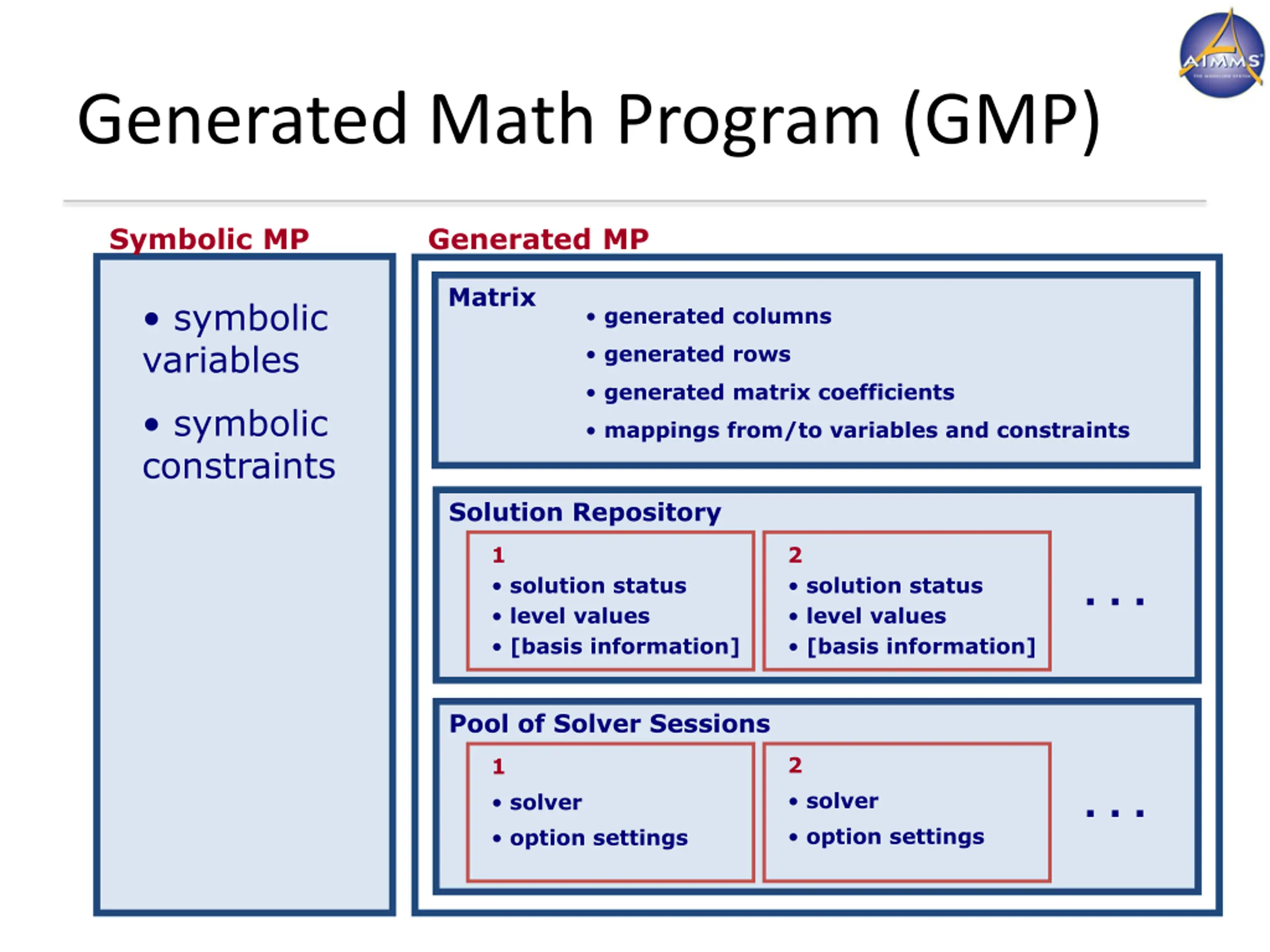

Generated Math Program (GMP) Symbolic MP Generated MP Matrix symbolic variables generated columns generated rows generated matrix coefficients symbolic constraints mappings from/to variables and constraints Solution Repository 1 solution status level values [basis information] 2 solution status level values [basis information] . . . Pool of Solver Sessions 2 solver option settings 1 solver option settings . . . www.aimms.com

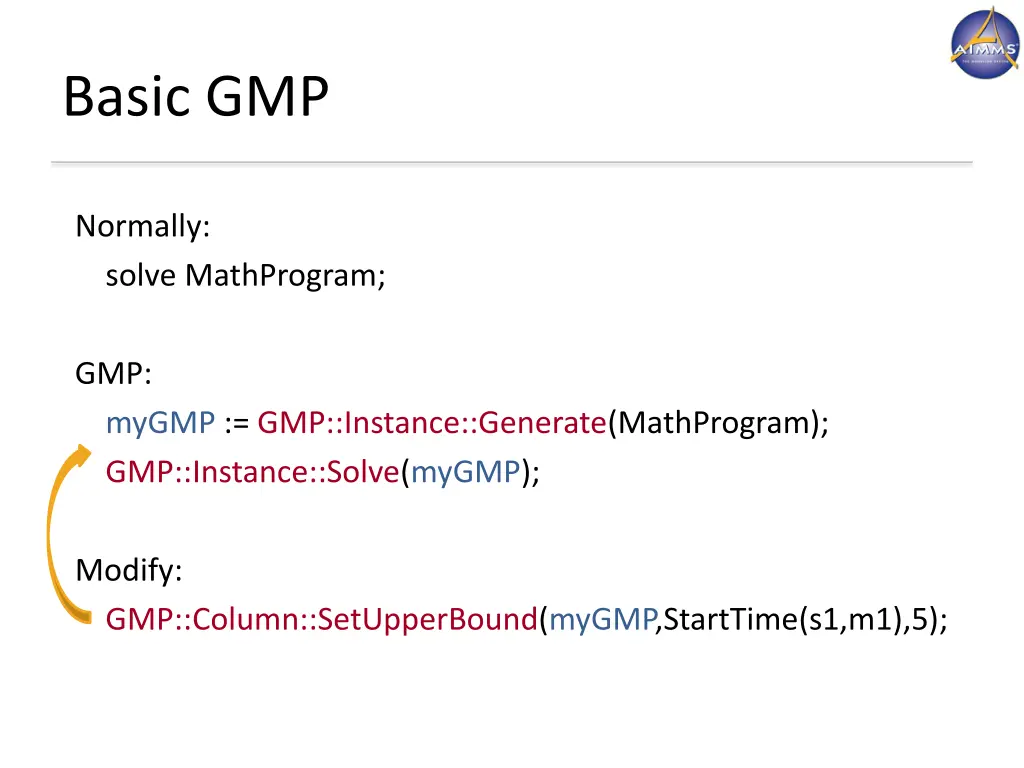

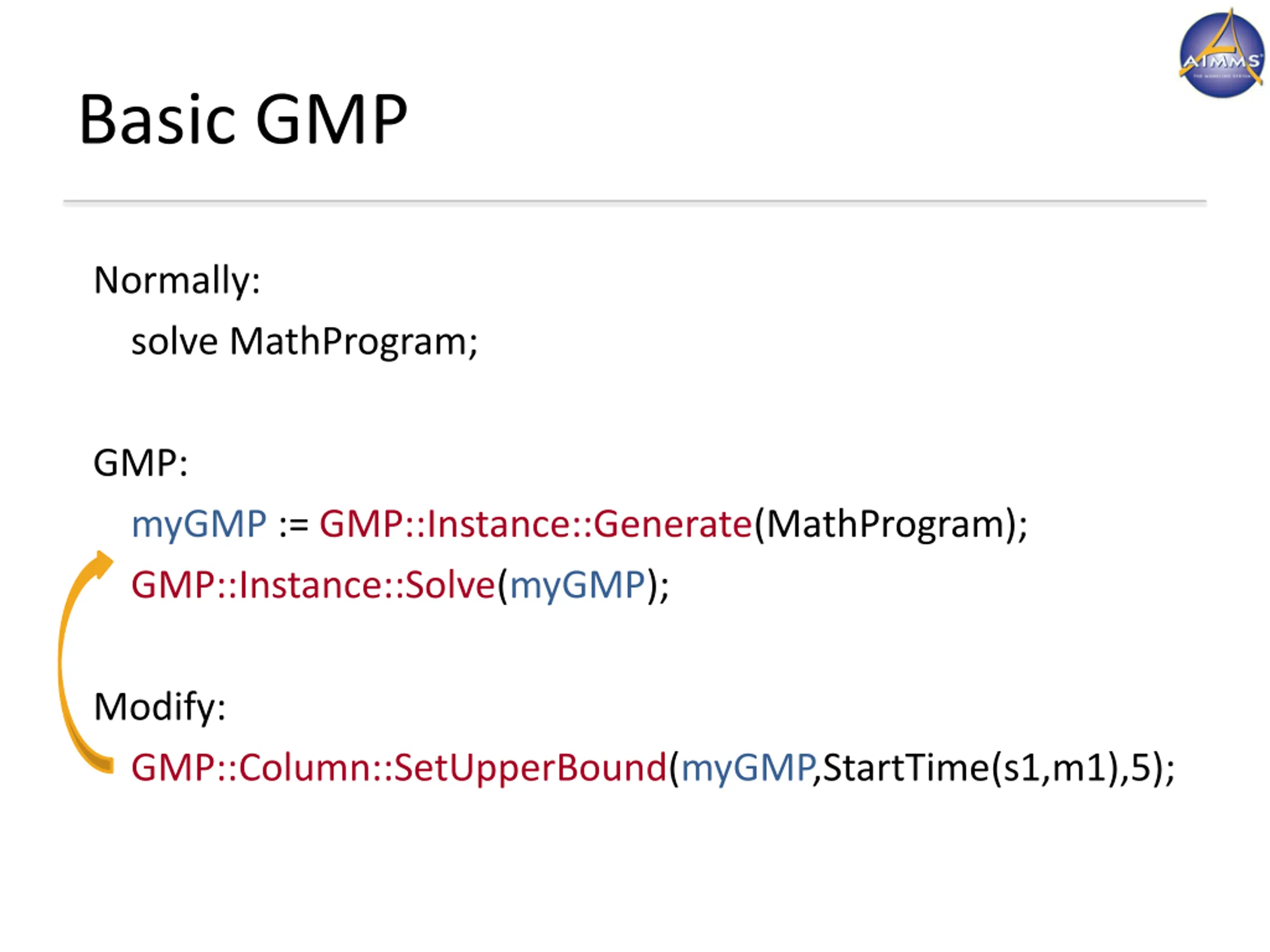

Basic GMP Normally: solve MathProgram; GMP: myGMP := GMP::Instance::Generate(MathProgram); GMP::Instance::Solve(myGMP); Modify: GMP::Column::SetUpperBound(myGMP,StartTime(s1,m1),5); www.aimms.com

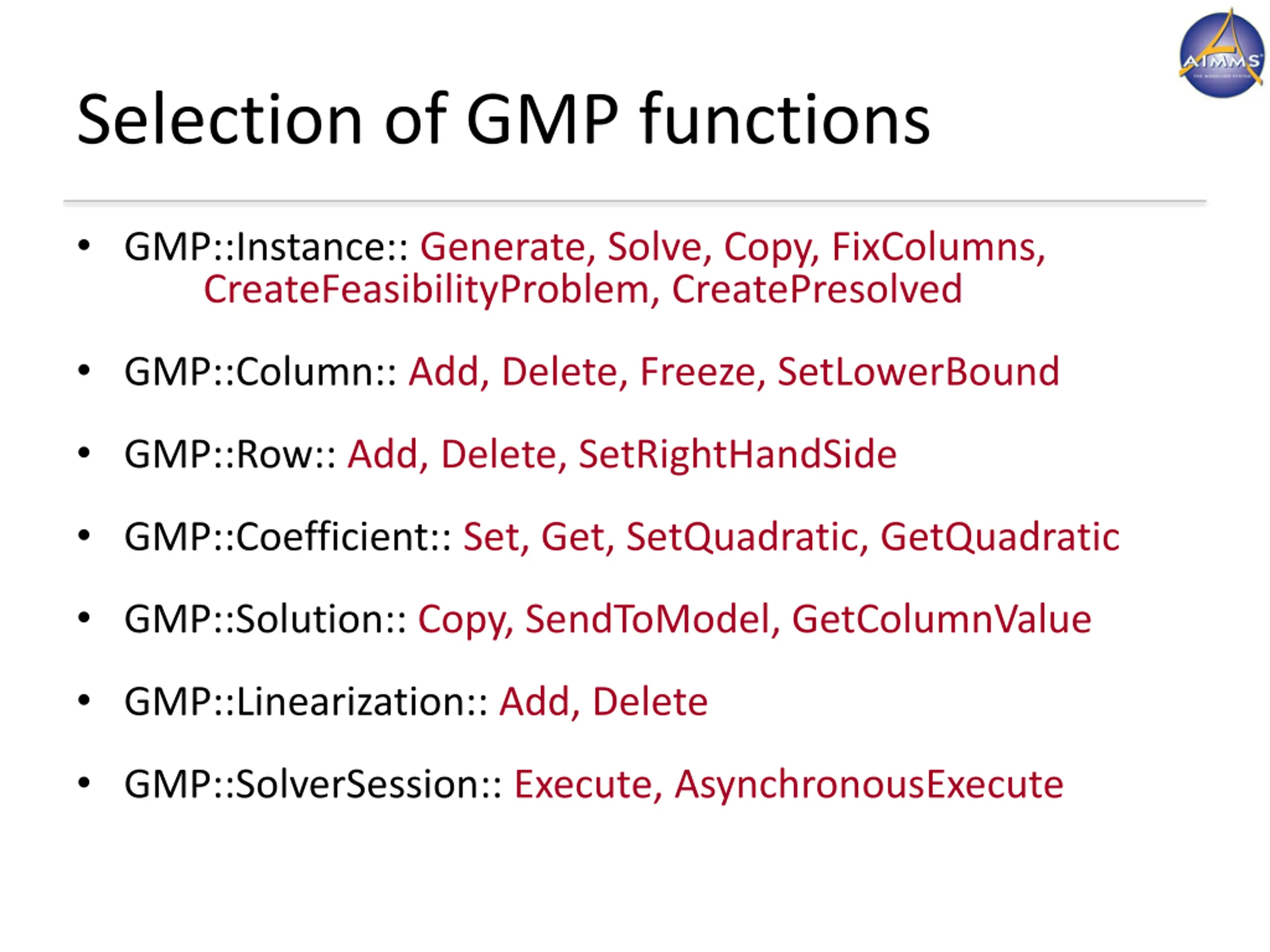

Selection of GMP functions GMP::Instance:: Generate, Solve, Copy, FixColumns, CreateFeasibilityProblem, CreatePresolved GMP::Column:: Add, Delete, Freeze, SetLowerBound GMP::Row:: Add, Delete, SetRightHandSide GMP::Coefficient:: Set, Get, SetQuadratic, GetQuadratic GMP::Solution:: Copy, SendToModel, GetColumnValue GMP::Linearization:: Add, Delete GMP::SolverSession:: Execute, AsynchronousExecute www.aimms.com

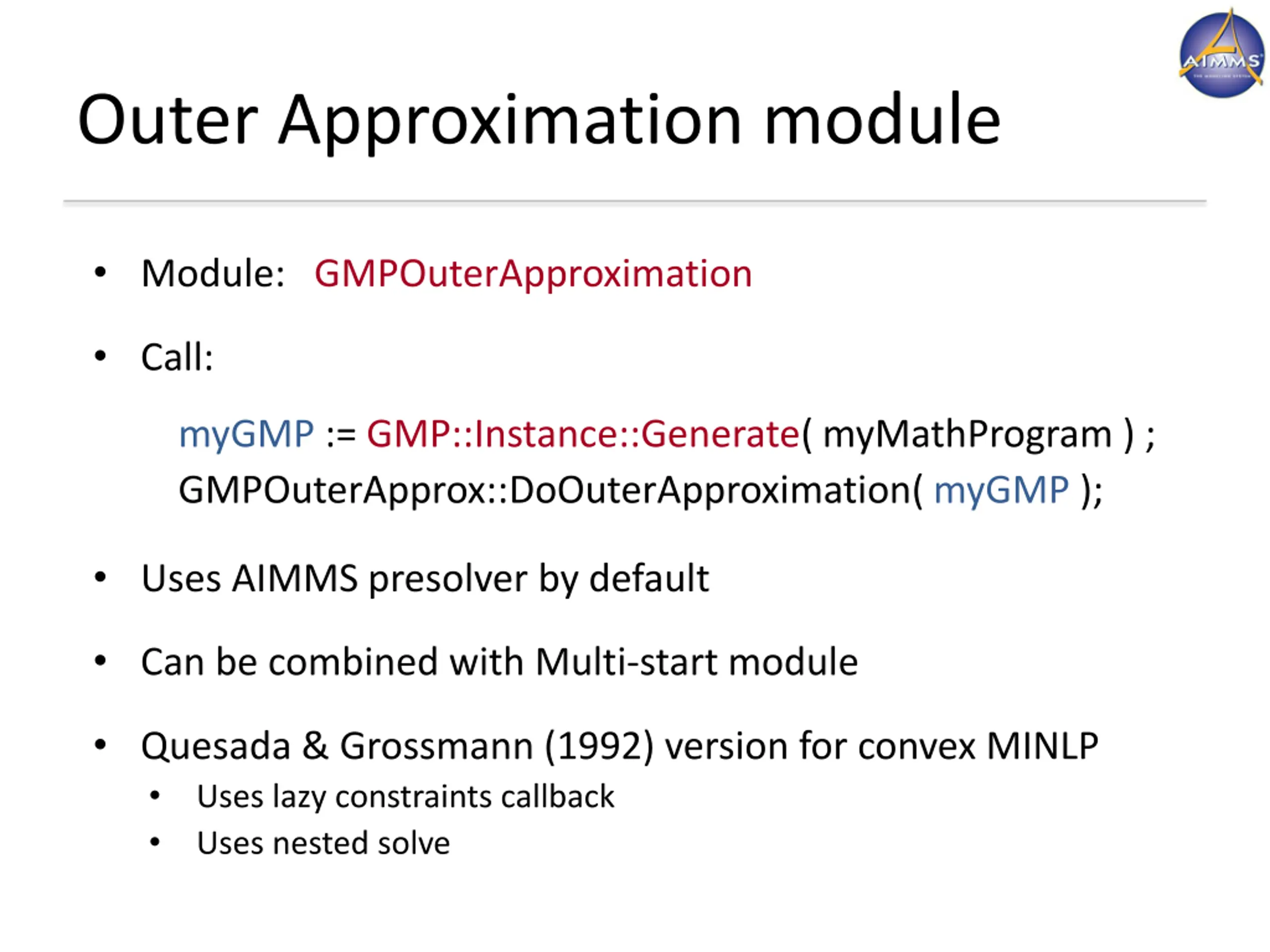

Outer Approximation module Module: GMPOuterApproximation Call: myGMP := GMP::Instance::Generate( myMathProgram ) ; GMPOuterApprox::DoOuterApproximation( myGMP ); Uses AIMMS presolver by default Can be combined with Multi-start module Quesada & Grossmann (1992) version for convex MINLP Uses lazy constraints callback Uses nested solve www.aimms.com

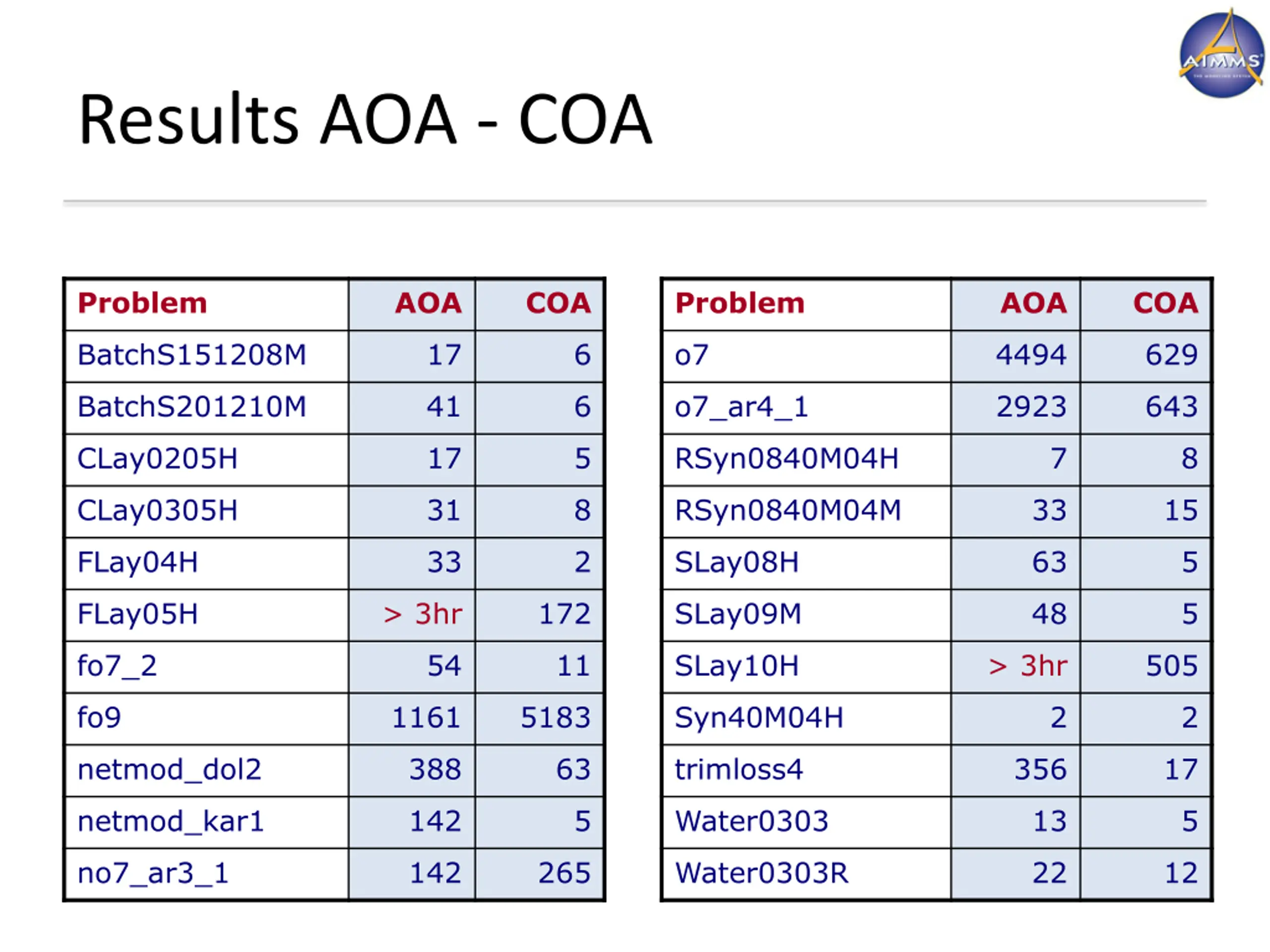

Results AOA - COA Problem AOA COA Problem AOA COA BatchS151208M 17 6 o7 4494 629 BatchS201210M 41 6 o7_ar4_1 2923 643 CLay0205H 17 5 RSyn0840M04H 7 8 CLay0305H 31 8 RSyn0840M04M 33 15 FLay04H 33 2 SLay08H 63 5 FLay05H > 3hr 172 SLay09M 48 5 fo7_2 54 11 SLay10H > 3hr 505 fo9 1161 5183 Syn40M04H 2 2 netmod_dol2 388 63 trimloss4 356 17 netmod_kar1 142 5 Water0303 13 5 no7_ar3_1 142 265 Water0303R 22 12 www.aimms.com

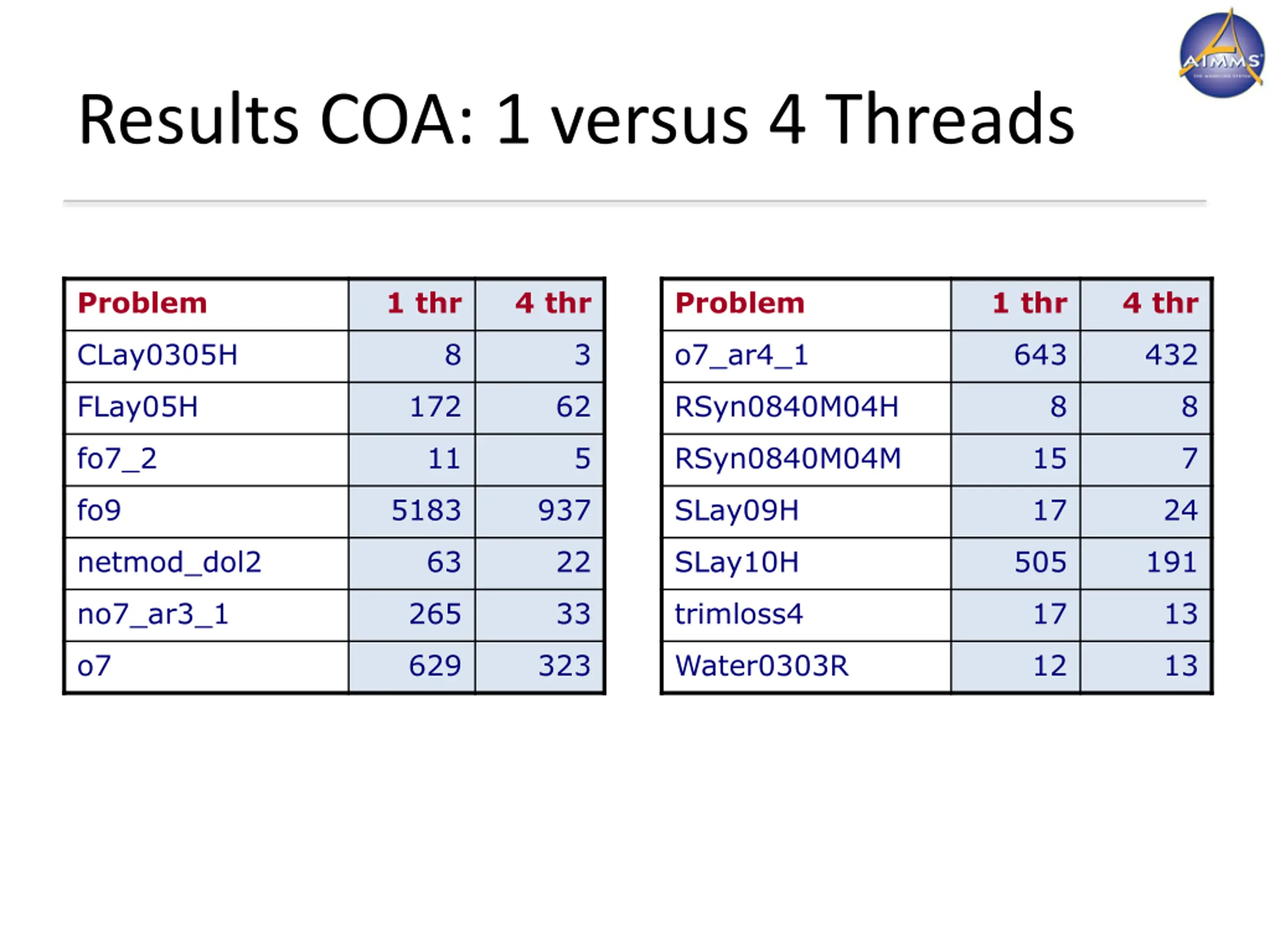

Results COA: 1 versus 4 Threads Problem 1 thr 4 thr Problem 1 thr 4 thr CLay0305H 8 3 o7_ar4_1 643 432 FLay05H 172 62 RSyn0840M04H 8 8 fo7_2 11 5 RSyn0840M04M 15 7 fo9 5183 937 SLay09H 17 24 netmod_dol2 63 22 SLay10H 505 191 no7_ar3_1 265 33 trimloss4 17 13 o7 629 323 Water0303R 12 13 www.aimms.com

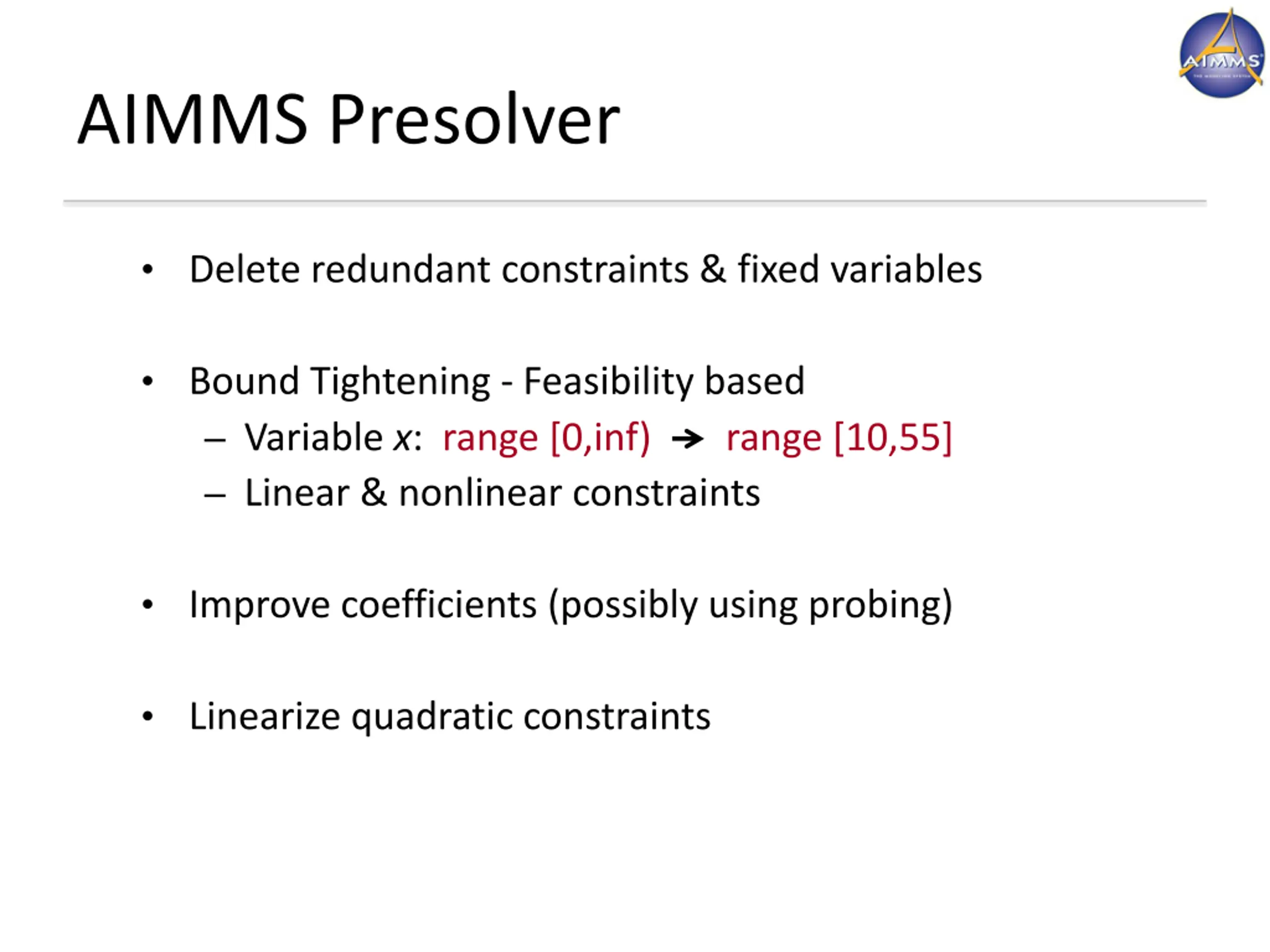

AIMMS Presolver Delete redundant constraints & fixed variables Bound Tightening - Feasibility based Variable x: range [0,inf) - range [10,55] Linear & nonlinear constraints Improve coefficients (possibly using probing) Linearize quadratic constraints www.aimms.com

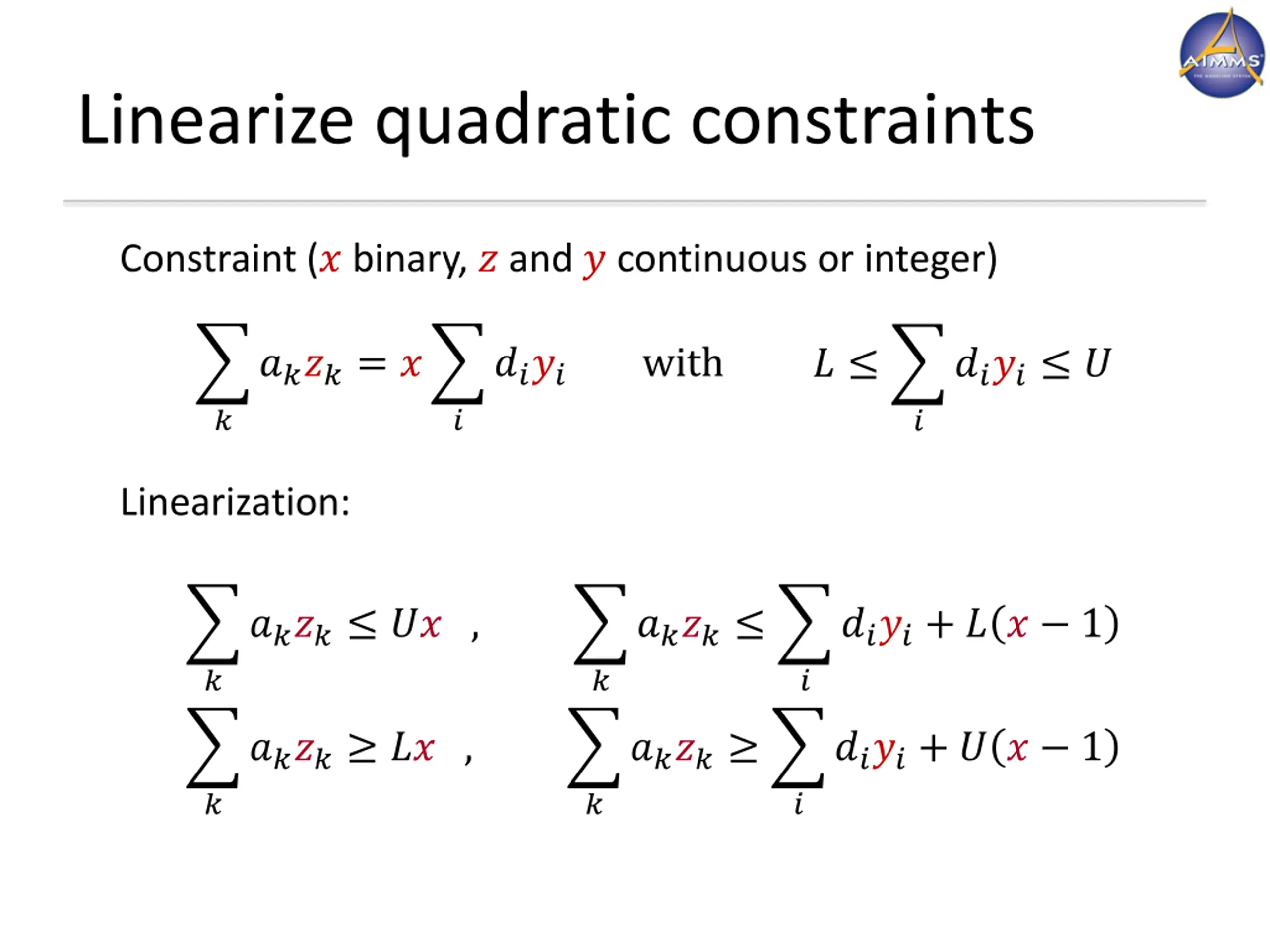

Linearize quadratic constraints Constraint (? binary, ? and ? continuous or integer) ????= ? ? ???? with ? ???? ? ? ? Linearization: ???? ?? , ???? ????+ ? ? 1 ? ? ? ???? ?? , ???? ????+ ? ? 1 ? ? ? www.aimms.com

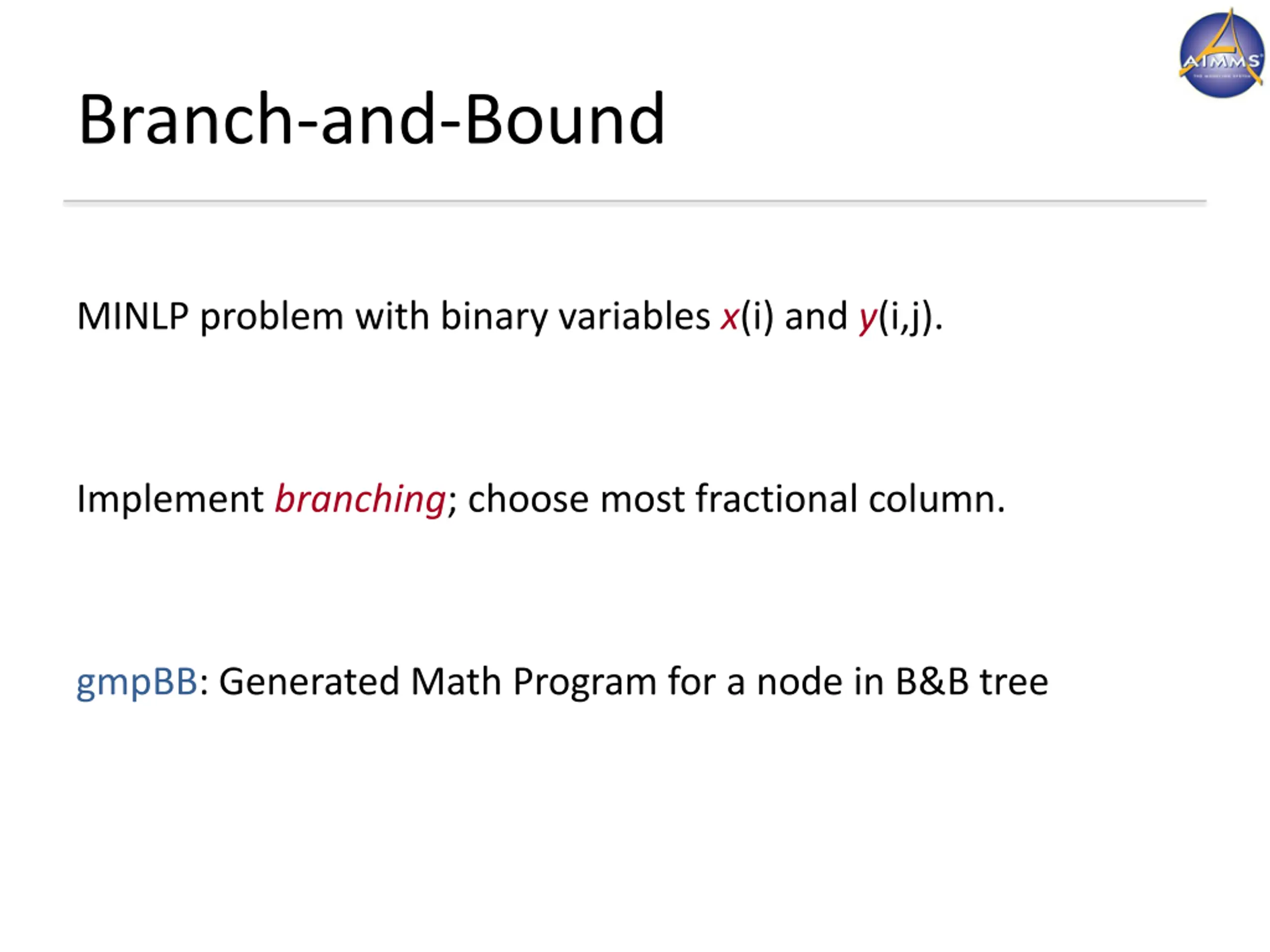

Branch-and-Bound MINLP problem with binary variables x(i) and y(i,j). Implement branching; choose most fractional column. gmpBB: Generated Math Program for a node in B&B tree www.aimms.com

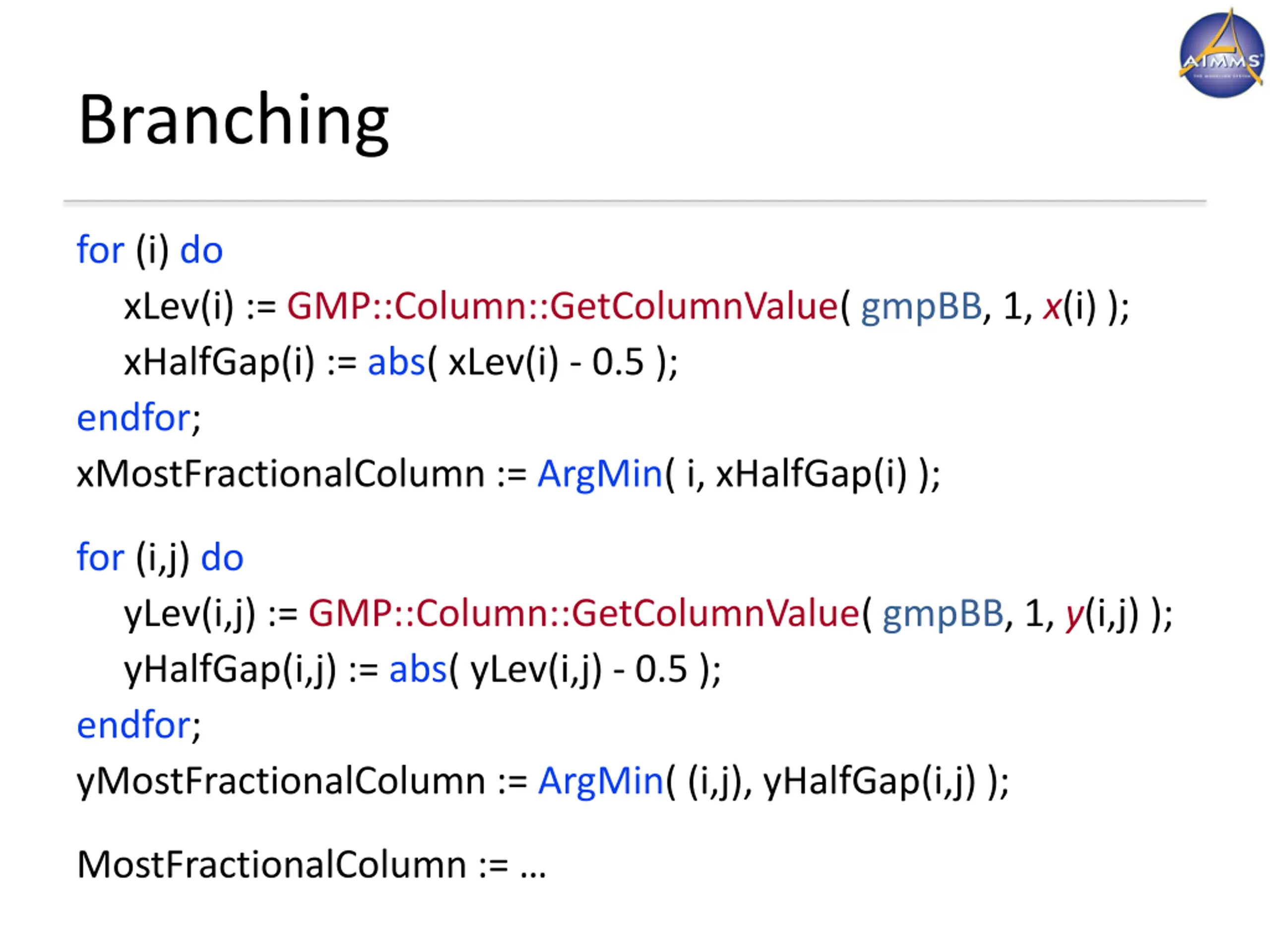

Branching for (i) do xLev(i) := GMP::Column::GetColumnValue( gmpBB, 1, x(i) ); xHalfGap(i) := abs( xLev(i) - 0.5 ); endfor; xMostFractionalColumn := ArgMin( i, xHalfGap(i) ); for (i,j) do yLev(i,j) := GMP::Column::GetColumnValue( gmpBB, 1, y(i,j) ); yHalfGap(i,j) := abs( yLev(i,j) - 0.5 ); endfor; yMostFractionalColumn := ArgMin( (i,j), yHalfGap(i,j) ); MostFractionalColumn := www.aimms.com

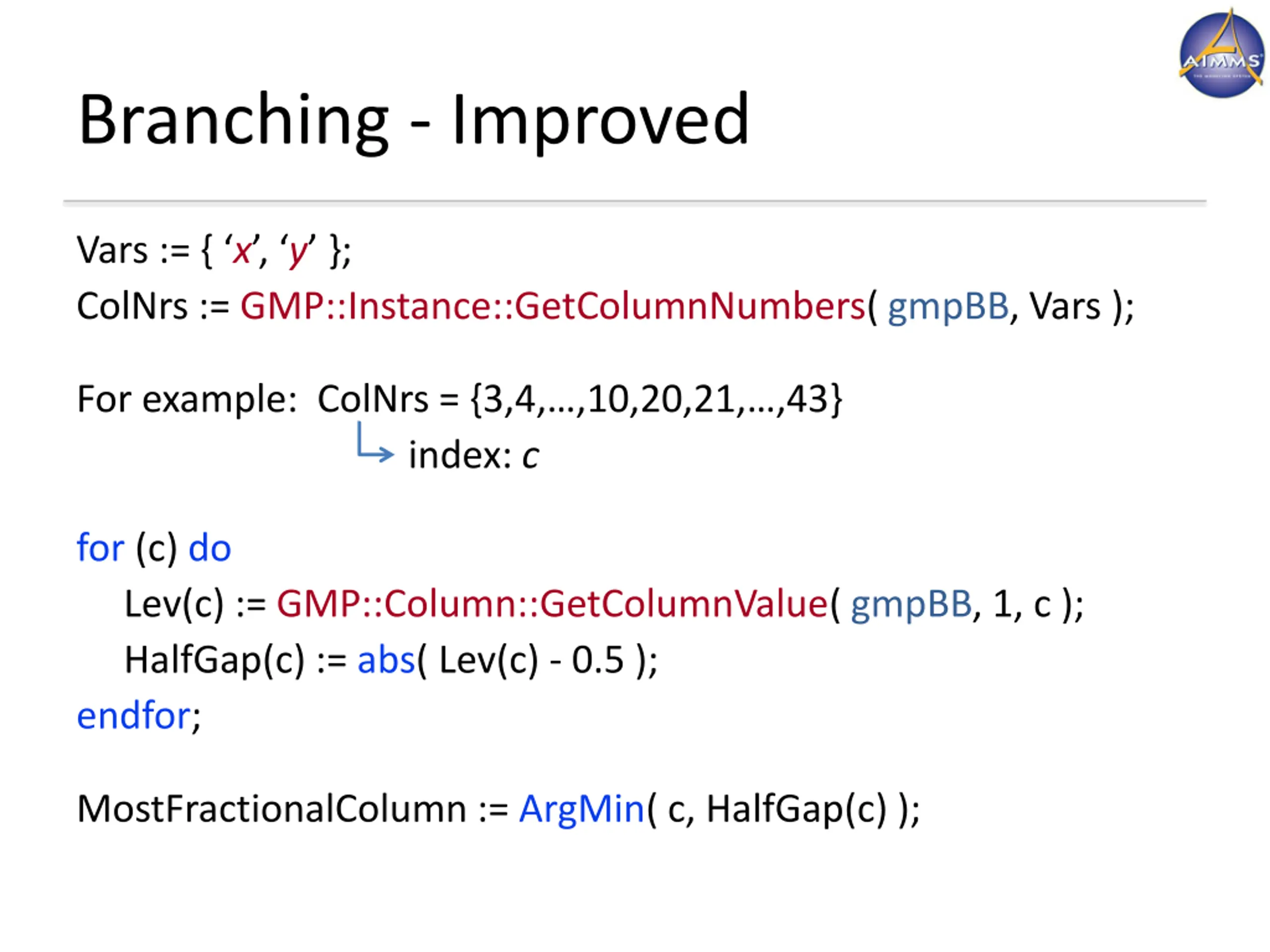

Branching - Improved Vars := { x , y }; ColNrs := GMP::Instance::GetColumnNumbers( gmpBB, Vars ); For example: ColNrs = {3,4, ,10,20,21, ,43} index: c for (c) do Lev(c) := GMP::Column::GetColumnValue( gmpBB, 1, c ); HalfGap(c) := abs( Lev(c) - 0.5 ); endfor; MostFractionalColumn := ArgMin( c, HalfGap(c) ); www.aimms.com

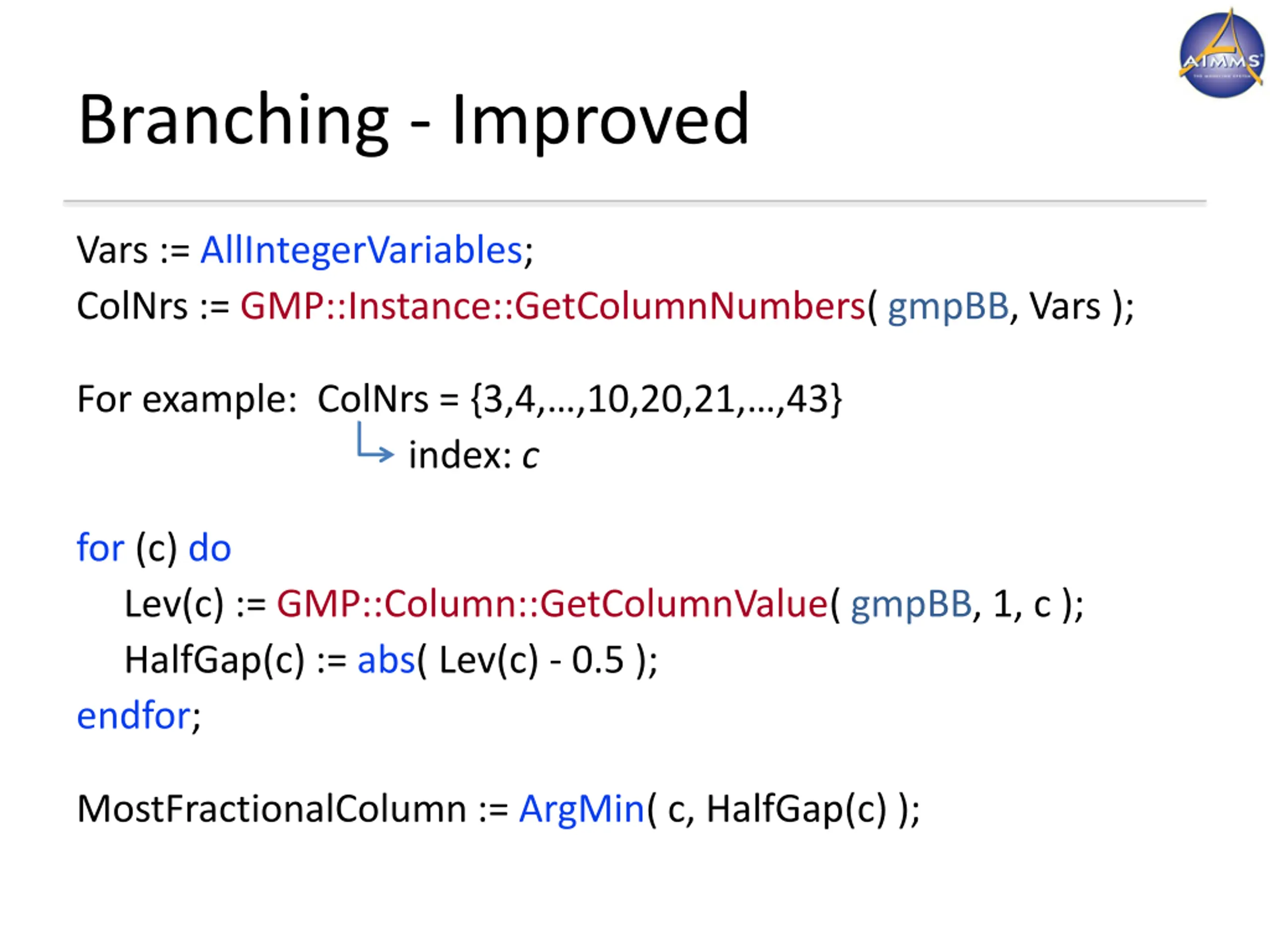

Branching - Improved Vars := AllIntegerVariables; ColNrs := GMP::Instance::GetColumnNumbers( gmpBB, Vars ); For example: ColNrs = {3,4, ,10,20,21, ,43} index: c for (c) do Lev(c) := GMP::Column::GetColumnValue( gmpBB, 1, c ); HalfGap(c) := abs( Lev(c) - 0.5 ); endfor; MostFractionalColumn := ArgMin( c, HalfGap(c) ); www.aimms.com
