Presentation Transcript

By Chris Ashinhurst Southern Nevada Water Authority

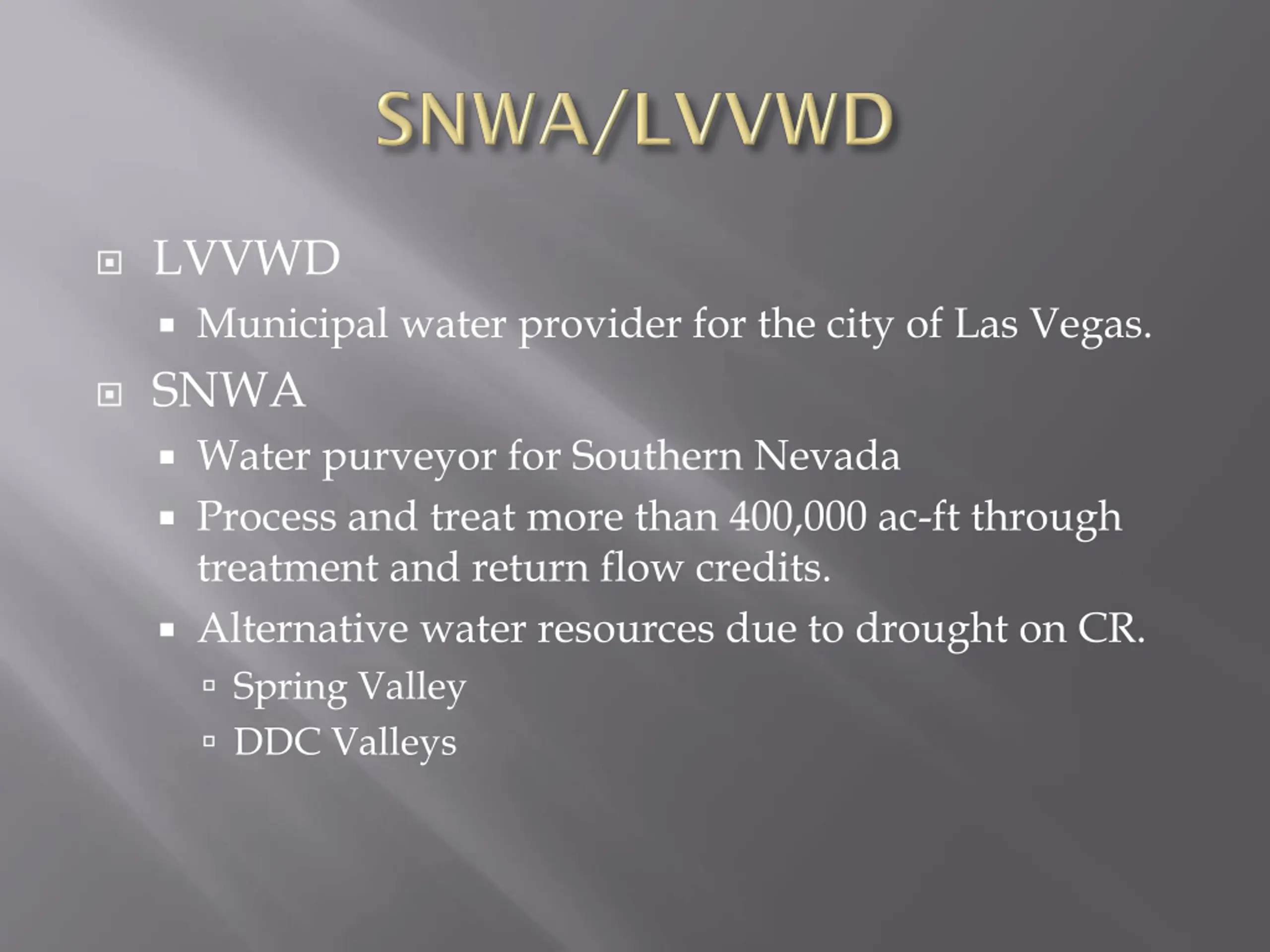

LVVWD Municipal water provider for the city of Las Vegas. SNWA Water purveyor for Southern Nevada Process and treat more than 400,000 ac-ft through treatment and return flow credits. Alternative water resources due to drought on CR. Spring Valley DDC Valleys

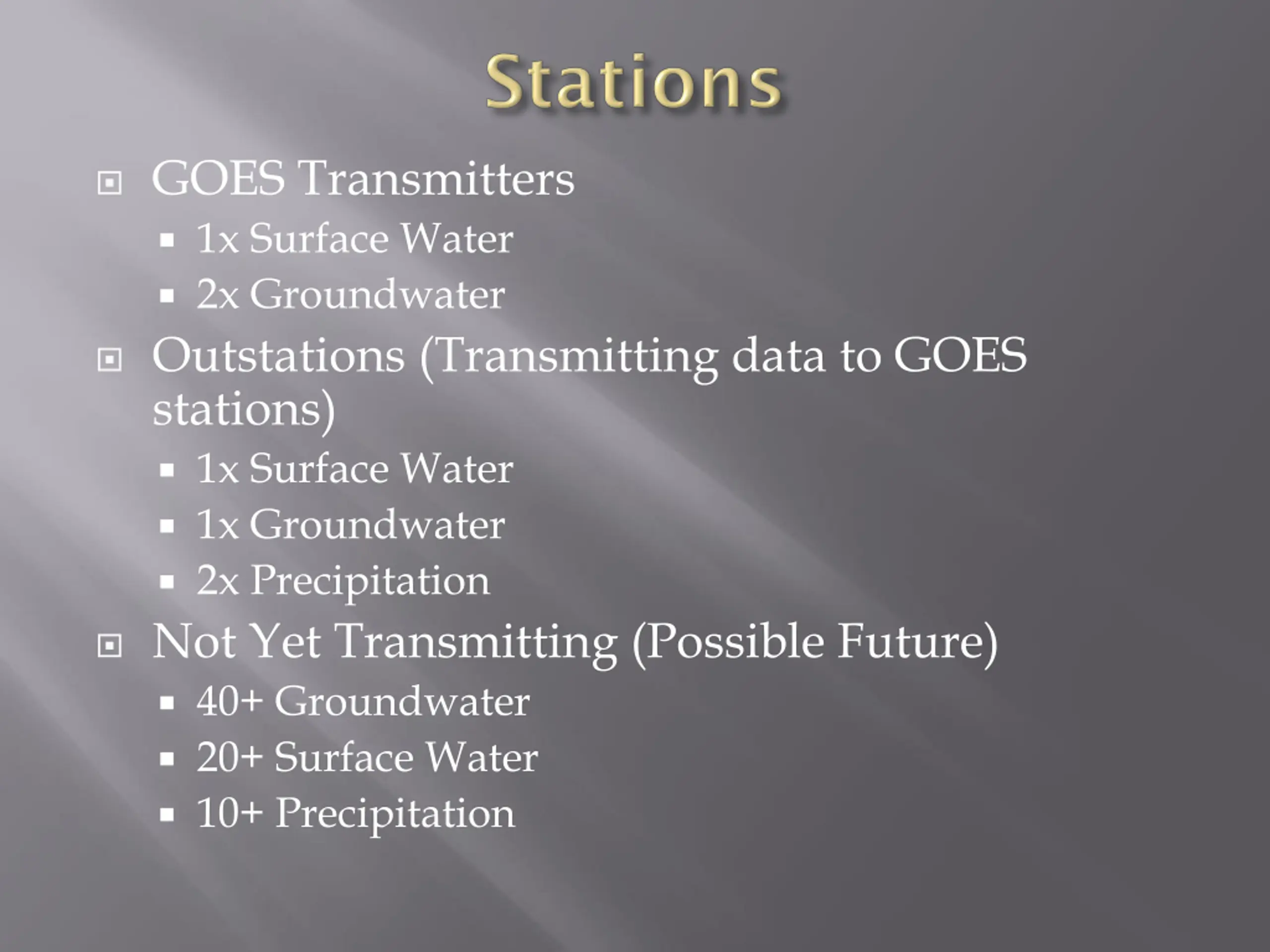

GOES Transmitters 1x Surface Water 2x Groundwater Outstations (Transmitting data to GOES stations) 1x Surface Water 1x Groundwater 2x Precipitation Not Yet Transmitting (Possible Future) 40+ Groundwater 20+ Surface Water 10+ Precipitation

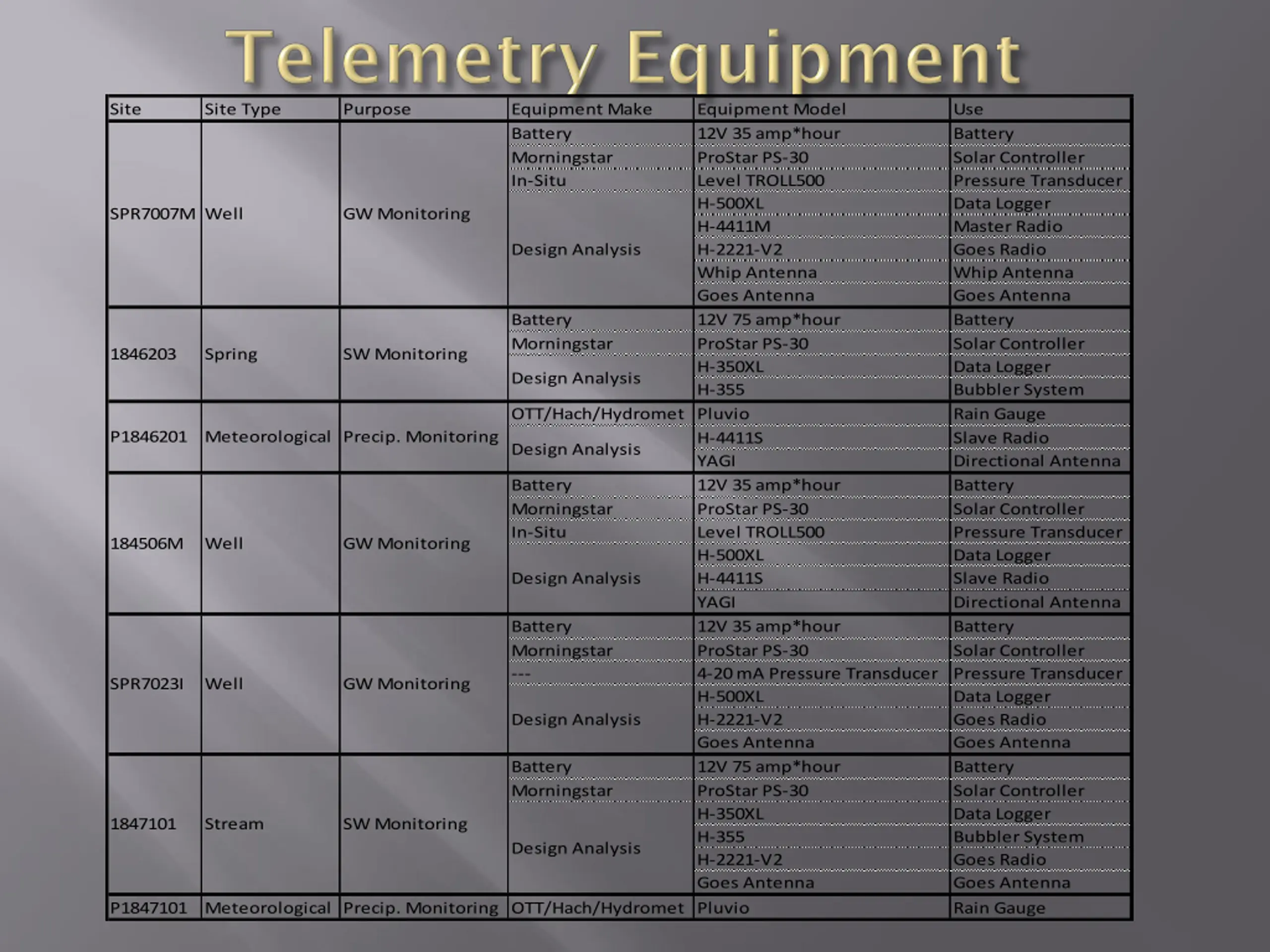

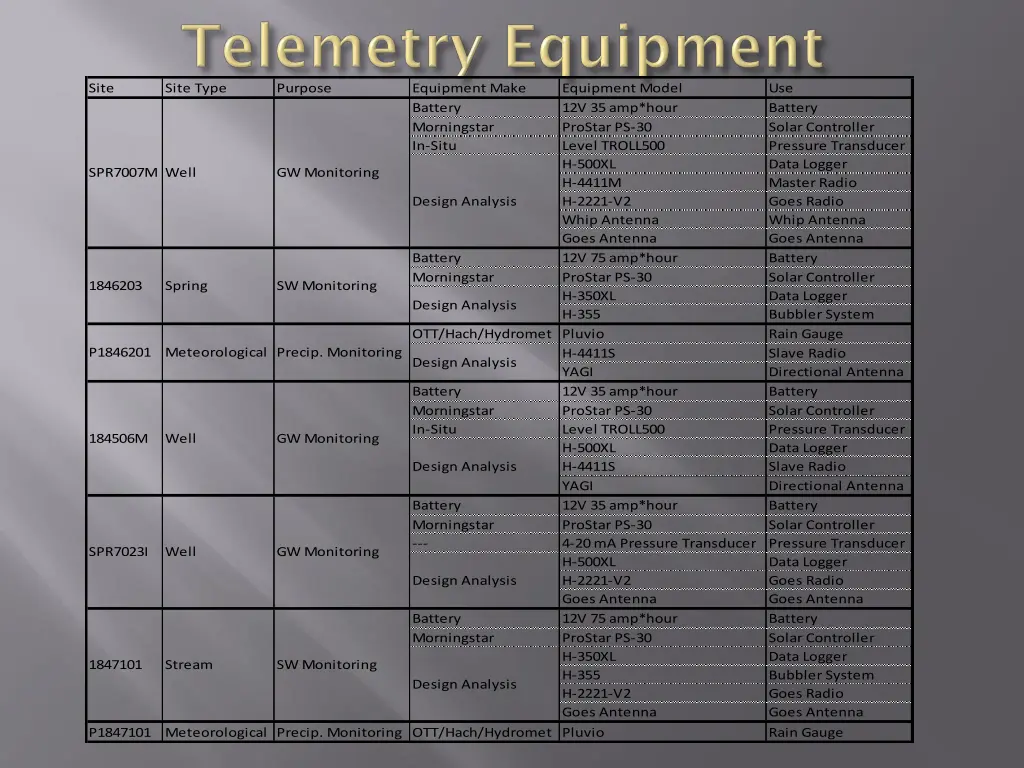

Site Site Type Purpose Equipment Make Battery Morningstar In-Situ Equipment Model 12V 35 amp*hour ProStar PS-30 Level TROLL500 H-500XL H-4411M H-2221-V2 Whip Antenna Goes Antenna 12V 75 amp*hour ProStar PS-30 H-350XL H-355 Use Battery Solar Controller Pressure Transducer Data Logger Master Radio Goes Radio Whip Antenna Goes Antenna Battery Solar Controller Data Logger Bubbler System Rain Gauge Slave Radio Directional Antenna Battery Solar Controller Pressure Transducer Data Logger Slave Radio Directional Antenna Battery Solar Controller SPR7007M Well GW Monitoring Design Analysis Battery Morningstar 1846203 Spring SW Monitoring Design Analysis OTT/Hach/Hydromet Pluvio P1846201 Meteorological Precip. Monitoring H-4411S YAGI 12V 35 amp*hour ProStar PS-30 Level TROLL500 H-500XL H-4411S YAGI 12V 35 amp*hour ProStar PS-30 4-20 mA Pressure Transducer Pressure Transducer H-500XL H-2221-V2 Goes Antenna 12V 75 amp*hour ProStar PS-30 H-350XL H-355 H-2221-V2 Goes Antenna Design Analysis Battery Morningstar In-Situ 184506M Well GW Monitoring Design Analysis Battery Morningstar --- SPR7023I Well GW Monitoring Data Logger Goes Radio Goes Antenna Battery Solar Controller Data Logger Bubbler System Goes Radio Goes Antenna Rain Gauge Design Analysis Battery Morningstar 1847101 Stream SW Monitoring Design Analysis P1847101 Meteorological Precip. Monitoring OTT/Hach/Hydromet Pluvio

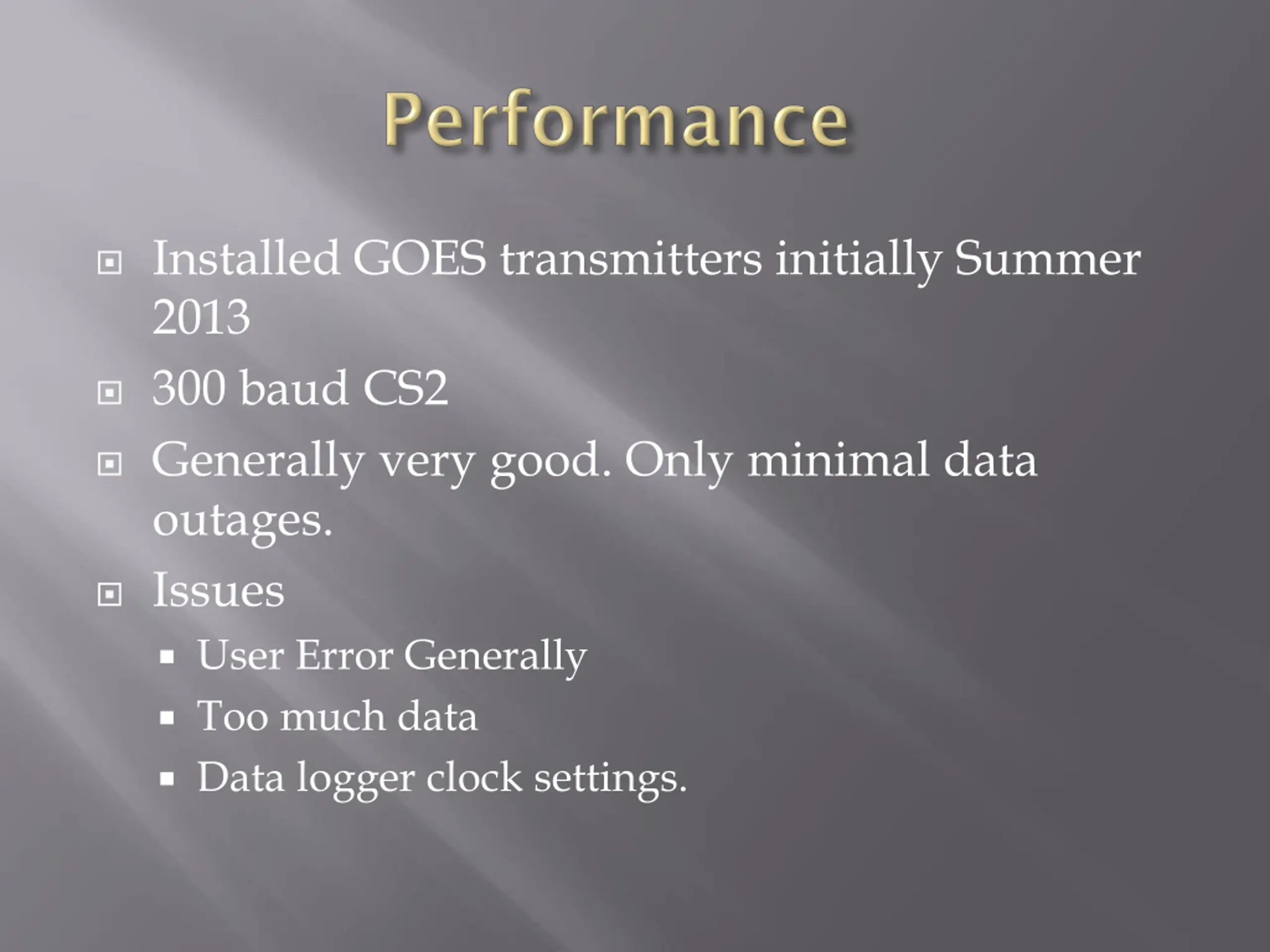

Installed GOES transmitters initially Summer 2013 300 baud CS2 Generally very good. Only minimal data outages. Issues User Error Generally Too much data Data logger clock settings.
