Space Segment Instruments Requirements for D3S SmallSat Mission

D3S Instruments Requirements SWE Space Segment 16/10/2019 ESA UNCLASSIFIED - For Official Use

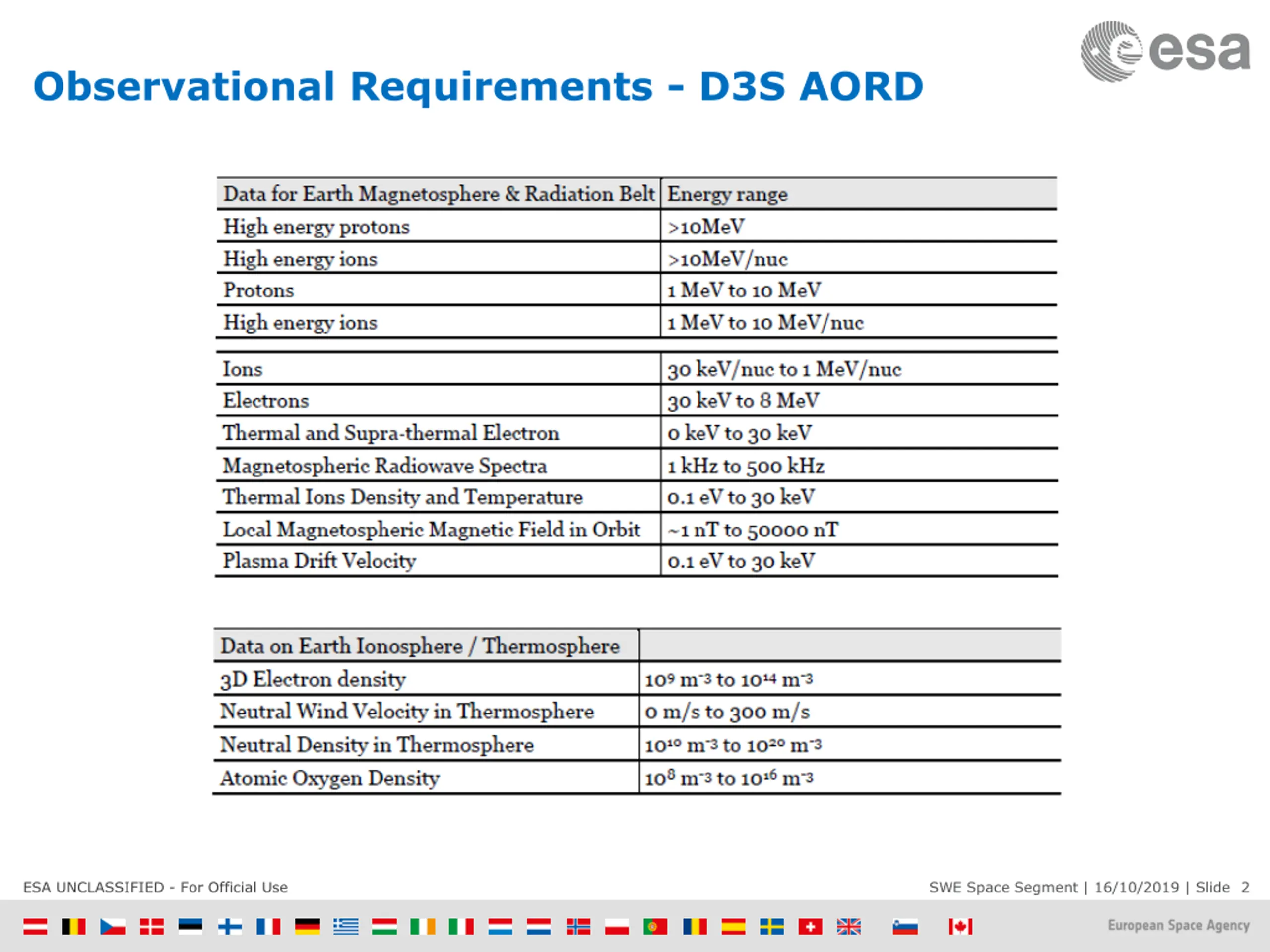

Observational Requirements - D3S AORD ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 2

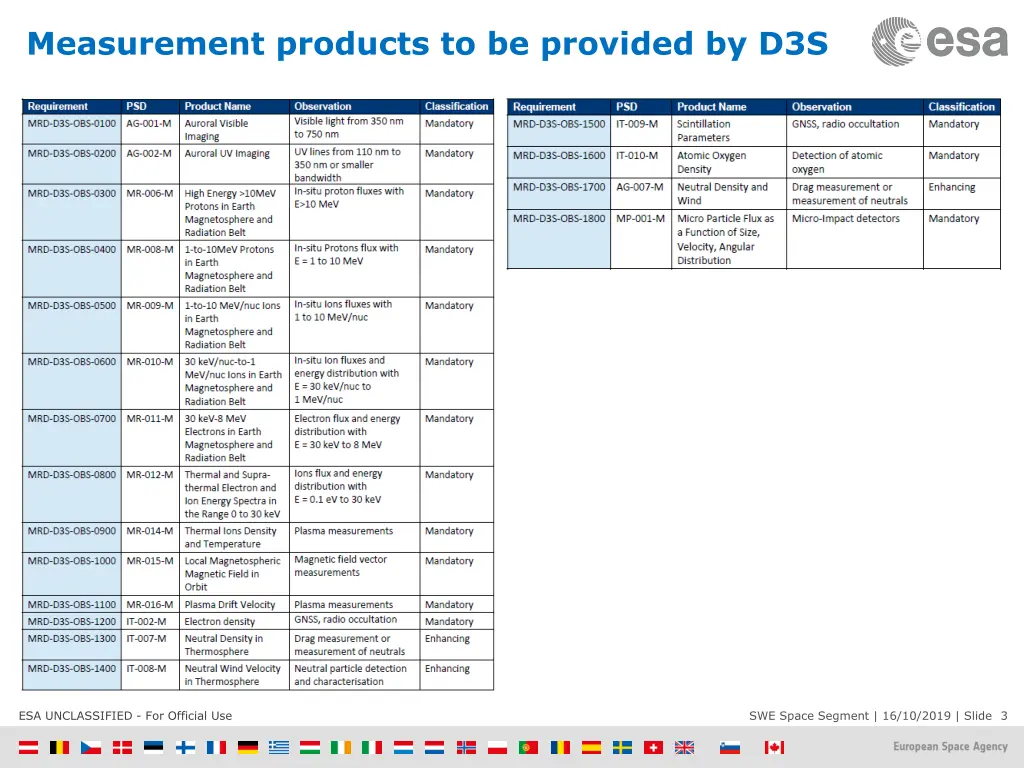

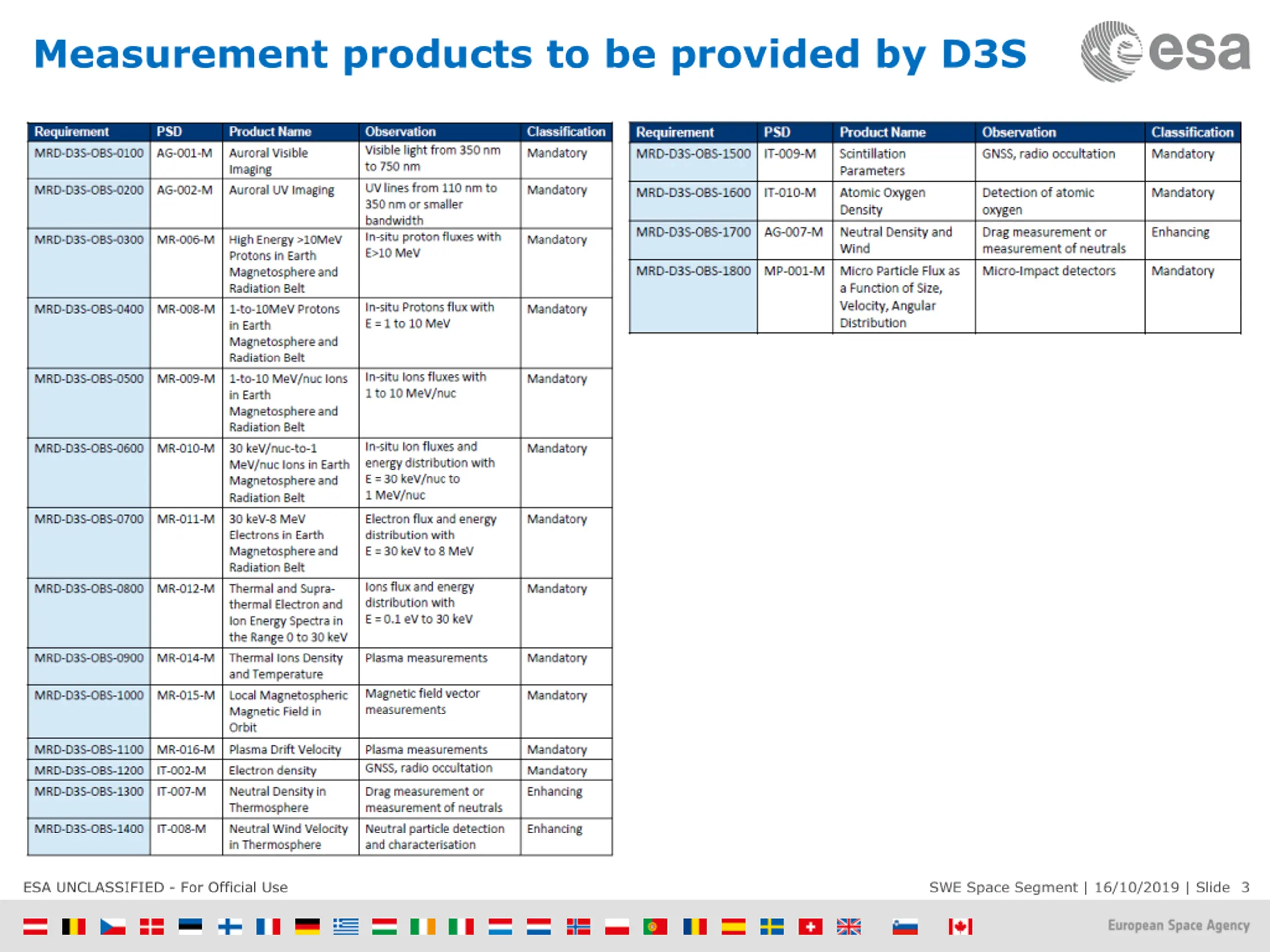

Measurement products to be provided by D3S ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 3

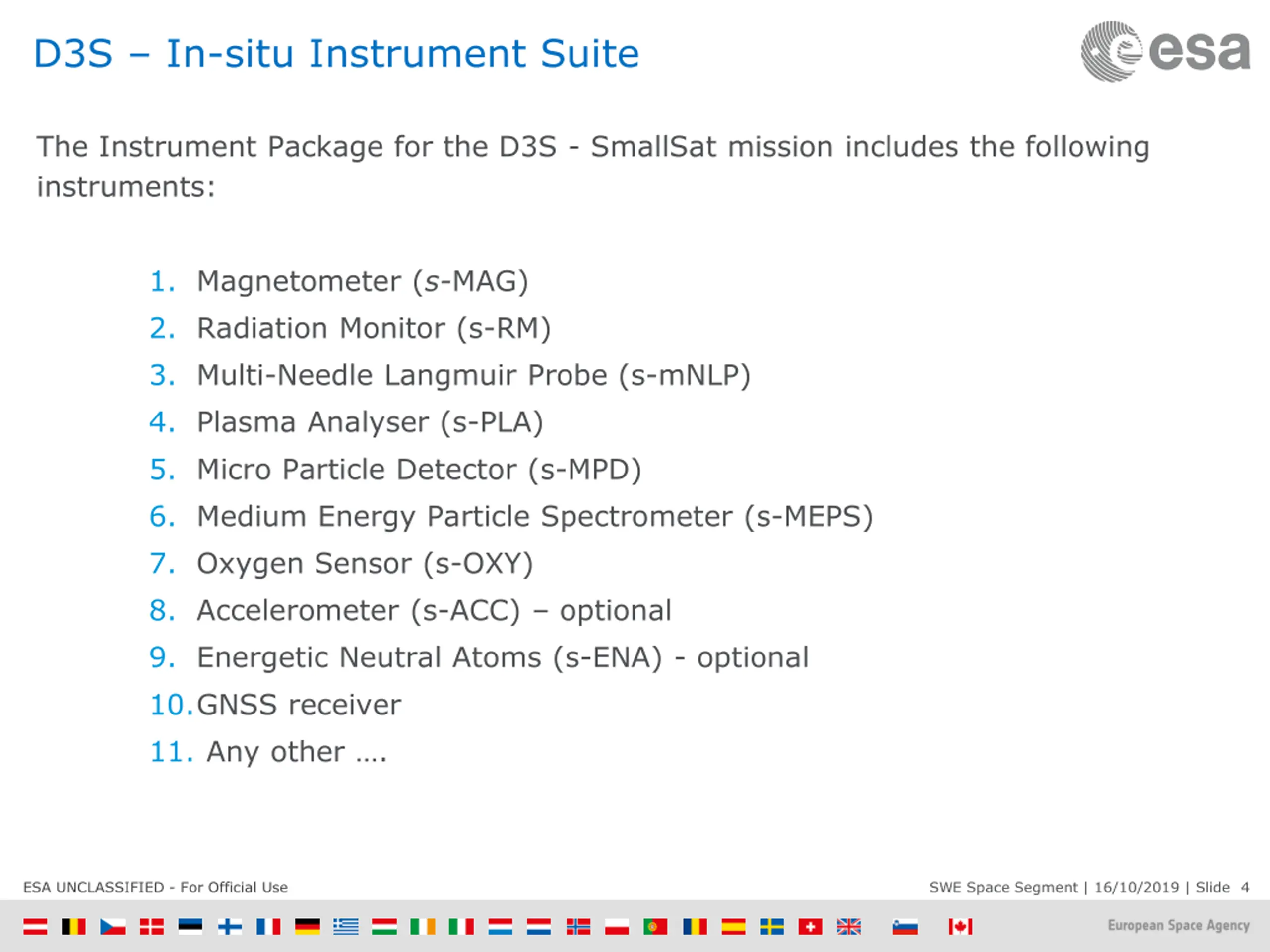

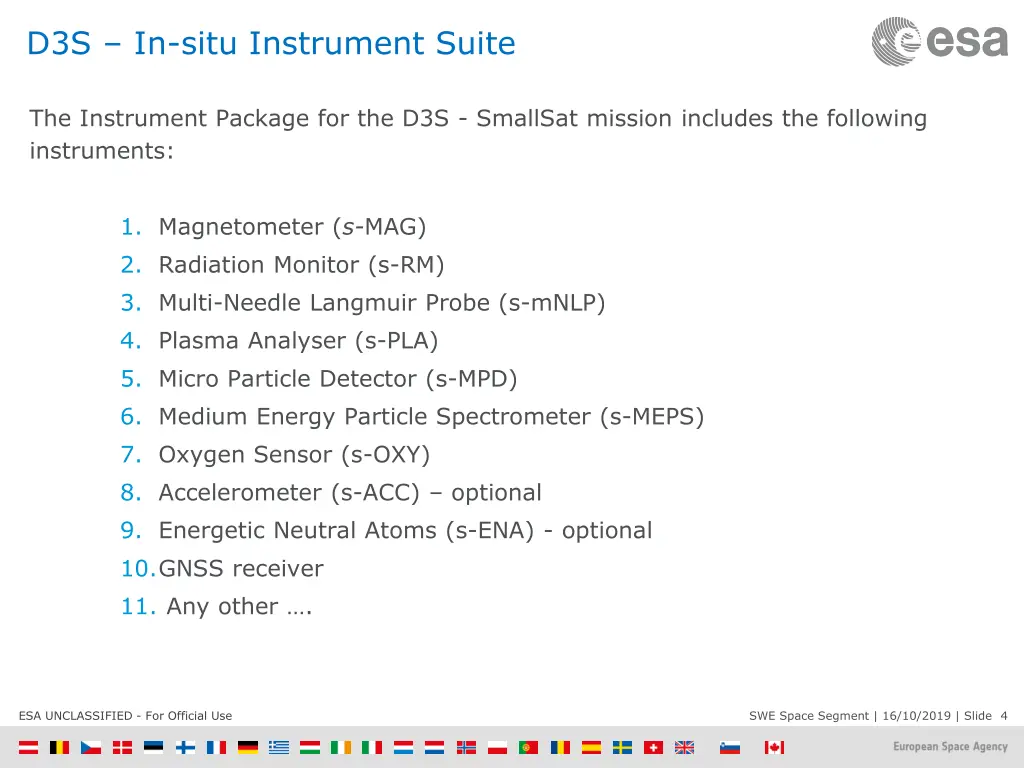

D3S In-situ Instrument Suite The Instrument Package for the D3S - SmallSat mission includes the following instruments: 1. Magnetometer (s-MAG) 2. Radiation Monitor (s-RM) 3. Multi-Needle Langmuir Probe (s-mNLP) 4. Plasma Analyser (s-PLA) 5. Micro Particle Detector (s-MPD) 6. Medium Energy Particle Spectrometer (s-MEPS) 7. Oxygen Sensor (s-OXY) 8. Accelerometer (s-ACC) optional 9. Energetic Neutral Atoms (s-ENA) - optional 10.GNSS receiver 11. Any other . ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 4

Magnetometer (s-MAG) Observational Requirements The Magnetometer shall measure the 3 components of the magnetic field vector. The Magnetometer shall have a dynamic range for every component along negative and positive axis of 1 to 6*104 nT. The Magnetometer absolute accuracy shall be better than 1 nT (TBC). Note: Intrinsic accuracy of the Magnetometer disregarding disturbances of the S/C. The Magnetometer shall measure with a time resolution of 1 minute (1 sec). ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 5

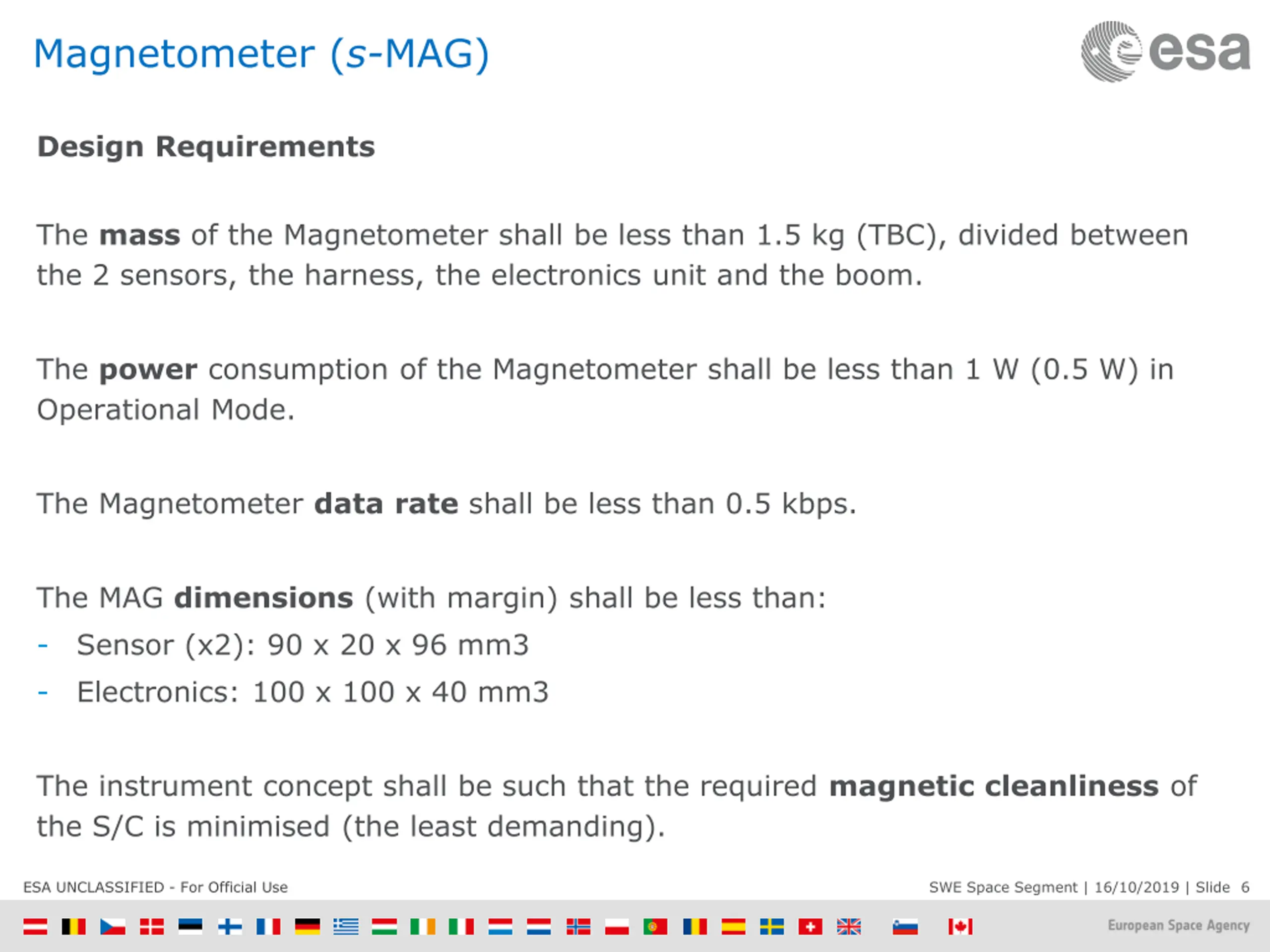

Magnetometer (s-MAG) Design Requirements The mass of the Magnetometer shall be less than 1.5 kg (TBC), divided between the 2 sensors, the harness, the electronics unit and the boom. The power consumption of the Magnetometer shall be less than 1 W (0.5 W) in Operational Mode. The Magnetometer data rate shall be less than 0.5 kbps. The MAG dimensions (with margin) shall be less than: - Sensor (x2): 90 x 20 x 96 mm3 - Electronics: 100 x 100 x 40 mm3 The instrument concept shall be such that the required magnetic cleanliness of the S/C is minimised (the least demanding). ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 6

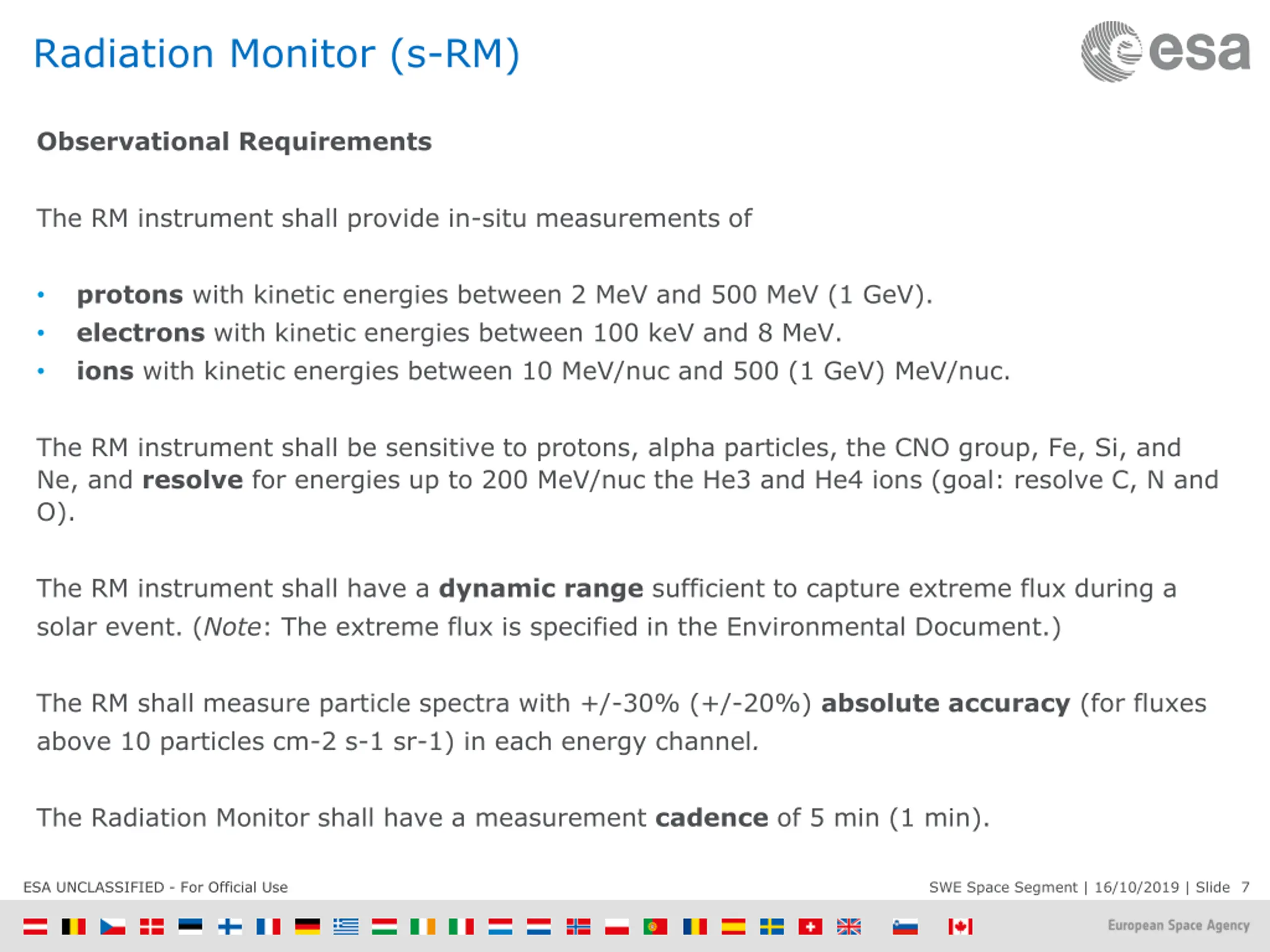

Radiation Monitor (s-RM) Observational Requirements The RM instrument shall provide in-situ measurements of protons with kinetic energies between 2 MeV and 500 MeV (1 GeV). electrons with kinetic energies between 100 keV and 8 MeV. ions with kinetic energies between 10 MeV/nuc and 500 (1 GeV) MeV/nuc. The RM instrument shall be sensitive to protons, alpha particles, the CNO group, Fe, Si, and Ne, and resolve for energies up to 200 MeV/nuc the He3 and He4 ions (goal: resolve C, N and O). The RM instrument shall have a dynamic range sufficient to capture extreme flux during a solar event. (Note: The extreme flux is specified in the Environmental Document.) The RM shall measure particle spectra with +/-30% (+/-20%) absolute accuracy (for fluxes above 10 particles cm-2 s-1 sr-1) in each energy channel. The Radiation Monitor shall have a measurement cadence of 5 min (1 min). ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 7

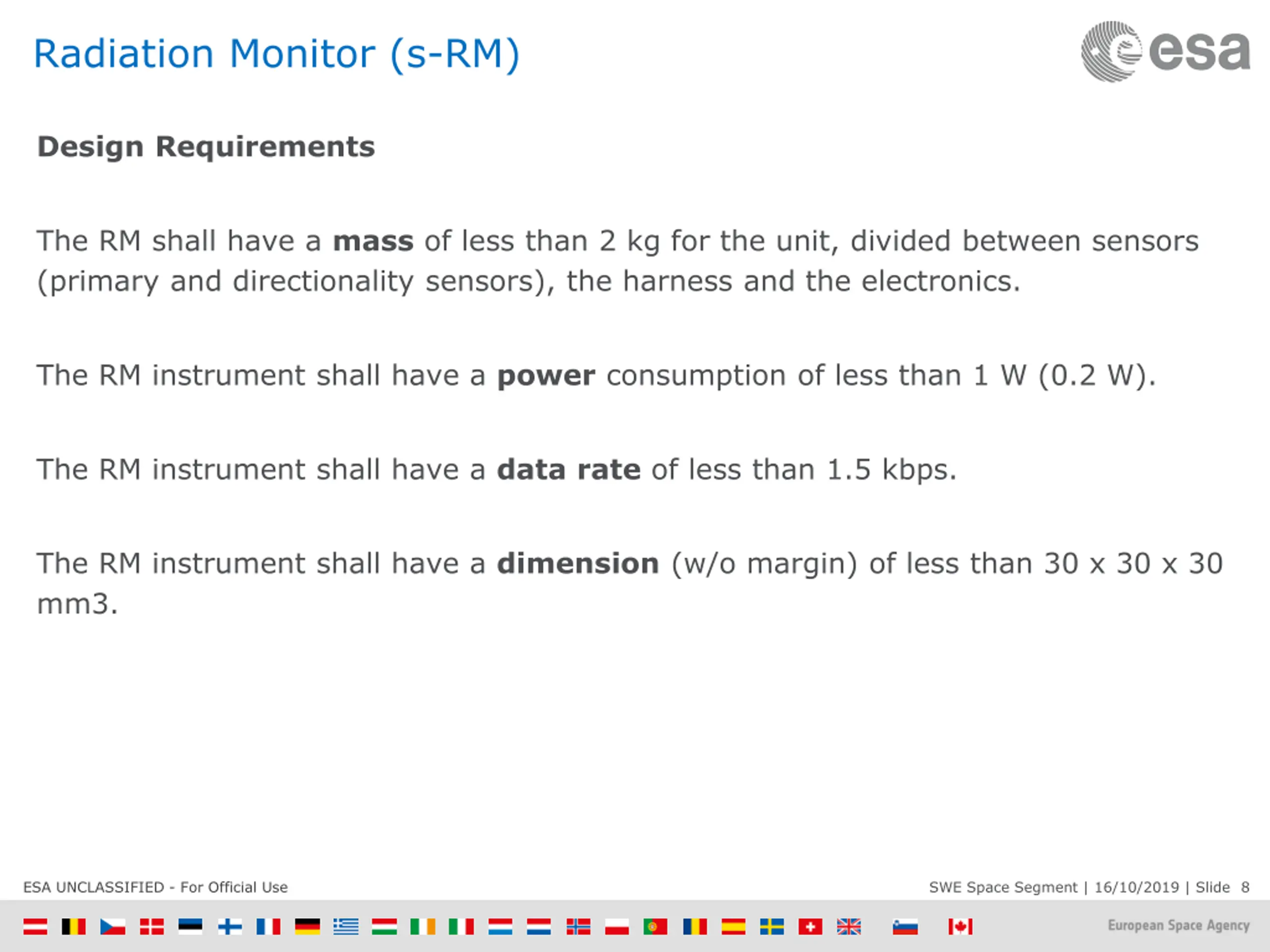

Radiation Monitor (s-RM) Design Requirements The RM shall have a mass of less than 2 kg for the unit, divided between sensors (primary and directionality sensors), the harness and the electronics. The RM instrument shall have a power consumption of less than 1 W (0.2 W). The RM instrument shall have a data rate of less than 1.5 kbps. The RM instrument shall have a dimension (w/o margin) of less than 30 x 30 x 30 mm3. ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 8

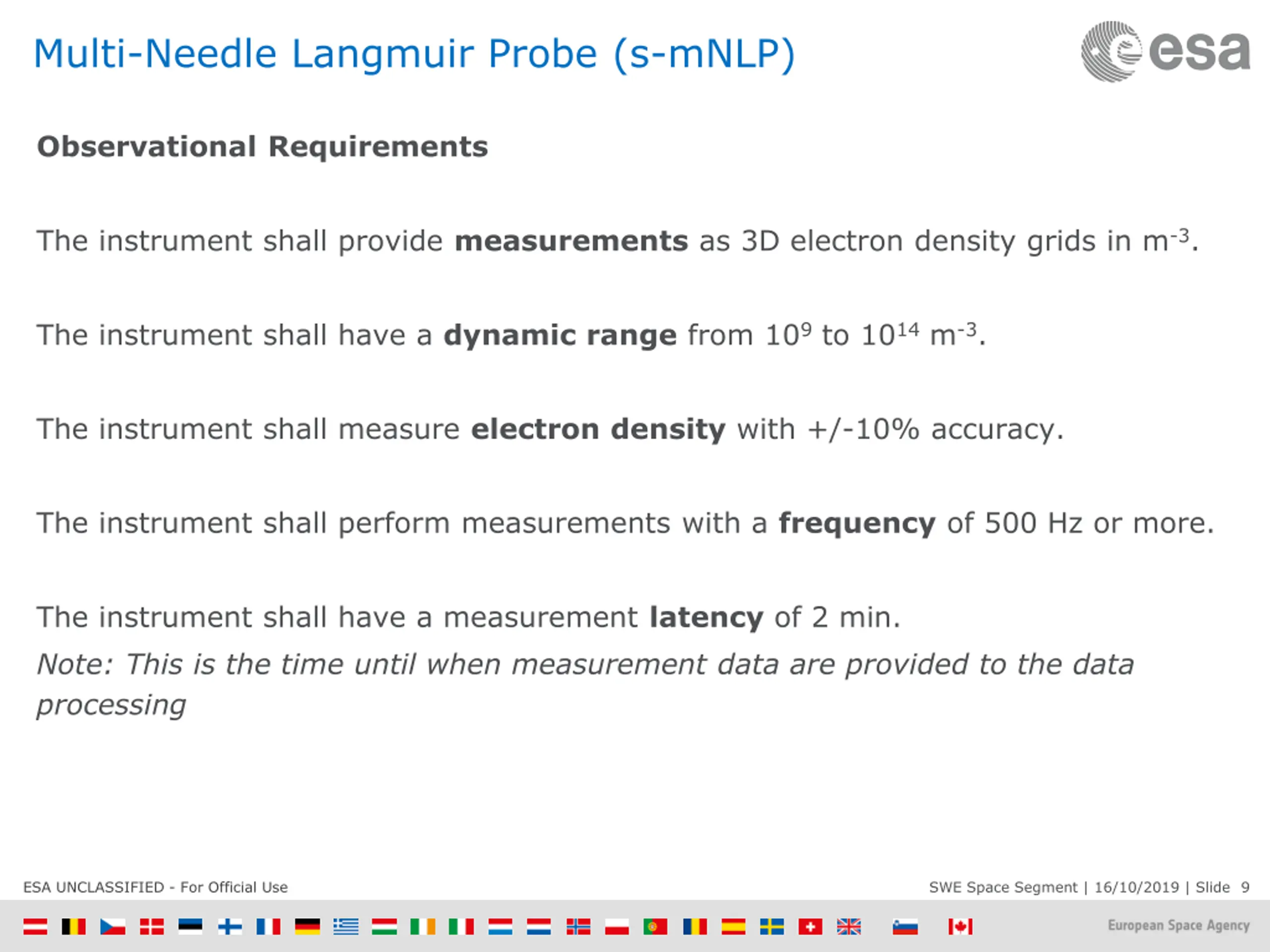

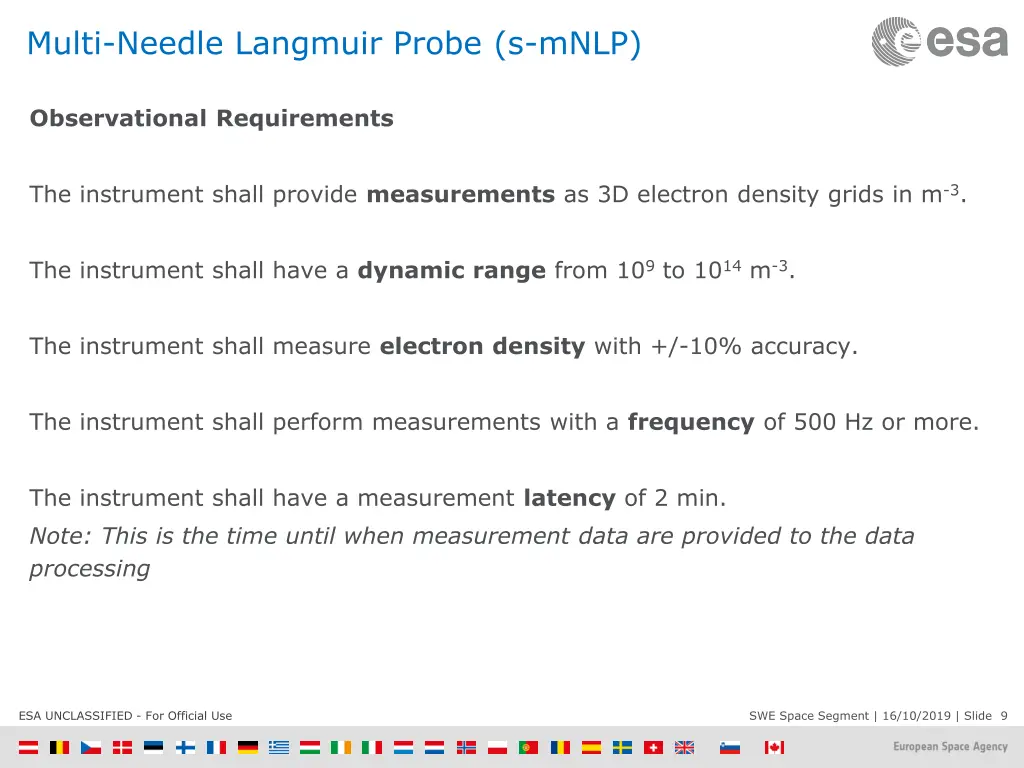

Multi-Needle Langmuir Probe (s-mNLP) Observational Requirements The instrument shall provide measurements as 3D electron density grids in m-3. The instrument shall have a dynamic range from 109 to 1014 m-3. The instrument shall measure electron density with +/-10% accuracy. The instrument shall perform measurements with a frequency of 500 Hz or more. The instrument shall have a measurement latency of 2 min. Note: This is the time until when measurement data are provided to the data processing ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 9

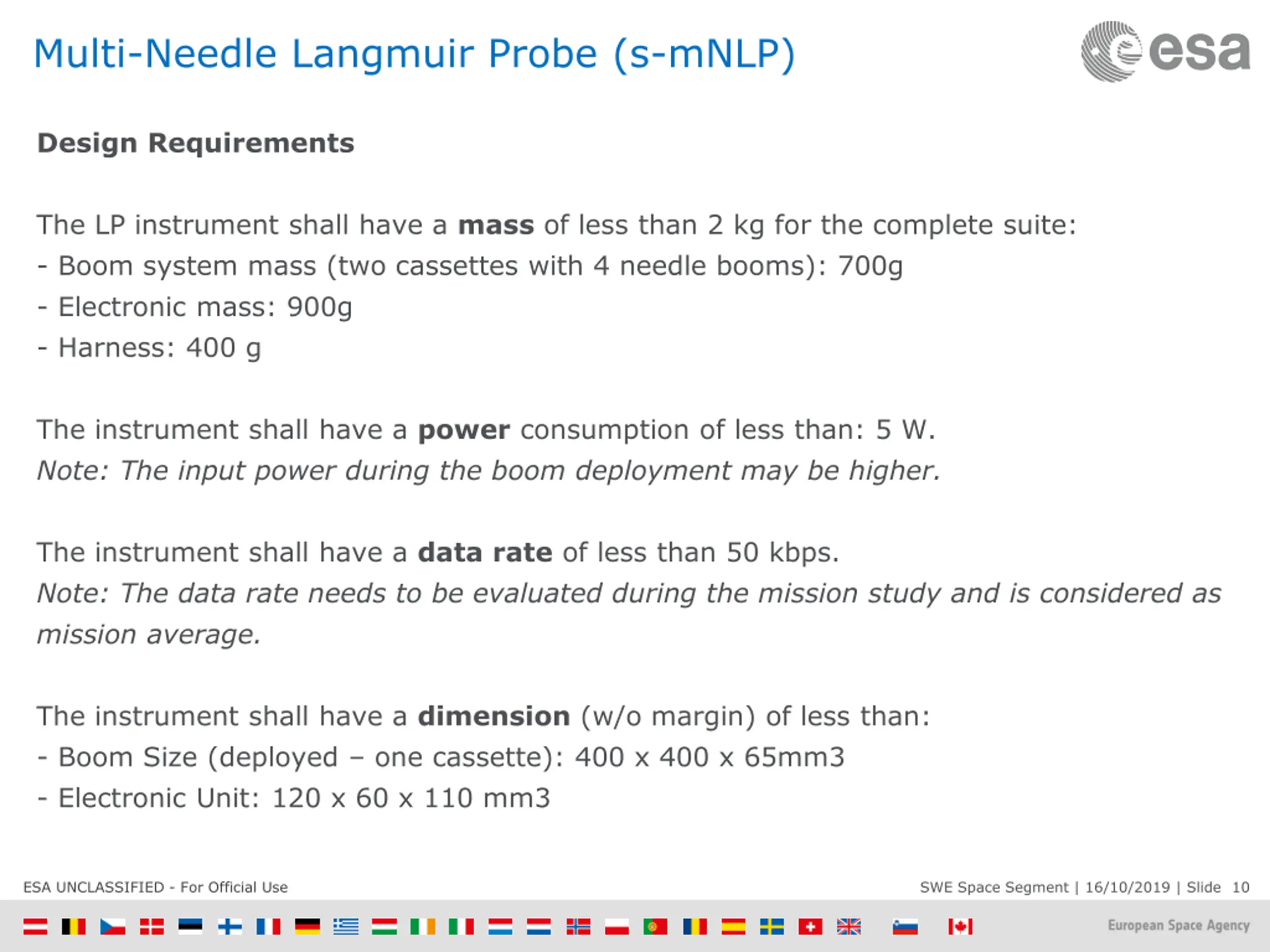

Multi-Needle Langmuir Probe (s-mNLP) Design Requirements The LP instrument shall have a mass of less than 2 kg for the complete suite: - Boom system mass (two cassettes with 4 needle booms): 700g - Electronic mass: 900g - Harness: 400 g The instrument shall have a power consumption of less than: 5 W. Note: The input power during the boom deployment may be higher. The instrument shall have a data rate of less than 50 kbps. Note: The data rate needs to be evaluated during the mission study and is considered as mission average. The instrument shall have a dimension (w/o margin) of less than: - Boom Size (deployed one cassette): 400 x 400 x 65mm3 - Electronic Unit: 120 x 60 x 110 mm3 ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 10

Plasma Analyser (s-PLA) Observational Requirements The Plasma Analyser shall measure Thermal Ion Density and Temperature respectively in m-3 and eV. The Plasma Analyser shall measure the Plasma Drift Velocity in m/s. The Plasma Analyser shall have for the density measurements a dynamic range from 105 to 1011 m-3. The Plasma Analyser shall have for the plasma drift velocity measurements a dynamic range from -10 to 10 km/s. The PLA instrument shall provide in-situ measurements of ions with kinetic energies between 10 (1) eV/n and 30 keV/n. The PLA instrument shall provide in-situ measurements of electrons with kinetic energies between 10 (1) eV and 30 keV. ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 11

Plasma Analyser (s-PLA) Design Requirements The PLA instrument shall have a total mass of less than 1 kg (0.5 kg), comprehensive of all sensors plus electronics. The PLA instrument shall have a power consumption of less than 4 W. The PLA instrument shall have a data rate of less than 3 kbps. The PLA instrument shall have a dimension (w/o margin) of less than 150 x 60 x 120 mm3. ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 12

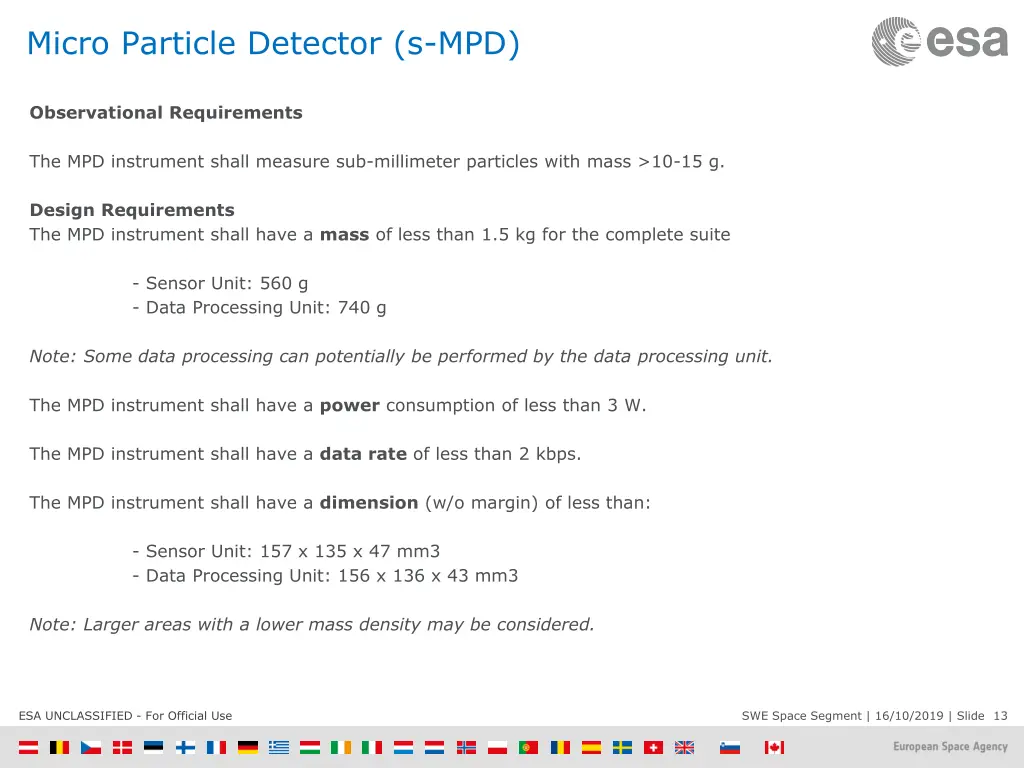

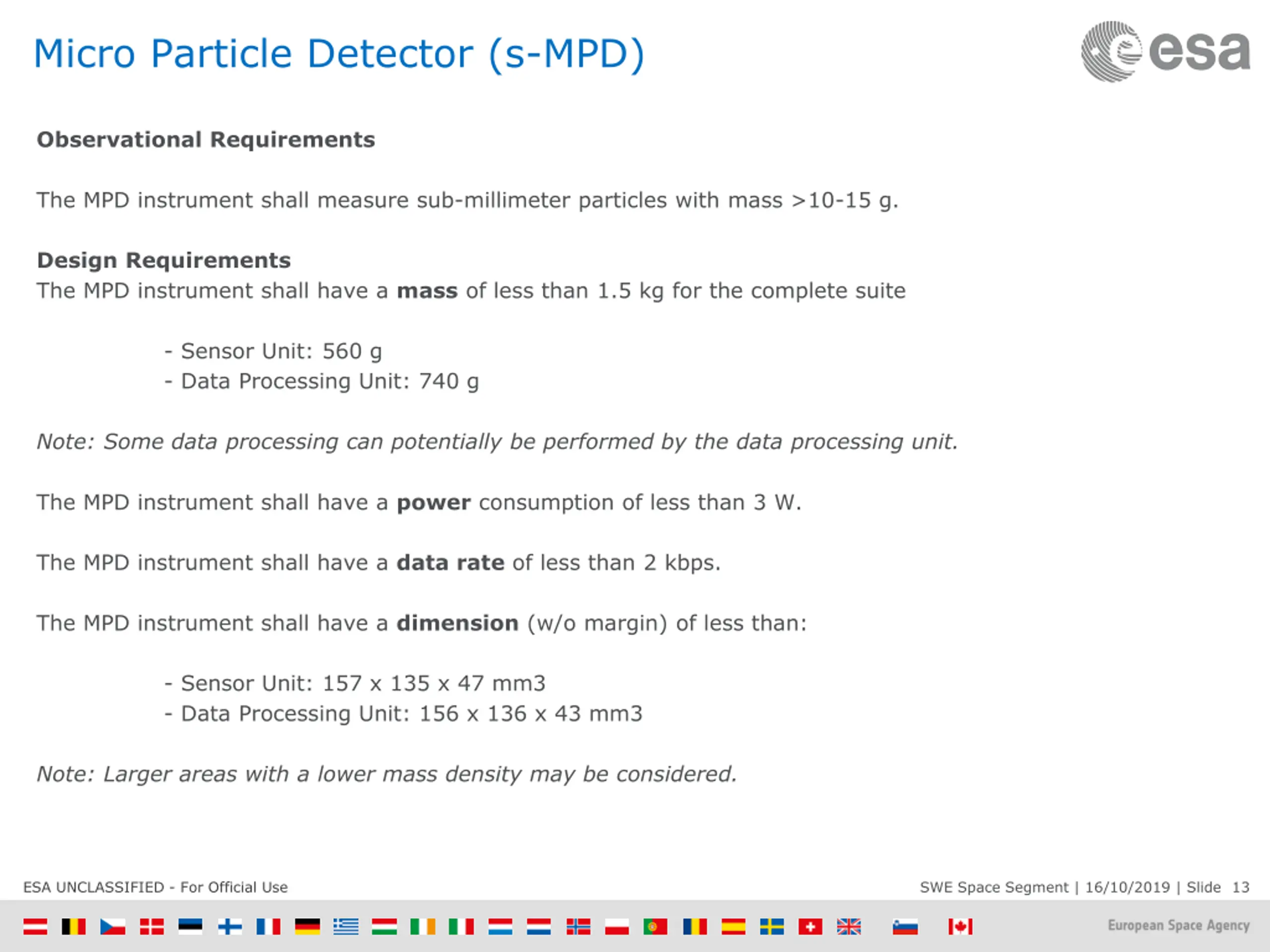

Micro Particle Detector (s-MPD) Observational Requirements The MPD instrument shall measure sub-millimeter particles with mass >10-15 g. Design Requirements The MPD instrument shall have a mass of less than 1.5 kg for the complete suite - Sensor Unit: 560 g - Data Processing Unit: 740 g Note: Some data processing can potentially be performed by the data processing unit. The MPD instrument shall have a power consumption of less than 3 W. The MPD instrument shall have a data rate of less than 2 kbps. The MPD instrument shall have a dimension (w/o margin) of less than: - Sensor Unit: 157 x 135 x 47 mm3 - Data Processing Unit: 156 x 136 x 43 mm3 Note: Larger areas with a lower mass density may be considered. ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 13

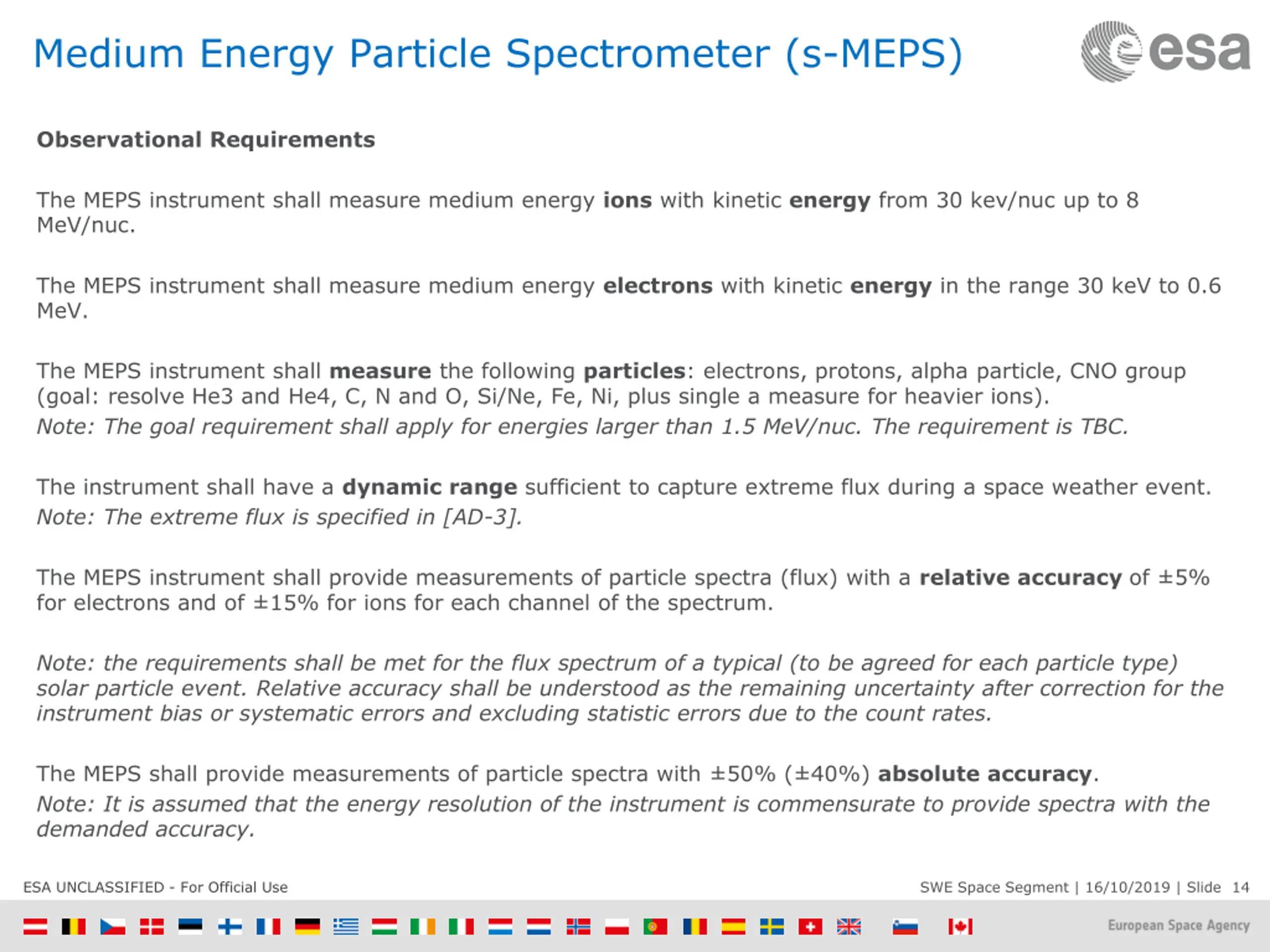

Medium Energy Particle Spectrometer (s-MEPS) Observational Requirements The MEPS instrument shall measure medium energy ions with kinetic energy from 30 kev/nuc up to 8 MeV/nuc. The MEPS instrument shall measure medium energy electrons with kinetic energy in the range 30 keV to 0.6 MeV. The MEPS instrument shall measure the following particles: electrons, protons, alpha particle, CNO group (goal: resolve He3 and He4, C, N and O, Si/Ne, Fe, Ni, plus single a measure for heavier ions). Note: The goal requirement shall apply for energies larger than 1.5 MeV/nuc. The requirement is TBC. The instrument shall have a dynamic range sufficient to capture extreme flux during a space weather event. Note: The extreme flux is specified in [AD-3]. The MEPS instrument shall provide measurements of particle spectra (flux) with a relative accuracy of 5% for electrons and of 15% for ions for each channel of the spectrum. Note: the requirements shall be met for the flux spectrum of a typical (to be agreed for each particle type) solar particle event. Relative accuracy shall be understood as the remaining uncertainty after correction for the instrument bias or systematic errors and excluding statistic errors due to the count rates. The MEPS shall provide measurements of particle spectra with 50% ( 40%) absolute accuracy. Note: It is assumed that the energy resolution of the instrument is commensurate to provide spectra with the demanded accuracy. ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 14

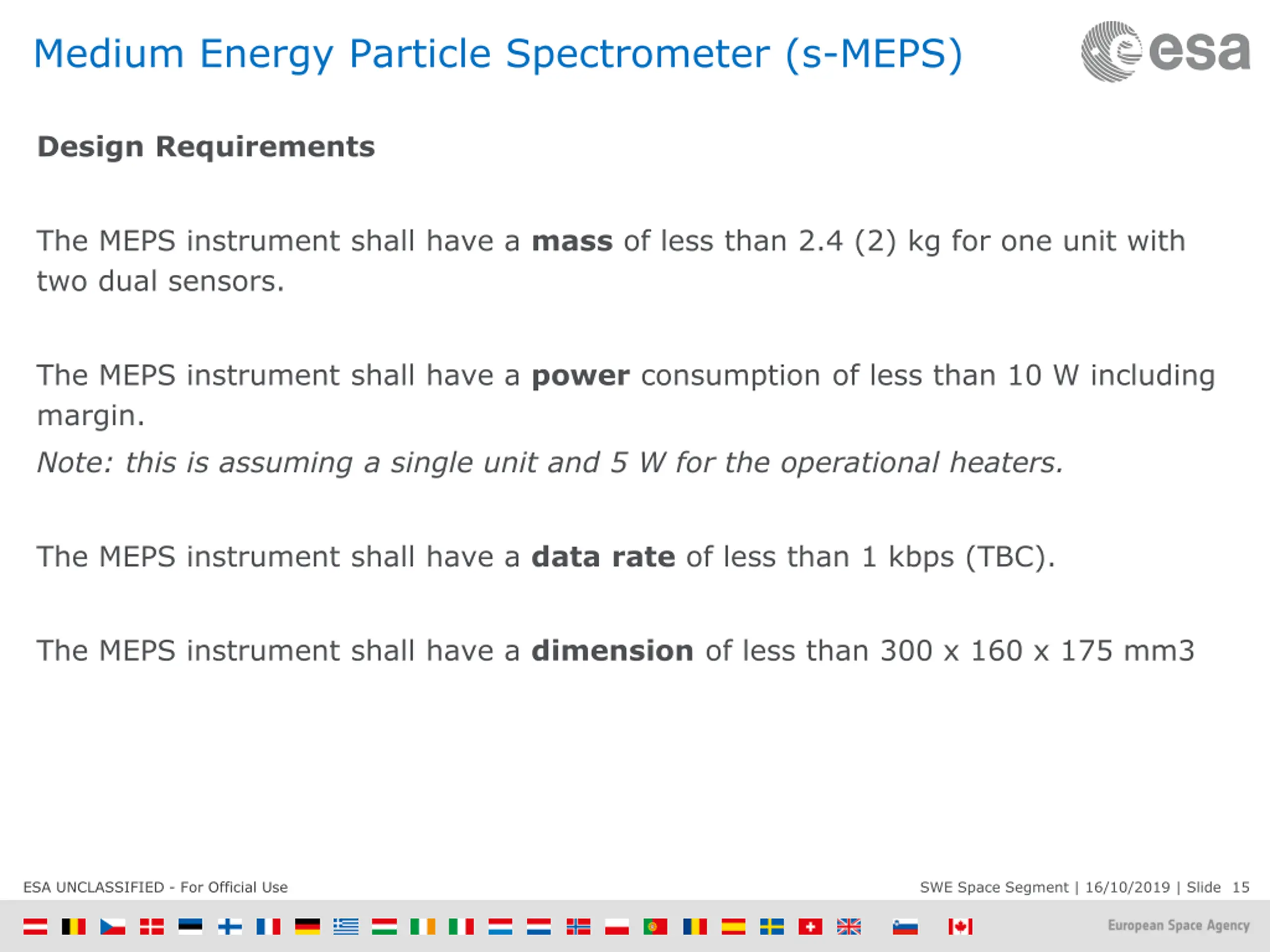

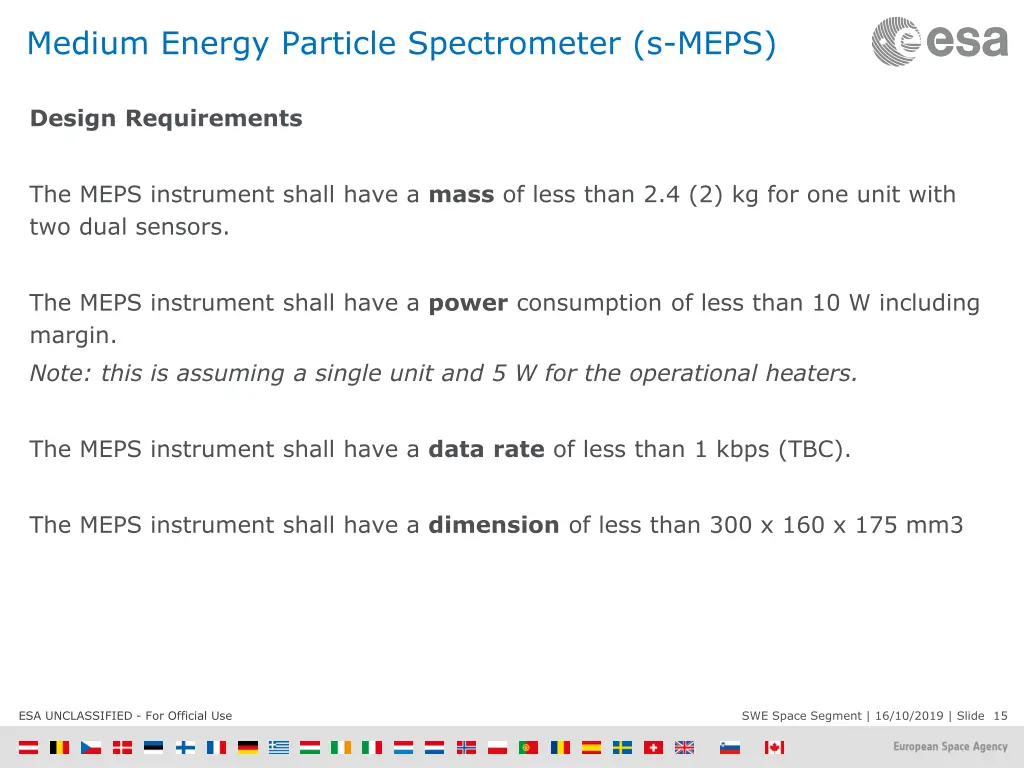

Medium Energy Particle Spectrometer (s-MEPS) Design Requirements The MEPS instrument shall have a mass of less than 2.4 (2) kg for one unit with two dual sensors. The MEPS instrument shall have a power consumption of less than 10 W including margin. Note: this is assuming a single unit and 5 W for the operational heaters. The MEPS instrument shall have a data rate of less than 1 kbps (TBC). The MEPS instrument shall have a dimension of less than 300 x 160 x 175 mm3 ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 15

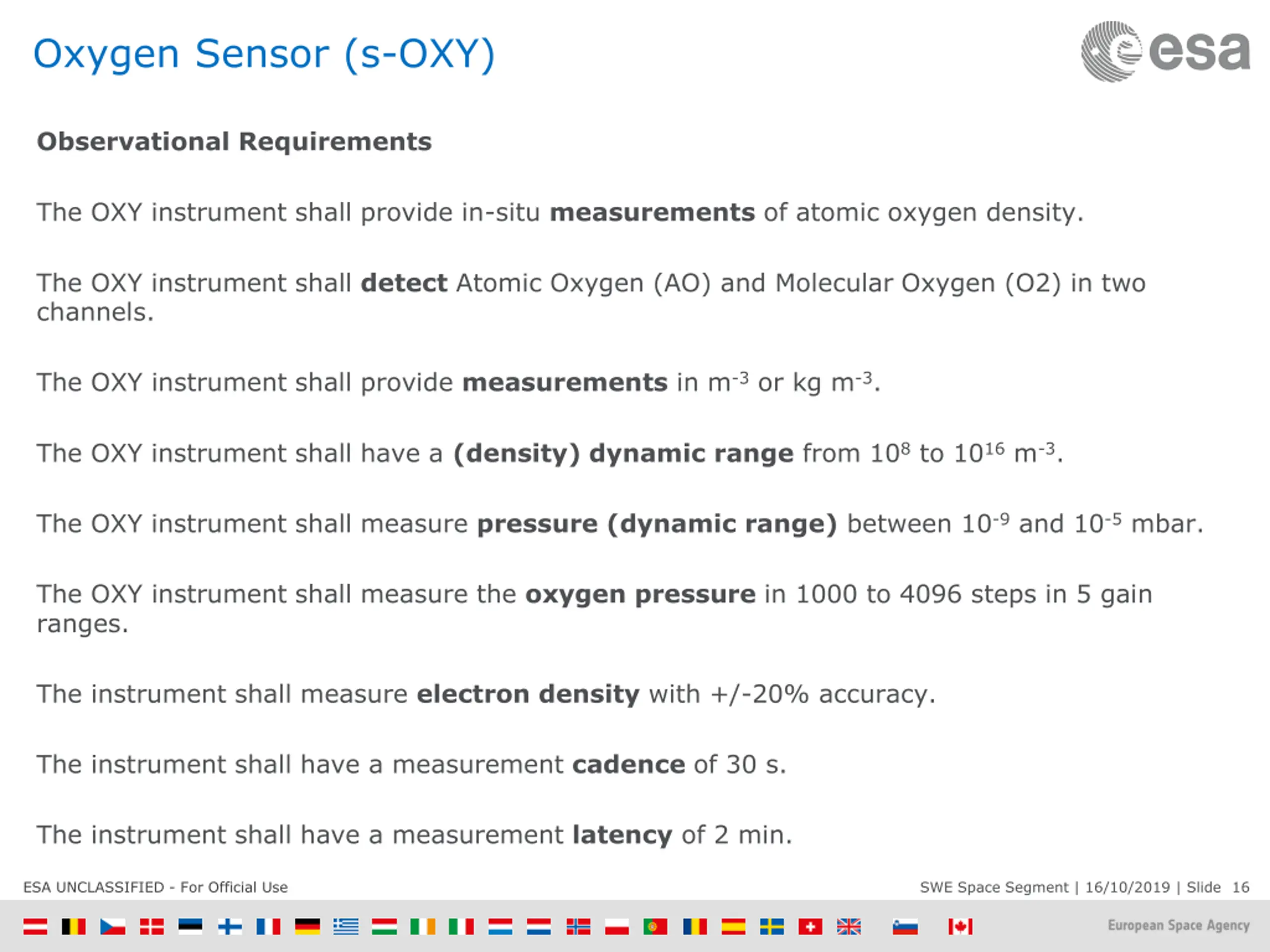

Oxygen Sensor (s-OXY) Observational Requirements The OXY instrument shall provide in-situ measurements of atomic oxygen density. The OXY instrument shall detect Atomic Oxygen (AO) and Molecular Oxygen (O2) in two channels. The OXY instrument shall provide measurements in m-3 or kg m-3. The OXY instrument shall have a (density) dynamic range from 108 to 1016 m-3. The OXY instrument shall measure pressure (dynamic range) between 10-9 and 10-5 mbar. The OXY instrument shall measure the oxygen pressure in 1000 to 4096 steps in 5 gain ranges. The instrument shall measure electron density with +/-20% accuracy. The instrument shall have a measurement cadence of 30 s. The instrument shall have a measurement latency of 2 min. ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 16

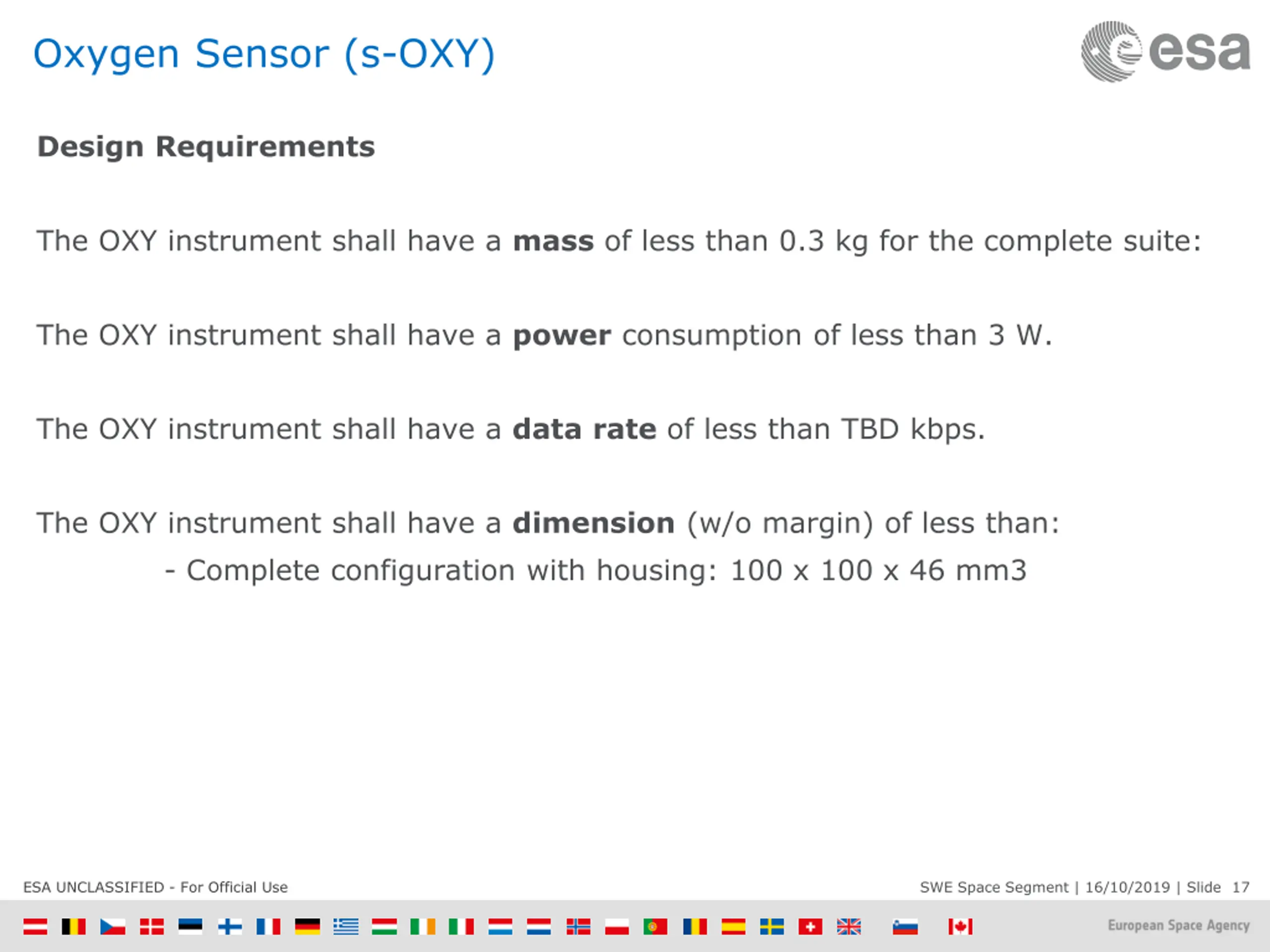

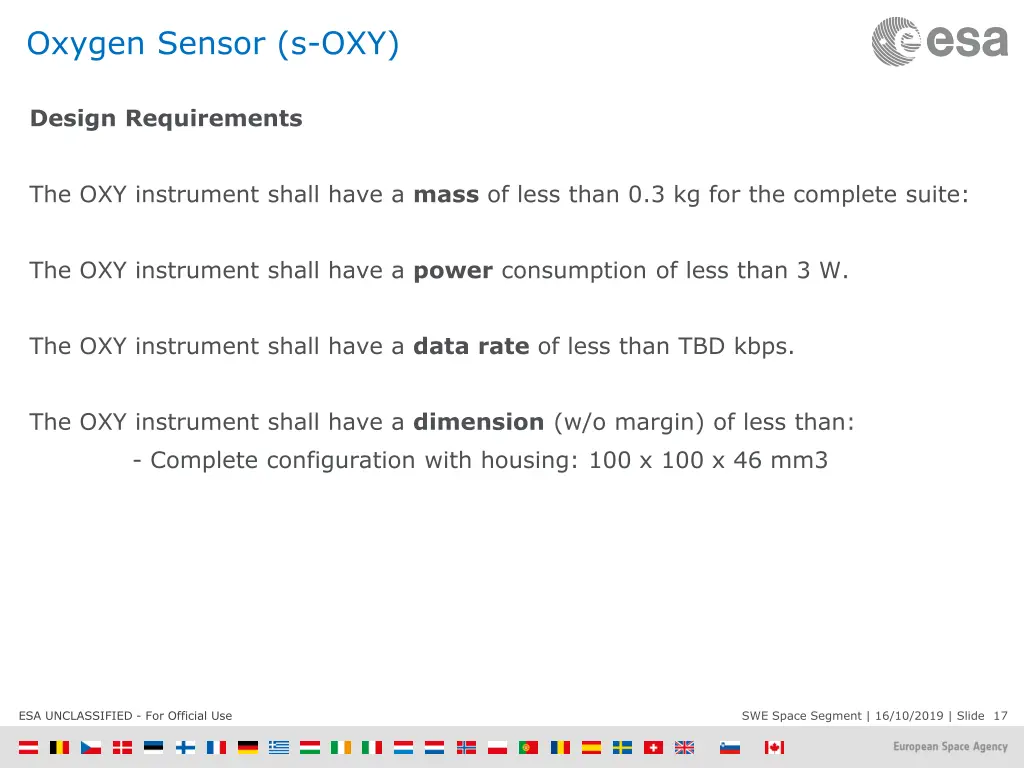

Oxygen Sensor (s-OXY) Design Requirements The OXY instrument shall have a mass of less than 0.3 kg for the complete suite: The OXY instrument shall have a power consumption of less than 3 W. The OXY instrument shall have a data rate of less than TBD kbps. The OXY instrument shall have a dimension (w/o margin) of less than: - Complete configuration with housing: 100 x 100 x 46 mm3 ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 17

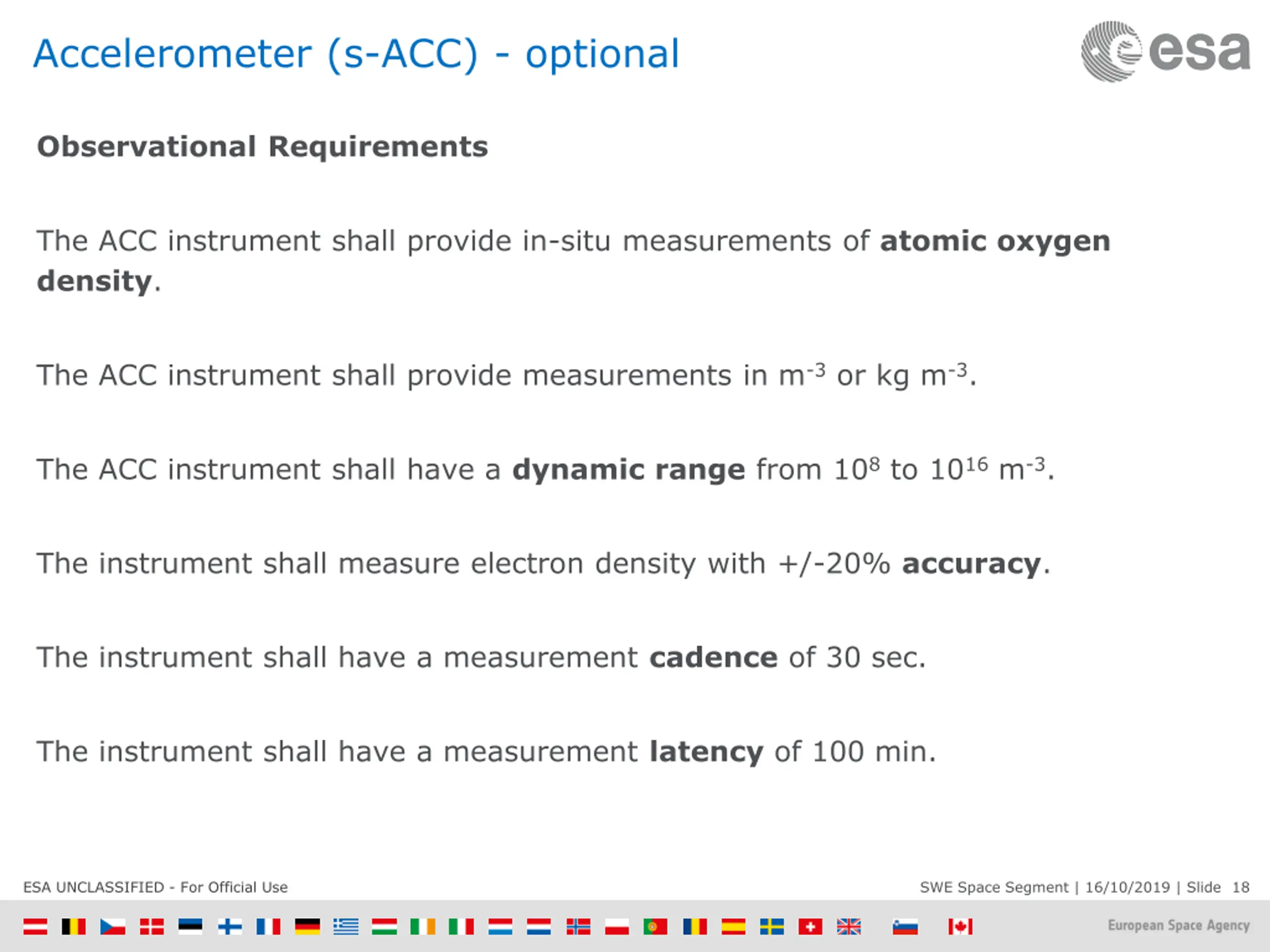

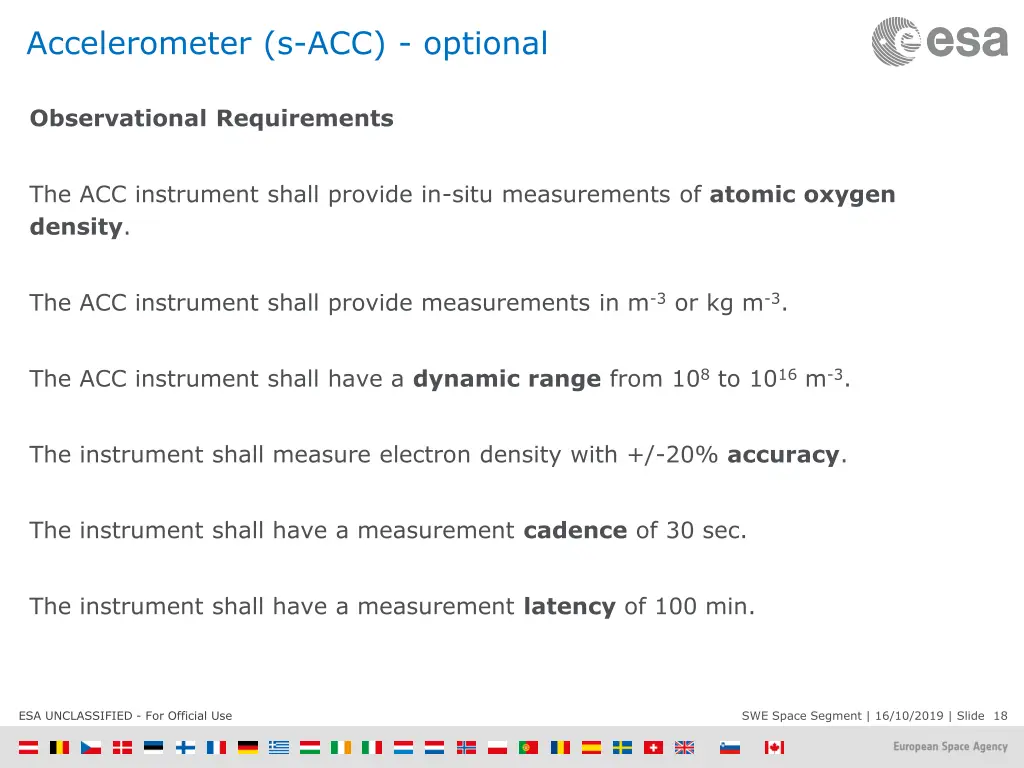

Accelerometer (s-ACC) - optional Observational Requirements The ACC instrument shall provide in-situ measurements of atomic oxygen density. The ACC instrument shall provide measurements in m-3 or kg m-3. The ACC instrument shall have a dynamic range from 108 to 1016 m-3. The instrument shall measure electron density with +/-20% accuracy. The instrument shall have a measurement cadence of 30 sec. The instrument shall have a measurement latency of 100 min. ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 18

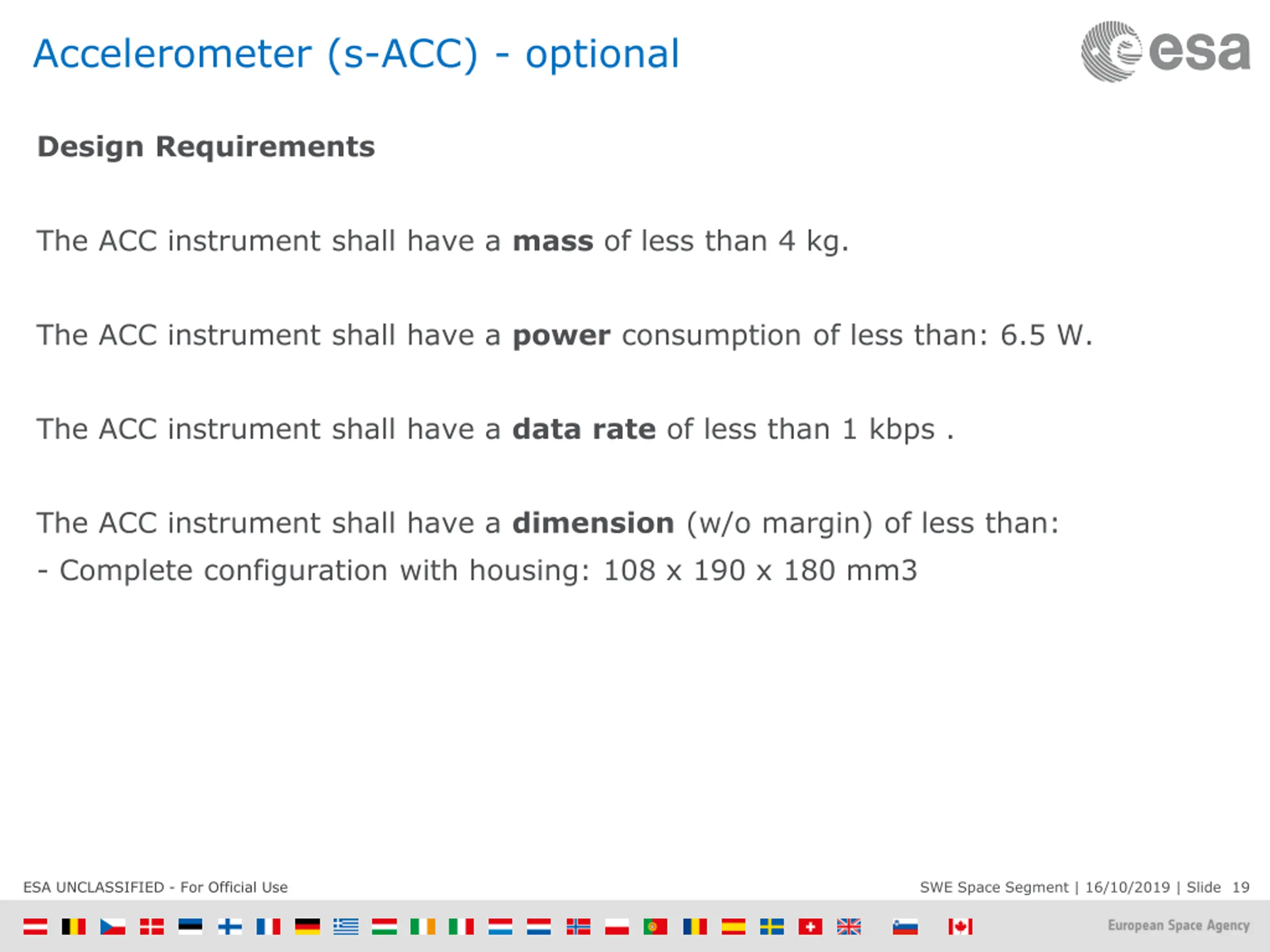

Accelerometer (s-ACC) - optional Design Requirements The ACC instrument shall have a mass of less than 4 kg. The ACC instrument shall have a power consumption of less than: 6.5 W. The ACC instrument shall have a data rate of less than 1 kbps . The ACC instrument shall have a dimension (w/o margin) of less than: - Complete configuration with housing: 108 x 190 x 180 mm3 ESA UNCLASSIFIED - For Official Use SWE Space Segment | 16/10/2019 | Slide 19
