SPARC Jean Soudier IPHC - Strasbourg

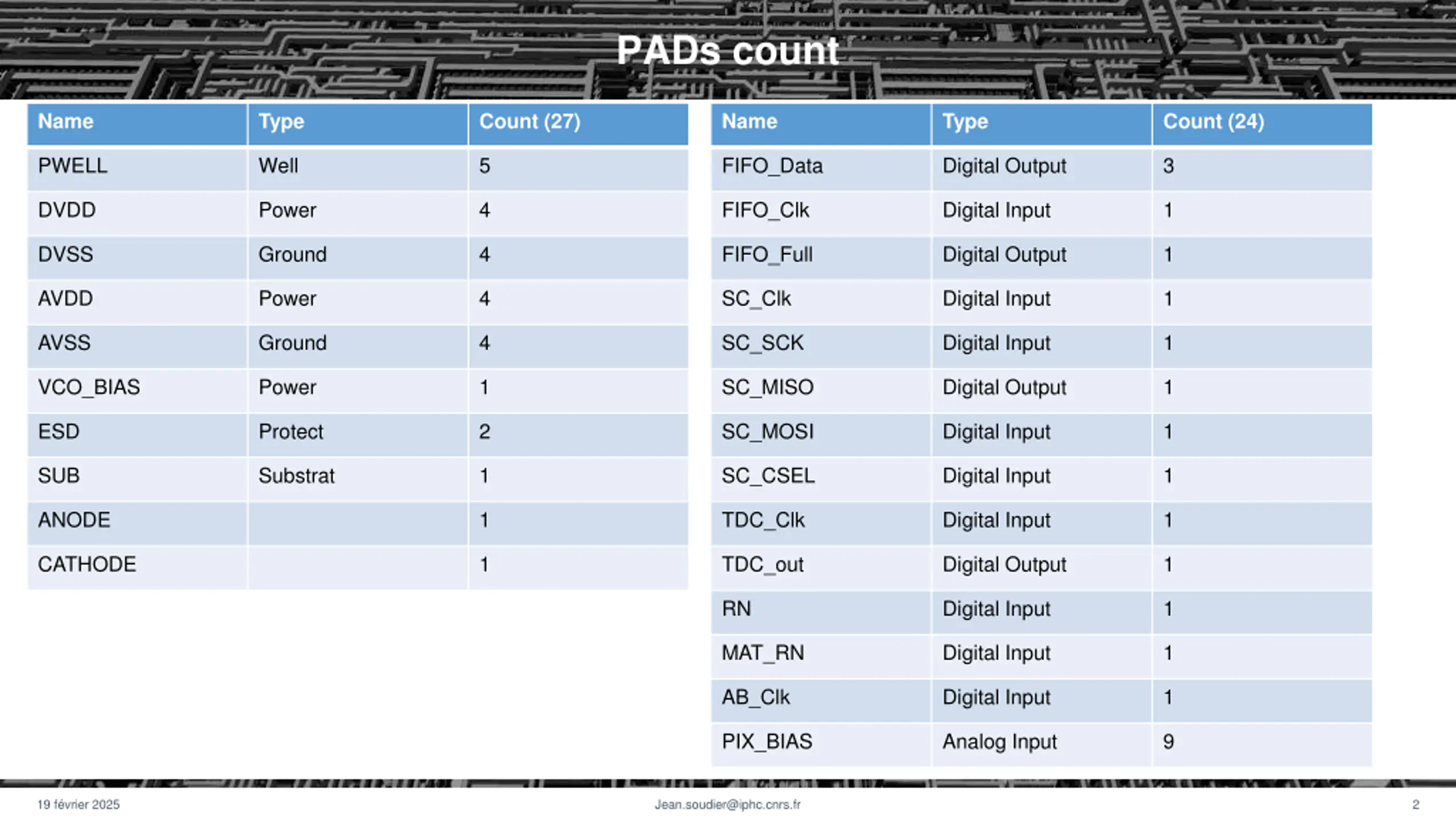

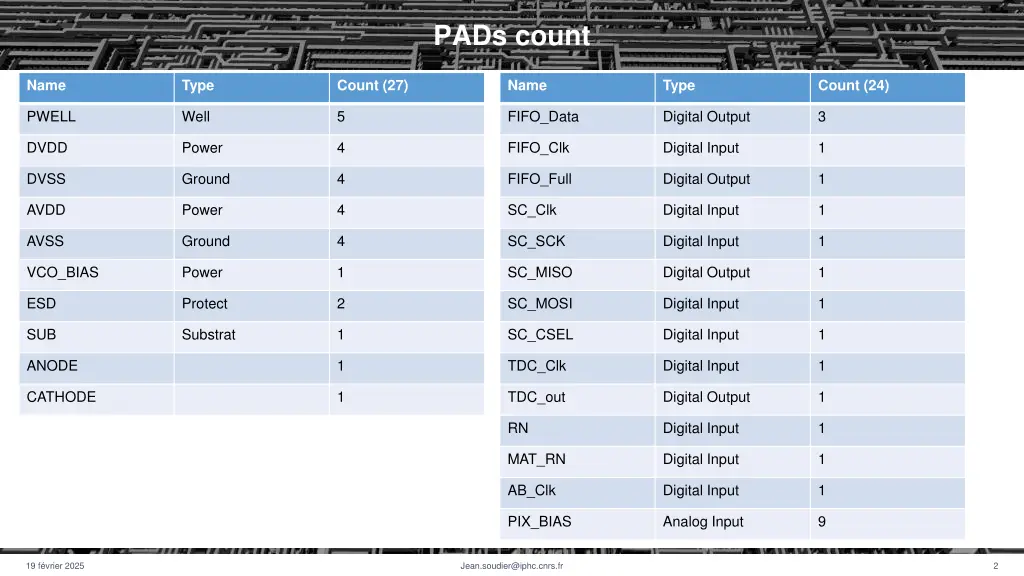

PADs count Name Type Count (27) Name Type Count (24) PWELL Well 5 FIFO_Data Digital Output 3 DVDD Power 4 FIFO_Clk Digital Input 1 DVSS Ground 4 FIFO_Full Digital Output 1 AVDD Power 4 SC_Clk Digital Input 1 AVSS Ground 4 SC_SCK Digital Input 1 VCO_BIAS Power 1 SC_MISO Digital Output 1 ESD Protect 2 SC_MOSI Digital Input 1 SUB Substrat 1 SC_CSEL Digital Input 1 ANODE 1 TDC_Clk Digital Input 1 CATHODE 1 TDC_out Digital Output 1 RN Digital Input 1 MAT_RN Digital Input 1 AB_Clk Digital Input 1 PIX_BIAS Analog Input 9 19 f vrier 2025 Jean.soudier@iphc.cnrs.fr 2

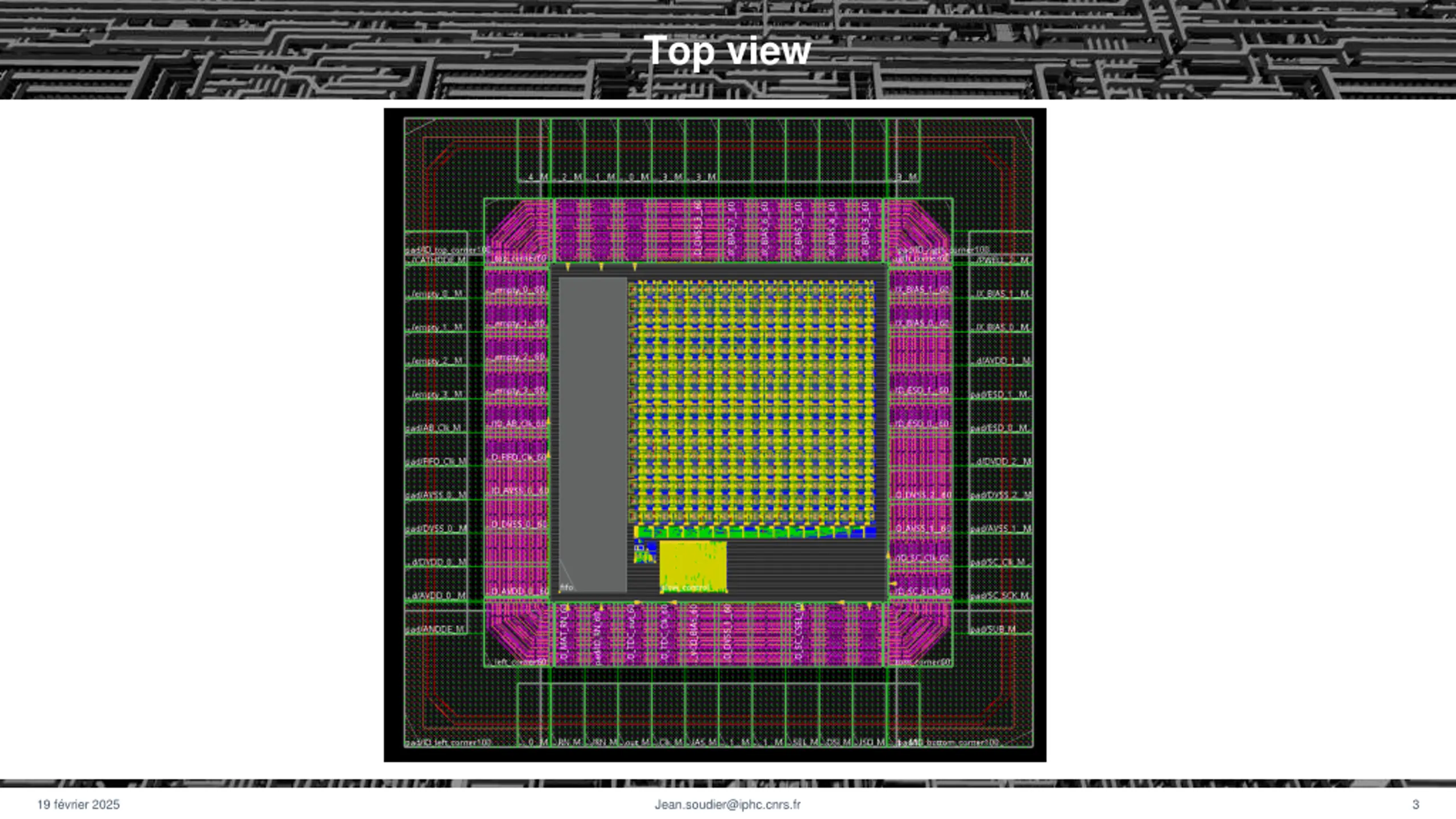

Top view 19 f vrier 2025 Jean.soudier@iphc.cnrs.fr 3

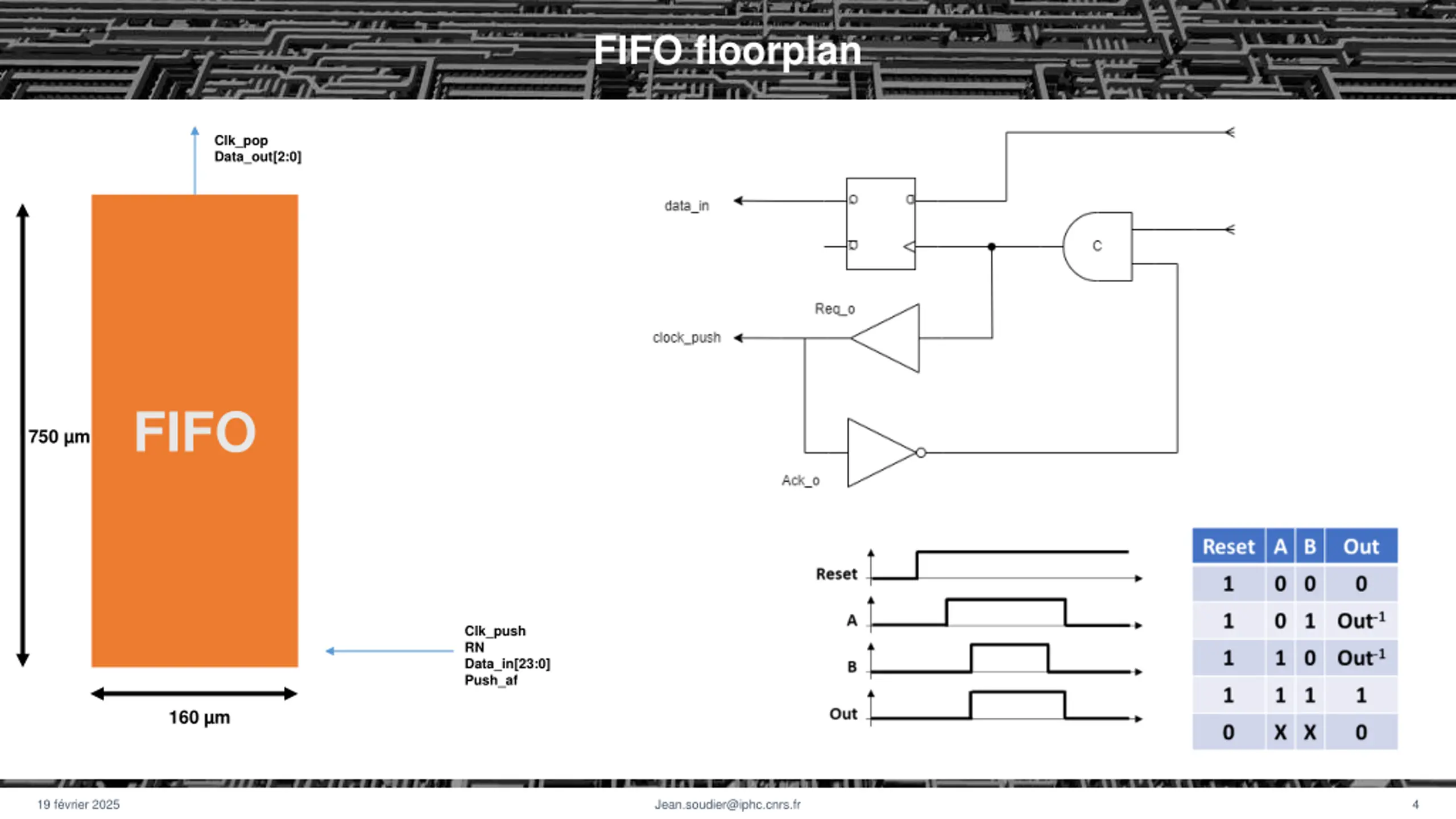

FIFO floorplan Clk_pop Data_out[2:0] FIFO 750 m Clk_push RN Data_in[23:0] Push_af 160 m 19 f vrier 2025 Jean.soudier@iphc.cnrs.fr 4

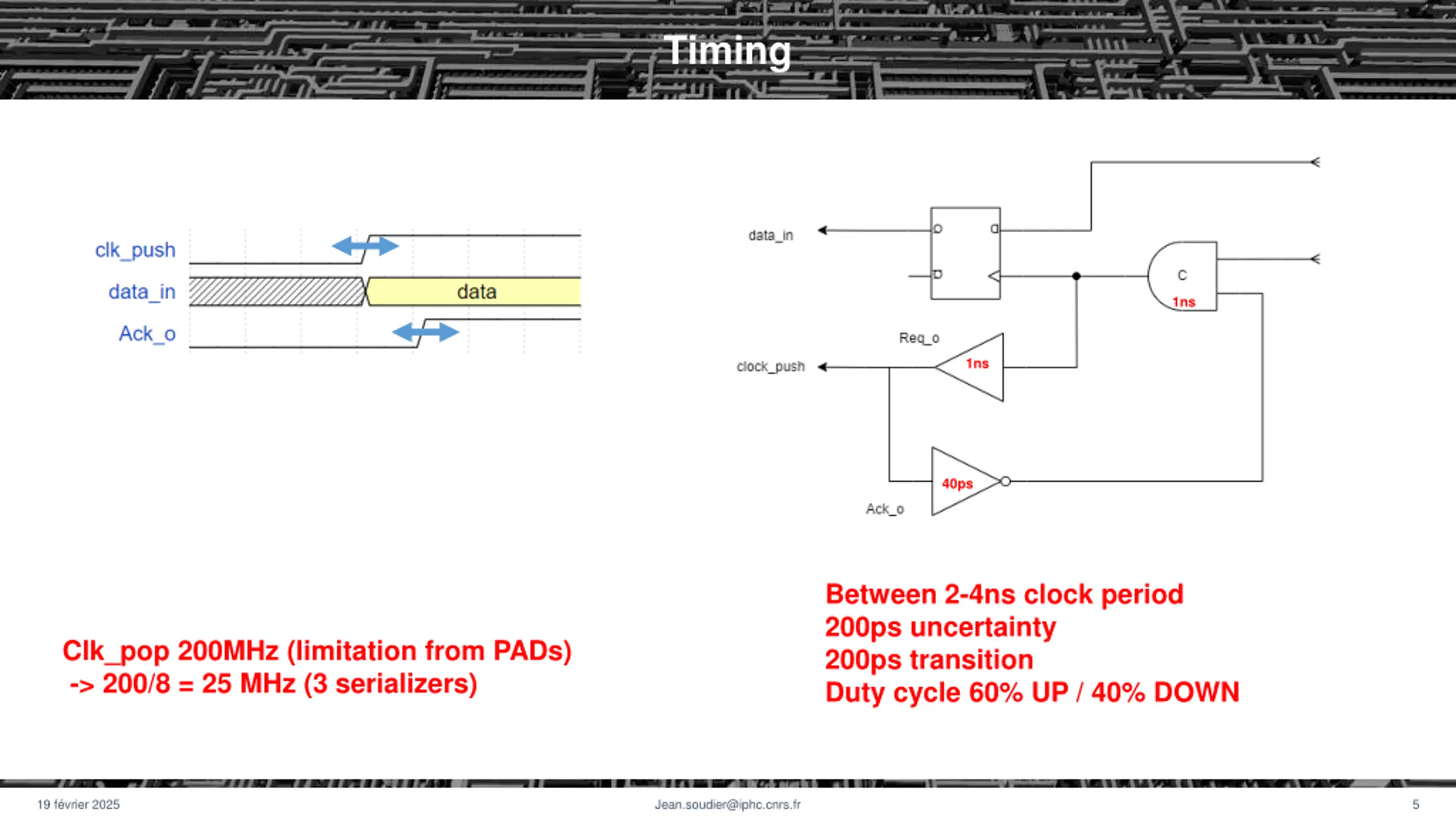

Timing 1ns 1ns 40ps Between 2-4ns clock period 200ps uncertainty 200ps transition Duty cycle 60% UP / 40% DOWN Clk_pop 200MHz (limitation from PADs) -> 200/8 = 25 MHz (3 serializers) 19 f vrier 2025 Jean.soudier@iphc.cnrs.fr 5
