Sparkler Filter Machinery for Pharmaceuticals, Cosmetics, and Food Industries
Providing manufacturing and export of plants and machineries for pharmaceuticals, cosmetics, chemicals, and food & beverage industries, Sparkler Filter offers efficient sparkler filters that retain suspended particles for high-quality filtration. With features like positive cake stability, high flow rates, and low operating pressure, they cater to various industries with customizable filtration solutions. Contact Mr. Pravin Panchal or Mr. Kiran Gophane for more information.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

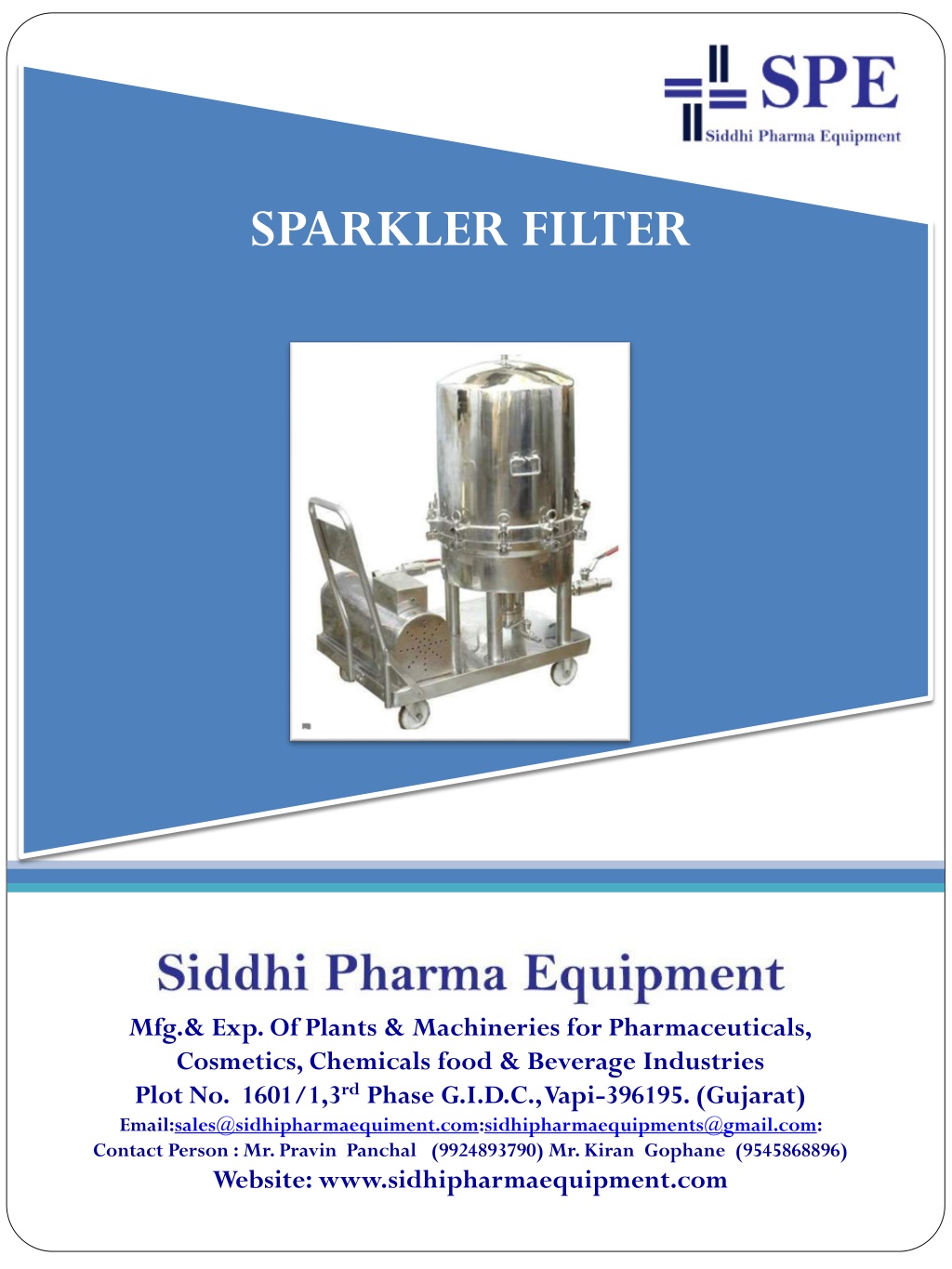

SPARKLER FILTER Mfg.& Exp. Of Plants & Machineries for Pharmaceuticals, Cosmetics, Chemicals food & Beverage Industries Plot No. 1601/1,3rd Phase G.I.D.C., Vapi-396195. (Gujarat) Email:sales@sidhipharmaequiment.com:sidhipharmaequipments@gmail.com: Contact Person : Mr. Pravin Panchal (9924893790) Mr. Kiran Gophane (9545868896) Website: www.sidhipharmaequipment.com

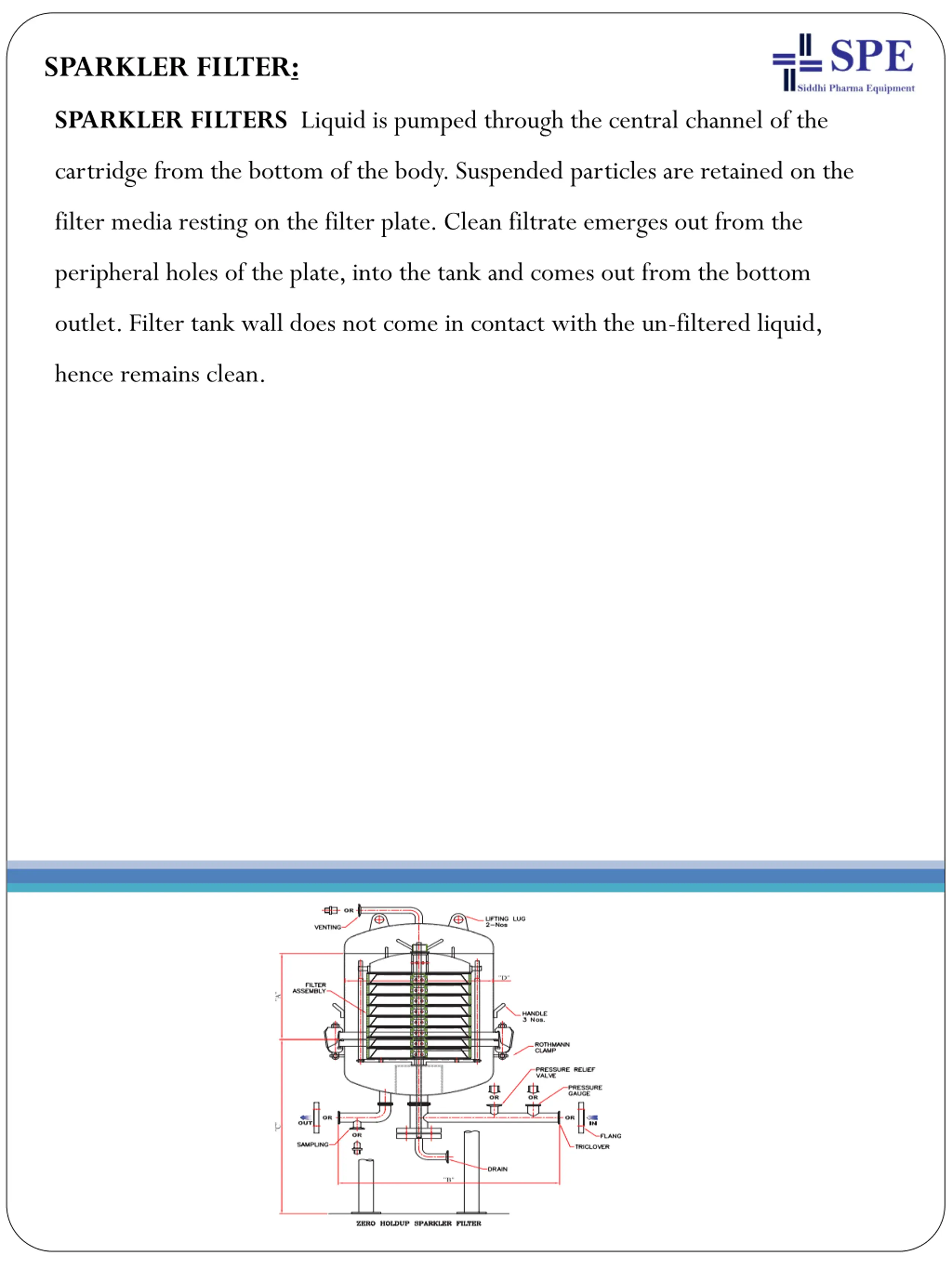

SPARKLER FILTER: SPARKLER FILTERS Liquid is pumped through the central channel of the cartridge from the bottom of the body. Suspended particles are retained on the filter media resting on the filter plate. Clean filtrate emerges out from the peripheral holes of the plate, into the tank and comes out from the bottom outlet. Filter tank wall does not come in contact with the un-filtered liquid, hence remains clean.

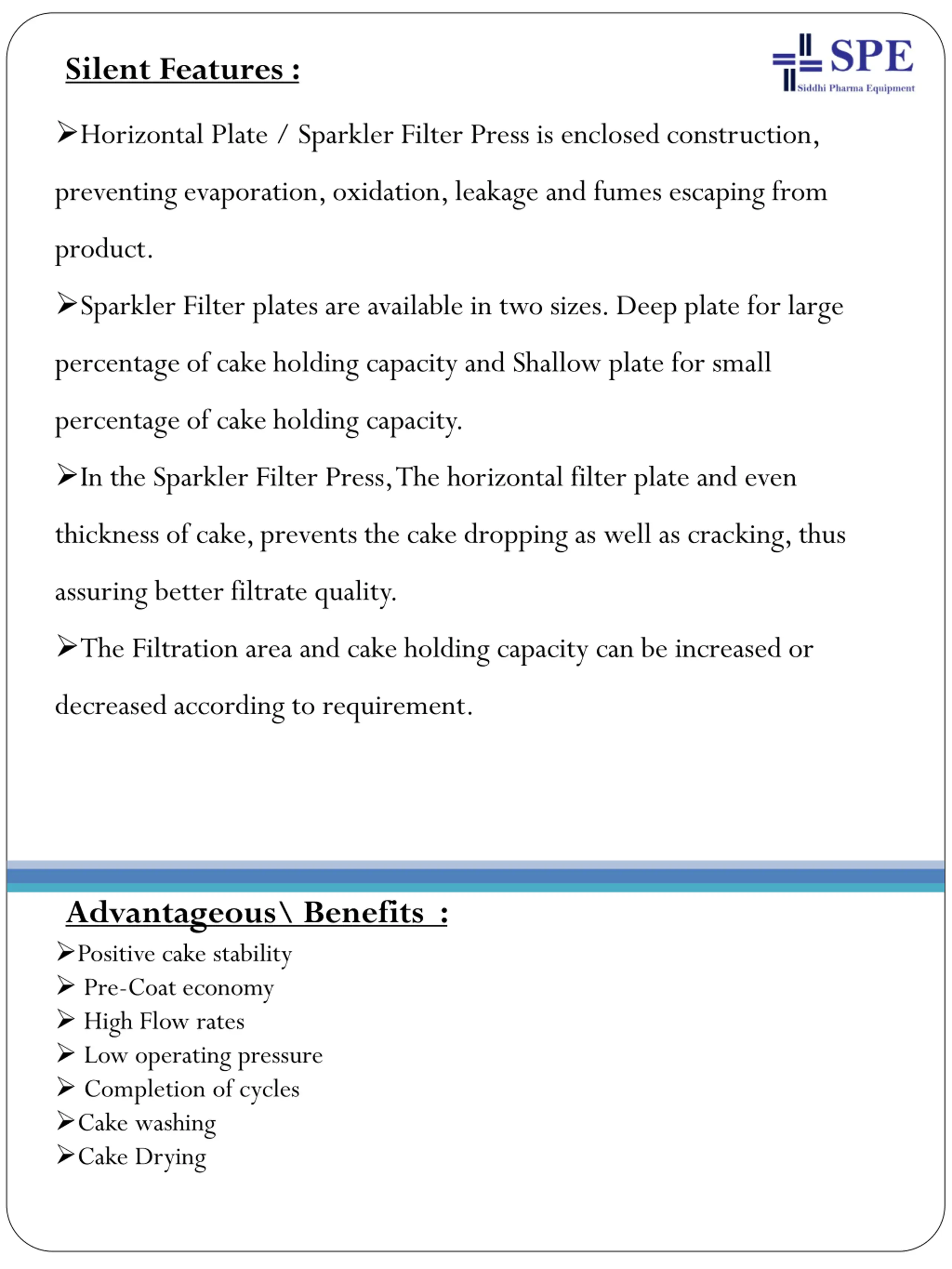

Silent Features : Horizontal Plate / Sparkler Filter Press is enclosed construction, preventing evaporation, oxidation, leakage and fumes escaping from product. Sparkler Filter plates are available in two sizes. Deep plate for large percentage of cake holding capacity and Shallow plate for small percentage of cake holding capacity. In the Sparkler Filter Press, The horizontal filter plate and even thickness of cake, prevents the cake dropping as well as cracking, thus assuring better filtrate quality. The Filtration area and cake holding capacity can be increased or decreased according to requirement. Advantageous\ Benefits : Positive cake stability Pre-Coat economy High Flow rates Low operating pressure Completion of cycles Cake washing Cake Drying

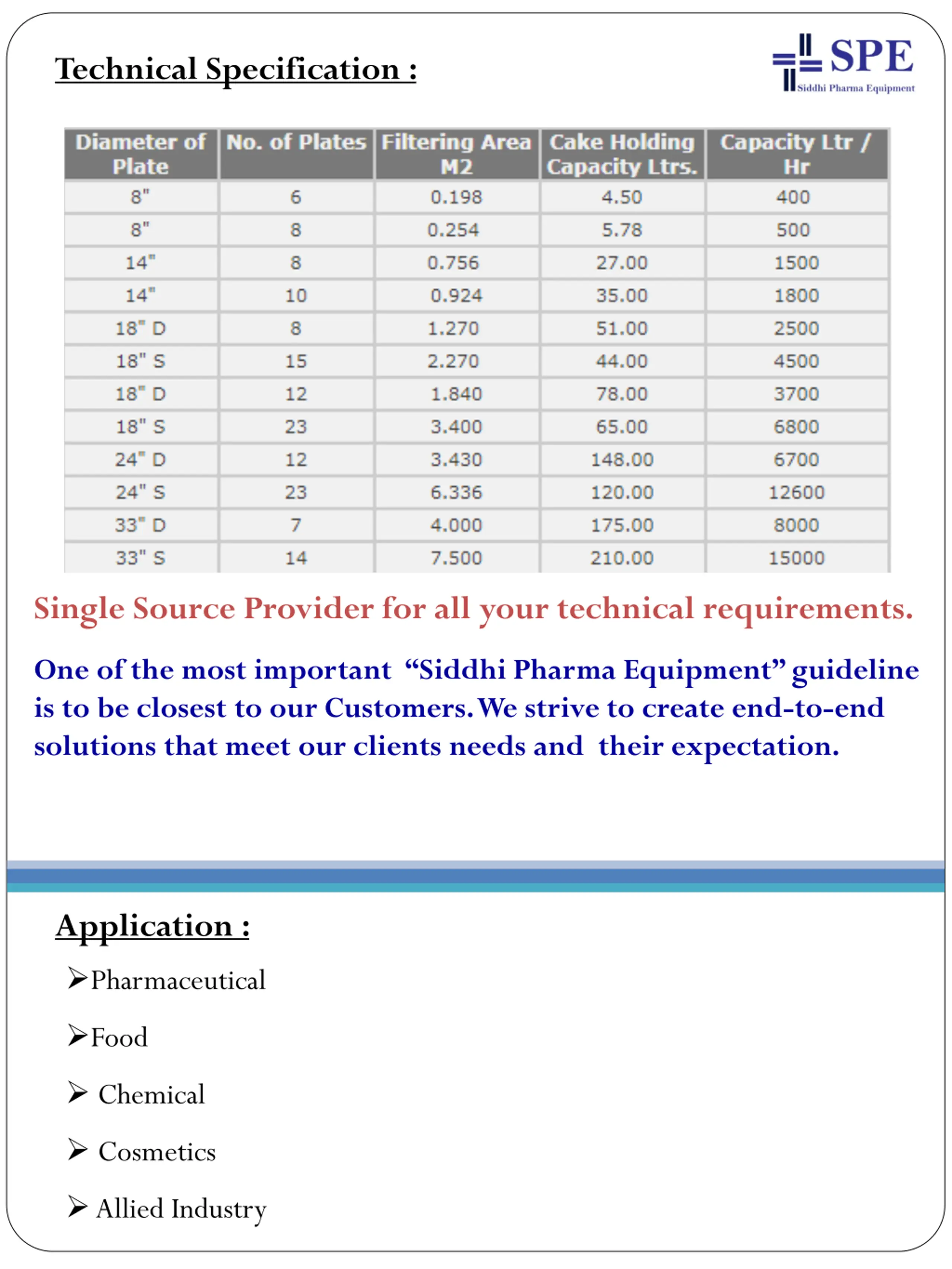

Technical Specification : Single Source Provider for all your technical requirements. One of the most important Siddhi Pharma Equipment guideline is to be closest to our Customers. We strive to create end-to-end solutions that meet our clients needs and their expectation. Application : Pharmaceutical Food Chemical Cosmetics Allied Industry
