Spintronics: How spin can act on charge carriers and vice versa Tomas Jungwirth University of Nottingham Institute of Physics Prague

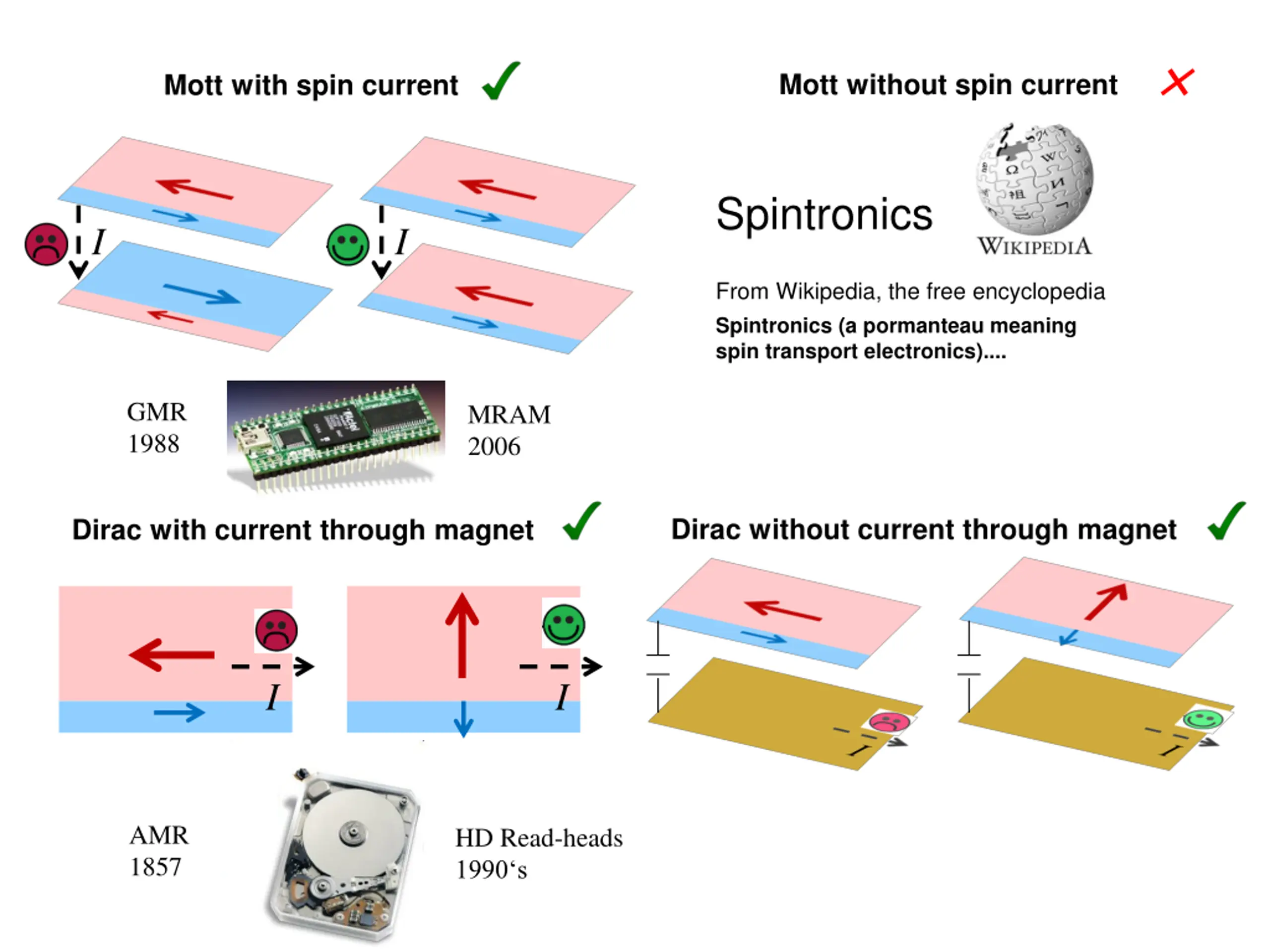

Mott without spin current Mott with spin current Spintronics I I From Wikipedia, the free encyclopedia Spintronics (a pormanteau meaning spin transport electronics).... GMR 1988 MRAM 2006 Dirac without current through magnet Dirac with current through magnet I I AMR 1857 HD Read-heads 1990 s

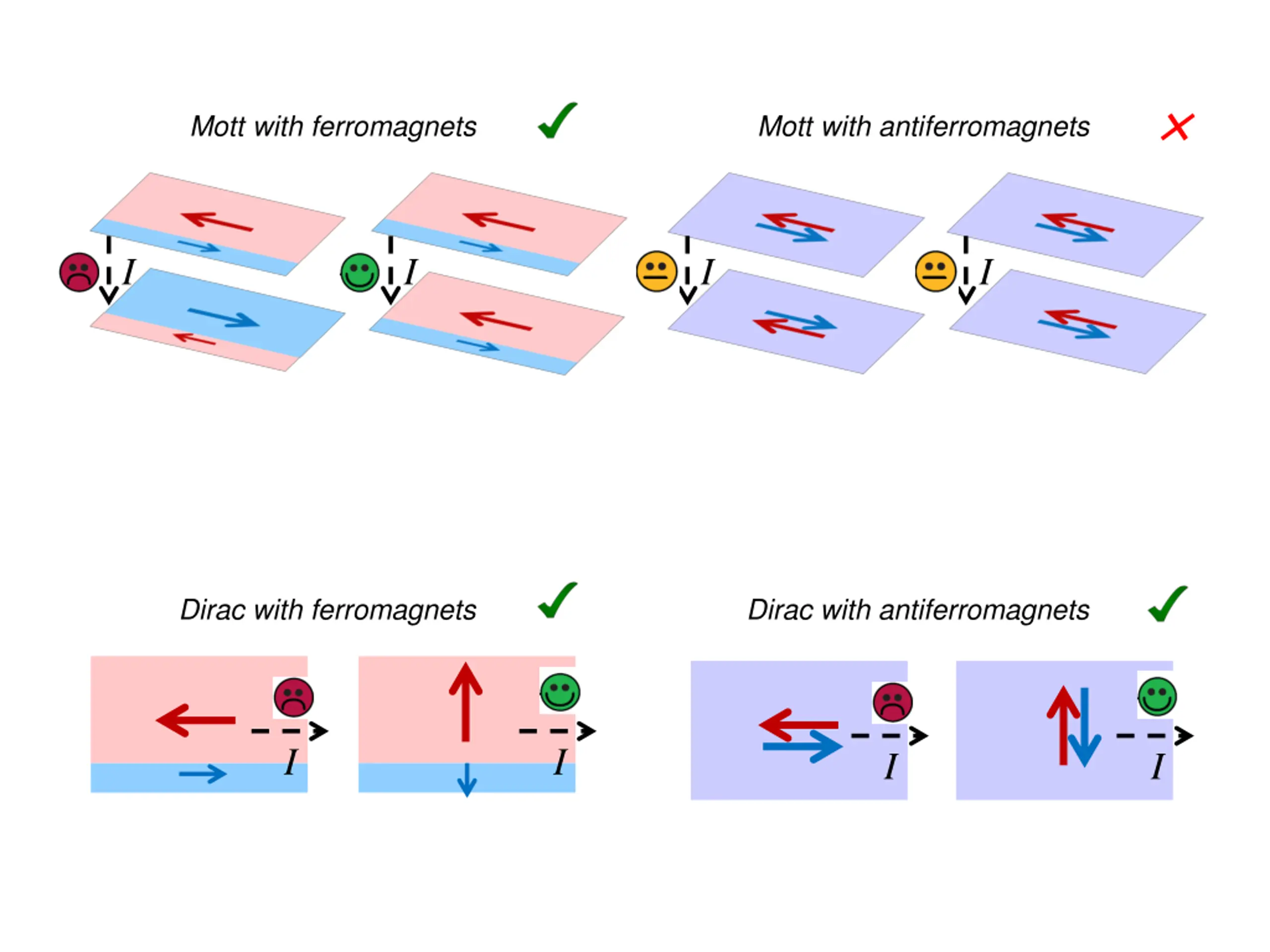

Mott with antiferromagnets Mott with ferromagnets I I I I Dirac with ferromagnets Dirac with antiferromagnets I I I I

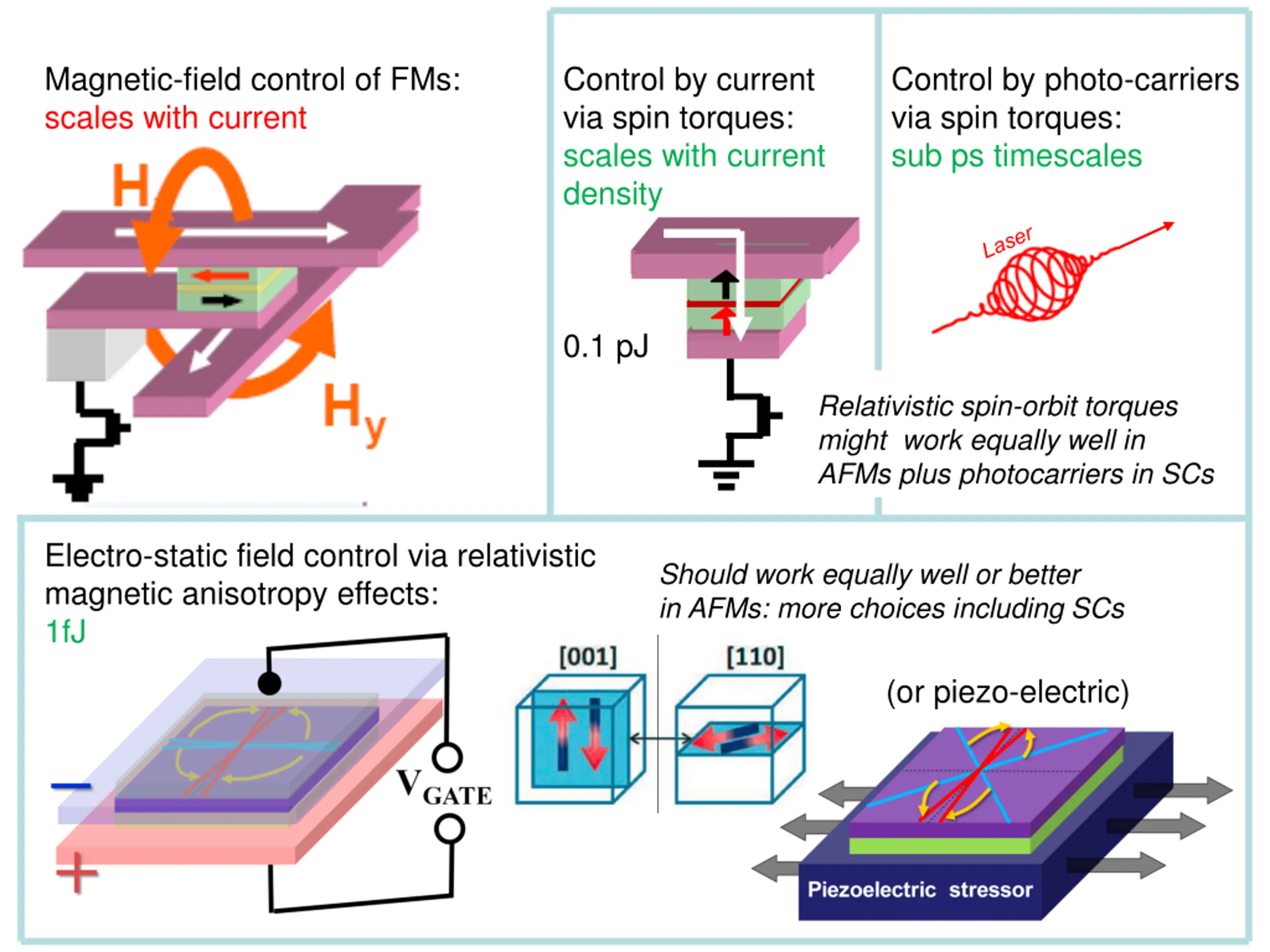

Magnetic-field control of FMs: scales with current Control by current via spin torques: scales with current density Control by photo-carriers via spin torques: sub ps timescales 0.1 pJ Relativistic spin-orbit torques might work equally well in AFMs plus photocarriers in SCs Electro-static field control via relativistic magnetic anisotropy effects: 1fJ Should work equally well or better in AFMs: more choices including SCs (or piezo-electric)
Writing by current via spin torques: scales with current density Writing by photo-carriers via spin torques: sub ps timescales 0.1 pJ Relativistic spin-orbit torques might work equally well in AFMs plus photocarriers in SCs

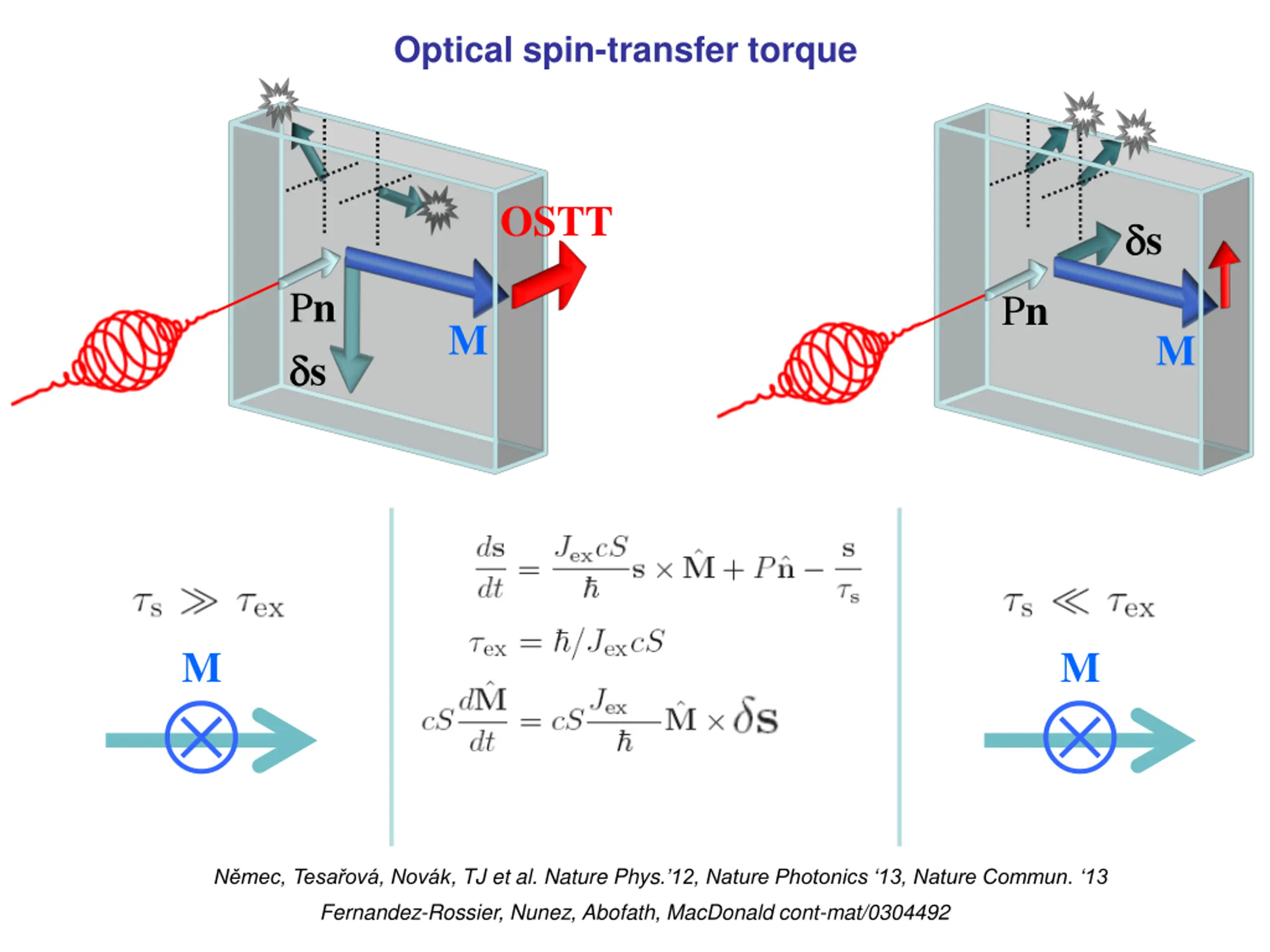

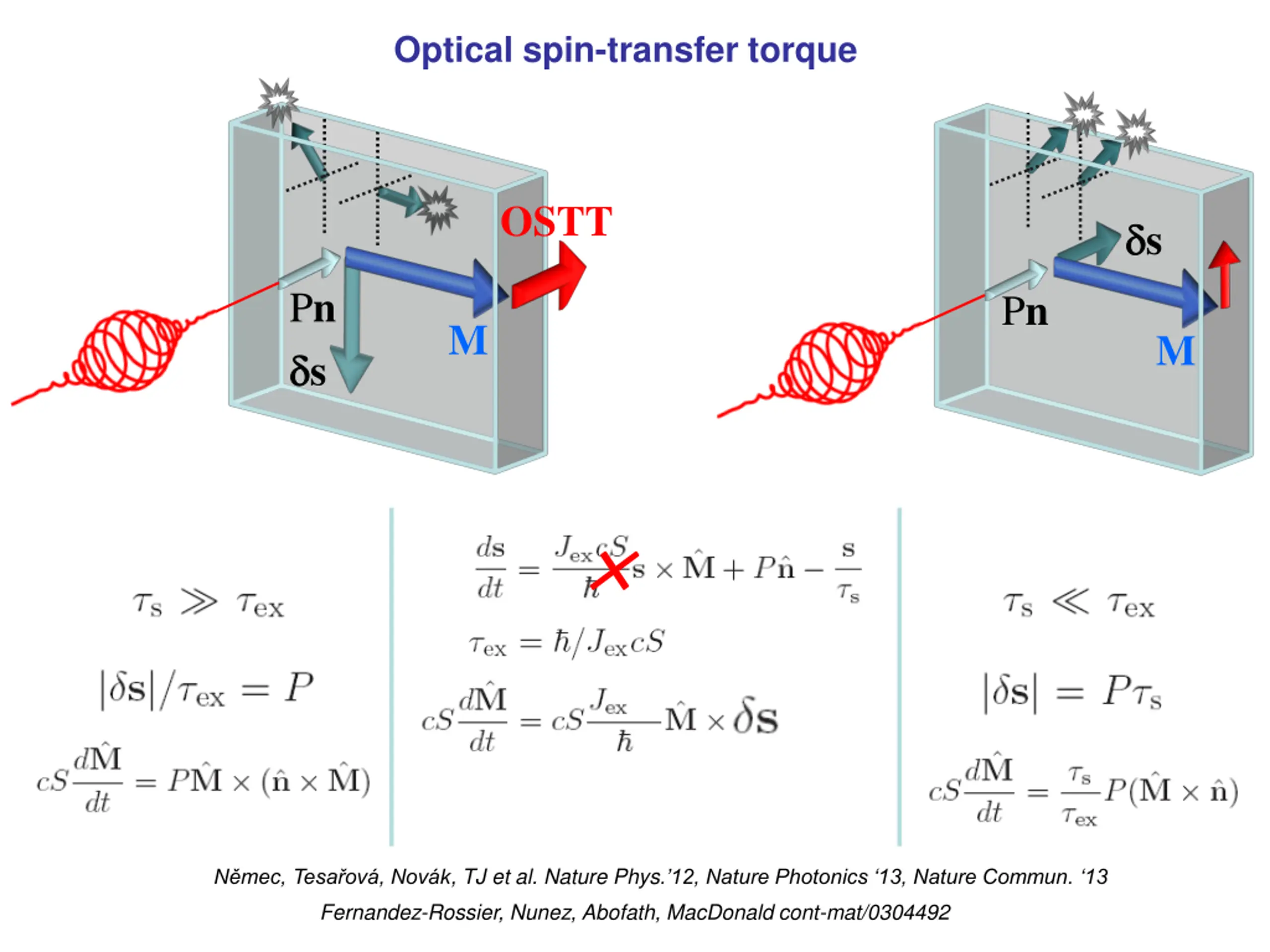

Optical spin-transfer torque OSTT s Pn Pn M M s M M N mec, Tesa ov , Nov k, TJ et al. Nature Phys. 12, Nature Photonics 13, Nature Commun. 13 Fernandez-Rossier, Nunez, Abofath, MacDonald cont-mat/0304492

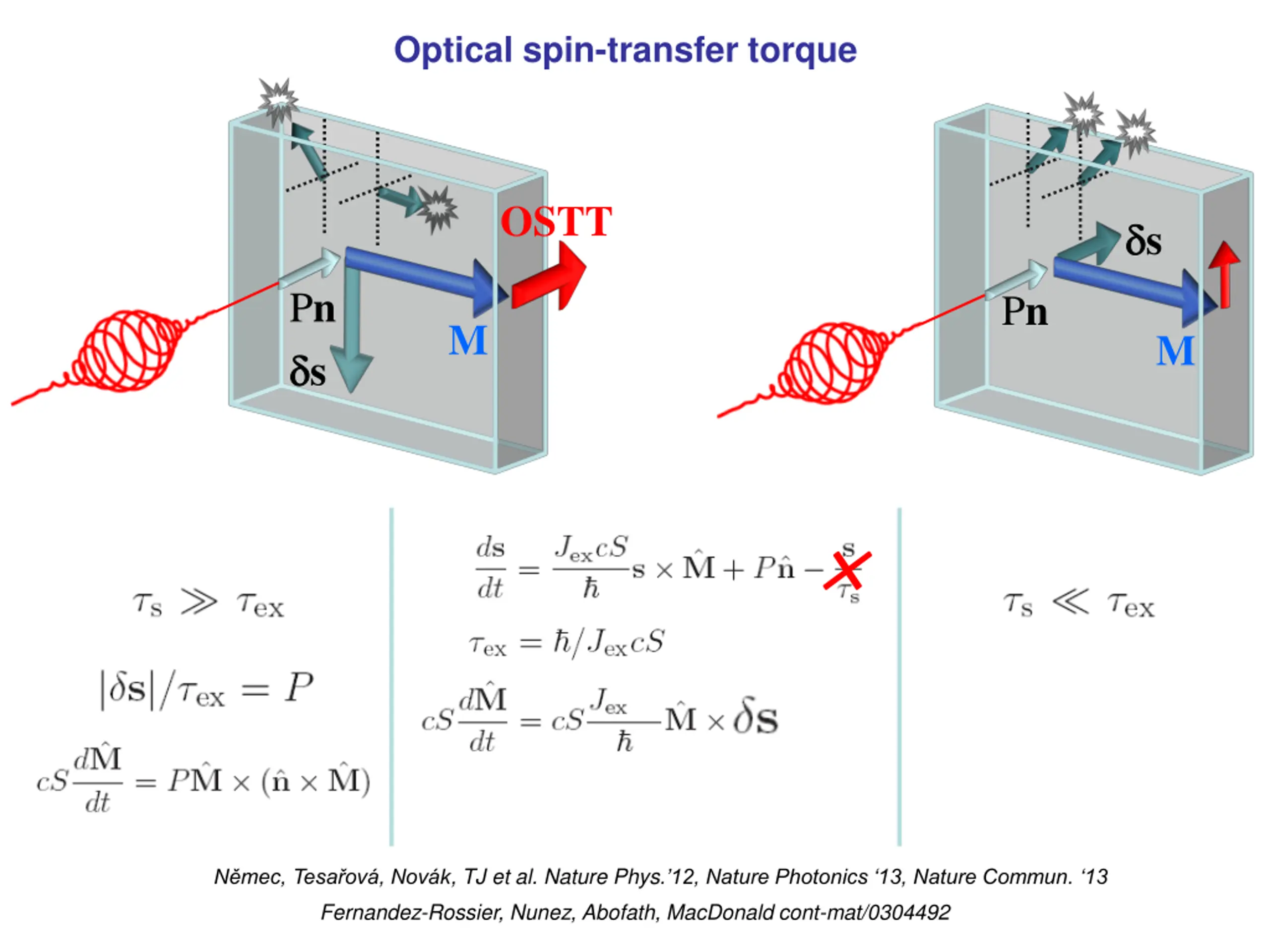

Optical spin-transfer torque OSTT s Pn Pn M M s N mec, Tesa ov , Nov k, TJ et al. Nature Phys. 12, Nature Photonics 13, Nature Commun. 13 Fernandez-Rossier, Nunez, Abofath, MacDonald cont-mat/0304492
Optical spin-transfer torque OSTT s Pn Pn M M s N mec, Tesa ov , Nov k, TJ et al. Nature Phys. 12, Nature Photonics 13, Nature Commun. 13 Fernandez-Rossier, Nunez, Abofath, MacDonald cont-mat/0304492

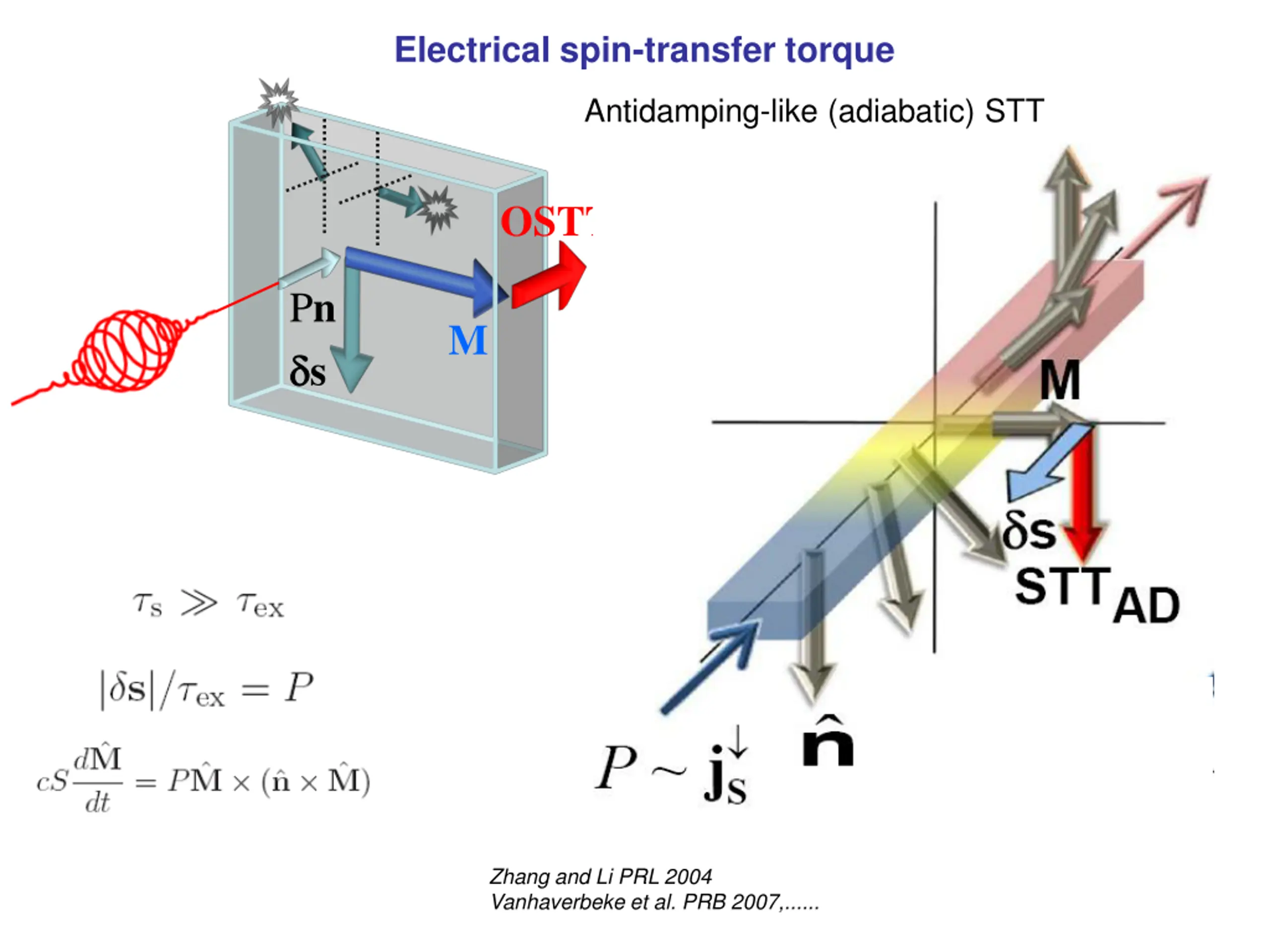

Electrical spin-transfer torque Antidamping-like (adiabatic) STT OSTT Pn M s Zhang and Li PRL 2004 Vanhaverbeke et al. PRB 2007,......

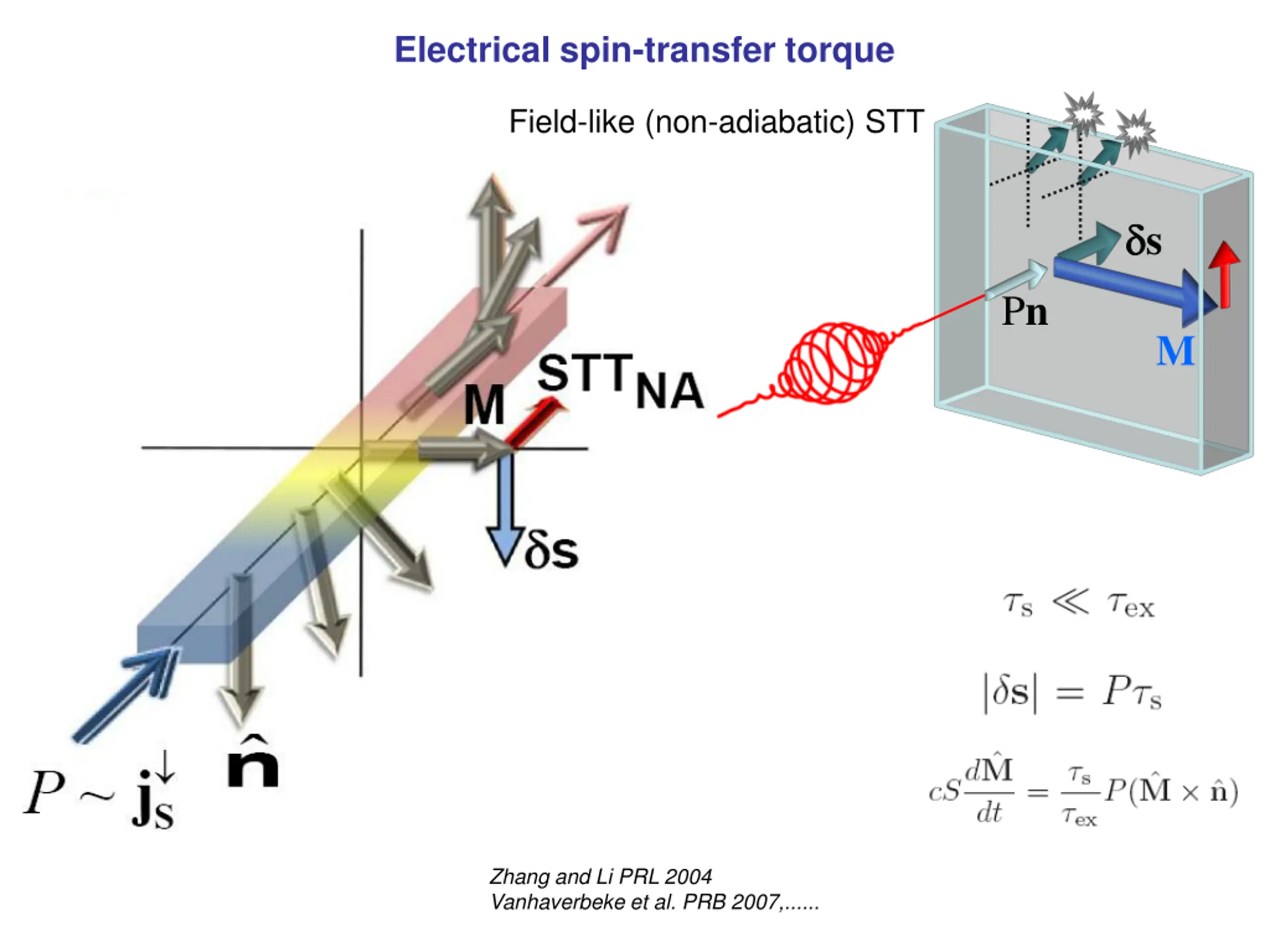

Electrical spin-transfer torque Field-like (non-adiabatic) STT s Pn M Zhang and Li PRL 2004 Vanhaverbeke et al. PRB 2007,......

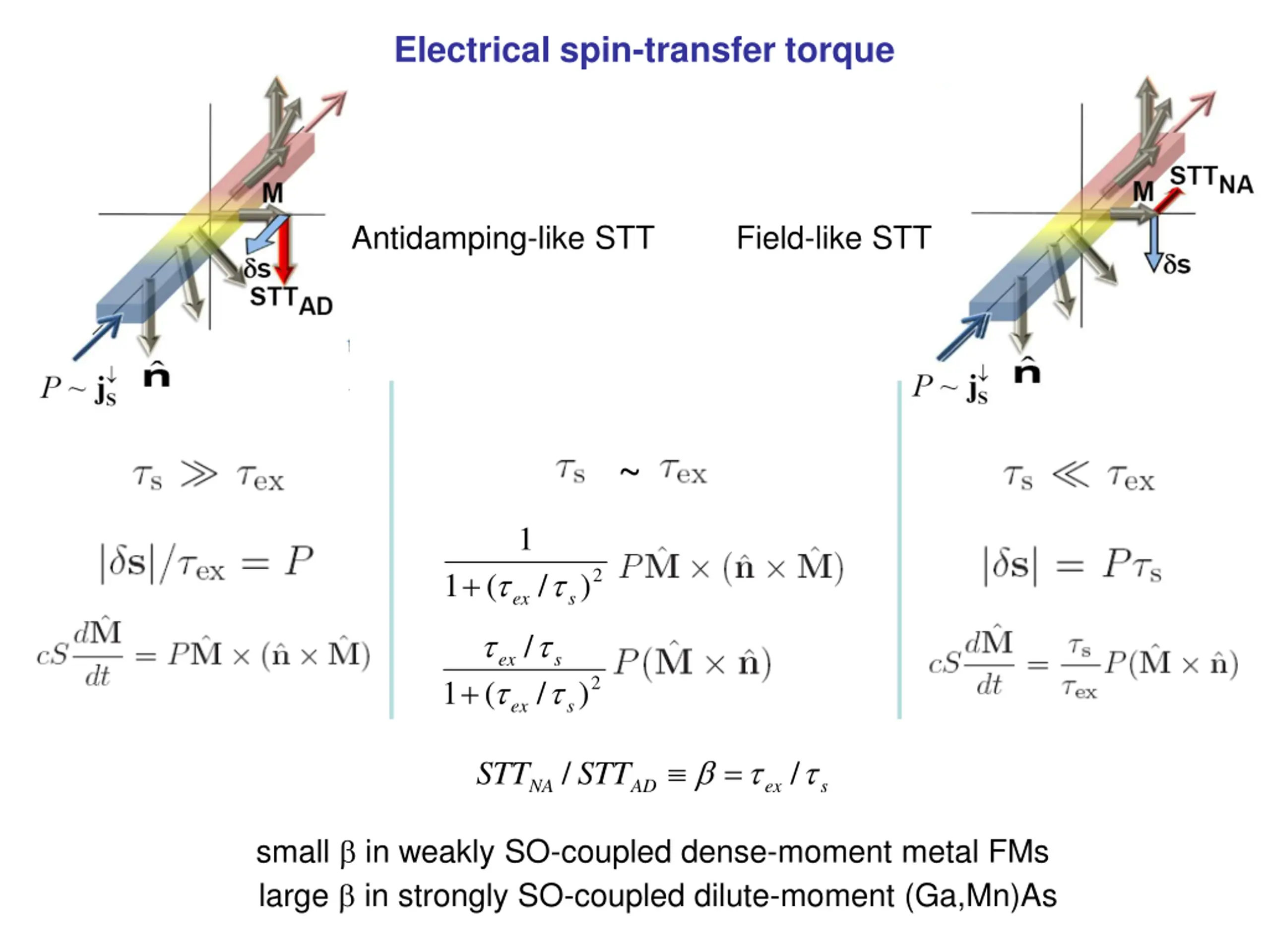

Electrical spin-transfer torque Antidamping-like STT Field-like STT ~ 1 ex + + 2) 1 ( / s / ex s 2) 1 ( / ex s = / NASTT / STT AD ex s small in weakly SO-coupled dense-moment metal FMs large in strongly SO-coupled dilute-moment (Ga,Mn)As

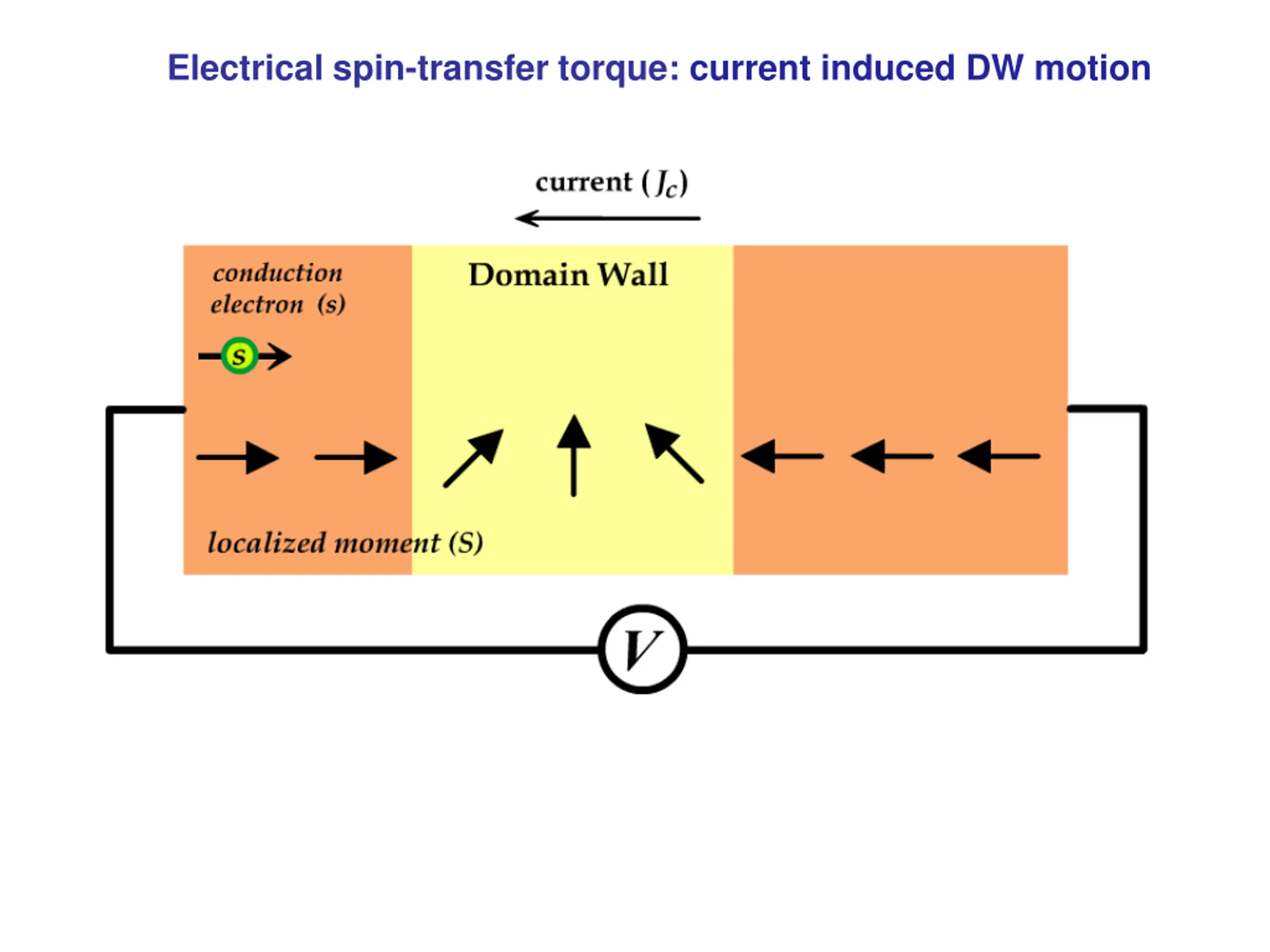

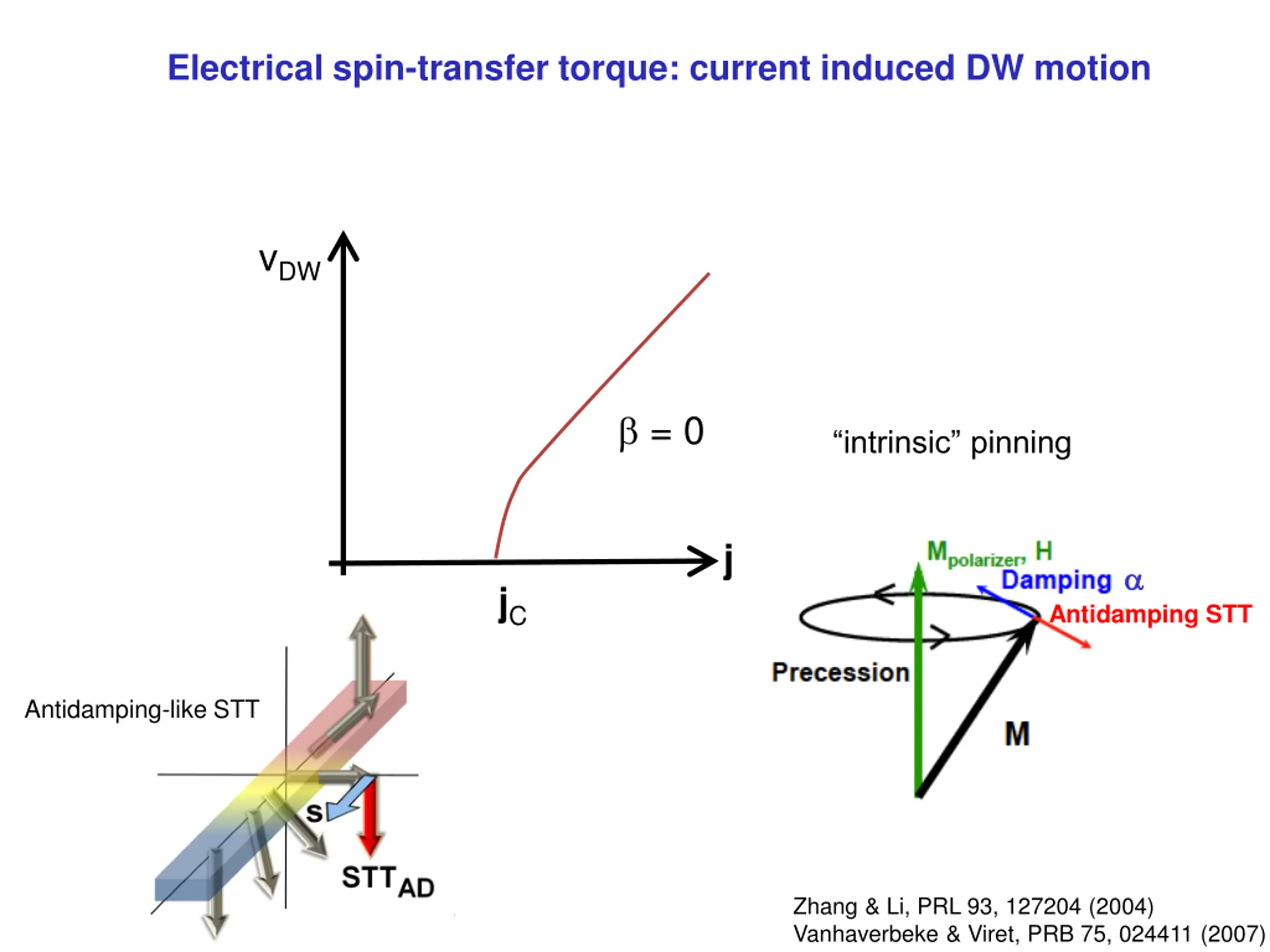

Electrical spin-transfer torque: current induced DW motion vDW = 0 intrinsic pinning j jC Antidamping STT Antidamping-like STT Zhang & Li, PRL 93, 127204 (2004) Vanhaverbeke & Viret, PRB 75, 024411 (2007)

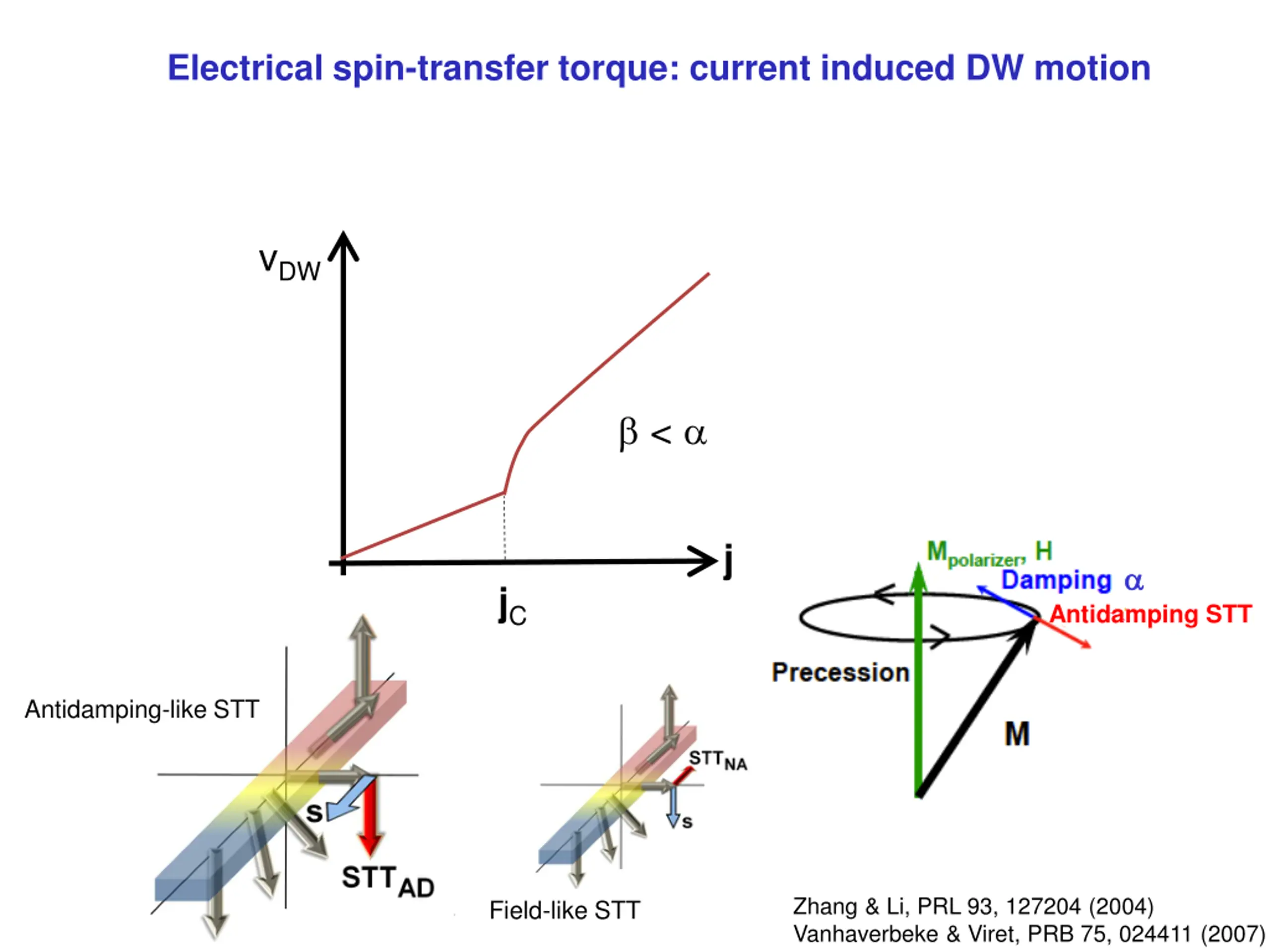

Electrical spin-transfer torque: current induced DW motion vDW < j jC Antidamping STT Antidamping-like STT Zhang & Li, PRL 93, 127204 (2004) Vanhaverbeke & Viret, PRB 75, 024411 (2007) Field-like STT

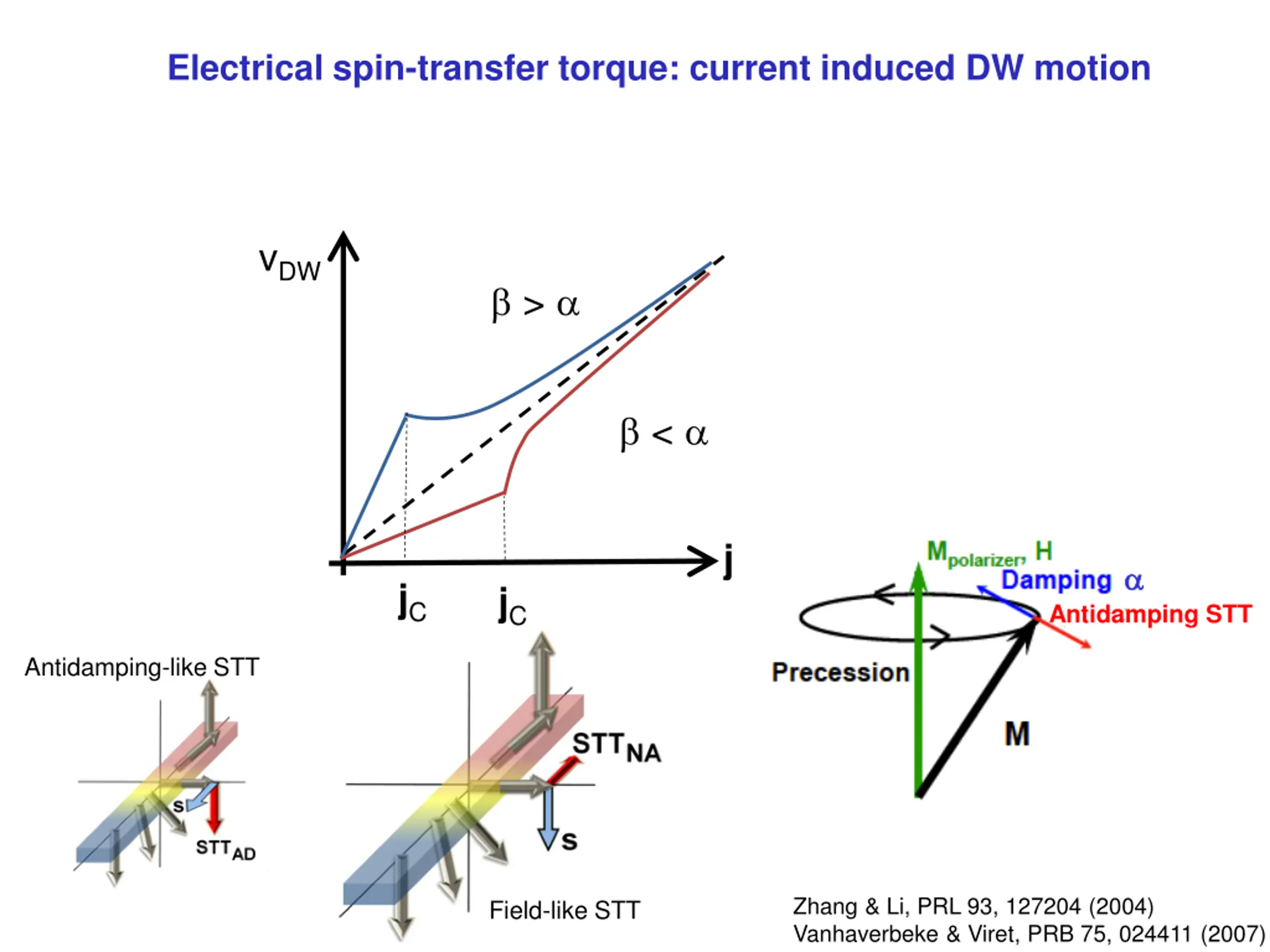

Electrical spin-transfer torque: current induced DW motion vDW > < j jC jC Antidamping STT Antidamping-like STT Zhang & Li, PRL 93, 127204 (2004) Vanhaverbeke & Viret, PRB 75, 024411 (2007) Field-like STT

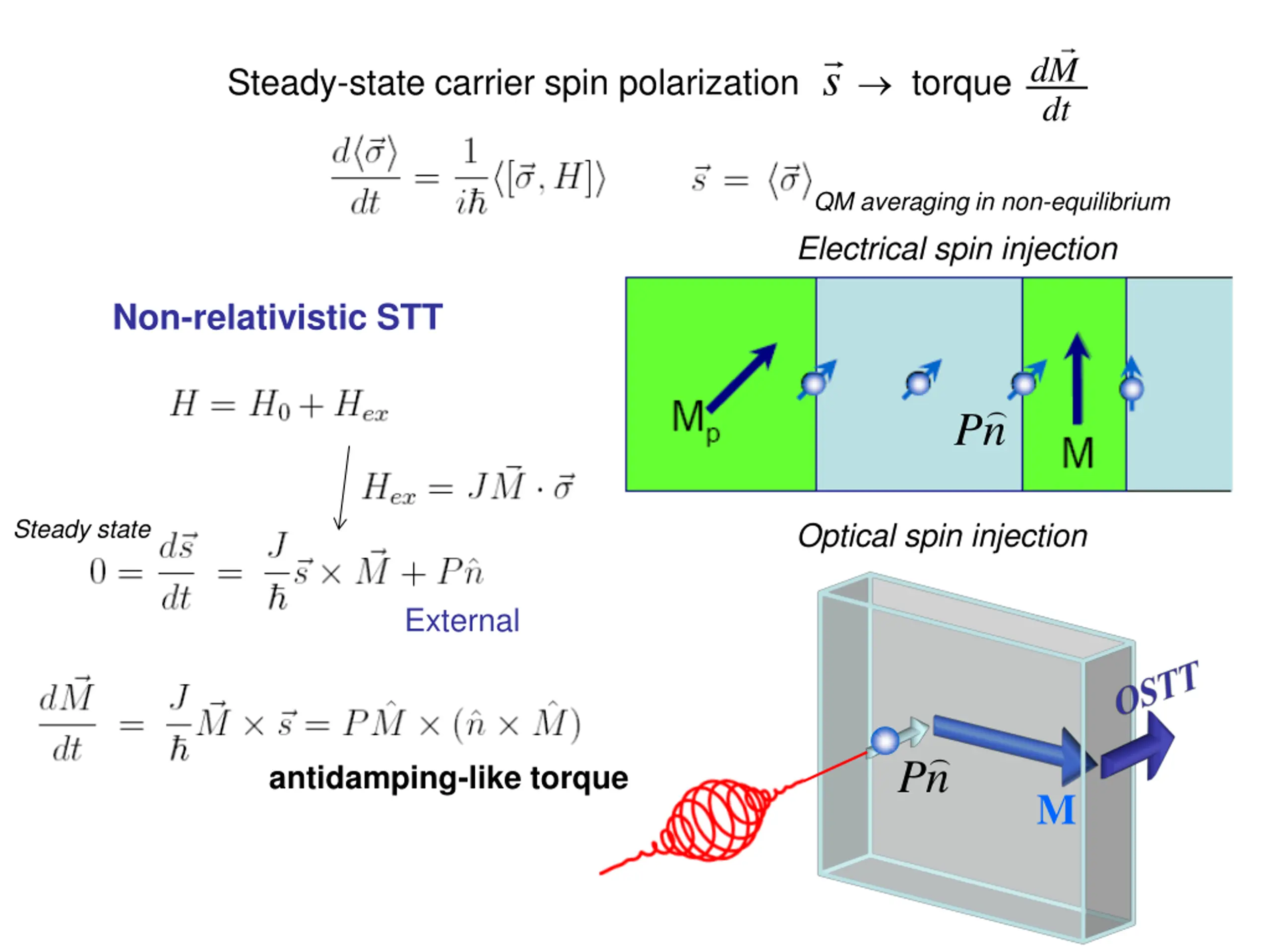

s d M Steady-state carrier spin polarization torque dt QM averaging in non-equilibrium Electrical spin injection Non-relativistic STT P n Steady state Optical spin injection External P n antidamping-like torque M

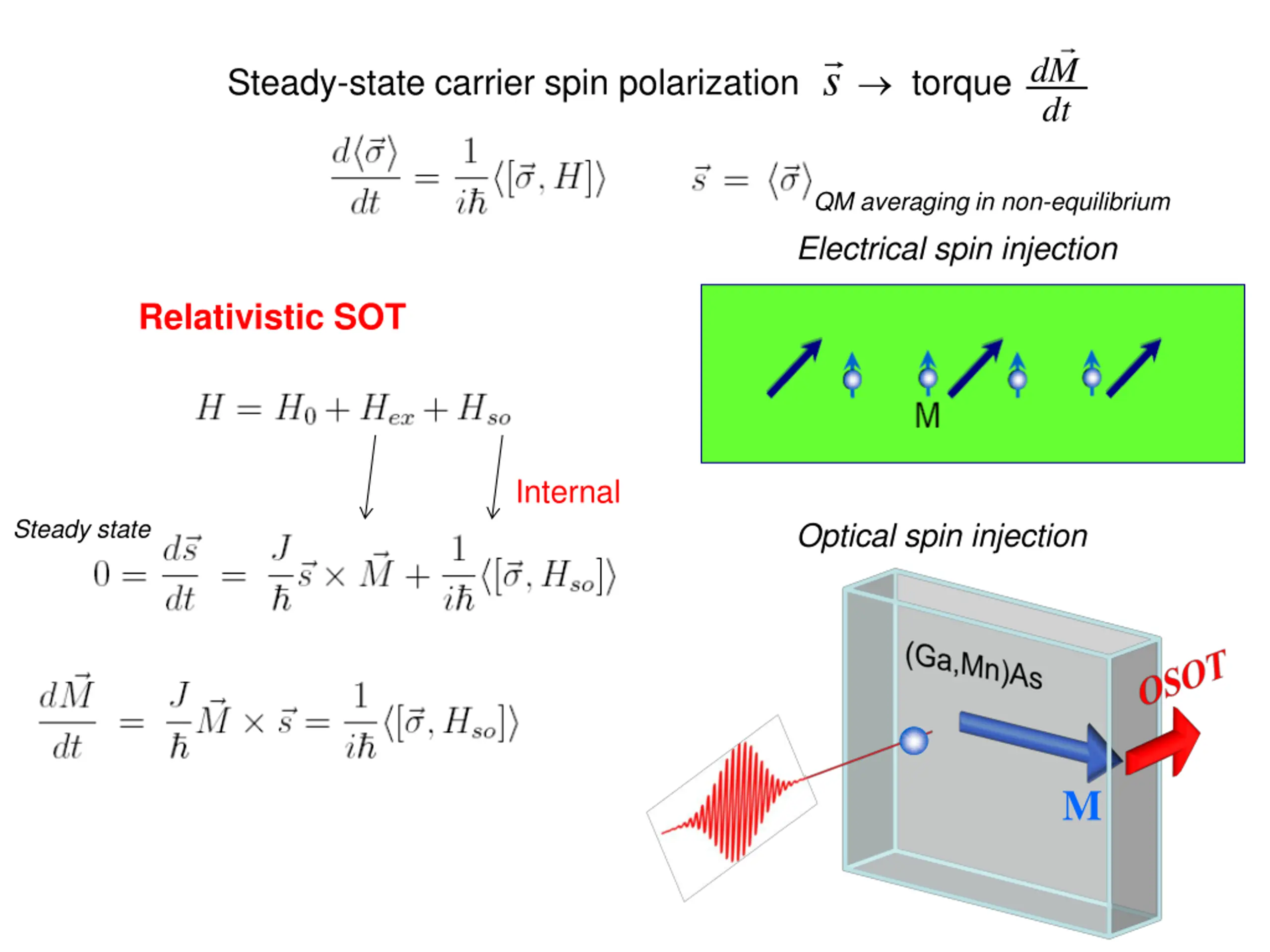

s d M Steady-state carrier spin polarization torque dt QM averaging in non-equilibrium Electrical spin injection Relativistic SOT Internal Steady state Optical spin injection M

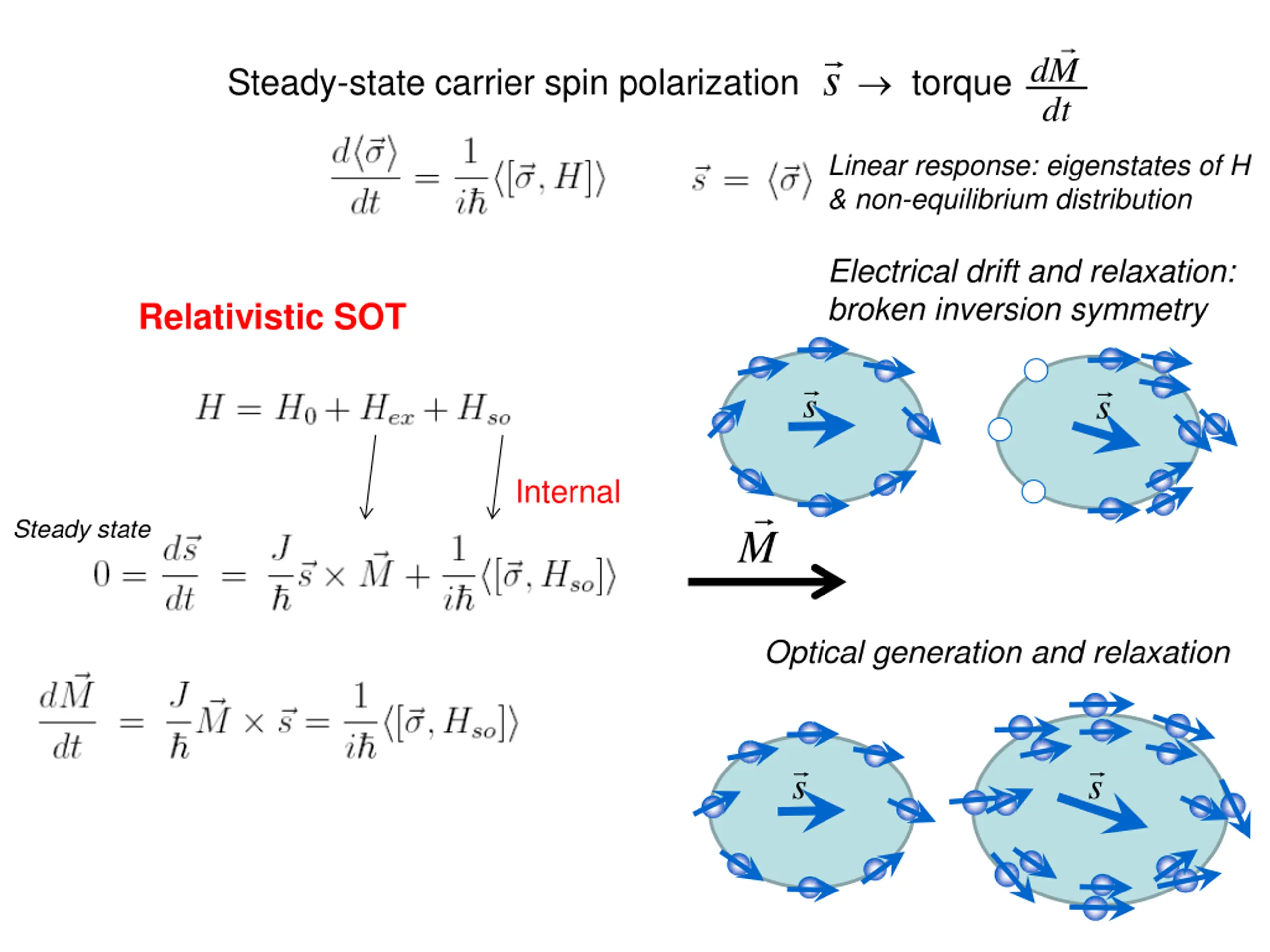

s d M Steady-state carrier spin polarization torque dt Linear response: eigenstates of H & non-equilibrium distribution Electrical drift and relaxation: broken inversion symmetry Relativistic SOT s s Internal Steady state M Optical generation and relaxation s s

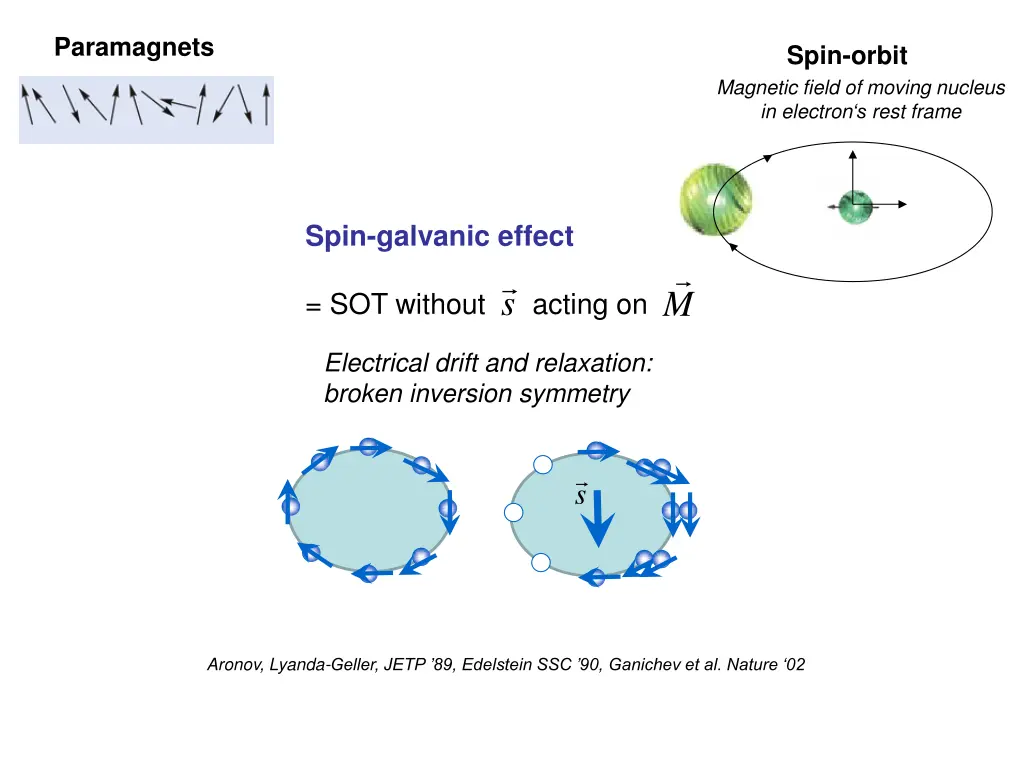

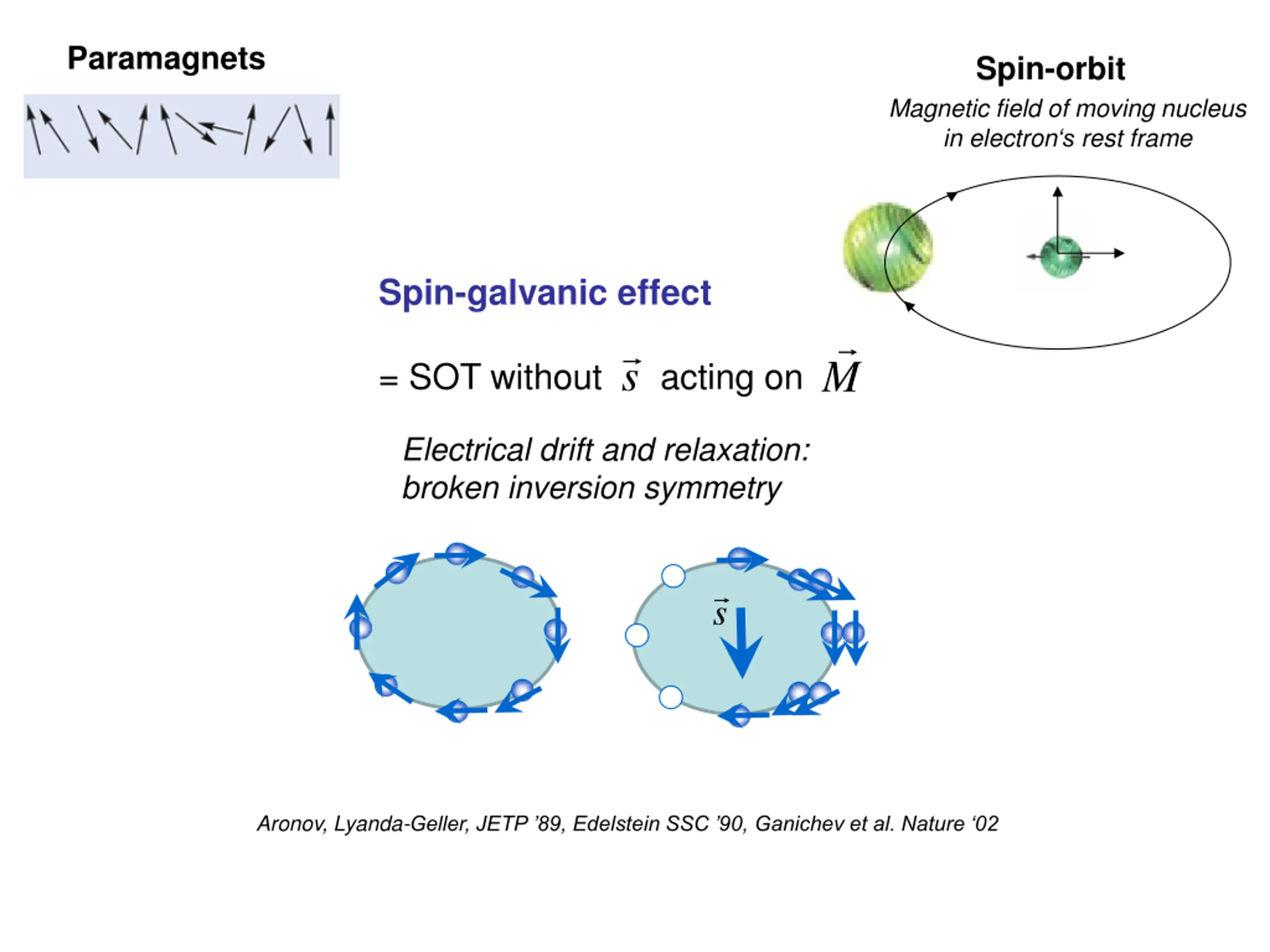

Paramagnets Spin-orbit Magnetic field of moving nucleus in electron s rest frame Spin-galvanic effect s M = SOT without acting on Electrical drift and relaxation: broken inversion symmetry s Aronov, Lyanda-Geller, JETP 89, Edelstein SSC 90, Ganichev et al. Nature 02

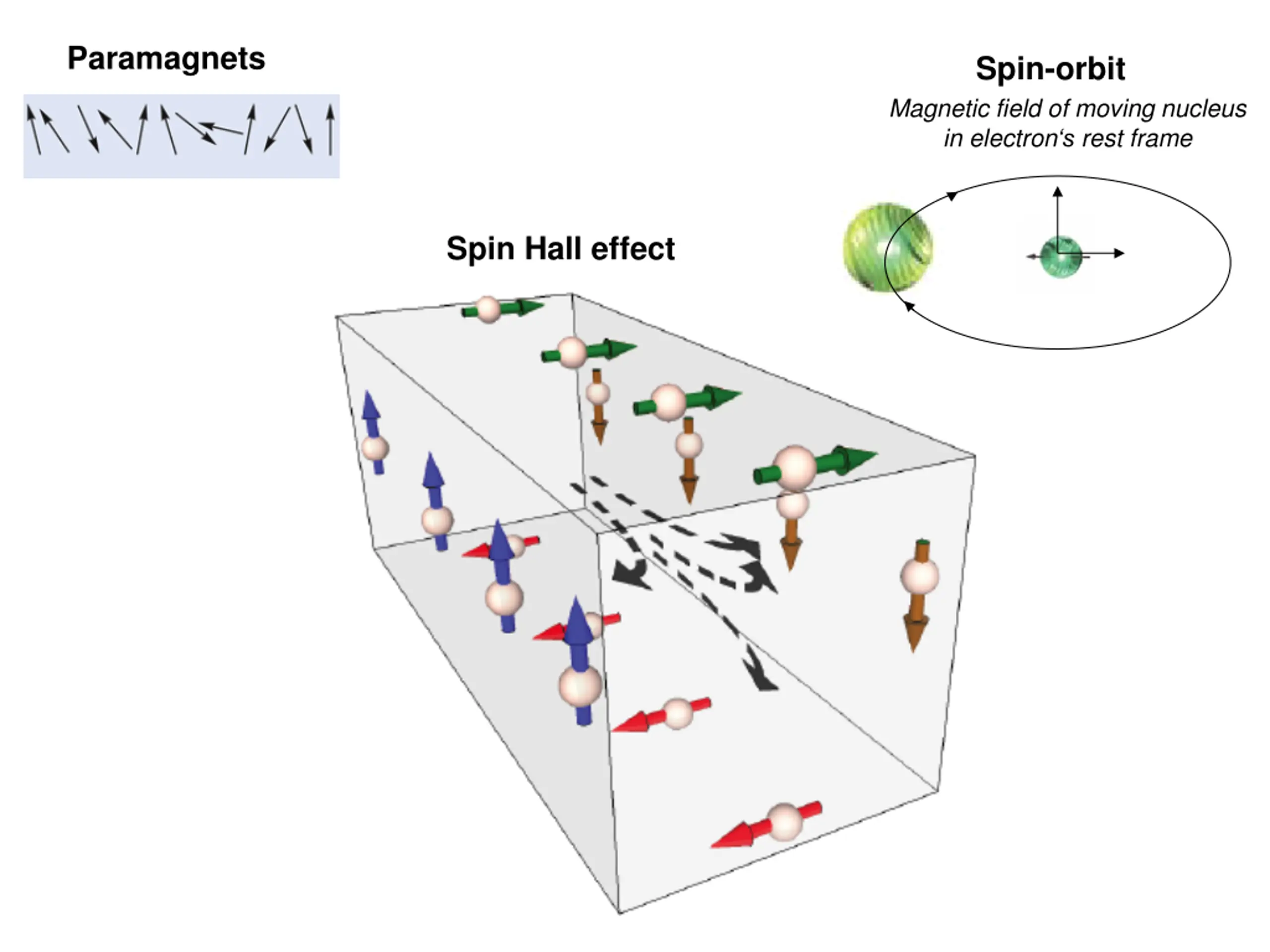

Paramagnets Spin-orbit Magnetic field of moving nucleus in electron s rest frame Spin Hall effect

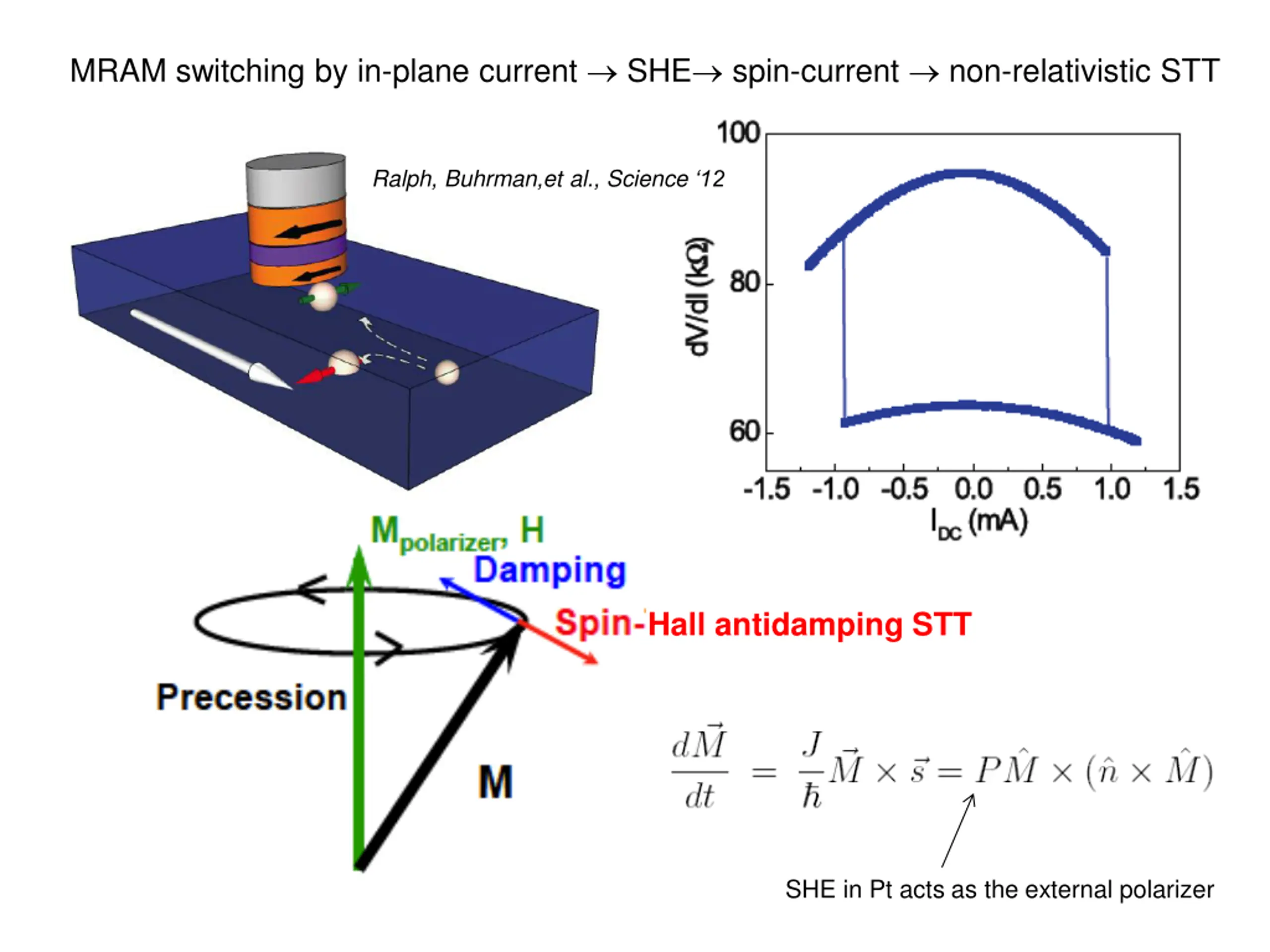

MRAM switching by in-plane current SHE spin-current non-relativistic STT Ralph, Buhrman,et al., Science 12 Hall antidamping STT SHE in Pt acts as the external polarizer

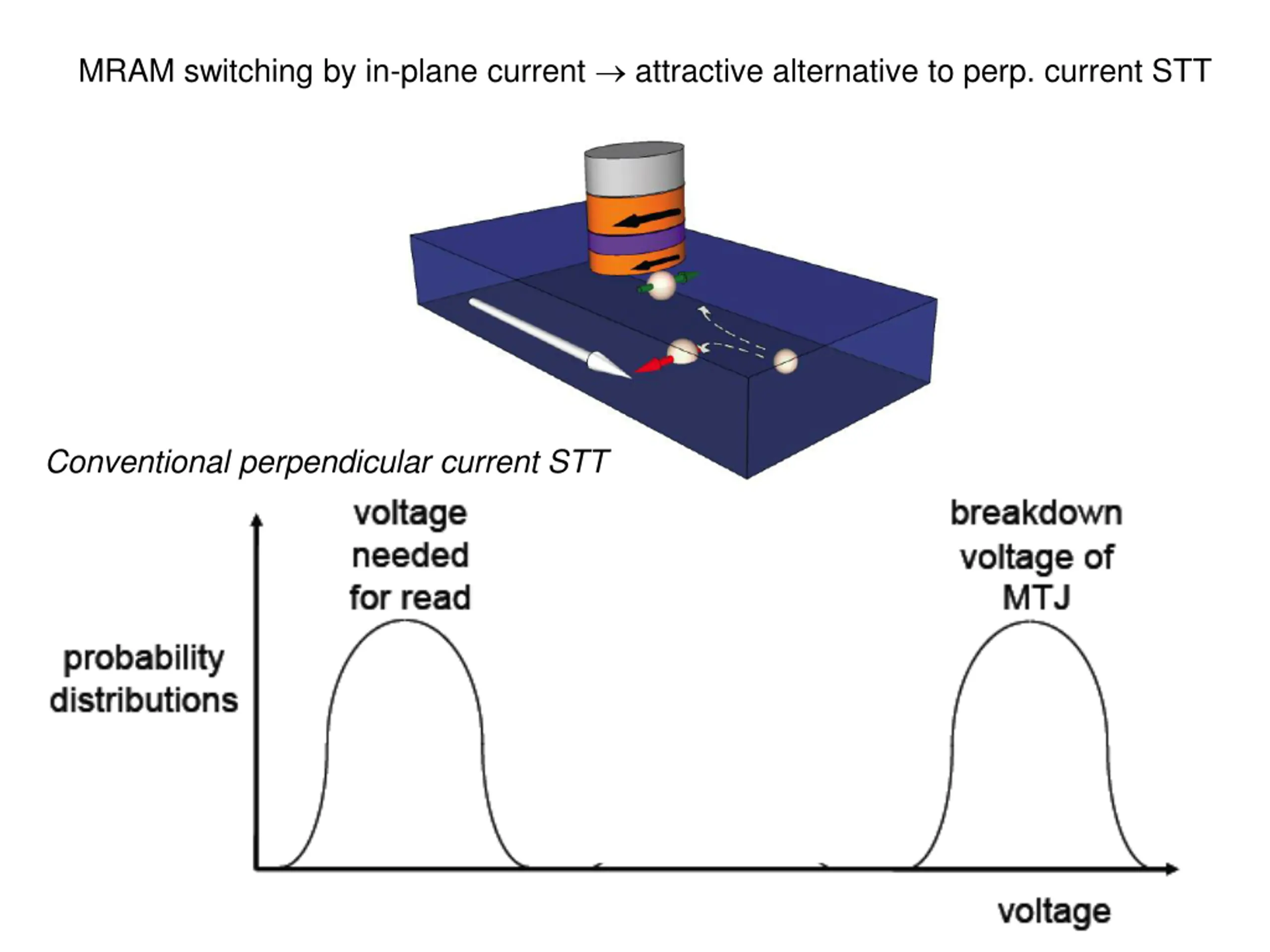

MRAM switching by in-plane current attractive alternative to perp. current STT Conventional perpendicular current STT
MRAM switching by in-plane current attractive alternative to perp. current STT Conventional perpendicular current STT

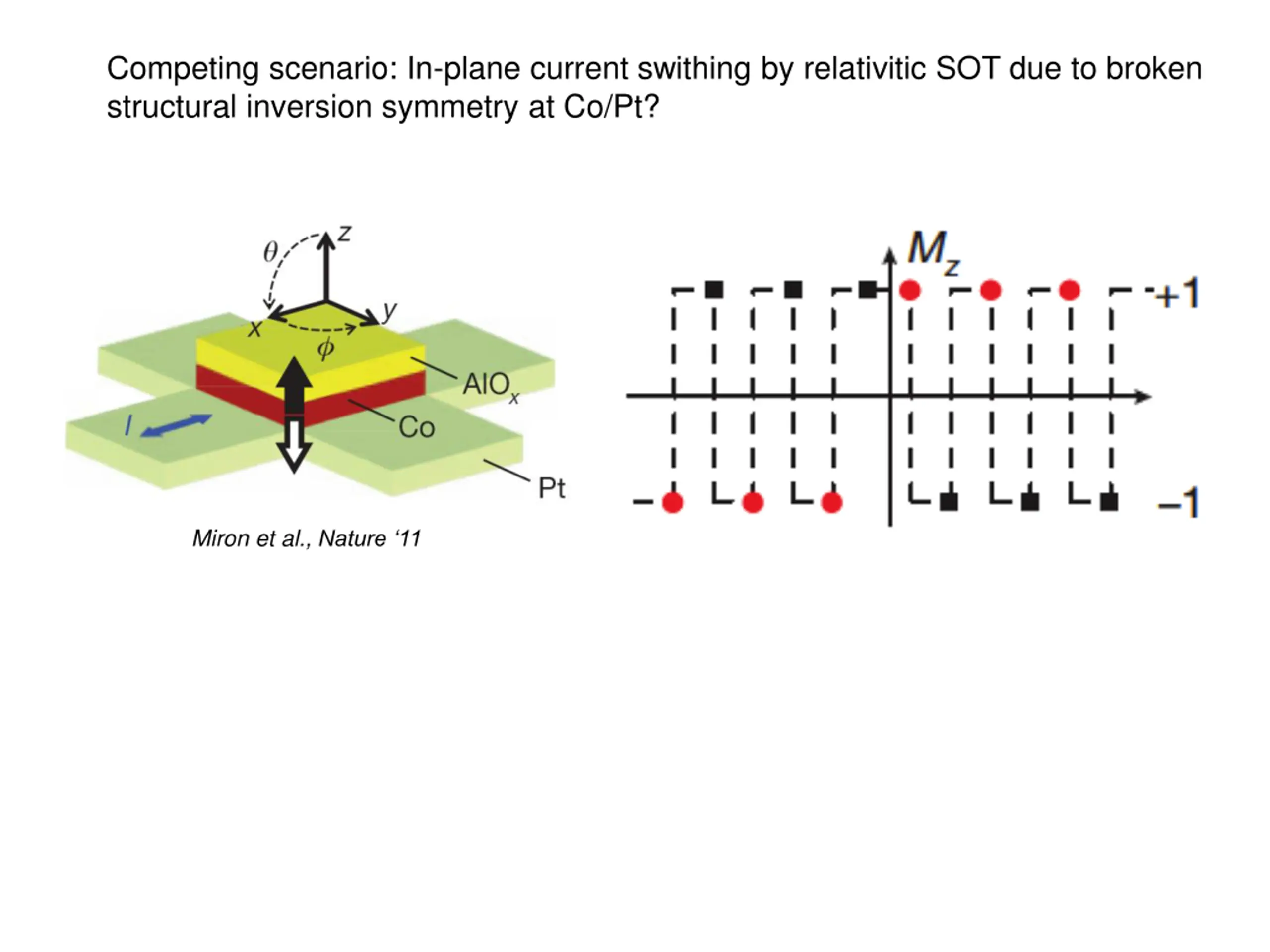

Competing scenario: In-plane current swithing by relativitic SOT due to broken structural inversion symmetry at Co/Pt? Miron et al., Nature 11

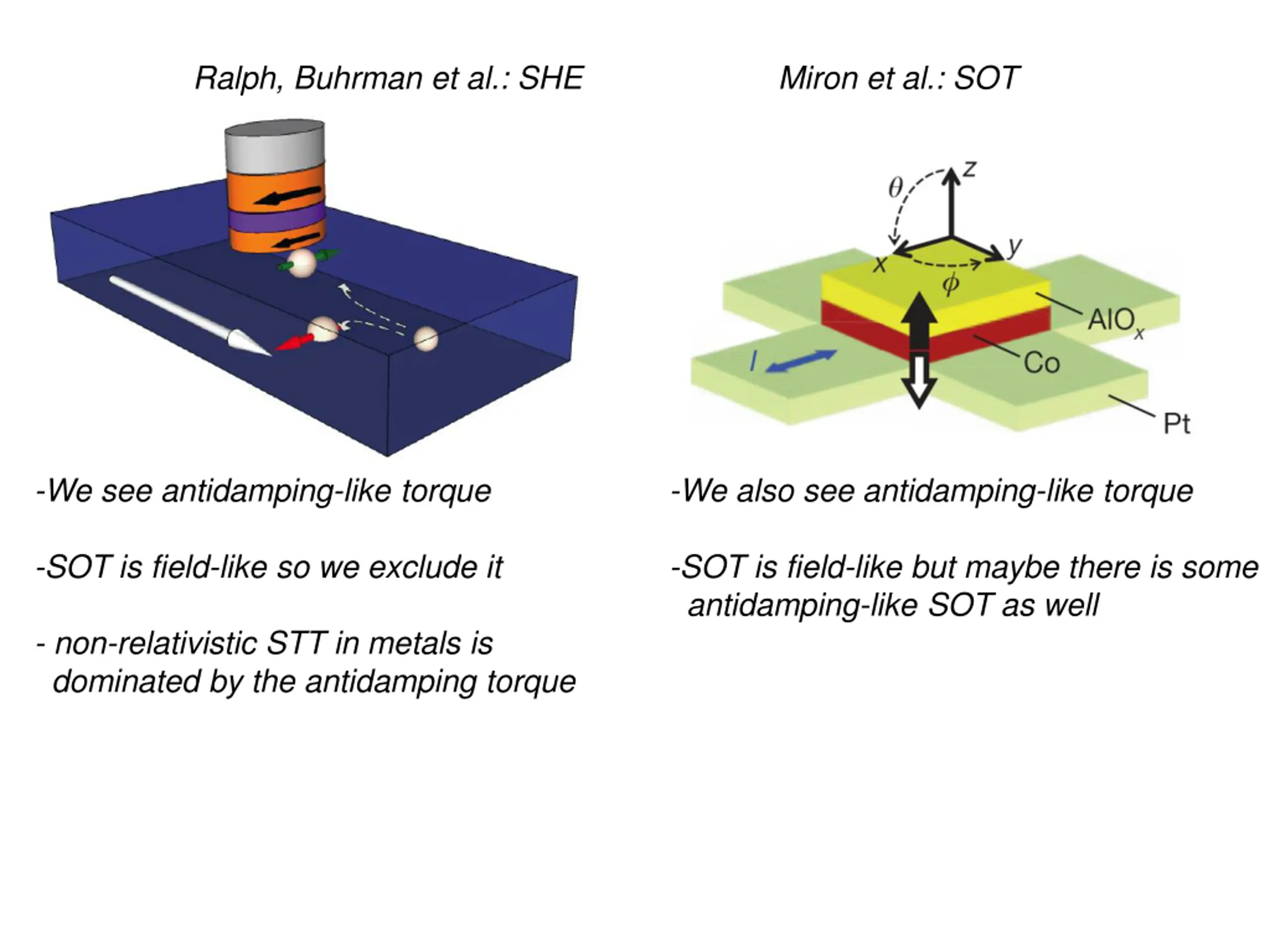

Ralph, Buhrman et al.: SHE Miron et al.: SOT -We see antidamping-like torque -We also see antidamping-like torque -SOT is field-like so we exclude it -SOT is field-like but maybe there is some antidamping-like SOT as well - non-relativistic STT in metals is dominated by the antidamping torque

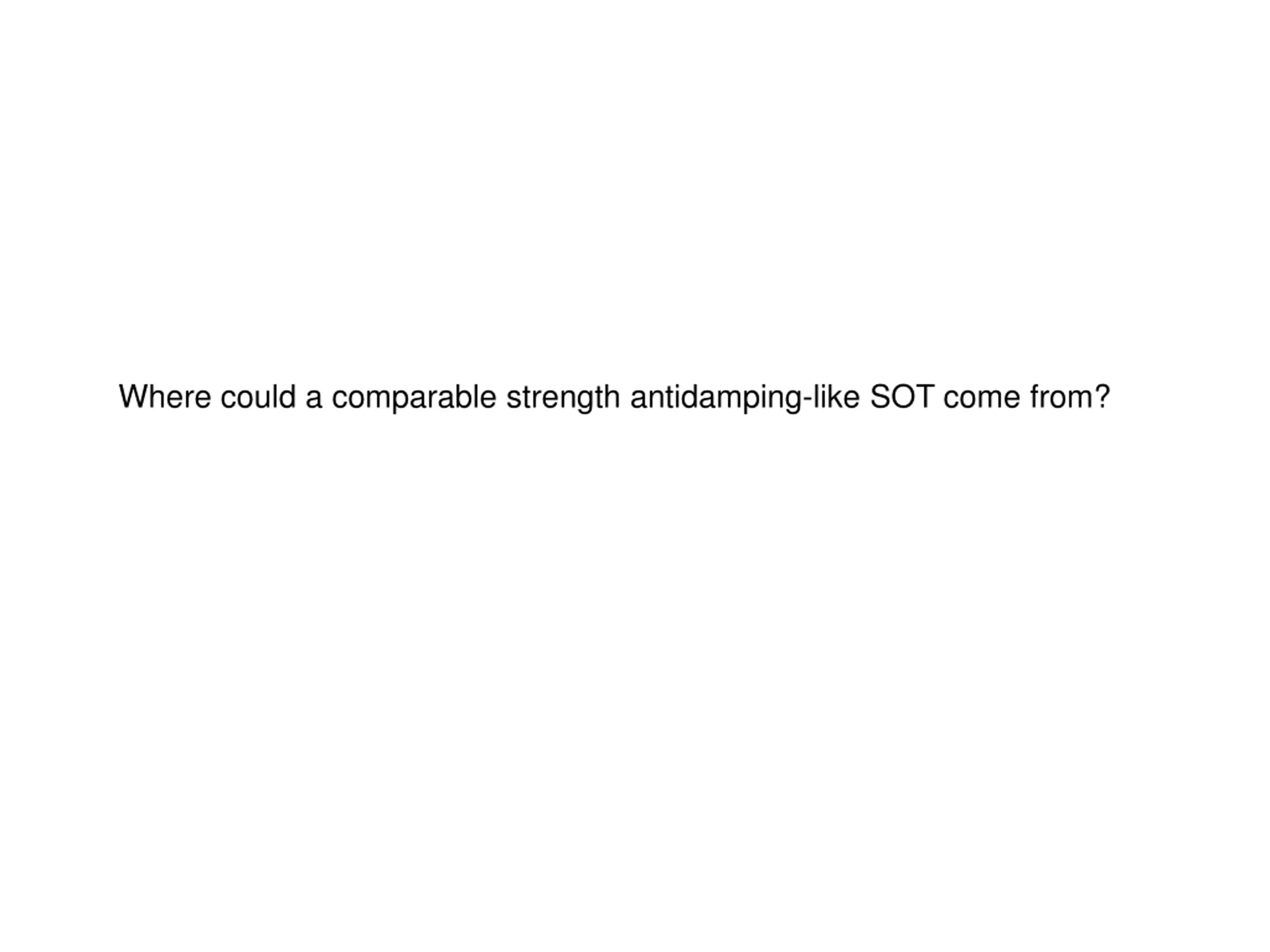

Where could a comparable strength antidamping-like SOT come from?
