Standards for SSIS Field Notes, Logging, and Solutions

SSIS Field Notes Darren Green Konesans Ltd

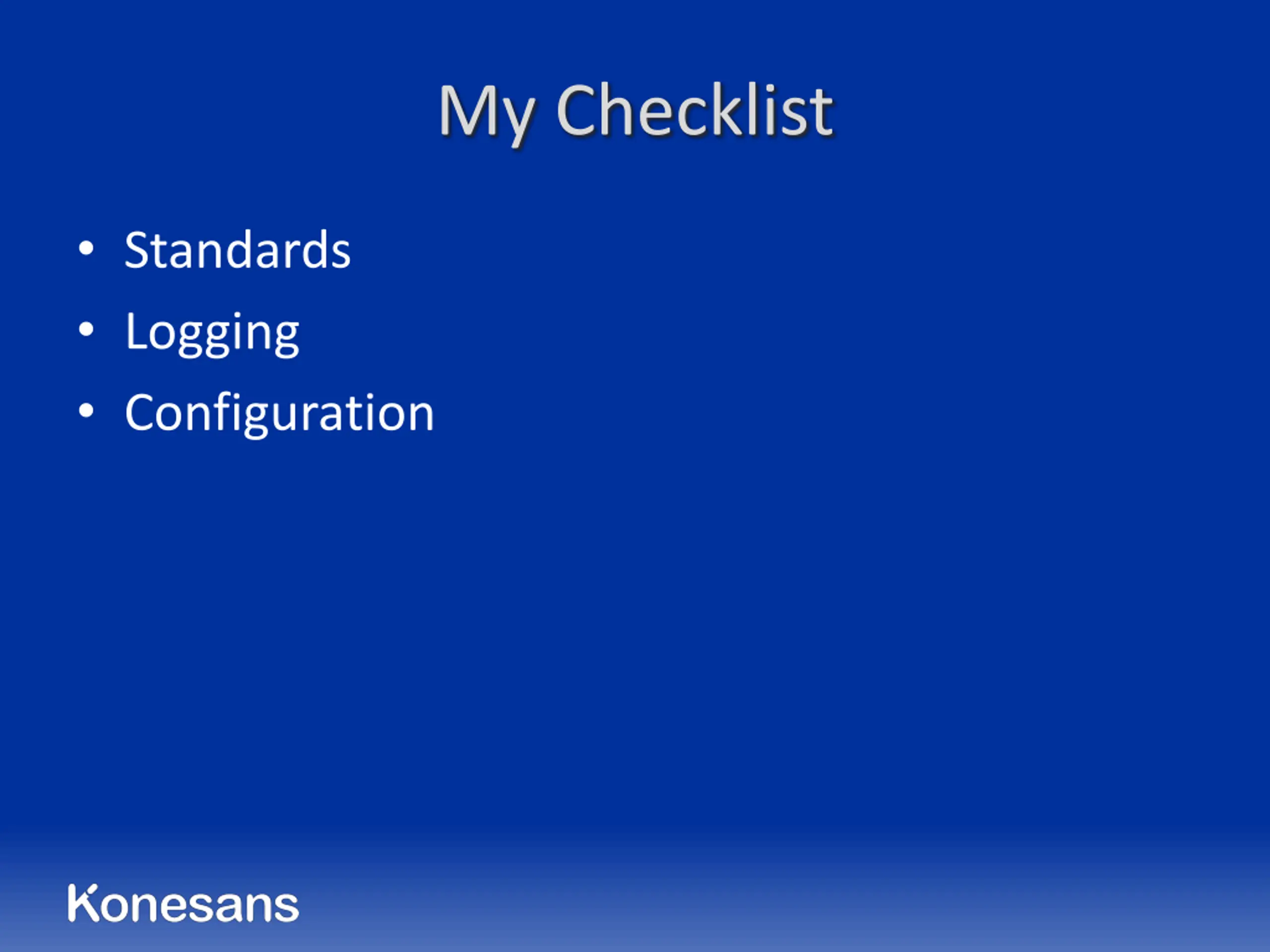

My Checklist Standards Logging Configuration

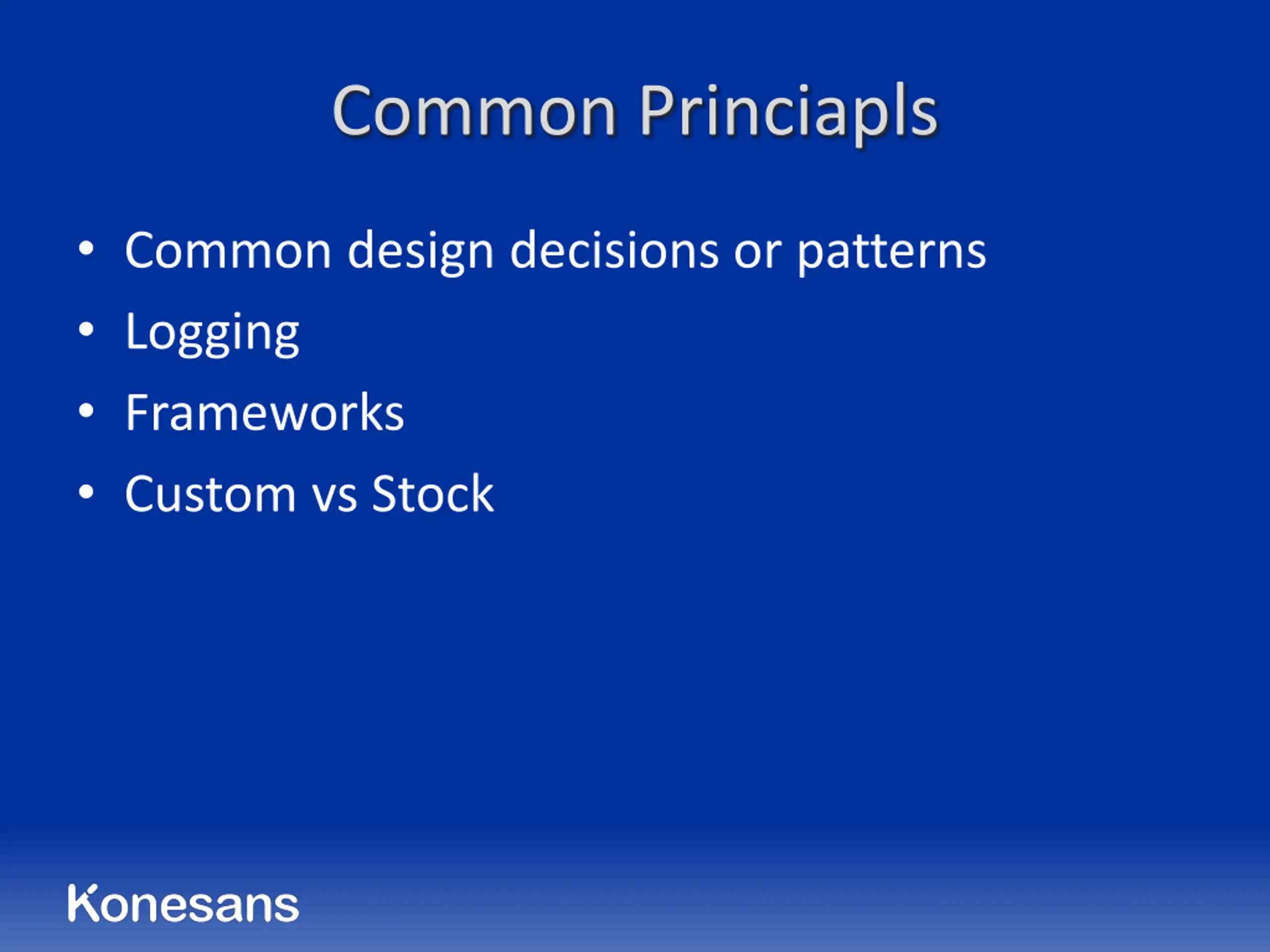

Common Princiapls Common design decisions or patterns Logging Frameworks Custom vs Stock

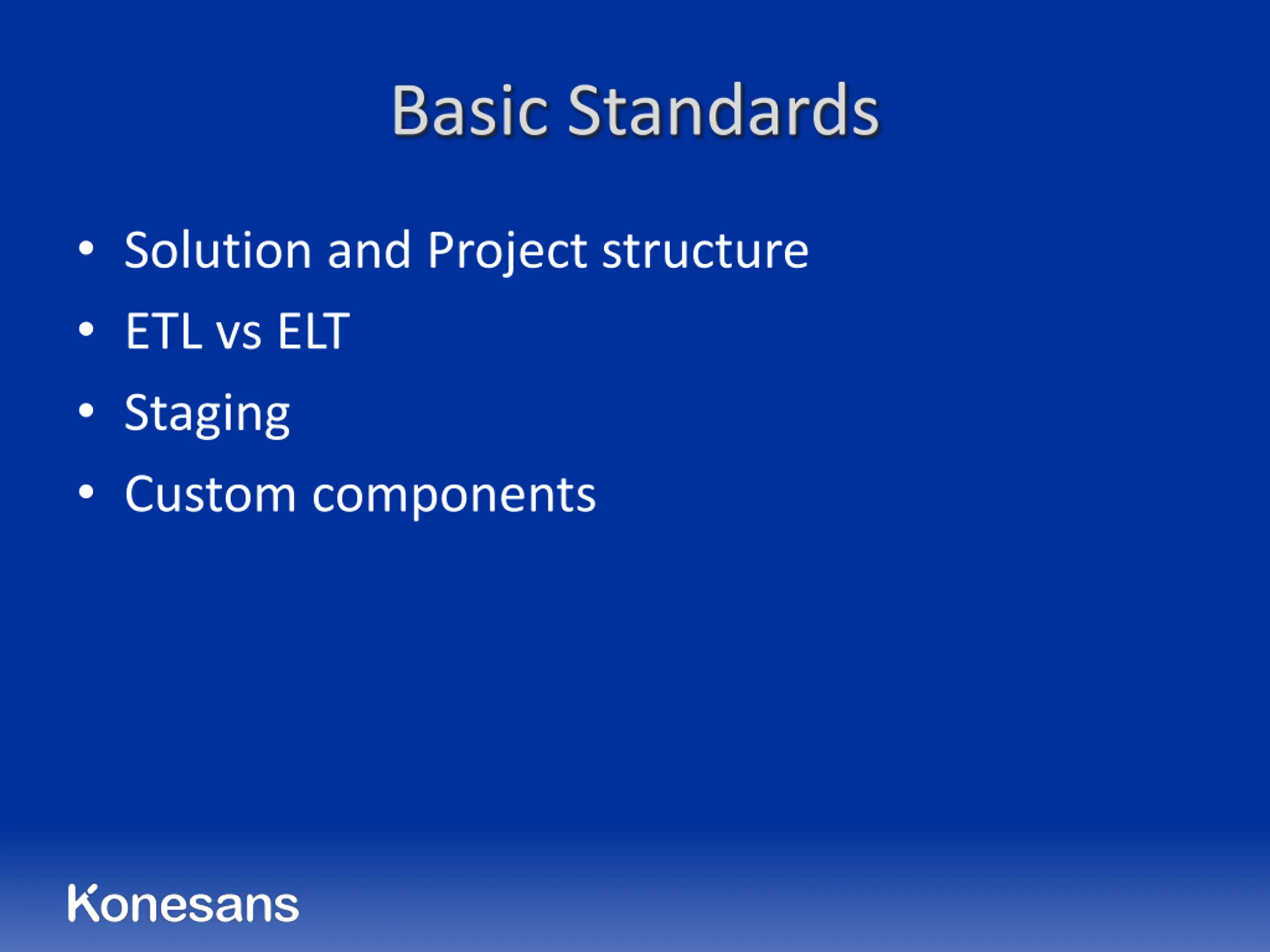

Basic Standards Solution and Project structure ETL vs ELT Staging Custom components

Source Control Products Team Foundation Server Subversion (Visual SVN) Others Issues Cannot merge or use standard conflict resolution BIDS Helper- Smart Diff TFS, SourceSafe,File BI Smart Diff Subversion

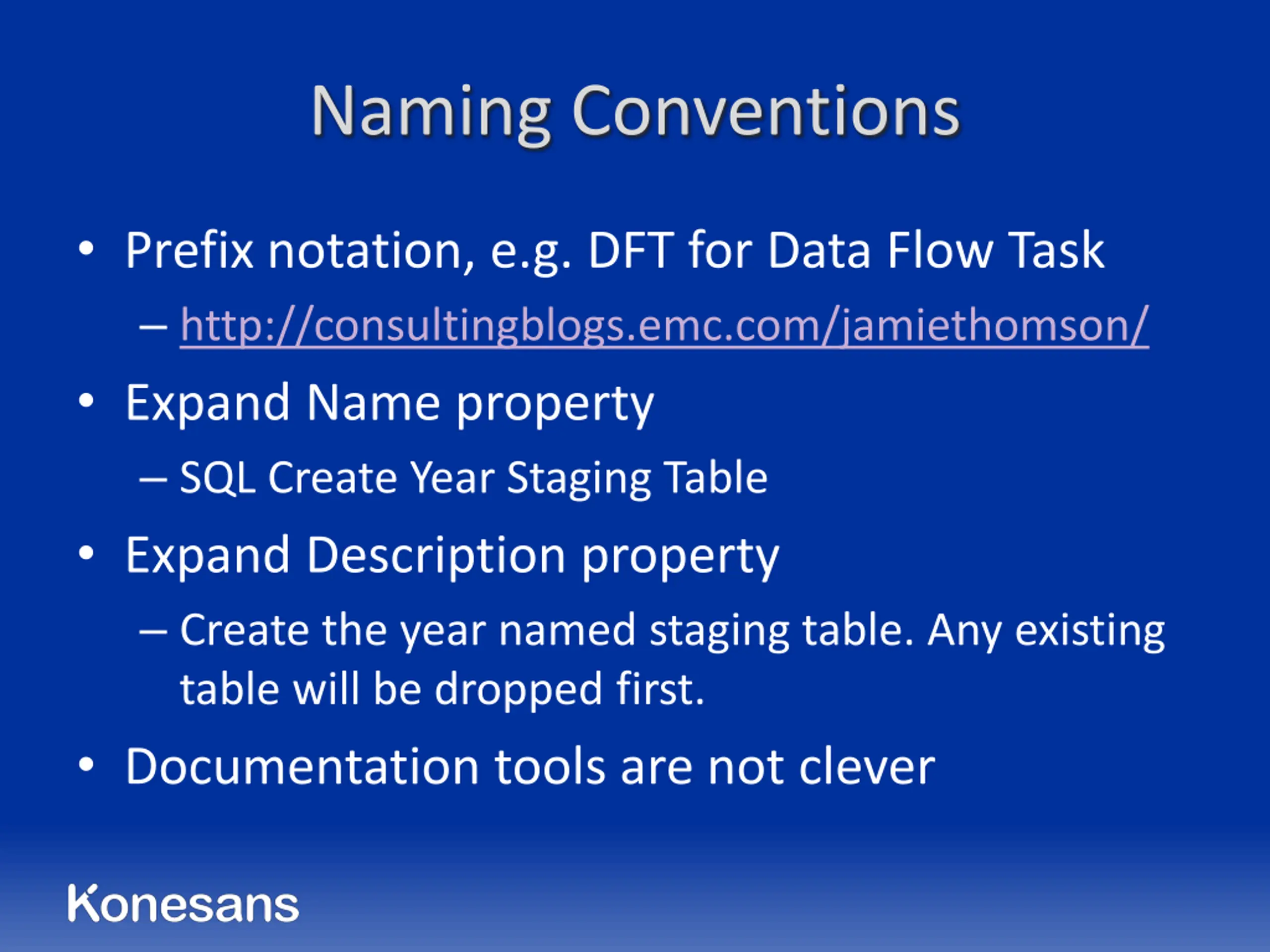

Naming Conventions Prefix notation, e.g. DFT for Data Flow Task http://consultingblogs.emc.com/jamiethomson/ Expand Name property SQL Create Year Staging Table Expand Description property Create the year named staging table. Any existing table will be dropped first. Documentation tools are not clever

Logging Performance monitoring Real-time monitoring Trending to justify upgrades Re-write problem packages Upgrade hardware / network / environment Problem solving Why did the job fail last night?

Logging Options Built in SSIS logging Good for standard stuff, including errors Maintenance routine to prune records Delete Info daily, Warnings weekly, Errors monthly Custom SSIS logging Log process specific metrics - row counts Event Handler or Control Flow Windows Logging Event Log Performance Monitor

Prune Delete in Chunks SET @Count = 1000 WHILE @Count IS NOT NULL AND @Count > 0 BEGIN DELETE TOP (@Count) FROM dbo.sysdtslog90 WHERE StartTime < @MinStartTime SET @Count = @@ROWCOUNT -- Pause for 0.2 seconds WAITFOR DELAY '000:00:00.200' END

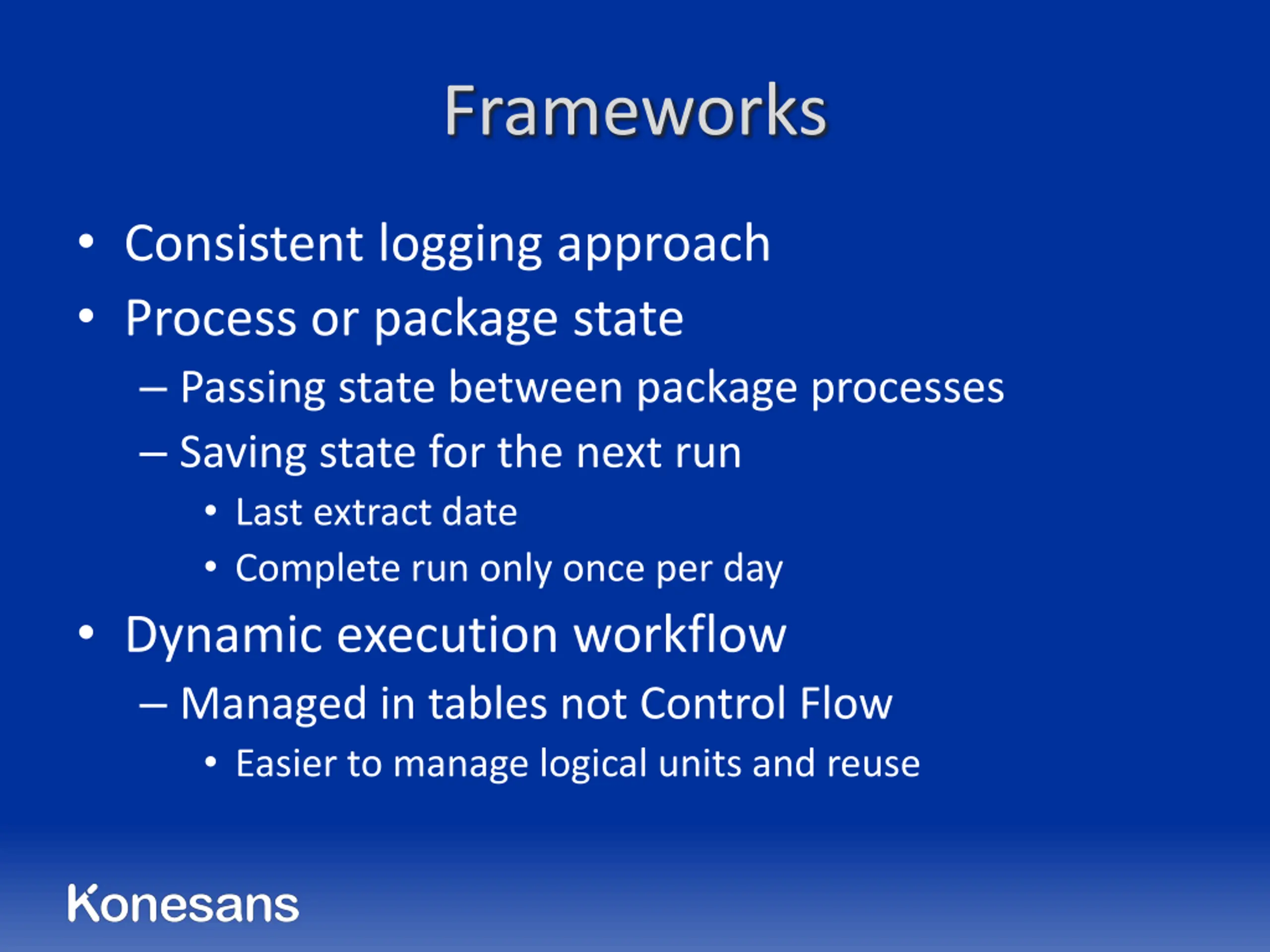

Frameworks Consistent logging approach Process or package state Passing state between package processes Saving state for the next run Last extract date Complete run only once per day Dynamic execution workflow Managed in tables not Control Flow Easier to manage logical units and reuse

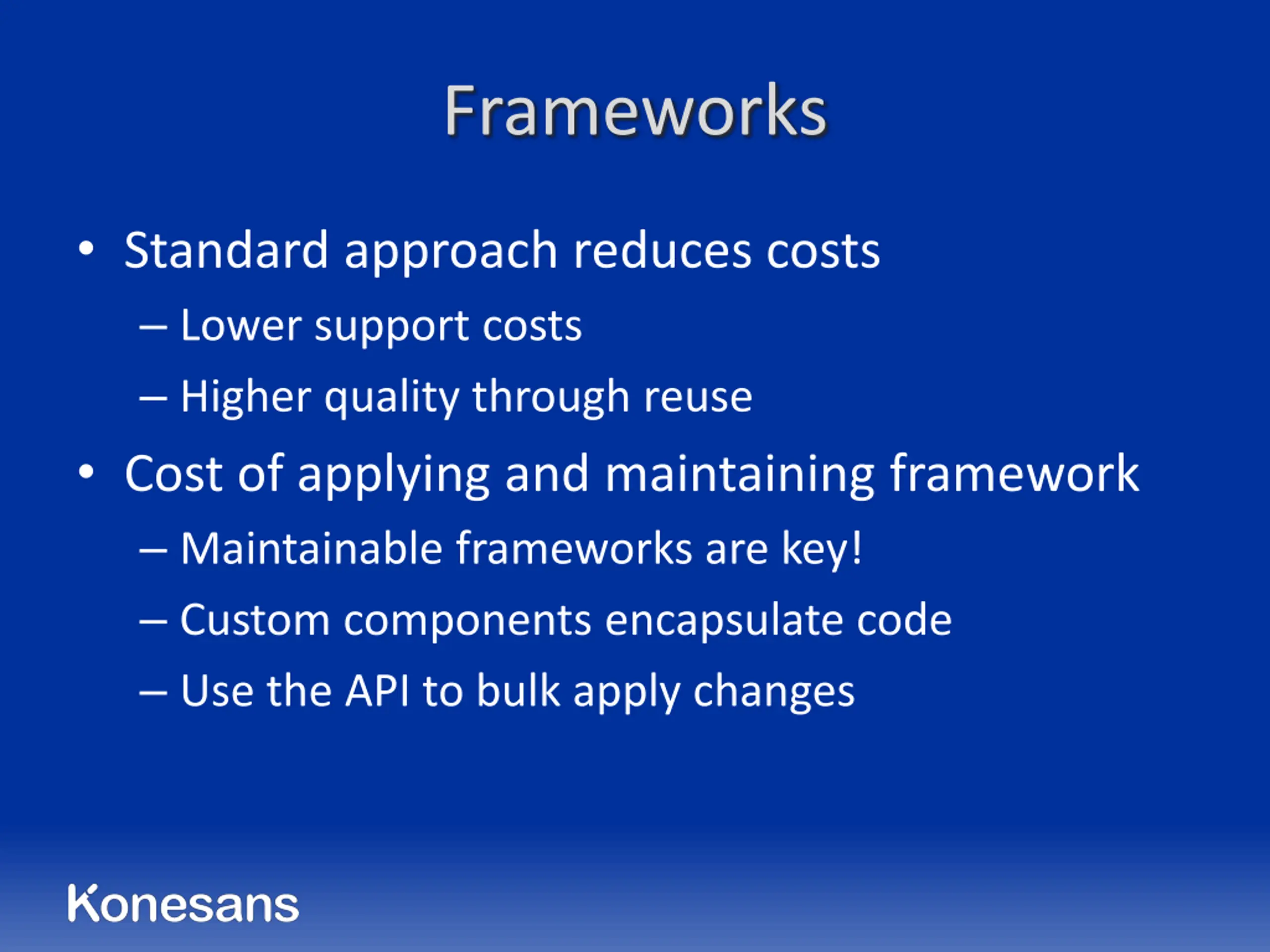

Frameworks Standard approach reduces costs Lower support costs Higher quality through reuse Cost of applying and maintaining framework Maintainable frameworks are key! Custom components encapsulate code Use the API to bulk apply changes

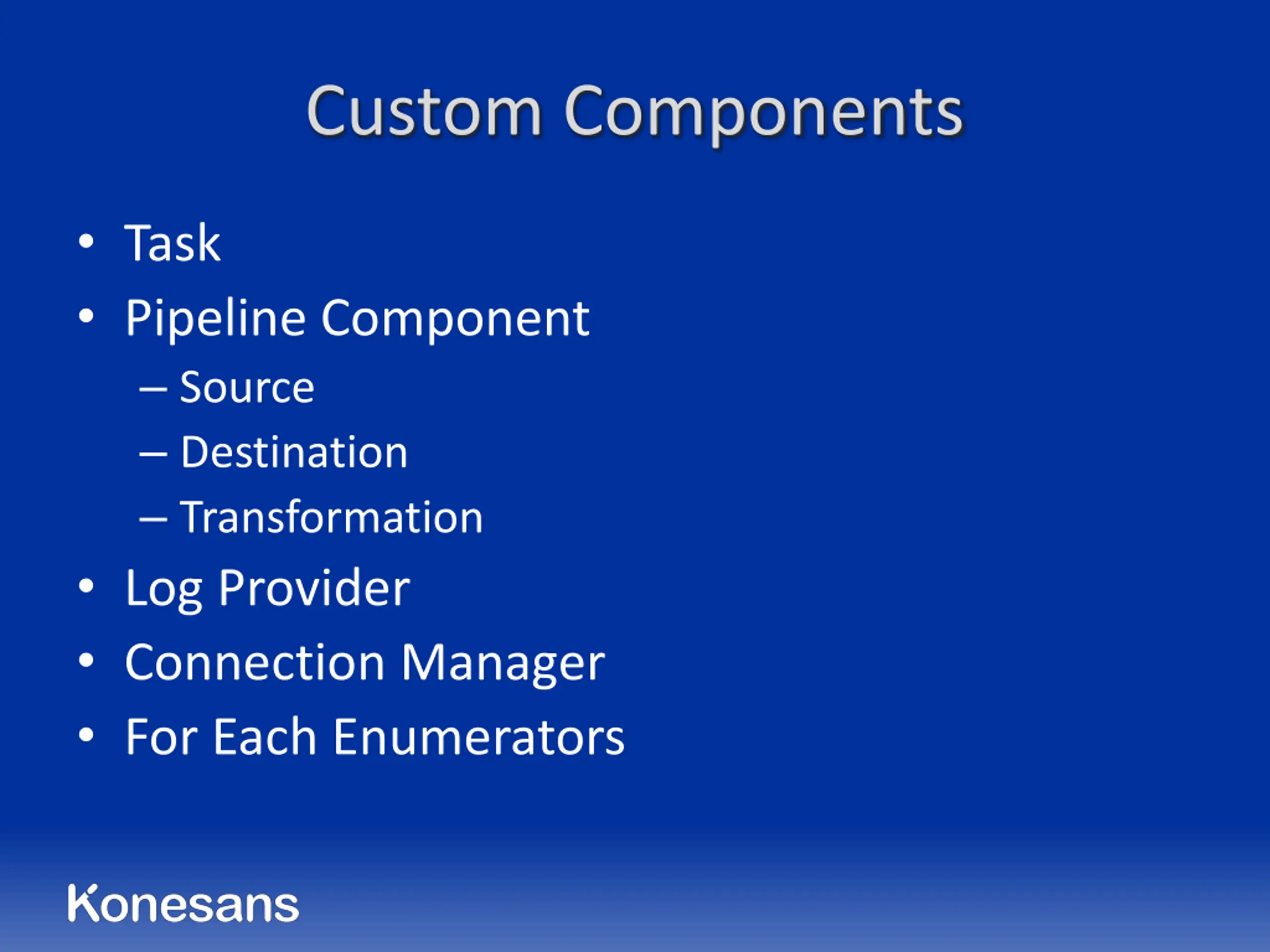

Custom Components Task Pipeline Component Source Destination Transformation Log Provider Connection Manager For Each Enumerators

Using Custom Components? Easy to manage and update Good for re-use Can add/edit functionality easily One file per machine for all packages Good for frameworks or complex operations Good debugging and testing support Require .NET development skills External dependency Additional step during the initial deployment, but also single update step thereafter

Stock Components & Scripting Faster to develop Familiar and easy to understand Don t write your own data flow engine in a script component! Acknowledge the need for reuse when it exists and create a shared external assembly Self contained - No external dependency Copy and paste package maintenance Not good for frameworks or common patterns

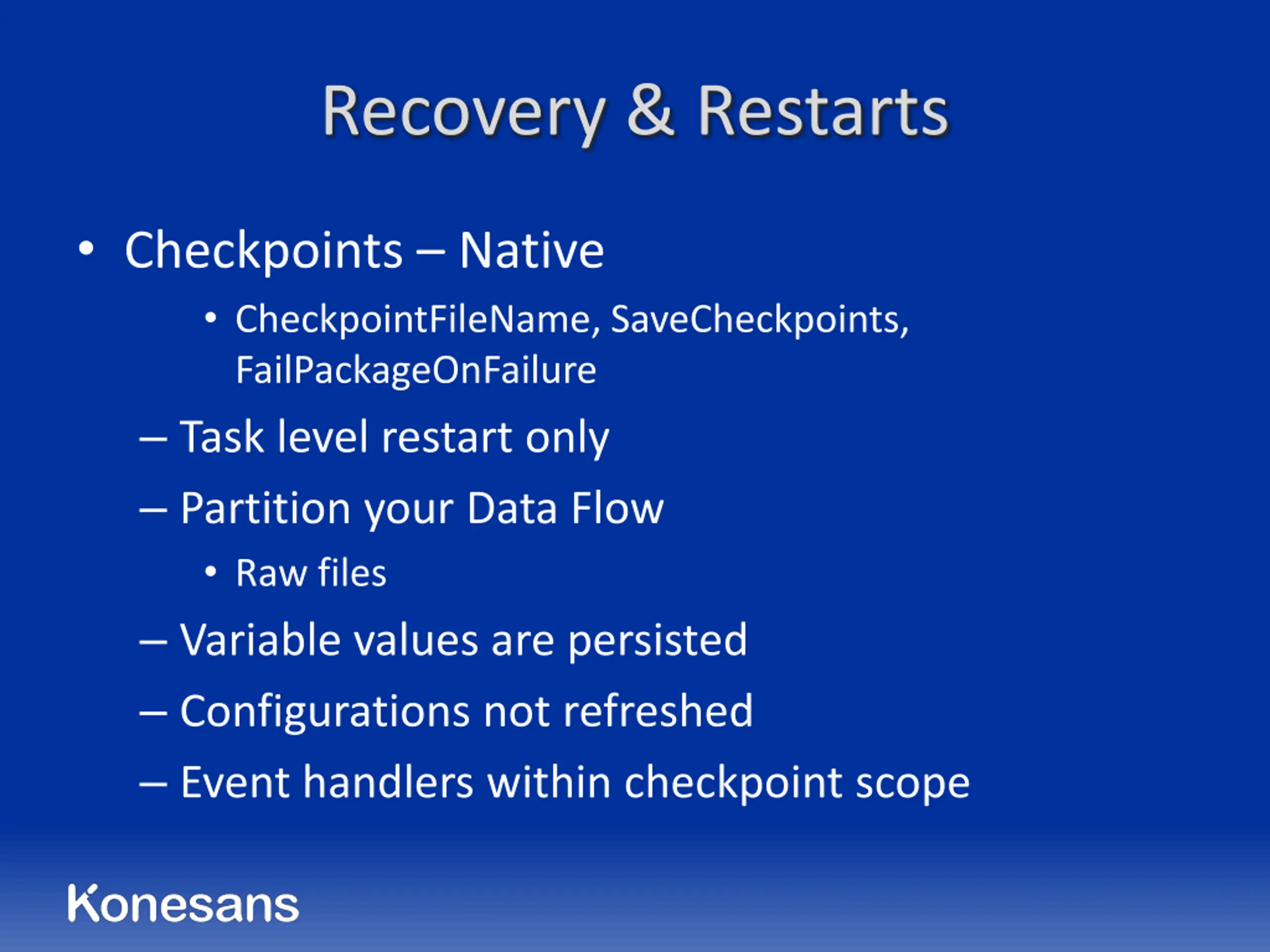

Recovery & Restarts Checkpoints Native CheckpointFileName, SaveCheckpoints, FailPackageOnFailure Task level restart only Partition your Data Flow Raw files Variable values are persisted Configurations not refreshed Event handlers within checkpoint scope

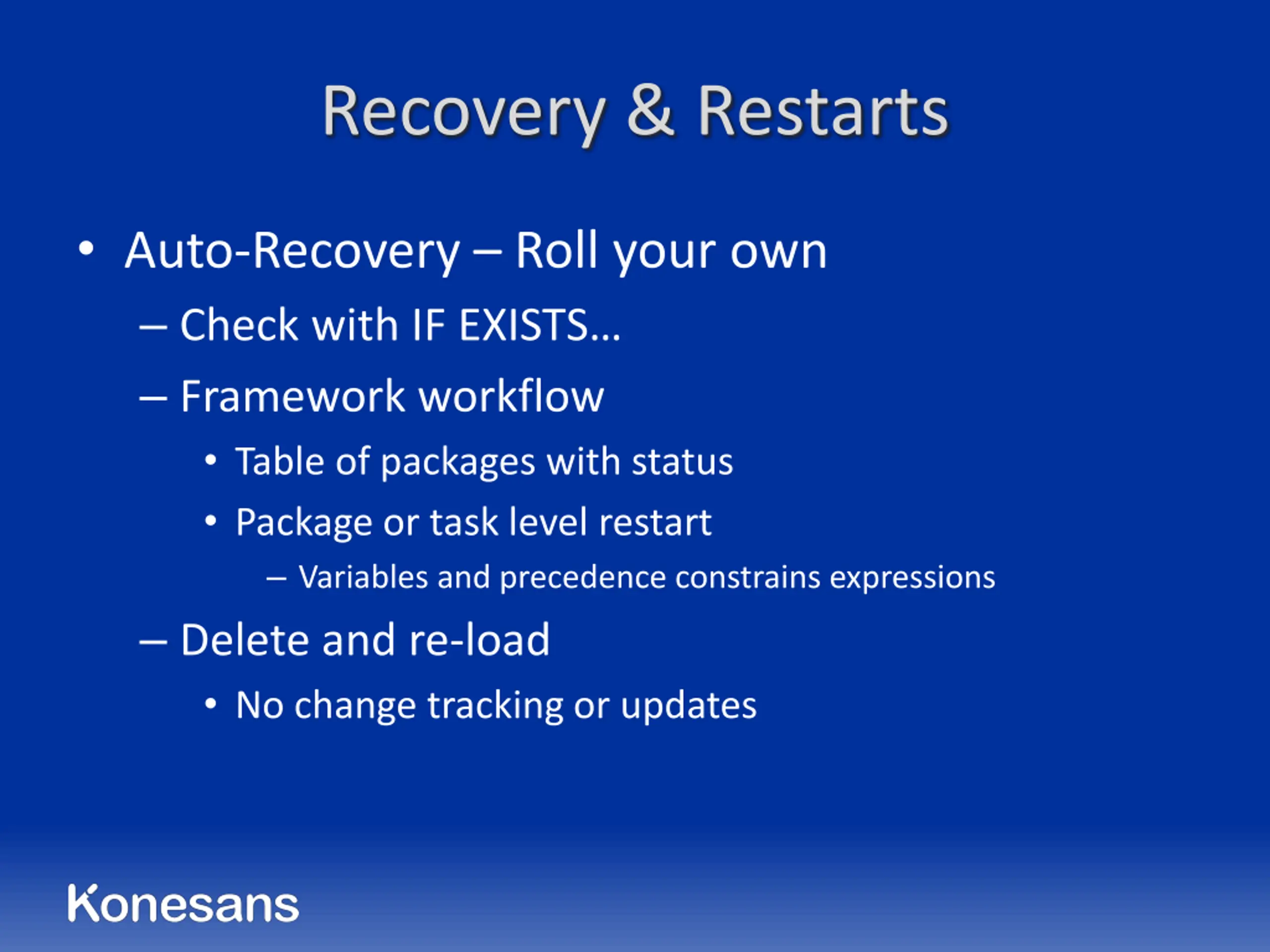

Recovery & Restarts Auto-Recovery Roll your own Check with IF EXISTS Framework workflow Table of packages with status Package or task level restart Variables and precedence constrains expressions Delete and re-load No change tracking or updates

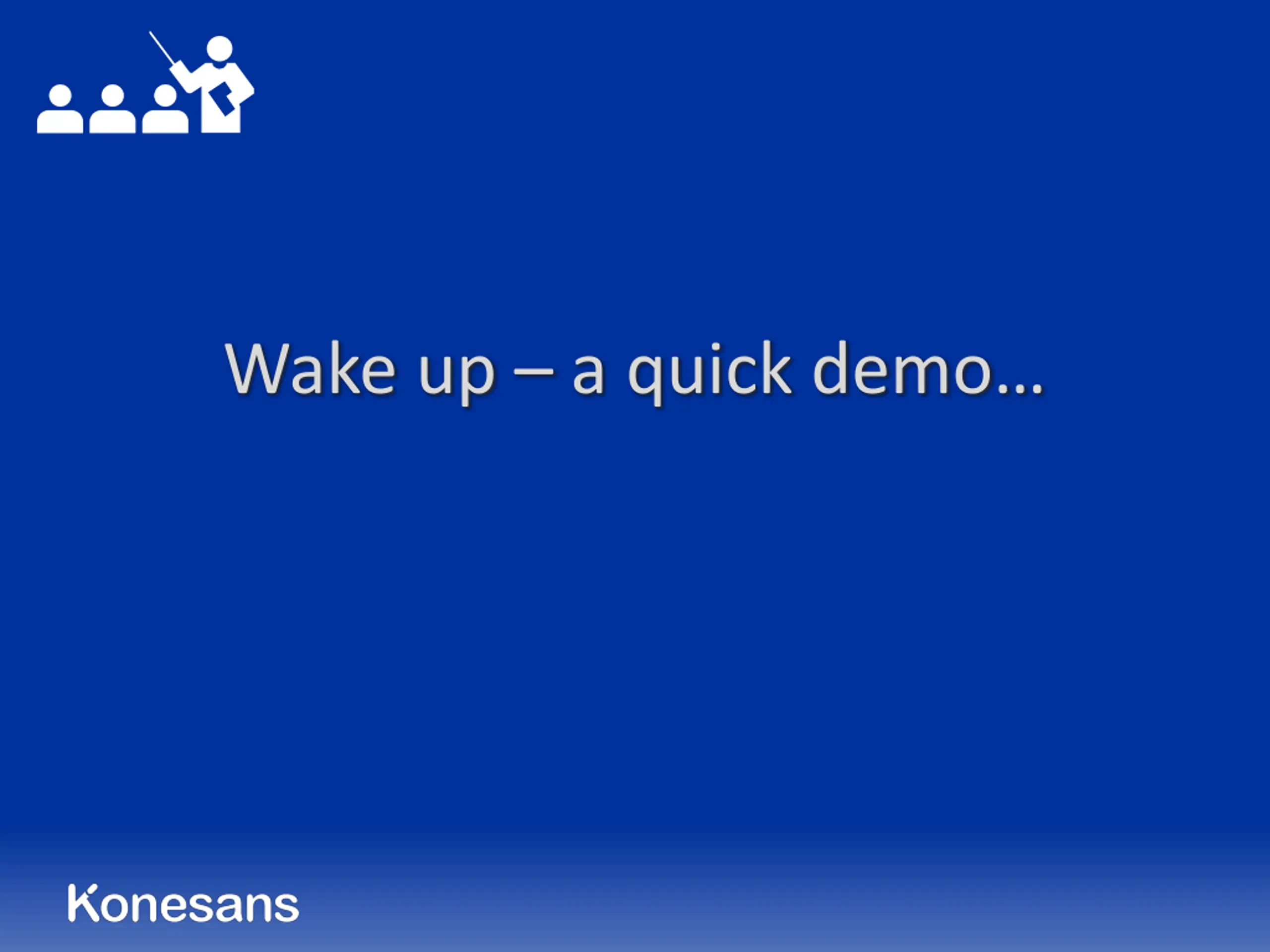

Wake up a quick demo

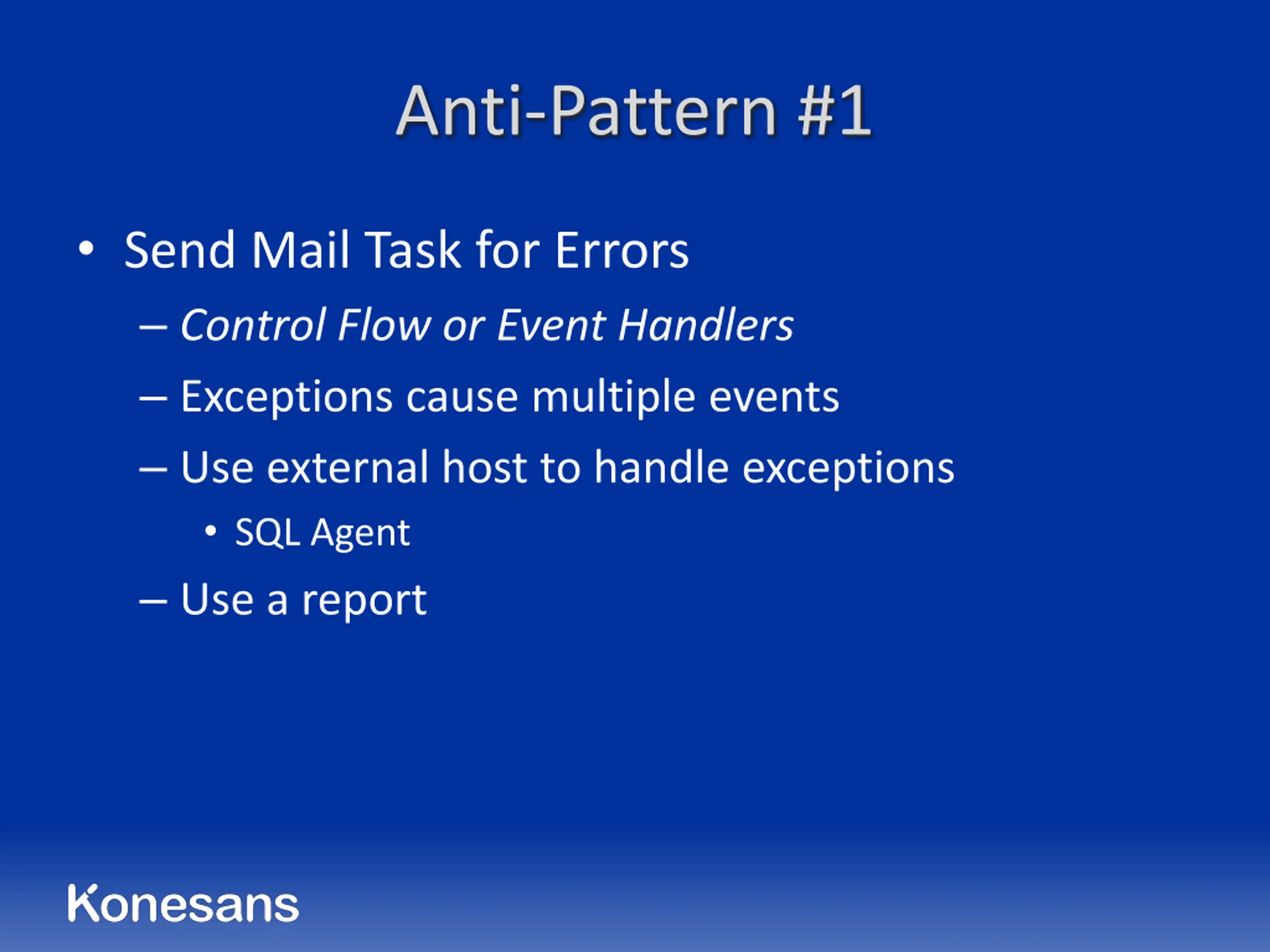

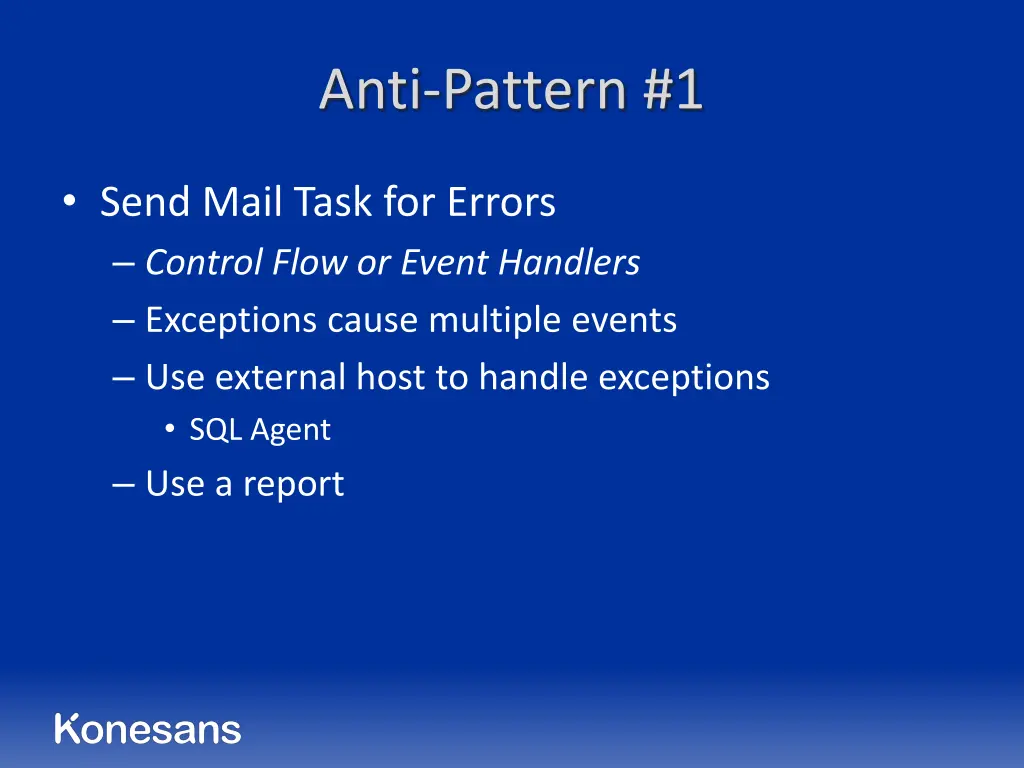

Anti-Pattern #1 Send Mail Task for Errors Control Flow or Event Handlers Exceptions cause multiple events Use external host to handle exceptions SQL Agent Use a report

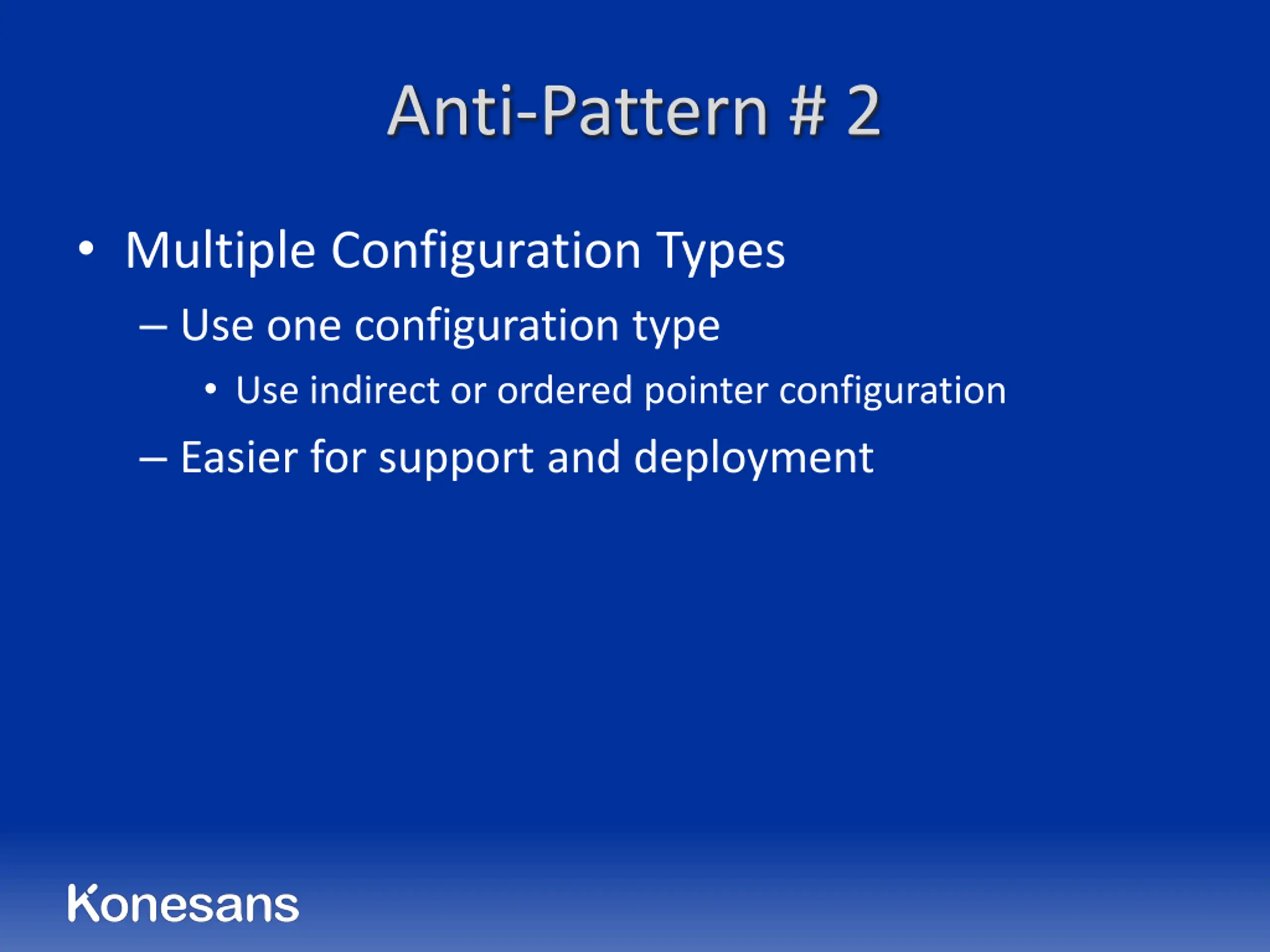

Anti-Pattern # 2 Multiple Configuration Types Use one configuration type Use indirect or ordered pointer configuration Easier for support and deployment

Sorting Why sort? Merge Join Ordered Analysis Running totals Ranking Script Component Custom Component Rank Transform

Sorting How to sort? Sort Transformation Ordinal Nsort Ivolva ExtraSort (2005) Sort in Source ORDER BY

Sorting

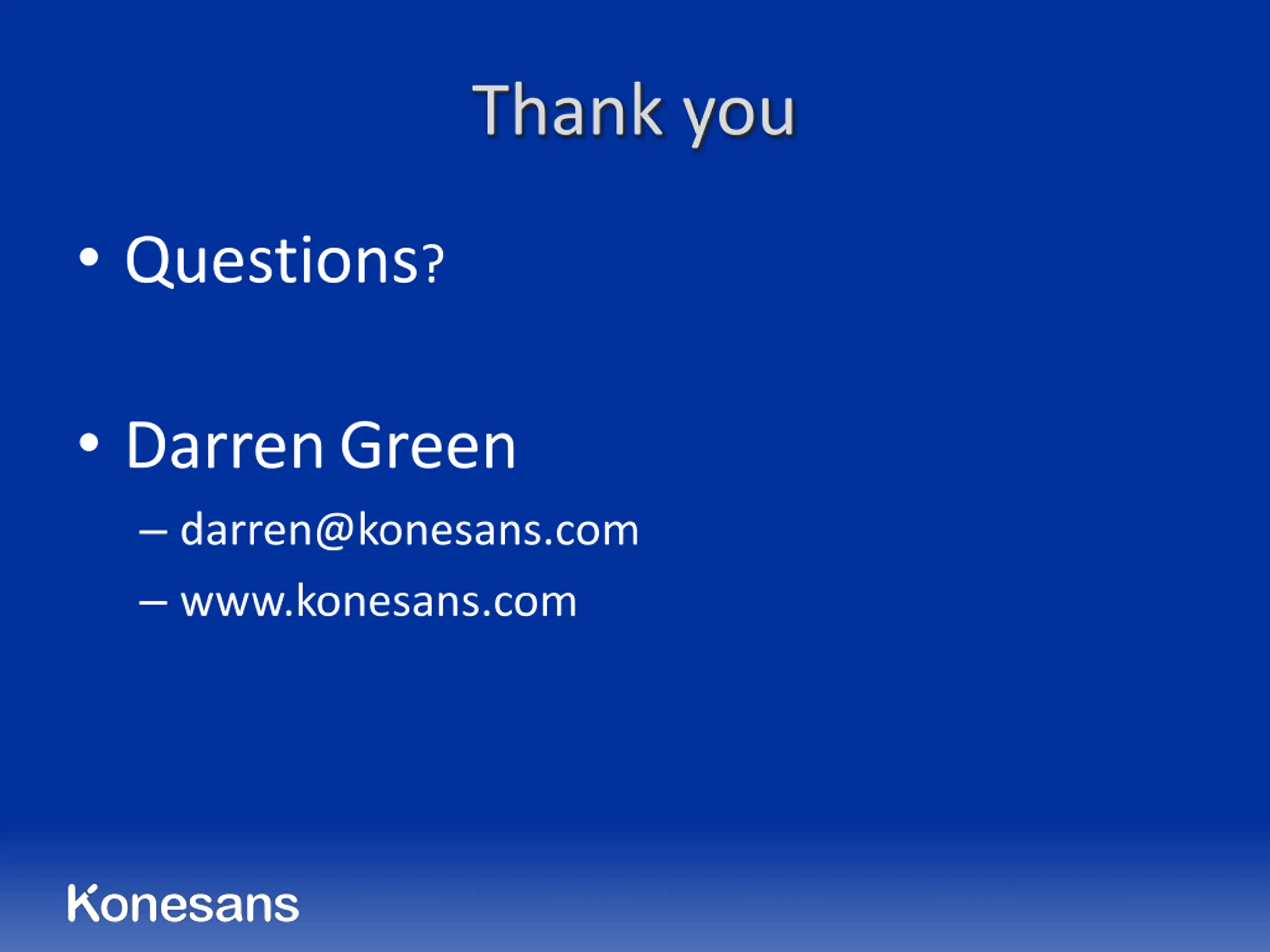

Thank you Questions? DarrenGreen darren@konesans.com www.konesans.com
