Subject Name: STRUCTURES I Unit 7 Subject Code: 10AE56 Prepared By: DWEBENDU KUMAR SAHU Department: AERONAUTICAL Date

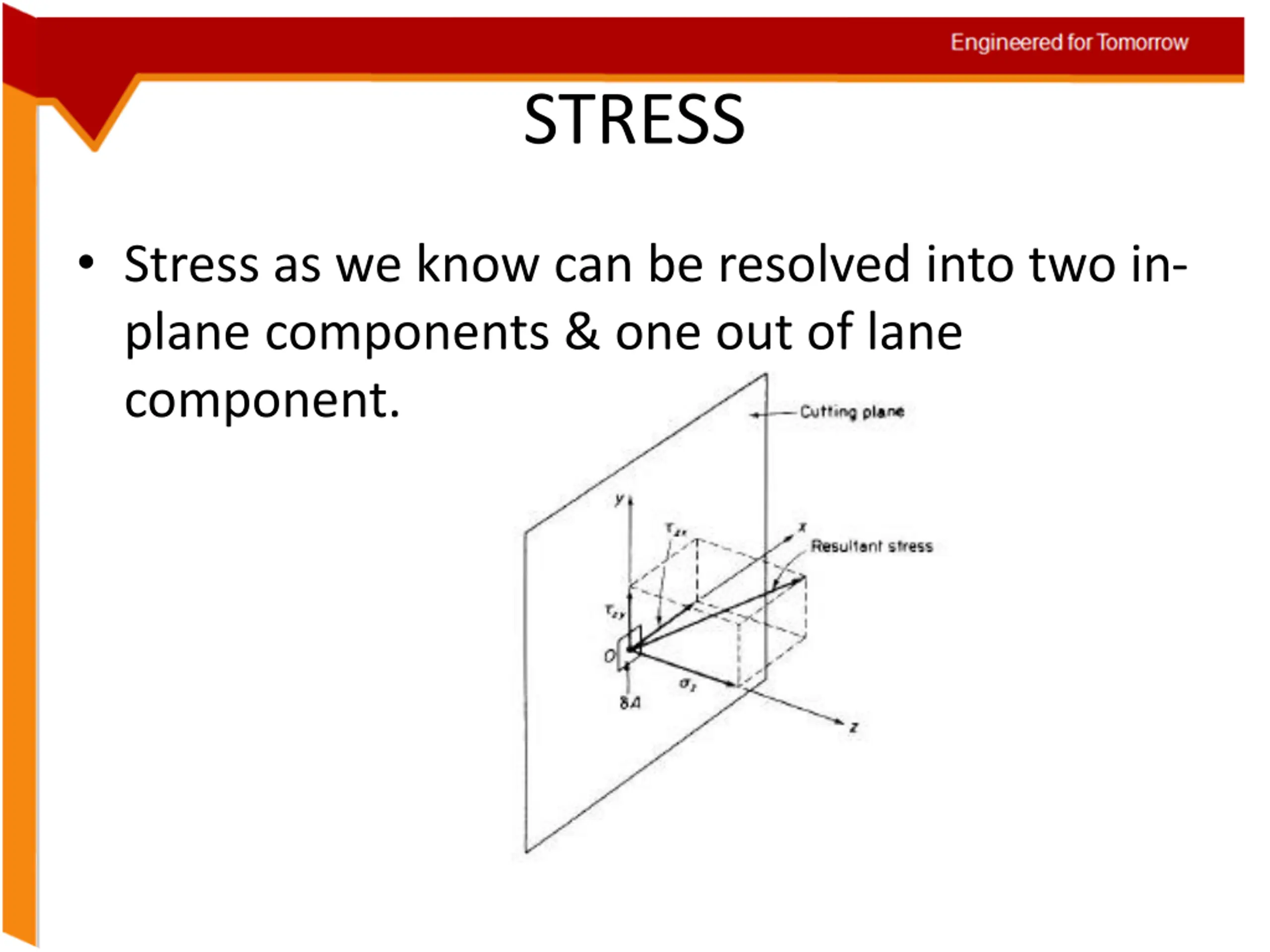

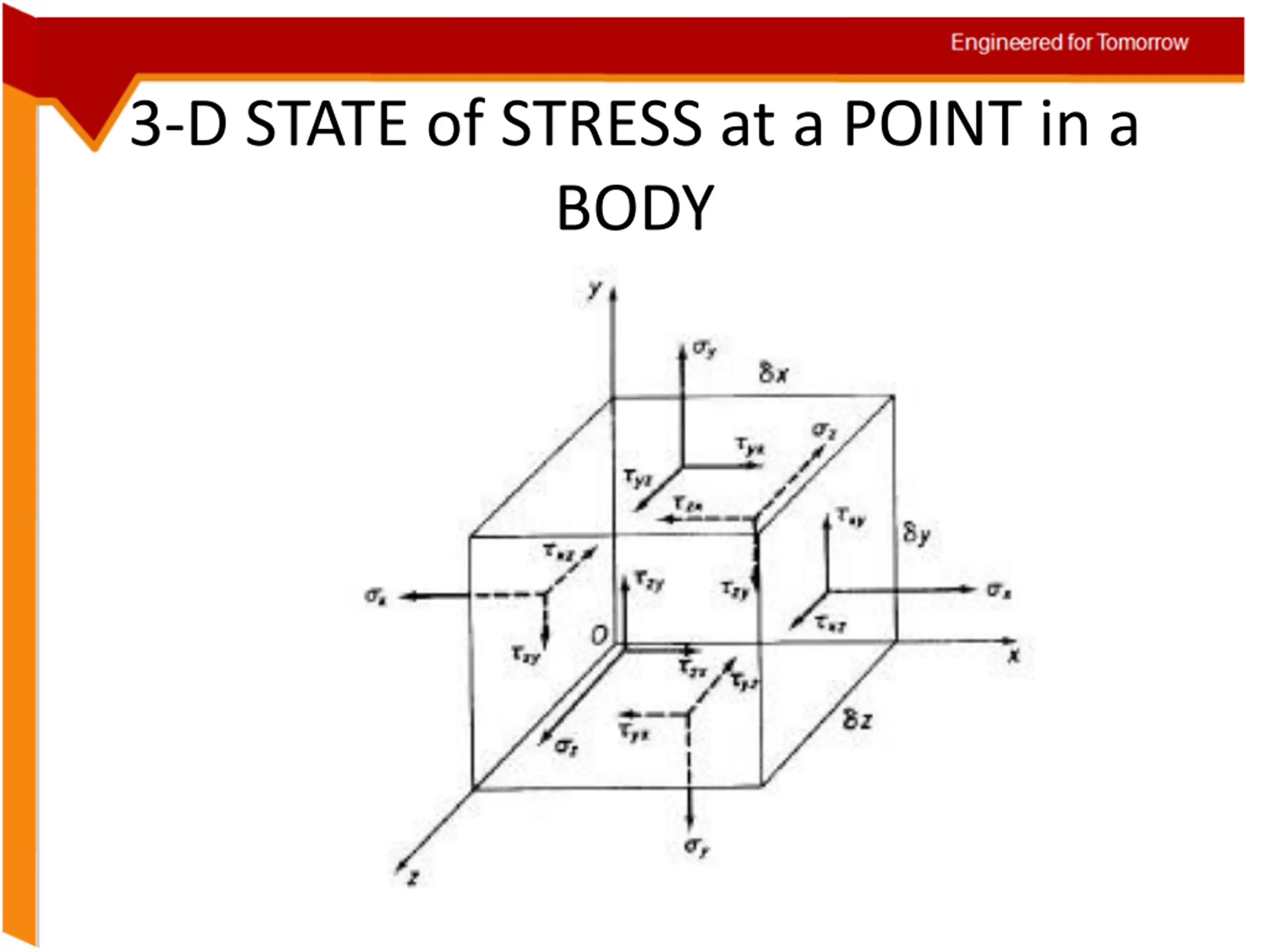

STRESS Stress as we know can be resolved into two in- plane components & one out of lane component.

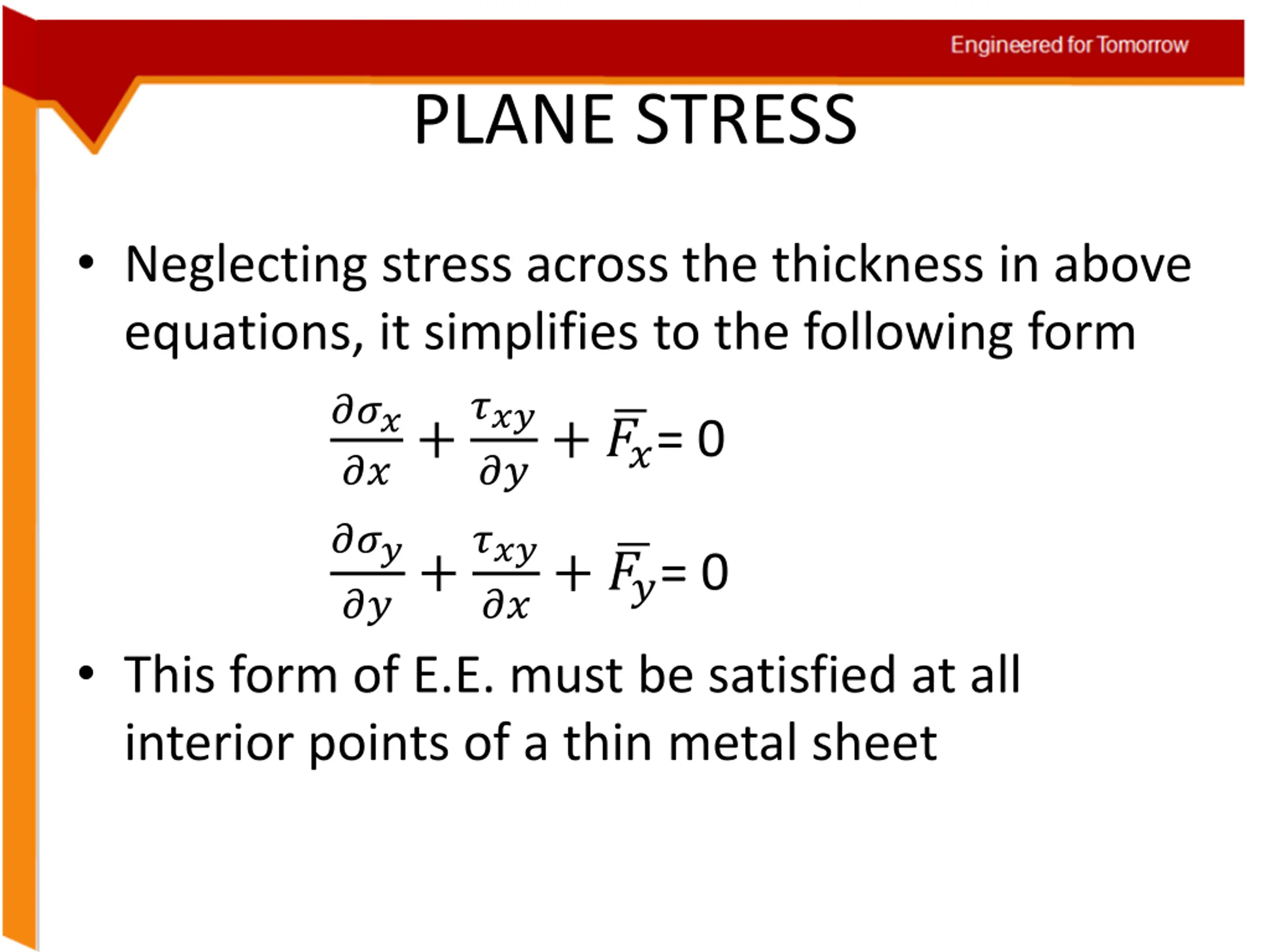

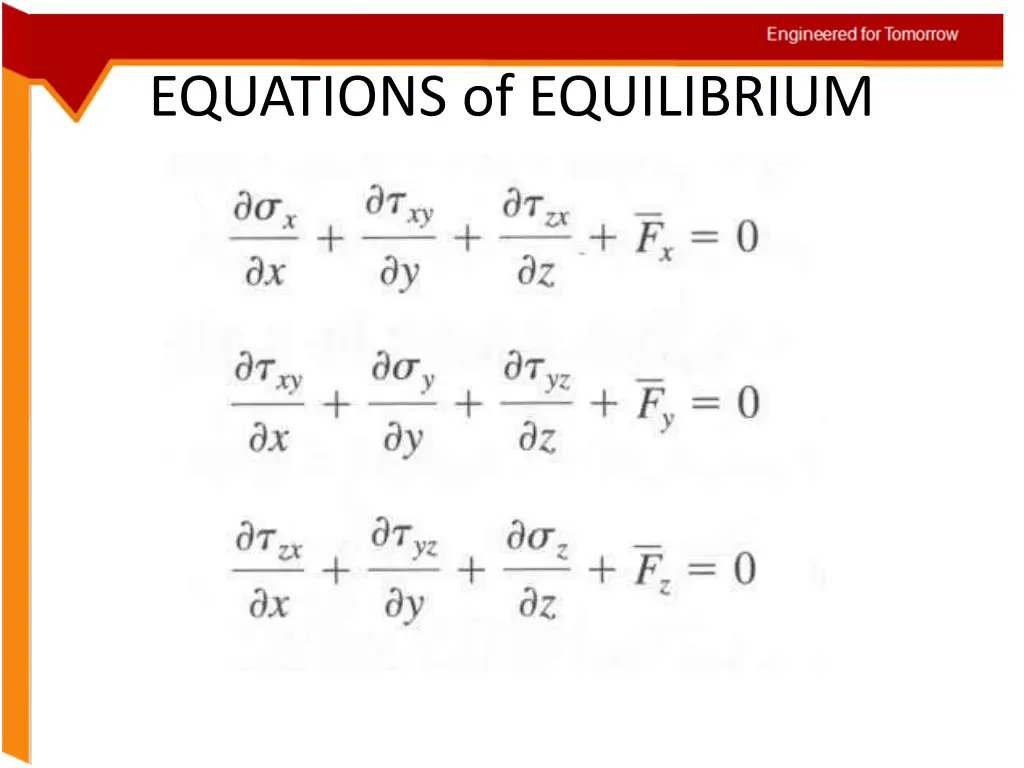

PLANE STRESS Neglecting stress across the thickness in above equations, it simplifies to the following form ??? ??+ ??= 0 ??? ??+ ??? ??+ ??? ??+ ??= 0 This form of E.E. must be satisfied at all interior points of a thin metal sheet

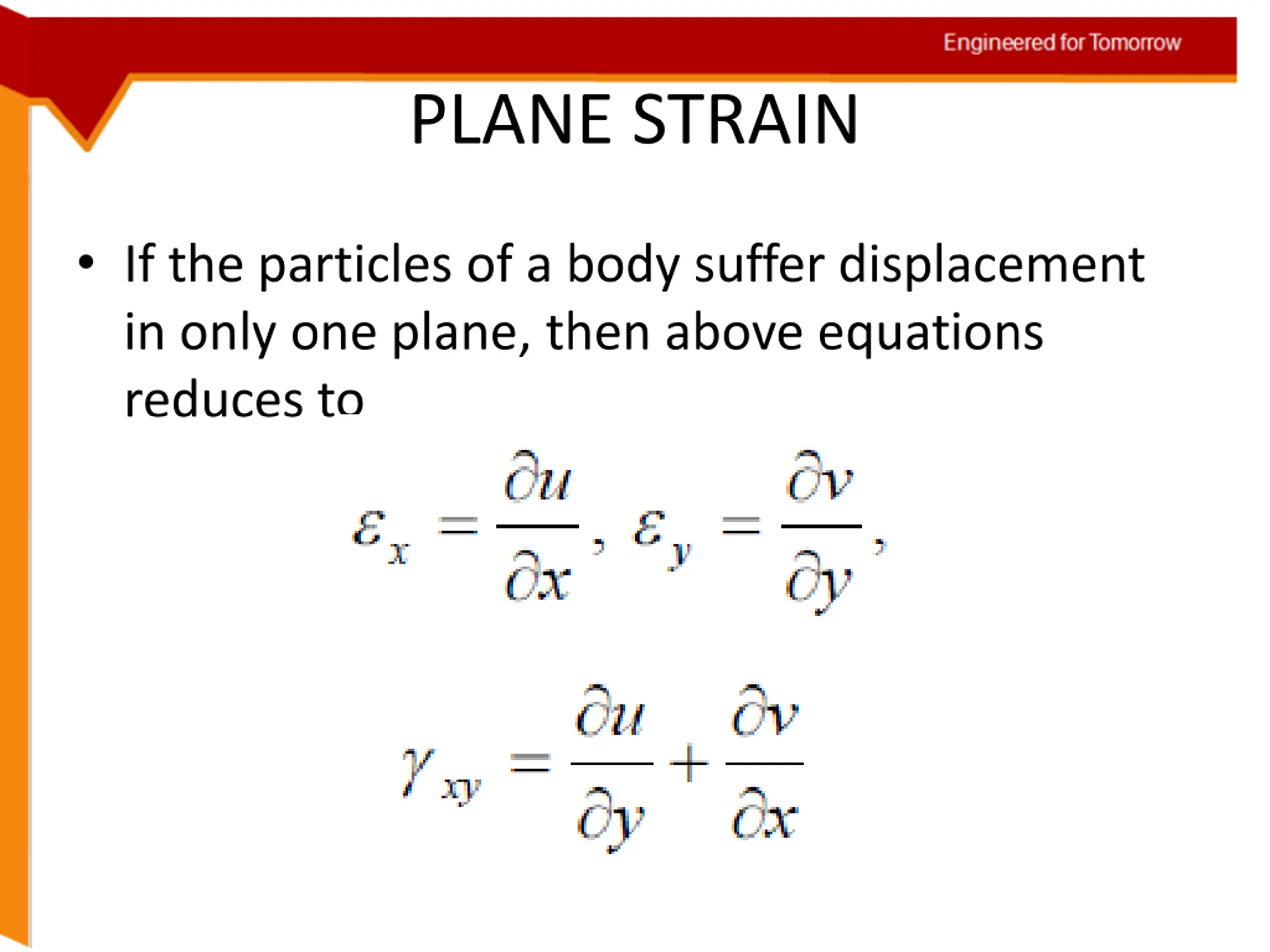

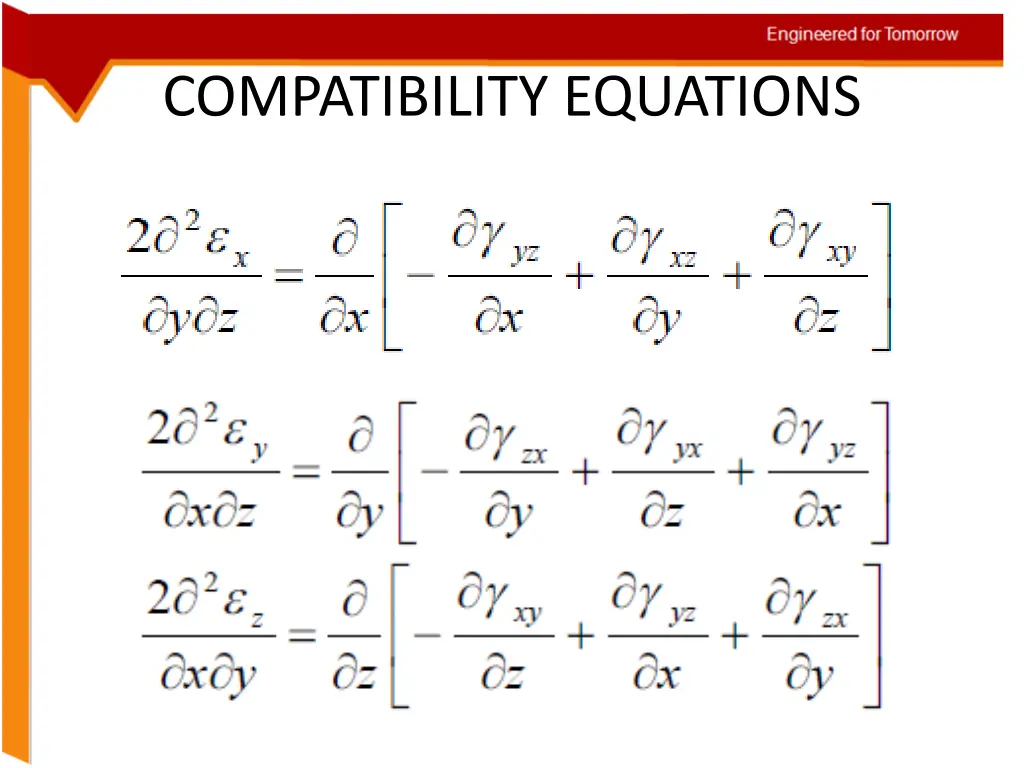

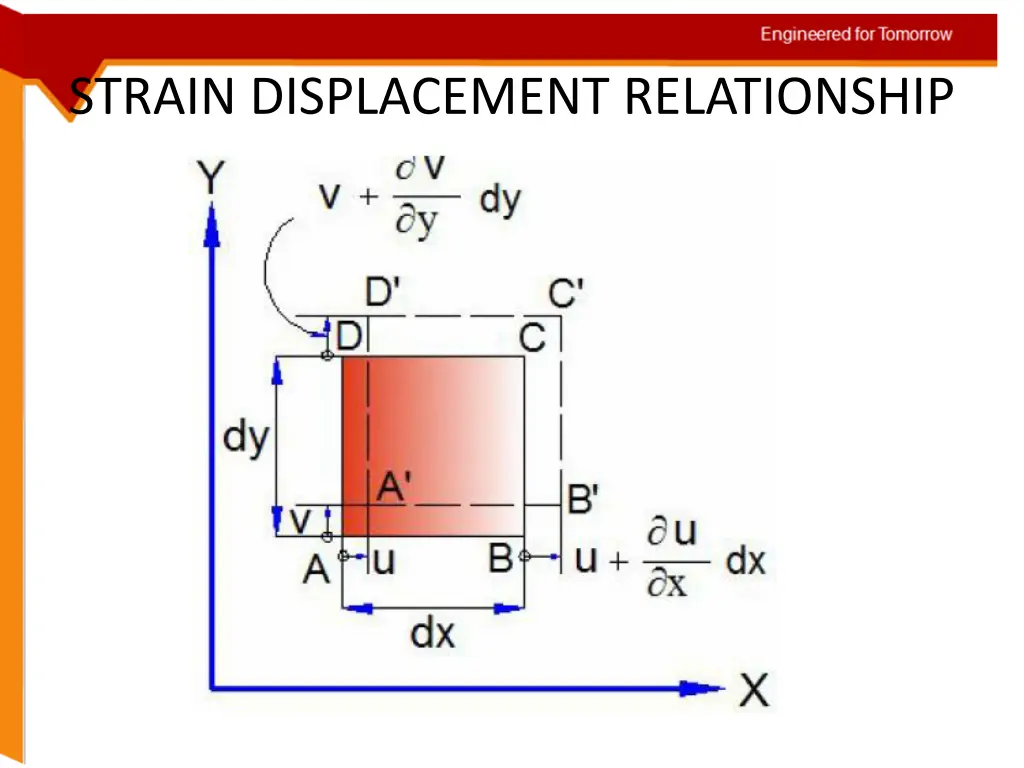

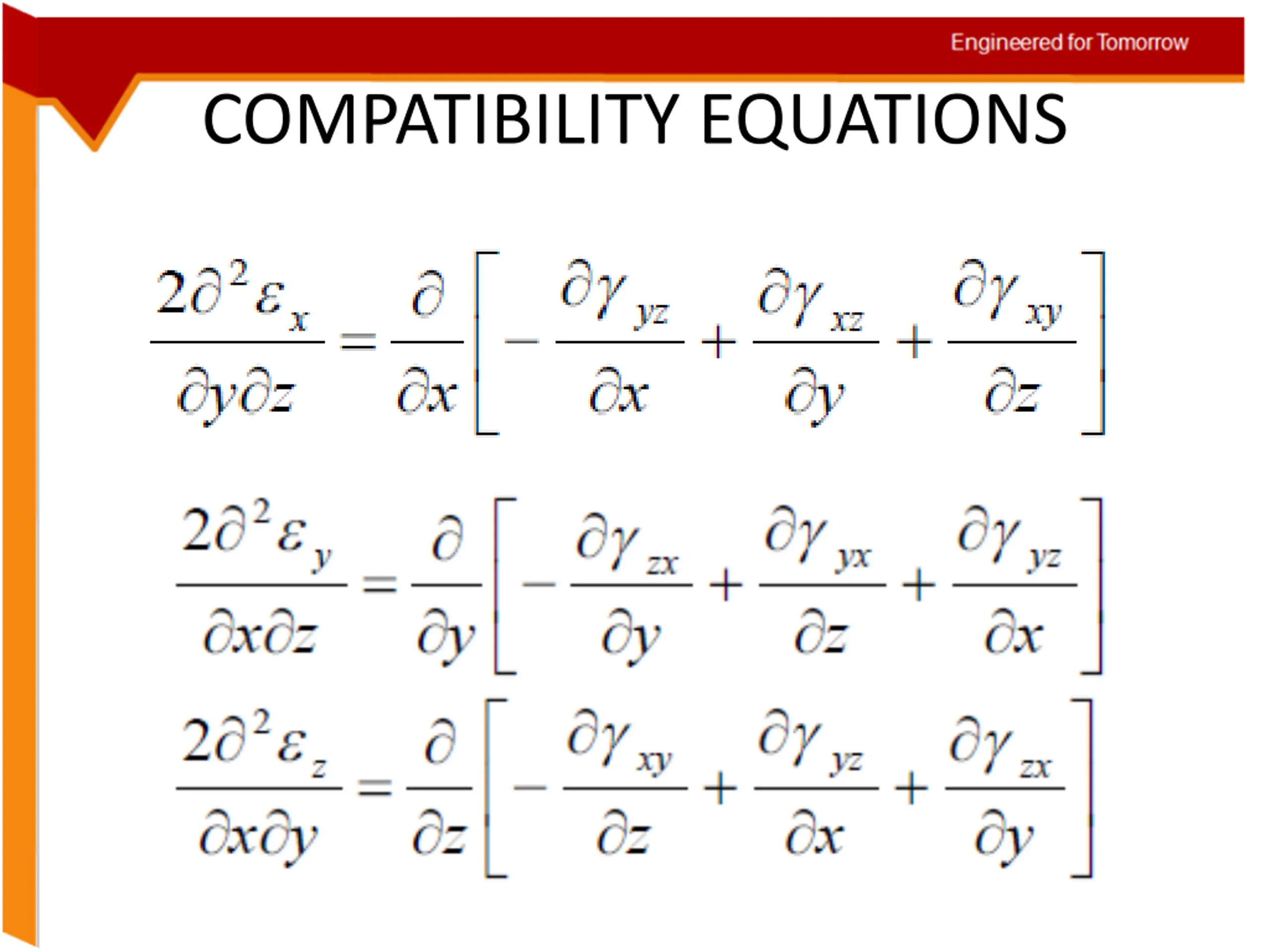

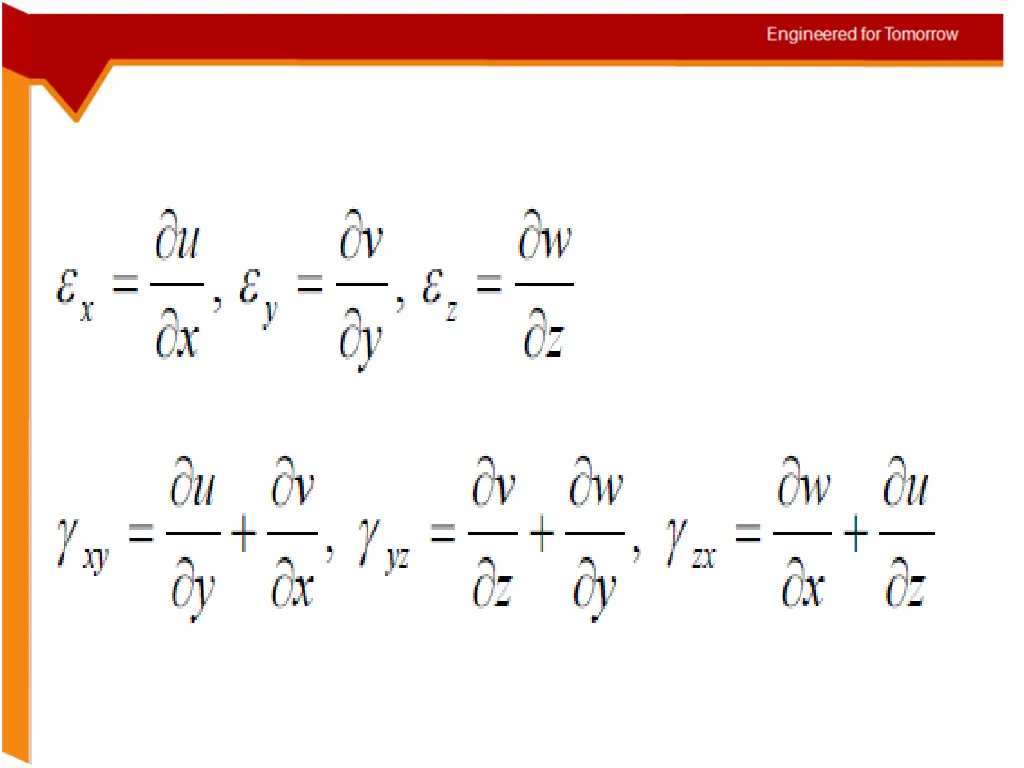

PLANE STRAIN If the particles of a body suffer displacement in only one plane, then above equations reduces to

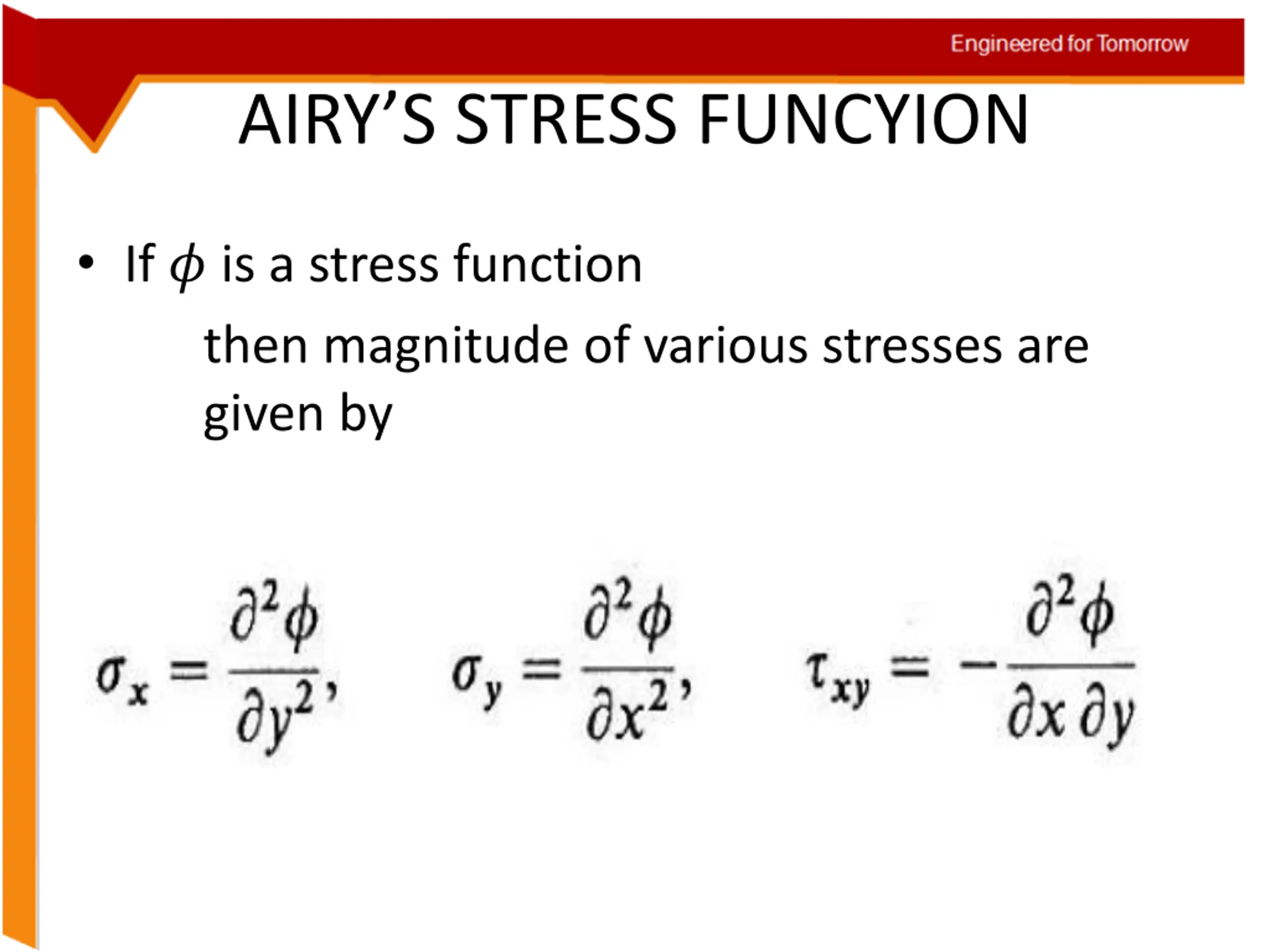

AIRYS STRESS FUNCYION If ? is a stress function then magnitude of various stresses are given by
