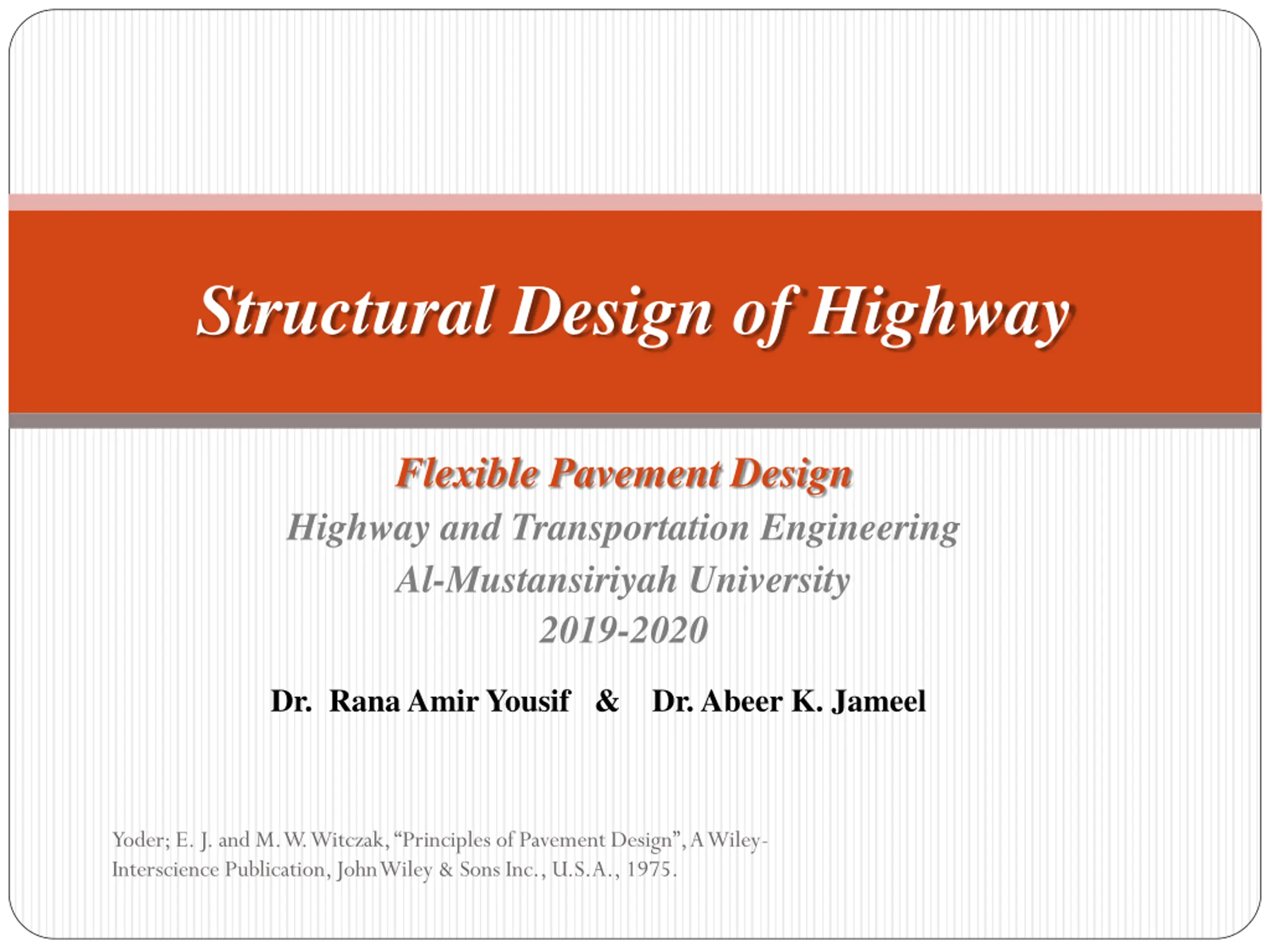

Structural Design of Highway Flexible Pavement Design Highway and Transportation Engineering Al-Mustansiriyah University 2019-2020 Dr. Rana Amir Yousif & Dr. Abeer K. Jameel Yoder; E. J. and M. W. Witczak, Principles of Pavement Design , A Wiley- Interscience Publication, John Wiley & Sons Inc., U.S.A., 1975.

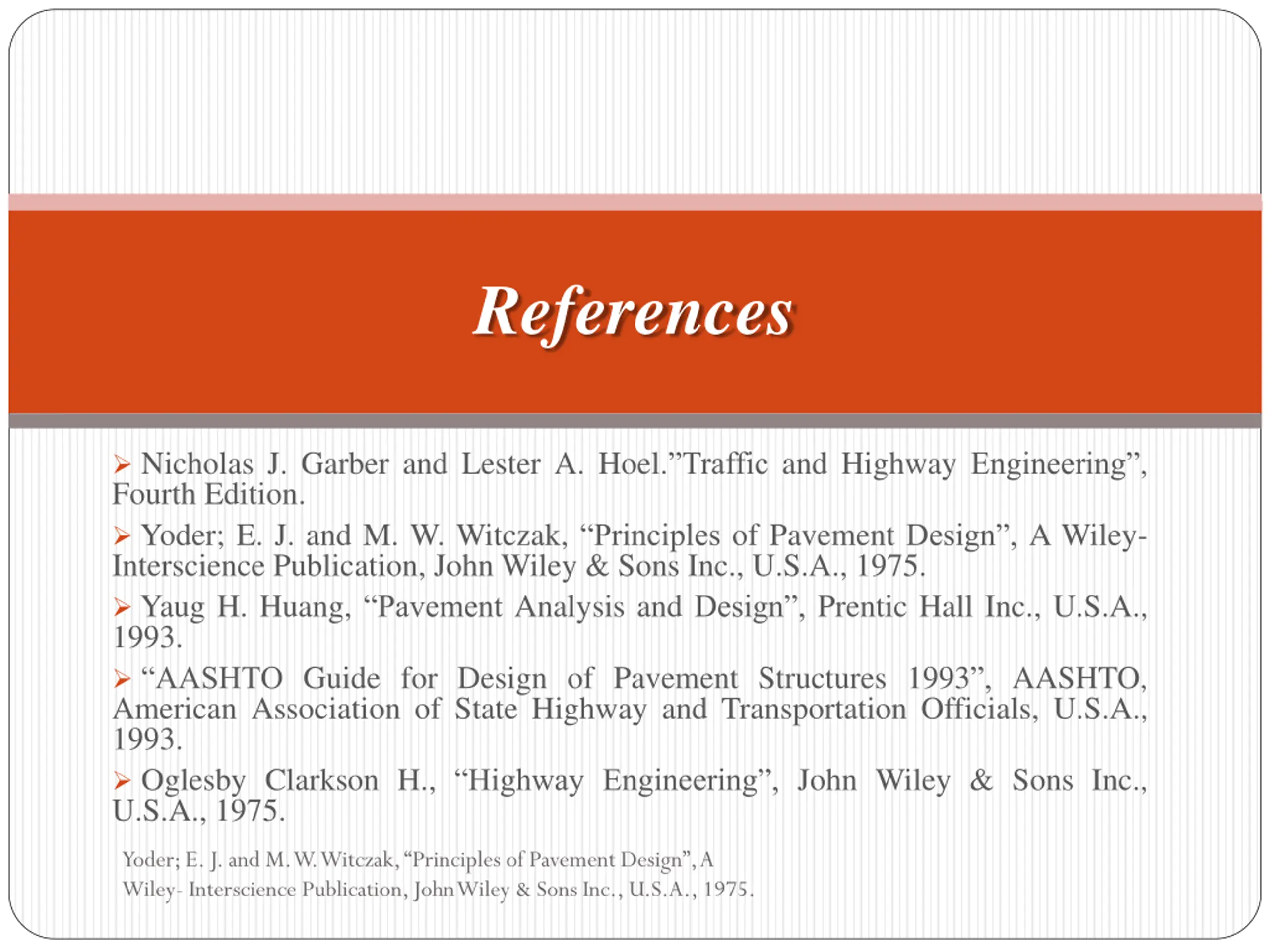

References Nicholas J. Garber and Lester A. Hoel. Traffic and Highway Engineering , Fourth Edition. Yoder; E. J. and M. W. Witczak, Principles of Pavement Design , A Wiley- Interscience Publication, John Wiley & Sons Inc., U.S.A., 1975. Yaug H. Huang, Pavement Analysis and Design , Prentic Hall Inc., U.S.A., 1993. AASHTO Guide for Design of Pavement Structures 1993 , AASHTO, American Association of State Highway and Transportation Officials, U.S.A., 1993. Oglesby Clarkson H., HighwayEngineering , John Wiley & Sons Inc., U.S.A., 1975. Yoder; E. J. and M. W. Witczak, Principles of Pavement Design , A Wiley- Interscience Publication, John Wiley & Sons Inc., U.S.A., 1975.

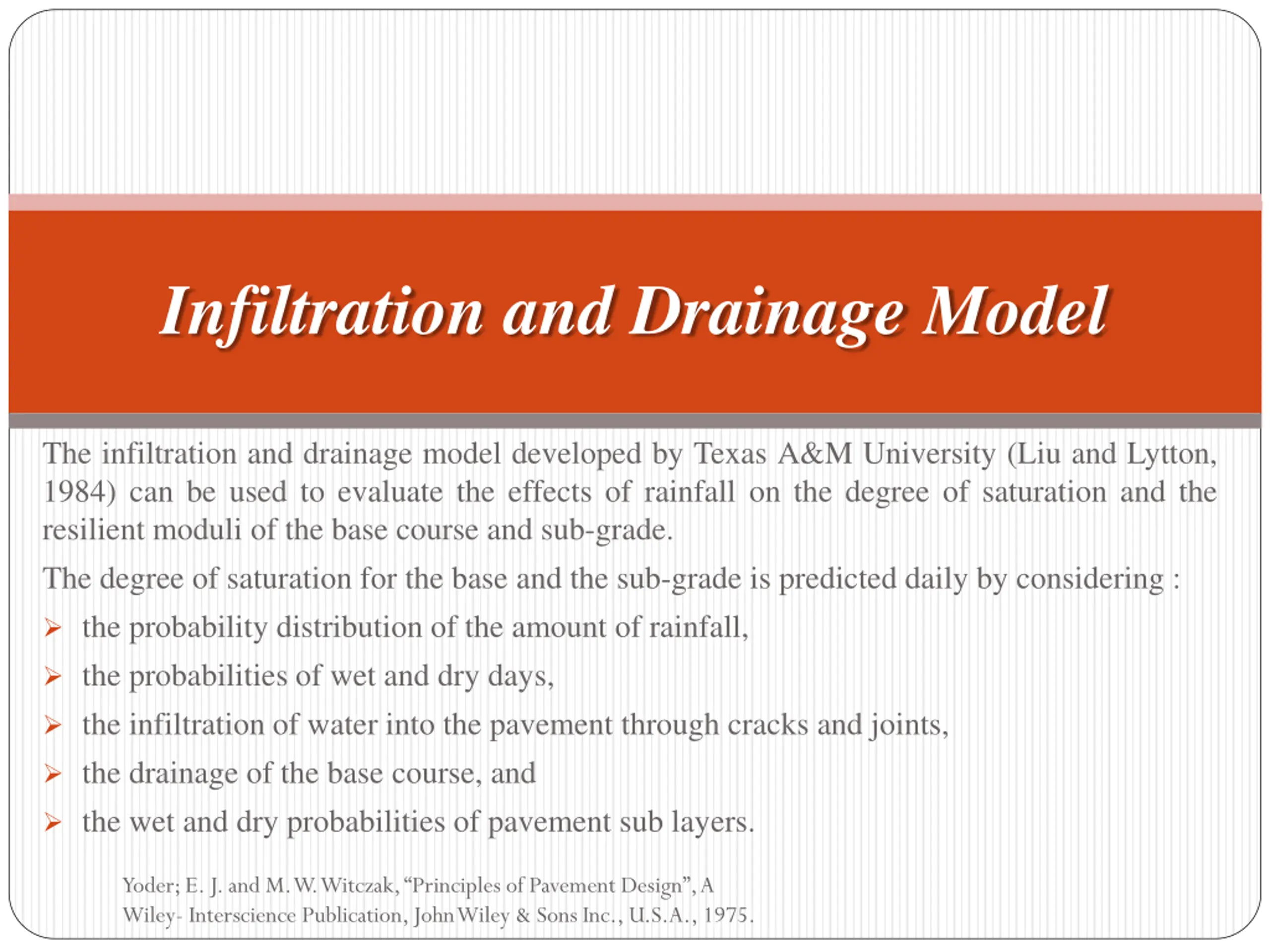

Infiltration and Drainage Model The infiltration and drainage model developed by Texas A&M University (Liu and Lytton, 1984) can be used to evaluate the effects of rainfall on the degree of saturation and the resilient moduli of the base course and sub-grade. The degree of saturation for the base and the sub-grade is predicted daily by considering : the probability distribution of the amount of rainfall, the probabilities of wet and dry days, the infiltration of water into the pavement through cracks and joints, the drainage of the base course, and the wet and dry probabilities of pavement sub layers. Yoder; E. J. and M. W. Witczak, Principles of Pavement Design , A Wiley- Interscience Publication, John Wiley & Sons Inc., U.S.A., 1975.

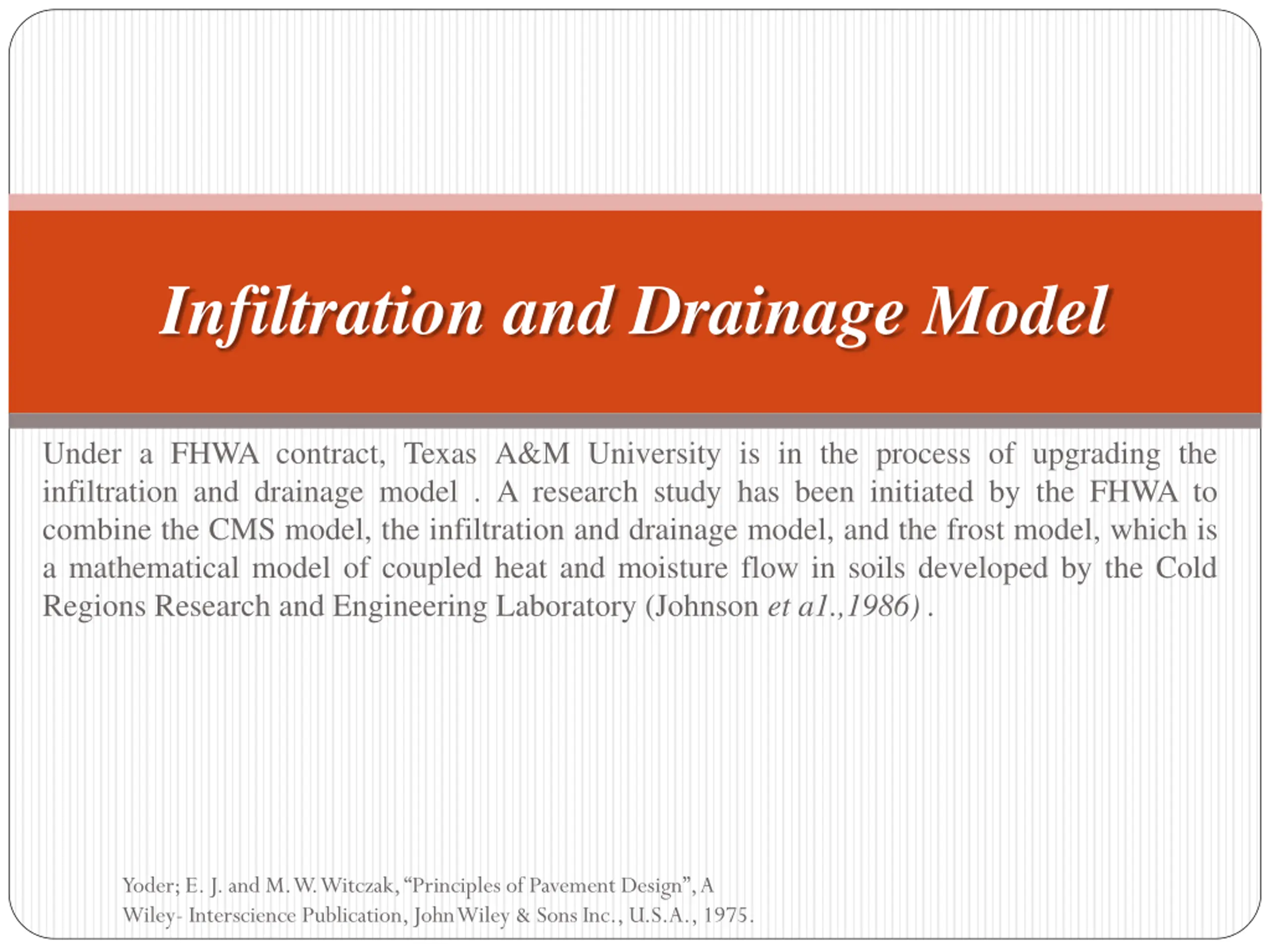

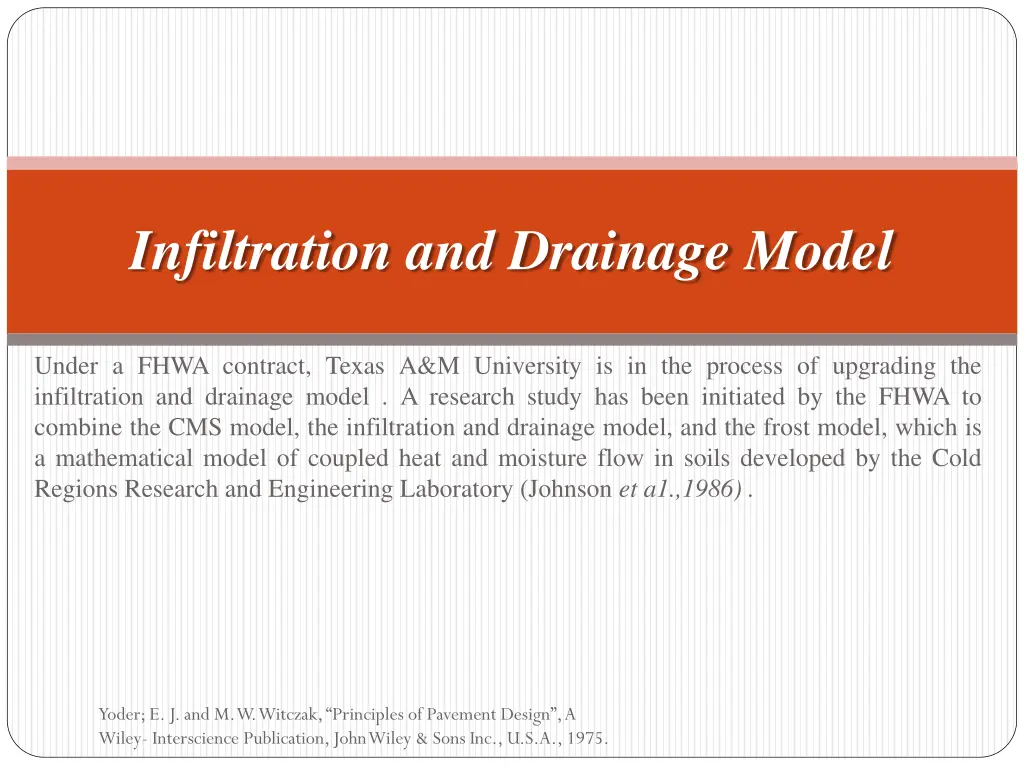

Infiltration and Drainage Model Under a FHWA contract, Texas A&M University is in the process of upgrading the infiltration and drainage model . A research study has been initiated by the FHWA to combine the CMS model, the infiltration and drainage model, and the frost model, which is a mathematical model of coupled heat and moisture flow in soils developed by the Cold Regions Research and Engineering Laboratory (Johnson et a1.,1986) . Yoder; E. J. and M. W. Witczak, Principles of Pavement Design , A Wiley- Interscience Publication, John Wiley & Sons Inc., U.S.A., 1975.

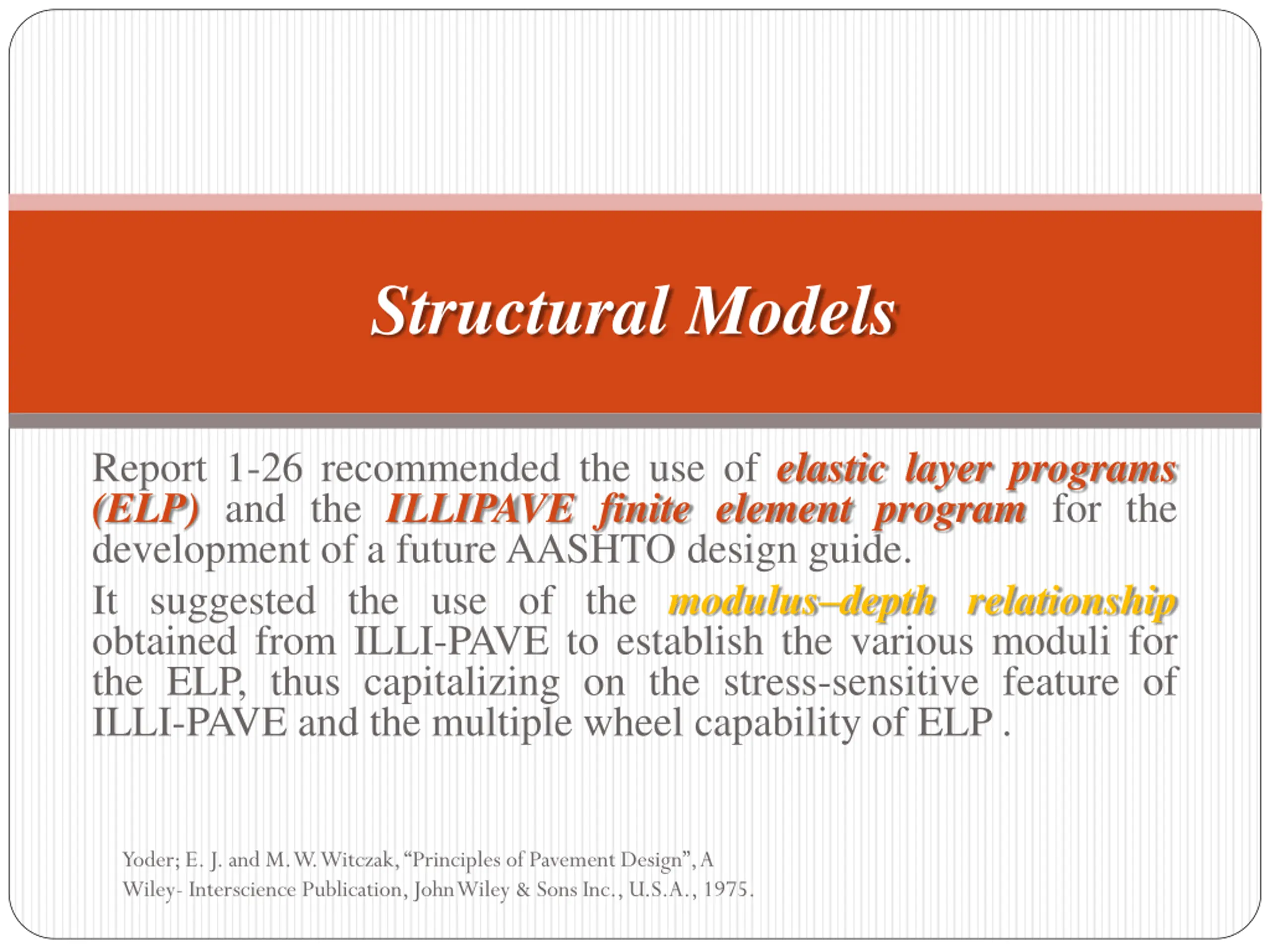

Structural Models Report 1-26 recommended the use of elastic layer programs (ELP) and the ILLIPAVE finite element program for the development of a future AASHTO design guide. It suggested the use of the modulus depth relationship obtained from ILLI-PAVE to establish the various moduli for the ELP, thus capitalizing on the stress-sensitive feature of ILLI-PAVE and the multiple wheel capability of ELP . Yoder; E. J. and M. W. Witczak, Principles of Pavement Design , A Wiley- Interscience Publication, John Wiley & Sons Inc., U.S.A., 1975.

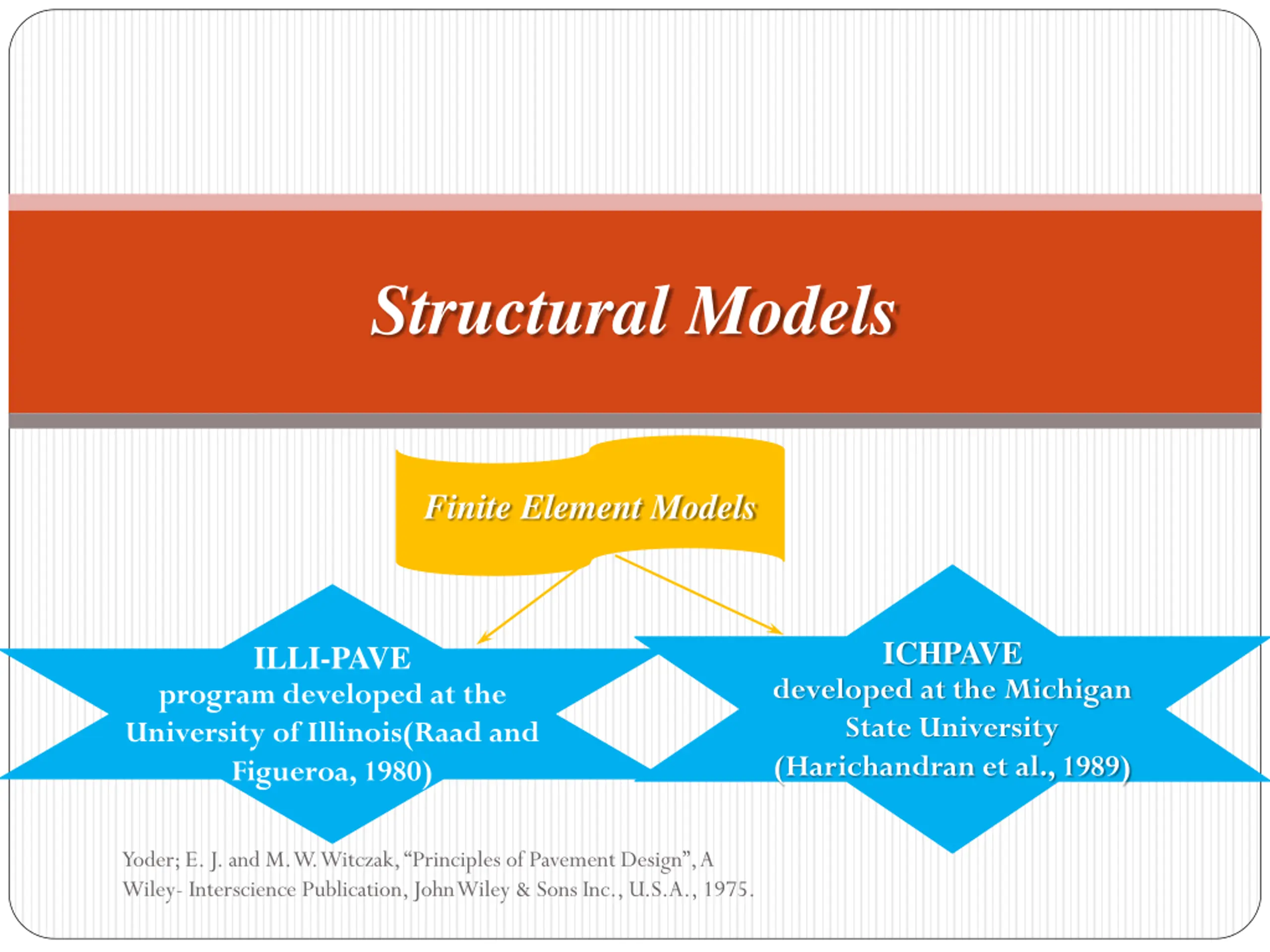

Structural Models Finite Element Models ICHPAVE ILLI-PAVE developed at the Michigan State University (Harichandran et al., 1989) program developed at the University of Illinois(Raad and Figueroa, 1980) Yoder; E. J. and M. W. Witczak, Principles of Pavement Design , A Wiley- Interscience Publication, John Wiley & Sons Inc., U.S.A., 1975.

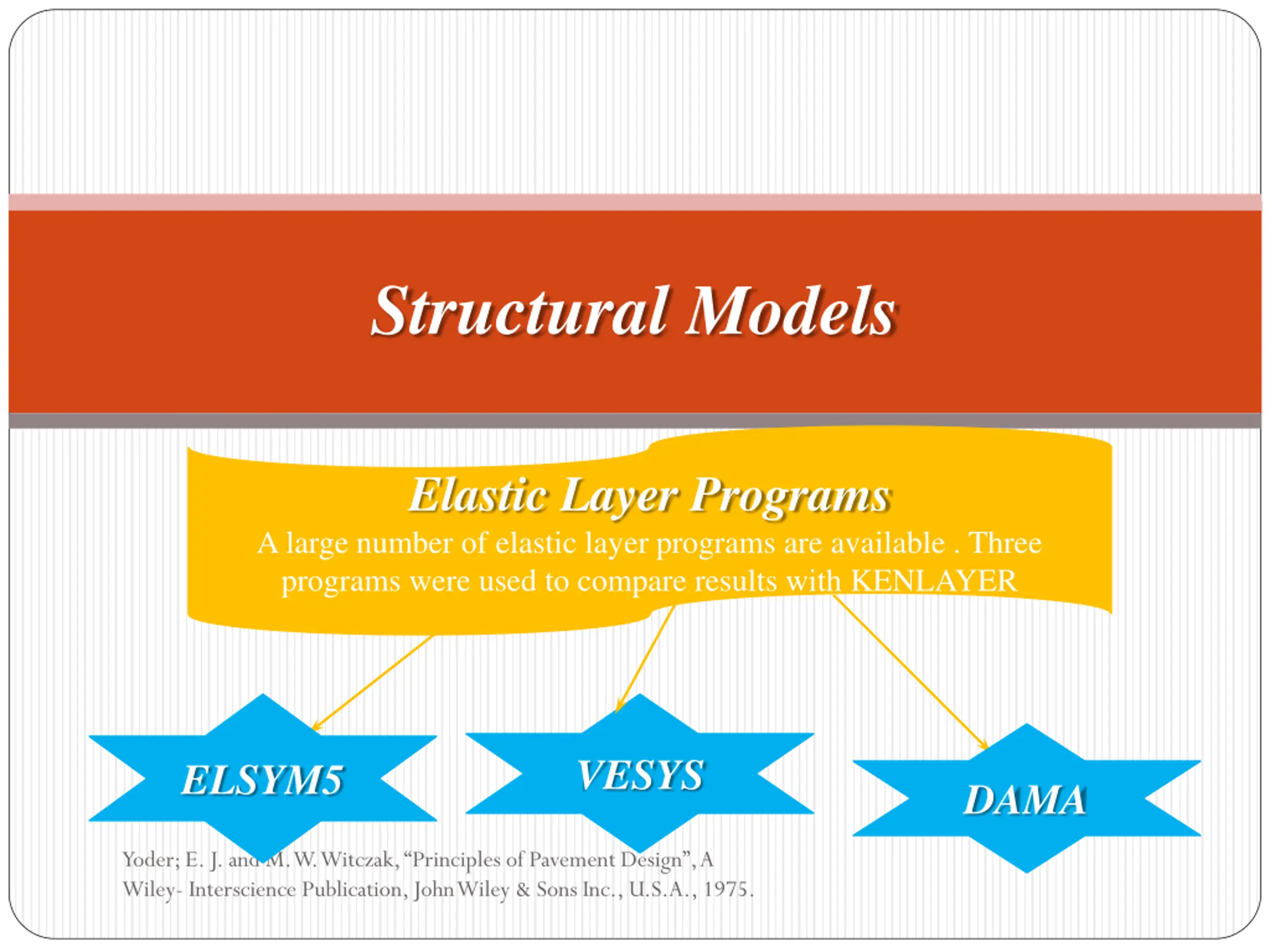

Structural Models Elastic Layer Programs A large number of elastic layer programs are available . Three programs were used to compare results with KENLAYER VESYS ELSYM5 DAMA Yoder; E. J. and M. W. Witczak, Principles of Pavement Design , A Wiley- Interscience Publication, John Wiley & Sons Inc., U.S.A., 1975.

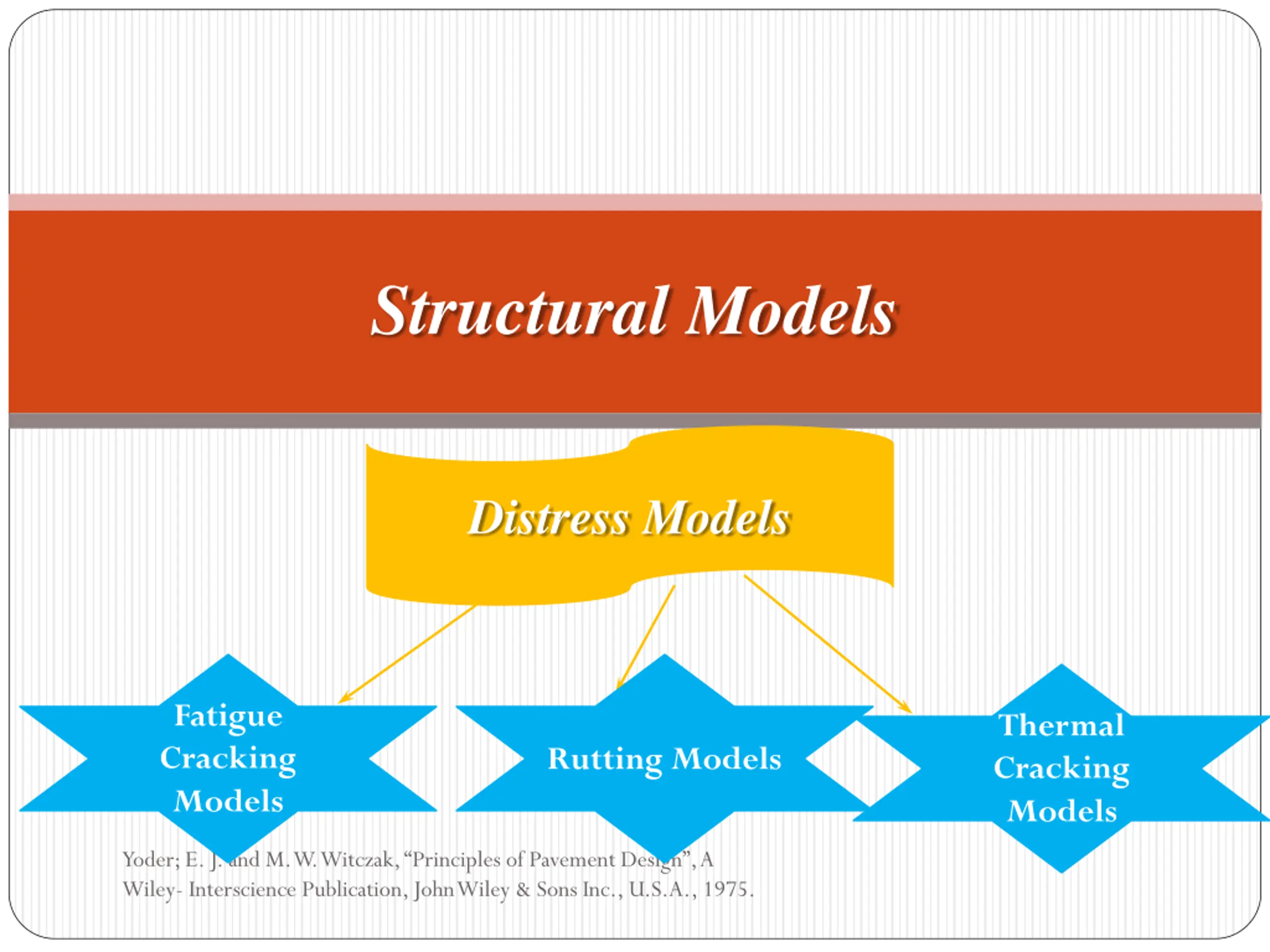

Structural Models Distress Models Fatigue Cracking Models Thermal Cracking Models Rutting Models Yoder; E. J. and M. W. Witczak, Principles of Pavement Design , A Wiley- Interscience Publication, John Wiley & Sons Inc., U.S.A., 1975.

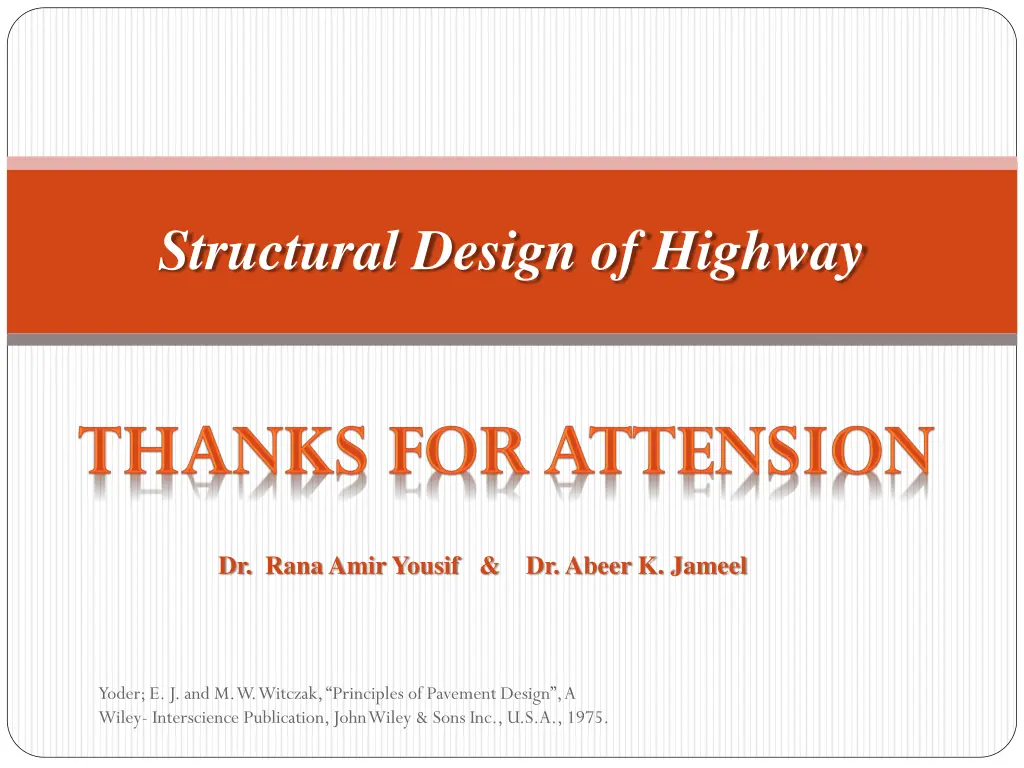

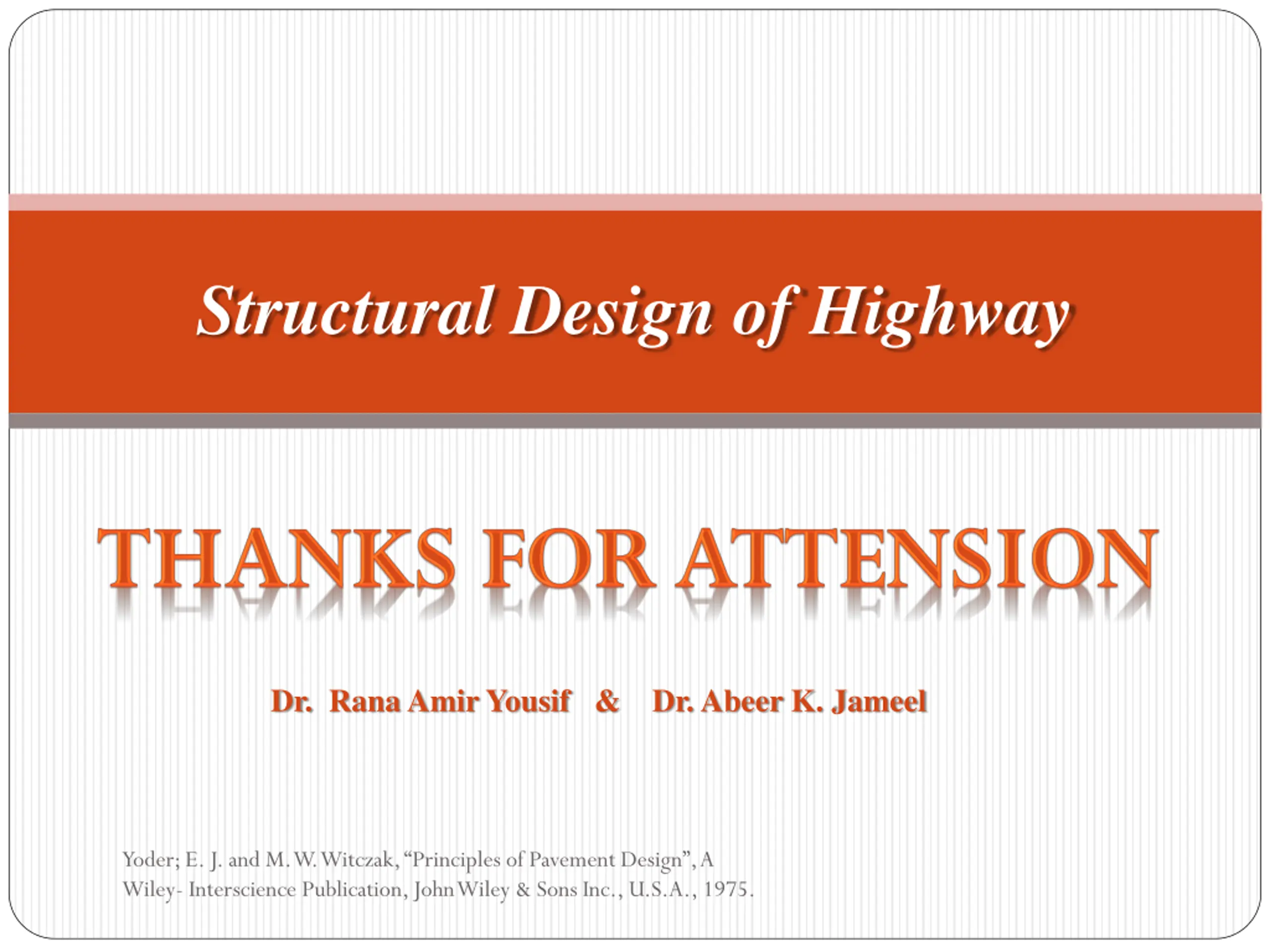

Structural Design of Highway Dr. Rana Amir Yousif & Dr. Abeer K. Jameel Yoder; E. J. and M. W. Witczak, Principles of Pavement Design , A Wiley- Interscience Publication, John Wiley & Sons Inc., U.S.A., 1975.
