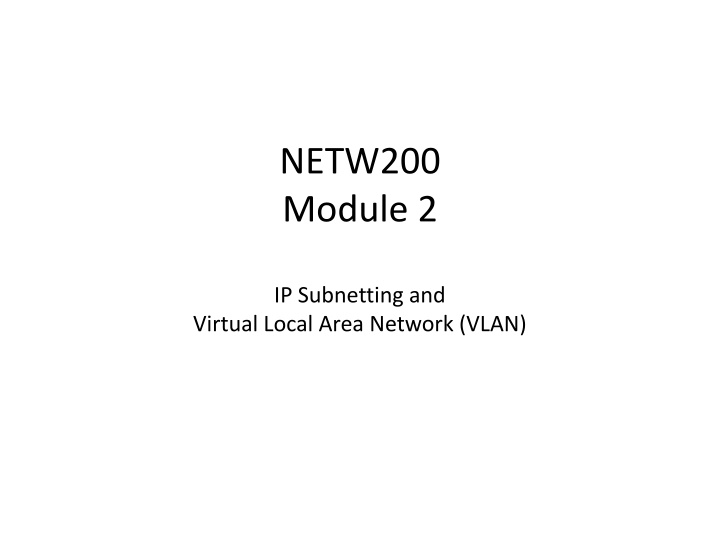

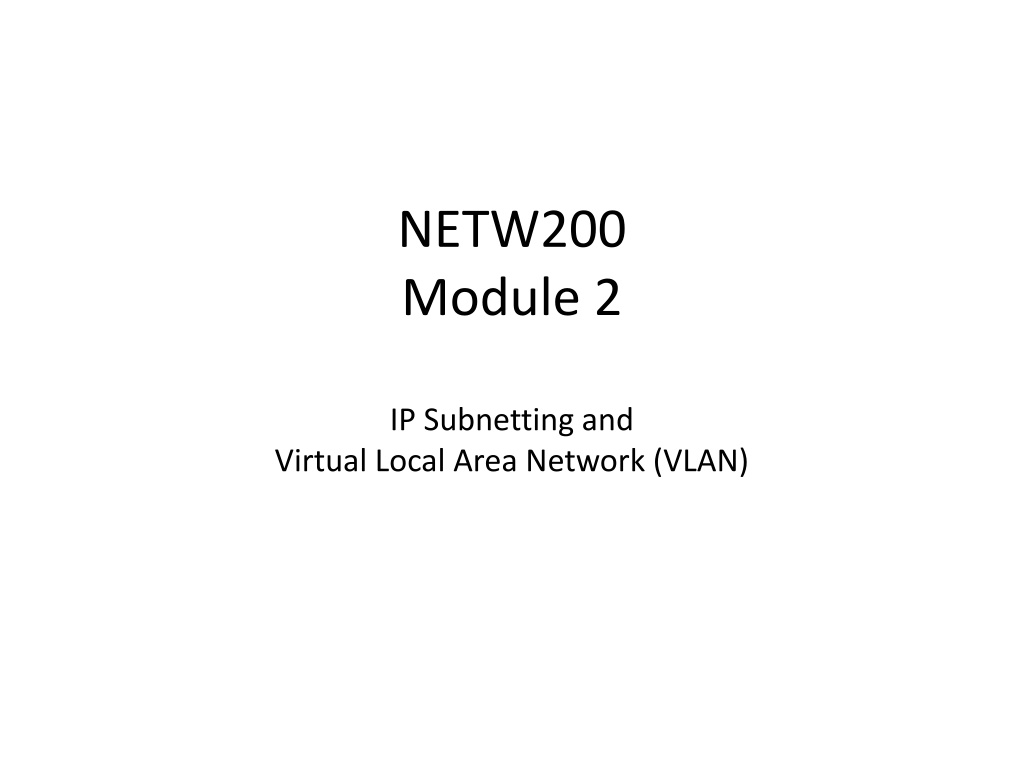

NETW200 Module 2 IP Subnetting and Virtual Local Area Network (VLAN)

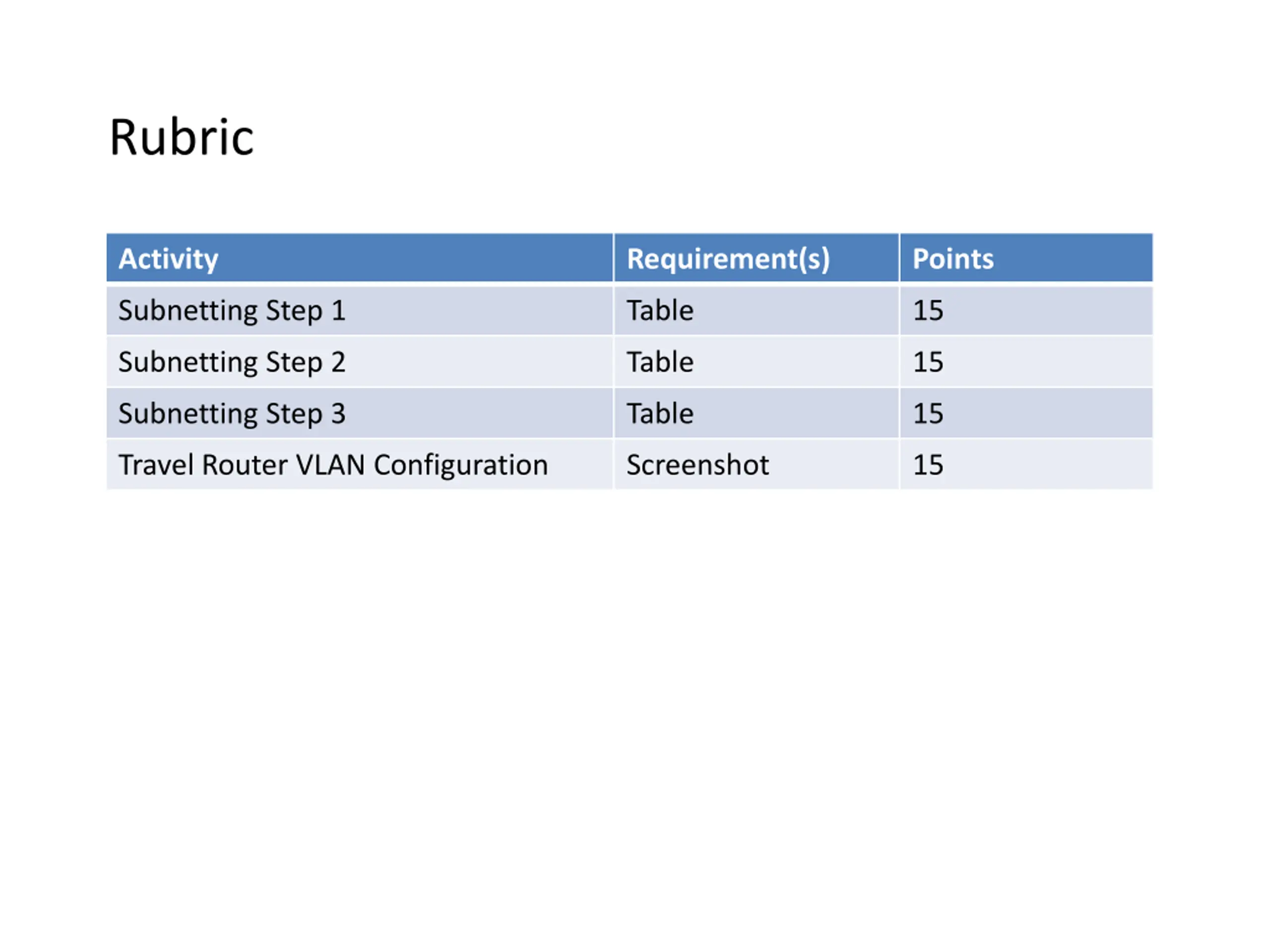

Rubric Activity Requirement(s) Points Subnetting Step 1 Table 15 Subnetting Step 2 Table 15 Subnetting Step 3 Table 15 Travel Router VLAN Configuration Screenshot 15
Subnetting Step 1 List of four /26 networks, including network addresses, first usable addresses, last usable addresses, and broadcast addresses.

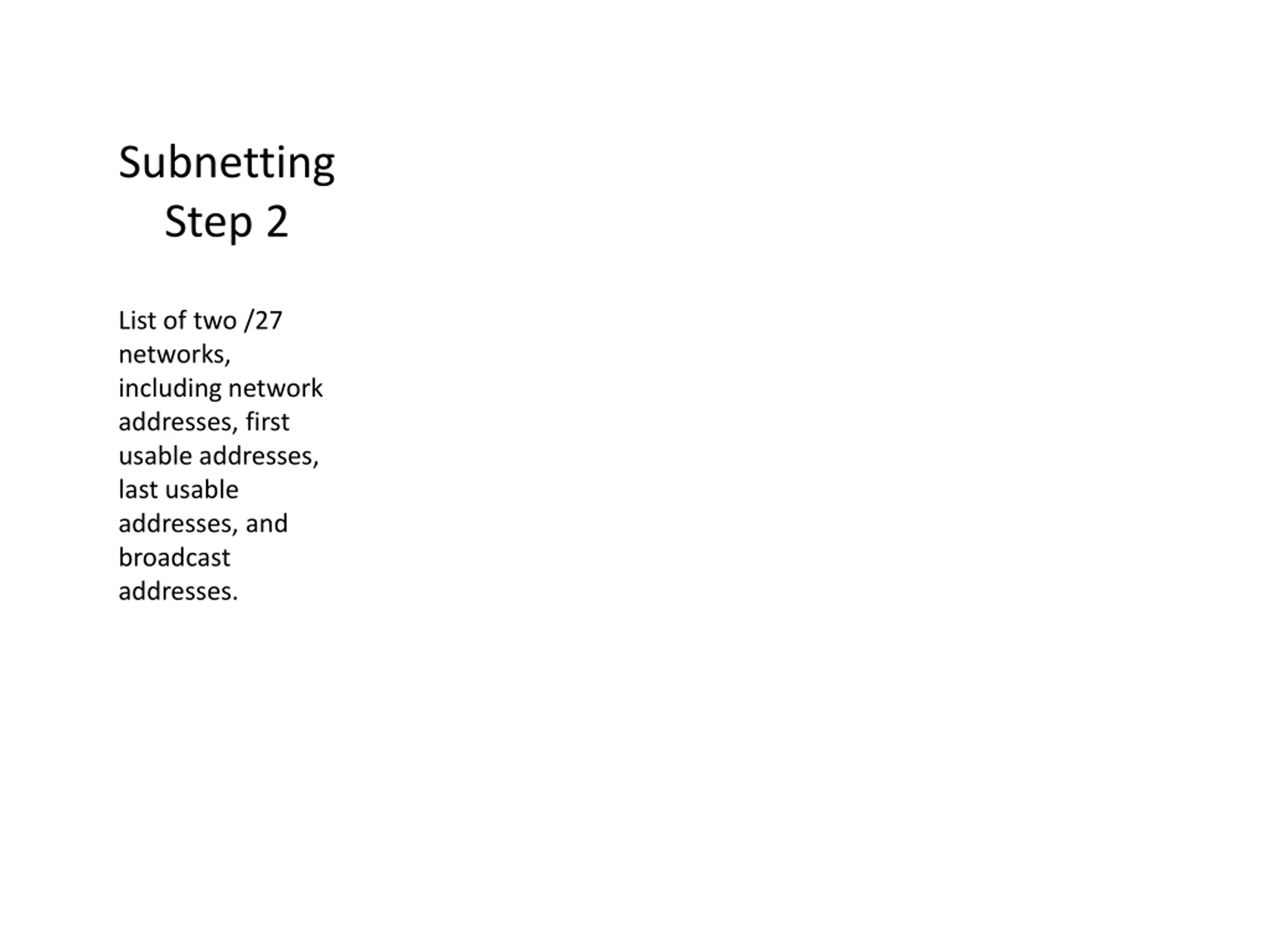

Subnetting Step 2 List of two /27 networks, including network addresses, first usable addresses, last usable addresses, and broadcast addresses.

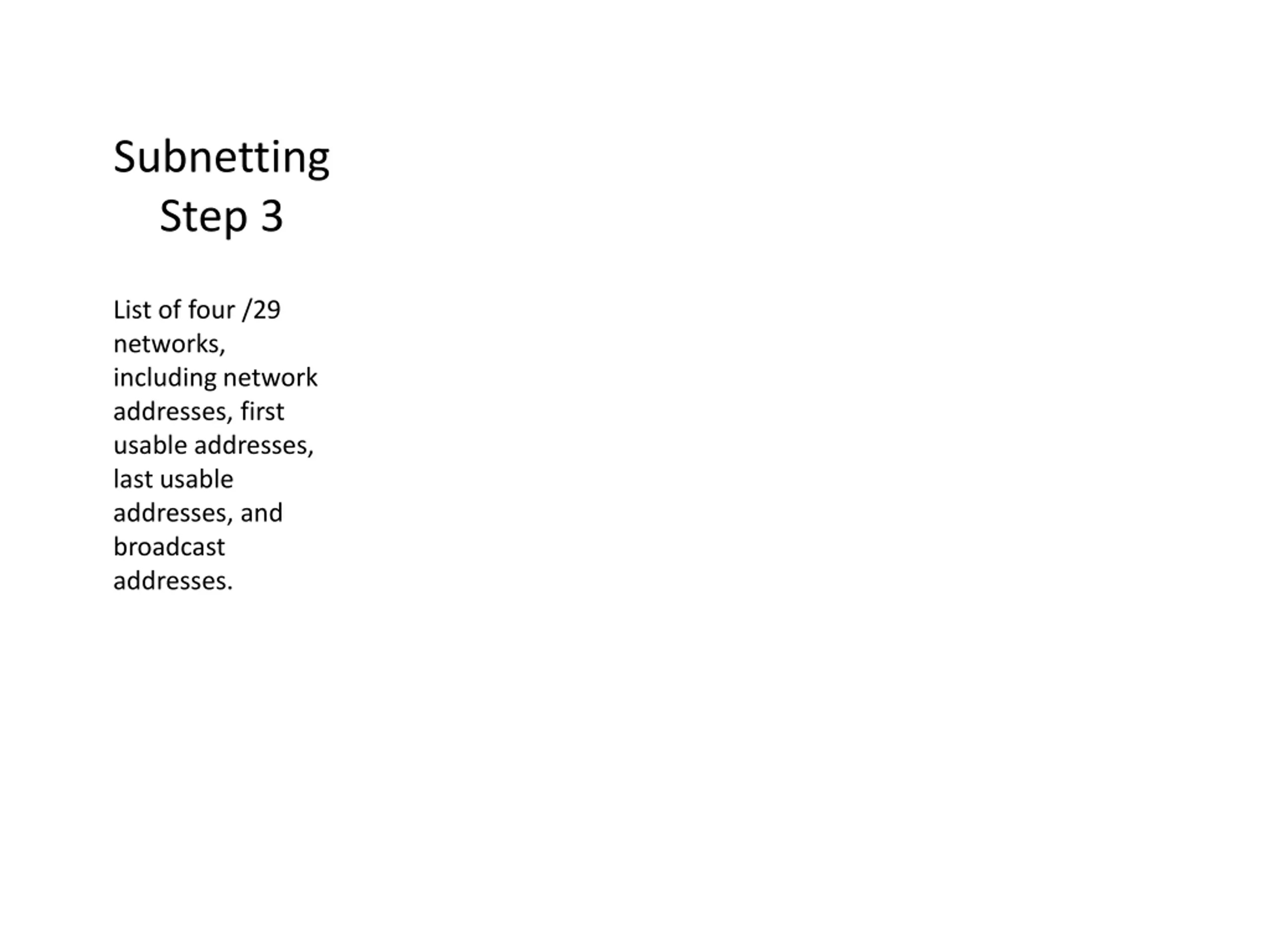

Subnetting Step 3 List of four /29 networks, including network addresses, first usable addresses, last usable addresses, and broadcast addresses.

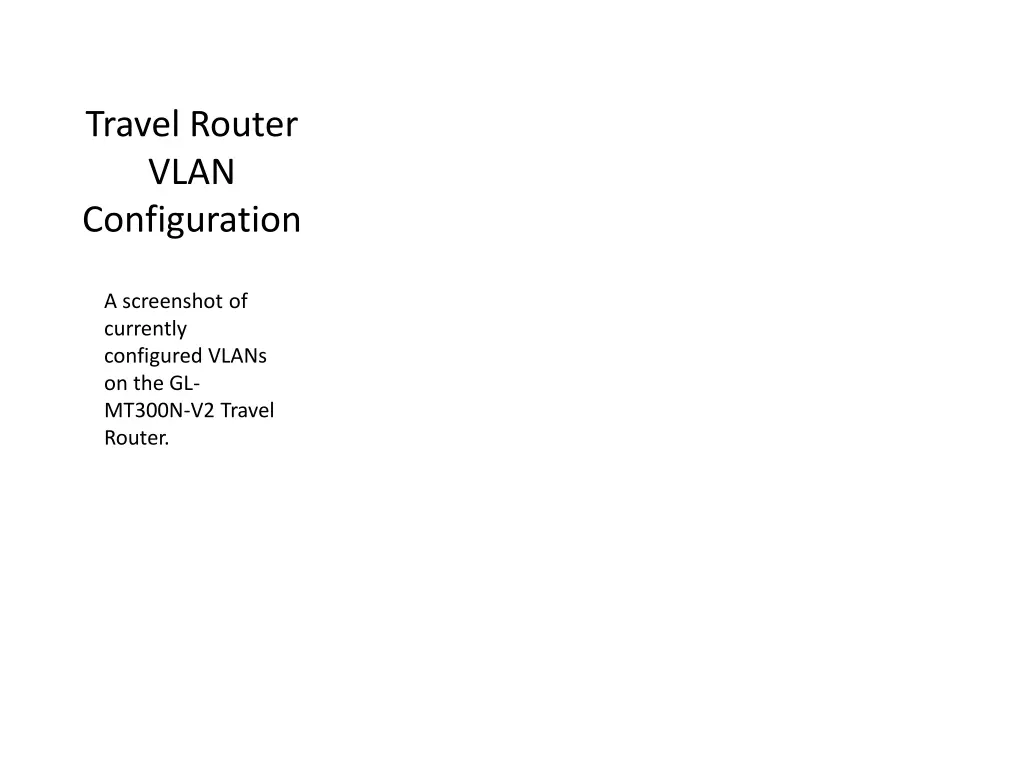

Travel Router VLAN Configuration A screenshot of currently configured VLANs on the GL- MT300N-V2 Travel Router.
